Detection and Characterization of Short Fatigue Cracks by Conduction Thermography ^†

Abstract

Stimulated thermography is a very common non-destructive testing (NDT) technique used for a wide range of applications and materials. An external excitation source is required to stimulate the component and detect defects. Electric currents can be used in this sense adopting two different approaches: induction thermography and conduction thermography. In this work, a preliminary investigation to evaluate the influence of some test parameters during experiments of conduction thermography, for the detection of short fatigue cracks, induced in thin specimens of different materials, is presented. The capability of the technique and crack detectability have been analysed and compared with the Thermoelastic Stress Analysis (TSA) considered as a well-established technique capable of quantifying short fatigue cracks in metal materials.

1. Introduction

A component made of a conductive material can be inspected with the use of thermographic techniques in different ways and adopting several excitation sources. In this sense, induction and conduction thermography can be used [1,2,3,4,5]; with both approaches a current is induced within the inspected component, and depending on the current density and distribution, heating occurs in the component.

The use of induction thermography is very established and common for this kind of applications, with old and more recent publications [3,4,5,6], which have established limits and advantages in the application of the technique, also providing the POD curves (critical crack lengths) for different test conditions and geometric characteristics of the crack, as demonstrated in the work of Prof. Oswald-Tranta [6] with simulated and experimental data; instead, there are very few and old publications that proposed and discussed the conduction thermography technique (CTT) [1,2].

Basically, CTT is based on the transient temperature field under Joule effect heating generated by an electric current of a certain intensity (in DC or AC) [1]. The CTT allows to overcome the well-known problems related to the use of an induction coil (coil geometry and position with respect to the component). Moreover, another advantage is given by the possibility of using direct current (DC), that results homogeneously distributed if no defects are present [1] and allows to inspect deeper depths with respect to AC current.

In this work, an innovative and low-cost set-up is proposed to inspect several thin specimens of different materials by means of conduction thermography, adopting mainly a microbolometer sensor and a switching power supply up to 100 A. Pulsed (PT) and lock-in (LT) techniques have been applied, providing the capability of the technique and proposed approach to localize and quantify cracks. The obtained results were compared with those obtained by means of Thermoelastic Stress Analysis (TSA) [7,8,9] that can be considered a reference method.

2. Materials and Methods

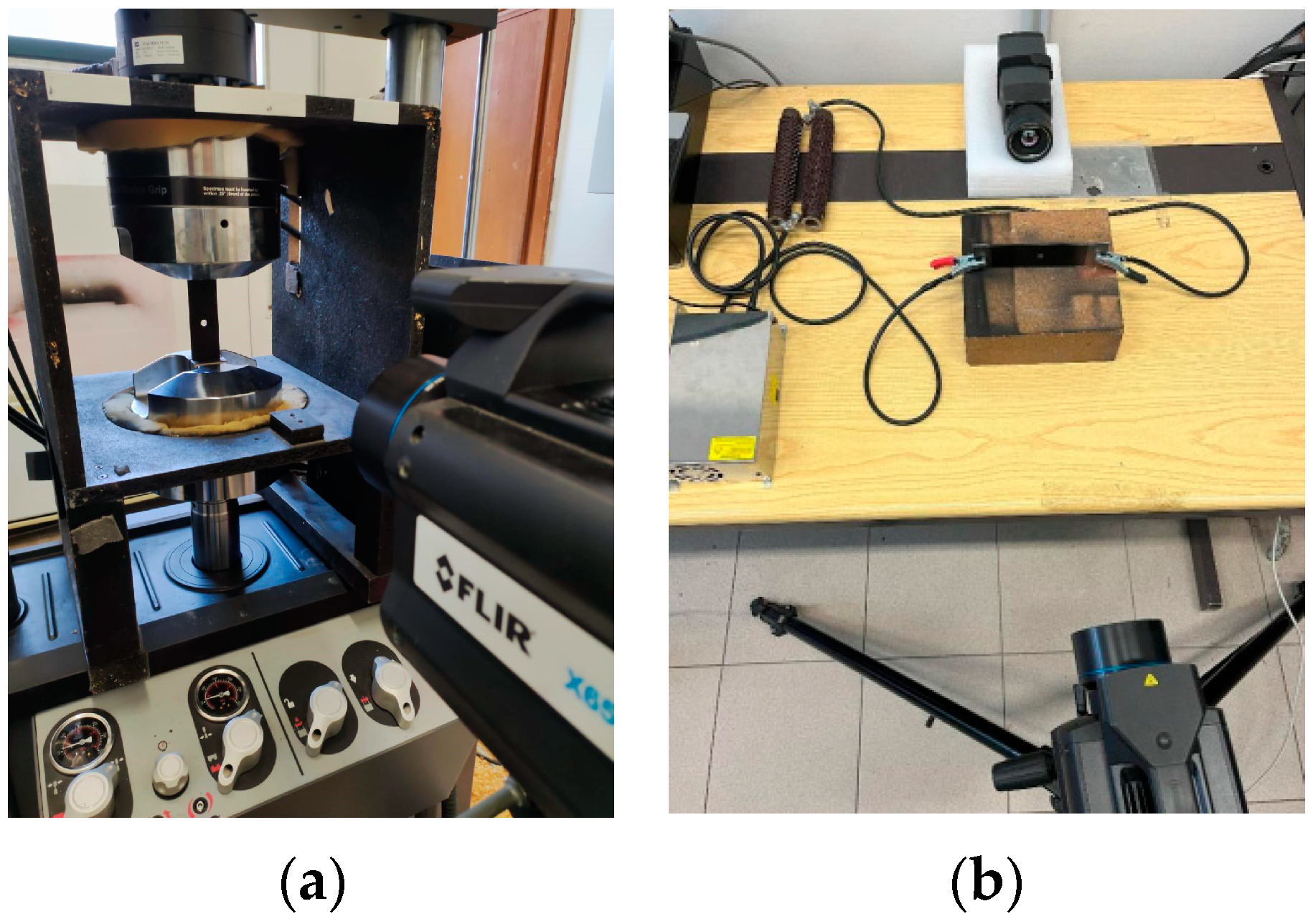

The cracks have been generated by means of different cyclic tests with the MTS model 370 servo hydraulic fatigue machine with a 100 kN capacity (Figure 1a). Three different metal specimens have been analysed (see

Table 1. Crack length estimation considering the results that come from the analysis of the different algorithms after a pulsed conduction test (100 A) with the cooled and microbolometer (uncooled) sensors and comparison with TSA.

Sp. ID	Material	Cooled PT Slope	Cooled PT R2	Uncooled PT Slope	Uncooled PT R2	TSA
S1	Titanium alloy Ti-6Al-4V	2.30 ± 0.15	2.10 ± 0.15	2.58 ± 0.14	2.43 ± 0.16
S1 coat		2.30 ± 0.23	2.58 ± 0.17	2.71 ± 0.17	2.57 ± 0.14	2.25 ± 0.15
S2	Ferromagnetic steel	1.40 ± 0.15	1.35 ± 0.15	1.40 ± 0.14	1.54 ± 0.14
S2 coat		1.85 ± 0.17	1.55 ± 0.35	1.59 ± 0.14	1.59 ± 0.21	1.43 ± 0.15
S3	Austenitic steel AISI 304	1.30 ± 0.15	1.55 ± 0.15	1.77 ± 0.21	1.35 ± 0.14
S3 coat		1.60 ± 0.15	1.80 ± 0.15	1.82 ± 0.14	1.87 ± 0.16	1.43 ± 0.15

for details), with a similar geometry (hole of 8 mm diameter, S1 180 × 38 × 3 mm³, S2 and S3 200 × 30 × 1 mm³).

Thermoelastic data have been acquired by means of an infrared-cooled camera FLIR X6540sc with an indium-antimonium detector (FLIR Systems, Inc., Wilsonville, OR, USA, NETD < 25 mK, 640 × 512 pixels) and processed with the software IRTA 2. In particular, the specimens were tested applying a loading frequency equal to 13 Hz while sequences of ten seconds were acquired setting the frame rate to 200 Hz. For TSA tests, all the specimens have been painted with flat black coating for increasing emissivity value up to about 0.95.

Conduction tests have been carried out with the set-up shown in Figure 1b, considering two different infrared cameras placed on opposite sides of the specimen in order to monitore the crack length on both surfaces. In particular, the cooled camera X6540sc (lens 50 mm, MWIR, temperature range 12.7–86.4 °C, integration time 0.57 ms, windowing 320 × 204, spatial resolution 0.15 mm/pixel) has been used on one side and a microbolometer FLIR A655sc (FLIR Systems, Inc., Wilsonville, OR, USA, lens 25 mm, LWIR, temperature range −40–150 °C, NETD < 30 mK, windowing 640 × 240 pixels, spatial resolution 0.14 mm/pixel) on the opposite side, trying to achieve the best resolution in both cases (however, no spacer ring has been added). A switching power supply has been adopted (12 V, 83.3 A), together with electrical resistors placed in series with the test specimens to avoid short circuits and change current levels (24, 37, 54, 74, 100 A). To set the pulse duration during pulsed tests (PT, frame rate cooled camera 500 Hz, microbolometer camera 100 Hz, pulse duration 2 s) and perform also lock-in tests (LT, frame rate 25 Hz, 3 cycles) with a square wave [10], a function generator has been used, together with a solid state relay to open and close the circuit. Furthemore, a clamp ammeter has been adopted to register for each test the effective current value. Different tests have been performed, changing the test parameters and repeating the tests 3 times, considering the specimens with and without black coating.

3. Procedure for Data Analysis and Results

To analyze data that come from conduction tests and to obtain from these some quantitative results for crack length estimation, common post-processing algorithms have been adopted, considering, for this preliminary work, the pulse thermal data and the heating phase. If a crack is present inside the inspected component, a localized temperature rise due to both the cross-section reduction and the concentration of the current distribution can be observed. Basically, it is possible to approximate the heating of the specimens with a straight line, and estimate the slope and square correlation coefficient R², pixel by pixel.

The entire heating of almost 2 s can be evaluated, or only a part of it, to simulate different pulsed tests in the post-processing analysis [11,12]. Then, the sequences related to the contrast and the normalized contrast (CNR) [11] have been evaluated, considering a sound area near the crack (25 × 25 pixels²). An automatic routine that searches for the maximum value reached by each pixel for each investigated algorithm has then been used to identify the crack tip and quantify the crack length.

Finally, for TSA technique the position of the crack tip has been obtained applying Diaz’s approach [7]. Diaz’s method is a graphical approach based on the analysis of the characteristic phase signal trend along a line/profile passing through the crack tip [7].

4. Discussion

In Table 1 are reported some significative results obtained with CTT (only PT tests, for brevity) and TSA, as a comparison. In particular, for CTT, the mean and standard deviation value of 3 replications have been considered (when the standard deviation value is smaller than the test geometrical resolution this value is instead reported); for TSA a single measurement has been evaluated, and as standard deviation the measure of 1 pixel is considered. For brevity, these results are related to the pulsed conduction tests performed with a current value of 100 A and considering the specimens with and without black coating (for steel specimens the estimated emissivity value is around 0.2–0.3).

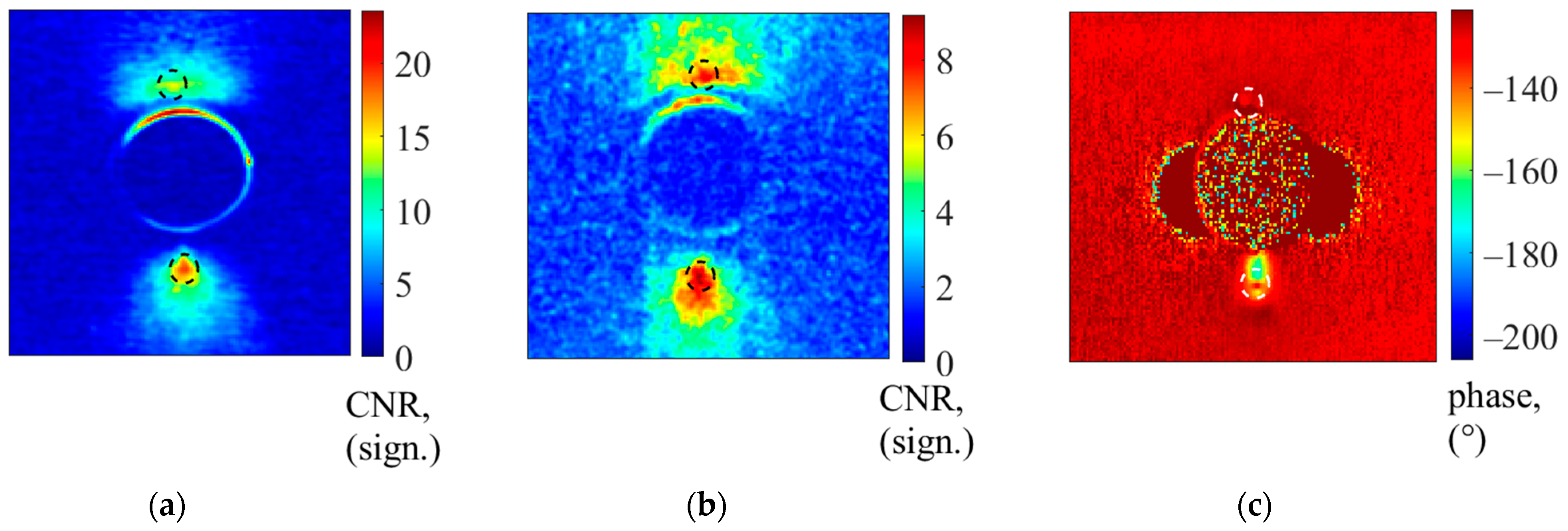

Some thermal maps are also shown in Figure 2 considering the results obtained for the titanium specimen (slope algorithm after CNR evaluation). In this case, and considering the slope algorithm, a time of about 0.1–0.2 s proved to be sufficient to obtain an indication around the crack tip. The obtained results also show the presence of a very small crack on the upper part of the hole (crack length ≈ 0.5 mm). To be complete, for this material, some quantitative results (CNR ≥ 2) have been obtained considering a current value of just 37 A for specimens with black coating, while it is necessary to reach 54 A to have a significative crack tip indication for uncoated specimens. The quantitative results reported in Table 1 for the crack length estimation by means of CTT show almost always a slight overestimation of the crack length, but in any case, in agreement with those obtained considering the TSA as reference technique.

5. Conclusions

In this preliminary work, the capability of conduction thermography in fatigue crack detection has been demonstrated, investigating different specimens and materials.

Considering the adopted set-up, with low-cost devices, especially in terms of energy source, and the reached current levels, it has been possible to obtain quantitative results in agreement with those obtained with the TSA technique, but without the necessity to use a black coating to increase and uniform the emissivity.

However, the applicability of this technique depends on the electrical properties of the material and then to the current required to detect defects. Future developments will investigate the possibility of using the proposed technique and methodologies for crack monitoring, to demonstrate its possible application as a structural health monitoring (SHM) technique. The temperature variations due to the Joule’s effect around notches and cracks appear very similar to the ones obtained with TSA. The possible relationship between the two techniques will be investigated in future works.
