Investigation of Machining Parameters and Surface Quality of AZ-31 Magnesium Alloy Subjected to Spark Machining ^†

Abstract

Magnesium alloys are commonly used in various industries such as automotive, aerospace, electrical, medical, sports, etc. The material is preferred in the making of engine blocks, transmission cases, and structural parts due to its unique material properties, like being lightweight and durable. It also offers a good strength-to-weight ratio and directly contributes to the fuel efficiency of vehicles. Due to its usage in various industries, it is essential to understand its behavior under machining. But the machining of magnesium alloys can present significant challenges compared to other conventional structural metals and alloys. The research work focuses on investigating the application of a Plug Electrical Discharge Machine (EDM) for machining the AZ-31 magnesium alloy and aims to analyze the surface quality of the machined surface for selected input parameters. The experiments were conducted on a mirror-finished flat specimen while keeping the incision depth and servo voltage constant at 0.3 mm and 45 V, respectively. A copper tool was used to make nine unique incisions on the surface using selected values of pulse on-time (T_on), pulse off-time (T_off), and current (I). A surface analysis using optical microscopy revealed that the surface roughness increased drastically with a combination of high values of I, T_on, and T_off. The tests conducted using a profilometer confirmed the proportional relationship between the input parameters and the surface roughness of the AZ-31 magnesium alloy.

1. Introduction

Specific metals and alloys are most widely utilized in various industries such as automotive, aerospace, electrical, medical, sports, and so on. Toughness, stiffness, cost, temperature resistance, corrosion resistance, wear resistance, and other factors all contribute to material selection [1]. For example, stainless steel and its alloys are widely utilized because of their high corrosion resistance, high strength, and superb surface polish. However, it has drawbacks such as overheating, poor durability, heavy weight, and excessive cost.

Magnesium (Mg) is often regarded as the best green substance for the twenty-first century [2]. Magnesium and its alloys are widely used in many industries for countless applications, such as aerospace to reduce weight in fuselage structures; automobile industries to construct instrument panel beams, transfer cases, and steering components; and biomedical industries to create cardiovascular stents and bone implants. It has notable characteristics such as a low density, a high strength-to-weight ratio, castability, and being lightweight [3,4].

Its alloys are formed by combining different materials, with magnesium being the primary metal. This is carried out to achieve specific enhanced properties in magnesium, which might be the requirement as per the application. For example, the AZ-91 alloy (Mg, 9%Al, 1%Zn) is used in making automotive valve covers [5], and commercial magnesium alloys like AZ-91D, AM-60B, and AM-50A are generally acknowledged to have a good balance of mechanical and physical qualities at room temperature, outstanding die castability, strong corrosion resistance, ease of handling, and a reasonable price [6].

There are some issues with the machining of magnesium alloys, such as a danger of chip ignition, a loss of machining accuracy, a reduction in tool life, and an adhesion of tool and magnesium workspace [7]. The low melting point and ignition susceptibility of magnesium can make it challenging to machine. As a result, high-speed machining (HSM) tends to result in built-up edges, which has the repercussions of resulting in poor surface polish and dimensional accuracy, and it may also result in ignition during milling [8].

Spark machining, commonly also known as Electrical Discharge Machining (EDM), is a type of non-contact, non-conventional machining process. EDM works on the concept of an electric circuit. The workpiece and tool are both magnetic, but they are not in contact with each other. There always remains a very minute gap of about 0.05mm. Due to the circuit not being completed, spark formation takes place in the presence of a dielectric fluid, which acts as a spark bridge. Due to the spark formation, a minute portion of both the tool and workpiece will be eroded and evaporated. This process continues until the desired thickness of material has been removed from the workpiece. This function of an EDM eliminates almost all the issues arising during traditional or contact machining. Recent works by Ahuja N et al. (2020) [9] on the ZM21 Mg alloy, Qiu R et al. (2020) [10] on the super-hydrophobic AZ31B Mg alloy, and in other references [5,7,8] show that there has been a significant focus on magnesium and its alloys because of their industrial importance.

From the literature review, it is noticed that there is a necessity for a systematic study on machining parameters’ effect on the surface quality of the AZ-31 Mg alloy when subjected to plug EDM. The aim of this article is to provide insights on the effect of input parameters on the surface quality of the machined AZ-31 Mg alloy. In the current work, an experimental investigation is carried out on the AZ-31 Mg alloy to obtain the optimal machining parameters. The machining is conducted using Plug EDM, as it creates intricate shapes and designs with ease and high accuracy. The investigation focuses on the effect of varying parameters such as current (I), pulse on-time (T_on), and pulse off-time (T_off) on the machined surface. The combination of parameters is formulated using an L27 array. After the incisions, qualitative and quantitative information about the machined surface analysis will be carried out using optical microscopy and profilometer instruments.

2. Materials and Methods

2.1. Material Selection

Being 35% lighter than aluminum and 78% lighter than steel, magnesium is the lightest construction metal on Earth. Magnesium holds significant potential for becoming the default alternative to materials such as aluminum for structural and engineering purposes due to its low density (65% of that of aluminum), ductility, ease of machining, high strength, and good mechanical properties [11]. Being the 8th most abundant element in the Earth’s crust, it is also non-toxic to the natural environment and human body [12]. Such properties also make it the material of choice in the bio-medical, electronics, battery applications, and transportation industries [13].

Table 1. AZ31 Mg alloy—element composition list (theoretical values) [14].

Constituents	Mg	Al	Zn	Mn	Si	Cu	Ca	Fe	Ni
Content %	97	3.2	1.0	0.45	<0.1	0.003	<0.01	<0.005	<0.003

shows the elemental composition of the AZ-31 Mg alloy.

2.2. Tool and Specimen Preparation

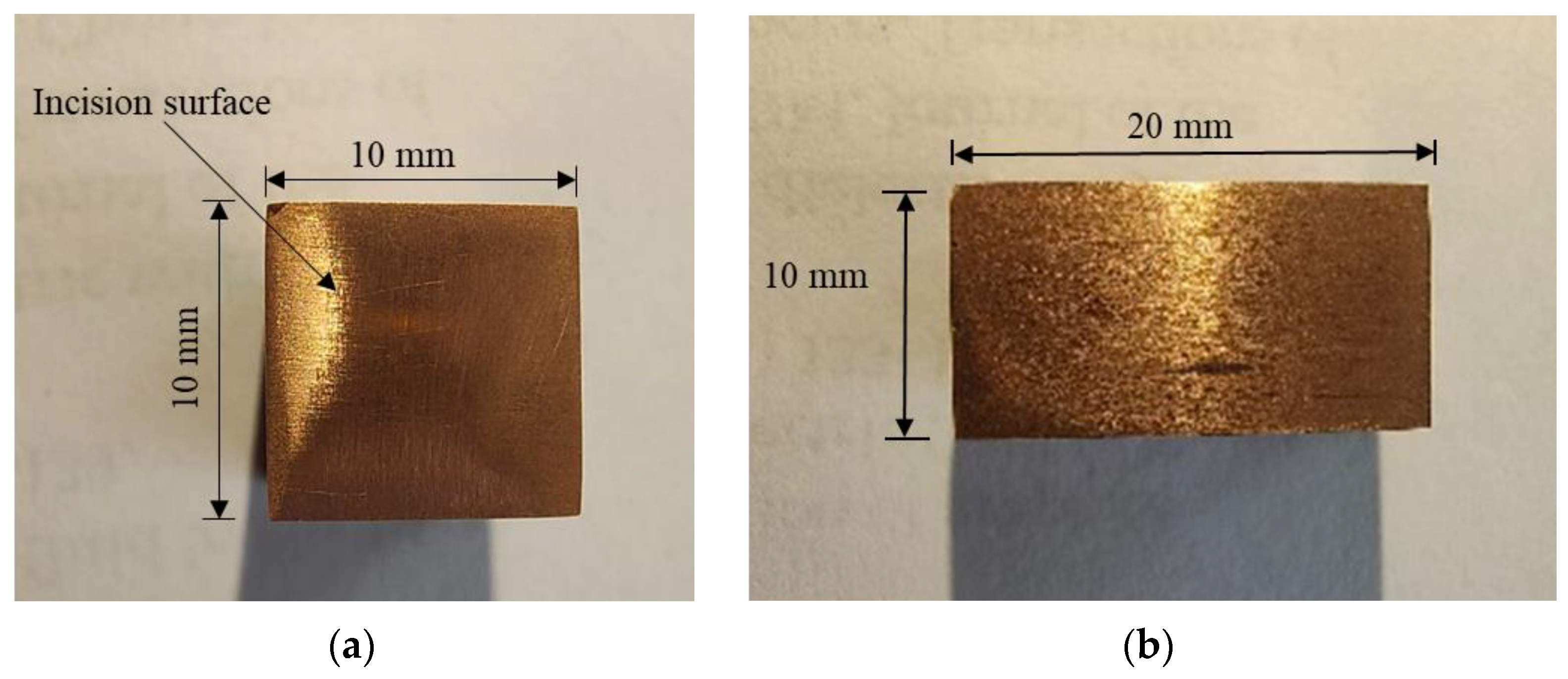

In order to have properties like good strength and high conductivity for the experiment, a tool made from copper was used to make incisions on the surface of the magnesium workpiece. A copper rod with a 16 mm diameter and 40 mm length was machined on a manual lathe machine to reduce the diameter to 14.2 mm. Using CNC, it was reduced to a cuboid with 10 mm sides and a 40 mm length. It was then machined on a manual lathe to achieve the desired dimensions of 10 mm × 10 mm × 20 mm. Figure 1 shows the final dimensions of the copper tool.

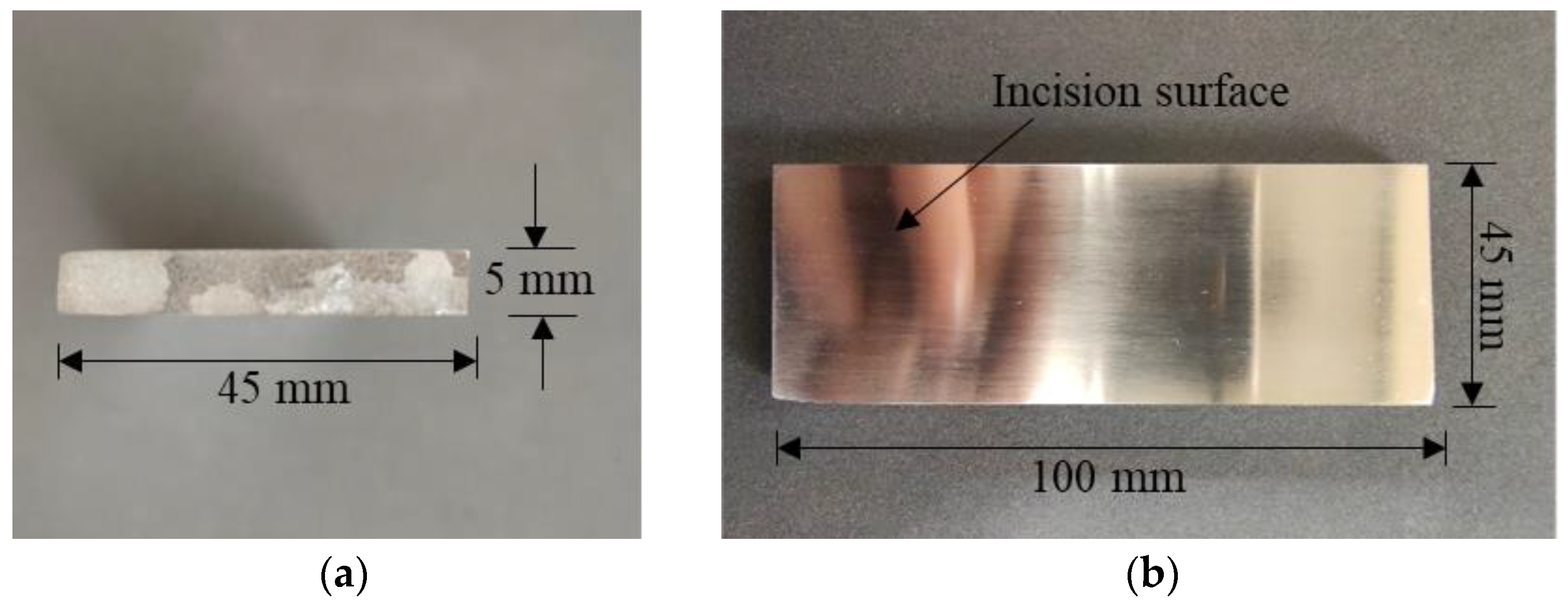

The workpiece was a cuboidal slab of the AZ-31 magnesium alloy of the given dimensions: 100 mm × 45 mm × 10 mm. The workpiece was cut into 2 parts longitudinally using Wire EDM to obtain two workpieces of a width of 5 mm each. This was carried out to increase the amount of available surface area to conduct more experiments (incisions). After the operation on the Wire EDM, the surface finish on the first set of 2 workpieces was improved using emery paper of 80, 320, 600, 800, 1200, 1500, and 2000 grit to obtain a mirror-like surface finish. Figure 2 shows the final dimensions and the mirror-like surface finish of the workpiece.

2.3. Experimental Setup and Machining Using EDM

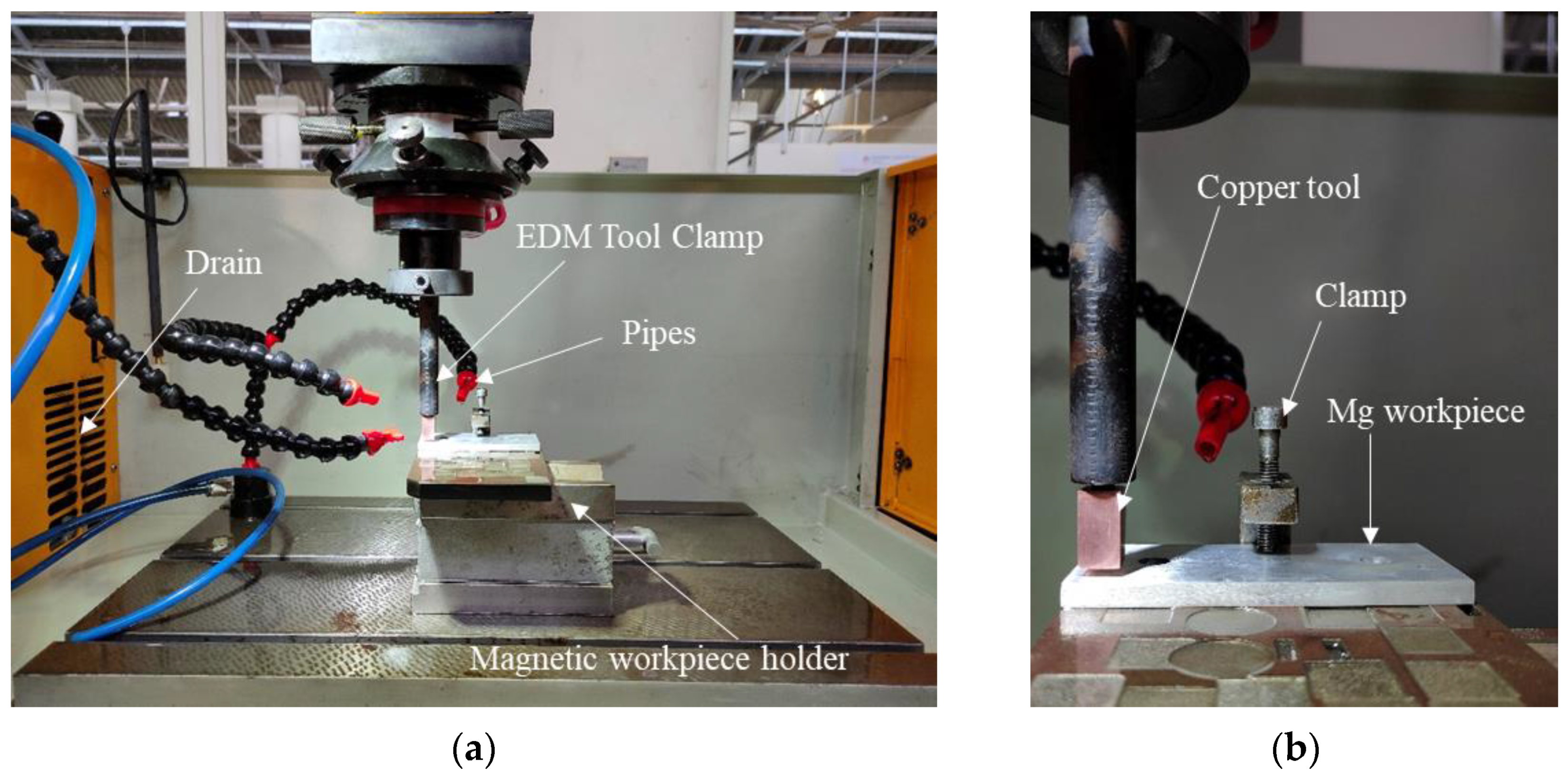

The EDM machine 50-A ZNC of Sparkonix Pvt. Ltd., Pune, Maharashtra, India having worktable dimensions of 700 × 420 mm is used in the current work. The maximum machine speed and current available for the machine were 400 mm/min and 50 A, respectively. The power supply was 415 V, 3-phase, and 50 Hz, and the available range of pulse on-time (T_on) was between 2 and 2400 µs. The tool clamp had a screw-like thread design; thus, the copper tool was screwed on the clamp for successful operation. The dielectric fluid used for the experiment was de-ionized water. Figure 3 shows the arrangement at the beginning of the experiment.

For the experiments, three different sets of values were selected for the following parameters: pulse on-time (T_on), pulse off-time (T_off), and current (I). An L-27 array method was used to generate the possible combinations of T_on, T_off, and I. The incisions were made using these new parameters at a depth of 0.3 mm. The servo voltage was kept constant at 45 V for all incisions, and the distance between each of the incisions was approximately 4 mm to accommodate all the experiments on the Mg workpiece surface. Before the experiment, the Mg workpiece and copper tool were prepared for the experiment by cleaning them of impurities in deionized water. Once they were cleaned, the copper tool was held in the EDM tool holder, and the workpiece was fixed on the magnetic holder using a clamp. They were cleaned in a similar way after each incision. After the completion of 27 incisions, the workpiece was once again cleaned, and 9 incisions were selected from the 27 for further investigation. The nine incisions were selected in a way that gave unique combinations of parameters with non-recurring values of current (I), pulse on-time (T_on), and pulse off-time (T_off). This selection of 9 parameters out of the 27 gave unique values and combinations for T_on, T_off, and I so that none of the combinations would match with any other working parameter. This selection was carried out to develop an insight into the parameters and how they affect the quality of the surface finish.

Table 2. List of selected nine combinations of parameters I, T_on, and T_off out of the L-27 array.

Incision Number	Peak Current (A)	Pulse On-Time (µs)	Pulse Off-Time (µs)
1	1	90	50
5	1	120	70
9	1	150	90
11	3	90	70
13	3	120	50
17	3	150	70
21	5	90	90
24	5	120	90
25	5	150	50

shows the input parameters used in the selected 9 incisions for the analysis.

2.4. Surface Analysis Using Optical Microscope

Optical microscopy was used to obtain a deeper insight into the surface finish and texture of the Mg workpiece after machining on the Plug EDM. Images were taken at 2 different magnifications for all 9 samples. The objective magnifications chosen for the images were 5× and 10×. The total magnifications for the following were 50× and 100×, respectively.

2.5. Surface Analysis Using Profilometer

The instrument used for the profilometer test was the Dektak-XT Thickness Measurement Unit manufactured by BRUKER, USA. The travel length for the silicon carbide tip for the profilometer test was 2 mm, and it had a sensitivity of 524 µs. Three readings for each sample were taken, and the average value was noted down. This test was conducted to obtain quantitative information on the effects of selected working parameters on the surface finish of the workpiece.

3. Results

Before the start of machining, it was made sure that the Mg workpiece and the copper tool were parallel to each other, and to ensure this, an L-bracket and clamps were used. This facilitates full-area contact between the copper tool and the specimen’s surface. The tool and workpiece were cleaned thoroughly with de-ionized water to ensure no residue remained on the incision surface after the machining operation was completed. Figure 4 shows an image of the incisions carried out on the Mg alloy work specimen with all 27 incisions. Out of these, the selected nine incisions were as follows: 1, 5, 9, 11, 13, 17, 21, 24, and 25. The nine incisions had unique and non-recurring values of current (I), pulse on-time (T_on), and pulse off-time (T_off). A further investigation was conducted to assess the effect of these combinations of parameters on the surface roughness of the Mg workpiece after machining.

3.1. Surface Analysis Using Optical Microscope

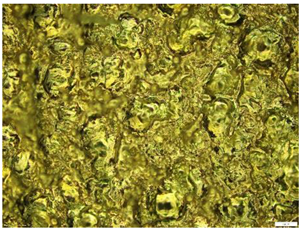

The surface images related to the 10× objective magnifications are shown in

Table 3. Optical microscopy images taken using 10× magnification lens and the surface profile obtained from the profilometer for selected incisions. (Refer to Table 2 for incision parameters).

Incision No.	Optical Microscopy Image	Surface Roughness Profile

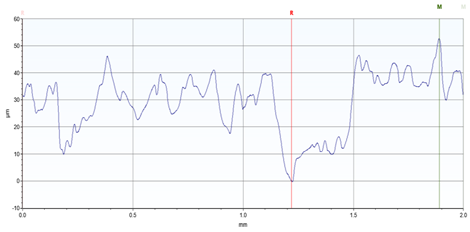

1		Avg. Roughness = 12.021 µm

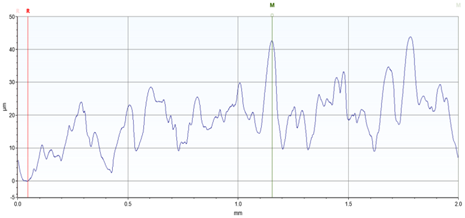

11		Avg. Roughness = 34.011 µm
21		Avg. Roughness = 50.192 µm
25		Avg. Roughness = 52.64 µm

. It shows the optical microscopy images for four out of the nine selected samples at 10× magnification for each sample. After observing the samples under the microscope, it was noticed that with increasing values of the peak current, the pulse on-time, and the pulse off-time, surface roughness also increases.

3.2. Surface Analysis Using Profilometer

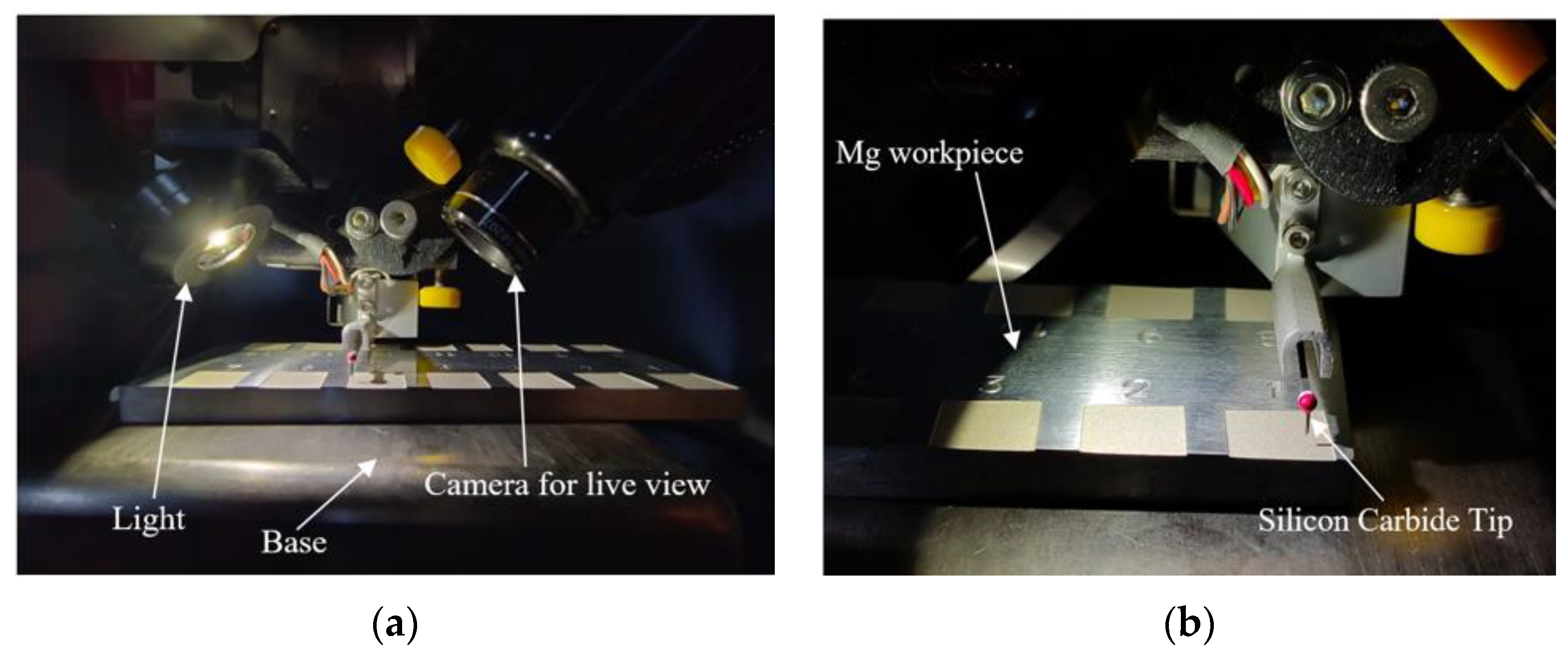

Through the profilometer test, it was noticed that with a higher peak current, pulse on-time, and pulse off-time combination, the surface roughness increases drastically. Three readings for each sample were taken, and their average value was noted down. Figure 5 shows the views of the imaging.

Table 4. Values of profilometer test (Refer to Table 2 for incision parameters).

Incision No.	Reading 1 (µm)	Reading 2 (µm)	Reading 3 (µm)	Average Value (µm)
1	10.352	12.269	13.443	12.02 ± 1.56
5	15.841	15.768	15.847	15.82 ± 0.04
9	17.477	16.739	16.186	16.80 ± 0.65
11	37.71	31.032	33.292	34.01 ± 3.40
13	35.906	37.27	29.241	34.14 ± 4.30
17	28.408	43.019	35.287	35.57 ± 7.31
21	48.787	42.49	59.279	50.19 ± 8.48
24	53.007	52.029	56.451	53.83 ± 2.32
25	49.162	52.488	56.275	52.64 ± 3.56

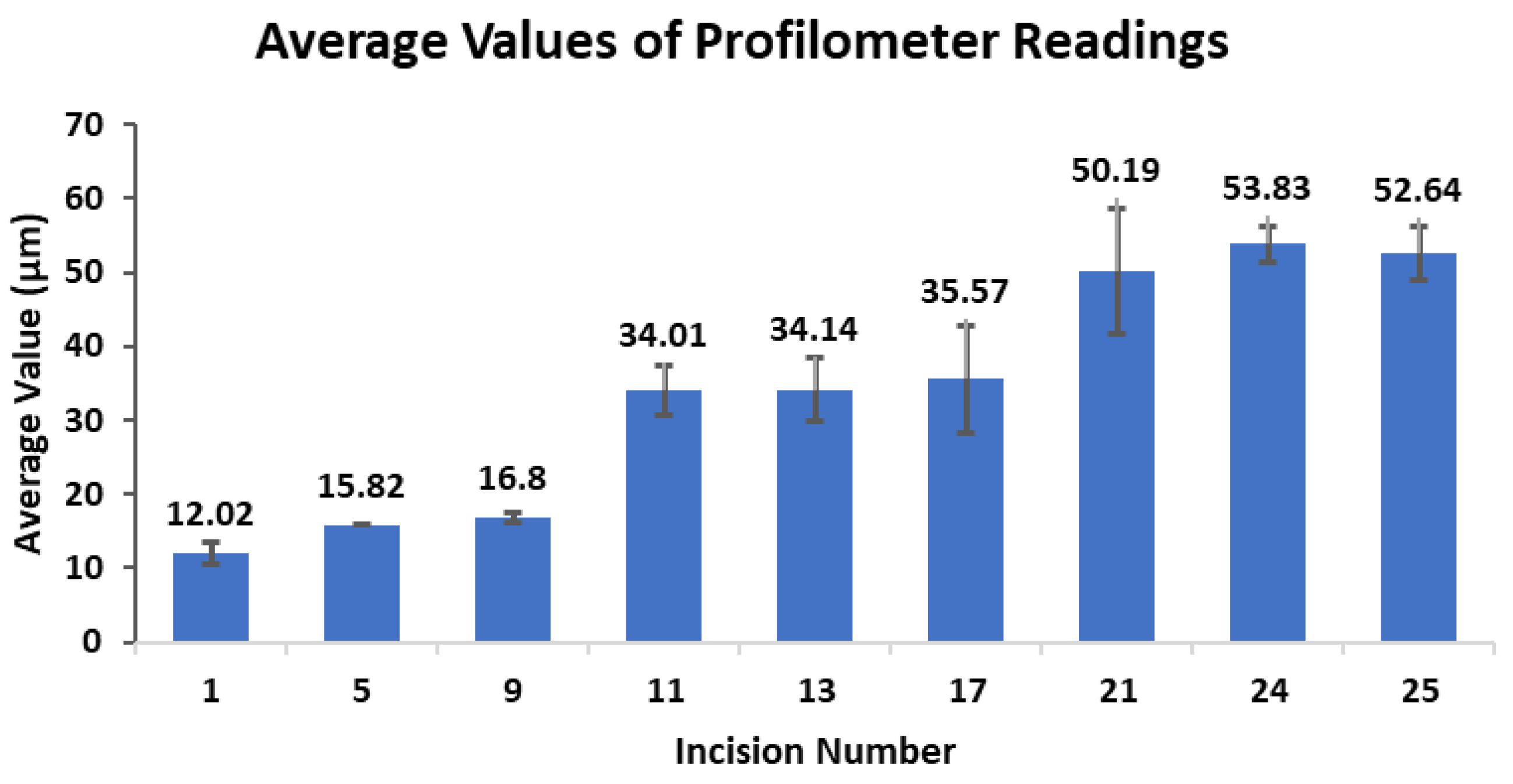

and Figure 6 show the readings taken for the profilometer test along with their average values and standard deviation, and Table 3 shows the graph for the same. The graph depicts the increasing value of surface roughness with increasing values of pulse on-time and current.

4. Discussion

In the current work with the AZ-31 Mg alloy, it was noted that with low current values, the surface roughness was smooth, but the machining time was longer. Similarly, it was observed that the machining time for each operation was reduced with increasing values of current, but such an operation would result in a poor and rough surface finish. The optical microscopy images and profilometer data show the formation of craters of varying sizes and geometries, and this depends on the discharge energy. The discharge energy increases with an increase in T_on and I across the electrodes, which produces large-sized vapor bubbles that grow and collapse into a large-scale crater within the electric field, thus increasing the surface roughness value. In their work on the machining of the ZE41A magnesium alloy using a brass wire electrode (250 µm diameter) and de-ionized water as a dielectric fluid in a Wire EDM with various values of I, T_on, T_off, and servo voltage (V), Kumar R et al. (2022) [15] observed a similar pattern. That is, with increases in the values of I and T_on, an increase in the surface roughness values was observed, and the opposite was observed with the remaining two parameters. This means that higher I and T_on values and lower T_off and SV values resulted in a higher spark energy between the electrode and work sample, resulting in higher amounts of melting and erosion. This further led to more roughness and visible creator formations.

In a study by Gill R. S. et al. (2021) [16], a surface analysis for roughness was conducted on a Mg-4Zn alloy after going under Wire EDM operation. The analysis showed that the operation had a significant influence on the surface roughness of the alloy. It was noted that with an increase in the discharge current in the Wire EDM process, the resultant surface displayed large craters, and a higher density in micro-cracks and micro-pores increased the surface roughness value of the alloy. With the objective of research by Abdul-Rani A.M. et al. (2017) [17] being to improve the quality of the machined surface of an AZ-31 Mg alloy, it was noted that pulse on-time (T_on) was one of the more significant factors which affected the quality of the machined surface. Similar observations were made in an article by Somasundaram M. et al. (2022) [18], where it was found out that T_on was the most influential surface parameter affecting the quality of the surface finish.

5. Conclusions

During the various incisions performed, it was noted that the surface finish was most affected by the current (I) and pulse on-time (T_on). With increasing values of I and T_on, the time taken for the machining was reduced, and the surface roughness increased. Similarly, it was noted that the lower the values of I and T_on, the better and smoother the surface finish obtained, but at the cost of a higher machining time. It was noted that with a current of 1 Amp, the machining time was approximately 5 min for an incision of 0.3 mm. For the same incision depth but at a current value of 5 Amp, the machining time was reduced to approximately 30 secs. The incisions carried out with a 1 Amp current gave a smoother surface finish, and those with a 5 Amp current gave rough surface finishes on the Mg workpiece. The investigation of the effect of machining parameters on an AZ31 mg alloy plays an important role in the field of material processing. The outcome may help mechanists and manufacturers use this knowledge to balance machining time and surface quality to enhance manufacturing efficiency and quality assurance.
