Mechanochemical Defect Engineering of Nb2O5: Influence of LiBH4 and NaBH4 Reduction on Structure and Photocatalysis

by
Anna Michaely
,
Elias C. J. Gießelmann
and
Guido Kickelbick
*
Inorganic Solid-State Chemistry, Saarland University, Campus, Building C4.1, 66123 Saarbrücken, Germany
*
Author to whom correspondence should be addressed.
Solids 2025, 6(2), 26; https://doi.org/10.3390/solids6020026
Submission received: 14 April 2025 / Revised: 14 May 2025 / Accepted: 19 May 2025 / Published: 26 May 2025
Browse Figures
Review Reports Versions Notes

Abstract

:
Partial reduction of transition metal oxides via defect engineering is a promising strategy to enhance their electronic and photocatalytic properties. In this study, we systematically explored the mechanochemical reduction of Nb2O5 using LiBH4 and NaBH4 as reducing agents. Electron paramagnetic resonance (EPR) spectroscopy confirmed a successful partial reduction of the oxide, as seen by the presence of unpaired electrons. Interestingly, larger hydride concentrations did not necessarily enable a higher degree of reduction as large amounts of boron hydrides acted as a buffer material and thus hindered the effective transfer of mechanical energy. Powder X-ray diffraction (PXRD) and 7Li solid-state NMR spectroscopy indicated the intercalation of Li+ into the Nb2O5 lattice. Raman spectroscopy further revealed the increased structural disorder, while optical measurements showed a decreased band gap compared with pristine Nb2O5. The partially reduced samples showed significantly enhanced photocatalytic performance for methylene blue degradation relative to the unmodified oxides.

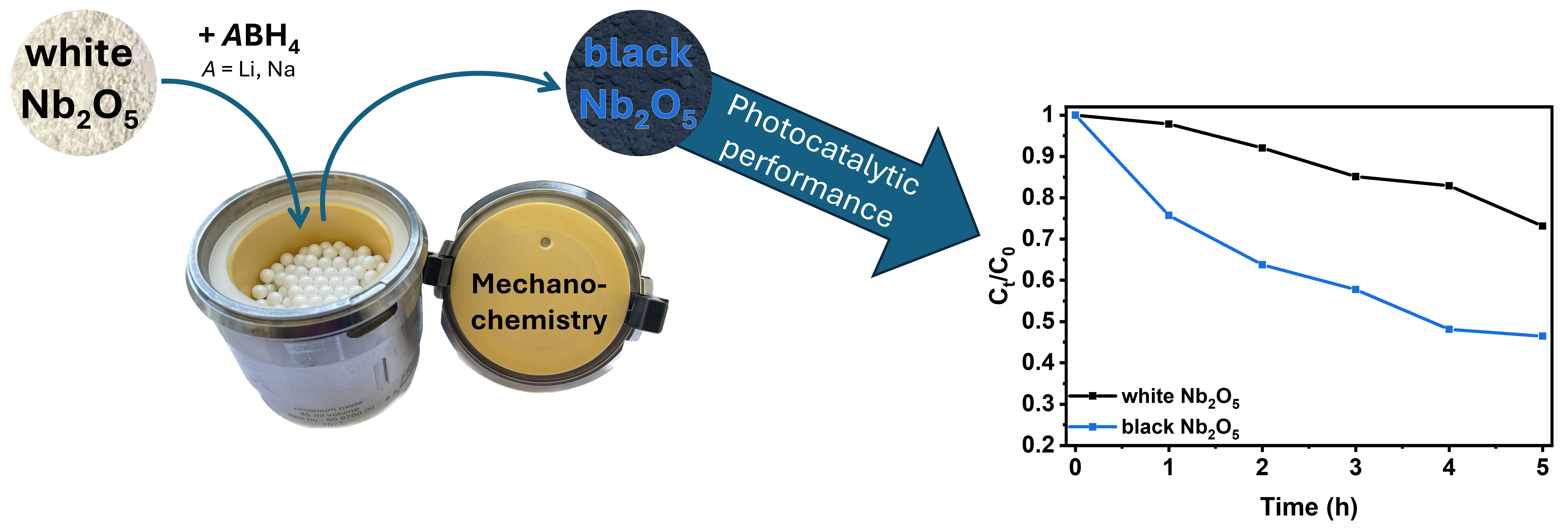

Graphical Abstract

1. Introduction

Transition metal oxides (TMOs), such as Nb2O5, are notable for their diverse oxidation states and advantageous electronic and optical properties, making them suitable for applications in energy storage and photocatalysis. Hereby, Nb2O5 is a stable wide-band gap n-type semiconductor, whose properties strongly depend on the type of polymorph. Among these polymorphs monoclinic H-Nb2O5 is the thermodynamically stable variant and consists of a ReO3 block-type structure of 3 × 5 and 3 × 4 blocks of corner-sharing NbO6 octahedra within the blocks and edge sharing between blocks [1]. With a band gap ranging from 3.1 to 3.9 eV [2,3] and an electrical conductivity of 10−13–10−6 S cm−1 [4], Nb2O5 has been primarily explored for sensor applications and various electronic devices [5,6], with some studies also investigating its potential in dye-sensitized solar cells [7] and photocatalytic processes [8].
Upon partial reduction of TMOs and the creation of oxygen vacancies, their electronic properties can be enhanced compared with the pristine oxides, yielding materials with improved chemical and physical characteristics [9]. For instance, Chen et al. synthesized so-called black titania through hydrogenation of TiO2, which introduced defects and partially reduced Ti4+ cations to Ti3+, resulting in increased photocatalytic activity relative to the pristine oxide [10]. This approach has spurred interest in defect engineering within TMOs, leading to reports on partially reduced oxides such as Nb2O5−x [11,12], ZrO2−x [13], WO3−x [14], V2O5−x [15], and MoO3−x [16], which also exhibit enhanced light absorption [13], as well as improved photocatalytic [15] and photoelectrochemical (PEC) activities [11,12].
Despite the potential of black Nb2O5, its synthesis has not been extensively studied. Common synthesis methods involve high-temperature reductions using aluminum [11,12] or NaBH4 [17] as reducing agents, or the creation of oxygen vacancies by the diffusion-reduction method [18], resulting in the formation of high-performance materials for photoelectrochemical water-splitting, sodium-ion batteries, and photocatalytic CO2 reduction, respectively. However, these methods often require energy-intensive annealing steps under inert gas [19], hydrogen [20,21,22], or vacuum [23] conditions to induce partial reduction and formation of Nb2O5−x.
In contrast, mechanochemical approaches offer a more energy-efficient alternative by inducing chemical reactions through the absorption of mechanical energy at room temperature [24]. While energy consumption is heavily reduced with this method, the continuous impact of milling balls also results in the creation of additional defects and an increase in reactivity. Literature on mechanochemical reduction of TMOs is limited and includes the use of either highly reactive alkaline metals, such as Na [25] or Li [26], or non-conventional hydrides such as TiH2 [27]. In a recent study, we were able to show that alkali metal hydrides LiH and NaH represent readily available and powerful reducing agents for the partial reduction in a ball mill of rutile type TiO2 and monoclinic H-Nb2O5, resulting in the formation of black TiO2 and black Nb2O5 with enhanced photocatalytic activities for the degradation of methylene blue [28].
Building on this knowledge, we systematically investigated the effectiveness of LiBH4 and NaBH4, which had already been used in high temperature reductions, as reducing agents in mechanochemical reduction processes. More specifically, the effects of concentration and milling duration on the resulting materials’ photocatalytic activity for methylene blue degradation were examined.

2. Materials and Methods

2.1. Materials

Nb2O5 (ChemPur, Karlsruhe, Germany, 99.98%), NaBH4 (Merck, Hohenbrunn, Germany, ≥98%), and LiBH4 (Sigma Aldrich, Steinheim, Germany, ≥95%) were used without further purification and stored in a glovebox under argon atmosphere. 1,2-dimethoxyethane (ABCR GmBH, Karlsruhe, Germany, 99%) was dried in a solvent-purifying system SPS 5 (MBRAUN, Garching, Germany). All solids were characterized by X-ray diffraction before use.

2.2. Synthesis

The syntheses were performed in a Pulverisette 7 (Fritsch, Idar-Oberstein, Germany) planetary ball mill using ZrO2 grinding jars with a volume of 45 mL, and 180 ZrO2 milling balls with a diameter of 5 mm. All syntheses were carried out under an argon atmosphere using the glovebox technique. In a typical experiment, 3.00 g of Nb2O5 (11.29 mmol, 1 eq.) was milled with n eq. of ABH4 (n = 0.25, 0.5, 1, and 2; A = Li, Na). The milling speed was set to 300 rpm, while the milling time was equal to 10, 30, and 60 min. To prevent cementation during the milling process with 1 or 2 eq. of ABH4, 200 µL of dry 1,2-dimethoxyethane (DME) was added.
Afterwards, the samples were washed with water and MeOH several times to remove unreacted alkali metal hydrides as well as side-products. Both solvents were degassed with argon for 1 h beforehand. After centrifugation, samples were dried in a vacuum oven at 80 °C and stored in an argon-filled glovebox.

2.3. Testing of the Photocatalytic Activity

The photocatalytic experiments were performed in an EvoluChemTM PhotoRedOx Box (HepatoChem, Beverly, MA, USA) equipped with a 2 × 20 mL sample holders, an EvoluChem 365PF lamp (365 nm) for testing the photocatalytic activity in the UV region, and an Evoluchem 6200PF lamp (cold white) for the Vis region.
In a typical methylene blue (MB) degradation experiment, 15 mg of catalyst (1 mg/mL) was added to 15 mL of an aqueous MB solution (20 ppm). After stirring for 30 min in the dark, the suspensions were irradiated. After certain time intervals, 0.4 mL of suspension was periodically sampled and centrifuged to separate the photocatalyst from the solution. The MB solution was then diluted by a factor of 2 before the concentration of MB was measured by UV–Vis spectroscopy.

2.4. Characterization

Powder X-ray diffraction (PXRD) patterns were recorded on a D8-A25-Advance diffractometer (Bruker-AXS, Karlsruhe, Germany) under ambient conditions in Bragg–Brentano θ-θ-geometry (goniometer radius 280 mm) with Cu Kα-radiation (λ = 154.0596 pm). A 12 µm Ni foil served as a Kβ filter at the primary beam side. At variable divergence slit was mounted at the primary beam side and a LYNXEYE detector with 192 channels at the secondary beam side. Experiments were carried out in a 2θ range of 7 to 120° with a step size of 0.013° and a total scan time of 2 h. Rietveld refinement of the recorded diffraction patterns was performed using TOPAS 5.0 software [29]. Crystallographic structure and microstructure were refined, while instrumental line broadening was included in a fundamental parameters approach [30]. The mean crystallite size <L> was calculated as the mean volume weighted column height derived from the integral breadth. Crystal structure data were obtained from the Pearson’s Crystal database [31].
EPR spectra were recorded using an Elexsys E580 X-band spectrometer (Bruker, Ettlingen, Germany) with an ER 4118X-MD5 resonator (Bruker, Ettlingen, Germany). All shown EPR spectra were recorded at 80 K using a closed cycle cryostat Cryogenic CF VTC (Cryogenic Limited, London, United Kingdom).
For the acquisition of the Raman spectra, a Raman microscope LabRAM HR Evolution HORIBA Jobin Yvon A (Horiba, Longmujeau, France) with a 633 nm He–Ne laser (Melles Griot, IDEX Optics and Photonics, Albuquerque, NM, USA) and a 1800 lines/mm grating was used.
UV–Vis diffuse reflectance spectra were performed on a Perkin Elmer Lambda 750 spectrometer (PerkinElmer Inc., Shelton, CT, USA) equipped with a 100 mm integration sphere from 290 to 1500 nm with a 2 nm increment and an integration time of 0.2 s. BaSO4 was used as the reference.
7Li and 11B single-pulse excitation magic angle spinning (SPE MAS) NMR spectra were recorded at 155.57 MHz and 128.43 MHz, respectively, on a Bruker AV400WB spectrometer (Bruker, Billerica, MA, USA) at 298 K in standard ZrO2 rotors with a diameter of 4 mm. A spinning rate of 13 kHz and a relaxation delay of 3 s were applied. Solid LiCl and NaBH4 were used as an external reference with a chemical shift of 0 and −42 ppm, respectively. Spectra were recorded using the TopSpin software [32]. Fitting of the spectra was performed using the DMFit software program package [33]. The extracted data were compiled in the Supplementary Materials, Table S1.

3. Results

3.1. Reduction Process During Ball Milling

For the mechanochemically induced partial reduction of Nb2O5, niobia was milled with n equivalents of LiBH4 and NaBH4 (n = 0.25, 0.5, 1, and 2 eq.) for 10, 30, and 60 min at a constant milling speed of 300 rpm. To prevent cementation and ensure a homogeneous reaction mixture, 200 µL DME was added during milling with 1 and 2 eq. of MBH4 for 60 min.
After just 10 min of mechanochemical treatment at room temperature, a color change from white Nb2O5 to light gray and dark blue-black was observed depending on the milling conditions (Supplementary Materials, Figure S1). This change in color can be attributed to the reduction of Nb5+ to Nb4+ [34] accompanied by the intercalation of alkali metal ions and/or the presence of color centers [35] due to the formation of oxygen vacancies [36] to maintain electroneutrality. The formation of unpaired electrons, which confirmed a successful reduction [12,37], was proven by EPR spectroscopy even for the lighter-colored NaBH4-reduced samples (Figure 1a). Hereby, LiBH4 produced darker (anthracite to blackish blue) and more reduced samples than NaBH4 (light gray to darker gray). To monitor the evolution of the pressure inside the milling jar, the EASY GTM system by Fritsch was used. As shown in Figure 1b, a continuous pressure increases up to 0.4 and 1.6 bar was observed with NaBH4 and LiBH4, respectively, which was also observed due to hydrogen formation during the mechanochemical reduction of Nb2O5 with NaH and LiH [28]. In theory, the formation of volatile borane species as side-products was also conceivable, but not further investigated, as the focus lay on the characterization of the as-prepared reduced oxides. The higher pressure observed with LiBH4 aligned with its greater efficiency in achieving reduction compared with NaBH4. The milling process also elevated the temperature but remained below 35 °C for both hydrides.

3.2. PXRD Analysis and Influence of the Hydride Concentration on the Reduction

Powder X-ray diffraction (PXRD) analysis was conducted to assess structural modifications induced by partial reduction during milling. The diffraction patterns of all reduced samples remained consistent with monoclinic H-Nb₂O₅ (space group P2/m), indicating no major structural transformation, regardless of the reducing agent, its concentration, or the milling duration (Figure 2a; Supplementary Materials, Figures S2–S8). However, a distinct shift toward lower diffraction angles was observed for all LiBH4-reduced samples (Figure 2b). Rietveld refinement revealed an expansion of the unit cell volume of by up to ~6·× 10−3 nm3 in these samples compared with pristine Nb2O5, whereas no significant increase was detected for NaBH4-reduced samples (Figure 2c). Generally, higher LiBH4 concentrations resulted in increased cell volumes, while the milling time had a rather low influence. As previously reported for the mechanochemical reduction of transition metal oxides using LiH and NaH [28], the observed volume increase was attributed to Li+ intercalation, given its smaller ionic radius of (76 pm) compared with Na+ (102 pm) [38]. Based on the unit cell expansion, the estimated composition of the LiBH4-reduced samples ranged from Li0.06(1)Nb2O5 to Li0.13(1)Nb2O5 (Figure 2c). In contrast, previously reported LiH-reduced samples exhibited a broader composition range (Li0.02(1)Nb2O5 to Li0.25(1)Nb2O5) [28], consistent with the higher reactivity of LiH compared with LiBH4.
Although the microstructure parameters, crystallite size and strain, could not be refined simultaneously (Supplementary Materials, Figure S9), an overall trend could be observed in the influence of the reaction parameters on the microstructure. With increasing milling times and decreasing hydride concentrations, the niobia crystallites exhibited larger defects, which were characterized by smaller crystallite size and/or larger strain. Longer milling times tended to damage the material due to the sustained mechanical stress [39,40,41]. On the other hand, the decrease in damage with decreasing NaBH4 and LiBH4 suggested a mechanical buffering effect of the respective hydride, meaning that the boron hydrides could absorb some of the mechanical energy from collisions with the milling balls without decomposing. The transfer of mechanical energy was thus hindered, and less energy was available to induce the mechanochemical reduction, which also nicely explains the lighter coloration of samples prepared with high NaBH4 concentrations. In this case, the excess of hydride had the opposite effect to that of an inert grinding auxiliary such as inorganic salts, which can, for example, be added to sticky reaction mixtures to achieve a better texture and efficient mixing [42]. For comparison, milling of only Nb2O5 for 60 min at 300 rpm did not result in significant changes in the cell volume and the microstructure (Supplementary Materials, Figure S9). It can therefore be concluded that the observed changes in the microstructure of black niobia mainly originated from the reduction process.
While clear differences in the sample coloration were observed in the NaBH4-reduced samples (the darker the samples, the higher their degree of reduction), color differences in the LiBH4-reduced samples were more subtle. This raises the question of why NaBH4-reduced samples showed larger differences in color. In fact, the higher molar mass that NaBH4 necessitated nearly doubled the mass compared with that of LiBH4 to achieve the same Nb2O5-to-hydride ratio; for instance, 0.8539 g of NaBH4 was required for a 1:2 ratio, while only 0.4920 g of LiBH4 was needed. Consequently, it is very likely that LiBH4 showed the same overall behavior, but it was less obvious due to the lower mass used. Theoretically, the use of an even greater excess of LiBH4 should therefore lead to a lower degree of reduction.
To test this hypothesis, Nb2O5 was milled with an excess of 5 eq. LiBH4 (similar weight ratio of the reactants than Nb2O5/2 eq. NaBH4) for 10 min at 300 rpm, with 200 µL of DME added to prevent cementation. The resulting light blue oxide was significantly lighter than the sample obtained with only two equivalents of LiBH4 under identical milling conditions. After washing and removal of unreacted LiBH4, a cell volume of 1364.46 Å3 was determined by Rietveld refinement. The lighter coloration and reduced cell volume suggested that a lower degree of reduction was achieved with the excess LiBH4. Consequently, the above hypothesis was confirmed and higher concentrations of the two alkali metal borohydrides tested led to an overall lower reduction as the excess hydride acted as a buffer material.

3.3. Solid-State NMR Spectroscopy

Solid-state NMR spectroscopy was applied to study the effectiveness of the washing process, which was needed to remove unreacted hydrides and other possibly formed boron-containing side-products such as alkali metal borates [43,44], which could also be envisioned, in addition to the formation of volatile boron-containing side-products. Moreover, the local environment of intercalated lithium could then be investigated.
As shown in the 11B and 7Li solid-state MAS NMR spectra of the pristine LiBH4 starting material, an intense central |+1/2⟩↔|–1/2⟩ transition was observed at −42.0 and −0.7 ppm, respectively, as well as a spinning sideband manifold originating from the outer satellite transitions |±1/2⟩↔|±3/2⟩ (Figure 3a, Figure 4a), which was consistent with the literature [45,46]. With the help of the DMFit software package [33] for both spectra, the quadrupolar parameter CQ was extracted for the cases of ηQ = 0 and 1, which hinted at the local site asymmetry and coordination environment (Supplementary Materials, Table S1). The 11B solid-state NMR spectra showed the broad signal of the probe head, which contained a B-containing stator, so the signals could only be interpreted to a limited extent.
After ball milling to reduce Nb2O5 with 0.25 eq. LiBH4 for 60 min, the 11B spectrum mainly showed the signal of the probe head of the NMR device and no signal of pristine LiBH4 was detected at −42.0 ppm. In addition, one could clearly see the structured signal of small spinning sidebands centered around 0.2 ppm and a broader shoulder at around 10 ppm, indicating the presence of an unknown, possibly partially oxidized, boron species in the sample, but only in very small amounts (Figure 3b). This became clear when comparing the intensities to the spectrum of LiBH4 (shown in Figure 3a) in which the signal of the probe head was almost completely suppressed. However, as shown in Figure 3c, the LiBH4 starting material exhibited signals in the same region, which would match with tetrahedral BO4 (around 0 ppm) and trigonal BO3 (around 10 ppm) units [43,47]. Therefore, it cannot definitely be determined whether they formed during the reduction process or were simply present in the starting material. Irrespective, their overall concentration was very low, which agreed with the low degree of reduction.
After washing, the spinning sidebands were no longer visible, indicating that all boron species were successfully removed by washing with water (Figure 3c). Regarding the 7Li spectrum of Nb2O5 reduced with 0.25 eq. LiBH4 for 60 min, all the features discussed above, in line with the Li incorporation into the Nb2O5, were visible in the spectrum (Figure 4b). The CQ parameter obtained was different from that of LiBH4 (Supplementary Materials, Table S1), which was qualitatively already clear due to the differences in the range. The intensity profile of the spinning sideband diversity underlined the different crystallographic environment of the Li atom in LiBH4 and the reduced Nb2O5. Ball milling Nb2O5 with 2 eq. LiBH4 led to almost identical 7Li spectra (Supplementary Materials, Figures S10 and S11).
The examples in Figure 4 are representative of the study. Two additional 7Li spectra are shown in the Supplementary Materials (Figures S10 and S11) and look almost identical to those presented here, indicating that the milling conditions do not appear to have a significant influence on the chemical environment of the lithium nucleus after reduction.
Regarding the 11B solid-state MAS NMR of pristine NaBH4, a featureless intense central transition at −42 ppm was observed (Supplementary Materials, Figure S12a), in accordance with literature [46]. Again, an additional signal at ~3 ppm showed the presence of unknown oxidic boron-containing species already in the starting material [44,48]. In contrast to the LiBH4 niobia-reduced sample, large amounts of unreacted NaBH4 were still detected in the 11B MAS spectrum after ball milling Nb2O5 and 0.25 eq. NaBH4 for 60 min, which were successfully removed during the washing process (Supplementary Materials, Figure S12b). The presence of unreacted NaBH4 in the as-milled sample indicated a lower conversion compared to the use of LiBH4 as a reducing agent.
Overall, no significant amounts of solid boron-containing side-products were detected that could be clearly identified as side-products of the reaction. Suspending the reaction mixture in deuterated acetonitrile after milling and analyzing the solution by NMR also gave no clear evidence of the formation of higher boranes or other soluble boron-containing species. On the other hand, the degree of reduction was rather low, especially with NaBH4 as reducing agent, meaning that only small amounts of side-products were to be expected. The low degree of reduction, the observed buffering effect, and the rather complicated question of the formation of boron-containing by-products are less favorable compared with the use of alkali metal hydrides as reducing agents [28].

3.4. Raman and UV–Vis Absorbance Spectroscopy

Raman spectroscopy was additionally employed to study structural changes during milling. As shown in Figure 5a, all typical bands of monoclinic H-Nb2O5 remained detectable for both NaBH4- and LiBH4-reduced and washed samples. These included Nb-O-Nb angle-deformations between 160 to 300 cm−1, transverse optic (TO) modes originating from symmetric stretching of NbO6 octahedra between 600 and 700 cm−1, and the longitudinal optic (LO) mode of NbO6 edge-shared octahedra at around 990 cm−1 [42]. After mechanochemical reduction, a significant decrease in Raman activity and broadening of the observed bands (Figure 5a), as well as a red shift of the LO mode to up to 885 cm−1 were noted. These results are in good agreement with Rietveld refinement, as reduced crystallite sizes and increased strain typically lead to broadened peaks and peak shifts [49,50]. Additionally, these changes, which are often reported in literature for such partially reduced systems, can also be induced by structural disorder and point defects such as oxygen vacancies [11,12,21]. Although it is not possible to identify the exact origin of the changes in the Raman spectra, which were most likely due to a combination of several factors, it can be concluded that the use of LiBH4 led to a stronger reduction and a greater structural disorder, as the Raman signals were broadened and shifted compared with NaBH4-reduced samples.
Similarly, the optical properties were also affected by the mechanochemical reduction process. While the diffuse reflectance UV–Vis (DRS-UV–Vis) spectrum of pristine Nb2O5 showed only UV absorption with negligible absorbance in the visible and near-infrared (NIR) regions, all reduced samples demonstrated significantly enhanced absorption in these regions (Figure 5b), as well as a decrease in the optical band gap of up to 0.4 eV, as determined using the Kubelka−Munk function (Supplementary Materials, Figure S13, Table S2). These optical changes can be attributed to the successful partial reduction and the introduction of defects leading to additional electronic states within the band gap, which are commonly observed for partially reduced transition metal oxides [11,12,26].

3.5. Photocatalytic Degradation of Methylene Blue

The enhancement of absorption properties across a broader wavelength range and the reduction of the optical band gap often enhance (photogenerated) charge carrier properties, such as improved lifetime and reduced recombination rates, leading to increased photocatalytic activity [26]. This effect has also been observed by us for LiH-reduced samples [28]. Consequently, the photocatalytic activity of the borohydride-reduced samples was evaluated through the degradation of methylene blue (MB), a common pollutant in textile wastewater [51]. The photocatalytic degradation was tested under UV irradiation (365 nm) and visible light (400–700 nm, with the strongest irradiance being at around 450 and 550 nm). Control experiments without catalysts only showed minimal MB photobleaching (Figure 6), while stirring MB with the photocatalyst in the absence of light also did not significantly reduce its concentration (Figure 6b).
Under UV light, both pristine and reduced niobia showed almost no activity as only 10 to 30% of MB was degraded after 60 min, depending on the synthesis conditions of the catalyst (Figure 6a). While the photocatalytic activity of the samples prepared with 2 eq. LiBH4 showed a slight improvement compared with the pristine material, both pristine and black niobia were less effective as UV photocatalysts compared with our previously synthesized black titania samples [28]. In contrast, all tested black niobia samples showed enhanced performance under visible light compared with the pristine material. While pristine Nb2O5 degraded only 27% of MB in five hours, the degradation was improved to 37% when using the samples prepared with 0.25 eq. NaBH4/60 min (blue) and 2 eq. LiBH4/10 min (purple), as shown in Figure 6b. Further milling with 0.25 (green) and 2 eq. (yellow) LiBH4 resulted in 49 and 53% degradation, respectively, which is comparable to our LiH-reduced material [28].
These findings indicate that the partial mechanochemical reduction using alkali metal boron hydrides effectively enhanced the photocatalytic properties of Nb2O5. Overall, the use of LiBH4 as the more effective reducing agent, higher initial hydride concentrations, and longer milling times favored the faster photocatalytic degradation of MB. This can be attributed to the partial reduction to Nb4+ and the increased presence of defects and structural disorder, resulting in an enhanced light absorption across a wide range of wavelengths, reduced optical band gap, and likely decreased recombination rate of photogenerated electron-hole pairs [26,52].

4. Conclusions

In summary, the mechanochemical partial reduction of H-Nb2O5 using LiBH4 and NaBH4 as reducing agents at room temperature was systematically investigated, revealing a strong dependence on the type of the reducing agent. Due to a buffering effect regarding the transferred mechanical energy, large boron hydride concentrations did not benefit the reduction process. Structural analysis by PXRD measurements confirmed the retention of the Nb2O5 lattice, with Li+ intercalation leading to an increase in cell volume, as also supported by 7Li NMR spectroscopy. All reduced samples demonstrated enhanced visible light absorption and a band gap reduction of up to 0.4 eV compared with pristine niobia. Raman spectroscopy revealed increasing structural disorder due to the formation of defects, particularly for the stronger-reduced LiBH4 samples. These defects contributed to significantly improved photocatalytic performance of the synthesized materials compared with pristine oxides under visible light illumination.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/solids6020026/s1, Figure S1: Photographs of Nb2O5 reduced with different amounts of NaBH4 and LiBH4 for different milling times; Figure S2 Rietveld refinement of monoclinic H-Nb2O5 milled with 0.25 eq. NaBH4 for 10 min. Figures of merit: Rwp = 8.86, GOF = 4.19; Figure S3: Rietveld refinement of monoclinic H-Nb2O5 milled with 0.25 eq. NaBH4 for 60 min. Figures of merit: Rwp = 5.24, GOF = 2.48; Figure S4: Rietveld refinement of monoclinic H-Nb2O5 milled with 2 eq. NaBH4 for 60 min. Figures of merit: Rwp = 7.72, GOF = 3.66; Figure S5: Rietveld refinement of monoclinic H-Nb2O5 milled with 0.25 eq. LiBH4 for 60 min. Figures of merit: Rwp = 7.11, GOF = 2.49; Figure S6: Rietveld refinement of monoclinic H-Nb2O5 milled with 2 eq. LiBH4 for 10 min. Figures of merit: Rwp = 10.65, GOF = 5.57; Figure S7: Rietveld refinement of monoclinic H-Nb2O5 milled with 2 eq. LiBH4 for 60 min. Figures of merit: Rwp = 9.39, GOF = 4.91; Figure S8: Rietveld refinement of monoclinic H-Nb2O5 milled with 5 eq. LiBH4 for 10 min. Figures of merit: Rwp = 9.39, GOF = 4.91; Figure S9: Evolution of the crystallite size as a function of milling time and (a) NaBH4 and (b) LiBH4 concentration, when only the crystallite size was refined. Analogous evolution of (c), (d) crystallite size and (e), (f) strain as a function of milling time and hydride concentration, when both the crystallite size and the strain were refined. To accommodate experimental errors, the standard deviation of the strain calculated by Topas was multiplied by a factor of three; Figure S10: 7Li MAS NMR spectrum of Nb2O5 + LiBH4 (1:2) after 10 min with a single line shape simulation; Figure S11: 7Li MAS NMR spectrum of Nb2O5 + LiBH4 (1:2) after 60 min with a single line shape simulation; Table S1: Summary of the 7Li and 11B solid-state NMR spectroscopic observables obtained for LiBH4- and three selected samples of LiBH4-reduced Nb2O5 extracted from the DMFit software with δ being the observed resonance (in ppm) and CQ being the quadrupolar parameter (in kHz) refined for ηQ = 0 and 1; Figure S12: (a) 11B MAS NMR of pristine NaBH4. (b) 11B MAS NMR of the probe head measured with an empty rotor (black) in comparison to the washed (yellow) and unwashed (blue) Nb2O5 reduced with 0.25 eq. NaBH4 for 60 min; Figure S13: Kubelka−Munk plot of pristine Nb2O5 (black) and with NaBH4 (0.25 eq./60 min, red) and LiBH4 (0.25 eq./60 min, blue; 2 eq./10 min, green; 2 eq./60 min, purple) reduced Nb2O5; Table S2: Optical band gaps of pristine and reduced niobia determined using the Kubelka−Munk function. [39,40,41,53,54,55].

Author Contributions

Conceptualization, A.M. and G.K.; methodology, A.M. and E.C.J.G.; investigation, A.M.; resources, G.K.; writing—original draft preparation, A.M.; writing—review and editing, E.C.J.G. and G.K.; supervision, G.K.; project administration, G.K.; funding acquisition, G.K. All authors have read and agreed to the published version of the manuscript.

Funding

Instrumentation and technical assistance for this work were provided by the Service Center X-ray Diffraction, with financial support from Saarland University and German Science Foundation (project number INST 256/349-1).

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Materials. Further inquiries can be directed to the corresponding author.

Acknowledgments

We thank Petra Herbeck-Engel from the INM-Leibniz Institute for New Materials, Saarbrücken, for Raman measurements, as well as Clemens Matt and Haakon Wiedemann, Physical Chemistry and Chemistry Education, Saarland University, for continuous-wave EPR measurements.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Cava, R.J.; Murphy, D.W.; Zahurak, S.M. Lithium Insertion in Wadsley-Roth Phases Based on Niobium Oxide. J. Electrochem. Soc. 1983, 130, 2345–2351. [Google Scholar] [CrossRef]
  2. Soares, M.R.N.; Leite, S.; Nico, C.; Peres, M.; Fernandes, A.J.S.; Graça, M.P.F.; Matos, M.; Monteiro, R.; Monteiro, T.; Costa, F.M. Effect of processing method on physical properties of Nb2O5. J. Eur. Ceram. Soc. 2011, 31, 501–506. [Google Scholar] [CrossRef]
  3. Le Viet, A.; Reddy, M.V.; Jose, R.; Chowdari, B.V.R.; Ramakrishna, S. Nanostructured Nb2O5 Polymorphs by Electrospinning for Rechargeable Lithium Batteries. J. Phys. Chem. C 2010, 114, 664–671. [Google Scholar] [CrossRef]
  4. Graça, M.P.F.; Meireles, A.; Nico, C.; Valente, M.A. Nb2O5 nanosize powders prepared by sol-gel-Structure, morphology and dielectric properties. J. Alloys Compd. 2013, 553, 177–182. [Google Scholar] [CrossRef]
  5. Chambon, L.; Maleysson, C.; Pauly, A.; Germain, J.P.; Demarne, V.; Grisel, A. Investigation, for NH3 gas sensing applications, of the Nb2O5 semiconducting oxide in the presence of interferent species such as oxygen and humidity. Sens. Actuator B Chem. 1997, 45, 107–114. [Google Scholar] [CrossRef]
  6. Chambon, L.; Pauly, A.; Germain, J.P.; Maleysson, C.; Demarne, V.; Grisel, A. A model for the responses of Nb2O5 sensors to CO and NH3 gases. Sens. Actuator B Chem. 1997, 43, 60–64. [Google Scholar] [CrossRef]
  7. Le Viet, A.; Jose, R.; Reddy, M.V.; Chowdari, B.V.R.; Ramakrishna, S. Nb2O5 photoelectrodes for dye-sensitized solar cells: Choice of the polymorph. J. Phys. Chem. C 2010, 114, 21795–21800. [Google Scholar] [CrossRef]
  8. Su, K.; Liu, H.; Gao, Z.; Fornasiero, P.; Wang, F. Nb2O5-Based Photocatalysts. Adv. Sci. 2021, 8, 2003156. [Google Scholar] [CrossRef]
  9. Chen, X.; Liu, L.; Huang, F. Black titanium dioxide (TiO2) nanomaterials. Chem. Soc. Rev. 2015, 44, 1861–1885. [Google Scholar] [CrossRef]
  10. Chen, X.; Liu, L.; Yu, P.Y.; Mao, S.S. Increasing Solar Absorption for Photocatalysis with Black Hydrogenated Titanium Dioxide Nanocrystals. Science 2011, 331, 746–750. [Google Scholar] [CrossRef]
  11. Cui, H.; Zhu, G.; Xie, Y.; Zhao, W.; Yang, C.; Lin, T.; Gu, H.; Huang, F. Black nanostructured Nb2O5 with improved solar absorption and enhanced photoelectrochemical water splitting. J. Mater. Chem. A 2015, 3, 11830–11837. [Google Scholar] [CrossRef]
  12. Zhao, W.; Zhao, W.; Zhu, G.; Lin, T.; Xu, F.; Huang, F. Black Nb2O5 nanorods with improved solar absorption and enhanced photocatalytic activity. Dalton Trans. 2016, 45, 3888–3894. [Google Scholar] [CrossRef] [PubMed]
  13. Sinhamahapatra, A.; Jeon, J.-P.; Kang, J.; Han, B.; Yu, J.-S. Oxygen-Deficient Zirconia (ZrO2−x): A New Material for Solar Light Absorption. Sci. Rep. 2016, 6, 27218. [Google Scholar] [CrossRef] [PubMed]
  14. Matsukawa, T.; Ishigaki, T. Effect of isothermal holding time on hydrogen-induced structural transitions of WO3. Dalton Trans. 2021, 50, 7590–7596. [Google Scholar] [CrossRef]
  15. Badreldin, A.; Imam, M.D.; Wubulikasimu, Y.; Elsaid, K.; Abusrafa, A.E.; Balbuena, P.B.; Abdel-Wahab, A. Surface microenvironment engineering of black V2O5 nanostructures for visible light photodegradation of methylene blue. J. Alloys Compd. 2021, 871, 159615. [Google Scholar] [CrossRef]
  16. Kim, H.-S.; Cook, J.B.; Lin, H.; Ko, J.S.; Tolbert, S.H.; Ozolins, V.; Dunn, B. Oxygen vacancies enhance pseudocapacitive charge storage properties of MoO3−x. Nat. Mater. 2017, 16, 454–462. [Google Scholar] [CrossRef]
  17. Tong, Z.; Yang, R.; Wu, S.; Shen, D.; Jiao, T.; Zhang, K.; Zhang, W.; Lee, C.-S. Surface-Engineered Black Niobium Oxide@Graphene Nanosheets for High-Performance Sodium-/Potassium-Ion Full Batteries. Small 2019, 15, 1901272. [Google Scholar] [CrossRef]
  18. Lin, X.; Xia, S.; Zhang, L.; Zhang, Y.; Sun, S.; Chen, Y.; Chen, S.; Ding, B.; Yu, J.; Yan, J. Fabrication of Flexible Mesoporous Black Nb2O5 Nanofiber Films for Visible-Light-Driven Photocatalytic CO2 Reduction into CH4. Adv. Mater. 2022, 34, 2200756. [Google Scholar] [CrossRef]
  19. Yang, P.; Fan, Y.; Hu, K.; Jiang, L.; Tan, L.; Wang, Z.; Li, A.; Yang, S.; Hu, Y.; Gu, H. Fast, Sensitive, and Highly Selective Room-Temperature Hydrogen Sensing of Defect-Rich Orthorhombic Nb2O5−x Nanobelts with an Abnormal p-Type Sensor Response. ACS Appl. Mater. Interfaces 2022, 14, 25937–25948. [Google Scholar] [CrossRef]
  20. Cheng, S.; Wang, J.; Duan, S.; Zhang, J.; Wang, Q.; Zhang, Y.; Li, L.; Liu, H.; Xiao, Q.; Lin, H. Anionic oxygen vacancies in Nb2O5−x/carbon hybrid host endow rapid catalytic behaviors for high-performance high areal loading lithium sulfur pouch cell. Chem. Eng. J. 2021, 417, 128172. [Google Scholar] [CrossRef]
  21. Li, S.; Cui, Y.; Kang, R.; Zou, B.; Ng, D.H.L.; El-Khodary, S.A.; Liu, X.; Qiu, J.; Lian, J.; Li, H. Oxygen vacancies boosted the electrochemical kinetics of Nb2O5−x for superior lithium storage. Chem. Commun. 2021, 57, 8182–8185. [Google Scholar] [CrossRef] [PubMed]
  22. Luo, D.; Zhang, Z.; Li, G.; Cheng, S.; Li, S.; Li, J.; Gao, R.; Li, M.; Sy, S.; Deng, Y.-P.; et al. Revealing the Rapid Electrocatalytic Behavior of Ultrafine Amorphous Defective Nb2O5−x Nanocluster toward Superior Li-S Performance. ACS Nano 2020, 14, 4849–4860. [Google Scholar] [CrossRef]
  23. de Araújo, M.A.; Gromboni, M.F.; Marken, F.; Parker, S.C.; Peter, L.M.; Turner, J.; Aspinall, H.C.; Black, K.; Mascaro, L.H. Contrasting transient photocurrent characteristics for thin films of vacuum-doped “grey” TiO2 and “grey” Nb2O5. Appl. Catal. B 2018, 237, 339–352. [Google Scholar] [CrossRef]
  24. Tan, D.; García, F. Main group mechanochemistry: From curiosity to established protocols. Chem. Soc. Rev. 2019, 48, 2274–2292. [Google Scholar] [CrossRef]
  25. Zhang, M.; Pei, Q.; Chen, W.; Liu, L.; He, T.; Chen, P. Room temperature synthesis of reduced TiO2 and its application as a support for catalytic hydrogenation. RSC Adv. 2017, 7, 4306–4311. [Google Scholar] [CrossRef]
  26. Ou, G.; Xu, Y.; Wen, B.; Lin, R.; Ge, B.; Tang, Y.; Liang, Y.; Yang, C.; Huang, K.; Zu, D.; et al. Tuning defects in oxides at room temperature by lithium reduction. Nat. Commun. 2018, 9, 1302. [Google Scholar] [CrossRef]
  27. Zhou, X.; Liu, N.; Schmidt, J.; Kahnt, A.; Osvet, A.; Romeis, S.; Zolnhofer, E.M.; Marthala, V.R.R.; Guldi, D.M.; Peukert, W.; et al. Noble-Metal-Free Photocatalytic Hydrogen Evolution Activity: The Impact of Ball Milling Anatase Nanopowders with TiH2. Adv. Mater. 2017, 29, 1604747. [Google Scholar] [CrossRef]
  28. Michaely, A.; Janka, O.; Gießelmann, E.C.J.; Haberkorn, R.; Wiedemann, H.T.A.; Kay, C.W.M.; Kickelbick, G. Black Titania and Niobia within Ten Minutes—Mechanochemical Reduction of Metal Oxides with Alkali Metal Hydrides. Chem. Eur. J. 2023, 29, e202300223. [Google Scholar] [CrossRef] [PubMed]
  29. Bruker AXS Inc. Tpoas, Version 5; Bruker AXS Inc.: Karlsruhe, Germany, 2014.
  30. Cheary, R.W.; Coelho, A.A.; Cline, J.P. Fundamental Parameters Line Profile Fitting in Laboratory Diffractometers. J. Res. Natl. Inst. Stand. Technol. 2004, 109, 1–25. [Google Scholar] [CrossRef]
  31. Villars, P.; Cenzual, K. Pearson’s Crystal Data: Crystal Structure Database for Inorganic Compounds. Release 2022/23; ASM International®: Materials Park, OH, USA, 2023. [Google Scholar]
  32. Bruker Corp. Topasin; Bruker Corp.: Karlsruhe, Germany, 2008. [Google Scholar]
  33. Massiot, D.; Fayon, F.; Capron, M.; King, I.; Le Calvé, S.; Alonso, B.; Durand, J.-O.; Bujoli, B.; Gan, Z.; Hoatson, G. Modelling one- and two-dimensional solid-state NMR spectra. Magn. Reson. Chem. 2002, 40, 70–76. [Google Scholar] [CrossRef]
  34. Schäfer, H.; Gruehn, R.; Schulte, F. The Modifications of Niobium Pentoxide. Angew. Chem. Int. Ed. 1966, 5, 40–52. [Google Scholar] [CrossRef]
  35. Sarkar, A.; Khan, G.G. The formation and detection techniques of oxygen vacancies in titanium oxide-based nanostructures. Nanoscale 2019, 11, 3414–3444. [Google Scholar] [CrossRef]
  36. Santara, B.; Giri, P.K.; Imakita, K.; Fujii, M. Evidence of oxygen vacancy induced room temperature ferromagnetism in solvothermally synthesized undoped TiO2 nanoribbons. Nanoscale 2013, 5, 5476–5488. [Google Scholar] [CrossRef] [PubMed]
  37. Wang, J.; Li, G.; Luo, D.; Zhang, Y.; Zhao, Y.; Zhou, G.; Shui, L.; Wang, X.; Chen, Z. Engineering the Conductive Network of Metal Oxide-Based Sulfur Cathode toward Efficient and Longevous Lithium–Sulfur Batteries. Adv. Energy Mater. 2020, 10, 2002076. [Google Scholar] [CrossRef]
  38. Shannon, R.D. Revised effective ionic radii and systematic studies of interatomic distances in halides and chalcogenides. Acta Crystallogr. A 1976, 32, 751–767. [Google Scholar] [CrossRef]
  39. Vaishnavi Krupa, B.R.; Dasgupta, A.; Ghosh, C.; Sinha, S.K. Analysis of structural transformation in nanocrystalline Y2O3 during high energy ball milling. J. Alloys Compd. 2022, 900, 163550. [Google Scholar] [CrossRef]
  40. Pradhan, S.K.; Shee, S.K.; Chanda, A.; Bose, P.; De, M. X-ray studies on the kinetics of microstructural evolution of Ni3Al synthesized by ball milling elemental powders. Mater. Chem. Phys. 2001, 68, 166–174. [Google Scholar] [CrossRef]
  41. Hadef, F.; Ans, M. X-ray analysis and Rietveld refinement of ball milled Fe50Al35Ni15 powder. Surf. Interfaces 2021, 26, 101303. [Google Scholar] [CrossRef]
  42. Howard, J.L.; Cao, Q.; Browne, D.L. Mechanochemistry as an emerging tool for molecular synthesis: What can it offer? Chem. Sci. 2018, 9, 3080–3094. [Google Scholar] [CrossRef]
  43. Kuhn, A.; Tobschall, E.; Heitjans, P. Li Ion Diffusion in Nanocrystalline and Nanoglassy LiAlSi2O6 and LiBO2—Structure-Dynamics Relations in Two Glass Forming Compounds. Z. Phys. Chem. 2009, 223, 1359–1377. [Google Scholar] [CrossRef]
  44. Lang, C.; Jia, Y.; Liu, J.; Wang, H.; Ouyang, L.; Zhu, M.; Yao, X. NaBH4 regeneration from NaBO2 by high-energy ball milling and its plausible mechanism. Int. J. Hydrogen Energy 2017, 42, 13127–13135. [Google Scholar] [CrossRef]
  45. Arnbjerg, L.M.; Ravnsbæk, D.B.; Filinchuk, Y.; Vang, R.T.; Cerenius, Y.; Besenbacher, F.; Jørgensen, J.-E.; Jakobsen, H.J.; Jensen, T.R. Structure and Dynamics for LiBH4−LiCl Solid Solutions. Chem. Mater. 2009, 21, 5772–5782. [Google Scholar] [CrossRef]
  46. Łodziana, Z.; Błoński, P.; Yan, Y.; Rentsch, D.; Remhof, A. NMR Chemical Shifts of 11B in Metal Borohydrides from First-Principle Calculations. J. Phys. Chem. C 2014, 118, 6594–6603. [Google Scholar] [CrossRef]
  47. Kroeker, S.; Stebbins, J.F. Three-coordinated Boron-11 chemical shifts in borates. Inorg. Chem. 2001, 40, 6239–6246. [Google Scholar] [CrossRef]
  48. Weiss, J.W.E.; Bryce, D.L. A solid-state 11B NMR and computational study of boron electric field gradient and chemical shift tensors in boronic acids and boronic esters. J. Phys. Chem. A 2010, 114, 5119–5131. [Google Scholar] [CrossRef] [PubMed]
  49. Deluca, M.; Hu, H.; Popov, M.N.; Spitaler, J.; Dieing, T. Advantages and developments of Raman spectroscopy for electroceramics. Commun. Mater. 2023, 4, 78. [Google Scholar] [CrossRef]
  50. Zuo, J.; Xu, C.; Liu, Y.; Qian, Y. Crystallite size effects on the Raman spectra of Mn3O4. Nanostruct. Mater. 1998, 10, 1331–1335. [Google Scholar] [CrossRef]
  51. Oladoye, P.O.; Ajiboye, T.O.; Omotola, E.O.; Oyewola, O.J. Methylene blue dye: Toxicity and potential elimination technology from wastewater. Results Eng. 2022, 16, 100678. [Google Scholar] [CrossRef]
  52. Sinhamahapatra, A.; Jeon, J.-P.; Yu, J.-S. A new approach to prepare highly active and stable black titania for visible light-assisted hydrogen production. Energy Environ. Sci. 2015, 8, 3539–3544. [Google Scholar] [CrossRef]
  53. Balogh, L.; Ribárik, G.; Ungár, T. Stacking faults and twin boundaries in fcc crystals determined by x-ray diffraction profile analysis. J. Appl. Phys. 2006, 100, 023512. [Google Scholar] [CrossRef]
  54. Budak, Ö.; Geißler, M.; Becker, D.; Kruth, A.; Quade, A.; Haberkorn, R.; Kickelbick, G.; Etzold, B.J.M.; Presser, V. Carbide-Derived Niobium Pentoxide with Enhanced Charge Storage Capacity for Use as a Lithium-Ion Battery Electrode. ACS Appl. Energy Mater. 2020, 3, 4275–4285. [Google Scholar] [CrossRef]
  55. Catti, M.; Ghaani, M.R. On the lithiation reaction of niobium oxide: Structural and electronic properties of Li1.714Nb2O5. Phys. Chem. Chem. Phys. 2014, 16, 1385–1392. [Google Scholar] [CrossRef] [PubMed]
Solids 06 00026 g001

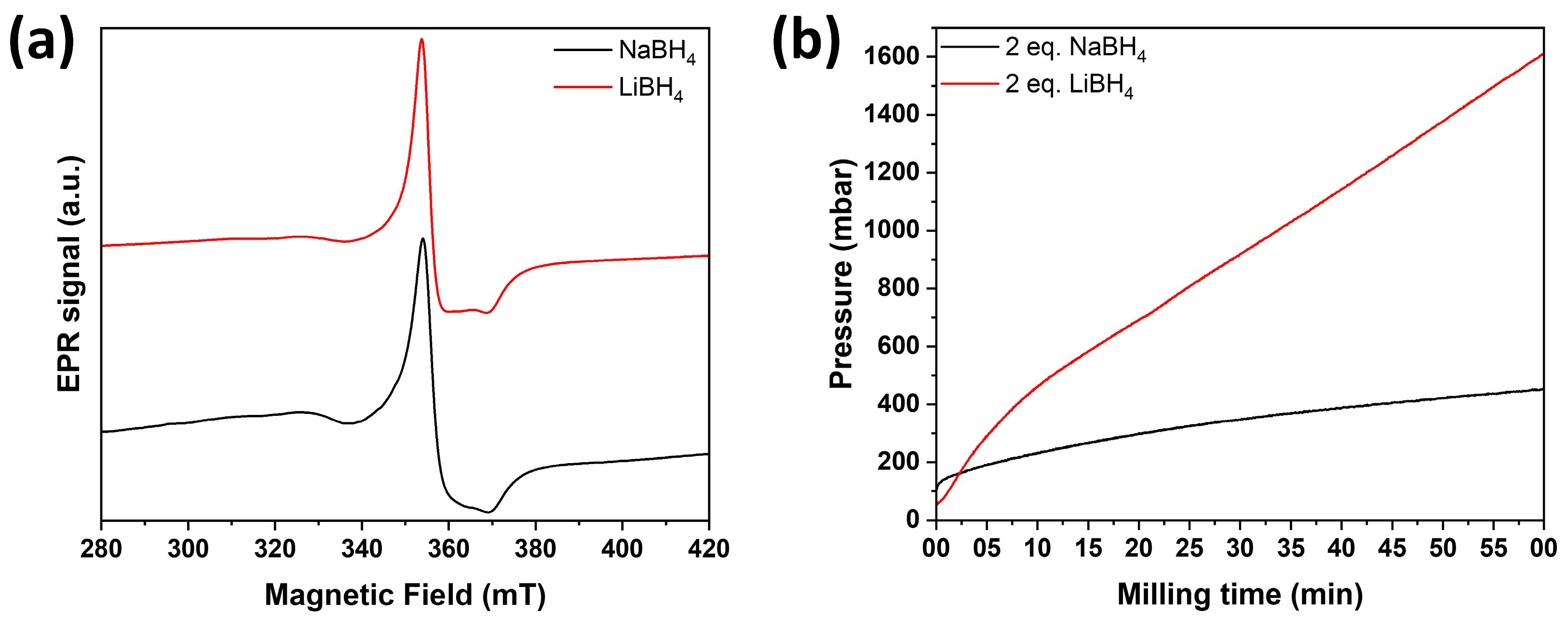

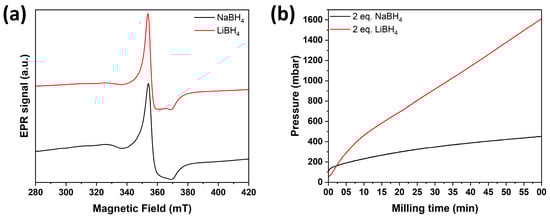

Figure 1. (a) Normalized continuous wave (CW) EPR spectra of Nb2O5 reduced with 0.25 eq. NaBH4 (black) and 0.25 eq. LiBH4 (red) for 60 min. (b) Evolution of the pressure inside the milling jar for the reaction of Nb2O5 with 2 eq. NaBH4 (black) and LiBH4 (red).
Figure 1. (a) Normalized continuous wave (CW) EPR spectra of Nb2O5 reduced with 0.25 eq. NaBH4 (black) and 0.25 eq. LiBH4 (red) for 60 min. (b) Evolution of the pressure inside the milling jar for the reaction of Nb2O5 with 2 eq. NaBH4 (black) and LiBH4 (red).
Solids 06 00026 g001
Solids 06 00026 g002

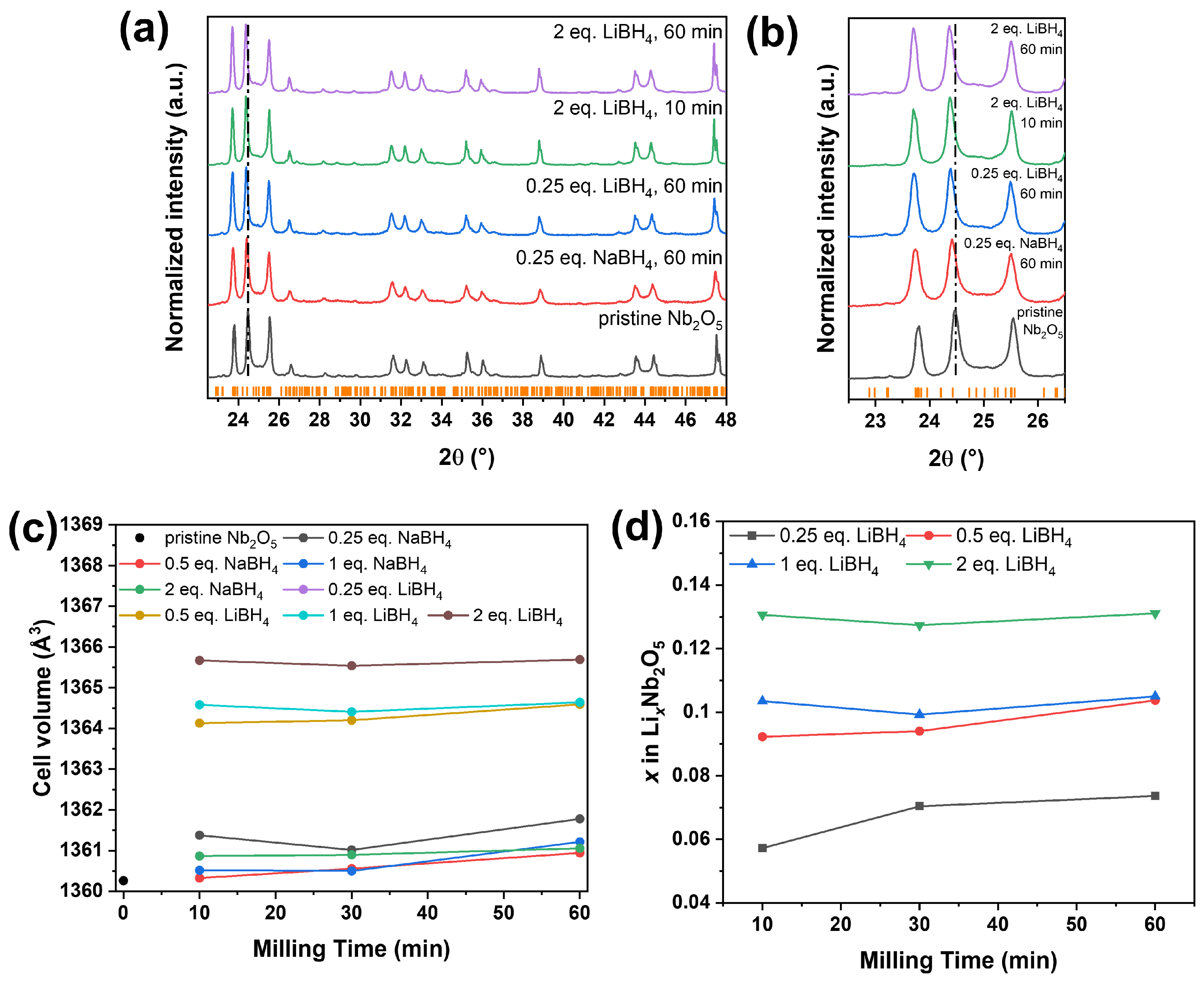

Figure 2. (a) PXRD patterns and (b) corresponding zoom of pristine and reduced niobia. Orange ticks indicate the Bragg positions of monoclinic Nb2O5 (P2/m). The vertical line is meant for easier visualization of the shift of reflections. (c) Evolution of the cell volume of pristine Nb2O5 compared with LiBH4- and NaBH4-reduced samples and (d) the estimated Li content based on Rietveld refinement assuming a sum formula of LixNb2O5 for the LiBH4-reduced samples.
Figure 2. (a) PXRD patterns and (b) corresponding zoom of pristine and reduced niobia. Orange ticks indicate the Bragg positions of monoclinic Nb2O5 (P2/m). The vertical line is meant for easier visualization of the shift of reflections. (c) Evolution of the cell volume of pristine Nb2O5 compared with LiBH4- and NaBH4-reduced samples and (d) the estimated Li content based on Rietveld refinement assuming a sum formula of LixNb2O5 for the LiBH4-reduced samples.
Solids 06 00026 g002
Solids 06 00026 g003

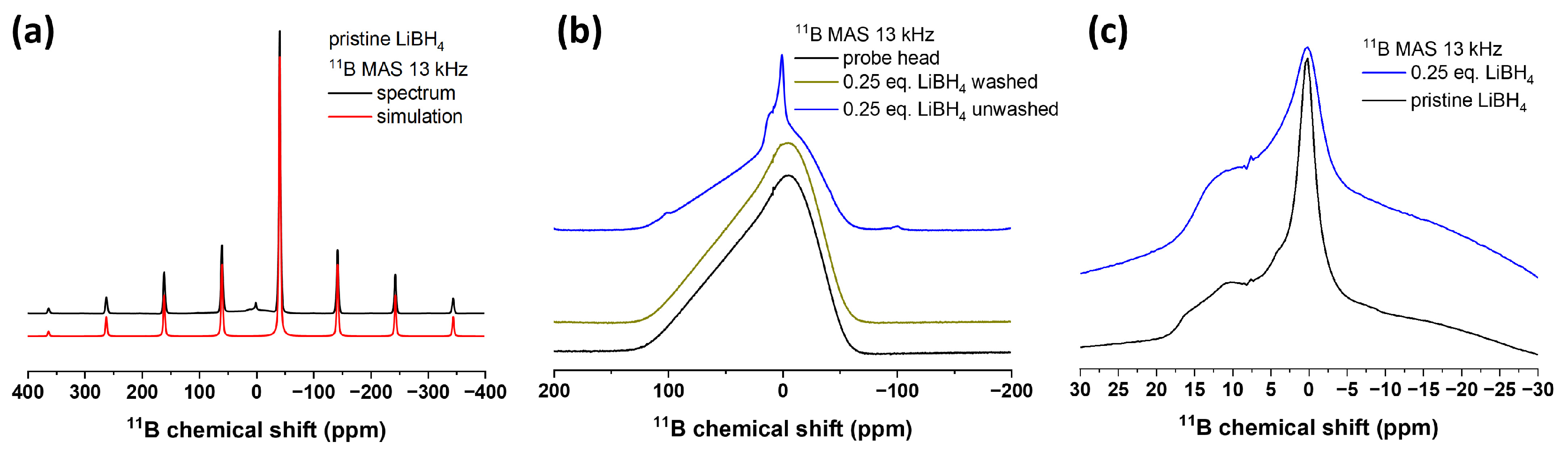

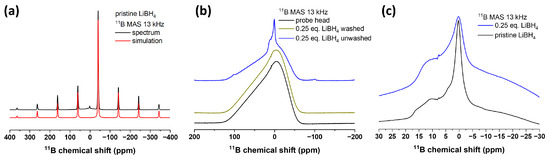

Figure 3. (a) 11B MAS NMR spectra (black) of LiBH4 and fitted with a single Gaussian−Lorentz line (red). (b) Normalized 11B MAS NMR of the probe head measured with an empty rotor (black) in comparison with the washed (yellow) and unwashed (blue) Nb2O5 reduced with 0.25 eq. LiBH4 for 60 min. (c) Comparison of the magnified oxidic boron−containing side-phases present in pristine LiBH4 (black) and in Nb2O5 reduced with 0.25 eq. LiBH4 for 60 min (blue). For better comparison, both spectra are normalized to their respective intensity value at 0.12 ppm.
Figure 3. (a) 11B MAS NMR spectra (black) of LiBH4 and fitted with a single Gaussian−Lorentz line (red). (b) Normalized 11B MAS NMR of the probe head measured with an empty rotor (black) in comparison with the washed (yellow) and unwashed (blue) Nb2O5 reduced with 0.25 eq. LiBH4 for 60 min. (c) Comparison of the magnified oxidic boron−containing side-phases present in pristine LiBH4 (black) and in Nb2O5 reduced with 0.25 eq. LiBH4 for 60 min (blue). For better comparison, both spectra are normalized to their respective intensity value at 0.12 ppm.
Solids 06 00026 g003
Solids 06 00026 g004

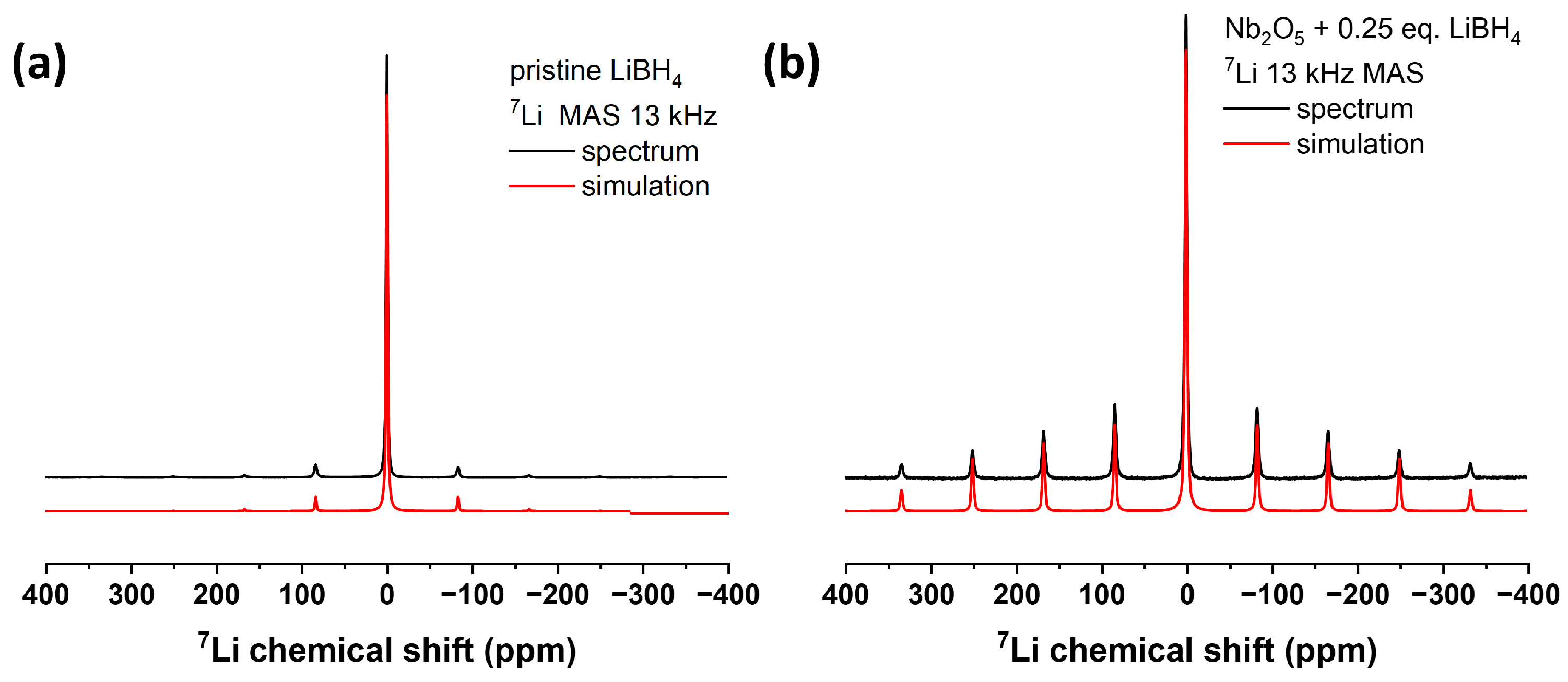

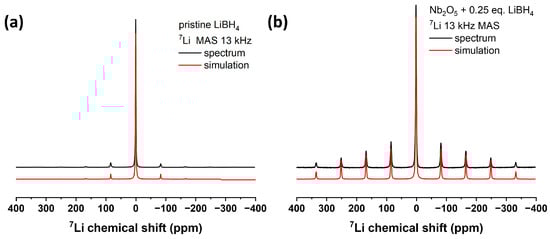

Figure 4. (a) 7Li MAS NMR spectra (black) of LiBH4 and fitted with a single Gaussian−Lorentz line (red). (b) Corresponding 7Li MAS NMR spectrum of the washed and reduced niobia sample (black) and fitted with a single Gaussian−Lorentz line (red).
Figure 4. (a) 7Li MAS NMR spectra (black) of LiBH4 and fitted with a single Gaussian−Lorentz line (red). (b) Corresponding 7Li MAS NMR spectrum of the washed and reduced niobia sample (black) and fitted with a single Gaussian−Lorentz line (red).
Solids 06 00026 g004
Solids 06 00026 g005

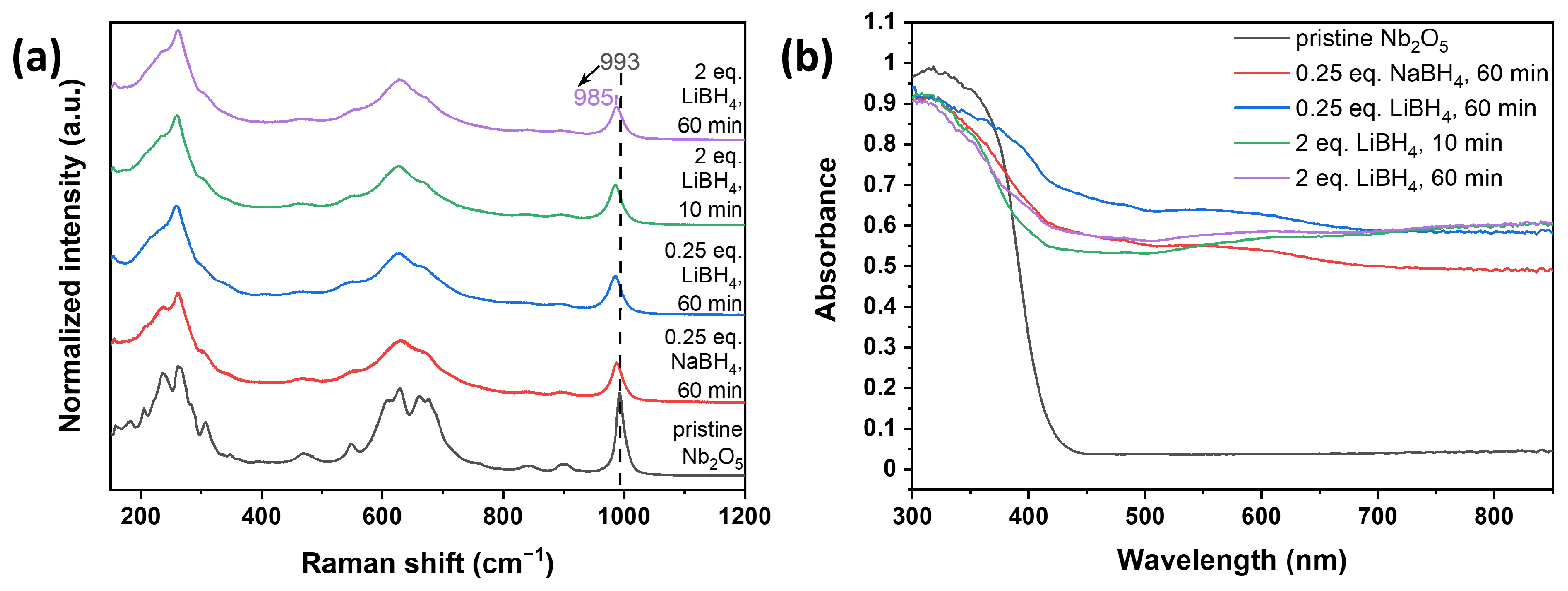

Figure 5. (a) Raman spectra of pristine (black) Nb2O5 and with NaBH4- (0.25 eq./60 min, red) and LiBH4 (0.25 eq./60 min, blue; 2 eq./10 min, green; 2 eq./60 min, purple) reduced Nb2O5. Corresponding DRS-UV–Vis absorbance spectra of pristine and reduced niobia are shown in (b).
Figure 5. (a) Raman spectra of pristine (black) Nb2O5 and with NaBH4- (0.25 eq./60 min, red) and LiBH4 (0.25 eq./60 min, blue; 2 eq./10 min, green; 2 eq./60 min, purple) reduced Nb2O5. Corresponding DRS-UV–Vis absorbance spectra of pristine and reduced niobia are shown in (b).
Solids 06 00026 g005
Solids 06 00026 g006

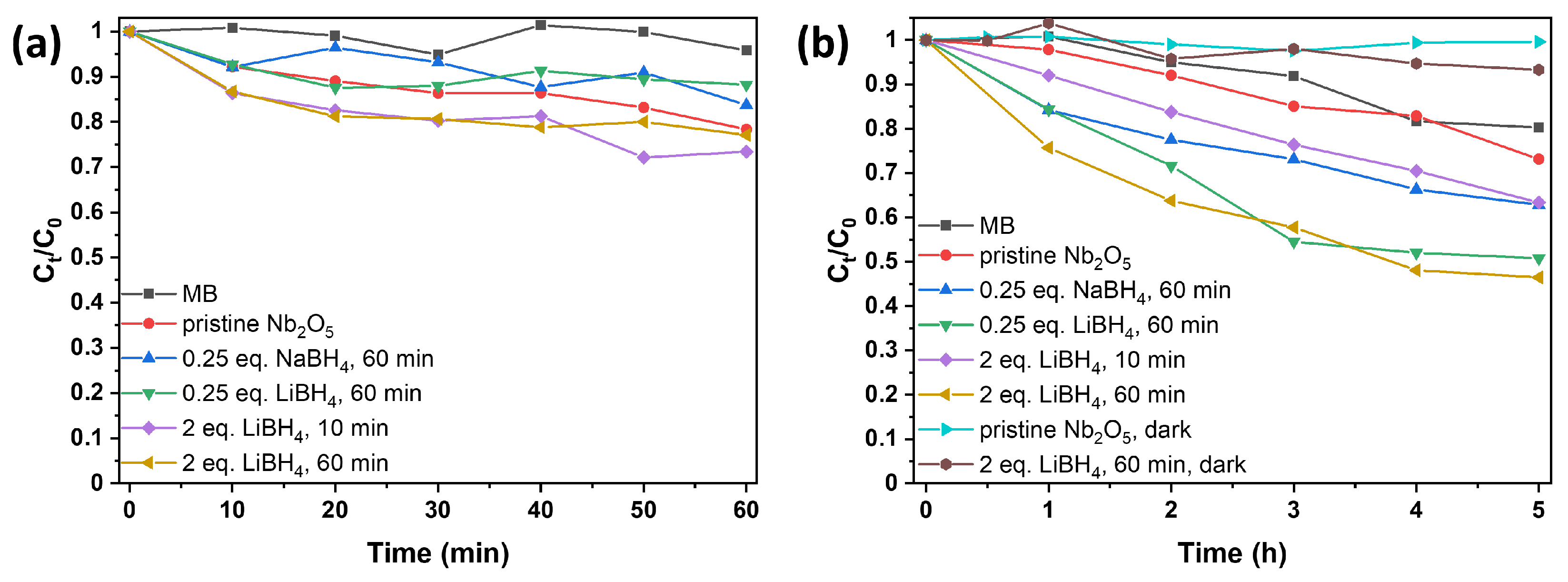

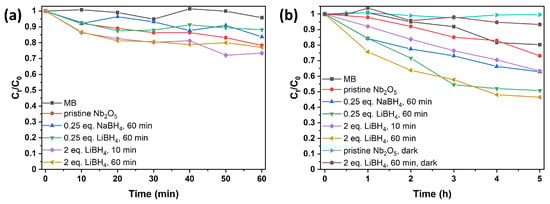

Figure 6. Photocatalytic degradation of methylene blue (MB) (a) under UV (365 nm) and (b) under visible light without catalyst (black), with pristine niobia (red) and with reduced niobia (blue: 0.25 eq. NaBH4, 60 min; green: 0.25 eq. LiBH4, 60 min; purple: 2 eq. LiBH4, 10 min; yellow: 2 eq. LiBH4, 60 min). In (b), MB and Nb2O5 (turquoise), as well as LiBH4-reduced Nb2O5 (brown) were also stirred without illumination for comparison with stirring with illumination. Note the different time scales between (a) and (b).
Figure 6. Photocatalytic degradation of methylene blue (MB) (a) under UV (365 nm) and (b) under visible light without catalyst (black), with pristine niobia (red) and with reduced niobia (blue: 0.25 eq. NaBH4, 60 min; green: 0.25 eq. LiBH4, 60 min; purple: 2 eq. LiBH4, 10 min; yellow: 2 eq. LiBH4, 60 min). In (b), MB and Nb2O5 (turquoise), as well as LiBH4-reduced Nb2O5 (brown) were also stirred without illumination for comparison with stirring with illumination. Note the different time scales between (a) and (b).
Solids 06 00026 g006
