Structure and Reactivity of CoFe₂O₄(001) Surfaces in Contact with a Thin Water Film

Abstract

CoFe${}_2$O${}_4$ is a promising catalytic material for many chemical reactions. We used ab initio molecular dynamic simulations to study the structure and reactivity of the A- and B-terminations of the low-index CoFe${}_2$O${}_4$(001) surfaces to water adsorption at room temperature. Upon adsorption, water partly dissociates on both termination with a higher dissociation degree on the A-termination (30% versus 19%). The 2-fold coordinated Fe³⁺(tet) in the tetrahedral voids and the 5-fold coordinated Fe³⁺(oct) in the octahedral voids are the main active sites for water dissociation on the A- and B-termination, respectively. Molecular water, hydroxydes, and surface OH resulting from proton transfer to surface oxygens are present on the surfaces. Both water-free surface terminations undergo reconstruction. The outermost Fe³⁺(tet) on the A-termination and B-termination move towards the nearby unoccupied octahedral voids. In the presence of a thin film of 32 water molecules, the reconstructions are partially and completely lifted on the A- and B-termination, respectively.

1. Introduction

Spinel-type transition metal oxides (TMO) are increasingly being used as catalysts for the production of chemicals at the industrial level via heterogeneous catalysis. This stems from their interesting electronic, magnetic, optical, electrical, thermal and redox properties [1]. Among these, cobalt ferrite (CoFe${}_2$O${}_4$) was found to be a promising catalytic material for many chemical reactions due to its unique structural and chemical stability [2,3,4]. These include the oxygen evolution reaction (OER) [5,6,7,8], CO oxidation [8,9,10,11,12], 2-propanol oxidation [13,14], alkene oxidation [15], methane combustion [16] and the oxidation of many other organic compounds [17].

CoFe${}_2$O${}_4$ nanoparticles naturally grow as octahedrons, exposing only the low index (111) facet. This stems from the surface energy of this facet (0.208 J·m⁻²) which is one order of magnitude lower than the two other low index (001) and (101) facets (1.486 J·m⁻² and 1.916 J·m⁻², respectively) as calculated by Zheng et al. [18]. Based on these surfaces energies, they computed the equilibrium shape of CoFe${}_2$O${}_4$ using a Wulff construction. Their calculations showed octahedral grains exposing 8 (111) facets only, in agreement with the experimentally observed scanning electron microscopy (SEM) images [19].

However, in operando, it may happen that less stable facets show a better catalytic performance for particular chemical reactions. Control parameters such as the solvent may act as selective surfactants and promote the growth of a particular surface termination [20]. In this respect, the performance the (111) facet for OER was recently questioned by Hajiyani et al. as a considerable disagreement between the calculated and experimental overpotentials was observed [5,6,21]. Using DFT calculations, they investigated the catalytic performance of pure and chemically modified CoFe${}_2$O${}_4$(001) surfaces for OER and found that this less stable facet shows a lower overpotential [21].

Additionally, several synthesis routes have been developed in recent years to tune the size, shape and composition of CoFe${}_2$O${}_4$ nanoparticles and promote a selective exposure of catalytically relevant facets. Depending on the interplay between the synthesis parameters such as temperature, reaction time and solvent, nanoparticles with various shapes can be synthesized [22]. For example, Kim et al. recently proposed a recipe that enables the growth of highly crystalline nanohexagons exposing not only the (111) facets but also the (001) facets in considerable proportions [23]. Apart from temperature and reaction time, the ratio of surfactant to solvent was found to be a decisive parameter in their study. Hence, for a rational design and improvement of the properties of CoFe${}_2$O${}_4$ nanoparticles, the role of the solvent should be elucidated.

Recently, a primordial step towards understanding the effect of aqueous solvation on the properties of CoFe${}_2$O${}_4$ nanoparticles was performed by Rushiti et al. [24]. They used static DFT calculations to investigate the structure and reactivity of clean and O-defected CoFe${}_2$O${}_4$(001) surfaces towards water in the single molecule regime. Water was found to adsorb a mainly molecularly form on Co and Fe metal sites of defect-free surfaces, whereas it always dissociates at oxygen vacancies, thereby lifting the reconstructions introduced by the defects.

However, for processes in operando, the dynamical character of the disordered liquid water phase and the thermal contributions to its structure and reactivity have to be taken into account. In this work, we used ab initio molecular dynamic simulations to shed some light on the structural response and reactivity of CoFe${}_2$O${}_4$(001) surfaces to water adsorption at room temperature. We investigated the nature of the adsorption sites and the chemical state of water in the contact layers. We consider both the so-called A- and B-terminations of CoFe${}_2$O${}_4$(001) and a water film of approximately 2 Å to 3 Å and consisting of 32 water molecules. As shown in previous studies, this thickness of interfacial water describes reasonably well the interface between water and many oxides [20,25,26,27,28].

2. Computational Details

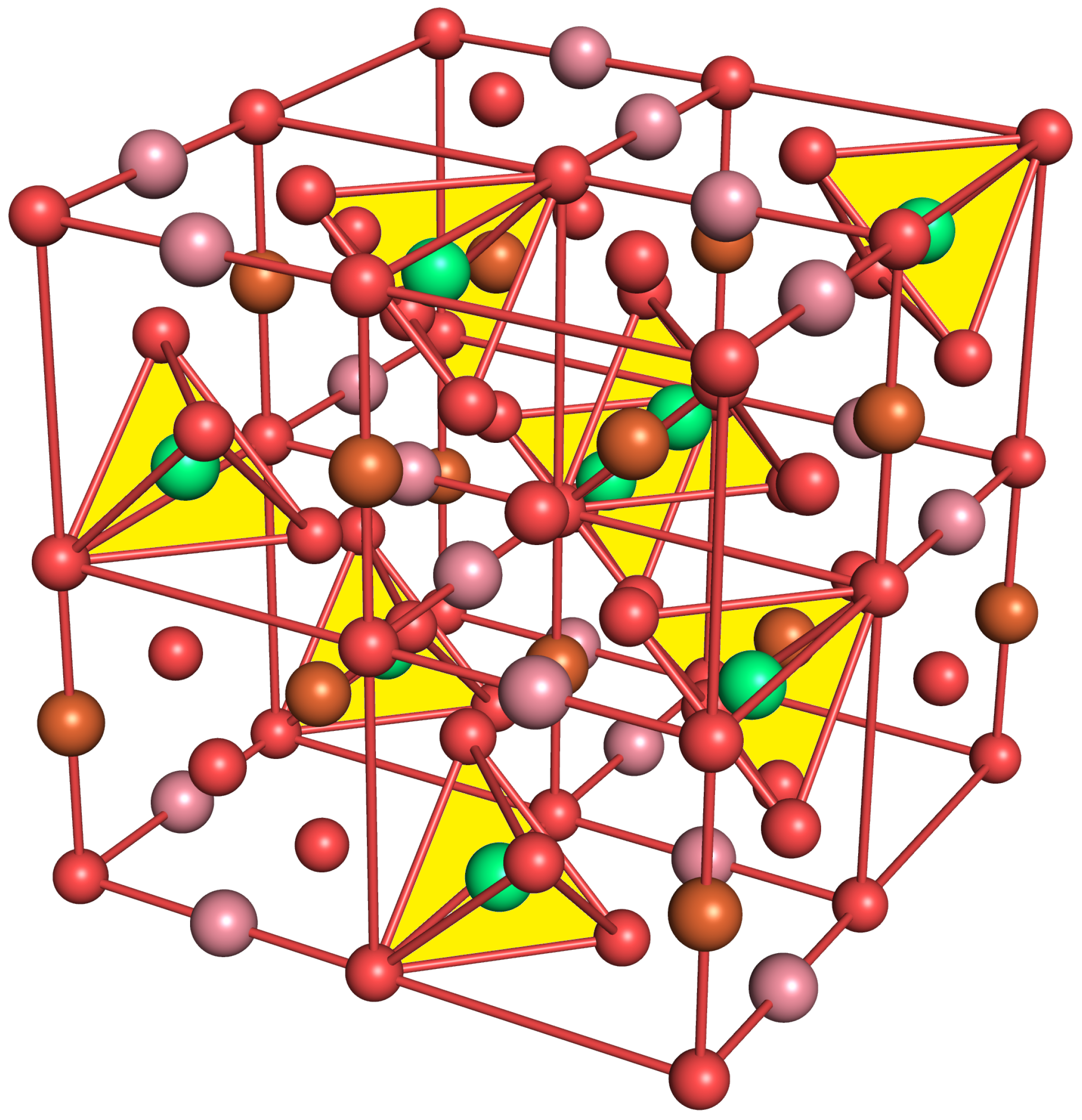

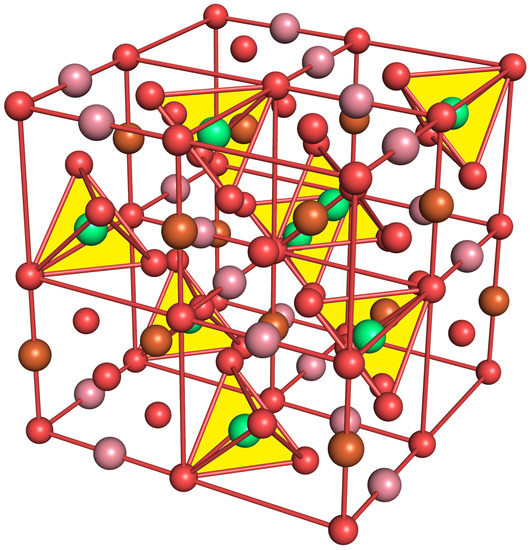

Cobalt ferrite (CoFe${}_2$O${}_4$) crystallizes in a face cubic centered inverse spinel [2], with an inversion degree that depends on the synthesis conditions. In this work, we consider a full inverse spinel structure, where 1/4 of the octahedral voids are co-occupied by cobalt Co²⁺(oct) and Fe³⁺(oct), while the tetrahedral voids are only occupied by Fe³⁺(tet). We alternate the occupation of the octahedral voids with Co²⁺ and Fe³⁺ with every layer in the x direction (surface in-plane), (see Figure 1).

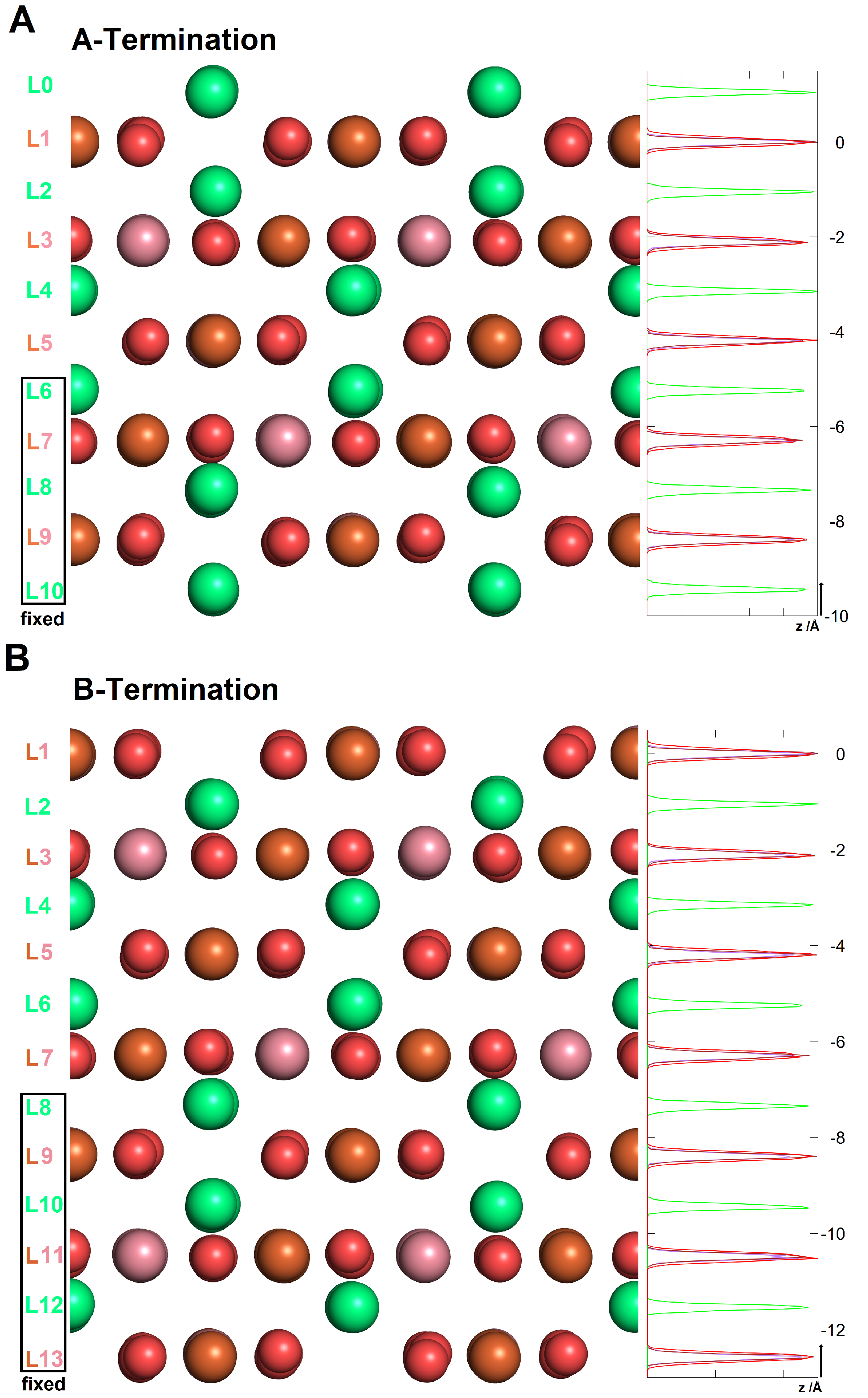

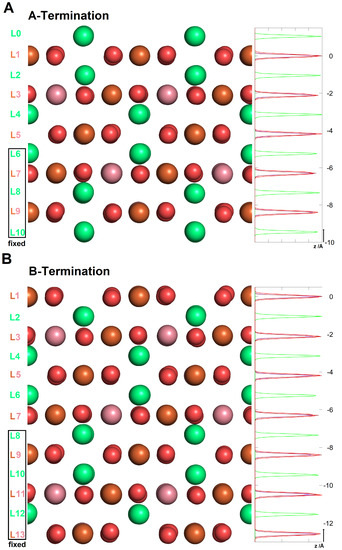

Cutting in the (001) direction leads to two different surface terminations known as A- and B-terminations (see Figure 2). The topmost layer (L0) of the A-termination shows only 2-fold coordinated Fe³⁺(tet) ions occupying the tetrahedral voids, while the topmost layer (L1) of the B-termination is mixed, consisting of 5-fold coordinated Co²⁺(oct) and Fe³⁺(oct) ions which sit in the octahedral voids and surface oxygens.

To model the interaction of the surfaces with the water film, non-stoichiometric slabs consisting of 11 and 13 atomic layers covered with a water film of 32 molecules and followed by a vacuum region of approximately 20 Å thickness were used for A- and B-termination, respectively. In each case, five (A-termination) and six (B-termination) atomic layers in the bottom part of the slabs were frozen at their bulk positions and the upper part of the slab allowed to relax together with the water molecules. A supercell with (2 × 2) periodicity in the lateral direction (x and y) and corresponding dimensions of 16.784 Å × 16.784 Å × 40.0 Å was used. A dipole correction was applied in the surface’s out of plane direction to cancel the electric field gradient in the vacuum, arising from the asymmetry of the slabs due to the frozen atoms in the bottom part and the one-sided water adsorption.

The CP2K/Quickstep package [29] was used to perform Born-Oppenheimer molecular dynamics (MD) simulations. The electronic interactions were treated with the PBE exchange-correlation functional [30] together with a dispersion correction of the Grimme D3 type [31]. Hubbard correction [32] terms of $U=2.0$ eV [26,33,34,35] for Co and $U=3.3$ eV [36] for Fe were added for a correct description of their $3d$ states. The core electrons were treated with Goedecker–Teter–Hutter (GTH) pseudopotentials, while the 3s, 3p, 3d, and 4s, electrons of Co and Fe atoms and the 2s and 2p electrons of the O atoms were considered valence electrons. The basis sets consisted of a mixture of double-$\zeta$ quality local basis functions with one set of polarization functions (DZVP) and plane waves with a cutoff of $500\mathrm{Ry}$.

The Born–Oppenheimer molecular dynamics trajectories were propagated with a time step of $0.5\mathrm{fs}$ during a total simulation time of $20\mathrm{ps}$. To achieve NVT conditions, a Nosé–Hoover thermostat with a time constant of $1\mathrm{ps}$ and a target temperature of $300\mathrm{K}$ was used.

3. Results and Discussion

3.1. The Structure of Interfacial Water

The A- and B-terminations of the CoFe${}_2$O${}_4$(001) surfaces show open surfaces where water can bind on several potential adsorption sites. These are the 2-fold coordinated Fe³⁺(tet), the 5-fold coordinated Co²⁺(oct) and Fe³⁺(oct). On both terminations, one differentiates between surface oxygens O1 in the topmost layer (L1) that is bound to one Fe³⁺(tet) in the nearest subsurface layer L2 and that which is not (O2). To investigate the adsorption mode of water at the interface, we calculated the characteristic radial distribution functions between the surface cations and anions and water adsorbates on the A- and B-terminations.

3.1.1. A-Termination

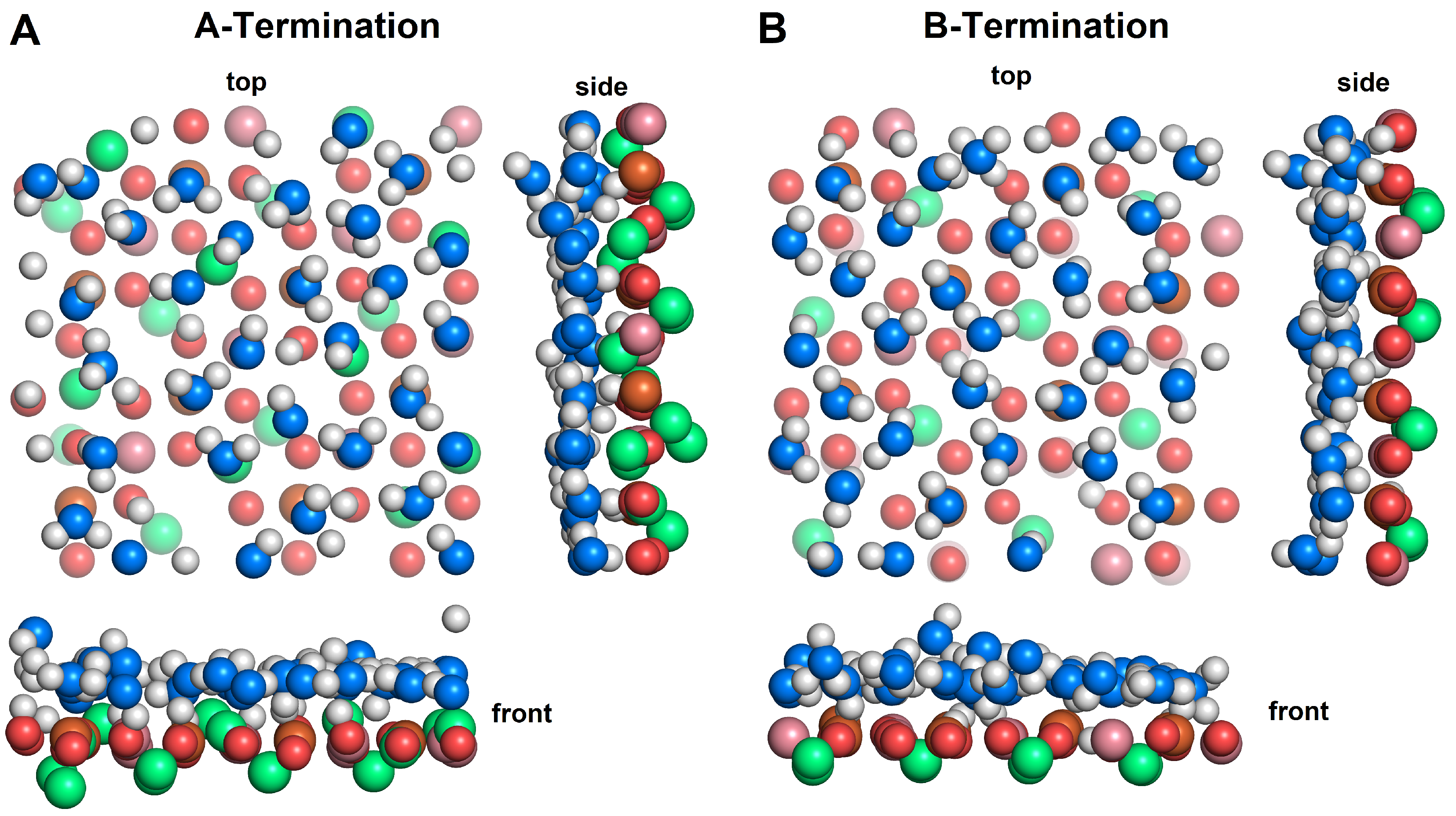

Thirty-two potential adsorption sites are present on this surface: the cobalt and iron ions in the octahedral voids (16) and the 8 iron ions in the tetrahedral voids on which up to two molecules can adsorb. As seen from snapshots of equilibrium trajectories (Figure 3A), both water molecules, water OH groups and surface OH arising from proton transfer are present in the contact layer.

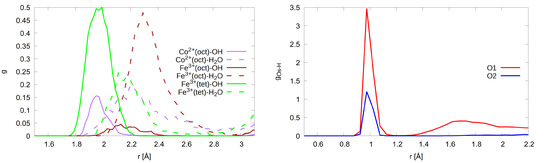

Figure 4 (left) shows the bond length distances between surface cations and water oxygens. While molecular water is present at all adsorption sites as exteriorized by the peaks centered at 2.15 Å, 2.25 Å and 2.35 Å for Fe³⁺(tet), Co²⁺(oct) and Fe³⁺(oct), respectively. It is seen that hydroxides bind preferentially on Co²⁺(oct) and Fe³⁺(tet) with a stronger signature on the latter sites, as shown by the intensity of the peaks centered at 1.9 Å and 1.95 Å, respectively. Hydroxides are barely present on the Fe³⁺(oct) sites, as seen from the broad peak of very low amplitude centered at 2.20 Å.

Our investigations reveal that approximately 21 (21.4) adsorbates are present in the contact layer with the surface, 7.1 hydroxides and 14.3 water molecules. The distribution of adsorbates on the adsorption sites reads: 8.8 molecules on Fe³⁺(tet), 7.5 and 5.1 on Fe³⁺(oct) and Co²⁺(oct), respectively. Furthermore, 5.4 out of 7.1 hydroxides bind on Fe³⁺(tet), confirming the stronger preference of water to dissociate on these sites, as mentioned above.

Figure 4 (right) shows the radial distribution function of the different surface oxygen types to the water hydrogens. One can see a signature of H-bonding between the surface O1 and water hydrogens as highlighted by the peak at 1.8 Å. The characteristic peaks at 1 Å show a more significant presence of hydrogens bound to the O1 surface oxygens compared to O2 surface oxygens. This stems from the fact that proton transfer on the latter occurs only upon the reconstruction of some of the nearby Fe³⁺(tet) that move away from the tetrahedral voids, annihilating the steric effects that prohibit proton transfer to surface O2 oxygens.

3.1.2. B-Termination

In the case of the B-terminated surface, 16 potential adsorption sites are present, which are the 8 Co²⁺(oct) and 8 Fe³⁺(oct). On each site, only one water or hydroxide molecule can adsorb. Unlike on the A-termination, water sits on all adsorption sites. As seen from Figure 3B, water adsorbs via a partly dissociative mode, with a lower dissociation degree compared to the A-termination. Figure 5 (left) shows the radial distribution function between the surface cations and water oxygens. Hydroxide molecules almost exclusively bind on Fe³⁺(oct) sites. This is supported by the peak centered at 1.95 Å, the characteristic signature of OH groups which is quenched for Co²⁺(oct) and which interact exclusively with molecular water.

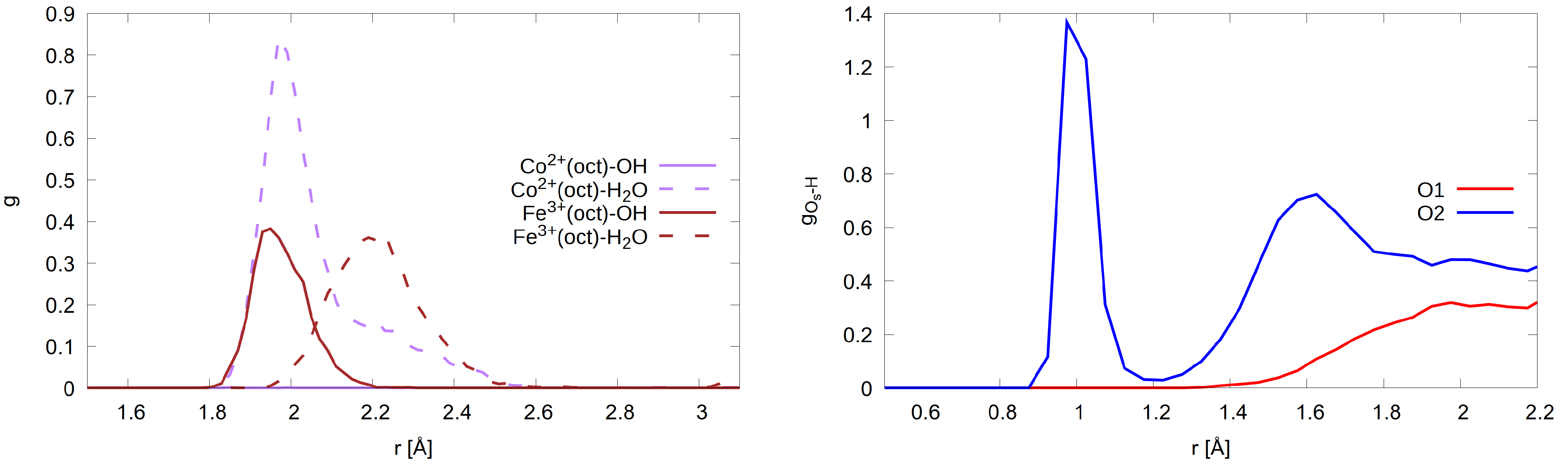

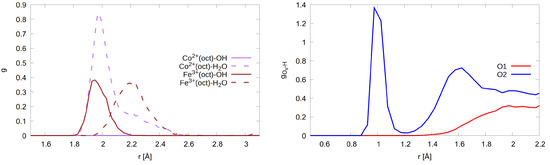

The integration of the number density shows that 3.1 water molecules out of the 16 present in the contact layer dissociate via proton transfer to the surface. This exclusively occurs on surface oxygens O2, as shown in Figure 5 (right), in which the characteristic peak at 1.05 Å, which is the signature of surface OH originating from the proton transfer to the surface, is missing for surface oxygens O1. Furthermore, surface oxygens O2 is predominant in the hydrogen bonding to the surface, as can be seen from the peak centered at 1.75 Å which also exteriorizes a strong H-bonding character.

3.2. Surface Relaxations and Reconstructions

To study the structural behavior of the A- and B- surfaces’ terminations upon water adsorption, for each surface termination, we performed molecular dynamics runs at room temperature for simulations times of 20 ps for the water-free and water-covered surfaces, respectively. Afterwards, we computed and analyzed the characteristic density profiles and radial distribution functions (RDFs) to investigate the changes in the geometrical features before and after the simulations taking the clean surfaces as references.

3.2.1. A-Termination

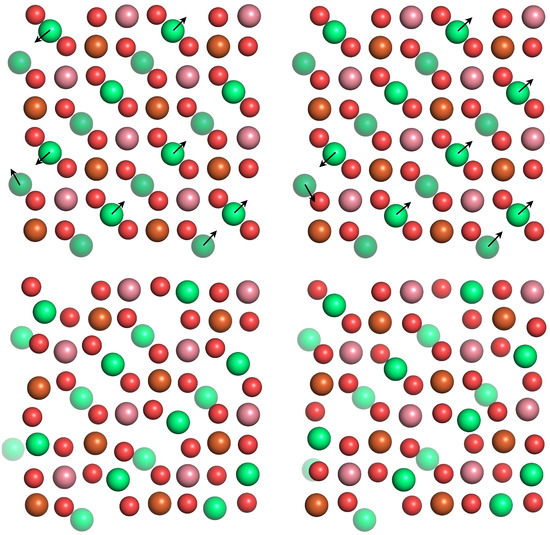

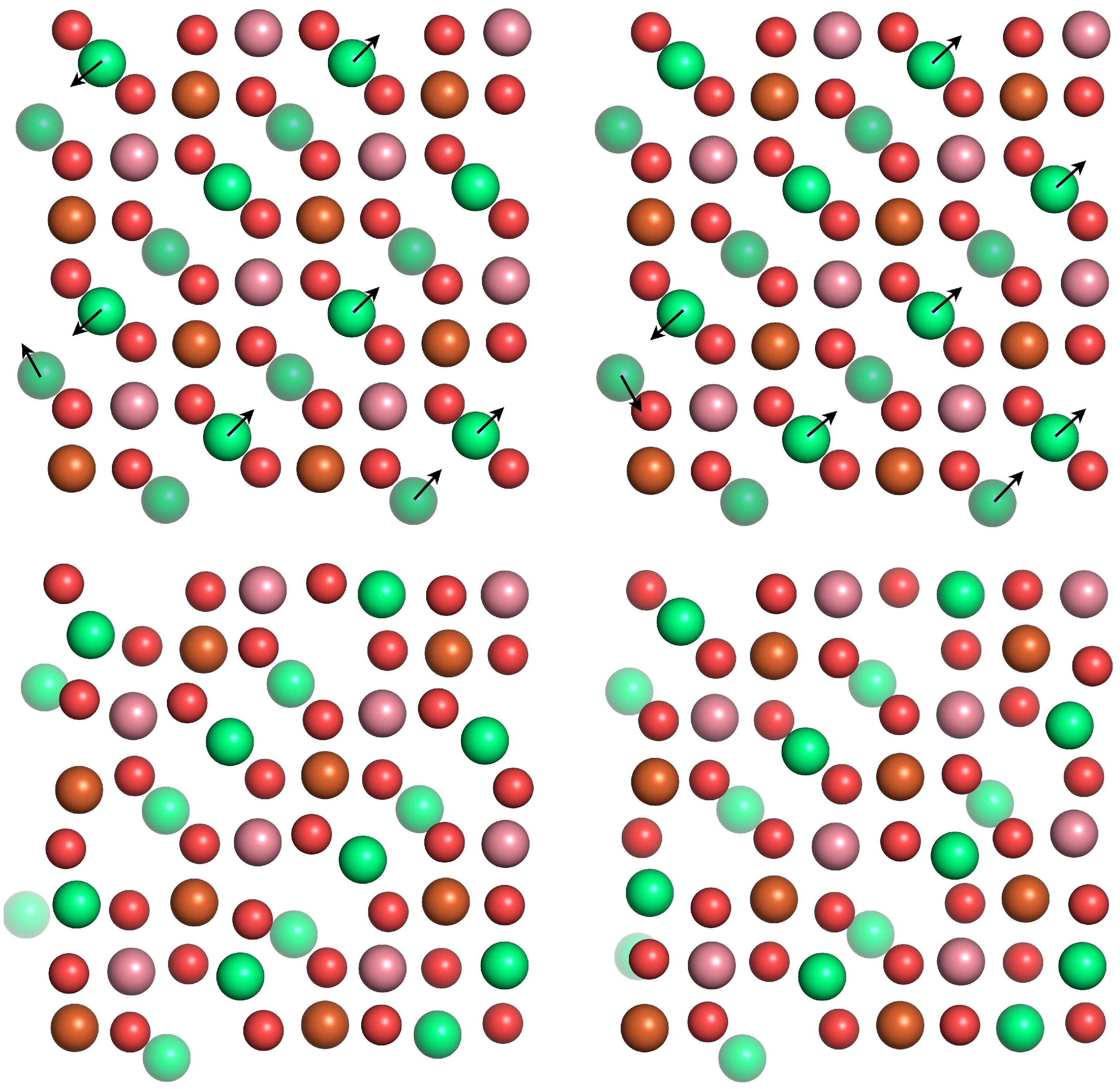

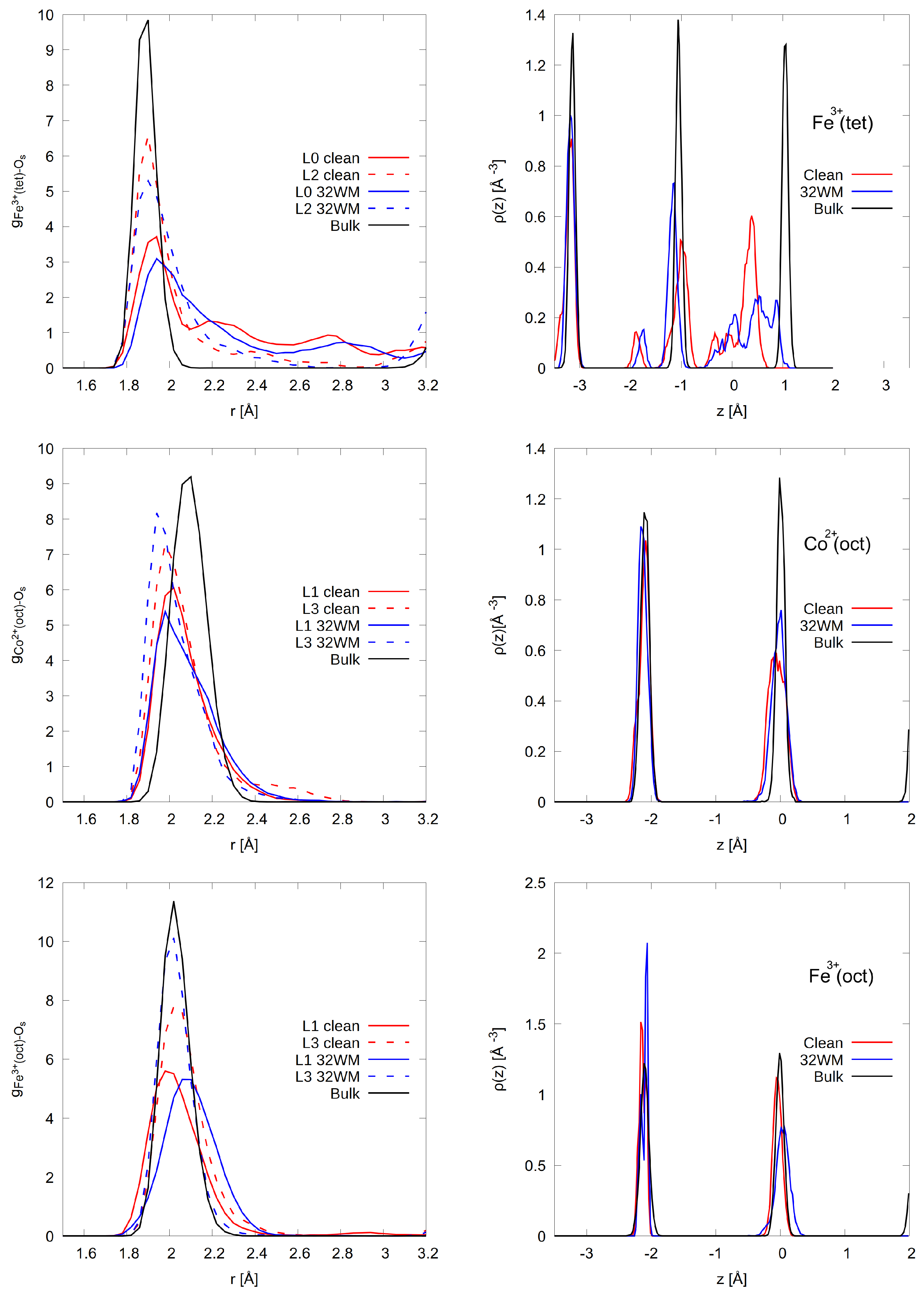

After the relaxation of the water-free surface, the tetrahedral voids containing the Fe³⁺(tet) are widened (6 out of 8 Fe³⁺(tet) in the topmost layer L0) as these ions move towards the nearby unoccupied octahedral voids in L1 (Figure 6 top left, bottom left). This is supported by Figure 7 (top left) that shows the distances between Fe³⁺(tet) in L0 and L2 and the surface O of the tetrahedral voids located in the adjacent layers L1 and L3, respectively. For the clean surface, Fe³⁺(tet) in L0 are displaced by approximately 0.05 Å from their bulk positions, as shown by the peak at 1.95 Å. Additionally, the broader peak’s shoulder of lower amplitude at 2.2 Åarises as the Fe³⁺(tet) moves closer to the surface oxygens located in the unoccupied octahedral voids in L1. These Fe³⁺(tet) in L0 weakly interact with the lattice oxygens located in the unoccupied octahedral void in L3, as illustrated by the peak 2.8 Å. The presence of water slightly attenuates these relaxation features (Figure 6 top right, bottom right) as illustrated by the lower amplitude of the RDFs (blue lines in Figure 7, top left). The Fe³⁺(tet) in the inner layer L2 also shows this tendency to move towards the octahedral voids, but the effect is not as pronounced as in the topmost layer L0, as shown by the faster convergence of the radial distribution functions towards bulk values under dry and humid conditions (dashed lines in Figure 7, top left). Only 2 out of 8 Fe³⁺(tet) reconstruct in L2.

The reconstruction of Fe³⁺(tet), as they move towards the nearby unoccupied octahedral voids, yields an increment in the coordination number in the outermost surface layers. The calculated coordination numbers for the clean surface read 4.87, 4.50 and 4.01 for Fe³⁺(tet) in layers L0, L2 and L4, respectively. As a consequence of water adsorption, the coordination number of Fe³⁺(tet) in the contact layer with water increases to 5.45, while the coordination environment of Fe³⁺(tet) in the inner layers remains almost unchanged with coordination numbers of 4.45 and 4.01 for Fe³⁺(tet) in layers L2 and L4. The out-of-plane distribution of Fe³⁺(tet) displayed in Figure 7 (top right) shows that the outermost Fe³⁺(tet) undergoes an inwards relaxation, moving closer to L1 as illustrated by the shift by approximately 0.5 Å to lower values from the bulk positions. The peak intensity is attenuated by water adsorption and spreads until bulk positions as the coordination environment of Fe³⁺(tet) ions changes as mentioned above.

As a consequence of the clean surface reconstruction, octahedral voids containing the Co²⁺(oct) shrink (Figure 6 top left, bottom left) as supported by Co²⁺(oct)–Os distances that shift to a lower value by approximately 0.5 Å compared to bulk (Figure 7, centre left). Fe³⁺(oct) undergo relaxations of small amplitude, as can be seen from (Figure 7, bottom left). Upon water adsorption, the voids are enlarged as illustrated by larger Fe³⁺(oct)–Os distances. Co²⁺(oct) and Fe³⁺(oct) undergo inwards and outwards out-of-plane relaxation of very weak amplitude, as shown in Figure 7 (centre right, bottom right), respectively. This observation also holds in the presence of water as the density profiles are very similar. Water adsorption yields a bulk-like coordination environment (coordination numbers of 5.86 and 5.6 for Fe³⁺(oct) and Co²⁺(oct), respectively, vs. 6 for the bulk coordination number).

3.2.2. B-Termination

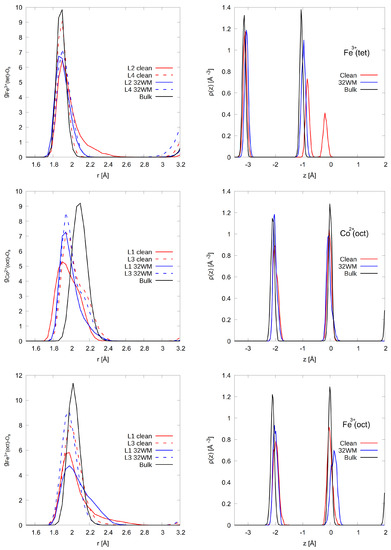

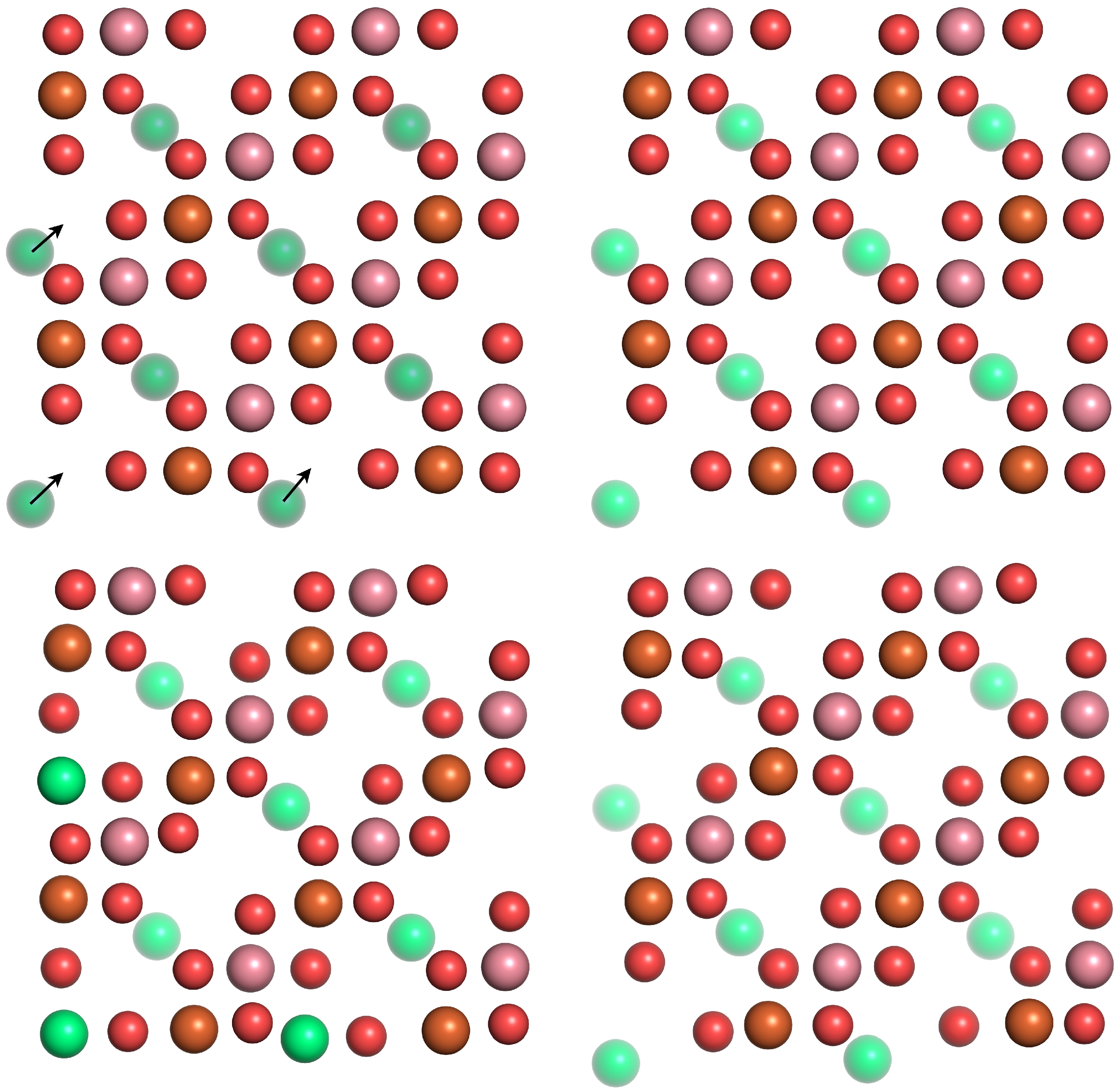

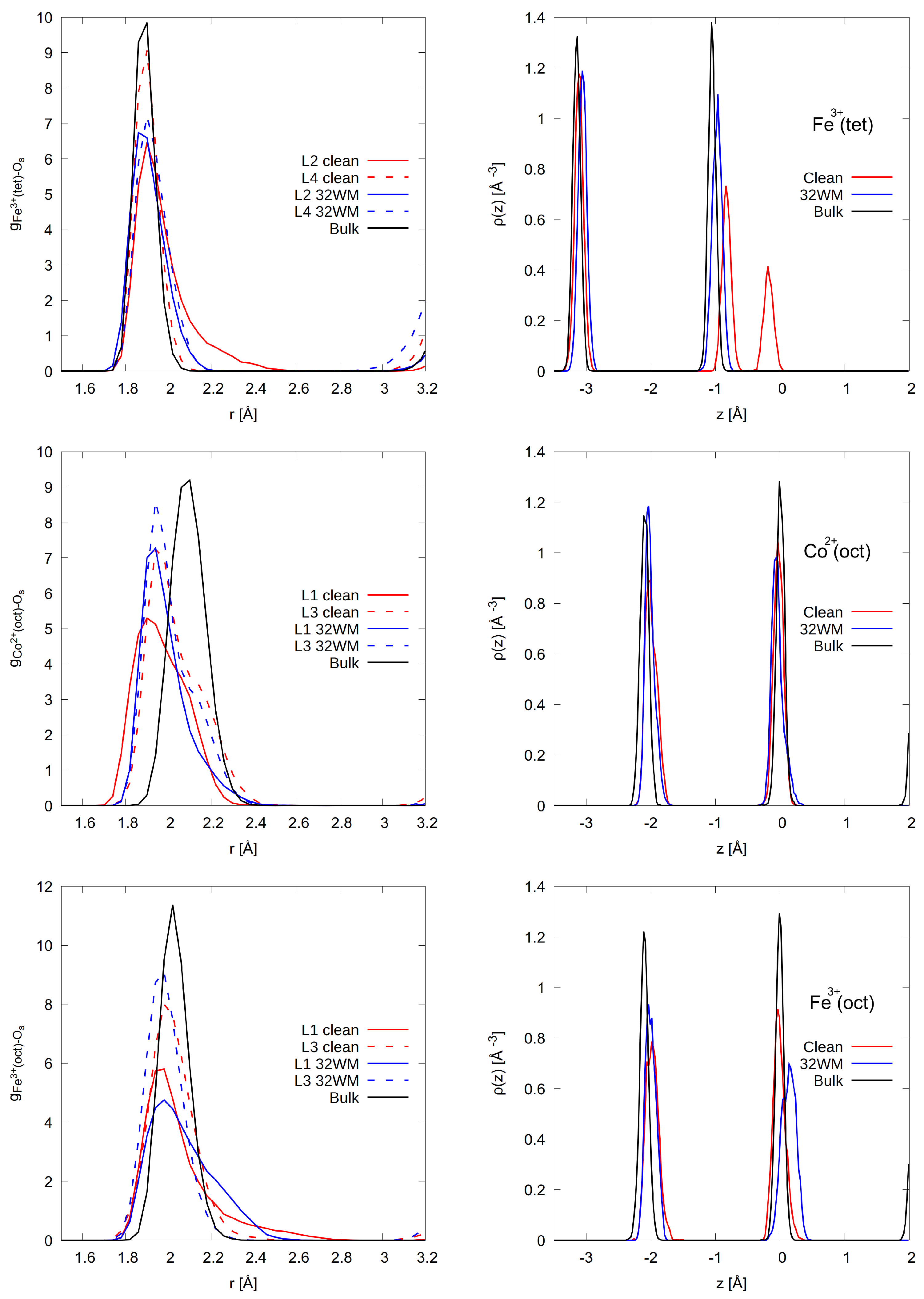

Fe³⁺(tet), located in L2, reconstructs on the clean surface (3 out of 8 Fe³⁺(tet)) by moving into unoccupied octahedral voids in L1 (Figure 8 top left, bottom left), as highlighted by the tail in the RDF (Figure 9, top left) and the presence of the peak at −0.1 Å in their density profiles which express an outwards relaxation by approximately 0.9 Å (Figure 9, top right). This increases the coordination number of outermost Fe³⁺(tet) to 4.38. Their counterparts in the inner layers L4 and L6 do not reconstruct and their coordination numbers barely deviate from bulk values (4.03 and 4.07, respectively). Upon water adsorption, the reconstruction in L2 is lifted as the presence of water quenches the aforementioned geometric features. As a consequence, the Fe³⁺(tet) in L2 recover their bulk environment with a coordination number of 4.02.

Like on the A-termination, a consequence of the Fe³⁺(tet) reconstruction is the shrinking of the octahedral voids containing the Co²⁺(oct) that can be observed in the L1 layer (Figure 8 top left, bottom left). The shortening of the Co²⁺(oct)–Os distances, as shown in Figure 9 (centre left) supports this observation. This holds under dry and humid conditions (Figure 8 top right, bottom right). Figure 9 (centre right) shows that the Co²⁺(oct) undergoes almost no out-of-plane relaxation. This is a consequence of the weaker interaction of Co²⁺(oct) with water, as shown in Figure 5 (left) and discussed above. Water enlarges the octahedral voids containing the Fe³⁺(oct) as it can be seen from the broadening of the RDF of the outermost Fe³⁺(oct) in Figure 9 (bottom left) and their outwards out-of-plane relaxation in Figure 9 (bottom right). This stems from their stronger interaction with water hydroxide. Furthermore, like the Fe³⁺(tet), upon water adsorption, the 5-fold coordinated Fe³⁺(oct) and Co²⁺(oct) recover their bulk coordination number of 6.

4. Conclusions

Our investigations show that, on both the A- and B-terminations, water is partially dissociated in the contact layer. Molecular water can bind on all cation sites, while hydroxide binds to specific sites. On the A-terminated surface, hydroxide molecules mainly bind on the 2-fold coordinated iron ions Fe³⁺(tet), while on the B-terminated surface, they sit exclusively on top of the 5-fold coordinated iron ions Fe³⁺(oct) which are more reactive. The dissociation degree on the A-terminated surface is higher than on the B-termination (A: 7/24, 30% B:3/16, 19%). Following water dissociation, proton transfer to a nearby surface oxygen occurs, resulting in a surface hydroxide. On the A-termination, proton transfers to the surface oxygens O1 in the topmost layer (L1) that is coordinated to one Fe³⁺(tet) in the adjacent subsurface layer L2, which is more pronounced, while on the B-termination, it occurs exclusively on the O2 surface oxygens in the layer L1. Both surface terminations undergo reconstruction under dry conditions. The Fe³⁺(tet) in the topmost layer L0 on the A-termination and those in L2 on the B-termination move towards the nearby unoccupied octahedral voids in layer L1. Water partially lifts the reconstructions on the A-termination and does it completely on the B-termination, as on the latter, the undercoordinated surface atoms converge faster towards their bulk-like environment in the presence of a thin film of 32 water molecules.
