Exploring the Distribution of Low Molecular Weight Compounds in Water-Based Two-Phase Systems with Various Salt Additives

Abstract

The partition coefficients of seven low molecular weight compounds were tested in different aqueous two-phase systems. The ionic composition of each system included specific salt additives, and it was found that there is a linear relationship between the solute partition coefficients and the presence of different salt additives. The study suggests that the solute structure and the type of ions influence the solute response to the ionic environment. Additionally, it was observed that the solutes’ polar surface area and the solvent-accessible surface area are the essential structural features governing partitioning in aqueous two-phase systems.

1. Introduction

Aqueous two-phase systems (ATPSs) are created when mixtures of two (or more) water-soluble polymers, such as dextran and polyethene glycol (PEG), or a single polymer and a specific salt, or a single polymer and a particular small water-soluble organic molecule, reach specific threshold concentrations in water. The two separate aqueous phases have different polymer compositions and solvent properties [1,2,3,4,5,6,7,8], providing a safe and distinct solvent environment compatible with biological products [1,2,3,4,5,6,7,8,9,10,11,12]. Differences in solute–solvent interactions in the two phases often result in uneven solute distribution, measured by the partition coefficient, K. This coefficient is defined as the ratio between the solute concentrations in the phases. It can detect changes in the solute structure [1,13,14].

Partitioning in aqueous two-phase systems (ATPSs) has proven beneficial for separating and concentrating various substances and a wide range of analytical applications. It has been demonstrated [15] that differences in the 3D structures of closely related proteins can be measured by studying how these proteins partition in four or more ATPSs consisting of the same polymer but different ionic compositions. Researchers have reported that specific protein–ion interactions [16] and protein–protein interactions [17] can be identified by observing changes in partition behavior. Additionally, it has been shown that solute-specific coefficients for biological molecules, which represent their interactions with aqueous environments, can be determined by studying the partitioning of these biomolecules in multiple ATPSs [18,19] with well-characterized solvent properties in the coexisting phases.

Our recent study examined how a group of polar organic compounds interacted with different ATPSs [20]. Our findings [20] revealed that the compounds’ partition behavior is influenced not only by dipole–dipole and hydrogen-bond interactions with the aqueous environment but also, in many cases, by dipole–ion interactions.

One of the exciting aspects of solute behavior in ATPSs is that relatively small amounts of salt additives may significantly affect the solute partitioning [9,10,11]. However, the effects of salt additives on the partitioning of organic compounds in polymer–polymer ATPSs have never been systematically studied.

To better understand how salt affects the distribution of solutes in ATPS (aqueous two-phase systems), we investigated the impact of three different salt additives, Na₂SO₄, NaCl, and NaClO₄⁻, in the presence of 0.01 M sodium phosphate buffer (NaPB) at pH 7.4. We examined how these salts influenced the behavior of seven different organic compounds in various polymer–polymer ATPSs.

2. Materials and Methods

2.1. Materials

2.1.1. Polymers

Dextran 75 (lot 124339), with a weight-average molecular weight (Mw) of 75,000, was purchased from USB (Cleveland, OH, USA).

Polyethylene glycol 8000 (lot BCBJ3787V), with a Mw of 8000, and polyethylene glycol 4000 (lot BCBD2874), with a Mw of 4000, were purchased from Sigma-Aldrich (St. Louis, MO, USA).

Ucon 50-HB-5100 (lot SJ1955S3D2), with a Mw of 3930, was purchased from Dow-Chemical (Midland, MI, USA).

Ficoll 70 (lot 10085600), with a Mw of 70,000, was purchased from GE Healthcare Biosciences AB (Uppsala, Sweden).

All polymers were used without further purification.

2.1.2. Other Chemicals

Phenol; benzyl alcohol; 2-Phenylethanol; vanillin; 4-nitrophenyl-α-D-glucopyranoside; coumarin (2H-chromen-2-one); and methyl anthranilate were purchased from Sigma-Aldrich (St. Louis, MO, USA). All salts and other chemicals used were of analytical-reagent grade.

2.2. Methods

Partitioning

The solutions of each compound were meticulously prepared in water at concentrations ranging from 1 to 5 mg/mL. Various volumes (e.g., 0, 10, 20, 30, 40, and 50 µL) of a specific compound solution, in conjunction with complementary volumes (e.g., 100, 90, 80, 70, 60, and 50 µL) of water, were meticulously added to a set of identical polymer/buffer/salt mixtures using a Multipette Xstream pipette (Eppendorf, Hamburg, Germany) to achieve a final volume of 1200 μL. The systems underwent a rigorous process of vortexing and centrifugation for 30–60 min at 10,000 rpm in a Minispin centrifuge (Eppendorf) to accelerate phase settling. Subsequently, duplicate aliquots of 20 to 70 µL from both the upper and lower phases were carefully withdrawn using a Multipette Xstream pipette for analysis. These aliquots from both phases were then meticulously diluted with water up to 250 µL in microplate wells. Following moderate shaking at room temperature (23 °C), an optical absorbance measurement at the maximum wavelength of each compound was meticulously taken using a Synergy-2 UV-VIS plate reader (Bio-Tek Instruments, Winooski, VT, USA). The phases of blank systems at corresponding dilutions were meticulously calculated to facilitate comparison.

The partition ratio, denoted as K, represents the ratio of the concentration of a compound in the upper phase to its concentration in the lower phase. To determine the partition ratio for each solute, we calculated the slope of the plot depicting the solute concentration in the upper phase against the solute concentration in the lower phase as a function of different solute concentrations and the fixed composition of the system. Through six independent experiments conducted in duplicate, we consistently obtained an average K value with a deviation below 5% and, in most cases, below 3%.

3. Results and Discussion

Partition coefficients for all compounds examined in all the ATPSs (see

Table 1. Polymer compositions ^a of the phases in the aqueous two-phase systems used for partitioning.

ATPS	Polymer 1	Polymer 2	Total Composition
			Polymer 1	Polymer 2
S1	Dextran	Ficoll	12.9	18.1
S2	Dextran	PEG4000	13.67	6.15
S3	Dextran	Ucon	12.39	10.08
S4	Ficoll	PEG8000	24.67	10.42
S5	Ficoll	Ucon	19.12	15.47
S6	Peg8000	Ucon	15.00	29.97

^a Polymer 1, predominant polymer in the bottom phase; polymer 2, predominant polymer in the top phase; all concentrations of polymers are in %wt.

) are presented in

Table 2. Partition ratios of selected compounds in aqueous two-phase systems (for ATPS compositions see Table 1).

	Distribution Coefficients of Studied Compounds
NaPB 0.01 M, pH 7.4								NaCl 0.15 M + NaPB 0.01 M, pH 7.4
	ATPS							ATPS
Compounds	S1	S2	S3	S4	S5	S6	Compounds	S1	S2	S3	S4	S5	S6
Phenol	1.29 ± 0.02	1.690 ± 0.006	3.16 ± 0.03	1.84 ± 0.01	3.55 ± 0.05	3.35 ± 0.06	Phenol b	1.21 ± 0.03	1.663 ± 0.003	3.23± 0.02	1.74 ± 0.01	3.82 ± 0.01	4.28 ± 0.05
Benzyl alcohol	1.16 ± 0.01	1.370 ± 0.006	2.09 ±0.01	1.553 ± 0.004	2.29 ± 0.02	2.21 ± 0.01	Benzyl alcohol	1.16 ± 0.01	1.41 ± 0.01	2.245 ± 0.006	1.54 ± 0.01	2.34 ± 0.02	2.54 ± 0.03
2-Phenylethanol	1.17 ± 0.02	1.48 ± 0.04	1.93 ± 0.08	1.51 ± 0.03	2.22 ± 0.08	2.43 ± 0.04	2-Phenylethanol	1.03 ± 0.03	1.48 ± 0.02	2.4 ± 0.1	1.60 ± 0.01	2.50 ± 0.06	3.11 ± 0.07
Vanillin	1.308 ± 0.008	1.65 ± 0.01	3.19 ± 0.02	1.632 ± 0.008	3.14 ± 0.02	2.59 ± 0.02	Vanillin b	1.19 ± 0.01	1.69 ± 0.01	3.37 ± 0.04	1.90 ± 0.02	3.98 ± 0.05	3.85 ± 0.04
4-nitrophenyl-α-D-glucopyranoside	1.127 ± 0.003	1.122 ± 0.004	1.508 ± 0.006	1.099 ± 0.003	1.63 ± 0.01	2.22 ± 0.01	4-nitrophenyl-α-D-glucopyranoside	1.155 ± 0.002	1.106 ± 0.005	1.61 ± 0.01	1.133 ± 0.004	1.87 ± 0.01	2.685 ± 0.004
Coumarin	1.244 ± 0.002	1.378 ± 0.004	2.55 ± 0.01	1.363 ± 0.004	2.67 ± 0.02	2.92 ± 0.02	Coumarin b	1.164 ± 0.007	1.34 ± 0.01	2.51 ± 0.05	1.402 ± 0.004	2.94 ± 0.05	3.92 ± 0.02
Methyl anthranilate	1.266 ± 0.004	1.583 ± 0.004	3.34 ± 0.02	1.57 ± 0.01	3.65 ± 0.01	4.41 ± 0.03	Methyl anthranilate b	1.253 ± 0.006	1.623 ± 0.008	3.52 ± 0.02	1.694 ± 0.007	4.81 ± 0.08	5.92 ± 0.07
Na2SO4 0.1 M + NaPB 0.01 M, pH 7.4								NaClO4 0.15 M + NaPB 0.01 M, pH 7.4
	ATPS							ATPS
Compounds	S1	S2	S3	S4	S5	S6 a	Compounds	S1	S2	S3	S4	S5	S6
Phenol	1.41 ± 0.01	2.004 ± 0.006	5.14 ± 0.05	2.316 ± 0.006	6.56 ± 0.04	-	Phenol	1.282 ± 0.002	1.81 ± 0.01	3.84 ± 0.02	2.14 ± 0.01	4.21 ± 0.02	3.04 ± 0.02
Benzyl alcohol	1.18 ± 0.02	1.649 ± 0.008	2.85 ± 0.03	1.79 ± 0.02	3.63 ± 0.02	-	Benzyl alcohol	1.121 ± 0.004	1.48 ± 0.02	2.31 ± 0.01	1.664 ± 0.005	2.49 ± 0.01	2.15 ± 0.01
2-Phenylethanol	1.36 ± 0.02	1.46 ± 0.07	2.32 ± 0.06	1.54 ± 0.04	3.72 ± 0.08	-	2-Phenylethanol	1.13 ± 0.04	1.46 ± 0.02	2.66 ± 0.07	1.66 ± 0.04	2.65 ± 0.07	2.46 ± 0.05
Vanillin	1.475 ± 0.004	1.94 ± 0.01	5.11 ± 0.03	2.168 ± 0.005	5.23 ± 0.05	-	Vanillin	1.223 ± 0.008	1.758 ± 0.008	3.62 ± 0.02	1.862 ± 0.006	3.72 ± 0.04	2.559 ± 0.006
4-nitrophenyl-α-D-glucopyranoside	1.21 ± 0.02	1.242 ± 0.008	2.03 ± 0.01	1.25 ± 0.01	2.37 ± 0.02	-	4-nitrophenyl-α-D-glucopyranoside	1.079 ± 0.005	1.214 ± 0.006	1.585 ± 0.006	1.187 ± 0.003	1.771 ± 0.007	2.02 ± 0.01
Coumarin	1.358 ± 0.005	1.684 ± 0.006	3.60 ± 0.02	1.686 ± 0.008	4.679 ± 0.009	-	Coumarin	1.219 ± 0.005	1.54 ± 0.01	3.09 ± 0.02	1.573 ± 0.004	3.24 ± 0.02	2.977 ± 0.009
Methyl anthranilate	1.463 ± 0.005	2.015 ± 0.003	6.54 ± 0.02	2.10 ± 0.02	7.47 ± 0.04	-	Methyl anthranilate	1.294 ± 0.008	1.828 ± 0.004	4.69 ± 0.02	1.935 ± 0.004	5.02 ± 0.01	4.25 ± 0.04

^a In the presence of Na₂SO₄, the PEG-Ucon ATPSs form three phases. ^b Data from reference [20].

. Analysis of the data in Table 2 shows that all the solutes in all the ATPSs distribute preferentially into the top phase (K > 1).

The data in Table 2 indicate that the impact of salt additives on the solute partitioning in a polymer–polymer ATPS depends on the specific solute and salt used and the ATPS system. When 0.1 M Na₂SO₄ is present in 0.01 M NaPB, the K values for all solutes in each ATPS generally exceed the corresponding K values in the presence of 0.01 M NaPB alone, except for 2-phenylethanol in S2 (dextran-PEG-4000) ATPS. In the presence of NaCl or NaClO4 (in 0.01 M NaPB), the K values for most compounds with the salt additives exceed those observed with 0.01 M NaPB alone, but there are multiple exceptions. For instance, K values for phenol in the presence of 0.15 M NaCl in S3, S5, and S6 ATPSs exceed those in the presence of 0.01 M NaPB, while the opposite trend is observed in S1, S2, and S4 ATPSs. Likewise, for coumarin, K values in the presence of 0.15 M NaClO₄ exceed those in the presence of 0.01 M NaPB in almost all ATPS systems except S1 ATPS. Analysis of the data in Table 2 demonstrates differences in the effects of salt on different compounds in the ATPS used.

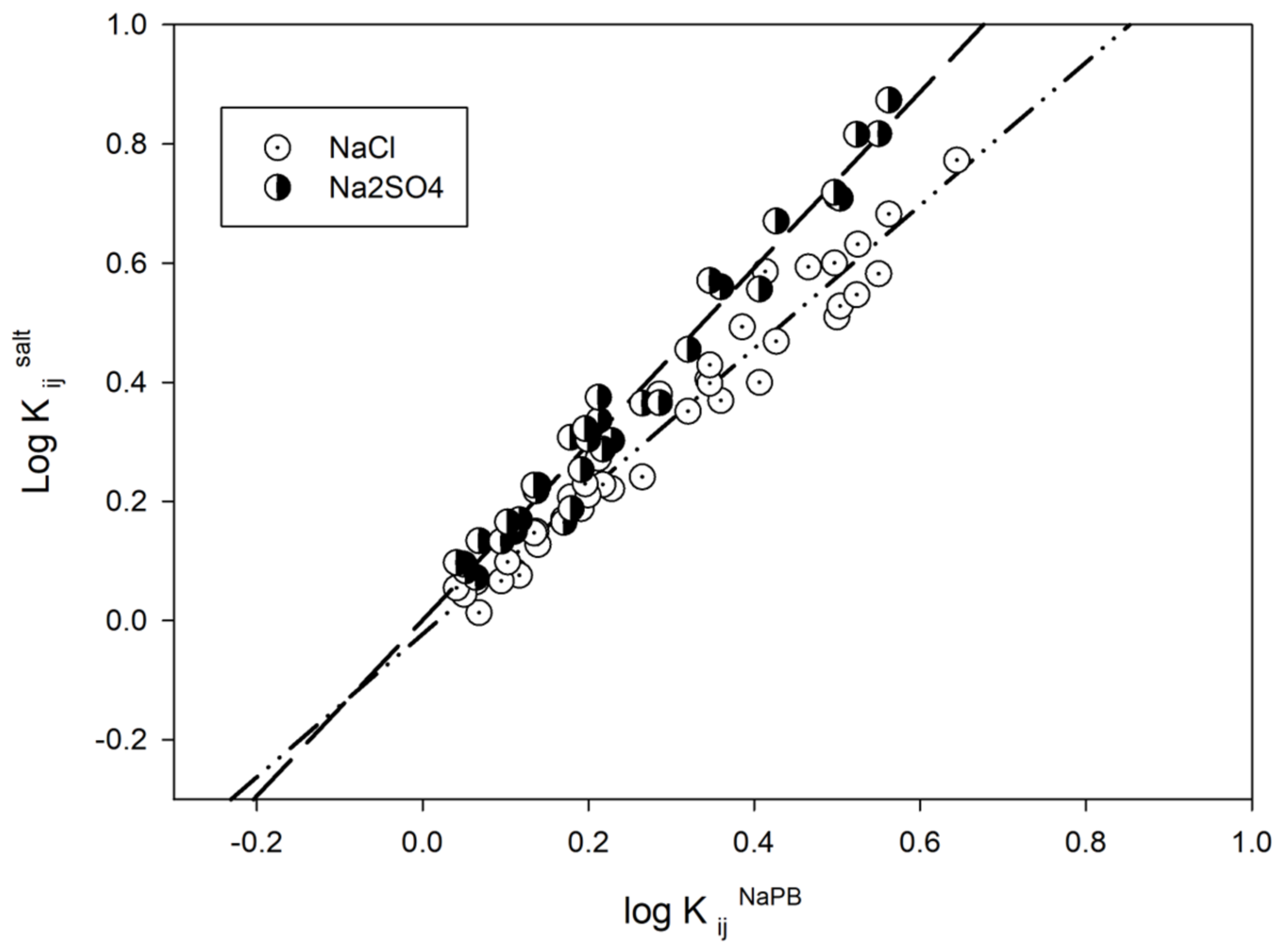

To examine the general trends in the effects of salt additives on solute partition behavior, we looked at the relationship between the partition coefficients (K values) for all the solutes studied in different ATPSs with and without a specific salt additive. The relationships for the K values in the presence of 0.15 M NaCl and 0.10 M Na₂SO₄ compared to the K values in 0.01 M NaPb are shown in Figure 1.

For the three salt additives used, the observed relationships may be described as:

Log K_ij^Na₂^SO₄ = 0.00_±0.01 + 1.47_±0.04log K_ij^NaPB

(1a)

N = 35, r² = 0.9760, F = 1343, SD = 0.04

logK_ij^NaCl = −0.02_±0.01 + 1.20_±0.04logK_ij^NaPB

(1b)

N = 42, r² = 0.9642, F = 1076, SD = 0.04

logK_ij^NaClO₄ = 0.01_±0.01 + 1.09_±0.04logK_ij^NaPB

(1c)

N = 42, r² = 0.9459, F = 700, SD = 0.05

where K_ij^salt and K_ij^NaPB are partition coefficients for the ith solute in the jth ATPS in the presence and absence of the indicated salt additive, respectively; N is the number of experimental points; r is the correlation coefficient; F is the ratio of variance; and SD is the standard deviation.

It has been demonstrated [21] that the impact of different salts (Na₂SO₄, NaCl, NaClO₄, and NaSCN) on the solubilities of 17 polar organic compounds in aqueous solutions, as measured by the corresponding Setschenow constant values, show a linear interrelation for all the polar compounds studied. Similar relationships were observed for partition coefficients of nonionic organic compounds in aqueous polyethene glycol–sodium sulfate two-phase systems in the presence of various salt additives [22] and for the effects of different salts on the optical rotation of amino acids and glucose [23,24]. It was suggested [21] that all these observed effects result from the compounds’ responses to a specific ionic environment and its interaction with the compounds through the formation of direct or solvent-separated ionic pairs. The response is specific to each compound, and its strength is determined by the compound’s structure and the type (and concentration) of the ions causing the response.

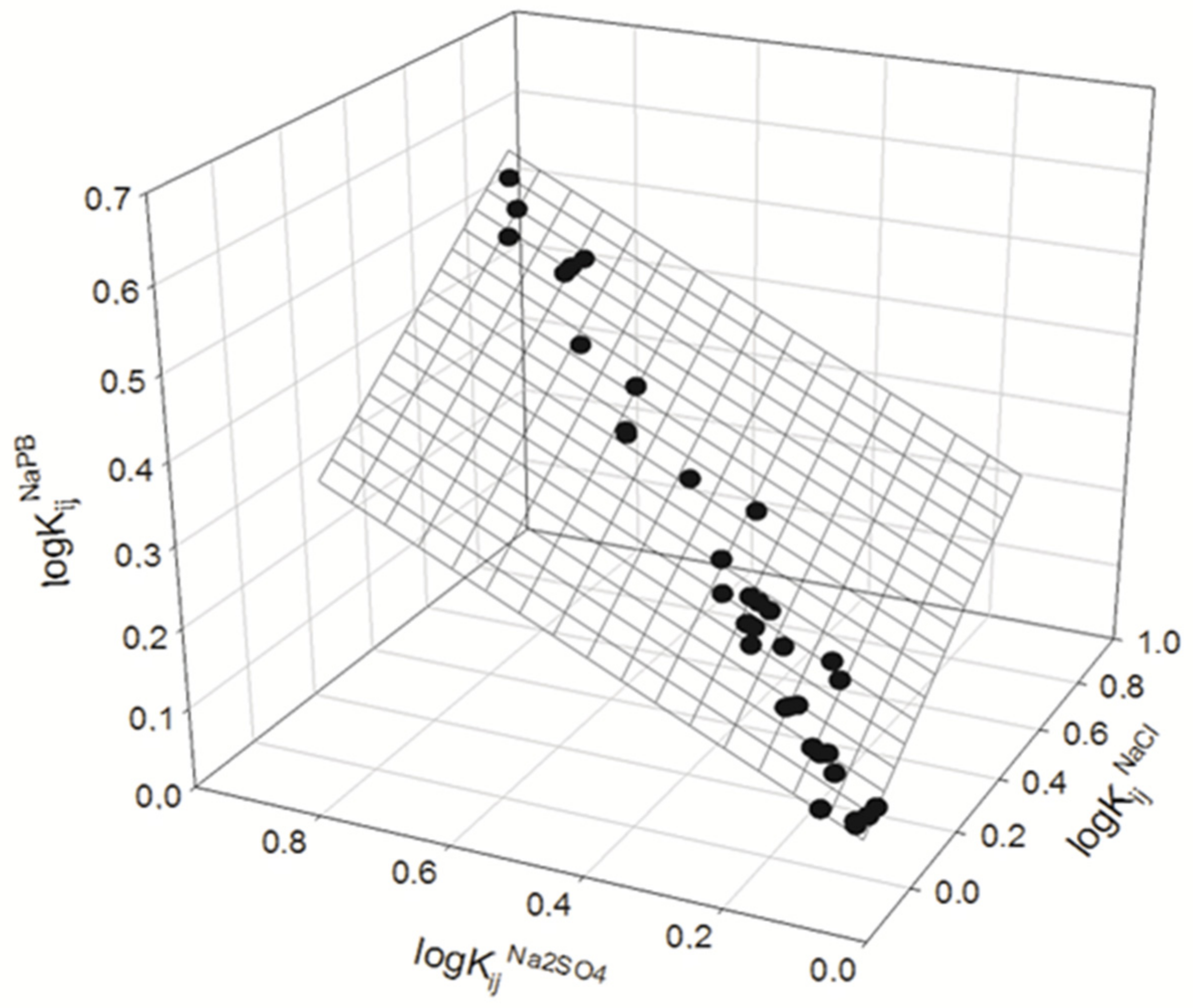

We analyzed the data presented in Table 2 to explore if the partition coefficients of compounds in all ATPSs used in the presence of different salt additives are interrelated. The results obtained are illustrated graphically in Figure 2 and Figure 3 and may be described as:

logK_ij^NaPB = 0.09_±0.07 + 0.38_±0.09logK_ij^{0.15M NaCl} + 0.38_±0.07logK_ij^{0.1M Na2SO4}

(2a)

N = 35; R² = 0.9840; SD = 0.02; F = 981

where K_ij^NaPB, K_ij^{0.15M NaCl}, and K_ij^{0.1M Na}₂^SO₄ are partition coefficients for the same jth compound in the ith ATPS in the presence of 0.01 M NaPB, 0.15 M NaCl in 0.01 M NaPB, and 0.1 M Na₂SO₄ in 0.01 M NaPB, respectively; all the other parameters are as defined above, and:

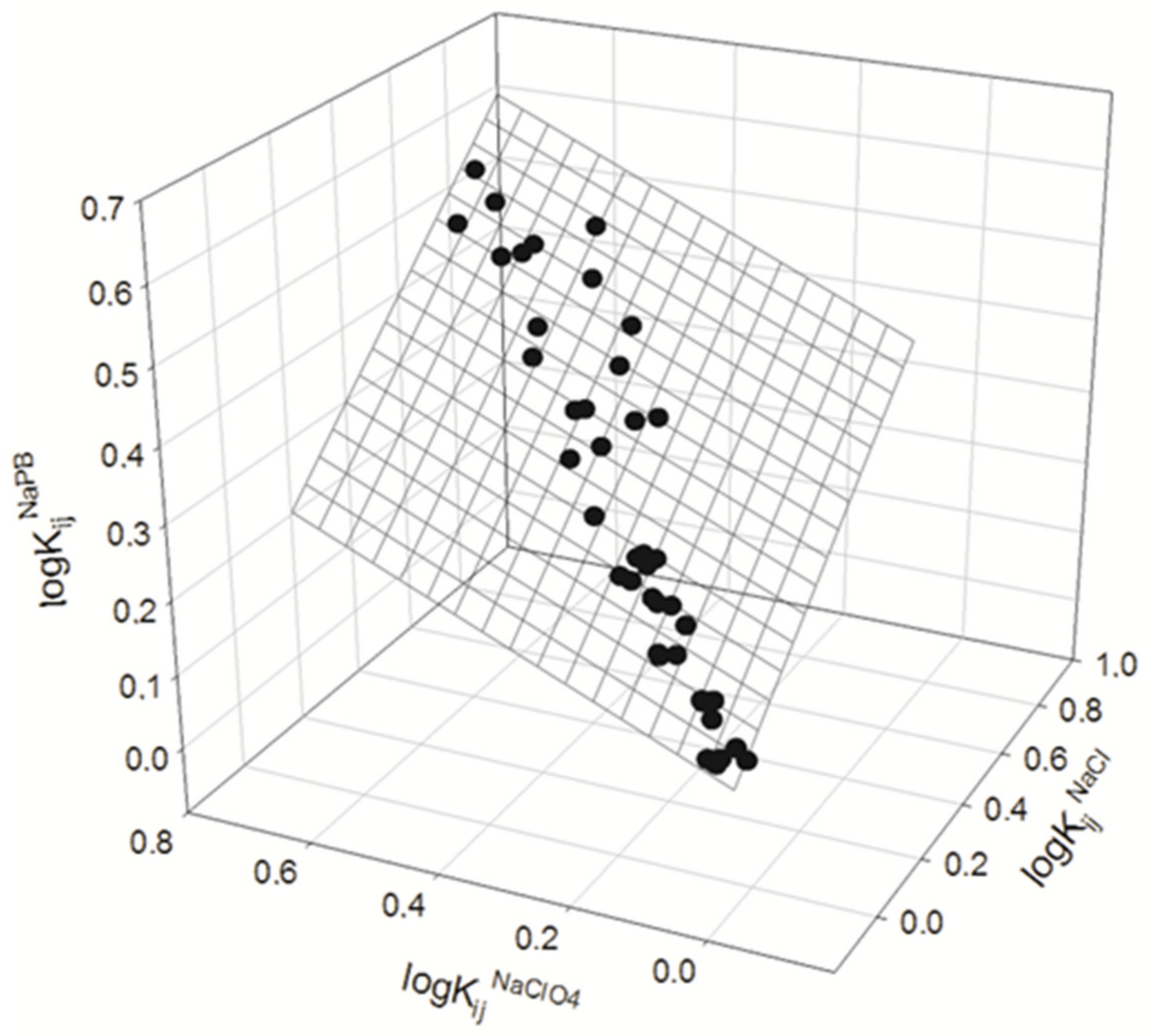

logK_ij^NaPB = 0.011_±0.007 + 0.48_±0.05logK_ij^{0.15M NaCl} + 0.37_±0.06logK_ij^{0.15M NaClO}₄

(2b)

N = 42; R² = 0.9826; SD = 0.02; F = 1102

where K_ij^{0.15M NaClO}₄ is the partition coefficient for the same jth compound in the ith ATPS in the presence of 0.15 M NaClO₄ in 0.01 M NaPB; all the other parameters are as defined above.

The linear relationships described above can be understood in the context of the salting-out and salting-in effects observed for various salts on polar organic compounds. This can be explained by considering the changes in the partitioning coefficients of solutes in the presence of different salt additives as specific responses of the solutes to variations in their ionic environment in the solution. These responses are influenced by the interactions between the solute, ions, and water, with the strength of these interactions determined by the properties of the ions and the unique characteristics of the solute structures.

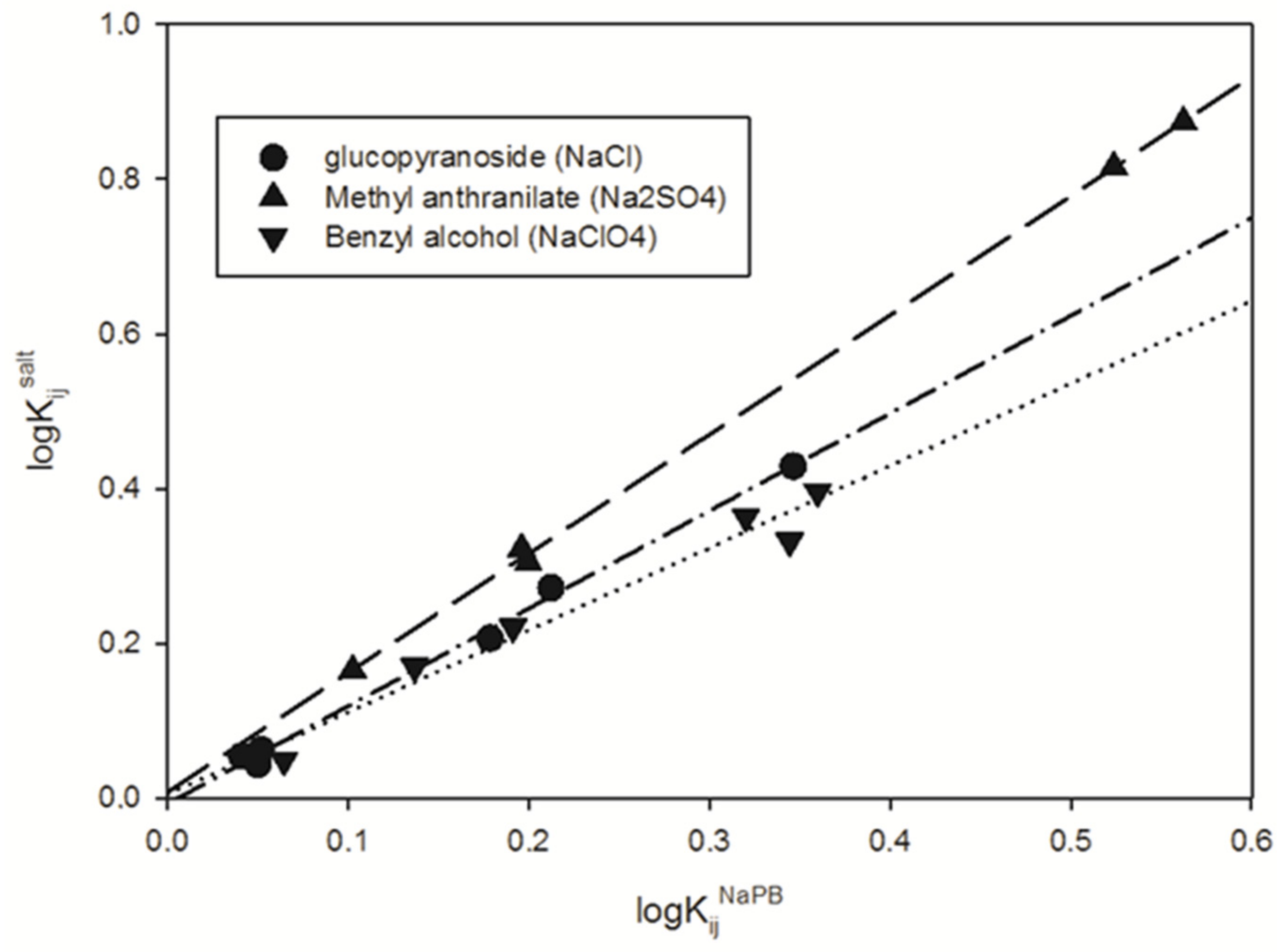

It is important to note that the examined compounds exhibit specific responses to the salt additives used. To assess the response of each compound to a particular salt additive, we analyzed the relationships between the logarithms of the compound partition coefficients in all ATPSs (aqueous two-phase systems) in the presence of a given salt additive and those for the same compound in salt additive-free ATPSs. Figure 4 provides illustrative examples of these relationships, which can be described by the following equation:

logK_ij^salt = a_j + b_jlogK_ij^NaPB

(3)

where K_ij^salt is partition coefficients for the jth compound in the ith ATPS in the presence of a given salt additive; K_ij^NaPB is defined above; a_j and b_j are coefficients.

The a_j and b_j coefficient values calculated from data in Table 2 with Equation (3) are listed in

Table 3. Coefficients a_i and b_i in Equation (3) with different solutes partitioned in ATPSs with phenol used as a reference solute.

Solute	ai	bi	ai	bi	ai	bi
	NaCl		Na2SO4		NaClO4
Phenol	−0.06±0.04	1.20±0.09	−0.03±0.02	1.51±0.04	0.02±0.05	1.1±0.1
Benzyl alcohol	−0.01±0.02	1.12±0.08	−0.02±0.03	1.6±0.1	0.00±0.03	1.1±0.1
2-Phenylethanol	−0.07±0.03	1.5±0.1	−0.05±0.08	1.6±0.4	−0.01±0.06	1.2±0.2
Vanillin	−0.03±0.07	1.3±0.2	0.01±0.02	1.42±0.07	−0.01±0.04	1.1±0.1
4-nitrophenyl-α-D-glucopyranoside	−0.01±0.01	1.26±0.04	0.01±0.01	1.69±0.09	0.03±0.02	0.9±0.1
Coumarin	−0.04±0.04	1.2±0.1	0.02±0.03	1.4±0.1	0.03±0.03	1.1±0.1
Methyl anthranilate	−0.02±0.03	1.21±0.07	0.01±0.01	1.54±0.02	0.05±0.06	1.1±0.1

.

The b_j values represent the response of the partition behavior of a given compound to the presence of a particular salt additive averaged over all the different ATPSs employed. These averaged responses are different for the compounds examined. If the assumption [21] that the solute structure governs the solute response to its ionic environment is correct, we may view the set of the b_j values characterizing the responses of the jth solute to different salt additives as a representation of the jth compound’s responsiveness to different ionic environments or as that of the compound structure. It should be noted that the responsiveness to three different salt additives used here provides only partial, incomplete information for each compound. This information, however, may be sufficient for the analysis of structural features important for the observed effects, given that essentially all the compounds examined except vanillin are non-ionizable.

To reduce the set of ionic composition responsiveness descriptions to a single numerical value, we used the approach suggested earlier [15,16] for analyzing differences between proteins’ 3D structures. The approach [15,16] is based on considering the set of bj values determined for the jth compound in the presence of different salt additives as a signature of ionic responsiveness for the compound. Phenol was selected as a reference compound.

The differences between the ionic responsiveness of the compounds studied and phenol may be calculated. The b_j values for all the ionic compositions examined are normalized against the b_o values for the reference compound (phenol), and the normalized Euclidian distances between the normalized ionic responsiveness signatures for each compound and phenol can be evaluated. The distance, d, is calculated as:

$$d_{i,o}={\left({{\sum }_j\left({\displaystyle \frac{b_{ji}-b_{oi}}{b_{oi}}}\right)}^2\right)}^{0.5}$$

(4)

where d_i,o is the distance between the ionic responsiveness signature of jth compound to that of phenol, and b_ji and b_oi are the b coefficients for compound j and the reference.

The distances between the ionic responsiveness for each compound and phenol were calculated by Equation (4) using data in Table 3. The computed distance values, d_j,o, are presented in

Table 4. Distances, d_i,0 in Equation (4) and structural features for the studied compounds, taking phenol as a reference. (PSA—polar surface area; SASA—solvent-accessible surface area; MP—molecular polarizability; MR—molecular refractivity). Data calculated using ChemAxon 23.16.0 software at http://www.chemspider.com (accessed on 23 January 2024).

Solute	di,0	PSA	SASA	MP	MR
Benzyl alcohol	0.089	20.23	177.93	12.79	32.874
2-Phenylethanol	0.273	20.23	208.55	14.56	37.629
Vanillin	0.102	46.53	220.74	15.36	41.086
4-nitrophenyl-α-D-glucopyranoside	0.223	142.52	390.32	26.65	66.504
Coumarin	0.073	26.3	186.18	15.7	41.549
Methyl anthranilate	0.022	52.32	222.14	15.89	42.784

together with various structural features of the compounds calculated using ChemAxon software at http://www.chemspider.com (accessed on 23 January 2024).

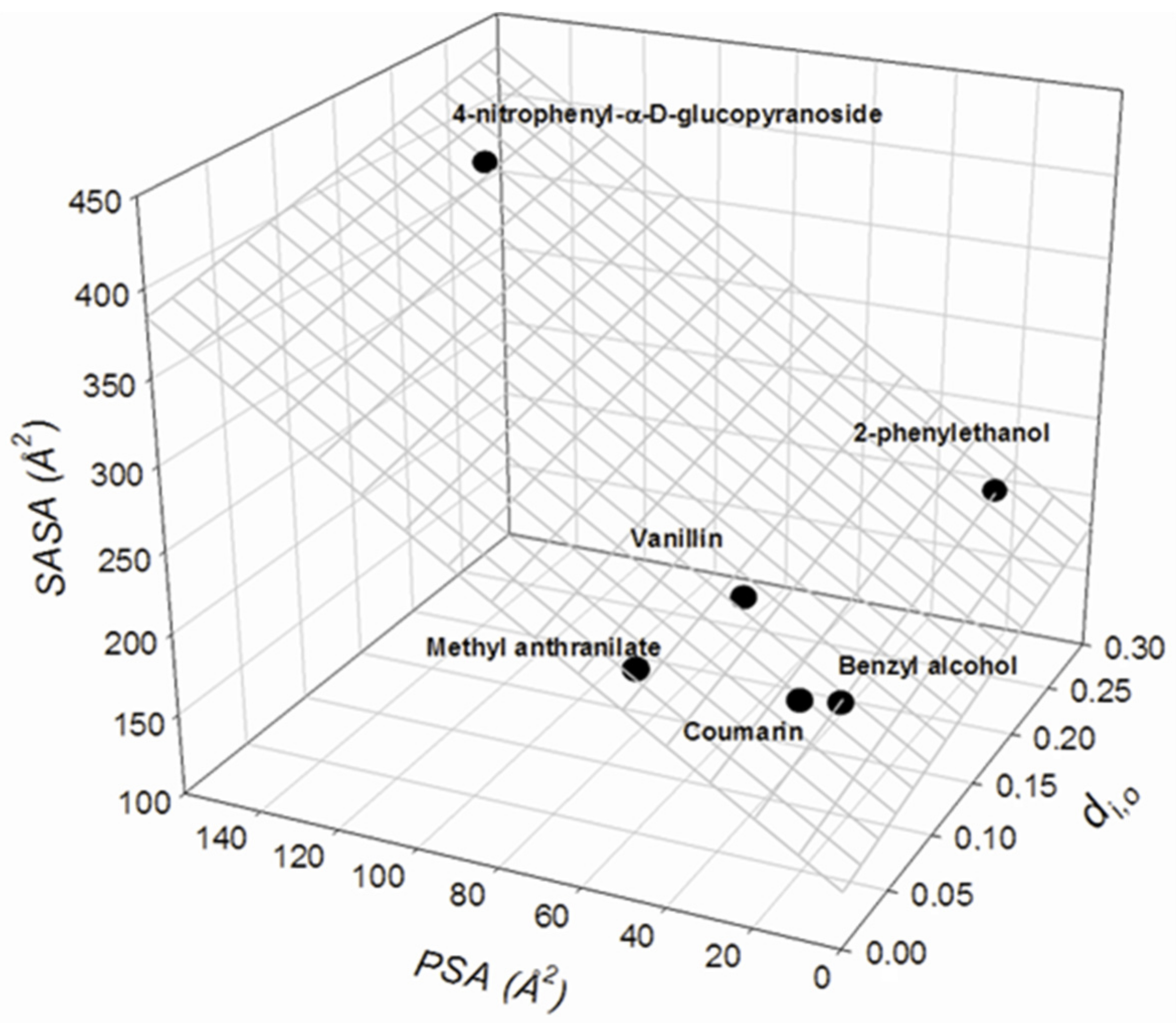

Analysis of the structural descriptors listed in Table 4 shows that there is a linear regression illustrated graphically in Figure 5 and described as:

d_i,o = −0.88_±0.07 − 0.0102_±0.0008PSA_j + 0.0065_±0.0005SASA_j

(5)

N = 6; R² = 0.9865; SD = 0.014; F = 109.3

where PSA_j is the polar surface area (in Ų) and SASA is the solvent-accessible surface area (in Ų) for the jth compound; all the other parameters are as defined above. Statistical significance for all the parameters is high, p < 0.002.

Given the limited number of compounds examined, the linear regression described by Equation (5) should be considered a trend and not a reliable relationship. It indicates that the differences between the ionic responsiveness of mostly non-ionizable compounds are governed by the areas of the total and polar surface of the molecule.

The number of structural descriptors analyzed here is admittedly limited. Additional studies are necessary to understand better the factors that influence the response of nonionic organic compounds to their ionic environment. These studies are currently underway in our laboratories.

4. Conclusions

In this study, the impact of three salt additives, Na₂SO₄, NaCl, and NaClO₄, in sodium phosphate buffer (NaPB) at pH 7.4 on the distribution of seven different organic compounds in various polymer–polymer ATPSs was investigated. The findings suggest that the salt additives significantly influence the solute partition behavior within ATPSs, indicating that the ionic environment influences the solute’s response. Interestingly, a linear relationship was observed between the responses of all the compounds to different salt additives. Furthermore, the study estimated the ionic responsiveness of the compounds and calculated the differences between each compound’s responsiveness and that of phenol. These differences were found to be associated with the polar surface area and solvent-accessible surface area of the solute molecules examined in this study.
