1. Introduction
Due to the prolonged and repeated lockdowns resulting from the COVID-19 pandemic, the number of bicycles on roads rose significantly during 2020–2021 in cities of the global north and south [
1]. Within the context of the pandemic, urban bicycling appeared to be a transport mode with a comparatively lower risk of infection and mental health benefits for riders [
2]. The economic and unemployment crisis that followed the virus as it spread across the world made the relatively cheap mobility gained using bicycles even more attractive [
3]. The pandemic impacted bicycling in Europe, the Americas, and Australia in 2020, significantly changing bicyclists’ travel behavior compared to 2019 in terms of location, trip purpose, and type of cycling facilities implemented by local authorities in response to growing numbers of users [
4]. While growth in bicycling in most cities around the world during this period was positive, it was accompanied by a negative aspect: more crashes involving bicyclists and injuries, despite rapid infrastructure responses such as pop-up bike lanes [
5]. Providing convenient, safe, and seamless bikeway networks is key to expanding bicycling in contemporary cities; road infrastructure typology and planning philosophies vary widely between european countries [
6], while decreased bicycling road safety (more crashes) leads to significantly less bicycling in Dutch cities [
7]. For this reason, an integrated analysis of bicycling behavior, related road crashes and traffic volumes, as well as the spatial and temporal distribution of and variation in these factors has become essential in the fields of urban road safety and urban mobility sustainability.
While growth in bicycling is key for present and future sustainable cities [
8], the cost of road crashes in Germany equals 1.4% of the country’s GDP [
9], showing one dimension of the negative impacts on the economic and social parts of an urban sustainability equation. Over the last two decades, the bicycle has become a symbol of sustainable transport for most social groups and cultures in many cities across the globe [
10]. While bicycle advocates and city planning authorities often discuss financial resources, definitions of the problem and strategies to make bicycling safer and more convenient [
11], in previous decades, local and national policies regarding this transport mode were largely marked by
laissez-faire [
10]. Bicycling and city bikeway networks are part of a larger technological system: the city mobility system, in which long-standing meanings attributed to transport technologies are mirrored in other human and non-human components of these large sociotechnical arrangements such as public and private organizations, related industries, venture capital investors, regulatory legislation, scientific books, university teaching, and research programs [
12]. Previous attributions of meaning also constitute technologies, and might endure over time and following changes that affect subsequent arrangements, either in whole or in part [
13]. These long-standing practices in the urban transport sector help explain the present (and frequent) gaps in data, research, planning, design, and policymaking regarding urban bicycling [
14]. Despite recent growth in the number of studies and work in this area [
6], some areas and facets of research on urban bicycling are still lacking, such as a comprehensive analysis of bikeway networks, bikeway safety design, the suitability of research methods, larger samples, longitudinal studies, greater geographic diversity, and larger datasets with more control variables [
15]. This context is important to our hypothesis and motivated this study: at present, emerging digital data sources are virtually sensing all urban mobility modes and produce vast troves of data every day, which are overlooked by researchers, traffic engineers and city planners, who could access, process, and combine these data into a single analytical framework.
In the next section, two key aspects that differentiate this study and relate it to previous work will be made clear: the recent availability of geolocated data on bicycle crashes and traffic volumes, and the need for novel research frameworks to make sense of these data when promoting bicycling and road safety in cities. Here, we take advantage of the broad presence of information and communication technology (ICT) devices that are connected to mobile data networks, sensing vehicle and individual mobility. This represents a disruption in the field of urban studies, specifically in the causal relationship between bicycling traffic and crashes, because empirical data covering entire cities are now available. This paper analyzes and visualizes an unprecedented amount of digital data from these sources on bicycling crashes, traffic volumes, bikeway network design, and trip routing in Berlin on a city-wide scale to derive information and guidance for urban bicycling. What does integrated analysis of data from these novel sources reveal for urban bicycling research, planning, and network design?
2. Previous Work
After the bicycle was adopted on a large scale in German cities, and until the 1940s, it was gradually considered an inferior and outdated technology compared to motorized vehicles [
16]. When its predominant social meaning was no longer urban transport, bicycle traffic volume was no longer surveyed by authorities and traffic regulations considerably restricted the circulation of this mode in Germany [
17]; urban bicycling was excluded from Berlin’s travel surveys until the 1990s [
18]. At present, roughly 1.5 million bicyclists use this mode every day in the city, which now has over 3.6 million inhabitants and nearly 2000 km of bikeways in its road network [
19]. Like many other German cities, Berlin standardized, systematized, and invested in digital technology for bicycle traffic volume sensing and periodic urban travel surveys.
Since 2003, Berlin has participated in the nationwide Representative Travel Survey System (SRV), which is conducted every five years. Data are collected over an entire year via face-to-face interviews (primarily at residential addresses), with respondents ranging from 15,000 in 2013 [
20] to 40,000 in 2018 [
19]. Digitization, processing, analysis, and reporting of these data can take years after the surveys are conducted. More recently, information and communication technologies (ICT) have pervaded mobility systems, boosted the digital sensing of individual dynamics, and produced an unprecedented quality and quantity of spatiotemporal data [
21]. Nevertheless, a recent review of the documents on the topic of smart cities and the internet of things published by the European Commission found that the vast majority of policy discussions revolve around cars, while hardly considering bicycles [
22].
Germany has had more than one mobile phone subscription per inhabitant since 2006 [
23]. In the early 2010s, 49% of Berliners reported using a smartphone for urban mobility purposes [
20], and by 2020, 3 out of 4 residents in Germany used a smartphone every day [
24]. The ubiquitous nature of digital mobile devices, along with their built-in sensors, memory, processor, data networks, and software applications, has captured growing attention from mobility researchers over the last two decades because of the potential they offer for sensing urban dynamics (such as far larger samples and datapoints and sharper thresholds) while requiring less time, staffing, and financial resources to collect data on urban mobility [
25,
26,
27,
28]. Urban cameras permit research breakthroughs based on unprecedented visual data for public and private spaces in cities [
29], and 5G mobile and wireless communication systems have catalyzed research and new IoT technologies to prevent crashes between vehicles and pedestrians [
30].
On the other hand, not all databases on transport modes and related dynamics are available to researchers, especially those sourced with private systems [
31], given the strategic and economic value of data politics in the ongoing urban age [
32]. Passengers on certain transport modes or socio-demographic cohorts may not yet be exploring (or even aware of) the urban mobility services and applications that are available through smartphones [
33], and certain digital data sensors do not capture common variables used in transport research, such as transport mode or trip origin/destination [
31]. For the most part, urban transport services and modes are operated and planned separately, and studies at the city scale are scarce [
34].
The quality and quantity of evidence-based studies as well as data have been noted as problematic in reports by multilateral organizations with regard to urban bicycling, infrastructure, and safety [
35]. Limited and poor-quality databases on bicycling crashes and trips often generate questionable guidance for policy-makers and transport planners, or severely limit the transferability of studies in terms of the location, dissemination, and generalization of the findings [
36,
37,
38,
39,
40]. Transferring research methods that require large quantities of spatiotemporal data to the field of urban bicycling (which is done in epidemiology, for instance) is not suited to the study of bikeway design and safety [
41]. For this reason, road interventions (or measures) with bicycling facilities are often highly politicized and react to circumstantial pressure from media outlets or specific advocacy groups, resulting in interventions that are not necessarily effective, in the leading economies of the global north [
14] as well as the global south [
10]. The constructed bikeway networks of cities may also exhibit traces of inequality [
42].
Bicycling trip shares vary by as much as 10% to 80% in cities in the same country (or culture), such as in the Netherlands [
7]. Bicycling trip volumes can also present asymmetrical distribution within the same city. In Berlin, 18% of daily trips are made by bicycle in the districts formerly considered as East Berlin; on the west side, bicycles account for 12% of trips [
42]. In the district of Marzahn, the rate is as low as 5%, reaching 26% in Kreuzberg [
43]. Counterintuitively, a horizontal study [
44] revealed that bicycling trip shares fell dramatically during the twentieth century in the cities of Amsterdam (from 80% to 35%), Copenhagen (50% to 30%), and Hanover (75% to 20%).
The relationship between bicycle traffic volume, crash frequency, and risk is still unclear. Some research has found increasing safety to correspond with higher numbers of bicyclists [
45,
46], while other found a relationship between increased bicycling volumes and the number of crashes and fatalities [
47]. Several other studies show that the risks of injury to bicyclists are highly non-linear and depend on spatiotemporal contexts [
48]. Local knowledge needs to inform the implementation of local solutions [
35]. Horizontal studies locate urban bicycling in space and time, and in relation to crashes involving other mobility modes. For example, the total daily number of trips in Berlin nearly quadrupled from 1975 to 2001 (275% growth) and the mode share for bicycles grew from 5% in 1990 [
49] to 10% in 2007, accompanied by a 38% decline in serious accidents involving bicycles [
11]. However, from 2010 to 2018, the number of bicycling crash fatalities rose 3% in Germany [
8], and the bicycle share of urban trips in Berlin grew from 8% to 18% during the 2008–2018 period [
19,
20]. The total number of road crashes with fatalities is decreasing in Berlin; from 1990 to 2017, road fatalities dropped from 226 to 36 [
50], while from 2001 to 2017, fatal road crashes diminished by 60% [
51]. However, the number of bicyclists involved in a fatal crash remains stable in relation to the average number of deaths per year over a fifteen-year period. In 2000, 17 bicyclists died, 10 in 2001, 24 in 2003, 15 in 2012, 9 in 2013, 10 in 2015, and 17 in 2016 [
52]. The yearly number of bicycle crash injuries between 2000 and 2016 is very close to the average for this entire period. Approximately 520 bicyclists are severely injured each year, and 4090 suffer moderate injuries [
52]. The bicycling fatality rate in Berlin is three riders per 100 million bicycling kilometers; in contrast, Germany has a rate of 1.3 fatalities per 100 million bicycling kilometers, compared to the United States (where bicycling is predominantly recreational and accounts for fewer than 1% of urban trips), where this rate is 4.2 [
53].
Bicyclists comprise one of the most vulnerable group of road users in Berlin and have been continuously classified as such by the city’s police over the last two decades [
50]. In 2015, 7724 bicyclists were involved in road crashes, forming about 5.61% of all reported road accidents. Between 2001 and 2016, this percentage of bicyclists involved in road crashes in the city rose from 4.06% to 5.10% [
52]. This group bears a disproportionate share of road crashes and injuries; in 2015, cyclists accounted for 21% of all fatal injuries (N = 48), and 618 bicycle riders represented 30% of all severe injuries (N = 2073), an alarming number considering their involvement in only 3.98% of all road crashes [
54]. In Germany, cyclists account for 11% of all road crash fatalities, while at the European level, this number drops to 4% [
55]. Between 2011 and 2015, the city recorded 55 fatally injured and 3284 severely injured bicyclists [
52].
The presence of specific bicycle road facilities (or bikeways) on urban roadways is associated with lower crash risk [
36]. Most collisions involving bicycles take place at road intersections/junctions, where almost two thirds of bicyclists are killed or seriously injured in urban road crashes [
56]. New road treatments for existing bicycling road infrastructure (such as painting bikeways blue at road intersections in Copenhagen) reduced the number of traffic casualties by 10% in the observation period, and injuries by 19% [
57]. A single lane roundabout design without a specific cycle lane and a central island radius exceeding 10 m was seen to reduce the number of bicycle collisions in roundabouts in Sweden and Denmark [
58,
59]. Still, roundabouts were seen to increase the risk of intersection bicycling crashes when the motorized speed limit was above 50 km/h [
60]. In a review of 22 bikeway designs [
39], considered bike lanes and the removal of on-street parking as defensible in terms of safety effectiveness, while most other bicycling road treatments still require rigorous research. Even so, the implementation of 23 km of pop-up bike lanes in Berlin during the coronavirus pandemic coincides with the four-year record in bicyclist fatalities, as more drivers and cyclists took to the streets as an alternative to mass transit [
5].
3. Methods and Data Digitalization
Initially, three digital datasets, commissioned to us by the Berlin Police, Berlin Senate Department for the Environment, Transport and Climate Protection, and the company BikeCitizens, were analyzed. Secondary and aggregated data were obtained from travel survey reports and the Berlin-Brandenburg statistics office. Specific datasets were prepared with these data; the datapoints were aggregated into space and time observation units, and then linear correlation and multivariate regression analysis was performed to determine how bicycling crashes and traffic volumes varied over time and observation locations (bikeway types and districts, for example). The next step was to present and discuss correlations, visualizations, and regression results to permit a combined analysis of the variations, differences, and relationships in time and space between bicycling activity and crashes in Berlin. A secondary goal of this study was to validate a digital data source in urban bicycling travel behavior and discuss whether it substitutes or complements the outputs of conventional travel surveys specific to this transport mode. An additional, ultimate goal was to inform special interest groups about whether and where an integrated and horizontal and combined analysis of these novel data sources can contribute to urban bicycling research, planning, and network design.
For the spatial relationship between crashes, bikeway network and types, and bicycling volumes, 23 spatial units were considered, as seen in
Figure 1 and 2. The analysis was further divided into three steps. First, the spatial distribution of bicycling crashes was investigated (
Section 4.1) with a cross-sectional analysis of collision density at intersections and on-road sections. Using a three-meter buffer around the axis of the five bikeway typologies found in Berlin, bicycling crash locations were correlated with these bikeway types using GIS or were considered to not be associated with a bikeway. Next, an in-depth spatiotemporal analysis of bicycling traffic volumes was performed and compared to SRV results (
Section 4.2), and bicycling in Berlin was described in detail. Selected districts where the bicycling mode share was higher according to SRV surveys [
19] were then examined in more detail. Finally, the relationships between bicycling crashes and traffic volumes were explored (
Section 4.3), mainly focusing on the contrasts between Berlin districts and the spatial distribution of crashes according to bikeway type, to comprise an integrated analysis of all the spatiotemporal data collected for this study.
This study analyzed data from three different sets of data on bicycling traffic and crashes: (i) 76,292 bicycle trips provided by the BikeCitizens smartphone application from users who recorded their bicycling routes in the city of Berlin, (ii) disaggregated and randomized data on 38,916 bicycling road crashes registered over 48 consecutive months, provided by the Berlin Police, and (iii) open data files from digital bicycle counters at 17 locations in Berlin’s bikeway network, commissioned by the Berlin Senate, shows five different bikeway types, which were named and grouped according to their key geometric and design aspects in relation to other urban mobility modes: pedestrians, motorized vehicles, buses, and road infrastructure. In Berlin, bicyclists are required to use these bicycle specific infrastructures [
61], and their design follows the design recommendations for cycling facilities [
62]. The Berlin Senate provided a GIS file with the bicycle network geometry and bikeway type axis geolocation. In this study, we aggregate these bikeway types into six road typologies refereeing to the key design characteristics present. Bikeways that use physical barriers (posts, lanes of car parking spaces, plantings, etc.) to separate bicycle traffic on both sides of the bikeway from motorized traffic were called protected bike paths (PBP). Dedicated bicycle lanes on the same level and on the right side of motorized lanes, marked with a continuous white stripe to delineate and separate them from other traffic, were considered type 1 dedicated lanes (DBL1). A second type of dedicated bicycle lane had an interrupted painted white stripe and car parking spaces to the right of the bicycling flow (DBL2). Segregated bus lanes where bicyclists are also allowed to circulate are found across Berlin, and were considered shared-use between bicycles and buses (SUBBB). Lanes at the same level as sidewalks but separated from pedestrian traffic by a continuous white stripe were considered to be shared between bicyclists and pedestrians (SUBBP). All other urban roads in Berlin without one of these five previously described bikeway types were denoted as without bikeway (WB).
After collection, the data were cleaned as described below. From the BikeCitizens dataset, we removed: (i) 832 rides longer than 30 km, (ii) 1195 rides shorter than 500 m, (iii) 793 rides lasting longer than 2 h, and (iv) 27 rides with a duration of less than 60 s. Exclusion of these samples was supported by the literature [
8], where such measurements in urban bicycling are considered atypical and more typical of sports or leisure trips than utilitarian cycling. The final dataset contained 73,445 bicycling trips or 506,536 km of bike rides made between 1 January 2016, and 1 September 2017. From the bicycling road crash dataset, we removed records of self-crashes (such as collisions with static artifacts other than vehicles) and collisions involving anything other than one bicycle and one motorized vehicle, in order to focus on only this type of collision, since we found that these crashes resulted in 92% of fatalities and 97% of severe injuries to bicyclists.

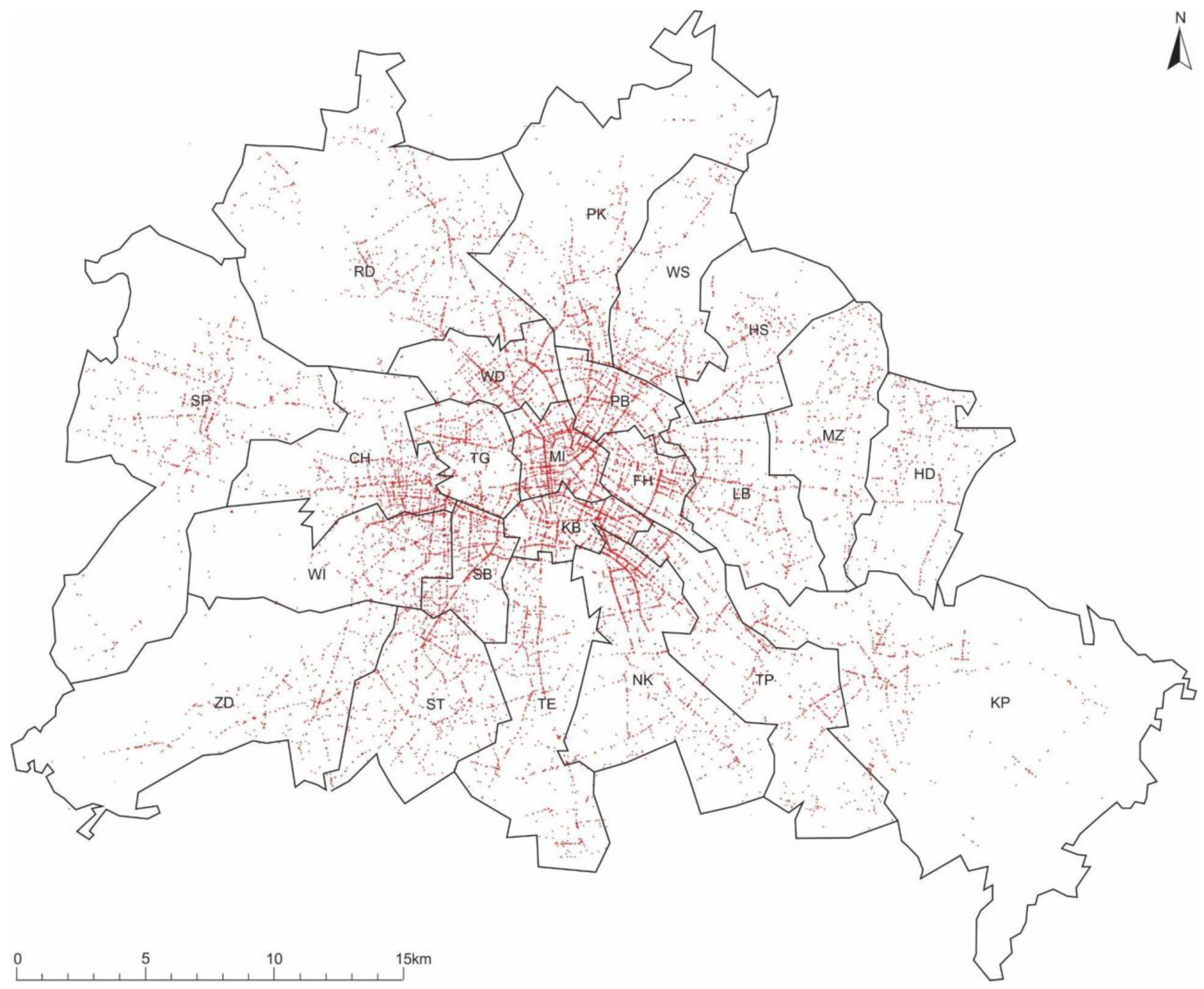

Figure 2 illustrates where these selected crashes occurred. The spatial correlation of bicycling crashes with bikeway type and the territory of Berlin consequently considered (N) 25,668 datapoints, 23 spatial units, and 1578 km of five bikeway types, as shown in
Figure 1 and
Figure 2.
5. Conclusions
The contemporary quality and quantity of digital data on traffic volumes and crashes enable researchers and planners to make informed changes in the design of safer and more convenient bikeway networks. Although this study involved data collected in Berlin, a similar research design can be used for the integrated analyses of bicycling crashes and traffic volumes in other cities, if data at the city scale and geolocation of crashes and facilities are commissioned to researchers. As the previous sections show, data quality and quantity are the main obstacles to progress in the field of urban bicycling. However, in the case of Berlin, data on road crashes involving bicycles, traffic, and the geometry of the bikeway network since 2011, are available in digital format, making the city a reference for data collection and storage on bicycling road crashes, and other cities could develop and implement similar managerial and technical approaches to improve their own data on road crashes. The reproducibility of this study in other cities should consequently start with a preliminary investigation of potential data sources, followed by a formal inquiry of public and private data holders and assessment of data quality and quantity. Later, these datasets should be combined in an integrated analytical framework such as the one used here. One central limitation of this study is that we did not collect data on motor vehicles traffic at the same time as data on bicycling. This could be a promising independent variable when modeling of bicycling crashes using multivariate regression, to help conclusively discuss bicycling safety and crash risk in different bikeway designs.
5.1. Implications for Designing Future Networks
Berlin’s digital bicycle-counting system provides data on bicycling traffic volume in real time and both directions at 17 static locations. This system collects and stores data, and makes more data available to researchers at lower costs and significantly smaller thresholds than previous conventional (or manual) bicycle counts. The resulting data are combined with the BikeCitizens route dataset, which provides only partial data about its users but was more equally spread throughout the city. While the bicycle count data provided an accurate measure of traffic volumes at specific points in time and space, the app dataset makes it possible to visualize bicycling routes and volumes according to road segments. By correlation and regression analysis combining these data sources, this study demonstrated that the data from the BikeCitizens routing application are representative of all utilitarian bicycling in Berlin. Consequently, a geometry (or grid) derived from visualizations (as seen in
Figure 3) allows planners to define future interventions and complement the Berlin bikeway network according to individual criteria, since it depicts routes with higher traffic volumes. Associated bicycle facilities such as parking spaces and racks could also be situated based on these data.
One potential intervention would be to prioritize extending the bicycling network from the city center to the outskirts, from streets with higher bicycling volumes to streets where these volumes are lower. Specifically in Berlin, connecting bikeway segments from the central districts and outward is an important priority. The city center, which concentrates far more trip origins and destinations, could feature a denser grid of bikeways, while longer high-speed segments (“bicycle highways”) could cross peripheral areas and connect to the city center. Another important finding is that erratic behavior is more common among cyclists in Berlin on streets that do not have cycle roadway facilities; expanding the bikeway network would consequently reduce the number of crashes resulting from human factors. The higher density of collisions at the Moritzplatz roundabout (which features a smaller radius and lacks traffic lights compared to other roundabouts in the city) suggests that this intersection requires an immediate redesign and review of the geometry recommendations for this type of road treatment.
The bicycling traffic volume peaks in summer, which means that these trips are substituted by other transport modes during winter. Since only a small share of trips in Berlin are intermodal [
40], measures promoting intermodal trips involving bicycles and public transport or making them more convenient during winter might alter the behavior of the approximately 400,000 bicyclists who move to less sustainable transport modes. While this study clearly shows that bicycle use increased during the COVID-19 pandemic, public transit usage declined dramatically [
65] and congestion levels are higher than in the pre-pandemic period [
64].
5.2. Implications for Future Planning
As digital data sources are novel, new methods, institutional arrangements, and analytical frameworks are also required to safely foster an increase in urban bicycling. In the social construction of large technological systems, actors tend to crystallize practices over time [
12]. In the Berlin case, it helps to explain why the actors and social groups involved in bicycling research and planning have not yet explored the full potential of new available data sources. Practices and cultures in cross-departmental and institutional were stabilized over decades. However, new research and planning schemes involving all the phases, databases and actors of urban bicycling research, planning, and network design could utilize integrated institutional frameworks, similar to the one presented here. As an example, it is important to mention that we did not find an ordinary GIS analyses of crashes or visualizations in the annual reports of the Berlin Police or other governmental websites. Urban mobility planning authorities are clearly more likely to have greater GIS capabilities and competencies, and it is due to police departments to enforce traffic laws and record and conduct descriptive statistical analysis of the road crashes, which in turn that normally take place in large cities in combination with bikeway design types at the local planning agencies. Urban collisions should be analyzed as any other externality for urban mobility, such as air pollution and congestion, and, therefore, fall under the authority of transport and traffic planning authorities. However, in the case of Berlin, no such spatial analysis has been conducted by any other urban mobility planning or urban design agencies in Berlin, since the GPS coordinates of road crashes were first recorded in 2011 [
18].
Planning bikeway infrastructure at the city scale in Berlin requires the centralized coordination of traffic engineering and planning teams in 13 districts, which will facilitate the evolution and completion of a seamless network. This study found that most bicycling trips, traffic volumes, and road crashes occurred in only 8 of the 23 analyzed spatial units in the city. The districts in Berlin currently have independent planning teams focusing on their own spatial units, and bicycling research and planning personnel are scarce at the district administration level [
63].
The preliminary analysis conducted here selected only collisions involving one bicycle and one motorized vehicle from the complete data. These crashes were found to result in 92% of fatalities and severe injuries to bicyclists. At intersections, the collision density was substantially higher than average (58%) on PBP-type bikeways, and lower than average for SUBBB-type facilities. The police indicate that erratic driver behavior appears to be the main cause of 57% of crashes, while bicyclists are at fault in 31% of cases. Bicyclists were also found to be more likely to be at fault at intersections without cycling infrastructure (WB).
5.3. Implications for Future Research
While conventional travel surveys depict the horizontal evolution of bicycling in the city, which is important for evaluating and drafting carbon-neutral urban mobility policies, digital surveys provide unprecedented, in-depth data on spatiotemporal distribution and variation in bicycle use and crashes in cities. We suggest that transport authorities systematize digital data collection on urban bicycling in Berlin to allow researchers to investigate the issue of safety via a systems approach [
14]. Digital surveying appears to complement conventional surveys; permanently acquiring the data generated by private companies and publishing these datasets might stimulate the studies that are needed in this field.
After the findings generated in this study and the inconclusive results of regressions for certain variables (population density, bicycling trip volume, crash density, and type of bikeway extension), future safety studies might incorporate the volume of motorized traffic per observation unit as an independent variable, which could lead to better models explaining crashes as well as comparative bikeway safety. Further investigations could also focus on the share of collisions that occur on road segments in the various bikeway types (40.4%) compared to those that occur on roads without bikeways (59.6%). We were intrigued that certain bikeway types might not perform better in terms of safety than roads without bicycling facilities when considering only crashes at road sections. An in-depth analysis is recommended to compare the design of these bikeways with roads that do not have bikeways, to determine which type of road infrastructure is safer for bicyclists along road segments. A comparison between spatial units with a marked speed limit of 30 km/h and those with higher speed limits could reveal if the bikeway types associated with limited motor vehicle speeds perform better than those outside these areas. Considering the SUBBP type extension and the growing number of road crashes involving bicycles and pedestrians in the city, a specific investigation within the same framework might prove fruitful. This type, which has the largest extension among Berlin’s bikeway types, separates bicycle traffic from pedestrians only by color, or lines painted on the sidewalk. Collisions at transitions between bikeway types and road intersections also merit attention, especially in research that compares data before and after painting the pavement at intersections or street crossings; accidents on road types with visual barriers between bike lanes (for example, parking lanes between motorized traffic and the bikeway) also need further investigation.
Another avenue for further investigation is the shared use of bus lanes (denoted SUBBB here), for two reasons. First, we found a lower density of crashes in road intersections with this bikeway type: the presence of buses might make drivers more cautious as they cross these lanes. Second, this type of bikeway is uncommon worldwide, but has been used in Berlin since the 1990s. If bicyclists are found to be safer on this type of road, the city can combine new road infrastructure with both of these sustainable modes in debates on removing parking spaces and car lanes.
