Biocontrol Activity of Actinomycetes Strains against Fungal and Bacterial Pathogens of Solanum lycopersicum L. and Daucus carota L.: In Vitro and In Planta Antagonistic Activity ^†

Abstract

Plants are affected by various biotic and abiotic stresses due to climate change. Tomato and carrots are important crops that are attacked by various pathogens. Fourteen plant-growth-promoting bacteria (PGPB) belonging to the genera Streptomyces sp. and Nocardiopsis sp. were selected for the biocontrol of several common fungal and bacterial pathogens. Antifungal activity was assessed against Fusarium oxysporum f. sp. radicis-lycopersici (FORL) and Rhizoctonia solani (RHS). Antibacterial activity was evaluated against Pseudomonas syringae (PS), Pseudomonas corrugata (PC), Pseudomonas syringae pv. actinidiae (PSA), and Pectobacterium carotovorum subsp. Carotovorum (PCC). In vitro antifungal and antibacterial antagonistic activities were evaluated by the dual culture method. Fungal–bacterial interaction areas were analyzed by scanning electron microscopy (SEM). Cell-free culture filtrates (CFs) from strains showing good biocontrol potential were produced and investigated for their in vitro antifungal and antibacterial activity. The two most effective strains were also combined in consortium and utilized for In Planta pre-emergence biocontrol assays on both S. lycopersicum and D. carota. For each pathogenic strain, four experimental conditions were compared: CNT (no PGPB/no infection), PGPB (with PGPB/no infection), PGPB+INF (with PGPB/with infection), and INF (no PGPB/with infection). Streptomyces albidoflavus strain H12 and Nocardiopsis aegyptica strain H14 showed good in vitro antifungal (inhibition of >50%) and antibacterial (inhibition halo of >10 mm) activity. The SEM micrographs showed deterioration of fungal filaments and modification of hyphal structures. The CFs of both strains were also able to inhibit FORL and RHS in in vitro growth (minimum inhibitory concentration of 0.2–0.8%). In planta biocontrol assessments showed that the consortium was effective in reducing the infection effects of both fungal and bacterial pathogens. Dual consortium allowed regular plant development compared to the control. These results confirm the usefulness of actinomycetes strains as a biocontrol agent and can therefore be an alternative to chemicals used in agriculture.

1. Introduction

Plants are affected by various biotic and abiotic stresses mostly due to climate change. Areas affected by temperature increase are more susceptible to pathogens attack [1]. The use of microorganisms in agriculture is a sustainable strategy to control phytopathogens. These bacteria can improve plant health and growth, providing long-term protection [2,3]. Several rhizospheric microorganisms act as biostimulants and show antagonistic properties against many pathogens [4]. Among them, actinomycetes have the ability to produce a wide range of secondary metabolites (e.g., antibiotics and extracellular enzymes) [5] which can inhibit the growth of several fungal and bacterial pathogens [6]. Moreover, biocontrol activity is obtained through the induction of systemic resistance [5]. The present study is aimed at evaluating the biocontrol capability of actinomycetes isolates against several fungal and bacterial pathogens of Solanum lycopersicum and Daucus carota. In vitro antifungal and antibacterial antagonistic activities were evaluated by the dual culture method. Fungal-PGPB interaction areas were also analyzed by scanning electron microscopy (SEM). From strains with good biocontrol potential, cell-free supernatants (CFSs) were produced and investigated for their in vitro antifungal and antibacterial activity. The most effective strains were also combined in consortium and utilized for the seed treatment for In Planta pre-emergence biocontrol assays on both S. lycopersicum and D. carota. For each pathogenic strain, four experimental conditions were compared: CNT (without PGPB/infection), PGPB (with PGPB/no infection), PGPB+INF (with PGPB/infection), and INF (with infection/no PGPB). The induced protection was assessed by estimation of plant survival, morpho-biochemical parameters, damage, and chlorophyll contents.

2. Experimental Section

In vitro antagonistic activity by diffusible and volatile compounds was carried out by the dual culture method on PDA medium using fourteen actinomycetes strains of the genus Streptomyces sp. and Nocardiopsis sp. The fungal pathogens tested were Fusarium oxysporum f. sp. radicis-lycopersici (FORL) and Rhizoctonia solani (RHS). The morphological deterioration of PGPB-fungus interaction areas was analyzed by SEM microscopy. The pathogenic bacteria tested were Pseudomonas syringae (PS), Pseudomonas corrugata (PC), Pseudomonas syringae pv. actinidiae (PSA), and Pectobacterium carotovorum subsp. carotovorum (PCC). The inhibition percentages of fungi were calculated after incubation until complete growth of the control plate [7]. Bacterial inhibition halos were assessed after 48 h. Cell-free supernatants (CFSs) of Streptomyces albidoflavus H12 and Nocardiopsis aegyptica H14, which showed good in vitro biocontrol, were investigated for minimal inhibitory concentration (MIC) and for minimum bactericidal concentration (MBC) as described by CLSI guidelines [8], using sterile polystyrene microplate.

In planta antagonistic activity of H12 and H14 consortium, the most active strains in vitro, was assessed on S. lycopersicum and D. carota against the abovementioned pathogens in pre-emergence [7]. The experiment was organized as follows: (i) CNT (no PGPB/no infection), PGPB (with PGPB/no infection), PGPB+INF (with PGPB/with infection), and INF (no PGPB/with infection). Each experimental unit was realized in 25 pots with two seeds per pot under natural light conditions until the disease’s symptoms showed up. The induced protection was assessed by estimation of plant survival, morpho-biochemical parameters, damage, and chlorophyll content. The plants were analyzed for the germination rates, morpho-physiological characteristics, damages, and total chlorophyll contents [7].

3. Results

Almost all 14 strains (64%) showed good in vitro antagonistic activity by producing diffusible and volatile compounds against fungal pathogens (inhibition percentage up to 85%). Most of the tested strains (70%) exhibited at least activity against one pathogenic bacterium (inhibition halo up to 25 mm) (

Table 1. In vitro antagonism assay of actinomycetes strains against fungal and pathogenic bacteria (n = 3).

Pathogenic Strains	D14	G10	G22	G33	H12	H14	J4	J13	J21	J27	K12	K23	S2	T45
FORL	-	++	-	-	++	++	-	+	-	-	-	-	-	++
RHS	++	-	++	++	++	++	-	+	-	-	-	-	++	++
P. corrugata	-	++	-	++	++	++	-	++		-	-	-	++	-
P. carotovorum	-	++	-	++	+	-	-	++		+	-	-	-	-

+, moderate inhibition; ++, high inhibition; -, no inhibition.

).

In Figure 1 SEM micrographs are shown which highlight the comparison of the structures of the fungal hyphae in the presence and absence of PGPB. Micrographs of FORL (Figure 1A) and RHS (Figure 1B) controls show normal and continuous fungal structures. The micrographs of FORL-PGPB (Figure 1C) and RHS-PGPB (Figure 1D) interaction areas show clear morphological deterioration of hyphae that appear sparse and discontinuous. S. albidoflavus H12 and N. aegyptica H14 also showed good antibacterial activity against Pseudomonas corrugata and Pectobacterium carotovorum (inhibition halos of ˃10 mm). CFSs of the combined strains were effective in inhibiting the growth of both FORL and RHS fungi (MBC up to 0.8%) and most bacterial pathogen growth.

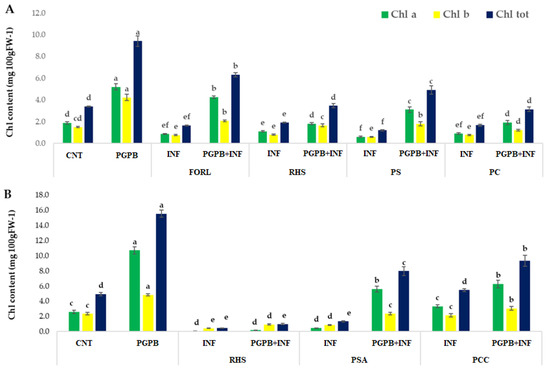

Concerning the In Planta experiment, the inoculation with the consortium (PGPB) improved the development and growth of both tomato and carrot plants compared to the control (better germination rates, morpho-physiological characteristics, and chlorophyll content) (Figure 2 and Figure 3).

Infection decreased germination rates, growth parameters, and total chlorophyll content, and caused leaf damage with extension up to ˃20 mm in uninoculated plants (INF). Treatment with the consortium improved germination in infected plants (PGPB + INF) up to 15–54% for tomato and up to 30–100% for carrots. The presence of PGPB also alleviated infection symptoms: PGPB + INF plants showed less damage and better chlorophyll content than the control (p < 0.05).

4. Discussion

The different abilities to promote plant growth by actinomycetes strains, such as nutrient solubilization, nitrogen fixation, and phytohormones production, act indirectly in the control of plant diseases [5]. The use of combined bacteria is a strategy for plant protection against pathogen attack [7]. Actinobacteria are well known for their ability to produce various bioactive compounds [9]. They are biological agents for their antagonistic activities and plant protection against several soil borne pathogens [10]. The biocontrol activity of actinomycetes is linked to antibiosis, lysis mechanisms, and host defenses induction [5]. The actinomycetes strains investigated in this study also have different plant growth-promoting traits [11]. These bacteria enhance plant physiological status and offer an additional advantage to their use as biological control agents for sustainable agriculture.

5. Conclusions

Nowadays, bacterial and fungal plant diseases are controlled almost exclusively by agrochemicals. These xenobiotic products entail serious consequences for human’s and ecosystems’ health. The use of biocontrol agents should be encouraged to counteract this problem. Our findings show that actinomycetes could be considered a valid biocontrol agent. Further experiments are needed to determine their effectiveness on other plants against other pathogens and under different cultivation conditions. However, these preliminary results underline that actinomycetes, mainly the genera Streptomyces and Nocardiopsis, may be biological alternatives for the management of plant disease.
