Protocol

A Study Protocol on the Effectiveness of Radial Shockwave Therapy on Myofascial Pain Syndrome: A Mixed Methods Study That Combines a Randomised Control Trial and Semi-Structured Interviews

1
Physical Rehabilitation Department, King Faisal Specialist Hospital and Research Centre, Riyadh 11211, Saudi Arabia
2
311th Field Hospital Ft., US Army, Gillem, GA 30297, USA
*
Author to whom correspondence should be addressed.
Rheumato 2023, 3(1), 106-117; https://doi.org/10.3390/rheumato3010009
Submission received: 8 January 2023 / Revised: 29 January 2023 / Accepted: 3 March 2023 / Published: 16 March 2023
(This article belongs to the Special Issue Primary Care Education in Musculoskeletal Disease)

Abstract

:
Background: Myofascial pain syndrome (MPS) is a common, costly and often persistent musculoskeletal problem. Radial shockwave (RSW) is one of the most common treatments for MFS. However, there is very low-level evidence to support its short-term benefit, due to poor methodological qualities. Furthermore, previous studies have not considered the experiences of patients regarding this intervention. This study will investigate the effectiveness of RSW compared to a sham (placebo) for patients with MPS and establish the experiences of patients receiving the treatment. Methods: A mixed methods study of a pragmatic randomised controlled trial and semi-structured-interviews that will involve 120 potential participants with MPS is used. The intervention group will receive six sessions of RSW: 1.5 bars, 2000 pulses, frequency 15 Hz. The control group will receive an identical treatment except that they will receive a no-energy shock of 0.3 bar. Results: The outcome measures are a numeric pain scale, neck disability index (NDI), pressure pain threshold (PPT) and SF-12 questionnaires at 4 and 8 weeks’ follow-up between the two groups. Conclusion: The expectation is that this study will add to the body of knowledge required to make effective treatment choices on RSW in the management MFS.

1. Introduction

Myofascial pain syndrome (MPS) is a common, costly and often persistent musculoskeletal problem that affects 85% of the general population at some point in their lifetime (Fleckenstein et al., 2010; Simon, 1996) [1,2]. Overall rates vary between the male and female population and with different patient populations with MPS reported as the leading cause of chronic and persistent musculoskeletal regional pain. MPS can be multi-regional to include neck, shoulder, chronic back and facial pain (Li et al., 2017) [3]. In the United States, the estimated economic cost for the management of chronic pain is about USD 560–635 billion per annum for medical care and disability programs, with the potential to increase year on year (Gaskin and Richard, 2012) [4]. Therefore, it is important that chronic musculoskeletal pain such as MPS in the neck and upper back is treated efficiently and effectively in order to improve patient’s clinical outcomes and experiences.
The clinical manifestation of MPS varies widely because it is not a distinct pathology. It is characterised by localised pain, muscle tenderness, palpable intramuscular taut band, local twitch response, referred pain, muscle spasm and sleep disturbance (Fernández-de-las-Peñas et al., 2012; Sciotti et al., 2001; Alvarez and Rockwell, 2001; Travell and Simmons, 1999) [5,6,7,8]. Myofascial trigger points can produce symptoms of pain upon palpation and pressure. A nail bed palpation by pressing manually with a thumb or using a digital algometer probe can trigger a local twitch response (LTR), which can reproduce symptoms of pain. This study will use a digital algometer to measure pressure pain threshold, which has been used by previous authors (Luan et al., 2019) [9].
Most patients with MPS are treated by physiotherapists, physicians, Chiropractors and Osteopaths using trigger point injection, dry needling, acupuncture, ultrasound, stretches, deep frictional massages and kinesio-taping (Galasso et al., 2020; Tough et al., 2009; Müller-Ehrenberg, 2005; Fernández-de-las-Peñas et al., 2012) [5,10,11,12]. However, the most effective treatment for MPS is not known.
Radial shockwave is one of the most common and non-invasive treatment methods for musculoskeletal tissue pains such as MPS that are normally very difficult to treat (Watson, 2014) [13]. It comes with minimal negative side effects. Radial shockwaves are low- to medium-energy pulses, and their penetration depths are normally 0–6 cm (“0–2.3”) (Watson, 2014) [13]. The therapeutic doses of radial shockwaves range from low (up to 0.08 mJ/mm2) to high (up to 0.63 mJ/mm2) energy levels (Watson, 2014) [13]. The number of shocks per session is usually between 1000 and 2500, and the number of treatment sessions varies between three and seven.
Some of the established therapeutic and biological effects of radial shockwave include mechanical stimulation and increased local blood flow, which potentially lead to tissue repair and regeneration. These actions enhance micro-functional and micro-structural changes, and increase cellular activity—release of substance P, prostaglandin E2 and tumour growth factor (TGF β), transient analgesic effect on afferent nerves and breakdown of calcific deposits (Watson, 2014; Wang, 2012) [13,14]. No evidence of serious tissue destruction at therapy level doses has been reported.
Some authors [15,16,17,18] (Kiraly et al., 2018, Lee and Han, 2013; Gur et al., 2013, Cho et al., 2012) have demonstrated the efficacy of shockwave therapy to improve outcomes of pain and function in neck pain patients presenting with MPS despite unclear pathophysiology. In spite of these findings, recent systematic reviews [19,20] (Yoo et al., 2020; Jun et al., 2021), found very low-level evidence to support its use for pain relief in neck pain patients with MPS in the short-term, due to the poor methodological qualities and small sample size. Therefore, the authors recommended further large-scale, good-quality sham (placebo)-controlled trials in this area. Furthermore, previous studies [17,21,22] (Manafnezhad et al., 2019; Gur et al., 2013; and Jeon et al., 2012) that have compared the effectiveness of shockwave therapy were not purely sham (placebo)-controlled trials. A truly appropriate sham (placebo) must be biologically inactive and psychologically credible, meaning it must be indistinguishable (by the patient) from real intervention (Vickers, 2002) [23]. In this study, the sham shockwave produces sound, which makes it psychologically credible and similar to the real shockwave. However, it is physiologically different compared with the real shockwave because it is biologically inactive (no therapeutic dose). Therefore, given the painful nature of the treatment in both groups, the sham may not exclude a placebo effect.
Furthermore, previous studies on the effect of shockwave therapy on MPS did not consider the experiences of patients regarding this intervention. Moreover, based on our knowledge and extensive literature review, no study has compared both the effectiveness of shockwaves on MPS using a sham versus a true shockwave therapy and the experiences of the patients receiving the treatment. This study will, therefore, investigate the effectiveness of radial shockwave therapy in reducing pain and disability, and improving the function of patients with MPS in the neck and upper back. It will also explore the experiences of patients receiving this treatment.

1.1. Aims of the Study

Primary Aims

  • To determine the effectiveness of radial shockwave therapy compared to a sham (placebo) for the treatment of patients with MPS in neck and upper back.
  • To establish the experiences of patients with MPS in the neck and upper back receiving radial shockwave treatment.

1.2. Research Questions

  • Is radial shockwave therapy more effective at improving MPS in the neck and upper back and compared to a sham (placebo)?
  • What are the experiences of patients with MPS in the neck and upper back receiving radial shockwave therapy?

2. Methods and Materials

2.1. Mixed Method Design

The research design for this study is both quantitative and qualitative. A double-blind RCT with a pragmatic approach will be used as the quantitative study; it will precede the semi-structured interviews that will be used for the qualitative study. This is because the RCT design is capable of detecting clinically important outcomes such as myofascial pain, while the qualitative approach will enable in-depth and rich data to be gathered concerning the patient’s experience Morgan (1993) [24]. This study adopted the priority sequence approach for mixed methods design suggested by Morgan (1993) [24] as the research methodology. This means that a principally quantitative approach will be complemented by a qualitative study using semi-structured qualitative interviews. The qualitative method will serve as a follow-up to the quantitative approach. This study will have two phases. Phase 1 will involve an RCT and phase 2 will be a qualitative study using semi-structured interview. The flow chart for the research design is summarised in Figure 1.

2.2. Phase 1: Methods

Design: Quantitative—Randomised Controlled Trial

This study will make use of a pragmatic, two-arm, parallel, doubled-blind, randomised controlled trial as the quantitative study design. RCTs are regarded as the gold standard when evaluating the effectiveness of interventions such as shockwave therapy because they instil confidence that a difference in outcome can be directly attributed to a difference in the treatments and not due to some other confounding factors such as age (McGovern, 2001) [25]. However, the experience of receiving such an intervention may play a role (Black, 1996) [26].

2.3. Study Setting

This study will take place at the outpatient department of the physical rehabilitation, where potential participants will be recruited.

2.4. Identification of Potential Participants

Potential participants will be patients who have been referred to the Physical Rehabilitation service by the family physician and/or other specialists in the hospital with MPS in the neck and/or upper back. At the first appointment, a Physical Therapist (PT) will identify through a face-to-face assessment if they have a diagnosis of MPS in the neck and/or upper back and would benefit from radial shockwave therapy. A diagnosis of MPS (the presence or absence of active myofascial trigger points in the neck and or upper back) will be made by the assessing PT according to the inclusion and exclusion criteria defined by previous authors (Travell and Simons 1999, Luan et al., 2019) [8,9]. See Table 1 below.

2.5. Clinician Involvement in the Study

The principal investigator and five outpatient PTs who are trained and experienced in the use of radial shockwave therapy will be involved in this study. A trained and experienced PT will be involved in obtaining consent from, assessing and treating the patients. The same PT will be involved in the patient’s initial assessment and the baseline measurement. Subsequent appointments and rate of progression will be determined by this Physiotherapist. Information about the eligibility criteria will be provided to all PTs to aid diagnosis, and they will receive training on the study protocol.

2.6. Recruitment of Potential Participants

During the first physical therapy appointment, potential participants will be informed verbally by the admin staff and/or by a letter of invitation to take part in the study. The invitation pack will contain a patient information sheet (PIS) that contains consent form (for both the quantitative study and qualitative interviews). Potential participants will be informed that their participation in the study is voluntary, and that they will be free to withdraw from the study at any time without affecting the course of their treatment. Potential participants who are interested in taking part in the study but have further questions will be encouraged to contact the principal investigator via a study mobile number, which will be provided in the PIS. Potential participants will be asked to read the PIS before participating in the study, they will have an opportunity to ask questions if they wish to participate and will be asked to sign the consent forms. On arrival for their first PT appointment, potential participants who provide written informed consent and fulfil the eligibility criteria after being screened by the assessing and treating PT will be recruited into the study. Participants who do not wish to participate will receive standard PT treatment.

2.7. Randomisation

The randomisation allocation sequence will be based on a computer-generated random sequence using a permuted block size of 4 and concealed random allocation using sealed opaque envelopes. Allocation concealment ensures that participants and clinicians do not know or predict what the next patient and treatment allocation will be (Viera et al., 2007) [27]. Assignment will be by sequentially numbered, otherwise identical, sealed envelopes with a written code A or B designating intervention (radial shockwave therapy) or control (sham (placebo)), respectively. Following notification of the randomisation result by the admin staff, the treating PT will assign the patient to the treatment allocations using the label A or B on the sealed envelope. The patient will receive either the experimental treatment (radial shockwave therapy) if the envelope is labelled A, or they will receive the control treatment (sham (placebo)) if it is labelled B. This process will minimise systematic bias because it will ensure that there are no order or time effects. The treating PTs have been trained in both treatment methods.

2.8. Interventions

2.8.1. Intervention (Experimental) Group

These patients will receive a total of 6 sessions with a week’s interval of radial shockwaves that will be performed using a (Storz Medical) device with the following manufacturer’s parameters: 0.57 mJ/mm2 (intensity 1.5 bar) applied as low energy, pulses 2000, frequency 15 Hz. The D20 transmitter (Ø 20 mm) headpiece will be used. Total treatment time including standard PT stretches and exercises will be 30 min. The radial shockwave will be delivered by a designated Physiotherapist, who will evaluate the participants before the treatment. Before the treatment, the treating Physiotherapist will ensure aseptic techniques, including the use of clean coupling gel, and they will ensure the participants’ skin is intact. Furthermore, prior to treatment, the myofascial triggers will be specifically confirmed through twitching response induced by a localised probe using a digital algometer.

2.8.2. Control (Sham (Placebo)) Group

These patients will receive an identical treatment regime except that they will receive a no-energy shock of 0.03 mJ/mm2, an ineffective (a non-therapeutic) level of radial shockwave therapy (Watson, 2014) [13], and participants will be blinded to their treatment by only hearing the sound from the shockwave machine.
Both groups receiving either a radial shockwave or sham (placebo) will be permitted to continue with their current pain medication regime such as paracetamol or ibuprofen. Other forms of conservative intervention characteristic of the management of MPS in the neck and or upper back such as stretching and strengthening exercises will be allowed for both groups. Therefore, both groups are equally controlled for medications or other treatment modalities. This is reflective of “real life” practice where patients receiving physiotherapy are advised not to receive a single treatment or intervention in isolation (Green et al., 2003) [28].
Standard aftercare and post-treatment information will be provided verbally, and these will include advice for participants to continue their normal daily activities. Although no serious side effects have been reported with the use of radial shockwave therapy, participants will be informed of potential side effects such as mild pain, redness or swelling (Luan et al., 2019) [9]. They will be advised to inform their family physician in the event of any adverse reactions such as hematoma. All side effects will be managed by normal clinical procedure by the head of department and the clinical research PT.

2.9. Outcome Measures and Follow-Up

2.9.1. Baseline Assessment

Baseline characteristics will include age, gender, duration of symptoms, current treatment analgesia and current treatment NSAIDS. It will also include the initial NPS, NDI, PPT and SF-12 scores.

2.9.2. Primary Outcomes

The primary outcome measures will be a numeric pain scale (NPS) and neck disability index (NDI), while the secondary outcomes are the pressure-pain threshold (PPT) and the short form health survey (SF-12), which will be at baseline, and 4 and 8 weeks. These measures are routinely used in Physical Therapy practice.

2.9.3. Numeric Pain Scale (NPS)

NPS is a single 11-point numeric scale (with 0 as “no pain” and 10 as the “worst imaginable pain”) to measure pain intensity in adults (Hawker 2011) [29]. It allows patients to measure their level of pain accordingly using a whole number (0–10 integers) that corresponds to their pain intensity (Rodriguez, 2001) [30]. The scale is considered reliable (accurate and consistent), responsive (able to detect clinically significant changes) and valid (actually measures what it sets out to) (Hawker, 2011) [29]. Accordingly, a pain reduction of 2 points, or 30%, on the NPS scores is defined as the minimal clinically important difference (MCID) (Childs et al., 2005; Farrar et al., 2001) [31,32]. The NPS is relatively easy to comprehend, and to apply, especially by patients with musculoskeletal disorders such as MPS (Hawker, 2011) [29].

2.9.4. Neck Disability Index (NDI)

This is the most commonly used self-rated disability score for assessing patients with neck pain according to Vernon and Mior (1991) [33]. It consists of ten domains: pain intensity, personal care, lifting, reading, headaches, concentration, work, driving, sleeping and recreation. Each question contains six answer choices, scored from 0 (no disability) to 5 (complete disability). All sections are then totalled. Scoring is reported on a 0–50 scale, 0 being the best possible score and 50 being the worst. The score can also be reported as a percentage (0–100%). The minimum detectable change (90% confidence) is 5 points or 10% points [33] from Vernon and Mior (1991), and the MCID is in the range of 3.5–5.0 points (Pool et al., 2007) [34].

2.9.5. Pressure Pain Threshold (PPT)

This will be measured using a digital algometer, and pain score measurement will be performed with digital palpation. The algometer circular flat tip with a 1.0 cm2 surface will be slowly pushed vertically onto the skin over the area of the trigger point/s until the participant interprets the compression on skin as a pain sensation. The exerted pressure will be enlarged at a rate of 1 kg/cm2. Participants will be requested to inform the treating Physiotherapist by saying “yes” when the pain is perceived. The measurements will be repeated three times with 40 s intervals, and the mean average value will be recorded (Fischer, 1998) [35]. A mean difference of 0.94 kg/cm2 in PPT is defined as MCID (Asiri et al., 2020) [36].

2.9.6. Quality of Life (QoL)

Quality of life status will be evaluated using the short-form SF-12, which is a shorter version of the SF-36 questionnaire. The health survey (SF-12) questionnaire consists of 12 items regarding the quality of life with respect to physical and emotional aspects. Likert scales and yes/no options were used to assess function and wellbeing on this 12-item questionnaire. To score the SF-12, scales are standardised with a scoring algorithm to obtain a score ranging from 0 to 100. Higher scores indicate better health status. SF-12 is one of the most widely used patient outcome reports for musculoskeletal patients with well-documented high validity, reliability and responsiveness rate among many groups varying by age, sex, socio-economic status, geographical region and clinical conditions (Ware et al., 2000, Ware et al., 1996) [37,38]. This questionnaire has been translated into a Saudi version, with high reliability and validity scores (Haddad et al., 2021) [39]. A minimal improvement of 20% in SF-36 scores was defined as MCID by Lauche et al. (2013) [40].

2.9.7. Follow-Up Assessment

Potential participants will be assessed three times during the study period, at 0 (baseline), 4 and 8 weeks. This will allow inferences to be drawn about immediate and short-term effects. The 8 week timeframe is common in normal clinical practice. Follow-up assessments will be carried out by a member of staff (who is not involved in the patient’s treatment and is blinded to the baseline measurement and group allocation) at 4 and 8 weeks. These timeframes are normal clinical practice and consistent with previous authors (Luan et al., 2019; Eftekharsadat et al., 2020) [9,41].

2.10. Blinding

The blinded assessor—a member of staff who can speak both English and Arabic (who is not involved in the patient’s treatment and is blinded to the baseline measurement and group allocation) will collect the outcomes at 4 and 8 weeks. Where necessary, response rate will also be facilitated through a call reminder on up to two occasions each time to ask if they wish to complete the questionnaires. The statistician conducting the primary data analysis will also be blinded to the group allocation.
Potential participants will be blinded to the treatment allocation. They will not know if they are receiving the experimental or sham (placebo) treatment. However, it is not possible for the treating Physiotherapists to be blinded to treatment allocation with this design because they already know what the experimental and sham (placebo) treatment is. However, they do not control which patient they treat because of the concealed random allocation of potential participants.

2.11. Loss to Follow-Up

This study is likely to last for 12 months; therefore, at 4 months, a review of the rate of loss to follow-up will be undertaken to ensure that this does not affect the findings of the study. For example, if the rate of loss to follow-up is much higher in one group compared with the other, the researcher might consider over-enrolling into that group. Patients who are lost to follow-up will be included in the analysis based on intention to treat (ITT).

2.12. Data and Treatment Fidelity

The Physiotherapists who will be providing the treatments are skilled, trained and experienced in the management of MPS using radial shockwaves. To ensure the procedural integrity of the study, the assessment and treatment given to potential participants from the RCT will be evaluated by the principal investigator (CO). Standardised training on the study procedure will also be provided to the treating Physiotherapists to facilitate successful delivery of both treatments. Administrative staff involved in the study will receive training on the study protocol. Some of the treatment sessions from both groups of the study will be observed and documented, and feedback will be provided to the treating Physiotherapists. The radial shockwave machines for this study will have passed their normal regular checks to ensure they are properly calibrated and working well. Participants will be randomly selected and interviews will be conducted 3 months after their initial treatment to obtain their views on the care they received.

2.13. Statistical Considerations

2.13.1. Sample Size Calculations

Sample size calculations will be based on works by [17,42] Aktürk et al., (2018) and Gur et al., (2014). We estimated the minimal clinically important difference (MCID) to be a change in NPS of 2 points, at 90% power, with a statistical significance level of 5% and a standard deviation of 4.35 points. Using these figures, a sample of 96 participants is estimated for the study. However, to account for a 20% rate of loss at follow-up, this study will include 120 participants. Therefore, each study group will have 60 participants.

2.13.2. Non-Response and Intention to Treat Analysis

Participants who withdraw from the study will be included in the analysis based on intention to treat (ITT). ITT analysis, therefore, helps to prevent two major issues, noncompliance and missing data, that are associated with RCT (Gupta, 2011) [43]. The ITT analysis takes into account all randomised patients in the groups to which they were randomly assigned, regardless of their adherence to the entry criteria, treatment they actually received and subsequent withdrawal from treatment or deviation from the study protocol (Kruse et al., 2002; Gupta, 2011) [43,44].

2.14. Plan of Analysis

All analyses will be undertaken on an ITT basis. All data will be analysed using the BM SPSS Statistics version 20 (SPSS Inc., Chicago, IL, USA). Descriptive statistics such as mean age, gender and duration of symptoms will be used to describe patients’ baseline characteristics. The results of the outcome measures will give a difference in scores from the baseline to 4 and 8 weeks. Normality will also be checked using the Shapiro–Wilk test since the sample size is 120. The chi-square test will be used to compare the distribution of categorical variables. We will use a paired sample t test for analysing within-group difference, and an independent sample t test for analysing between-group difference. A regression model will be used to evaluate the contribution of participants’ baseline characteristics such as age, gender and symptom duration. The significance level is set at p ≤ 0.05 with a 95% confidence interval to detect a minimal clinically important difference of 2 points between the groups receiving shockwave therapy and sham (placebo) treatment.

2.15. Ethical Considerations

Approval was obtained from the Research Ethics Committee (REC), and this study has been registered on clinicaltrials.gov. Written informed consent, a prerequisite for study participation, will be obtained from all participants. Potential participants will be given the opportunity to determine if they wish to participate in the study or not. The relevance of the research, including the possible risks and benefits, will be carefully explained to them. This is to enable participants to give informed consent based on an understanding that their participation in this research is voluntary.
Potential participants will be informed that they are not obliged to take part in the study and that failure to provide consent or withdrawal of consent without giving a reason will not affect the treatment that they will receive. All participants’ details, as well as their comments, will be kept secure and confidential at all times using a locked cabinet (with controlled access) and on a password-protected computer. Any information they provide to the principal investigator will be anonymised using pseudonyms and unique identifying numbers so that it will not be possible to identify them. Dictaphone recordings of interviews will be destroyed once they have been transcribed, and transcripts will be stored in a locked cabinet (with controlled access) and on a password-protected computer.
No significant adverse reactions are anticipated in the study, but these will be monitored and recorded by the department’s ethics committee lead. Participants will be informed that their physician will be informed of their participation in the study and after obtaining consent from them to do so, the patient’s family physician will be informed of their patient’s participation in the study via a letter. If a participant is feeling distressed or uncomfortable during the trial, they will be advised to consult their family physician and will be excluded from the study, but any data collected up to that point will be included in the analysis.
Potential participants will be informed that there are no direct personal benefits to them taking part in this study. However, the information derived from the study will help clinicians to know which of the two treatment methods is better for treating patients with MPS in the neck and upper back region in the future. Potential participants will be informed that they will be offered radial shockwave or sham (placebo) and each group will receive the usual PT treatments associated with this condition in addition. Both groups will receive the usual care such as education, advice and exercise prescriptions that are usually associated with MPS. However, all exercise will be performed at a speed and intensity that is within participant’s own control.

2.16. Phase 2

Design: Qualitative Semi-Structured Approach

A semi-structured telephone interview approach will be used as the design. This will lead to obtaining data that will enhance the understanding of experiences of potential participants about their symptom relief or aggravation after treatment (Mason, 2017; Coombes et al., 2009) [45,46]. This will occur towards the end of phase 1 of the quantitative study. Therefore, data collection will be by means of a semi-structured telephone interview method.
Purposive convenience sampling as suggested by Patton (2002) [47] will be used to identify potential participants from those who have participated in phase 1 of the randomised controlled study and have agreed to being contacted for interview. This sampling strategy is a positive feature of qualitative study because it is flexible and allows research to develop as the data are collected and analysed simultaneously (Patton, 2002) [47]. Twenty potential participants, ten each from the radial shockwave and sham (placebo) groups, will be recruited by the principal investigator to participate in the telephone interview. They will be potential participants with different demographics such as gender, ages and socio-economic backgrounds to provide a broad understanding of the topic being studied (Patton, 2002) [47]. The interview details will include the lived experience of participants receiving radial shockwave or sham (placebo) treatment in addition to the standard PT treatment.
The duration of the interview is expected to be a maximum of 20–30 min, and this will be explained to the participants. Interviews will be Dictaphone-recorded with the consent of the interviewee, and field notes will be taken by the telephone interviewer assessor to contextualise the data (Mason, 2017) [45]. All data will be anonymised, transcribed verbatim and stored securely in a cabinet (with controlled access) and on a password-protected computer.
The thematic analysis approach reported by Sandelowski and Barroso (2007) [48] will be used to analyse the qualitative interviews. Data (transcribed interviews) will be initially analysed using computer software package MAXQDA. The analytic process will involve the following three stages: (1) extraction of initial interview findings and coding of findings of each interview, (2) grouping of findings (codes) according to similar themes and (3) abstraction of findings—analysing the grouped findings to identify associated patterns, overlaps and main themes that conceptualise all the findings.

3. Conclusions

The expectation is that this study will add to the body of knowledge required to make effective treatment choices about RSW in the management MFS.

Author Contributions

C.O. conceived and directed the study. All authors contributed to the design and methodology of the study. All authors were involved with the investigation of the study. H.A. (Hussain AlMugizel), C.O. and T.A. provided expert advice on the statistical analyses. N.A. (Nouf Aldhwayan), H.A (Huda AlMubarak), H.A. (Hamad Alkahtani), H.A. (Hussain AlMugizel), and H.A. (Hala Aldosari) provided administrative support for the study. C.O. had full access to all of the data in the study and took responsibility for the integrity of the data. C.O. drafted the manuscript. All the authors provided important and significant professional knowledge throughout the study and on all the redrafts of the reports. C.O. is the guarantor for the study. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Ethical approval was obtained from the Research Ethics Committee (REC), King Faisal Specialist Hospital and Research Centre on 7 April 2022 (#2221047). This study has been registered with the ClinicalTrials.gov PRS with protocol number: NCT05381987.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study. Written informed consent has been obtained from the patient(s) to publish this paper.

Data Availability Statement

This is a research protocol, therefore there is no data to share.

Acknowledgments

The authors wish to thank Khalid Alobathani (Head of Department of Physical Rehabilitation), Najwa Alfarra and members of the academic research affairs, including Abeer Omer, for their contributions to the study. We also wish to thank the staff of the Physical Rehabilitation department, particularly Inga Marin, Mahrous Ahmed, Abdullaziz Almadhi, Shadad Alshehri and Waad Alsaka for their immense support, and the patients who generously gave their time and participated in the study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fleckenstein, J.; Zaps, D.; Rüger, L.J.; Lehmeyer, L.; Freiberg, F.; Lang, P.M.; Irnich, D. Discrepancy between prevalence and perceived effectiveness of treatment methods in myofascial pain syndrome: Results of a cross-sectional, nationwide survey. BMC Musculoskelet. Disord. 2010, 11, 32. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Simons, D.G. Clinical and Etiological Update of Myofascial Pain from Trigger Points. J. Musculoskelet. Pain 1996, 4, 93–122. [Google Scholar] [CrossRef]
  3. Li, X.; Wang, R.; Xing, X.; Shi, X.; Tian, J.; Zhang, J.; Ge, L.; Zhang, J.; Li, L.; Yang, K. Acupuncture for Myofascial Pain Syndrome: A Network Meta-Analysis of 33 Randomized Controlled Trials. Pain Physician 2017, 20, E883–E902. [Google Scholar] [PubMed]
  4. Gaskin, D.J.; Richard, P. The economic costs of pain in the United States. J. Pain 2012, 13, 715–724. [Google Scholar] [CrossRef] [PubMed]
  5. Fernández-de-las-Peñas, C.; Gröbli, C.; Ortega-Santiago, R.; Fischer, C.S.; Boesch, D.; Froidevaux, P.; Stocker, L.; Weissmann, R.; González-Iglesias, J. Referred pain from myofascial trigger points in head, neck, shoulder, and arm muscles reproduces pain symptoms in blue-collar (manual) and white-collar (office) workers. Clin. J. Pain 2012, 28, 511–518. [Google Scholar] [CrossRef] [Green Version]
  6. Sciotti, V.M.; Mittak, V.L.; DiMarco, L.; Ford, L.M.; Plezbert, J.; Santipadri, E.; Wigglesworth, J.; Ball, K. Clinical precision of myofascial trigger point location in the trapezius muscle. Pain 2001, 93, 259–266. [Google Scholar] [CrossRef]
  7. Alvarez, D.J.; Rockwell, P.G. Trigger points: Diagnosis and management. Am. Fam. Physician 2002, 65, 653–660. [Google Scholar]
  8. Travell, J.G.; Simons, D.G. Myofascial Pain and Dysfunction: The Trigger Point Manual, 2nd ed.; Williams and Wilkins: Baltimore, MD, USA, 1999; Volume 1. [Google Scholar]
  9. Luan, S.; Zhu, Z.M.; Ruan, J.L.; Lin, C.N.; Ke, S.J.; Xin, W.J.; Liu, C.C.; Wu, S.L.; Ma, C. Randomized Trial on Comparison of the Efficacy of Extracorporeal Shock Wave Therapy and Dry Needling in Myofascial Trigger Points. Am. J. Phys. Med. Rehabil. 2019, 98, 677–684. [Google Scholar] [CrossRef]
  10. Galasso, A.; Urits, I.; An, D.; Nguyen, D.; Borchart, M.; Yazdi, C.; Manchikanti, L.; Kaye, R.J.; Kaye, A.D.; Mancuso, K.F.; et al. A Comprehensive Review of the Treatment and Management of Myofascial Pain Syndrome. Curr. Pain Headache Rep. 2020, 24, 43. [Google Scholar] [CrossRef]
  11. Tough, E.A.; White, A.R.; Cummings, T.M.; Richards, S.H.; Campbell, J.L. Acupuncture and dry needling in the management of myofascial trigger point pain: A systematic review and meta-analysis of randomised controlled trials. Eur. J. Pain 2009, 13, 3–10. [Google Scholar] [CrossRef]
  12. Müller-Ehrenberg, H.; Licht, G. Diagnosis and therapy of myofascial pain syndrome with focused shock waves (ESWT). Med. Orthop. Tech. 2005, 5, 1–6. [Google Scholar]
  13. Watson, P. Key Concept in Electrotherapy. 2014. Available online: https://citeseerx.ist.psu.edu/document?repid=rep1&type=pdf&doi=12e731bea9ab56494004bc83b31eaf3b4ee003b6 (accessed on 20 June 2022).
  14. Wang, C.J. Extracorporeal shockwave therapy in musculoskeletal disorders. J. Orthop. Surg. Res. 2012, 7, 11. [Google Scholar] [CrossRef] [Green Version]
  15. Király, M.; Bender, T.; Hodosi, K. Comparative study of shockwave therapy and low-level laser therapy effects in patients with myofascial pain syndrome of the trapezius. Rheumatol. Int. 2018, 38, 2045–2052. [Google Scholar] [CrossRef]
  16. Lee, J.H.; Han, E.Y. A comparison of the effects of PNF, ESWT, and TPI on pain and function of patients with myofascial pain syndrome. J. Phys. Ther. Sci. 2013, 25, 341–344. [Google Scholar] [CrossRef] [Green Version]
  17. Gur, A.; Koca, I.; Karagullu, H.; Altindag, O.; Madenci, E. Comparison of the efficacy of ultrasound and extracorporeal shock wave therapies in patients with myofascial pain syndrome: A randomized controlled study. J. Musculoskelet. Pain 2013, 21, 210–216. [Google Scholar] [CrossRef]
  18. Cho, Y.S.; Park, S.J.; Jang, S.H.; Choi, Y.C.; Lee, J.H.; Kim, J.S. Effects of the combined treatment of extracorporeal shock wave therapy (ESWT) and stabilization exercises on pain and functions of patients with myofascial pain syndrome. J. Phys. Ther. Sci. 2012, 24, 1319–1323. [Google Scholar] [CrossRef] [Green Version]
  19. Yoo, J.I.; Oh, M.K.; Chun, S.W.; Lee, S.U.; Lee, C.H. The effect of focused extracorporeal shock wave therapy on myofascial pain syndrome of trapezius: A systematic review and meta-analysis. Medicine 2020, 99, e19085. [Google Scholar] [CrossRef]
  20. Jun, J.H.; Park, G.Y.; Chae, C.S.; Suh, D.C. The Effect of Extracorporeal Shock Wave Therapy on Pain Intensity and Neck Disability for Patients with Myofascial Pain Syndrome in the Neck and Shoulder: A Meta-Analysis of Randomized Controlled Trials. Am. J. Phys. Med. Rehabil. 2021, 100, 120–129. [Google Scholar] [CrossRef]
  21. Manafnezhad, J.; Salahzadeh, Z.; Salimi, M.; Ghaderi, F.; Ghojazadeh, M. The effects of shock wave and dry needling on active trigger points of upper trapezius muscle in patients with non-specific neck pain: A randomized clinical trial. J. Back Musculoskelet. Rehabil. 2019, 32, 811–818. [Google Scholar] [CrossRef]
  22. Jeon, J.H.; Jung, Y.J.; Lee, J.Y.; Choi, J.S.; Mun, J.H.; Park, W.Y.; Seo, C.H.; Jang, K.U. The effect of extracorporeal shock wave therapy on myofascial pain syndrome. Ann. Rehabil. Med. 2012, 36, 665–674. [Google Scholar] [CrossRef]
  23. Vickers, A.J. Sham (placebo) Controls in Randomized Trials of Acupuncture. Eval. Health Prof. 2002, 25, 421–435. [Google Scholar] [CrossRef] [PubMed]
  24. Morgan, D.L. Practical strategies for combining qualitative and quantitative methods: Applications to health research. Qual. Health Res. 1998, 8, 362–376. [Google Scholar] [CrossRef] [PubMed]
  25. McGovern, D.P.B. Randomized controlled trials. In Key Topics in Evidence Based Medicine; McGovern, D.P.B., Valori, R.M., Summerskill, W.S.M., Eds.; BIOS Scientific Publishers: Oxford, UK, 2001; pp. 26–29. [Google Scholar]
  26. Black, N. Why we need observational studies to evaluate the effectiveness of health care. BMJ 1996, 312, 1215–1218. [Google Scholar] [CrossRef] [Green Version]
  27. Viera, A.J.; Bangdiwala, S.I. Eliminating bias in randomized controlled trials: Importance of allocation concealment and masking. Fam. Med. 2007, 39, 132–137. [Google Scholar] [PubMed]
  28. Green, S.; Buchbinder, R.; Hetrick, S. Physiotherapy interventions for shoulder pain. Cochrane Database Syst. Rev. 2003, 2013, CD004258. [Google Scholar] [CrossRef]
  29. Hawker, G.A.; Mian, S.; Kendzerska, T.; French, M. Measures of adult pain: Visual Analog Scale for Pain (VAS Pain), Numeric Rating Scale for Pain (NRS Pain), McGill Pain Questionnaire (MPQ), Short-Form McGill Pain Questionnaire (SF-MPQ), Chronic Pain Grade Scale (CPGS), Short Form-36 Bodily Pain Scale (SF-36 BPS), and Measure of Intermittent and Constant Osteoarthritis Pain (ICOAP). Arthritis Care Res. 2011, 63 (Suppl. S11), S240–S252. [Google Scholar] [CrossRef]
  30. Rodriguez, C.S. Pain measurement in the elderly: A review. Pain Manag. Nurs. 2001, 2, 38–46. [Google Scholar] [CrossRef]
  31. Childs, J.D.; Piva, S.R.; Fritz, J.M. Responsiveness of the numeric pain rating scale in patients with low back pain. Spine 2005, 30, 1331–1334. [Google Scholar] [CrossRef]
  32. Farrar, J.T.; Polomano, R.C.; Berlin, J.A.; Strom, B.L. A comparison of change in the 0–10 numeric rating scale to a pain relief scale and global medication performance scale in a short-term clinical trial of breakthrough pain intensity. Anesthesiology 2010, 112, 1464–1472. [Google Scholar] [CrossRef] [Green Version]
  33. Vernon, H.; Mior, S. The Neck Disability Index: A study of reliability and validity. J. Manip. Physiol. Ther. 1991, 14, 409–415, Erratum in J. Manip. Physiol. Ther. 1992, 15. Available online: https://pubmed.ncbi.nlm.nih.gov/1834753 (accessed on 20 June 2022).
  34. Pool, J.J.; Ostelo, R.W.; Hoving, J.L.; Bouter, L.M.; de Vet, H.C. Minimal clinically important change of the Neck Disability Index and the Numerical Rating Scale for patients with neck pain. Spine 2007, 32, 3047–3051. [Google Scholar] [CrossRef] [Green Version]
  35. Fischer, A.A. Documentation of myofascial trigger points. Arch. Phys. Med. Rehabil. 1988, 69, 286–291. [Google Scholar]
  36. Asiri, F.; Tedla, J.S.; DAlshahrani, M.S.; Ahmed, I.; Reddy, R.S.; Gular, K. Effects of patient-specific three-dimensional lumbar traction on pain and functional disability in patients with lumbar intervertebral disc prolapse. Niger. J. Clin. Pract. 2020, 23, 498–502. [Google Scholar] [CrossRef]
  37. Ware, J.E., Jr. SF-36 health survey update. Spine 2000, 25, 3130–3139. [Google Scholar] [CrossRef]
  38. Ware, J., Jr.; Kosinski, M.; Keller, S.D. A 12-Item Short-Form Health Survey: Construction of scales and preliminary tests of reliability and validity. Med. Care 1996, 34, 220–233. [Google Scholar] [CrossRef] [Green Version]
  39. Haddad, C.; Sacre, H.; Obeid, S.; Salameh, P.; Hallit, S. Validation of the Arabic version of the “12-item short-form health survey” (SF-12) in a sample of Lebanese adults. Arch. Public Health 2021, 79, 56. [Google Scholar] [CrossRef]
  40. Lauche, R.; Langhorst, J.; Dobos, G.J.; Cramer, H. Clinically meaningful differences in pain, disability and quality of life for chronic nonspecific neck pain—A reanalysis of 4 randomized controlled trials of cupping therapy. Complement. Ther. Med. 2013, 21, 342–347. [Google Scholar] [CrossRef] [PubMed]
  41. Eftekharsadat, B.; Fasaie, N.; Golalizadeh, D.; Babaei-Ghazani, A.; Jahanjou, F.; Eslampoor, Y.; Dolatkhah, N. Comparison of efficacy of corticosteroid injection versus extracorporeal shock wave therapy on inferior trigger points in the quadratus lumborum muscle: A randomized clinical trial. BMC Musculoskelet. Disord. 2020, 21, 695. [Google Scholar] [CrossRef] [PubMed]
  42. Aktürk, S.; Kaya, A.; Çetintaş, D.; Akgöl, G.; Gülkesen, A.; Kal, G.A.; Güçer, T. Comparision of the effectiveness of ESWT and ultrasound treatments in myofascial pain syndrome: Randomized, sham-controlled study. J. Phys. Ther. Sci. 2018, 30, 448–453. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Gupta, S.K. Intention-to-treat concept: A review. Perspect. Clin. Res. 2011, 2, 109–112. [Google Scholar] [CrossRef] [PubMed]
  44. Kruse, R.L.; Alper, B.S.; Reust, C.; Stevermer, J.J.; Shannon, S.; Williams, R.H. Intention-to-treat analysis: Who is in? Who is out? J. Fam. Pract. 2002, 51, 969–971, Erratum in J. Fam. Pract. 2002, 51, 1079. [Google Scholar]
  45. Mason, J. Qualitative Researching, 2nd ed.; Sage Publications: London, UK, 2017. [Google Scholar]
  46. Coombes, B.K.; Bisset, L.; Vicenzino, B. A new integrative model of lateral epicondylalgia. Br. J. Sports Med. 2009, 43, 252–258. [Google Scholar] [CrossRef] [Green Version]
  47. Patton, M.Q. Qualitative Evaluation and Research Methods, 3rd ed.; Sage Publications: London, UK, 2002. [Google Scholar]
  48. Sandelowski, M.; Barroso, J. Handbook for Synthesizing Qualitative Research; Springer: Berlin/Heidelberg, Germany, 2006. [Google Scholar]

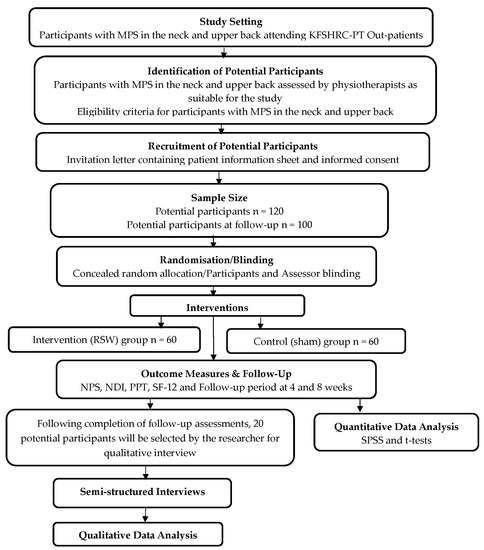

Figure 1. The flow chart for the research design.
Figure 1. The flow chart for the research design.
Rheumato 03 00009 g001
Table 1. Diagnosis criteria for MPS.
Table 1. Diagnosis criteria for MPS.
Inclusion CriteriaExclusion Criteria
  • Patients aged 19 and above
  • Neck and or upper back pain localised the lateral or posterior neck and or upper back;
  • Palpable tenderness in the lateral or posterior neck and or upper back;
  • Single or multiple trigger points on one side of lateral or posterior neck and or upper back;
  • Able to give informed consent.
  • Patients below 19 years of age
  • History of:
    Malignancy, lung tissue, haemophiliacs or patients on anticoagulant therapy;
    Visible tissue damage (skin petechiae and microvasculature disruption);
    Metal implants—implanted cardiac stents and heart valves;
    Infection;
    Rheumatic, respiratory, cardiovascular diseases;
    Psychopathy;
    Disorders of the vestibular and visual systems;
    Neck or shoulder surgery within a year;
    Recent history of steroid injections to myofascial trigger point;
    Pregnancy;
    Fibromyalgia, cervical radiculopathy or myelopathy;
    Inability or unwillingness to continue study;
    Failure to consent.
