Projective Geometry as a Model for Hegel’s Logic

Abstract

Recently, historians have discussed the relevance of the nineteenth-century mathematical discipline of projective geometry for early modern classical logic in relation to possible solutions to semantic problems facing it. In this paper, I consider Hegel’s Science of Logic as an attempt to provide a projective geometrical alternative to the implicit Euclidean underpinnings of Aristotle’s syllogistic logic. While this proceeds via Hegel’s acceptance of the role of the three means of Pythagorean music theory in Plato’s cosmology, the relevance of this can be separated from any fanciful “music of the spheres” approach by the fact that common mathematical structures underpin both music theory and projective geometry, as suggested in the name of projective geometry’s principal invariant, the “harmonic cross-ratio”. Here, I demonstrate this common structure in terms of the phenomenon of “inverse foreshortening”. As with recent suggestions concerning the relevance of projective geometry for logic, Hegel’s modifications of Aristotle respond to semantic problems of his logic.

1. Introduction

Modern mathematical logic is standardly thought of as commencing around the middle of the nineteenth century with the work of George Boole and Augustus de Morgan, although, largely unbeknownst to the participants of this movement, a similar attempt to apply algebra to ancient syllogistic logic had been pursued by Leibniz almost two centuries earlier. A few decades after Boole, however, a different approach would be launched with Gottlob Frege’s “classical” logic, later championed and developed by Bertrand Russell. While each movement looked to mathematics, each looked to different branches of the discipline and conceived of the relation of their logics to mathematics in different ways. In contrast to algebra, the Frege-Russell strand looked to analysis and, moreover, conceived of logic not as mathematics but as an autonomous discipline providing its rational foundation.1 Within the emerging analytic paradigm of philosophy in the early twentieth century, the Frege-Russell approach would triumph over the earlier “algebra of logic” tradition stemming from Boole,2 as well as over traditional Aristotelian forms of logic thought to be ultimately tied to an inadequate “subject–predicate” conception of logical form. One victim in particular would be the logic of Hegel.

Recently, historians of the early years of the modern classicist movement have broadened the mathematical context within which it developed beyond analysis and algebra, with a number of investigators looking to the role of the nineteenth-century discipline of projective geometry—a discipline that had been singled out in the 1930s by Ernest Nagel [1] as particularly relevant. In fact, before his turn to foundational and logical issues, Frege had worked in projective geometry, and the relevance of this discipline has been raised especially in relation to addressing various semantic shortcomings apparent in the early forms of classicism, e.g., [2,3].3 Another example of such a possible role for projective geometry has been suggested by Pablo Acuña [6] (p. 8) with the suggestion that Wittgenstein, in describing the perceptible sign of a proposition as a “projection of a possible state of affairs” [7] (§ 3.11) may have had in mind the specific status of projection in projective geometry.

In this paper, I explore the idea of the involvement of a form of geometry with many of the features of modern projective geometry in Hegel’s earlier attempts in the nineteenth century to rejuvenate Aristotle’s syllogistic. Within the ancient mathematical culture to which Hegel was appealing, however, this was not identified primarily as a form of geometry, but rather as a mathematical theory of musical harmony.

Projective geometry would be a major area of innovation in nineteenth-century mathematics, but it is not always acknowledged that its roots extended back to antiquity with the work of Pappus of Alexandria (c. 290–350 CE). Pappus, however, had sought to preserve work from earlier times and had taken structures at the heart of projective geometry from Apollonius of Perga (c. 240–190 BCE), and hints at earlier associations with the Pythagorean music theory can be found in the name that would be eventually given to projective geometry’s principal “invariant”, the “harmonic cross-ratio”.4

Pappus’s early steps in projective geometry had been revived and built on in the seventeenth century by Girard Desargues [8], a French mathematician and engineer and contemporary of Rene Descartes. Although Desargues had a few initial followers, notably the young Blaise Pascal, his work would fall into neglect, swamped by the success of the analytic geometry introduced by Descartes’s Géométrie in 1637. Desargues’s alternative geometry would, however, reemerge in the early nineteenth century, an early expression of which—perhaps the earliest—was the book De la Corrélation des Figures de Géométrie by the French military engineer and hero of the French Revolution, Lazare Carnot, a German translation of which Hegel had in his library [9] (p. 673).

It is known that Hegel had become intensely interested in geometry around the time that Carnot’s book was published in 1801, and that his reading of ancient geometry had been influenced by thinkers from the Platonist tradition in antiquity, such as Proclus [10]. Along with this, Hegel’s thinking about astronomy had been strongly influenced by the early seventeenth-century astronomer Johannes Kepler, who, with his theory of optics, had contributed to Desargues’s geometric project and who had, like earlier Neoplatonists, championed Plato’s music-based cosmology. In his 1801 Dissertation completed at Jena [11], Hegel, to the disparagement of many contemporaries, ventured into this “music of the spheres” tradition, and while such an approach to the physical world was, and remains, easy to dismiss, I will argue for its significance via its relation to projective geometry itself. While Hegel may or may not have consciously grasped this link to Plato in Carnot’s work, he would nevertheless attempt to rejuvenate Aristotle’s syllogistic project in ways that reflected something of both Plato’s earlier music-theoretical approach to spatial relations and Carnot’s projective geometry. The result would have surprising consequences for the relation of Hegel’s Science of Logic to the modern science of logic as it continued to develop beyond the form found in Frege and Russell.5

In Section 1 below, I briefly review the relation of logic to geometry in ancient Greece, against the background of two different approaches to a problem facing Greek mathematics, that of the discovered incommensurability of continuous and discrete magnitudes. Of these, an earlier Pythagorean-influenced solution can be seen in Plato, while a later solution more in line with Euclidean geometry can be found in Aristotle. In Section 2, it is argued that, while the latter approach would inform Descartes’s analytic geometry in the seventeenth century, the former would inform Desargues’s initially unsuccessful projective alternative. Then, in Section 3, a common underlying mathematical structure to both music theory and projective geometry is explored via the phenomenon of “inverse foreshortening”. In Section 4, the role of musical proportions is examined, while in Section 5, Desargues’s projective geometry is examined in relation to the type of “science of perspective” that Leibniz had attempted to introduce in the seventeenth century—a science that, like projective geometry, had built upon earlier theories of perspectival representation in painting and architecture that had flourished in the Renaissance. Finally, in Section 6, distinctive features of Hegel’s logic are considered as expressing a projective equivalent of Aristotle’s more “Euclidean” syllogistic.

2. Logic and Geometry in Ancient Greece

The origin of the science of logic within European culture is typically placed around the middle of the fourth century BCE with Aristotle’s development of his system of syllogistic logic as presented in his Prior Analytics [13]. In 367, Aristotle had, as a young man, joined Plato’s Academy in Athens, remaining there some twenty years, and during this time, mathematics had been a major concern of both Plato and many other academicians. This had predominantly taken the form of work on geometry, with the development of approaches that would be later codified around the end of the fourth century by Euclid in the thirteen books of his Elements. Given this prominence, it is not surprising that various authors have speculated about geometry having shaped Aristotle’s logic. John Corcoran [14] (p. 284), for example, has described Aristotle’s logical achievements as “unthinkable without the emphasis on deductive reasoning in geometry that he had found in Plato’s Academy”, while Vangelis Trianatafyllou [15] (p. 10) notes, in the light of the “encompassing geometricocentric paradigm” of Greek scientific thinking, “it would indeed make perfect sense for logical methodology to mirror—up to a certain degree—that of geometry”. While Aristotle’s new discipline was not “mathematical” in the modern sense, comments such as these suggest that it had nevertheless been modelled on the extant discipline of geometry.

However, it would seem that what we now know as “Euclidean geometry” had not been the only approach to mathematics during the years between Plato’s founding of the Academy in the mid-380s and Euclid’s codification of that science around 300 BCE. The Greeks did not have an equivalently developed number theory, and what they did have was largely restricted to the theory of musical harmony [16] (p. 72). However, some have argued (e.g., [17]) for the influence of the music-theoretical approach to ratios and proportions on Euclidean geometry itself.

Book V of Euclid’s Elements containing the theory of ratios and proportions is standardly attributed to Eudoxus of Cnidus, who, while a little older than Aristotle, had joined Plato’s Academy about a year before his younger colleague and about twenty years after Plato’s founding of the school. Eudoxus’s approach to ratios and proportions here are standardly seen as pivotal in the Greek response to a problem that had arisen for Pythagorean mathematicians—that of the incommensurability of ratios of line-lengths with ratios of numbers. It had been grasped that what are now known as the square roots of non-square numbers could not be expressed in ratios of natural numbers. However, Eudoxus, employing a form of reasoning often likened to the way the real numbers would be defined in the later nineteenth century [16] (p. 86, n. 14) [18], had shown a way of identifying ratios of lines with ratios of numbers—a solution apparently known to Aristotle. With this, Eudoxus had short-circuited existing Pythagorean attempts to deal with the problem of incommensurability, which appealed to a unity of the three “musical means”.

Earlier, ratios (logi) and proportions (analogi) had been discussed in ways appropriate for the three central “proportions” of music theory—numerical relations holding between two “extremes” divided by “middle terms” or “means”, of which there were three, the “geometric”, “arithmetic”, and “harmonic”.6 However, the senses of analogos seem to have narrowed between the work of the major early Pythagorean music theorist and cosmologist, Archytas of Tarentum, a rough contemporary of Plato, and that of Aristotle. For Archytas and, seemingly, for Plato himself, all three double-ratios, geometric, arithmetic and harmonic, were called analogi [17,19,20]. Archytas had thought of these three ratios as relevant to astronomical study—geometry, arithmetic, astronomy, and harmonics being conceived as “sisters” [21] (p. 37).

By the time of Aristotle, only the geometric double-ratio or “mean proportional”, defined as an equality of ratios [logi], as in a:b = c:d, was called a proportion [analogos]. This definition as given by Aristotle [22] (1131a31) and Euclid [23] (Bk. 5, def. 4) effectively coincides with what is known as a proportion today, and Eudoxus’s general theory of ratios and proportions seems to have undercut the earlier appeal to a “unity” existing among the three means, a unity holding despite the incommensurability between the geometric mean, the calculation of which would have required square roots, and the other two.

With Eudoxus’s innovations, the earlier “musical” solution to the problem of incommensurability seemed to have fallen by the wayside, at least for several centuries. Nevertheless, traces of the earlier pre-Eudoxean history of the complex relations between arithmetic, music, and geometry could still be found in a feature of Aristotle’s logic, as Aristotle’s technical vocabulary found in Prior Analytics Book 1, involving intervals, extremes and means, had originated in the theory of musical harmony [24,25]. However, given the innovations of Eudoxus, it might be assumed that for Aristotle any continuity with music theory itself had become entirely nominal, such terms by then having shed their specifically musical connotations.

This suspicion is supported by a consideration of the parallel between Aristotle’s account of the first-figure syllogism in the Prior Analytics with a passage from a text on music theory, the Sectio Canonis [26] (p. 158–159),7 that, while usually attributed to Euclid, was probably based on earlier work. Thus, Aristotle has it that, “if A is predicated of every B, and B of every C, it is necessary for A to be predicated of every C” [13] (25b32–26a3), while the author of Sectio Canonis writes, “let there be an interval BC and let B be a multiple of C; and let it be that as C is to B, so B is to D. I say surely that D is a multiple of C. For since B is a multiple of C, C therefore measures B. Now as C was to B as B was to D, so C also measures D” [26] (p. 239).

It is evident from the Sectio Canonis that, here, “measure” is being used in the sense of “divide”, since “C measures D” if “D is a multiple of C”, and significantly, in Metaphysics Bk VIII, Aristotle gives a numerical analogy involving division for the relation of concepts within a definition: “For definition is a sort of number; for it is divisible, and into indivisible parts […] and number is also of this nature” [27] (1044b34-35).8 In short, the parallel effectively models the way Aristotle unpacks definitions in inferences, such that concepts will be thought of as contained in other concepts much in the way that numbers are contained as factors in subsequent numbers of a geometric sequence. Thus, despite the “musical” analogy, there is no reference to the other two musical means in this model, a fact that sits with Reviel Netz’s linking of the ratios and proportions found in Sectio Canonis to Euclid’s (or Eudoxus’s) treatment of ratios and proportions in Book V of Elements [16] (pp. 65–67).

Plato, who would have been about 60 years old by the time both Aristotle and Eudoxus had become active in the Academy, had clearly adhered to the earlier link between musical and geometrical ratios and proportions as manifested in the dialogue Timaeus. While dismissed by Aristotle as no more than a metaphor [29] (290b12-14), this link would be resurrected in the first century BCE by Neoplatonists [16] (p. 394) and would persist through the Middle Ages, especially in Christianised form via the work of Boethius, and would be revived again in the Renaissance by Ficino and others. If, at the turn of the seventeenth century, its continued use by the astronomer Johannes Kepler was starting to look dated, its being broached by Hegel two centuries later would surely have looked distinctly eccentric. However, underlying the Pythagorean–Platonic astronomy was, I will argue, a distinctive and modern non-Euclidean geometry—perhaps carried by its implicit optics—in which the three “musical means” played a significant role.

3. Projective Geometry from the Greeks to the Seventeenth Century

In Descartes’s analytic geometry, the then recent discipline of algebra, a largely non-Greek form of mathematics derived from Arabic and Indian sources,9 could be brought to bear on figures of Euclidean geometry by its device of orthogonal “x” and “y” coordinates. This allowed a metric to be applied to continuous geometric magnitudes in a way that could not be envisaged by the Pythagoreans because of the problem of incommensurability. From the perspective of the seventeenth century, however, this Greek problem had resulted from the restriction of Greek numbers to the natural or “counting” numbers, 1, 2, 3, 4, etc., a restriction that had been overcome by the incorporation of new number forms that had by then been adopted. These included “rational” numbers,10 zero, negative numbers, and, importantly, the so-called “irrational numbers”, such as square roots of non-square numbers such as 2, 3, or 5. Thus, while the Pythagoreans had not been able to give a numerical value to the diagonal of a square of side one unit, this could now be expressed by the new number, √2. From this modern perspective, Eudoxus’s innovations in relation to ratios and proportions could be taken as pointing in this modern direction.

Descartes’s analytic geometry would be spectacularly successful and would largely eclipse the rival geometry of Desargues.11 In contrast to analytic geometry, Desargues’ did not allow for the application of a metric to the figures of Euclidean geometry. As the title of his work suggests, his focus was the “conic sections”, the circle, the ellipse, the hyperbola, and the parabola, which had been conceived by Apollonius in antiquity as produced by sectioning a cone on different angles. Work on the conic sections had been revived a few decades before Desargues by the astronomer Johannes Kepler, who, in a work of optics, had taken this concept further than Apollonius by treating these seemingly different shapes as different “projections” of a single shape, the circle [30]. That is, ellipses, parabolas, and hyperbolas were conceived in a way that so-shaped shadows might be “projected” onto differently inclined flat surfaces by a light source interrupted by an opaque circular disc. In this context, the type of metric introduced by Descartes was not relevant, as now the focus was on the relative relations between points on different projectively linked figures. This, however, would produce a further need within projective geometry.

In Euclidean geometry, line-lengths and the angles between them are fixed or “invariant”, but this is no longer the case in projective geometry, where a line-segment, for example, might be projectively equivalent to another of different length.12 This loss would imply the need for some other source of invariance—some feature that was invariant across different projections. This would be provided by a peculiar double-ratio holding among four points on a line, now known as the “harmonic cross-ratio”, that would be invariant under projection.13 Earlier constructions of this object could be found in Pappus and Apollonius.

Another of Kepler’s innovations that would find its way into Desargues’s geometry was the idea of “points at infinity” [30]. If ellipses and parabolas were thought of as projections of a circle, there should be some type of correspondence between their respective parts, for example, between the centre of a circle and the foci found in ellipses and parabolas. The two foci of an ellipse, for example, might be thought to coincide when the ellipse was squashed into a circle. Similarly, stretching an ellipse might be thought to further separate the foci, with one eventually coming to exist at an infinite distance from the other. Now, the resulting visualizable figure would be a parabola.

The incorporation of points at infinity into projective geometry would have crucial consequences for this approach. A line can be determined by any two points through which it passes or “joins”, and similarly, a point can be determined by any two lines that intersect or “meet” at it. In projective geometry, however, all points and lines can be so defined, as every pair of lines—including parallel lines—are defined as meeting. There is thus a complete symmetry between points and lines: every pair of points define some particular line, and every pair of lines define some point. This “duality” of points and lines means that, for every theorem concerning a certain structure holding among points, an equivalent theorem exists concerning an analogous structure holding among lines.

Points at infinity would also be found within another source of Desargues’s geometry, the various theories of perspective that had developed during the Renaissance in relation to the depiction of perspective in painting and architectural drawing [31]. Artists of the fifteenth and sixteenth centuries had been principally concerned with the “projection” of three-dimensional objects onto the artist’s two-dimensional picture plane, and the results of these types of studies are on display in the foreshortening seen in Raphael’s fresco at the Vatican, The School of Athens, painted in 1530 (Figure 1, below). In this, line lengths that are objectively equal, such as the edges of the square floor tiles, become smaller as they are portrayed as receding into the distance, and lines that are objectively parallel appear to converge towards a “vanishing point”. Standardly, the vanishing point had been depicted on, or just above, the horizon, but the horizon is blocked in Raphael’s painting and, as pointed out by Bigelow and Leckey [32], the converging “parallel” lines actually converge on, and so draw attention to, a book in the hand of the left-most of the two central figures. That figure is meant to portray Plato, and the book he is holding is the Timaeus.

The figure next to Plato is Aristotle, and the foreground figures are clearly divided into two groups. The group on Plato’s side includes Pythagoras (the figure writing in an opened book in the bottom left-hand corner) and that on Aristotle’s side, Euclid (the corresponding figure in the bottom right-hand corner, bending over a slate and holding a compass). The implied association of Plato with Pythagoras (and the corresponding contrast with Aristotle and Euclid) is reinforced by the references within the painting to Neopythagorean music theory. In addition to reference to the Timaeus, the work in which Plato had presented his musico-mathematical cosmology, the book in which Pythagoras is writing contains a reference to a sequence of four numbers, 6, 8, 9, and 12 [32] (pp. 419–420), the so-called “harmonia” or “musical tetraktys” structured as a double-ratio in which 6:9 is taken as equal to 8:12 [33] (p. 200). In the Epinomis, Plato, or one of his followers,15 had described this structure as “granted to the human race by the blessed choir of the Muses”, adding that this gift had “bestowed upon us the use of concord and symmetry to promote play in the form of rhythm and harmony” [34] (991b). Later Neoplatonists such as Nicomachus of Gerasa [35] (pp. 284–285), Iamblichus of Chalcis [36] (p. 50), and Proclus [37] (pp. 143–145) would identify this structure with that “most beautiful bond” that Timaeus, the mythical Pythagorean astronomer of Plato’s Timaeus (perhaps based on Archytas), describes as being responsible for the unity of the parts of the living cosmos [38] (31b–32a). These numbers, 6, 8, 9, and 12, had represented the spacings among the points dividing a vibrating string into the three fundamental harmonic intervals of Pythagorean music theory: the tonic, here given the value 6, the perfect fourth above it, the value of 8, the perfect fifth above it, 9, and the octave, 12.

In the Berlin Lectures on the History of Philosophy, Hegel would claim that Aristotle had based his own formal syllogism on a simplified distortion of this bond supposedly binding the various parts of the living cosmos into a unity [39] (pp. 209–210). Being familiar with the relevant Neoplatonic interpreters of Plato,16 Hegel had most likely followed Iamblichus and others in identifying this bond with the musical tetraktys. Further evidence for this association appears in Hegel’s discussion of “ratio” or “proportion” (Verhältnis) in Book 1 of The Science of Logic, where its most developed form, the “power-proportion”, has exactly the features of the inverse double-ratio structure of the harmonic cross-ratio [12] (pp. 70–79).

It seems to have been Archytas who had calculated the musical means such that while the sequence of octaves had been determined as a geometric sequence in which each term doubles its predecessor, the two consonant intervals within the octave, the perfect fourth and perfect fifth, were determined by the harmonic and arithmetic means of the octave’s extremes. We are to understand these different “means” in terms of two fundamentally different numerical sequences, the geometric and arithmetic, which are incommensurable.

In an equally spaced arithmetical sequence of numbers such as 1, 2, 3, 4, 5, …, the middle of three consecutive terms is half the sum of the other two, their “arithmetical mean” (or average). By contrast, the “geometric” mean is the middle term of three consecutive terms of a geometric sequence, such as 1, 2, 4, 8, 16, …, in which each successive term is a constant multiple of its predecessor. Here, the geometric mean will be calculated as the square root of the product of its extremes. As noted above, a sequence of octaves, the most harmonious intervals, is determined geometrically, but within the octave, the most consonant note is the perfect fifth, which is determined by the arithmetic mean of the octave’s extremes. Archytas’s third mean, the harmonic, is the inverse of the arithmetic mean in the context of the underlying geometric sequence, Proclus later summarizing the relation between the three means as such that “the geometric proportion includes the other two and they are reciprocal with one another” [37] (p. 145).17 As its reciprocal or inverse, the harmonic mean, b, of a and c will be calculated as 1 divided by the arithmetic mean of $\frac{1}{a} and \frac{1}{c}$ or (${\left(\frac{a^{-1}+c^{-1}}{2}\right)}^{-1}$), which reduces to $\frac{2ac}{a+c}$.18 For the terms 1 and 2 of a geometric sequence, Archytas had calculated the harmonic mean as the ratio 4:3 and the arithmetic mean as 3:2. To obtain a sequence of integers, each term can be multiplied by 6, resulting in the musical tetraktys, 6, 8, 9, and 12.

Archytas is also attributed with having proved that a pair of “epimoric” (superparticular numbers, n and n + 1) such as 1 and 2, or any multiples of such pairs, could not be “divided” by the mean proportional, i.e., the geometric mean [16] (pp. 71–72). That is, without irrational numbers, effectively the only means by which an octaval interval could be divided were the harmonic and arithmetic means.19 The two equal ratios, 6:9 and 8:12, of the four numbers of the musical tetraktys would provide an instance of the future harmonic cross-ratio, the principal invariant of this form of geometry. The harmonic cross-ratio can seem confusing,20 but it is based upon a simple idea.

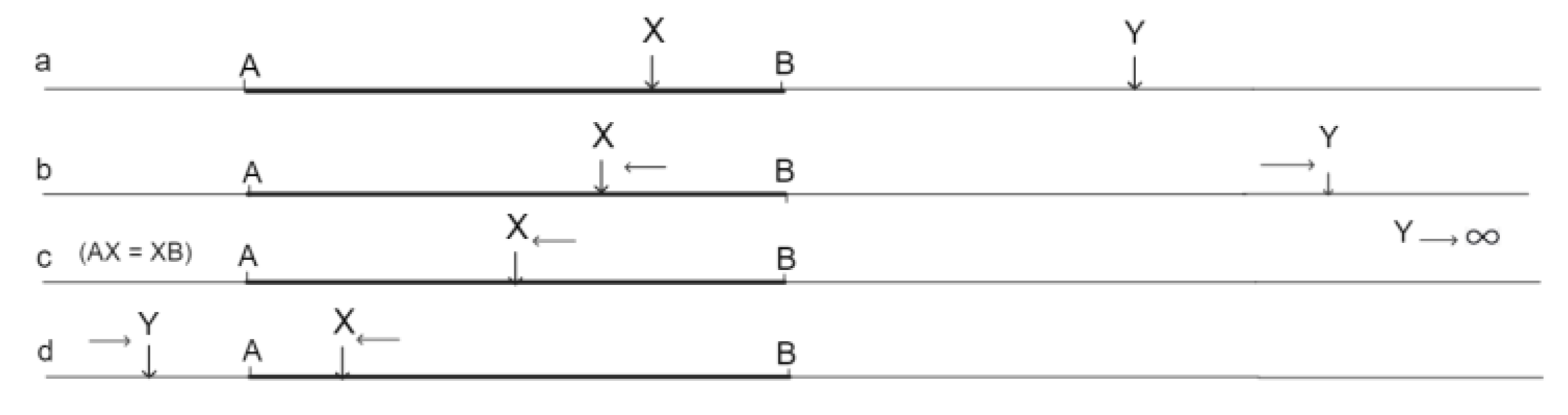

Consider a segment between points A and B on a line, with that segment divided at a variable point, X, that can move freely within that interval, as in Figure 2 below. The position of X can be said to determine the value of a “division ratio” between the segments AX and XB, i.e., AX:XB, or expressed as a fraction, $\frac{AX}{XB}$.21 It happens that for each point at which X divides AB “internally”, another unique point, Y, as displayed in 2b, exists on the line but outside the interval, dividing the interval “externally”, such that the two division ratios are the same, that is AX:XB = AY:YB (or $\frac{AX}{XB}=\frac{AY}{YB}$) [8] (pp. 83–85). The ratio of these two equal division ratios, with the value of 1,22 is the harmonic cross-ratio.23

This equality of the division ratios in the harmonic cross-ratio has peculiar consequences for relations within the projective plane. As X moves between A and B in a particular direction, for example, away from B and towards A as in Figure 2b, Y will move in the opposite direction away from B. Moreover, as X approaches the point mid-way between A and B, as in Figure 2c, Y will approach a point an infinite distance from the line segment [8] (p. 85).24 If X continues to move past the mid-point in the direction of A, Y will reappear on the line but now on the opposite side of the segment, approaching A from the left as X approaches it from the right.

In the Euclidean plane, a straight line through points A and B will be thought to extend to infinity in each of the opposed directions from A to B or from B to A, aligning with the idea that the values of ∞ and −∞ are opposed. However, in the projective plane, the point at infinity approached when travelling in the direction from A to B is considered the same point that is approached when travelling in the direction of B to A. Again, this was a point made by Kepler in his work on optics [42] (p. 299). In fact, the point at infinity as portrayed in Figure 2 above will be just one of an infinite number of such points, each being the point of intersecting parallels pointing in different directions. These points will form a single line at infinity which is closed, like a circle.25

4. The Role of the Musical Ratios in Projective Geometry

For Plato and the Platonists, the significance of the three Pythagorean means had extended beyond their role in accounting for the consonant musical intervals of octave, perfect fifth, and perfect fourth because the “unity” holding among them was seen as addressing the global problem of the incommensurability of continuous and discrete magnitudes. An arithmetical sequence is such that both arithmetic and harmonic means can be expressed in ratios of natural numbers, but the calculation of the geometric mean, involving square roots, meant that it could not be properly calculated.26 However, facing the need to find approximations for such quantities in making actual calculations in the context of astronomy, the Pythagoreans are known to have employed algorithms inherited from earlier Babylonian mathematics,27 and the musical tetraktys itself provides such an algorithm.28 Taken together, the harmonic and arithmetic means of a pair of extremes provide upper and lower limits for approximate values for the geometric mean of those extremes.29 Moreover, taking the harmonic and arithmetic means of those two means provides an even narrower range of approximate values, and so, iterated in this way, the harmonic and arithmetic means provide a narrowing range of upper and lower bounds for approximations for √2. In this sense, for calculations, the geometric mean is “broken” into the other two.

It is such a harmonization of incommensurable opposites like this that Plato seems to refer to in the Timaeus in relation to the bonds required to unify the distinct parts of the cosmos. As Timaeus points out, were the cosmos planar rather than three-dimensional, there would be needed only a single middle term, but as the cosmos is three-dimensional, two are needed [38] (d32a-b).30 That incommensurables are being united in this double bond seems clear from the way Timaeus goes on to describe the ratios in terms of the division of a complex mixture said to combine “the Same” and “the Different”, which is “hard to mix into conformity with the Same” [38] (35a-b). Almost a thousand years later, Proclus would describe this unity achieved in the cosmic soul as one in which “the geometric means binds the substantial totality of the soul, for the essence is a single logos [ratio] running through all things and connecting the first, middle and last” while the “harmonic proportion connects all the Samenesses that has been divided in the case of the soul, establishing a common ratio between the extreme terms and yoking together things that are naturally similar” and “the arithmetic binds together the various Differences in the soul’s procession” [37] (pp. 175–176). As we will see below, a differentiation between objects as grouped in terms of their samenesses, that is, their shared properties, and as distinguished in terms of their differences, will emerge in Hegel’s account of logic in his distinction between the conceptual determinations of “particularity [Besonderheit]” and “singularity [Einzelheit]”—this signalling a major departure from Aristotle’s syllogistic, in which there is no official place for “singular” as opposed to “particular” judgments [45] (p. 1).

Hegel had appealed to Plato’s cosmology in his Dissertation at Jena in 1801, a move treated with derision by many of his contemporaries. However, I suggest that, on the basis of his reading of Plato’s own application of the three musical means to the geometry of three-dimensional space, Hegel had been predominantly concerned with a feature of the mathematics underlying both a form of geometry and Pythagorean music theory. Such a feature in relation to projective geometry is not difficult to show, as can be seen by comparing the images in Figure 3 below.

Introductory books in projective geometry typically include diagrams such as images of train tracks receding into the distance as in Figure 3a. While the sleepers on which the tracks rest are of equal length, they appear in the diagram to progressively shrink, while the parallel tracks resting on them appear to converge so as to meet at a vanishing point. But when the neck of a guitar is looked at from a certain angle from the bottom end, as in Figure 3b, while the strings, which are (approximately) parallel, appear to converge in a similar way to the train tracks, the gaps between the frets do not shrink in the way seen in the railway sleepers. In fact, if the observer correctly sets the viewing angle, they actually appear equidistant. This is because objectively, the frets are not evenly spaced like the sleepers as seen in Figure 3c but grow further apart as one moves up the neck from the body of the guitar to the headstock (as in Figure 3d) and thus compensate for the foreshortening. In both phenomena, there is a superimposition of an arithmetic sequence, which advances like the sleepers on a railway track, and a geometric sequence, which advances like the sequence of frets of the neck of a guitar. Thus, in receding train tracks, an objective arithmetic sequence is projected onto an apparent geometric one, while on the guitar neck, when viewed from the appropriate angle, an objective geometric sequence of fret spacings is projected onto an apparent arithmetic one.

This superimposition of geometric and arithmetic sequences is present in much simpler form in the sequence of tonic, fourth, fifth, and octave in the Pythagorean scale. Considered arithmetically, if one “adds” a perfect fourth to a perfect fifth, a full octave results.31 However, when considered as intervals in a geometric sequence, a complete octave results from the multiplication of the two intra-octaval intervals, just as $\frac{3}{2}\times \frac{4}{3}=2$.32 We should not be surprised, then, that the “musical tetraktys” turns out to be an instance of the principal invariant in projective geometry.

5. The Role of the Harmonic Cross-Ratio within Perspectival Representations

In the last quarter of the seventeenth century, Gottfried Leibniz would attempt to develop the types of Renaissance studies of perspective on which Desargues had drawn into a “scientia perspectiva”, an “art of showing the appearance of an object in the tabula” or “plane of appearance” [46] (p. 48) conceivable as the picture plane on which a painter creates a perspectival representation of an array of objects laid out on some “objective plane”.33 Like Desargues, Leibniz had aimed to abstract from the three-dimensional relationships of points in space to a type of formal two-dimensional geometry of the “plane of appearance” itself—a type of abstraction manifested, for example, in his dropping reference to any “objective plane” in relation to the tabular or “plane of appearance” [46] (p. 52). This relative disinterpretation to an essentially formal axiomatic geometry would now allow a group of lines intersecting at a point—what geometers call a “pencil of rays”—to receive a variety of interpretations when reapplied to a perspectival representation. For example, such a pencil could represent parallel lines converging on some point at infinity, or, alternatively, they could represent refracted parallel light rays converging at the eye of an observer represented within the picture.34 In projective geometry, when rays from a pencil intersect with a line, the relationships among the points of intersection can be regarded as a projection of the equivalent relationships among the angles between the rays of the pencil. This allows determinate structures—“projectivities” and “perspectivities”, [47] (ch. 1)—to be transmitted across the plane as in Figure 4. Among these ranges of points and pencils of lines, the figure of the harmonic cross-ratio is crucial.

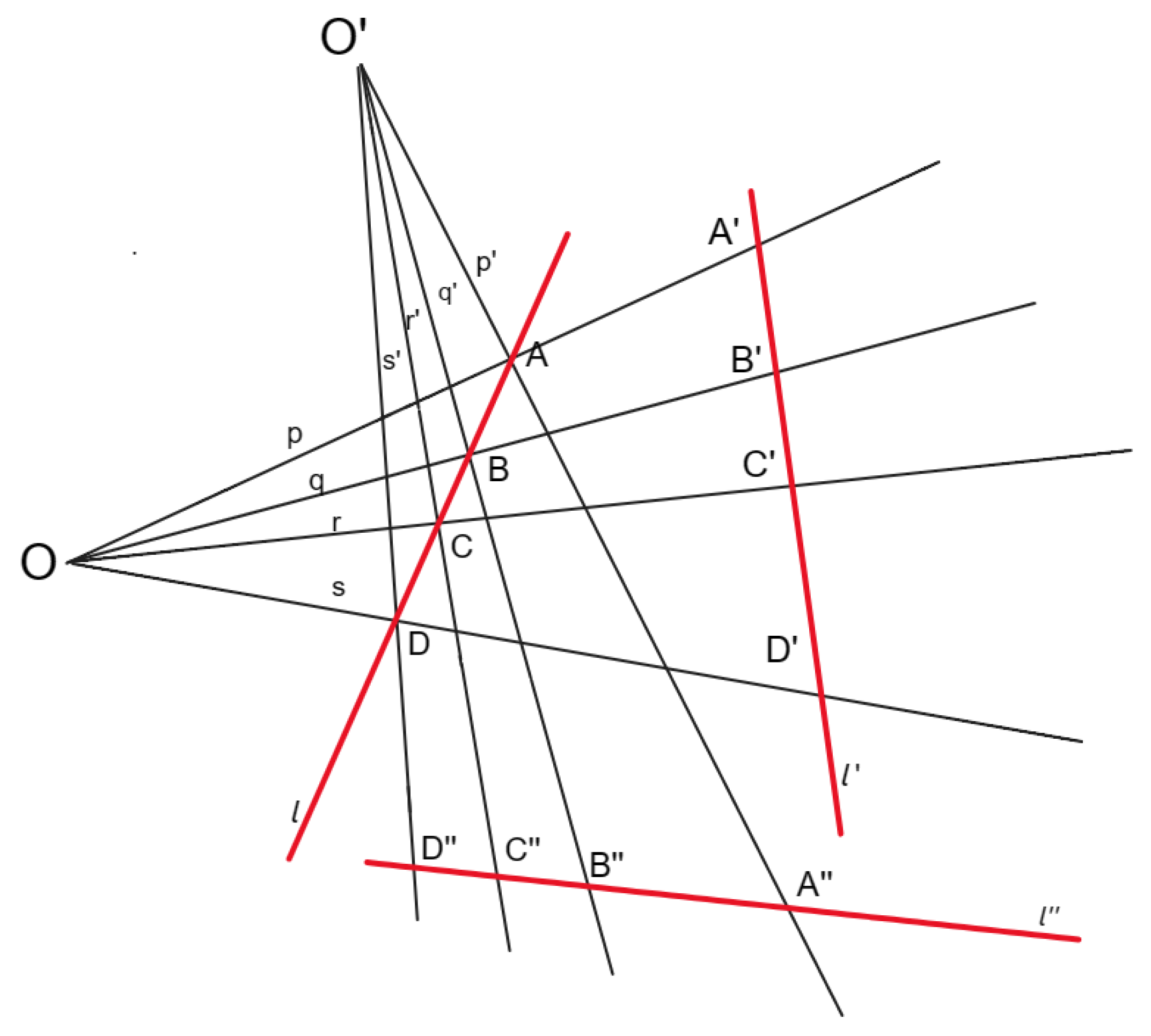

The various projectively linked pencils of rays and ranges of colinear points could thus allow for the idea of correlations among the sightlines or viewpoints of differently located subjects, like those represented in Raphael’s painting, as mediated by relations among points, lines, and planes on the common objects of their vision. Moreover, these different interpretations could be superimposed, and the points at infinity could also be understood as representing the “viewpoint” of some transcendentally located “viewer”—in the seventeenth-century context, the famed “God’s-eye viewpoint”,35 the objectivity of which could be contrasted with the subjective and partial perspectival viewpoints of finite subjects located within space and time.36 The relevance of such ideas for religious thought about the relations of humans to God was clearly not lost on the likes of Pascal and Leibniz.

Pascal had apparently thought that the relations between finite points within the projective plane and its points at infinity might provide an answer to the question of our knowledge of God [48]. Considered in the context of the projective plane, from the perspectives of figures within space, points at infinity are no longer conceived as entirely unreachable or “transcendent” but rather as infinite points that can enter into determinable relations to finite ones in light of the determinacies of the harmonic cross-ratio.37 In his later writings, however, Pascal seems to have changed his mind, and opted for a fundamental incommensurability existing between God and humans, modelled on the incommensurability, or what he described as the “heterogeneity”, between discrete and continuous magnitudes [48] (Section 5).

For Leibniz, clearly his science of perspective was intended to tie into the more general epistemological and metaphysical considerations of the idea of perspective as raised in his Discourse on Metaphysics of 1686 [50]. Being a “rationalist” in theology as elsewhere, he suggested that rational mechanisms were available to a finite subject to lead them, as if climbing “Jacob’s ladder”, to an absolute point of view. In virtue of an individual’s capacity to reflect upon the factors constraining his or her own perceptual knowledge, he or she might ascend rung by rung, moving progressively away from the contingencies shaping experience of a subject within the world.38

Leibniz at least knew about Desargues’s projective geometry and certainly was familiar with one of its major theorems—“Pascal’s theorem”—and his proposed perspective science included the idea of points at infinity in the form of the vanishing points of apparently converging parallel lines and similarly to represent the sightlines of individuals portrayed within a perspectival representation. However, he seems not to have had the one essential element that had allowed Desargues to create a distinct and unified non-Euclidean systematic form of geometry, the harmonic cross-ratio that Pascal had taken as showing how we might understand our links to God. But without this, for Leibniz, there was no invariant to ensure that the unity of the space being articulated by variously compounded “projectivities” and “perspectivities”—nothing to rule out the “paradoxical” types of space familiar, for example, within pictures of the Dutch printmaker M. C. Escher with their closed but infinitely ascending staircases.39 Nor was he left with any mathematical means for incorporating “points at infinity” into determinate relations with ratios of finite magnitudes.

This type of thinking had formed part of Hegel’s background. He was well aware, for example, of the efforts of the Swiss mathematician Johann Heinrich Lambert to develop Leibniz’s science of perspective, referring to it and criticizing it in The Science of Logic [52] (p. 544).40 The harmonic cross-ratio in the particular form of the musical tetractys from Plato’s Timaeus might have suggested a way forward for the intended science of Leibniz and Lambert.41 To see how this might work, we need to extend this discussion from the geometric to the logical register. One possible way forward here is to consider Hegel’s logic as standing to Aristotle’s formal logic in such a way as to reflect features more characteristic of the projective geometry implicit in Plato’s thought than the Euclidean features of Aristotle’s.

6. Hegel’s Logic as Understood as a Projective Equivalent to Aristotle’s Euclidean Syllogistic

Geometry had been the most developed science in fourth-century Athens, the context in which Aristotle developed his logic, and, as noted above [14,15], many have commented on the apparent “geometric” features of Aristotle’s logic, despite the fact that it was meant to apply more generally to forms of argument beyond those found in mathematics. It is in relation to these geometric features that I want to raise the significance for Hegel of Plato’s more “projective” alternative to Aristotle’s “Euclidean” assumptions and to explore the logical analogues of such differences.

As we have seen, Aristotle had himself appealed to the mathematical notion of division as a way of understanding the conceptual relations found in the linguistic act of definition: “For definition is a sort of number; for it is divisible, and into indivisible parts […] and number is also of this nature” [27] (1044b34-35). But Aristotle was not reducing logical or conceptual relations to mathematical ones with this, as he aspired to establish an entirely conceptual sense of magnitude, a sense that was more general than either of the particular forms of magnitude studied in mathematics—the discrete quantities of arithmetic and the continuous magnitudes of geometry.42 And to abstract from these concrete forms of magnitude was to abstract from the problem of the incommensurability holding between them.

Clearly, Plato’s “syllogism” in the Timaeus cannot be understood as having been entirely abstracted from the mathematical disciplines in this Aristotelian way [25] (p. 207). For Plato, incommensurability was not simply abstracted away from, but was addressed in the Pythagorean way, involving the mediated unity of otherwise incommensurable magnitudes represented by the unity holding among the three musical means. Hegel’s formal logic, I have been arguing, should be seen along Platonic rather than Aristotelian lines and should show logical features that reflect Plato’s rather than Aristotle’s approach. I will suggest that logical equivalents of two features of projective geometry can be recognized in Hegel’s formal logic here. First, the idea of a mediated unity of incommensurables is reflected in Hegel’s account of judgment in which duality of otherwise incommensurable judgment types expresses the type of mediated duality found between points and lines in projective geometry. Next, one of these judgment types will presuppose a conception of the infinite that shows similarities to projective geometry’s idea of “points at infinity”.

(1)

Hegel’s incommensurable judgment forms

In contrasting Aristotle’s syllogism with Plato’s, Hegel had noted that Aristotle had employed only one “middle term” in his syllogistic [39] (p. 211)—clearly the geometric—whereas in Plato, the middle term had been “broken” or “doubled” into a duality between arithmetic and harmonic means. In the narrowly musical context, this breaking of the geometric mean into the other two reflects the fact that the production of consonant intervals within the octave required the harmonic and arithmetic means. In fact, dividing the octave at the geometric mean produces the most dissonant interval, the “tritone”. This need for the geometric mean to be broken into the complementary arithmetic and harmonic means carried over into other mathematical contexts, however. It had been a prerequisite for the application of numbers to the world in astronomy, given the need for finding numerical approximations for geometric means, such as that of the numbers 1 and 2—in modern terms, of finding approximate values for numbers that, like √2, are only characterized by general descriptions.43

In the logical context, the need for harmonic and arithmetic means, I suggest, turns out to reflect a “semantic” need that is something like that of finding applicable values for “numbers” such as √2. That is, it is required for bridging the gap between purely logical concepts and worldly items to which they are meant to apply. Thus, Hegel will distinguish between the conceptual determinations of “particularity” (Besonderheit) and “singularity” (Einzelheit) [52] (pp. 529–549), the former, as alluded to by Proclus [37] (pp. 175–176), relating concrete elements in terms of their “samenesses”—that is, in terms of their common properties—the latter differentiating them in terms of their “differences”.

In relation to these semantic issues, the logic master at the Tübingen seminary during Hegel’s time there, Gottfried Ploucquet, would, from a generally Leibnizian perspective, make essentially the same distinction as Hegel’s singular–particular distinction by reference to two varieties of “particularity”: “exclusive” and “comprehensive” [12] (p. 128). This effectively aligns with the modern modal distinction between proper names and definite descriptions, a distinction that had been collapsed in Russell’s version of classical logic, but that was reintroduced in the second half of the twentieth century as modally relevant [54].

Hegel’s distinction fits this modal model. Terms instantiating “particularity” link entities in terms of their common properties: “the particular has one and the same universality as the other particulars to which it is related… It has no other determinateness than that posited by the universal itself” [52] (p. 534). By contrast, “singularity is the concept reflecting itself out of difference into absolute negativity”, “self-referring determinateness is singularity” (pp. 530, 540). That is, considered in its singularity, a thing is considered in the ways that it differentiates itself from other similar things—in Ploucquet’s terms, excludes other instances of the universal it instantiates. An individual human, for example, might be comprehended as “a human”, or “some human”, their humanness being what unites them with others. But cognized as “this human”, or, perhaps, as “Socrates”, the person is grasped in terms of what distinguishes him or her from others such as “that person over there”, or, perhaps, Aristotle. In modern modal terms, a particular description such as “the teacher of Alexander the great” picks out whoever fits this description in “all possible worlds”, including ones in which this is someone other than Aristotle, while the proper name “Aristotle” picks out Aristotle in all possible worlds, including those in which he is not the teacher of Alexander.44 This is the same play of samenesses and differences that Proclus had linked to the harmonic and arithmetic means, respectively. Within an abstractly conceptual hierarchy ordered entirely on the principle of conceptual inclusion, in order for such concepts to be applied to the world, singular and particular terms must be inserted like the insertion of arithmetic and harmonic means in a hierarchy of octaves.

Hegel’s singular–particular distinction among the subjects of predication is in turn linked to a similar distinction between the predicates predicated of those subjects, and this is expressed in the different ways each receives negation. Hegel thus distinguishes “qualitative” from “reflective” forms of judgment, or “judgments of inherence” from “judgments of subsumption”,45 and here, it is the predicates of such judgments that are differentiated as singular or particular. In the former [52] (p. 557), [56] (§ 166), a predicate is affirmed of some perceptually given concrete singular subject, as when “red” is predicated of some specific observable rose, picked out with the singularly quantified demonstrative “this rose”.46 And of course, the red exemplified by this rose will be a specific (i.e., singular) shade of red, opposable to the redness of that rose, over there.

Negation as described by Hegel in this type of judgment is what is usually discussed as “internal”, as the negation applies within the judgment and only to the predicate: the rose is not red, but some other colour [52] (p. 565), while that the rose is actually a rose is not brought into question and so is beyond the scope of the negation. However, negation necessarily involves generalization and sets cognition on a path to abstraction. In the original judgment, there had also been something singular about the predicate being affirmed, but this specificity is lost in the negative form in which the predicate attributes some non-redness to the rose. While there is a way in which a specific rose is red, there are many ways in which a rose might be not red for there are many non-red colours. For Hegel, negation provides a path for abstraction and takes the judgment from the form of singularity to particularity—from this A to some A or As—and then a second negation takes this abstraction one step further to a type of abstract universality of empirical laws about all As.

In the resulting fully developed “reflective” judgment, it is the whole proposition that becomes negated “externally”. This is seen in the development of particular judgments, in the sense of particularly quantified judgments of the sort, “some As are B” to the universal form “all As are B”.47 As Hegel points out (and reflecting the “problem of induction”), such judgments made on an empirical basis will by necessity be about “a mere plurality which is taken for allness”. What such a universal judgment in effect claims is that “if no instance of the contrary can be adduced, a plurality of cases ought to count for an allness” [52] (p. 573)—that is, “All As are B” becomes equivalent to “It is not the case that some As are not B”. In short, a universal reflective judgment has the form of an externally negated particular (and hence itself negative) reflective judgment.

Such external negation is, in fact, the only type of negation operative in modern classical logic, as what is conceived as being affirmed in judgment is a complete proposition with a fixed and so eternal “truth-value”. It is clear, however, from his criticisms of this type of judgment form as found in Leibniz’s characteristica universalis,48 that Hegel regards such a judgment type as not properly a judgment at all. Thus, stopping short at this degree of abstraction, we are left with a duality of mutually presupposing qualitative judgments on the one hand and reflective judgments shaping universal empirical laws on the other.

As noted above, in a way that might be thought to anticipate the modern generally “falsificationist” epistemology, Hegel has construed universal empirical laws as meaningful to the degree that they can be refuted, as when the universally quantified “All As are B” is refuted by a judgment asserting the existence of some A (or As) that is (or are) not B. But Hegel’s singular–particular distinction makes the applicability of such a particular judgment about some A or As dependent upon judgments about some specific A, as in “this A”. In short, qualitative judgments, that are clearly “perspectival” or “contextual”, cannot be eliminated in the way they are in Russell’s classical logic. Such “indexical” judgments are sometimes called “self-locating” [57] (p. 128) because they locate the judging subject within the spatio-temporal world as the anchor point of the various indexicals such as “this”, “now”, and “here”. At the same time, however, a singular claim about “this A” must itself coexist with those aperspectival, but clearly fallible, law-like claims about “all As”. It is here that projective geometry’s alternative notion of “infinity” promises a way forward.

(2)

The logical analogue of “views” from points at infinity.

In his “perspective science”, Leibniz had clearly wanted to link the perspectivity of perceptually based judgments to the perspectival nature of vision in a way that allowed some form of orderly sequence of abstraction—a type of “Jacob’s ladder” potentially leading to the “God’s eye” point of view, a point of view onto the finite world from somewhere outside it, some point at infinity. This was meant to capture a type of judgment freed from the perspectival conditioning of those made about the world from somewhere within it. This idea of a judgment from a “God’s-eye view” or “view from nowhere” sits neatly with the prototypical judgment of modern classical logic—a judgment whose meaning is spelt out truth-functionally and as free of any context-dependence. The difficulty is that such judgments seem more suited to gods than to we humans, finite creatures whose judgments are always made from somewhere within the world.

Projective geometry, however, had come up with a different conception of a point at infinity, because its points at infinity could be understood via the cross-ratio relation as standing in certain determinate relations with finite points in the way that Leibniz’s God’s-eye view did not. This, I suggest, is reflected in Hegel’s approach to judgment in that the meaningfulness of any such aperspectival view “from infinity” becomes itself dependent on its relation to the limited views from the finite points of view located within space and time. Thus a “duality” of judgment forms is found at the heart of Hegel’s Logic much like that existing between points and lines in projective geometry [58]. Hegel deals with the ultimate mediation of these dual judgment forms in his treatment of syllogisms, which, I have suggested, he models on the role of the harmonic cross-ratio in the projective geometry, linking finite and infinite points within the projective plane.

The transition of judgment to syllogism is made by Hegel from a distinct form of judgment called the “judgement of the concept”, a type of normative perceptual judgment in which, in its initial “assertoric” form, an evaluation is made about the goodness or otherwise of the way a singular object instantiates its universal: e.g., “this house is bad”, “this act is good” [52] (p. 583). In this context, there is no ambiguity about the “exclusive” reading of the subject term, and this is consistent with its typically comparative nature: this house is typically judged good in contrast to that one.49 But value judgments of this sort are “problematic” in that the subjective conditioning of these judgments easily induces disagreement, and so, in the face of some counter-assertion, a judge can resort to reason giving. This expands the judgment into an “apodictic” one in which the subject–predicate relation becomes mediated by a “middle term”: “the house, as so and so constituted, is good” [52] (p. 585). Here, the middle term is a particular allowing a general reason to be given for the judgment, as it implies that any house so characterized would be good. It is this expanded tripartite judgment with the structure singular–particular–universal (S–P–U) that is implicitly a syllogism: S–P (this house is so and so constituted); P–U (any house so and so constituted is good); therefore, S–U (this house is good). I have suggested that this is essentially a logical translation of the interrelated arithmetic, harmonic, and geometric means as understood by Proclus.

Within Hegel’s structure, the house in question is thus grasped simultaneously in its singularity and its particularity—he says, in its “being” and in its “ought”—so as to express the universal “good”. “That this original division [Teilung], which is the omnipotence of the concept, is equally a turning back into the concept’s unity and the absolute connection of “ought” and “being” to each other, is what makes the actual into a fact; the fact’s inner connection, this concrete identity, constitutes its soul” [52] (p. 586).

Given the structure of Hegel’s logical presentation, his implicitly syllogistic “judgment of the concept” is meant to manifest something universal about all earlier forms of judging and cognition leading up to it. First, to self-consciously judge is to affirm a judgment such that is not only endorsed as true “for oneself” but that is true in some more general sense and so true for others as well, an assumption motivating reason giving. Thus, when I judge in the simpler mode that “this rose is red”, other than affirming this specific content, I commit myself to the more indefinite statement “there is a rose that is red” or “some rose is red” that could be the object of the perception of others. Moreover, I commit myself to the counterfactual that this would be the case even were I not to have experienced this rose at all. But Hegel clearly does not want to simply reduce the former qualitative and perspectival judgment to the latter reflective aperspectival one, as in the mode of modern classical logic, because this would simply eliminate the underlying incommensurability of “being” and “ought” as instantiations of conceptuality. Both qualitative and reflective judgments must be retained as necessary “moments” of this form of reasoning.

These aspects of his attitude to judgment, I suggest, show similarities to that found in the modern intuitionist attitude to mathematics and its logic [59] in the intuitionists’ opposition to modern classical logic. Thus, in the manner of the intuitionists, one might argue that, for every general aperspectival statement known to be true, there must exist some qualitative judgment about a specific “witness” that is also held to be true, just as the truth of “houses, as so and so constituted, are good” must presuppose a judgment of the form “this house (the witness) is good”.50 For the intuitionist, there exists no independent way to access the truth of “aperspectival” contents—the contents of Hegel’s reflective judgments.51 This means that the status of all aperspectival judgments is something like that of being “existential generalizations” from some perspectival judgment. These aperspectival judgments, I suggest, are analogous to those viewpoints “at infinity” that exist for finite viewers in the projective plane despite the fact that they are locations they cannot themselves occupy. This means that singular witness judgments need their abstract equivalents just as much as the latter need the former. In both geometry and logic, these abstract, albeit unoccupiable “points of view” are required for the coherence of the “space” in question—three-dimensional physical space in the one case and the logical space of interconnected assertions about the world, in the other.52

7. Conclusions

In the early years of the movement of analytic philosophy, Hegel’s logic was thoroughly criticised by Bertrand Russell, the chief early proponent of modern classical logic. Russell’s efforts here were largely successful, with Hegel being from then on, for the most part, eliminated from serious consideration within logic [60] (Intro.). However, the original form of the Frege–Russell logic used to denounce Hegel would itself need modification over the coming decades in ways requiring the incorporation of elements from rival approaches [5]. This need was initially rooted in concerns with the lack of an adequate semantics within classical logic’s original form, a concern motivating investigations into the relevance of projective geometry as noted in the introduction.

Among the resources of projective geometry deemed significant would be the principle of duality, and it is perhaps not surprising that, within the variety of non-classical approaches to logic that would return in the decades after the introduction of classicism, distinctly dual features are apparent, which echo some of the fundamental features of Hegel’s “projective” transformation of Aristotle’s syllogistic. For example, Kripke’s rehabilitation of the distinction between proper names and definite descriptions [54] would overlap with Hegel’s use of the categorial singular–particular distinction, and the same could be said of the duality of modal and nonmodal judgment forms, as found in the tense-logic of Arthur Prior, for example, which reflects Hegel’s non-reductive duality of qualitative and reflective judgments [61]. Elsewhere [12] (chs. 9, 10), I have drawn attention to further ways in which logic over the last century has seemed to reinvent ideas that are easily detectable in Hegel’s logic, but here, I want to conclude by drawing attention to a Hegelian analogue of a feature of projective geometry that has been invoked in contrast to the static universalism of Frege’s logic, which is itself seen as underlying many of the semantic problems that faced its initial formulations. This concerns the idea developed by Gunther Edel [2], that logical systems must make possible the reinterpretation of the terms of their initial object languages.

Hegel was keenly aware of the central role of reinterpretation of the concept of number in the history of mathematics from the Greeks to the modern period [12]. He was aware, for example, that the original Greek concept of number had come to be reinterpreted in modern times such that in the seventeenth century there existed numbers, negative numbers, irrationals, etc., which for the Greeks were not recognizable as numbers at all. He was also clearly aware that such conceptual extensions resulted from the dynamic of the development of the sciences themselves. For example, the extension of a numerical metric to Euclidean geometry by the development of analytic geometry would be bound up with the acceptance of negative numbers because, as continuous magnitudes, lines could be naturally understood as extending in two opposed directions.53 For Hegel, such essential reinterpretability applied to all scientific concepts, not just mathematical ones, and it is expressed in the methodological shape of the process of laying out the categories of his logic. This conceptual unfolding, as I have argued, follows a process in which some initially meaningful concept is at first disinterpreted because it is found to generate logical paradoxes. Reinterpretation allows that concept’s application to a different but related range of phenomena. For Hegel, such reinterpretation enabled the resolution of those particular paradoxes, allowing thought to advance [12] (ch. 9).

The variable historical relations between arithmetic and geometry in antiquity had provided a prime example of this for Hegel, and it is therefore not surprising that he would have been attracted to mathematical approaches that, like projective geometry, signalled a “new relation between algebra and geometry”, which were then “linked in a dialectical process” [62] (p. 237). Underlying all this, I have suggested, was a grasp of the relevance of an early precursor to projective geometry for logic, Plato’s music-based account of the syllogism in the Timaeus.54
