Cytoarchitectonic Analysis and 3D Maps of the Mesial Piriform Region in the Human Brain

Abstract

The mesial piriform region plays a central role in olfaction. Its small size and complex geometry, however, make it a difficult target in functional neuroimaging studies, while histological maps often represent schematic drawings, which are not compatible with requirements for modern imaging. To bridge this gap, cytoarchitectonic analysis and mapping of the region was performed in serial histological sections over their full extent in 10 postmortem brains. The temporobasal areas PirTBd and PirTBv and temporal areas PirTu and PirTit were identified and analyzed. Probabilistic cytoarchitectonic maps of the piriform areas in MNI reference space and high-resolution maps of the amygdala-piriform region on the BigBrain model were calculated as part of the Julich-Brain. Differences in the cytoarchitectonic “texture” of the region were quantified based on the Gray Level Co-Occurrence Matrix. Results showed that allocortical areas were not consistently associated with the rostral Limen insulae, although it was often suggested as a landmark in neuroimaging protocols. PirTu was associated with the uncal tip. PirTit was the largest area, reaching to the temporal pole, with a “temporal” (caudal) and a “temporopolar” (rostral) part having complex neighborhood relationships. The probabilistic maps reflect interindividual variability; they are openly available via the digital EBRAINS platform to serve as an anatomical reference for studies related to olfaction.

1. Introduction

The piriform cortex is involved in olfaction—a special sense of smell perception. Olfaction can be related to pleasurable experiences as well as to timely recognition of harmful smells. Olfaction disorder is also a preclinical sign of Alzheimer’s and Parkinson’s diseases [1,2], and is found in many other neurological disorders [3]. The first stages of olfaction include input from the olfactory epithelium to the olfactory bulb, which in its turn transmits the olfactory information to the central olfactory system, or primary olfactory cortex. The piriform allocortex is the main target of the olfactory bulb projections. Other targets are the rostral parts of the superficial amygdala, as well as the temporal and temporopolar periallocortex [4,5]. Functionally, the piriform allocortex was involved in different aspects of olfactory perception [6,7], sniffing [8], and, along with the amygdala, in emotional responses to unpleasant odors [9], olfactory familiarity judgments [10], odor memory processing [11,12,13], and high efferent connectivity during passive smelling [14]. The superficial amygdala was associated with olfaction as shown by meta-analytic connectivity modelling and meta-data analysis of three main amygdaloid clusters [15]. Studies employing stereotactic electroencephalographical (SEEG) recording [16] as well as PET [17,18] showed activity in the deeper parts of the amygdala during the early olfactory attentional processes [16], as well as during emotional processing of olfactory stimuli [17,18]. A participation of the temporopolar cortex in interactions between olfactory and lexical processing has been shown in studies of patients with primary progressive aphasia [19]. The temporal periallocortex (associated with the rostral parahippocampal cortex) demonstrated volume reduction in idiopathic olfactory loss, along with the orbitofrontal cortex, anterior cingulate cortex, insular cortex, and the piriform cortex [20]. However, a more detailed and comprehensive understanding of the specific functions of the subdivision of the amygdala-piriform region is largely missing.

The piriform allocortex has a three-layered structure. It occupies both lips of the endorhinal sulcus, i.e., it is a part of the temporal lobe and the basal brain surface. The amygdala replaces the piriform cortex caudally and also spreads caudoventrally on the rostral ambient gyrus and the semilunar gyrus. The centromedial amygdala (except for the central nucleus) and superficial (cortex-like) amygdala reach the brain surface [21]. A caudal part of the temporal periallocortex is rostrally adjacent to the superficial amygdala, and further continues on the temporopolar surface [4].

The piriform allocortex has been examined in early histological studies, where one to four areas were identified [22,23,24]. Later, it was divided into the area praepiriformis temporalis and the area praepiriformis frontalis [25] which were incorporated into modern histological atlases as temporal area “PirT” and frontal area “PirF” [26]. This division has been adopted in functional [27,28,29,30] and neuropathological [31] studies.

An anterior-to-posterior differentiation of the piriform allocortex was reported in functional neuroimaging studies [32,33,34], including those examining olfaction in Alzheimer’s disease [35,36]. Such segregation originated from studies in rats, which showed anterior-to-posterior differences in cytoarchitecture, connectivity, and function [37,38,39]. A correspondence between the anterior piriform cortex in rodents and the frontal piriform area in macaques (as well as between the posterior cortex in rodents and temporal piriform cortex in the monkeys) was suggested based on similarities in histology [40]. However, MRI studies divided the piriform allocortex into anterior and posterior parts, using as a macroanatomical landmark the most rostral section with the Limen insulae (i.e., most anterior coronal slice where basal brain surface and temporal lobes meet), or a given y coordinate [41]. While earlier cytoarchitectonic studies in humans showed a more anterior extent of the temporal piriform area (or its correlate) than the frontal (anterior) area or its correlate [23,24,25], the question regarding the cytoarchitectonic assignment of the anterior area in humans is still under discussion.

Several modern histological atlases featuring the amygdala-piriform region provide 3D information but are largely based on 2D sections and/or are anisotropic (i.e. having high detailedness within the section and larger intervals between them). These provide partly different information regarding the extent, nomenclature, and subdivisions of the piriform allocortex and the related temporal and temporopolar periallocortex [26,42,43]. For example, while the atlas of Mai et al. (1997, 2016) shows a temporal and frontal (PirT and PirF) area [26,42], though with a different extent, the atlas of Ding et al. 2016 does not show any parcellation of the piriform allocortex [43]. An extension of the piriform allocortex (Pir) on the temporopolar gyrus in the atlas of Mai and colleagues [42] roughly matches the medial part of the periallocortical temporal insular area, area TI, of Ding et al. [44]. Methodical and conceptual differences may have contributed to such findings, in addition to variations in microstructure between brains.

In the current study, we aim at (i) identifying and mapping the allocortical (temporobasal piriform area (PirTBd and PirTBv)) and periallocortical (temporal piriform area (PirTit and PirTu)) of the mesial piriform region in serial histological sections of 10 postmortem brains, (ii) applying texture analysis to the images of the areas in order to statistically verify a distinction between their cytoarchitecture, and (iii) calculating probabilistic maps of the piriform areas in a standard reference space in order to complement the fine-grained probabilistic maps of the amygdala [21] of the Julich-Brain atlas as a tool to deeper understand structural–functional relationships in the human brain. Moreover, we used the BigBrain, a high-resolution template, composed of 7404 cell-body stained sections, which were 3D reconstructed at a spatial resolution of 20 μm isotropic [45] to create ultrahigh-resolution maps of the amygdala-piriform region. The maps represent tools to inform findings in neuroimaging studies, including highfield MR imaging, and provide constraints for modeling and simulation.

2. Materials and Methods

2.1. Postmortem Brains and Histology

Cytoarchitectonic mapping was performed in serial, cell-body stained [46] sections in a sample of 10 post-mortem brains (age range 37–79 years,

Table 1. Sample of the postmortem brains used in the present study.

Case	Brain	Cause of Death	Gender	Weight 1, Grams	Age at Death, Years
1	pm 1	Carcinoma of the bladder	female	1350	79
2	pm 4	Toxic glomerulonephritis	male	1349	75
3	pm 5	Cardiorespiratory insufficiency	female	1142	59
4	pm 7	Right heart failure	male	1437	37
5	pm 8	Renal failure	female	1216	72
6	pm 9	Cardiorespiratory insufficiency	female	1110	79
7	pm 11	Cardiac infarction	male	1381	74
8	pm 13	Drowning	male	1234	39
9	pm 14	Cardiorespiratory insufficiency	female	1113	86
10	pm 20 *	Cardiorespiratory insufficiency	male	1392	65

¹ Fresh brain weight; * This brain represents the BigBrain.

). All brains came from the body donor program of the Anatomical Institute of the University of Düsseldorf. They were obtained according to legal and ethical regulations. The post-mortem delay did not exceed 24–36 h. The brains were processed as previously described [47]. In short, they were fixed in formalin or Bodian’s fixative and underwent MRI with a T1-weighted sequence (3-D FLASH sequence) with 1 mm resolution to provide undistorted references for subsequent 3D reconstruction. Brains were embedded in paraffin and serially cut (into 20 μm thick sections) with a large-scale microtome in the coronal plane starting from the occipital pole. Every 15th section was mounted on gelatine-coated slides and stained for cell bodies with a modified silver staining [46]. Sections were digitized with an in-plane resolution of 1 pixel/μm, using a high-throughput brightfield microscope, TissueScope™ LE120 (© Huron Digital Pathology, St. Jacobs, ON, Canada).

2.2. Cytoarchitectonic Mapping

The mesial piriform region was cytoarchitectonically identified and analyzed in every 15th section in both hemispheres (Table 1), at 1 μm resolution. Areas were identified along their rostro-caudal extent based on information in historical and more recent studies (see [48] for comparison between the earlier studies, [42,43]). Areas were labeled in images with 20 μm resolution using in-house software (online SectionTracer 3415) (Figure 1).

2.3. Texture Analysis

Texture analysis has been performed to characterize the cytoarchitecture of the areas based on analyses of the grayscale image. The 8bit images and masks of four areas (ROIs) were automatically generated from the annotations in the online SectionTracer; 1 μm images were loaded [47]. In total, 1135 ROIs from 10 postmortem brains were checked for histological artefacts (e.g., tissue tears), and those with the artefacts were excluded. Finally, 770 ROIs, including 222 ROIs of PirTBd, 173 ROIs of PirTBv, 224 ROIs of PirTit, and 80 ROIs of PirTu, were analyzed using texture analysis. As the first step, histograms for all ROIs were computed and then averaged; the mean histogram was used to adjust grayscale value of all original histograms. The Gray Level Co-occurrence Matrix (GLCM) approach [49] was adapted for examining the image texture [50]. GLCMs were based on the co-occurrence frequencies of the pixel intensity (0 to 255), calculated for all directly adjacent pixel pairs. Altogether 21 modified Haralick texture features were extracted (autocorrelation, clusterProminence, clusterShade, contrast, correlation, differenceAverage, differenceEntropy, differenceVariance, dissimilarity, energy, entropy, homogeneity, informationMeasureOfCorrelation1, informationMeasureOfCorrelation2, inverseDifference, maximalCorrelationCoefficient, maximumProbability, sumAverage, sumEntropy, sumOfSquaresVariance and SumVariance) from the GLCMs. The modified Haralick features are consistent across quantizations of different gray levels and show better outcomes compared to the classical Haralick texture features. In order to simplify the dataset represented by 21 features by keeping the degree of information, a Principal Component Analysis (PCA) was performed. The dataset was proved to be suitable for PCA by revealing a satisfactory sampling adequacy measured as 0.762 [51]) in the Kaiser–Meyer–Olkin (KMO) measure and Bartlett’s test of sphericity. PCA identified the most significant independent factors (IF), characterized by eigenvalues higher than 1, which were tested using the Kruskal–Wallis test under the null hypothesis that distribution of each of IF is the same across all four areas (p < 0.05). For the pairwise comparisons, significance values were adjusted by the Bonferroni correction for multiple tests.

2.4. Computation of Probabilistic Maps and Maximum Probability Map

The histological volumes of the postmortem brains and their areas were generated by a workflow using linear and non-linear registration algorithms [52]. For 3D reconstruction, the respective histological volume was registered to the MRI volume obtained prior to the cutting process to compensate for the deformations caused by histological processing. The high-resolution histological data were downscaled to adjust to the lower-resolution MRI dataset. The 3D reconstructed histological datasets were spatially normalized to two widely used reference spaces: (i) to the single-subject MNI “Colin 27” [53] and (ii) to the average ICBM2009c Nonlinear Asymmetric (MNI ICBM 152) template by using linear and non-linear transformations. The same affine transformations and nonlinear elastic registrations were applied for the reconstruction of the delineated areas as those used for the 3D reconstruction of the whole postmortem brains [54]. Every area of each brain was superimposed in the reference space to generate probabilistic, cytoarchitectonic maps [52], following the same method as applied for other cortical and subcortical areas, including the amygdala [21]. These maps provide the probability, with which a certain area was found at a particular position in space (an overlap from 0% to 100%). Probabilities represent a measure for intersubject variability of a given area in localization and extent. Maximum probability maps (MPM) were then calculated as a non-overlapping representation of all four areas of the mesial piriform region [55].

2.5. Volumetry

The volumes of each area were calculated using the contour lines from the online SectionTracer and Cavalier`s principle [56]. Individual shrinkage factors were computed for each brain as the ratio between its fresh volume and its histological volume [57] in order to compensate for shrinkage caused by histological processing. Normalized volumes of each area in each brain were calculated to compensate for differences in absolute volumes of the brains (volume area/total brain volume (%)) [58]. Normalized volumes were tested for interhemispheric (left vs. right) and sex (male vs. female) differences with pair-wise permutation tests [59]. For each permutation test, the difference between the average volumes for the respective groups (male/female; left/right hemisphere) was calculated. For each of these groups, under the null hypothesis of exchangeability (gender exchangeability/hemispheric exchangeability), we randomly re-assigned the volumes for the computation. Such computation reiterated 1,000,000 times (Monte-Carlo simulation). If the true gender/hemispheric difference was larger than 95% of the difference under random distribution (null hypothesis), it was estimated as significant (p < 0.05; Bonferroni corrected for multiple comparisons) [58].

2.6. Mapping and Reconstruction of the Piriform Region in the BigBrain

Cytoarchitectonic delineations in the BigBrain were performed using a web-based annotation tool (MicroDraw: The Institut Pasteur, Paris, France, https://github.com/r03ert0/microdraw, accessed on 27 March 2024) at 1 μm resolution in-plane, with a distance of sections between 60 to 360 μm. The four areas of the mesial piriform region were identified and delineated in 57 sections in the right and 42 sections in the left hemisphere. These delineations complemented those of 13 amygdala subdivisions (three main groups and the amygdalostriatal transition zone) and 6 related fiber bundles, performed in 57 sections in the right hemisphere and in 59 sections in the left hemisphere based on the previous criteria [21]. Based on the manual delineations, training and subsequent prediction of annotations in intermediate, unmapped sections were performed separately for each dataset on the supercomputer JURECA-DC at Jülich Supercomputing Centre [60]. As proposed in [61], Convolutional Neural Networks used a multi-scale U-Net architecture [62] for image segmentation based on each pair of consecutive sections with the manual mappings. The resulting stack of 2D mappings (predictions) was verified in MicroDraw, and sections of low quality were excluded and replaced by linear interpolations. Final annotations were non-linearly transformed to the sections of the 3D reconstructed BigBrain space at 20 μm isotropic resolution [63]. The resulting volume was smoothed using a 3D median filter with a size of 5 in each dimension, corresponding to a smoothing of 2 pixels (40 μm) in each direction. This step helped to resolve inconsistencies across sections resulting from errors of the deep learning method or the successive transformation. As a last step, connected components were identified and only components larger than 20% of the largest identified components were included in the final volume data, which removed remaining noise from the segmentations. The volume itself and coronal cross-sections through the volume are provided for each area. Surfaces were computed, and subdivisions were visualized using the Neuroglancer.

3. Results

The mesial piriform region includes two allocortical areas of the Piriform TemporoBasal area PirTB (PirTBd and PirTBv), and two periallocortical areas of the Piriform Temporal area PirT (PirTit and PirTu). The PirTB area was found on both the temporal lobe and the basal brain surface, while the PirT areas were associated with the temporal lobe and temporal pole. The latter location was associated with the most rostral part of the PirTit area (Figure 1 and Figure 2).

On the basal brain surface, the caudal PirTBd laterally bordered to a caudal extension of the retrobulbar region [64] (yet unmapped) which corresponds to the lateral olfactory area of Ding et al. [43]. This part of the retrobulbar region separates PirTBd from the olfactory tubercle in most sections. Overall, the piriform cortex extends more caudally than the olfactory tubercle (Figure 1). In its rostral part, PirTBd was adjacent to either PirTBv or piriform insular region (PirI) medially, as well as laterally (yet unmapped). In its caudal limit, PirTBd was dorsally adjacent to the medial nucleus (Figure 2a) in ten hemispheres (out of 20), while PirTBv was ventrally adjacent to the medial nucleus in three hemispheres. PirTBv was adjacent ventrally to PirTBd throughout most of the rostro-caudal extent. PirTBv was located dorsally to the amygdalopiriform transition area (APir) in caudal sections and to PirTit further rostrally (Figure 1 and Figure 2). PirTit had a medial border with PirTu in the caudal sections (Figure 2), while in the rostral sections its neighboring areas were the perirhinal cortex and the temporopolar-perirhinal area (TPrh) medially and temporopolar-piriform area (TPir) laterally (yet-unmapped areas). In seven hemispheres (out of 20), the PirTu area was ventrally adjacent to the amygdalopiriform transition area (APir) (Figure 2b). PirTu lay dorsomedially to the entorhinal cortex (Figure 1) and the perirhinal cortex.

3.1. Cytoarchitecture of Piriform Temporobasal Areas (PirTBd and PirTBv)

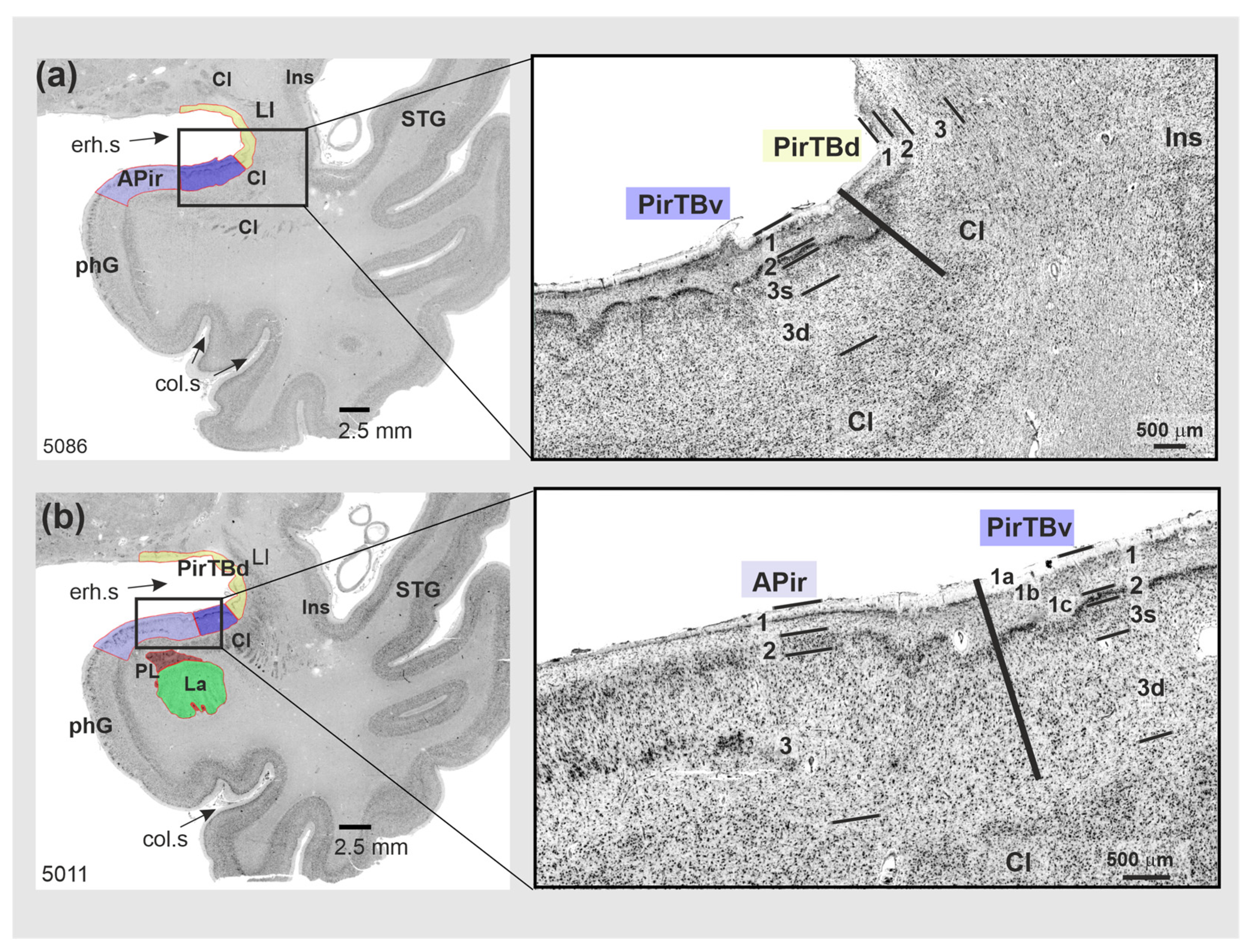

PirTB is an allocortical region composed of two areas: PirTBd and PirTBv. They have three layers (L). L1 showed a non-myelinated outer sublayer (1a), a glia cell-rich intermediate sublayer (1b), and a myelinated inner sublayer (1c) (Figure 2a,c,d, Figure 3). The narrow L2 had small and densely packed cells. In L3, cells were larger and irregularly arranged, with a tendency toward grouping. PirTB consists of a dorsal (PirTBd) and a ventral (PirTBv) area. PirTBd had a thinner sublayer 1b and a thicker L2 with slightly larger and less densely packed cells, as compared to PirTBv. Only in the latter did L3 show a recognizable superficial sublayer 3s; L3 was wider than in PirTBd (Figure 3a). The deep L3 transits to the claustrum (Claustrum temporale reticulare of Brockhaus), which had a higher cell packing density.

The rostral PirTBd had a lower cell density in L2 and slightly larger cells than the caudal PirTBd (compare Figure 2a and Figure 3a). On the basal brain surface, PirTBd showed fewer cells and an increase in cell size (Figure 2c) as compared to PirTBd in the endorhinal sulcus. Its border with the medial nucleus of the amygdala (in 11 hemispheres, Figure 2a) was characterized by smaller and more densely packed cells in L2 and lower cell density in L3 in PirTBd. On the basal brain surface, PirTBd abutted the superficial part of the retrobulbar region, which showed thicker L1 and no clear separation between L2 and L3 (Figure 2b). PirTBv showed the border with the amygdalopiriform transition area (APir). At this border, PirTBv had a narrower L2 with higher cell packing density, specific sublayer 3s of small and densely packed cells, and otherwise lower cell packing density in L3 with more irregularly arranged cells than in APir (Figure 3b).

3.2. Piriform Temporal Areas (PirTit and PirTu)

PirT has two areas: PirTit (related to both temporal lobe and temporal pole) and PirTu (associated with the uncal tip of the temporal lobe). Both areas have five layers: L1 had a variable thickness rostrocaudally (Figure 4), L2 was discontinuous, L3 (especially deep sublayer 3d) and L5 showed an overall low cell density, and L4 had middle-sized and small cells, which were more densely packed than in L3d and L5 and were darkly stained. The arrangement of cells throughout PirT was mostly irregular; L5 revealed a gradual transition into the white matter.

PirTit was heterogeneous (Figure 4a,b) in the sense that the cytoarchitecture differed between the “temporal” (caudal) and “temporopolar” (more rostral) parts: the superficial layers (L2–L3s) of the temporal PirTit revealed a higher cell packing density, with occasional cell clustering (Figure 4b) than the temporopolar part (Figure 4a). The deep part of L3 (sublayer 3d) of the temporal PirTit was more cell-sparse than in the temporopolar part. The temporal part was gradually replaced by the temporopolar part rostrally in three hemispheres. The complex anatomy of the region and tangential cutting planes through the piriform region resulted in the appearance of the temporal and temporopolar part of PirTit at the same rostro-caudal level in other hemispheres; in seven hemispheres, the temporopolar part appeared ventrally to the temporal part, and also ventrally to PirTu (Figure 2d), while in 10 hemispheres, the temporopolar part gradually developed laterally to the temporal part (Figure 4b). At the medial border to PirTu, area PirTit showed a broader cortex, a broader L2, and more irregularly arranged cells in L2 and L3s than at its lateral border with the temporopolar periallocortex (TPir) (compare Figure 4a and Figure 5a). Moreover, area PirTit was characterized by larger and less densely packed cells, as compared to TPir. The rostrolateral and most rostral parts of PirTit had the most narrow L2 of the entire area (Figure 5). At this level, a thin sublayer 3s also had larger and less densely packed cells than medially and caudally.

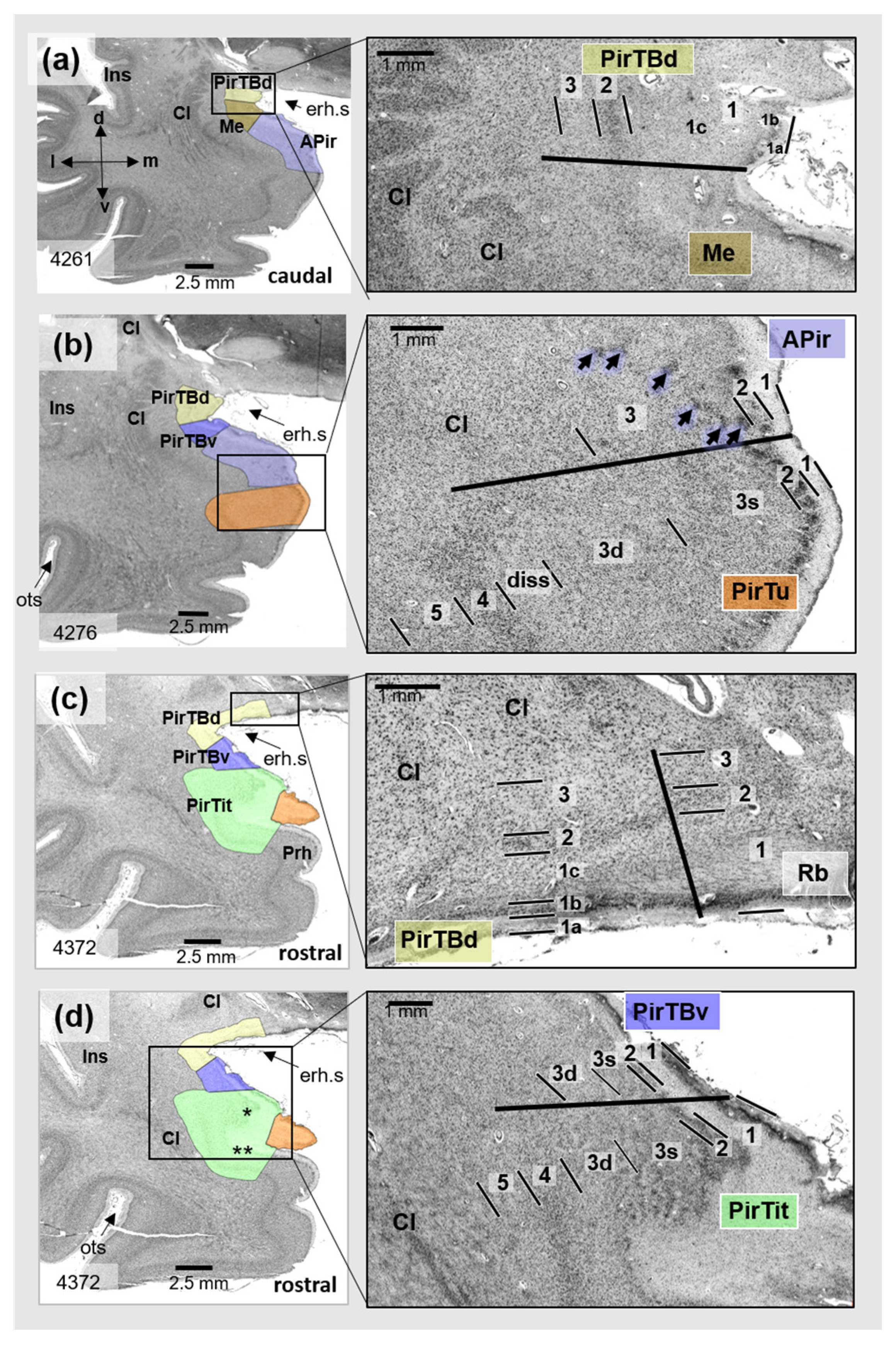

The border of PirTit with PirTBv was characterized by a different layering (5 in PirTit vs. 3 in PirTBv). Moreover, PirTit showed irregularly arranged cells and a broader L2 than PirTBv (Figure 2d). Both the perirhinal cortex and the temporopolar-perirhinal area (TPrh) were medially adjacent to the rostral PirTit. The cell arrangement was more irregular in the perirhinal cortex (Figure 5b), but more regular in TPrh than in PirTit (Figure 1 for localization).

PirTu was small in the dorsoventral and the rostro-caudal extent but had a broad cortex. The small cells of L2 were accumulated into groups, which were irregularly arranged; they formed a few rows in the rostral PirTu. Sublayer L3s was broad, and composed of small, densely packed cells. Sublayer 3d (deep part of layer 3) of PirTu (Figure 4a) was partly replaced by the Lamina dissecantia in the caudal PirTu (Figure 4b).

In contrast to APir of the amygdala, PirTu had a different number of layers (5 in PirTu vs. 3 in APir). Moreover, cell clustering in L2 and a broad sublayer 3s of PirTu were not present in APir. The latter showed an ascending line of small cell clusters in L3 specific to its medial part, near the border (Figure 2b).

The border of the rostral PirTu with the entorhinal/perirhinal cortex was marked by a higher cell density and smaller cells in the superficial layers (L2, 3s) in PirTu. Moreover, these neighboring areas of PirTu showed fewer cell clusters in L2, i.e., no tendency toward their accumulation as in PirTu rostrally. The layering of PirTu was, overall, similar to that of the entorhinal cortex.

The cell clustering in L2 of PirTu marked the border with PirTit as well, as L2 in PirTit showed fewer cell clusters and lower cell density within the cluster (Figure 5a). Moreover, this border showed less densely packed cells in 3s, a less-wide cortex and an absence of Lamina dissecantia in PirTit (Figure 5). However, close to the border, sublayer 3d of PirTit reminded Lamina dissecantia of PirTu.

3.3. Relation to the Macroanatomical Landmarks

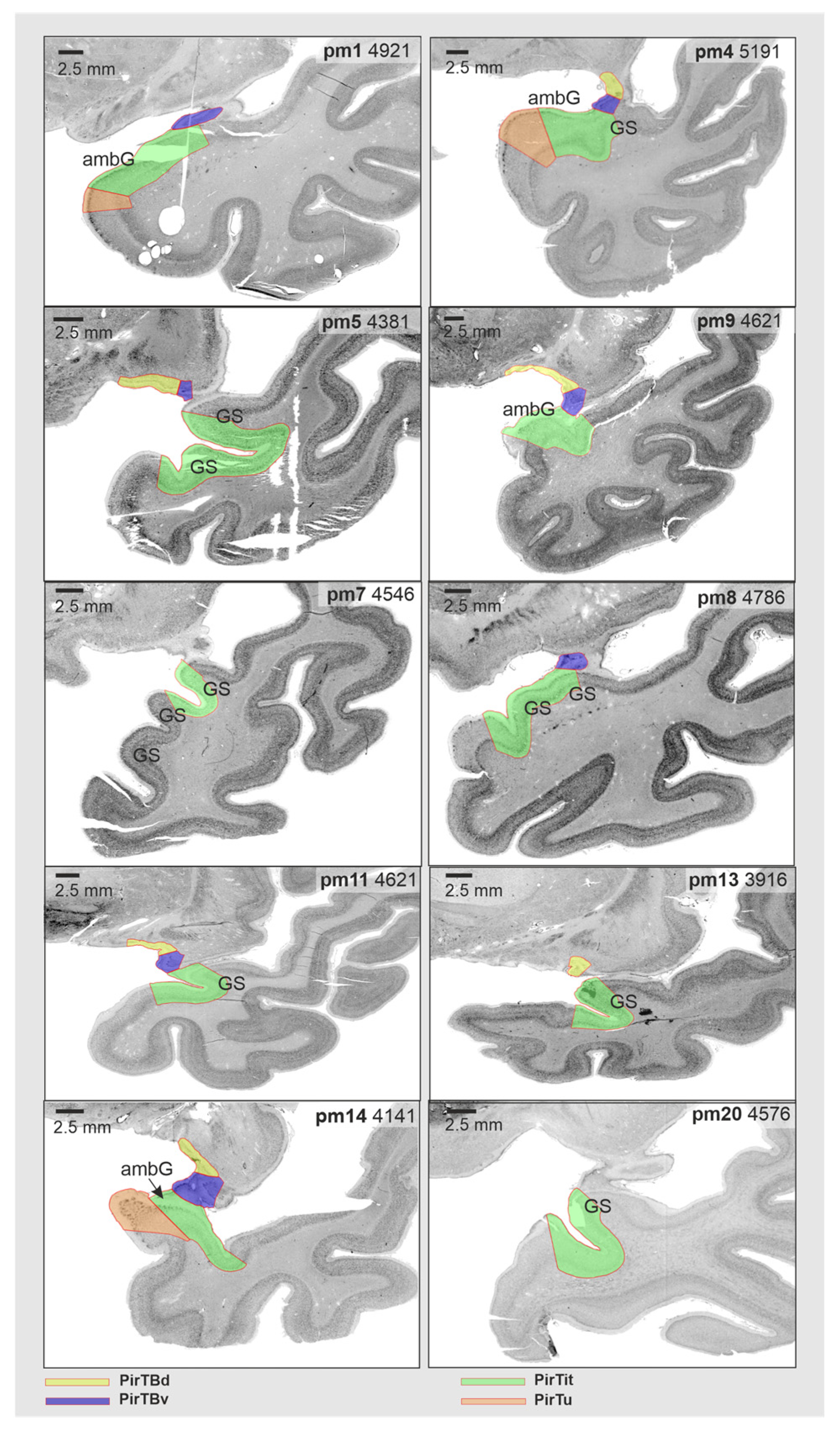

PirTB occupied both lips of the endorhinal sulcus (Figure 1 and Figure 2). Rostrally, it continued on the medial surface of the Limen insulae and on the basal brain surface. The rostral limit of PirTB was found on the basal brain surface in 13 hemispheres, or it was confined to the Limen insulae in the other 7 hemispheres. Rostrally, PirTB was represented by PirTBd in 12 hemispheres, by PirTBv in 4 hemispheres, and by both PirTB areas in another 4 hemispheres. The caudal limit of PirTB was represented by PirTBd in 11 hemispheres, by PirTBv in 3 hemispheres, and by both PirTB areas in another 6 hemispheres. In the caudal sections, PirTBd occupied the bottom of the endorhinal sulcus and laterally abuts the anterior perforated substance, while PirTBv was located on the temporal lobe surface. The PirTit area was located medioventrally to the Limen insulae, occupying either the dorsal temporopolar surface with the incipient Gyri of Schwalbe or the rostral ambient gyrus at this level (Figure 1 and Figure 6).

The rostral appearance of the Limen insulae has been an important macroanatomical landmark for the piriform allocortex in neuroimaging [64,65]. However, the current study revealed a more variable relationship of PirTBd and PirTBv in relation to the Limen insulae: only five right hemispheres and two left hemispheres showed both areas present at this level (Figure 6). Only PirTit (neither of the PirTB areas) was found in two right (Figure 6) and two left hemispheres. The other hemispheres showed either PirTBd or PirTBv at the level of the rostral Limen insulae. PirTBd and PirTBv extended beyond the rostral limit of the Limen insulae, in eight and six (out of 20) hemispheres, respectively. Thus, the rostral limit of the Limen insulae was not a reliable landmark for the rostral limit of the piriform allocortex, considering interindividual variability among the brains.

Table 2. Topographical relationship of the areas to the macroanatomical landmarks.

Classification	Area	Localization
		In Sections	In Relation to the Landmarks
Allocortex	PirTBd	caudal	within the Sulcus endorhinalis
		rostral	medial side of the Limen insulae or basal brain surface
	PirTBv	caudal	dorsomedial surface of temporal lobe
		rostral	medial side of the Limen insulae or basal brain surface
Periallocortex	PirTit	caudal limit	on the rostral ambient gyrus
		middle	Incisura temporalis, incipient gyri of Schwalbe
		rostral	Temporal pole: dorsomedial surface, gyri of Schwalbe, temporopolar sulcus
		rostral limit	Fundus and/medial bank of the temporopolar sulcus
	PirTu	Full extent	Uncal apex

summarizes the association of the piriform areas with the macroanatomical landmarks.

3.4. Texture Analysis

The “texture” of the areas in the high-resolution images was analyzed as an indicator of the cytoarchitecture using the Gray Level Co-occurrence Matrix (GLCM). This method quantifies the spatial relationships between adjacent pixel gray levels, offering a reproducible quantification that reflects the underlying cytoarchitecture of the brain areas studied. From this, GLCM 21 texture features were extracted, and their dimensionality was reduced using a Principal Component Analysis to three independent factors with eigenvalues larger than one.

These independent factors, IF1–IF3, characterize the piriform region with reduced dimensionality by keeping the information of the dataset. These three factors accounted for 90,65% of the total variance in the dataset. IF1 had the highest variance (54.44%), while IF3 explained the lowest variance (5.97%) (Table S1). Each area displayed a specific pattern of the different independent factors (Figure 7a), rejecting the null hypothesis in the Kruskal–Wallis test that distribution of the extracted independent factors is the same across all areas at a significance level of p < 0.05. Subsequent to this omnibus test, further pairwise post hoc tests, for each IF separately (Figure 7b–d), examined the distribution of the respective factor across all areas and rejected the null hypothesis that distribution of each IF was the same across all areas. The first factor (IF1) which greatly contributed to the variance of the dataset revealed distinctions across allocortical and periallocortical areas, i.e., PirTBd and PirTu (p < 0.001), between allocortical areas, i.e., PirTBd and PirTBv (p = 0.014), as well as between the periallocortical areas, PirTit and PirTu (p = 0.011). The second factor (IF2) revealed significant differences in distribution between PirTBd and PirTit (p < 0.001) and PirTBv and PirTit (p < 0.001), and similar to IF1, for the pair PirTit and PirTu (p < 0.001). The third factor demonstrated significant differences for all pairs, except for PirTu–PirTBv, for which the p value did not reach significance after Bonferroni correction for multiple tests.

3.5. Interindividual Variability in Volume

The periallocortical PirTit area was the largest in its volume, ranging from 215 mm³ in brain pm14 (left hemisphere) to 626 mm³ in brain pm7 (in the left hemisphere). The mean volume of PirTBv was slightly smaller than PirTBd (

Table 3. Mean volumes of the mesial piriform cortex areas after the shrinkage correction with standard deviation (±SD).

Mean Volume (±SD), mm3	PirTBd	PirTBv	PirTit	PirTu
Female (left and right)	50.25 ± 9.71	48.14 ± 8.46	319.78 ± 96.53	92.15 ± 28.80
Male (left and right)	66.14 ± 23.12	61.43 ± 17.00	393.94 ± 99.02	87.01 ± 29.51
Left (male and female)	54.85 ± 18.30	52.28 ± 12.57	338.77 ± 63.79	95.75 ± 29.25
Right (male and female)	61.54 ± 20.23	57.29 ± 16.94	374.95 ± 131.84	83.41 ± 27.84
Volume per Hemisphere/Entire Brain Volume (±SD), % per Hemisphere	PirTBd	PirTBv	PirTit	PirTu
Female (left and right)	4.41 ± 1.01	4.20 ± 0.76	27.96 ± 8.66	7.94 ± 2.12
Male (left and right)	5.00 ± 1.72	4.65 ± 1.23	29.83 ± 6.65	6.61 ± 2.23
Left (male and female)	4.43 ± 1.33	4.22 ± 0.78	27.50 ± 4.41	7.80 ± 2.38
Right (male and female)	4.98 ± 1.49	4.63 ± 1.22	30.29 ± 9.87	6.75 ± 2.03

). In PirTBv, the volume ranged between 34 mm³ in brain pm13 in the right hemisphere, to 74 mm³ in brain pm4 in the left hemisphere, while in PirTBd the smallest volume was 32 mm³ in brain pm5 in the left hemisphere, and the maximal volume was 114 mm³ in brain pm4 in the right hemisphere. The volumes for each area were expressed in relation to the total brain volume (see Table 3). The permutation test indicated no significant interhemispheric difference in areas PirTBv, PirTit, and PirTu, while a rightward asymmetry was found for PirTBd (p < 0.05 not Bonferroni corrected for multiple tests). No significant difference was found between male and female brains, as well as for interaction between hemispheric and gender differences.

3.6. Interindividual Variability in Extent (Probabilistic Maps and Maximum Probability Maps)

Probabilistic maps of the piriform areas in their rostral and caudal extent revealed a higher degree of topographical variability than in their central position. The maps have a compact form (Figures S1–S4). PirTit had the center of mass at a more rostral position than the other areas, i.e., at the level of the temporal pole (just rostral to the disappearance of Limen insulae), which correspond to y = 9 (left hemisphere) and y = 10 (right hemisphere) in the Colin 27 template. The center of mass had a less-symmetric distribution for PirTu (y = 9 in the right hemisphere and y = 6 in the left hemisphere) and for PirTBv (y = 8 in the right hemisphere and y = 6 in the left hemisphere) (Figure 8). The centers of mass x- and z- coordinates are presented in the

Table 4. Center of mass coordinates of the probabilistic maps in two reference spaces.

Coordinates	H	PirTBd			PirTBv			PirTit			PirTu
		x	y	z	x	y	z	x	y	z	x	y	z
Colin 27	L	−26	6	−15	−27	6	−19	−29	9	−27	−22	6	−29
MNI ICBM 152	L	−27	5	−15	−28	5	−19	−31	8	−28	−24	5	−30
Colin 27	R	30	7	−14	31	8	−18	33	10	−26	26	9	−27
MNI ICBM 152	R	28	7	−15	28	7	−19	30	9	−27	24	8	−28

H—hemisphere, R—right, L—left.

.

As the intersubject variability of the neighboring piriform areas leads to an overlap of the individual probability maps, we computed maximum probability map of the mesial piriform region (Figure 9), including each piriform area in a non-overlapping parcellation.

3.7. 3D Reconstruction in the BigBrain

In addition to the probabilistic maps of the piriform region and the amygdala [21], we generated ultrahigh-resolution maps with an isotropic resolution of 20 microns of the amygdala-piriform region in the BigBrain template to study the shape and neighborhood relationships of the areas. Starting from sparse mapping of the four areas of the mesial piriform region, as well as 13 subdivisions of the amygdala and six related fiber bundles, we reliably identified these areas in the unmapped sections in-between using Convolutional Neural Networks (Figure 10a,b). The amygdala part of the combined 3D map lies in the proximity of the hippocampus caudoventrally. The alveus of the hippocampus dorsally underlies the paralaminar nucleus and lateral nucleus of the caudal amygdala, while rostrally the white matter of the temporal lobe separates these structures from the entorhinal cortex (Figure 10a, right hemisphere). The claustrum dorsolaterally surrounds PirTB areas, medial nucleus of the amygdala and descends to flank the rostral amygdalopiriform transition area (Figure 10a,c). The claustrum also appears in vicinity of the rostral protrusions of the lateral nucleus (its dorsolateral part).

The 3D maps reveal the topographical relationships between the structures (Figures S5b,d, S6b and S7b), including neighboring fiber bundles (Figure 10d). PirTit and PirTu rostrally replace the amygdalopiriform transition area (APir) of the amygdala on the temporal brain surface, while PirTBv lies dorsally to both APir and PirTit. The dorsally located anterior amygdaloid area (AAA) abuts on PirTBd caudally. Both areas medially extend on the basal brain surface. The PirTit is shaped by the deep temporopolar sulcus in the right hemisphere (Figure 10c) but not in the left hemisphere. PirTBd shows a more pointed peak in the medial view (Figure S7) than AAA (Figure S5) in the right hemisphere (Figure 10d), as PirTBd extended along the basal brain surface in a limited number of sections in the central part of the area, while in the other sections it lies around the endorhinal sulcus. PirTit is the most rostral area (Figure 10c) and PirTBd is the most caudal area in the piriform region (Figure S7b). Left PirTit surrounds PirTu both dorsally and ventrally, while the right PirTu had only a dorsal border with PirTit.

The new map provides microscopic details regarding the shape of all subdivisions and related fiber bundles (Figures S5a,c, S6a and S7a). For example, the lateral nucleus reveals recesses in places of contact with granular parts of the paralaminar nucleus (Figure S5). APir has a complex shape which reflects inclusion of both the “posteromedial” and “anterolateral” part of de Olmos [66], so that the area caudally is related to the semiannular sulcus, while rostrally (i.e., after disappearance of the semilunar gyrus) extending laterally on the temporal lobe surface (see Figure 1 for the localization of APir in the other brain). In some cases, 3D surface maps reveal subtle step-like structures. These typically result from local inaccuracies in the 3D reconstruction of the BigBrain model when fusing the independently mapped 2D segmentations obtained from the deep learning workflow. The inaccuracies affect both the interpolation of missing sections and the overall quality of the reconstruction. This is particularly true in regard to the challenging transitions between areas, including “sudden” change in the structure size or extent in the manually delineated neighboring sections, e.g., for the right APir (Figure S6) between the small posteromedial and the more extensive anterolateral part.

4. Discussion

The current study provides an analysis and introduces stereotaxic maps of four areas, PirTBd, PirTBv, PirTu, and PirTit, of the mesial piriform region. The parcellations were verified by texture analysis. Cytoarchitectonic probabilistic maps in 3D space were proposed to support precise localization of findings from neuroimaging studies. The maps are part of the Julich-Brain atlas and are openly available on the EBRAINS platform (https://www.ebrains.eu/tools/human-brain-atlas, accessed on 27 March 2024). The probabilistic maps are available in two reference spaces, MNI Colin27 and MNI ICBM 152, to facilitate comparisons with in vivo imaging data. In addition, high-resolution (20 μm) whole-brain histological references of the amygdala-piriform region on the basis of the BigBrain were generated; they are publicly available on the EBRAINS platform as well. It is expected that these maps will inform studies about the role of the areas in different functions.

The piriform cortex and the hippocampus represent two hubs in the functional limbic system, with the allocortical core and the related periallocortical areas which represent a part of the so-called hippocampocentric and olfactocentric divisions [67], respectively. Probabilistic maps of both regions can be combined (as masks) to study networks related to the limbic system (e.g., by meta-analytic connectivity modelling).

The periallocortex gradually increases its structural complexity the farther it spreads from the allocortical core; in the hippocampal region, the presubiculum and parasubiculum closest to the allocortex have four layers, and a more distant entorhinal cortex is six-layered. The periallocortical PirTit represented a large area with inherent heterogeneity, being composed of a “temporal” (most allocortex-like) part, and a more distant “temporopolar” part.

The olfactory periallocortex of Filimonoff (1949), or his anterior transitional parts of the entorhinal region may reflect the correlative parts of the “temporal” PirTit (see

Table 5. Comparison of the nomenclature of the present study with that of the previous studies.

Areas		Br [71]	vEK [22]	Brh [23]	F [24]	St [25]	I [68]	S [4] H [72]	D [43]	M [42]
PirTB	PirTBd	51	TK	prpd, prpi	Pp2b, Pp2a	Pf	--	PirF	Pir	PirF
	PirTBv			prpv	Pp1 (p)	Pt	--	PirT		PirT
PirT	PirTu			Part of prA	eta1, eta0 (p)	--	PRh (35+ 36)	TPpall (p)	LEC (EO) (vp)	PRC35
	PirTit		part of TI	mtm	Pper				LEC (EO) (dp), TI (mp)	PirT
				partly mti	eti					TPCl (p)
					eta0 (p)	e

Br [71]—Brodmann (1909), vEK [22]—von Economo and Koskinas (1925), Brh [23]—Brockhaus (1940), F [24]—Filimonoff (1949), St [25]—Stephan (1975), I [68]—Insausti et al. (1998), S [4]—Sakamoto et al. (1999), H [72]—Heimer et al. (1999), D [43]—Ding et al. (2016), M [42]—Mai et al (2016). e—entorhinal cortex; EO olfactory subfield of the entorhinal cortex; eta⁰—area entorhinalis transgrediens anterior periamygdalaris; eta¹—area entorhinalis transgrediens anterior I; eti—area entorhinalis transgrediens insularis; LEC—lateral entorhinal cortex; mtm—area mesocorticalis temporalis medialis; mti—area mesocorticalis temporalis intermedia; p—part of the area; dp—dorsal part of the area; mp—medial part of the area; vp—ventral part of the area; Pf—area praepiriformis temporalis; Pt—area praepiriformis frontalis; Pir—piriform cortex; PirF—piriform cortex, frontal part; PirT—piriform cortex, temporal part; Pp—praepiriform region (subdivisions Pp¹, Pp²a, Pp²b); Pper—area entorhinalis-praepiriformis; prA—Subregio praeamygdalea; PRh and PRC—perirhinal cortex; prp—Subregio praepiriformis; TI—area piriformis temporalis; TPCl—lateral temporopolar cortex; TPpall—temporopolar periallocortex.

): ventromedially located area entorhinalis transgrediens anterior periamygdalaris (eta⁰) and the adjacent area entorhinalis-praepiriformis (Pper), which reached, dorsally, the piriform allocortex. Both areas were characterized by an internal layer of large cells. The latter was described as having a narrow and compact external cellular layer and a cell-free layer (Lamina dissecans), while eta⁰ represented a rostral continuation of periamygdalar area. Further, rostrally, the entorhinalis transgrediens insularis (eti) [24] area, with its “light”, i.e., cell-sparse layer three, corresponded to “temporopolar” PirTit. Other studies associated PirTit with the periallocortical perirhinal cortex [42,68,69] (Table 5). The rostral limit of this area could not be precisely correlated with the earlier studies (e.g., of the area TI [44]), as, e.g., thicker sections (50 μm) and larger gaps between examined sections could not allow grasping of the border. In general, a large discrepancy in mappings of the piriform periallocortex is comparable to the other periallocortical regions (entorhinal and presubicular region, see comparisons in [65,70], composing hippocampocentric divisions [67]).

The results of the present study showing the interindividual variability in location of the piriform areas (e.g., in relation to the Limen insulae, the rostral and caudal limit of the piriform allocortex), indicate that the application of macroanatomical landmarks in the neuroimaging studies does not seem to be a reliable criterion to differentiate the anterior from the posterior piriform cortex [32,33,34]. The overall topography of PirTBd and PirTBv corresponds to that of the frontal (Pf) and temporal (Pt) piriform area of Stephan (1975), respectively (Table 4). In line with Stephan (1975) and other earlier histological studies [23,24,25], in four hemispheres, our PirTBv (correlate of the temporal piriform area) represented the most rostral limit of the piriform allocortex (PirTB). In 12 hemispheres, where PirTBd (a correlate of the frontal piriform area) extended more rostrally than the PirTBv, this difference in extent was negligible (only 0.3–1.2 mm) for MRI studies. As the functional studies relied on the atlas of Mai et al. (1997) [26], in which the frontal piriform area extended far, rostrally (where the later version of Mai et al. atlas (2016) [42] demonstrates the agranular insular cortex (OP_I)), the concept of the anterior-to-posterior differentiation within the piriform allocortex need to be re-evaluated using precise anatomical reference for the structural–functional comparison.

Macroanatomical landmarks have been proposed to identify the border of the piriform allocortex (i.e., olfactory tubercle, rostral limit of the Limen insulae). We could identify a medial border of PirTBd with the olfactory tubercle, as was depicted in the atlas of Mai et al. 2016 [42], though only in a limited number of sections. The current study revealed an interindividual variability of the piriform allocortex in relation to the rostral limit of the Limen insulae in contrast to protocols for mapping the PCA (piriform cortex and cortical amygdala) [69,73]. The absence of a clear landmark for the transition of the most caudal part of the Gyrus semiannularis (with AHi of the amygdala [21]) and the Gyrus uncinatus (with hippocampus, hippocampal-amygdaloid transition area (HATA)) [57,70] may lead to an overestimation of the PCA in the caudal part [69]. Moreover, they do not allow us to disentangle the piriform cortex and the amygdala, which are structurally and functionally different. Therefore, the maps of the amygdala and the piriform cortex offer a more precise localization and may inform the neuroimaging studies.

The volumes of the (peri)allocortical structures differ between the brains by factors two and three, which made the intersubject variability in volume comparable to that in the hippocampal region and is much lower than variability in the isocortex [57]. The allocortical piriform cortex had a very small volume, only slightly larger than the AHi of the superficial amygdala [21]. The periallocortical PirTit was comparable to the periallocortical presubiculum, whereas PirTu had slightly lower volume than the transsubiculum [70]. To our knowledge, this is the first volumetric data of the piriform region based on histological sections in such a sample. Stephan et al. (1981) reported the volume of Lobus piriformis (9032 mm³) measured in one individual [74], including the paleocortex (allocortex) of the anterior perforated substance with the olfactory tubercle, diagonal band, and the septum, as well as the amygdala. Therefore, no direct comparison is possible.

The probabilistic maps show a rather high overlap in the reference space that makes them an efficient tool in studying the structural correlates of olfactory processing in healthy subjects and patients. The maps of the piriform allocortex and amygdala can be relevant in studies of autism [75,76], Alzheimer’s disease [35,36,77,78] and Parkinson’s diseases [31,79,80,81,82], posttraumatic stress disorder [83], dysosmia [20,84,85,86], and epilepsy [13,41,87,88,89,90,91]. They can help to decipher a specific or shared role of the piriform periallocortex in aspects of olfactory processing, e.g., matching the odor with a suitable linguistic label [19]. Additionally, the probabilistic maps of the amygdala can help to re-examine the suggested functional roles of the so-called olfactory amygdala, as well as the involvement in olfactory functions of the remaining amygdala.

The high-resolution BigBrain maps of the amygdala-piriform region show the precise localization and extent of the areas in an individual brain. They are interoperable with any reference space used in the neuroimaging community, e.g., to MNI 152 and Colin 27 over siibra-explorer [92], and can serve as histological reference data for high-resolution MR imaging, as well as the basis for brain simulation and data integration, e.g., in epilepsy research, by targeting epileptogenic networks, including the piriform cortex [93] and amygdala [94].

5. Conclusions

The present study introduces openly available 3D maps of the human piriform allocortex and periallocortex. Along with the previously published maps of the amygdala [21] and the hippocampus [70], the new maps can be used as microstructural references for neuroimaging studies, e.g., on olfactory processing, for studying networks, or for informing modeling and simulation. The maps may also have clinical applications in the future, e.g., for neuroradiology.
