Value of Mini Electrodes for Mapping Myocardial Arrhythmogenic Substrate—The Influence of Tip-to-Tissue Angulation and Irrigation Flow on Signal Quality
by
and
Karen Bickel
1,
Thorsten Lewalter
1,
Johannes Fischer
2,
Christine Baumgartner
2,
Petra Hoppmann
3,
Klaus Tiemann
1
and
Clemens Jilek
1,* 1
Peter-Osypka Heart Center Munich, Internistisches Klinikum München Süd, 81379 München, Germany
2
Zentrum für Präklinische Forschung, Klinikum rechts der Isar, Technische Universität München, 81675 München, Germany
3
Klinik und Poliklinik für Innere Medizin I, Klinikum rechts der Isar, Technische Universität München, 81675 München, Germany
*
Author to whom correspondence should be addressed.
J. Vasc. Dis. 2022, 1(1), 3-12; https://doi.org/10.3390/jvd1010002
Submission received: 28 June 2022
/
Revised: 26 July 2022
/
Accepted: 29 July 2022
/
Published: 3 August 2022
(This article belongs to the Section Cardiovascular Diseases)
Abstract
:Background: The use of mini electrodes with a small surface and narrow electrode-to-electrode spacing is believed to lead to a higher electrical resolution. Until now, the effects of tip-to-tissue contact, angulation, and irrigation on signal quality and morphology are unknown. Methods: The beating heart of an open-chest pig was examined while controlling the angulation and contact between the catheter tip and myocardial tissue, as well as the irrigation of the catheter tip. The mini electrodes were mounted onto commercially available 8 mm non-irrigated and 4 mm irrigated tip catheters. Different electrode interconnections, angulations, contact forces, and irrigation flow were analyzed and compared to signals recorded from conventional electrodes. Results: A total of 63 electrode samples of 21 defined, stable settings, each lasting 30 s, were analyzed. (1) Tissue contact of mini electrodes was given as soon as the conventional tip electrode showed tissue contact. (2) Angulation of the tip-to-tissue contact showed a trend towards changes in the integral of signals derived from mini electrodes, and no significant changes were seen in signals derived from conventional or mini electrodes. (3) Irrigation flow surrounding the mini electrodes did not influence signals derived from mini electrodes, whereas conventional electrodes showed signals with a longer duration under higher irrigation. Conclusion: Mini electrodes are robust to contact force and irrigation flow regarding signal quality, whereas signals of conventional electrodes are affected by irrigation flow, leading to substantial changes in signal duration and kurtosis. Signals of mini electrodes are sensitive to local electrical changes because of a high local resolution.
1. Introduction
Catheter-based ablation is the standard treatment for many cardiac arrhythmias [1,2]. Intracardiac electrograms derived from electrodes at catheters represent a cornerstone in electrophysiological (EP) and ablation procedures to identify arrhythmogenic substrate and control the success of ablation. Standard EP catheters are equipped with ring electrodes and, in the case of ablation, an additional tip electrode with a length ranging from 3.5 mm up to 10 mm. The electrodes are usually interconnected in a bipolar manner, meaning along the longitudinal axis of the catheter.
Mini electrodes, showing a small surface area, are used for high-density mapping and are usually not configured as ring electrodes. In the case of ablation catheters, the mini electrodes are mounted at the tip electrode as three circumferentially placed circles with an electrode diameter of 1 mm. Mini electrodes are believed to lead to a higher electrical resolution because of the smaller electrode surface and the more narrow electrode spacing compared with conventional electrode designs, and they are further supposed to reduce far field signals [3]. Mini electrodes have been shown to increase sensitivity in the detection of scars and in the identification of small near-field components that are missed with conventional large tip electrodes in a post-infarction pig model [4,5].
In animal models, changes in the intracardiac electrograms derived from mini electrodes could be taken as a surrogate parameter for monitoring of ablation lesion maturation [6,7] and may prevent unnecessarily prolonged ablation application [5], thus reducing extracardiac injuries [6].
In human ablation procedures, mini electrode technology mounted on the tip electrode has displayed a significantly shorter radiofrequency time and time to achieve cavotricuspid isthmus block when attempting typical cavotricuspid-isthmus (CTI)-dependent atrial macro-reentry tachycardia (MRT) in a non-randomized, cohort study [8]. The findings of Takagi agree with the theoretical perception that the electrical current of CTI-dependent MRT has the highest amplitude in the interconnections of mini electrodes because the vector of the electrical wavefront of CTI-dependent MRT is longitudinal to the mini electrodes, whereas it is perpendicular to the conventional electrodes.
In the setting of AV node re-entrant tachycardia ablation, mini electrodes could identify a higher proportion of slow pathway potentials compared with conventional bipolar mapping, and could also identify double potentials, which may mark a clinical endpoint [9].
Until now, some important basic questions about electrical signals derived from mini electrodes have not been investigated. In our animal work, we aimed to clarify the following:
- −
- The impact of the contact of mini electrodes on signal quality, because whether mini-electrode-to-tissue-contact is ensured when conventional electrodes show tissue contact is not tested;
- −
- The influence of the angulation of the catheter tip on the signal morphology of mini electrodes;
- −
- The influence of irrigation on the signal morphology of mini electrodes, as the electrodes are widely surrounded by the irrigation fluid;
- −
- The signal interconnection that ensures a stable and reliable signal.
2. Materials and Methods
2.1. Animal Preparation and Setting
The animal trial was approved by the Government of Upper Bavaria (approval number ROB-55.2-2532. Vet_02-1 7-174).
A beating heart of an open-chest pig was examined, mainly epicardially, controlling the angulation and contact between the catheter tip and myocardial tissue, as well as the irrigation of the catheter tip. In a pre-test, it was assured that there were no significant differences between signals derived from mini electrodes from the endocardium and epicardium.
The pig was pre-treated with an intramuscular injection of 10–15 mg/kg ketamine, 2 mg/kg azaperone, and 1 mg atropine. The examination was carried out under general anesthesia maintained with propofole (12.5 mg/kg/h) and controlled ventilation. Analgesia was ensured with metamizole (40 mg/kg) and fentanyle (0.015 mg/kg) administered around every 30 min, with the addition of an intravenous fluid substitution of 10 mL/kg/h.
A lateral, partial thoracotomy was performed, and access to the epicardial anterior left atrium was gained. Sutures were set at the anterior wall of the left atrium to ensure fixation of the epicardial myocardium of the left atrium to ensure a stable mapping position of the catheter. The heart had to be in sinus rhythm throughout the whole procedure.
At the end of the procedure, the pig was sacrificed by phentobarbitale i.v. (0.1 mL/kg) followed by 40 mL of 7.45% potassium chloride intravenously.
2.2. Catheter Examination
Catheters with mounted mini electrodes at a non-irrigated 8 mm tip (Intellatip MiFi XP, Boston Scientific, Marlborough, MA, USA; see Figure 1) and at a irrigated 4 mm tip (Intellatip MiFi OI, Boston Scientific, Marlborough, MA, USA) were investigated. An adjustable flow pump (HAT 500 System, Osypka AG, Rheinfelden, Germany) was used for irrigation. Signal processing and management was performed with the EP system LS Pro and the signal amplifier STAMP (former C.R. Bard, now Boston Scientific, Marlborough, MA, USA).
The protocol consisted of several steps, and each condition of every step was performed three times under stable catheter settings for at least 30 s.
2.3. Effect of Contact Force on Signals of Mini Electrodes
The hypothesis was that, with low contact force, there could be contact of the conventional tip electrode, but loss of contact of the mini electrodes. The tip electrode was placed on the epicardial myocardium (1) with a force such that only the tip electrode, not the mini electrode, made contact with the tissue and (2) with a force such that both the conventional tip and mini electrodes made contact with the tissue.
2.4. Effect of Catheter Angulation on Mini Electrodes
Three angulations with a tangential, 45°, and 90° position were tested with regard to the duration, amplitude, integral and kurtosis of signals derived from mini electrodes and conventional electrodes. Both catheters, with mounted electrodes at a 8 mm non-irrigated tip and a 4 mm irrigated tip, were used (see Figure 2).
2.5. Effect of Irrigation Flow on Mini Electrodes
The 4 mm tip irrigated catheter was evaluated with regard to the respective effects on signal parameters under flow rates of 2 mL/min and 10 mL/min.
2.6. Effect of Electrode Interconnections on Signal Quality and Stability
The hypothesis was that the variation in signal parameters is higher among signals derived from mini electrodes compared with those from conventional electrodes.
2.7. Signal Filtering and Processing and Statistics
Bipolar signals were recorded with a recording sensitivity of 5 mV for both unipolar and bipolar signals. The low cutoff was 1 Hz for unipolar and 40 Hz for bipolar signals, while the high cutoff was 25 Hz and 250 Hz, respectively. A notch filter was not used.
For every condition, a segment with a stable zero line and artifact-free signals was chosen with a length of 4 s, exported, and analyzed with Mathlab (The MathWorks, Inc., Ismaning, Germany). The maximum, minimum, integral of positive and negative, and sum of the integral above the zero line and the absolute value of the integral below the zero line, as well as the signal duration and the kurtosis of the signal, were calculated for every beat. The amplitudes are presented in mV, duration in msec, and integral in mV2·msec.
The coefficient of variation was calculated for the duration, amplitude, and kurtosis as a parameter of signal stability.
All variables were calculated as means and standard deviation, as median when indicated and in the case of a non-normal distribution. Normal distribution was tested by the Kolmogorow–Smirnow test. Confidence intervals of 95% were calculated. For multiple group comparisons of normally distributed data, repeated measures ANOVA was used. In the case of significant findings, paired group comparisons with Student’s t-test were performed. A p-value ≤ 0.05 was considered significant.
3. Results
In total, 63 electrode samples of 21 defined, stable settings, each lasting 30 s, were analyzed. Figure 3 shows an example of the signals derived from mini and conventional electrodes, showing that the ventricular far field signal is more pronounced in signals derived from conventional electrodes compared with those from mini electrodes. The results are visualized in a central figure (see Figure 3), and the exact data are shown in the corresponding paragraph.
3.1. Effect of Contact Force on Signals of Mini Electrodes
Efforts were taken to ensure contact and a stable signal with the conventional tip electrode with no contact and no signal on the mini electrodes. Despite several maneuvers and angulation while fixating a left atrial wall segment, it was not possible to realize a stable situation in this beating heart model. Whenever the conventional tip electrode displayed tissue contact and a stable signal, the mini electrodes also displayed tissue contact and a stable signal.
3.2. Effect of Tip Angulations on Mini Electrodes
Three angulations (tangential, 45°, and 90°) were compared using the 8 mm non-irrigated Intellatip MiFi XP tip and the 4 mm irrigated Intellatip MiFi OI tip catheter.
Overall, no significant effect of angulation could be observed on conventional and mini electrodes using the 8 mm or 4 mm tip electrode catheter. In ANOVA, the mini electrodes mounted on an 8 mm tip electrode showed a trend to higher integrals in the 90° position compared with the tangential position.
3.3. Effect of Irrigation Flow on Mini Electrodes
Irrigation flow rates of 2 mL/min and 10 mL/min surrounding the mini electrodes did not influence the amplitude, integral, kurtosis, or duration of signals derived from mini electrodes, whereas conventional electrodes showed a longer signal duration with higher irrigation (signal duration 2 ml flow 25 ± 16 msec vs. 10 mL flow 56 ± 54 msec; p = 0.000; see Table 5).
3.4. Effect of Electrode Interconnection on Signal Quality and Stability
The coefficient of variation of bipolar conventional electrode interconnections and interconnections between mini electrodes and the conventional tip electrode compared with bipolar mini electrode interconnections was numerically lower, but not statistically significant with regard to signal amplitude, duration, and kurtosis (see Table 6).
4. Discussion
To the best of our knowledge, this paper is the first investigating the effects of contact force, tip–tissue angulation, irrigation, and electrode interconnections on the signal morphology of conventional and mini electrodes in a controlled animal model.
The main findings of the work are as follows.
Stable tip-to-tissue contact of mini electrodes is ensured once the tip electrode has stable tissue contact. It was possible to evoke a signal at the conventional tip electrode, but not at the mini electrodes, in healthy tissue.
Our work confirms the hypothesis that mini electrodes are more sensitive to changes in tip–tissue angulation with regard to signal duration and integral compared with conventional electrodes. The angulation does not affect the sharpness of the signal derived from mini electrodes, as proven by an unaffected signal kurtosis. Using the signal analysis of circumferential located mini electrodes might help to define the tip–tissue angulation of the catheter.
Mini electrodes are more robust to irrigation compared with conventional electrodes. None of the signal parameters of duration, integral, amplitude, or kurtosis changed significantly with a higher irrigation flow rate. In contrast, conventional electrodes showed a significantly longer signal duration with a higher irrigation flow rate. The effect is supposed to be even higher when higher irrigation flow rates of 17 mL/min or 30 mL/min are used for ablation. For technical reasons, an irrigation flow of only up to 10 mL/min could be used during the experiment without ablation. Therefore, one may conclude that mini electrodes seem to be more appropriate for signal analysis during ablation than conventional electrodes. The reason for a more stable signal derived from mini electrodes than from conventional electrodes may be the result of the smaller field covered by the mini electrodes. The smaller the detection field, the more chance of having a stable irrigation milieu around the electrodes. As conventional electrodes are a bipole of the tip and the distal ring electrode, but the irrigation fluid covers only the tip electrode, there might be a disturbance directing the ring electrode from which you expect a mixture between blood and irrigation fluid, resulting in a less stable electrical field. Our results are the first in the literature describing the effects of irrigation on signals with conventional electrodes.
Mini electrodes interconnected in a true bipolar manner are able to better reflect more subtle changes in signal morphology than conventional electrodes, as they cover a smaller area. If a more global view is necessary, mini electrodes may be interconnected with the conventional tip to reduce variations. Therefore, mini electrodes in combination with conventional electrodes enhance the electrical resolution and may have the potential to identify critical ablation sites in an easier and more reliable manner. Our findings are in line with computer models [10]. The impact of this finding has to be proven in a further trial with a clinical end point.
Besides the differences described between mini electrodes and conventional electrodes, it is very important to keep in mind that the bipolar vector of mini electrodes mounted on the catheter tip are perpendicular to the bipolar vector of conventional electrodes. Especially, electrical propagation being perpendicular to the catheter as CTI-dependent atrial flutter is best suitable to be analyzed with mini electrodes, as this allows to define the exact location of the catheter with regard to the border zone from CTI to the ventricle and to the inferior vena cava [11].
A second advantage of mini electrodes is the reduction in far field signal by the smaller area of the mini electrode itself and the interelectrode spacing (see Figure 4). Therefore, mini electrodes reflect true local signals more accurately, whereas conventional electrodes cover a large area and produce larger far field signals than mini electrodes [8].
Limitation
The animal work was performed at the epicardial heart side, making sure to control the tip–tissue contact visually, as both catheters do not allow an intern contact force measurement. An endocardial approach may have effects on signal, whereas our pre-test with a comparison of endocardial and epicardial signals derived from conventional and mini electrodes revealed no significant differences.
For all analyses, mapping of healthy myocardium was performed. This formally restricts the findings to healthy tissue, but is the basis for future research on the signal morphology of altered myocardial tissue such as fibrosis or tissue that has been electrically inactivated by ablation.
Measurements were limited to one pig owing to animal welfare restrictions.
5. Conclusions
Mini electrodes are robust to contact force and irrigation flow regarding signal quality, whereas signals of conventional electrodes are affected by irrigation flow, leading to substantial changes in signal duration and kurtosis. Signals of mini electrodes are able to show the angulation of the catheter and are very sensitive to local electrical changes due to a high local resolution.
Author Contributions
Conceptualization, K.B., T.L., J.F., C.B., K.T. and C.J.; Data curation, K.B., T.L., K.T. and C.J.; Formal analysis, K.B., T.L., P.H., K.T. and C.J.; Funding acquisition, C.J.; Investigation, K.B., T.L., J.F., C.B., K.T. and C.J.; Methodology, K.B., T.L., J.F., K.T. and C.J.; Project administration, T.L., J.F., C.B., K.T. and C.J.; Resources, T.L and C.J.; Supervision, T.L. and C.J.; Validation, K.B., T.L., P.H. and K.T.; Visualization, K.B.; Writing—original draft, K.B., P.H. and C.J.; Writing—review and editing, T.L., J.F., C.B., K.T. and C.J. All authors have read and agreed to the published version of the manuscript.
Funding
The animal work was funded by Boston Scientific (Marlborough, MA, USA). Grant number #1782252.
Institutional Review Board Statement
The animal trial was approved by the Government of Upper Bavaria (approval number ROB-55.2-2532. Vet_02-1 7-174).
Informed Consent Statement
Not applicable as study did not involve humans.
Acknowledgments
Bernd Bruesehaber (Biotronik, Berlin, Germany) for statistical advice.
Conflicts of Interest
T.L. and C.J. received lecture honoraria, educational grants, and/or research grants from Boston Scientific, Abbott, Biotronik, and Medtronic. P.H. received research support from Boston Scientific. All other authors have no conflicts of interest.
References
- Kirchhof, P.; Benussi, S.; Kotecha, D.; Ahlsson, A.; Atar, D.; Casadei, B.; Castella, M.; Diener, H.C.; Heidbuchel, H.; Hendriks, J.; et al. ESC Scientific Document Group. ESC Guidelines for the management of atrial fibrillation developed in collaboration with EACTS. Eur. Heart J. 2016, 37, 2893–2962. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Blomström-Lundqvist, C.; Scheinman, M.M.; Aliot, E.M.; Alpert, J.S.; Calkins, H.; Camm, A.J.; Campbell, W.B.; Haines, D.E.; Kuck, K.H.; Lerman, B.B.; et al. European Society of Cardiology Committee, NASPE-Heart Rhythm Society. ACC/AHA/ESC guidelines for the management of patients with supraventricular arrhythmias—Executive summary. A report of the American college of cardiology/American heart association task force on practice guidelines and the European society of cardiology committee for practice guidelines (writing committee to develop guidelines for the management of patients with supraventricular arrhythmias) developed in collaboration with NASPE-Heart Rhythm Society. J. Am. Coll. Cardiol. 2003, 42, 1493–1531. [Google Scholar] [PubMed] [Green Version]
- Lloyd, M.S.; Hoskins, M.H.; Shah, A.D.; Langberg, J.J. Electrogram Characteristics of Ablated and Non-Ablated Myocardium in Humans: A Comparison of Miniaturized Embedded Electrodes and Conventional Ablation Electrodes. J. Cardiovasc. Electrophysiol. 2016, 27, 820–824. [Google Scholar] [CrossRef] [PubMed]
- Glashan, C.A.; Tofig, B.J.; Tao, Q.; Blom, S.A.; Jongbloed, M.R.M.; Nielsen, J.C.; Lukac, P.; Kristiansen, S.B.; Zeppenfeld, K. Multisize Electrodes for Substrate Identification in Ischemic Cardiomyopathy: Validation by Integration of Whole Heart Histology. JACC Clin. Electrophysiol. 2019, 5, 1130–1140. [Google Scholar] [CrossRef] [PubMed]
- Glashan, C.A.; Beukers, H.K.C.; Tofig, B.J.; Tao, Q.; Blom, S.; Mertens, B.; Kristiansen, S.B.; Zeppenfeld, K. Mini-, Micro-, and Conventional Electrodes: An in Vivo Electrophysiology and Ex Vivo Histology Head-to-Head Comparison. JACC Clin. Electrophysiol. 2021, 7, 197–205. [Google Scholar] [CrossRef] [PubMed]
- Avitall, B.; Horbal, P.; Vance, D.; Koblish, J.; Kalinski, A. Maximal electrogram attenuation recorded from mini electrodes embedded on 4.5-mm irrigated and 8-mm nonirrigated catheters signifies lesion maturation. J. Cardiovasc. Electrophysiol. 2015, 26, 192–202. [Google Scholar] [CrossRef] [PubMed]
- Avitall, B.; Kalinski, A.; Horbal, P.; Koblish, J. Relationship between lesion formation and electrophysiological responses using catheters equipped with mini-electrodes in chronic atrial fibrillation. Heart Rhythm. 2017, 14, 902–909. [Google Scholar] [CrossRef] [PubMed]
- Takagi, T.; Miyazaki, S.; Niida, T.; Kajiyama, T.; Watanabe, T.; Kusa, S.; Nakamura, H.; Taniguchi, H.; Hachiya, H.; Iesaka, Y.; et al. Prospective evaluation of a novel catheter equipped with mini electrodes on a 10-mm tip for cavotricuspid isthmus ablation—The efficacy of a mini electrode guided ablation. Int. J. Cardiol. 2017, 240, 203–207. [Google Scholar] [CrossRef] [PubMed]
- Clementy, N.; Pineaud, G.; Bisson, A.; Babuty, D. Atrioventricular Nodal Reentrant Tachycardia Ablation Using Mini-Electrode Recordings. J. Clin. Med. 2022, 11, 282. [Google Scholar] [CrossRef] [PubMed]
- Pollnow, S.; Greiner, J.; Oesterlein, T.; Wülfers, E.M.; Loewe, A.; Dössel, O. Mini Electrodes on Ablation Catheters: Valuable Addition or Redundant Information?–Insights from a Computational Study. Comput. Math. Methods Med. 2017, 2017, 1686290. [Google Scholar] [CrossRef] [PubMed]
- Tzeis, S.; Pastromas, S.; Andrikopoulos, G. Ablation of Cavotricuspid Isthmus-Dependent Flutter Using a Mini-Electrode-Equipped 8-mm Ablation Catheter: Case Series. Hellenic J. Cardiol. 2016, 57, 53–58. [Google Scholar] [CrossRef] [Green Version]
Figure 1.
Mini electrodes mounted at a 8 mm tip of an ablation catheter (Intellatip MiFi XP, Boston Scientific, Marlborough, MA, USA).
Figure 1.
Mini electrodes mounted at a 8 mm tip of an ablation catheter (Intellatip MiFi XP, Boston Scientific, Marlborough, MA, USA).
Figure 2.
Setting of three angulations of the tip catheter to epicardial tissue.
Figure 3.
Overview of signal changes in conventional and mini electrodes by angulation and irrigation flow. Abbreviations: − = no change, + = significant change, (+) = trend to a change.
Figure 3.
Overview of signal changes in conventional and mini electrodes by angulation and irrigation flow. Abbreviations: − = no change, + = significant change, (+) = trend to a change.

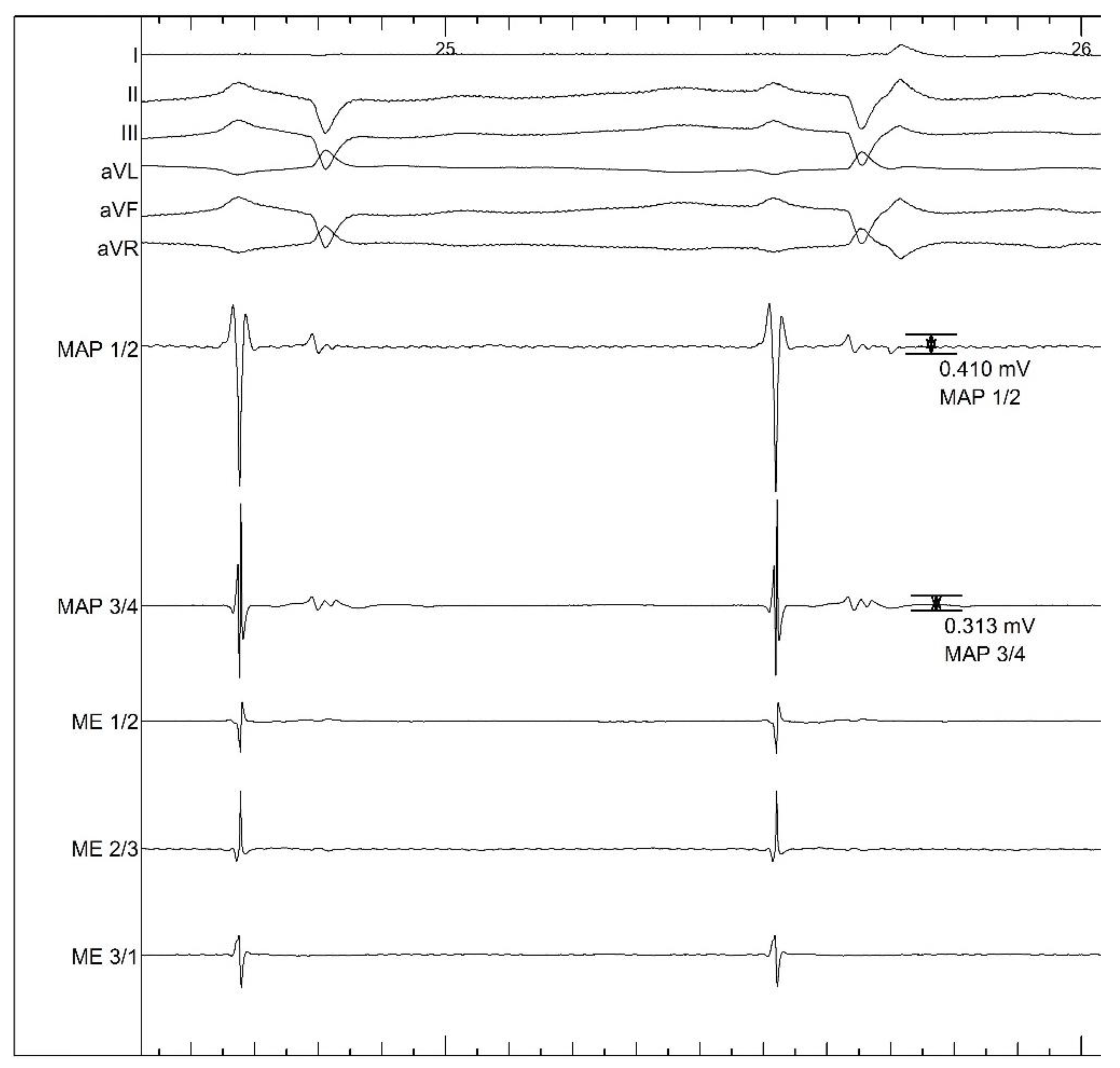

Figure 4.
Atrial signal derived with more ventricular far field signals on conventional electrodes (MAP 1/2, MAP 3/4) compared with mini electrodes (ME1/2, ME2/3, and ME3/1) from an irrigated 4 mm tip catheter with 2 mL/min flow. Paper speed: 100 mm/s.
Figure 4.
Atrial signal derived with more ventricular far field signals on conventional electrodes (MAP 1/2, MAP 3/4) compared with mini electrodes (ME1/2, ME2/3, and ME3/1) from an irrigated 4 mm tip catheter with 2 mL/min flow. Paper speed: 100 mm/s.
Table 1.
Signal Duration: Comparison of IntellaTip MiFi XP (8 mm tip) and Intellatip MiFi OI (4 mm tip, 2 ml/min flow rate) with different angulations (tangential, 45°, and 90°): mean and standard deviation (SD) of electrograms from conventional bipolar tip electrodes (MAP 1/2) as well as from mini electrodes (ME 1/2, ME 2/3, ME 3/1). Statistics: repeated ANOVA, and in the case of significance, paired Student’s t-test, p ≤ 0.05 considered significant.
Table 1.
Signal Duration: Comparison of IntellaTip MiFi XP (8 mm tip) and Intellatip MiFi OI (4 mm tip, 2 ml/min flow rate) with different angulations (tangential, 45°, and 90°): mean and standard deviation (SD) of electrograms from conventional bipolar tip electrodes (MAP 1/2) as well as from mini electrodes (ME 1/2, ME 2/3, ME 3/1). Statistics: repeated ANOVA, and in the case of significance, paired Student’s t-test, p ≤ 0.05 considered significant.
| Channel | Tangential | 45 Degree | 90 Degree | p ANOVA | |||
|---|---|---|---|---|---|---|---|
| Duration Mean | Duration SD | Duration Mean | Duration SD | Duration Mean | Duration SD | ||
| MiFi XP | |||||||
| MAP 1/2 | 23.47 | 24.62 | 34.27 | 32.45 | 71.00 | 43.59 | 0.278 |
| ME 1/2 | 75.20 | 73.69 | 14.27 | 2.96 | 15.13 | 3.20 | 0.214 |
| ME 2/3 | 59.87 | 55.93 | 24.07 | 25.29 | 16.67 | 2.89 | 0.353 |
| ME 3/1 | 89.00 | 67.34 | 25.60 | 24.80 | 21.80 | 2.94 | 0.159 |
| MiFi OI | |||||||
| MAP 1/2 | 33.73 | 25.14 | 21.13 | 3.96 | 20.47 | 2.20 | 0.524 |
| ME 1/2 | 70.80 | 76.54 | 15.87 | 5.46 | 26.53 | 18.61 | 0.359 |
| ME 2/3 | 68.87 | 67.70 | 43.40 | 39.40 | 23.80 | 15.01 | 0.525 |
| ME 3/1 | 63.07 | 55.31 | 28.20 | 25.07 | 22.40 | 15.42 | 0.385 |
Table 2.
Signal Integral: Comparison of IntellaTip MiFi XP (8 mm tip) and Intellatip MiFi OI (4 mm tip, 2 ml/min flow rate) with different angulations (tangential, 45°, and 90°): mean and standard deviation (SD) of electrograms from conventional bipolar tip electrodes (MAP 1/2) as well as from mini electrodes (ME 1/2, ME 2/3, ME 3/1). Statistics: repeated ANOVA, and in the case of significance, paired Student’s t-test, p ≤ 0.05 considered significant.
Table 2.
Signal Integral: Comparison of IntellaTip MiFi XP (8 mm tip) and Intellatip MiFi OI (4 mm tip, 2 ml/min flow rate) with different angulations (tangential, 45°, and 90°): mean and standard deviation (SD) of electrograms from conventional bipolar tip electrodes (MAP 1/2) as well as from mini electrodes (ME 1/2, ME 2/3, ME 3/1). Statistics: repeated ANOVA, and in the case of significance, paired Student’s t-test, p ≤ 0.05 considered significant.
| Channel | Tangential | 45 Degree | 90 Degree | p tang vs. 45 | p tang vs. 90 | p 45 vs. 90 | ANOVA | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Integral Mean | Integral SD | Integral Mean | Integral SD | Integral Mean | Integral SD | |||||
| MiFi XP | ||||||||||
| MAP 1/2 | 32.97 | 20.54 | 16.68 | 10.63 | 8.60 | 2.63 | 0.165 | |||
| ME 1/2 | 2.34 | 2.64 | 7.38 | 5.32 | 12.15 | 4.44 | 0.216 | 0.030 | 0.299 | 0.071 |
| ME 2/3 | 3.81 | 6.22 | 10.52 | 8.31 | 5.68 | 4.53 | 0.453 | |||
| ME 3/1 | 1.12 | 1.60 | 3.85 | 2.83 | 3.77 | 1.78 | 0.471 | |||
| MiFi OI | ||||||||||
| MAP 1/2 | 28.29 | 22.63 | 32.44 | 17.57 | 25.51 | 11.18 | 0.892 | |||
| ME 1/2 | 4.86 | 4.69 | 3.48 | 2.71 | 2.26 | 0.98 | 0.629 | |||
| ME 2/3 | 6.72 | 6.48 | 2.63 | 0.52 | 4.21 | 2.55 | 0.497 | |||
| ME 3/1 | 7.66 | 9.70 | 4.27 | 2.67 | 5.24 | 1.92 | 0.824 | |||
Table 3.
Signal Kurtosis: Comparison of IntellaTip MiFi XP (8 mm tip) and Intellatip MiFi OI (4 mm tip, 2 ml/min flow rate) with different angulations (tangential, 45°, and 90°): mean and standard deviation (SD) of electrograms from conventional bipolar tip electrodes (MAP 1/2) as well as from mini electrodes (ME 1/2, ME 2/3, ME 3/1). Statistics: repeated ANOVA, and in the case of significance, paired Student’s t-test, p ≤ 0.05 considered significant.
Table 3.
Signal Kurtosis: Comparison of IntellaTip MiFi XP (8 mm tip) and Intellatip MiFi OI (4 mm tip, 2 ml/min flow rate) with different angulations (tangential, 45°, and 90°): mean and standard deviation (SD) of electrograms from conventional bipolar tip electrodes (MAP 1/2) as well as from mini electrodes (ME 1/2, ME 2/3, ME 3/1). Statistics: repeated ANOVA, and in the case of significance, paired Student’s t-test, p ≤ 0.05 considered significant.
| Channel | Tangential | 45 Degree | 90 Degree | ANOVA | |||
|---|---|---|---|---|---|---|---|
| Kurtosis Mean | Kurtosis SD | Kurtosis Mean | Kurtosis SD | Kurtosis Mean | Kurtosis SD | ||
| MiFi XP | |||||||
| MAP 1/2 | 22.72 | 2.58 | 28.12 | 10.40 | 25.47 | 7.35 | 0.640 |
| ME 1/2 | 33.02 | 19.57 | 36.43 | 16.30 | 31.33 | 8.65 | 0.926 |
| ME 2/3 | 39.76 | 25.71 | 43.96 | 16.70 | 30.13 | 6.48 | 0.684 |
| ME 3/1 | 30.78 | 19.04 | 35.44 | 14.03 | 22.99 | 9.70 | 0.233 |
| MiFi OI | |||||||
| MAP 1/2 | 22.08 | 3.36 | 20.05 | 4.09 | 18.03 | 2.67 | 0.404 |
| ME 1/2 | 19.19 | 9.07 | 33.14 | 11.85 | 21.46 | 7.19 | 0.231 |
| ME 2/3 | 28.92 | 24.10 | 42.15 | 24.63 | 24.27 | 4.35 | 0.548 |
| ME 3/1 | 42.22 | 20.44 | 30.06 | 10.08 | 43.89 | 10.59 | 0.513 |
Table 4.
Signal Amplitude: Comparison of IntellaTip MiFi XP (8 mm tip) and Intellatip MiFi OI (4 mm tip, 2 ml/min flow rate) with different angulations (tangential, 45°, and 90°): mean and standard deviation (SD) of electrograms from conventional bipolar tip electrodes (MAP 1/2) as well as from mini electrodes (ME 1/2, ME 2/3, ME 3/1). Statistics: repeated ANOVA, and in the case of significance, paired Student’s t-test, p ≤ 0.05 considered significant.
Table 4.
Signal Amplitude: Comparison of IntellaTip MiFi XP (8 mm tip) and Intellatip MiFi OI (4 mm tip, 2 ml/min flow rate) with different angulations (tangential, 45°, and 90°): mean and standard deviation (SD) of electrograms from conventional bipolar tip electrodes (MAP 1/2) as well as from mini electrodes (ME 1/2, ME 2/3, ME 3/1). Statistics: repeated ANOVA, and in the case of significance, paired Student’s t-test, p ≤ 0.05 considered significant.
| Channel | Tangential | 45 Degree | 90 Degree | ANOVA | |||
|---|---|---|---|---|---|---|---|
| Amplitude Mean | Amplitude SD | Amplitude Mean | Amplitude SD | Amplitude Mean | Amplitude SD | ||
| MiFi XP | |||||||
| MAP 1/2 | 4.32 | 1.89 | 3.03 | 1.06 | 2.24 | 0.30 | 0.202 |
| ME 1/2 | 1.08 | 0.90 | 2.05 | 0.83 | 2.65 | 0.54 | 0.108 |
| ME 2/3 | 1.29 | 1.27 | 2.74 | 1.38 | 1.90 | 0.80 | 0.359 |
| ME 3/1 | 0.81 | 0.64 | 1.64 | 0.79 | 1.40 | 0.46 | 0.438 |
| MiFi OI | |||||||
| MAP 1/2 | 3.51 | 2.05 | 3.81 | 1.24 | 3.56 | 0.89 | 0.962 |
| ME 1/2 | 1.46 | 1.17 | 1.38 | 0.51 | 1.14 | 0.38 | 0.890 |
| ME 2/3 | 1.84 | 1.72 | 1.36 | 0.30 | 1.52 | 0.63 | 0.851 |
| ME 3/1 | 2.01 | 1.95 | 1.56 | 0.63 | 1.79 | 0.44 | 0.881 |
Table 5.
Comparison of IntellaTip MiFi OI with different irrigation flow rates of 2 ml/min and 10 mL/min: mean and standard deviation (SD) of electrograms from conventional bipolar electrodes (MAP 1/2, MAP 3/4, MAP 2/3) as well as from mini electrodes (ME 1/2, ME 2/3, ME 3/1). Statistics: paired Student’s t-test, p ≤ 0.05 considered significant.
Table 5.
Comparison of IntellaTip MiFi OI with different irrigation flow rates of 2 ml/min and 10 mL/min: mean and standard deviation (SD) of electrograms from conventional bipolar electrodes (MAP 1/2, MAP 3/4, MAP 2/3) as well as from mini electrodes (ME 1/2, ME 2/3, ME 3/1). Statistics: paired Student’s t-test, p ≤ 0.05 considered significant.
| Irrigation | 2 mL Flow | 10 mL Flow | 2 mL Flow | 10 mL Flow | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Channel | Duration Mean | Duration SD | Duration Mean | Duration SD | p-Value | Integral Mean | Integral SD | Integral Mean | Integral SD | p-Value |
| MAP 1/2 | 25.11 | 15.68 | 56.04 | 54.54 | 0.000 | 28.75 | 17.58 | 20.41 | 19.89 | 0.037 |
| MAP 3/4 | 25.67 | 31.47 | 34.78 | 41.82 | 0.244 | 11.38 | 10.63 | 11.47 | 17.04 | 0.977 |
| MAP 2/3 | 65.78 | 53.25 | 78.52 | 58.60 | 0.281 | 3.63 | 3.85 | 3.58 | 4.65 | 0.961 |
| ME 1/2 | 37.73 | 50.62 | 51.80 | 55.24 | 0.209 | 3.53 | 3.29 | 3.09 | 3.46 | 0.538 |
| ME 2/3 | 45.36 | 48.70 | 52.33 | 52.44 | 0.513 | 4.52 | 4.30 | 3.20 | 4.02 | 0.135 |
| ME 3/1 | 37.89 | 39.73 | 49.65 | 55.38 | 0.248 | 5.72 | 5.96 | 5.56 | 6.62 | 0.905 |
| MAP 1/2 | 20.06 | 3.74 | 18.62 | 6.25 | 0.188 | 3.65 | 1.46 | 3.02 | 1.62 | 0.058 |
| MAP 3/4 | 34.32 | 11.55 | 24.38 | 10.37 | 0.000 | 2.67 | 1.60 | 2.19 | 1.88 | 0.196 |
| MAP 2/3 | 19.83 | 6.11 | 18.22 | 6.11 | 0.214 | 1.04 | 0.58 | 1.26 | 1.28 | 0.296 |
| ME 1/2 | 24.60 | 11.20 | 26.74 | 13.34 | 0.410 | 1.32 | 0.76 | 1.23 | 0.86 | 0.600 |
| ME 2/3 | 31.78 | 21.04 | 26.87 | 13.96 | 0.192 | 1.57 | 1.07 | 1.18 | 0.77 | 0.045 |
| ME 3/1 | 38.72 | 15.49 | 27.29 | 12.83 | 0.000 | 1.79 | 1.20 | 1.61 | 1.12 | 0.475 |
Table 6.
Comparison of mean coefficient of variation (CV) of amplitude, kurtosis, and duration of signals between interconnection and the corresponding mini electrode bipolar (if no corresponding ME 1/2 was chosen) of a 4 mm irrigated tip with a flow rate of 2 mL/min. Abbreviations: M conventional tip/ring electrodes, ME mini electrodes. p-value calculated with paired Student’s t-test.
Table 6.
Comparison of mean coefficient of variation (CV) of amplitude, kurtosis, and duration of signals between interconnection and the corresponding mini electrode bipolar (if no corresponding ME 1/2 was chosen) of a 4 mm irrigated tip with a flow rate of 2 mL/min. Abbreviations: M conventional tip/ring electrodes, ME mini electrodes. p-value calculated with paired Student’s t-test.
| Channel | Amplitude Mean CV | p-Value | Kurtosis Mean CV | p-Value | Duration Mean CV | p-Value |
|---|---|---|---|---|---|---|
| M 1/2 | 0.39 | 0.600 | 0.17 | 0.287 | 0.34 | 0.444 |
| ME 1/2 | 0.53 | n.a. | 0.40 | n.a. | 0.59 | n.a. |
| ME 2/3 | 0.57 | n.a. | 0.59 | n.a. | 0.55 | n.a. |
| ME 3/1 | 0.58 | n.a. | 0.36 | n.a. | 0.77 | n.a. |
| M1-ME1 | 0.25 | 0.493 | 0.37 | 0.908 | 0.31 | 0.156 |
| M1-ME2 | 0.34 | 0.781 | 0.45 | 0.641 | 0.29 | 0.122 |
| M1-ME3 | 0.27 | 0.741 | 0.36 | 0.987 | 0.30 | 0.150 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Bickel, K.; Lewalter, T.; Fischer, J.; Baumgartner, C.; Hoppmann, P.; Tiemann, K.; Jilek, C. Value of Mini Electrodes for Mapping Myocardial Arrhythmogenic Substrate—The Influence of Tip-to-Tissue Angulation and Irrigation Flow on Signal Quality. J. Vasc. Dis. 2022, 1, 3-12. https://doi.org/10.3390/jvd1010002
AMA Style
Bickel K, Lewalter T, Fischer J, Baumgartner C, Hoppmann P, Tiemann K, Jilek C. Value of Mini Electrodes for Mapping Myocardial Arrhythmogenic Substrate—The Influence of Tip-to-Tissue Angulation and Irrigation Flow on Signal Quality. Journal of Vascular Diseases. 2022; 1(1):3-12. https://doi.org/10.3390/jvd1010002
Chicago/Turabian StyleBickel, Karen, Thorsten Lewalter, Johannes Fischer, Christine Baumgartner, Petra Hoppmann, Klaus Tiemann, and Clemens Jilek. 2022. "Value of Mini Electrodes for Mapping Myocardial Arrhythmogenic Substrate—The Influence of Tip-to-Tissue Angulation and Irrigation Flow on Signal Quality" Journal of Vascular Diseases 1, no. 1: 3-12. https://doi.org/10.3390/jvd1010002
APA StyleBickel, K., Lewalter, T., Fischer, J., Baumgartner, C., Hoppmann, P., Tiemann, K., & Jilek, C. (2022). Value of Mini Electrodes for Mapping Myocardial Arrhythmogenic Substrate—The Influence of Tip-to-Tissue Angulation and Irrigation Flow on Signal Quality. Journal of Vascular Diseases, 1(1), 3-12. https://doi.org/10.3390/jvd1010002
