Clear Night Sky Polarization Patterns Under the Super Blue Blood Moon

Abstract

Investigating celestial polarization patterns in the case of different environments is important for exploring the atmospheric radiative transfer mechanism. Although intensive studies on clear sky, foggy sky, and even total solar eclipse sky have been conducted, the polarization distribution generated by the moonlight has not been well investigated. This study analyzes celestial polarization patterns generated by the Super Blue Blood Moon (SBBM) through several comparative studies. The polarization patterns under the SBBM are collected, analyzed, and compared with both those generated by the ideal single-scattering Rayleigh model and those in the normal sky. From the analysis of the relative variation of the celestial polarization characteristics including the Degree of Polarization (DoP) and Angle of Polarization (AoP), the changes of the extremum, frequency, symmetric line, and neutral points are discussed. As a result, SBBM polarization patterns change at the beginning of the partial eclipse, and the neutral points vary from traditional neutral points. The value of DoP gradually decreases as the obscuration ratio of the Moon increases. The AoP is no longer symmetrical about the celestial meridian. As a conclusion, it is suggested that the variation of the polarized skylight during the SBBM should be considered in atmospheric model calculation for nocturnal biological activity and navigation information computation.

1. Introduction

Caused by atmospheric scattering, skylight polarization significantly impacts biological orientation [1,2,3]. Many animals, including bees [4], bats [5], spiders [6,7], and dung beetles [8], can sense the polarized light generated by sunlight or moonlight. The polarized light serves as a compass cue [9,10]. In other applications, skylight polarization is a viable option for navigation [11,12] and remote sensing [13,14]. It is commonly used to obtain the attitude and position of carriers [15] and to detect atmospheric composition or optical properties [16,17]. Recently, atmospheric polarization applications have expanded to include atmospheric sunlit sky polarization [18], in-water polarization [19,20], and moonlit sky polarization [21,22].

In measuring skylight polarization, the influence of different environmental factors (e.g., cloud and fog) [23] must be considered. This is integral to investigations in polarized radiance distribution. A radiative transfer model based on the measurement of the intensity, color, and polarization of sky during a total solar eclipse was developed by [24]. The effects of different aerosol particles on celestial polarization patterns were investigated in [25] by using the radiative transfer model. Furthermore, the polarization was used for aerosol retrieval [26,27,28] as it was able to provide more information than intensity. Other than that, the relationship between aerosol optical thickness and clouds with the stability of celestial polarization patterns was investigated in [29]. Sky polarization patterns have been detected not only under a clear sky [30], but also under a foggy sky [31] and an overcast sky [32]. Studies indicated that the Angle of Polarization (AoP) was a very robust pattern under all possible sky conditions, whereas the Degree of Polarization (DoP) differed considerably from that of corresponding clear sky.

Polarization patterns exist in various conditions. This includes environmental variation, as well as light source variation. In 2001, the polarization patterns of the moonlit sky were investigated [33]. The main polarization characteristics (DoP and AoP) in the sunlit sky and moonlit sky were compared. It was found that celestial polarization patterns were practically identical if the zenith angle of the Moon was identical to that of the Sun. In 2011, lunar skylight polarization signals polluted by urban lighting were studied [34]. As a result, lunar skylight was clearly visible at 28 km away from the urban center of light pollution. Recently, a study on the skylight polarization patterns of both sunlit and moonlit skies over the ocean was performed [35]. These experiments showed that celestial polarization patterns over the sea had extremely similar patterns to those over the land.

The above studies demonstrated the stability of celestial polarization patterns among varying environments, varying light sources, and varying locations. In contrast, during a total solar eclipse, variant polarization characteristics were observed. The DoP and AoP were considerably different, and the neutral point of skylight polarization near the zenith existed during totality [36,37,38]. To further investigate the differences in celestial patterns, this study addresses the polarization patterns of a special phenomenon, the Super Blue Blood Moon (SBBM).

The SBBM is a spectacular natural phenomenon that takes place when the blue Moon (the second Full Noon in a calendar month), Super Moon (the Moon is closer to its perigee), and Blood Moon (the typical red color of the Moon during a total lunar eclipse) occur simultaneously. During this phenomenon, the Moon is sheltered by the Earth for several hours. Underlying celestial polarization patterns vary according to the illuminant. Several studies on nocturnal animal behaviors during a lunar eclipse were conducted. The hunting activity of bats was significantly higher during the lunar eclipse than before and after when the Full Moon was visible [39,40]. A series of behavioral experiments confirmed that a total lunar eclipse could cause abrupt cessation of the red-fronted lemurs’ activity [41]. The vertical migration of Meganyctiphanes norvegica was also influenced during the lunar eclipse [42]. Adult mosquito flight activity was monitored during a total eclipse of the Moon. It was observed that the numbers of each species changed during the lunar eclipse [43]. Therefore, the lunar eclipse has an effect on the creatures’ activities. However, few works exist on the celestial polarization patterns specifically under the SBBM. The polarization properties investigated during solar eclipses [24,44] can inform investigations surrounding the SBBM and have provided a foundational background for this investigation. This study aims to identify changes in polarization patterns during the SBBM and compare these to patterns under a normal sky.

To investigate the polarization patterns generated by the SBBM, polarization data were collected with a polarimetric camera. The variation in celestial polarization patterns was recorded, from the beginning of the partial eclipse to its end. The polarization characteristics were then simulated based on the single-scattering Rayleigh model [45], according to the locational environment of the experimental data. The divergence of the polarization patterns under the SBBM from those of the theoretical model was then considered. Additionally, the polarization patterns under the SBBM were compared with the normal polarization patterns measured on the day after the eclipse. In the analyses of the relative variation in celestial polarization characteristics, the changes in extremum, frequency, symmetric line, and neutral points are discussed. Focusing on the changes of celestial polarization patterns during the SBBM, the contributions of this work can be summarized as follows. (1) The celestial polarization patterns generated by the SBBM are analyzed by a series of comparative experiments including the patterns in both normal sky and ideal sky. (2) The major characteristics of celestial polarization that can reflect atmospheric optical properties and affect animal behaviors are discussed. (3) The connection between the skylight polarization patterns and the stage of total lunar eclipse is summarized. Atmospheric optical phenomena associated with lunar skylight are always the subject of research. The scattered moonlight forms regular polarization patterns, and the research on these patterns is mainly about the DoP and AoP, which are the most important characteristics in nocturnal celestial polarization patterns. With the extensive applications of skylight polarization in navigation, there is an increasing number of research works on the stability of AoP and DoP in various environments based on imaging polarimetry. The change in skylight polarization during a lunar eclipse has not, however, been noticed. Several biological behavioristics experiments were conducted to study the relationship with the lunar eclipse. However, research of polarization patterns on this phenomenon is still so sporadic that it cannot provide reliable evidence about biological activities.

To the best knowledge of the authors, variations in celestial polarization patterns of a full-sky under the SBBM have never been investigated previously. Accordingly, this study aims to make a preliminary exploration and to afford celestial polarization materials.

2. Methods and Experiments

2.1. Experiments

The experiment was performed at the Xinglong Observatory of the National Astronomical Observatories, Chinese Academy of Sciences, during the SBBM on 31 January 2018. The parameters of this SBBM are shown in

Table 1. Parameters of the Super Blue Blood Moon (SBBM) on 31 January 2018.

Date	31 January 2018	Time Zone: Local Time (LT)
Latitude	${40}^{°}{23}^{\prime }{44}^{″}$ N
Longitude	${117}^{°}{34}^{\prime }{47}^{″}$ E
Time of lunar eclipse	Penumbral begins (first contact):	18:51
	Partial eclipse begins (second contact):	19:48
	Total eclipse begins (third contact):	20:51
	Greatest eclipse:	21:29
	Total eclipse ends (fourth contact):	22:07
	Partial eclipse ends (fifth contact):	23:11
	Penumbral ends (sixth contact):	24:08
Umbral magnitude	1.3155
Penumbral magnitude	2.2941

. In this article, the Local Time (LT), which is equal to UTC+8 (Coordinated Universal Time), was used to indicate the time of the experiments. At the location of the measurement, the entire process of the lunar eclipse was observed from the beginning 19:48 (LT) to the end 23:11 (LT) of the partial eclipse. The sky was clear during the entire stage of the eclipse, and so, cloud interference was avoided.

At the same observatory, a comparative experiment was performed on 1 February 2018. However, in the second observation, the celestial polarization patterns were disturbed by clouds. Thus, only partial patterns between 22:30 (LT) and 23:51 (LT) were recorded. Nevertheless, important patterns could still be recorded.

The imaging polarimetry system was composed of a Nikon D610 equipped with a fisheye lens (SIGMA, F = 3.5, focal length 8mm) and a rotatable polarizing filter ($\varphi$ 72 mm) mounted on the lens. This system was mounted on a tripod for stability during the experiment. The polarizing filter was rotated in four directions ($0^{°}$, ${45}^{°}$, ${90}^{°}$, and ${135}^{°}$), to record a group of four sky images. All instruments were arranged so that the optical axis was parallel to the connection between the zenith and the observer. The parameters of the measurement can be seen in

Table 2. Parameters of the measurement at Local Time (LT).

	1	2	3	4	5	6	7	8	9	10
Recording time (31 January)	19:42	19:49	20:13	20:26	20:52	21:34	22:21	22:39	23:13	23:18
Lunar elevation (${}^{°}$)	26	27	32	34	39	46	54	57	61	62
Recording time (1 February)	22:30	22:37	22:49	22:59	23:31	23:37	23:41	23:51
Lunar elevation (${}^{°}$)	43	44	47	48	53	54	54	56

.

2.2. Methods

2.2.1. Skylight Polarization Calculations

The polarization information is generally represented with the Stokes vector $S=[I,Q,U,V]$ [46], in which, I, Q, U, V represent the total light intensity, the two orthogonal directions’ light intensity, and the circularly-polarized light intensity, respectively. V is negligible in the atmospheric scattering usually [47]. The relationship between the polarization information and the Stokes parameters can be established by measuring light intensity in different polarization directions. In this article, by using the information of light intensity measured in four directions, the DoP and AoP can be calculated by the equation:

$$d=\frac{\sqrt{Q^2+U^2}}{I}$$

(1)

$$\alpha =\frac{1}{2}arctan\left(\frac{U}{Q}\right)$$

(2)

where d and $\alpha$ represent the DoP and AoP of the point observed, respectively. According to the principle of Rayleigh scattering, the E-vector of point observed is perpendicular to the plane composed of the incident light and the scattered light. According to the single-scattering Rayleigh model, the DoP and AoP in the simulation can be expressed as:

$$d=d_{max}\frac{{sin}^2\gamma }{(1+{cos}^2\gamma )}$$

(3)

$$tan\alpha =\frac{(cos\theta sin{\theta }_l-sin\theta cos\left({\phi }_l-\phi \right)cos{\theta }_l)}{(sin\left({\phi }_l-\phi \right)cos{\theta }_l)}$$

(4)

where the value of maximum DoP $d_{max}$ is 1. ${\theta }_l$, ${\phi }_l$ are the elevation angle and azimuth angle of the Moon. $\theta$, $\phi$ are the elevation angle and azimuth angle of the point observed. $\gamma$ is the angular distance between the point observed and the Moon.

2.2.2. Neutral Points Recognition

A neutral point is located in the geometric center of the unpolarized area in DoP. The position of neutral point can be determined by the following procedure. Firstly, a threshold is selected to segment the lowest polarization area of the image. Then, an opening operation is performed based on the image generated above to obtain the maximum connected region as the neutral region. The ellipse fitting algorithm [48] of the least squares principle based on boundary of the connected region is executed to obtain the elliptic equation:

$$f(x,y)=A{x}^2+Bxy+C{y}^2+Dx+Ey+F=0$$

(5)

Minimize the sum of squared distance between the boundary of the connected region $(x_i,y_i),i=1,2,\dots ,n$ and the ellipse to compute the parameters $para=\left(A,B,C,D,E,F\right)$.

$$par{a}^{*}=\underset{para}{argmin}\left\{\sum _{i=1}^n{f}^2\left(x_i,y_i\right)\right\}$$

(6)

Lastly, the coordinate of the center of the ellipse is the position of the neutral point.

3. Results and Discussion

3.1. Variation of Polarization Patterns During SBBM

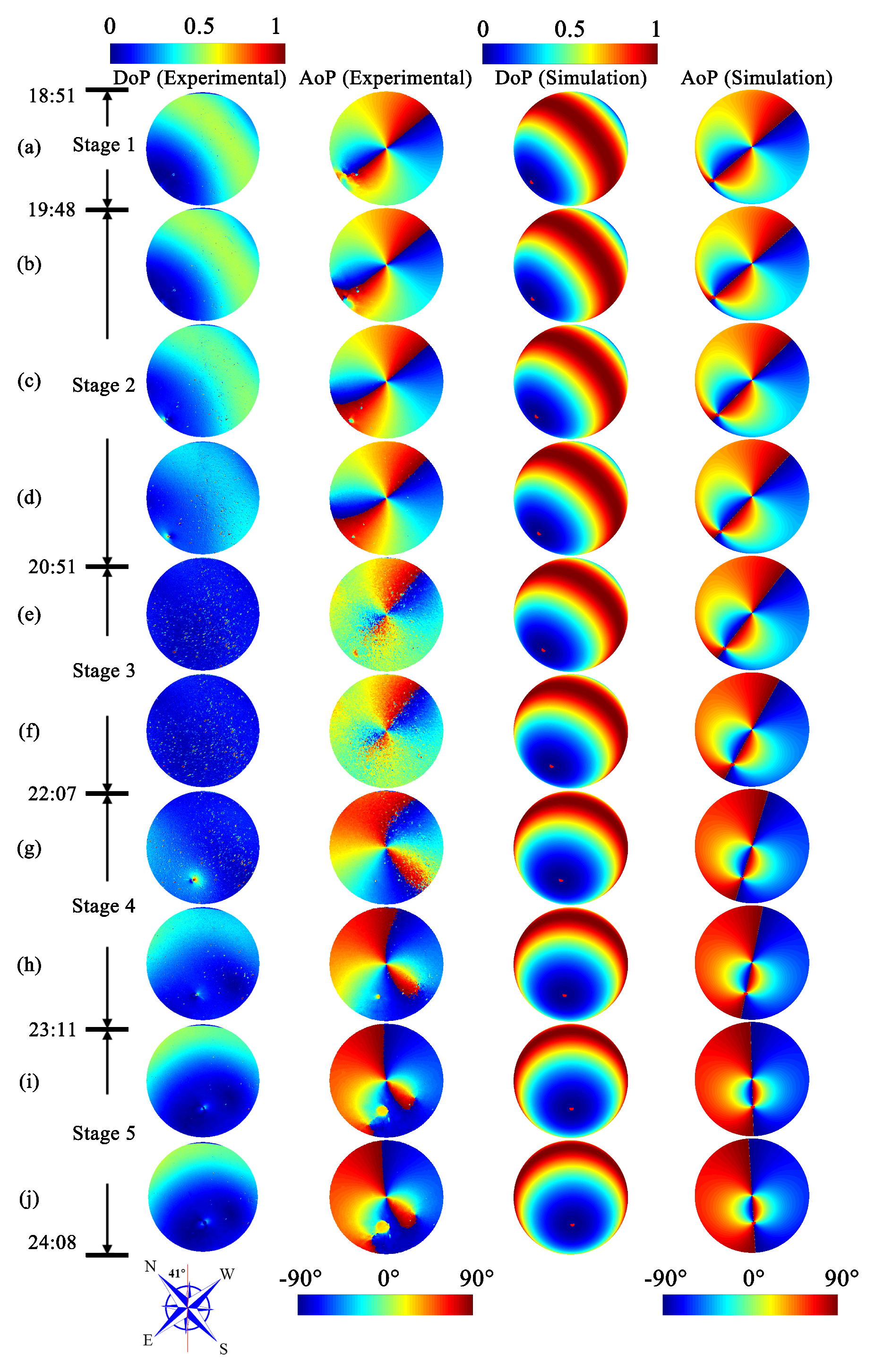

Representative polarization patterns are chronologically ordered in Figure 1. The entire process of the partial and total eclipse from 19:48 (LT) to 23:11 (LT) was recorded. The moments before the second contact (19:48 LT) and after the fifth contact (23:11 LT) are illustrated to compare the change of patterns.

3.1.1. DoP Changes During Eclipse

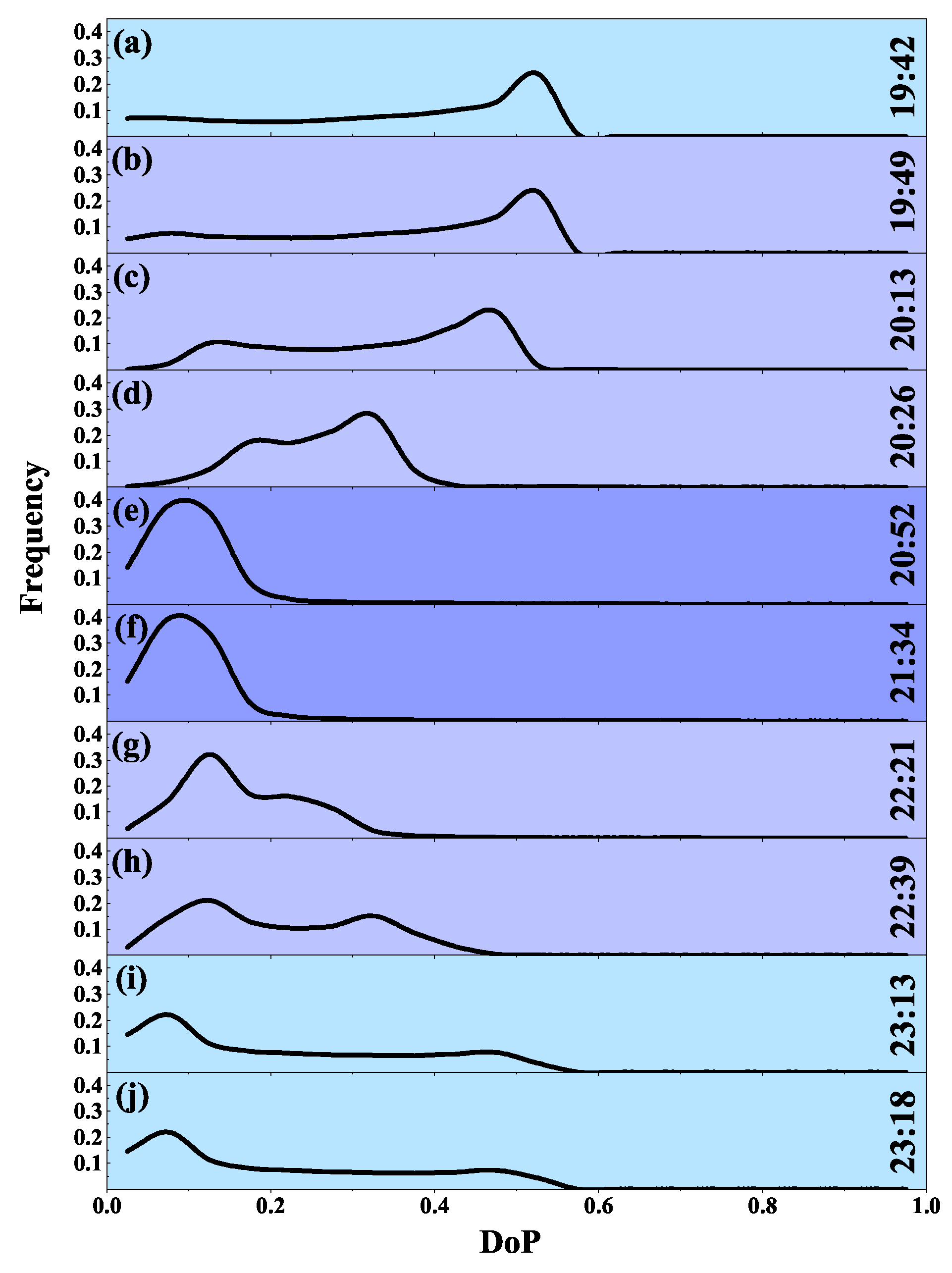

The value of the DoP, which was minimal during the total eclipse (Stage 3), decreased as the obscuration ratio of the Moon disk increased (Figure 1). This could also be seen in the DoP frequency distribution with the passage of time (Figure 2). The lower DoP frequency gradually increased with the advent of the lunar eclipse. During the total eclipse, the lower DoP values dominated the proportion (Figure 2e,f).

In comparing the patterns from measured values to those from the theoretical model simulation, the maximum DoP was located at ${90}^{°}$ away from the Moon and decreased towards the Moon and anti-Moon. This is seen in Figure 1a–f, Figure 1h–j, and Figure 3. Although similar, the characteristic of the DoP along the line parallel to lunar-anti-lunar meridian (Figure 3) was different in specific values at unlikely stages. The maximum DoP of the lunar-anti-lunar meridian gradually decreased from 0.55 to 0.35 during Stage 2 (Figure 3b–d) as the obscuration ratio increased. The maxima in Figure 3g,h also decreased as the obscuration ratio increased. The value at ${60}^{°}$ could not represent the maximum of DoP as the influence of the Moon.

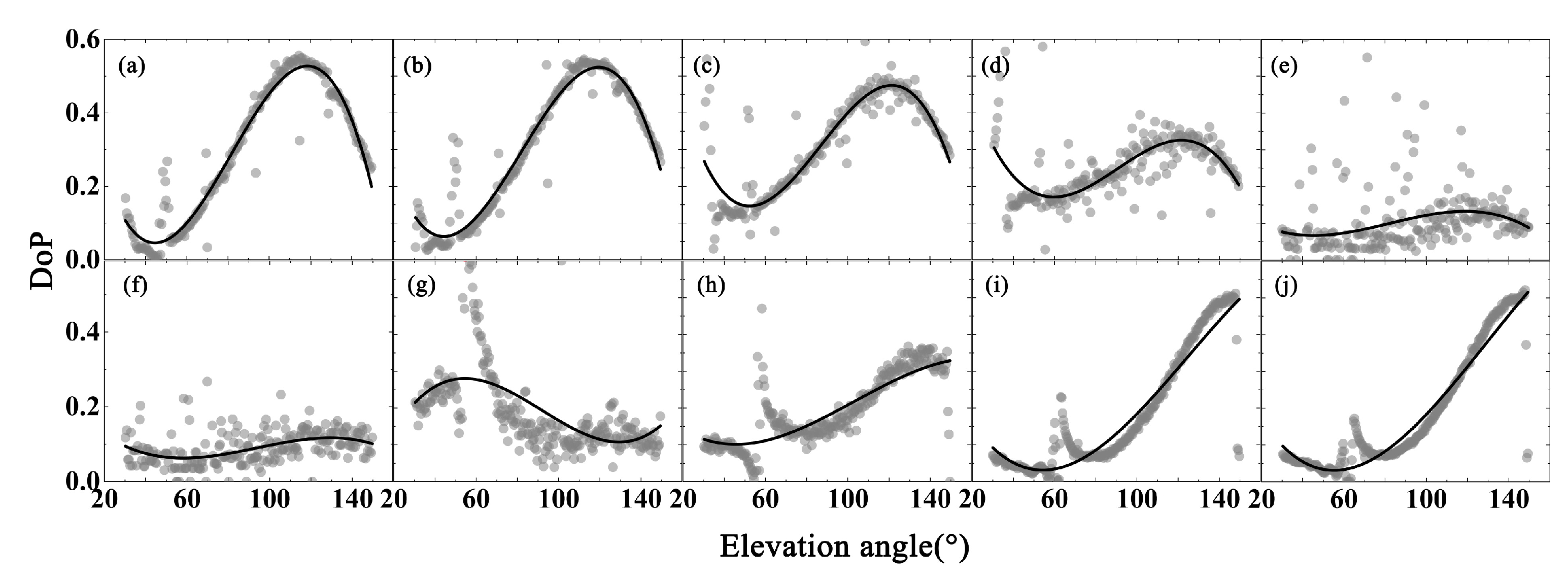

The minimum DoP at Stage 1 was approximately zero (Figure 3a). Within five minutes following the beginning of the partial eclipse, the minimum was nearly 0.025 (Figure 3b). This minimum gradually increased during Stage 2 (Figure 3b–d). This change is also shown in Figure 2c,d, from which the Ratio(DoP < 0.05) is approximated to be zero. In particular, in Figure 2b, Ratio(DoP < 0.05) is greater than 5%. This is likely because Figure 2b is near the beginning of the partial eclipse and thus has a small obscuration percent. The DoP values changed particularly abruptly in the total eclipse (Figure 3e,f). Both the maximum and minimum DoP of lunar-anti-lunar meridian decreased during the total eclipse.

Additionally, the lowest DoP area (usually the region around the neutral point) was not located in the lunar-anti-lunar meridian. The lowest DoP area was located at the position left of the lunar-anti-lunar meridian and right of the lunar-anti-lunar meridian, as can be observed from Figure 1d–g, respectively. It should be noted that there are two unpolarized areas in Figure 1h–j. This also indicated that the symmetric line suffered a change.

The DoP combined with AOP is often used to calculate the celestial compass information in the absence of GNSS (Global Navigation Satellite System). In this process, DoP was used to judge the effectiveness of polarization information as a threshold due to its high sensitivity to the environments. The decreases of DoP values during the SBBM indicated that the effectiveness of DoP declined as navigation information. The resulting uncertainty of the polarization information would reduce the navigation accuracy. Besides, the DoP threshold is also used by animals in their orientation behavior. The polarized light that can be detected by animals must be above the threshold that is able to be perceived [49]. The results mentioned above suggested the DoP decreased as the obscuration ratio increased. Hence, our study could shed light on the influence of SBBM on both the polarization navigation and animals’ activity.

3.1.2. AoP Changes During Eclipse

In comparing the second and forth columns of Figure 1, significant consistency between the measurements and theoretical models in Stage 1 was evident. The patterns in Stage 2 (Figure 1b–d) began to change at 19:49 (Figure 1b), which approached the beginning of the partial eclipse. A point with uncertain AoP directions, which should be located at the lunar-anti-lunar meridian, but was instead farther from the meridian, emerges in Figure 1h. In Stage 5, there were two such points.

Additionally, the symmetric line (boundary between red and blue), which represents the E-vector perpendicular to the lunar-anti-lunar meridian, was not a straight line as in the simulation (forth column of Figure 1). Especially, at Stages 4 and 5, the symmetric line curved away from the lunar meridian instead. During the total eclipse, the symmetric line did not rotate with the change of lunar azimuth.

The celestial polarization patterns had a symmetry plane defined by the celestial zenith and the Moon or Sun. This symmetry allows many creatures to perceive the polarization compass as a navigation cue [50]. The changes in polarization pattern symmetry can enlighten us about the anomalies in biological activity during the lunar eclipse. Besides, this symmetry is also used for autonomous navigation as the azimuth reference. Several navigation algorithms based on the symmetry of polarization patterns were proposed as the AOP images are quite stable under most of the sky conditions [29]. However, these navigation methods may be invalid during the SBBM because of the changes of symmetry.

According to comparisons of the experimental data with the data from the theoretical model, there were several changes in the polarization patterns of the sky during the eclipse. However, because of the differences between the theoretical model and normal polarization patterns, particularly in neutral points, it was essential to compare the polarization patterns of the SBBM night with the normal polarization patterns of moonlit sky.

3.2. Comparison of SBBM and Normal Sky Polarization Patterns

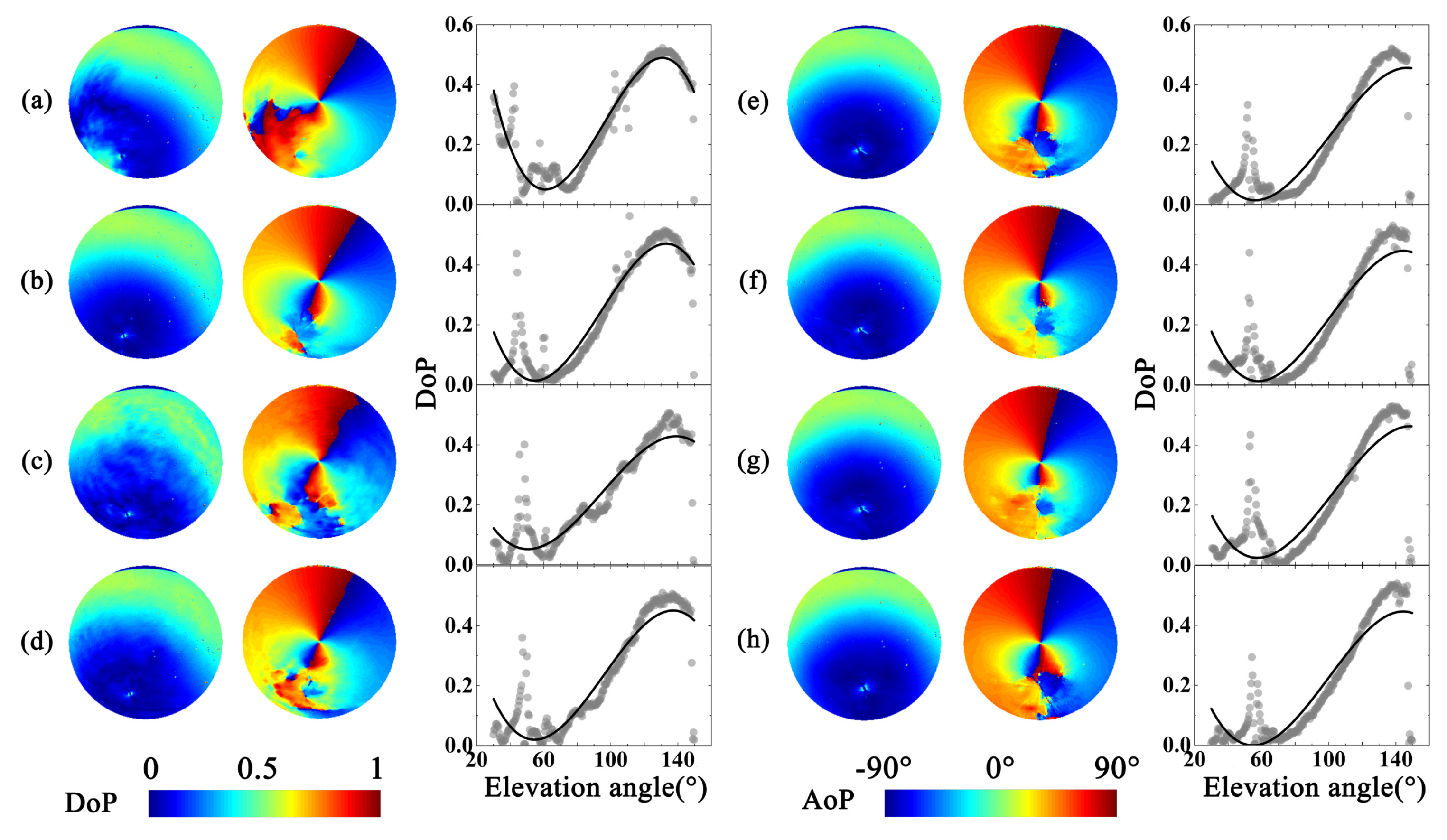

A comparative experiment was performed on 1 February 2018 at the same experiment location as the previous day. The patterns of the comparative measurement are shown in Figure 4. The frequency change of the DoP is shown in Figure 5.

By comparing the polarization patterns in the normal sky with the SBBM night, differences between them can be summarized as follows:

• The symmetric line along the lunar-anti-lunar meridian approximated a straight line in the polarization patterns of the normal night sky at the lunar elevation from ${43}^{°}$ to ${56}^{°}$ during the measurement. In this elevation range, a point with uncertain directions off the lunar-anti-lunar meridian in the AoP does not appear in Figure 4. However, during the SBBM night, the symmetric line started to deviate from the meridian at ${54}^{°}$ of lunar elevation, and the point with uncertain directions in AoP gradually appeared during the course of elevation from ${54}^{°}$ to ${57}^{°}$, reaching total clarity at ${57}^{°}$.
• The lowest DoP area is on the right of lunar-anti-lunar meridian at ${54}^{°}$ of the lunar elevation in Figure 1g. However, this does not exist in Figure 4f,g at the same lunar elevation. Additionally, the lowest DoP area is on the right of the meridian at ${57}^{°}$ lunar elevation (Figure 1h), but there is no such area at similar ${56}^{°}$ lunar elevation of normal sky (Figure 4h).
• The distribution of the DoP gradually concentrated on a lower DoP during the partial eclipse and then converged to values below 0.2 during the total eclipse. In contrast, the distribution of the DoP in the normal sky was more stable.
• Both situations suffered from moonlight disturbance. On the lunar-anti-lunar meridian, the lowest DoP in the normal sky always approached zero. In contrast, the lowest DoP during the lunar eclipse was equal to zero only when the Moon was in the penumbra. This could also be seen in the normal sky Ratio(DoP < 0.05), which was greater than 15% (Figure 5), with the exception of cloud disturbance (Figure 5a–c). Furthermore, the Ratio(DoP < 0.05) of the normal sky was bigger than that during the partial eclipse. The maximum DoP was stable at 0.5 in normal sky, while during the eclipse, the maximum of DoP decreased as the percent obscuration increased.

3.3. Characteristic Analyses of Neutral Points During the Eclipse

Figure 1 shows that the points with the lowest DoP and uncertain directions of AoP took place at Stages 4 and 5. To investigate the relationship between these points and the commonly known neutral points, the points at Stage 5 are analyzed in the sequel.

According to previous studies [38,51], a neutral point like the well-known Arago, Babinet, Brewster, and the fourth neutral point should obey three rules: (1) A neutral point is located in the unpolarized area where the DoP equals zero. (2) The DoP increases along the meridian from the neutral point to ${90}^{°}$ angular distance from the illuminant and then decreases. (3) The AoP suffers a ${90}^{°}$ change from negative polarization (the direction of polarization of scattered light parallel to the main plane of scattering) to positive polarization (the direction of polarization perpendicular to the main plane of scattering), passing through the neutral point along the meridian.

In celestial polarization patterns, a neutral point possesses the lowest DoP where the value always approaches zero. The value of DoP near the neutral point gradually increases with the neutral point as the center. Several studies found that DoP around the neutral point was low and approximated a circle or ellipse in the polarization patterns [52]. Hence, to verify the relationship between the neutral points in the SBBM sky and the traditional neutral points of the normal sky, an ellipse fitting algorithm [48] was used to obtain the geometric center (represented by red points in the graphs measuring DoP) of the unpolarized area (Figure 6). The contour junctions of the AoP are represented by red points in Figure 6. The red points in the DoP graphs are near the position of the corresponding points in the AoP graphs.

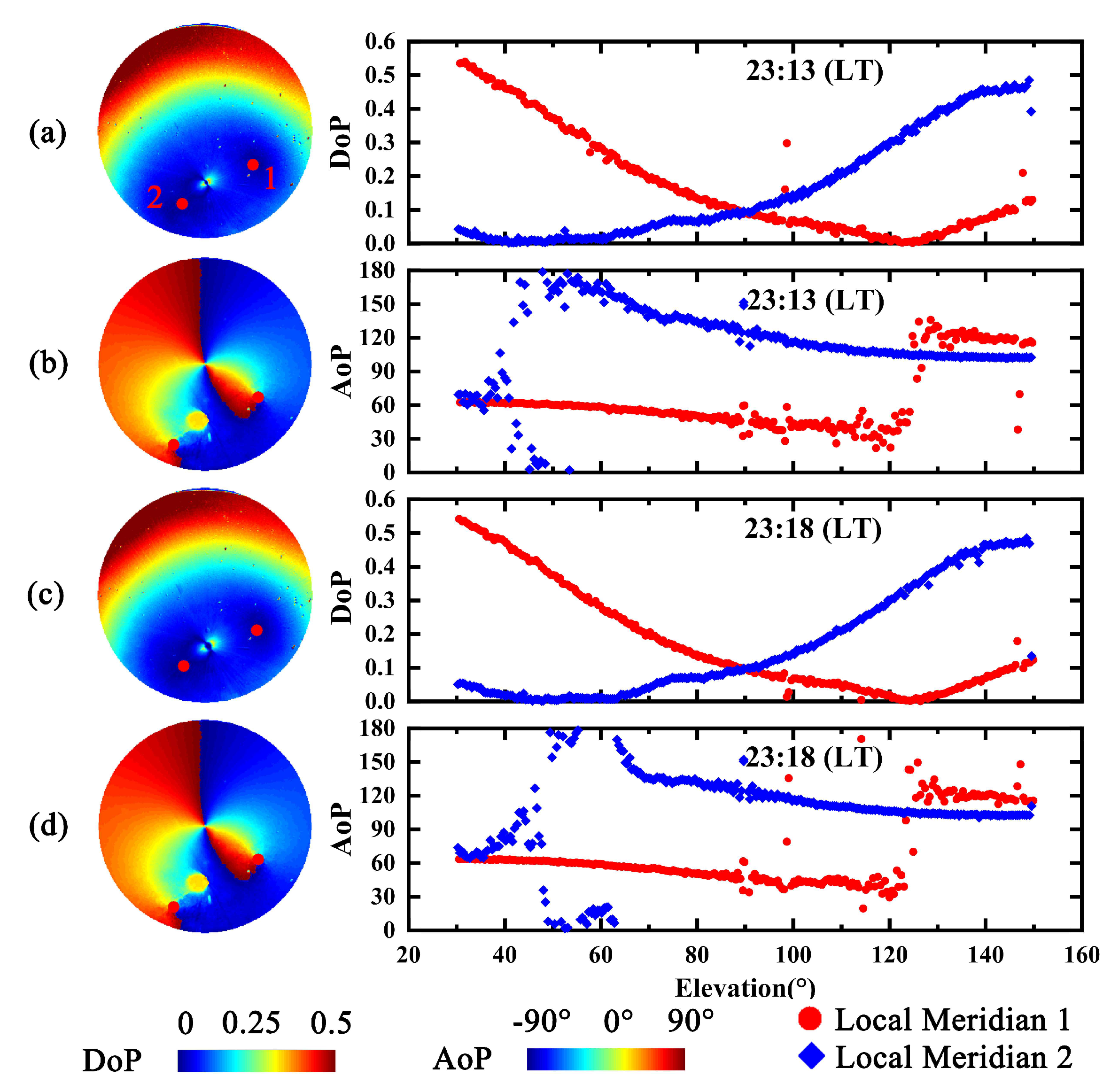

Along the local meridian passing through the red points in Figure 6, the behaviors of the DoP are described on the right of Figure 6. The DoP changes from zero (close to the Moon) to the maximum (away from the Moon) for both of the two neutral points in Figure 6. The maximum DoP value of Neutral Point 1 along the local meridian was larger than that of Point 2. Figure 6b,d shows the AoP value along the local meridian passing through the red points. The AoP value changed by ${90}^{°}$ at Point 1. However, this situation was different from the traditional neutral points, whose AoP value shifted from ${120}^{°}$ to ${30}^{°}$ rather than from ${90}^{°}$ to $0^{°}$. Additionally, the AoP value at Point 2 shifted from ${90}^{°}$ to $0^{°}$. This situation was more consistent with the neutral point definition.

According to the above analyses, the characteristics of the neutral points were largely consistent with the definition of the traditional neutral points of the normal sky. The primary differences were only that the neutral point was not located on the lunar-anti-lunar meridian, and the dramatic change of the AoP did not shift from positive to negative polarization. However, the neutral points did not exist in the single-scattering Rayleigh model or normal skylight polarization patterns. This situation occurred with the advent of SBBM. This was not the first time as besides four traditional neutral points, other neutral points were discovered. The polarization patterns in similar special natural phenomenon were demonstrated by scholars in research on the solar eclipse. A neutral point near the zenith was observed during the total solar eclipse occurring in 1999 [36]. After that, several types of neutral points, which included a type of neutral points with a local minimum of DoP, but no switch of the AoP crossing the points along the meridian, occurring in the total solar eclipse were mentioned by [37]. In addition, the neutral points near the zenith and horizon during the total solar eclipse were observed by [38]. There are reasons to believe that the abnormal celestial polarization patterns typically occur with the special natural phenomenon, and particular neutral points indeed exist in such phenomenon.

4. Conclusions

The atmospheric polarization distribution patterns during the SBBM were investigated. As a result, the celestial polarization patterns during the SBBM night suffered a change at the beginning of the partial eclipse. As the obscuration ratio of the Moon increased, the distribution of the DoP gradually concentrated on a lower DoP. The AoP was asymmetrical about the meridian. The neutral point was not located on the lunar-anti-lunar meridian, and its characteristics were different from the traditional neutral point. The findings in this article have potential application prospects in some fields, especially in understanding the biological perception mechanism. Some influential factors that have potential relationships with various research fields were analyzed, such as the changes of DoP, which is used as a threshold in polarized navigation, and the changes of the symmetry of celestial polarization patterns, which may affect biological activity. This study made a preliminary exploration of the celestial polarization characteristics under the SBBM. However, the polarization patterns that occurred during the SBBM night were complex. It is the intention of the authors that further experiments be conducted and more observational data be obtained to quantify the phenomenon of the SBBM discussed herein.
