Search Results (12)

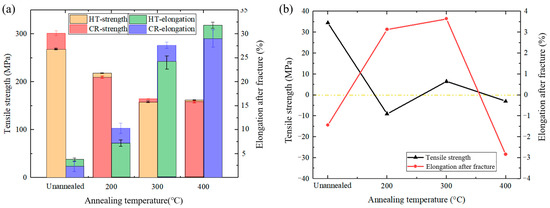

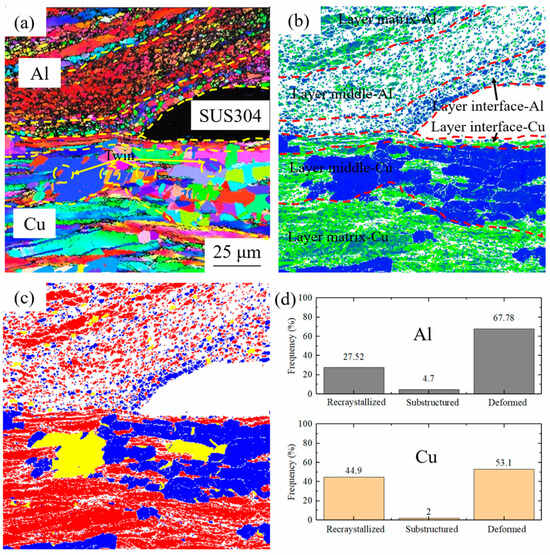

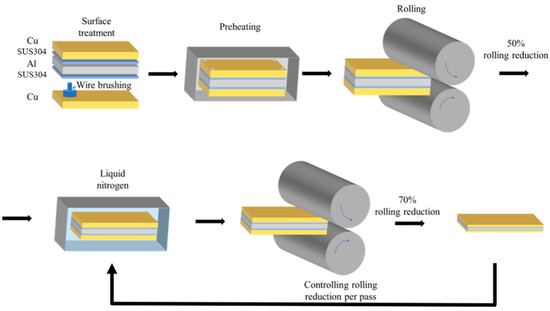

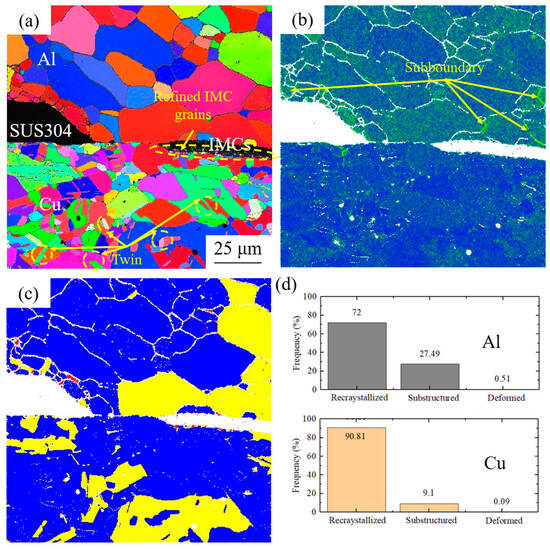

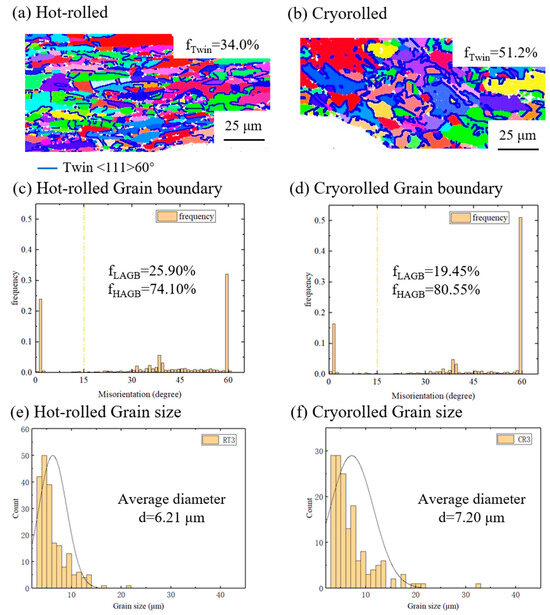

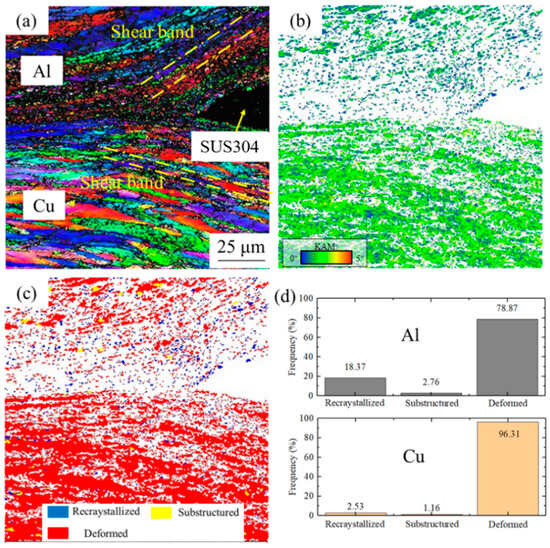

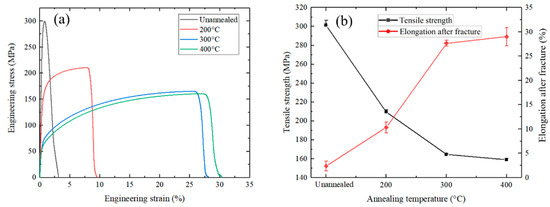

This paper investigates the tensile properties and microstructures of Cu/Al clad sheets with an SUS304 interlayer after cryorolling and subsequent annealing and compares them with hot-rolled samples. The experimental results show that the inhibition of dynamic recovery by cryorolling enables the Cu/Al clad sheets to achieve a tensile strength of 302 MPa. After annealing, the tensile strength sharply drops to 159 MPa, while the elongation recovers to 29.0%. Compared with hot-rolled samples, the tensile strength of cryorolled samples is increased by 13.1% due to the effect of fine-grain strengthening. During the annealing process, the cryorolled samples exhibit improved elongation under a comparable strength with the hot-rolled samples, profiting from the higher degree of recrystallization and a higher proportion of annealing twins. The tensile properties of Cu/Al clad sheet with an SUS304 interlayer are strengthened by cryorolling and subsequent annealing, providing a new method for the fabrication of high-performance Cu/Al clad sheets. Full article

The roll bonding of an experimental Al-2%Cu-2%Mn alloy with technically pure 1050A aluminum at true deformations of 0.26, 0.33 and 0.40 has been simulated using the QForm 10.3.0 FEM software. The flow stress of the Al-2%Cu-2%Mn alloy has been measured in temperature and strain rate ranges of 350–450 °C and 0.1–20 s⁻¹, respectively. The simulation results suggest that the equivalent strain in the cladding layer is more intense than that in the base layer, reaching 1.0, 1.4 and 2.0 at strains of 0.26, 0.33 and 0.40, respectively. The latter fact favors a decrease in the difference between the flow stresses of the rolled sheet layer contact surfaces by an average of 25% at the highest strain. The experimental roll bonding has achieved good layer adhesion for all the test samples. The average peeling strength of the samples produced at strains of 0.26 and 0.33 proves to be 12.6 and 18.4 N/mm, respectively, and at a strain of 0.40, it has exceeded the flow stress of the 1050A alloy cladding layer. The change in the rolling force for different rolling routes has demonstrated the best fit with the experimental data. Full article

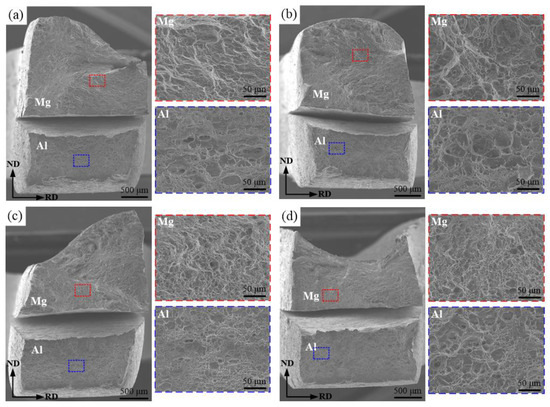

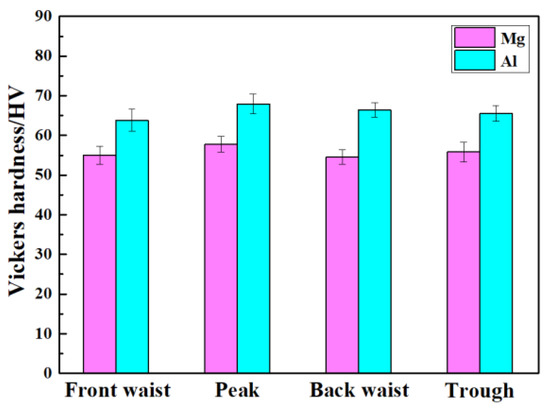

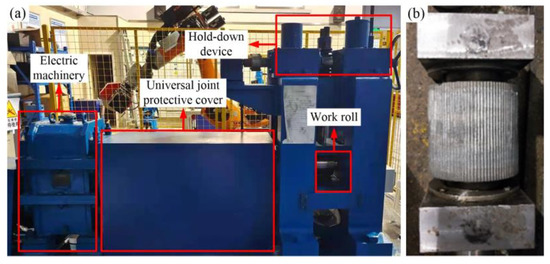

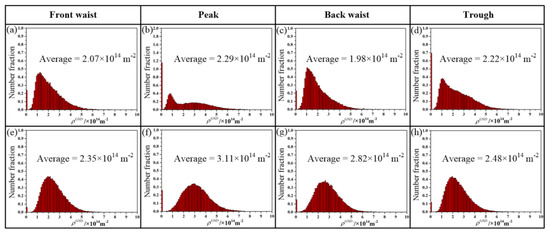

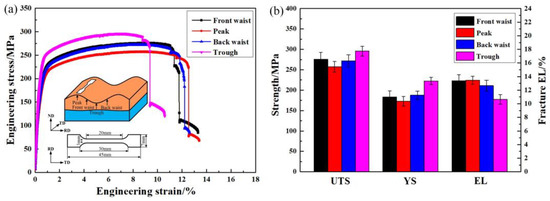

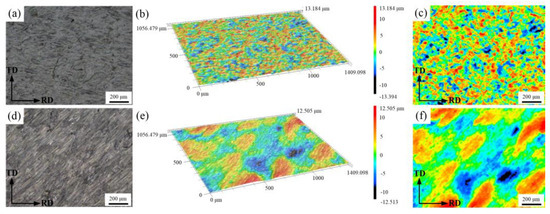

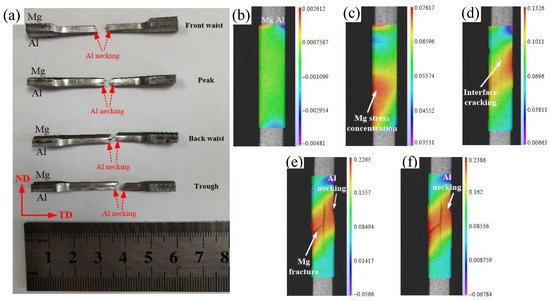

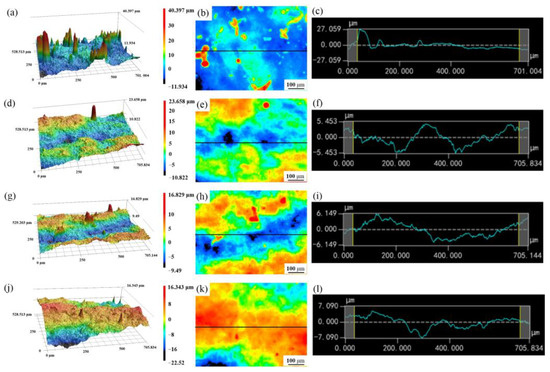

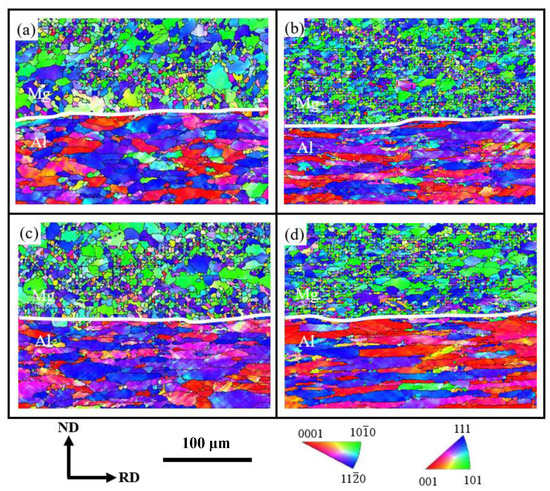

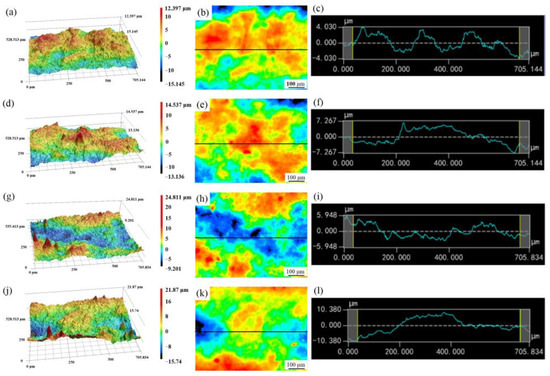

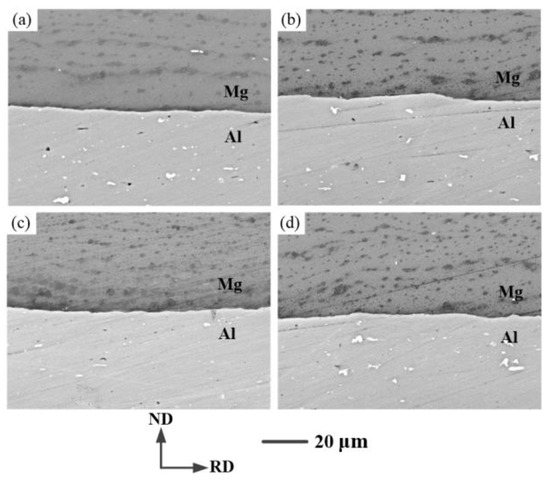

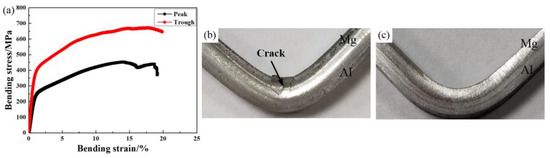

In this research, corrugated Mg/Al clad sheet with good interface bonding was prepared with a rolling mill of upper corrugated roll and a lower flat roll under the conditions of 35% reduction and 400 °C. The mechanical properties of the corrugated Mg/Al clad sheet were studied using the transverse tensile test, Vickers microhardness and as well as its bending properties. Moreover, the interface bonding mechanism of the corrugated clad sheet was researched through three-dimensional contour analysis. The results showed that the UTS at the trough position was the highest (~296 MPa), and that the peak position was the lowest (~257 MPa). The maximum fracture EL at the peak position was ~13.4%, while the minimum fracture EL at the trough position was ~10.6%. In the transverse tensile process, the interface cracked first due to the uneven stress distribution in the matrixes. Then, the Mg sheet broke, and finally the Mg/Al clad sheet failed with final fracturing of the Al sheet. The microhardness of interface metal Al at the four positions was higher than that of the interface metal Mg, which was closely related to the dislocation strengthening of the Al sheet. The interface bonding mechanism of the corrugated Mg/Al clad sheet could be divided into four stages: extrusion deformation, rubbing fracture, compound extension and compound completion. Full article

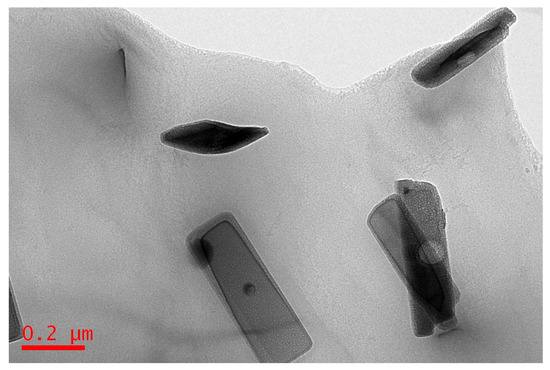

An AlZn4SiPb/steel clad composite was prepared via roll bonding at room temperature. The influence of solution and aging treatment on the structure and performance of the clad composite was investigated. The results show that the Al/steel clad composites exhibited satisfactory interfacial adhesion. Pb of the aged Al matrix was spheroidized and uniformly dispersed. An uneven interfacial transition area with a thickness of 30–150 nm was observed for the aged sample. Some rod-shaped nanoscale β’ phases occurred in the aged Al matrix. After the solution and aging treatment, the steel layer recovered, and the γ-fibre texture increased. The tensile strength for individual Al alloy layer improved. The yield ratio of the aged clad sheet was lower than that of the initial sample. The tensile strength values of the composites were consistent with the computed values from the rule of mixture. The interfacial bonding strength of the initial sample was 70 MPa; the aged sample greatly improved and reached 130 MPa in strength. Full article

The large difference in mechanical properties and plastic deformation ability of each layer will have a great impact on the overall performance of a composite sheet prepared by cold-roll bonding. The effect of rolling and material variables on the stress distribution and bonding state in the rolling deformation zone should be studied. In this work, an accurate cold-rolling deformation model considering the anisotropic effect and position-dependent friction model is established using the slab method. Effects of different process and material variables are analyzed. Related experiments were performed on Ti-Al clads and calculation results from the deformation model were compared with the experimental results. This model can well predict the Ti/Al thickness ratio after rolling, and the smaller the initial aluminum strength, the more accurate the predicted value; the minimum error is within 1%. The deformation coordination between the titanium and aluminum layers becomes better with the increase in rolling reduction and initial aluminum strength. At 50% reduction, the deformation ratio of titanium and aluminum increases from 93.8% to 98.1%, which is consistent with the trend of the results calculated using this model. Full article

In this study, the microstructural evolution and the interaction between the clad and the core alloys that occurs during the brazing process of two-layer Al sheets with equiaxed grains were examined. The study was carried out using optical microscopy (OM), scanning electron microscopy (SEM), transmission electron microscopy (TEM), electron backscatter diffraction (EBSD) and glow discharge optical emission spectrometry (GDOES). The effects of microstructure on the brazing performances of two-layer sheets were clarified. Although the grains were fine and equiaxed before brazing, three typical microstructural evolutions happened during brazing, corresponding to three kinds of interactions between the clad and core alloys of the aluminum brazing sheets. In the alloys, which had either relatively uniform grain growth or no grain growth, the interaction between the clad alloy and the core alloy was weak; accordingly, they showed a smooth surface, an even microstructure, faint element mutual diffusion, and eventually good brazeability. Meanwhile, in the alloy with obvious abnormal grain growth (AGG), strain-induced liquid-film migration (SILFM) occurred when the energy was too low to cause strain-induced boundary migration (SIBM). This led to rough and uneven surface morphology, significant mutual diffusion, and surface segregation of elements; eventually, this produced the worst brazeability. Full article

This work describes the fabrication of AZ91D/A5052 clad strips by direct cladding from molten metals using a horizontal twin roll caster. Subsequently, the effects of roll speed, pouring sequence, and solidification length on the AZ91D/A5052 clad strips were investigated. The AZ91D/A5052 clad strips with a thickness of 4.9 mm were successfully cast at a roll speed of 9 m/min and with a 5 mm roll gap. The cladding ratio of AZ91D/A5052 was about 1:1. The single-roll casting results showed that the experimental solidification constants of AZ91D and A5052 were 62 mm/min^0.5 and 34 mm/min^0.5, respectively. The twin-roll casting results showed that the effect of rolling speed on the surface condition of A5052 was greater than that of AZ91D. In addition, the high melting point A5052 alloy poured into the lower nozzle could solve the remelting problem of the low melting point AZ91D. Moreover, extending the upper solidification distance could reduce the generation of intermetallic compounds. The EDS analysis results showed no voids at the bonding interface, while three intermetallic compound layers were also found at the bonding interface of AZ91D/A5052 strips, namely α-Mg + Mg₁₇Al₁₂, Mg₁₇Al₁₂, and Al₃Mg₂. This study could be instructive for dissimilar sheet metal bonding. Full article

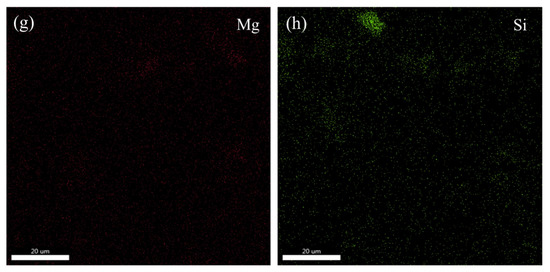

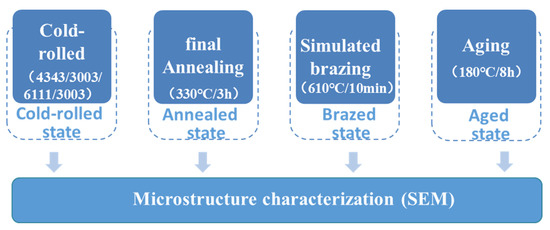

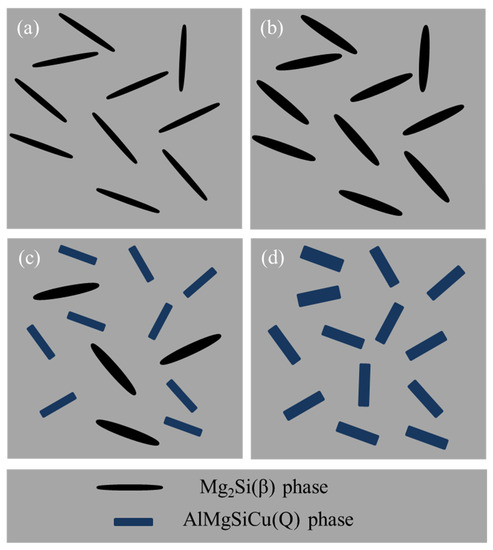

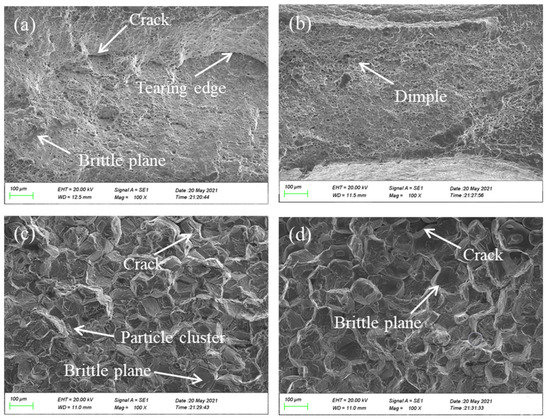

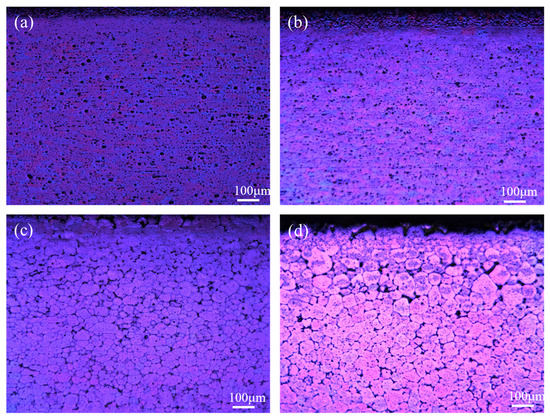

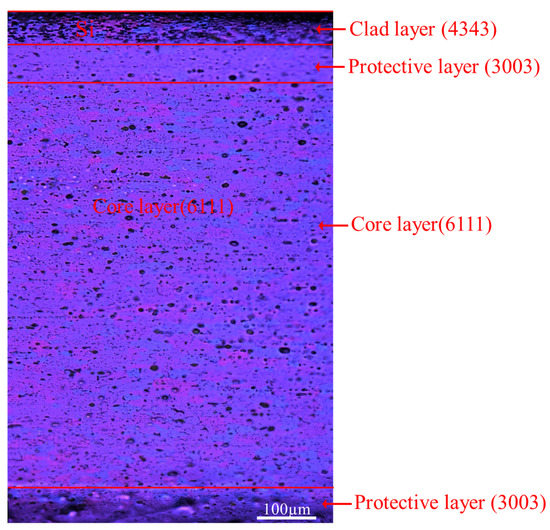

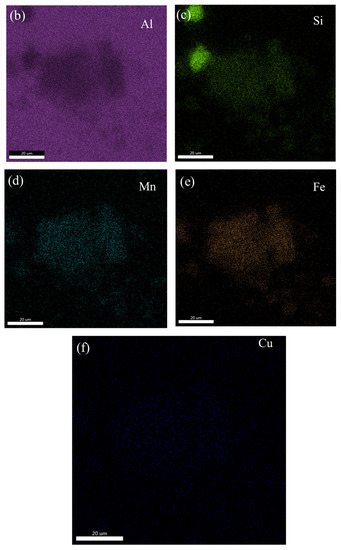

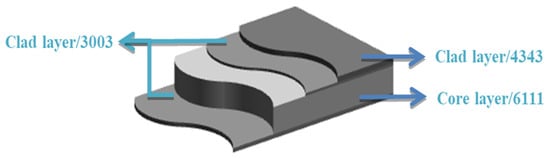

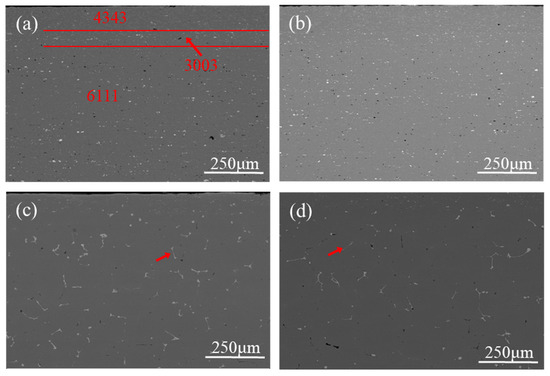

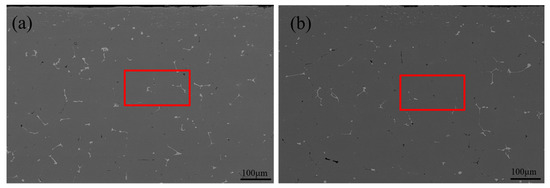

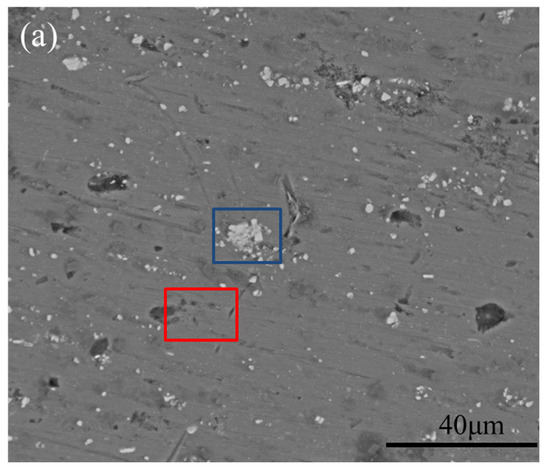

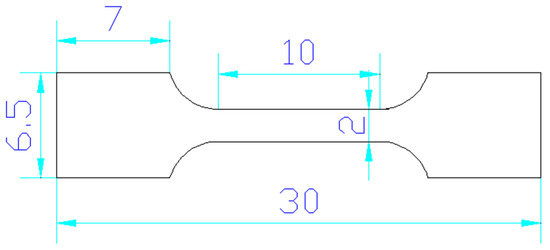

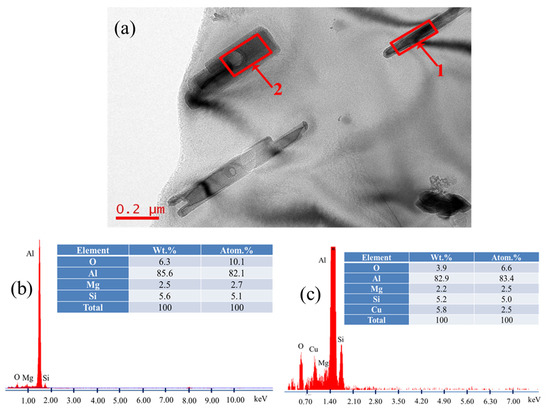

To meet the lightweight demands of automobiles, Al composite sheets require excellent mechanical properties under the condition of minimal thickness after high-temperature brazing processing. Generally, the standard used Al brazing sheets have a low strength before and after brazing. To overcome this issue, this work develops a novel 4343/3003/6111/3003 four-layer Al clad sheet, whose microstructure and mechanical properties are systematically investigated. The results show the observable fibrous microstructure with elongated grains parallel to the rolling direction in the developed four-layer Al clad sheet of the cold-rolled and annealed states. After brazing, this fibrous microstructure transforms into coarse equiaxed grains. In addition, the 4343 layer is the brazing layer. Si is mainly distributed in the 4343 layer of the cold-rolled Al clad sheets, whereas Si penetrates into the core layer along the grain boundaries after brazing. The cold-rolled samples present a certain brittleness from fracture morphology, whereas the final annealed ones show a typical ductile fracture. Meanwhile, the typical intergranular fracture is visible after brazing. The mechanical properties of the Al clad sheets are improved after brazing, with an increase of 76% in tensile strength and 62% in yield strength, compared with the final annealed ones. The elongation is increased by 29% compared with that of the cold-rolled ones. This study provides a theoretical basis for further improvement of the strength of aluminum honeycomb panels. Full article

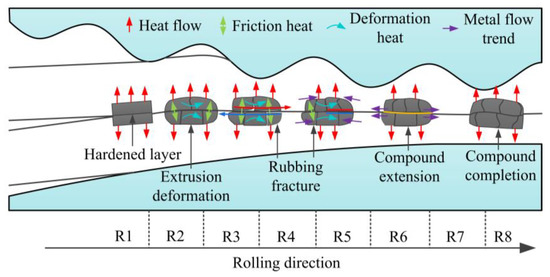

To explore the influence of annealing temperatures on the interfacial structure and peeling strength of Cu/Al clad sheets with a 304 stainless steel foil interlayer, an intermediate annealing treatment was performed at temperatures of 450 °C, 550 °C, and 600 °C, separately. The experimental results indicate that the interfacial atomic diffusion is significantly enhanced by increasing the intermediate annealing temperature. The average peeling strength of the clad sheets annealed at 550 °C can reach 34.3 N/mm and the crack propagation is along the steel/Cu interface, Cu-Al intermetallic compounds layer, and Al matrix. However, after high-temperature annealing treatment (600 °C), the liquid phase is formed at the bonding interface and the clear Cu/steel/Al interface is replaced by the chaotic composite interfaces. The clad sheet broke completely in the unduly thick intermetallic compounds layer, resulting in a sharp decrease in the interfacial bonding strength. Full article

Aluminium steel clad materials have high potential for industrial applications. Their mechanical properties are governed by an intermetallic layer, which forms upon heat treatment at the Al-Fe interface. Transmission electron microscopy was employed to identify the phases present at the interface by selective area electron diffraction and energy dispersive spectroscopy. Three phases were identified: orthorhombic Al₅Fe₂, monoclinic Al₁₃Fe₄ and cubic Al₁₉Fe₄MnSi₂. An effective interdiffusion coefficient dependent on concentration was determined according to the Boltzmann–Matano method. The highest value of the interdiffusion coefficient was reached at the composition of the intermetallic phases. Afterwards, the process of diffusion considering the evaluated interdiffusion coefficient was simulated using the finite element method. Results of the simulations revealed that growth of the intermetallic phases proceeds preferentially in the direction of aluminium. Full article

Aluminum (Al)/stainless steel (SUS) clad materials were fabricated via the process of spark plasma sintering (SPS) using Al powder/bulk and an SUS sheet. Three Al/SUS clad types were fabricated: powder/bulk (P/B), bulk/bulk (B/B), and bulk/powder/bulk (B/P/B). During the SPS, Al and SUS reacted with each other, and intermetallic compounds were created in the clads. The thermal conductivity and thermal-expansion coefficient were measured using a laser flash analyzer and dynamic mechanical analyzer, respectively. The Al/SUS (P/B) clad had a thermal conductivity of 159.5 W/mK and coefficient of thermal expansion of 15.3 × 10⁻⁶/°C. To analyze the mechanical properties, Vickers hardness and three-point bending tests were conducted. The Al/SUS (P/B) clad had a flexural strength of about 204 MPa. The Al/SUS clads fabricated via SPS in this study are suitable for use in applications in various engineering fields requiring materials with high heat dissipation and high heat resistance. Full article

The copper/aluminum (Cu/Al) clad sheets were produced on a horizontal twin-roll caster and then were multi-pass rolled and annealed. The thickness of the as-cast clad sheet was 8 mm. Rolling was performed with total reductions of 12.5%, 25%, 37.5%, 50%, and 62.5%, separately. The effects of the rolling and annealing processes on the interface and peel strength of the Cu/Al clad sheets were investigated. The evolution of the interface and crack propagation were studied. The interface thickness of the as-cast clad sheet reached 9 μm to 10 μm. The average peel strength (APS) was only 9 N/mm. After multi-pass rolling, the peel strength first slightly increased and then gradually decreased with the increase of the rolling pass number. After annealing, the peel strength remarkably improved. The APS reached 25 N/mm when the rolled thickness was 7 mm. The improvement in the peel strength was due to the following three factors: (1) mechanical locking formed in the Cu/Al direct contact region after rolling, (2) the region of the Al matrix fracture, and (3) mechanical biting from the Cu/Al direct contact region. Full article
