Search Results (14)

Anomaly detection is an important feature in modern additive manufacturing (AM) systems to ensure quality of the produced components. Although this topic is well discussed in the literature, current methods rely on black-box approaches, limiting our understanding of why anomalies occur, making complex the root cause identification and the consequent decision support about the action to take to mitigate them. This work addresses these limitations by proposing a structured workflow designed to enhance the explainability of anomaly detection models. Using the wire arc additive manufacturing (WAAM) process as a case study, we examined 14 wall structures printed with INVAR36 alloy under varying process parameters, producing both defect-free and defective parts. These parts were classified based on surface appearance and welding camera images. We collected welding current and voltage data at a 5 kHz sampling rate and extracted features from both time and frequency domains using a knowledge-based approach. Isolation Forest, k-Nearest Neighbor, Artificial Neural Network, XGBoost, and LGBM models were trained on these features, and the results shown best performance of boosting models, achieving F1 scores of 0.927 and 0.945, respectively. These models presented higher performance compared to other models like k-Nearest Neighbor, whereas Isolation Forest and Artificial Neural Network posses lower performance due to overfitting, with an F1 score of 0.507 and 0.56, respectively. Then, by leveraging the feature importance capabilities of these models, we identified key signal characteristics that distinguish between normal and anomalous behavior, improving the explainability of the detection process and in general about the process physics. Full article

If the matrix function $f\left(At\right)$ posses the properties of $f\left(At\right)=g\left(f(\left(\frac{t}{k}A\right)\right)$, then the recurrence formula $f_{i-1}=g\left(f_i\right),i=N,N-1,\cdots ,1,f\left(tA\right)=f_0$, can be established. Here, $f_N=f\left(A_N\right)={\displaystyle \sum _{j=0}^m}{a}_j{A}_N^j,A_N=\frac{t}{k^N}A$. This provides an algorithm for computing the matrix function $f\left(At\right)$. By specifying the calculation accuracy p, a method is presented to determine m and N in a way that minimizes the time of the above algorithm, thus providing a fast algorithm for $f\left(At\right)$. It is important to note that m only depends on the calculation accuracy p and is independent of the matrix A and t. Therefore, $f\left(A_N\right)$ has a fixed calculation format that is easily computed. On the other hand, N depends not only on A, but also on t. This provides a means to select t such that N is equal to 0, a property of significance. In summary, the algorithm proposed in this article enables users to establish a desired level of accuracy and then utilize it to select the appropriate values for m and N to minimize computation time. This approach ensures that both accuracy and efficiency are addressed concurrently. We develop a general algorithm, then apply it to the exponential, trigonometric, and logarithmic matrix functions, and compare the performance with that of the internal system functions of Mathematica and Pade approximation. In the last section, an example is provided to illustrate the rapid computation of numerical solutions for linear differential equations. Full article

Superhydrophobic coatings can be a suitable solution for protecting vulnerable electrical infrastructures in regions with severe meteorological conditions. Regenerative superhydrophobicity, the ability to regain superhydrophobicity after being compromised or degraded, could address the issue of the low durability of these coatings. In this study, we fabricated a superhydrophobic coating comprising hydrophobic aerogel microparticles and polydimethylsiloxane (PDMS)-modified silica nanoparticles within a PDMS matrix containing trifluoropropyl POSS (F-POSS) and XIAMETER PMX-series silicone oil as superhydrophobicity-regenerating agents. The fabricated coating exhibited a static contact angle of 169.5° and a contact angle hysteresis of 6°. This coating was capable of regaining its superhydrophobicity after various pH immersion and plasma deterioration tests. The developed coating demonstrated ice adhesion as low as 71.2 kPa, which remained relatively unchanged even after several icing/de-icing cycles. Furthermore, the coating exhibited a higher flashover voltage than the reference samples and maintained a minimal drop in flashover voltage after consecutive testing cycles. Given this performance, this developed coating can be an ideal choice for enhancing the lifespan of electrical insulators. Full article

Artificial intelligence is changing and influencing our world. As one of the main algorithms in the field of artificial intelligence, convolutional neural networks (CNNs) have developed rapidly in recent years. Especially after the emergence of NASNet, CNNs have gradually pushed the idea of AutoML to the public’s attention, and large numbers of new structures designed by automatic searches are appearing. These networks are usually based on reinforcement learning and evolutionary learning algorithms. However, sometimes, the blocks of these networks are complex, and there is no small model for simpler tasks. Therefore, this paper proposes POSS-CNN aiming at target recognition and detection, which employs a multi-branch CNN structure with PSNC and a method of automatic parallel selection for super parameters based on a multi-branch CNN structure. Moreover, POSS-CNN can be broken up. By choosing a single branch or the combination of two branches as the “benchmark”, as well as the overall POSS-CNN, we can achieve seven models with different precision and operations. The test accuracy of POSS-CNN for a recognition task tested on a CIFAR10 dataset can reach 86.4%, which is equivalent to AlexNet and VggNet, but the operation and parameters of the whole model in this paper are 45.9% and 45.8% of AlexNet, and 29.5% and 29.4% of VggNet. The mAP of POSS-CNN for a detection task tested on the LSVH dataset is 45.8, inferior to the 62.3 of YOLOv3. However, compared with YOLOv3, the operation and parameters of the model in this paper are reduced by 57.4% and 15.6%, respectively. After being accelerated by WRA, POSS-CNN for a detection task tested on an LSVH dataset can achieve 27 fps, and the energy efficiency is 0.42 J/f, which is 5 times and 96.6 times better than GPU 2080Ti in performance and energy efficiency, respectively. Full article

Soil carbon plays a key role in maintaining soil quality, but its direct impact on crop yields depends on the interplay of different factors. This study aims to study fine–spatial variation soil properties and their effect on grain productivity in fallow–wheat cropping systems in the US central High Plains. We evaluate wheat yields in relation to soil macro and micronutrients, total C (TC), and texture as well as subtle variations in field elevation. To document soil–yield relationships at a fine spatial scale, soil sampling (0–15 and 15–30 cm depths) was conducted using a regular 30 m grid spacing in eleven adjacent fields. Interpolated yield maps indicated that the availability of key nutrients and textures contributed to the spatial distribution of wheat productivity. Random forest (RF) showed that these soil attributes were able to explain slightly under 30% of the spatial variation in crop yields. Our findings demonstrate that TC can often serve as a reliable proxy for delineating yield-based management zones, even in inherently low C soils. In addition, Fe, Zn, SO₄-S, sand, and subtle topographic changes were also critical factors affecting wheat yield. Our results highlight that developing management zones in these soils relying exclusively on soil information is not straightforward. However, the high level of within-field spatial variability observed needs to be addressed. Full article

A variety of floating structures at sea play a vital role in the exploitation and utilization of marine resources. The study about interactions between waves and structures is necessary for the impact of the harsh marine environment on the motion and service life of structures. Currently, most studies about the seakeeping of structures are based on simplified regular waves. Because the regular waves do not truly restore the actual wave conditions at sea, the simulation of irregular waves has great practical importance to the study of interactions between waves and structures. Based on the potential flow theory and high-order boundary element method (HOBEM), a Fortran code is developed in this paper and named as SWBI (Solver for Wave–Body Interactions). This program consists of the following two parts: a time–domain numerical model about interactions between waves and 3D structures is based on weakly nonlinear method, and a numerical model about simulation of the nonlinear regular waves, the long-crested irregular waves, and the short-crested irregular waves. This Fortran code is used to simulate the motion of Floating Production Storage and Offloading (FPSO) under three different ocean wave spectra (including ITTC two-parameters spectrum, JONSWAP spectrum and the most likely spectral form of Ochi-Hubble) and found that: To a certain extent, the difference in the motion of FPSO under different wave spectra have a connection with different type of wave, sea conditions and incident angle. The difference in roll of FPSO is quite significant in short-crested irregular waves. The range of FPOS’s roll under the JONSWAP spectrum is the largest when the incident angle is 30°, and range of FPOS’s roll under the most likely spectral form of Ochi-Hubble is the largest when the incident angle is 90°. Full article

Fluorosilicone rubber (F-LSR) is a promising material that can be applied in various cutting-edge industries. However, the slightly lower thermal resistance of F-LSR compared with that of conventional PDMS is difficult to overcome by applying nonreactive conventional fillers that readily agglomerate owing to their incompatible structure. Polyhedral oligomeric silsesquioxane with vinyl groups (POSS-V) is a suitable material that may satisfy this requirement. Herein, F-LSR-POSS was prepared using POSS-V as a chemical crosslinking agent chemically bonded with F-LSR through hydrosilylation. All F-LSR-POSSs were successfully prepared and most of the POSS-Vs were uniformly dispersed in the F-LSR-POSSs, as confirmed by Fourier transform infrared spectroscopy (FT-IR), proton nuclear magnetic resonance spectroscopy (¹H-NMR), scanning electron microscopy (SEM), and X-ray diffraction (XRD) measurements. The mechanical strength and crosslinking density of the F-LSR-POSSs were determined using a universal testing machine (UTM) and dynamic mechanical analysis (DMA), respectively. Finally, differential scanning calorimetry (DSC) and thermogravimetric analysis (TGA) measurements confirmed that the low-temperature thermal properties were maintained, and the heat resistance was significantly improved compared with conventional F-LSR. Eventually, the poor heat resistance of the F-LSR was overcome with three-dimensional high-density crosslinking by introducing POSS-V as a chemical crosslinking agent, thereby expanding the potential fluorosilicone applications. Full article

In this study, we used effective and one-pot Heck coupling reactions under moderate reaction conditions to construct two new hybrid porous polymers (named OVS-P-TPA and OVS-P-F HPPs) with high yield, based on silsesquioxane cage nanoparticles through the reaction of octavinylsilsesquioxane (OVS) with different brominated pyrene (P-Br₄), triphenylamine (TPA-Br₃), and fluorene (F-Br₂) as co-monomer units. The successful syntheses of both OVS-HPPs were tested using various instruments, such as X-ray photoelectron (XPS), solid-state ¹³C NMR, and Fourier transform infrared spectroscopy (FTIR) analyses. All spectroscopic data confirmed the successful incorporation and linkage of P, TPA, and F units into the POSS cage in order to form porous OVS-HPP materials. In addition, the thermogravimetric analysis (TGA) and N₂ adsorption analyses revealed the thermal stabilities of OVS-P-F HPP (T_d10 = 444 °C; char yield: 79 wt%), with a significant specific surface area of 375 m² g^–1 and a large pore volume of 0.69 cm³ g^–1. According to electrochemical three-electrode performance, the OVS-P-F HPP precursor displayed superior capacitances of 292 F g⁻¹ with a capacity retention of 99.8% compared to OVS-P-TPA HPP material. Interestingly, the OVS-P-TPA HPP showed a promising HER value of 701.9 µmol g⁻¹ h⁻¹, which is more than 12 times higher than that of OVS-P-F HPP (56.6 µmol g⁻¹ h⁻¹), based on photocatalytic experimental results. Full article

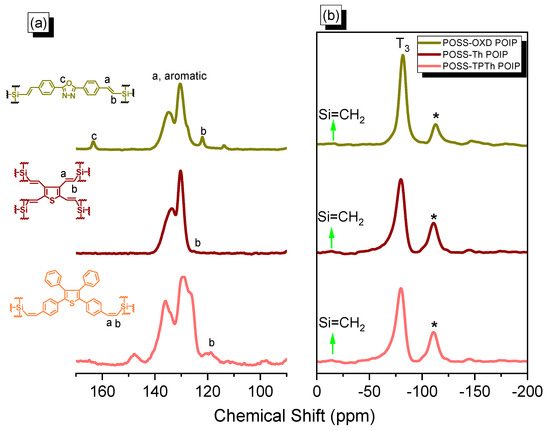

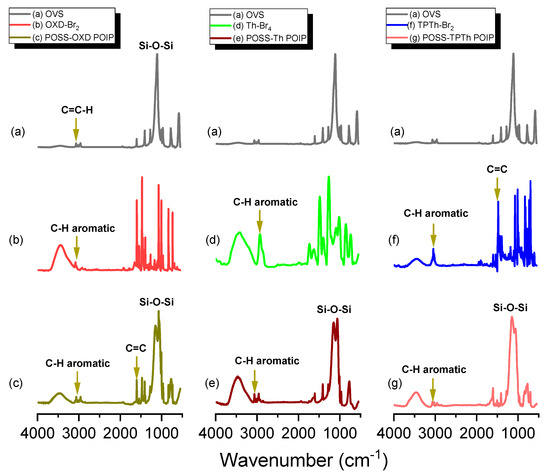

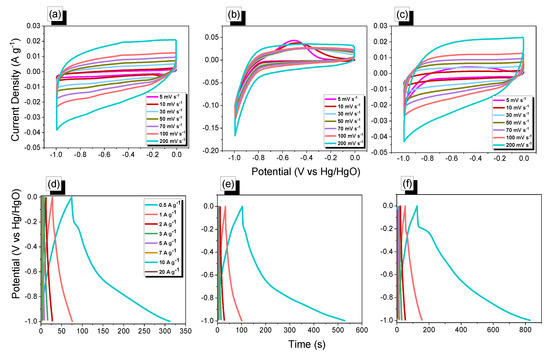

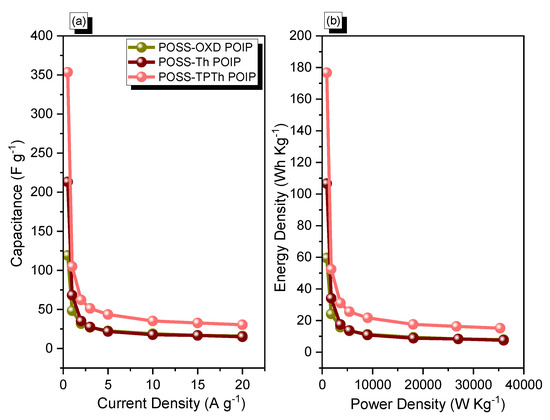

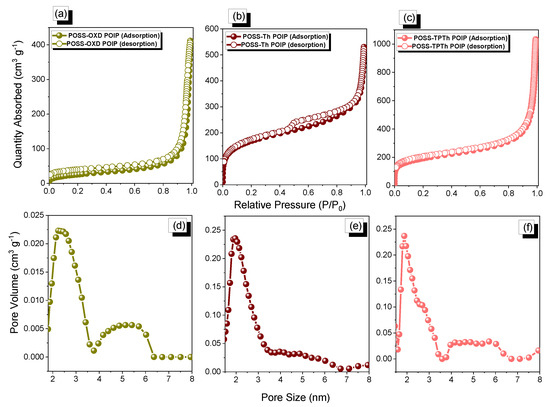

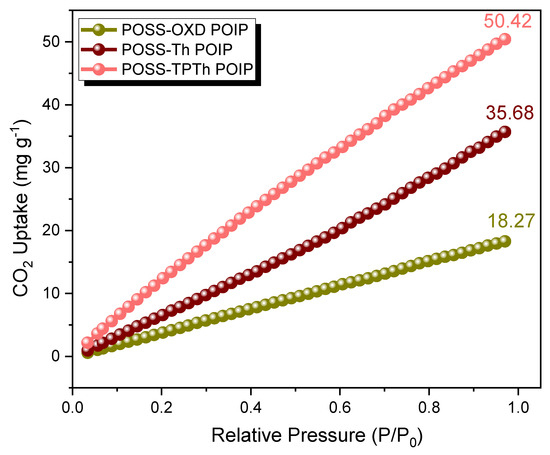

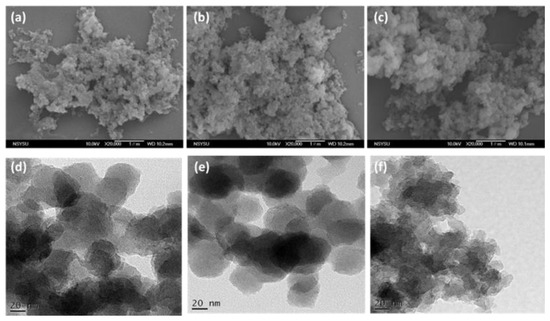

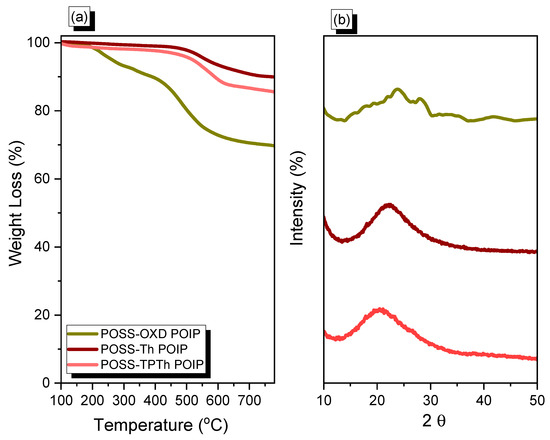

In this study, we synthesized three hybrid microporous polymers through Heck couplings of octavinylsilsesquioxane (OVS) with 2,5-bis(4-bromophenyl)-1,3,4-oxadiazole (OXD-Br₂), tetrabromothiophene (Th-Br₄), and 2,5-bis(4-bromophenyl)-3,4-diphenylthiophene (TPTh-Br₂), obtaining the porous organic–inorganic polymers (POIPs) POSS-OXD, POSS-Th, and POSS-TPTh, respectively. Fourier transform infrared spectroscopy and solid state ¹³C and ²⁹Si NMR spectroscopy confirmed their chemical structures. Thermogravimetric analysis revealed that, among these three systems, the POSS-Th POIP possessed the highest thermal stability (T₅: 586 °C; T₁₀: 785 °C; char yield: 90 wt%), presumably because of a strongly crosslinked network formed between its OVS and Th moieties. Furthermore, the specific capacity of the POSS-TPTh POIP (354 F g⁻¹) at 0.5 A g⁻¹ was higher than those of the POSS-Th (213 F g⁻¹) and POSS-OXD (119 F g⁻¹) POIPs. We attribute the superior electrochemical properties of the POSS-TPTh POIP to its high surface area and the presence of electron-rich phenyl groups within its structure. Full article

Genomic sequencing results need to be effectively communicated across all populations and practice settings. Projects in the Clinical Sequencing Evidence-Generating Research (CSER) consortium enroll diverse racial/ethnic and medically underserved participants across various clinical contexts. This article explores a set of CSER results disclosure cases to expand the evidence base on experiences returning genomic results. Case details were collected using a structured set of questions. We identified common themes in the case set, and assessed challenges and strategies in achieving six relevant results disclosure objectives. CSER-affiliated patient/community stakeholder impressions of the findings were solicited via video conference calls. Seventeen cases across six CSER projects were included. Case themes sorted into four categories: (1) factors influencing participant understanding, (2) participant emotional response, (3) disease burden, and (4) logistical challenges. Challenges meeting results disclosure objectives included a lack of dialogue, health literacy level, unexpected findings, and complex concepts. Strategies were consistent with traditional genetic counseling practice, but also highlighted approaches being evaluated in CSER projects. Patient/community stakeholders supported the identified themes and provided additional suggestions to improve patient understanding and engagement. These experiences add valuable insights into adapting genomic results disclosure practices to best serve all patient populations. Full article

Flexible conductive films were prepared via a convenient blending method with thermoplastic polyurethane (TPU) as matrix and nanocrystalline cellulose (NCC) modified chemically reduced graphene oxide (RGO/NCC) as the conductive fillers. The relationships between the electrical and thermal properties as well as the tensile strength and electrothermal response performance of the composite film and the mass content of reduced graphene oxide (RGO) and the initial TPU concentration were systematically investigated. The experimental results show that the resistivity of the composite film with the mass content of RGO/NCC of 7 wt% and an initial TPU concentration of 20 wt% is the minimum of 8.1 Ω·mm. However, the thermal conductivity of composite film with mass content of RGO/NCC of 5 wt% and the initial TPU concentration of 30 wt% reaches a maximum of 0.3464 W·m⁻¹·K⁻¹, which is an increase of 56% compared with pure TPU. The tensile strength of the composite films with mass contents of RGO of 3 wt% prepared with the initial TPU concentrations of 20 wt% reaches the maximum of 43.2 MPa, which increases by a factor of 1.5 (the tensile strength of the pure TPU is 28.9 MPa). The composite conductive film has a fast electrothermal response. Furthermore, superhydrophobic composite conductive films were prepared by immersing the composite conductive film into fluorinated decyl polyhedral oligomeric silsesquioxane (F-POSS) ethanol solution. The water contact angle of the superhydrophobic composite conductive film reaches 158.19° and the resistivity of the superhydrophobic composite film slightly increases and still has good conductivity. Full article

Pluronic F127 exhibits thermogelling behaviour at 20–30 °C via a micelle packing mechanism. Disruption of the micelle packing increases the sol-gel temperature, but results in the decrease of modulus. Herein, we reported a method to modify F127 with polyhedral oligosilsesquioxane (POSS) to impart a higher gelling temperature without yielding the property and strength of the thermogel. The thermal degradation temperature was enhanced to 15 °C after POSS incorporation and the gelling temperature shifted 10 °C higher, without sacrificing the modulus of the gel. Rheological studies supported the claim that the gel property was reinforced after POSS incorporation. F127-POSS copolymer matrix stored more energy from POSS reinforcement, which saw larger Lissajous curve areas before the collapse of the microstructure for the same amount of stress applied. These results indicated that modification with POSS would raise the sol-gel transition temperature without sacrificing the modulus of the gel. Full article

We fabricated a series of mesoporous silicas and mesoporous organosilicates with hierarchical porosity through evaporation-induced self-assembly using Pluronic F127 as a template in this study. We could tailor the mesophase of each mesoporous silica sample by varying the weight ratio of its two silica sources: tetraethyl orthosilicate (TEOS) and triethoxysilane hydrosilylated octavinyl polyhedral oligomeric silsesquioxane (OV-POSS-SILY). The mesophases ranged from an ordered body-centered cubic (bcc) structure (TEOS alone) to ordered face-centered cubic (fcc) structure (10 and 20 wt.% of OV-POSS-SILY) and finally to disordered spherical pores (≥30 wt.% of OV-POSS-SILY). We used small-angle X-ray scattering (SAXS) and transmission electron microscopy (TEM) to study the transformations of these mesophases, while N₂ isotherm sorption curves revealed the porosities of these mesoporous silicate samples. Moreover, ²⁹Si CP/MAS solid state nuclear magnetic resonance spectroscopy allowed us to analyze the compositions of the POSS-containing silicate frameworks. Such functional mesoporous silica samples incorporating microporous POSS building units have potential applications in various systems, including optical and electronic devices. Full article

Our continuing quest to improve the performance of polymer composites under moist and saltwater environments has gained momentum in recent years with the reinforcement of inorganic nanoparticles into the polymer. The key to mitigate degradation of composites under such environments is to maintain the integrity of the fiber/matrix (F/M) interface. In this study, the F/M interface of carbon/vinyl ester composites has been modified by coating the carbon fiber with polyhedral oligomeric silsesquioxane (POSS). POSS is a nanostructured inorganic-organic hybrid particle with a cubic structure having silicon atoms at the core and linked to oxygen atoms. The advantage of using POSS is that the silicon atoms can be linked to a substituent that can be almost any chemical group known in organic chemistry. Cubic silica cores are ‘hard particles’ and are about 0.53 nm in diameter. The peripheral organic unit is a sphere of about 1–3 nm in diameter. Further, cubic structure of POSS remains intact during the polymerization process and therefore with appropriate functional groups, if installed on the fiber surface, would provide a stable and strong F/M interface. Two POSS systems with two different functional groups; namely, octaisobutyl and trisilanolphenyl have been investigated. A set of chemical and mechanical procedures has been developed to coat carbon fibers with POSS, and to fabricate layered composites with vinyl ester resin. Interlaminar shear and low velocity impact tests have indicated around 17–38% improvement in mechanical properties with respect to control samples made without the POSS coating. Saltwater and hygrothermal tests at various environmental conditions have revealed that coating with POSS reduces water absorption by 20–30% and retains the composite properties. Full article
