Search Results (17)

The development of sustainable and energy-efficient asphalt pavements is essential to address the growing demand for climate-neutral transportation infrastructure. This study investigates the structural design and functional performance of low rolling resistance asphalt mixtures utilizing reclaimed asphalt pavement (RAP) and warm mix asphalt (WMA) technologies. Ten mixtures with WMA additive—including asphalt concrete (AC) and stone mastic asphalt (SMA) with and without RAP—were evaluated for volumetric and mechanical performance. Laboratory results show that RAP addition did not compromise compaction nor indirect tensile strength ratio (ITSR), and in some cases improved these properties. SMA and SMA RAP-modified mixtures achieved the highest resistance to rutting (as low as 5.0% rut depth), while AC and SMA mixtures both demonstrated low rolling resistance (coefficients of energy loss 0.00604–0.00636). Resistance to low-temperature cracking was strong for all mixtures, with thermal stress restrained specimen test (TSRST) fracture temperatures ranging from −32.8 °C to −36.0 °C. SMA mixtures generally exhibited superior resistance to fatigue (up to 63 με at 1 million cycles). Overall, three asphalt mixtures with different particle size distribution containing 14% RAP and a WMA additive (SMA 8 S_1 R, SMA 8 S_3 R, and AC 11 VS_2 R) demonstrated the best balance of rolling resistance, durability, and circularity, and are recommended for field trials to support climate-neutral and sustainable road infrastructure. These results encourage broader adoption of circular practices in road infrastructure projects, contributing to lower emissions and life-cycle costs. Full article

The utilization of reclaimed asphalt pavement (RAP) in asphalt mixtures not only reduces production costs and resource consumption but also provides significant environmental benefits. Consequently, technology and methodologies used for asphalt pavement recycling, aimed at enhancing the utilization rate of RAPs, have emerged as prominent topics in both academic research and engineering practice. Given the complex thermal history and poor low-temperature performance (LTP) of RAP, investigating the effects of varying thermal histories of RAPs on the LTP of a mixture holds substantial practical significance for increasing the utilization rate of RAP in seasonally frozen regions. In this study, scanning electron microscopy (SEM), the thermal stress restrained specimen test (TSRST), the trabecular bending test, and the bending beam creep test (BBCT) are utilized to examine the effects of the indoor simulation methods that produce RAPs with varying thermal histories and contents on a recycled asphalt mixture (RAM) from both microscopic and phenomenological perspectives. Additionally, this research investigates the accuracy of predicting the LTP of RAMs using the Burgers model. The test results indicate that the LTP of an RAM is influenced not only by the RAP content and its thermal history but also by the ambient temperature. Regardless of the thermal history of the RAP, the LTP of an RAM tends to decrease as the RAP content increases. Different thermal histories of RAPs exert varying effects on the low-temperature viscoelastic behavior of an RAM. The UVRAP reduces the viscoelastic temperature range of an RAM by an average of 10.79%, whereas the THRAP increases it by an average of 2.16%. These effects can be attributed to the distinct micromorphology of the asphalt on the surfaces of RAPs with a varying thermal history. Specifically, a greater number of micropores and microcracks on the asphalt surface leads to a poorer LTP of RAMs. Additionally, the residuals of the Burgers model for predicting the LTP of an RAM with THRAP exceeded −2. However, the Burgers model demonstrates predictive capabilities for evaluating the LTP of an RAM filled with RAP from the same source or with a similar thermal history. Full article

The two-step thermal stress calculation method (TTSCM) is commonly used to predict the cracking temperature of asphalt mixture. The aim of this study is to improve TTSCM’s mathematical model so as to enhance its prediction accuracy. First, this study evaluated the errors of predicted cracking temperatures of original TTSCM for AC-16 and AC-25 asphalt mixtures by thermal stress-restrained specimen test (TSRST). Then, an improved method called the extended creep compliance test (ECCT) was developed to modify the TTSCM. The test results show that the cracking predictions of the original TTSCM are not always accurate. Particularly for AC-16 asphalt mixture, the predicted cracking temperature is 2.9 °C (−10.6%) higher than the measured value by the TSRST. The ECCT method has been proven to be an effective way to enhance the prediction accuracy of the TTSCM. The predicted cracking temperatures modified by the ECCT method for both asphalt mixtures are relatively accurate, having an error within ±2%. The ECCT method changed the calculated thermal stress values at different temperatures of the TTSCM; however, they still conformed to a basic changing trend with respect to the initial temperature and cooling rate. Finally, a recommendation regarding the ECCT method was presented. Full article

Due to the harsh climatic conditions in high altitude and cold regions with large temperature differences, asphalt pavement is generally prone to cracking, and the cracks propagate rapidly, which reduces the service life and service level of the road. The factors influencing the fracture characteristics of asphalt mixtures were analyzed in this paper, and the mixtures with different aggregate gradations from various types of asphalt were prepared. The fracture characteristics were explored using the thermal stress restrained specimen test (TSRST) and low-temperature bending test, and the good consistency of the low-temperature fracture performance was identified according to the results of frost-break temperature, flexural strength, and fracture toughness. The frost-break temperature was confirmed as the best indicator of the material crack resistance and could be used as the index to evaluate the performance of asphalt mixtures at low temperatures. The frost-break temperature of matrix asphalt mixture is 8–10 °C higher than that of modified asphalt mixture, and AC asphalt mixture is 2–4 °C higher than that of SMA asphalt mixture. The excellent asphalt performance has a more important influence on the fracture characteristics of asphalt mixture. The asphalt mixture of the same type had similar fracture toughness at varying notch depths, the most deviation is 3.78% which shows that the initial crack depth has little effect on the fracture toughness of asphalt mixture at low temperature. The results of the study can provide a basis for the selection of asphalt pavement surface materials and the optimization of mixtures in high altitude and cold regions with large temperature differences. Full article

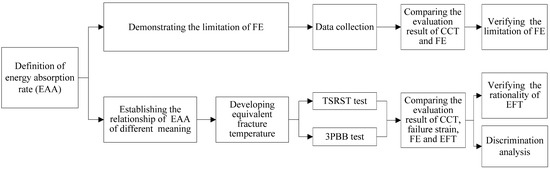

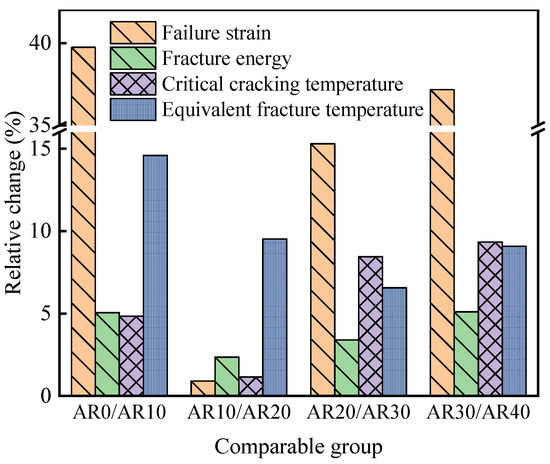

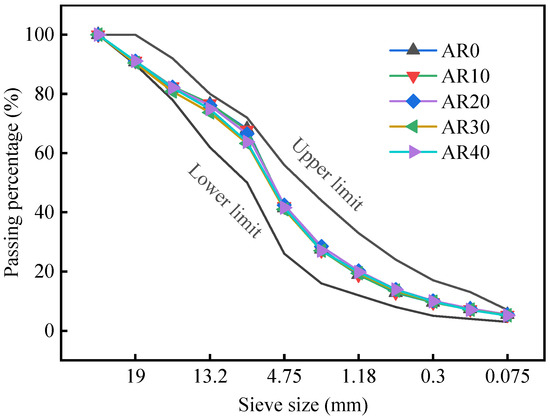

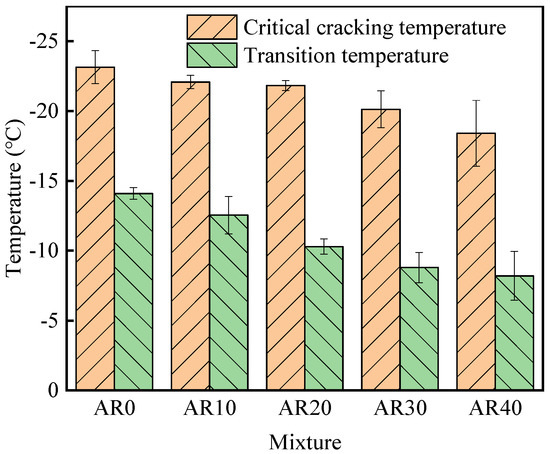

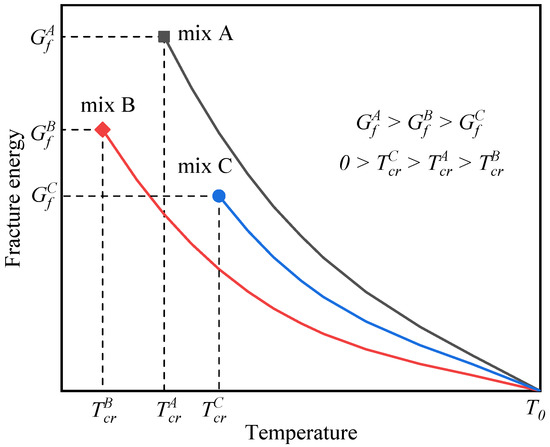

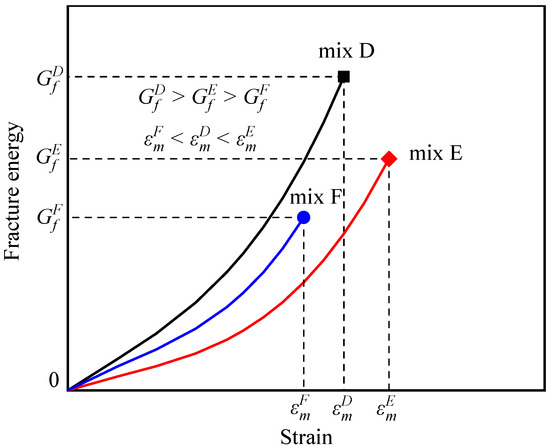

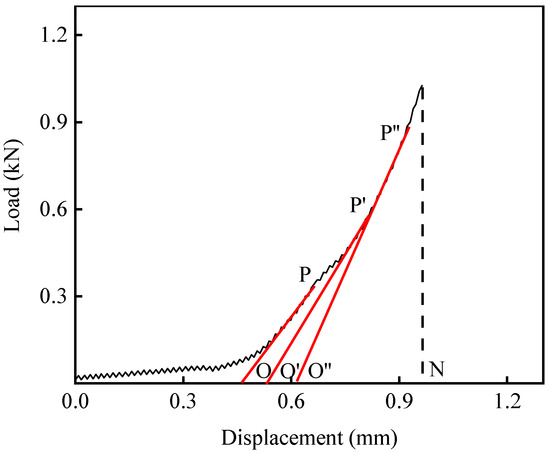

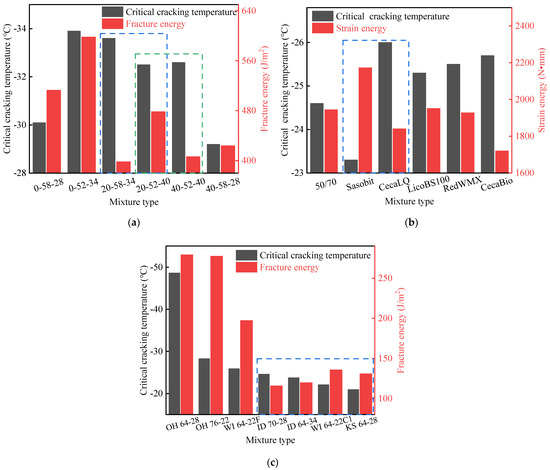

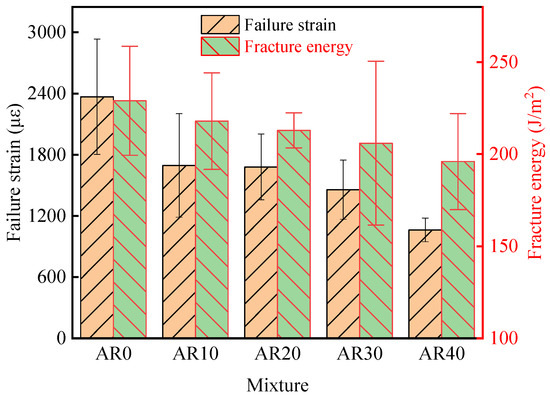

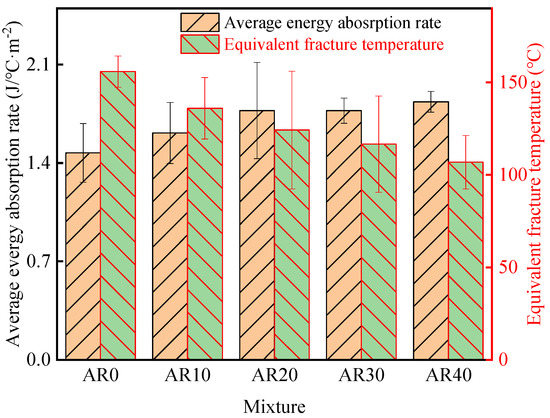

This study aims to develop a new index to evaluate the low-temperature cracking performance (LTCP) of recycled asphalt mixtures. To achieve this, the assumption that fracture energy has limitation in evaluating the LTCP of mixtures was put forward firstly. To reveal this limitation theoretically, a concept of energy absorption rate that characterized the fracture energy of the mixtures was then given. Thirdly, an equivalent fracture temperature (EFT) corresponding to the critical cracking temperature in a thermal stress restrained specimen test (TSRST) was proposed to evaluate the LTCP of mixtures based on a three-point bending beam (3PBB) test. Finally, some data derived from previous work were collected to verify the proposed assumption, and the 3PBB test and TSRST were conducted to investigate the LTCP of five recycled mixtures with different reclaimed asphalt pavement (RAP) material contents and to verify the rationality of the proposed EFT. The results confirmed that fracture energy had some limitations in predicting the LTCP of mixtures. The EFT was as accurate as the critical cracking temperature in evaluating the LTCP of mixtures. Compared to fracture energy and critical cracking temperature, EFT had bigger absolute change and relative change between different mixtures, meaning it was better to differentiate the LTCP of mixtures. Compared to failure strain, EFT was also more definite and less variable when processed by different data analysts, meaning it was more objective. Full article

To study the effect of nominal maximum particle size (NMS) of stone mastic asphalt (SMA) gradation and a mixed modified asphalt binder on the low temperature crack resistance of SMA, SMA asphalt mixtures with three different NMS, two styrene-butadiene-styrene (SBS) and crumb rubber modifier (CRM) hybrid-modified asphalt binders were designed.Thermal strength restrained specimen test (TSRST) and bending beam test (BBT) were performed on the mixtures. The freezing-fracture temperature and strength from TSRST, bending tensile strain and stiffness from BBT at low temperature were evaluated. Finally, an intrinsic relationship was established between these properties obtained from the two tests. The results showed that the following: (1) the SMA-5, the best of all the three NMS, has a freezing-fracture temperature of −31.5 °C, which is 18.9% and 48.6% lower than those of SMA-10 and SMA-13, respectively, while its freezing fracture strength is 6.15 MPa, which is 95.2% and 243.6% higher than those of SMA-10 and SMA-13, respectively; (2) the bending failure strain of SMA-5 is 4649 με, which is higher than those of SMA-10 and SMA-13 by 11.3% and 21.9%, respectively; (3) increased CRM dose in the SBS-modified SMA improves the crack resistance at low temperature; (4) the bending failure strain of the SMA has the best correlation with the freezing-fracture temperature, with a correlation coefficient of about 0.8. Full article

A key aspect of sustainable pavement construction is the use of environmentally-friendly designed pavement materials. These materials are characterized by the fact that they are renewable raw materials, require a low amount of energy during production and in the best case, are made from a high proportion of recyclable materials in order to reduce waste. A number of recent studies have demonstrated the recyclability of waste materials that can be very well utilized in road construction. This study describes the recycling of a new and innovative topcoat system that already contains recycled materials. However, the focus is on guaranteeing the mechanical performance of the innovative absorption layer where different portions of used material are added. Therefore, low-temperature behaviour, durability, fatigue and noise absorption are investigated in detail and it is concluded that their function is preserved. In order to investigate these characteristics, the impedance measuring tube, the uniaxial cyclic compression test (UCCT), the three point bending test (3PB), the uniaxial tension stress test (UTST) and the thermal stress restrained specimen test (TSRST) are used. However, the examined absorption material can be reused to build innovative roads. Full article

High-modulus asphalt concrete has numerous advantages in comparison to conventional asphalt concrete, including increased resistance to permanent deformations and increased pavement fatigue life. However, previous studies have shown that the construction of road pavements with High Modulus Asphalt Concrete (HMAC) may significantly increase the risk of low-temperature cracking. Those observations were the motivation for the research presented in this paper. Four test sections with HMAC used in base and binder courses were evaluated in the study. Field investigations of the number of low-temperature cracks were performed over several years. It was established that the number of new low-temperature cracks is susceptible to many random factors, and the statistical term “reversion to the mean” should be considered. A new factor named Increase in Cracking Index was developed to analyze the resistance of pavement to low-temperature cracking. For all the considered field sections, samples were cut from each asphalt layer, and Thermal Stress Restrained Specimen Tests were performed in the laboratory. Correlations of temperature at failure and cryogenic stresses with the cracking intensity observed in the field were analyzed. The paper provides practical suggestions for pavement designers. When the use of high modulus asphalt concrete is planned for binder course and asphalt base, which may result in lower resistance to low-temperature cracking of pavement than in the case of conventional asphalt concrete, it is advisable to apply a wearing course with improved resistance to low-temperature cracking. Such an approach may compensate for the adverse effects of usage of high modulus asphalt concrete. Full article

Recently, nanomaterials have attracted attention in the field of pavement construction as modifiers to endure heavy loads and climate changes. In this study, conventional asphalt (bitumen) of penetration grade AC (60/70) was modified with graphene platelets (GnPs) at three different contents: 0.5%, 1.0%, and 1.5% by weight of asphalt content. Kinematic viscosity, softening point, penetration, and dynamic shear rheology tests were performed to evaluate the mechanical properties of modified binder. The results showed that adding GnPs improves the mechanical properties of asphalt binder; the kinematic viscosities, softening points, and rutting parameters increased but penetrations decreased with the contents of GnPs. Hot mix asphalt specimens with GnPs-modified asphalt were prepared and characterized with Marshall tests, thermal stress restrained specimen tests (TSRST), wheel tracking tests, and indirect tensile tests. Similar to the results of asphalt binder, the mechanical properties of asphalt mixture were improved by GnPs. Marshall stability increased by 21% and flow decreased by 24% with accepted value of 2.8 mm in penetration when the mixture was modified with 1.0 wt% of GnPs. At the same GnPs content, modified asphalt mixture led to lower failure temperature by 2 °C in comparison with unmodified asphalt mixture and the cryogenic failure stress was improved by 12%. The wheel tracking tests showed that GnPs-modified asphalt mixture has outstanding deformation resistance in comparison with unmodified asphalt mixtures: after 5000 cycles, 1.0 wt% of GnPs reduced the rut depth of asphalt mixture by 60%—the rut depth of unmodified asphalt mixture was 6.9 mm compared to 2.75 mm for modified asphalt mixture. After 10,000 cycles, the modified asphalt mixture showed rut depth of 3.24 mm in comparison with 8.12 mm in case of unmodified asphalt mixture. Addition of GnPs into asphalt mixture significantly improved the indirect tensile strength: 1.0 wt% of GnPs increased the indirect tensile strength of unmodified asphalt mixture from 0.79 to 1.1 MPa recording ~40% increment. The results of this study can confirm that graphene platelets enhance the mechanical properties of asphalt mixture and its performance. Full article

Reclaimed asphalt (RA) and Warm mix asphalt (WMA) are two widely used environmentally friendly mixtures in the paving industry. This study compares the laboratory performance of conventional hot mix asphalt (HMA) with virgin WMA, and WMA containing 60% RA content, using thermal stress restrained specimen test, wheel tracking test, and indirect tensile strength test. Based on test results, a reduction of 15 °C in mixing temperature was achieved for WMA mixtures compared to HMA using the given chemical additive. The virgin WMA mixture showed superior cracking resistance but lower rutting resistance than HMA, and incorporation of RA material without any further modification in the binder, deteriorated both cracking and rutting performance of WMA. It was also shown that laboratory short-term aging can significantly affect the performance of the mixtures. Full article

This paper presents results of laboratory tests on hot and warm bituminous mixtures produced with Reclaimed Asphalt Pavement (RAP). Additives were used to produce warm bituminous mixtures. Fatigue behaviour and thermomechanical behaviour at low temperature were investigated. Fatigue was studied by analysing the tension/compression fatigue test results. Four different failure criteria were used in order to evaluate fatigue life. The low temperature behaviour of the materials was characterized using the Thermal Stress Restrained Specimen Test (TSRST). For each material, three replicates were performed. The experimental device was improved so that radial strains in two directions could be measured during the tests. Tri-dimensional behaviour could thus be investigated. The results of both tests were analysed and the influence of the void content, RAP content, type of additives and manufacturing process was evaluated. The results show that RAP addition and warm bituminous mixtures could be combined to obtain mixtures with performances comparable to classical hot mixtures. Full article

It is well-accepted that the ionic copolymer poly (ethylene-co-methacrylic) acid (also named EMAA) is one type of self-healing material. This particular capability has great potential for extending the service life of infrastructures. In order to improve the rheological, mechanical, and self-healing properties of asphalt binder and asphalt mixtures, EMAA and styrene butadiene rubber (SBR) were selected as the additives. In this study, the effects of EMAA and SBR on the performance of bitumen and asphalt mixtures were examined and characterized using various parameters including rheological indices, Glover–Rowe parameter, ductility self-healing rate, fluorescence microscopy, and scanning electron microscope (SEM) test on binders, and different testing methods such as complex modulus, thermal stress-restrained specimen test (TSRST), disk-shaped compact tension (DCT), and fatigue–healing–fatigue test on the mixtures. The results showed that EMAA can significantly improve the stiffness and self-healing capacity of virgin and SBR modified binders and mixtures. Moreover, the cracking resistance of EMAA/SBR compound modified binder and mixture showed a significant improvement. However, EMAA is not recommended to be added as a modifier to virgin binders and mixtures due to its poor cracking resistance. Some novel tests and parameters mentioned in this paper are recommended for characterizing binders and mixtures in the future. Full article

Warm mix asphalt (WMA) has been widely accepted as a future asphalt paving technology. Besides clear advantages, there are still some concerns regarding durability and long-term performance of pavements made with this type of asphalt mixtures. One of the most important issues is low temperature behaviour of WMA because certain additives used for temperature reduction can affect bitumen properties. This paper presents the evaluation of low-temperature properties of laboratory-produced asphalt concrete for wearing course with selected WMA additives. One type of bitumen with paving grade 50/70 and five WMA additives of different nature (organic, surface tension reducer and combination of both) were used in this study. The production and compaction temperature of mixtures containing WMA additives was 25 °C lower in comparison with the temperature of the reference mix. To assess the susceptibility of WMA to low-temperature cracking, Semi-Circular Bending (SCB) and Thermal Stress Restrained Specimen Test (TSRST) were used. Supplementary rating was made by analysing Bending Beam Rheometer (BBR) test results of asphalt binders. Full article

Utilizing recycled asphalt pavements (RAP) in pavement construction is known as a sustainable approach with significant economic and environmental benefits. While studying the effect of high RAP contents on the performance of hot mix asphalt (HMA) mixes has been the focus of several research projects, limited work has been done on studying the effect of RAP fraction and particle size on the overall performance of high RAP mixes produced solely with either coarse or fine RAP particles. To this end, three mixes including a conventional control mix with no RAP, a fine RAP mix (FRM) made with 35% percent fine RAP, and a coarse RAP mix (CRM) prepared with 54% of coarse RAP were designed and investigated in this study. These mixes were evaluated with respect to their rutting resistance, fatigue cracking resistance, and low temperature cracking performance. The results indicate that although the CRM had a higher RAP content, it exhibited better or at least the same performance than the FRM. The thermal stress restrained specimen testing (TSRST) results showed that the control mix performed slightly better than the CRM, while the FRM performance was adversely affected with respect to the transition temperature midpoint and the maximum tensile stress temperature. Both of the RAP incorporated mixes exhibited better rutting resistance than the control mix. With regard to fatigue cracking, the CRM performed better than the FRM. It can be concluded that the RAP particle size has a considerable effect on its contribution to the total binder content, the aggregate skeleton of the mix, and ultimately the performance of the mix. In spite of the higher RAP content in the CRM versus FRM, the satisfactory performance observed for the CRM mix indicates a great potential in producing high RAP content mixes through optimizing the RAP particle size and content. The results also suggest that the black curve gradation assumption is not representative of the actual RAP particles contribution in a high RAP mix. Full article

Thermal stresses are leading factors that influence low-temperature cracking behavior of asphalt pavements. During winter, when the temperature drops to significantly low values, tensile thermal stresses develop as a result of pavement contraction. Creep test methods can be suitable for the assessment of low-temperature properties of asphalt mixtures. To evaluate the influence of creep test methods on the obtained low-temperature properties of asphalt mixtures, three point bending and uniaxial tensile creep tests were applied and the master curves of stiffness modulus were analyzed. On the basis of creep test results, rheological parameters describing elastic and viscous properties of the asphalt mixtures were determined. Thermal stresses were calculated and compared to the tensile strength of the material to obtain the failure temperature of the analyzed asphalt mixtures. It was noted that lower strain values of creep curves were obtained for the Tensile Creep Test (TCT) than for the Bending Beam Creep Test (BBCT), especially at lower temperatures. Results of thermal stress calculations indicated that higher reliability was obtained for the viscoelastic Monismith method based on the TCT results than for the simple quasi-elastic solution of Hills and Brien. The highest agreement with the TSRST results was also obtained for the Monismith method based on the TCT results. No clear relationships were noted between the predicted failure temperature and different methods of thermal stress calculations. Full article
