Search Results (21)

Four compositions of rapidly quenched ribbon brazing alloys based on Ag–Cu–Ti (Ag–26.5Cu–1.5Ti, Ag–25Cu–5Ti) and Ag–Cu–Zr (Ag–26.5Cu–1.5Zr, Ag–25Cu–5Zr) systems were produced. Initial ingots were synthesized by arc melting. Rapidly solidified ribbons, 50–100 μm thick, were then fabricated from homogenized ingots using a “Crystall-702” facility. A comparative analysis of the microstructure and phase composition of both the ingots and ribbons was conducted using scanning electron microscopy and X-ray diffraction. The analysis revealed the presence of Cu₄Ti and CuTi intermetallic compounds in the Ag–Cu–Ti alloys, and AgCu₄Zr and Zr₂Cu in the Ag–Cu–Zr alloys. Rapid quenching was found to produce metastable structures and significantly refine the intermetallic phases. Microhardness measurements of the ingot and ribbon states demonstrated a substantial influence of the processing route on the mechanical properties. The tensile strength of the ingots was also evaluated. The wetting angles of the rapidly quenched alloy melts on 99% Al₂O₃ (alumina) ceramic substrates under vacuum were determined. All produced ribbons, except for the Ag–26.5Cu–1.5Zr composition, demonstrated adequate wettability. Thus, these materials are considered promising for further research into heat-resistant metal–ceramic joints. Full article

The bonding behavior of the Ni-based superalloy CM247LC during transient liquid phase (TLP) bonding is strongly governed by filler metal chemistry, particularly boron activity. In this study, the time-dependent bonding mechanisms of CM247LC joints fabricated using a high-boron MBF-80 filler and a low-boron MBF-20 filler are systematically compared to clarifying the transition between reaction-dominated brazing and diffusion-assisted TLP bonding. Microstructural analyses reveal that MBF-80 promotes the formation of a persistent, reaction-stabilized interlayer characterized by strong boron localization and the development of boron-rich intermetallic reaction products. These features kinetically suppress diffusion-assisted homogenization and prevent isothermal solidification, resulting in pronounced chemical and mechanical discontinuities across the joint. In contrast, MBF-20 enables progressive boron depletion, suppression of stable intermetallic accumulation, and interfacial smoothing, leading to diffusion-assisted chemical redistribution and partial isothermal solidification. This evolution is accompanied by gradual convergence of hardness profiles toward that of the CM247LC base metal, indicating improved mechanical continuity. These results demonstrate that joint hardness alone is insufficient for evaluating bonding quality in CM247LC. Instead, controlled microstructural evolution governed by low-boron filler chemistry is essential for achieving chemically and mechanically compatible joints. The present work establishes a clear mechanistic link between filler metal composition and bonding behavior, providing guidance for the design of reliable TLP bonding strategies in Ni-based superalloys. Full article

A novel AgCuTi brazing foil with a unique microstructure was developed, which could achieve strong vacuum brazing of Ti6Al4V (TC4) and sapphire. The brazing foil was composed of Ag solid solution (Ag(s,s)), Cu solid solution (Cu(s,s)), and layered Ti-rich phases, and had a low liquidus temperature of 790 °C and a narrow melting range of 16 °C, facilitating the defect-free joining of TC4 and sapphire. The sapphire/TC4 joint fabricated by using this novel AgCuTi brazing foil exhibited an outstanding average shear strength of up to 132.2 MPa, which was the highest value ever reported. The sapphire/TC4 joint had a characteristic structure, featuring a brazing seam reinforced by TiCu particles and a thin Ti₃(Cu,Al)₃O reaction layer of about 1.3 μm. The fracture mechanism of the sapphire/TC4 joint was revealed. The crack originated at the brazing seam with TiCu particles, then propagated through the Ti₃(Cu,Al)₃O reaction layer, detached the reaction layer from the sapphire, and finally penetrated into the sapphire. This study offers valuable insights into the design of active brazing alloys and reliable metal–ceramic bonding. Full article

Brazing a SiO_2f/SiO₂ composite with metals is often faced with two problems: poor wettability with the brazing alloy and high residual stress in the joint. To overcome these problems, we report a combined method of selective etching and depositing reduced graphene oxide (rGO) on the surface of a SiO_2f/SiO₂ composite (3D-rGO-SiO_2f/SiO₂) to assist brazing with TC4. After the combined treatment, a “3D-rGO” buffer layer formed on the surface layer of the SiO_2f/SiO₂, and the contact angle was reduced from 130° to 38°, which meant the wettability of active brazing alloy on the surface of SiO_2f/SiO₂ was obviously improved. In addition, the “3D-rGO” buffer layer contributed to fully integrating the brazing alloy and SiO_2f/SiO₂; then, the infiltration of the brazing alloy into the surface layer of the SiO_2f/SiO₂ was enhanced and formed the reduced graphene oxide with a pinning structure in the three dimensional (“3D-pinning-rGO”) structure. Moreover, the joining area of the brazing alloy and SiO_2f/SiO₂ was expanded and the mismatch degree between the SiO_2f/SiO₂ and TC4 was reduced, which was achieved by the “3D-pinning-rGO” structure. Furthermore, the concentration of the residual stress in the SiO_2f/SiO₂-TC4 joints transferred from the SiO_2f/SiO₂ to the braided quartz fibers, and the residual stress reduced from 142 MPa to 85 MPa. Furthermore, the 3D-pinning-rGO layer facilitated the transfer of heat between the substrates during the brazing process. Finally, the shear strength of the SiO_2f/SiO₂-TC4 joints increased from 12.5 MPa to 43.7 MPa by the selective etching and depositing rGO method. Full article

The manufacturing of active RF devices like klystrons is dominated by expensive and time-consuming cycles of machining and brazing. In this article, we characterize the RF properties of X-band klystron cavities and an integrated circuit manufactured with a novel additive manufacturing process. Parts are 3D printed in 316 L stainless steel with direct metal laser sintering, electroplated in copper, and brazed in one simple braze cycle. Stand-alone test cavities and integrated circuit cavities were measured throughout the manufacturing process. The un-tuned cavity frequency varies by less than 5% of the intended frequency, and Q factors reach above 1200. A tuning study was performed, and unoptimized tuning pins achieved a tuning range of 138 MHz without compromising Q. Klystron system performance was simulated with as-built cavity parameters and realistic tuning. Together, these results show promise that this process can be used to cheaply and quickly manufacture a new generation of highly integrated high power vacuum devices. Full article

The pursuit of reliable energy devices sealing solutions stands as a paramount engineering challenge for ensuring energy safety and dependability. This review focuses on an examination of recent scientific publications, primarily within the last decade, with a central aim to grasp and apply critical concepts relevant to the efficient design and specification of brazements for ceramic–metal active-brazed assemblies, emphasizing the sealing of energy devices. The goal is to establish robust and enduring joints capable of withstanding water-vapor and hydrogen environments. The review commences with a concise recapitulation of the fundamental principles of active brazing, followed by an in-depth exploration of material selection, illustrated using water-vapor-resistant sensors as illustrative examples. Furthermore, the review presents practical solutions for the sealing of energy devices while also scrutinizing the factors that exert significant influence on the deterioration of these active-brazed connections. Ultimately, the review culminates in a comprehensive discussion of emerging trends and developments in active brazing techniques for energy-related applications. Full article

The purpose of this study was to investigate the wetting behavior and interfacial reactions of Sn-Ti alloys, which has been widely applied to join ceramics with metals, on Si₃N₄ substrates. The isothermal wetting process of Sn-xTi alloys (x = 0.5, 1.0, 1.5, 2.0 and 2.5 wt.%) on Si₃N₄ was systematically studied from 1223 K to 1273 K through sessile drop methods. The microstructures of the interface were characterized by X-ray diffraction (XRD) and microscope (SEM). The active Ti element remarkably enhanced the wettability of Sn-xTi melts on Si₃N₄ substrates because of the formation of metallic reaction layers (Ti₅Si₃ and TiN). With the Ti content rising, thicker Ti₅Si₃ layer formed on the TiN phase inducing a lower equilibrium contact angle. The value of the lowest contact angle was 6°, which was obtained in the Sn-2.0Ti/Si₃N₄ system at 1273 K. Larger Ti₅Si₃ grains were found in Sn-2.5Ti melt and a higher final contact angle was obtained. Lower temperature increased the final contact angle and slowed down the spreading rate. The formation of reaction products was calculated thematically, and the spreading kinetics was calculated according to the reaction-driven theory. The spreading behavior of Sn-Ti alloy on Si₃N₄ ceramic was composed of rapid-spreading stage and sluggish-spreading stage. The calculated activity energy of spreading was 395 kJ/mol. Eventually, the wetting process of Sn-2.0Ti/Si₃N₄ system was successfully elucidated. These results provide significant guidance information for the brazing between metals and Si₃N₄ ceramic. Full article

Alumina-based ceramic hip endoprosthesis heads have excellent tribological properties, such as low wear rates. However, stress peaks can occur at the point of contact with the prosthesis stem, increasing the probability of fracture. This risk should be minimized, especially for younger and active patients. Metal elevations at the stem taper after revision surgery without removal of a well-fixed stem are also known to increase the risk of fracture. A solution that also eliminates the need for an adapter sleeve could be a fixed titanium insert in the ceramic ball head, which would be suitable as a damping element to reduce the occurrence of stress peaks. A viable method for producing such a permanent titanium–ceramic joint is brazing. Therefore, a brazing method was developed for coaxial samples, and two modifications were made to the ceramic surface to braze a joint that could withstand high cyclic loading. This cyclic loading was applied in multiple amplitude tests in a self-developed test setup, followed by fractographic studies. Computed tomography and microstructural analyses—such as energy dispersive X-ray spectroscopy—were also used to characterize the process–structure–property relationships. It was found that the cyclic loading capacity can be significantly increased by modification of the surface structure of the ceramic. Full article

The interface behavior of brazing between Zr-Cu filler metal and SiC ceramic was investigated. Based on the brazing experiment, the formation of brazing interface products was analyzed using OM, SEM, XRD and other methods. The stable chemical potential phase diagram was established to analyze the possible diffusion path of interface elements, and then the growth behavior of the interface reaction layer was studied by establishing relevant models. The results show that the interface reaction between the active element Zr and SiC ceramic is the main reason in the brazing process the interface products are mainly ZrC and Zr₂Si and the possible diffusion path of elements in the product formation process is explained. The kinetic equation of interfacial reaction layer growth is established, and the diffusion constant (2.1479 μm·s^1/2) and activation energy (42.65 kJ·mol⁻¹) are obtained. The growth kinetics equation of interfacial reaction layer thickness with holding time at different brazing temperatures is obtained. Full article

The study was designed to investigate the synergic effect of Ti and Sn in the active metal brazing of Al₂O₃ ceramic to copper brazed, using the multicomponent Ag-Cu-Zr filler alloy. Numerous fine and hexagonal-shaped rod-like ternary intermetallic (Zr, Ti)₅Sn₃ phase (L/D = 5.1 ± 0.8, measured in microns) were found dispersed in the Ag-Cu matrix of Ag-18Cu-6Sn-3Zr-1Ti alloy, along with the ternary CuZrSn intermetallic phases. An approximate 15° reduction in contact angle and 3.1 °C reduction in melting point are observed upon the incorporation of Ti and Sn in Ag-18Cu-3Zr filler. Interestingly, the interface microstructure of Al₂O₃/Cu joints brazed by using Ag-18Cu-6Sn-3Zr-1Ti filler shows a double reaction layer: a discontinuous Ti-rich layer consisting of (Cu, Al)₃(Ti, Zr)₃O, TiO, and in-situ Cu-(Ti, Zr) precipitates on the Al₂O₃ side and continuous Zr-rich layer consisting of ZrO₂ on the filler side. The shear strength achieved in Al₂O₃/Cu joints brazed with Ag-18Cu-6Sn-3Zr-1Ti filler is 31% higher, compared to the joints brazed with Ag-18Cu-6Sn-3Zr filler. Failure analysis reveals a composite fracture mode indicating a strong interface bonding in Al₂O₃/Ag-18Cu-6Sn-3Zr-1Ti filler/Cu joints. The findings will be helpful towards the development of high entropy brazing fillers in the future. Full article

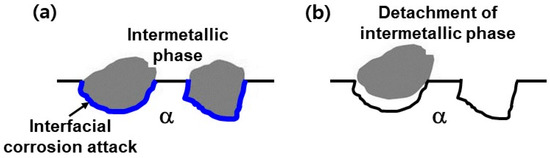

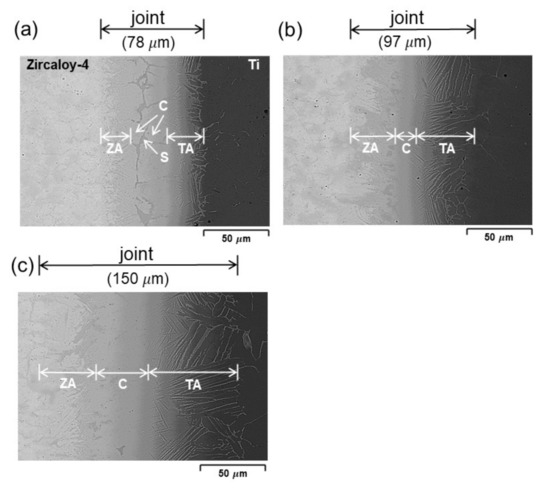

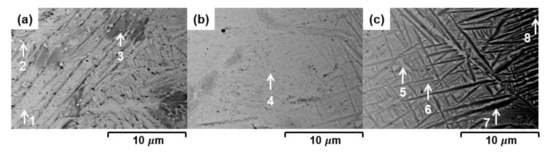

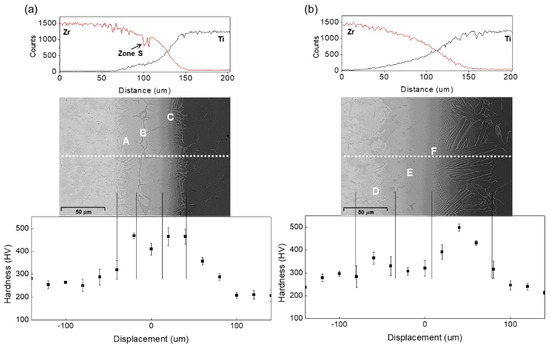

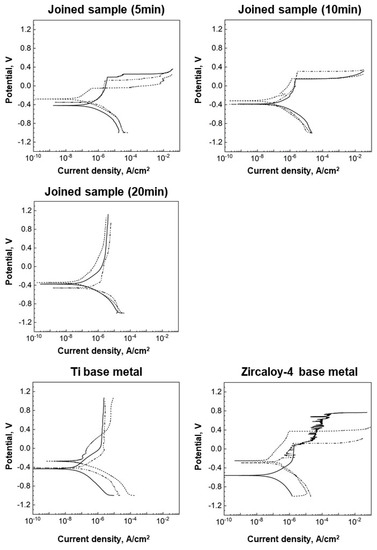

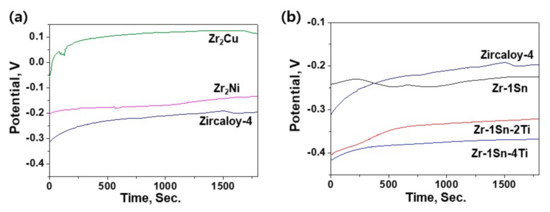

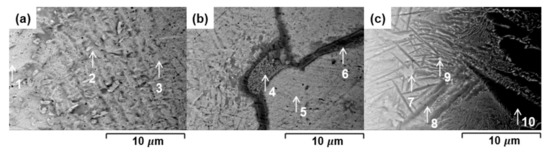

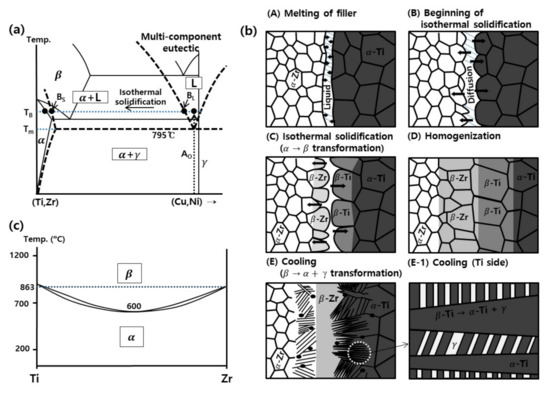

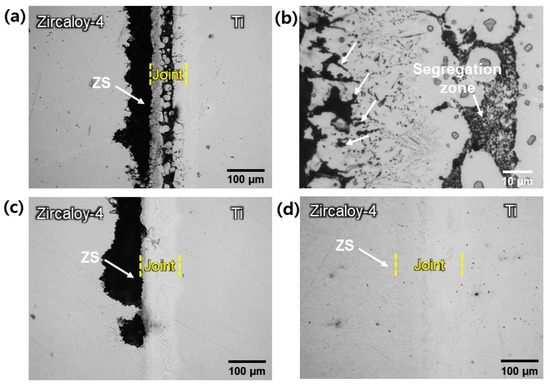

Titanium and Zircaloy-4 dissimilar alloys were brazed with a zirconium-titanium-copper-nickel amorphous filler alloy, and the resulting joint structures as well as their corrosion properties were examined. The microstructure of the brazed joints was investigated according to brazing holding time at 850 °C, and the corrosion property was analyzed by potentiodynamic polarization. During brazing, joints were produced by diffusion-induced isothermal solidification of the molten filler alloy. At a relatively brief brazing holding time of 5 min, a large segregation zone consisting of an active α-phase and a nobler intermetallic phase was generated in the joint center, which suffered from micro-galvanic corrosion. The presence of alloyed titanium deteriorated the nobility of the α-zirconium phase near the joint and induced galvanic coupling with cathodic base metals, resulting in massive localized corrosion. This localized corrosion caused the pitting behavior at the applied potential of −51.1~187.5 mV during anodic polarization. With a brazing holding time of 20 min, the concentration of the alloying elements was homogenized to eliminate the electrochemical potential difference and minimize the galvanic corrosion susceptibility of the joint region. This homogeneous joint resulted in a highly passive corrosion behavior comparable to that of the titanium base metal. Full article

In this study, brazing AA6061 to Q235 steel using flame brazing was performed with 70.9 wt.% CsF-0.5 wt.% RbF-28.6 wt.% AlF₃ fluxes doped with GaF₃, ZnF₂, Zn(BF₄)₂ and Ga₂O₃ nanoparticles, matched with a Zn-15Al filler metal, and the spreadability of the filler metal and the mechanical properties of brazed joints were investigated at the same time. The results showed suitable amounts of GaF₃, ZnF₂, Zn(BF₄)₂ and Ga₂O₃ doped into the base flux could strengthen the filler metal in wetting and spreading on the surface of aluminum alloy and steel to different degrees. The suitable ranges of GaF₃, ZnF₂, Zn(BF₄)₂ and Ga₂O₃, respectively, were 0.0075–0.01 wt.%, 0.0075–0.01 wt.%, 0.0075–0.01 wt.% and 0.009–0.01 wt.%, and the maximum spreading area was obtained via doping with GaF₃. The shear strength of brazed joints reached the peak at 126 MPa when 0.075 wt.% GaF₃ was added. Comparative tests proved that the activity of the CsF-RbF-AlF₃ flux doped with GaF₃ was the best. The reason was that the CsF-RbF-AlF₃-GaF₃ flux was competent in removing oxides of the base metal and decreasing the interfacial tension, in virtue of the activity of Ga³⁺ as well as F⁻. Full article

The vacuum brazing of dissimilar electronic packaging materials has been investigated. In this research, this applies silicon particle-reinforced aluminum matrix composites (Si_p/Al MMCs) to Kovar alloys. Active melt-spun ribbons were employed as brazing filler metals under different joining temperatures and times. The results showed that the maximum joint shear strength of 96.62 MPa was achieved when the joint was made using Al-7.5Si-23.0Cu-2.0Ni-1.0Ti as the brazing filler metal at 580 °C for 30 min. X-ray diffraction (XRD) analysis of the joint indicated that the main phases were composed of Al, Si and intermetallics, including CuAl, TiFeSi, TiNiSi and Al₃Ti. When the brazing temperature ranged from 570 °C to 590 °C, the leakage rate of joints remained at 10⁻⁸ Pa·m³/s or better. When the joint was made using Al-7.5Si-23.0Cu-2.0Ni-2.5Ti as the brazing filler metal at 580 °C for 30 min, the higher level of Ti content in the brazing filler metal resulted in the formation of a flake-like Ti(AlSi)₃ intermetallic phase with an average size of 7 µm at the interface between the brazing seam and Si_p/Al MMCs. The joint fracture was generally in the form of quasi-cleavage fracture, which primarily occurred at the interface between the filler metal and the Si_p/Al MMCs. The micro-crack propagated not only Ti(AlSi)₃, but also the Si particles in the substrate. Full article

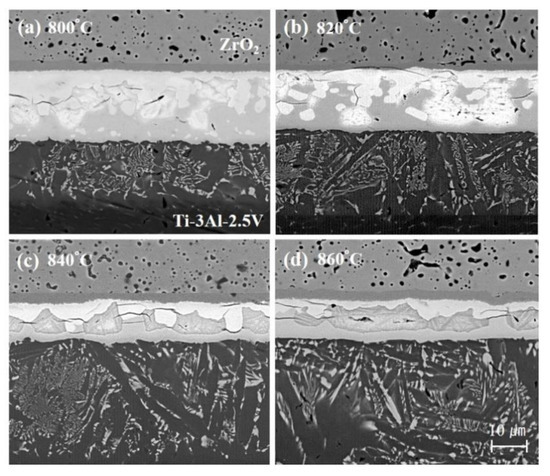

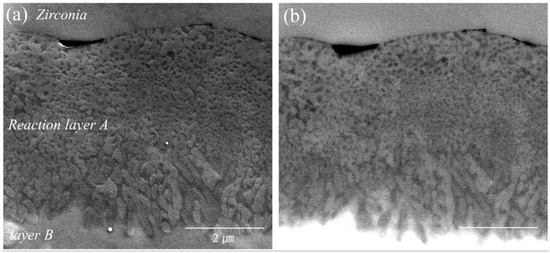

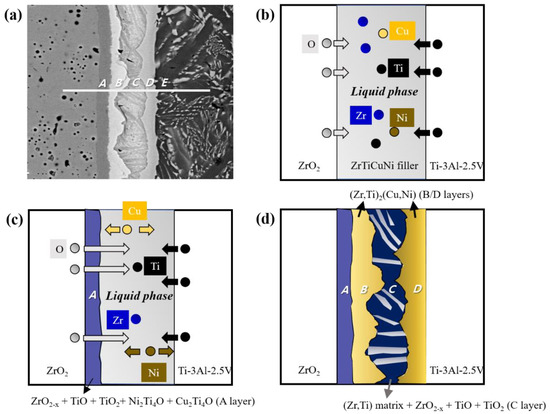

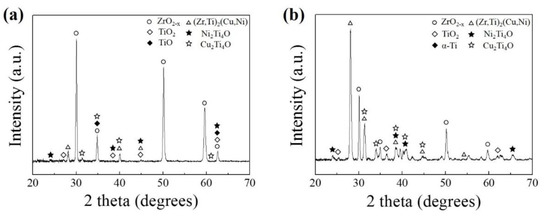

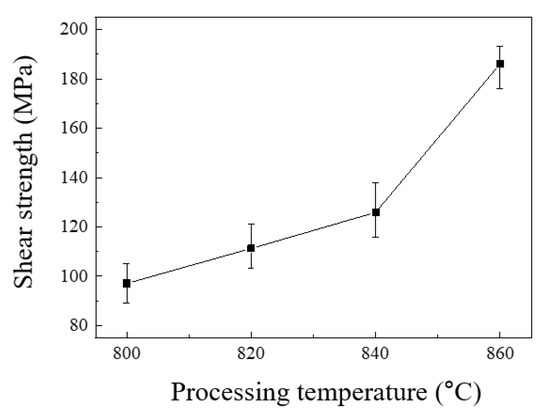

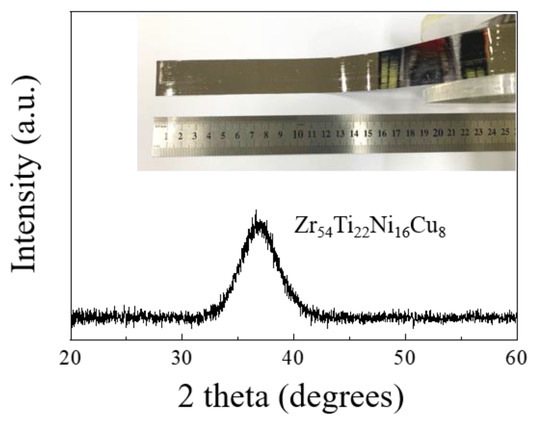

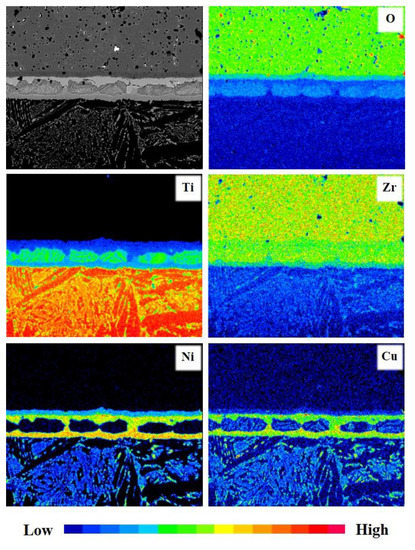

Active brazing of zirconia with metallic alloys is a promising method for enhancing the mechanical property of zirconia. However, the brazing process of zirconia and metallic alloys has not been studied in detail because of a limitation in selection of materials and processing conditions. Here, we successfully brazed zirconia with Ti-3Al-2.5V alloy using amorphous Zr₅₄Ti₂₂Ni₁₆Cu₈ active filler alloy. By manipulating the brazing temperature from 800 °C to 860 °C, a highest strength of ~186 MPa was achieved at 860 °C. Reduced brittle (Zr,Ti)₂(Ni,Cu) intermetallic phases from formation of island-type (Zr,Ti) matrix, ZrO_2-X, TiO, and TiO₂ interlayer play a key role in increasing the joint strength. Our findings will be helpful in developing brazing processes for zirconia and metallic alloys. Full article

In this study, a Ga₂O₃ nano-particle was added into CsF-RbF-AlF₃ flux to develop a highly active flux for brazing aluminum alloy to steel, and the spreadability and wettability of Zn-Al filler metal that matched the CsF-RbF-AlF₃ flux-doped Ga₂O₃ nano-particle on the steel were investigated. The results showed that the spreadability and wettability of the CsF-RbF-AlF₃ flux-doped Ga₂O₃ nano-particle could be remarkably improved when matching Zn-Al filler metals on both aluminum and low-carbon steel, for which the optimal content is in the range of 0.001–0.003 wt.% of Ga₂O₃. An investigation and analysis on the mechanism of reactions among CsF-RbF-AlF₃-doped Ga₂O₃ nano-particle flux and filler metal or base metals showed that the Ga₂O₃ nano-particle is selectively absorbed by the interface of molten Zn-2Al filler metal and base metal, which released the surface-active element Ga to enrich the molten Zn-2Al filler metal and decreased the interfacial tension, so as to promote the enlargement of its spreading area during the brazing process. It was concluded that adding a trace amount of Ga₂O₃ nano-particle into CsF-RbF-AlF₃ flux is a meaningful way to improve the activity of flux for brazing aluminum to steel compared with adding ZnCl₂, which poses the risk of corrosion on aluminum. Full article
