Search Results (9)

In nature, rock masses often exhibit fissures, and varying external forces lead to different rates of loading on fissured rock masses. By studying the influence of the loading rate on the mechanical properties of fractured rock mass and AE characteristic parameters, it can provide a theoretical basis for the safety and stability prediction of engineering rock mass. To investigate the influence of loading rates on fissured rock masses, this study utilizes surrogate rock specimens resembling actual rock bodies and prefabricates two fissures. By conducting uniaxial compression acoustic emission tests at different loading rates, the study explores changes in their mechanical properties and acoustic emission characteristic parameters. Research findings indicate the following: (1) Prefabricated fissures adversely affect the stability of specimens, resulting in lower strength compared to intact specimens. Under the same fissure inclination angle, peak strength, elastic modulus, and loading rate exhibit a positive correlation. When the fissure inclination angle varies from 0° to 60° under the same loading rate, the peak strength of specimens generally follows a “V”-shaped trend, decreasing initially and then increasing, with the minimum peak strength observed at α = 30°. (2) Prefabricated fissure specimens primarily develop tensile cracks during loading, gradually transitioning to shear cracks, ultimately leading to shear failure. (3) The variation patterns of AE (acoustic emission) characteristic parameters under the influence of loading rate differ: AE event count, AE energy, and cumulative AE energy show a positive correlation with loading rate, while cumulative AE event count gradually decreases with increasing loading rate. (4) AE characteristic parameters exhibit good correlation with the stress–strain curve and can be divided into four stages. The changes in AE characteristic parameters correspond to the changes in the stress–strain curve. With increasing loading rate, AE signals in the first three stages gradually stabilize, focusing more on the fourth stage, namely the post-peak stage, where the specimens typically experience maximum AE signals accompanying final failure. Full article

Nuclear power is a high-quality clean energy source, but nuclear waste is generated during operation. The waste continuously releases heat during disposal, increasing the adjoining rock temperature and affecting the safety of the disposal site. Basalt is widely considered a commonly used rock type in the repository. This study of basalt’s mechanical characteristics and damage evolution after thermal damage, with its far-reaching engineering value, was conducted by combining experimental work and theory. Uniaxial compression tests were conducted on basalt exposed to 25 °C, 500 °C, 700 °C, 900 °C, and 1100 °C conditions, and acoustic emission (AE) equipment was utilized to observe the acoustic emission phenomenon during deformation. This study was carried out to examine the mechanical characteristics, the sound emission features, the progression of damage laws, and the stress–strain framework of basalt after exposure to different types of thermal harm. As the temperature rises, the rock’s maximum strength declines steadily, the peak strain rises in tandem, the rock sample’s ductility is augmented, the failure mode changes from shear to tensile failure, and cracks in the failure area are observed. At room temperature, the acoustic emission signal is more vigorous than in the initial stage of rock sample loading due to thermal damage; however, after the linear elastic stage is entered, its activity is lessened. In cases where the rock approaches collapse, there is a significant surge in acoustic emission activity, leading to the peak frequency of acoustic emission ringing. The cumulative ring count of acoustic emission serves as the basis for the definition of the damage variable. At room temperature, the damage evolution of rock samples can be broken down into four distinct stages. This defined damage variable is more reflective of the entire failure process. After exposure to high temperatures, the initial damage of the rock sample becomes more extensive, and the damage variable tends to be stable with strain evolution. The stress–strain constitutive model of basalt deformation is derived based on the crack axial strain law and acoustic emission parameters. A powerful relationship between theoretical and experimental curves is evident. Full article

In the research on sustainable mining and environmental preservation, understanding the dynamic behaviour of rock formations in deep, high-stress mining environments is essential. In order to acquire the laws of rock dynamic disaster generation from mining in deep, high-stress environments, this research adopts a multistage and multi-cycle triaxial cyclic loading test to obtain the stress–strain curves and macroscopic deformation characteristics of hard sandstone under different surrounding pressures. The results show that the cumulative damage displacement of hard sandstone under cyclic loading at a certain stress level for the first 3–4 cycles is half of the total damage displacement at that cycle stage, and its peak volumetric strain will increase with the increase. The elastic energy density ratio and dissipation energy density ratio of hard sandstone under cyclic loading show a sinusoidal fluctuation trend, and the fluctuation gradually decreases with the increase in the number of cycles and the increase in the cyclic stress level. Under the cyclic loading of different surrounding pressures, the hard sandstone shows brittle damage characteristics, where the damage form is mainly shear damage with a small amount of tensile damage in low surrounding pressure and the damage form is mainly shear damage, tensile damage, and local compression damage in high surrounding pressure. The study reveals the deformation and damage law, energy evolution, and dissipation characteristics of high-strength hard sandstone. It is essential for the development of mining strategies that minimize the impact on the environment, reduce the dynamic hazards generated by mining, and maximize the efficiency of resource extraction Full article

Residual stress plays an important role in the formation and growth of cracks in thermal barrier coatings and single-crystal superalloy substrates. In this study, a finite element model for a planar double-layer thermal barrier coating and a crystal plasticity finite element model based on dislocation slip-induced plastic deformation of single-crystal materials were established to analyze the residual stress in the coatings and the substrate, considering the creep and crystal plasticity of the substrate materials. The simulation results show that the thermal barrier coatings bear most of the stress generated by high temperatures, and the residual stress of the substrate is small. By comparing the two material properties to calculate the interface stress when the amplitude of the interface between the substrate and the coating is 30 μm and the thickness of the thermal grown oxide layer is 5 µm, the interfacial stress of the substrate at the macro scale was found to be similar to the interfacial stress at the micro slip system scale. Based on the cumulative shear strain, it was determined that the [001]-, [011]-, and [111]-oriented alloys activated the 12, 8, and 4 groups, respectively, under the combined action of thermal stress and centrifugal force of the coating. Comparing the activation of different initial orientation slip systems and the magnitude of the yield stress provides a theoretical foundation to study the structural integrity of single-crystal alloys. Full article

The goaf formed by mining is filled and treated, which greatly improves the safety and stability of the surrounding rock. During the filling process, the roof-contacted filling rates (RCFR) of goaf were closely related to the stability control of the surrounding rock. The influence of the roof-contacted filling rate on the mechanical characteristics and crack propagation of the goaf surrounding rock (GSR) has been studied. Biaxial compression experiments and numerical simulation experiments were conducted on samples under different operating conditions. The results were as follows: (1) The peak stress, peak strain, and elastic modulus of the GSR are closely related to the RCFR and the goaf size; they increase with the increase of the RCFR, and decrease with the increase of the goaf size; (2) In the initial loading stage, a small number of cracks are generated, and the acoustic emission ringing count increases slowly. The mid-loading stage is the crack initiation and rapid expansion, and the cumulative ring count curve shows a “stepwise” growth. In the later loading stage, cracks continue to propagate and form macroscopic fractures, but the number of rings significantly decreases; (3) Shear cracks are prone to occur in the rock part of the GSR; tensile cracks are prone to occur in the backfill; and the crack propagation speed in the rock is faster than in the backfill. Stress concentration is the direct cause of GSR failure. The maximum concentrated stress of rock mass and backfill is 1~2.5 times and 0.17~0.7 times of the peak stress of the GSR, respectively. Full article

In order to study the shear behavior of the interface between sand and structure, a series of shear tests were carried out using an HJ-1 ring shear apparatus (Nanjing, China). First, through the monotonic shear tests, the loose sand and dense sand were sheared at the steel interface with different roughnesses. The results showed that when the interface was relatively smooth, the shear stress–shear displacement curves of loose sand and dense sand both exhibit strain hardening characteristics. When the interface was rough, the dense sand showed strain softening. The initial shear stiffness of the sand–steel interface increased with the increase in normal stress, interface roughness, or sand relative density. Then, considering the influence of initial shear stress, through the cyclic shear test, this work analyzed the shape of the loading and unloading curves and the development law of cumulative normal deformation, and discussed the change of loading and unloading shear stiffness under different stress level amplitudes and the residual deformation generated during the cycle. The research results showed that loose sand and dense sand generally shrunk in volume during the cycle. The initial loading process was similar to the case of static loading. In the later dynamic loading process, the shear shrinkage per cycle was relatively small and continued to develop. Additionally, it was found that the unloading stiffness of the sand–steel interface is always greater than the initial loading stiffness. As the number of cycles increases, the loading stiffness increases, and it may eventually approach the unloading stiffness. Full article

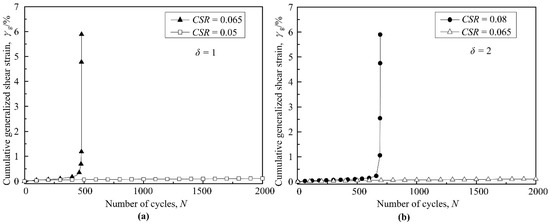

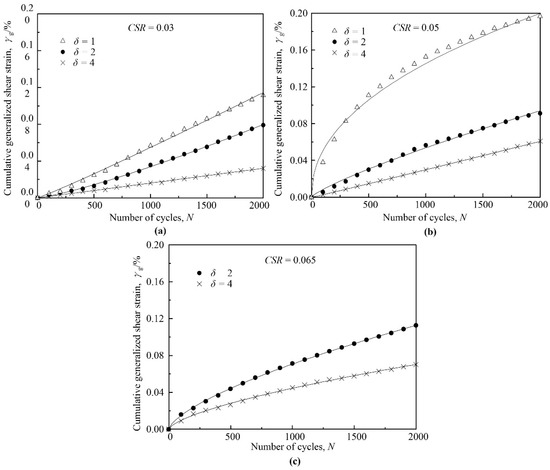

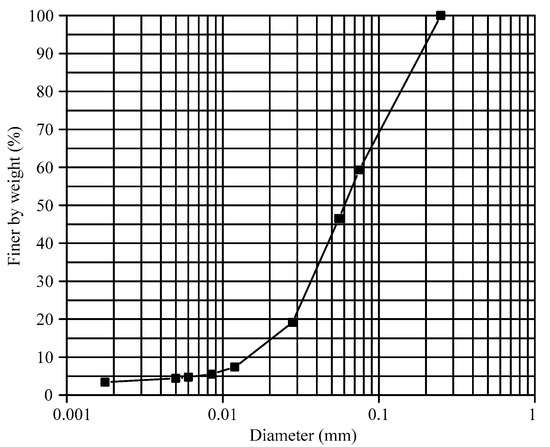

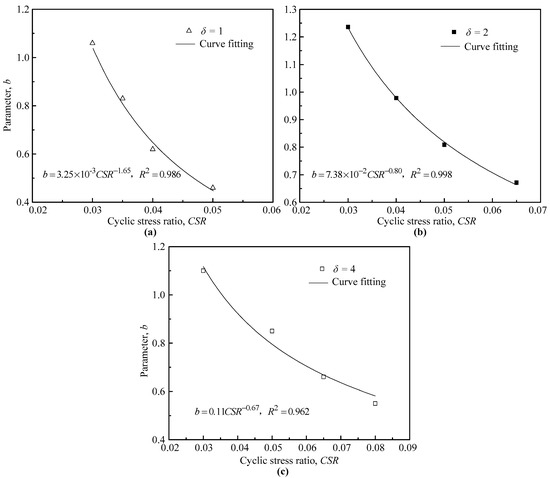

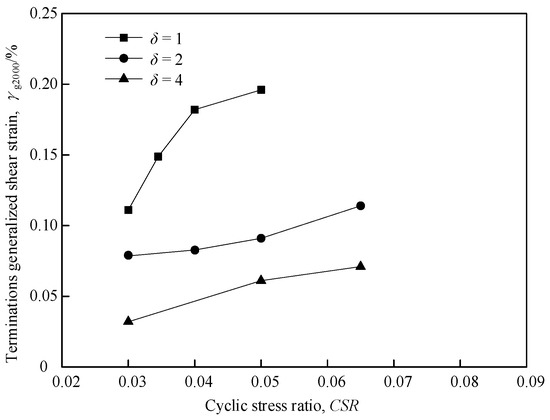

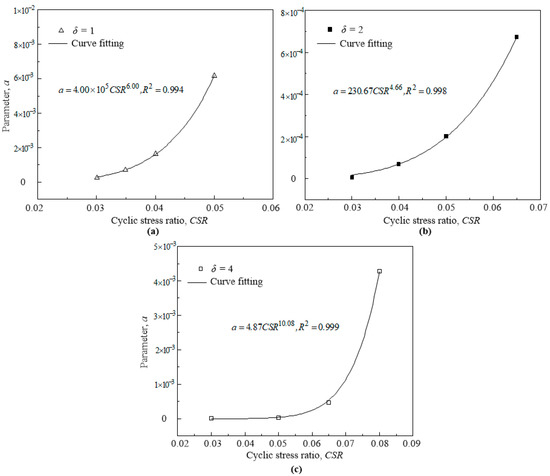

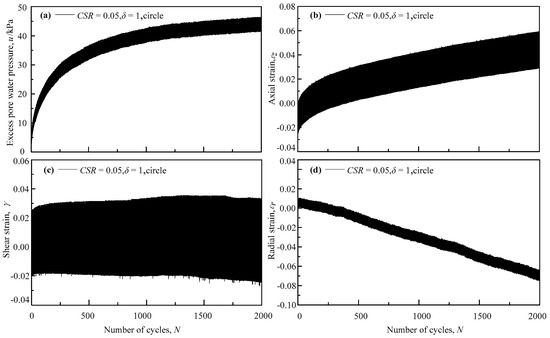

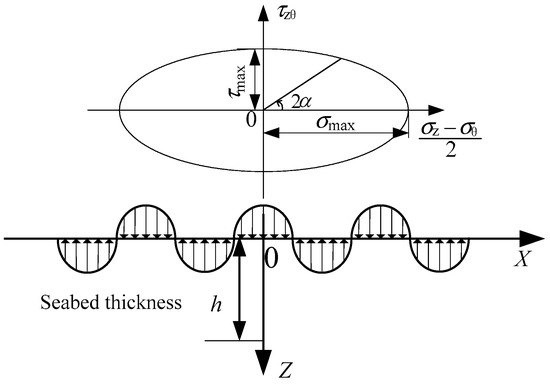

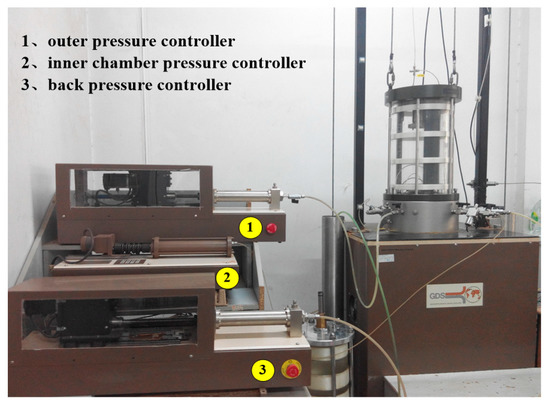

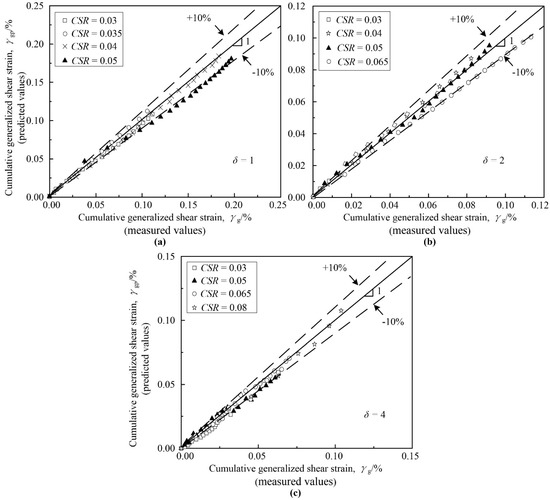

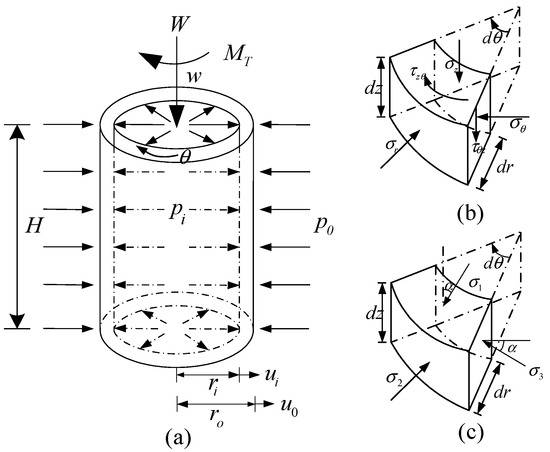

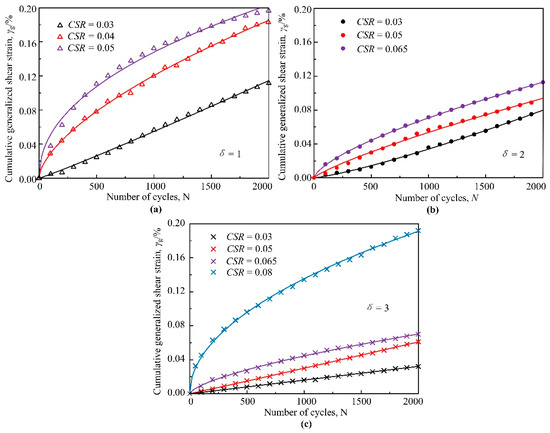

An experimental study aimed at providing insights into the cyclic deformation behavior of saturated marine silt under principal rotation, as induced by wave loading, is presented. Using the GDS hollow cylinder apparatus, a series of undrained tests are performed and the specimens at identical initial states are subjected to combined axial–torsional cyclic loading that imposes different levels of stress rotation. The cumulative generalized shear strain γ_g is used to describe the deformation of the silt under complex stress paths. The test results show that the cumulative generalized shear strain is significantly dependent on the cyclic stress ratio (CSR) and cyclic loading amplitude ratio δ. The cumulative generalized shear strain increases with the increase in CSR and decreases with the increase in δ. The development trend of γ_g can be well predicted through the correct Monismith model in the non-liquefaction silt, with a low error that is generally less than 10%. Full article

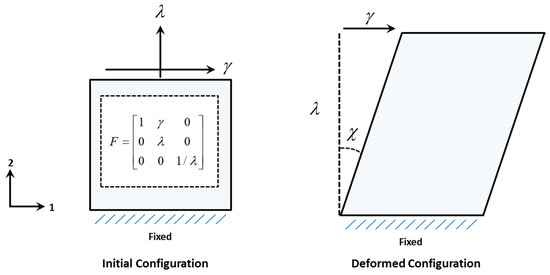

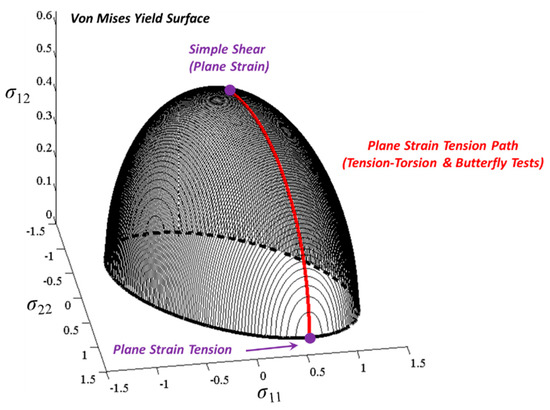

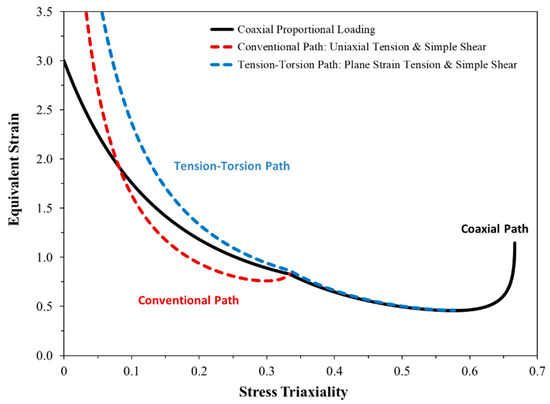

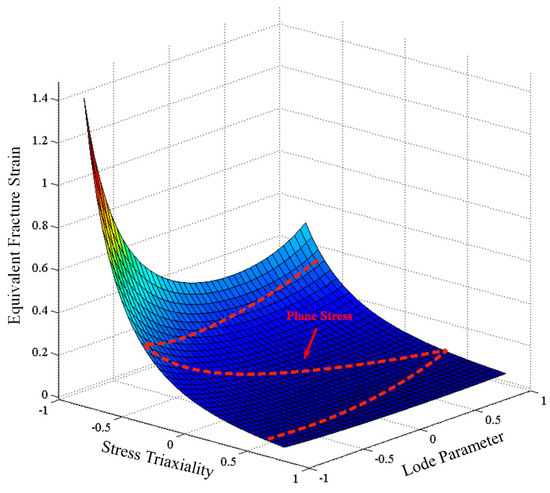

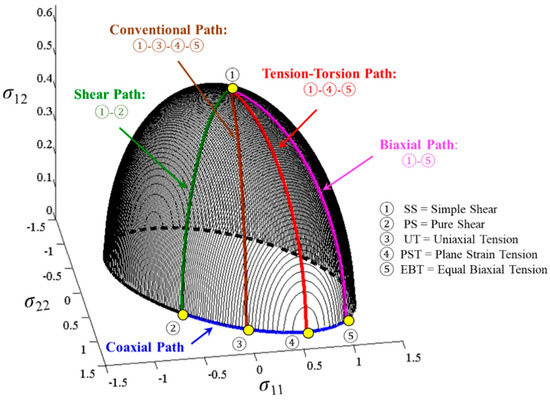

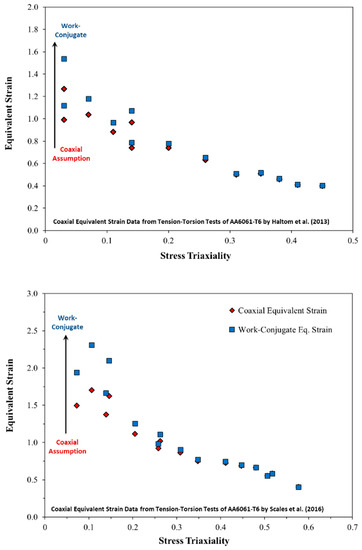

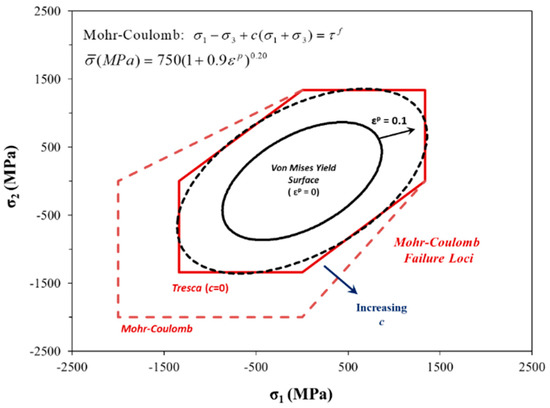

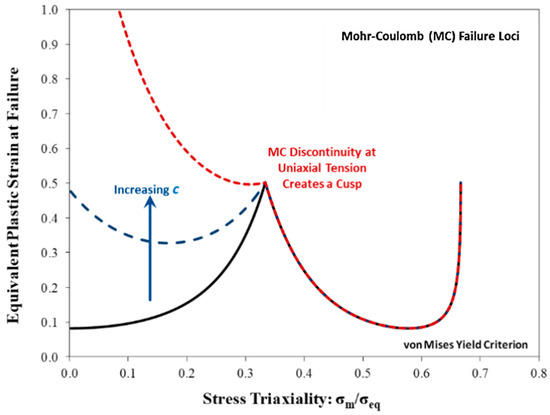

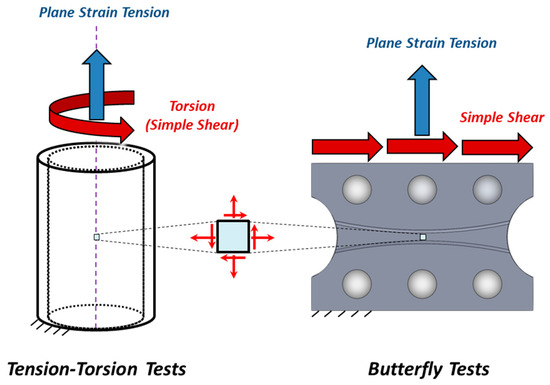

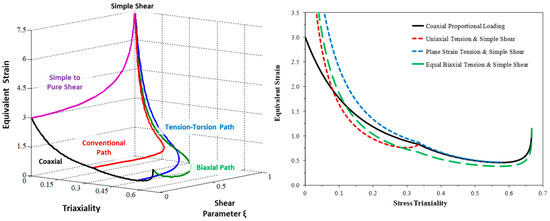

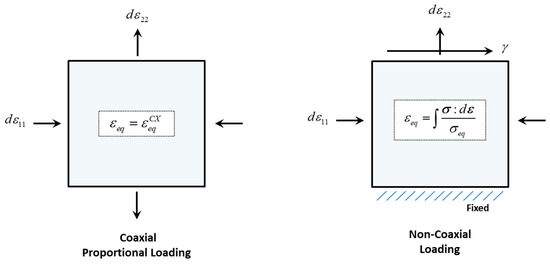

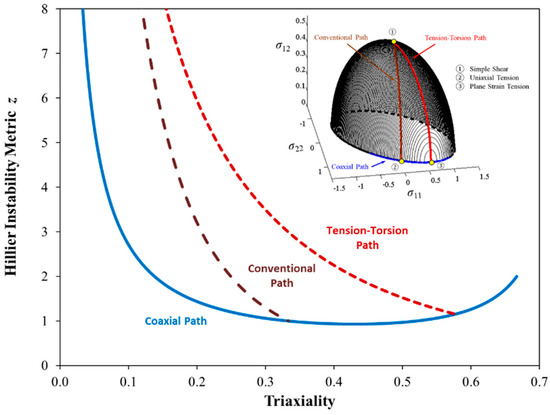

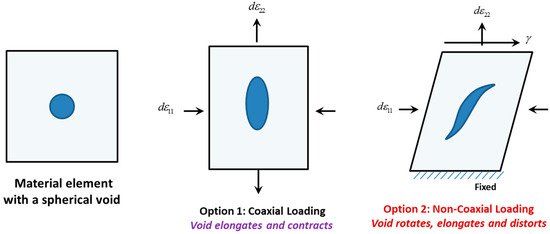

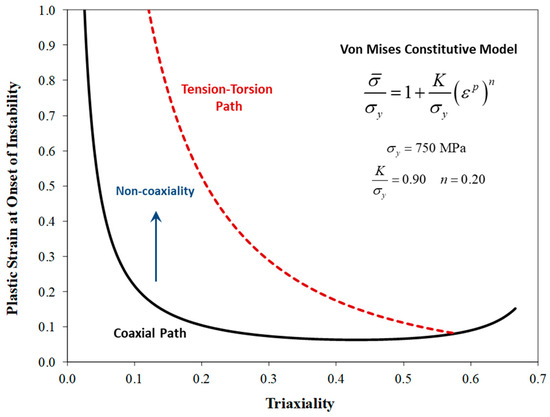

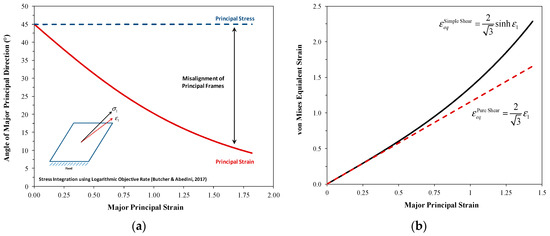

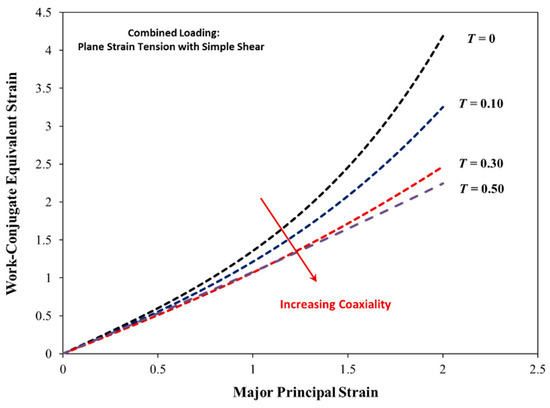

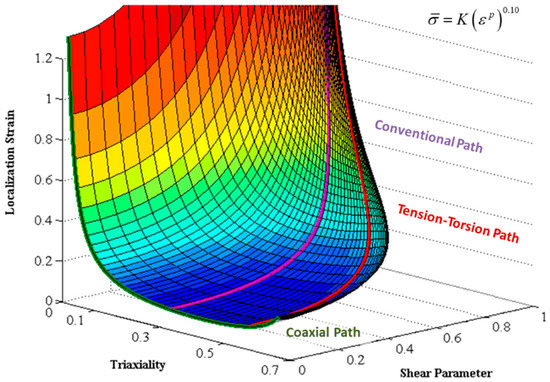

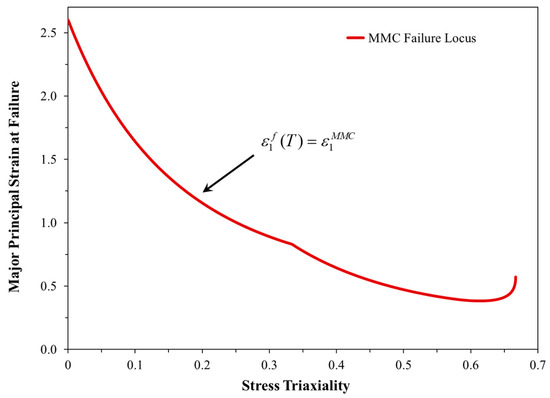

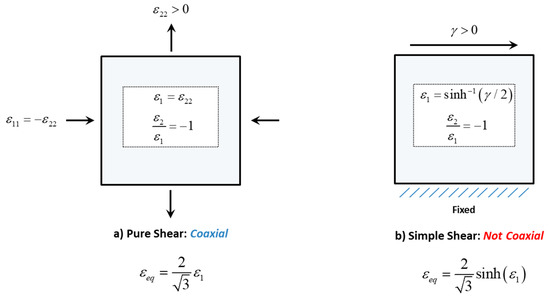

The present study investigates how the choice of characterization test and the composition of the stress state in terms of tension and shear can produce a non-unique failure locus in terms of stress triaxiality under plane stress conditions. Stress states that are composed of tensile and simple shear loadings result in a loss of proportionality between the cumulative strain and stress such that the principal frames become non-coaxial despite a constant stress triaxiality. Consequently, it is shown that the conventional interpretation of a failure locus in plane stress is based upon an implicit assumption of proportional coaxial loading. The use of simple shear tests along with traditional in-plane tensile tests for fracture characterization is only one “path” that can be taken in terms of the stress triaxiality, which may produce a bifurcation at uniaxial tension while the tension–torsion path does not. In general, the failure locus in terms of the equivalent strain is a failure surface and must consider the composition of the stress state that produces a given triaxiality. A comprehensive review of phenomenological fracture loci within a modified Mohr-Coulomb (MMC) framework is performed to highlight how the choice of stress states obtained using different characterization tests can change the apparent fracture locus of a material. The finite strain solutions for the work conjugate equivalent strain are derived for various loading paths that produce the same stress triaxiality. It is then shown that accounting for non-coaxiality leads to equivalent failure strains that are even higher than previously reported in tension–torsion tests within the literature. The equivalent plastic strains integrated from finite-element simulations are work-conjugate by definition. The equivalent strains estimated from the cumulative principal strains using DIC strain measurement depend upon a coaxial or non-coaxial assumption. Finally, an analytical solution for the onset of diffuse necking that accounts for the stabilizing influence of shear loading against a tensile instability is considered. Even under plane stress conditions, a failure surface arises in terms of the equivalent strain at necking, the stress triaxiality, and the severity of shear loading. Full article

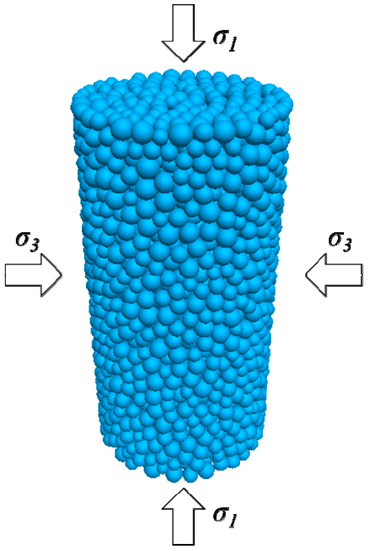

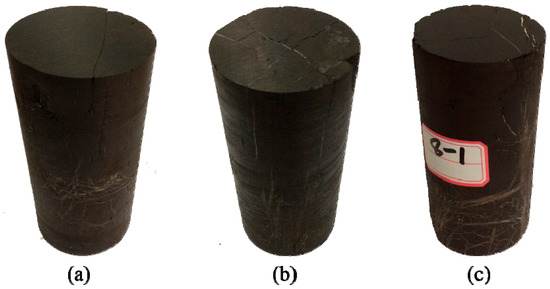

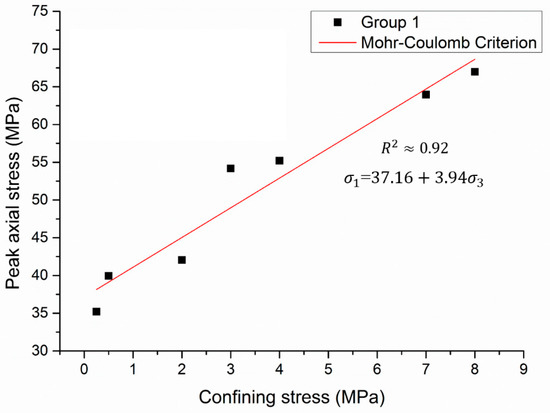

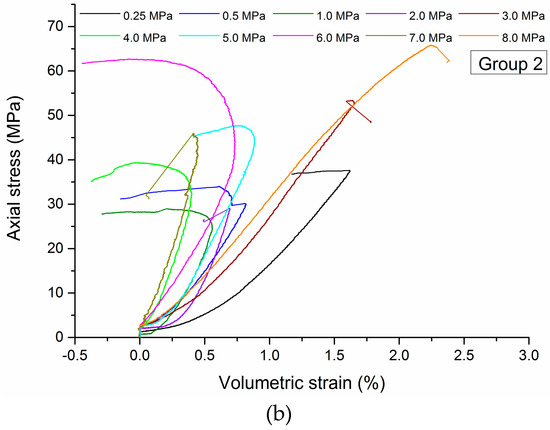

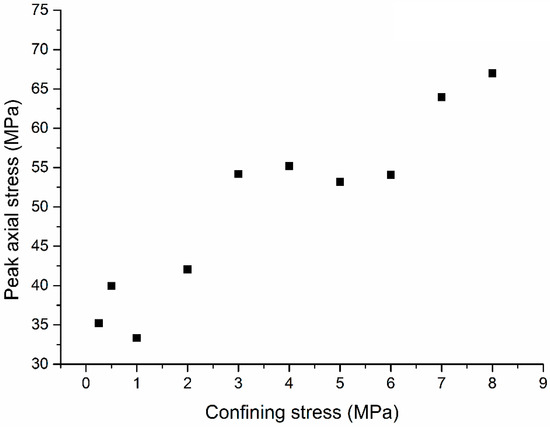

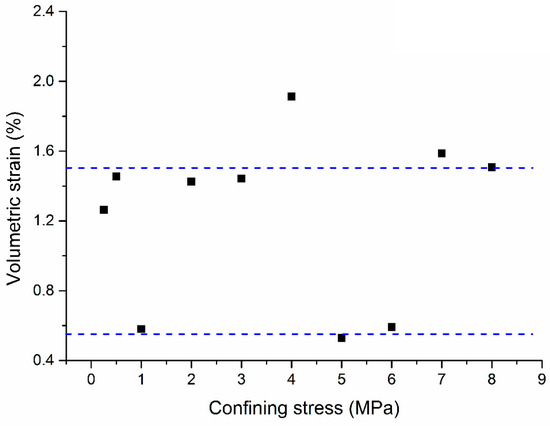

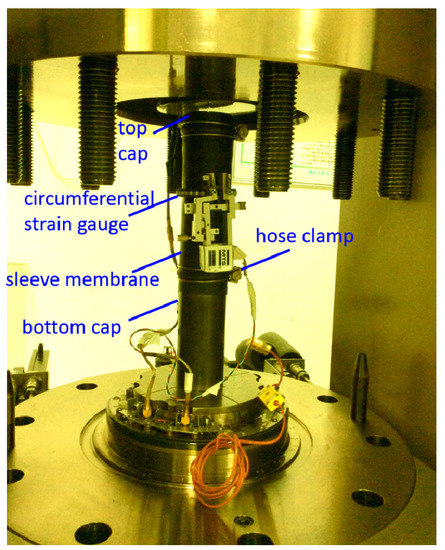

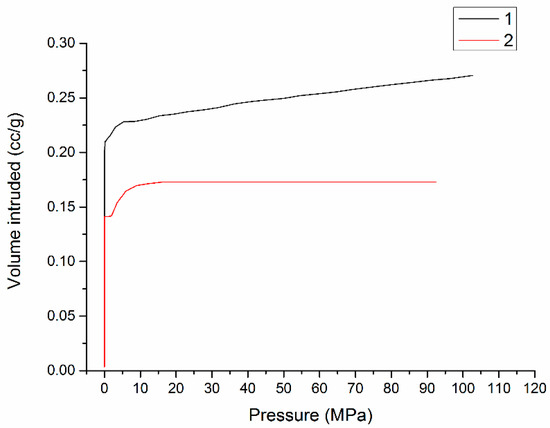

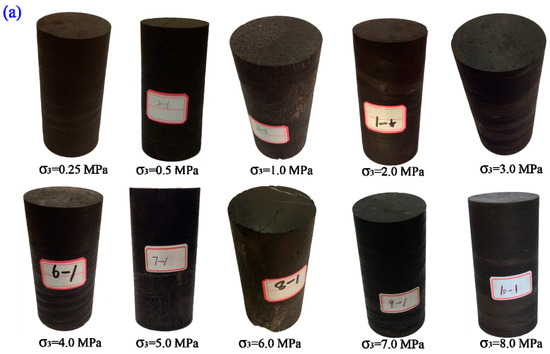

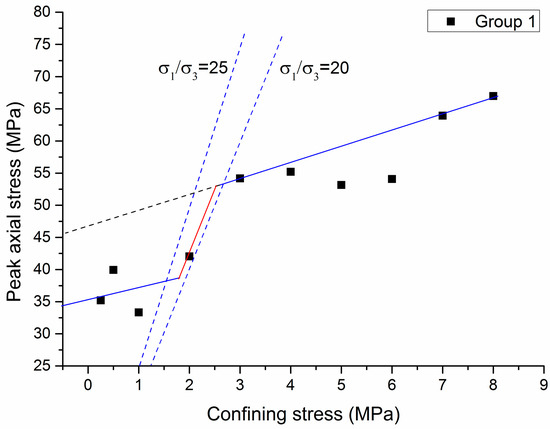

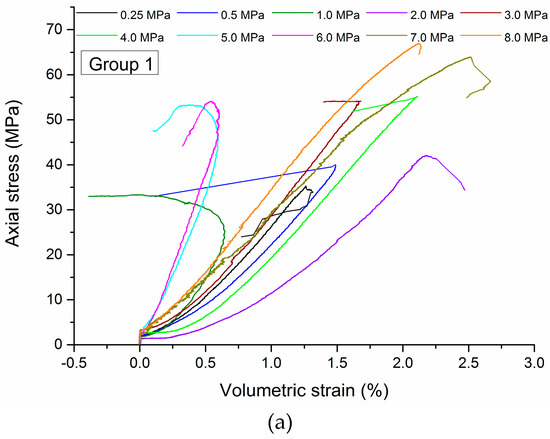

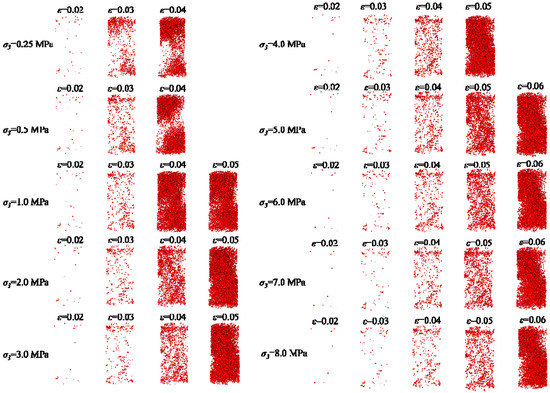

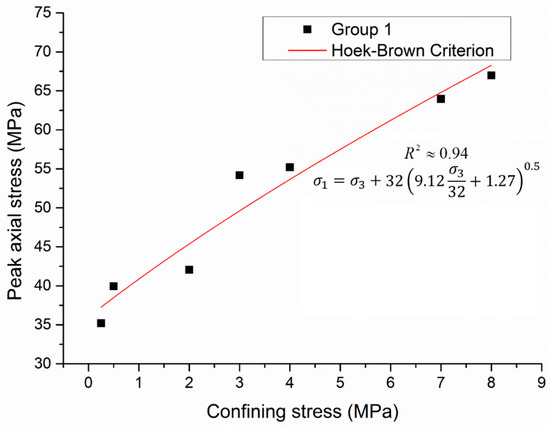

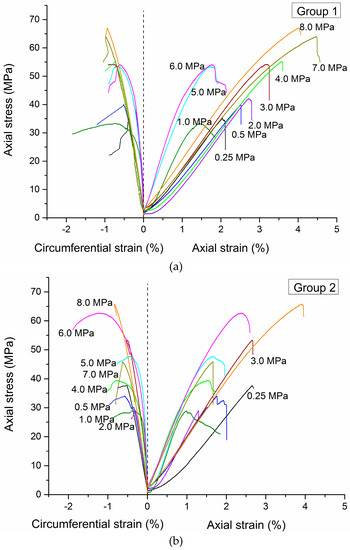

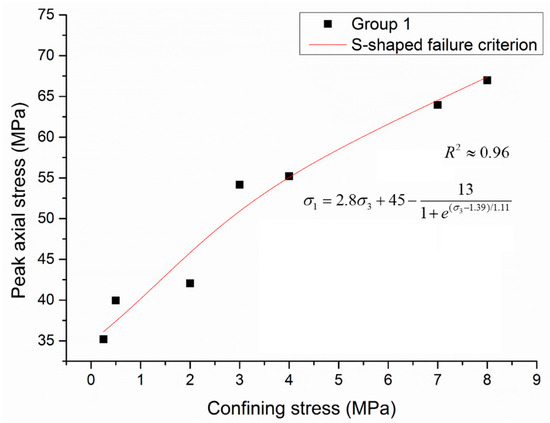

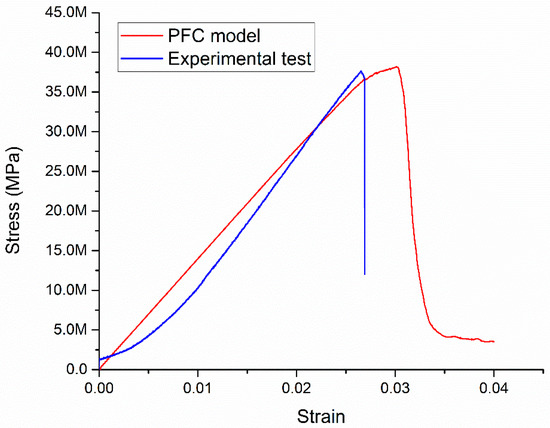

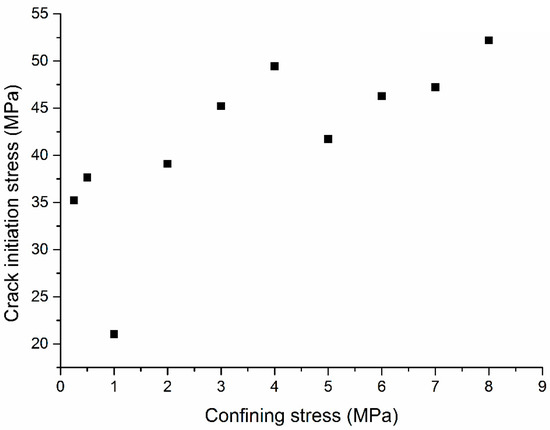

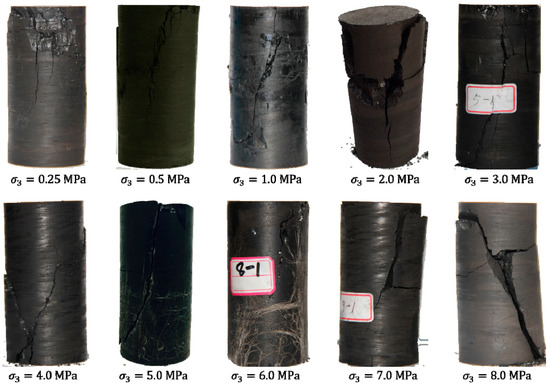

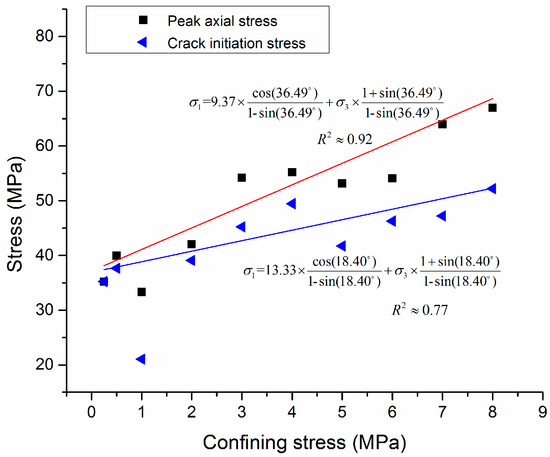

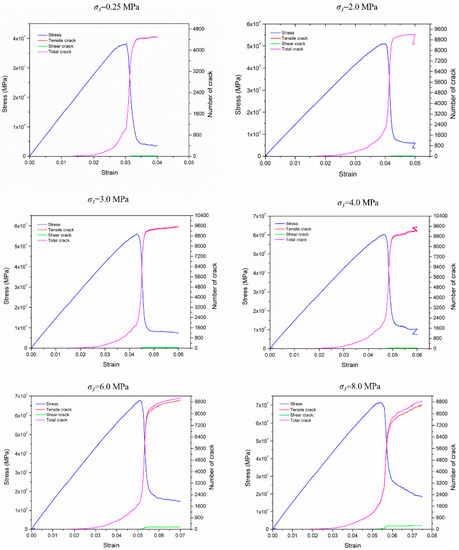

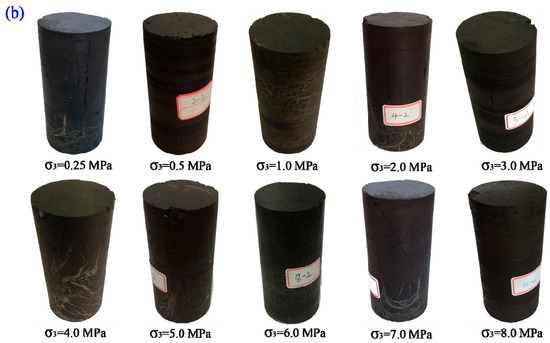

The high stress environment brings many challenges in underground coal mining. In order to address the strength behavior of coal under various confining stresses and hence shed light on coal pillar design optimization, compressive tests were conducted under the lateral confinement of 0–8.0 MPa, and the strength enhancement mechanism was studied from the grain scale using PFC modeling. The results show that the coal strength and cumulative axial strain at failure increased with the confinement, while the Young’s modulus of coal is independent of confinement. However, this confinement-dependent strength property can be significantly weakened by existing cracks. Compared to the significant increase in peak compressive stress, the crack initiation stress slightly increased with the confinement. The strength component mobilized with the confinement enhancement. In the early stage of loading, the high confinement restrained the development of microcracks, while in the later stage, it enhanced the frictional resistance strength component. The two mechanism shifted the compressive strength of coal together and the latter one contributed to the strength component mobilization. The coal showed three failure modes sequentially with the increase of confinement, namely axial splitting, mixed failure and shear failure mode. With regard to failure envelope, the Mohr-Coulomb, Hoek-Brown and S-shaped failure criteria can generally represent the confinement-dependent coal strength with R-square larger than 0.9. The confinement of rapid strength promotion section of S-shape failure envelope falls in a range of 1.5–3.0 MPa. This leads to the difficulty of S-shaped failure envelope justification due to the soft nature and heterogeneity of coal. Full article
