Search Results (266)

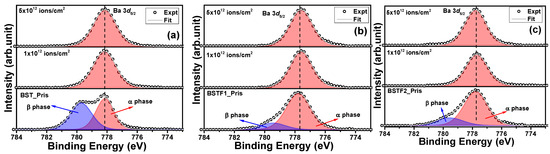

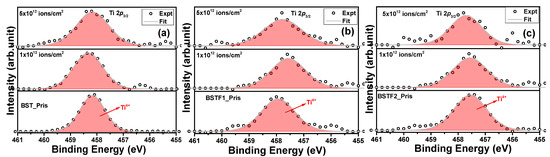

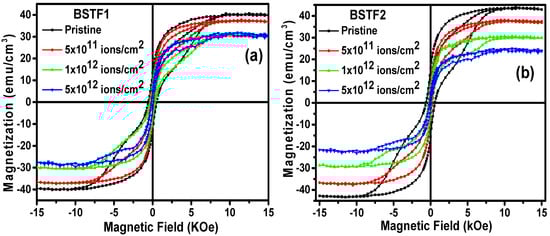

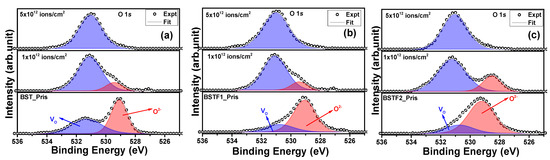

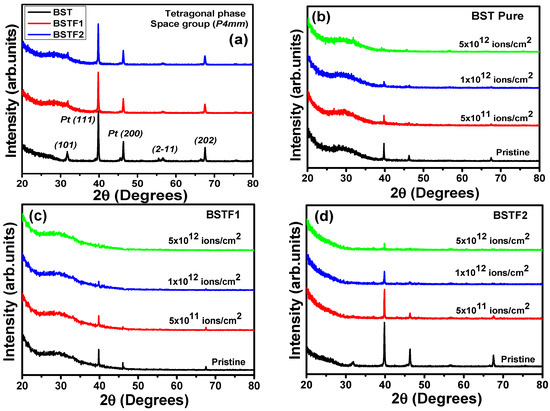

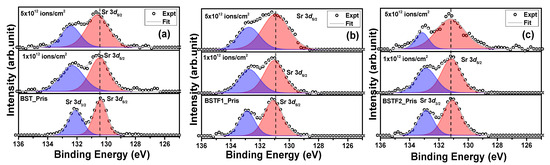

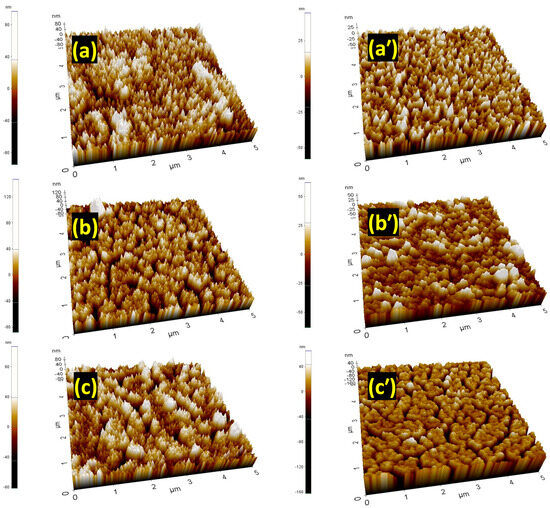

This study presents a comprehensive analysis of the modifications in electronic structure and magnetism resulting from electronic excitation in pulsed laser-deposited Ba_0.7Sr_0.3Fe_xTi_(1−x)O₃ thin films, specifically for compositions with x = 0, 0.1, and 0.2. To investigate the effects of electronic energy loss (S_e) within the lattice, we performed 120 MeV Ag ion irradiation at varying fluences (1 × 10¹² ions/cm² and 5 × 10¹² ions/cm²) and compared the results with those of the pristine sample. The S_e induces lattice damage by generating ion tracks along its trajectory, which subsequently leads to a reduction in peak intensity observed in X-ray diffraction patterns. Atomic force microscopy micrographs indicate that irradiation resulted in a decrease in average grain height, accompanied by a more homogeneous grain distribution. X-ray photoelectron spectroscopy reveals a significant increase in oxygen vacancy (V_O) concentration as ion fluence increases. Ferromagnetism exhibits progressive deterioration with rising irradiation fluence. Due to the high S_e and multiple ion impact processes, cation interstitial defects are highly likely, which may overshadow the influence of V_O in inducing ferromagnetism, thereby contributing to an overall decline in magnetic properties. Furthermore, the elevated S_e potentially disrupts bound magnetic polarons, leading to a degradation of long-range ferromagnetism. Collectively, this investigation elucidates the electronic excitation-induced modulation of ferromagnetism, employing Fe impurity incorporation and irradiation techniques for precise defect engineering. Full article

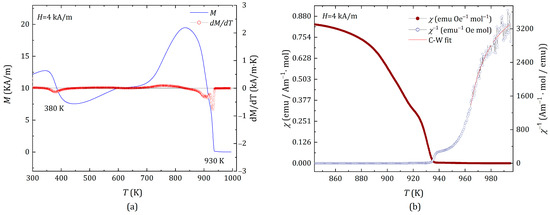

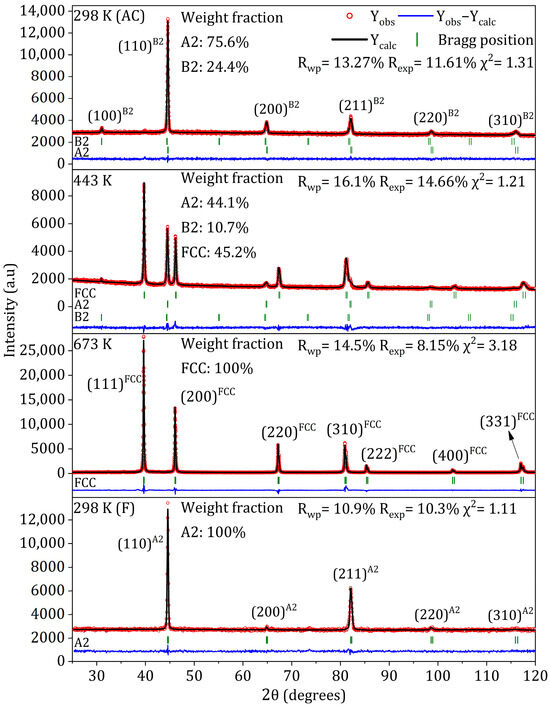

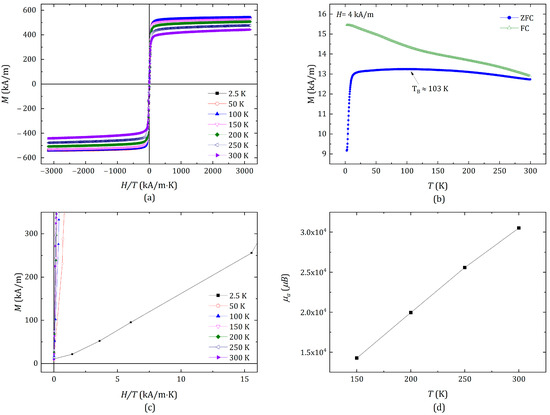

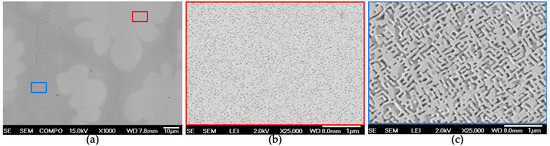

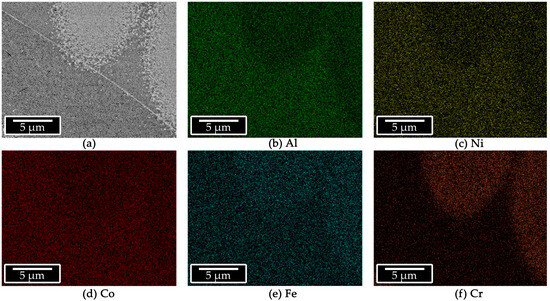

This study explores the crystal structure, microstructure and magnetic phase evolution of the AlCoCrFeNi high-entropy alloy (HEA), highlighting its potential for applications requiring tailored magnetic properties across diverse temperatures. Electron microscopy and X-ray diffraction revealed that the as-cast alloy’s microstructure comprises equiaxed grains with branching dendrites, showing compositional variations between interdendritic regions enriched in Al and Ni. Temperature-induced phase transformations were observed above room temperature, transitioning from body centered cubic (BCC) phases (A2 and B2) to a predominant FCC phase at higher temperatures, followed by recrystallization of the A2 phase upon cooling. Magnetization measurements showed a drop near 380 K, suggesting the Curie temperature of BCC phases, a peak at 830 K attributed to optimal magnetic alignment in the FCC phase, and a sharp decline at 950 K marking the transition to a paramagnetic state. Magnetic moment calculations provided insights into magnetic alignment dynamics, while low-temperature analysis highlighted the alloy’s magnetically soft nature, dominated by ferromagnetic contributions from the A2 phase. These findings underscore the strong interdependence of microstructural features and magnetic behavior, offering a foundation for optimizing HEAs for temperature-sensitive scientific and industrial applications. Full article

Composites of ferromagnetic and ferroelectric phases are of interest for studies on mechanical strain-mediated coupling between the two phases and for a variety of applications in sensors, energy harvesting, and high-frequency devices. Nanocomposites are of particular importance since their surface area-to-volume ratio, a key factor that determines the strength of magneto-electric (ME) coupling, is much higher than for bulk or thin-film composites. Core–shell nano- and microcomposites of the ferroic phases are the preferred structures, since they are free of any clamping due to substrates that are present in nanobilayers or nanopillars on a substrate. This review concerns recent efforts on ME coupling in coaxial fibers of spinel or hexagonal ferrites for the magnetic phase and PZT or barium titanate for the ferroelectric phase. Several recent studies on the synthesis and ME measurements of fibers with nickel ferrite, nickel zinc ferrite, or cobalt ferrite for the spinel ferrite and M-, Y-, and W-types for the hexagonal ferrites were considered. Fibers synthesized by electrospinning were found to be free of impurity phases and had uniform core and shell structures. Piezo force microscopy (PFM) and scanning microwave microscopy (SMM) measurements of strengths of direct and converse ME effects on individual fibers showed evidence for strong coupling. Results of low-frequency ME voltage coefficient and magneto-dielectric effects on 2D and 3D films of the fibers assembled in a magnetic field, however, were indicative of ME couplings that were weaker than in bulk or thick-film composites. A strong ME interaction was only evident from data on magnetic field-induced variations in the remnant ferroelectric polarization in the discs of the fibers. Follow-up efforts aimed at further enhancement in the strengths of ME coupling in core–shell composites are also discussed in this review. Full article

Based on modern concepts of the nonlinear percolation mechanisms of electrical and magnetic properties in granular metal–dielectric nanocomposites, the authors present for the first time a comparative analysis of their own results of a comprehensive study of nonlinear electromagnetic properties in two nanocomposite systems: metal–dielectric Co_x(MgF₂)_100−x and alloy–dielectric (CoFeZr)_x(MgF₂)_100−x, obtained by ion-beam sputtering of composite targets in a wide range of different compositions. For the first time, the features of the influence of atomic composition and structural-phase transitions on nonlinear magnetoresistive, magnetic, and magneto-optical properties in two systems are presented in comparison, one of which, Co_x(MgF₂)_100−x, showed soft magnetic properties, and the second, (CoFeZr)_x(MgF₂)_100−x, hard magnetic properties, during the transition from the superparamagnetic to the ferromagnetic state. Moreover, for the first time, the concentration dependences of the oscillating fine structure of XANES K-absorption edges of Co atoms in the first system and Co and Fe atoms in the second system are presented, which undergo changes at the percolation thresholds in each of the two systems and thus confirm the nonlinear nature of the electromagnetic properties changes in each of the two systems at the atomic level. Full article

The printing of composite magnetic filaments using additive manufacturing techniques has emerged as a promising approach for biomedical applications, particularly in bone tissue engineering and magnetic hyperthermia treatments. This study focuses on the synthesis of nanocomposite ferromagnetic filaments and the fabrication of bone tissue scaffolds with time-dependent properties. Three classes of polylactic acid-based biocompatible polymers—EasyFil, Tough and Premium—were combined with magnetite nanoparticles (Fe₃O₄) at concentrations of 10 wt% and 20 wt%. Extruded filaments were evaluated for microstructural integrity, printed dog-bone-shaped specimens were tested for elongation and mechanical properties, and cylindrical scaffolds were analyzed for magnetic hyperthermia performance. The tensile strength of EasyFil polylactic acid decreased from 1834 MPa (0 wt% Fe₃O₄) to 1130 MPa (−38%) at 20 wt% Fe₃O₄, while Premium polylactic acid showed a more moderate reduction from 1800 MPa to 1567 MPa (−13%). The elongation at break was reduced across all samples, with the highest decrease observed in EasyFil polylactic acid (from 42% to 26%, −38%). Magnetic hyperthermia performance, measured by the specific absorption rate, demonstrated that the 20 wt% Fe₃O₄ scaffolds achieved specific absorption rate values of 2–7.5 W/g, depending on polymer type. Our results show that by carefully selecting the right thermoplastic material, we can balance both mechanical integrity and thermal efficiency. Among the tested materials, Tough polylactic acid composites demonstrated the most promising potential for magnetic hyperthermia applications, providing optimal heating performance without significantly compromising scaffold strength. These findings offer critical insights into designing magnetic scaffolds optimized for tissue regeneration and hyperthermia-based therapies. Full article

Magnetorheological elastomers (MREs) are smart composite materials with tunable mechanical properties by ferromagnetic particle interactions. This study applied the microstructure-based dipole and Maxwell methods to evaluate the magneto-mechanical coupling and magnetostrictive responses of MREs, focusing on various particle distributions. The finite element modeling of representative volume elements with fixed volume fractions revealed that the straight chain microstructure exhibits the most significant magnetostrictive effect due to its low initial shear stiffness and significant magnetic force contributions. For particle separations exceeding three radii, the dipole and Maxwell methods yield consistent results for vertically or horizontally aligned particles. For particle separations greater than three radii, the dipole and Maxwell methods produce consistent results for vertically and horizontally aligned particles. However, discrepancies emerge for angled configurations and complex microstructures, with the largest deviation observed in the hexagonal particle distribution, where the two methods differ by approximately 27%. These findings highlight the importance of selecting appropriate modeling methods for optimizing MRE performance. Since anisotropic MREs with straight-chain alignments are the most widely used, our results confirm that the dipole method offers an efficient alternative to the Maxwell method for simulating these structures. Full article

Single-phase multiferroics exhibiting ferroelectricity and ferromagnetism are considered pivotal for advancing next-generation multistate memories, spintronic devices, sensors, and logic devices. In this study, the magnetic and electric characteristics of bismuth ferrite (BiFeO₃) ceramics were enhanced through compositional design and grain engineering. BiFeO₃ ceramic was co-substituted by neodymium (Nd) and niobium (Nb), two non-isovalent elements, via the spark plasma sintering process using phase-pure powder prepared via sol-gel as the precursor. The symmetry of the sintered Nd–Nb co-doped samples changed from R3c to Pnma, accompanied by a decrease in the loss tangent, grain size, and leakage current density. The reduction in the leakage current density of the co-doped samples was ~three orders of magnitude. Moreover, ferroelectric, dielectric, and magnetic properties were substantially improved. The remanent polarization and magnetization values of the optimized Nd–Nb co-doped BiFeO₃ sample were 3.12 μC cm⁻² and 0.15 emu g⁻¹, respectively. The multiferroic properties were enhanced based on multiple factors such as structural distortion caused by co-doping, grain size reduction, suppression of defect charges via donor doping, space-modulated spin structure disruption, and an increase in magnetic ions. The synergistic approach of composition design and grain engineering sets a paradigm for the advancement of multiferroic materials. Full article

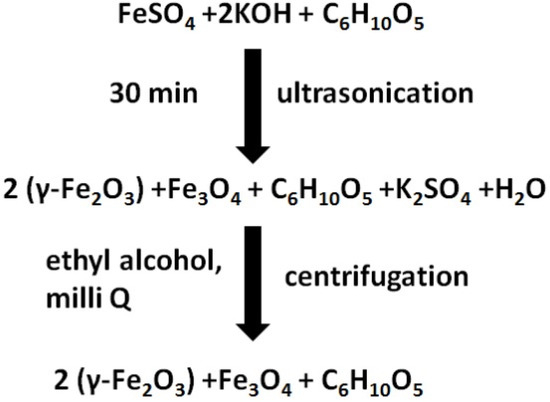

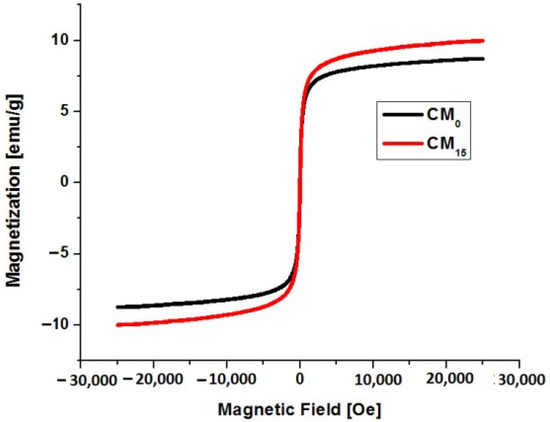

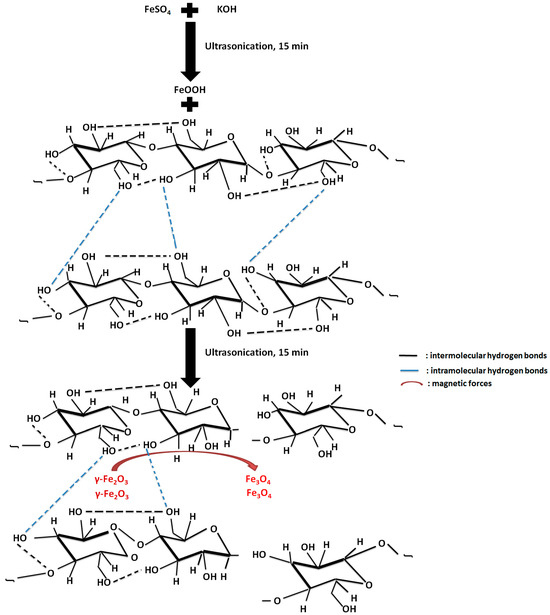

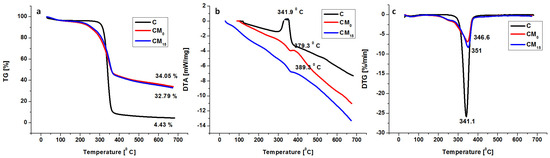

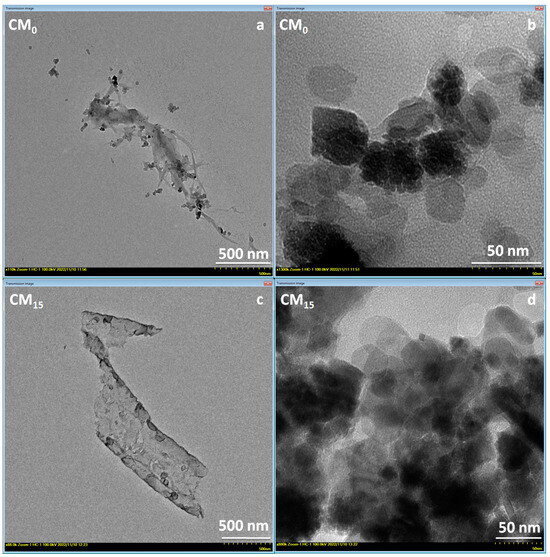

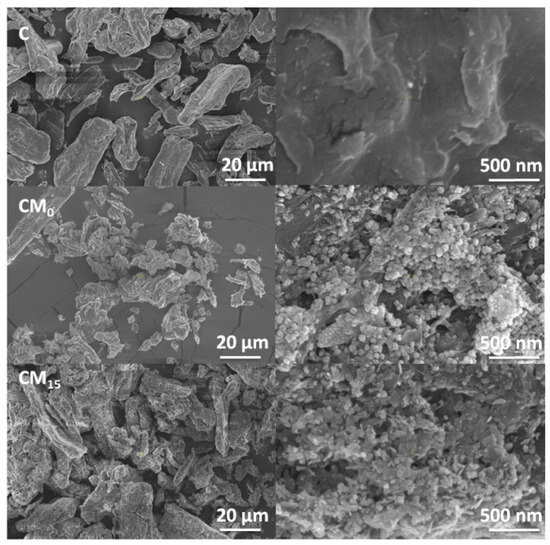

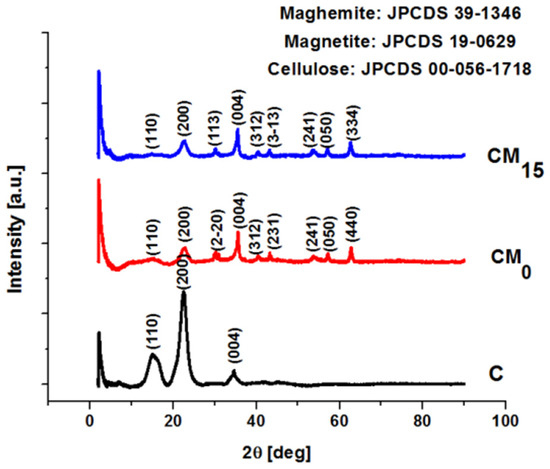

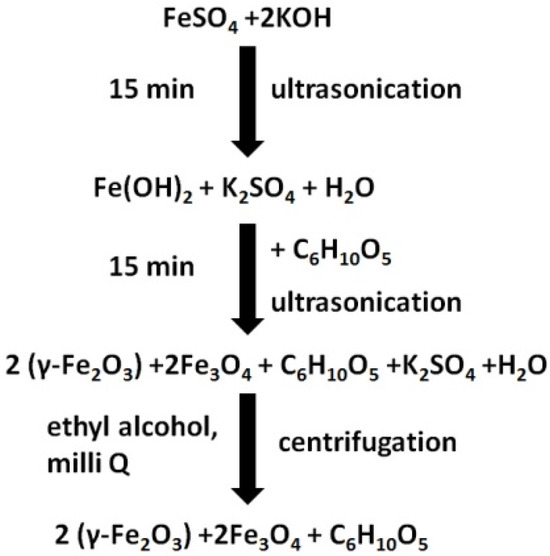

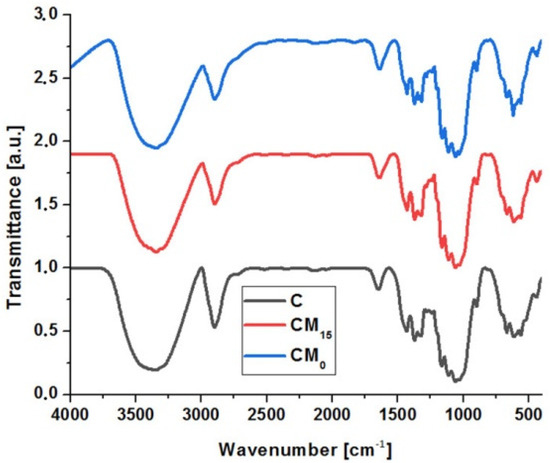

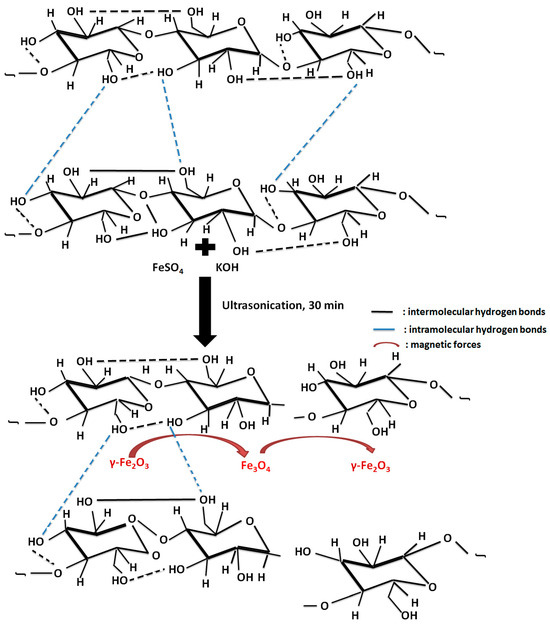

The current study aims to prepare ferromagnetic iron oxides (magnetite and/or maghemite) using the coprecipitation method of an iron salt in a basic environment stimulated by ultrasound, with cellulose added at the start of the synthesis and after 15 min in order to perform an in situ and partial in situ synthesis. The structures, morphology, and properties of composites are analyzed by IR, XRD, SEM, TEM, TGA, DSC, and magnetic measurements. The cumulative effect of the ultrasonic waves is observed by a reduction in the degree of crystallinity of the native cellulose compared to the composites (from 73.2 to 36.4, respectively 38.3). The vibrating sample magnetic measurement shows a single hysteresis curve characteristic of ferromagnetic materials with superparamagnetic properties. Full article

This study investigates the geological composition and material distribution within the Lavrion repository located in Greece through an aerial magnetometry survey using a novel aerial drone, CERBERUS, coupled with advanced data processing techniques. The deployment of drone-based magnetometry provided a high-resolution, non-invasive approach to capturing magnetic field data over complex and potentially hazardous terrain (soils highly contaminated), facilitating the rapid and precise mapping of the study area. As a final result, a 3D magnetic susceptibility model was developed, representing a detailed view of the magnetic susceptibility variations within the repository. This model enabled the comprehensive visualization of high-susceptibility zones associated with ferromagnetic materials and low-susceptibility zones correlating with diamagnetic materials like lead, arsenic, cadmium, and zinc. The combined methodologies underscore the effectiveness of drone-based aerial magnetometry in geophysical studies, highlighting its potential for mining exploration and waste management. This study demonstrates that the integration of drone technology with magnetic data processing offers a powerful tool for analysing subsurface structures in a safe, efficient, and non-invasive manner. Full article

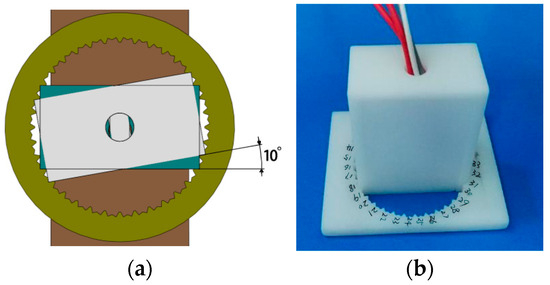

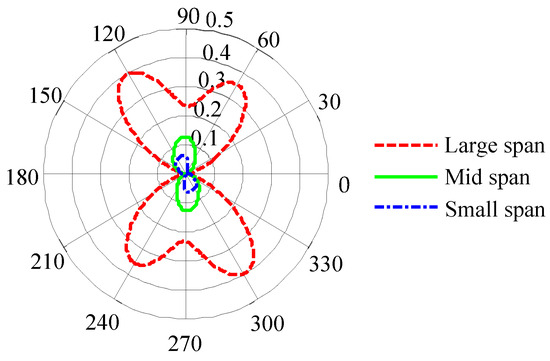

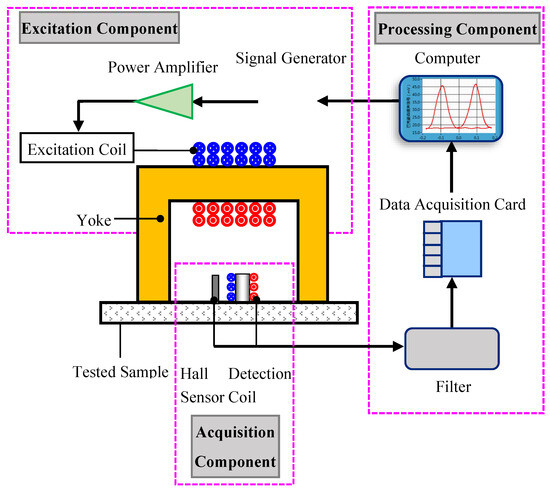

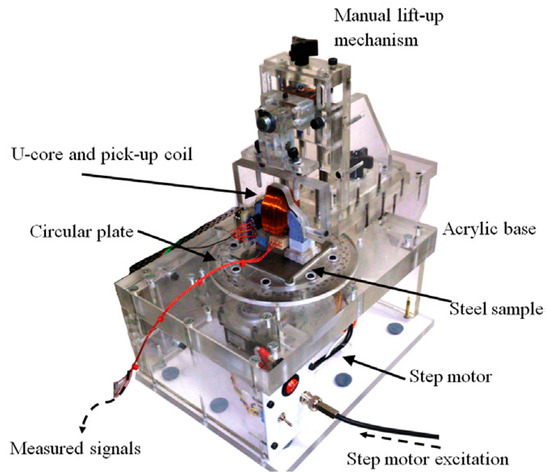

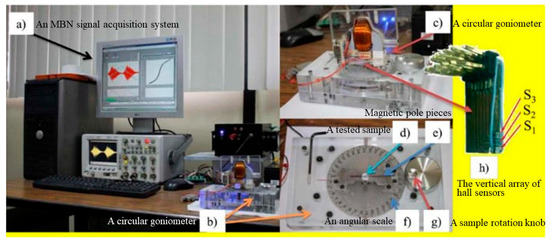

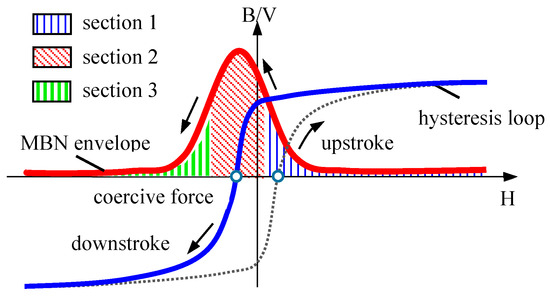

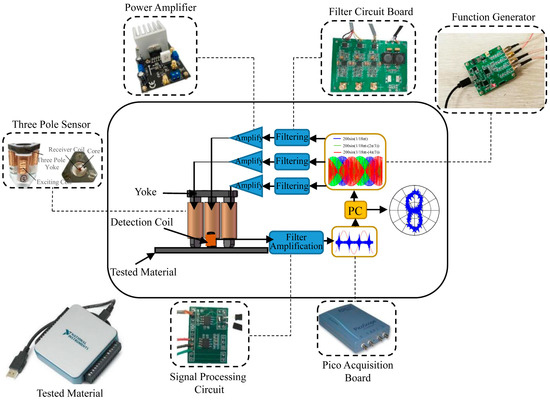

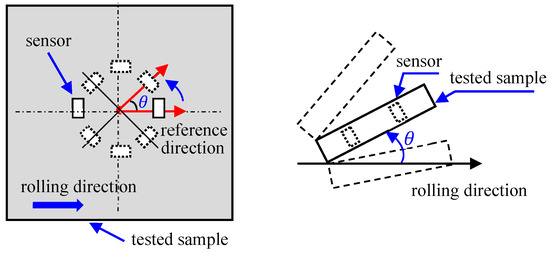

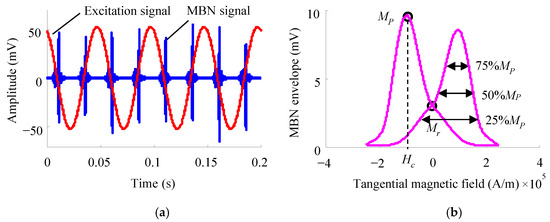

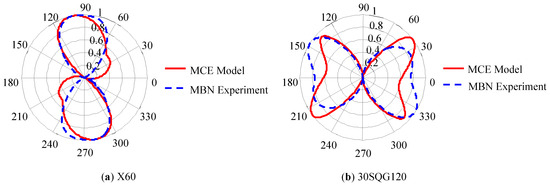

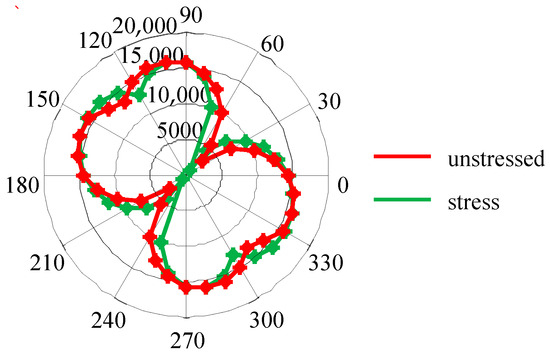

Magnetic Barkhausen noise (MBN) is one of the most effective methods for determining the easy axis of ferromagnetic materials and for evaluating texture and residual stress in a nondestructive manner. MBN signals from multiple angles and different magnetization sections can be used to characterize magnetic anisotropy caused by various magnetization mechanisms. This paper reviews the development and application of magnetic anisotropy detection technology, and the MBN anisotropy models that take into account domain wall motion and magnetic domain rotation are analyzed thoroughly. Subsequently, the MBN anisotropy detection devices and detection methods are discussed, and the application of magnetic anisotropy detection technology in stress measurement and texture evaluation is reviewed. From the perspective of improving detection accuracy, the influence of composite mechanisms on magnetic anisotropy is analyzed. Finally, the opportunities and challenges faced by current magnetic anisotropy detection technology are summarized. The relevant conclusions obtained in this paper can be used to guide the MBN evaluation of magnetic anisotropy in ferromagnetic materials. Full article

A two-step method for the synthesis of C/Ni/N nanocomposites based on hydrolysis lignin from wood chemical processing waste is proposed. These nanocomposites were found to have a well-developed porous structure with a wide pore size distribution. It was shown that doping hydrolysis lignin with urea-derived nitrogen leads to the appearance of ferromagnetic behavior in the carbon material. When nickel chloride was added during pyrolysis, the magnetic behavior of the C/Ni/N composite was provided by superparamagnetic Ni particles less than 30 nm in size and the magnetism of the carbon matrix. The addition of urea during the synthesis of the nanocomposite further promotes better integration of nickel into the carbon structure. According to the results of magnetic studies, the nickel content in the C/Ni/N nanocomposite was 19 wt.% compared to 15 wt.% in the C/Ni nanocomposite. The synthesized nanocomposite was demonstrated to have no residual magnetization, so its particles do not agglomerate after the external magnetic field is removed. Due to this property and the well-developed porous structure, C/Ni/N composites have the potential to be used as catalysts, active electrode materials for autonomous energy sources, and in environmental technologies as magnetically sensitive adsorbents. Full article

The current study focused on the synthesis of doped silver nanoparticles (doped AgNPs) with yttrium (Y), gadolinium (Gd), and chromium (Cr) from pine needle leaf extract (PNLE). X-ray diffraction (XRD) was performed to assess the phase formation, detecting 61.83% from Ag and 38.17% for secondary phases of AgCl, AgO, Y, Cr-, and Gd phases. The size and shape of the NPs were determined by transmission electron microscopy (TEM), showing a spherical shape with an average particle size of 26.43 nm. X-ray photoelectron spectroscopy (XPS) detected the oxidation state of the presented elements. The scanning electron microscope (SEM) and the energy-dispersive X-ray analysis (EDX) determined the morphology and elemental composition of the NPs, respectively. Fourier transform infrared spectroscopy (FTIR) determined the different functional groups indicating the presence of Ag, Y, Gd, Cr, and other groups. Photoluminescence (PL) spectroscopy showed the optical properties of the NPs. A vibrating sample magnetometer (VSM) revealed the ferromagnetic behavior of the doped AgNPs. The antibacterial activity of the doped AgNPs was tested against six uro-pathogenic bacteria (Staphylococcus aureus, Staphylococcus haemolyticus, Enterococcus faecalis, Escherichia coli, Klebsiella pneumonia, and Pseudomonas aeruginosa) using the minimum inhibitory concentration (MIC) and minimum bactericidal concentration (MBC) microdilution assays, agar well diffusion assay, time–kill test, and antibiofilm screening assays, revealing significant activity, with MICs ranging between 0.0625 and 0.5 mg/mL and antibiofilm activity between 40 and 85%. The antioxidant activity was determined by the 1,1, diphenyl 1-2 picrylhydrazyl (DPPH) radical scavenging assay with a potential of 61.3%. The docking studies showed that the doped AgNPs had the potential to predict the inhibition of crucial enzymes such as penicillin-binding proteins, LasR-binding proteins, carbapenemase, DNA gyrase, and dihydropteroate synthase. The results suggest that the doped AgNPs can be applied in different medical domains. Full article

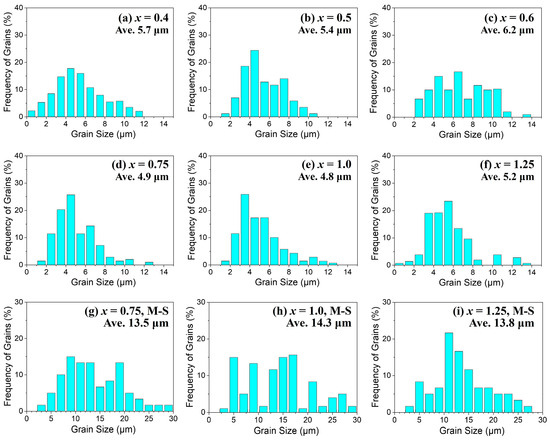

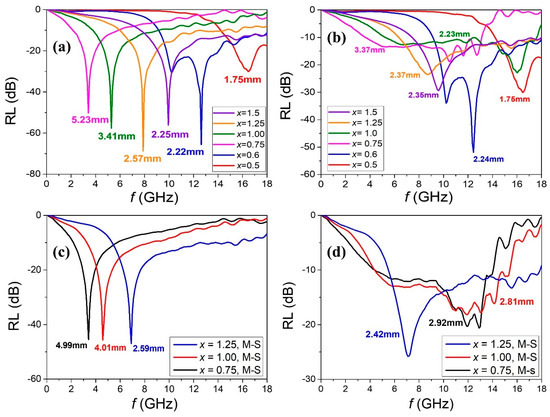

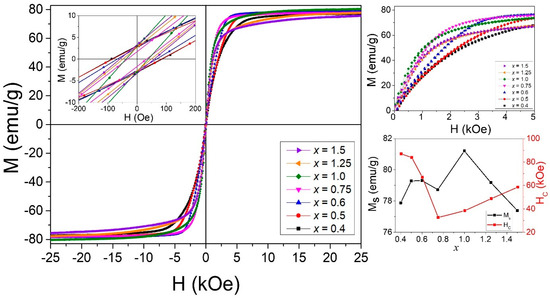

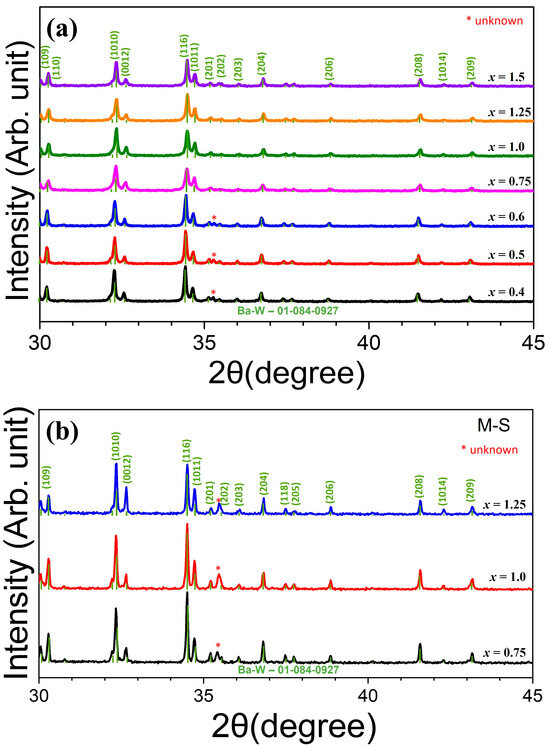

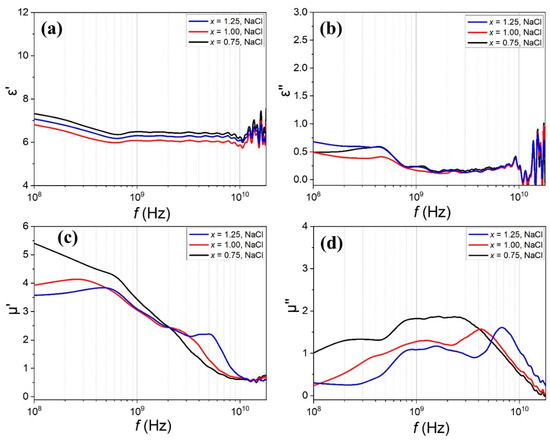

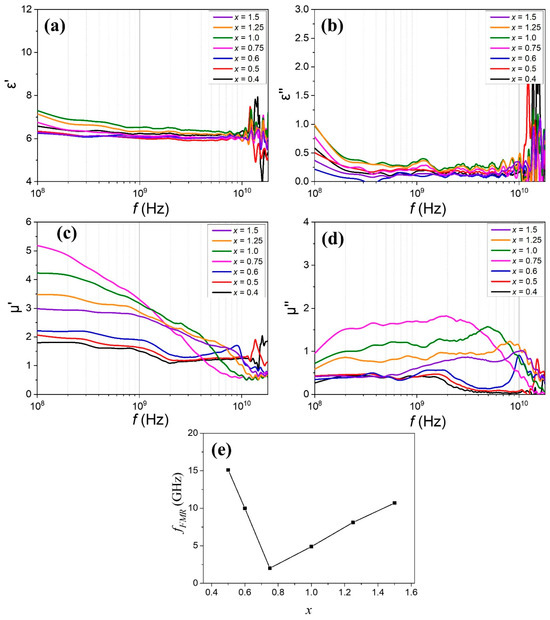

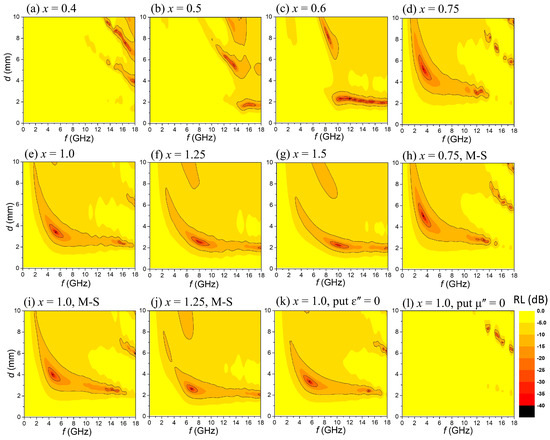

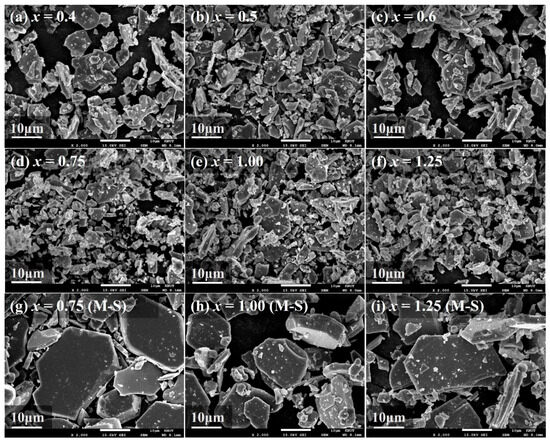

W-type Ba-hexaferrite, BaZn_2−xCo_xFe₁₆O₂₇, was synthesized via both conventional solid-state (x = 0.4, 0.5, 0.6, 0.75, 1.0, 1.25, 1.5) and molten-salt methods (x = 0.75, 1.0, 1.25). The structure, electromagnetic (EM) properties, and EM wave absorption characteristics were examined across a frequency range of 0.1–18 GHz, focusing on the influence of varying x. As x increased from 0.4 to 0.75, the magnetic anisotropy field (H_ani) decreased, reaching its minimum at x = 0.75, before rising again as x continued to increase up to 1.5. H_ani was found to be proportional to the ferromagnetic resonance (FMR) frequency, allowing for the tuning of the EM wave absorption frequency range. W-type hexaferrite–epoxy composites (10 wt%) with x values between 0.6 and 1.5 exhibited outstanding wideband EM wave absorption, with a maximum absorption (RL_min < −50 dB) and a wide absorption bandwidth where RL < −10 dB extended beyond 10 GHz (Δf_wb > 10 GHz). The x = 1.25 sample with a thickness of 2.37 mm achieved RL_min = −69 dB at 7.8 GHz, while the x = 1.0 sample with a thickness of 2.33 mm delivered Δf_wb = 12.5 GHz (5.1–17.6 GHz). Samples synthesized via the molten-salt method showed larger plate-like grain growth compared to those produced by the solid-state method, with permeability spectra shifting to lower frequencies, consequently lowering the EM wave absorption band. Full article

The impact of the interface phenomena on the properties of nanostructured materials is the focus of modern physics. We studied the magnetic properties of the nanostructured In–Ag alloy confined within a porous glass. The alloy composition was close to the eutectic point in the indium-rich range of the phase diagram. Temperature dependences of DC magnetization evidenced two superconducting transitions at 4.05 and 3.38 K. The magnetization isotherms demonstrated the superposition of two hysteresis loops with low and high critical fields below the second transition, a single hysteresis between the transitions and ferromagnetism with weak remanence in the normal state of the alloy. The shape of the loop seen below the second transition, which closes at a low magnetic field, corresponded to the intermediate state of the type-I superconductor. It was ascribed to strongly linked indium segregates. The loop observed below the first transition is referred to as type-II superconductivity. The secondary and tertiary magnetization branches measured at decreasing and increasing fields were shifted relative to each other, revealing the proximity of superconducting and ferromagnetic phases at the nanometer scale. This phenomenon was observed for the first time in the alloy, whose components were not magnetic in bulk. The sign of the shift shows the dominant role of the stray fields of ferromagnetic regions. Ferromagnetism was suggested to emerge at the interface between the In and AgIn₂ segregates. Full article

Background/Objectives: Magnetic Fe₃O₄ nanoparticles (MNPs) are becoming more important every day. We prepared MNPs in a simple one-step reaction by following the solvothermal method, assisted by azide and alkyne functionalized polyethylene glycol (PEG400) polymers, as well as by PEG6000 and the polyol β-cyclodextrin (βCD), which played a crucial role as electrostatic stabilizers, providing polymeric/polyol coatings around the magnetic cores. Methods: The composition, morphology, and magnetic properties of the nanospheres were analyzed using Transmission Electron and Atomic Force Microscopies (TEM, AFM), Nuclear Magnetic Resonance (NMR), X-ray Diffraction Diffractometry (XRD), Fourier-Transform Infrared Spectroscopy (FT-IR), Matrix-Assisted Laser Desorption/Ionization (MALDI) and Vibrating Sample Magnetometry (VSM). Results: The obtained nanoparticles (@Fe₃O₄-PEGs and @Fe₃O₄-βCD) showed diameters between 90 and 250 nm, depending on the polymer used and the Fe₃O₄·6H₂O precursor concentration, typically, 0.13 M at 200 °C and 24 h of reaction. MNPs exhibited superparamagnetism with high saturation mass magnetization at room temperature, reaching values of 59.9 emu/g (@Fe₃O₄-PEG6000), and no ferromagnetism. Likewise, they showed temperature elevation after applying an alternating magnetic field (AMF), obtaining Specific Absorption Rate (SAR) values of up to 51.87 ± 2.23 W/g for @Fe₃O₄-PEG6000. Additionally, the formed systems are susceptible to click chemistry, as was demonstrated in the case of the cannabidiol-propargyl derivative (CBD-Pro), which was synthesized and covalently attached to the azide functionalized surface of @Fe₃O₄-PEG400-N₃. Prepared MNPs are highly dispersible in water, PBS, and citrate buffer, remaining in suspension for over 2 weeks, and non-toxic in the T84 human colon cancer cell line, Conclusions: indicating that they are ideal candidates for biomedical applications. Full article
