Search Results (19)

Designing bifunctional catalysts for efficient hydroisomerization of phenanthrene to alkyl-adamantane is a great challenge for producing high-density fuels. Herein, a bifunctional Pt catalyst was fabricated by developing hierarchical H-MSY-T zeolites with an NOA-co strategy. The influence of different mesopore template agents on the hierarchical structure of H-MSY-T zeolite was investigated. Effective regulation of pore structure and acid distribution of zeolites was achieved by adjusting the templating agents. The block copolymer P123 promoted the formation of mesoporous structures via self-assembly with a large mesopore centered at 8 nm. Large mesoporous structure and suitable distribution of Bronsted acid boosted the hydroisomerization of phenanthrene. The highest alkyl-adamantane yield of 45.9 wt% was achieved on the Pt/MSY-P1 catalyst and a reaction network of hydroisomerization was proposed. This work provides guidance to design highly selective bifunctional catalysts for the one-step hydroconversion of tricyclic aromatic hydrocarbons into high-density fuels. Full article

The influence of residual cuts on the deactivation of hierarchical Y zeolite-based catalysts during the co-processing of vacuum gas oil (VGO) with atmospheric residue (ATR) was investigated. The experiments were conducted in a laboratory-scale MAT-type reactor. The conversion of VGO, ATR, and their 70:30 (mass basis) mixture was examined using two composite catalysts: Cat.Y.0.00 and Cat.Y.0.20. The operating conditions closely resembled those of the commercial catalytic cracking process (550 °C and contact times of 10 to 50 s). When ATR was processed individually, the conversion remained below 50 wt%. However, significant improvements in conversion rates were achieved and catalyst deactivation was mitigated when ATR was co-processed with VGO. Notably, the BET surface area and average mesopore volume were adversely impacted by ATR, which also led to the accumulation of high levels of metals and nitrogen on the spent catalyst, detrimentally affecting its acidic and structural properties. Moreover, substantial coke deposition occurred during ATR cracking. The soluble and insoluble coke analysis revealed H/C ratio values of up to 0.36, indicative of polycondensed coke structures with more than ten aromatic rings. The nature of the coke was confirmed through TPO and FTIR analyses. Interestingly, the CatY.0.20 catalyst exhibited less activity loss, retaining superior acid and structural properties. Co-processing Colombian atmospheric residue with ATR loadings of 30 wt% (higher than the typical 20 wt%) in catalysts formulated with hierarchical zeolites presents a promising alternative for commercial applications. This research opens avenues for optimizing catalytic cracking processes. Full article

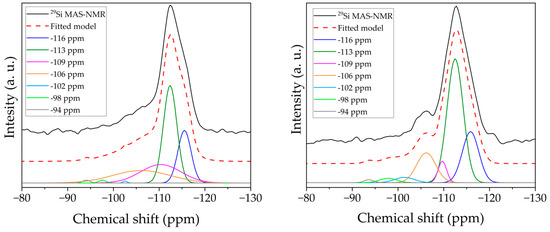

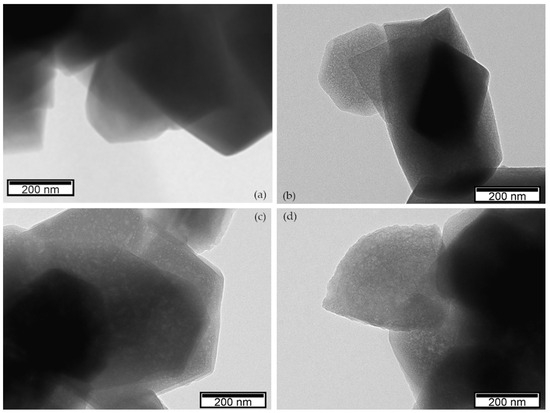

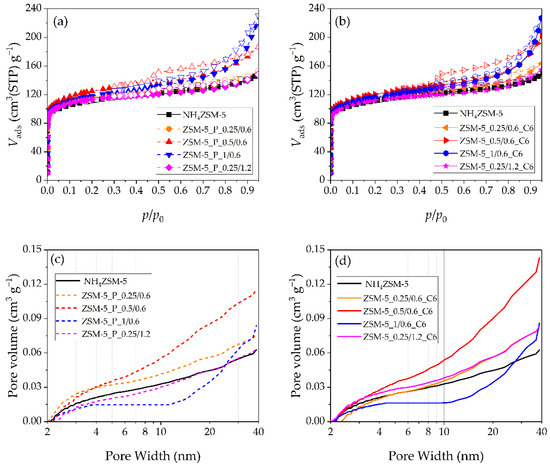

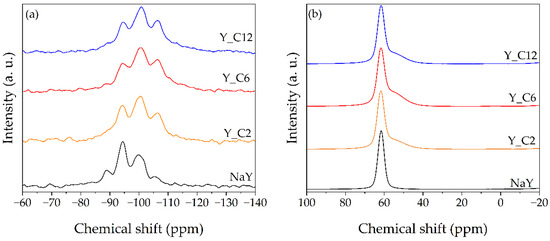

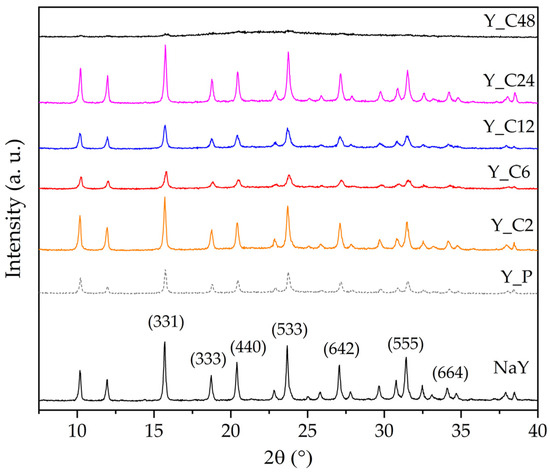

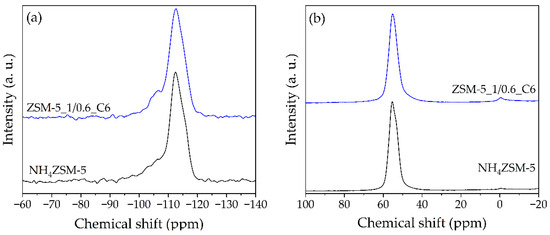

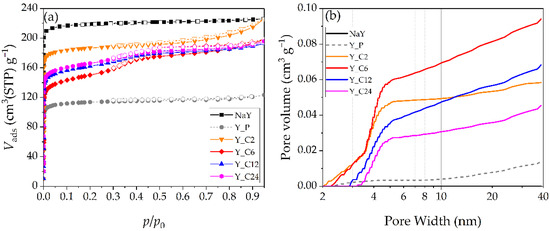

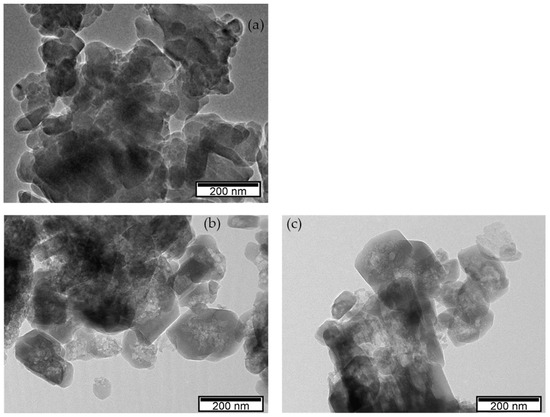

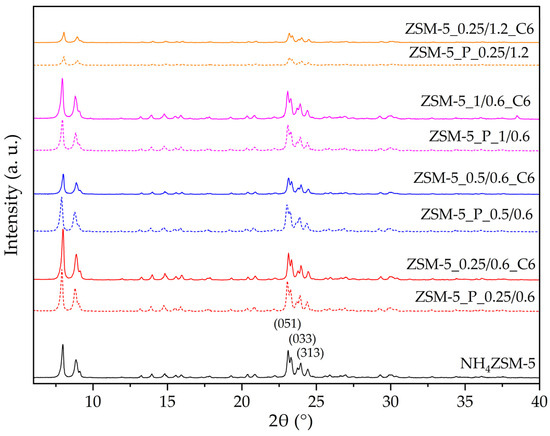

Diffusional limitations associated with zeolite microporous systems can be overcome by developing hierarchical zeolites, i.e., materials with a micro- and mesoporous framework. In this work, Y and ZSM-5 zeolites were modified using a surfactant-mediated hydrothermal alkaline method, with NaOH and cetyltrimethylammonium bromide (CTAB). For Y zeolite, after a mild acidic pretreatment, the effect of the NaOH+CTAB treatment time was investigated. For ZSM-5 zeolite, different concentrations of the base and acid solutions were tested in the two-step pretreatment preceding the hydrothermal treatment. The properties of the materials were studied with different physical–chemical techniques. Hierarchical Y zeolites were characterized by 3.3–5 nm pores formed during the alkaline treatment through the structure reconstruction around the surfactant aggregates. The effectiveness of the NaOH+CTAB treatment was highly dependent on the duration. For intermediate treatment times (6–12 h), both smaller and larger mesopores were also obtained. Hierarchical ZSM-5 zeolites showed a disordered mesoporosity, mainly resulting from the pretreatment rather than from the subsequent hydrothermal treatment. High mesoporosity was obtained when the concentration of the pretreating base solution was sufficiently high and that of the acid one was not excessive. Hierarchical materials can be obtained for both zeolite structures, but the pretreatment and treatment conditions must be tailored to the starting zeolite and the desired type of mesoporosity. Full article

The performance of catalysts prepared from hierarchical Y zeolites has been studied during the conversion of vacuum gas oil (VGO) into higher-value products. Two different catalysts have been studied: CatY.0.00 was obtained from the standard zeolite (Y-0.00-M: without alkaline treatment) and CatY.0.20 was prepared from the desilicated zeolite (Y-0-20-M: treated with 0.20 M NaOH). The cracking tests were carried out in a microactivity test (MAT) unit with a fixed-bed reactor at 550 °C in the 20–50 s reaction time range, with a catalyst mass of 3 g and a mass flow rate of VGO of 2.0 g/min. The products obtained were grouped according to their boiling point range in dry gas (DG), liquefied petroleum gas (LPG), naphtha, and coke. The results showed a greater conversion and selectivity to gasoline with the CatY.0.20 catalyst, along with improved quality (RON) of the C₅–C₁₂ cut. Conversely, the CatY.0.00 catalyst (obtained from the Y-0.00-M zeolite) showed greater selectivity to gases (DG and LPG), attributable to the electronic confinement effect within the microporous channels of the zeolite. The nature of coke has been studied using different analysis techniques and the impact on the catalysts by comparing the properties of the fresh and deactivated catalysts. The coke deposited on the catalyst surfaces was responsible for the loss of activity; however, the CatY.0.20 catalyst showed greater resistance to deactivation by coke, despite showing the highest selectivity. Given that the reaction occurs in the acid sites of the zeolite and not in the matrix, the increased degree of mesoporosity of the zeolite in the CatY.0.20 catalyst facilitated the outward diffusion of products from the zeolitic channels to the matrix, thereby preserving greater activity. Full article

Hierarchical ZSM5 and Y zeolites were prepared through a surfactant-mediated strategy with NH₄OH changing the duration of the treatment and the amount of CTAB surfactant and taking as reference multiples of the critical micellar concentration (CMC). The materials were characterized using powder X-ray diffraction, N₂ adsorption isotherms at −196 °C, and SEM and TEM microscopy. The catalytic performance was evaluated in Friedel–Crafts acylation of furan with acetic anhydride at 80 °C. The alkaline surfactant-mediated treatment had different effects on the two zeolites. For ZSM5, the CTAB molecular aggregates can hardly diffuse inside the medium-size pores, leading mainly to intercrystalline mesoporosity and increased external surface area, with no positive catalytic impact. On the other hand, for large-pore Y zeolite, the CTAB molecular aggregates can easily diffuse and promote the rearrangement of crystal units around micelles, causing the enlargement of the pores, i.e., intracrystalline porosity. The optimized Y-based sample, treated for 12 h with a CTAB amount 32 times the CMC, shows an increase in product yield and rate constant that was not observed when a higher amount of surfactant was added. The reuse of spent catalysts upon thermal treatment at 400 °C shows a regeneration efficiency around 90%, showing good potentialities for the modified catalysts. Full article

Fluid catalytic cracking (FCC) is one of the most important processes in gasoline/diesel oil production, but the strong endothermic effect accompanied by this reaction often results in the deactivation of the catalyst. In this paper, a novel multifunctional phase change material (PCM)@Catalyst composite was designed and constructed, in which the PCM could be used to store waste heat and regulate the temperature for enhancing the catalytic efficiency of the FCC catalyst. Firstly, a core/shell Al-12wt%Si@Al₂O₃ was prepared via subsequent vapor treatment and high-temperature calcination of an Al-12wt%Si sphere. The Al species in the Al-12wt%Si served as the source of metal ions and was transformed in situ into a well-defined Al₂O₃ shell, which greatly improved the thermal stability and prevented the leaking of the Al-12wt% Si core in the high-temperature situation. The PCMs@Catalyst composite was then fabricated by casting the mixed powder of Al-12wt%Si@Al₂O₃ and Y zeolite into a granulated structure. The FCC results demonstrate that Al-12wt%Si@Al₂O₃/Y zeolite can optimize product distribution and reduce coke yield. This design concept and synthesis strategy can be extended to the production of a wide variety of hierarchical PCM@Catalyst composites for other reactions. Full article

Zeolite Y samples with microporous and hierarchical structures containing Ti–Ni and Ti–Co oxides were obtained as active photocatalysts. Different Ti amounts (5, 10% TiO₂) were supported, followed by the loading of Ni or Co oxides (5%). X-ray diffraction evidenced the presence of TiO₂ as an anatase. N₂ adsorption–desorption results showed type IV isotherms for hierarchical zeolite Y samples, and a combination of type IV and I isotherms for zeolite Y samples. UV–Vis diffuse reflectance spectra showed a shift in the absorption band to visible with increasing Ti loading and especially after Co and Ni addition. A significant effect of the support was evidenced for Ti and its interaction with Co/Ni species. The zeolite Y support stabilized Ti in the 4+ oxidation state while hierarchical zeolite Y support favored the formation of Ti³⁺ species, Ni⁰ and Ni²⁺ and the oxidation of Co to 3+ oxidation state. Photocatalytic activity, under UV and visible light irradiation, was evaluated by the degradation of amoxicillin, used as a model test. The photocatalytic mechanism was investigated using ethanol, p-benzoquinone and KI as ·OH and ·O₂⁻ radicals and hole (h⁺) scavengers. The best results were obtained for the immobilized Ni-Ti species on the hierarchical zeolite Y support. Full article

Hierarchical zeolites are aluminosilicates with a crystal structure, which next to the micropores possess secondary porosity in the range of mesopores and/or small macropores. Due to their ordered structure and additional secondary porosity, they have aroused great interest among scientists in recent years. Therefore, the present work concerns the synthesis and characterization of hierarchical zeolites with secondary mesoporosity, based on commercial zeolites such as MFI (ZSM-5), BEA (β) and FAU (Y), and modified with polysaccharides such as inulin, hyaluronic acid, and heparin. All materials were characterized by various analytical techniques and applied as a platform for delivery of selected drug molecules. On the basis of X-ray diffraction (presence of reflections in the 2θ angle range of 1.5–2.5°) and low-temperature nitrogen sorption isotherms (mixture of isotherms of I and IV type) additional secondary porosity was found in the mesopore range. Additional tests were also conducted to determine the possibility of loading selected molecules with biological activity into the aforementioned materials and then releasing them in the therapeutic process. Molecules with different therapeutic options were selected for testing, namely ibuprofen, curcumin, and ferulic acid with anti-inflammatory, potentially anticancer, antioxidant, and skin discoloration activities, respectively. Preliminary studies have confirmed the possibility of using hierarchical zeolites as potential carriers for bioactive molecules, as the loading percentage of active substances ranged from 39–79% and cumulative release for ibuprofen reached almost 100% after 8 h of testing. Full article

Zeolite Y, as a solid acid catalyst with excellent performance, is a landmark in petroleum refining and chemical industry production–especially in catalytic cracking reactions. Improving the SAR of Y zeolite, enriching its pore structure, and modifying it with heteroatoms can realize the multifunctional catalysis of Y zeolite, improve the application value of it, and then meet the demands of petroleum refining. In this review, the synthesis of Y zeolites with high SAR, multistage pores, and heteroatom modification is summarized. Full article

The organization of microporous space in zeolites is discussed. A new step-by-step model is proposed that explains the principles of organizing the hierarchy of microporous space at the stage of assembling zeolites from elements of minimal size: a primary building unit, secondary building units, tertiary building units or building polyhedra, a sodalite cage, and a supercage. To illustrate the stepwise hierarchical porous structure of nanomaterials, the following zeolites with small and large micropores have been selected as the model objects: sodalite (SOD, the maximum diameter of a sphere that can enter the pores is 0.3 nm) and zeolites of type A (LTA, the maximum diameter of a sphere that can enter the pores is 0.41 nm), type X, Y (FAU, the maximum diameter of a sphere that can enter the pores is 0.75 nm), and type BETA (the maximum diameter of a sphere that can enter the pores is 0.67 nm). Two-dimensional and three-dimensional modeling in 3Ds Max software was used. We believe that such an approach will be useful for developing ways to create complex zeolite compositions for specific applications, such as catalysis, where the geometry of the pores determines the size of the molecules entering the voids and computer modeling can play an important predictive role. This work takes a look at specific aspects of using the heat desorption method to study mesoporous materials with a BETA zeolite as an example and presents the results of experimental research into the characteristics of the porous structure of hierarchically structured zeolite materials (specific surface area 180–380 m²/g, external surface area 120–200 m²/g, micropore volume 0.001–0.1 mL/g). Full article

New photocatalysts were obtained by immobilization of titanium and gold species on zeolite Y, hierarchical zeolite Y, MCM-48 and KIT-6 supports with microporous, hierarchical and mesoporous cubic structure. The obtained samples were characterized by X-ray diffraction (XRD), N₂-physisorption, scanning and transmission electron microscopy (SEM/TEM), diffuse reflectance UV–Vis spectroscopy (DRUV-Vis), X-ray photoelectron spectroscopy (XPS), Raman and photoluminescence spectroscopy. The photocatalytic properties were evaluated in degradation of amoxicillin (AMX) from water, under UV (254 nm) and visible light (532 nm) irradiation. The higher degradation efficiency and best apparent rate constant were obtained under UV irradiation for Au-TiO₂-KIT-6, while in the visible condition for the Au-TiO₂-MCM-48 sample containing anatase, rutile and the greatest percent of Au metallic clusters were found (evidenced by XPS). Although significant values of amoxicillin degradation were obtained, total mineralization was not achieved. These results were explained by different reaction mechanisms, in which Au species act as e⁻ trap in UV and e⁻ generator in visible light. Full article

The development of efficient Pt-supported zeolite catalysts with tunable micro/mesopore structures for the removal of volatile organic compounds (VOCs) presents a major challenge. Herein, hierarchical Pt/Y zeolites with tunable mesopores are fabricated by varying the etching time before the surfactant-templated crystal rearrangement method and used as catalyst supports for VOC oxidation. The hierarchical Pt/Y zeolites provided an excellent environment for Pt nanoparticle loading with abundant accessible acidic sites. The catalytic performance of the obtained hierarchical Pt/Y zeolites is analyzed using toluene oxidation, with the modified zeolites exhibiting improved catalytic activities. The hierarchical Pt/Y zeolites exhibited higher catalytic toluene oxidation activities than non-hierarchical Pt/Y zeolites. Pt/Y-6h demonstrated the highest catalytic toluene oxidation activity of the prepared catalysts, with a T₉₀ of 149 °C, reaction rate of 1.15 × 10⁻⁷ mol g_cat⁻¹ s⁻¹, turnover frequency of 1.20 × 10⁻² s⁻¹, and an apparent activation energy of 66.5 kJ mol⁻¹ at 60,000 mL g⁻¹ h⁻¹ at a toluene concentration of 1000 ppm. This study will facilitate the fine-tuning of hierarchically porous materials to improve material properties and achieve higher catalytic performance toward VOC oxidation. Full article

Advanced biofuels are required to facilitate the energy transition away from fossil fuels and lower the accompanied CO₂ emissions. Particularly, jet fuel needs a renewable substitute, for which novel production routes and technology are needed that are more efficient and economically viable. The direct conversion of bio-syngas into fuel is one such development that could improve the efficiency of biomass for jet fuel processes. In this work, bifunctional catalysts based on hierarchical zeolites are prepared, tested and evaluated for their potential use in the production of actual jet fuel. The bifunctional catalysts Co/H-_mesoZSM-5, Co/H-_mesoBETA and Co/H-_mesoY have been applied, and their performance is compared with their microporous zeolite-based counterparts and two conventional Fischer–Tropsch Co catalysts. Co/H-_mesoZSM-5 and Co/H-_mesoBETA showed great potential for the direct production of jet fuel as bifunctional catalysts. Besides the high jet fuel yields under Fischer–Tropsch synthesis conditions at, respectively, 30.4% and 41.0%, the product also contained the high branched/linear hydrocarbon ratio desired to reach jet fuel specifications. This reveals the great potential for the direct conversion of syngas into jet fuel using catalysts that can be prepared in few steps from commercially available materials. Full article

Three industrially modified Y zeolites with a hierarchical structure were characterized by XRD, N₂ adsorption–desorption, SEM, TEM, ²⁷Al-/²⁹Si-NMR, in situ pyridine-FTIR, and NH₃-TPD techniques. The industrial hydrocracking catalyst of light diesel oil was prepared by kneading and extruding the mixture of 10 wt.% industrially modified zeolite, commercial alumina, nickel nitrate, and molybdenum oxide. The small amount of hierarchical Y zeolite in the hydrocracking catalyst plays a key role, resulting in selective hydrogenation of naphthalene and further ring-opening activity. The mesoporous structure of the zeolites provided an effective interface and improved the accessibility of acid sites to bulky reactants. Full article
