Search Results (4)

A fatigue test on the failure mode of flange shafts was conducted. The propagation characteristics of the initial crack at the junction between the shaft and the flange as well as its angle effect were studied. This study developed an analysis program of fatigue crack propagation, based on the APDL (ANSYS Parametric Design Language). It obtained the effective angle interval within which the initial crack is able to propagate. The fitting calculation formula was derived and the results showed that: (1) The initial crack at the junction between the shaft and the flange would propagate in the radial and axial directions; the unstable crack propagation would cause an abrupt fracture of the cross-section, failing connection; and the angle of initial crack was uncertain. (2) The crack followed the I-II-III mixed mode, which was dominated by mode I. An initial crack with a larger angle showed more noticeable II-III characteristics; K_II and K_III affected the crack’s propagation angle in the radial and axial directions and they also affected the structure’s surface direction. (3) The deepest point A of the crack was located at the junction between the shaft and the flange. Its crack propagation can be divided into three stages: rapid growth (stage 1), steady decline (stage 2, buffer stage), and instability (stage 3). The initial crack angle not only affected the propagation rate at stage 1 but also influenced the fatigue life distribution of the structure during propagation. The larger the initial crack angle was, the smaller the proportion of buffer stage in the total fatigue life would be. Moreover, the propagation of crack with a larger initial angle reached instability faster after stage 1, which would cause an abrupt fracture of the cross-section. This was unfavorable for deciding the crack detection time or carrying out maintenance and reinforcement. (4) The crack propagation at the junction between the shaft and the flange was determined by the size relation between ΔK_I and ΔK_th, instead of the effective stress intensity factor. The effective stress intensity factor can partly reflect the law of crack propagation, but cannot serve as the only criterion for crack propagation; it must be combined with the effective angle interval, which was negatively correlated with the crack’s shape ratio, to determine whether the crack would propagate. Full article

The crack-propagation form may appear as an arbitrary mixed-mode fracture in an engineering structure due to an irregular internal crack. It is of great significance to research the mixed-mode fracture of materials with cracks. The coupling effect of multiple variables (crack height ratio, horizontal deflection angle and vertical deflection angle) on fracture parameters such as the stress intensity factors and the T-stress are the key points in this paper. A three-point bending specimen with an inclined crack was proposed and used to conduct mixed-mode fracture research. The fracture parameters were obtained by finite element analysis, and the computed results showed that the pure mode I fracture and mixed-mode fractures (mode I/II, mode I/III and mode I/II/III) can be realized by changing the deflection angles of the crack. The pure mode I and the mixed-mode fracture toughness of sandstone were obtained by a series of mixed-mode fracture experiments. The experimental results were analyzed with the generalized maximum tangential strain energy density factor criterion considering T-stress. The results showed that the non-singular term T-stress in the fracture parameters cannot be ignored in any mixed-mode fracture research, and the generalized maximum tangential strain energy density factor criterion considering T-stress can better predict the mixed-mode fracture toughness than other criteria. Full article

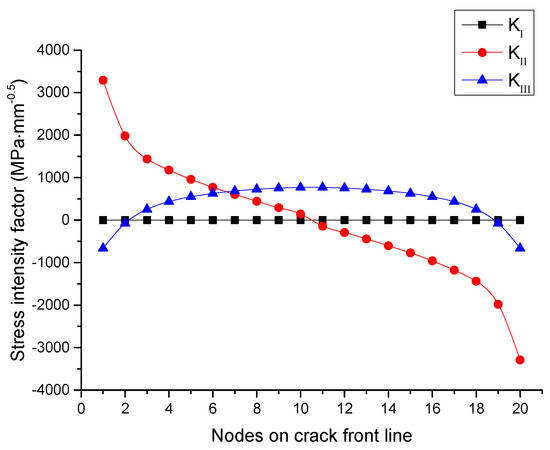

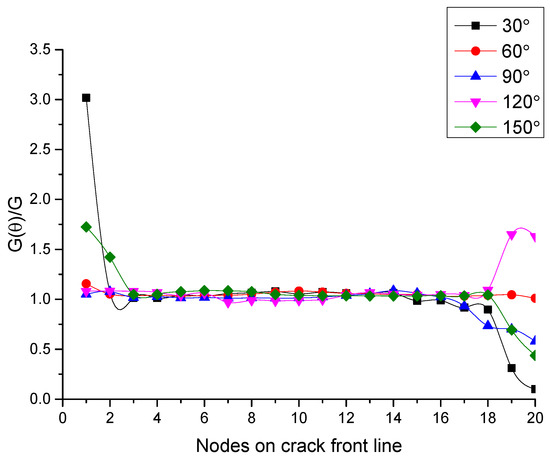

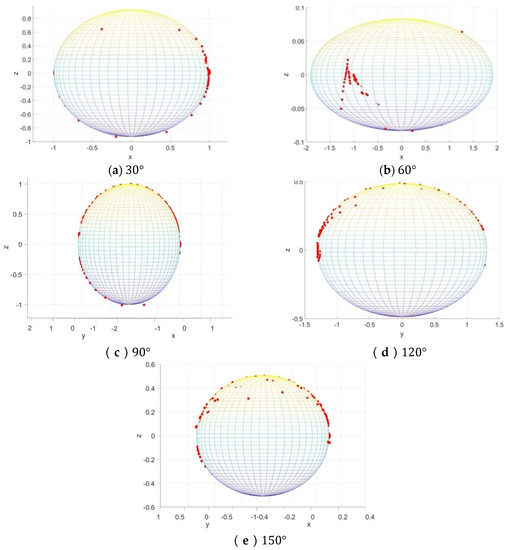

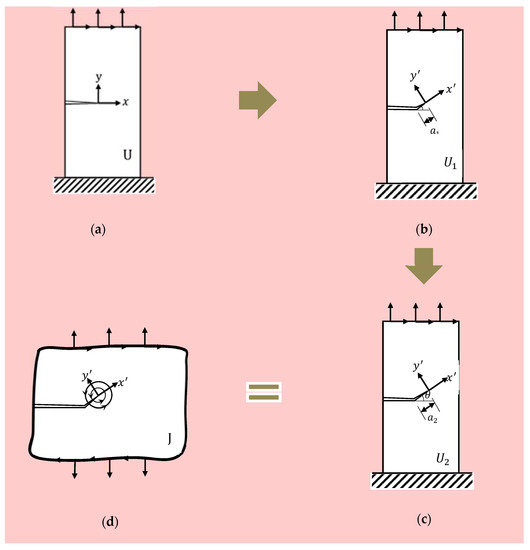

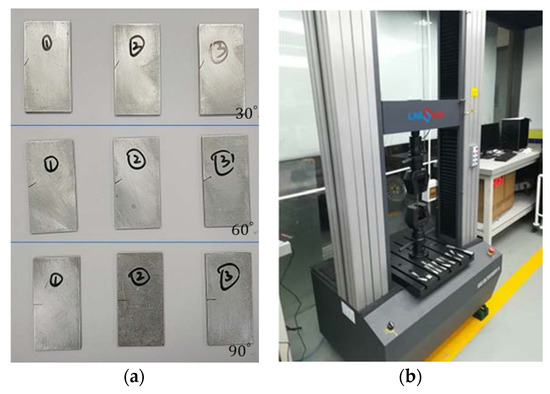

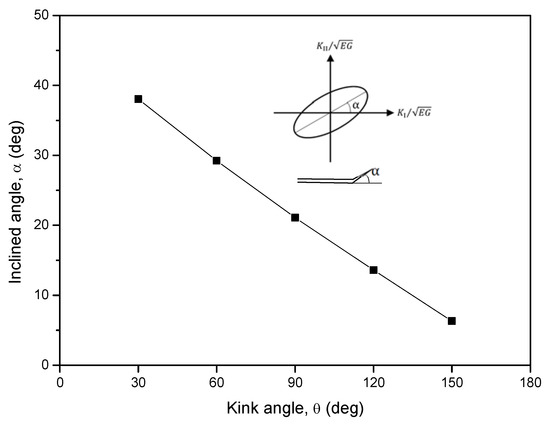

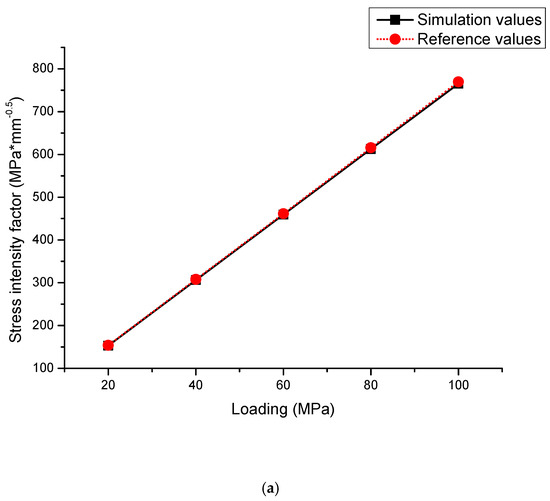

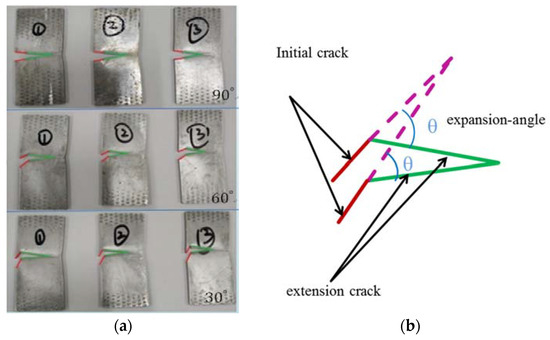

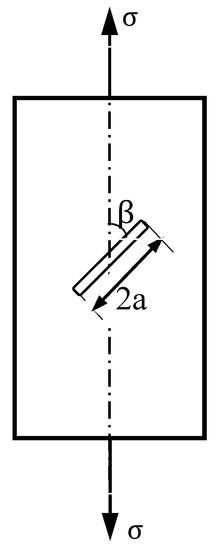

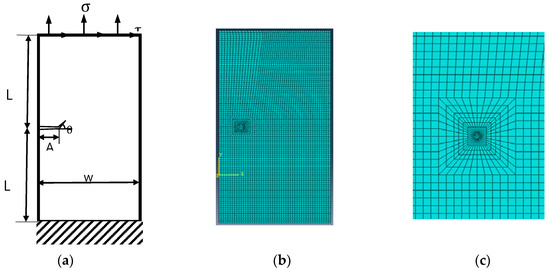

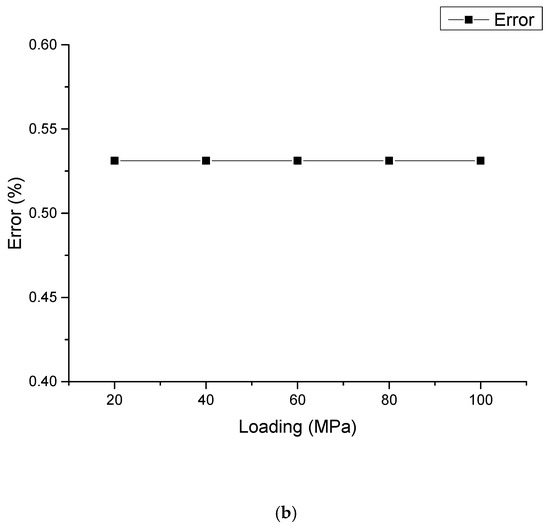

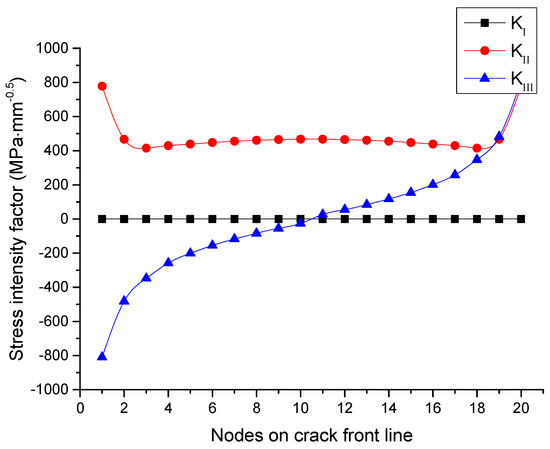

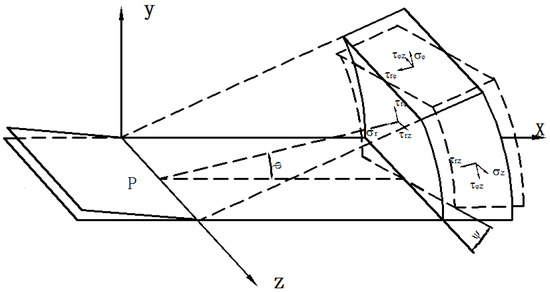

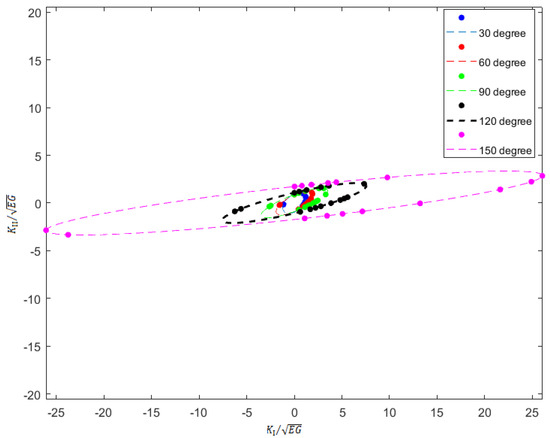

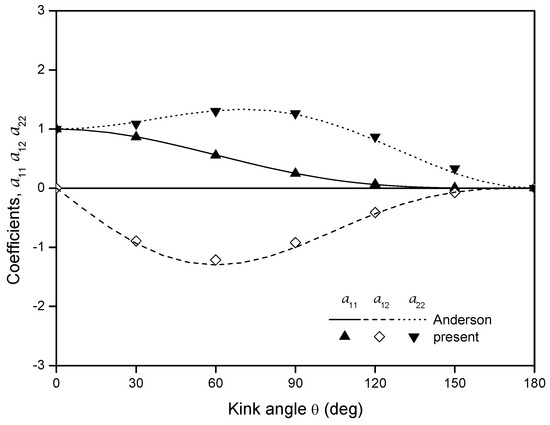

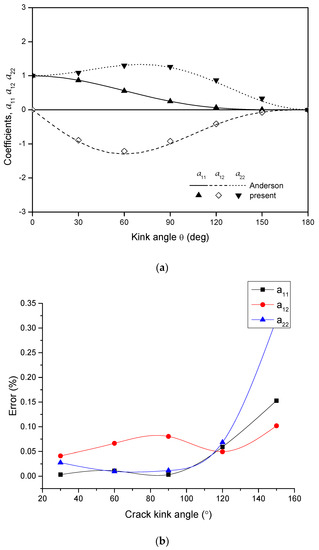

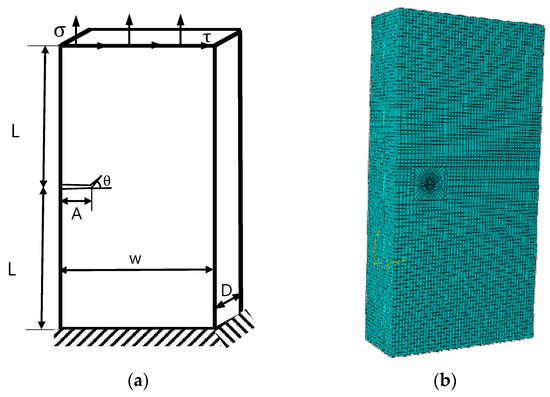

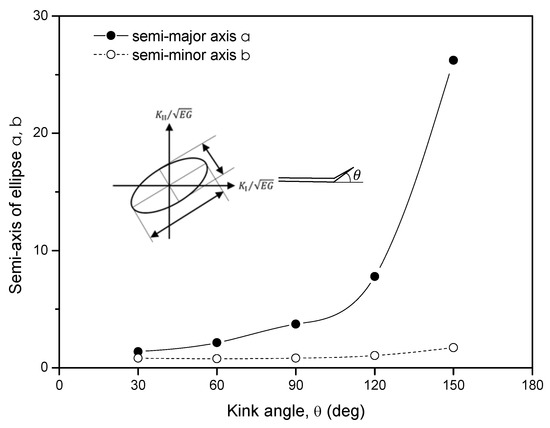

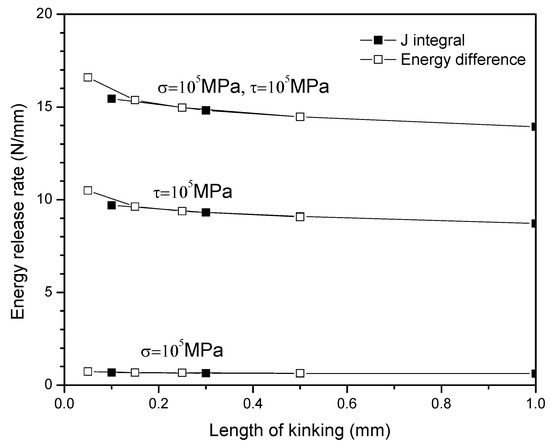

The evaluation of energy release rate with angle is still a challenging task in metal crack propagation analysis, especially for the mixed Mode I-II-III loading situation. In this paper, the energy release rate associated with stress intensity factors at an arbitrary angle under mixed mode loadings has been investigated using both a numerical method and theoretical derivation. A relatively simple and precise numerical method was established through a series of spatial-inclined ellipses in Mode I-II and ellipsoids in Mode I-II-III, with different propagation angles computed from simulation. Meanwhile, a theoretical expression of the energy release rate with angle for a crack tip under a I-II-III mixed mode crack was deduced based on the propagation mechanism of the crack tip under the influence of a stress field. It is confirmed that the theoretical expression deduced could provide results as accurately as the present numerical method. The present results were confirmed to be effective and accurate by comparison with experimental data and other literature. Full article

Rolling contact fatigue cracks in rail and wheel undergo non-proportional mixed mode I/II/III loading. Fatigue tests were performed to determine the coplanar and branch crack growth rates on these materials. Sequential and overlapping mode I and III loading cycles were applied to single cracks in round bar specimens. Experiments in which this is done have been rarely performed. The fracture surface observations and the finite element analysis results suggested that the growth of long (does not branch but grown stably and straight) coplanar cracks was driven mainly by mode III loading. The cracks tended to branch when increasing the material strength and/or the degree of overlap between the mode I and III loading cycles. The equivalent stress intensity factor range that can consider the crack face contact and successfully regressed the crack growth rate data is proposed for the branch crack. Based on the results obtained in this study, the mechanism of long coplanar shear-mode crack growth turned out to be the same regardless of whether the main driving force is in-plane shear or out-of-plane shear. Full article
