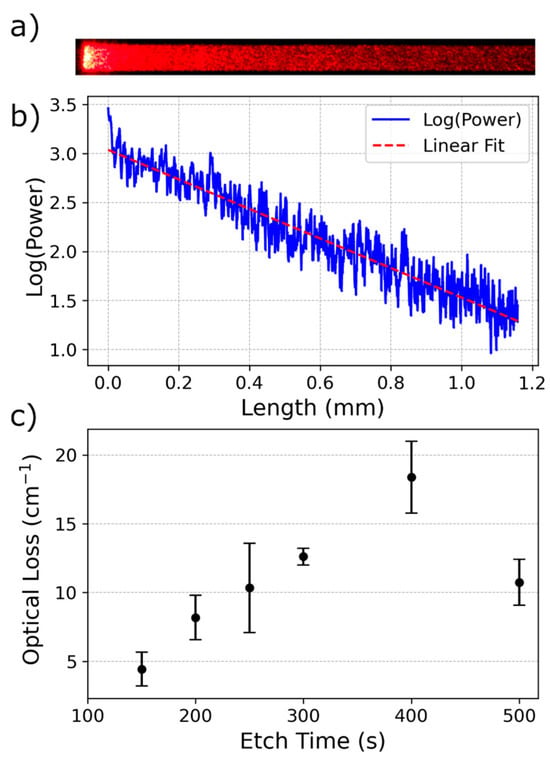

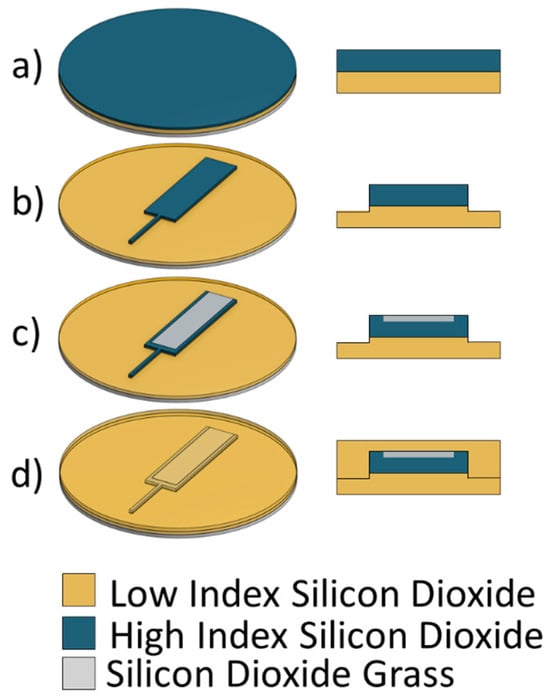

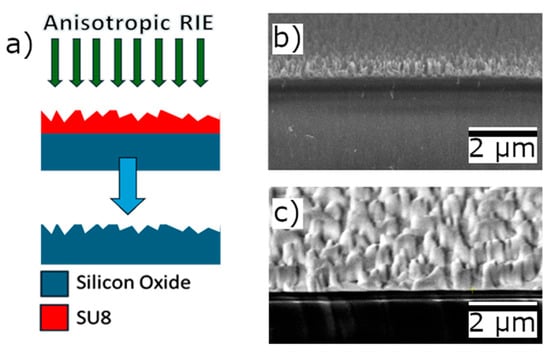

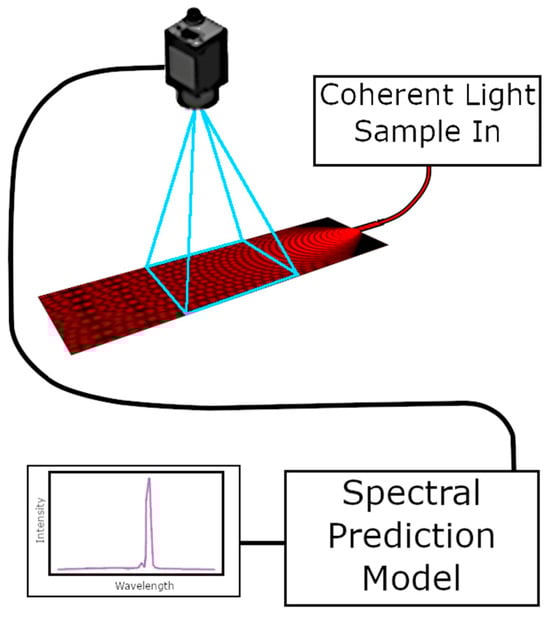

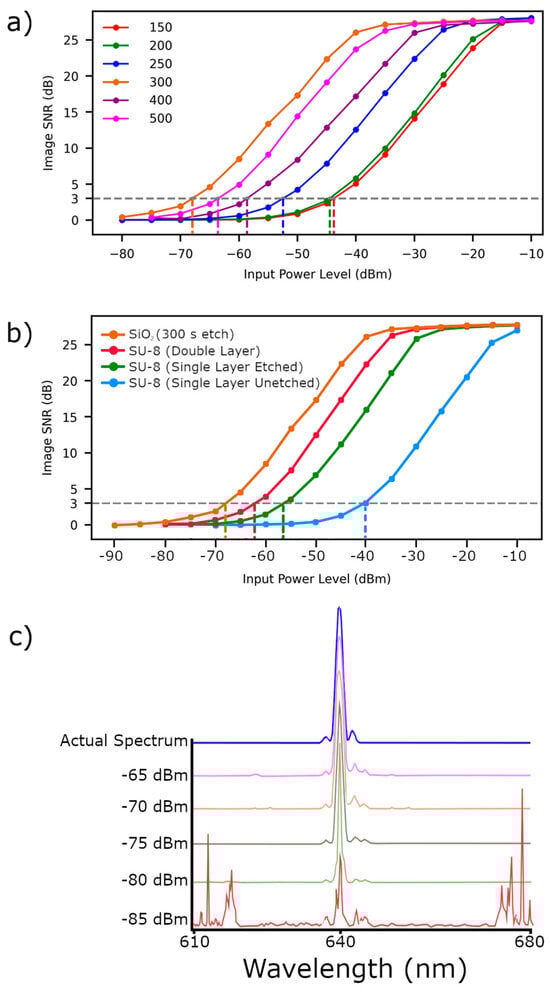

A multi-mode interferometer (MMI) spectrometer is a type of reconstructive micro-spectrometer based on imaging light propagation patterns in MMI waveguides. A waveguide scattering surface accentuates imaging light patterns in the multi-mode interferometer. This technology has been proven with an SU-8 core waveguide with an etched SU-8 nanograss scattering surface. This paper describes our creation of a fully silicon-based spectrometer using a silica core MMI waveguide. Scattering features were created in silica using SU-8 nanograss as an etch mask in a reactive ion etch (RIE). With optimized etch parameters, the silica core MMI spectrometer achieved an SNR of three with an incident light power of −68 dBm, which was almost 6 dB lower than designs with an SU-8 core. Full article

Programmable photonic integrated circuits implement optical switching and processing by interconnecting reconfigurable 2 × 2 cells in mesh topologies. Directional couplers are widely used in these cells, often combined with phase-shifting mechanisms to enable tunability. However, conventional directional couplers in dense meshes typically require submicron gaps and tight etching tolerances, which increase sensitivity to fabrication variations and can introduce excess loss and variability. In addition, interconnected waveguides (e.g., S-bends and crossings) increase layout complexity, footprint, and bending-related penalties, while thermo-optic control may introduce power consumption and thermal crosstalk. Here, we propose a shallow-rib strip directional coupler in hydrogenated amorphous silicon (a-Si:H) for 1 µm × 1 µm multimode waveguides. The proposed geometry enables efficient coupling for waveguide separations ≥ 1 µm by shifting the coupling control from the lateral gap to the slab height, allowing smoother transitions and a relaxed fabrication flow. The analysis combines coupled-mode theory and beam propagation method simulations. As an application example, the layout of a 4 × 4 thermo-optically reconfigurable switching matrix is designed and simulated using 2 × 2 shallow-rib strip coupler cells. Full article

We present an optical deformation sensor additively manufactured via an embedded printing process that enables the direct integration of colloidal quantum dots into multimode silicone (PDMS) waveguides. The sensor consists of two parallel waveguide strands, one of which is locally functionalized with CdSe/CdS quantum dots serving as fluorescent emitters. When narrow-band UV light at 405 nm is coupled into the non-functionalized strand, structural deformation alters the conditions of total internal reflection, thereby changing the optical interaction between both strands. This leads to a deformation-dependent variation in the fluorescence shift-affected intensity ratio, which serves as a self-referenced signal for angle determination. Using ratiometric evaluation, angular deflections of up to 9.5° are detected with a resolution below 1° ($2\sigma$ confidence), representing the performance of an initial functional prototype. The embedded printing process allows the voxel-wise adjustment of the material composition within a viscoplastic support medium and thus the spatially resolved integration of quantum dot-functionalized silicone. Attenuation losses of $0.81\pm 0.02\mathrm{dB}/\mathrm{cm}$ at 625 nm confirm the optical suitability of the printed waveguides. This approach combines optical sensing and structural flexibility within a single manufacturing step and establishes a pathway toward fully integratable deformation-sensing elements for soft robotic and wearable systems. Full article

This research presents a lens-based light collection system that integrates a handmade glass conical waveguide (GCW) with a single silica multimodal optical fiber (SMMF) and a concentrator Fresnel lens (FL). The GCW functions as a secondary optical element (SOE), effectively expanding the fiber’s receptive area and enabling efficient coupling of concentrated light. Calibrated ray-tracing simulations confirm that the complete FL + GCW + SMMF configuration maintains low transmission losses, thereby validating efficient coupling into the SMMF. Experimental results demonstrated a maximum net optical efficiency of 41% at an FL numerical aperture (NA) of 0.08, with GCW transmission reaching 60% and splice losses to the SMMF around 34%. With a luminous flux input of 155 lumens, the system delivered up to 63 lumens at the fiber output. Importantly, the FL + GCW + SMMF configuration combines reproducible fabrication, straightforward assembly, and reliable characterization, establishing a scalable pathway for daylight harvesting. The major contribution of this work is the demonstration that a simple, manufacturable GCW can substantially expand the effective collection area of multimodal fibers while preserving low optical losses, thereby bridging practical design with efficient energy transfer for sustainable photonics applications. Full article

The development of photonic-integrated circuits (PICs) for data communication, sensing, and quantum computing is hindered by the high complexity and cost of traditional fabrication methods, which rely on expensive equipment, limiting accessibility for research and prototyping. This study introduces a Direct Laser Writing (DLW) system designed as a low-cost alternative, utilizing an XY platform for precise substrate movement and an optical system comprising a collimator and lens to focus the laser beam. Operating on a single layer, the system employs SU-8 photoresist to fabricate polymer-based structures on substrates such as ITO-covered glass. Preparation involves thorough cleaning, spin coating with photoresist, and pre- and post-baking to ensure material stability. This approach reduces dependence on costly infrastructure, making it suitable for academic settings and enabling rapid prototyping. A user interface and custom slicer process standard .dxf files into executable commands, enhancing operational flexibility. Experimental results demonstrate a resolution of 10 µm, with successful patterning of structures, including diffraction grids, waveguides, and multimode interference devices. This system aims to transform PIC prototype fabrication into a cost-effective, accessible process. Full article

High-speed silicon (Si) photonic transmitters operating in the O-band require higher on-chip optical power to support advanced modulation formats and ever-increasing line rates. A straightforward approach is to operate laser diodes at higher output power or employ more specialized sources, but this raises cost and exacerbates nonlinear effects such as self-phase modulation, two-photon absorption, and free-carrier generation in high-index-contrast Si waveguides. This paper proposes a low-cost 4 × 1 tree-cascade multimode interference (MMI) power combiner on a Si-on-insulator platform at 1310 nm wavelength that enables coherent power scaling while remaining fully compatible with standard commercial O-band lasers. The device employs adiabatic tapers and low-loss S-bends to ensure uniform field evolution, suppress local field enhancement, and mitigate nonlinear phase accumulation. The optimized layout occupies a compact footprint of 12 µm × 772 µm and achieves a simulated normalized power transmission of 0.975 with an insertion loss of 0.1 dB. Spectral analysis shows a 3 dB bandwidth of 15.8 nm around 1310 nm, across the O-band operating window. Thermal analysis shows that wavelength drift associated with ±50 °C temperature variation remains within the device bandwidth, ensuring stable operation under realistic laser self-heating and environmental changes. Owing to its broadband response, fabrication tolerance, and compatibility with off-the-shelf laser diodes, the proposed combiner is a promising building block for O-band transmitters and photonic neural-network architectures based on cascaded splitter and combiner meshes, while preserving linear transmission and enabling dense, large-scale photonic integration. Full article

We investigate crosstalk effects in a dual-modality tactile–proximity sensing system based on Time-of-Flight (ToF) technology integrated within a flat poly(methyl methacrylate) (PMMA) light guide. Building on the OptoSkin framework, we employ two commercially available TMF8828 multi-zone ToF sensors, one configured for tactile detection via frustrated total internal reflection (FTIR) and the other for external proximity measurements through the same transparent substrate. Controlled experiments were conducted using a 2 cm² silicone pad for tactile interaction and an A4-sized diffuse white target for proximity detection. Additional measurements with a movable PMMA sheet were performed to quantify signal attenuation, peak broadening, and confidence degradation under transparent-substrate conditions. The results demonstrate that the TMF8828 can simultaneously resolve both contact-induced scattering and distant reflections, but that localized interference zones occur when sensor fields of view overlap within the substrate. Histogram analysis reveals the underlying multi-path contributions, providing diagnostic insight not available from black-box ToF devices. These findings highlight both the opportunities and limitations of integrating multiple ToF sensors into transparent waveguides and inform design strategies for scalable robotic skins, wearable interfaces, and multi-modal human–machine interaction systems. Full article

Waveguide bends are critical components for compact routing in integrated photonic circuits, yet their design in air-clad polymer waveguides fabricated by two-photon polymerization direct laser writing (2PP-DLW) is challenging due to multimode behavior. We address this by systematically modeling Bézier-shaped 90° bends and S-bends using a variational FDTD solver, exploring bend span, curvature, and waveguide dimensions. Our results show that smaller waveguides (widths 2–4 µm) and lower Bézier parameters (B = 0–0.2) consistently yield superior performance, enabling sharper bends with minimal loss. For 90° bends, spans as small as 20–30 µm achieve near-unity transmission, while for S-bends, aspect ratios below 1 are feasible, allowing highly compact layouts. Although all configurations transmit energy to the fundamental mode, wider waveguides exhibit stronger higher-order mode excitation and greater sensitivity to fabrication imperfections. Smaller waveguides reduce these effects but approach the resolution limits of 2PP-DLW. Thus, a 2 µm wide waveguide represents an optimal compromise between fabrication feasibility and optical performance. Experimental demonstrations confirm the practicality of these design rules, illustrating trends predicted by simulations. These findings establish clear guidelines for designing low-loss, space-efficient 3D photonic circuits and highlight the critical role of simulation-driven optimization in fully exploiting 2PP-DLW technology, while providing deeper insight for future device architectures. Full article

The ring-assisted Mach–Zehnder interferometer (RA-MZI) has high sensitivity and fast optical response time, and it has been used as a label-free nanophotonic biosensor. Most RA-MZI-based biosensors, however, require chemical modification of the ring surface to immobilize biomolecules that can interact with target molecules for sensing. Here, we report a novel microfluidic-integrated RA-MZI (μFRA-MZI) where a microfluidic channel was fabricated right above the photonic ring resonator. μFRA-MZI allows for direct sample delivery to the RA-MZI without chemical modification of the ring surface and measures shifts in the resonance wavelength induced by the presence of target molecules, enabling label-free detection. In order to optimize the sensitivity of μFRA-MZI, seven devices were fabricated with varied design parameters, including the gap distance between the ring and the bus waveguide (G_ring), the length of the multi-mode interferometer (L_MMI), and the length of the directional coupler (L_DC). Photonic characterization showed that the device with G_ring = 1.2 μm, L_MMI = 15.5 μm, and L_DC = 13.5 μm exhibited the highest extinction ratio (ER) compared to the other six devices, consistent with the simulation-optimized design. Testing with NaCl solutions of varying concentrations yielded a bulk sensitivity of 11.48 nm/refractive index unit (RIU) and an ER of 0.41. With the potential to further improve the device’s sensitivity and the ability to detect samples directly in flow without chemical modifications of the ring resonator, μFRA-MZI will provide a robust and effective approach for label-free biosensing. Full article

Studying the luminescent properties and the light amplification capabilities are fundamental investigations for newly synthesized organic compounds intended to act as chromophores. These studies are conducted for compounds in the form of solutions, solids, and also molecules stabilized with the aid of polymers. One of the methods used to study amplification is the generation of amplified spontaneous emission (ASE) using stripe-shaped light beam excitation. This process can lead to the generation of ASE, but also, with the coexistence of microcrystals and scatterers, to the generation of laser action with random feedback, known as random lasing (RL). However, when the degree of light scattering is too high, it can lead to the inhibition of laser emission. Therefore, as an alternative in studying amplification properties, we developed a protocol that allows the investigation of laser action generation using rapidly prototyped polymer waveguides with an embedded dye. The setup used was based on Direct Laser Writing (DLW), which enables the controlled fabrication of multimode optical waveguides. We demonstrated that the use of this technique will allow for the study of the performance of dyes from strictly structured resonators, enabling measurements of gain and lasing threshold. This allowed us to lower the lasing thresholds while maintaining the directionality of emission. Full article

Silicon photonics has emerged as a critical enabling technology for a diverse range of applications, from high-speed data communication and computing to advanced sensing and quantum information processing. This paper provides a comprehensive review of recent progress in the foundational passive devices that underpin this technological revolution. We survey the state of the art in fundamental building blocks, including strip, rib, and silicon nitride waveguides, with a focus on achieving ultra-low propagation loss. The review details essential components for light coupling and splitting, such as grating couplers, edge couplers, multimode interference couplers, and directional couplers, citing their typical performance metrics. Key wavelength filtering and routing components, including high-Q ring resonators, Mach–Zehnder interferometers, and arrayed waveguide gratings, are analyzed. Furthermore, we provide a comparative overview of the capabilities of major photonic foundries operating on a multi-project wafer model. The paper concludes by discussing persistent challenges in packaging and polarization management, and explores future trends driven by co-packaged optics, inverse design methodologies, and the expansion of silicon photonics into new application domains. Full article

Multimode waveguide Bragg gratings (MWBGs) provide significant advantages over traditional single-mode counterparts through their mode-coupling operations. Nevertheless, flexible spectral response design methodologies for MWBG-based filter remain less studied. This work introduces a spectral tailoring methodology enabling physically realizable complex responses in MWBGs. We demonstrate silicon-based multi-channel Gaussian-shaped MWBGs using lateral phase delay modulation (LPDM) apodization. Experimental results confirm close conformance between measured spectral responses and target design specifications. Full article

Multimode VCSELs coupled into waveguides can be a practical path toward realizing commercially viable photonic interposer chips. The experimental coupling of multimode VCSEL light to a non-silicon waveguide fabricated using a CMOS-compatible process is demonstrated. The GaP prism was tested and adopted as a coupling method. Both conventional and cavity-type optical waveguides, fabricated from CMOS-compatible PECVD SiO₂, Si₃N₄, and SiO_xN_y materials, were evaluated. The average propagation loss transmitted through the cavity-type waveguide was measured as 0.444 dB/cm. A polyimide micro-lens, cavity-type waveguide, and a GaP prism coupler are developed to inject the multimode VCSEL light into the waveguide measuring the net coupling loss of 0.762 dB. The packaged size of VCSEL has an area of 0.4 mm² and a height of 0.64 mm. MUX/DeMUX was designed on the bottom of the prism. A light source, a modulator, and MUX/DeMUX are all located in the same area of the prism bottom in VCSEL-based interconnections. Full article

Addressing the stability requirements of photonic integrated devices operating over wide temperature ranges, this work achieves controlled fabrication of femtosecond-laser direct-written Type II double-line waveguides and Type III depressed-cladding tubular waveguides within ultra-low-expansion LAS glass-ceramics. The light-guiding mechanisms were elucidated through finite element modeling. The influences of laser writing parameters and waveguide geometric structures on guiding performance were systematically investigated. Experimental results demonstrate that the double-line waveguides exhibit optimal single-mode guiding performance at 30 μm spacing and 120 mW writing power. For the tubular depressed-cladding waveguides, both single-mode and multi-mode fields are attainable across a broad processing parameter window. Large-mode-area characteristics manifested in the 50 μm core waveguide, exhibiting an edge-shifted intensity profile for higher-order modes that generated a hollow beam, enabling applications in atom guidance and particle trapping. Full article

We developed a mathematical model to examine the scattering of radiation by a periodic structure of circular and elliptical microcavities formed in a planar optical waveguide. The waveguide simulates the behaviour of a 62.5/125 µm multimode optical fibre. The calculations focused on the intensity distribution of scattered light with a wavelength of 1310 nm along the periodic structure, i.e., along the side surface of the waveguide, as a function of the microcavity dimensions and their spatial arrangement within the waveguide core. The optimal geometrical parameters of the microstructure, ensuring the most uniform light scattering, were identified. The model is valid for multimode optical fibres containing strictly periodic structures of microcavities with spherical or elliptical cross-sections that scatter laser radiation in all directions. One potential application of such fibres is as light sources in medical probes for surgical procedures requiring additional illumination and uniform irradiation of affected tissues. Furthermore, the findings of this study offer significant potential for the development of sensing elements for fibre-optic sensors. The findings of this study will facilitate the design of scattering structures with microcavities that ensure a highly uniform scattering pattern. Full article
