Search Results (14)

Interior permanent magnet synchronous motor (IPMSM) for traction applications have attracted significant attention due to their advantages of high torque and power density as well as a wide operating range. However, these motors suffer from high electromagnetic vibration noise due to their complex structure and structural rigidity. The main sources of this electromagnetic vibration noise are cogging torque, torque ripple, and radial force. To predict electromagnetic vibration noise, finite element analysis (FEA) with flux density analysis of the air gap is essential. This approach allows for the calculation of radial force that is the source of the vibration and enables the prediction of vibration in advance. The data obtained from these analyses provide important guidance for reducing vibration and noise in the design of electric motors. In this paper, the cogging torque and vibration at rated and maximum operating speed are analyzed, and an optimal cogging torque and vibration reduction model, with rotor taper and two-step skew structure, is proposed using the response surface method (RSM) to minimize them. The validity of the proposed model is demonstrated through formulations and FEA based entirely on numerical analysis and results. This study is expected to contribute to the design of more efficient and quieter electric motors by providing a solution to the electromagnetic vibration noise problem generated by IPMSM for traction applications with complex structures. Full article

Precision machining fields often require worktables with different stroke sizes. To address the need for scalability and facilitate manufacturing, this study proposes a novel infinite expansion magnetically levitated planar motor (MLPM) based on PCB stator coils. Different from existing magnetic levitation systems that use PCB coils, the design presented in this paper utilizes smaller coil units, with each coil being independent of one another. The coils are structured in a spiral pattern on a 16-layer PCB, comprising 15 layers of coils, while the last layer is dedicated to wiring and other circuits. Magnetic field modeling is conducted for both the stator coil and the 2D Halbach array structure employed in the system. A simple table lookup method is employed to accurately account for the prevalent end effects observed during system motion. Additionally, the decoupling effect of magnetic force and torque is evaluated by solving for the current vector at different points along a specific trajectory. To verify the accuracy of the proposed system’s modeling, a prototype is developed and tested. Experimental results demonstrate that compared to traditional harmonic model methods, the proposed approach improves the calculation accuracy of magnetic force by 50.31% and torque by 70.65%. This study presents a new MLPM system with vast potential applications in precision manufacturing and robotics. The innovative design and improved performance characteristics make it a promising technology for enhancing the capabilities of worktables in precision machining fields. Full article

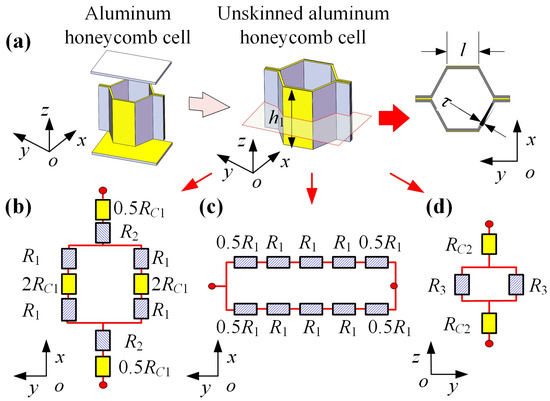

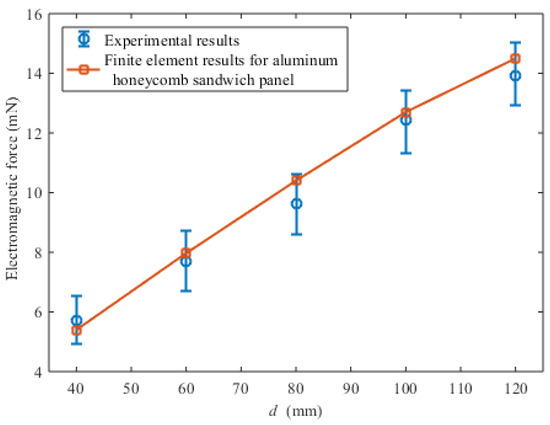

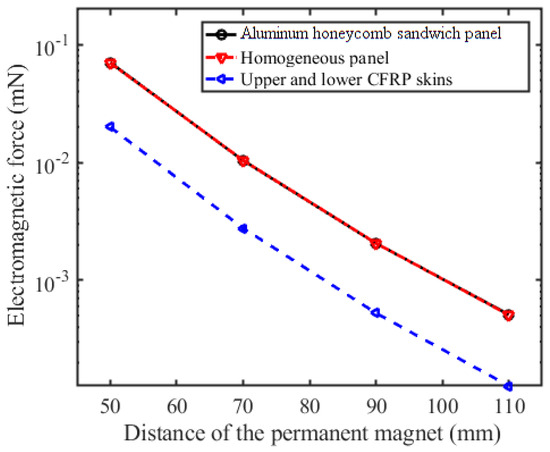

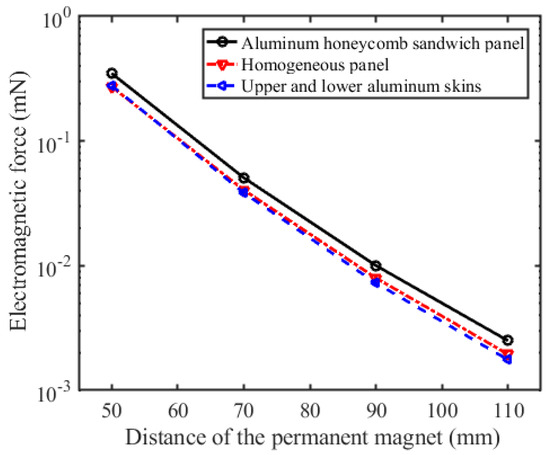

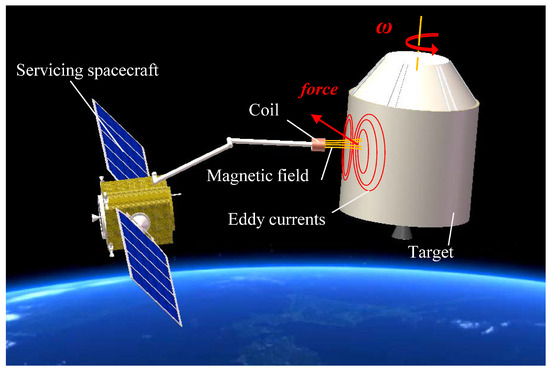

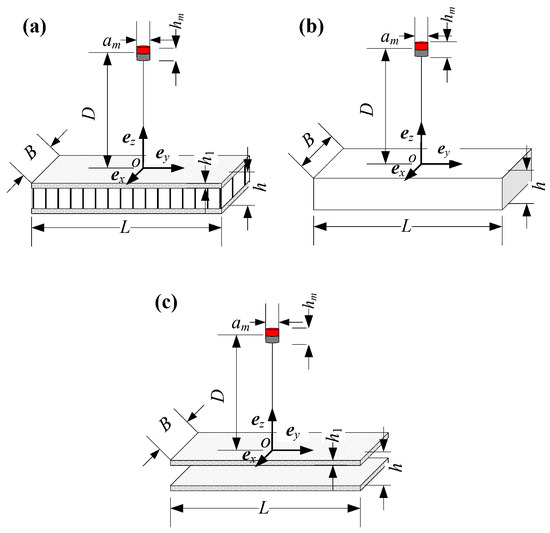

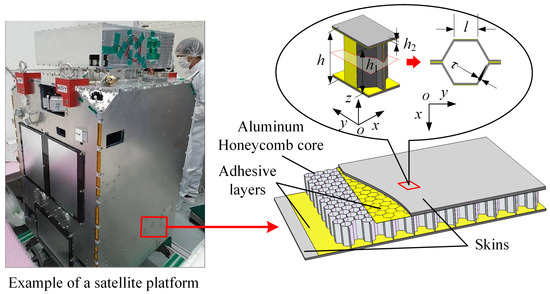

This paper reports a method for calculating the electromagnetic force acting on an aluminum honeycomb sandwich panel moving in a magnetic field. This research is motivated by the non-contact electromagnetic detumbling technology for space non-cooperative targets. Past modeling of the electromagnetic forces and torques generally assumes that the target is homogeneous. However, aluminum honeycomb sandwich panels are extensively used in spacecraft structures to reduce weight without sacrificing structural strength and stiffness, which are so inhomogeneous and complicated that it is difficult to obtain the induced electromagnetic force even by numerical methods. An equivalent conductivity tensor of an aluminum honeycomb sandwich panel is proposed, which allows the aluminum honeycomb sandwich panel to be treated as a homogeneous structure when calculating the induced electromagnetic forces. The advantage of the equivalent conductivity tensor in the calculation of induced electromagnetic forces is verified by finite element simulations. The proposed method makes it possible to evaluate the electromagnetic force of a large aluminum honeycomb sandwich structure moving in a magnetic field. Full article

On account of active governmental stimulation operations in many countries, the residential production of electricity from renewable resources has increased considerably. Due to high efficiency and reliability, a recommended solution for residential wind energy conservation systems (WECS) is permanent magnet synchronous generators (PMSG). A higher torque ripple (TR), engendered by the contact of the stator with the rotor’s magnetomotive force harmonics, is one foremost issue in PMSGs. To control the synchronous generator, numerous control schemes have been proposed. However, it still faces a challenge in the diminishment of the TR. An enhanced fuzzy logic controller (EFLC) in interior PMSG (IPSMG) under variable wind speed (WS) has been proposed in this article to address this challenge. Initially, the wind turbine (WT) system was designed, and the IPMSG was proposed. A hysteresis controller (HC) and fuzzy logic controller (FLC) are the two controller types utilized in this model to control TR. This methodology used the EFLC to eliminate errors during the control. By using the proper membership function (MF) for boundary selection in the WDCSO algorithm, an enhancement was executed. Better performance in TR reduction was attained by the proposed model grounded in the analysis. Full article

We report here on a laser ultrasonic system to indirectly evaluate the preload force of different-frequency piezoelectric bolts. This newly developed system enables us to achieve the goal of non-contact excitation and synchronously collects the laser-induced ultrasonic signal by the combination of a smart piezoelectric sensor and a magnetically mounted transducer connector. A numerical model based on the finite element method (FEM) was developed to simulate the propagation and displacement distribution of laser-generated ultrasonic waves along the axial direction. The measured A-scan waveform basically coincided with the counterpart obtained from a theoretical simulation, confirming the effectiveness of the proposed system to measure a bolt. By comparison, a laser spot diameter of 6 mm was the optimal beam diameter for the excitation of the ultrasonic wave in the bolt. The linear relationship between time of flight (TOF) of the ultrasonic longitudinal wave and bolt torque was almost independent from the center frequency of the smart bolt. By contrast, a piezoelectric patch centered at 5 MHz was more suitable as an ultrasonic sensor in terms of the nonlinear effects component suppression and linear fitting degree between TOF and torque. The results indicate that the proposed system based on a surface-mounted piezoelectric sensor is a promising system for evaluating the axial preload change of connector and fastener and is an additional potential laser ultrasonic system for nondestructive tests. Full article

This paper describes a family of relatively simple numerical models for calculation of asymmetric electromagnetic (EM) loads at all tokamak structures and coils at asymmetric vertical plasma displacement events (AVDE). Unlike currently known AVDE studies concentrated on plasma physics, these models have a practical purpose to calculate detailed time-dependent patterns of AVDE-induced EM loads everywhere in the tokamak. They are built to intrinsically assure good-enough EM load balance (opposite net forces and torques for the Vacuum Vessel and the Magnets with zero total for the entire tokamak), as needed for consequent simulation of the tokamak’s dynamic response to AVDE, as well as for the development of tokamak monitoring algorithms and tokamak simulators. To achieve these practical goals, the models work in a manner of parametric study. They do not intervene in details of plasma physics, but run at widely varied input assumptions on AVDE evolution and severity. Their outputs will fill a library of ready-for-use lateral EM loads for multiple variants of AVDE evolution and severity. The tokamak physics community can select any variant from the library, and engineers can pick ready-for-use AVDE loads. Investigated here, EM models represent one already known approach and one newly suggested. The latter attempts to reflect the helical pattern of halo currents in plasma and delivers richer outcomes and, thus, can be preferred as the single practical model for parametric calculations. Full article

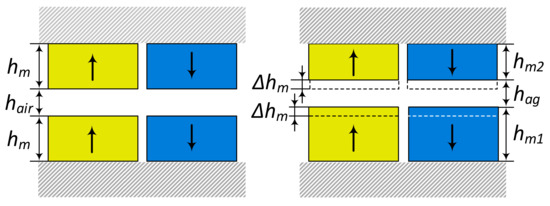

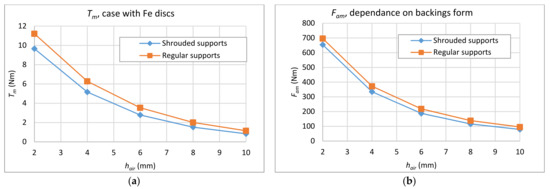

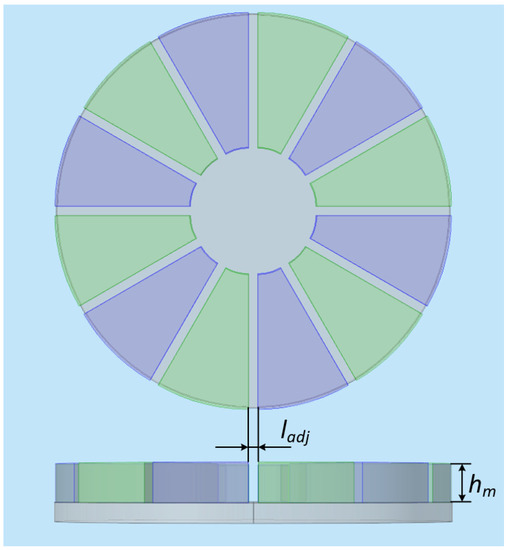

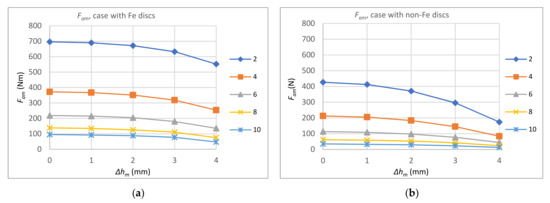

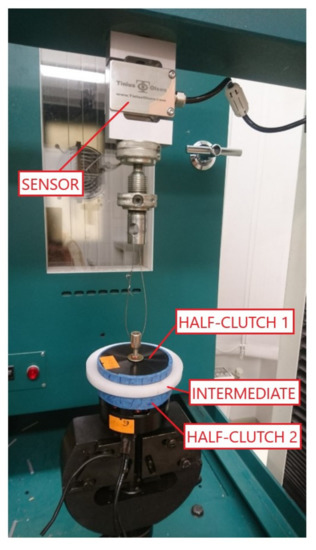

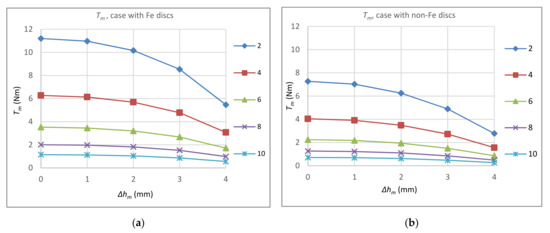

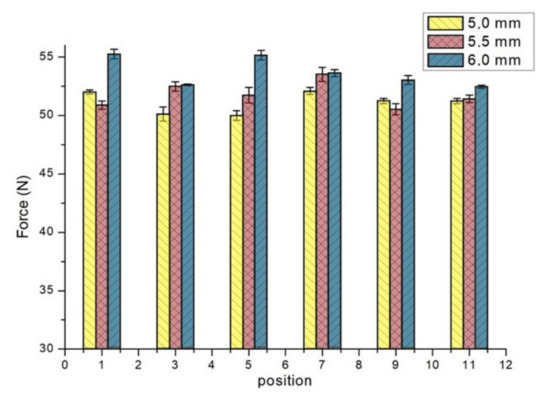

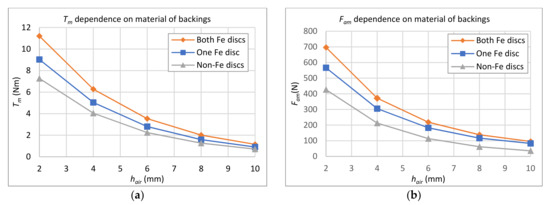

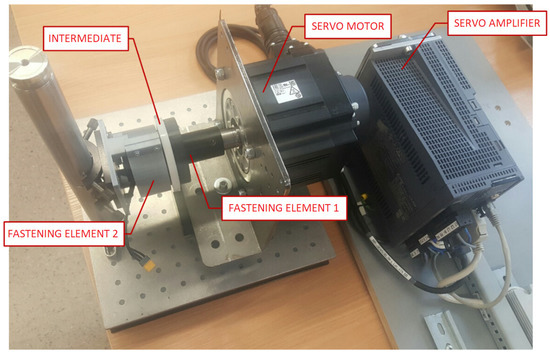

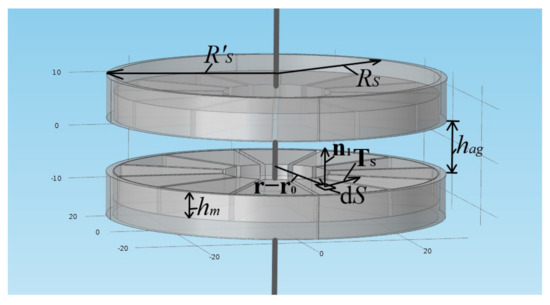

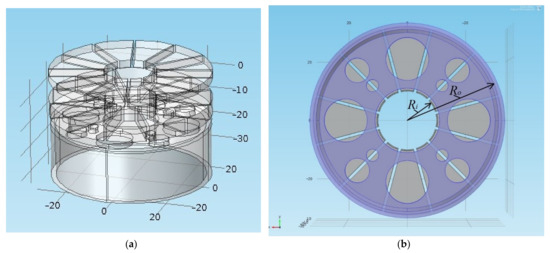

This paper presents research on the mechanical characteristics of a synchronous axial magnetic coupling. The influence of the coupling structure on torque and axial force was analyzed. The considered parameters of the structure include the half-clutch diversity, the air-gap length between adjacent magnets, the magnetic characteristics of the backings’ material, and the shape of the backings. It was discovered that the ferromagnetic backings that partially shroud magnets of the coupling cause a significant decrease of the maximum torque. The maximum torque and the maximum axial force decrease in nonlinear manner in response to the increasing magnets’ height diversity, and the sensitivity of the parameters is larger in the upper range of the diversity. It was also disclosed that the air-gap length between the adjacent magnets has a minor influence on torque if the total volume of magnets is constant. A quantitative comparison of the maximum torque and maximum axial force for the couplings with both ferromagnetic backings, one ferromagnetic backing and with non-ferromagnetic backings is provided. The results were obtained using a 3D FEM numerical simulation. Physical experiments were performed for the numerical model verification. Full article

Permanent magnet torque motor (PMTM) is widely used in aerospace, computer numerical control (CNC) machine tools, and industrial robots with many advantages such as high torque density, strong overload capacity, and low torque ripple. With the upgrading of industrial manufacturing, the requirements for the performance of torque motors have become more stringent. At present, how to achieve high output torque and low torque ripple has become a research hotspot of torque motors. In the optimization process, it is necessary to increase the output torque while the torque ripple can be reduced, and it is difficult to get a good result with the single-objective optimization. In this paper, a multi-objective optimization method based on the combination of design parameter stratification and support vector machine (SVM) is proposed. By analyzing the causes of torque ripple, the output torque, efficiency, cogging torque, and total harmonic distortion (THD) of back electromotive force (EMF) are selected as the optimization objectives. In order to solve the coupling problem between the motor parameters, the calculation formula of Pearson correlation coefficient is used to analyze the relationship between the design parameters and the optimization objectives, and the design parameters are layered ac-cording to the sensitivity. In order to shorten the optimization cycle of the motor, SVM is used as a fitting method of the mathematical model. The performance between initial and optimal motors is compared, and it can be found that the optimized motor has a higher torque and lower torque ripple. The simulation results verify the effectiveness of the proposed optimization method. Full article

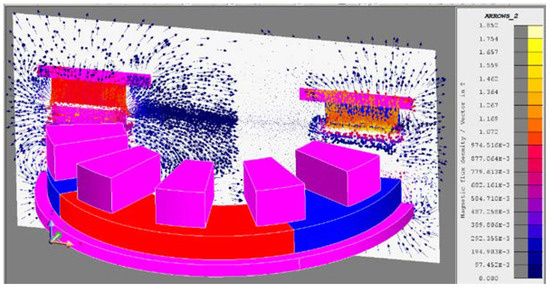

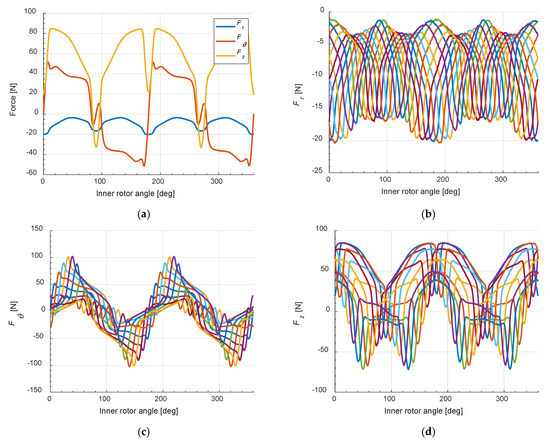

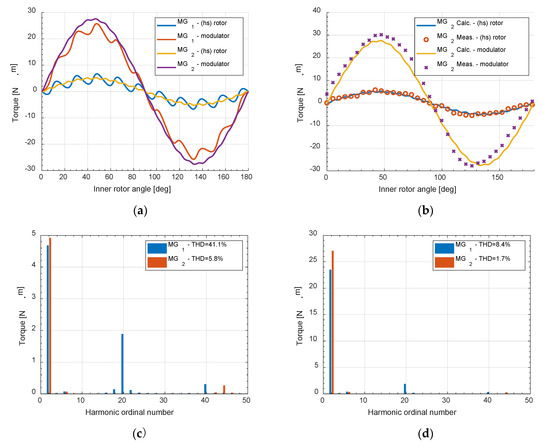

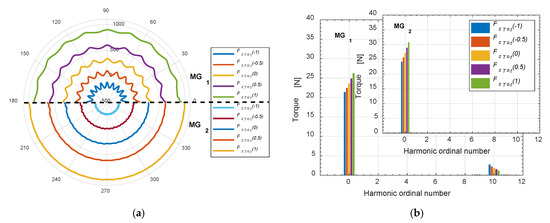

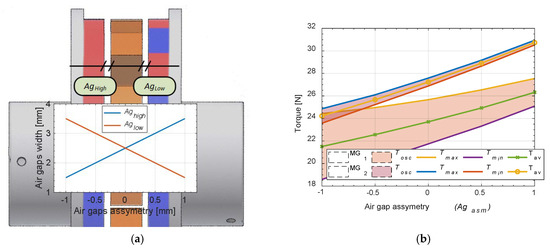

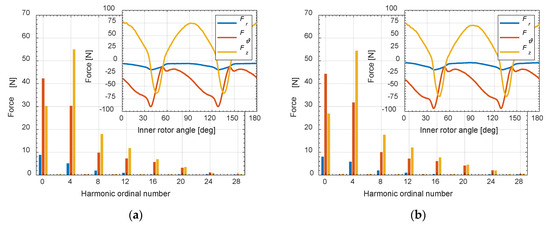

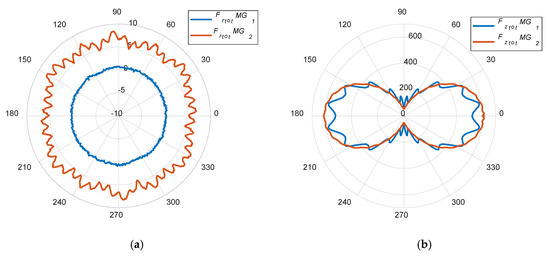

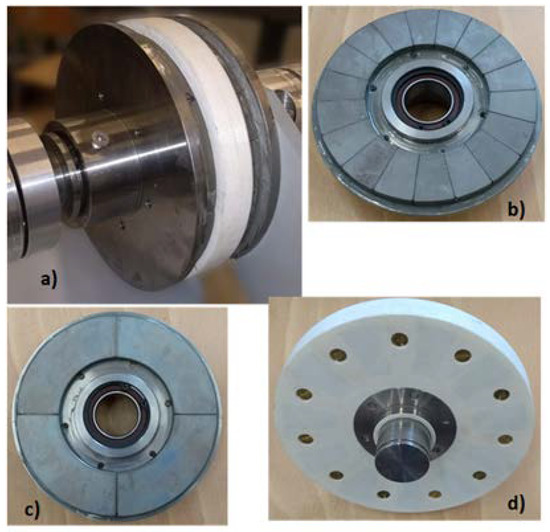

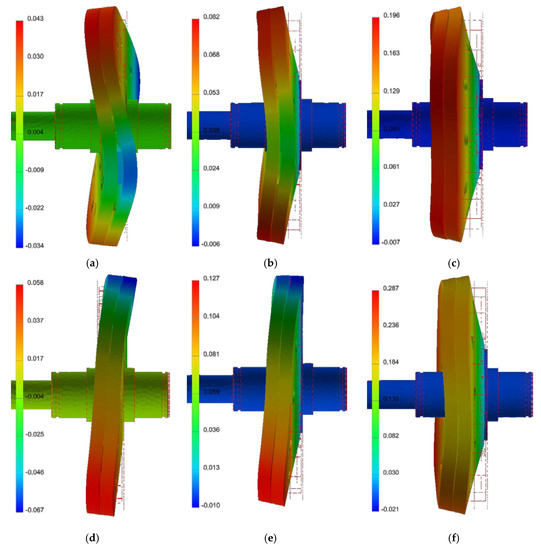

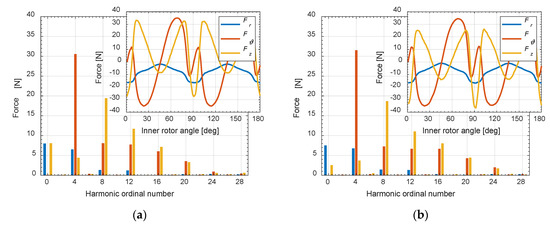

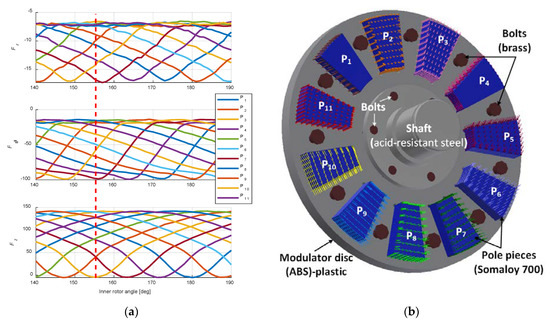

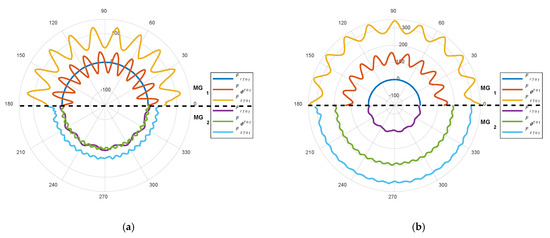

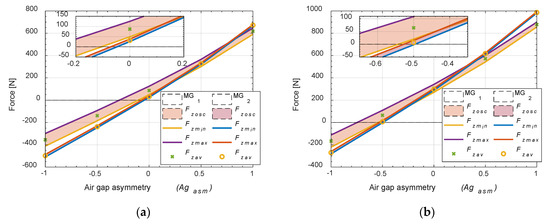

This paper presents a comparison of two variants of an axial flux magnetic gear (AFMG), namely, with integer and fractional gear ratios. Based on calculations derived with the use of three-dimensional numerical models, the torque characteristics of the analyzed AFMGs are computed and verified on a physical model. The greatest emphasis is put on the detailed decomposition and analysis of local forces in modulator pole pieces (also used in the structural analysis) within the no-load and maximal load conditions. The authors also describe the unbalanced magnetic forces (UMF) in the axial and radial directions resulting from the construction of the considered AFMGs variants, and their possible effects in the context of the use of additive manufacturing (AM) in prototypes. The paper also proposes an effective method for limiting the axial strain by using the asymmetry of the air gaps, which slightly reduces the torque transmitted by AFMGs. Finally, a static strength analysis was presented that allows us to assess the effects of local forces in the form of modulator disc deformation for selected cases of air gap asymmetry. Full article

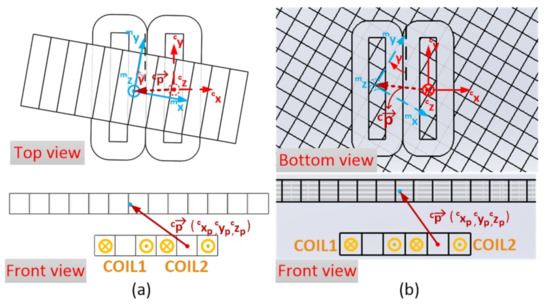

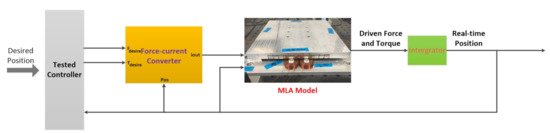

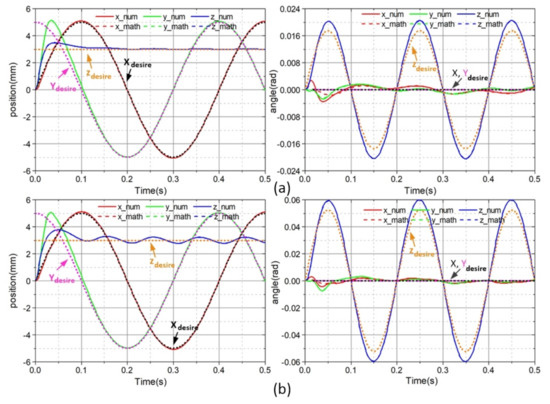

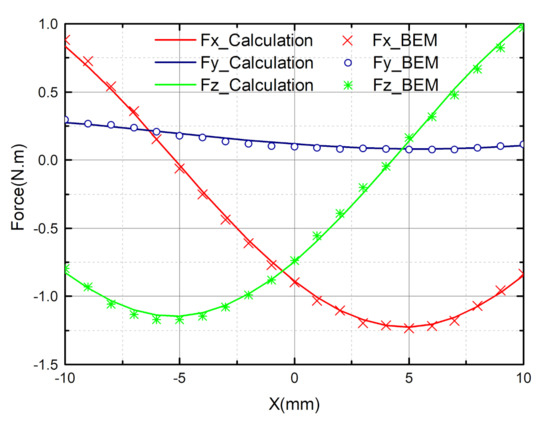

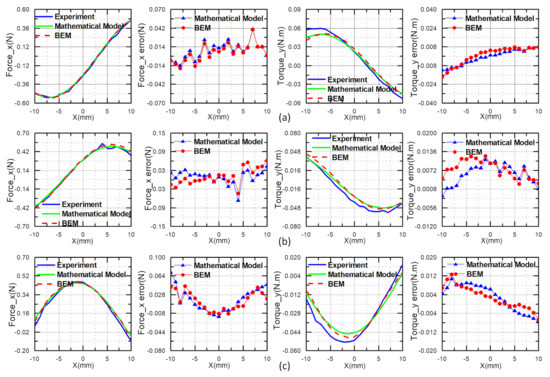

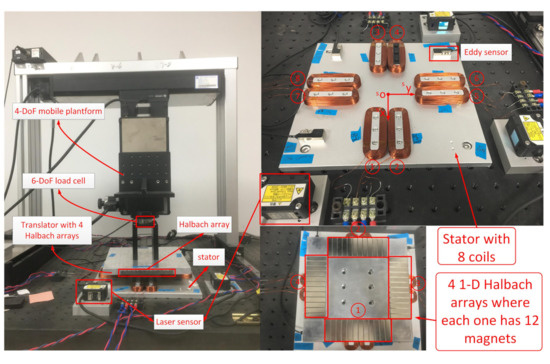

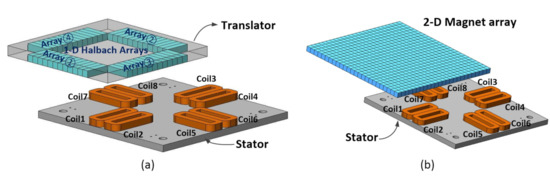

The existing simulation method for the control of linear or planar magnetically levitated actuators always ignores the characteristics of the real physical object, which deteriorates the accuracy of the simulation. In this work, the proposed emulator for the magnetically levitated actuator is developed to consider both the force characteristics and the control algorithm. To model the real controlled object, the mathematical model for 1D (one-dimensional) and 2D (two-dimensional) magnetic arrays is derived where the yaw angle is taken into consideration using the coordinate transformation. The solution of the mathematical model is compared with the commercial BEM (boundary element method) software and the measurements from a force and torque testing setup to highlight the accuracy of the proposed mathematical model. Compared with the traditional simulation method of the motion control systems founded on the simplified system transfer function, the proposed simulation method has higher consistency and is closer to reality. The accuracy and efficiency of the proposed magnetic force model are further verified by the emulator based on the numerical force model and the testing data of the real setup. Full article

Magnetic levitation technology shows promise for realizing multiple degrees of free precision motion for modern manufacturing, as the bearing and guiding parts are not used. However, motion decoupling in a magnetically levitated (maglev) system is difficult because it is hard to derive accurate magnetic force and a torque model considering the translation and rotation in all axes. In this work, a magnetic levitation rotary table that has the potential to realize unlimited rotation around the vertical axis and a relatively long stroke in the horizontal plane is proposed and analyzed, and the corresponding real-time numerical decoupling method is presented. The numerical magnetic force and torque model solves the current to magnetic force and torque transformation matrix, and the matrix is used to allocate the exact current in each coil phase to produce the required motion in the magnetically levitated (maglev) system. Next, utilizing a high-level synthesis tool and hardware description language, the proposed motion-decoupling module is implemented on a field programmable gate array (FPGA). To realize real-time computation, a pipelined program architecture and finite-state machine with a strict timing sequence are employed for maximum data throughput. In the last decoupling module of the maglev system, the delay for each sampling point is less than $200\mathsf{\mu }$ s. To illustrate and evaluate real-time solutions, they are presented via the DAC adapter on the oscilloscope and stored in the SD card. The error ratios of the force and torque results solved by the numerical wrench model were less than $5\%$ and $10\%$ using the solutions from the boundary element method (BEM) program package Radia^TM as a benchmark. Full article

This paper presents a two-dimensional analytical model of outer rotor permanent magnet machines equipped with surface inset permanent magnets. To obtain the analytical model, the whole model is divided into the sub-domains, according to the magnetic properties and geometries. Maxwell equations in each sub-domain are expressed and analytically solved. By using the boundary/interface conditions between adjacent sub-regions, integral coefficients in the general solutions are obtained. At the end, the analytically calculated results of the air-gap magnetic flux density, electromagnetic torque, unbalanced magnetic force (UMF), back-electromotive force (EMF) and inductances are verified by comparing them with those obtained from finite element method (FEM). One of the merits of this method in comparison with the numerical model is the capability of rapid calculation with the highest precision, which made it suitable for optimization problems. Full article

The hysteresis motor technology combined with the magnetic suspension makes bearingless hysteresis drives very appealing for high- and ultra-high-speed applications. Such systems exploit the magnetic behavior of the rotor material to achieve mechanical torque, but the hysteresis can significantly influence the magnetic suspension performance. The literature so far has focused mainly on the motor investigation. On the bearing side, the design and the performance assessment have been carried out by neglecting the hysteresis phenomenon of the rotor material. In those cases, the hysteresis of the rotor material is negligible and hence it slightly affects the force generation. In a wider perspective, this paper intends to investigate the force capability of electromagnetic actuators based on materials of large magnetic hysteresis behavior. To this purpose, the proposed numerical model, based on the finite element method, accounts for the magnetic hysteresis. The experimental results confirm the validity of the modeling approach, thus providing a useful tool for the design as well as the investigation of such systems. Full article

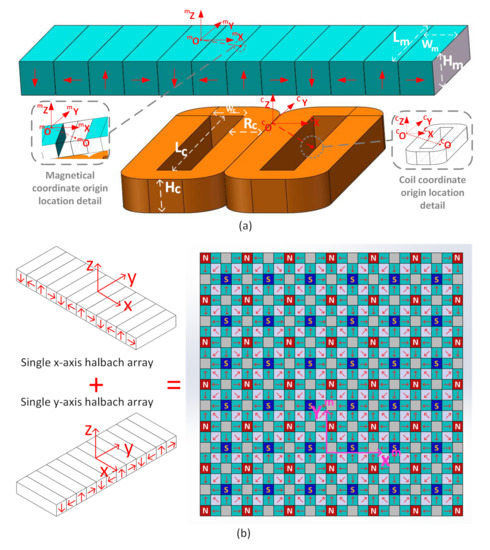

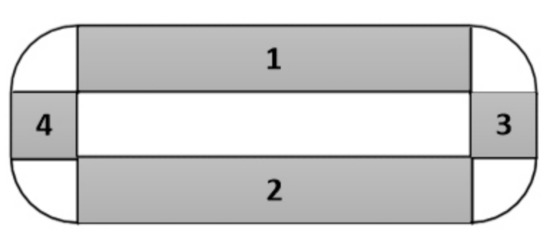

The traditional model of the electromagnetic force and torque does not take the coil corners into account, which is the major cause for the motor fluctuation. To reduce the fluctuation, a more accurate real-time computation model, which considers the influence of the coil corners, is proposed in this paper. Three coordinate systems respectively for the stator, the mover, and the corner are established. The first harmonic of the magnetic flux density distribution of a Halbach magnet array is taken into account in this model. The coil is divided into the straight coil segment and the corner coil segment based on its structure. For the straight coil segment, the traditional Lorenz force method can be used to compute its electromagnetic force and torque, which is a function of the mover position. For the corner coil segment, however, the numerical calculation method can be used to get its respective electromagnetic force and torque. Based on the above separate analysis, an electromagnetic model can be derived, which is suitable for practical application. Compared with the well-known harmonic model, the proposed real-time computation model is found to have less model inaccuracy. Additionally, the real-time ability of the maglev planar motor model and the decoupling computation is validated by NI PXI platform (Austin, TX, USA). Full article
