Search Results (11)

Cold mix asphalt (CMA) is emerging as an environmentally friendly alternative to traditional hot mix asphalt (HMA). It offers advantages such as lower costs, reduced energy demands, decreased environmental impacts, and improved safety aspects. Among the various types of CMA, the cold bitumen emulsion mixture (CBEM) stands out. The CBEM involves diluting bitumen through emulsification, resulting in lower bitumen viscosity. However, this process has certain drawbacks, including extended setting (curing) times, lower early strength, increased porosity, and susceptibility to moisture. This study focuses on enhancing CBEM properties through the utilization of low-energy heat techniques, such as microwave technology, and the incorporation of a polymeric additive, specifically acrylic. These innovations led to the development of a novel paving technology known as a half-warm bitumen emulsion mixture (HWBEM). The research was conducted in two phases. First, the study assessed the impact of low-energy heating on the CBEM. Subsequently, it explored the combined effects of low-energy heating and the addition of an acrylic polymer. CBEM samples containing ordinary Portland cement (OPC) as an active filler were utilized in the sample manufacturing process. The effectiveness of these techniques in enhancing crack resistance was evaluated by analysing the results of the indirect tensile strength test. Notably, CBEM samples containing an amount of 2.5% of acrylic polymer and OPC exhibited the highest resistance to cracking. Furthermore, significant improvements were observed in their volumetric and mechanical properties, comparable to those of HMA. Full article

This investigation is dedicated to unlocking the hidden potential of discarded cosmetics towards building green sustainable road pavements in the future. It is particularly aiming at exploring waste lipstick (WLS) as a high-quality functional additive for advanced asphalt mix technologies. To fuel this novel innovation, the effect of various WLS doses (e.g., 5, 10, and 15 wt.%) on the performance of base AP-5 asphalt cement was studied in detail. A wide array of cutting-edge analytical lab techniques was employed to inspect in-depth the physicochemical, microstructural, thermo-morphological, and rheological properties of resultant admixtures including: elemental analysis, Fourier transform-infrared spectroscopy (FT-IR), X-ray diffraction (XRD), thin-layer chromatography-flame ionization detection (TLC-FID), scanning electron microscopy (SEM), atomic force microscopy (AFM), thermogravimetric analysis (TGA), differential scanning calorimetry (DSC), needle penetration, ring and ball softening point, Brookfield viscometer, ductility, and dynamic shear rheometer (DSR) tests. Unlike the unstable response of asphaltenes, the additive/artificial aging treatments increased the fraction of resins the most, and decreased that of aromatics; however, asphaltenes did not impair the saturates portion, according to Iatroscan research. FT-IR scan divulged that the WLS-asphalt interaction was physical rather than chemical. XRD diagnosis not only revealed an obvious correlation between the asphaltenes content and the fresh-binder crystallinity but also revealed the presence of fillers in the WLS, which may generate outstanding technical qualities to bituminous mixes. According to AFM/SEM analyses, the stepwise incorporation of WLS grew the magnitude of the “bee-shaped” microstructures and extended the roughness rate of unaged/aged binders. The prolonged consumption of the high thermal-stable additive caused a remarkable drop in the onset degradation and glass transition temperature of mixtures, thus enhancing their workability and low-temperature performance, according to TGA/DTGA/DSC data. The DSR and empirical rheological experiments demonstrated that the WLS could effectively lower the manufacturing and compaction temperatures of asphalt mixes and impart them with valuable anti-aging/fatigue-cracking assets. In a nutshell, the use of waste lipstick as an asphalt modifier is viable and cost-effective and could attenuate the pollution arisen from the beauty sector, while improving the performance of hot/warm asphalt mixes (HAM/WAM) and extending the service life of roadways. Full article

Recent studies have worked towards addressing environmental issues such as global warming and greenhouse gas emissions due to the increasing awareness of the depletion of natural resources. The asphalt industry is seeking to implement measures to reduce its carbon footprint and to promote sustainable operations. The reuse of several wastes and by-products is an example of a more eco-friendly activity that fulfils the circular economy principle. Among all possible solutions, the road pavement sector encourages, on one hand, the use of recycled materials as a partial replacement of the virgin lithic skeleton; on the other hand, it promotes the use of recycled materials to substituting for a portion of the petroleum bituminous binder. This study aims to use Re-refined Engine Oil Bottoms (REOBs) as a main substitute and additives from various industrial by-products as a full replacement for virgin bitumen, producing high-performing alternative binders. The REOBs have been improved by utilizing additives in an attempt to improve their specific properties and thus to bridge the gap between REOBs and traditional bituminous binders. An even larger amount of virgin and non-renewable resources can be saved using these new potential alternative binders together with the RAP aggregates. Thus, the reduction in the use of virgin materials is applied at the binder and the asphalt mixture levels. Rheological, spectroscopic, thermogravimetric, and mechanical analysis were used to characterize the properties, composition, and characteristics of the REOBs, REOB-modified binders, and asphalt mixes. Thanks to the rheological investigations of possible alternative binders, 18 blends were selected, since they behaved like an SBS-modified bitumen, and then they were used for producing the corresponding asphalt mixtures. The preliminary mechanical analysis of the asphalt mixtures shows that six mixes have promising responses in terms of stiffness, tensile resistance, and water susceptibility. Nevertheless, the high variability of recycled materials and by-products has to be taken into consideration during the definition of alternative binders and recycled asphalt mixtures. In fact, this study highlights the crucial effects of the chemical composition of the constituents and their compatibility on the behaviour of the final product. This preliminary study represents a first attempt to define alternative binders, which can be used in combination with recycled aggregates for producing more sustainable road materials. However, further analysis is necessary in order to assess the durability and the ageing tendency of the materials. Full article

The presented study explores the effects of decreased temperatures utilized in rolling thin-film oven (RTFOT) laboratory short-term ageing of asphalt binders based on 35/50- and 50/70-penetration paving-grade bitumen. Additionally, the effects of three additives used with these binders at different concentrations are evaluated: liquid anti-stripping agent, liquid warm-mix additive, and solid warm-mix additive. The resulting asphalt binders were subjected to basic (penetration at 25 °C, softening point, dynamic viscosity) and functional high-temperature characterization (G*/sin(δ), high critical temperature, non-recoverable creep compliance). It was found that the decreased short-term ageing temperatures may detrimentally impact the high-temperature grade of bituminous binders, but this effect can be mitigated by the use of appropriate additives. What is more, it was found that bituminous binders may respond differently to the aforementioned factors. Based on the results, it is advised that asphalt binders intended for use in warm-mix asphalts should be thoroughly tested to appropriately simulate the mixture production process and its effects. Full article

This study evaluates the influence of polymer-modification on the induction heating capability of asphalt mastic in a microwave field, and investigates how effectively this approach can be utilized for ice melting and self-healing purposes. To this end, different asphalt mastic mixtures with different polymer-modification and mixing procedures were tested under microwave field exposure for induction heating capability, ice-melting ability, and self-healing capacity. The mixtures were made through warm-mix and hot-mix procedures with four bituminous binders, including virgin (unmodified) asphalt and the same binder modified with three types of polymers. The results showed the effectiveness of microwave induction heating of asphalt mastic for both crack-healing and deicing purposes. The binder type was found to influence the ice melting and crack healing rates, such that using a warm-mix asphalt binder resulted in a more efficient heat generation and conduction than using a virgin asphalt binder. While polymer-modification undermined induction-heating, ice-melting, and self-healing performances, SBS-modified asphalt binders exhibited better performance than the other polymer-modified binders. Full article

In the last decades, all technology production sectors reached a high level of development, without neglecting the attention to environmental aspects and safeguarding energy resources. Moreover, in the sector of pavement industry, some alternatives of bituminous mixtures were proposed to reduce the greenhouse gas emissions. One of these is the warm mix asphalt (WMA), a mixture produced and compacted at lower temperatures compared to traditional hot mix asphalt (HMA) (about 40 °C less), to allow a reduction of emissions into the atmosphere and the costs. Other operative benefits concern the health of workers during the whole road construction process, the reduction of distances to which the mixture can be transported, and therefore also the positioning of the plants. However, it is not all benefits, since reduced production temperatures can bring short- and long-term water sensitivity issues, which could threaten the pavement performance. This paper evaluated the performance (water sensitivity, stiffness, fatigue, and permanent deformation) of a WMA produced using a warm mix fabrication bitumen and compared it with an HMA tested in parallel. In general, except for the resistance to permanent deformation, the WMA presented performances comparable to HMA. Regarding the fatigue behavior of asphalt mixtures, the WMA was less affected by ageing conditions, despite it showing lower performance than HMA. Full article

This paper presents results of laboratory tests on hot and warm bituminous mixtures produced with Reclaimed Asphalt Pavement (RAP). Additives were used to produce warm bituminous mixtures. Fatigue behaviour and thermomechanical behaviour at low temperature were investigated. Fatigue was studied by analysing the tension/compression fatigue test results. Four different failure criteria were used in order to evaluate fatigue life. The low temperature behaviour of the materials was characterized using the Thermal Stress Restrained Specimen Test (TSRST). For each material, three replicates were performed. The experimental device was improved so that radial strains in two directions could be measured during the tests. Tri-dimensional behaviour could thus be investigated. The results of both tests were analysed and the influence of the void content, RAP content, type of additives and manufacturing process was evaluated. The results show that RAP addition and warm bituminous mixtures could be combined to obtain mixtures with performances comparable to classical hot mixtures. Full article

This paper summarizes the work carried out in a research project whose main objective was to develop high-performance sustainable bituminous materials (using crumb rubber and additives to reduce their manufacturing temperature) to be used in roads that support high traffic volumes and/or severe environmental conditions. For this purpose, various studies were conducted both in a laboratory and in a real asphalt plant (at binder and mixture level). Later, these materials were used to construct a trial section in a highway at a mountain pass (at more than 1400 m above sea level) supporting more than 2600 heavy vehicles each day under severe environmental conditions (snow during winter, and high temperatures and many hours of solar radiation during the summer). The results indicate the viability of using these materials, since they provide a number of advantages such as improved workability at lower temperatures and an increase in the mechanical resistance against the main sources of distress that affect asphalt pavements. Full article

Reclaimed Asphalt Pavement (RAP) material mainly consists of removed asphalt concretes from existing infrastructures and, to a minor extent, of wasted or rejected mixes during the production processes. Being composed of two valuable non-renewable resources, i.e., aggregates and bituminous binder, its conscious use can ensure the sustainability of asphalt pavement construction. Thanks to the use of RAP material in new asphalt products, the USA saved 4.1 million tons of virgin binder and 78 million tons of virgin aggregates in 2018. Therefore, the use of RAP for the production of new asphalt formulations at the top of the recycling hierarchy is preferable instead of being down-cycled in low-value applications. The RAP material represents one of the most re-used construction products worldwide; in 2018, approximately 88% wt. and 72% wt. of RAP were used in USA and Europe, respectively, as aggregates for Hot, Warm and Cold Asphalt Mixtures and for unbound layers. Several studies have revealed positive responses of the recycled asphalt mixtures with high or very high content of RAP. However, the common practices of many countries still limit the RAP content to a 15–20% wt., on average, in the recycled asphalt mixes. The amount of RAP in asphalt concretes can be significantly increased by applying good management practices of the RAP, either processed or not, as well as novel production technologies and advanced mix design approaches. This manuscript aims to summarize the state-of-the-art of use of RAP aggregates in new asphalt mixtures. The economic and environmental benefits are also discussed. Full article

Recycled and low-temperature materials are promising solutions to reduce the environmental burden deriving from hot mix asphalts. Despite this, there is lack of studies focusing on the assessment of the life-cycle impacts of these promising technologies. Consequently, this study deals with the life cycle assessment (LCA) of different classes of pavement technologies, based on the use of bituminous mixes (hot mix asphalt and warm mix asphalt) with recycled materials (reclaimed asphalt pavements, crumb rubber, and waste plastics), in the pursuit of assessing energy and environmental impacts. Analysis is developed based on the ISO 14040 series. Different scenarios of pavement production, construction, and maintenance are assessed and compared to a reference case involving the use of common paving materials. For all the considered scenarios, the influence of each life-cycle phase on the overall impacts is assessed to the purpose of identifying the phases and processes which produce the greatest impacts. Results show that material production involves the highest contribution (about 60–70%) in all the examined impact categories. Further, the combined use of warm mix asphalts and recycled materials in bituminous mixtures entails lower energy consumption and environmental impacts due to a reduction of virgin bitumen and aggregate consumption, which involves a decrease in the consumption of primary energy and raw materials, and reduced impacts for disposal. LCA results demonstrate that this methodology is able to help set up strategies for eco-design in the pavement sector. Full article

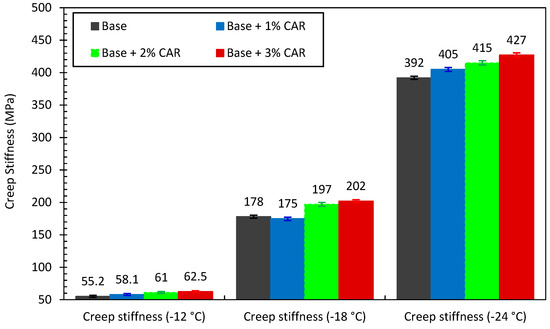

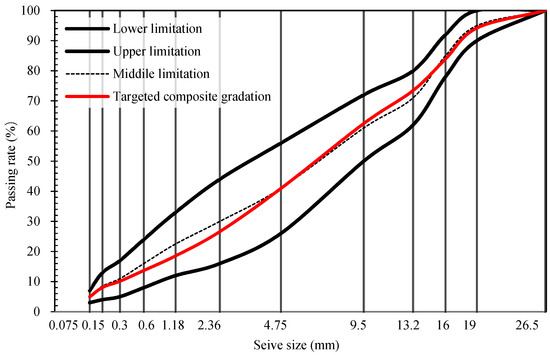

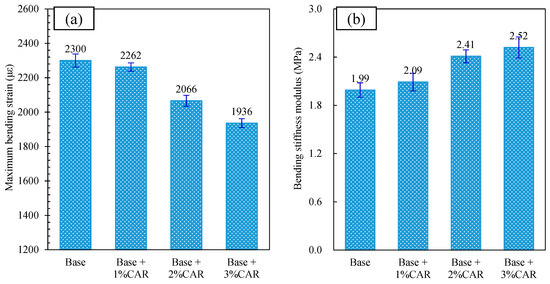

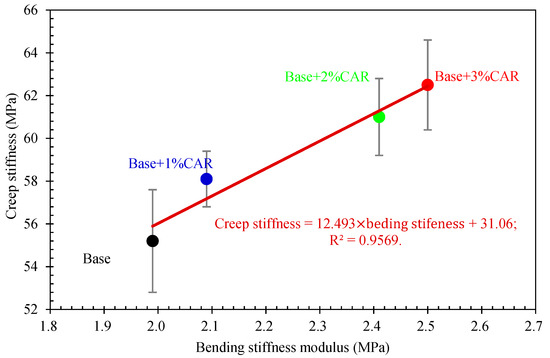

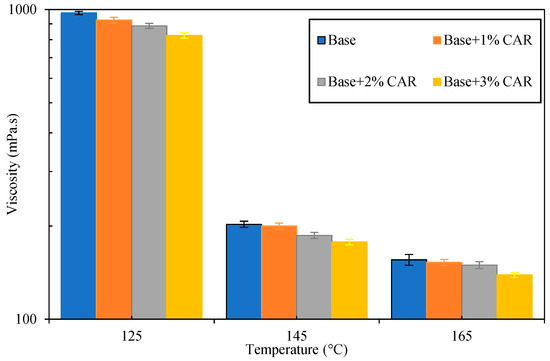

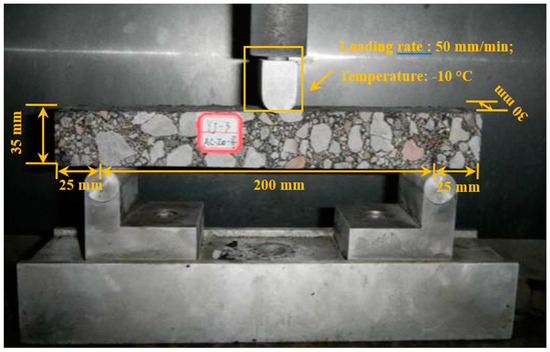

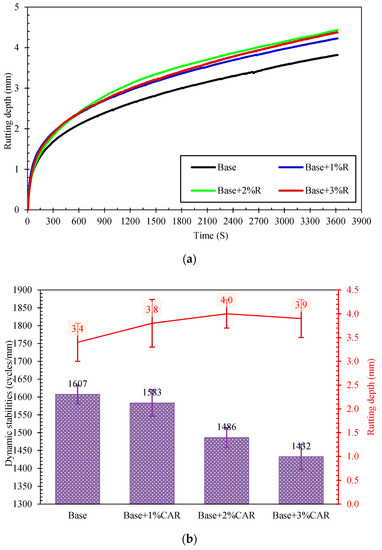

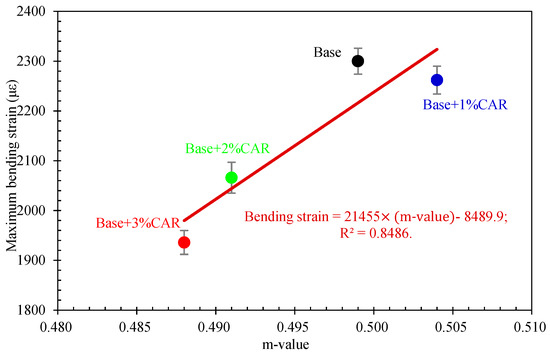

Warm mix asphalt received increasing attention in recent years, and this technology aims to increase the fluidity of bitumen in the process of mixing and construction. To characterize the physical and rheological properties of bitumen and the pavement performance of bituminous mixtures, it was modified by a composite additive Rediset. Rediset consists of both the cationic surfactants and organic additive-based rheology modifiers. Commonly used materials such as Pen 60/80 bitumen and bituminous concrete (AC-20) were selected. The results show that Rediset can improve the penetration and softening point of the bitumen, making the bitumen stiffer and harder. All Rediset-modified bituminous concretes are in the same low-temperature performance grade (PG) as the bitumen without Rediset. Although Rediset can decrease the rutting and crack resistance of Rediset-modified bituminous concrete, all the Rediset-modified bituminous concrete with less than 2% Rediset still satisfied the requirement of the maximum bending strain being higher than 2000 με, and the dynamic stability of Rediset-modified bituminous concrete with 3% Rediset was still higher than 1000 cycles/mm. The cationic surfactants in the Rediset can play the role of an anti-stripping agent and improve the adhesion between the interfaces of the aggregate and bituminous binder, which enhances the moisture resistance of Rediset-modified bituminous concrete. Full article
