Structure of Supramolecular Assemblies Formed by α,δ-Tetramethylcucurbit[6]uril and 4-Nitrophenol

by
Li-Mei Zheng
1,
Yun-Qian Zhang
2,3,
Jin-Ping Zeng
2,3,
Yan Qiu
2,3,
Da-Hai Yu
2,3,
Sai-Feng Xue
2,3,
Qian-Jiang Zhu
2,3 and
Zhu Tao
2,3,*
1
School of Chemistry and Chemical Engineering, Henan University of Technology, Zhengzhou 450001, People’s Republic of China
2
Key Laboratory of Macrocyclic and Supramolecular Chemistry of Guizhou Province, Guizhou University, Guiyang 550025, People’s Republic of China
3
Institute of Applied Chemistry, Guizhou University, Guiyang 550025, People’s Republic of China
*
Author to whom correspondence should be addressed.
Molecules 2008, 13(11), 2814-2822; https://doi.org/10.3390/molecules13112814
Submission received: 8 October 2008 / Revised: 2 November 2008 / Accepted: 5 November 2008 / Published: 12 November 2008
Browse Figures
Versions Notes

Abstract

:
A host-guest assembly, [(C40H44N24O12)·(C6H5NO3)8·13(H2O)] (1), based on a partial substituted cucurbituril, α,δ-tetramethylcucurbit[6]uril (TMeQ[6]), and 4-nitrophenol was synthesized and structurally characterized by single-crystal X-ray diffraction. A combination of hydrogen-bonding between the latticed water molecule and the hydroxyl group of 4-nitrophenol, the hydroxyl group of 4-nitrophenol and the carbonyl groups lining the portals in additon, the C-H···π interactions between the 4-nitrophenol molecules could be the driving forces of formation such an exclusion host-guest assembly.

Graphical Abstract

Introduction

The chemistry of cucurbit[n]urils (Q[n]s) has been studied extensively [1] since the first member of the family, cucurbituril, was structurally characterized by Mock and coworkers in 1981 [2]. The cucurbit[n]urils include cucurbituril (Q[6]) and its homologues, cucurbit [n = 5, 7, 8 and 10]urils (Q[5], Q[7], Q[8] and Q[10]) [3,4,5], and a series of fully or partially substituted derivatives and analogues [6,7,8,9,10,11,12]. The members of the cucurbit[n]uril family have common characteristic features, such as a hydrophobic cavity and polar carbonyl groups surrounding the opening portals. In addition, their varying cavity and portal sizes lead to the formation of inclusion or exclusion complexes with different organic or inorganic species. They also present remarkable molecular recognition properties and act as building blocks for supramolecular chemistry [5,13,14,15,16,17,18]. Up to now, the supramolecular assemblies of metal or cluster aqua complexes involving the Q[n]s have been mainly limited in those with Q[6] or Q[8]. After Mock and Kim’s research [19,20], Fedin and coworkers have done major work in this area and their results were summarized in reviews [21,22]. They found that alkali and alkaline earth metal ions are coordinated directly with carbonyl oxygen atoms of Q[6], but transition metal ions prefer to form hydrogen bonds between the polar C=O groups of Q[6].
We previously reported the controlled synthesis of α, δ-tetramethylcucurbit[6]uril (TMeQ[6]) and the preparation of some supramolecular assemblies of metal aqua complexes and host-guest inclusion complexes involving this substituted Q[n]s (Figure 1)[11]. In this work, we report the crystal structures of an exclusion supramolecular assembly of TMeQ[6] with 4-nitrophenol
Molecules 13 02814 g001 550

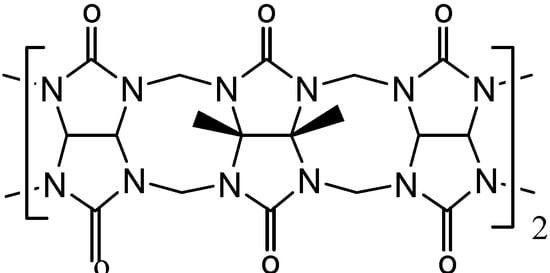

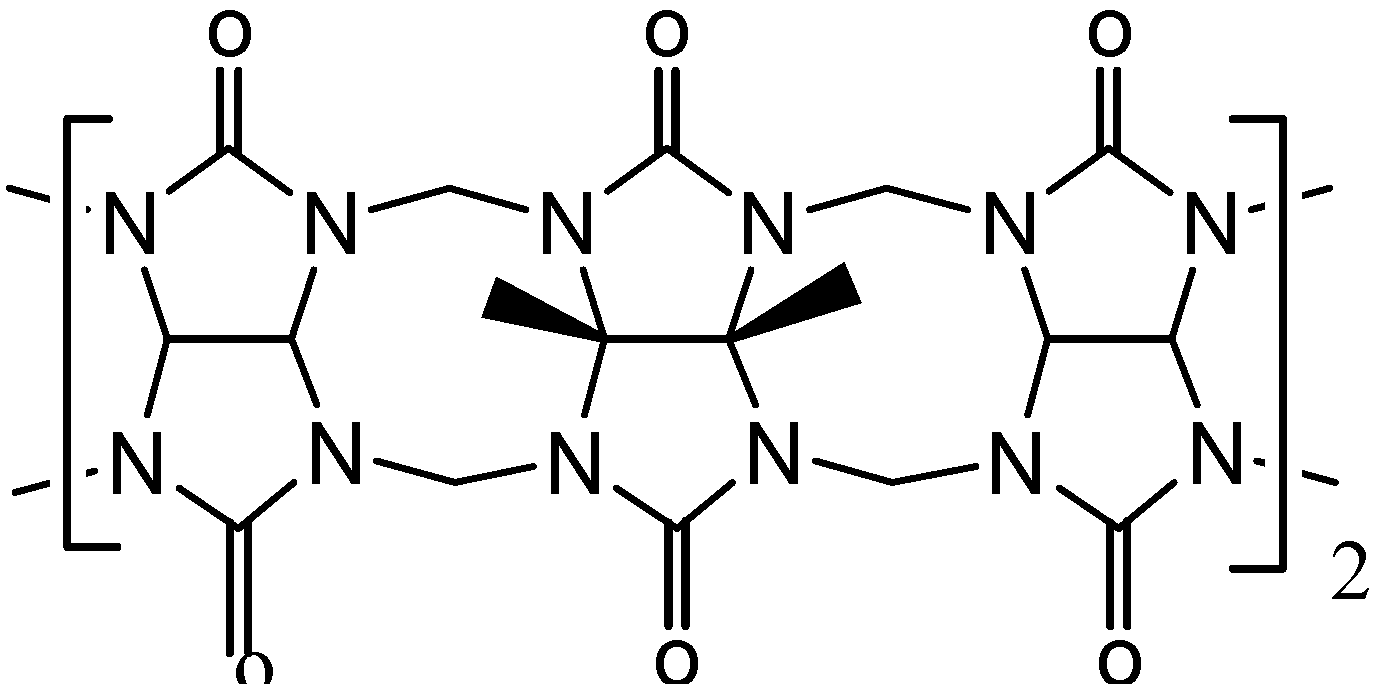

Figure 1. Structure of TMeQ[6].
Figure 1. Structure of TMeQ[6].
Molecules 13 02814 g001

Results and Discussion

The X-ray structure of TMeQ[6] shows that it is a macrocyclic cavity with two identical portals surrounded by carbonyl groups. Unlike the normal cucurbit[n=5-10]urils, the α,δ-substituted Q[6] macrocycle is not circular, but ellipsoid. Its structure is easy to deform and includes molecules which could not be included by the normal cucurbit[6]uril [23].
In the crystal structure of an exclusion host-guest assembly of TMeQ[6] with 4-nitrophenol, the phenyl moiety of 4-nitrophenol was not included in the TMeQ[6] cavity due to some unfavorable interactions between the carbonyl oxygens of the TMeQ[6] and the 4-nitrophenol nitro group. However, an excluding interaction between the carbonyl oxygens of the TMeQ[6] and hydroxyl group of 4-nitrophenol was observed in compound 1. There were two different styles of TMeQ[6] molecules, one included four water molecules (marked Q1), while the other included nothing in the cavity (marked Q2). The structural characteristics of the two styles of TMeQ[6] were obviously different. As shown in Figure 2a the Q1 is ellipsoid, and the distance between the O3 and O6 portal oxygens is about 7.676 Å, while the distance between the portal oxygens O2 and O4 is only 5.289 Å. The distance between the cavity carbons C14 and C15 is about 10.982 Å, while the distance between the cavity carbons C3 and C8 is about 8.777 Å. The distance between H20A and H19B is about 14.768 Å. For the Q2 (Figure 2 b), the corresponding distance between the portal oxygens O9 and O12 is about 6.526 Å, the corresponding distance between the portal oxygens O8 and O10 is 6.529 Å. The distance between the cavity carbons C34 and C35 is about 9.955 Å, while the distance between the cavity carbons C23 and C28 is about 9.751 Å. The distance between H40A and H39B is about 13.701 Å.
Molecules 13 02814 g002 550

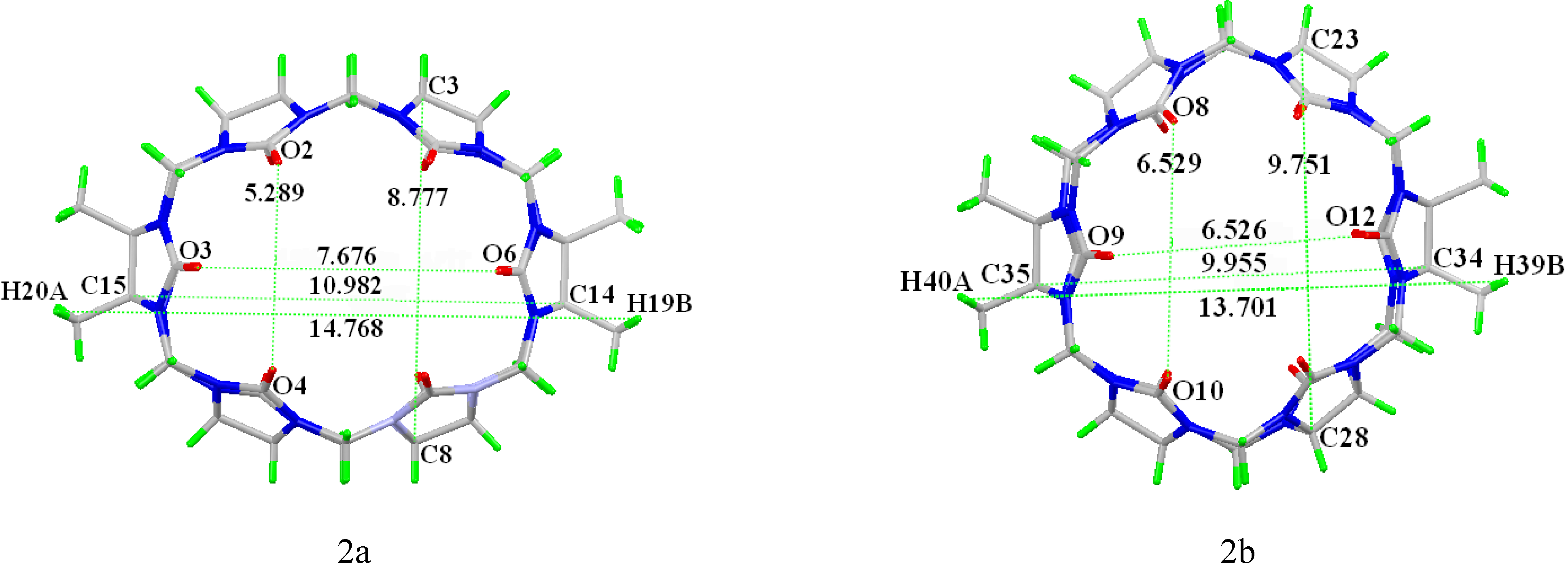

Figure 2. Two different styles of TMeQ[6] molecules (a) Q1 and (b) Q2.
Figure 2. Two different styles of TMeQ[6] molecules (a) Q1 and (b) Q2.
Molecules 13 02814 g002
As mentioned above, TMeQ [6] is easy to be deformed, and the different deformation of the two types of TMeQ [6] in the title compound could be caused by the different interactions with included water molecules, excluded 4-nitrophenol molecules or latticed water molecules. For the Q1, four water molecules O12W, O12Wi, O13W and O13Wi form a diamond plane in the cavity of the TMeQ[6] (symmetry codes: (i) 1-x, 1-y, -z). Both portals of Q1 are covered a “net” formed through the hydrogen-bonding of carbonyl oxygens and the latticed water molecules, in addition, the hydrogen-bonding between the latticed water molecules, such as, O3W···O3 (2.662Å), O3W···O2 (2.841Å), O5W···O5 (2.805Å), O1W···O6 (2.665Å), and O1W···O5W (2.716 Å), O5W···O3W (2.715 Å). Thus, a molecular encapsulate of TMeQ[6] with four included water molecules and the two covered nets is formed. Both portals of Q2 are also covered a “net” formed through the hydrogen-bonding of carbonyl oxygens and the latticed water molecules, in addition, the hydrogen-bonding between the latticed water molecules, such as, O9W···O7 (2.904 Å), O9W···O12 (2.927 Å), O14W···O9 (2.694 Å), O14W···O9W (2.094 Å)O10W···O10(2.800Å), O10W···O11(2.817Å) and O10W···O9W(2.778Å). Moreover, a 4-nitrophenol interacts with Q2 through the hydrogen-bonding of O16···O8 (2.733 Å). In this case, one can only see a molecular encapsulate shell.
Molecules 13 02814 g003 550

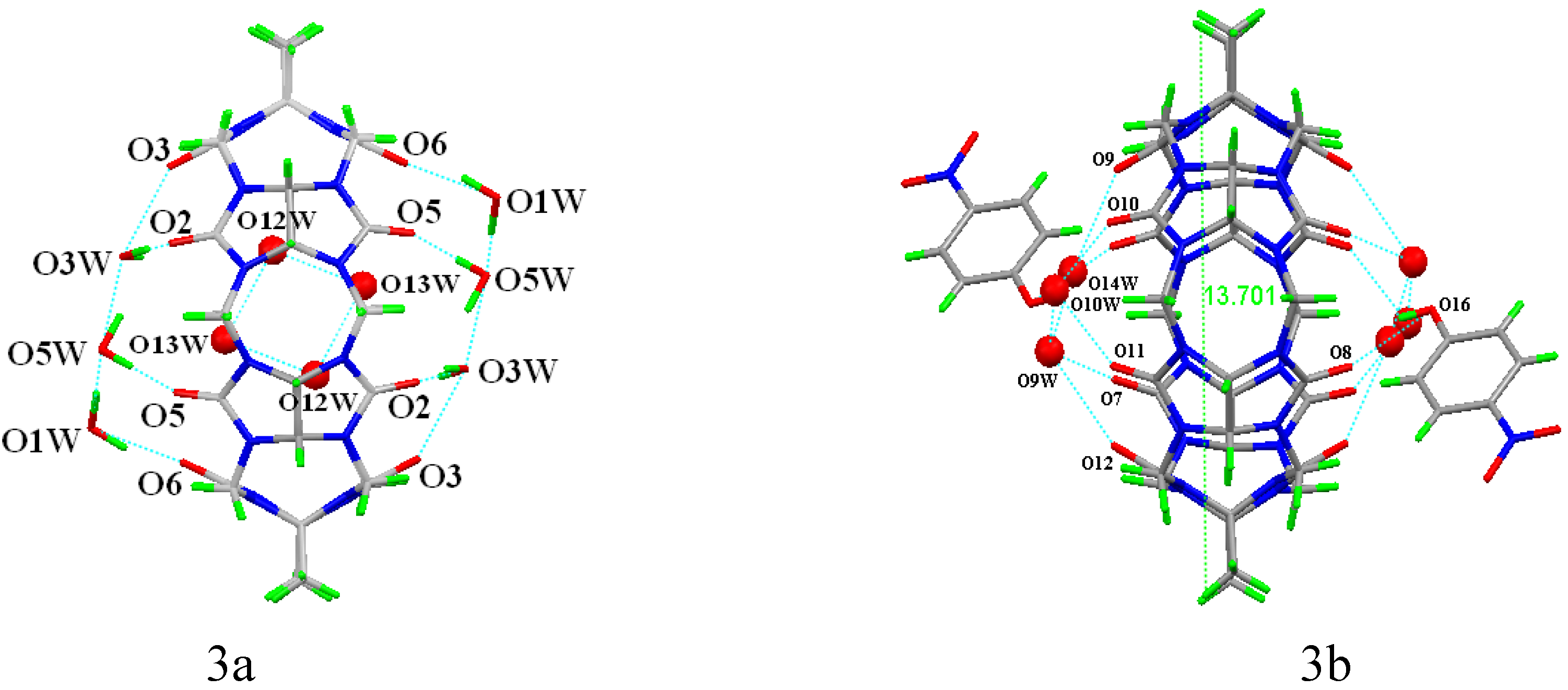

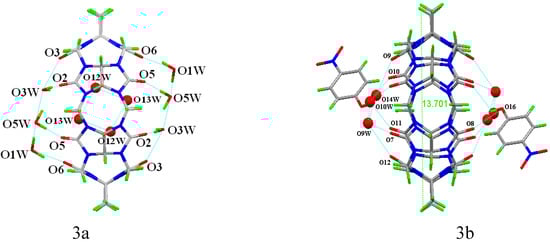

Figure 3. The molecular encapsulate based on the Q1 (a), and the the molecular encapsulate shell based on the Q2 (b).
Figure 3. The molecular encapsulate based on the Q1 (a), and the the molecular encapsulate shell based on the Q2 (b).
Molecules 13 02814 g003
In the crystal structure of compound 1, the guest 4-nitrophenol was not included in the cavity of the host TMeQ[6]. However, every eight 4-nitrophenol molecules assembled through not only the hydrogen bonding of the latticed water molecules, but also the C-H···π interaction, and there are two different 4-nitrophenol assemblies. In the first 4-nitrophenol assembly (A1), a chair shape cyclic cluster consists of six water molecules O2W, O2Wii, O4W, O4Wii, O6W O6Wii (symmetry codes: (ii) 1-x, 1-y, 1-z) through the hydrogen-bonding, such as O2W···O6W (2.760 Å), O4W···O2W (2.828 Å), O6W···O4W (2.960 Å), every water molecule of this six member ring connects a 4-nitrophenol molecule, except the water molecule O6W, which connects two 4-nitrophenol molecules through the hydrogen-bonding, such as O22···O4W(2.650Å), O28···O2W (2.708Å), O6W···O25 (3.011Å), O6W···O13 (2.865Å), in addition, the lattice water molecule O1W connects a 4-nitrophenol molecule and other water molecule O2W. Thus, the eight 4-nitrophenol molecules are assembled together in a tail to tail manner (Figure 4a). However, in the second 4-nitrophenol assembly (A2), six lattice water molecules O7W, O7Wiii, O8W, O8Wiii, O11W O11Wiii (symmetry codes: (iii) 1-x, 1-y, 1-z) connect four 4-nitrophenol molecules of the second assembly through hydrogen bonding, such as O11W···O19(2.894Å), O31···O7W (2.624Å), and the rest four 4-nitrophenol molecules in the second assembly seem to be independent (Figure 4b).
Molecules 13 02814 g004 550

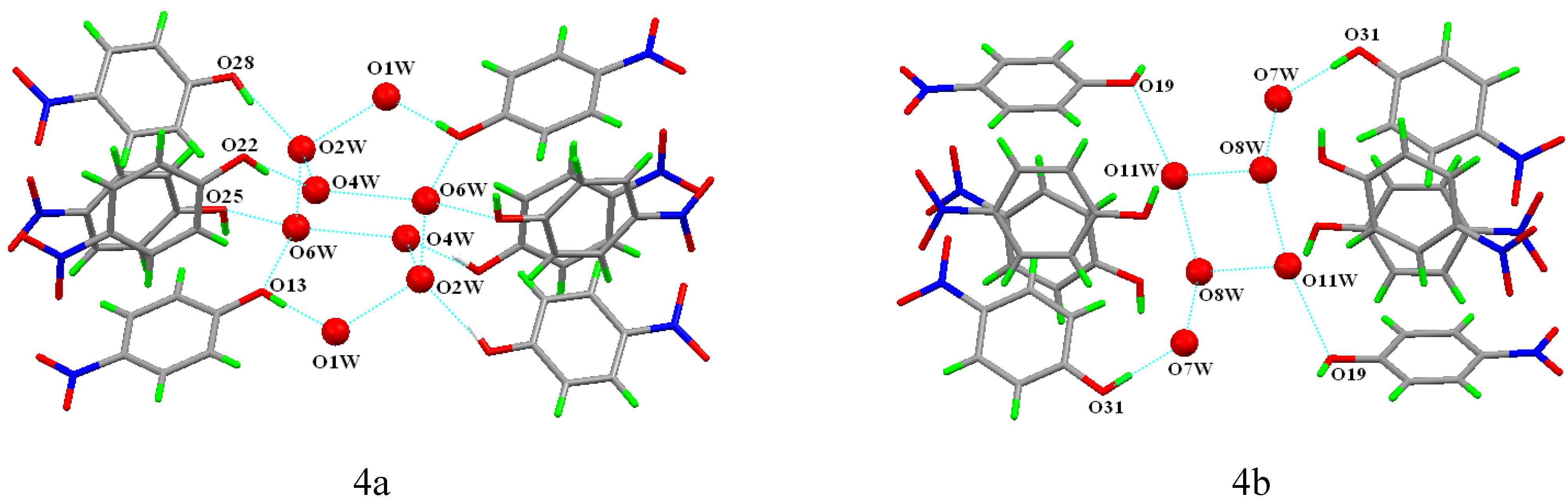

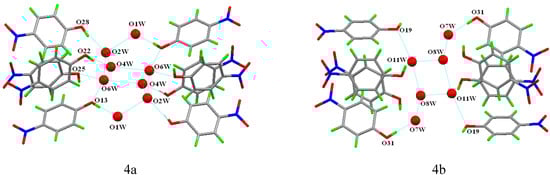

Figure 4. Two different 4-nitrophenol assemblies(4a) A1 and (4b) A2.
Figure 4. Two different 4-nitrophenol assemblies(4a) A1 and (4b) A2.
Molecules 13 02814 g004
In both 4-nitrophenol assemblies, we did not observed the π-π stacking which normally occurred in the crystal structure of aromatic compounds, but the C-H···π structure [24,25,26]. In the structure, there are eight C-H···π structures and each of them is symmetric (Table 1, Figure 5).
Table
Table 1. The C-H…\p interactions (Å, º).
Table 1. The C-H…\p interactions (Å, º).
C-H…πC-H(Å)H…Cg(Å)C…Cg(Å)C-H…Cg(Å)aromatic ringsymmetry codes
C46-H46…Cg(1)0.932.8623.647(3)120.27C65-C70
C67-H67…Cg(2)0.932.8023.629(3)148.80C71-76x, y, 1+z
C75-H75…Cg(3)0.932.6203.316(4)132.14C59-C64
C63-H63…Cg(4)0.932.7333.533(3)144.68C41-C46x, y, -1-z
C57-H87…Cg(5)0.933.6934.332(4)128.03C83-C88
C87-H87…Cg(6)0.932.9853.601(3)125.10C77-C82
C79-H79…Cg(7)0.932.9423.499(3)119.81C47-C52
C49-H49…Cg(8)0.932.6453.696(3)152.80C53-C581-x, 1-y, 1-z
It is conceivable that the C-H···π interaction could be a driving force of formation of the 4-nitrophenol assembly although no hydrogen-bonding exist between the latticed water molecules and the 4-nitrophenol molecules in the A2. The C-H···π interaction occurring in the A1 could further strengthen the 4-nitrophenol assembly in this case.
Molecules 13 02814 g005 550

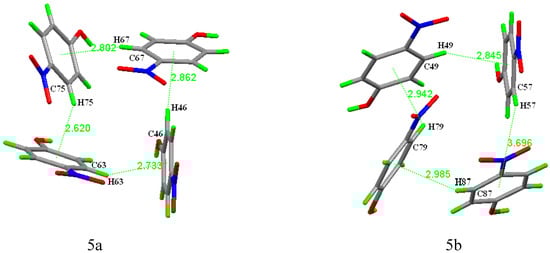

Figure 5. The C-H···π structures in the two different 4-nitrophenol assemblies.
Figure 5. The C-H···π structures in the two different 4-nitrophenol assemblies.
Molecules 13 02814 g005
Here we presented an assembly based on TMeQ[6] and 4-nitrophenol, where several main interactions could be the diving forces of the formation of this exclusion host-guest assembly. First, the hydrogen-bonding of carbonyl oxygens of TMeQ[6] and the latticed water molecules, in addition, the hydrogen-bonding between the latticed water molecules. Second, the hydrogen bonding of the hydroxyl group of 4-nitrophenol and the latticed water molecules. Third, the C-H···π interactions between 4-nitrophenol molecules. Thus, in the assembly of the title compound, the two different TMeQ[6] (Q1 and Q2) array alternatively, and the assemblies (A1 and A2) scatter in the spaces of the lattice of TMeQ[6] (refer to Figure 6).
Molecules 13 02814 g006 550

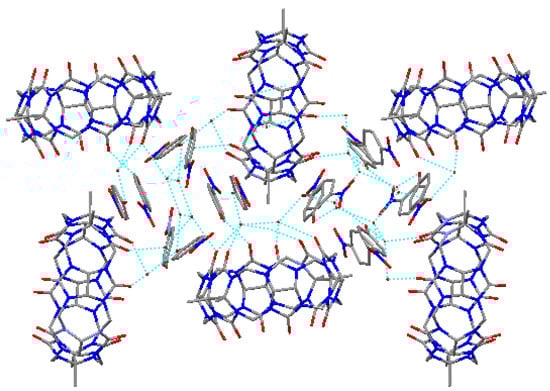

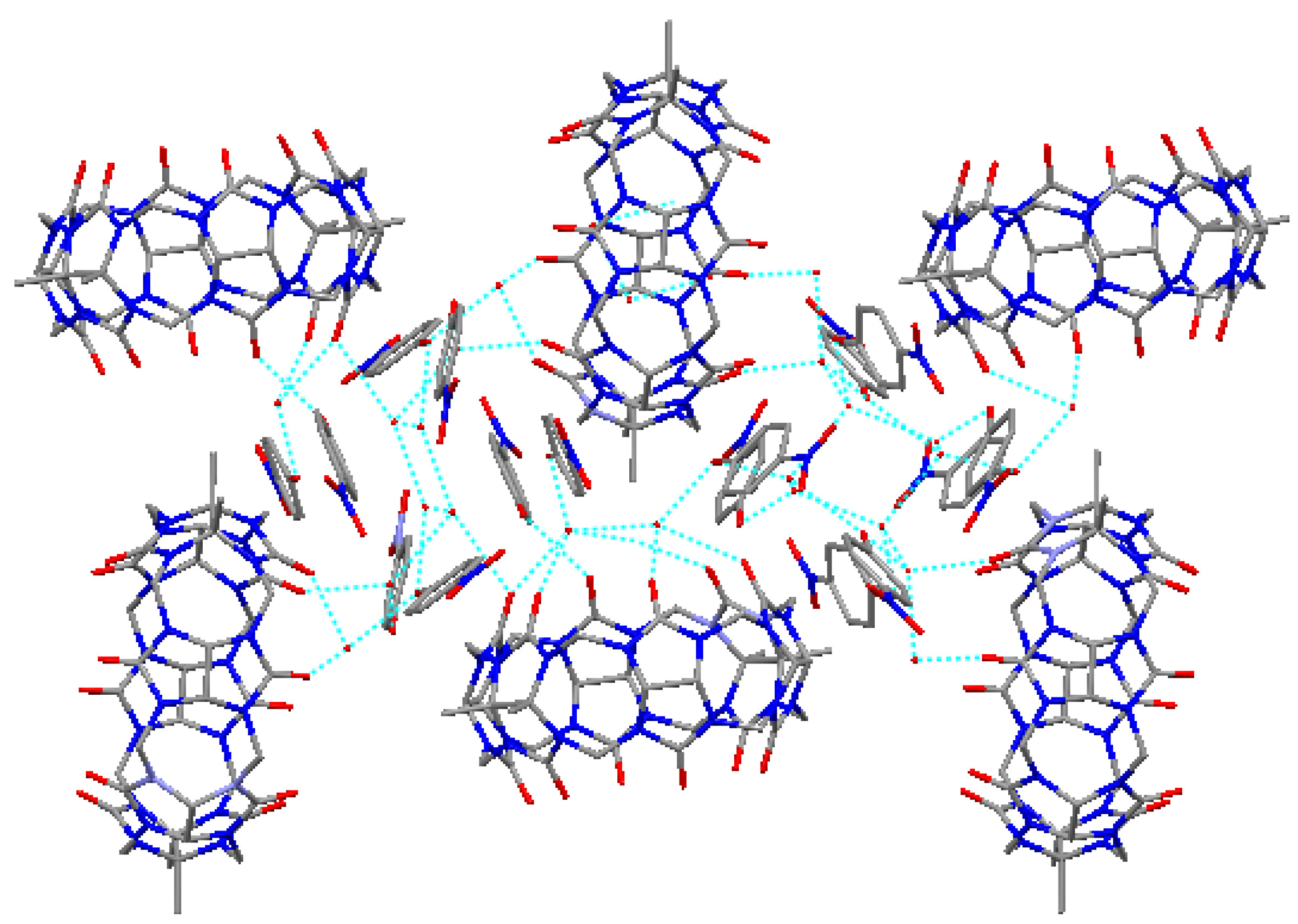

Figure 6. The assembly based on TMeQ[6] and 4-nitrophenol in the compound 1.
Figure 6. The assembly based on TMeQ[6] and 4-nitrophenol in the compound 1.
Molecules 13 02814 g006

Experimental

General

4-Nitrophenol was of reagent grade and used without further purification. The TMeQ[6] was prepared by procedures reported previously [11]. Elemental analysis was carried out on Molecules 13 02814 i001 EURO EA-3000 element analyzer.

Preparation of (TMeQ[6]-4nitrophenol)·13H2O (1)

Single crystals of the Me4Q[6] adduct with 4-nitrophenol were obtained by dissolving Me4Q[6] (0.50 g, 0.47 mmol) in a solution of 4-nitrophenol (0.53 g, 3.81 mmol) in water (10 mL). The final solution was mixed thoroughly and allowed to stand at room temperature; crystals formed after several days, and were collected.

X-ray Crystallography

The crystal data of the substituted cucurbiturils coordinated with metal ions were collected on a SMART ApexII CCD diffractometer with graphite monochromated Mo Kα radiation ( λ = 0.71073 Å) in the ω-φ scan mode. Lorentz polarization and absorption corrections were applied. Structural solution and full matrix least-squares refinement based on F2 were performed with the SHELXS-97 and SHELXL-97 program package[27], respectively. All the non-hydrogen atoms were refined anisotropically. Analytical expressions of neutral-atom scattering factors were employed, and anomalous dispersion corrections were incorporated. The crystallographic data, data collection conditions, and refinement parameters for the compound 1 are listed in Table 2.
Table
Table 2. Crystallographic data for complex 1.
Table 2. Crystallographic data for complex 1.
Empirical formulaC88H110N32O49Dcalcd, g cm-31.491
Formula weight2400.08T, K223
Crystal systemMonoclinicμ, mm-10.123
Space groupP-1unique reflns18398
a, Å17.758(6)obsdreflns11799
b, Å17.908(6)params1533
c, Å18.941(7)Rint0.0430
α,deg88.290(5)R[I> 2σ(I)]*0.0828
β,deg83.072(5)wR[I> 2σ(I)]#0.2562
γ,deg63.602(5)R(all data)0.1228
V, Å35346WR(all data)0.2786
Z2GOF on F21.052
* Conventional R on Fhkl: Σ||Fo| - |Fc||/Σ|Fo|.# Weighted R on |Fhkl|2: {Σ[w(Fo2-Fc2)2]/Σ[w(Fo2)2]}1/2
Crystallographic data (excluding structure factors) for the structure reported in this paper have been deposited with the Cambridge Crystallographic Data Centre as Deposition No. CCDC 659590. Copies of the data can be obtained free of charge on application to CCDC, 12 Union Road, Cambridge CB2 1EZ, UK (Fax: + 44-1223/336-033; E-mail: [email protected]).

Acknowledgements

This work was supported by the National Natural Science Foundation of China (NSFC; No. 20662003), the International Collaborative Project of the Ministry of Science and Technology (ICPMST; No. 2003DF000030) and the Foundation of the Governor of Guizhou Province.

Supporting Information Available

Experimental details of X-ray crystal structure determination, tables of X-ray data collection/refinement parameters, atomic position parameters, and anisotropic displacement parameters for 1.

References

  1. Lagona, J.; Mukhopadhyay, P.; Chakrabarti, S.; Isaacs, L. The Cucurbit[n]uril Family. Angew. Chem. Int. Ed. 2005, 44, 4844. [Google Scholar] [CrossRef]
  2. Freeman, W. A.; Mock, W. L.; Shih, N. Y. Cucurbituril. J. Am. Chem. Soc. 1981, 103, 7367–7368. [Google Scholar] [CrossRef]
  3. Day, A. I.; Arnold, A. P.; Blanch, R. J. Method for Synthesis of Cucurbiturils. WO Patent 0068232, 2000. [Google Scholar]
  4. Kim, J.; Jung, I. S.; Kim, S. Y.; Lee, E.; Kang, J. K.; Sakamoto, S.; Yamaguchi, K.; Kim, K. New Cucurbit Homologues: Syntheses, Isolation, Characterization, and X-ray Crystal structures of Cucurbit[n]uril (n= 5, 7,and 8). J. Am. Chem. Soc. 2000, 122, 540–541. [Google Scholar]
  5. Day, A. I.; Blanck, R. J.; Amold, A. P.; Lorenzo, S.; Lewis, G. R.; Dance, I. A cucurbituril-based gyroscane: a new supramolecular form. Angew. Chem. Int. Ed. 2002, 41, 275–277. [Google Scholar]
  6. Zhao, J.; Kim, H. J.; Oh, J.; Kim, S. Y.; Lee, J.; Sakamoto, W. S.; Yamaguchi, K.; Kim, K. Cucurbit[n]uril Derivatives Soluble in Water and Organic Solvents. Angew. Chem. Int. Ed. 2001, 40, 4233–4235. [Google Scholar] [CrossRef]
  7. Sasmal, S.; Sinha, M. K.; Keinan, E. Facile Purification of Rare Cucurbiturils by Affinity Chromatography. Org. Lett. 2004, 6, 1225–1228. [Google Scholar] [CrossRef]
  8. Jon, S. Y.; Selvapalam, N.; Oh, D. H.; Kang, J. K.; Kim, S. Y.; Jeon, Y. J.; Lee, J. W.; Kim, K. Facile Synthesis of Cucurbit[n]uril Derivatives via Direct Functionalization: Expanding Utilization of Cucurbit[n]uril. J. Am. Chem. Soc. 2003, 125, 10186–10187. [Google Scholar]
  9. Isobe, H.; Sato, S.; Nakamura, E. Synthesis of disubstituted cucurbit[n]uril and its rotaxane derivative. Org. Lett. 2002, 4, 1287–1289. [Google Scholar] [CrossRef]
  10. Day, A. I.; Arnold, A. P.; Blanch, R. J. A method for synthesizing partially substituted cucurbit[n]uril. Molecules 2003, 8, 74–84. [Google Scholar] [CrossRef]
  11. Zhao, Y.-J.; Xue, S.-F.; Zhu, Q.-J.; Tao, Z.; Zhang, J.-X.; Wei, Z.-B.; Long, L.-S.; Hu, M.-L.; Xiao, H.-P.; Day, A. I. Synthesis of a symmetrical tetrasubstituted cucurbit[6]uril and its host-guest compound with 2, 2’-bipyridine. Chin. Sci. Bull. 2004, 49, 1111–1116. [Google Scholar] [CrossRef]
  12. Lagona, J.; Fettinger, J. C.; Isaacs, L. Cucurbit[n]uril Analogues. Org. Lett. 2003, 5, 3745–3747. [Google Scholar] [CrossRef]
  13. Fu, H.-Y.; Xue, S.- F.; Zhu, Q.-J.; Tao, Z.; Zhang, J.-X.; Day, A. I. Investigation of host – guest compounds of cucubit[n=5-8]uril with some ortho pyridiniumammonium Ions. J. Inc. Phenom. Macro. Chem. 2005, 52, 101–107. [Google Scholar]
  14. Kim, K.; Kim, D.; Lee, J. W.; Ko, Y. H.; Kim, K. Growth of poly(pseudorotaxane) on gold using host – stabilized charge – transfer interaction. Chem. Commun. 2004, 848–849. [Google Scholar]
  15. Pattabiraman, M.; Natarajan, A.; Kaliappan, R. Template directed photodimerization of trans-1,2-bis(n-pyridyl) ethylenes and stilbazoles in water. Chem. Commun. 2005, 4542–4544. [Google Scholar] [CrossRef]
  16. Buschmann, H. J.; Mutihac, L.; Mutihac, R. C.; Schollmeyer, E. Complexation behavior of cucurbit[6]uril with short polypeptides. Thermochim. Acta 2005, 430, 79–82. [Google Scholar] [CrossRef]
  17. Lee, H. K.; Park, K. M.; Jeon, Y. J.; Kim, D.; Oh, D. H.; Kim, H. S.; Park, C. K.; Kim, K. Vesicle Formed by Amphiphilc Cucurbit[6]uril: Versatile, Noncovalent Modification of the Vesicle Surface, and Multivalent Bindingof Sugar – Decorated Vesicles to leetin. J. Am. Chem. Soc. 2005, 127, 5006–5007. [Google Scholar]
  18. Sindelar, V.; Cejas, M. A.; Raymo, F. M.; Kaifer, A. E. Tight inclusion complexation of 2,7-dimethyldiazapyrenium in cucurbit[7]uril. New J. Chem. 2005, 29, 280–282. [Google Scholar] [CrossRef]
  19. Freeman, W. A. Structures of the p-xylylenediammonium chloride and calcium hydrogensulfate adducts of the cavitand ‘cucurbituril’, C36H36N24O12. Acta Cryst. 1984, B40, 382–387. [Google Scholar] [CrossRef]
  20. Heo, J.; Kim, S. Y.; Whang, D.; Kim, K. Shape-Induced, Hexagonal, Open Frameworks: Rubidum Ion Complexed Cucurbituril. Angew. Chem. Int. Ed. 1999, 38, 641–643. [Google Scholar] [CrossRef]
  21. Sokolov, M. N.; Dybtsev, D. N.; Fedin, V. P. Supramolecular compounds of cucurbituril with molybdenum and tungsten chalcogenide cluster aqua complex. Russ. Chem. Bull. 2003, 52, 1041–1060. [Google Scholar] [CrossRef]
  22. Gerasko, O. A.; Sokolov, M. N.; Fedin, V. P. Mono and polynuclear aqua complexes and cucurbit[6]uril: versatile building blocks for supramolecular chemistry. Pure Appl. Chem. 2004, 76, 1633–1646. [Google Scholar]
  23. Mu, L.; Xue, S.-F.; Du, Y.; Zhao, Y.-J.; Zhu, Q.-J.; Tao, Z. Interaction Between Three Cucurbiturils and Hydrochloride Salts of 4,4’- Dipyridyl and Its Derivates. Chem. J. Chin. Univ. 2006, 27, 654–659. [Google Scholar]
  24. Tao, Z.; Zhang, G.-Y.; Luo, X.-Q.; Xue, S.-F.; Zhu, Q.-J.; Jackson, W. G.; Wei, Z.-B.; Long, L.-S. C–H···π interactions in the [Co(N-(2-aminomethylpyridyl)ethylenediamine)(2-amino- methylpyridine)Cl]2+ system: syntheses, 2D NMR, X-ray structures and energy minimizations*1. Inorg. Chim. Acta. 2004, 357, 953–964. [Google Scholar]
  25. Lin, R.-G.; Tao, Z.; Xue, S.-F.; Zhu, Q.-J.; Jackson, W. G.; Wei, Z.-B.; Long, L.–S. C–H···π interaction in the [Co(N-(2-pyridylmethyl)-1,3-diaminopropane)(2-aminomethylpyridine)Cl]2+ system : syntheses, 2D NMR spectroscopy, X-ray structures and energy minimisation. Polyhedron 2003, 22, 3467–3474. [Google Scholar] [CrossRef]
  26. Tao, Z.; Zhu, Q.-J.; Jackson, W. G.; Zhou, Z.-Y.; Zhou, X.-G. On the preference for the sym–fac isomer in the [Co(N,N′-bis(2-aminomethyl)amine)(2,2′-bipyridine)Cl]2+ system. Polyhedron 2003, 22, 263–270. [Google Scholar] [CrossRef]
  27. Sheldrick, G. M. SHELXL-97 Program for the Solution and Refinement of Crystal structures; University of Göttingen: Göttingen, Germany, 1997. [Google Scholar]
  • Sample Availability: Contact the authors.
