Studies with β-Oxoalkanonitriles: Simple Novel Synthesis of 3-[2,6-Diaryl-4- pyridyl]-3-oxopropanenitriles

by
Sayed M. Riyadh
1,2,
Hamad M. Al-Matar
2,* and
Mohamed H. Elnagdi
2
1
Department of Chemistry, Faculty of Science, Cairo University, Giza-12613- Egypt
2
Department of Chemistry, Faculty of Science, Kuwait University, Safat 13060 Kuwait
*
Author to whom correspondence should be addressed.
Molecules 2008, 13(12), 3140-3148; https://doi.org/10.3390/molecules13123140
Submission received: 5 September 2008 / Revised: 27 September 2008 / Accepted: 5 November 2008 / Published: 15 December 2008
Browse Figures
Versions Notes

Abstract

:
Heteroaromatization of ethyl 2-cyano-4-oxo-2-(2-oxo-2-arylethyl)-4-aryl-butanoates 3a,b with ammonium acetate gave ethyl 2,6-diarylisonicotinates 4a,b.Treatment of the latter with acetonitrile afforded novel β-oxoalkanonitriles 6a,b. Reactions of 6a,b with phenyl hydrazine and hydroxylamine gave the corresponding pyridyl aminopyrazoles 8a,b and pyridyl aminoisoxazoles 10a,b, respectively.

Introduction

β-Oxoalkanonitriles are versatile reagents and their chemistry has received in the past [1] and continues to receive considerable attention [2,3,4,5,6,7,8,9]. In conjunction with our interest in utilizing oxoalkanonitriles to prepare azolylazines [10,11,12,13] a route to 3-(4-pyridyl)-3-oxopropanenitrile was needed. 4-Pyridyl derivatives possess many pharmacological activities [14], and they can also be used as N-donor ligands in complexation with metal ions with superior cytotoxicity towards bacteria [15].

Results and Discussion

β-Oxoalkanonitriles are generally prepared via: i) acylation of active nitriles in the presence of suitable basic catalysts [16,17,18]; ii) reacting α-haloketones with cyanide ion [19], and iii) hydrolysis of β-enaminonitriles [7]. We decided to develop our synthesis via reaction of acetonitrile with ethyl 2,6-diarylisonicotinate. Although the parent ethyl 2,6-diphenylisonicotinate (3a) is a known compound, [20] the 2,6-diarylsubsubstituted derivatives have not, to our knowledge, been previously reported. Consequently, a method for their synthesis was developed. Reaction of phenacyl bromide (1a) with ethyl cyanoacetate (2) afforded the dialkylated derivative 3a [21]. Similarly, 3b was obtained by reacting 1b with ethyl cyanoacetate. Refluxing 3a,b in acetic acid in the presence of ammonium acetate afforded the target pyridines 4a,b (Scheme 1).
Molecules 13 03140 g001 550

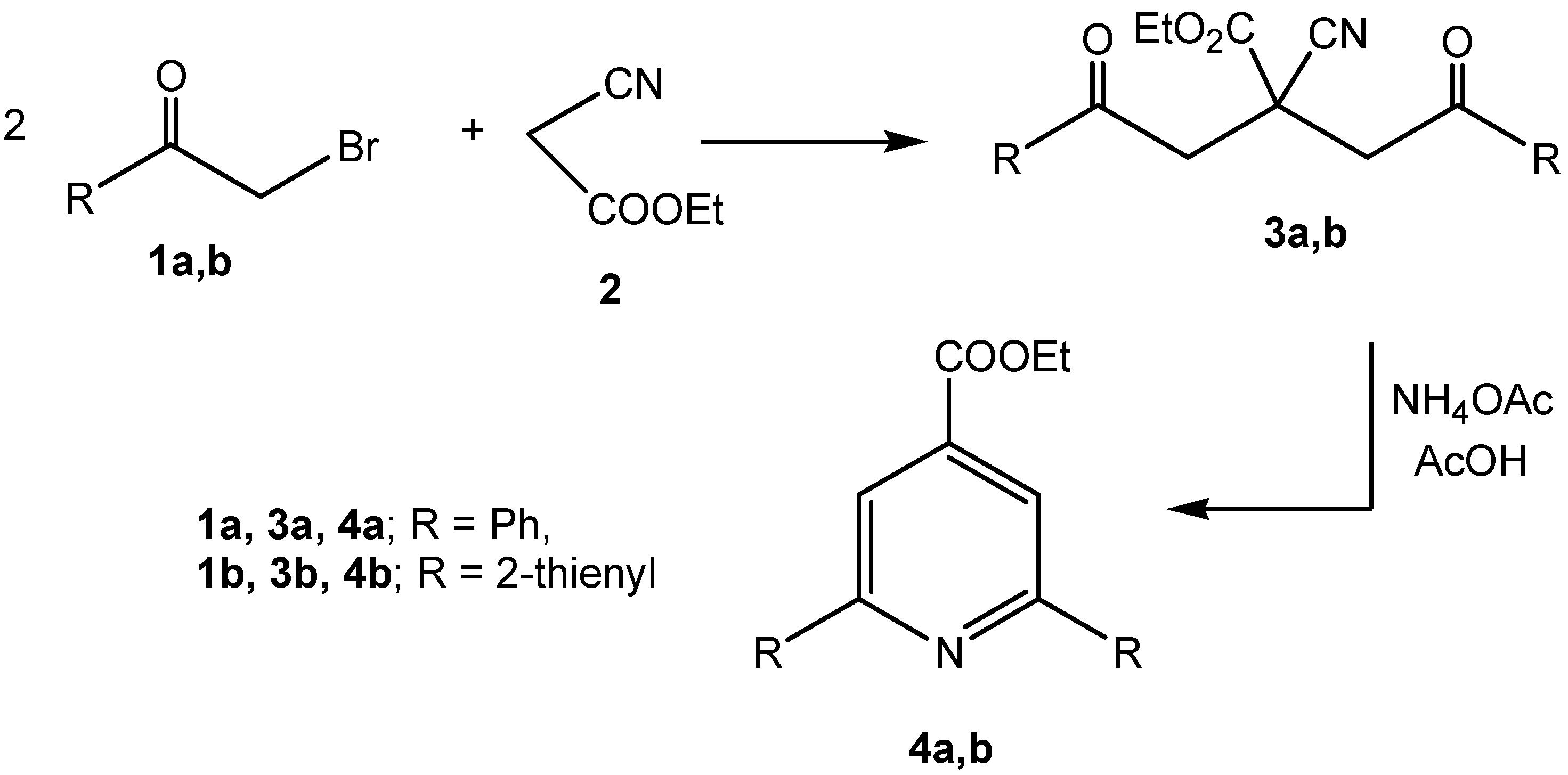

Scheme 1. Synthetic pathway for preparation of compounds 4a,b.
Scheme 1. Synthetic pathway for preparation of compounds 4a,b.
Molecules 13 03140 g001
Attempts to condense acetonitrile in an aqueous protic solvent with pyridines 4a,b under different conditions afforded only the carboxylic acid derivatives 5a,b [22]. However, the target β-oxo-alkanonitriles 6a,b were obtained by reacting 4a,b with acetonitrile in dry benzene in the presence of sodium hydride (Scheme 2).
Molecules 13 03140 g002 550

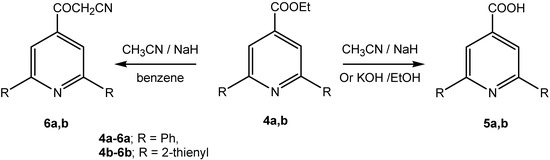

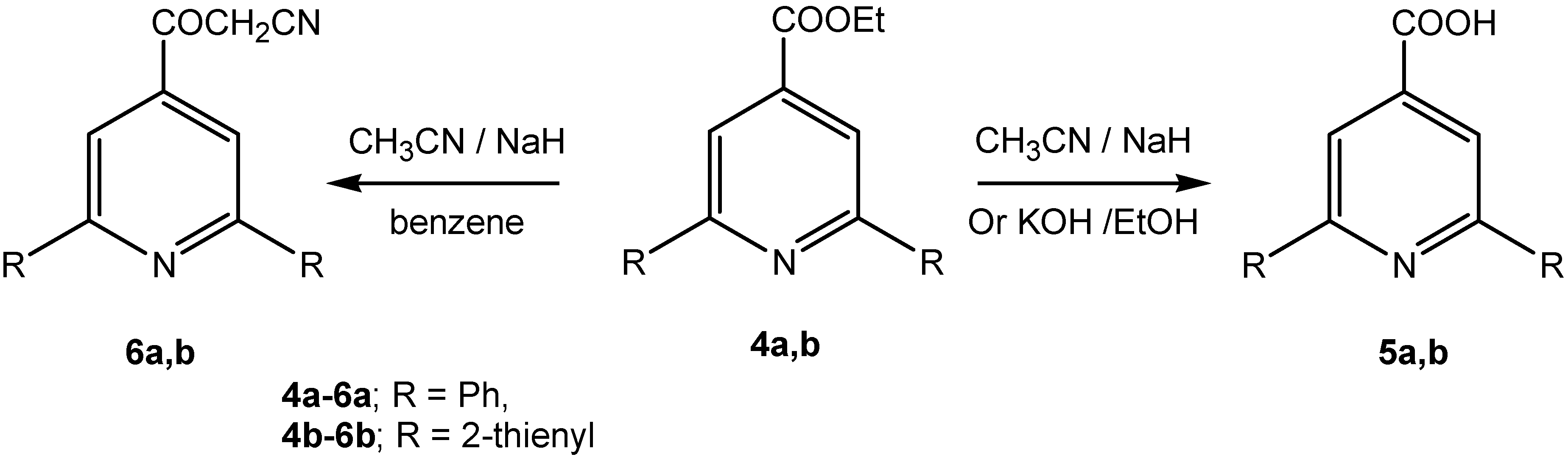

Scheme 2. Synthetic pathway for preparation of compounds 5a,b and 6a,b.
Scheme 2. Synthetic pathway for preparation of compounds 5a,b and 6a,b.
Molecules 13 03140 g002
As would be expected, β-oxoalkanonitriles 6a,b reacted with phenyl hydrazine hydrochloride to yield the corresponding 5-aminopyrazoles 7a,b or 3-aminopyrazoles 8a,b. Despite literature reports [23,24], the δ value for the pyrazole ring H-4 for both isomers vary over the range between 5.3-6.1 ppm. To substantiate the regioselectivity of the reaction products, NOE difference experiments were performed, which showed that irradiation of the amino protons at δ 4.45 ppm did not enhance the aryl protons at δ 7.5 ppm and vice versa, irradiation of the o-aryl protons at δ 7.5 ppm did not enhance the amino protons. These results allowed us to conclude that the amino and aryl protons are not proximal (Scheme 3); that is, the compounds have the structures 8a,b. Moreover, the reaction of β-oxoalkano-nitriles 6a,b with hydroxylamine hydrochloride in the presence of sodium acetate could yield 5-aminoisoxazoles 9a,b or the isomeric 3-aminoisoxazole structures 10a,b. 1H-NMR revealed a singlet signal at δ = 7.00 ppm correlated to the isoxazole ring H-4. It was reported that the H-4 of 3-amino-isoxazole appears at lower field (δ ~ 6.1 ppm) than that of 5-aminoisoxazole (δ ~ 5.5 ppm) [25,26]. Moreover, 15N, 1H-heteronuclear multiple bond correlation (HMBC) of the product indicated that amino proton at δ 5.85 ppm has a cross peak at δ 350 ppm (3J coupling). These results indicated that structures 10a,b are the most probable for the reaction products (cf. Scheme 3). The reaction of 2-substituted-3-oxoalkanonitriles with hydroxylamine hydrochloride in presence of sodium acetate has been reported by Elnagdi et al. [27] to yield amidoximes that cyclised into 3-aminoisoxazoles. On the other hand formation of 5-aminoisoxazoles from the reaction of isonicotinylacetonitriles with hydroxylamine hydrochloride was reported in the patent literature [28,29], although there is no mention of added base in those cases.
Molecules 13 03140 g003 550

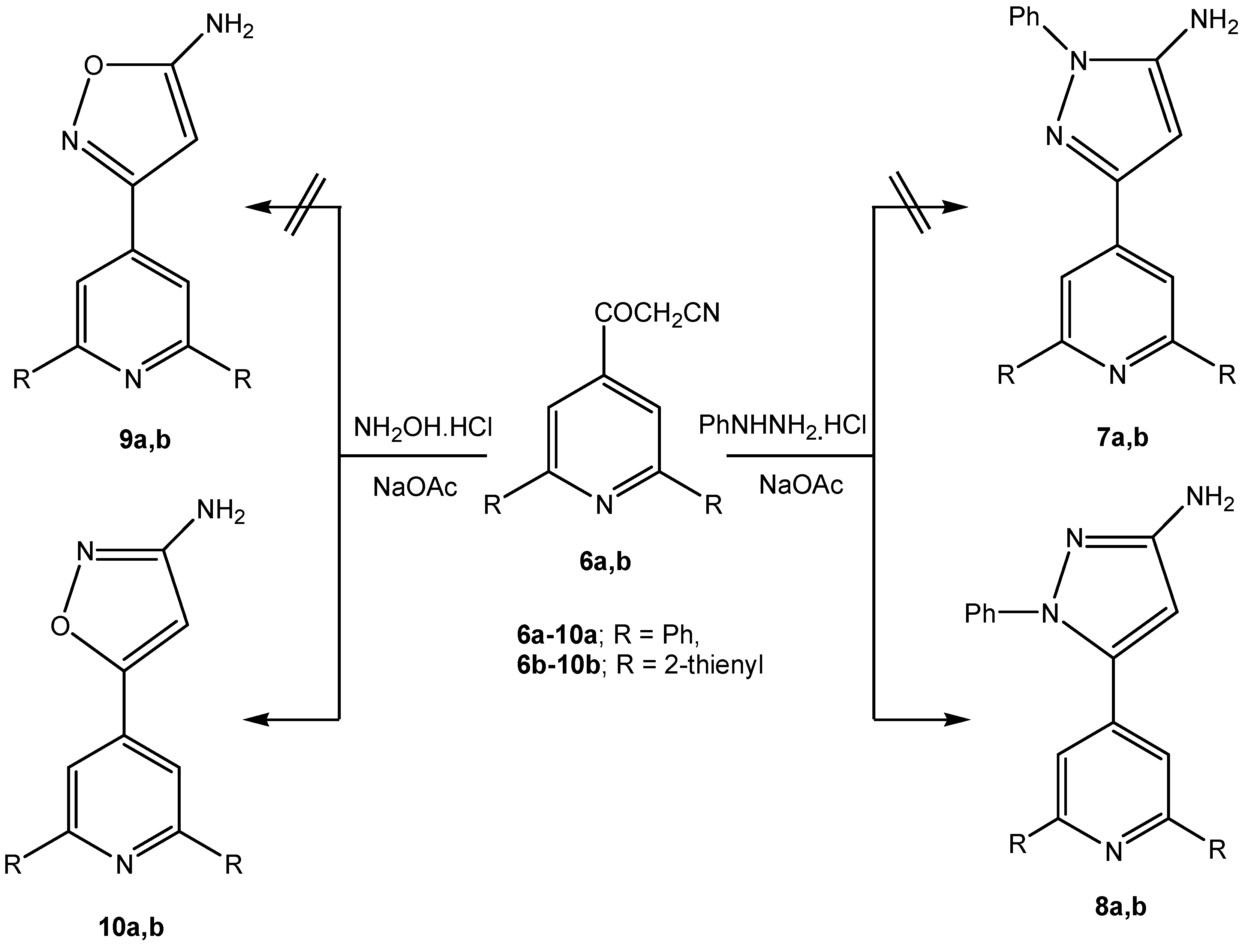

Scheme 3. Reactions of β-oxoalkanonitriles 6a,b with nitrogen nucleophiles.
Scheme 3. Reactions of β-oxoalkanonitriles 6a,b with nitrogen nucleophiles.
Molecules 13 03140 g003

Conclusions

A novel route for the synthesis of β-oxoalkanonitriles has been developed. The products from this synthesis were further reacted with nitrogen nucleophiles to give azoles. The features of the present method include the ready availability of the starting materials, mild reaction conditions, and the simplicity of the workup.

Experimental

General

Melting points were recorded on a Gallenkamp apparatus and are uncorrected. Infrared spectra (KBr) were determined on a Perkin-Elmer 2000 FT-IR system. 1H-NMR spectra were recorded on a Bruker DPX 600 MHz superconducting spectrometer using DMSO-d6 as solvent and TMS as internal standard. Mass spectra were measured on MS 30 and MS 9 (AEI) spectrometers, operating at EI 70 ev. Elemental analyses were measured by means of LECO CHNS-932 Elemental Analyzer.

Synthesis of ethyl 2-cyano-4-oxo-2-(2-oxo-2-arylethyl)-4-arylbutanoates 3a,b

To a stirred solution of α-haloketone (20 mmol) in ethanol (50 mL) containing ethyl cyanoacetate (10 mmol) was added potassium hydroxide solution (10 mmol, 0.56 g, dissolved in 20 mL H2O). The mixture was stirred for 30 minutes and acidified. The solid precipitate was collected by filtration and recrystallized from hexane/EtOAc (3:1).
Ethyl 2-cyano-4-oxo-2-(2-oxo-2-phenylethyl)-4-phenylbutanoate (3a): Yield: 2.79 g (80%); mp 140 oC (lit. [21] mp 141 oC); IR υ = 2250, (CN), 1722 (CO, ester), 1689 (CO, benzoyl) cm-1; 1H-NMR δ = 1.22 (t, 3H, CH3), 3.95 (d, 2H, CH2), 4.03 (d, 2H, CH2), 4.19 (q, 2H, CH2), 7.56-8.01 (m, 10H, Ar-H) ppm; MS, m/z (%) 349 (M+, 20), 276 (30), 244 (50), 105 (100), 77 (80); Anal. Calcd. for C21H19NO4: C, 72.19; H, 5.48; N, 4.01. Found: C, 72.44; H, 5.24; N, 4.05.
Ethyl 2-cyano-4-oxo-2-[(2-oxo-2-(2-thienyl)ethyl]-4-(2-thienyl)butanoate (3b): Yield: 2.7 g (75%); mp 102 oC; IR υ = 2251, (CN), 1730 (CO, ester), 1668 (CO, thienoyl) cm-1; 1H-NMR δ = 1.21 (t, 3H, CH3), 3.84 (d, 2H, CH2), 3.96 (d, 2H, CH2), 4.17 (q, 2H, CH2), 7.28-8.10 (m, 6H, Ar-H) ppm; MS, m/z (%) 361 (M+, 55), 288 (70), 250 (60), 126 (80), 111 (100), 83 (30); Anal. Calcd. for C17H15NO4S2: C, 56.49; H, 4.18; N, 3.88; S, 17.74. Found: C, 56.40; H, 4.11; N, 3.95; S, 18.01.

Synthesis of ethyl 2,6-diarylisonicotinates 4a,b

A mixture of ethyl 2-cyano-4-oxo-2-(2-oxo-2-arylethyl)-4-arylbutanoate (10 mmol) and ammonium acetate (15 mmol) in glacial acetic acid (20 mL) was refluxed for 8 hours and poured into water. The solid precipitate was collected by filtration and purified by long column chromatography [eluent: hexane/EtOAc (3:1)].
Ethyl 2,6-diphenylisonicotinate (4a): Yield: 1.82 g (60%); mp 98 oC (lit. [20] mp 99 oC); IR υ = 1716 (CO, ester), 1561 (C=N), 1250 (C-O) cm-1; 1H-NMR δ = 1.39 (t, 3H, CH3), 4.44 (q, 2H, CH2), 7.52-8.27 (m, 12H, Ar-H) ppm; MS, m/z (%) 303 (M+, 90), 231 (100), 127 (50), 77 (20); Anal. Calcd. for C20H17NO2: C, 79.19; H, 5.65; N, 4.62. Found: C, 78.96; H, 5.90; N, 4.66.
Ethyl 2,6-di(2-thienyl)isonicotinate (4b): Yield: 1.89 g (60%); mp 113 oC; IR υ = 1714 (CO, ester), 1565 (C=N), 1250 (C-O) cm-1; 1H-NMR δ = 1.39 (t, 3H, CH3), 4.42 (q, 2H, CH2), 7.20-8.10 (m, 8H, Ar-H) ppm; MS, m/z (%) 315 (M+, 100), 243 (20), 133 (25), 89 (15); Anal. Calcd. for C16H13NO2S2: C, 60.93; H, 4.15; N, 4.44; S, 20.33. Found: C, 60.63; H, 4.45; N, 4.74; S, 20.58.

Synthesis of 2,6-diarylisonicotinic acids 5a,b

A solution of ethyl 2,6-diarylisonicotinate (10 mmol) in ethanol (20 mL) was treated with potassium hydroxide solution (15 mmol in 10 mL water) and refluxed for 4 hours. The reaction mixture was poured into ice/HCl. The solid precipitate was collected by filtration and recrystallized from ethanol.
2,6-Diphenylisonicotinic acid (5a): Yield: 1.92 g (70%); mp 265 oC (lit. [22] mp 263 oC); IR υ = 3500-2600 (br, OH acid), 1698 (CO, acid), 1555 (C=N), 1279 (C-O) cm-1; 1H-NMR δ = 7.49-8.26 (m, 12H, Ar-H), 13.98 (COOH) ppm; MS, m/z (%) 275 (M+, 100), 231 (40), 127 (10), 77 (10); Anal. Calcd. for C18H13NO2: C, 78.53; H, 4.76; N, 5.09. Found: C, 78.38; H, 4.68; N, 5.01.
2,6-Di(2-thienyl)isonicotinic acid (5b): Yield: 1.72 g (60%); mp 251 oC; IR υ = 3500-2500 (br, OH acid), 1700 (CO, acid), 1561 (C=N), 1271 (C-O) cm-1; 1H-NMR δ = 7.31-8.21 (m, 8H, Ar-H), 13.86 (COOH) ppm; MS, m/z (%) 287 (M+, 100), 242 (40), 83 (10); Anal. Calcd. for C14H9NO2S2: C, 58.52; H, 3.16; N, 4.87; S, 22.32. Found: C, 58.33; H, 3.11; N, 4.64; S, 22.51.

Synthesis of β-oxoalkanonitriles 6a,b

A mixture of ethyl 2,6-diarylisonicotinate (1 mmol), dry acetonitrile (2 mmol), and sodium hydride (20 mmol) in dry benzene (20 mL) was refluxed for 4 hours and poured into water, extracted by ethyl acetate. The solvent was evaporated under vacuum and the residue was purified by long column chromatography [eluent: hexane/EtOAc (3:1)].
3-(2,6-Diphenyl-4-pyridyl)-3-oxopropanenitrile (6a): Yield: 0.149 g (50%); mp 180 oC; IR υ = 2217 (CN), 1710 (CO), 1594 (C=N) cm-1; 1H-NMR δ = 4.98 (s, 2H, CH2), 7.36-8.30 (m, 12H, Ar-H) ppm; MS, m/z (%) 298 (M+, 100), 270 (15), 127 (65), 77 (70); Anal. Calcd. for C20H14N2O: C, 80.52; H, 4.73; N, 9.39. Found: C, 80.38; H, 4.61; N, 9.08.
3-[2,6-Di(2-thienyl)-4-pyridyl]-3-oxopropanenitrile (6b): This compound was obtained in 0.155 g (50%), mp 192 oC; IR (KBr) υ = 2214 (CN), 1703 (CO), 1592 (C=N) cm-1; 1H NMR (DMSO-d6) δ = 4.41 (s, 2H, CH2), 7.02-8.10 (m, 8H, Ar-H) ppm; MS, m/z (%) 310 (M+, 100), 282 (35), 139 (20), 83 (15). Anal. Calcd. for C16H10N2OS2: C, 61.91; H, 3.25; N, 9.03; S, 20.66. Found: C, 61.86; H, 3.14; N, 9.11; S, 20.51.

Reactions of β-oxoalkanonitriles with nitrogen nucleophiles

A mixture of β-oxoalkanonitriles (1 mmol) in dioxane (20 mL) in presence of anhydrous sodium acetate (2 mmol) and hydroxylamine hydrochloride or phenylhydrazine hydrochloride (1 mmol) was refluxed for 4 hours. After pouring into water, the solid precipitate was collected by filtration and recrystallized from hexane/ethyl acetate mixture (3:1).
5-(2,6-Diphenyl-4-pyridyl)-1-phenyl-1H-3-pyrazolylamine (8a): Yield: 0.194 g (50%); mp 210 oC; IR υ = 3424, 3280 (NH2), 1602 (C=N) cm-1; 1H-NMR δ = 4.45 (s, 2H, NH2), 6.93 (s, 1H, pyrazole-H), 7.34-8.30 (m, 17H, Ar-H) ppm; 13C-NMR δ = 97.3, 117.8, 118.1, 126.3, 127.1, 127.9, 128.3, 129.1, 130.2, 138.6, 139.3, 144.3, 153.7, 161.5 (Ar-Cs); MS, m/z (%) 388 (M+, 100), 284 (5), 230 (10), 77 (15); Anal. Calcd. for C26H20N4: C, 80.39; H, 5.19; N, 14.42. Found: C, 80.17; H, 5.49; N, 14.51.
5-[2,6-Di(2-thienyl)-4-pyridyl)-1-phenyl-1H-3-pyrazolylamine (8b): Yield: 0.20 g (50%); mp 235 oC; IR υ = 3410, 3271 (NH2), 1601 (C=N) cm-1; 1H-NMR δ = 4.43 (s, 2H, NH2), 6.93 (s, 1H, pyrazole-H), 7.20-8.30 (m, 13H, Ar-H) ppm; 13C-NMR δ = 96.8, 117.1, 118.4, 125.7, 126.3, 126.9, 127.1, 128.3, 129.4, 130.2, 134.1, 144.5, 152.7, 161.1 (Ar-Cs); MS, m/z (%) 400 (M+, 40), 296 (100), 241 (40), 77 (15); Anal. Calcd. for C22H16N4S2: C, 65.97; H, 4.03; N, 13.99; S, 16.01. Found: C, 66.13; H, 4.15; N, 13.81; S, 15.91.
5-(2,6-Diphenyl-4-pyridyl)-3-isoxazolylamine (10a): Yield: 0.188 g (60%); mp 179 oC; IR υ = 3349, 3297 (NH2), 1640 (C=N) cm-1; 1H-NMR δ = 5.85 (s, 2H, NH2), 7.00 (s, 1H, isoxazole-H), 7.48-8.29 (m, 12H, Ar-H) ppm; 13C-NMR δ = 98.3, 124.2, 126.1, 127.3, 128.4, 136.5, 142.6, 148.3, 162.8, 167.2 (Ar-Cs); MS, m/z (%) 314 (M++1, 35), 313 (M+, 30), 275 (100), 127 (25), 77 (15); Anal. Calcd. for C20H15N3O: C, 76.66; H, 4.82; N, 13.41. Found: C, 76.82; H, 5.05; N, 13.68.
5-[2,6-Di(2-thienyl)-4-pyridyl]-3-isoxazolylamine (10b): Yield: 0.195 g (60%); mp 192 oC; IR υ = 3342, 3291 (NH2), 1645 (C=N) cm-1; 1H-NMR δ = 5.85 (s, 2H, NH2), 7.21 (s, 1H, isoxazole-H), 7.22-8.10 (m, 8H, Ar-H) ppm; 13C-NMR δ = 98.8, 125.4, 126.8, 127.5, 128.4, 138.5, 142.2, 149.1, 163.8, 168.1 (Ar-Cs); MS, m/z (%) 325 (M+, 100), 287 (35), 133 (25), 83 (15); Anal. Calcd. for C16H11N3OS2: C, 59.06; H, 3.41; N, 12.91; S, 19.71. Found: C, 59.13; H, 3.34; N, 12.81; S, 19.51.

Acknowledgements

Support for this work was received from the University of Kuwait through Research Grant SC04/06 and the use of the facilities of Analab/SAF through research grants GC01/01 and GS03/01 is gratefully acknowledged. The authors also express their gratitude and appreciation to the referees of this manuscript for their guidance and advice.

References and Notes

  1. Elnagdi, M. H.; Elmoghayar, M. R. H.; Elgemeie, G. E. H. The Chemistry of 3-oxoalkanenitriles. Synthesis 1984, 1–26. [Google Scholar]
  2. Abdel-Khalik, M. M.; Agamya, S. M.; Elnagdi, M. H. Studies with 2-arylhydrazono-3-oxopropanals: A novel route to 4-aroyl-2-aryl-1,2,3-triazoles, 3-substituted 4-arylazopyrazoles, 2-substituted glyoxalonitrile and 3-oxoalkanonitriles. Z. Naturforsch. 2000, 55B, 1211–1215. [Google Scholar]
  3. Al-Saleh, B.; El-Apasery, M. A.; Elnagdi, M. H. Studies with 3-substituted 2-arylhydrazono-3-oxoaldehydes: new routes for synthesis of 2-arylhydrazono-3-oxonitriles, 4-unsubstituted 3,5-diacylpyrazoles and 4-arylazophenols. J. Chem. Res. 2004, 578–580. [Google Scholar]
  4. El-Dusouqui, O. M. E.; Abdelkhalik, M. M.; Al-Awadi, N. A.; Dib, H. H.; George, B. J.; Elnagdi, M. H. Chemistry of 2-arylhydrazonals: utility of substituted 2-arylhydrazono-3-oxoalkanals as precursors for 3-oxoalkanonitriles, 3-aminoisoxazole and 1,2,3- and 1,2,4-triazoles. J. Chem. Res. 2006, 295–302. [Google Scholar]
  5. Hammond, R. J.; Poston, B. W.; Ghiviriga, I.; Feske, B. D. Biocatalytic synthesis towards both antipodes of 3-hydroxy-3-phenylpropanitrile a precursor to fluoxetine, atomoxetine and nisoxetine. Tetrahedron Lett. 2007, 48, 1217–1219. [Google Scholar] [CrossRef]
  6. Aurelio, L.; Figler, H.; Flynn, B. L.; Linden, J.; Scammells, P. J. 5-Substituted 2-aminothiophenes as A1 adenosine receptor allosteric enhancers. Bioorg. Med. Chem. 2008, 16, 1319–1327. [Google Scholar]
  7. Al-Awadi, N. A.; Abdelkhalik, M. M.; Abdelhamid, I. A.; Elnagdi, M. H. Pyrolytic methods in organic synthesis: Novel routes for the synthesis of 3-oxoalkanenitriles, 2-acyl anilines, and 2-aroyl anilines. Synlett. 2007, 2979–2982. [Google Scholar]
  8. Fleming, F. F.; Zhang, Z. Cyclic nitriles: tactical advantages in synthesis. Tetrahedron 2005, 61, 747–789. [Google Scholar] [CrossRef]
  9. Burgaz, E. V.; Yilmaz, M.; Pekel, A. T.; Oktemer, A. Oxidative cyclization of 3-oxopropanenitriles with α,β-unsaturated amides by manganese(III) acetate. Regio- and stereoselective synthesis of 4-cyano-2,3-dihydrofuran-3-carboxamides. Tetrahedron 2007, 63, 7229–7239. [Google Scholar] [CrossRef]
  10. Al-Mousawi, S. M.; Moustafa, M. Sh. 2-Arylhydrazononitriles as building blocks in heterocyclic synthesis: A novel route to 2-substituted-1,2,3-triazoles and 1,2,3-triazolo[4,5-b]pyridines. Beilstein J. Org. Chem. 2007, 3. No pp. given. [Google Scholar]
  11. Aziz, S. I.; Anwar, H. F.; Fleita, D. H.; Elnagdi, M. H. Studies with 2-arylhydrazononitriles: A novel simple, efficient route to 5-acyl-2-substituted-1,2,3-triazol-4-amine. J. Heterocycl. Chem. 2007, 44, 725–729. [Google Scholar] [CrossRef]
  12. Anwar, H. F.; Fleita, D. H.; Kolshorn, H.; Meier, H.; Elnagdi, M. H. 2H-Pyrazol-3-ylamines as precursors for the synthesis of polyfunctionally substituted pyrazolo[1,5-a]pyrimidines. ARKIVOC 2006, (xv), 133–141. [Google Scholar]
  13. Kolosov, M. A.; Orlov, V. D.; Kolos, N. N.; Shishkin, O. V.; Zubatyuk, R. I. Reactions of cyanochalcones with phenylhydrazine. ARKIVOC 2007, (xvi), 187–194. [Google Scholar]
  14. Whitlock, G. A.; Fish, P. V.; Fray, M. J.; Stobie, A.; Wakenhut, F. Pyridyl-phenyl ether monoamine reuptake inhibitors: Impact of lipophilicity on dual SNRI pharmacology and off-target promiscuity. Bioorg. Med. Chem. Lett. 2008, 18, 2896–2899. [Google Scholar] [CrossRef]
  15. Bakalova, A.; Varbanov, H.; Buyukliev, R.; Momekov, G.; Ferdinandov, D.; Konstantinov, S.; IvanovKuthan, D. Synthesis, characterization and biological activity of Pt(II) and Pt(IV) complexes with 5-methyl-5(4-pyridyl)-2,4-imidazolidenedione. Eur. J. Med. Chem. 2008, 43, 958–965. [Google Scholar] [CrossRef]
  16. Palecek, J.; Valihrach, J. 1,4-Dihydropyridine derivatives. Collect. Czech. Chem. Commun. 1981, 46, 748–58. [Google Scholar] [CrossRef]
  17. Gao, Y.; Wang, H.; Xu, M.; Lian, H.; Pan, Y.; Shi, Y. Addition of acetonitrile anions to unsaturated systems under Ultrasonically dispersed potassium system. Org. Prep. Proceed. Int. 2001, 33, 351–356. [Google Scholar] [CrossRef]
  18. Ji, Y.; Trenkle, W. C.; Vowles, J. V. A High-yielding preparation of β-ketonitriles. Org. Lett. 2006, 8, 1161–1163. [Google Scholar] [CrossRef]
  19. Herschhorn, A.; Lerman, L.; Weitman, M.; Gleenberg, I. O.; Nudelman, A.; Hizi, A. De Novo Parallel design, synthesis and evaluation of inhibitors against the reverse Transcriptase of Human Immunodeficiency Virus Type-1 and drug-resistant variants. J. Med. Chem. 2007, 50, 2370–2384. [Google Scholar] [CrossRef]
  20. Padmavathi, V.; Balaiah, A.; Reddy, B. J. M.; Padmaja, A. 1,5-Diaryl-3,3-disubstituted-1,5-pentanedione - a synthon for 2,4,6-trisubstituted heterocycles. Heterocycl. Commun. 2003, 9, 599–604. [Google Scholar]
  21. Padmavathi, V.; Balaiah, A.; Reddy, D. B. 2,6-Diaryl-4,4-disubstituted-4H-thiopyran: Source for spiro heterocycles. J. Heterocycl. Chem. 2002, 39, 649–653. [Google Scholar] [CrossRef]
  22. Bonadies, F.; Savagnone, F.; Scarpati, M. L. Synthesis of 2,6-disubstituted isonicotinic acids. Gazz. Chim. Ital. 1978, 108, 87–89. [Google Scholar]
  23. Peruncheralathan, S.; Yadav, A. K.; Ila, H.; Junjappa, H. Highly regioselective synthesis of 1-aryl-3 (or 5)-alkyl/aryl-5 (or 3)-(N-cycloamino)pyrazoles. J. Org. Chem. 2005, 70, 9644–9647. [Google Scholar] [CrossRef]
  24. Bagleym, M. C.; Davis, T.; Dix, M. C.; Widdowson, C. S.; Kipling, D. Microwave-assisted synthesis of N-pyrazole ureas and the p38α inhibitor BIRB 796 for study into accelerated cell ageing. Org. Biomol. Chem. 2006, 4, 4158–4164. [Google Scholar] [CrossRef]
  25. Nenajdenko, V. G.; Golubinskii, I. V.; Lenkova, O. N.; Shastin, A. V.; Balenkova, E. S. The study of reactions of α-chlorocinnamonitriles with hydroxylamine. Russ. Chem. Bull. 2005, 54, 1728–1732. [Google Scholar] [CrossRef]
  26. Bourbeau, M. P.; Rider, J. T. A convenient synthesis of 4-alkyl-5-aminoisoxazoles. Org. Lett. 2006, 8, 3679–3680. [Google Scholar] [CrossRef]
  27. Elnagdi, M. H.; Elmoghayar, M. R. H.; Hafez, E. A.; Alnima, H. H. Reaction of 2-arylhydrazono-3-oxonitriles with hydroxylamine. Synthesis of 3-amino-4-arylazoisoxazoles. J. Org. Chem. 1975, 40, 2604. [Google Scholar] [CrossRef]
  28. Ciba Ltd. 5-Acetamido-3-(4-pyridyl)isoxazole. Fr. Pat. Appl. 4,041, 1966. [Chem. Abstr. 1968, 69, 59223c]. [Google Scholar]
  29. Shmidt, P.; Eichenberger, K.; Wilhelm, M. 3-(Pyridyl)-5-acylaminoisoxazoles. U.S. Pat. 3,277,105; [Chem. Abstr. 1968, 69, 59224d],
