Article

A Facile Route to Diastereomeric Phosphorus Ylides. Chemoselective Synthesis of Dialkyl (E)-2-[1-(2-Oxocyclopentylidene)ethyl]-2-butenedioates

Department of Chemistry, University of Mazandaran, P. O. Box 453, Babolsar, Iran
*
Author to whom correspondence should be addressed.
Molecules 2008, 13(2), 331-339; https://doi.org/10.3390/molecules13020331
Submission received: 24 December 2007 / Revised: 21 January 2008 / Accepted: 21 January 2008 / Published: 7 February 2008
(This article belongs to the Special Issue Spiro Compounds)

Abstract

:
2-Acetylcyclopentanone undergoes a smooth reaction with triphenylphosphine and dialkyl acetylenedicarboxylates to produce dialkyl 2-(1-acetyl-2-oxocyclopentyl)-3-(1,1,1-triphenyl-λ5-phosphanylidene)succinates. These compounds undergo intra-molecular Wittig reactions in boiling benzene to produce highly strained spirocyclobutene derivatives, which spontaneously undergo ring-opening reactions to produce dialkyl (E)-2-[1-(2-oxocyclopentyliden)ethyl]-2-butenedioates.

Introduction

Phosphorus ylides are reactive compounds which participate in many valuable syntheses of organic products [1,2,3,4]. Phosphorus ylides are interesting synthetic targets because of their importance in a variety of industrial, biological and chemical synthetic usages [5,6,7,8,9]. These ylides are usually prepared by treatment of a phosphonium salt with a base, and the phosphonium salts are usually obtained from the phosphine and an alkyl halide and also Michael addition of phosphorus nucleophiles to activated olefins.
In recent years the three-component reactions of triphenylphosphine, electron-deficient derivatives and ZH-acids (Z=C, O, N, S) that leads to phosphorus ylides have been reported by Yavari et al. [10,11,12,13,14,15]. We here report the reaction of 2-acetylcyclopentanone (2, acting as a CH-acid) and dialkyl acetylenedicarboxylates 1 in the presence of triphenylphosphine. These reactions lead to diastereomeric phosphorus ylides 3. These compounds undergo intramolecular Wittig reactions in boiling benzene to produce spirocompounds 4, which spontaneously undergo ring-opening reactions to produce dialkyl (E)-2-[1-(2-oxopentyliden)ethyl]-2-butenedioates 5 (Scheme 1).

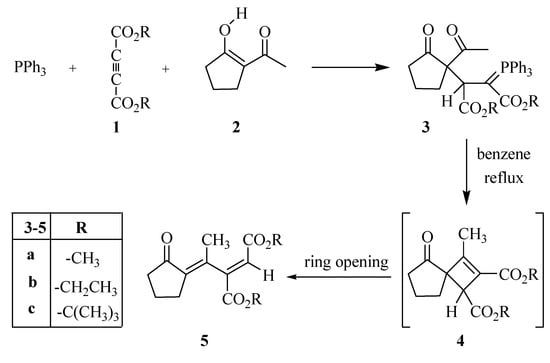

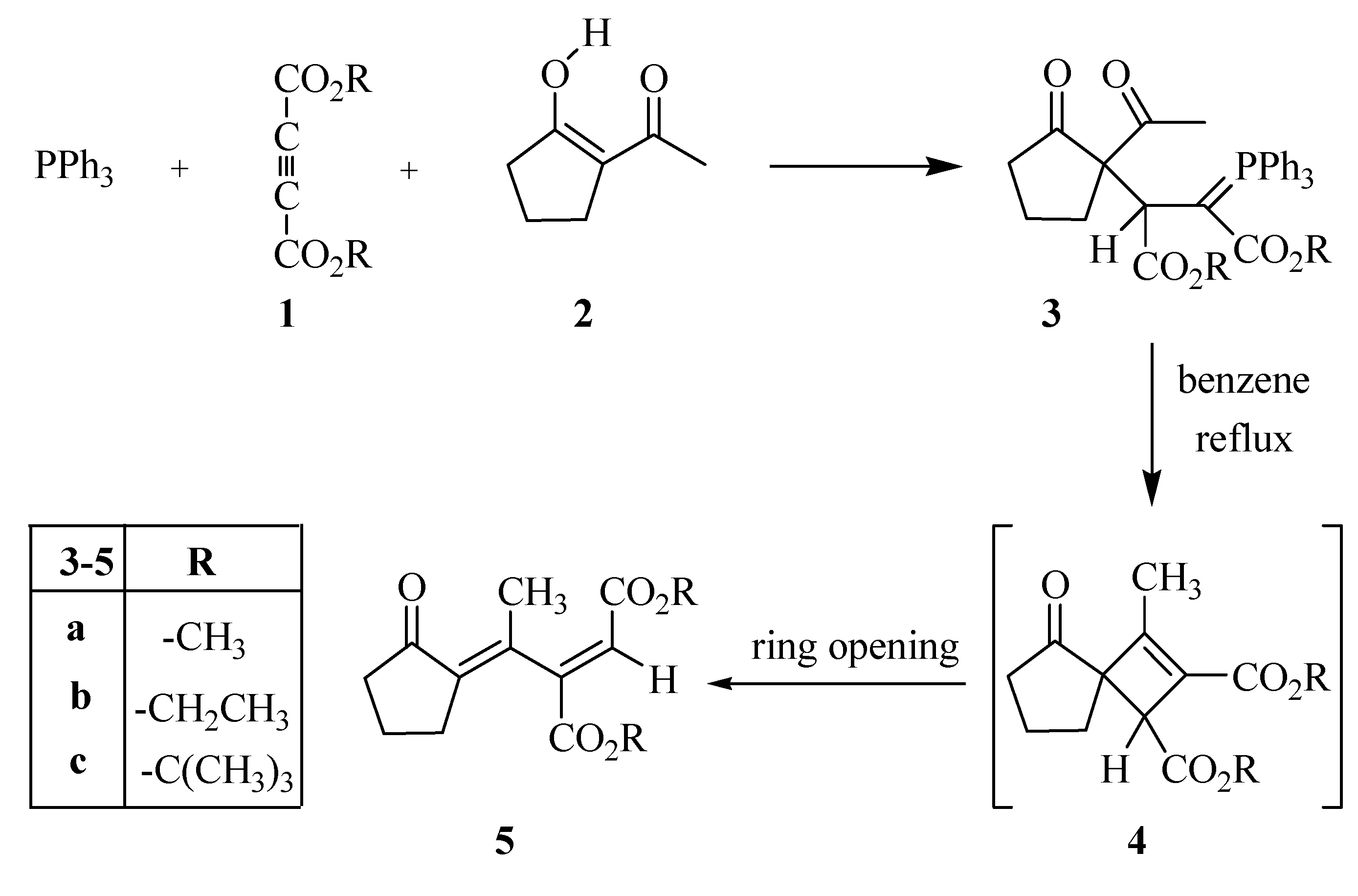

Scheme 1.
Scheme 1.
Molecules 13 00331 g002

Results and Discussion

We have not established a mechanism for the formation of 5a-c experimentally, but a reasonable possibility is indicated in Scheme 2. On the basis of the well established chemistry of trivalent phosphorus nucleophiles [1,5,6], it is reasonable to assume that the initial addition of triphenylphosphine to the acetylenic ester and subsequently the protonation of the 1:1 adduct was followed by attack of the carbon moiety of the enolate of CH-acid to the vinylphosphonium cation 6 to generate ylide 3.
Phosphorus ylides 3a-c then undergo smooth reactions in boiling benzene to produce triphenylphosphine oxide and spirocompounds 4a-c. These compounds were unstable and were not isolated, but rather they are spontaneously converted to functionalized 1,3-dienes 5a-c. (Scheme 2).
Compounds 3a-c possess two stereogenic centers, and two diastereomers are expected (I and II) to form (Scheme 3), and indeed two diastereomers were isolated from the reaction mixtures. It should be pointed out that both diastereomeric ylides (I and II) were converted to 1,3-dienes with the same geometry, indicating that the ring opening reactions did not take place as a concerted reaction.

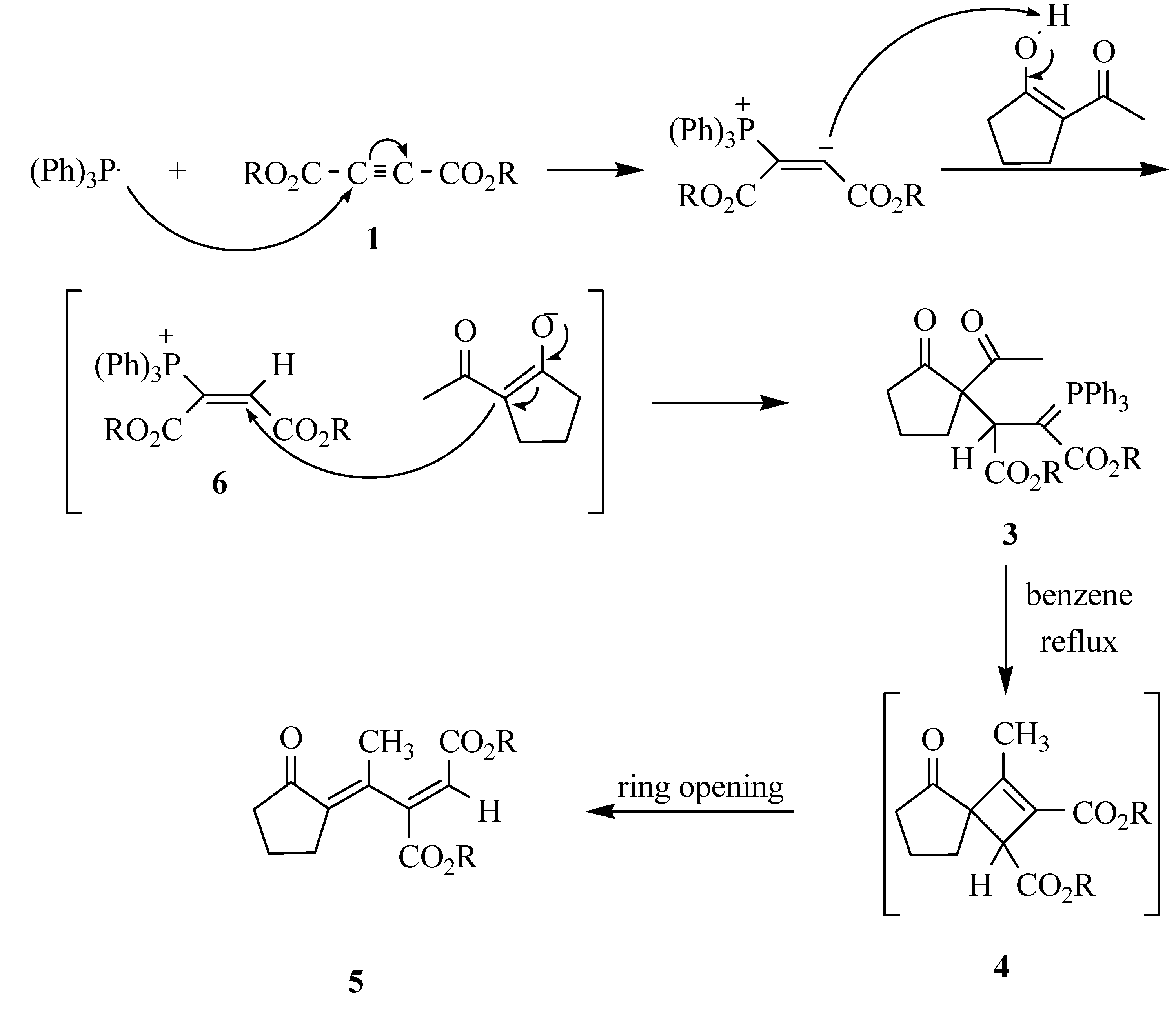

Scheme 2.
Scheme 2.
Molecules 13 00331 g003

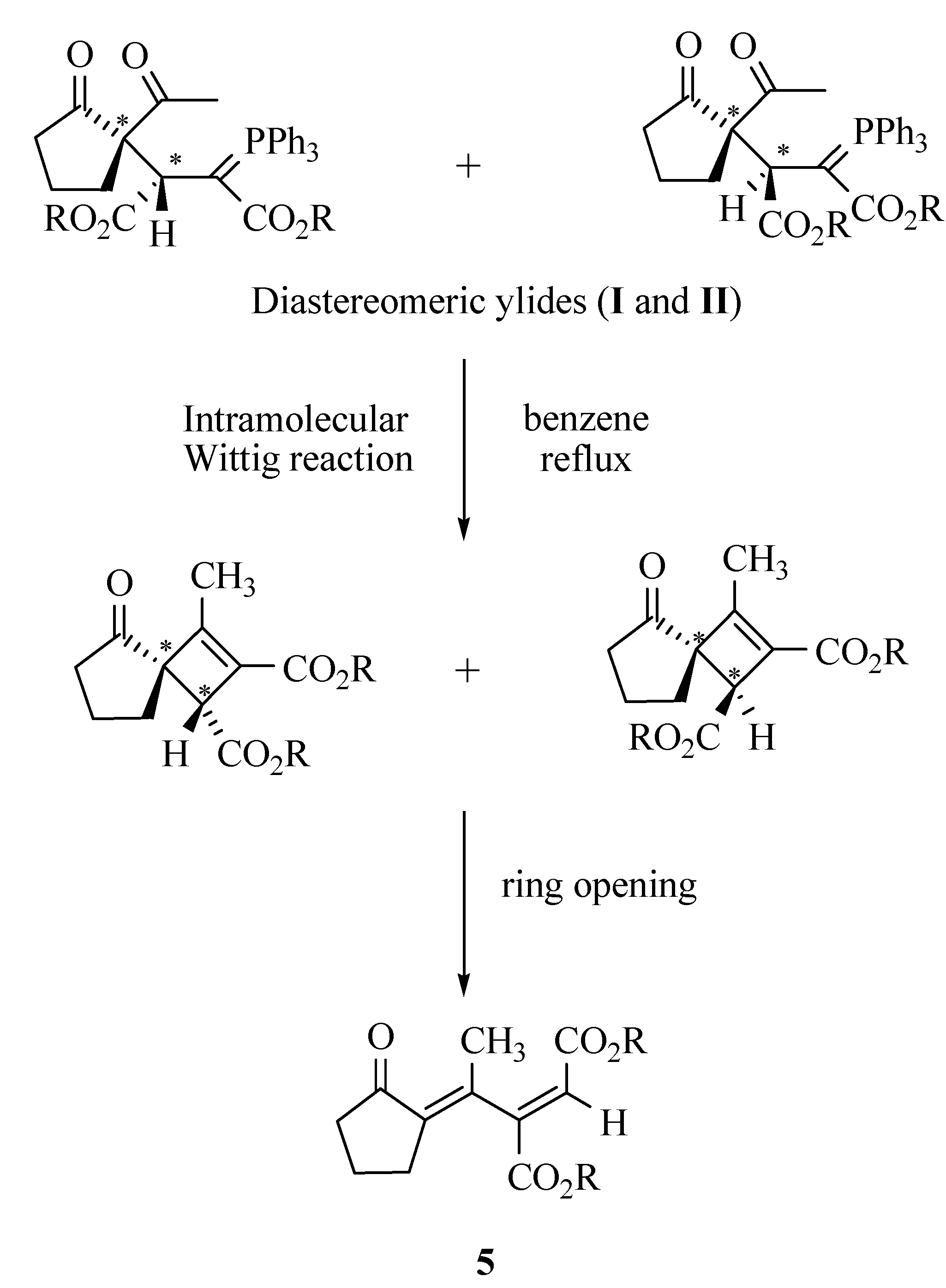

Scheme 3.
Scheme 3.
Molecules 13 00331 g004
The structures of the compounds 3a-c were deduced from their elemental analyses, high field 1H- and 13C-NMR as well as IR spectra data. The 1H- and 13C-NMR spectra of diastereomeric ylides 3a-c were consistent with the presence of two geometric isomers. The ylide moiety of these compounds is strongly conjugated to the adjacent carbonyl group and a rotation around the partial double bond in the 3-(E) and 3-(Z) geometric isomers (Figure 1) is relatively slow on the NMR time scale at ambient temperature.

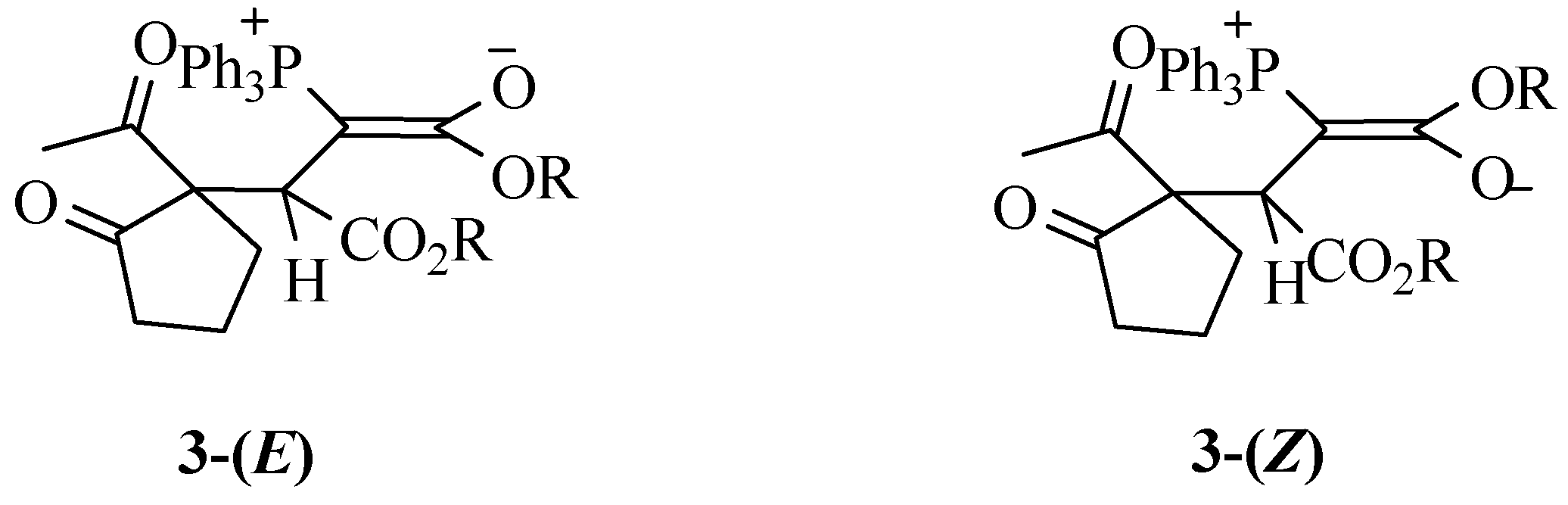

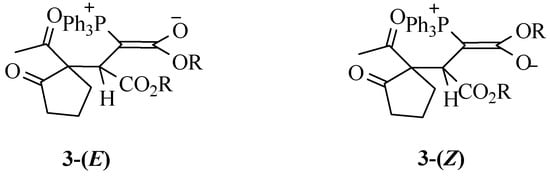

Figure 1.
Figure 1.
Molecules 13 00331 g001
The geometries of the double bonds in compound 5 were established using 1H-NMR data. For the double bond bearing two ester groups, we considered the chemical shift of the vinylic proton. If the vinylic proton is in a cis position relative to the ester group on the adjacent carbon atom, an anisotropy effect is imposed by the carbonyl of the cis ester group which causes a deshielding effect on this proton, so this proton usually appears at a frequency higher than 6.5 ppm [16], as it was clearly observed in our 1H-NMR spectra of compounds 5a-c. Therefore, it can be concluded that the vinylic proton is located in the cis position with respect to the vicinal esteric group. We also investigated the stereochemistry of the compound 5 by using a NOE experiment. In the decoupling process of the methyl protons, the NOE difference spectrum did not show a nuclear Overhauser enhancement of the CH2 protons of the cyclopentanone moiety nor the vinylic proton. The irradiation of the CH2 protons also the vinylic proton lead to no enhancement of the intensity of the CH3 protons. On the basis of these results, the geometry for the compound 5 is as indicated in Scheme 3.

Conclusions

In conclusion, the present method may be considered as a practical route for the synthesis of the stable phosphorus ylides and electron deficient 1,3-butadienes. This procedure has advantages of high yeild, mild reaction conditions, and simple experimental and work-up conditions.

Experimental

General

Triphenylphosphine, dialkyl acetylenedicarboxylate and 2-acetyl cyclopentanone were obtained from Fluka (Buchs, Switzerland) and were used without further purification. Melting points were measured on an Electrotermal 9100 apparatus and are uncorrected. 1H- and 13C-NMR spectra were measured with a Bruker DRX-500 AVANCE spectrometer at 500 and 125.8 MHz, respectively. Elemental analyses were performed using a Heraeus CHN-O-Rapid analyzer. IR spectra were recorded on a Shimadzu IR-470 spectrometer.

General procedure for preparation of dialkyl 2-(1-acetyl-2-oxocyclopentyl)-3-[1,1,1-triphenyl-λ5-phosphanylidene]succinates (exemplified by 3a)

A mixture of dimethyl acetylenedicarboxylate (0.245 mL, 2 mmol) in CH2Cl2 (4 mL) was added dropwise at -10 ºC over 10 min. to a magnetically stirred solution of 2-acetylcyclopentanone (2, 0.252 g, 2 mmol) and triphenyl phosphine (0.524 g, 2 mmol) in CH2Cl2 (10 mL). The mixture was allowed to stand at room temperature along with stirring for 24 hours. The solvent was removed under reduced pressure and the residue was purified by silica gel column chromatography (Merck silica gel 60, 230-400 mesh) using ethyl acetate-hexane (30:70) as eluent. Two diastereomers were isolated. The solvents were removed under reduced pressure to give ylides 3a-I and 3a-II as white powders.

Dimethyl 2-(1-acetyl-2-oxocyclopentyl)-3-[1,1,1-triphenyl- λ5-phosphanylidene] succinate (3a)

First diastereomer (3a-I): M.p. 126-128.5 ºC; yield 50 %; IR (KBr, νmax, cm-1): 1755, 1730 and 1705 (C=O), 1629 (C=C); MS m/z (%): 530 (M+, 10), 499 (M+-OCH3, 14), 471 (M+-CO2Me, 25), 487 (M+-CH3CO, 18), 268 (M+- PPh3, 25), 209 [M+- (PPh3+CO2Me), 37], 43 (CH3CO+, 100); Anal. calcd. for C31H31O6P (530.56); C, 70.18; H, 5.89%. Found: C 70.06; H, 5.83%; 1H-NMR (CDCl3) 3a-I (Z): δH 1.42-1.50 (2H, m, CH2), 1.60 (3H, s, CH3), 1.97-2.13 (2H, m, CH2), 2.58-2.82 (2H, m, CH2), 2.92 and 3.70 (6H, 2s, 2OCH3), 3.56 (1H, d, 3JPH=18.4 Hz, CH), 7.4-7.7 (15H, m, -Ph); 13C-NMR (CDCl3): δC 20.12 (CH2), 27.64 (CH3), 29.81 (CH2), 37.31 (CH2), 39.38 (d, 1JPC = 122.5 Hz, P=C), 40.09 (d, 2JPC = 13.4 Hz, CH), 48.71 and 51.83 (2OCH3), 73.94 (cyclopentanone quaternary carbon), 127.61 (d, 1JPC = 91.4 Hz, Cipso), 128.58 (d, 3JPC = 11.7 Hz, Cmeta), 131.9 (Cpara), 133.97 (d, 2JPC = 9.4 Hz, Cortho), 169.94 (d, 2JPC = 13.1 Hz, C=O ester), 174.24 (d, 3JPC = 5.3 Hz, C=O ester), 203.70 and 216.22 (2C=O, ketones). 3a-I (E) (31 %) 1H-NMR (CDCl3): δH 1.55 (3H, s, CH3), 1.62-1.65 (2H, m, CH2), 2.2-2.40 (2H, m, CH2), 2.48-2.53 (2H, m, CH2), 3.43 and 3.68 (2OCH3), 3.59 (1H, d, 3JPH = 18.5 Hz, CH), 7.4-7.67 (15H, m, -Ph); 13C-NMR (CDCl3): δC 21.5 (CH2), 25.44 (CH3), 29.14 (CH2), 37.5 (d, 1JPC = 127.5 Hz, P=C), 38.70 (CH2), 48.12 (d, 2JPC = 13.2 Hz, CH), 49.65 and 52.34 (2OCH3), 73.26 (cyclo-pentanone quaternary carbon), 126.7 (d, 1JPC = 91.7 Hz, Cipso), 128.2 (d, 3JPC = 11.5 Hz, Cmeta), 131.6 (Cpara), 132.13 (d, 2JPC = 9.9 Hz, Cortho), 168.5 (d, 2JPC = 12.8 Hz, C=O ester), 174.8 (d, 3JPC = 5.2 Hz, C=O ester), 203.65 and 215.02 (2C=O, ketones).
Second diastereomer (3a-II): M.p. 151-152 ºC; yield 45 %; IR (KBr, νmax, cm-1): 3059 and 2987 (CH), 1751, 1726 and 1689 (C=O), 1629 (C=C); MS m/z (%): 530 (M+, 8), 471 (M+-CO2Me, 18), 487 (M+-CH3CO, 30), 268 (M+- PPh3, 21), 209 (M+- (PPh3+CO2Me), 28), 43 (CH3CO+, 100); Anal. calcd. for C31H31O6P (530.56); C, 70.18; H, 5.89%; Found C 70.05, H 5.78 %; 3a-II (Z) (68 %) 1H-NMR (CDCl3): δH 1.64 (3H, s, CH3), 1.82-1.95 (2H, m, CH2), 2.09-2.18 (2H, m, CH2), 2.88-2.96 (2H, m, CH2), 2.80 and 3.69 (6H, 2s, 2OCH3), 3.49 (1H, d, 3JPH = 18.8 Hz, CH), 7.45-7.64 (15H, m, -Ph); 13C-NMR (CDCl3): δC 20.33 (CH2), 25.45 (CH3), 29.12 (CH2), 39.84 (d, 1JPC = 121.9 Hz, CH), 40.07 (CH2), 48.37 (d, 2JPC = 13.4 Hz, CH), 51.82 and 52.22 (2OCH3), 73.97 (cyclopentanone quaternary carbon), 127.5 (d, 1JPC = 91.5 Hz, Cipso), 128.43 (d, 3JPC = 12.20 Hz, Cmeta), 131.92 (d, 4JPC = 2.9 Hz, Cpara), 134.02 (d, 2JPC = 9.5 Hz, Cortho), 170.39 (d, 2JPC = 13.3 Hz, C=O ester), 175 (d, 3JPC = 6.5 Hz, C=O ester), 202.8 and 215 (2C=O, ketones). 3a-II (E) (32 %) 1H-NMR (CDCl3): δH 1.65 (3H, s, CH3), 1.82-1.95 (2H, m, CH2), 2.09-2.18 (2H, m, CH2), 2.88-2.96 (2H, m, CH2), 3.47 and 3.69 (6H, 2s, 2OCH3), 3.64 (1H, d, 3JPH = 19.5 Hz, CH), 7.45-7.64 (15H, m, -Ph); 13C-NMR (CDCl3): δC 21.07 (CH2), 25.84 (CH3), 28.55 (CH2), 39.71 (CH2), 40.58 (d, 1JPC = 129.4 Hz, P=C), 48.37 (d, 2JPC = 13.4 Hz, CH), 51.82 and 52.22 (2OCH3), 73.97 (cyclopentanone quaternary carbon), 127.3 (d, 1JPC = 90.8 Hz, Cipso), 128.33 (d, 3JPC = 12.07 Hz, Cmeta), 131.97 (d, 4JPC = 2.83 Hz, Cpara), 132.12 (d, 2JPC = 9.3 Hz, Cortho), 171.07 (d, 2JPC = 13.5 Hz, C=O ester), 172.5 (d, 3JPC = 6.9 Hz, C=O ester), 202.3 and 214.8 (2C=O, ketones).

Diethyl 2-(1-acetyl-2-oxocyclopentyl)-3-[1,1,1-triphenyl- λ5-phosphanylidene] succinate (3b)

First diastereomer (3b-I): M.p. 157.5-159 ºC; yield 53 %; IR (KBr, νmax, cm-1): 1745, 1730 and 1705 (C=O), 1632 (C=C); MS m/z (%): 558 (M+, 7), 530 (M+-C2H5, 14), 515 (M+-CH3CO, 31), 485 (M+-CO2Et, 18), 296 (M+- PPh3, 20), 223 [M+- (PPh3+CO2Et), 37], 43 (CH3CO+, 100); Anal. calcd. for C33H35O6P (530.56); C, 70.96; H, 6.32%; Found: C 70.88; H, 6.25%; 3b-I (Z) (64 %) 1H-NMR (CDCl3): δH 1.18 (3H, t, 3JHH = 7 Hz, CH3), 1.25 (3H, t, 3JHH = 7.2 Hz, CH3), 1.51-1.55 (2H, m, CH2), 1.57 (3H, s, CH3), 1.85-1.97 (2H, m, CH2), 2.75-2.78 (2H, m, CH2), 3.56 (1H, d, 3JPH = 18.5 Hz, CH), 3.66-3.68 (2H, m, OCH2), 4.12-4.15 (2H, m, OCH2), 7.46-7.81 (15H, m, -Ph); 13C-NMR (CDCl3): δC 14.13 and 14.34 (2CH3), 20.17 and 27.70 (2CH2), 29.69 (CH3), 37.38 (d, 1JPC = 122.78 Hz, P=C), 37.78 (CH2), 49.12 (d, 2JPC = 12.96 Hz, CH), 57.54 and 61.35 (2OCH2), 74.17 (cyclopentanone quaternary carbon), 128.16 (d, 1JPC = 92.98 Hz, Cipso), 128.53 (d, 3JPC = 11.82 Hz, Cmeta), 131.86 (Cpara), 134.07 (d, 2JPC = 9.4 Hz, Cortho), 166.03 (d, 2JPC = 12.8 Hz, C=O ester), 173.87 (d, 3JPC = 6.3 Hz, C=O ester), 204.51 and 216.40 (2C=O, ketones). 3b-I (E) (36 %); 1H-NMR (CDCl3): δH 1.21 (3H, t, 3JHH = 7.1 Hz, CH3), 1.25 (3H, t, 3JHH = 7.2 Hz, CH3), 1.41-1.46 (2H, m, CH2), 1.62 (3H, s, CH3CO), 2.07-2.12 (2H, m, CH2), 2.44-2.52 (2H, m, CH2), 3.37-3.39 (2H, m, OCH2), 3.47 (1H, d, 3JPH = 19.8 Hz, CHCO2Et), 4.12-4.15 (2H, m, OCH2), 7.46-7.81 (15H, m, -Ph); 13C-NMR (CDCl3): δC 13.10 and 13.60 (2CH3), 19.28 and 25.86 (2CH2), 29.05 (CH3CO), 37.1 (d, 1JPC = 125.8 Hz, P=C), 37.26 (CH2CO), 48.5 (d, 2JPC = 12.6 Hz, CHCO2Et), 60.97 and 62.15 (2OCH2), 71.5 (cyclopentanone quaternary carbon), 127.8 (d, 1JPC = 90.8 Hz, Cipso), 129.89 (3JPC=12.4 Hz, Cmeta), 132.13 (2JPC=9.81 Hz, Cortho), 134.83 (Cpara), 165.04 (d, 2JPC=13.1 Hz, C=O ester), 170.72 (d, 3JPC = 6.7 Hz, C=O ester), 203.84 and 215.01 (2C=O, ketones).

Di-tert-butyl 2-(1-acetyl-2-oxocyclopentyl)-3-[1,1,1-triphenyl- λ5-phosphanylidene] succinate (3c)

First diastereomer (3c-I): M.p. 149-149.5 ºC; yield 53 %; IR (KBr, νmax, cm-1): 1752, 1733 and 1705 (C=O), 1620 (C=C); MS m/z (%): 614 (M+, 5), 571 (M+-CH3CO, 25), 558 (M+-C4H8, 16), 513 (M+-CO2tBu, 28), 456 [M+-(CO2tBu+C4H9), 38], 352 (M+- PPh3, 14), 251 [M+- (PPh3+CO2tBu), 37], 43 (CH3CO+, 100); Anal. calcd. for C37H43O6P (614.73): C 72.29, H 7.05 %; Found C 72.15, H 6.95 %; 3c-I (Z) (59 %) 1H-NMR (CDCl3): δH 0.84 (9H, s, CMe3), 1.47 (9H, s, CMe3), 1.49 (3H, s, CH3), 1.87-1.88 (2H, m, CH2), 2.01-2.06 (2H, m, CH2), 2.78-2.83 (2H, m, CH2), 3.37 (1H, d, 3JPH = 16.8 Hz, CH), 7.4-7.55 (15H, m, -Ph); 13C-NMR (CDCl3): δC 20.28 and 25.83 (2CH2), 28 and 28.44 (2CMe3), 28.21 (CH3), 37.58 (d, 1JPC = 120.79 Hz, P=C), 38.76 (CH2), 44.92 (d, 2JPC = 14.28 Hz, CH), 74.49 (cyclopentanone quaternary carbon), 80.65 and 81.67 (2CMe3), 125.8 (d, 1JPC = 85.6 Hz, Cipso), 128.52 (d, 3JPC = 12.1 Hz, Cmeta), 131.96 (Cpara), 132.1 (d, 2JPC = 9.94 Hz, Cortho), 169.47 (d, 3JPC = 12.8 Hz, C=O ester), 175.73 (d, 3JPC = 6.5 Hz, C=O ester), 204.19 and 216.98 (2C=O, ketones). 3c-I (E) (41 %) 1H-NMR (CDCl3): δH 1.36 (9H, s, CMe3), 1.40 (9H, s, CMe3), 1.54 (CH3CO), 2.01-2.06 (2H, m, CH2), 2.51-2.56 (2H, m, CH2), 2.90-2.94 (2H, m, CH2), 3.35 (1H, d, 3JPH = 16.8 Hz, CH), 7.65-7.78 (15H, m, -Ph); 13C-NMR (CDCl3): δC 20.28 and 25.16 (2CH2), 28 and 28.04 (2CMe3), 28.13 (CH3), 38.3 (d, 1JPC = 122 Hz, P=C), 38.29 (CH2), 49.1 (d, 2JPC = 14.1 Hz, CH), 74.11 (cyclopentanone quaternary carbon), 81.18 and 81.79 (2CMe3), 126.2 (d, 1JPC = 84.5 Hz, Cipso), 128.30 (d, 3JPC = 11.95 Hz, Cmeta), 131.66 (Cpara), 135.38 (d, 2JPC = 10.1 Hz, Cortho), 168.80 (d, 2JPC = 13 Hz, C=O ester), 172.56 (d, 3JPC = 6.5 Hz, C=O ester), 202.41 and 212.82 (2C=O, ketones).
Second diastereomer; (3c-II): M.p. 157.5-159ºC; yield 42 %; IR (KBr, νmax, cm-1): 1748, 1725 and 1695 (C=O), 1612 (C=C); Anal. calcd. for C37H43O6P (614.72): C 72.29, H 7.05 %; Found C 72.18, H 6.97 %. 3c-II (Z) (66 %) 1H-NMR (CDCl3): δH 0.85 and 1.50 (18H, 2s, 2CMe3), 1.56 (3H, s, CH3CO), 1.87-1.92 (2H, m, CH2), 1.97-2.03 (2H, m, CH2), 3.10-3.16 (2H, m, CH2), 3.31 (1H, d, 3JPH = 20 Hz, CH), 7.40-7.52 (15H, m, -Ph); 13C-NMR (CDCl3): δC 20.25 and 25.03 (2CH2), 28.26 and 28.31 (2CMe3), 28.80 (CH3CO), 38.47 (d, 1JPC = 122.3 Hz, P=C), 40.23 (CH2CO), 50.03 (d, 2JPC = 14.1 Hz, CH), 74.38 (d, 3JPC = 3.4 Hz, cyclopentanone quaternary carbon), 77.01 and 80.71 (2CMe3), 125.90 (d, 1JPC = 84.8 Hz, Cipso), 128.1 (d, 3JPC = 11.8 Hz, Cmeta), 131.95 (Cpara), 132.10 (d, 2JPC = 9.4 Hz, Cortho), 160.9 (d, 2JPC = 13.1 Hz, C=O ester), 173.66 (d, 3JPC = 6.8 Hz, C=O ester), 203.12 and 215.98 (2C=O, ketones). 3c-II (E) (34 %) 1H-NMR (CDCl3): δH 1.37 and 1.50 (18H, 2s, 2CMe3), 1.52 (3H, s, CH3CO), 2.05-2.19 (2H, m, CH2), 2.43-2.48 (2H, m, CH2), 2.89-2.98 (2H, m, CH2), 3.30 (1H, d, 3JPH = 21.9 Hz, CH), 7.82-8.1 (15H, m, -Ph); 13C-NMR (CDCl3): δC 20.40 and 24.88 (2CH2), 27.91 and 28.48 (2CMe3), 29.28 (CH3CO), 40.62 (d, 1JPC = 131.33 Hz, P=C), 39.42 (CH2CO), 49.39 (d, 2JPC = 13.8 Hz, CH), 74.02 (d, 3JPC = 3.5 Hz cyclopentanone quaternary carbon), 77.78 and 80.60 (2CMe3), 125.90 (d, 1JPC = 84.8 Hz, Cipso), 128.52 (d, 3JPC = 12.1 Hz, Cmeta), 131.79 (Cpara), 135.36 (d, 2JPC = 9.9 Hz, Cortho), 170.83 (d, 2JPC = 13.3 Hz, C=O ester), 173.42 (d, 3JPC = 7 Hz, C=O ester), 202.61 and 215.43 (2C=O, ketones).

Preparation of Dimethyl (E)-2-[1-(2-oxocyclopentylidene)ethyl]-2-butenedioate (5a)

Compound 3a (I or II) was refluxed in benzene for 24 hours. The solvent was removed under reduced pressure and the viscous residue was purified by silica gel column chromatography (Merck silica gel 60, 230-400 mesh) using ethyl acetate-hexane (30:70) as eluent. The solvents were removed under reduced pressure to give the product. White powder; m.p. 67-69 ºC, yield 85 %; IR (KBr, νmax, cm-1): 1745, 1735 and 1710 (C=O), 1627 (C=C); 1H-NMR (CDCl3): δH 1.94 (2H, t, 3JHH = 7.4 Hz, CH2), 1.98 (3H, s, CH3), 2.50 (2H, t, 3JHH = 7.3 Hz, CH2), 2.70 (2H, m, CH2), 3.66 (3H, s, OCH3), 3.73 (3H, s, OCH3), 6.71 (1H, s, CH); 13C-NMR (CDCl3): δC 19.58 and 22.61 (2CH2), 28.42 (CH3), 39.06 (CH2), 51.78 and 52.67 (2OCH3), 124.89, 134.74, 139.82 and 149.97 (olefinic carbons), 165.06 and 165.22 (2C=O, esters), 206.29 (C=O, ketone); MS m/z (%): 252 (M+, 21), 237 (M+- Me, 25), 221 (M+-OMe, 34), 193 (M+-CO2Me, 42), 162 [M+-(CO2Me+OMe), 48], 110 (M+-MeO2CCCCO2Me, 100); Anal. calcd. for C13H16O5 (252.27): C 61.90, H 6.39 %; Found C 61.77, H 6.30 %. The following compounds were prepared similarly:
Diethyl (E)-2-[1-(2-oxocyclopentylidene)ethyl]-2-butenedioate (5b). White powder; m.p. 66-68 ºC; yield 80 %; IR (KBr, νmax, cm-1): 1740, 1730 and 1710 (C=O), 1620 (C=C); 1H-NMR (CDCl3): δH 1.25-1.44 (6H, m, 2CH3), 2 (2H, t, 3JHH = 7.8 Hz, CH2), 2.04 (3H, s, CH3), 2.30-2.40 (2H, t, 3JHH = 7.7 Hz, CH2), 2.75-2.77 (2H, m, CH2), 4.17 (2H, q, 3JHH = 7.1 Hz, OCH2), 4.25 (2H, q, 3JHH = 7.1 Hz, OCH2), 6.77 (1H, s, CH); 13C-NMR (CDCl3): δC 14.12 and 14.14 (2CH3), 19.62 and 22.16 (2CH2), 28.45 (CH3CO), 39.08 (CH2), 60.07 and 61.60 (2OCH2), 125.18, 134.55, 140.1 and 149.92 (olefinic carbons), 164.57 and 164.9 (2C=O, esters), 203.5 (C=O, ketone); ); MS m/z (%): 280 (M+, 16), 265 (M+-Me, 22), 207 (M+-CO2Et, 28), 162 [M+-(CO2Et+OEt), 48], 110 (M+-EtO2CCCCO2Et, 100); Anal. calcd. for C15H20O5 (280.32): C 64.27, H 7.19 %; Found C 64.15, H 7.08 %.
Di-tert-butyl (E)-2-[1-(2-oxocyclopentylidene)ethyl]-2-butenedioate (5c). White powder; m.p. 64-67 ºC; yield 87 %; IR (KBr, νmax, cm-1): 1738, 1730 and 1715 (C=O), 1618 (C=C); 1H-NMR (CDCl3): δH 1.40 and 1.47 (2CMe3), 1.92 (2H, t, 3JHH = 7.4 Hz, CH2), 1.95 (3H, s, CH3CO), 2.22-2.27 (2H, t, 3JHH = 7.3 Hz, CH2), 2.65-2.70 (2H, m, CH2), 6.54 (1H, s, CH); 13C-NMR (CDCl3): δC 19.62 and 22.44 (2CH2), 27.92 and 27.98 (2CMe3), 28.48 (CH3), 39.10 (CH2), 81.02 and 81.82 (2CMe3), 126.60, 133.94, 140.63 and 149.52 (olefinic carbons), 163.86 and 164.43 (2C=O, esters), 205.71 (C=O, ketone); MS m/z (%): 336 (M+, 8), 280 (M+- C4H8, 22), 263 (M+-OtBu, 28), 235 (M+-CO2tBu, 20), 179 [M+-(CO2tBu+C4H8), 35], 162 [M+-(CO2tBu+OtBu), 42], 110 (M+-tBuO2CCCCO2tBu, 54); Anal. calcd. for C19H28O5 (336.43): C 67.83, H 8.38 %; Found C 67.70, H 8.26 %.

References

  1. Hudson, H. R. The Chemistry of Organophosphorus Compounds: Primary, Secondary and Tertiary Phosphines and Heterocyclic Organophosphorus (III) Compounds; Hantely, F. R., Ed.; Wiley: New York, 1990; Vol. 1, pp. 386–472. [Google Scholar]
  2. Shen, Y. New Synthetic Methodologies for Carbon-Carbon Double Bond Formation. Acc. Chem Re. 1998, 31, 584–592. [Google Scholar]
  3. Puke, C.; Erker, G.; Aust, N. C.; Wurthwein, E. V.; Frohlich, R. Evidence for a Continuous Transition between Thiaphosphetane and Betaine-Type Structures in the Thio-Wittig Reaction. J. Am. Chem. Soc. 1998, 120, 4863–4864. [Google Scholar] [CrossRef]
  4. Corbridge, D. E. C. Phosphorus: An Outline of Chemistry, Biochemistry and Uses, 5th ed.; Elsevier: Amsterdam, 1995; pp. a) pp. 42-47; b) pp. 319-323; c) pp. 361-362. [Google Scholar]
  5. Cadogan, J. I. G. Organophosphorus Reagents in Organic Synthesis; Academic Press: New York, 1979. [Google Scholar]
  6. Johnson, A. W. Ylides and Imines of Phosphorus; Wiley: New York, 1993; pp. a) p. 166; b) p. 174; c) p. 179; d) p. 199. [Google Scholar]
  7. Maryanoff, B. G.; Reitz, A. B. The Wittig olefination reaction and modifications involving phosphoryl stabilized carbanions. Stereochemistry, mechanism and selected synthetic aspects. Chem. Rev. 1989, 89, 863–927. [Google Scholar]
  8. Kolodiazhynyi, O. I. Methods of Preparation of C-Substituted Phosphorus Ylides and their Application in Organic Synthesis. Russ. Chem. Rev. 1997, 66, 225–254. [Google Scholar] [CrossRef]
  9. Arduago, A. J.; Stewart, C. A. Low- Coordinate Hyper Valent Phosphorus. Chem. Rev. 1994, 94, 1215–1237. [Google Scholar] [CrossRef]
  10. Yavari, I.; Asghari, S. Stereoselective Synthesis of Highly Functionalized Cyclobutenes. A Facile Rout to Electron-Deficient 1,3-Dienes. Tetrahedron 1999, 55, 11853–11858. [Google Scholar]
  11. Yavari, I.; Asghari, S.; Esmaili, A. A. Vinyltriphenylphosphonium Salt- mediated New Synthesis of  Functionalized Maleimides. J. Chem. Res. 1999, 234–235. [Google Scholar] [CrossRef]
  12. Yavari, I.; Baharfar, R. New One-pot Synthesis of tetra-Alkoxycarbonylallylidenetriphenylphos-phoranes. Tetrahedron Lett. 1998, 39, 1051–1054. [Google Scholar] [CrossRef]
  13. Yavari, I.; Adib, M.; Sayahi, M. H. An efficient diastereoselective one-pot synthesis of dihydrofuro[2′,3′: 2,3]indeno[2,1-b]furan derivatives. Tetrahedron Lett. 2002, 43, 2927–2929. [Google Scholar] [CrossRef]
  14. Yavari, I.; Karimi, E. Synthesis of stable phosphorus ylides by the reaction of Ph3P with activated acetylenes in the presence of dimethyl methoxymalonate. Phosphorus, Sulfur, Silicon Rel. Elem. 2007, 182, 595–600. [Google Scholar]
  15. Yavari, I.; Zabarjad-Shiraz, N. Three component reaction between triphenylphosphine, dialkyl acetylenedicarboxylates and urea or N-methyl urea. Mol. Div. 2006, 10, 23–27. [Google Scholar] [CrossRef]
  16. Eliel, R.L.; Wilen, S. H.; Mander, L. N. Stereochemistry of Organic Compounds; Wiley: New York, 1994; pp. 569–570. [Google Scholar]
  • Sample Availability: Available from the authors.
