Headspace Volatile Composition of the Flowers of Caralluma europaea N.E.Br. (Apocynaceae)

by
Carmen Formisano
1,
Felice Senatore
1,
Giovanna Della Porta
2,
Mariarosa Scognamiglio
2,
Maurizio Bruno
3,
Antonella Maggio
3,
Sergio Rosselli
3,
Pietro Zito
4 and
Maurizio Sajeva
4,*
1
Dipartimento di Chimica delle Sostanze Naturali, Università degli Studi di Napoli “Federico II”, Via D. Montesano, 49, I-80131 Napoli, Italy
2
Dipartimento di Ingegneria Chimica ed Alimentare, Università degli Studi di Salerno,Via Ponte Don Melillo, 84084 Fisciano (SA) Italy
3
Dipartimento di Chimica Organica, Università degli Studi di Palermo, Viale delle Scienze, Parco d’Orleans II, I-90128 Palermo, Italy
4
Dipartimento di Scienze Botaniche dell’Università di Palermo, Via Archirafi 38, I-90123 Palermo, Italy
*
Author to whom correspondence should be addressed.
Molecules 2009, 14(11), 4597-4613; https://doi.org/10.3390/molecules14114597
Submission received: 16 October 2009 / Revised: 7 November 2009 / Accepted: 10 November 2009 / Published: 11 November 2009
Browse Figures
Versions Notes

Abstract

:
The volatile constituents of the flowers of Caralluma europaea (Guss.) N.E.Br (Apocynaceae) from Lampedusa Island were analyzed by a headspace GC method. The analyses allowed the identification and quantification of 41 compounds. The main components were, among the monoterpenoids, terpinolene (23.3%), α-terpinene (19.1%) and linalool (18.4%), whereas, among the carbonylic compounds the major constituents were heptanal (2.0%), octanoic acid (2.4%) and hexanoic acid (1.7%). The presence of a nitrogen containing compound, indole (0.8%) and of a sulphur containing compound, dimethylsulphide (t), noteworthy. The compounds found in the flowers of C. europaea have been compared with data available in the literature as regard to their odor, presence in other sapromyiophilous taxa, possible role as semiochemicals, and presence in decaying organic matter. 89.3% of total constituents have been described in other sapromyiophilous taxa. Some of the compounds are present in several types of decaying organic matter (excrements, decomposing bodies, and spoiled fish, etc). Several volatiles found in C. europaea flowers are used as semiochemicals by Hymenoptera, Coleoptera, Diptera, Lepidoptera and other insects. Sixteen volatiles, accounting for 32.4% of the total constituents, are described as attractants of some Diptera families, with a biology linked to decaying organic matter. Our data thus confirm that C. europaea floral bouquet falls within the sapromyiophilous pollination syndrome.

Introduction

Headspace GC analysis is widely used to study the volatiles composition of flowers and over 1,700 volatile compounds have been identified so far, as reported in a review by Knudsen et al. [1] describing volatiles present in the flowers of 991 taxa of the Angiosperms and a few Gymosperms. The volatile composition of flowers plays a major role, besides other tasks, in attracting insects involved in pollination [2]. Most floral scent are bouquets composed of at least a few, but usually many components. Although the blend is often dominated by one or a few main components, this does not necessarily mean that said component(s) provide the most important signal to the pollinators but instead it is the total scent [2]. Plant species with similar pollinators show similarities, not only in the visual attractants but also in the floral scent composition, regardless of the phylogenetic relatedness of the species.
Caralluma europaea (Guss.) N.E.Br [= Apteranthes europaea (Guss.) Plowes] belongs to the family Apocynaceae, subfamily Asclepiadoideae. In this subfamily the pollination system is phenotypically high specialized, with pollen aggragated in pollinia [3] like Orchidaceae, and almost all the taxa are insect pollinated. However, while the volatile composition of the flowers of Orchidaceae has been investigated by several authors, relatively few studies have been carried out on the Apocynaceae [1]. Recently Jürgens et al. [4,5] analysed the chemical volatile composition of some Asclepiadoideae and discussed their possible role in the biology of pollination. The chemical composition of flowers of the genus Caralluma is little studied, the only available data being those reported by Jürgens et al. [4] for Desmidorchis flava (N.E.Br) Meve & Liede (= Caralluma flava N.E.Br) and Apteranthes joannis (Maire) Plowes (= Caralluma joannis Maire).
In the present paper we present the volatile composition of flowers of C. europaea as determined by headspace analysis and discuss the possible role in its pollination biology. C. europaea, like most Asclepiadoideae, is pollinated by Diptera and falls within the sapromyiophilous syndrome where insects are attracted by the color and odor of the flowers simulating breeding sites or food sources [4].

Results and Discussion

In the flowers of C. europaea we detected 41 compounds (Table 1) belonging to nine different classes. The analyses allowed the identification of monoterpenoids, sesquiterpenoids, alcohols, aldehydes, ketones, acids and derivatives, nitrogen- and sulphur bearing compounds, and phenols. More than two thirds of the identified compounds were isoprenoids. In fact monoterpenoids were the main components, representing 77.0% of the compounds identified, accompanied by sesquiterpenoids (1.7%). Among these compounds, the monoterpene hydrocarbons were the most representative, amounting to 56.7%, with terpinolene (23,3%) and α-terpinene (19.1%) as the main components of this fraction. Linalool (18.4%) was the main oxygen containing monoterpene and represented almost the whole content of these compounds, being the remaining four compounds of this class present in lower amounts (0.2%-0.7%).
Table
Table 1. LRI, RI and percent composition of the volatile compounds of the flowers of Caralluma europaea.
Table 1. LRI, RI and percent composition of the volatile compounds of the flowers of Caralluma europaea.
LRIaCompound%Ident.bLRIaCompound%Ident.b
<8002-Methylbutanal1.3Ri, MS1097Linalool18.4Ri, MS, P.C.
<800Dimethyl sulphidetRi, MS1101Nonanal1.0Ri, MS
866Hexanol1.1Ri, MS1144(Z)-Verbenol0.4Ri, MS
901Heptanal2.0Ri, MS1180Octanoic acid2.4Ri, MS, P.C.
912Santolinatriene2.2Ri, MS1193Myrtenal0.6Ri, MS
927Tricyclene1.2Ri, MS1194Myrtenol0.6Ri, MS
938α-Pinene1.9Ri, MS, P.C.11964-Ethylbenzaldehyde0.2Ri, MS
953Camphene2.5Ri, MS, P.C.1206Verbenone0.7Ri, MS
963Benzaldehyde0.4Ri, MS12763-Ethyl-4-methyl-1 H-pyrrole-2;5-dione0.5Ri, MS
978β-Pinene3.8Ri, MS, P.C.1278Nonanoic acid1.2Ri, MS, P.C.
980Phenol0.8Ri, MS1290Indole 0.8Ri, MS
981Hexanoic acid1.7Ri, MS, P.C.1376Decanoic acid0.8Ri, MS
998Octanal0.8Ri, MS1377α-Copaene0.3Ri, MS
1005α-Phellandrene1.4Ri, MS1385β-Bourbonene0.2Ri, MS
1009Carene 3 0.5Ri, MS1398α-Elemene0.3Ri, MS
1013α-Terpinene19.1Ri, MS, P.C.1416(E)-Caryophyllene0.6Ri, MS
1025p-Cymene0.8Ri, MS1462Seychellene0.8Ri, MS
1037Benzyl alcohol0.5Ri, MS14472;6-Di- tert-butyl-benzoquinone0.2Ri, MS
1044Phenylacetaldehyde0.4Ri, MS15191S- cis-CalamenenetRi, MS
1067Octanol0.8Ri, MS1541α-Calacorene0.1Ri, MS
1086Terpinolene23.3Ri, MS, P.C.Total compounds 96.6%
a LRI: linear retention indices; b Ident. Ri: retention index; MS: mass spectrum, P.C.: same behaviour of the pure compound; t: trace amounts < 0.1%.
Phenol, indole and dimethyl sulphide were the only compounds of the benzenoid, nitrogen and sulphur bearing compounds noted, the former two being present in the same amount (0.8%), while the latter was detected only in traces. Acids and derivatives and aldehydes were present in quite similar amounts but the aldehydes are present with a greater number of compounds.
Thirty-three compounds, accounting for 89.3% of the total constituents, have been found in several sapromyiophilous taxa (Table 2 and references therein). Besides being present in sapromyiophilous taxa some of the compounds found are present in several types of decaying organic matter. As regards to excrements, heptanal, octanal, hexanol, nonanal, benzaldehyde, phenylacetaldehyde, phenol and indole have been found in dog faeces [6], hexanol, octanol and phenol in rabbit faeces [7], indole in faeces of lion, Canidae and Mustelidae [4]. In cow dung [8] nonanal is consistently present, while phenol, benzyl alchohol, benzaldehyde and indole were erratically sampled, and are important volatiles of the fresh dung of cattle [8]. Within animals α-pinene has been detected in human bodies in decomposition [9]; nonanal, octanal and benzaldehyde in spoiled fish [10]; heptanal, phenol, nonanal, decanal and nonanoic acid in smoked salmon [11]; nonanal in human bodies in decomposition and in humans, deer and dog bones [12]; 2-methylbutanal, heptanal, hexanoic acid, octanal, nonanal, decanal nonanoic acid and indole in cooked beef meats [13]; hexanoic acid, octanoic acid and nonanoic acid, indole and phenol in pig living quarters [14]. The presence of hexanol, heptanal, nonanal, phenylacetaldehyde, indole, dimethylsulphide, α-pinene, linalool, hexanoic acid, octanoic acid, nonanoic acid and decanoic acid has been reported in various types of cheese [15].
As regard to the presence in other sapromyiophilous taxa, traces of terpinolene are present in Desmidorchis flava and in Hoodia gordoni (Masson) Sweet (Apocynaceae) [4], in Arum maculatum L. (Araceae) where it accounts for 1-10% [16], and in the club-shaped organs of Sauromatum guttatum (Wallich) Schott. (Araceae). with 37.9% [17]. α-Terpinene and linalool are also present in the club-shaped organs of Sauromatum guttatum, where they account for 0.2% and 5.5%, respectively [17], while 0.8% of linalool has been found in the pistillate-stage spate of Peltandra virginica (L.) Kunth (Araceae) [18], and 1.5% in flowers of Zizyphus mauritiana Mill. (Rhamnaceae) [19]. Hexanoic acid and octanoic acid are present in Desmidorchis flava and, according to Jürgens at al. [4], are responsible for the typical urine odor. The frequent presence of hexanoic acid in the urine of various animals seems to be caused by bacterial activity [4].
Several volatile compounds found in C. europaea (Table 2) are used in Hymenoptera, Coleoptera, Diptera, Lepidoptera and others insects as semiochemicals (attractants, allomones, kairomones, pheromones); and one, (E)-caryophyllene, is a synomone for Hymenoptera [20]. Interstingly, 16 volatile compounds of C. europaea flowers, accounting for 32.4% of the total constituents, are described by El-Sayed [20] as attractants of some families of Diptera. In particular linalool, the third more abundant compound in C. europaea, is an attractant of the families Psilidae, Muscidae, Sarcophagidae and Tephritidae [20]. Some classes of compounds, like fatty acid derivatives, sulphur- and or nitrogen- compounds, alcohols, ketones and aldehydes found in the flowers of C. europaea are associated with Diptera and Coleoptera which feed or ovideposit on decaying organic matter [21]. Recently Jürgens et al. [5] noted that most of the compounds found in 15 taxa of Apocynaceae are widespread floral scent compounds and that 84% of them are present in plants mainly pollinated by Hymenoptera and Lepidoptera, but also in 15 taxa of stapeliads with fetid floral odors [4]; the authors ascribe the presence of attractant of Lepidoptera and Hymenoptera to the phylogenetic relatedness of the plants involved.
Table
Table 2. Volatile compounds of the flowers of Caralluma europaea arranged by class.
Table 2. Volatile compounds of the flowers of Caralluma europaea arranged by class.
CompoundsOdour characteristic aSapromyiophilous taxa bSemiochemicalsc
AAl PKSy
Alchools
OctanolMetallic; sulfur; burnt matches; toasted bread; herbal; fatty; floral; woody; citrus; waxy; moss; nut; mushroomHoodia currori (Hook.) Decne (Apocynaceae) [4]xxx--
Hoodia gordonii (Masson) Sweet (Apocynaceae) [4]
Huernia boleana M.G. Gilbert (Apocynaceae) [4]
Huernia keniensis R.E. Fries (Apocynaceae) [4]
Monolluma exagona (Lavranos) Meve & Liede (Apocynaceae) [4]
Orbea semota (N.E.Br) L.C. Leach subsp. orientalis Bruyns (Apocynaceae) [4]
Orbea variegata (L.) L.C. Leach (Apocynaceae) [4]
Stapelia asterias Masson (Apocynaceae) [4]
Sauromatum guttatum (Wallich) Schott. (Araceae) [22]
Benzyl alcoholBerry; cherry; grapefruit; citrus; walnut; sweetDuvalia corderoyi N.E.Br (Apocynaceae) [4]xxxx-
Hoodia currori (Hook.) Decne (Apocynaceae) [4]
Hoodia gordonii (Masson) Sweet (Apocynaceae) [4]
Monolluma exagona (Lavranos) Meve & Liede (Apocynaceae) [4]
Orbea semota (N.E.Br) L.C. Leach subsp. orientalis Bruyns
(Apocynaceae) [4]
Orbea variegata (L.) L.C. Leach (Apocynaceae) [4]
Stapelia asterias Masson (Apocynaceae) [4]
Arum creticum Boiss. & Heldr. (Araceae) [16-23]
Arum idaeum Coust. & Gand. (Araceae) [23]
Sauromatum guttatum (Wallich) Schott. (Araceae) [17-22]
Zizyphus mauritiana Mill. (Rhamnaceae) [19 ]
HexanolFlowery; toasty; dry; fruity; herbal; mild woody; sweet; green grass; leafy; resinHoodia currori (Hook.) Decne (Apocynaceae) [4]xxxx-
Sauromatum guttatum (Wallich) Schott. (Araceae) [17]
Aldehydes
2-Methylbutanal-------
HeptanalCitrus fruit; green; fatty; dry fish; pesticide; solvent; smoky; rancid; fruity; oily; woody; fruity; nutty; heavy; putty; soapyDesmidorchis flava (N.E.Br) Meve & Liede (Apocynaceae) [4]xxxx-
Echidnopsis montana (R.A. Dyer & E.A. Bruce) P.R.O. Bally (Apocynaceae) [4]
Hoodia gordonii (Masson) Sweet (Apocynaceae) [4]
Huernia boleana M.G. Gilbert (Apocynaceae) [4]
Huernia keniensis R.E. Fries (Apocynaceae) [4]
Monolluma exagona (Lavranos) Meve & Liede (Apocynaceae) [4]
Orbea semota (N.E.Br) L.C. Leach subsp. orientalis Bruyns(Apocynaceae) [4]
Orbea variegata (L.) L.C. Leach (Apocynaceae) [4]
Stapelia asterias Masson (Apocynaceae) [4]
Hydnora africana Thunb. (Hydnoraceae) [1]
Zizyphus mauritiana Mill.(Rhamnaceae) [19]
BenzaldehydeBurnt sugar; almond; woody; cherry; sweetApteranthes joannis (Maire) Plowes (Apocynaceae) [4]xxxx-
Desmidorchis flava (N.E.Br) Meve & Liede (Apocynaceae) [4]
Echidnopsis leachii Lavranos (Apocynaceae) [4]
Echidnopsis montana (R.A. Dyer & E.A. Bruce) P.R.O. Bally(Apocynaceae) [4]
Hoodia currori (Hook.) Decne (Apocynaceae) [4]
Hoodia gordonii (Masson) Sweet (Apocynaceae) [4]
Huernia boleana M.G. Gilbert (Apocynaceae) [4]
Huernia keniensis R.E. Fries (Apocynaceae) [4]
Monolluma exagona (Lavranos) Meve & Liede (Apocynaceae) [4]
Orbea semota (N.E.Br) L.C. Leach subsp. orientalis Bruyns(Apocynaceae) [4]
Orbea variegata (L.) L.C. Leach (Apocynaceae) [4]
Pseudolithos cubiformis (P.R.O. Bally) P.R.O. Bally (Apocynaceae) [4]
Stapelia asterias Masson (Apocynaceae) [4]
Arisaema erubescens (Wallich) Schott. (Araceae)24
Arum creticum Boiss. & Heldr. (Araceae) [16-23]
Arum idaeum Coust. & Gand. (Araceae)23
Sauromatum guttatum (Wallich) Schott. (Araceae) [17]
Hydnora africana Thunb. (Hydnoraceae) [1]
Zizyphus mauritiana Mill (Rhamnaceae) [19]
OctanalLemon; stew-like; boiled meat-like; rancid; soapy; citrus; green; flower; fruit; orange; honey; fatty; pungent; slightly fragmentApteranthes joannis (Maire) Plowes (Apocynaceae) [4]xxxx-
Echidnopsis leachii Lavranos (Apocynaceae) [4]
Echidnopsis montana (R.A. Dyer & E.A. Bruce) P.R.O. Bally (Apocynaceae) [4]
Hoodia currori (Hook.) Decne (Apocynaceae) [4]
Hoodia gordonii (Masson) Sweet (Apocynaceae) [4]
Huernia boleana M.G. Gilbert (Apocynaceae) [4]
Huernia keniensis R.E. Fries (Apocynaceae)[4]
Monolluma exagona (Lavranos) Meve & Liede (Apocynaceae)[4]
Orbea semota (N.E.Br) L.C. Leach subsp. orientalis Bruyns(Apocynaceae)[4]
Orbea variegata (L.) L.C. Leach (Apocynaceae)[4]
Pseudolithos cubiformis (P.R.O. Bally) P.R.O. Bally (Apocynaceae)[4]
Stapelia asterias Masson (Apocynaceae)[4]
Arisaema erubescens (Wallich) Schott.(Araceae) [24]
Sauromatum guttatum (Wallich) Schott. (Araceae) [22]
Hydnora africana Thunb. (Hydnoraceae) [1]
Zizyphus mauritiana Mill. (Rhamnaceae) [19]
PhenylacetaldehydeApple; apricot; berry; cherry; chocolate; grape; grapefruit; honey; hyacinth; lemon; melon; orange; green; nutty; fruity; peach; peanut; vegetable; winelike; sweet; honey like; flower; daisyHoodia currori (Hook.) Decne (Apocynaceae)[4]-----
Hoodia gordonii (Masson) Sweet (Apocynaceae)[4]
Huernia boleana M.G. Gilbert (Apocynaceae)[4]
Huernia keniensis R.E. Fries (Apocynaceae)[4]
Orbea variegata (L.) L.C. Leach (Apocynaceae)[4]
Stapelia asterias Masson (Apocynaceae)[4]
NonanalGravy; green; tallowy; fruity; gas; chlorine; floral; waxy; sweet; melon; soapy; fatty; lavender; citrus fruit; apple; coconut; grape; grapefruit; lemon; lime; oily; orange; waxy; citrus; fatty; nutty; peach; rose; vegetable; meaty; fishy; slightly pungent; grass-like; animalsArisaema ciliatum H. Li (Araceae)2[4]xxxx-
Arisaema erubescens (Wallich) Schott. (Araceae)24
Arisaema lobatum Engl. (Araceae) [24]
Arisaema tortuosum (Wallich) Schott. (Araceae)[24]
Arum idaeum Coust. & Gand. (Araceae) [23]
Arum maculatum L. (Araceae)8
Peltandra virginica (L.) Kunth. (Araceae) [18]
Sauromatum guttatum (Wallich) Schott. (Araceae) [22]
Hydnora africana Thunb. (Hydnoraceae) [1]
Zizyphus mauritiana Mill. (Rhamnaceae) [19]
4-EthylbenzaldehydeFruity; anisic; minty; balsamic-sweet; nutty-almondHoodia gordonii (Masson) Sweet (Apocynaceae)[4]-----
Ketones
3-Ethyl-4-methyl-1H-pyrrole-2;5-dione-------
2;6-Di-tert-butylbenzoquinone-------
Nitrogen containg compounds
Indole Butter; cheese; chocolate; grape; honey; jasmine; musty; floral; fatty; vanilla; animal; earthy; vegetable; wine-like; fishy; musty fecal; mothball-likeApteranthes joannis (Maire) Plowes (Apocynaceae)[4]xxxx-
Hoodia gordonii (Masson) Sweet (Apocynaceae)[4]
Orbea variegata (L.) L.C. Leach (Apocynaceae)[4]
Amorphophallus eichleri (Engl.) Hook. f. (Araceae)[25]
Arum apulum (Carano) P.C. Boyce (Araceae) [16]
Arum cyrenaicum Hruby (Araceae) [16]
Arum creticum Boiss. & Heldr. (Araceae)[16]
Arum maculatum L. (Araceae) [8,9,10,11,12,13,14,15,16]
Arum nigrum Schott. (Araceae) [16]
Sauromatum guttatum (Wallich) Schott. (Araceae) [17,18,19,20,21,22]
Acids and derivatives
Hexanoic acidSweaty; pungent; cheese; goatlike; rancid; fatty; sour; bad breath; popcorn; goatyDesmidorchis flava (N.E.Br) Meve & Liede (Apocynaceae)[4]xxxx-
Duvalia corderoyi N.E.Br (Apocynaceae)[4]
Echidnopsis montana (R.A. Dyer & E.A. Bruce) P.R.O. Bally(Apocynaceae)[4]
Hoodia currori (Hook.) Decne (Apocynaceae)[4]
Hoodia gordonii (Masson) Sweet (Apocynaceae)[4]
Orbea variegata (L.) L.C. Leach (Apocynaceae)[4]
Stapelia asterias Masson (Apocynaceae)[4]
Sauromatum guttatum (Wallich) Schott. (Araceae) [17]
Octanoic acidFatty acid; cheese; fresh; moss; oily; body odour; rancid, pungent; sweetDesmidorchis flava (N.E.Br) Meve & Liede (Apocynaceae)[4]-xxx-
Nonanoic acidGreen; fat; musty; sweaty; sour; cheese; waxy; goatApteranthes joannis (Maire) Plowes (Apocynaceae)[4]xxx--
Desmidorchis flava (N.E.Br) Meve & Liede (Apocynaceae)[4]
Duvalia corderoyi N.E.Br (Apocynaceae)[4]
Hoodia currori (Hook.) Decne (Apocynaceae)[4]
Hoodia gordonii (Masson) Sweet (Apocynaceae)[4]
Huernia keniensis R.E. Fries (Apocynaceae)[4]
Orbea variegata (L.) L.C. Leach (Apocynaceae)[4]
Stapelia asterias Masson (Apocynaceae)[4]
Sauromatum guttatum (Wallich)
Schott. (Araceae) [17,18,19,20,21,22]
Zizyphus mauritiana Mill. (Rhamnaceae) [19]
Decanoic acidSoapy; Fatty; citrus; warm; butter; fruit; grassy; cheese; milk; rancidApteranthes joannis (Maire) Plowes (Apocynaceae) [4]-xx--
Desmidorchis flava (N.E.Br) Meve & Liede (Apocynaceae)[4]
Echidnopsis leachii Lavranos (Apocynaceae)[4]
Hoodia currori (Hook.) Decne (Apocynaceae)[4]
Hoodia gordonii (Masson) Sweet (Apocynaceae)[4]
Huernia boleana M.G. Gilbert (Apocynaceae)[4]
Huernia keniensis R.E. Fries (Apocynaceae)[4]
Orbea semota (N.E.Br) L.C. Leach subsp. orientalis Bruyns (Apocynaceae)[4]
Orbea variegata (L.) L.C. Leach (Apocynaceae)[4]
Stapelia asterias Masson (Apocynaceae)[4]
Sauromatum guttatum (Wallich) Schott. (Araceae)22
Monoterpenoids
Santolinatriene-------
Tricyclene-------
α-PineneTerpeny; fruity; sweet; green; woody; pine; citrus; lime; camphoraceous; turpentineDesmidorchis flava (N.E.Br) Meve & Liede (Apocynaceae)[4]xxxx-
Echidnopsis leachii Lavranos (Apocynaceae)[4]
Echidnopsis montana (R.A. Dyer & E.A. Bruce) P.R.O. Bally (Apocynaceae)[4]
Hoodia currori (Hook.) Decne (Apocynaceae)[4]
Hoodia gordonii (Masson) Sweet (Apocynaceae)[4]
Huernia keniensis R.E. Fries (Apocynaceae)[4]
Arum maculatum L. (Araceae) [8]
Peltandra virginica (L.) Kunth. (Araceae) [18]
Sauromatum guttatum (Wallich) Schott. (Araceae) [17,18,19,20,21,22]
CampheneSweet; fruity; camphoraceous; pine; oily; herbal; vanillaSauromatum guttatum (Wallich) Schott. (Araceae) [17-22]xxxx-
β-PineneMusty; green; sweet; pine; resin; turpentine; woodyArum maculatum L. (Araceae)8-16xxxx-
Peltandra virginica (L.) Kunth. (Araceae)[18]
Sauromatum guttatum (Wallich) Schott. (Araceae)[17]
α-PhellandreneFruity; minty; herbaceous; citrus; lime; pepper; juniper; dillSauromatum guttatum (Wallich) Schott. (Araceae) [17,18,19,20,21,22]xxx--
Carene 3 Citrus fruit; orange peel; lemonApteranthes joannis (Maire) Plowes (Apocynaceae)[4]xxxx-
Echidnopsis leachii Lavranos (Apocynaceae)[4]
Echidnopsis montana (R.A. Dyer & E.A. Bruce) P.R.O. Bally (Apocynaceae)[4]
Hoodia currori (Hook.) Decne (Apocynaceae)[4]
Hoodia gordonii (Masson) Sweet (Apocynaceae) [4]
Huernia boleana M.G. Gilbert (Apocynaceae) [4]
Huernia keniensis R.E. Fries (Apocynaceae) [4]
Orbea semota (N.E.Br) L.C. Leach subsp. orientalis Bruyns (Apocynaceae) [4]
Orbea variegata (L.) L.C. Leach (Apocynaceae) [4]
Peltandra virginica (L.) Kunth. (Araceae)[18]
Sauromatum guttatum (Wallich) Schott. (Araceae) [17]
α-TerpineneGasoline-like; ethereal; fruity; lemon; berry; sweet; vegetable; woody; pepper; medicinal; camphoraceousSauromatum guttatum (Wallich) Schott. (Araceae) [17,18,19,20,21,22]-xxx-
p-CymeneLemon; fruity; fuel-like; sweet; herbal; spicy; citrus; solvent; gasolineApteranthes joannis (Maire) Plowes (Apocynaceae) [4]xxxx-
Sauromatum guttatum (Wallich) Schott. (Araceae) [17-22]
TerpinoleneWoody; fruity; sweet; piney; slightly anisic; plasticDesmidorchis flava (N.E.Br) Meve & Liede (Apocynaceae) [4]xxxx-
Hoodia gordonii (Masson) Sweet (Apocynaceae) [4]
Arum maculatum L. (Araceae) [8-16]
Sauromatum guttatum (Wallich) Schott. (Araceae) [22]
LinaloolLemon; orange; citrus; floral; sweet; aniseed; lavender, muscat, parsley, fruityPeltandra virginica (L.) Kunth. (Araceae) [18]xxxx-
Sauromatum guttatum (Wallich) Schott. (Araceae) [17,18,19,20,21,22]
Zizyphus mauritiana Mill. (Rhamnaceae) [19]
(Z)-Verbenol- ------
MyrtenalSweet; sharp; pleasant; spicy; cinnamon-x----
MyrtenolMedicinal; berry; medicinal; minty; woody; vanillaSauromatum guttatum (Wallich) Schott. (Araceae) [22]x-xx-
Zizyphus mauritiana Mill. (Rhamnaceae) [19]
VerbenoneMinty; spicyArisaema tortuosum (Wallich) Schott. (Araceae) [1-24]xxxx-
Sesquiterpenoids
α-CopaeneWoody; earthy; spicyDesmidorchis flava (N.E.Br) Meve & Liede (Apocynaceae) [4]x-x--
Echidnopsis leachii Lavranos (Apocynaceae) [4]
Hoodia gordonii (Masson) Sweet (Apocynaceae) [4]
Huernia keniensis R.E. Fries (Apocynaceae) [4]
Arum maculatum L. (Araceae) [8]
Sauromatum guttatum (Wallich) Schott. (Araceae) [17,18,19,20,21,22]
β-BourboneneHerbaceousHoodia gordonii (Masson) Sweet (Apocynaceae) [4]--x--
α-Elemene-------
(E)-CaryophylleneMusty; green; spicy; woody; terpene-like; fruity; sweetDesmidorchis flava (N.E.Br) Meve & Liede (Apocynaceae) [4]xxxxx
Hoodia gordonii (Masson) Sweet (Apocynaceae) [4]
Monolluma exagona (Lavranos) Meve & Liede (Apocynaceae) [4]
Orbea semota (N.E.Br) L.C. Leach subsp. orientalis Bruyns (Apocynaceae) [4]
Seychellene-Desmidorchis flava (N.E.Br) Meve & Liede (Apocynaceae) [4]-----
Hoodia gordonii (Masson) Sweet (Apocynaceae) [4]
1S-cis-Calamenene-Desmidorchis flava (N.E.Br) Meve & Liede (Apocynaceae) [4]-----
Hoodia gordonii (Masson) Sweet (Apocynaceae) [4]
Huernia keniensis R.E. Fries (Apocynaceae) [4]
Sauromatum guttatum (Wallich) Schott. (Araceae) [22]
α-CalacoreneDry-woodySauromatum guttatum (Wallich) Schott. (Araceae) [17]-----
Phenols
PhenolPhenolic; medicinal odorDuvalia corderoyi N.E.Br (Apocynaceae) [4]xxxx-
Hoodia gordonii (Masson) Sweet (Apocynaceae) [4]
Hoodia currori (Hook.) Decne (Apocynaceae) [4]
Monolluma exagona (Lavranos) Meve & Liede (Apocynaceae) [4]
Orbea semota (N.E.Br) L.C. Leach subsp. orientalis Bruyns (Apocynaceae) [4]
Orbea variegata (L.) L.C. Leach (Apocynaceae) [4]
Sauromatum guttatum (Wallich) Schott. (Araceae) [22]
Sulphur containing compouds
Dimethyl sulphideAsparagus; cabbage; corn; cowy; molasses; reminiscent of wild radish; sharp; sickly; sulfurous; vegetable; gasolineArisaema tortuosum (Wallich) Schott. (Araceae) [24]-----
a Odor characteristics are taken from the following sources: [15,20,26,27,28,29]. b Sapromyiophilous taxa are taken from references quoted at the apices of reported taxa. cSemiochemicals: (A: Attractant; Al: Allomone; K: Kairomone; P: Pheromone; Sy: Synomone) [20].
The volatiles found give the floral bouquet of C. europaea sulfur, mushroom, woody, sweet, fish, smoky, rancid, woody, pungent, fecal, cheese and other odors (Table 1 and references therein). In the literature there are several reports about the pollinators of the genus Caralluma indicating that this genus is pollinated by flies [30,31,32,33] but there are few data on the volatiles of the flowers.
Flowers in taxa of the genus Caralluma show decaying organic matter odors, like C. arachnoidea with scents of rotting fruits and are pollinated by small Drosophilidae or Milichiidae, while the floral odor of Desmidorchis flava can be described as reminiscent of decaying urine or pungent and urinous and Coleoptera (Dermestidae) have been recorded as flower visitors, although it has not been determined whether they really act as pollinators [4]. Meve and Heneidak [3] state that C. europaea flowers have an odor of excrement without reporting any chemical analysis. Interstingly, 23 compounds found in C. europaea are also present in at least one fetid Asclepiadoideae [4], while 18 compounds are absent.
The analysis of the volatile composition of C. europaea (Fig.1) combined with that of the taxa studied by Jürgens et al. [4] shows that twelve taxa share similar volatile composition and that C. europaea has similarity to the volatiles present in Hoodia gordonii, Desmidorchis flava and Orbea semota spp. orientalis. Figure 1
Molecules 14 04597 g001 550

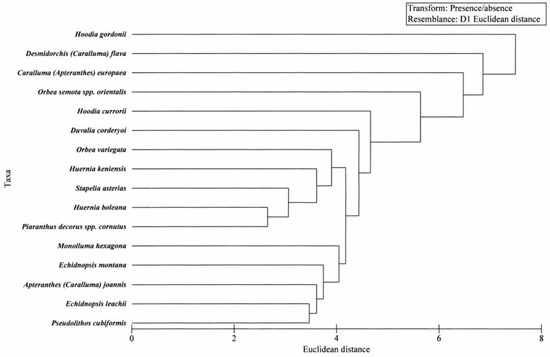

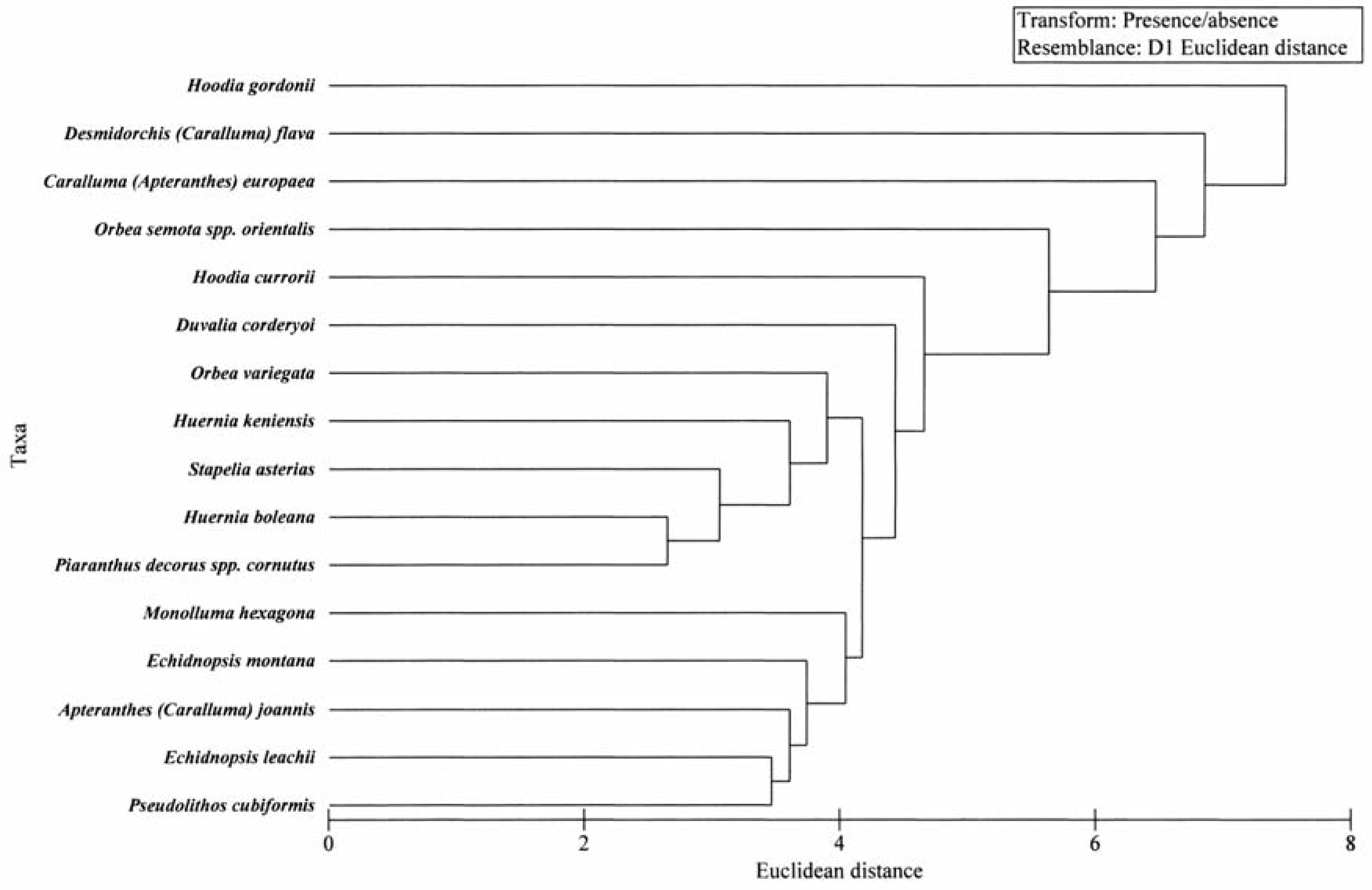

Figure 1. Cluster analysis based on a binary presence-absence matrix of the volatile profile of 15 taxa [4] and C. europaea using Euclidean distances between taxa. Unidenntified compounds were omitted from the analysis. By comparing our data with those of the 15 taxa studied by Jürgens [4] it is clear that C. europaea falls within the group of other three species: Hoodia gordonii, Desmidorchis flava and Orbea semota spp. orientalis.
Figure 1. Cluster analysis based on a binary presence-absence matrix of the volatile profile of 15 taxa [4] and C. europaea using Euclidean distances between taxa. Unidenntified compounds were omitted from the analysis. By comparing our data with those of the 15 taxa studied by Jürgens [4] it is clear that C. europaea falls within the group of other three species: Hoodia gordonii, Desmidorchis flava and Orbea semota spp. orientalis.
Molecules 14 04597 g001
The cluster analysis of latter group (Figure 2) confirms the similarity in volatiles of the four taxa.
Molecules 14 04597 g002 550

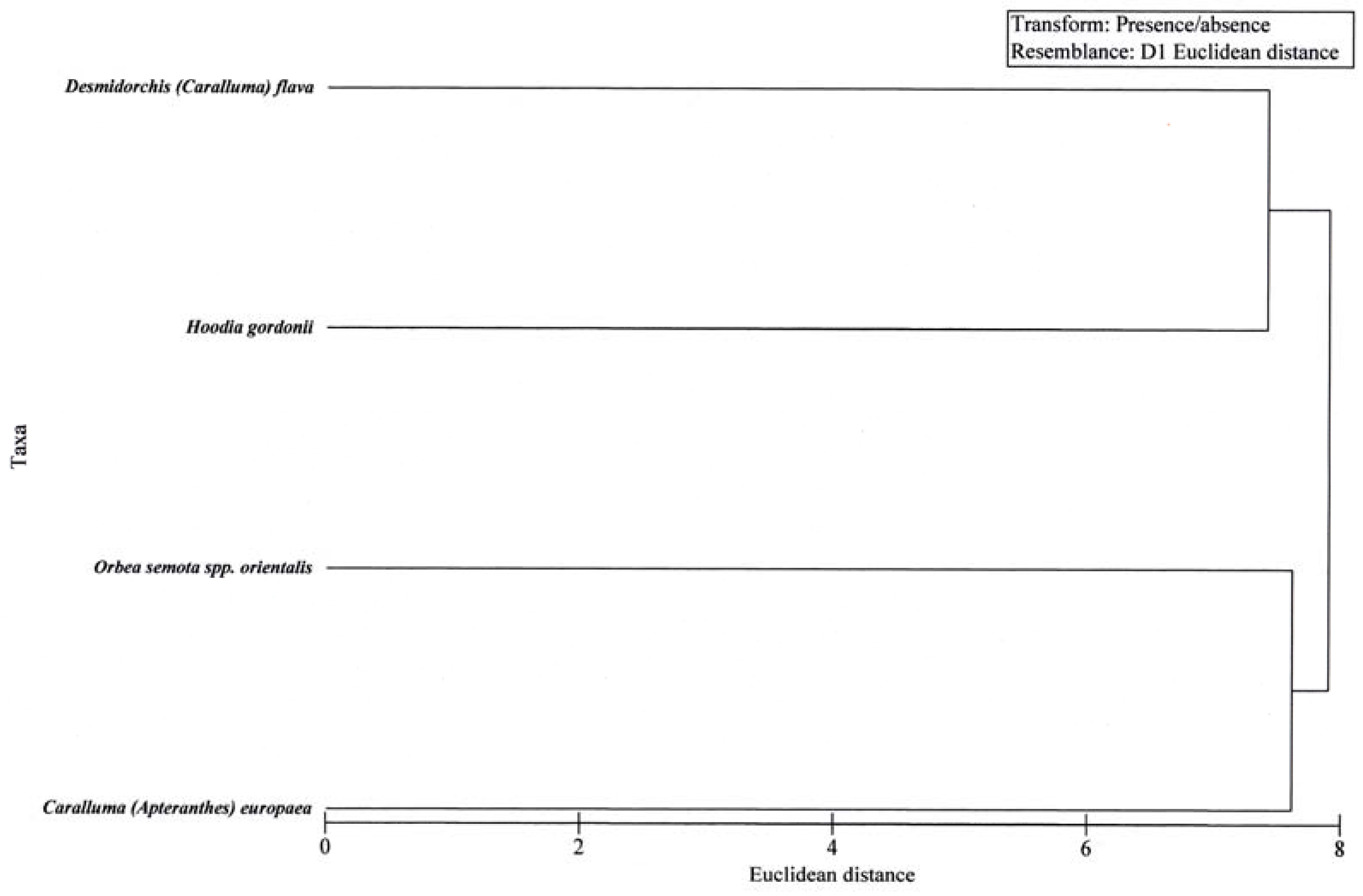

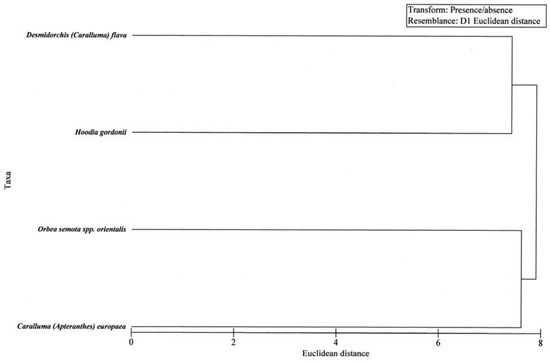

Figure 2. Cluster analysis based on a binary presence-absence matrix of the volatile profile of Hoodia gordonii, Desmidorchis flava and Orbea semota spp. orientalis [4] and C. europaea using Euclidean distances between taxa showing the close relationship of volatiles composition among the taxa.
Figure 2. Cluster analysis based on a binary presence-absence matrix of the volatile profile of Hoodia gordonii, Desmidorchis flava and Orbea semota spp. orientalis [4] and C. europaea using Euclidean distances between taxa showing the close relationship of volatiles composition among the taxa.
Molecules 14 04597 g002

Experimental

General

Flowers of C. europaea were collected in Lampedusa Island (Italy, 35°29’28” and 35°21’39” N - 12°30’54” and 12°37’55” E) in April 2009 from plants growing in the “Guitgia” area at an altitude of 20 m a.s.l. Clones of the plants are cultivated at the Botanical Garden of Palermo and a voucher specimen (N° PAL/MS/1119) was deposited in the Herbarium, Orto Botanico, Palermo, Italy. The flowers were removed from the plants with a single stroke of a razor blade, the cut surface was sealed with a drop of metacrylate (Attak®) to avoid the release of volatile compounds due to the cutting, placed in 20 mL autosampler vials with cripto caps and stored at –10 °C. The direct headspace analyses were performed after equilibrating the vials in a heated block. Headspace conditions were: equilibration time 35 min at 105 °C, pressurization time 1.0 min and loop fill time 1.0 min. The chemical composition was determined by using a HP 7694E headspace sampler coupled to a gas chromatograph interfaced with a HP 6890 GC SYSTEM flame ionization detector. Components were separated using two fused-silica capillary columns connected in series by press-fit: first column Carbowax EASYSEP connected to the detector, 30 m × 0.53 mm i.d., 1 µm film thickness and the second CP Sil 5CB connected to the injector; 25 m × 0.53 mm i.d., 5 µm film tickness. GLC conditions were: oven temperature 40°C with 8 min initial hold and then two ramps: the first from 40 °C to 150 °C at 2 °C/min and the second from 150 °C to 210 °C at 35 °C/min (6 min). The injector was maintained at 250 °C (splitless mode) and He was used as carrier gas (5 mL/min). Most constituents were identified by comparison of their retention indices (Ri) with either those of the literature [34,35] or with those of authentic compounds available in our laboratories. The retention indices were determined in relation to a homologous series of n-alkanes (C8-C18) under the same operating conditions. Further identification was made by comparison of their mass spectra with either those stored in NIST 98 library or with mass spectra from the literature [34,36] and a home-made library. Pure commercial essential oil components used as standards for GC-FID analyses were obtained from Aldrich and Fluka. The comparison of the volatile composition of C. europaea with that of other taxa was performed by cluster analysis based on a binary presence-absence matrix of the volatile profile using Euclidean distances among taxa [37].
Molecules 14 04597 g003 550
Figure 3. The scent of C. europaea flowers attracts different families of Diptera. The photo shows Musca autumnalis (Muscidae) inserting its proboscid in the anther slit of the flower of C. europaea in search of food resource. Linalool, the third more abundant compound of C. europaea flower volatiles, is an attractant of Muscidae (Photo by P. Zito).
Figure 3. The scent of C. europaea flowers attracts different families of Diptera. The photo shows Musca autumnalis (Muscidae) inserting its proboscid in the anther slit of the flower of C. europaea in search of food resource. Linalool, the third more abundant compound of C. europaea flower volatiles, is an attractant of Muscidae (Photo by P. Zito).
Molecules 14 04597 g003

Conclusions

The volatile compounds found in the flowers of C. europaea seems to be a very attractive spectrum for the flies involved in pollination of this species. Flies are almost ubiquitous insects, occurring also in unfavourable habitats where other insects may be rare. Enabled by a highly sensitive olfaction system, flies are attracted to odors over long distances. C. europaea grows at the base of others plants or rocks or camouflaged in its environment, and flies may be the most abundant insects and therefore the sapromyiophilous syndrome reflects the adaptation of this species to this environment. Recently Pisciotta et al. [33] found that C. europaea in Lampedusa Island is pollinated by eight species of Diptera belonging to five families: Calliphoridae, Milichiidae, Muscidae (Figure 3), Sarcophagidae, and Trixoscelididae. It is interesting to note that all the Diptera families involved in pollination have a biology linked to decaying organic matters and therefore C. europaea falls within the sapromyiophilous pollination syndrome. According to Dobson [21] a single fly species may visit distinct flowers for different purposes (i.e. food versus oviposition) and therefore pollinate flowers. In particular flies prefer yellow in the presence of sweet scents, which signal food sources, and brown-purple in the presence of odor of excrements, which indicate egg-laying sites. Flowers of C. europaea are brown-purple with yellow stripes, they contain compounds with both sweet odors and compounds found in excrements, and in this way they may mimic both food resources and oviposition sites thus augmenting the spectrum of potential pollinators.

Acknowledgements

The headspace GC determination was carried out in the Dipartimento di Ingegneria Chimica ed Alimentare, Università degli Studi di Salerno. The assistance of its staff is gratefully appreciated. We would like to thank the Director G. Nicolini and the staff of Riserva Naturale Orientata Isola di Lampedusa for their assistance and logistical support. We also thank Silvestro Pisciotta, PhD student at University of Palermo, for the useful discussions on the pollination syndrome in Apocynaceae.
  • Sample Availability: The samples used for testing the behaviour of the pure compounds were all purchased from Aldrich (Milan) and are available from the authors.

References and Notes

  1. Knudsen, J.T.; Eriksson, R.; Gershenzon, J.; Ståhl, B. Diversity and distribution of floral scent. Bot. Rev. 2006, 72, 1–120. [Google Scholar] [CrossRef]
  2. Dudereva, N.; Negre, F.; Nagegowda, D.A.; Orlova, I. Plant volatiles: Recent advances and future perespectives. Cr. Rev. Plant Sci. 2006, 25, 417–440. [Google Scholar] [CrossRef]
  3. Meve, U.; Heneidak, S. A morphological, karyological and chemical study of the Apteranthes (Caralluma) europaea complex. Biol. J. Linnean Soc. 2005, 149, 419–432. [Google Scholar] [CrossRef]
  4. Jürgens, A.; Dötterl, S.; Meve, U. The chemical nature of fetid floral odours in stapeliads (Apocynaceae-Asclepiadoideae-Ceropegieae). New Phytol. 2006, 172, 452–468. [Google Scholar] [CrossRef]
  5. Jürgens, A.; Dötterl, S.; Liede-Schumann, S.; Meve, U. Chemical diversity of floral volatiles in Asclepiadoideae-Asclepiadeae (Apocynaceae). Biochem. Syst. Ecol. 2009, 36, 842–852. [Google Scholar]
  6. Arnould, C.; Malosse, C.; Signoret, J.-P.; Descoins, C. Which chemical constitutents from dog feces are involved in its food repellent effect in sheep? J. Chem. Ecol. 1998, 24, 559–576. [Google Scholar] [CrossRef]
  7. Goodrich, B.S.; Hesterman, E.R.; Shaw, K.S.; Mykytowycz, R. Identification of some volatile compounds in the odour of faecal pellets of the rabbit, Oryctolagus cuniculus. J. Chem. Ecol 1981, 7, 817–827. [Google Scholar] [CrossRef]
  8. Kite, G.C. The floral odour of Arum maculatum. Biochem. Syst. Ecol. 1995, 23, 343–354. [Google Scholar] [CrossRef]
  9. Statheropoulos, M.; Spiliopoulou, C.; Agapiou, A. A study of volatile organic compounds evolved from the decaying human body. Forensic Sci. Int. 2005, 153, 147–155. [Google Scholar] [CrossRef]
  10. Xue, C.; Ye, M.; Li, Z.; Cai, Y.; Tan, L.; Lin, H.; Sakaguchi, M. Changes in the volatile compounds of Yellowtail (Seriola aureovitata) during refrigerate storage. Asian Fish. Sci. 2000, 13, 263–270. [Google Scholar]
  11. Jónsdóttir, R.; Ólafsdóttir, G.; Chanie, E.; Haugen, J.-E. Volatile compounds suitable for rapid detection as quality indicators of cold smoked salmon (Salmo salar). Food Chem. 2008, 109, 184–195. [Google Scholar] [CrossRef]
  12. Vass, A.A.; Smith, R.R.; Thompson, C.V.; Burnett, M.N.; Dulgerian, N.; Eckenrode, B.A. Odor Analysis of Decomposing Buried Human Remains. Forensic Sci. Int. 2008, 53, 384–391. [Google Scholar] [CrossRef]
  13. Machiels, D.; van Ruth, S.M.; Posthumus, M.A.; Istasse, L. Gas chromatography-olfactometry analysis of the volatile compounds of two commercial Irish beef meats. Talanta 2003, 60, 755–764. [Google Scholar] [CrossRef]
  14. Kai, P.; Schäfer, A. Identification of Key Odour components in Pig House Air using Hyphenated Gas Chromatography Olfactometry. Agric. Eng. Int. 2004, 6. Manuscript BC 04 006. [Google Scholar]
  15. Curioni, P.M.G.; Bosset, J.O. Key odorants in various cheese types as determined by gas chromatography-olfactometry. Int. Dairy J. 2002, 12, 959–984. [Google Scholar] [CrossRef]
  16. Kite, G.C.; Hetterscheid, W.L.A.; Lewis, M.J.; Boyce, P.C.; Ollerton, J.; Cocklin, E.; Diaz, A.; Simmonds, M.S.J. Inflorescence odours and pollinators of Arum and Amorphophallus (Araceae). In Reproductive Biology; Owens, S.J., Rudall, P.J., Eds.; Royal Botanic Gardens Kew: London, UK, 1998; pp. 295–315. [Google Scholar]
  17. Hadacek, F.; Weber, M. Club-shaped organs as additional osmophores within the Sauromatum inflorescence: odour analysis, ultrastructural changes and pollination aspects. Plant Biol. 2002, 4, 367–383. [Google Scholar] [CrossRef]
  18. Patt, J.M.; French, J.C.; Schal, C.; Lech, J.; Hartman, T.G. The pollination biology of Tuckahoe, Peltandra virginica (Araceae). Am. J. Bot. 1995, 82, 1230–1240. [Google Scholar] [CrossRef]
  19. Alves, R.J.V.; Pinto, A.C.; Da Costa, A.V.M.; Rezende, C.M. Zizyphus mauritiana Lam. (Rhamnaceae) and the chemical composition of its floral fecal odor. J. Braz. Chem. Soc. 2005, 16, 654–656. [Google Scholar] [CrossRef]
  20. El-Sayed, A.M. The Pherobase: Database of Insect Pheromones and Semiochemicals. Available online: http://www.pherobase.com/ accessed on October 9, 2009.
  21. Dobson, H.E.M. Relationship between floral fragrance composition and type of pollinator. In Biology of Floral Scent; Dudareva, N.A., Pichersky, E., Eds.; CRC Press Taylor & Francis Group: London, UK, 2006; pp. 147–198. [Google Scholar]
  22. Skubatz, H.; Kunkel, D.D.; Howald, W.N.; Trenkle, R.; Mookherjee, B. The Sauromatum guttatum appendix as an osmophore: excretory pathways, composition of volatiles and attractiveness to insects. New Phytol. 1996, 134, 631–640. [Google Scholar] [CrossRef]
  23. Diaz, A.; Kite, G.C. Why be a rewarding trap? The evolution of floral rewards in Arum (Araceae), a genus characterized by saprophilous pollination systems. Biol. J. Linnean Soc. 2006, 88, 257–268. [Google Scholar]
  24. Vogel, S.; Martens, J. A survey of the function of the lethal kettle traps of Arisaema (Araceae), with records of pollinating fungus gnats from Nepal. Biol. J. Linnean Soc. 2000, 133, 61–100. [Google Scholar] [CrossRef]
  25. Kite, G.C.; Hetterscheid, W.L.A. Inflorescence odours of Amorphophallus and Pseudodracontium (Araceae). Phytochemistry 1997, 46, 71–75. [Google Scholar]
  26. Acree, T.; Arn, H. Flavornet. 2004. Available online: http://www.flavornet.org/flavornet.html/ accessed on October 9, 2009.
  27. Dunkel, M.; Schmidt, U.; Struck, S.; Berger, L.; Gruening, B.; Hossbach, J.; Jaeger, I.S.; Effmert, U.; Piechulla, B.; Eriksson, R.; Knudsen, J.; Preissner, R. SuperScent—A database of flavors and scents. Nucleic Acids Res. 2008. [Google Scholar] [CrossRef]
  28. Sigma Aldrich. SAFC Flavours and Fragrances Catalog 2007-2008. Available online: http://safcsupplysolutions.com/ accessed on October 9, 2009.
  29. Mottram, R. LRI and Odour database. Flavour Research Group, the University of Reading, United Kingdom. Available online: http://www.odour.org.uk/index.html/ accessed on October 9, 2009.
  30. Bruyns, P.V.; Jonkers, H.A. The genus Caralluma R. Br. (Asclepiadaceae) in Oman. Bradleya 1994, 11, 51–69. [Google Scholar]
  31. Meve, U.; Liede, S. Floral biology and pollination in stapeliads—new results and a literature review. Pl. Syst. Evol. 1994, 192, 99–116. [Google Scholar] [CrossRef]
  32. Ollerton, J.; Liede, S. Pollination systems in the Asclepiadaceae: A survey and preliminary analysis. Biol. J. Linnean Soc. 1997, 62, 593–610. [Google Scholar] [CrossRef]
  33. Pisciotta, S.; Raspi, A.; Sajeva, M. submitted. First records of pollinators of two co-occurring Mediterranean Apocynaceae. Plant Biosyst.
  34. Jennings, W.; Shibamoto, T. Qualitative Analysis of Flavor and Fragrance Volatiles by Glass Capillary Chromatography; Academic Press: New York, NY, USA, 1980. [Google Scholar]
  35. Davies, N.W. Gas Cromatographyc detection indexes of monoterpenes and sesquiterpenes on methyl silicone and Carbowax 20 M phases. J. Chromatogr. A 1990, 503, 1–24. [Google Scholar] [CrossRef]
  36. Adams, R.P. Identification of Essential Oils Components by Gas Chromatography/Mass Spectrometry, 4th ed; Allured Publ. Corp.: Carol Stream, IL, USA, 2007. [Google Scholar]
  37. Clarke, K.R.; Warwick, R.M. Change in Marine Communities: An Approach to Statistical Analysis and Interpretation, 2nd ed; Primer-E Ltd: Plymouth, UK, 2001. [Google Scholar]

Share and Cite

MDPI and ACS Style

Formisano, C.; Senatore, F.; Della Porta, G.; Scognamiglio, M.; Bruno, M.; Maggio, A.; Rosselli, S.; Zito, P.; Sajeva, M. Headspace Volatile Composition of the Flowers of Caralluma europaea N.E.Br. (Apocynaceae). Molecules 2009, 14, 4597-4613. https://doi.org/10.3390/molecules14114597

AMA Style

Formisano C, Senatore F, Della Porta G, Scognamiglio M, Bruno M, Maggio A, Rosselli S, Zito P, Sajeva M. Headspace Volatile Composition of the Flowers of Caralluma europaea N.E.Br. (Apocynaceae). Molecules. 2009; 14(11):4597-4613. https://doi.org/10.3390/molecules14114597

Chicago/Turabian Style

Formisano, Carmen, Felice Senatore, Giovanna Della Porta, Mariarosa Scognamiglio, Maurizio Bruno, Antonella Maggio, Sergio Rosselli, Pietro Zito, and Maurizio Sajeva. 2009. "Headspace Volatile Composition of the Flowers of Caralluma europaea N.E.Br. (Apocynaceae)" Molecules 14, no. 11: 4597-4613. https://doi.org/10.3390/molecules14114597

Article Metrics

Back to TopTop
