Article

Asymmetric Ruthenium(II) and Osmium(II) Complexes with New Bidentate Polyquinoline Ligands. Synthesis and NMR Characterization

Dipartimento Metodologie Fisiche e Chimiche per l’Ingegneria, Facoltà di Ingegneria, Università di Catania, Viale A. Doria 6, 95125, Catania, Italy
*
Author to whom correspondence should be addressed.
Molecules 2010, 15(3), 1324-1339; https://doi.org/10.3390/molecules15031324
Submission received: 25 January 2010 / Revised: 11 February 2010 / Accepted: 1 March 2010 / Published: 5 March 2010

Abstract

:
A series of Ru(II) and Os(II) tris-chelate complexes with new bidentate 2-pyridylquinoline ligands have been synthesized and fully characterized by EA,1H-NMR and FAB-MS techniques. The new ligands are: L1 = 4-p-methoxyphenyl-6-bromo-2-(2′-pyridyl)quinoline (mphbr-pq) and L2 = 4-p-hydroxyphenyl-6-bromo-2-(2′-pyridyl)- quinoline (hphbr-pq). The complexes studied are: [Ru(bpy)2L1](PF6)2 (C1), [Ru(bpy)2L2](PF6)2 (C2), [Os(bpy)2L1](PF6)2 (C3), [Os(bpy)2L2](PF6)2 (C4) (bpy = 2,2′-bipyridine), [Ru(dmbpy)2L1](PF6)2 (C5), [Ru(dmbpy)2L2](PF6)2 (C6), [Os(dmbpy)2L1](PF6)2 (C7), and [Os(dmbpy)2L2](PF6)2 (C8) (dmbpy = 4,4′-dimethyl-2,2′-bipyridine). Moreover, new functionalized complexes C9-C12 were obtained by the base-catalyzed direct alkylation of C2, C4, C6, and C8 with 6-bromo-1-hexene. The complete assignment of the 1H-NMR spectra for the two new ligands (L1 and L2), and their Ru(II) or Os(II) complexes has been accomplished using a combination of one- and two-dimensional NMR techniques. The JH,H values have been determined for the majority of the resonances.

1. Introduction

Transition metal complexes have tremendous potential as diagnostic and therapeutic agents. They can be exploited for their modularity, reactivity, imaging capabilities, redox chemistry, and precisely defined three-dimensional structure [1,2,3,4,5]. Several [Ru(bpy)3]-derived (bpy = 2,2′-bipyridine) complexes were synthesized and compared electrochemically and spectroscopically in the search for better luminophores for electrochemiluminescence (ECL)-based analytical applications [6].
Electrochemiluminescence is a kind of sensitive process releasing light during reaction, which has potential applications in biological, pharmaceutical, and chemical land environmental analysis, due to its continuance, sensitivity, low-detection limit, reproducibility and relative easiness to be automatically controlled [7]. However, it is noted that different configurations in metal complexes affect a variety of activities, and most attention has been focused on symmetric aromatic ligands. On the other hand, only a limited number of ruthenium complexes containing asymmetric ligands have so far been described, and little attention has been paid to the investigation of their DNA-binding properties [8].
Among the factors governing the binding modes, it appears that the most significant is likely to be that of molecular shape. Studies reveal that the ligand modifications in geometry, size, hydrophobicity, planarity, and hydrogen-bonding ability of the complexes, may lead to suitable or spectacular changes in the binding modes, location, affinity, and to a different cleavage effect [9]. Therefore, inspired by Vos studies [10], we became interested in the synthesis of new polypyridyl ruthenium(II)/osmium(II) complexes with asymmetric ligands, with the aim of investigating (i) the effect of asymmetry on the photophysical properties of such compounds; (ii) their interaction properties with DNA [11]; (iii) their potential for the fabrication of new monolayers on both silica and Si substrates, namely to transfer molecular properties to the solid state thus obtaining photoluminescent devices [12,13].
LigandR1NomenclatureInitials
L1–OCH34-p-methoxyphenyl-6-bromo-2-(2′-pyridyl)quinolinemphbr-pq
L2–OH4-p-hydroxyphenyl-6-bromo-2-(2′-pyridyl)quinolinehphbr-pq
By continuing our previous studies in this field [14,15,16,17], we have designed two new asymmetric ligands (L1, L2), shown in Scheme 1, from which twelve aza-bidentate complexes with transition metals like ruthenium or osmium have been derived (See Scheme 2 and Scheme 5). This paper reports, as a first step, the synthesis and characterization of all the new compounds, while preliminary data on their luminescent properties, DNA binding, and solid state photoluminescent devices [18] will be reported elsewhere. All the compounds were characterized by EA, EI/FAB-MS and 1H-NMR spectroscopy. Complete assignments of the 1H spectra of the various compounds were accomplished by using a combination of one- and two-dimensional NMR techniques.

2. Result and Discussion

2.1. Ligands

Following the synthetic pathway previously used for the preparation of the parent ligand 4-phenyl-2-(2′-pyridyl)quinoline (ph-pq) [19], namely the acid-catalyzed condensation of o-amino- benzophenone with 2- acetylpyridine, we have synthesized ligand L1 in a three synthetic steps as shown in Scheme 2.
4’-Methoxy-2-amino-5-bromobenzophenone (2) was obtained by condensation of p-nitrobromo-benzene with p-methoxyphenylacetonitrile in a basic ethanol/tetrahydrofuran medium to give 3-p-methoxyphenyl-5-bromo-2,1-benzisoxazole (1) (66%), which upon reductive cleavage (Fe/CH3COOH) of the benzoisoxazole ring was converted to the desired aminoketone 2 (70%). A subsequent Friedlander reaction [20,21] of the o-aminobenzophenone 2 with 2-acetylpyridine, using a mixture of m-cresol and phosphorous pentoxide gave ligand L1 (71%). The subsequent demethylation of L1 with boron tribromide [22] afforded a new ligand 4-p-hydroxyphenyl-6-bromo-2-(2’-pyridyl)-quinoline (brhph-pq) (L2) as is shown in Scheme 3.
The 1H-NMR spectroscopy proved to be a useful tool to check the structure of the synthesized ligands. By taking advantage of our previous 1H-NMR studies on similar compounds [16], we were able to make by comparison the overall proton assignments for our ligands that are reported in Table 1.
The 1H-NMR spectra of the synthesized ligands show the same trend in the region 7.0–9.0 ppm and in Figure 1 is reported an expanded section of the 1H-NMR spectrum in (CD3)2CO of L2, showing the assignments of all peaks as gathered in Table 1. In all cases, the spectra were found to be consistent with the expected structures. The 1H-NMR spectrum (Figure 1) of L2 shows the expected pattern for a 2,4′′,6-trisubstituted 4-phenylquinoline moiety. In fact the two doublets at 8.60 and 8.73 ppm and two double triplets at 7.89 and 7.38 ppm, assigned to H3′, H6′, H4′ and H5′, respectively, is of diagnostic value for the presence of an α-pyridinyl group linked to the quinoline unit. Furthermore, one AAXX′ system (two doublets at 7.52 and 7.09 ppm) –easily recognized because of its symmetry and apparent simplicity– accounts for a 1,4-disubstituted benzene ring having the 4′′ position occupied by the hydroxyl group (broad resonance at 8.79 ppm). Finally, the lack of any signal for a hypothetic H6 proton along with the multiplicity of H8, H7 and H5 protons is in agreement with the presence of the bromine substituent, as confirmed by elemental analysis.

2.2. Complexes

According to Scheme 4, by crossing the ligands L1 or L2 with the starting cis form of bis-chelate Ru(bpy)2Cl2, Os(bpy)2Cl2, Ru(dmpy)2Cl2, and Os(dmbpy)2Cl2 complexes where the two bpy or dmbpy (dmbpy = 4,4′-dimethyl-2,2′bipyridine) units lie on orthogonal planes and the chlorine atoms occupy adjacent coordination sites, we have synthesized eight new tris-chelate complexes C1–C8.
ComplexLigandMeR1R2Chemical Formula
C1L1Ru-OCH3H[Ru(bpy)2L1] (PF6)2
C2L2Ru-OHH[Ru(bpy)2L2] (PF6)2
C3L1Os-OCH3H[Os(bpy)2L1] (PF6)2
C4L2Os-OHH[Os(bpy)2L2] (PF6)2
C5L1Ru-OCH3CH3[Ru(dmbpy)2L1] (PF6)2
C6L2Ru-OHCH3[Ru(dmbpy)2L2] (PF6)2
C7L1Os-OCH3CH3[Os(dmbpy)2L1] (PF6)2
C8L2Os-OHCH3[Os(dmbpy)2L2] (PF6)2
The syntheses were accomplished by reacting equimolar amounts of the reagents in refluxing ethanol for 8 h, followed by dropwise addition of a 20% water solution of NH4PF6, in order to get the red-orange complexes. These were collected by filtration and purified by crystallization. Owing to the ability of alkene molecules to covalently bond to hydrogen-terminated crystalline silicon (111) by thermally induced hydrosilylation [23], the required cis octahedral coordinated complexes C9–C12 were prepared by direct alkylation of C2, C4, C6, and C8, respectively, with 6-bromo-1-hexene in K2CO3/CH3CN mixture, as shown in Scheme 5. These new tris-chelate complexes exhibit, besides the two bpy or dmbpy moieties, the new 4-p-(5-hexen-1-yloxy)phenyl-6-bromo-2-(2-pyridyl)quinoline ligand (L3).
ComplexLigandMeR1R2Chemical Formula
C9L3RuO(CH2)4CH=CH2H[Ru(bpy)2L3](PF6)2
C10L3OsO(CH2)4CH=CHH[Os(bpy)2L3](PF6)2
C11L3RuO(CH2)4CH=CHCH3[Ru(dmbpy)2L3](PF6)2
C12L3OsO(CH2)4CH=CHCH3[Os(dmbpy)2L3](PF6)2
The synthesized complexes were generally stable, diamagnetic, and kinetically inert. The 1H-NMR spectra of Ru(bpy)2Cl2 and Os(bpy)2Cl2 show [24,25] eight different signals for the aromatic hydrogens, that become six for Ru(dmbpy)2Cl2, and Os(dmbpy)2Cl2, consistently with the presence in solution of two non-interconverting enantiomers possessing C2 symmetry. Substitution of the two chlorine atoms with ligands mphbr-pq (L1) or hphbr-pq (L2) yields the corresponding tris-chelate complexes which, in a cis octahedral coordination, are also capable of existing in two enantiomeric propeller conformations, but, in contrast to the above cited bis-chelate complexes, do not possess a C2 axis of symmetry.
The reduced symmetry of these complexes removes the degeneracies associated with the C2 axis in the starting Ru(bpy)2Cl2, giving rise to a structure of the general type [Me(bpy)2L](PF6)2, (being Me = Ru or Os) and L is an unsymmetrical bidentate ligand like L1 or L2. As a consequence, howing to the asymmetry of the complexes, and to the kinetically restricted interconversion of the two enantiomers on the NMR time-scale, the 1H-NMR spectra of complexes C1–C12 are quite complicated showing 16 signals for the diastereomeric protons of the two bpy moieties (Abpy and Bbpy) in addition to 13 signals for the ligand L1 or L2 and 18 for L3, as reported in Table 2.
As an example, Figure 2 shows the downfield aromatic section of the 1H NMR spectrum of complex C1. The twentyeight methine resonances, arising from the two bipyridyl units (Abpy and Bbpy) and to the bidentate ligand (mphbr-pq) (L1) are spread out over a 2.5 ppm interval. As described in the following, each signal has been assigned to the respective proton with the aid of mono and two-dimensional techniques. Chemical shifts and assignments are reported in Table 2 and Figure 3.
The assignment of the sole singlet in the spectrum (8.98 ppm, H3) is straightforward. In fact, it is worth to note that the 3-positioned aromatic proton of the pyridine moiety in Ru(II) complexes displays a remarkable deshielding of ca 0.45 ppm, as compared to the free ligands, that is considered diagnostic for their formation.
In the COSY-45 spectrum of C1 (see Figure 3) correlations between ortho, meta and para protons are normally observable; differentiation among 1J, 2J and 3J couplings has been greatly aided by the careful examination of shape and intensity of the cross-peaks. Starting from the peak at 9.51 (H3′), the sequence of signals at 8.29 (H4′), 7.63 (H5′) and 8.04 ppm (H6′) can be assigned; another set of connectivities (signals at 8.18/7.50/7.74 ppm) allows to assign the sequence H5, H7, and H8 of the ligand mphbr-pq. Unambiguous identification of H8 (7.74) is based on the upfield shift observed for this proton in 1H NMR spectrum of the Ru(II) complex C1 with respect to the free ligand L1 (see Table 1), probably due to the shielding effect of a pyridine ring approximately orthogonal to this proton; H5 shows, on the contrary, a negligible downfield shift. The intense peaks at 7.73 and 7.22 ppm indicate the presence of an AAXX system diagnostic of p-disubstituted benzene ring, and may be easily attributed to the resonances of four phenyl protons of mphbr-pq.
Following inspection of the COSY spectrum, further sequences of isolated four-spin systems can be analyzed. Using low-field signals as convenient starting points, it is possible to establish the complete set of connectivities for the following sequences of signals: 9.43/8.22/8.54/7.93 ppm, 9.41/8.23/7.68/8.32 ppm, 9.13/8.24/7.54/8.48 ppm and 9.06/8.08/7.52/7.87 ppm. Owing to a combination of inductive and steric effects, the proton H7, H8, and H6’ of the asymmetric ligands experience, upon complexation, an upfield effect with respect to the free ligands as is shown in Table 2. It is also worth noting that in the case of complexes with dmbpy moieties (C5C8) we observe two different signals for the four methyl groups in the ratio 1:3 (with the less intense signal experiencing an upfield effect), suggestive of the presence of a clear steric effect between the big bromo substituent linked to the quinoline moiety of the asymmetric ligands and the methyl group linked to the nearest pyridine ring of the Abpy moiety. (See Scheme 4)
On the basis of this evidence, after inspection of the molecular models and taking into account the resonances of H6 and/or H6′ bpy protons, we assume that binding of the asymmetric ligands (L1 or L2) is expected to strongly shield these protons and shift them to higher field. In other words, upon complexation the nearest is the proton of the bpy units to the asymmetric ligand, the stronger is the upfield effect experienced. As a consequence, in accord with the numbering pattern shown in Scheme 4 and/or Scheme 5, resonances at 7.87, 7.93, 8.32,and 8.48 ppm were assigned to H6′A, H6B, H6′B and H6A, respectively. Therefore the former pair of sequence signals is assigned to the protons H3B and H3’B of the same bpy unit, respectively, and the latter one to H3A and H3′A of the other bpy unit. The assignments of the above cited signals to the sequences from position 3 to position 6 of the bpy ligands are reported in Table 2.

3. Experimental

3.1. General

The starting materials, 2-acetylpyridine, 2-aminobenzophenone, p-nitrobromobenzene, p-methoxyphenylacetonitrile, 4,4’-dimethylbpy, and 6-bromo-1-hexene, were purchased from Aldrich. All other chemicals were reagent grade. Os(bpy)2Cl2, Ru(dmbpy)2CL2 and Os(dmbpy)2CL2 were synthesized by the method of Togano et al. for Ru(bpy)2Cl2 and were used without purification [26]. All reactions were performed under an inert atmosphere of nitrogen except when otherwise stated and the solvents were dried and stored under nitrogen and over 4Å molecular sieves. Melting points are uncorrected. Elemental analyses were determined commercially. The analytical and FAB-MS data of complexes C1C12 are gathered in Table 3. Proton spectra were performed in (CD3)2CO or CDCl3 by using a Varian INOVA 500 MHz instrument. 1H-NMR spectra were calibrated relative to the solvent resonance considered at 2.05 or 7.26 ppm for residual (CH3)2CO or CHCl3, respectively. The analysis of the proton spectra was carried out according to the rules for the first-order splitting with the help of integral intensities, and resonance splitting patterns are abbreviated by using s for singlet, d for doublet, dd for doublet of doublets, t for triplet, and m for multiplet. Positive ion FAB mass spectra were obtained on a Kratos MS 50 S double-focusing mass spectrometer equipped with a standard FAB source, using 3-nitrobenzyl alcohol as the matrix. The 1H spectra with assigned signals are given in Table 2.

3.2. Syntheses

3-p-Methoxyphenyl-5-bromo-2,1-benzoisoxazole (1). To a vigorously stirred solution containing potassium hydroxide (17.76 g, 310 mmol) in methanol (35 mL) at room temperature, was slowly added p-methoxyphenylacetonitrile (1.75 g, 15 mmol). After dissolution was complete, a methanol/tetrahydrofuran (2:1, v/v) solution (36 mL) containing p-nitrobromobenzene (3.0 g, 15 mmol) was added dropwise at 0 °C. The resulting dark mixture was stirred at 0 °C for 3 h, at room temperature for 4 h, refluxed overnight, and then poured into ice-water (300 mL) to afford, after filtration, cold water and methanol washings and methanol recrystallization, compound 1 as yellow crystals; 2.22 g (66%); m.p. 112 °C; 1H-NMR (CDCl3) δ: 8.05 (bs, 1H, H4 of benzoisoxazole); 7.94 (d, 2H, J = 8.5 Hz, H2’/H6’of phenyl), 7.50 (dd, 1H, J = 9.5, 1.0 Hz, H7 of benzoisoxazole); 7.36 (dd, 1H, J = 9.5, 1.5 Hz, H6 of benzoisoxazole); 7.09 (d, 2H, J = 8.5 H3’/H5’of phenyl), 3.92 (s, OCH3); MS, m/z 304 (MH+); Anal. Calcd. for C14H10BrNO: C, 56.95; H, 2.92; N, 5.11. Found: C, 57.19; H, 3.03; N, 4.86.
4’-Methoxy-2-amino-5-bromobenzophenone (2). A solution containing 1 (0.44 g, 1.6 mmol) in acetic acid (70 mL), was heated on a water-bath, and iron powder (1.0 g, 18 mmol) was added over 2.5 h, during which time water (12 mL) was also added. The mixture was filtered while hot and then water (100 mL) was added. The yellow precipitate was collected by filtration, washed with cold water until the water washings were clear and dried. The product was purified by column chromatography (silica; cyclohexane/ethyl acetate 9:1) followed by recrystallization from ethanol-water to afford 2 as a yellow powder; 031 g (70%); m.p. 105 °C; 1H-NMR (CDCl3) δ: 7.68 (d, 2H, J = 9.0 Hz, H2’/H6’of phenyl); 7.55 (d, 1H, H6 of benzene); 7.35 (dd, 1H, J = 8.5, 2.5 Hz, H4of benzene); 6.98 (d, 2H, J = 9.0 Hz, H3’/H5’of phenyl); 6.65 (d, 1H, J = 9.0 H3 of benzene) 5.83 (bs, 2H, of amino) 3.90 (s, CH3 of methoxy); MS, m/z 406 (MH+); Anal. Calcd. for C14H11BrNO: C, 56.54; H, 3.62; N, 5.07. Found: C, 56.28; H, 3.59; N, 4.95
4-p-Ethoxyphenyl-6-bromo-2-(2’-pyridyl)quinoline (brmph-pq, L1). A mixture of m-cresol (25 mL) and phosphorus pentoxide (0.81 g, 5.7 mmol) was stirred at 145 °C for 2.5 hours to afford a homogeneous solution. After cooling, 4-methoxy-2-amino-5-bromobenzophenone (4.08 g, 15 mmol) and 2-acetylpyridine (2.03 g, 15 mmol) were added, followed by m-cresol (20 mL) to rinse the powder funnel. The reaction mixture was heated at 135 °C overnight. After cooling, the dark solution was poured into ethanol (200 mL) containing triethylamine (20 mL). The light grey precipitate was collected by filtration, continuosly extracted with a solution of ethanol/triethylamine for 24 h, and recrystallized from n-hexane/methylene chloride to give brmph-pq (L1) as an off white powder; 3.96 g (71%); m.p. = 212 °C.; MS, m/z 375 (MH+).
4-p-Hydroxyphenyl-6-bromo-2-(2’-pyridyl)quinoline (brhph-pq, L2). A mixture of of L1 (0.5 g, 1.27 mmol), 1 M boron tribromide in dichloromethane ((5.69 mL, 5.08 mmol) and dichloromethane (dry, 30 mL) was stirred at −75 °C for 0.5 h and room temperature for 24 h. The reaction mixture was poured into ice and cold water (800 mL) and stirred for 0.5 h. The red precipitate was filtrated and suspended in ethanol (250 mL). The turbid red mixture was neutralized by some drops of 1N NaOH (colour changing from red to light-blue). The light-blue precipitate was collected by filtration, washed with cold water and ethanol until the water washings were clear and dried under vacuum on P2O5 at 40 °C to give 0.42 g (72%) of L2 as a white solid.
The synthesis of complex C1 is given below as a general procedure for the synthesis of C1-C8 complexes.
[Ru(bpy)2(brmph-pq)] (PF6)2. (C1). To a refluxing solution of cis-Ru(bpy)2Cl2 2H2O (0.156 g, 0.3 mmol) in ethanol (20 mL), was added dropwise a solution of brmph-pq (0.1 g, 0.35 mmol) in EtOH (20 mL), and the mixture was allowed to reflux for 8 h. After concentration and addition of water (15 mL), the mixture was refluxed for 5 min and filtered while hot. After cooling, the complex was precipitated by dropwise addition of a 20% water solution of NH4PF6 (5 mL). The red precipitate was collected, washed with cold water and Et2O, and purified by gel filtration on a column of Sephadex LH-20 in EtOH followed by recrystallization from acetone-Et2O, to give 0.22 g (72%) of C1 as red orange crystals.
The synthesis of complex C9 is given below as a general procedure for the synthesis of C9–C12 complexes.
[Ru(bpy)2(L2-hexene)](PF6)2. To a refluxing solution of K2CO3 (0,2 g, 14.5 mmol) in CH3CN (20 mL) was added dropwise a solution of [Ru(bpy)2(brhph-pq)](PF6)2 (0.06g. 0.055 mmol) in CH3CN (10 mL) and a solution of 6-bromo-1-hexene (0.018 g. 0.111 mmol) in CH3CN (10 mL) and the mixture was allowed to reflux for 48 h. Then the reaction mixture was filtered while hot to remove carbonate-salt, rotoevaporated to dryness, dissolved with a minumum quantity of acetone and poured into Et2O. The red-brown precipitate was collected by filtration, washed with Et2O, and purified by recrystallization from acetone-Et2O, to give 0.06 g (99%) of C9 as dark-red crystals.

4. Conclusions

A series of Ru(II) and Os(II) complexes with new polyquinoline asymmetric aza-bidentate ligands have been synthesized and characterized by EA, EI-FAB Mass and NMR techniques. Complete 1H NMR assignments have been obtained by the use of two-dimensional techniques. The results indicate that steric hindrance on Ru(II) or Os(II) metal has to be carefully considered in designing new bidentate asymmetric ligands. Because of their intrinsic asymmetry, the racemic complexes obtained, when resolved into their enantiomeric forms, will provide interesting species for DNA binding studies, the development of solid state photoluminescent devices, light harvesting compounds, and useful energy traps when inserted into supramolecular arrays.

Acknowledgements

We would like to thank R. Purrello and A. Gulino for helpful discussions. This work was supported by PRA funds of Catania University, Italy.

References and Notes

  1. Smalley, S.; Waterland, M.; Telfer, S. Heteroleptic dipyrrin/bipyridine complexes of ruthenium(II). Inorg. Chem. 2009, 1, 13–15. [Google Scholar] [CrossRef] [PubMed]
  2. Bolink, H.; Coronado, E.; Costa, R.; Lardiés, N.; Orti, E. Near-Quantitative internal quantum efficiency in a light-emitting electrochemical cell. Inorg. Chem. 2008, 47, 9149–9151. [Google Scholar] [CrossRef] [PubMed]
  3. Flamigni, L.; Collin, J.P.; Sauvage, J.P. Iridium terpyridine complexes as functional assembling units in arrays for the conversion of light energy. Acc. Chem. Res. 2008, 41, 857–871. [Google Scholar] [CrossRef] [PubMed]
  4. Puckett, C.; Barton, J. Mechanism of cellular uptake of a ruthenium polypyridyl complex. Biochemistry 2008, 47, 11711–11716. [Google Scholar] [CrossRef] [PubMed]
  5. Pradhan, B.; Das, S. Role of new bis(2,2’-bipyridyl)(triazolopyridyl)ruthenium(II) complex in the organic bistable memory application. Chem. Mater. 2008, 20, 1209–1211. [Google Scholar] [CrossRef]
  6. Zhou, M.; Robertson, G.; Roovers, J. Comparative study of ruthenium(II) tris(bipyridine) derivatives for electrochemiluminescence application. Inorg. Chem. 2005, 44, 8317–8325. [Google Scholar] [CrossRef] [PubMed]
  7. Richter, M.M. Electrochemiluminescence (ECL). Chem. Rev. 2004, 104, 3003–3036. [Google Scholar] [CrossRef] [PubMed]
  8. Wang, X.; Chao, H.; Li, H.; Hong, X.; Liu, Y.; Tan, L.; Ji, L. DNA interactions of cobalt(III) mixed-polypyridyl complexes containing asymmetric ligands. J. Inorg. Biochem. 2004, 98, 1143–1150. [Google Scholar] [CrossRef] [PubMed]
  9. Ji, L.; Zou, X.; Liu, J. Shape and enantioselective interaction of Ru(II)/Co(III) polypyridyl complexes with DNA. Coord. Chem. Rev. 2001, 216–217, 513–536. [Google Scholar] [CrossRef]
  10. Fanni, S.; Keyes, T.; O’Connor, C.; Hughes, H.; Wang, R.; Vos, J. Excited–states properties of ruthenium (II) polypyridyl complexes containing asymmetric triazole ligands. Coord. Chem. Rev. 2000, 208, 77–86. [Google Scholar] [CrossRef]
  11. Deng, H.; Cai, J.; Xu, H.; Zhang, H.; Ji, L. Ruthenium (II) complexes containing asymmetric ligands: synthesis, characterization, crystal structure and DNA–binding. J. Chem. Soc. Dalton Trans. 2003, 325–330. [Google Scholar] [CrossRef]
  12. Sortino, S.; Petralia, S.; Conoci, S.; Di Bella, S. Novel self-assembled monolayers of dipolar ruthenium (III/II) pentaamine (4,4’-bipyridinium) complexes on ultrathin platinum films as redox molecular switches. J. Am. Chem. Soc. 2003, 125, 1122–1123. [Google Scholar] [CrossRef] [PubMed]
  13. Shukla, A.; Das, A.; Van der Boom, M.E. Electrochemical addressing of the optical properties of a monolayer on a trasparent conducting substrate. Angew. Chem. Int. Ed. 2005, 44, 3237–3240. [Google Scholar] [CrossRef] [PubMed]
  14. Mamo, A. Synthesis and characterization of new substituted terdendate 2,6-pyridylquinolines and 1,3-benzenequinoline ligands. J. Heterocyclic. Chem. 2000, 37, 1225–1231. [Google Scholar] [CrossRef]
  15. Mamo, A.; Stefio, I.; Parisi M., F.; Di Pietro, C.; Campagna, S. Luminescent and redox-active iridium (III)-cyclometallated compounds with terdentate ligands. Inorg. Chem. 1997, 36, 5947–5950. [Google Scholar] [CrossRef] [PubMed]
  16. Mamo, A.; Stefio, I.; Poggi, A.; Tringali, C.; Di Pietro, C.; Campagna, S. Ruthenium (II) and osmium (II) complexes with new terdentate polyquinoline and cyclometalating ligands. Synthesis, NMR characterization, luminescence properties, and electrochemical behavior. New J. Chem. 1997, 21, 1173–1185. [Google Scholar]
  17. Mamo, A.; Pappalardo, A. Synthesis and characterization of acyclic and cyclic aza-bridged ligands incorporating 2,2’-bipyridine subunits and their complexes with copper (II), cobalt (II), and nickel (II). Molecules 2003, 8, 521–535. [Google Scholar] [CrossRef]
  18. Lupo, F.; Fragalà, M.; Gupta, T.; Mamo, A.; Aureliano, A.; Bettinelli, M.; Speghini, A.; Gulino, A. Optical selective CO sensing by a ruthenium monolayer covalently assembled on silica substrates. J. Mat. Chem. 2010, in press. [Google Scholar]
  19. Campagna, S.; Mamo, A.; Stille, J.K. Synthesis, characterization, luminescence properties, and electrochemical behavior of ruthenium (II) complexes with two new bidentate and tridentate 2-pyridyl-quinoline ligands. J. Chem. Soc. Dalton Trans. 1991, 2545–2551. [Google Scholar] [CrossRef]
  20. Riego, E.C.; Jin, X.; Thummel, R.P. Introduction of benzo[h]quinoline and 1,10-phenanthroline subunits by Friedlander methodology. J. Org. Chem. 1996, 61, 3017–3022. [Google Scholar]
  21. Hu, Y.Z.; Zhang, G.; Thummel, R.P. Friedlander approach for the incorporation of 6-bromoquinoline into novel chelating ligands. Org. Lett. 2003, 5, 2251–2253. [Google Scholar] [CrossRef] [PubMed]
  22. McOmie, J.F.; Watts, M.L.; West, D.E. Demethylation of aryl methyl ethers by boron tribromide. Tetrahedron 1968, 24, 2289–2292. [Google Scholar] [CrossRef]
  23. Lehner, A.; Steinhoff, G.; Brandt, M.; Eickhoff, M.; Stutzmann, M. Hydrosilylation of crystalline silicon (111) and hydrogenated amorphous silicon surfaces: A comparative x-ray photoelectron spectroscopy study. J. Appl. Phys. 2003, 94, 2289–2294. [Google Scholar] [CrossRef]
  24. Constable, E.C. Homoleptic complexes of 2,2’ bipyridine. Adv. Inorg. Chem. 1989, 34, 1–63. [Google Scholar]
  25. Lay, P.; Harmer, W.D. Recent advances in osmium chemistry. Adv. Inorg. Chem. 1991, 37, 219–379. [Google Scholar]
  26. Togano, T.; Nagao, N.; Tsuchida, M.; Kumakura, H.; Hisamatsu, K.; Howell, F.; Mukaida, M. One pot and selective synthesis of a series of [RuCl6-2nLn] (L bidentate ligand n = 0–3) types of complexes with polypyridyl ligands, another example of the synthetic utility of ‘ruthenium-blue’ solution. Inorg. Chim. Acta 1992, 195, 221–225. [Google Scholar] [CrossRef]
Sample Availability: Available from the authors.

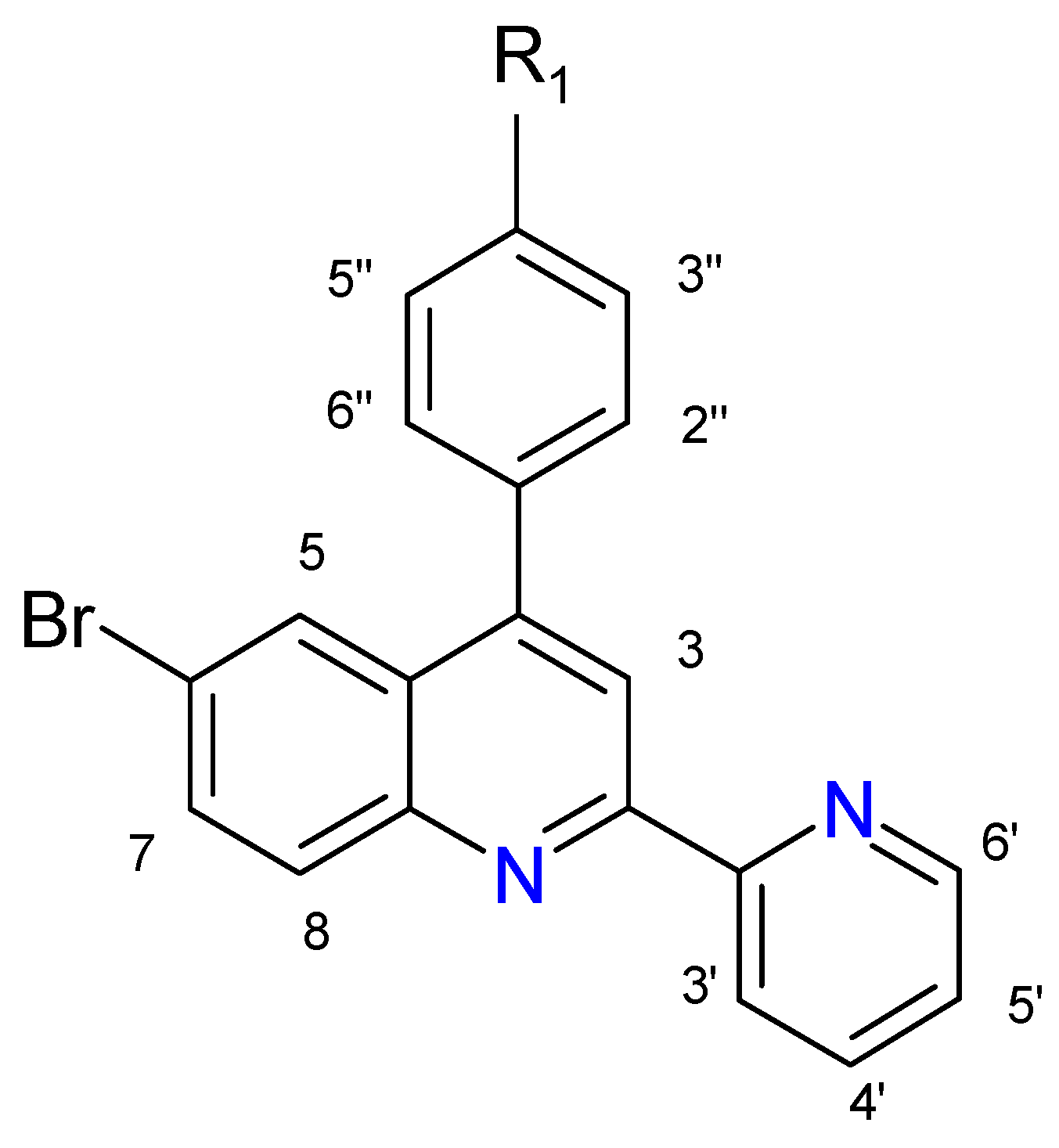

Scheme 1. Ligand moiety.
Scheme 1. Ligand moiety.
Molecules 15 01324 sch001

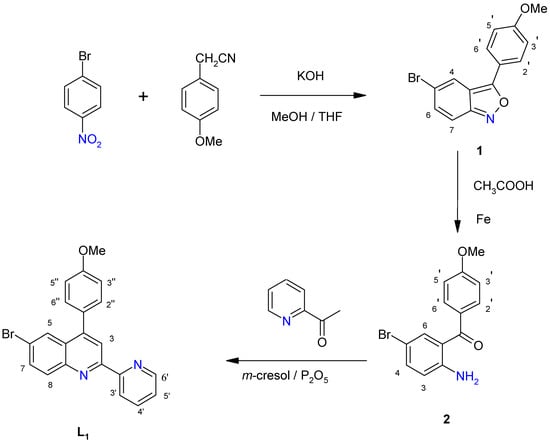

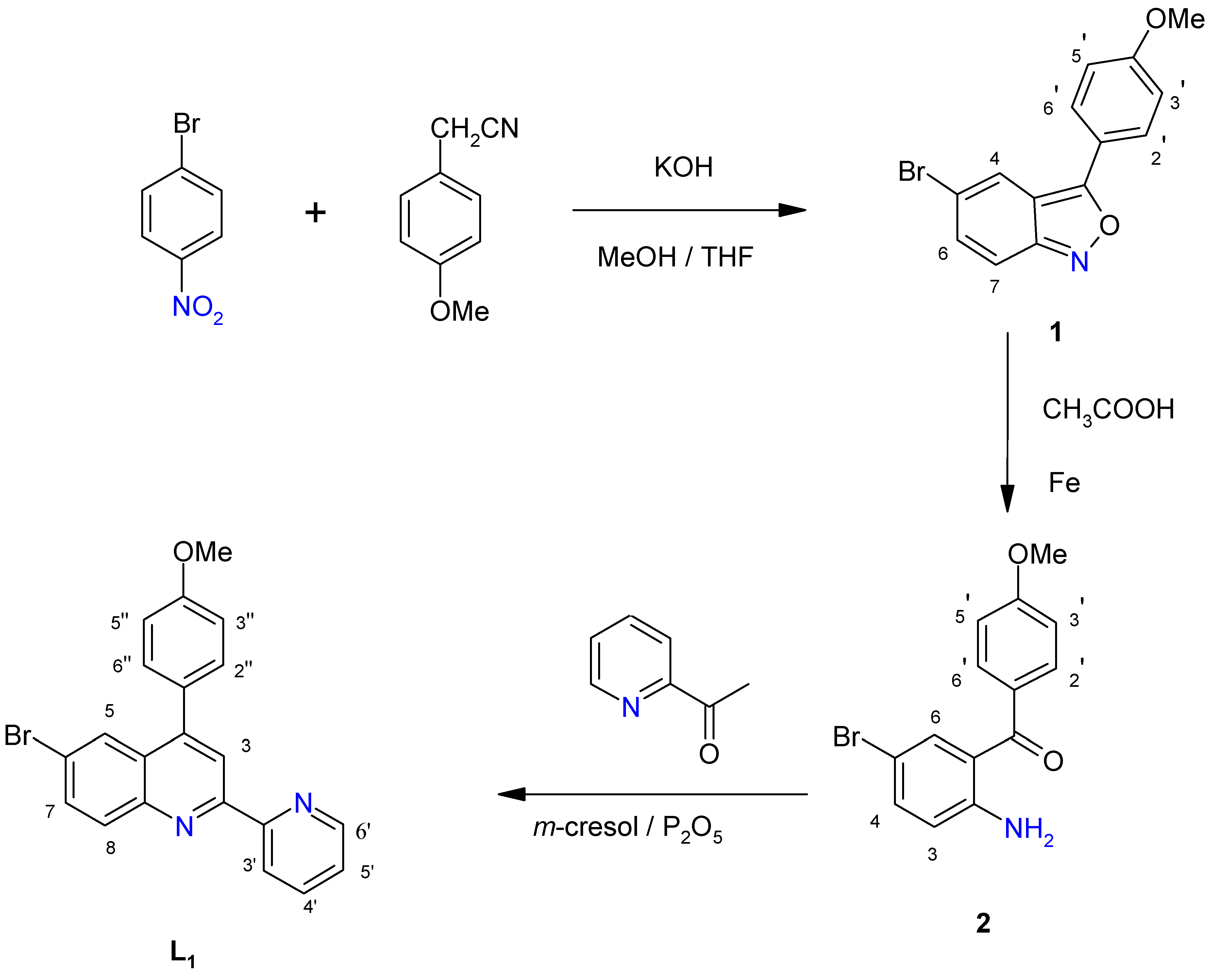

Scheme 2. Synthesis of L1.
Scheme 2. Synthesis of L1.
Molecules 15 01324 sch002

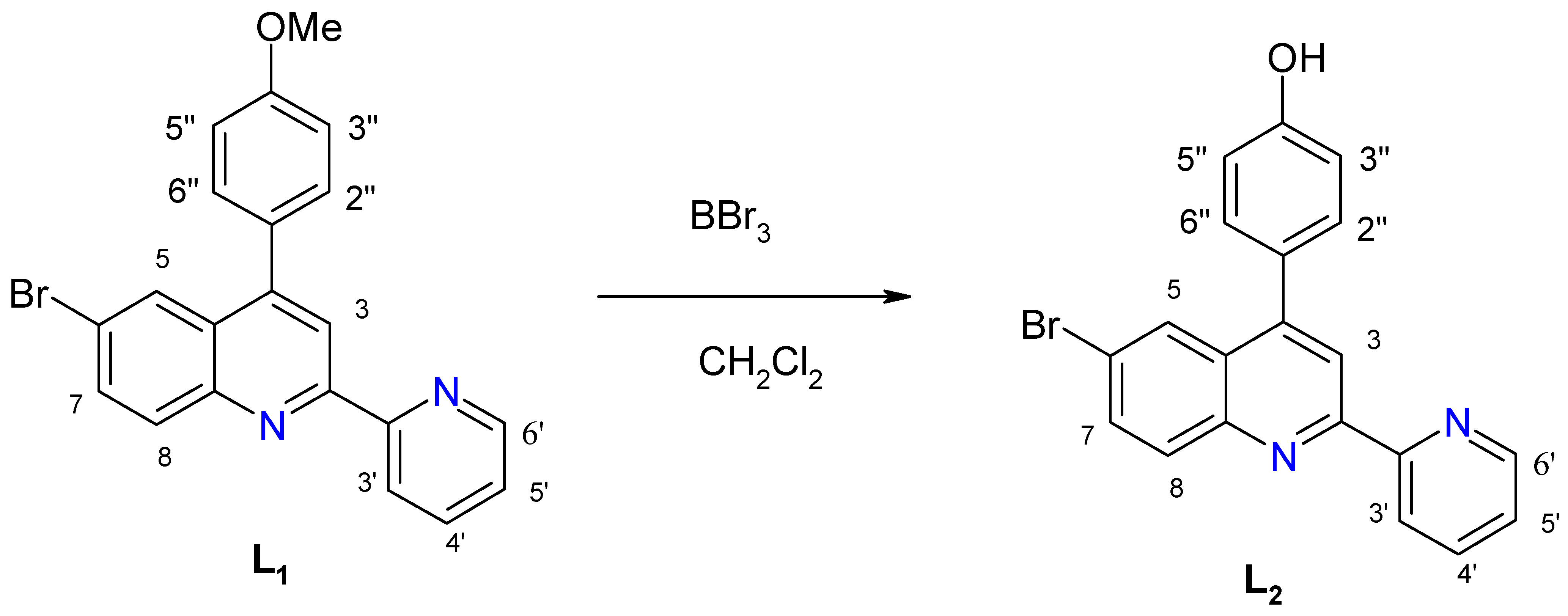

Scheme 3. Synthesis of L2.
Scheme 3. Synthesis of L2.
Molecules 15 01324 sch003

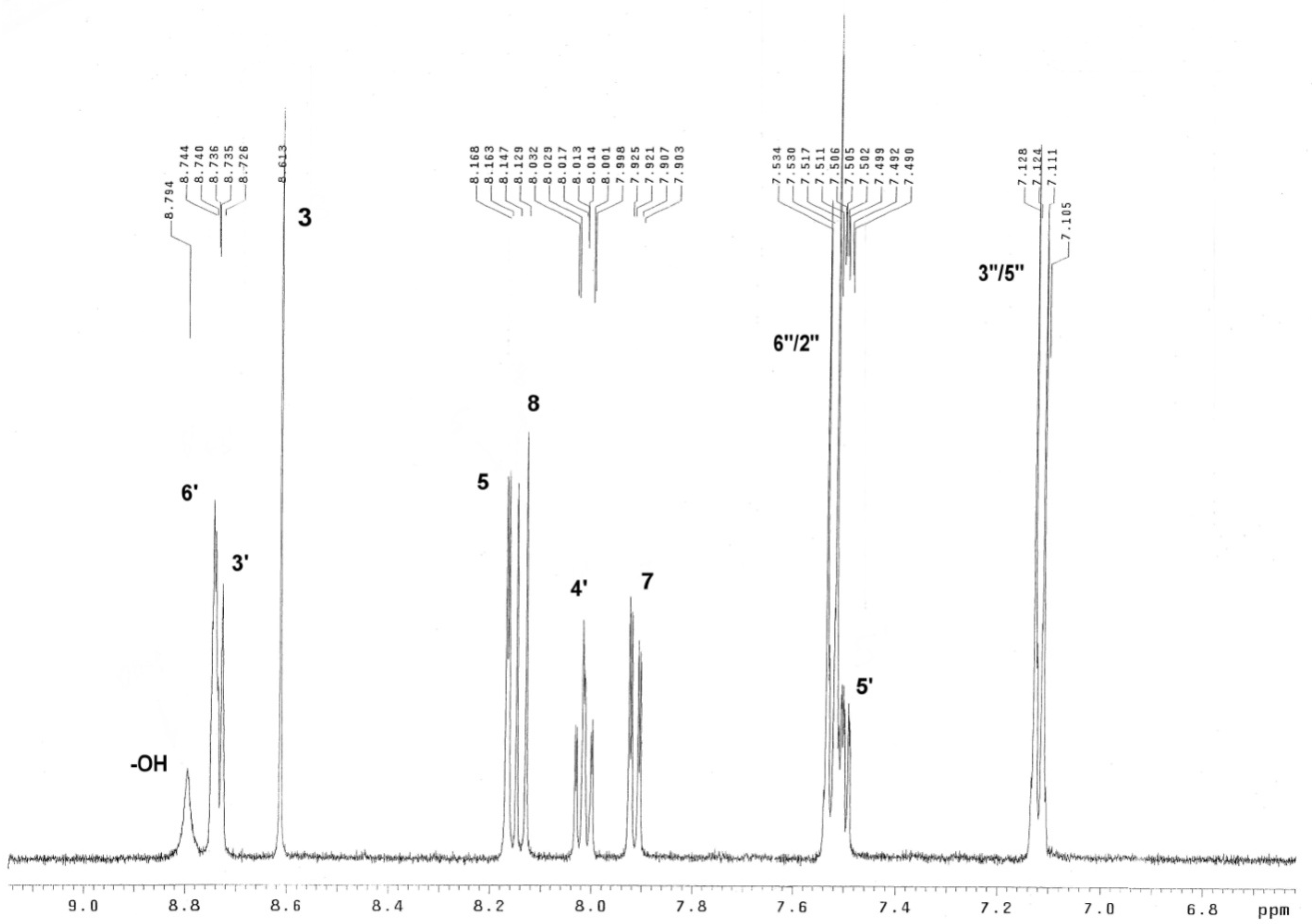

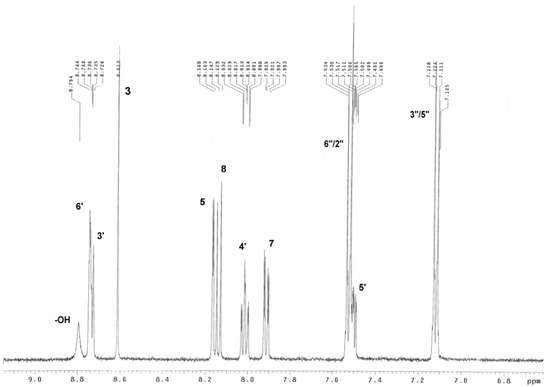

Figure 1. The 1H-NMR spectrum (500 MHz, (CD3)2CO) and peak assignments of ligand L2.
Figure 1. The 1H-NMR spectrum (500 MHz, (CD3)2CO) and peak assignments of ligand L2.
Molecules 15 01324 g001

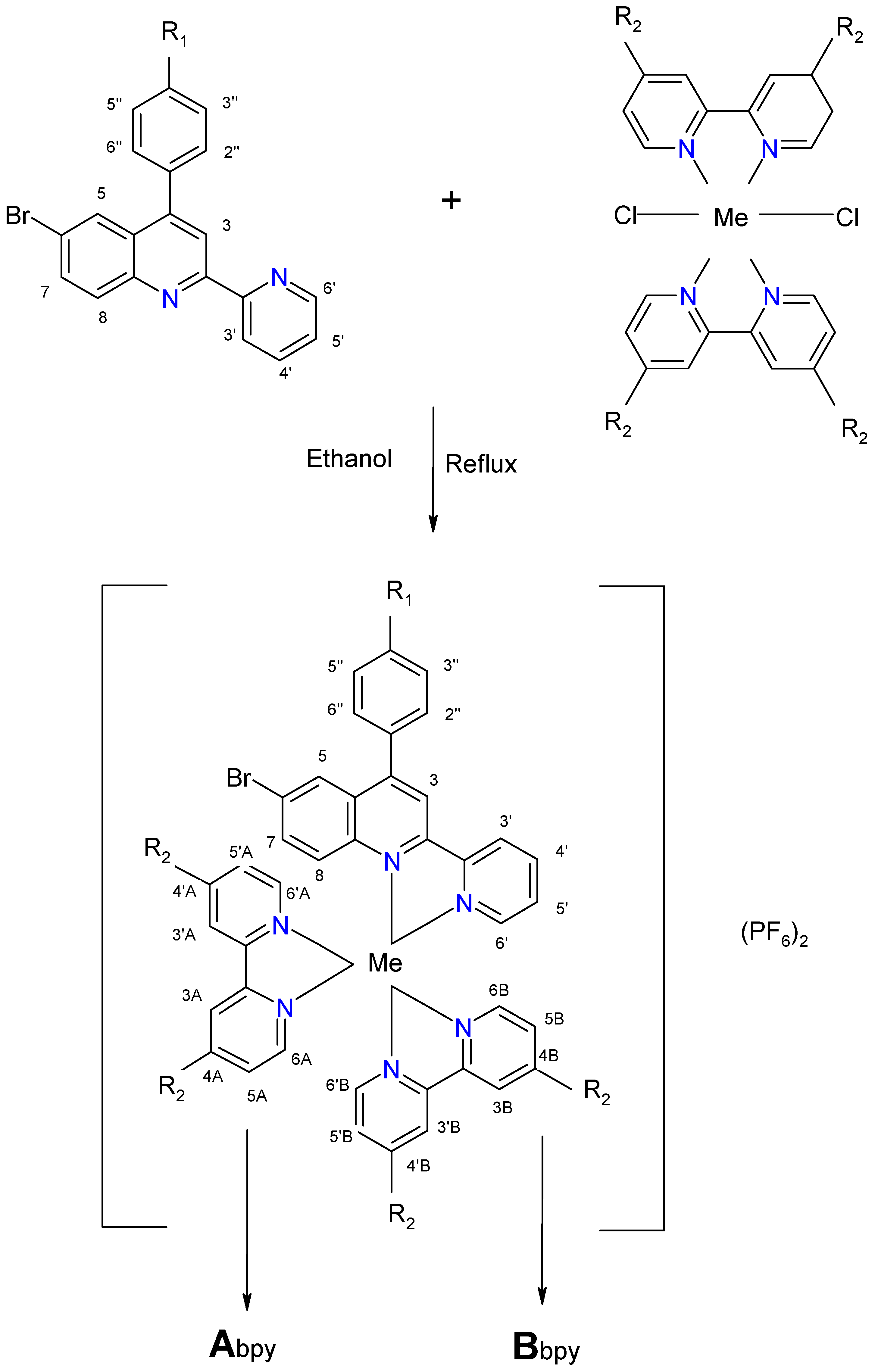

Scheme 4. Synthesis of complexes C1C8.
Scheme 4. Synthesis of complexes C1C8.
Molecules 15 01324 sch004

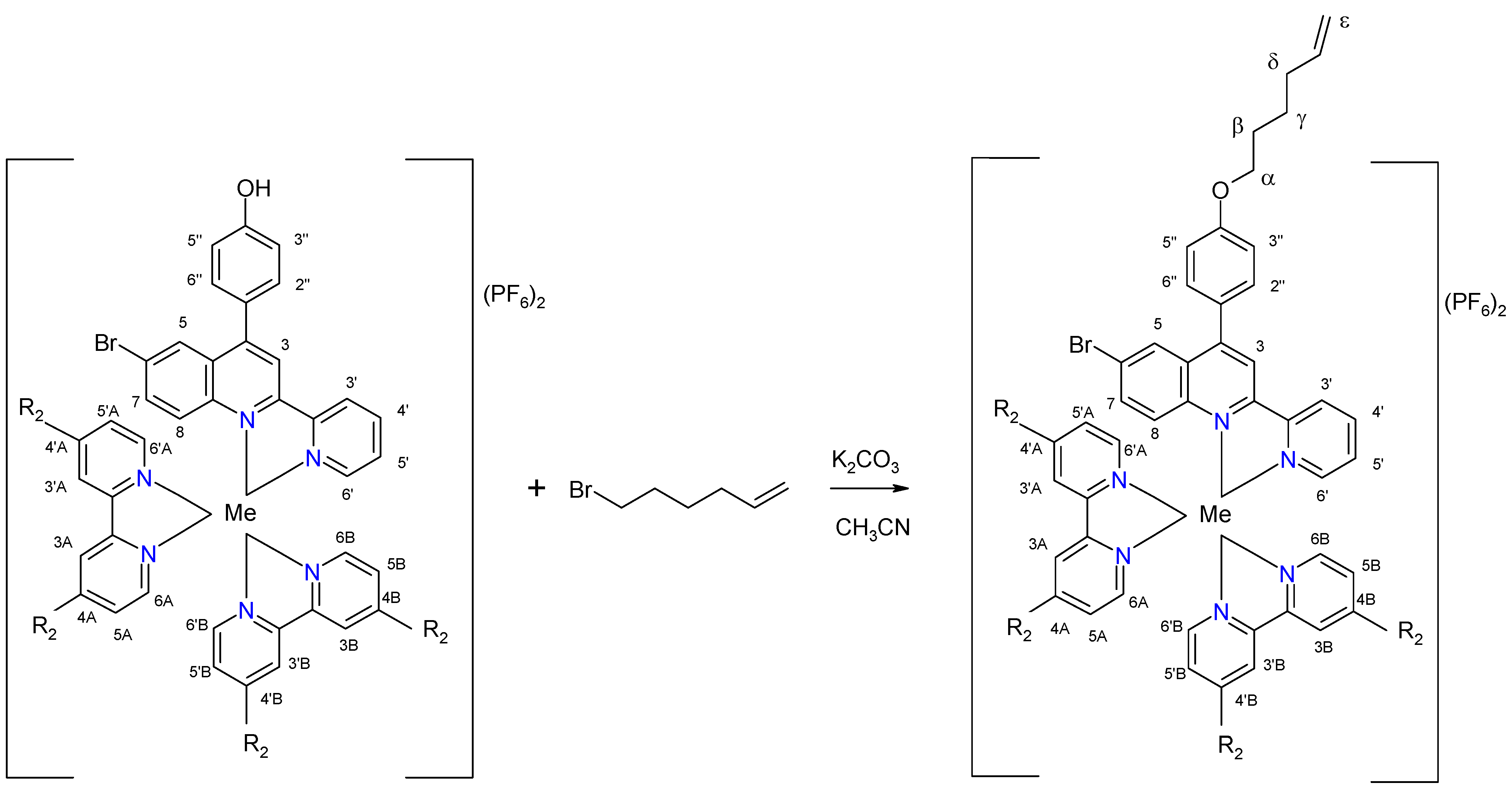

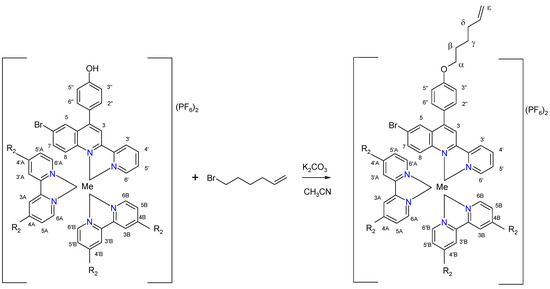

Scheme 5. Synthesis of complexes C9C12.
Scheme 5. Synthesis of complexes C9C12.
Molecules 15 01324 sch005

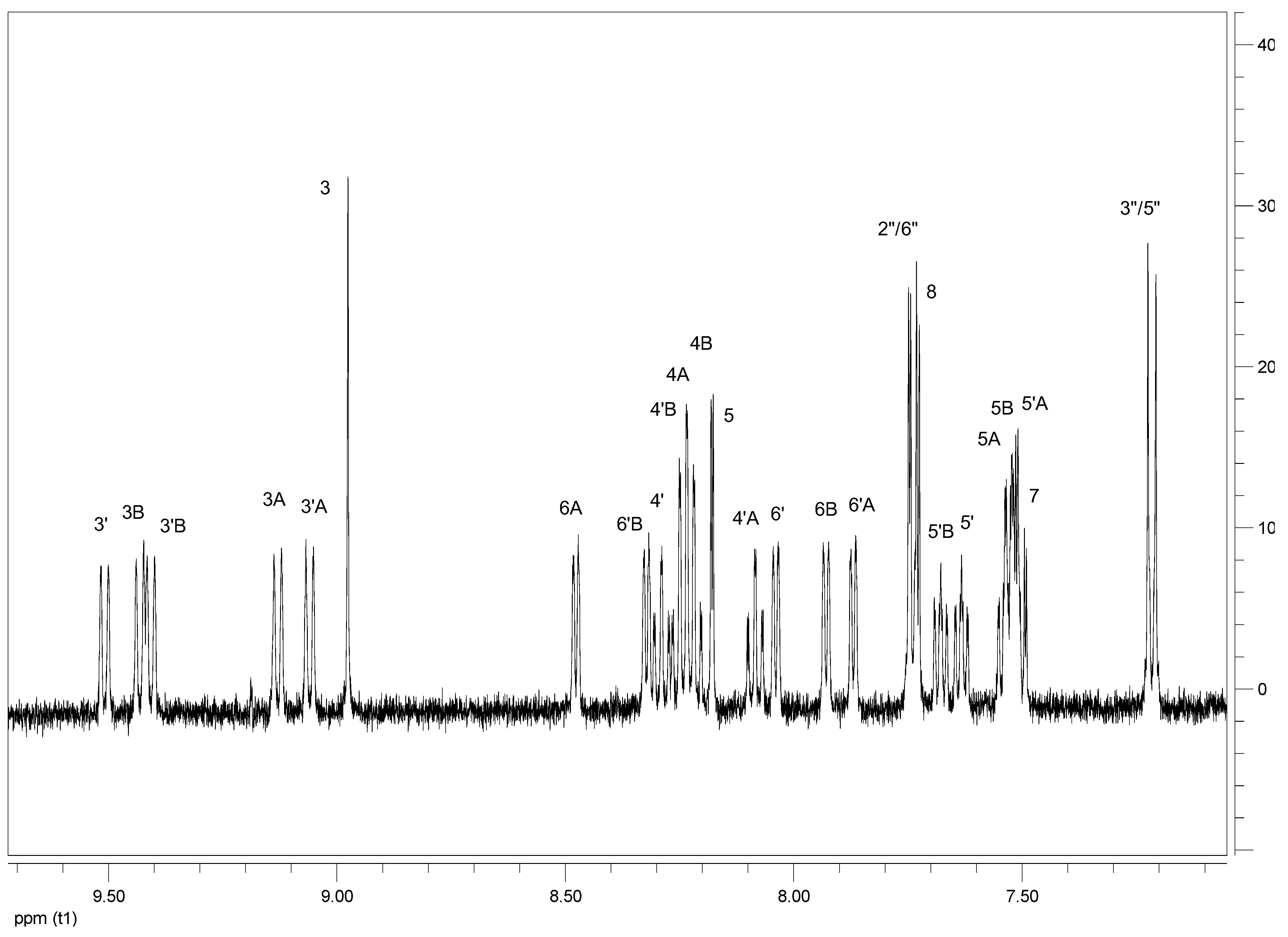

Figure 2. The 1H-NMR spectrum (500 MHz, (CD3)2CO) and peak assignments of complex C1.
Figure 2. The 1H-NMR spectrum (500 MHz, (CD3)2CO) and peak assignments of complex C1.
Molecules 15 01324 g002

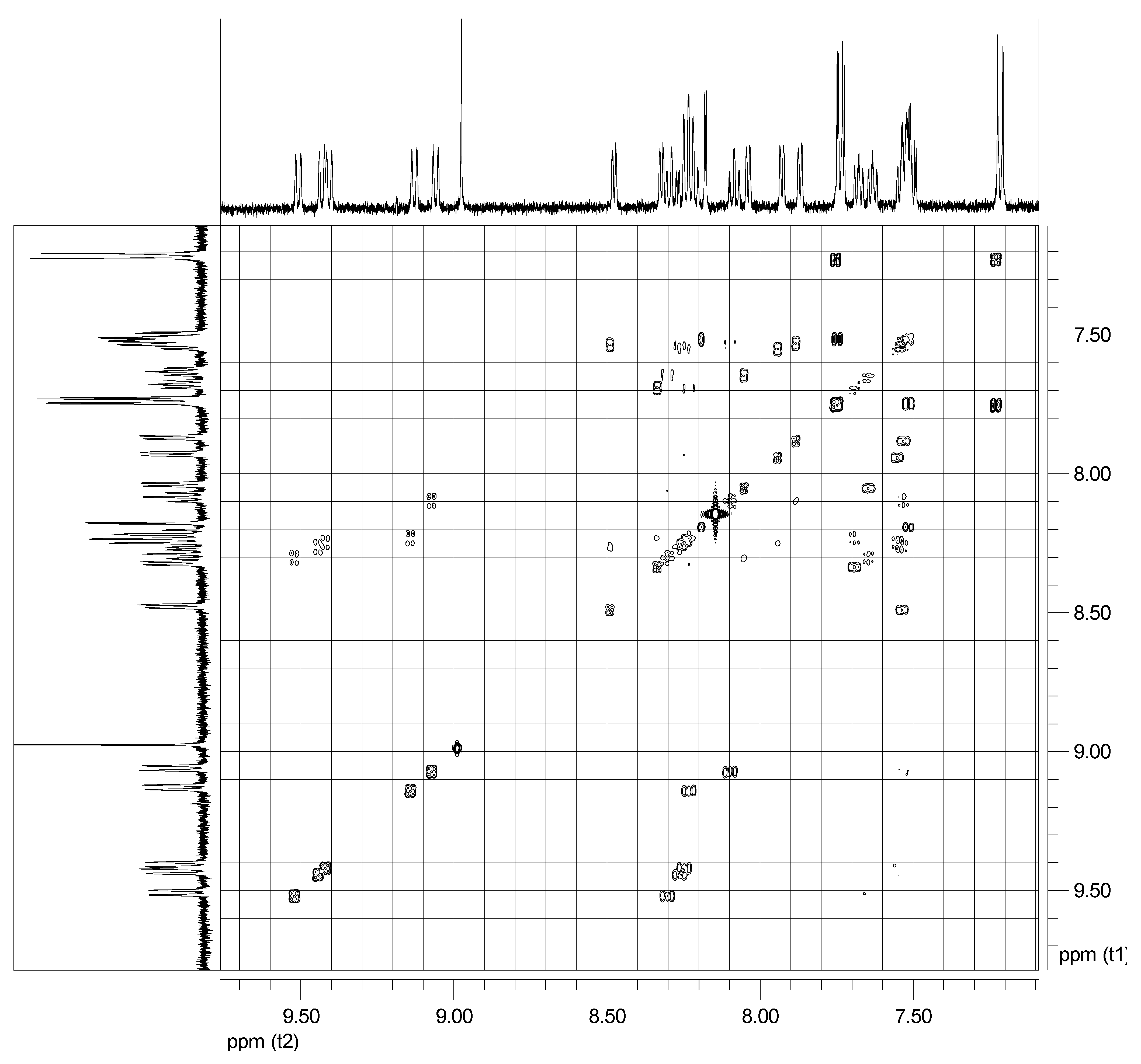

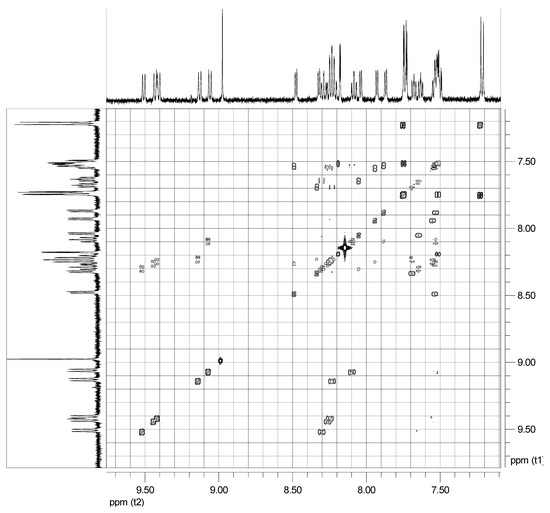

Figure 3. 1H/1H COSY-45 spectrum (500 MHz, (CD3)2CO) of C1.
