Dissociation of the Disilatricyclic Diallylic Dianion [(C4Ph4SiMe)2]−2 to the Silole Anion [MeSiC4Ph4]− by Halide Ion Coordination or Halide Ion Nucleophilic Substitution at the Silicon Atom

by
Jang-Hwan Hong
Department of Nanopolymer Material Engineering, Pai Chai University, 155-40 Baejae-ro (Doma-Dong), Seo-Gu, Daejon, 302-735, South Korea
Molecules 2011, 16(10), 8451-8462; https://doi.org/10.3390/molecules16108451
Submission received: 26 August 2011 / Revised: 1 October 2011 / Accepted: 1 October 2011 / Published: 10 October 2011
(This article belongs to the Special Issue Organosilicon Chemistry)
Browse Figures
Versions Notes

Abstract

:
The reductive cleavage of the Si-Si bond in 1,1-bis(1-methyl-2,3,4,5-tetraphenyl-1-silacyclopentadiene) [(C4Ph4SiMe)2] (1) with either Li or Na in THF gives the silole anion [MeSiC4Ph4]− (2). The head-to-tail dimerization of the silole anion 2 gives crystals of the disilatricyclic diallylic dianion [(C4Ph4SiMe)2]−2 (3). The derivatization of 3 (crystals) with bromoethane (gas) under reduced pressure provides [(MeSiC4Ph4Et)2] (4) quantitatively. The reverse addition of 3 in THF to trimethylsilyl chloride, hydrogen chloride, and bromoethane in THF gives 1-methyl-1-trimethylsilyl-1-silole [Me3SiMeSiC4Ph4] (6), 1-methyl-2,3,4,5-tetraphenyl-1-silacyclo-3-pentenyl-1-methyl-1-silole [C4Ph4H2SiMe-MeSiC4Ph4] (7), and 1-methyl-2,5-diethyl-2,3,4,5-tetraphenyl-1-silacyclo-3-pentenyl-1-methyl-1-silole [C4Ph4Et2SiMe-MeSiC4Ph4] (8), respectively. The reaction products unambiguously suggest that the silole anion [MeSiC4Ph4]− is generated by coordination of the chloride ion at the silicon atom in 3 or by the nucleophilic substitution of either chloride or bromide ion at one of two silicon atoms in 3. The quenching reaction of 3 dissolved in THF with water gives 1,2,3,4-tetraphenyl-2-butene, the disiloxane of 1-methyl-2,3,4,5-tetraphenyl-1-silacyclo-3-pentenyl [O(MeSiC4Ph4)2] (10) and methyl silicate.

1. Introduction

Since the first silacyclopentadienide anion, 5-methylbenzosilole anion, was prepared in 1958 by Gilman [1], the chemistry of group 14 metalloles has developed enormously [2,3,4,5,6,7], in particular the chemistry of silole and germole dianion [8]. Among the pioneering work reported are the first synthesis of silole dianion [9] and germole dianion [10], including synthesis and trapping reactions with halides, the NMR-characterization of the aromaticity in the silole/germole dianions [10,11,12], the X-ray crystallography of the silole/germole dianions [13,14,15,16,17,18,19,20,21,22], and their computational theoretical study [23,24]. All of the silole dianion and germole dianions are reported as highly delocalized systems, regardless of their C-substituents [8]. In contrast, there have been few reports of delocalized silole anions since NMR studies of [t-Bu-SiC4Ph4]− were reported [25]. For example, the NMR data of the transition metal complex (η5-C5Me5)Ru[η5-(Me3Si)3SiSiC4Me4] [26] and X-ray crystallography of the transition metal complex, (η5-C5Me5)MCl2[η5-(Me3Si)3SiEC4Me4] (E=Si, Ge, M = Hf, Zr) [27,28], dimerization of [MeSiC4Ph4]− to the disilatricyclic diallylic dianion [29], and the theoretical study of the silole anion [C4H4SiH]− [30,31,32,33]. Years ago, even the heavy analogue of CpLi, 1,2-disila-3-germacyclopentadienide anion, has been reported [34]. Meanwhile there has been no additional information concerning the dimerization of the silole anion and the reactivity of this anion and its dimer. Here we report the novel generation of the silole anion [MeSiC4Ph4]− from the disilatricyclic diallylic dianion [(MeSiC4Ph4)2]2−.

2. Results and Discussion

The reductive cleavage in THF of the Si-Si bond in 1,1-bis(1-methyl-2,3,4,5-tetraphenyl-1-silacyclopentadiene) [(MeSiC4Ph4)2] (1) by either lithium or sodium gives silole anion [C4Ph4SiMe] (2, Scheme 1) . Upon standing at r.t. the dark blue solution of 2 gives black crystals of the respective silole anion dimer [(MeSiC4Ph4)2]2− (3) whose unique disilatricyclic diallylic dianion structure has been determined by x-ray crystallography [29]. The tricyclic structure of 3 is maintained during the derivatization of 3 (crystals) with bromoethane (gas) under reduced pressure, whereupon the derivative [(MeSiC4Ph4Et)2] (4) is obtained quantitatively. In the case of iodomethane (gas) the analogous derivative [(MeSiC4Ph4Me)2] (5) is also obtained quantitatively (Scheme 1).
Surprisingly no product is obtained from the reaction of 3 (crystalline solid) with trimethylchlorosilane (gas) under reduced pressure. This can be attributed to the bulkiness of the trimethylsilyl group. It has been observed that even the smaller dimethylsilyl group exhibits hindered rotation about the bond to the ring carbon due to its steric hindrance when the dimethylsilyl group is introduced into the similar allylic anion in 1-methyl-2-dimethylsilyl-2,3,4,5-tetraphenyl-1-silacyclo-2-pentene [MeHSiC4Ph4H(SiHMe2)] [35].
Interestingly, the addition of the trimethylchlorosilane to 3 dissolved in THF provides only 1,1-bis(1-methylsilole) [(MeSiC4Ph4)2] (1) along with hexamethyldisilane (Scheme 2). Moreover the reverse addition of 3b in THF to trimethylchlorosilane in THF for an extended reaction time gives [Me(Me3Si)SiC4Ph4] (6) in 65% yield (Scheme 2). These results indicate that the disilatricyclic diallylic dianion 3b is dissociated into the silole anions 2 in THF solution. A similar dissociation of the gallole dimer [(C4Me4Ga-t-Bu) 2] in benzene was previously reported [36].
Furthermore, reverse addition of 3 in THF to an excess of dry hydrogen chloride in THF affords neither a disilatricyclic derivative or the silole [Me(H)SiC4Ph4], but instead only the disilane [C4Ph4H2SiMe-MeSiC4Ph4] (7). This disilane 7 has a 1-methylsilole moiety [MeSiC4Ph4] and a 1-methyl-1-silacyclo-3-pentene moiety [MeSiC4Ph4H2], which is the hydrogenated derivative at the allylic 2 and 5-carboanions in the silole ring (Scheme 3).
In the case of bromoethane the disilane derivative [C4Ph4Et2SiMe-MeSiC4Ph4] (8) was obtained in 65~75 % yield, along with a minor amount of the disilatricyclic derivative [(C4Ph4EtSiMe)2] (4). The disilane 8 has a 1-methylsilole moiety [MeSiC4Ph4] and the ethylation derivative at the allylic 2 and 5-carboanions in the silole ring such as 7 (Scheme 4).
The minor product 4 unambiguously indicates that some of the unique disilatricyclic structure in 3 is sustained during the reaction. However, the major products of the disilanes 7 and 8 clearly suggest that in THF the silole anion 2 and the silyl halide [R2Ph4C4SiMeX] (R=H, X=Cl for 7, R=Et, X=Br for 8) are generated in a ratio of 1:1 from 3, as indicated in Scheme 5:
The coupling reaction of an allylic anion in one of two 5-membered rings with RX releases above the C4Si ring the latter’s halide ion, which is easily associated with the vicinal silicon atom of the silicon in 3. This association easily induces ring opening in the highly strained 1-3-disilacyclobutane via a pentacoordinated state since the angles of the C-Si-C bonds in both C4Si ring and 1,3-silacyclobutane ring are nearly 90 degrees [29]. The nucleophilic substitution at the silicon atom produces a [Si=C] double bond in the other 5-membered ring to generate the novel silole anion [C4Ph4SiMe]− (9) via a pentacordinated anionic intermediate, in which the methyl group and one Si-C bond of the C4Si ring occupy pseudo-axial positions and two bonds of X-Si-C and the other Si-C bond of the C4Si ring occupy pseudo-equatorial positions. Simultaneously the pushing of the electron pair in the other Si-C bond of 1,3-disilacyclobutane ring to the Cα carbon produces an allylic carbanion, which immediately reacts with RX. The just generated silole anion 9 is beneath the silicon atom of the C4Si ring, so coordination of the double bond [Si=C] to the silicon atom above of the C4Si ring would be an alternative mechanism involving a pseudo-pentacoordinated intermediate to stabilize the [Si=C] moiety of the silole anion 9, such as in (η5-C5Me5)(PR3)RuH(η2-CH2=SiPh2) [37,38] and H2(PMe3)3Ru(η2-CH2=SiMe2) [39]. However, the preferred mechanism is a coupling reaction of the silole anion 9 with the halide. Then the nucelophilic substitution at the silicon provides the Si-Si bond of 7 or 8 while the allylic anion is rearranged to form a C=C double bond in the other C4Si ring to lead the silole moiety [MeSiC4Ph4].
Similar pseudo-pentacoordiated silole intermediates lacking highly electronegative atoms on the silicon atom have been proposed, and are produced by the apical attack of methyl lithium, diphenylmethylsilyl lithium [40,41], sodium bis(trimethylsilyl)amide [42], and potassium hydride [35] on the less hindered SiC4 ring. Even the neutral pseudo-pentacoordinate silole [Me(Me2NNp)SiC4Ph4] has been reported [44]. In those pentacordinated anionic intermediates it was suggested that the SiC4 ring occupies one axial and one equatorial position during its peudorotation and substitution reactions [45].
For some reason the reverse addition of 3 in THF to an excess of trimethylchlorosilane in THF produces chloride ion from the trimethylchlorosilane. Then, the association of the chloride ion to the silicon atom of 3 induces ring opening dissociation in the highly strained 1,3-disilacyclobutane to form [Si=C] bonds in two silole anions 9 via a pentacoordinated state, in which the methyl group and one Si-C bond of the C4Si ring occupy pseudo-axial positions and two bonds of X-Si-C and the other Si-C bond of the C4Si ring occupy pseudo-equatorial positions. Then the cation coordination enhances the stability by the delocalization in the silole ring [32]. The silole anion 9 is not consumed instantly by the reaction with trimethylchlorosilane to produce [Me(Me3Si)SiC4Ph4] (6) due to the bulkiness of trimethlsilyl group [35]. Therefore, only from the reverse addition of 3 in THF to an excess of trimethylsilylchloride for the extended reaction time 6 could be obtained (Scheme 6).
Meanwhile the weak Si-Si bond of 6 is easily attacked by the other silole anion 9 or one-electron oxidation of 9 with trimethylsilylchloride to produce only 1,1-bis(1-methylsilole) [(MeSiC4Ph4)2] (1) when trimethylsilylchloride is added to 3 in THF since the reaction rate of the silole anion 9 with trimethylchlorosilane is much slower than that of the anion 9 with the Si-Si bond of 6. Alternatively, the silole anion 9 is persistent in the solution for a while due to the lower reactivity of the bulky trimethylsilylchloride. A similar result in the form of a radical reaction of 1,1-bis(1-phenylsilole) [(PhSiC4Ph4)2] has been reported by Jutzi and Karl [46].
The quenching reaction of 3 dissolved in THF with water gives no 1,2,3,4-tetraphenyl-1,3-butadiene, which should be obtained if 1-methyl-2,3,4,5-tetraphenyl-1-silacyclopentadienyl moiety [MeSiC4Ph4] were present in the THF solution [47]. Instead, the disiloxane [O(MeSiC4Ph4H2)2] (10), 1,2,3,4-tetraphenyl-2-butene, and methylsilicate are obtained (Scheme 7).
The disiloxane 10 is the condensation product of 1-methyl-1-hydroxy-2,3,4,5-tetraphenyl-1-silacyclo-3-pentene [MeHOSiC4Ph4H2] (11), which is produced from the protonation of the allylic anions and the hydrolysis cleavages of two Si-C bonds in 1,3-disilacyclobutane ring of 3. 1,2,3,4-Tetraphenyl-2-butene and methylsilicate are the hydrolysis products of 10 and/or 11. These reaction products unambiguously indicate that there is no 1-methyl-2,3,4,5-tetraphenyl-1-silacyclopentadienyl moiety, but rather the disilatricyclic diallylic dianion species in the THF solution of 3 and/or the silole anion 9. However, the self dissociation of 3 in THF to the silole anion 9 is not plausible since there is no derivatization at the silicon atom from the reaction of 3 with hydrogen chloride. Therefore it is suggested that the disilatricyclic diallylic dianion of 3 is sustained in THF solutions of 3 without halide ion to give its hydrolysis products (Scheme 8). An alternative mechanism would be involve a bent η2-chloride bridge between two silicon atoms of 1,3-disiacyclobutane in 3 to lead the silole anion 9 [48].
There are five resonance forms for the silole anion [C4Ph4SiMe]- (2). From the reaction products the resonance form A (Scheme 9) can be proposed as a prominent contributor to the silole anion. The other four resonance forms are reduced to two sets of the symmetric resonance forms (B and E, C and D), which have the allyllic carbanion and silaethene moiety. The coordination of the cation, especially lithium, to the silole anion 2 enhances the delocalization in the silole ring [32], then the negative charge or electron density of the silicon atom moves to the carbons in the ring to induce some silicon-carbon double character. Consequently, the silicon atom becomes more electrophilic or less nucleophilic than that of the silyl anion A. It is reasoned that the the silole anion 2 has considerable Si=C double bond character and it dimerizes by head-to-tail [2 + 2] cycloaddition, which is known as silenes [49]. A t-Bu [25] or Si(SiMe3)3 [26] substituent on the silicon hinders the dimerization, in addition the electronic effect of the substituents on the silicon and on the carbons may be critical for the planarity of the silole anion to induce a stable 2-silaallylic anion in it (Scheme 9). It is noteworthy that the novel silole anion 9 coincides with resonance forms B and D or E and C of the silole anion 2 and it is an analogue of 2H or 3H-silole.

3. Experimental

General

All reactions were performed under a nitrogen atmosphere using standard Schlenk techniques. Air sensitive reagents were transferred in a nitrogen-filled glove box. THF and diethyl ether were distilled from sodium benzophenone ketyl under nitrogen. Pentane was stirred over concentrated H2SO4 and distilled from CaH2. NMR spectra were recorded on Bruker WP SY and Bruker AM 200 FT-NMR spectrometers. MS data were obtained on a mass spectrometer DMX 300. IR spectra were recorded as KBR pellets on a Shimazu IR 440 and melting points were measured on a Wagner & Meunz Co. capillary type apparatus. Elemental analyses were done using a Yanaco elemental analyzer at the Analytic Center of College of Engineering, Seoul National University.
[(MeSiC4Ph4)2] (1): Stirring of 1-chloro-1-methyl-2,3,4,5-tetraphenyl-1-silacyclopentadiene [MeClSiC4Ph4] (4.58 g, 10 mmol) and sodium (0.23 g, 10 mmol) in THF (170 mL) at room temperature for 10 hrs produced a pale green precipitate. After evaporating THF from the mixture, the remaining solid was treated with water and dichloromethane. Removal of dichloromethane under reduced pressure from the organic suspension, gave a pale green solid. The solid was washed with ether for purification. It was identified by the comparison of its analytical data with an authentic sample [50]. Yield: 3.69 g (90%); mp 322-329 °C (lit. [50] mp > 300 °C), 13C-NMR (CDCl3, ref; ext. 77.00 ppm), −6.09 (SiMe), 154.49, 143.25, 139.76, 138.69 (Cβ, Cα and Ci of Cβ and Cα), 130.18, 129.34, 127.81, 127.28 (Co and Cm of Cβ and Cα), 126.16, 125.52 (Cp of Cβ and Cα).
Crystalization of 3: From the dark purple THF solution, the volume of the solution reduced to a half under reduced pressure. After standing for a week it provided black crystals of 3a and 3b, respectively.
[(MeSiC4Ph4Et)2] (4): The silole anion crystals (1.42 g, 1.7 mmol for the lithium salt, 1.48 g, 1.70 mmol for the sodium salt) was exposed to ethyl bromide vapor for 2 hrs under reduced pressure. After evacuating the unreacted bromoethane, the resulting yellow solid was extracted with dichloromethane. Concentration and storage of the solution at −15 °C for a day gave yellow crystals of 4. Yield: 1.38 g (95%) for the lithium salt, 1.38 g (95%) for the sodium salt, mp 296−300 °C; 1H-NMR (CDCl3, ref; ext. TMS = 0.00 ppm), 0.65 (s, 6H, SiMe), 0.70 (brd t, 6H, Me, J = 6.96Hz), 2.23 (brd q, 4H, CH2, J = 6.96Hz), 6.6-7.1 (brd m, 40H, Ph).; 13C-NMR (CDCI3, ref; solvent = 77.00 ppm), –1.26 (SiMe3), 11.71 (Me), 32.48 (CH2), 46.33 (q-C-Ph), 43.12 (q-C-Et), 148.90, 145.01, 141.65, 141.43, 140.99, 140.62 (ethenyl C and Ci), 132.16, 131.44, 131.09, 130.28, 127.04, 126.93, 126.62, 126.32 (Co and Cm), 126.09, 125.86, 125.28, 123.06 (Cp).; IR (cm−1), δSi-Me = 1255.; MS (M+, relative abundance), 856 (M+ ,65), 797 (M+−59, 10), 428 (M+/2, 95), 135 (100).; Anal. Calcd. for C62H56Si2: C, 86.88; H, 6.59, Found: C, 86.86: H, 6.58.
[(MeSiC4Ph4Me)2] (5): Silole anion crystals (1.42 g, 1.7 mmol for the lithium salt, 1.48 g, 1.70 mmol for the sodium salt) was exposed to methyl iodide vapor for 2 hrs under reduced pressure. After evacuating the unreacted methyl iodide, the residual yellow solid was extracted with ether. Concentration and storage at −15 °C for 1 day gave yellow crystals of 4. Yield: 0.85 g (60%) for 3a, 1.22 g (87%) for 3b; mp 334−338 °C (lit. [29] 336−339 °C). The NMR data of 5 agreed with those reported earlier [30].
[Me(Me3Si)SiC4Ph4] (6): After all volatile reagents were removed under reduced pressure, the residue was extracted with pentane. Several recrystalizations from pentane gave pure green crystals of 6 [51]. Yield; 1.15 g (65%) for the lithium salt and 1.13 g (64%) for the sodium salt, mp 130−132 °C; 1H-NMR (CDCl3, ref.: solvent = 7.27 ppm,), 0.03 (s, 9H, SiMe3), 0.58 (s, 3H, SiMe), 6.80-7.15 (brd m, 20H, Ph); 13C-NMR (CDCI3, ref; solvent = 77.00 ppm), −7.43 (SiMe3), −1.88 (SiMe), 153.84 (Cβ), 143.62(Cα), 140.21 (Ci of Cβ), 139.26 (Ci of Cα), 130.12, 127.27, 127.39, 127.82 (Co and Cm), 126.05, 125.36 (Cp); 29Si-NMR (CDCI3, ref; ext. TMS=0.00), −8.13 (ring Si), −15.50 (SiMe3); MS (M+, relative abundance), 474 (M++2, 21), 473 (M++1. 45), 472 (M+, 100), 457 (M+−15, 42), 400 (M+−73, 5), 379 (48), 279(25), 221 (47), 135 (21), 105 (61), 73 (27); Anal Calcd. for C32H32Si2: C, 81.32 : H, 6.83, Found: C 81.52: H, 6.84.
[C4Ph4H2SiMe-MeSiC4Ph4] (7): Addition with stirring at room temperature of the purple solution of 3 to THF saturated with dry HCl gave a yellow solution. After removing the THF, the residue is extracted with pentane. Pentane was replaced with diethyl ether, and crystallization of the solution at −10°C for 1 day gave green crystals. Yield: 0.88g (65%) for the lithium salt, 0.85g (63%) for the sodium salt; mp 215−218 °C; 1H-NMR (CDCI3 ref.: ext. TMS = 0.00 ppm,), −0.07 (s, 3H, SiMe of butene), 0.58 (s, 3H, SiMe of butadiene), 3.53(s, 2H, CH), 6.5−7.1 (brd m, 40H, Ph); 13C-NMR (CDCI3,ref.: ext. 77.00 ppm), −7.69 (SiMe of butene), −2.71 (SiMe of butadiene), 48.41 (CH), 138.80, 140.89, 141.86, 143.01, 143.45, 155.22 (ethylene, Ci), 129.96, 129.27, 129.12, 129.00, 128.09, 127.94, 127.52, 127.10 (Co and Cm), 126.25, 125.98, 125.44, 124.69 (Cp); Anal Calcd for C58H48Si2: C,86.96; H,6.04, Found: C, 86.60; H, 6.02.
[C4Ph4Et2SiMe-MeSiC4Ph4] (8): Yield: 0.87 g (60%) for the lithium salt and 1.02 g (70%) for the sodium salt; mp 288−290 °C; 1H-NMR (CDCl3, ref.: solvent = 7.27 ppm,), 0.11 (s, 3H, SiMe of butene), 0.16 (s, 6H, Me, J = 6.96Hz), 0.70 (s, 3H, SiMe of butadiene), 1.86 (brd q, 4H, CH2), 6.6−7.2 (brd m, 40H, Ph).; 13C-NMR (CDCI3, ref.: solvent = 77.00 ppm), −4.66 (SiMe of butene), 10.56 (Me), 27.75 (CH), 49.69 (q-C), 154.85, 147.59, 144.32, 142.52, 139.52, 139.32, 139.15 (three sp2 C and four Ci), 130.78, 130.61, 130.31, 129.90, 127.42, 127.35, 126.59, 126.12 (four Co and four Cm), 125.61, 125.28, 125.21 (Cp).; IR (cm−1), δSi-Me = 1245; MS (M+, relative abundance), 856 (M+, 38), 457 (M+-Me-silole, 100), 442 (65), 427 (35), 197 (70).; Anal Calcd for C62H56Si2: C, 86.88; H, 6.59, Found: C, 87.20; H, 6.60.
[(C4Ph4H2SiMe) 2O] (10): Aqueous HCl (0.10N) was added to a THF solution of 3 with stirring at room temperature until the pH of the mixture reached neutrality. Filtration of the hydrolyzed mixture gave a white solid, which was insoluble in organic solvents and water, did not melt when heated to over 300 °C, and showed a broad band at 1000−1100 cm−1in the IR spectrum. After THF was removed from the filtrate, the residue was extracted with diethyl ether. The concentrated ether solution was kept at −20 °C for 1 day and pale green crystals of 10 were obtained. The mother solution was concentrated and after standing at −20 °C for 1 day it yielded colorless crystals of 1,2,3,4,-tetraphenyl-2-butene (yield: 0.72 g, 40%), whose spectral data agreed with those reported earlier [9]. Yield(10): 1.35 g (33%) for 3a and 1.23 g (30%) for 3b; mp 292 °C; 1H-NMR (CDCI3 ref.: ext. TMS = 0.00 ppm), −0.45 (s, 6H, SiMe), 3.15 (s, 4H, CH), 6.8−7.3 (brd m, 40H, Ph); MS (M+, relative abundance), 818 (M+, 100), 650 (M+, 18), 537 (60), 460 (50), 445 (25), 383 (40), 382 (30); Anal Calcd for C58H50Si2O: C, 85.05; H, 6.16, Found: C, 84.82; H, 6.12.

4. Conclusions

The pathway for generation of the silole anion 9 is dependent on the reactivity of the alkyl halide used. Two silole anions 9 are generated from the disilatricyclic diallylic dianion 3 in THF by the coordination of the chloride ion to the silicon atom in it; the reaction of 9 with trimethylchlorosilane provides [(MeSiC4Ph4Me)2] (5) or [Me(Me3Si)SiC4Ph4] (6) according to the method of the addition. From the reverse addition of 3 in THF to bromoethane or hydrogen chloride in THF the silole anion 9 and the silyl halide [R2Ph4C4SiMeX] (R=H, X=Cl for 7, R=Et, X=Br for 8) are generated in a ratio of 1:1, then the coupling reaction of the two produces the corresponding disilane [C4Ph4R2SiMe-MeSiC4Ph4] (R=H, X=Cl for 7, R=Et, X=Br for 8).

Acknowledgments

The author acknowledges the advice provided by Wan-Chul Joo (Sung Kyun Kwan University, Seoul, Korea) and Professor Philip Boudjouk (North Dakota State University, Fargo, ND, US).

Conflict of Interest

The author declares no conflict of interest.

References and Notes

  1. Gilman, H.; Gorsich, R.D. Cyclic Organosilicon Compounds. I. Synthesis of Compounds Containing the Dibenzosilole Nucleus. J. Am. Chem. Soc. 1958, 80, 1883–1886. [Google Scholar] [CrossRef]
  2. Corey, J.Y. Organometallic Benzheterocycles. Adv. Organomet. Chem. 1975, 13, 139–271. [Google Scholar]
  3. Barton, T.J. Carbacyclic Silanes. In Comprehensive Organometallic Chemistry; Wilkinson, G., Stone, F.G.A., Abel, E.W., Eds.; Pergamon Press: Oxford, UK, 1982; Volume 2, pp. 205, 250–261. [Google Scholar]
  4. Dubac, J.; Laporterie, A.; Manuel, G. Group 14 metalloles. 1. Synthesis, organic chemistry, and physicochemical data. Chem. Rev. 1990, 90, 215–282. [Google Scholar] [CrossRef]
  5. Colomer, E.; Corriu, R.J.P.; Lheureux, M. Group 14 metalloles. 2. Ionic species and coordination compounds. Chem. Rev. 1990, 90, 265–282. [Google Scholar] [CrossRef]
  6. Dubac, J.; Guerin, C.; Meunier, P. The Chemistry of Organosilicon Compounds; Patai, S., Rappoport, Z., Eds.; Willey-Interscience: Chichester, UK, 1998; Volume 2, p. 1961. [Google Scholar]
  7. Hissler, M.; Dyer, P.W.; Reau, R. Linear organic π-conjugated systems featuring the heavy Group 14 and 15 elements. Coord. Chem. Rev. 2003, 244, 1–44. [Google Scholar] [CrossRef]
  8. Saito, M.; Yoshioka, M. The anions and dianions of group 14 metalloles. Coord. Chem. Rev. 2005, 249, 765–780. [Google Scholar] [CrossRef]
  9. Joo, W.-C.; Hong, J.-H.; Choi, S.-B.; Son, H.-E. Synthesis and reactivity of 1,1,-disodio-2,3,4,5-tetraphenyl-1-silacyclopentadiene. J. Organomet. Chem. 1990, 391, 27–36. [Google Scholar] [CrossRef]
  10. Hong, J.-H.; Boudjouk, P. Synthesis and characterization of a delocalized germanium-containing dianion: dilithio-2,3,4,5-tetraphenyl-germole. Bull. Soc. Chim. Fr. 1995, 132, 495–498. [Google Scholar]
  11. Hong, J.-H.; Boudjouk, P.; Castellino, S. Synthesis and Characterization of Two Aromatic Silicon-Containing Dianions: The 2,3,4,5-Tetraphenylsilole Dianion and the 1,1’-Disila-2,2’,3,3’,4,4’, 5,5’-octaphenylfulvalene Dianion. Organometallics 1994, 13, 3387–3389. [Google Scholar] [CrossRef]
  12. Hong, J.-H. Synthesis and NMR-Study of the 2,3,4,5-Tetraethylsilole Dianion [SiC4Et4]2−•2[Li]+. Molecules 2011, 16, 8033–8040. [Google Scholar] [CrossRef] [PubMed]
  13. West, R.; Sohn, H.; Bankwitz, U.; Calabrese, J.; Apeloig, T.; Mueller, T. Dilithium Derivative of Tetraphenylsilole: An η1- η5 Dilithium. J. Am. Chem. Soc. 1995, 117, 11608–11609. [Google Scholar] [CrossRef]
  14. Freeman, W.P.; Tilley, T.D.; Yap, G.P.A.; Rheingold, A.L. Siloyl Anions and Silole Dianions: Structure of [K([18]crown-6)+]2[C4Me4Si2-]. Angew. Chem. Int. Ed. 1996, 35, 882–884. [Google Scholar] [CrossRef]
  15. West, R.; Sohn, H.; Powell, D.R.; Mueller, T.; Apeloig, Y. Dianion of Tetraphenylgermole is Aromatic. Angw. Chem., Int. Ed. 1996, 35, 1002–1004. [Google Scholar] [CrossRef]
  16. Freeeman, W.P.; Tilley, T.D.; Liable-Sands, L.M.; Rheingold, A.L. Synthesis and Study of Cyclic π-Systems Containing Silicon and Germanium. The Question of Aromaticity in Cyclopentadienyl Analogues. J. Am. Chem. Soc. 1996, 118, 10457–10468. [Google Scholar] [CrossRef]
  17. Choi, S.-B.; Boudjouk, P.; Hong, J.-H. Unique Bis-η5/η1 Bonding in a Dianionic Germole. Synthesis and Structural Characterization of the Dilithium Salt of the 2,3,4,5-Tetraethyl Germole Dianion. Organometallics 1999, 18, 2919–2921. [Google Scholar] [CrossRef]
  18. Choi, S.-B.; Boudjouk, P. Synthesis and characterization of dibenzannulated silole dianions. The 1,1-dilithiosilafluorene and 1,1’-dilithiobis(silafluorene) dianions. Tetrahedron Lett. 2000, 41, 6685–6688. [Google Scholar] [CrossRef]
  19. Liu, Y.L.; Stringfellow, C.; Ballweg, D.; Guzei, I.A.; West, R. Structural and chemistry of 1-silafluorenyl dianion. Its derivatives, and an organosilicon diradical dianion. J. Am. Chem. Soc. 2002, 124, 49–57. [Google Scholar] [CrossRef] [PubMed]
  20. Choi, S.-B.; Boudjouk, P.; Wei, P. Aromatic benzannulated silole dianions. The dilithio and disodio salts of a silaindenyl dianion. J. Am. Chem. Soc. 1998, 120, 5814–5815. [Google Scholar] [CrossRef]
  21. Choi, S.-B.; Boudjouk, P.; Qin, K. Aromatic Benzannulated Germole Dianions. The Dilithio and Disodio Salts of a Germaindenyl Dianion. Organometallics 2000, 19, 1806–1809. [Google Scholar] [CrossRef]
  22. Liu, Y.; Ballweg, D.; Müller, T.; Guzei, I.A.; Clark, R.W.; West, R. Chemistry of the Aromatic 9-Germafluorenyl Dianion and Some Related Silicon and Carbon Species. J. Am. Chem.Soc. 2002, 124, 12174–12181. [Google Scholar] [CrossRef] [PubMed]
  23. Goldfuss, B.; Schleyer, P.v.R.; Hampel, F. Aromaticity in Group 14 Metalloles: Structural, Energetic, and Magnetic Criteria. Organometallics 1996, 15, 1755–1757. [Google Scholar] [CrossRef]
  24. Schleyer, P.v.R.; Maerker, C.; Dransfeld, A.; Jiao, H.; Hommes, N.J.R.v.E. Nucleus-Independent Chemical shifts: A simple and Efficient Aromaticity Probe. J. Am. Chem. Soc. 1996, 118, 6317–6318. [Google Scholar] [CrossRef] [PubMed]
  25. Hong, J.-H.; Boudjouk, P. A Stable Aromatic Species Containing Silicon. Synthesis and Characterization of the 1-tert-Butyl-2,3,4,5-tetraphenyl-1-silacyclopentadienide Anion. J. Am. Chem. Soc. 1993, 115, 5883–5884. [Google Scholar] [CrossRef]
  26. Freeeman, W.P.; Tilley, T.D.; Rheingold, A.L. Stable Silacyclopentadienyl Complexes of Ruthenium: (η5-C5Me5)Ru[η5-Me4C4SiSi(SiMe3)3] and X-ray Structure of Its Protonated Form. J. Am. Chem. Soc. 1994, 116, 8428–8429. [Google Scholar] [CrossRef]
  27. Dysard, J.M.; Tilley, T.D. η5-Silolyl and η5-Germolyl Complexes of d0 Hafnium. Structural Characterization of an η5-Silolyl Complex. J. Am. Chem. Soc. 1998, 120, 8245–8246. [Google Scholar] [CrossRef]
  28. Dysard, J.M.; Tilley, T.D. Synthesis and reactivity of η5-Silolyl, η5-Germolyl, and η5-Germolyl dianion complexes of zirconium and hafnium. J. Am. Chem. Soc. 2000, 122, 3097–3105. [Google Scholar] [CrossRef]
  29. Sohn, H.; Powel, R.; West, R.; Hong, J.-H.; Joo, W.-C. Dimerization of the Silole Anion [C4Ph4SiMe]− to a Tricyclic Diallylic Dianion. Organometallics 1997, 16, 2770–2772 and references therein. [Google Scholar] [CrossRef]
  30. Gordon, M.S.; Boudjouk, P.; Anwari, F. Are the silacyclopentadienyl anion and the silacyclopropenyl cation aromatic? J. Am. Chem. Soc. 1983, 105, 4972–4976. [Google Scholar] [CrossRef]
  31. Damewood, J.R. Pyramidal inversion and electron delocalization in the silacyclopentadienyl anion. J. Org. Chem. 1986, 51, 5028–5029. [Google Scholar] [CrossRef]
  32. Goldfuss, B.; Schleyer, P.v.R. The Siloyl Anion C4H4SiH- is Aromatic and the Lithium Silolide C4H4SiHLi Even More So. Organometallics 1995, 14, 1553–1555. [Google Scholar] [CrossRef]
  33. Goldfuss, B.; Schleyer, P.v.R. Aromaticity in Group 14 Metalloles: Structural, Energetic, and Magnetic Criteria. Organometallics 1997, 16, 1543–1552. [Google Scholar] [CrossRef]
  34. Lee, V.Y.; Kato, R.; Ichinohe, M.; Sekiguchi, A. The Heavy Analogue of CpLi: Lithium 1,2-Disila-3-germacyclopentadienide, a 6π-Electron Aromatic System. J. Am. Chem. Soc. 2005, 127, 13142–13143. [Google Scholar] [CrossRef] [PubMed]
  35. Hong, J.-H; Boudjouk, P. Synthesis and Characterization of a Novel Pentavalent Silane: 1-Methyl-1,1-dihydro-2,3,4,5-tetraphenyl-1-silacyclopentadiene Silicate, [Ph4C4SiMeH2−]•[K+]. Organometallics 1995, 14, 574–576. [Google Scholar] [CrossRef]
  36. Cowley, A.H.; Brown, D.S.; Decken, A.; Kamepalli, S. Novel dimeric ring systems containing gallium. J. Chem. Soc., Chem. Commun. 1996, 2425–2426. [Google Scholar] [CrossRef]
  37. Campion, B.K.; Heyn, R.K.; Tilley, T.D. Preparation, isolation, and characterization of transition-metal η2-silene complexes. X-ray crystal structure of (η5-C5Me5)[P(iso-Pr)3]Ru(H)(η2 -CH2SiPh2). J. Am. Chem. Soc. 1988, 110, 7558–7560. [Google Scholar] [CrossRef]
  38. Campion, B.K.; Heyn, R.H.; Tilley, T.D.; Rheingold, A.L. Synthesis and study of the ruthenium-silene complexes (η5- C5Me5)(PR3)RuH(η2-CH2=SiR’2) (R = iPr, Cy; R’ = Me, Ph). J. Am. Chem. Soc. 1993, 115, 5527–5537. [Google Scholar] [CrossRef]
  39. Dioumaev, V.K.; Plössl, K.; Carrol, P.J.; Berry, D.H. Formation and Interconversion of Ruthenium−Silene and 16-Electron Ruthenium Silyl Complexes. J. Am. Chem. Soc. 1999, 121, 8391–8392. [Google Scholar] [CrossRef]
  40. Ishikawa, M.; Tabohashi, T.; Sugisawa, H.; Nishimura, K.; Kumada, M. Chemistry of siloles. The ractions of siloles with organolithium reagents. J. Organomet. Chem. 1983, 250, 109–119. [Google Scholar] [CrossRef]
  41. Ishikawa, M.; Tabohashi, T.; Sugisawa, H.; Nishimura, K.; Kumada, M. Unexpected behavior of siloles toward organolithium regagents. J. Organomet. Chem. 1981, 218, C21–C24. [Google Scholar] [CrossRef]
  42. Ishikawa, M.; Tabohashi, T.; Ohashi, H.; Kumada, M.; Iyoda, J. Chemsitry of siloles. 1-Methyldibenzosilacyclopentadienide anion. Organometallics 1983, 2, 351–352. [Google Scholar] [CrossRef]
  43. Pan, Y.; Hong, J.-H.; Choi, S.-B.; Boudjouk, P. Surprising Reaction of Non-Nucleophilic Bases with 1-Hydrosiloles: Addition and Not Deprotonation. Organometallics 1997, 16, 1445–1451. [Google Scholar] [CrossRef]
  44. Tamao, K.; Asahara, M.; Kawachi, A. The differing modes of reaction of 1-(8-dimethylamino-1-naphthyl)-1-hydrodisilane and 1-(1-naphthyl)-1-hydrodisilane in nickel-catalyzed reactions with acetylene: formation of a pseudo-pentacoordinate silole via Si-Si bond cleavage vs. hydrosilation without Si-Si bond cleavage. J. Organomet. Chem. 1996, 521, 325–334. [Google Scholar]
  45. Choi, S.-B.; Boudjouk, P.; Pan, Y. Mechanistic Studies of the Reaction of Hydrosiloles with Nucleophiles. Crystal Structures of the Enantiomers of 1-Methyl-2-(dimethylsilyl)-2,3,4,5-tetraphenyl-1-silacyclo- 3-pentene and 1-(Bis(trimethylsilyl)amino)-5-methyl- 2,3,4,5-tetraphenyl-1-silacyclo-3-pentene. Organometallics 1999, 18, 3813–3817. [Google Scholar]
  46. Jutzi, P.; Karl, A. Synthesis and reactions of some 1-R-1-R’-2,3,4,5-tetraphenyl-1-silacyclopentadienes. J. Organometa. Chem. 1981, 214, 289–302. [Google Scholar] [CrossRef]
  47. Balasubramanian, R.; Geroge, M.V. Alkali metal, alkaline and acidic decomposition of silacyclopentadienes. J. Organomet. Chem. 1975, 85, 311–316. [Google Scholar] [CrossRef]
  48. Kalikhman, I.; Girshberg, O.; Lameyer, L.; Stalke, D.; Kost, D. Tautomeric Equilibrium between Penta- and Hexacoordinate Silicon Chelates. A Chloride Bridge between Two Pentacoordinate Silicons. J. Am. Chem. Soc. 2001, 123, 4709–4716. [Google Scholar] [CrossRef] [PubMed]
  49. Brook, A.G.; Brook, M.A. The Chemistry of Silenes. Adv. Organomet. Chem. 1996, 39, 71–158. [Google Scholar]
  50. Sekiguchi, A.; Zigler, S.S.; West, R. A synthon for the silicon-silicon triple bond. J. Am. Chem. Soc. 1986, 108, 4241–4242. [Google Scholar] [CrossRef]
  51. [Me(Me3Si)SiC4Ph4] (6) has been synthesized, however, the physical property and the spectral data were not provided: Wakahara, T.; Ando, W. Reaction of hydrosilanes with lithium. Formation of silole anions from 1-methylsilole via carbodianion. Chem. Letter. 1997, 11, 1179–1180. [Google Scholar] [CrossRef]
Sample Availability: Samples of the derivatives of the silole anion [MeSiC4Ph4]- are available from the author.
Molecules 16 08451 sch001 550

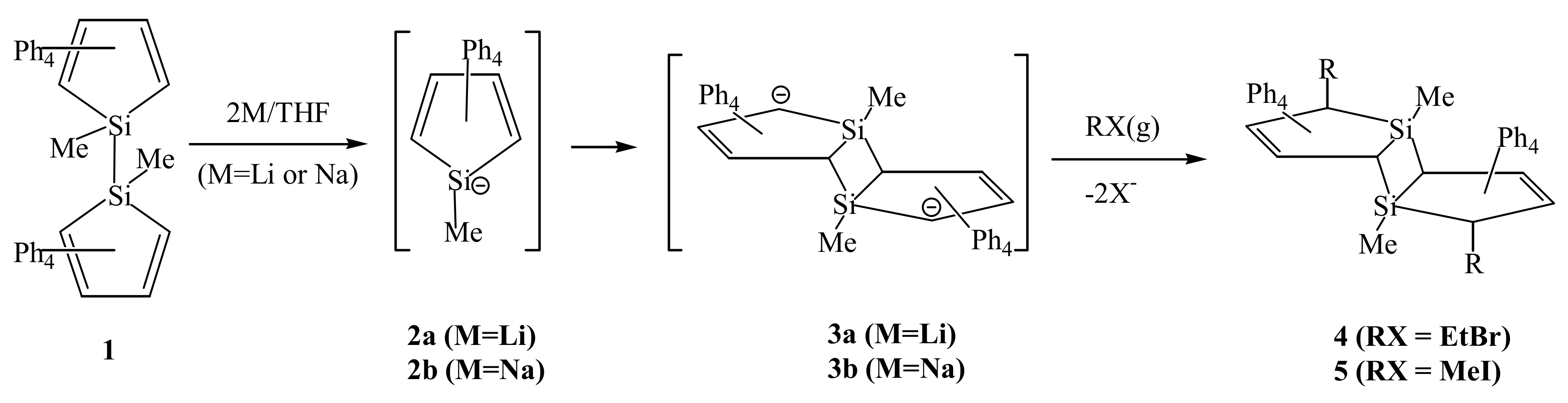

Scheme 1. Synthesis of 3 and its derivatization with RX (EtBr, MeI).
Scheme 1. Synthesis of 3 and its derivatization with RX (EtBr, MeI).
Molecules 16 08451 sch001
Molecules 16 08451 sch002 550

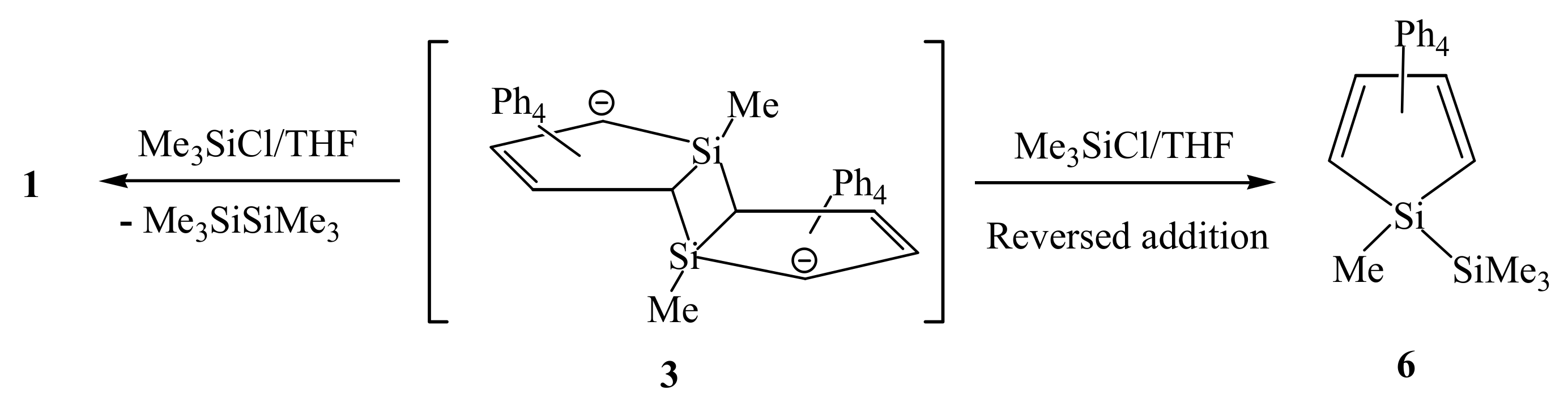

Scheme 2. Reaction of 3 with trimethylcholorosilane.
Scheme 2. Reaction of 3 with trimethylcholorosilane.
Molecules 16 08451 sch002
Molecules 16 08451 sch003 550

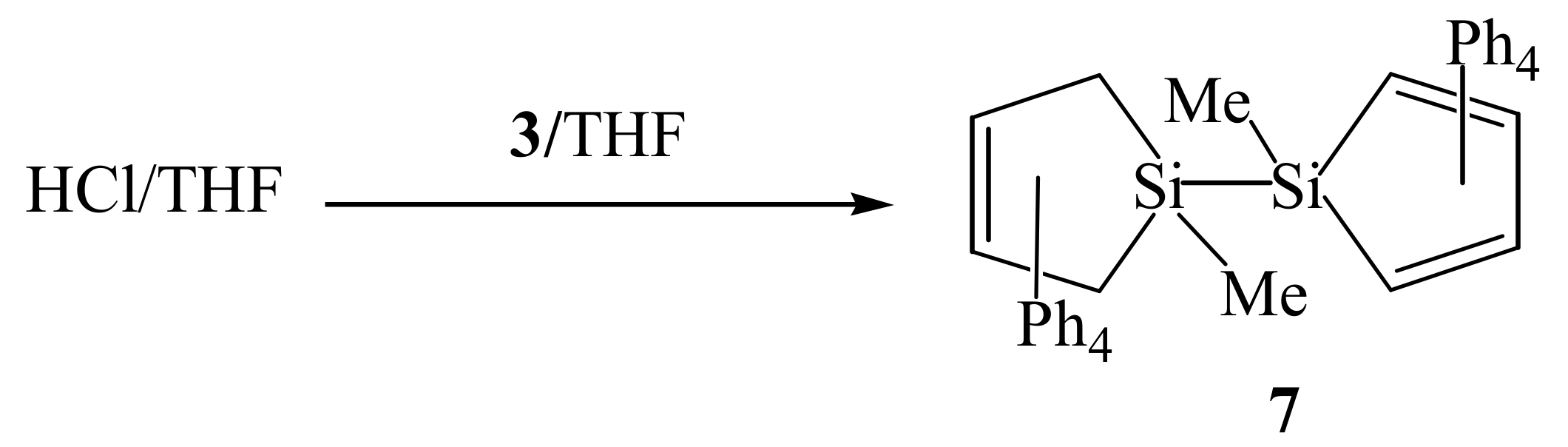

Scheme 3. Reaction of 3 with hydrogen chloride.
Scheme 3. Reaction of 3 with hydrogen chloride.
Molecules 16 08451 sch003
Molecules 16 08451 sch004 550

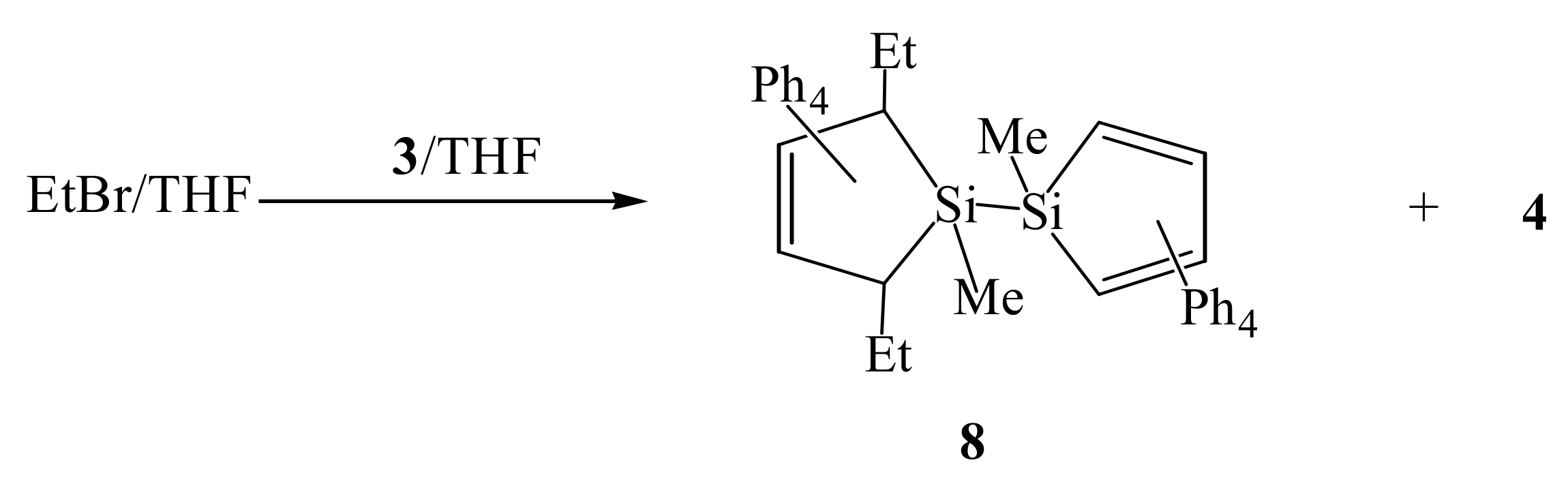

Scheme 4. Reaction of 3 with bromoethane.
Scheme 4. Reaction of 3 with bromoethane.
Molecules 16 08451 sch004
Molecules 16 08451 sch005 550

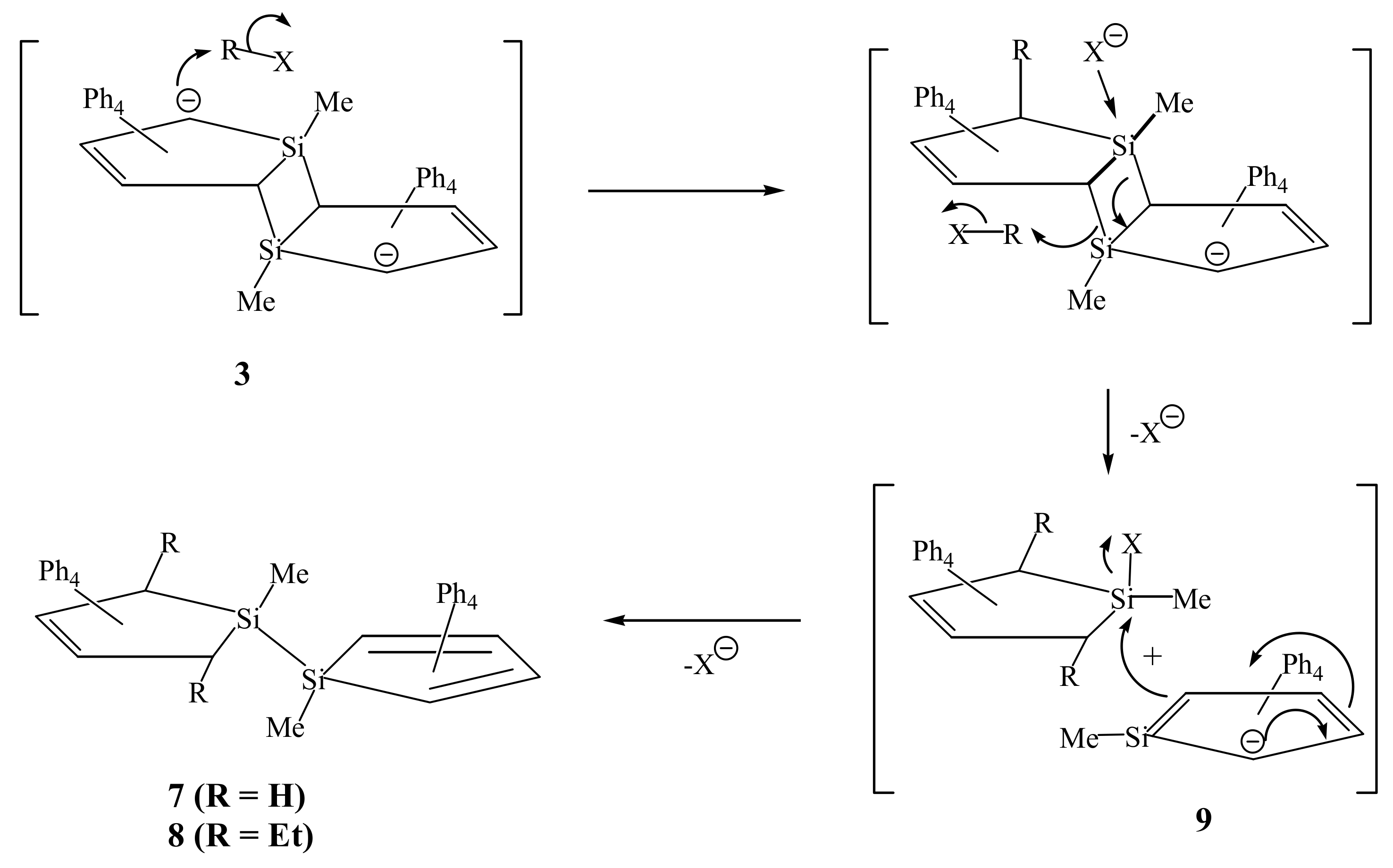

Scheme 5. Suggested mechanism for the formation of disilanes (7 and 8).
Scheme 5. Suggested mechanism for the formation of disilanes (7 and 8).
Molecules 16 08451 sch005
Molecules 16 08451 sch006 550

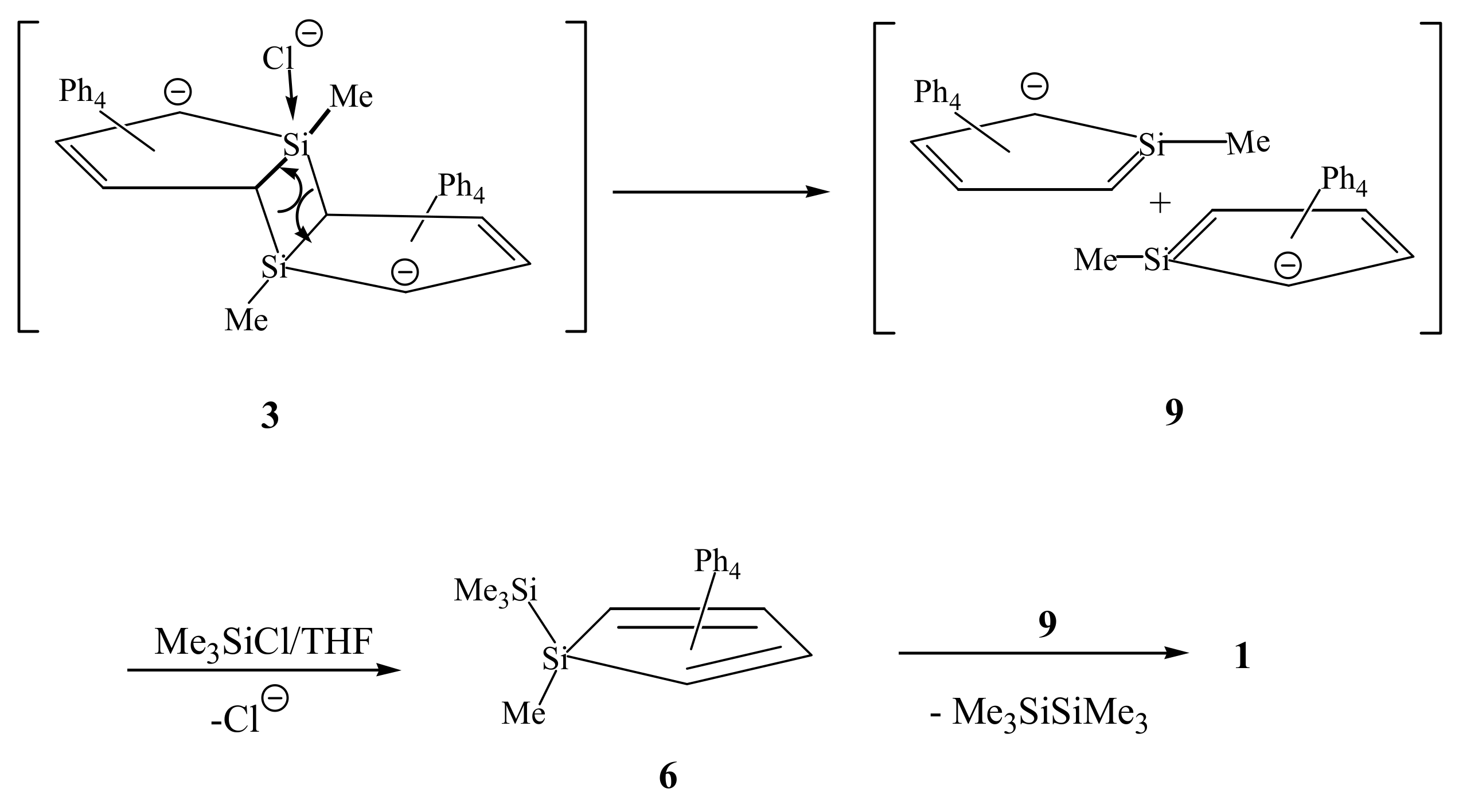

Scheme 6. Suggested mechanism for the formation of 1.
Scheme 6. Suggested mechanism for the formation of 1.
Molecules 16 08451 sch006
Molecules 16 08451 sch007 550

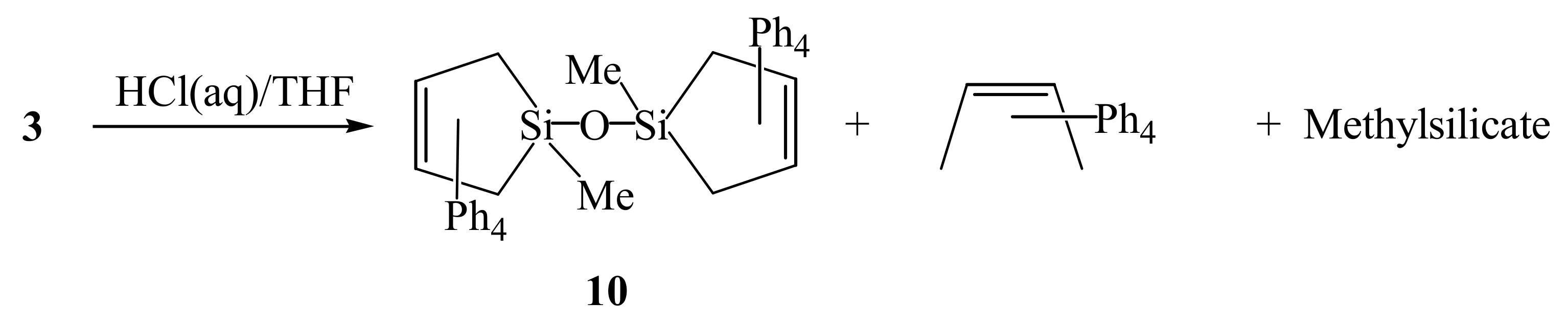

Scheme 7. Hydrolysis reaction of 3.
Scheme 7. Hydrolysis reaction of 3.
Molecules 16 08451 sch007
Molecules 16 08451 sch008 550

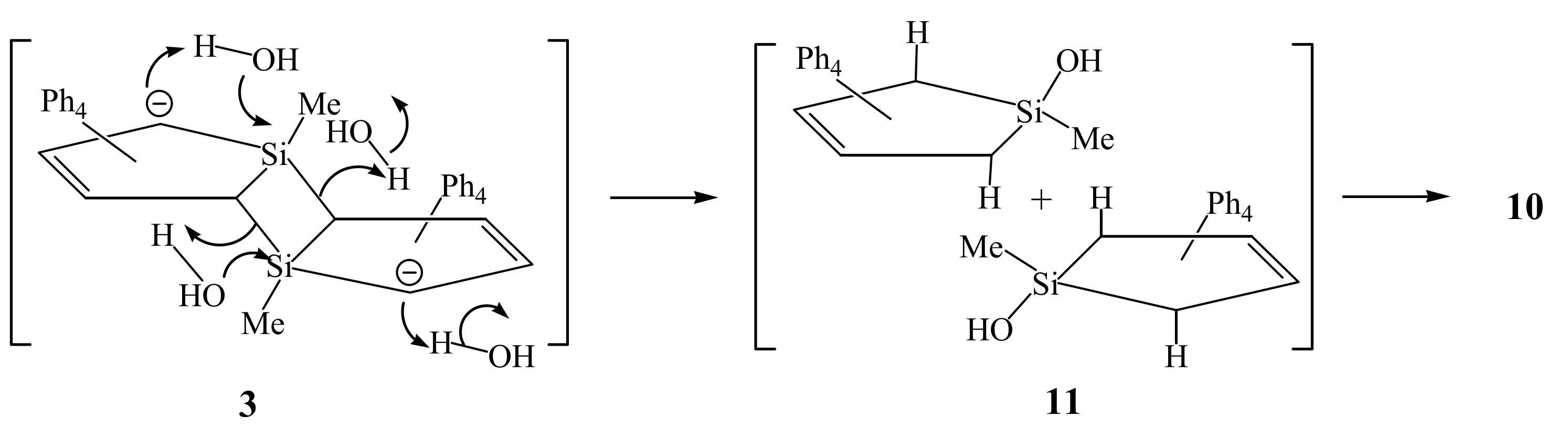

Scheme 8. Suggested mechanism for the hydrolysis reaction of 3.
Scheme 8. Suggested mechanism for the hydrolysis reaction of 3.
Molecules 16 08451 sch008
Molecules 16 08451 sch009 550

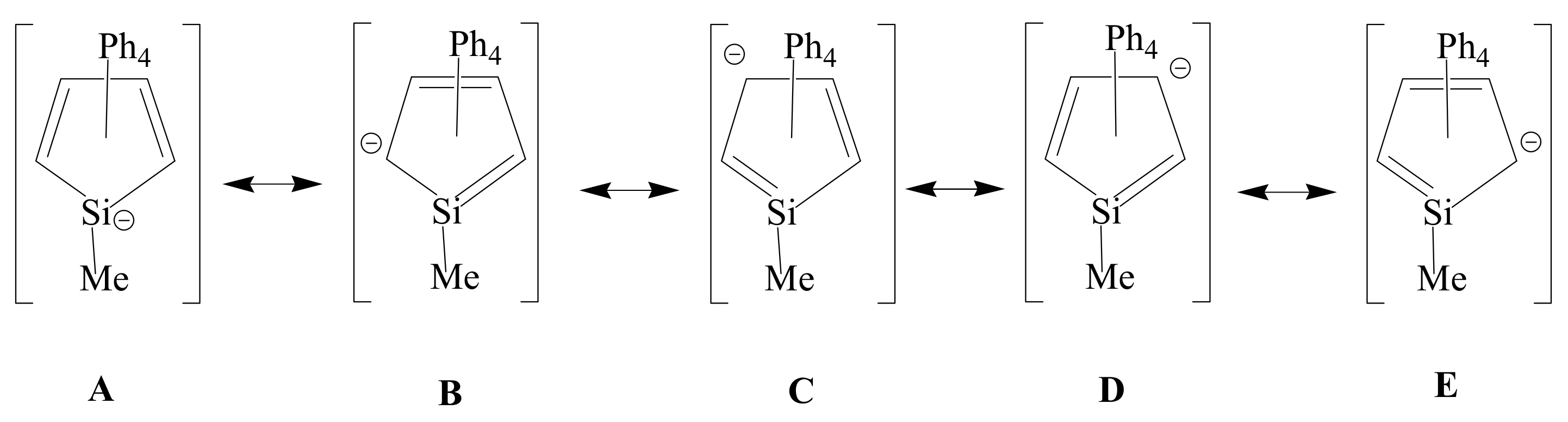

Scheme 9. Resonance structures of the silole anion (2).
Scheme 9. Resonance structures of the silole anion (2).
Molecules 16 08451 sch009
