α-Glucosidase Inhibitory Constituents from Acanthopanax senticosus Harm Leaves

Abstract

A new triterpene glycoside, 3-O-[(α-L-rhamnopyranosyl)(1→2)]-[β-D-glucuronopyranosyl-6-O-methyl ester]-olean-12-ene-28-olic acid (1) and a new indole alkaloid, 5-methoxy-2-oxoindolin-3-acetic acid methyl ester (5) were isolated from the leaves of Acanthopanax senticosus Harms along with six known compounds. The structures of the new compounds were determined by means of 2D-NMR experiments and chemical methods. All the isolated compounds were evaluated for their glycosidase inhibition activities and compound 6 showed significant α-glucosidase inhibition activity.

1. Introduction

Acanthopanax senticosus (Rupr. Maxim) Harms, a member of the Araliaceae family, is a shrub found mainly in the northeast of China, Korea and Japan. It usually grows up to 2 m in height and generally has prickly stems bearing five leaflets (palmate) and umbel-shaped flowers. The young leaves of A. senticosus are cultivated as a vegetable crop in Northeast China. As regards biological active constituents of A. senticosus, many of its triterpenoid saponins [1,2,3,4] were reported to have anti-inflammatory [5], antibacterial [6] and platelet anti-aggregating activities [7]. Our studies indicated that the 30% EtOH fraction of A. senticosus leaves can inhibit plasma glucose levels in alloxan-induced diabetic rats and showed significant α-glucosidase inhibition activity. To further investigate the constituents and screen the bioactive compounds from its leaves, a phytochemical study was performed that resulted in the isolation of new compounds 1 and 5 along with six other previously known compounds. In this paper, we describe the structural elucidation of new compounds 1 and 5, together with the α-glucosidase inhibitory activity of all these compounds 1–8 (Figure 1).

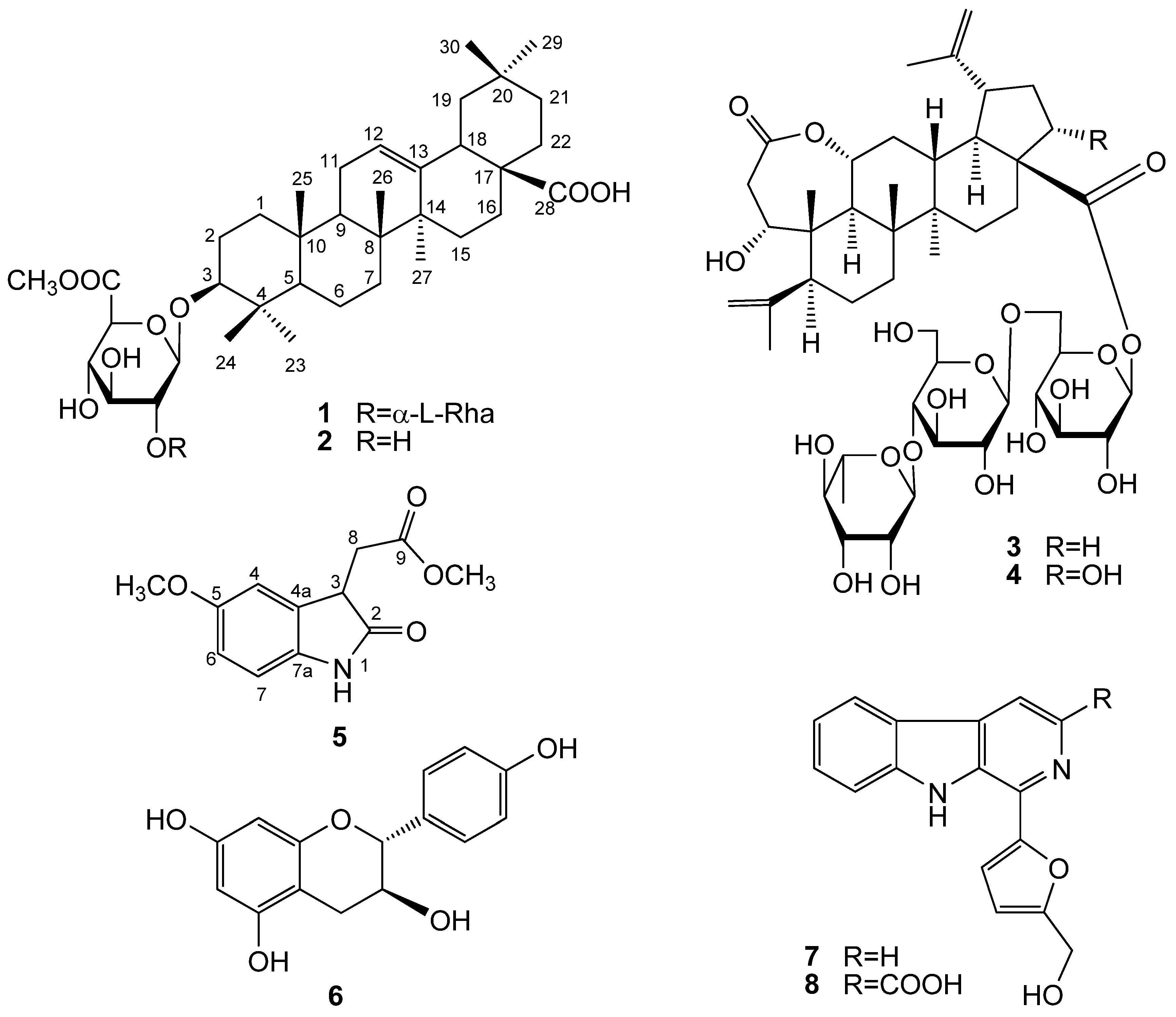

Figure 1. Structures of compounds 1–8.

Figure 1. Structures of compounds 1–8.

2. Results and Discussion

Compound 1 was obtained as a white amorphous powder (MeOH). The molecular formula was determined as C₄₃H₆₈O₁₂ from the [M+Na]⁺ signal at m/z 799.4605 by HR-ESI-MS (calc. for C₄₃H₆₈O₁₂Na 799.4608). A close comparison of NMR data (Table 1) of 1 with those of a known compound, oleanolic acid [3,8,9], indicated that the two compounds were very similar, except for two additional sugar units in 1. By comparison of the ¹³C-NMR spectral data of 1 with those of oleanolic acid, the signal due to C-3 shifted to downfield by approximately 10 ppm, which indicated the sugar unit was linked to C-3 in 1. On acid hydrolysis, 1 yielded L-rhamnose and D-glucuronic acid as a sugar component by GC analysis using a hydrogen flame detector after treatment with L-cysteine methyl ester hydrochloride in pyridine [9] and oleanolic acid was obtained and identified as the aglycone from NMR data by comparison with authentic samples.

The ¹H-NMR spectrum of 1 (Table 1) showed seven methyl singlets δ 0.81 (3H), 0.94 (3H), 0.97 (3H), 1.00 (3H), 1.07 (3H) and 1.29 (6H), one olefinic H-atom (br.s at δ 5.45) and a methoxy group at δ 3.71 (3H). The¹³C-NMR spectrum of 1 showed signals of a pair of olefinic C-atoms at δ 122.5, 144.8, two anomeric C-atoms at δ 102.5, 105.4, and two C=O groups at δ 180.2 and 170.5. The ¹H- and ¹³C-NMR signals of 1 were assigned by the use of HMQC and HSQC-TOCSY. The full connectivity of 1 was deduced from the HMBC correlations (Figure 2). In particular, the long-range correlations between the proton signals at δ 5.64 (H-1′′) and the carbon signals at δ 83.4 (C-2′) suggested that α-L-rhamnose unit was linked to C-2′ of β-D-glucuronic acid. The cross-peak between the proton signals at δ 3.71 (3H) and the carbon signals at δ 170.5 suggested that a methoxy group was linked to C=O of D-glucuronic acid. The anomeric configuration of D-glucuronic acid was determined to be β-form on the basis of the J_H-H value (7.6 Hz) in the ¹H-NMR spectrum, and the configuration of L-rhamnose was determined to be α-form from examination of the chemical shifts (102.5, 72.4, 72.3, 73.7, 70.2, 18.2) in the ¹³C-NMR spectrum of 1. Based on the above evidence, compound 1 was identified as 3-O-[(α-L-rhamnopyranosyl)(1→2)]-[β-D-glucuronopyranosyl-6-O-methyl ester]-olean-12-ene-28-olic acid.

Table 1. ¹H and ¹³C-NMR data for compound 1 in pyridine-d₅. (δ in ppm, J in Hz, recorded at 400 MHz and 100 MHz, respectively).

No.	δH	δC	No.	δH	δC
1	0.89 (1H, m); 1.50 (1H, m)	38.6	24	1.07 (3H, s)	16.4
2	1.84 (1H, m); 2.07 (1H, m)	26.6	25	0.81 (3H, s)	15.5
3	3.26 (1H, dd, 11.5, 4.0)	89.2	26	0.97 (3H, s)	17.4
4		39.5	27	1.29 (3H, s)	26.2
5	0.72 (1H, m)	55.7	28		180.2
6	1.29 (1H, m); 1.43 (1H, m)	18.4	29	0.94 (3H, s)	33.4
7	1.31 (1H, m); 1.45 (1H, m)	33.2	30	1.00 (3H, s)	23.8
8		39.7	GluA-Me
9	1.60 (1H, m)	47.9	1′	4.99 (1H, d, 7.6)	105.4
10		36.9	2′	4.16 (1H, m)	83.4
11	1.87 (2H, m)	23.7	3′	4.31 a	77.4
12	5.45 (1H, br s)	122.5	4′	4.62 a	73.8
13		144.8	5′	4.50 a	76.8
14		42.2	6′		170.5
15	1.15 (1H, m); 2.30 (1H, m)	28.2	OMe	3.71 (3H, s)	52.1
16	1.96 (1H, m); 2.09 (1H, m)	23.7	Rha
17		46.6	1′′	5.64 (1H, br s)	102.5
18	3.36 (1H, dd, 4.5, 14.0)	41.9	2′′	4.62 a	72.4
19	1.78 (1H, m); 1.19 a	46.4	3′′	4.50 a	72.3
20		30.9	4′′	4.31 a	73.7
21	1.15 (1H, m); 1.36 (1H, m)	33.2	5′′	4.85 (1H, m)	70.2
22	1.80 (1H, m); 1.94 (1H, m)	33.1	6′′	1.71 (3H, d, 6.3)	18.2
23	1.29 (3H, s)	27.8

^a Overlapped signals.

Table 1. ¹H and ¹³C-NMR data for compound 1 in pyridine-d₅. (δ in ppm, J in Hz, recorded at 400 MHz and 100 MHz, respectively).

No.	δH	δC	No.	δH	δC
1	0.89 (1H, m); 1.50 (1H, m)	38.6	24	1.07 (3H, s)	16.4
2	1.84 (1H, m); 2.07 (1H, m)	26.6	25	0.81 (3H, s)	15.5
3	3.26 (1H, dd, 11.5, 4.0)	89.2	26	0.97 (3H, s)	17.4
4		39.5	27	1.29 (3H, s)	26.2
5	0.72 (1H, m)	55.7	28		180.2
6	1.29 (1H, m); 1.43 (1H, m)	18.4	29	0.94 (3H, s)	33.4
7	1.31 (1H, m); 1.45 (1H, m)	33.2	30	1.00 (3H, s)	23.8
8		39.7	GluA-Me
9	1.60 (1H, m)	47.9	1′	4.99 (1H, d, 7.6)	105.4
10		36.9	2′	4.16 (1H, m)	83.4
11	1.87 (2H, m)	23.7	3′	4.31 a	77.4
12	5.45 (1H, br s)	122.5	4′	4.62 a	73.8
13		144.8	5′	4.50 a	76.8
14		42.2	6′		170.5
15	1.15 (1H, m); 2.30 (1H, m)	28.2	OMe	3.71 (3H, s)	52.1
16	1.96 (1H, m); 2.09 (1H, m)	23.7	Rha
17		46.6	1′′	5.64 (1H, br s)	102.5
18	3.36 (1H, dd, 4.5, 14.0)	41.9	2′′	4.62 a	72.4
19	1.78 (1H, m); 1.19 a	46.4	3′′	4.50 a	72.3
20		30.9	4′′	4.31 a	73.7
21	1.15 (1H, m); 1.36 (1H, m)	33.2	5′′	4.85 (1H, m)	70.2
22	1.80 (1H, m); 1.94 (1H, m)	33.1	6′′	1.71 (3H, d, 6.3)	18.2
23	1.29 (3H, s)	27.8

^a Overlapped signals.

Compound 5 was obtained as a yellow oil. The molecular formula C₁₂H₁₃NO₄ was defined by HR-ESI-MS (m/z: 258.0740 [M+Na]⁺, calc. for C₁₂H₁₃NO₄Na 258.0742). The ¹H-NMR (Table 2) spectra showed the presence of an aromatic ring with an ABX-coupling system at δ 6.64 (1H, dd, J = 8.5, 2.4 Hz), 6.71 (1H, d, J = 8.5 Hz) and 6.73 (1H, d, J = 2.4 Hz). The signals at δ 3.83 (3H, s) and 3.67 (3H, s) were assigned to proton signals of methoxy group. The ¹³C-NMR spectrum data (Table 2) showed 12 C-atom signals including an aromatic ring δ (C) 108.4, 110.0, 115.3, 131.6, 135.9 and 154.4 and two C=O groups at δ (C) 181.1 and 173.2.

Table 2. ¹H and ¹³C-NMR data for compound 5 in CD₃OD. (δ in ppm, J in Hz, recorded at 400 MHz and 100 MHz, respectively).

No.	δH	δC	No.	δH	δC
2		181.1	8	3.05 (1H, dd, 17.2, 4.8)	35.3
3	3.70 (1H, dd, 7.6, 4.8)	44.2		2.78 (1H, dd, 17.2, 7.6)
4	6.73 (1H, d, 2.4)	110.0	9		173.2
5		154.4	4a		131.6
6	6.64 (1H, dd, 8.5, 2.4)	115.3	7a		135.9
7	6.71 (1H, d, 8.5)	108.4	5-OMe	3.83 (3H, s)	55.8
			-COOMe	3.67 (3H, s)	52.4

Table 2. ¹H and ¹³C-NMR data for compound 5 in CD₃OD. (δ in ppm, J in Hz, recorded at 400 MHz and 100 MHz, respectively).

No.	δH	δC	No.	δH	δC
2		181.1	8	3.05 (1H, dd, 17.2, 4.8)	35.3
3	3.70 (1H, dd, 7.6, 4.8)	44.2		2.78 (1H, dd, 17.2, 7.6)
4	6.73 (1H, d, 2.4)	110.0	9		173.2
5		154.4	4a		131.6
6	6.64 (1H, dd, 8.5, 2.4)	115.3	7a		135.9
7	6.71 (1H, d, 8.5)	108.4	5-OMe	3.83 (3H, s)	55.8
			-COOMe	3.67 (3H, s)	52.4

The ¹H-¹H COSY spectrum showed correlations between δ 3.05 (1H, dd, J = 17.2, 4.8 Hz), 2.78 (1H, dd, J = 17.2, 7.6 Hz) and δ 0.70 (1H, dd, J = 7.6, 4.8 Hz), suggesting a –CHCH₂– fragment. Moreover, in the HMBC spectrum, the long-range correlations between the proton signals at δ 3.70 (H-3) and the carbon signals at δ 110.0 (C-4), 131.6 (C-4a), 135.9 (C-7a), 181.1 (C-2) and 173.2 (C-9) could be identified. Correlations were observed between the proton signals at δ 3.05 (H-8) and the carbon signals at δ 131.6 (C-4a), 181.1 (C-2) and 173.2 (C-9) (Figure 2). Thus, the structure of compound 5 could be elucidated as 5-methoxy-2-oxoindolin-3-acetic acid methyl ester. The absolute configuration of the 3-position in compound 5 has not been established yet.

Figure 2. Key HMBC and ¹H-¹H COSY correlations of 1 and 5.

Figure 2. Key HMBC and ¹H-¹H COSY correlations of 1 and 5.

The other compounds were characterized as 3-O-(β-D-glucuronopyranosyl-6-O-methyl ester)-olean-12-ene-28-olic acid (2) [10], chiisanoside (3), 22α-hydroxychiisanoside (4) [11], (+)-afzelechin (6) [12], perlolyrine (7) [13], 3-carboxylperlolyrine (8) [14] by comparing their NMR spectroscopic data with literature values. All these known compounds are reported for the first time in A. senticosus leaves.

We evaluated the isolated compounds for their inhibitory activity against α-glucosidase since some compounds are known α-glucosidase inhibitors [15]. The results are shown in Table 3, with acarbose used as a positive control. Compounds 1, 4 and 6 exhibited α-glucosidase inhibitory activities with IC₅₀ values of 186.0 μM, 908.5 μM and 819.7 μM, respectively. Thus, this research suggested that the saponins and (+)-afzelechin from 30% EtOH fraction were primary α-glucosidase inhibitors.

Table 3. In vitro α-glucosidase inhibitory assay.

Compound	IC50 (μM ± SEM, μM)
1	908.5 ± 67.29
2	NI
3	NI
4	819.7 ± 91.61
5	NI
6	186.0 ± 12.01
7	NI
8	NI
Acarbose	788.6 ± 53.66

NI no inhibition at 1,000 µM concentration.

Table 3. In vitro α-glucosidase inhibitory assay.

Compound	IC50 (μM ± SEM, μM)
1	908.5 ± 67.29
2	NI
3	NI
4	819.7 ± 91.61
5	NI
6	186.0 ± 12.01
7	NI
8	NI
Acarbose	788.6 ± 53.66

NI no inhibition at 1,000 µM concentration.

3. Experimental

3.1. General

Open column chromatography was carried out using silica gel (200–300 mesh, Qingdao Marine Chemical Co., Qingdao, China) or octadecyl silica gel (ODS, 25–40 μm, Fuji, Tokyo, Japan) as stationary phases. TLC employed precoated silica gel plates (5–7 μm, Qingdao Marine Chemical Co., Qingdao, China). Preparative HPLC was carried out on a Waters 600 instument equipped with a Waters RID-2414 detector. A Waters Sunfire prep C₁₈ OBD (19 × 250 mm i.d.; Milford, PA, USA) column was used for preparative purposes. The IR spectra were recorded as KBr pellets on a Jasco 302-A spectrometer. Optical rotation was recorded on a Jasco P-2000 polarimeter. HRESIMS were measured on a FTMS-7 instrument (Bruker Daltonics, Karlsruhe, Germany). Melting points were determined on a Gallenkemp apparatus and are uncorrected. The ¹H-, ¹³C- and 2D (¹H-¹H COSY, HSQC, HMBC, NOESY) NMR spectra were recorded on a Bruker AMX-400 spectrometer using standard pulse sequences. Chemical shifts are reported in ppm (δ), and scalar coupling are reported in Hz. GC analyses were carried out using a Fuli 9790 instrument, DM-5 column (0.25 μm, 30 m × 0.25 mm, Dikma, Beijing, China). α-Glucosidase (EC.3.2.1.20) from Saccharomyces sp. was purchased from Wako Pure Chemical Indutries Ltd. (Wako 076-02841; Osaka, Japan).

3.2. Plant

The leaves of A. senticosus Harms were collected in October 2009 from Fangzheng of Heilongjiang Province, China and identified by Prof. Zhenyue Wang, of Heilongjiang University of Chinese Medicine. A voucher specimen (20090929) was deposited at the herbarium of Heilongjiang University of Chinese Medicine, Harbin, China.

3.3. Extraction and Isolation

Young leaves (6 kg) of A. senticosus Harms was extracted with 70% EtOH (3 × 48 L) under reflux. The combined extract was concentrated under vacuum yielding a residue (580 g) which was dissolved in water, loaded on a D101 macroporous adsorption resin column and eluted successively with H₂O, 30% EtOH, 60% EtOH and 95% EtOH. The 30% EtOH fraction (80.0 g) was subjected to silica gel column chromatography with a stepwise CHCl₃-MeOH gradient (10:1, 5:1, 3:1, 2:1 v/v), and finally with MeOH alone, to give five fractions (I–V). Fraction II (5.25 g) was rechromatographed over SiO₂ with CHCl₃/MeOH/H₂O (5:1:0.1) and separated further by HPLC using a C₁₈ OBD column (10 μm, 19 × 250 mm, flow rate 10 mL/min) with MeOH/H₂O 15:85 to give 5 (30.5 mg; t_R 7.0 min), 6 (22.1 mg; t_R 12.5 min) and 7 (11.8 mg; t_R 22.1 min). Fraction III was subjected to reversed-phase silica gel column chromatography [10 g, MeOH/H₂O (20:80→30:70→40:60→50:50→60:40→70:30, v/v)→MeOH] to afford six fractions [Fr. III₁, Fr. III₂, Fr. III₃, Fr. III₄, Fr. III₅, Fr. III₆). Fr. III₃ was separated by HPLC [MeOH/H₂O (50:50, v/v)] to give 2 (23.4 mg t_R = 43.2 min). Fr. III₄ was separated by HPLC [MeOH/H₂O (55:45, v/v)] to give 8 (35.3 mg, t_R =12.7 min) and 1 (10.1 mg, t_R =17.3 min). Fr. III₅ was separated by HPLC [MeOH/H₂O (53:47, v/v)] to give 3 (12.7 mg, t_R =22.1 min). Fraction IV was subjected to reversed-phase silica gel column chromatography [10 g, MeOH/H₂O (30:70→40:60→ 50:50→60:40→70:30, v/v)→MeOH] to afford three fractions [Fr. IV₁, Fr. IV₂, Fr. IV₃). Fr. IV₂ was separated by HPLC [MeOH/H₂O (48:52, v/v)] to give 4 (14.5 mg, t_R =28.1 min).

3.4. Characterization Data

3-O-[(α-L-Rhamnopyranosyl)(1→2)]-[β-D-glucuronopyranosyl-6-O-methyl ester]-olean-12-ene-28-olic acid (1). White amorphous powder (MeOH). [α]²⁰_D +10.5° (c 0.15, MeOH). IR (KBr): 3408, 2946, 1695, 1387, 1159, 1078, 637 cm⁻¹. HR-ESI-MS m/z 799.4605 [M+Na]⁺ (calc. C₄₃H₆₈O₁₂Na, 799.4608); ¹H and ¹³C-NMR (pyridine-d₅) data, see Table 1.

5-Methoxy-2-oxoindolin-3-acetic acid methyl ester (5). Yellow oil (MeOH). [α]²⁰_D +4.5° (c 0.25, MeOH). UV λ MeOH max nm (log ε): 304 (3.11), 257 (3.76), 208 (4.05); IR (KBr): 3376, 2951, 1700, 1615, 1293, 1255, 1091 cm⁻¹. HR-ESI-MS m/z 258.0740 [M+Na]⁺ (calc. C₁₂H₁₃NO₄Na, 258.0742); ¹H and ¹³C-NMR (CD₃OD) data, see Table 2.

3.5. Acid Hydrolysis of 1

Compound 1 (3 mg) was hydrolyzed in 1 M HCl (1.0 mL) for 2 h at 85°. The reaction mixture was cooled and partitioned between CHCl₃ (2.0 mL) and H₂O (2.0 mL). The aqueous layer was washed with CHCl₃ (3 × 3.0 mL), neutralized with Ba(OH)₂, filtered, and evaporated under reduced pressure. The residue was dissolved in pyridine (1.0 mL) and L-cysteine methyl ester hydrochloride in pyridine (0.1 M, 2.0 mL) was added. The mixture was heated at 60° for 1 h. An equal volume of Ac₂O was added with heating and incubation was continued for 1 h. The acetylated thiazolidine derivatives were analyzed by GC with a DM-5 column (30 m × 0.25 mm, 0.25 μm) using authentic samples as standards. Temperatures of both injector and detector were 280°. A temperature gradient system was used for the oven, starting at 160° and increasing up to 195° at a rate of 5°/min. The determination of the sugar units in compound 1 was achieved by comparison of retention times of peaks between the hydrolysate and authentic samples of D-glucuronic acid (10.08 min) and L-rhamnose (7.05 min).

3.6. α-Glucosidase Inhibition Assay

The α-glucosidase (EC.3.2.1.20) enzyme inhibition assay has been performed according to the literature [16]. α-Glucosidase (25 μL, 0.2 U/mL), various concentrations of samples (25 μL), and 67 mM phosphate buffer (pH 6.8, 175 μL) were mixed at room temperature for 10 min. Reactions were initiated by the addition of 23.2 mM p-nitrophenyl-α-D-glucopyranoside (25 μL). The reaction mixtures were incubated at 37 °C for 15 min in a final volume of 250 μL, and then 1 M Na₂CO₃ (50 μL) was added to the incubation solution to stop the reaction. The activities of glucosidase were detected in a 96-well plate, and the absorbance was read at 405 nm by a microplate spectrophotometer (Spectra Max, Molecular Devices, Sunnyvale, CA, USA). The negative control was prepared by adding phosphate buffer instead of the sample in the same way as the test. Acarbose was utilized as the positive control. The blank was prepared by adding phosphate buffer instead of α-glucosidase using the same method. The inhibition rates (%) were calculated from the formula:

4. Conclusions

Two new compounds, 3-O-[(α-L-rhamnopyranosyl)(1→2)]-[β-D-glucuronopyranosyl-6-O-methyl ester]-olean-12-ene-28-olic acid (1) and 5-methoxy-2-oxoindolin-3-acetic acid methyl ester (5) were isolated from the 30% EtOH fraction of A. senticosus leaves, along with six known compounds. Compounds 1, 22α-hydroxychiisanoside (4) and (+)-afzelechin (6) showed inhibitory activities against α-glucosidase, with IC₅₀ values of 186.0 µM, 908.5 µM and 819.7 µM, respectively.
