Cross-Coupling Reaction with Lithium Methyltriolborate

by
Yasunori Yamamoto
1,*,
Kazuya Ikizakura
2,
Hajime Ito
2 and
Norio Miyaura
1
1
Frontier Chemistry Center, Faculty of Engineering, Hokkaido University, Sapporo 060-8628, Japan
2
Division of Chemical Process Engineering, Faculty of Engineering, Hokkaido University, Sapporo 060-8628, Japan
*
Author to whom correspondence should be addressed.
Molecules 2013, 18(1), 430-439; https://doi.org/10.3390/molecules18010430
Submission received: 4 December 2012 / Revised: 21 December 2012 / Accepted: 27 December 2012 / Published: 28 December 2012
(This article belongs to the Special Issue Suzuki Reaction)
Browse Figure
Versions Notes

Abstract

:
We newly developed lithium methyltriolborate as an air-stable white solid that is convenient to handle. The good performance of this triolborate for metal-catalyzed bond-forming reactions was demonstrated in palladium-catalyzed cross-coupling reactions with haloarenes. Cross-coupling reaction of [MeB(OCH2)3CCH3]Li with aryl halides occurred in the presence of Pd(OAc)2/RuPhos complex in refluxing MeOH/H2O and the absence of bases.

1. Introduction

Over the past three decades, it has become increasingly clear that organoboron compounds are valuable reagents capable of undergoing many catalytic C-C bond formations in organic synthesis [1,2,3,4,5,6]. Boronic acids are convenient reagents that are generally thermally stable and are inert to water and oxygen, and it is easy to remove the inorganic by-products from the reaction mixture, making the reactions suitable for industrial processes. Since the first report in 1986 of the cross-coupling reaction between alkylboron reagents and aryl and alkenyl halides in the presence of a palladium catalyst and a base [7], B-alkyl cross-coupling has been frequently used in organic synthesis. Classically, alkylboron reagents have been synthesized from the corresponding alkyllithium or alkylmagnesium compounds by transmetalation with trialkoxyboranes [8]. Similarly, organometallic reagents were trapped with 9-methoxy-9-borabicyclo[3.3.1]nonane (B-MeO-9-BBN) to produce the corresponding alkylborinate complexes [9]. Primary alkylboron reagents are easily synthesized by hydroboration of terminal alkenes in a highly chemo-, regio-, and stereoselective manner. Methylboronic acid, methylboroxine [10,11,12,13,14,15,16], and B-methyl-9-borabicylco[3.3.1]nonane (B-Me-9-BBN) [17,18] can also be employed as coupling partners. However, coupling of a methyl group with various organic halides is less than ideal. Boronic acids are sometimes difficult to purify due to the lack of crystallization or the formation of trimeric cyclic anhydrides (boroxines). For this reason, determination of the stoichiometry of the boronic acid to be used in the reaction is difficult. In addition, cross-coupling of alkylboronic acids is complicated by protodeboronation and, as a result, excess boronic acids are used in the reaction for complete consumption of electrophiles. A recent advance is the use of methylboron reagents, such as MeLi/B-MeO-9-BBN [19], 10-methyl-9-oxa-10-borabicyclo[3.3.1]decane [20,21] and MeBF3K [22,23,24,25,26,27], for methylation of aryl compounds. However, the use of large amounts of a base, especially a strong base, may be a major limitation for these applications [28]. The development of an efficient, mild and operationally simple catalyst system that does not require the use of large amounts of a base remains a challenge and has becomes an urgent issue.
Recently, we have developed aryltriolborates [ArB(OCH2)3CCH3]M (M = Li, Na, K, and NBu4), that have good stability in air and water and high solubility in organic solvents and that undergo very smooth transmetalation to various transition metal complexes [29,30]. High performance for bond-forming reactions was demonstrated in palladium-catalyzed cross-coupling reactions [29,30,31,32,33,34,35], copper-catalyzed N-arylation [36] and rhodium-catalyzed asymmetric addition reactions [37,38,39]. We describe herein lithium methyltriolborate that is exceptionally stable in air and water. We also demonstrate the high transmetalation efficiency of triolborate in palladium-catalyzed C-C bond-forming reaction.

2. Results and Discussion

We developed a method for synthesis of lithium methyltriolborate. It was synthesized by methylation of B(OiPr)3 with MeLi followed by removal of i-PrOH through ester exchange with 1,1,1-tris(hydroxymethyl)ethane (Scheme 1). By using this protocol, [MeB(OCH2)3CCH3]Li was obtained in high yield as an air-stable white solid (97%). Triolborate is a bench-stable ate-complex that can be handled and stored without special precautions.
Next, we chose 4-bromobiphenyl to examine its efficiency toward cross-coupling reaction. The yields were highly sensitive to palladium complexes and phosphine ligands in the cross-coupling reaction between 4-bromobiphenyl and lithium methyltriolborate (Table 1).
When Pd(dba)2 was used, the yield was 35% (entry 1). The use of Pd(OAc)2 gave the best results (entry 6), but palladium chloride complexes such as PdCl2, PdCl2(PhCN)2, PdCl2(PPh3)2 and PdCl2(cod) resulted in yields of 59%, 66%, 67% and 49%, respectively (entries 2–5).
Among phosphine ligands screened for optimizations, RuPhos was found to be best ligand to achieve quantitative yield (entry 7). The use of Brettphos gave a methylation product as in the case of SPhos (entry 8). Other monodentate ligands such as Johnphos, XPhos and PCy3 resulted in low yields (entries 9–12). Next, we screened bidentate ligands, and coupling products were obtained in moderate yields (entries 13–17). Furthermore, we optimized the reaction conditions (Table 2). The reaction proceeded smoothly in aqueous MeOH but was very slow in other solvents, such as aqueous THF, toluene, dioxane and DMF (Table 2, entries 1–5). In addition, only water was not effective (entry 8). By further investigations of reaction time (entries 1 and 9–11), amounts of Pd(OAc)2 and RuPhos (entries 1, 12, and 13) and temperature (entries 1 and 14), a methylated product was finally obtained in 94% yield using 1 mol% Pd(OAc)2/2 mol% RuPhos with MeOH/H2O as a solvent at 80 °C for 12 h (entry 13). The yields were low when 1.1 or 1.3 equivalents of boronic acid were used (52% or 83%), but they were increased to practical levels in the presence of 1.5–2.0 equivalents of boronic acid.

Scope and Limitation

Under the optimized reaction conditions, the scope for representative aryl halides is summarized in Table 3. Quantitative conversions resulting in over 80% yields were easily realized at 80 °C in the presence of Pd(OAc)2 (1 mol%) and RuPhos (2 mol%). 2-Naphthyliodide showed a slight decrease in reactivity compared to the corresponding bromide and chloride (entries 6–8). It was also interesting that the steric hindrance of ortho-substituents did not affect the yields (entries 10–12).
The use of 1-bromo-2-methoxynaphthalene, 1-bromo-2-methylnaphthalene and 2-bromo-1,3,5-trimethylbenzene resulted in yields of 96%, 88% and 86%, respectively. The reaction is highly sensitive to electron density of halides. For example, the methylation of furyl and thienyl halides results in low yields (entries 14 and 15).

3. Experimental

3.1. General

1H-NMR spectra were recorded on a JEOL ECX-400 (400 MHz) in CDCl3 with tetramethylsilane as an internal standard. Chemical shifts are reported in part per million (ppm), and signal are expressed as singlet (s), doublet (d), triplet (t), quartet (q), multiplet (m), and broad (br). 13C-NMR spectra were recorded on a JEOL ECX-400 (100 MHz) in CDCl3 (δC = 77.0) with tetramethylsilane as an internal standard. 11B NMR spectra was recorded on a JEOL ECX-400 (128 MHz) with BF3·OEt2 as an external standard. Chemical shifts are reported in part per million (ppm). Kanto Chemical silica gel 60N (particle size 0.063–0.210 mm) was used for flash column chromatography. All reactions were conducted under an atmosphere of nitrogen. Glassware was oven dried at 130 °C and allowed to cool under a stream of dry nitrogen. All chemicals were purchased from Aldrich, Wako, TCI, or Kanto Chemicals and used as received.

3.2. A Preparation of Lithium Methyltriolborate

MeLi (50 mmol) in ether was added to a solution of triisopropoxyborane (50 mmol) in ether (100 mL) at −78 °C. The resulting mixture was stirred for 30 min at −78 °C, then allowed to warm to room temperature and was stirred for 8 h. 1,1,1-tris(hydroxymethyl)ethane (50 mmol) was then added in one portion, and the resulting mixture was stirred at 60 °C for 1 h. The mixture is poured into 1 L of acetone. The solid product is isolated by filtration, washed with acetone and dried under vacuum to afford 7.3 g (97%) of lithium methyltriolborate as a white solid. 1H-NMR (DMSO-d6) δ = 3.40 (s, 6H), 0.37 (s, 3H), −0.75 (s, 3H); 13C-NMR (DMSO-d6) δ = 73.5, 34.5, 16.9, 6.54; 11B NMR (DMSO-d6) δ = 1.44.

3.3. General Procedure for Cross-Coupling with Lithium Methyltriolborate

Palladium acetate (1 mol%) and RuPhos (2 mol%) were placed in a flask under an atmosphere of nitrogen. MeOH/H2O (2.5 mL/0.5 mL) was added, and then the mixture was stirred for 30 min at room temperature. After addition of lithium methyltriolborate (1 mmol) and aryl halide (0.5 mmol), the mixture was heated at 80 °C for 12 h. After cooling to room temperature, the product was extracted with benzene, and dried over anhydrous MgSO4. The desired product was purified by column chromatography on silica gel.
4-Methylbiphenyl (entry 1): 1H-NMR (CDCl3) δ = 7.58 (d, J = 7.25 Hz, 2H), 7.49 (d, J = 8.15 Hz, 2H), 7.42 (d, J = 8.15 Hz, 1H), 7.42 (t, J = 7.48 Hz, 2H), 7.32 (t, J = 7.48 Hz, 1H), 7.25 (d, J = 8.15 Hz, 2H), 2.40 (s, 3H).
p-Methylacetophenone (entry 2): 1H-NMR (CDCl3) δ = 7.82 (d, J = 8.15 Hz, 2H), 7.22 (d, J = 8.15 Hz, 2H), 2.54 (s, 3H), 2.37 (s, 3H).
1-Methyl-4-phenoxybenzene (entry 3): 1H-NMR (CDCl3) δ = 7.33 (t, J = 8.07 Hz, 2H), 7.16 (d, J = 8.25 Hz, 2H), 7.09 (t, J = 7.53 Hz, 1H), 7.01 (d, J = 7.89 Hz, 2H), 6.95 (d, J = 8.61 Hz, 2H), 2.36 (s, 3H).
2-Methoxy-6-methylnaphthalene (entry 4): 1H-NMR (CDCl3) δ = 7.70 (d, J = 9.06 Hz, 2H), 7.59 (s, 1H), 7.34 (dd, J = 1.81, 8.61 Hz, 1H), 7.19 (dd, J = 2.72, 8.83 Hz, 1H), 7.15 (d, J = 2.27 Hz, 1H), 3.94 (s, 3H), 2.53 (s, 3H).
2,7-Dimethylnaphthalene (entry 5): 1H-NMR (CDCl3) δ = 7.76 (d, J = 8.61 Hz, 2H), 7.58 (s, 2H), 7.31 (dd, J = 1.36, 8.38 Hz, 2H), 2.56 (s, 3H).
2-Methylnaphthalene (entries 6–8): 1H-NMR (CDCl3) δ = 7.82–7.72 (m, 3H), 7.67 (s, 1H), 7.51–7.40 (m, 2H), 7.33 (d, J = 8.15 Hz, 1H), 2.57 (s, 3H).
1-Methyl-4-nitrobenzene (entry 9): 1H-NMR (CDCl3) δ = 8.10 (d, J = 8.61 Hz, 2H), 7.31 (d, J = 8.61 Hz, 2H), 2.45 (s, 3H).
2-Methoxy-1-methylnaphthalene (entry 10): 1H-NMR (CDCl3) δ = 8.03 (d, J = 7.89 Hz, 1H), 7.86 (d, J = 8.25 Hz, 1H), 7.78 (d, J = 8.97 Hz, 1H), 7.56 (ddd, J = 1.43, 6.82, 8.32 Hz, 1H), 7.43 (ddd, J = 1.08, 6.67, 7.44 Hz, 1H), 7.32 (d, J = 8.97 Hz, 1H), 3.99 (s, 3H), 2.65 (s, 3H).
1,2-Dimethylnaphthalene (entry 11): 1H-NMR (CDCl3) δ = 8.08 (d, J = 8.61 Hz, 1H), 7.85 (d, J = 7.89 Hz, 1H), 7.67 (d, J = 8.25 Hz, 1H), 7.54 (ddd, J = 1.43, 6.82, 8.34 Hz, 1H), 7.46 (t, J = 6.82 Hz, 1H), 7.35 (d, J = 8.25 Hz, 1H), 2.65 (s, 3H), 2.54 (s, 3H).
1,2,3,5-Tetramethylbenzene (entry 12): 1H-NMR (CDCl3) δ = 6.88 (s, 2H), 2.29 (s, 9H), 2.18 (s, 3H).
2′-Methylbiphenyl-4-carbonitrile (entry 13): 1H-NMR (CDCl3) δ = 7.72–7.68 (m, 3H), 7.44–7.41 (m, 2H), 7.32–7.25 (m, 2H), 7.19 (d, J = 7.17 Hz, 1H), 2.26 (s, 3H).
Methyl 3-methylbenzoate (entry 14): 1H-NMR (CDCl3) δ = 7.85–7.82 (m, 2H), 7.36–7.29 (m, 2H), 3.89 (s, 3H), 2.38 (s, 3H).
Methyl 5-methylfuran-2-carboxylate (entry 15): 1H-NMR (CDCl3) δ = 7.05 (d, J = 3.59 Hz, 1H), 6.08 (d, J = 3.23 Hz, 1H), 2.34 (s, 3H).
2-Acetyl-5-methylthiophene (entry 16): 1H-NMR (CDCl3) δ = 7.48 (d, J = 3.59 Hz, 1H), 6.76 (dd, J = 1.08, 3.77 Hz, 1H), 2.50 (s, 3H), 2.41 (s, 3H).

4. Conclusions

In summary, we have demonstrated the efficiency of lithium methyltriolborate for methylation of aryl halides. This borate showed several advantages over boronic acid, including high nucleophilicity of methyl groups for smooth transmetalation to a palladium catalyst. Since the use of a base is avoided, a variety of functional groups may be accommodated in this reaction system.

Acknowledgments

This work was supported in part by Strategic Molecular and Materials Chemistry through Innovative Coupling Reactions from the Ministry of Education, Culture, Sports, Science, and Technology, Japan.

References

  1. Miyaura, N.; Suzuki, A. Palladium-Catalyzed Cross-Coupling Reactions of Organoboron Compounds. Chem. Rev. 1995, 95, 2457–2483. [Google Scholar] [CrossRef]
  2. Suzuki, A. Cross-Coupling Reactions of Organoboron Compounds with Organic Halides. In Metal-Catalyzed Cross-Coupling Reactions; Diederich, F., Stang, P.J., Eds.; Wiley-VCH: Weinheim, Germany, 1998; pp. 49–98. [Google Scholar]
  3. Suzuki, A.; Brown, H.C. Organic Synthesis via Boranes:Suzuki Coupling; Aldrich Chemical Co.: Milwaukee, WI, USA, 2003; Volume 3. [Google Scholar]
  4. Miyaura, N. Metal-Catalyzed Cross-Coupling Reactions of Organoboron Compounds with Organic Halides. In Metal-Catalyzed Cross-Coupling Reactions, Second, Completely Revised and Enlarged Edition; de Meijere, A., Diederich, F., Eds.; Wiley-VCH: Weinheim, Germany, 2005; pp. 41–124. [Google Scholar]
  5. Valente, C.; Organ, M.G. The Contemporary Suzuki-Miyaura Reaction. In Boronic Acids Preparation and Applications in Organic Synthesis, Medicine and Materials, Second, Completely Revised ed.; Hall, D.G., Ed.; Wiley-VCH: Weinheim, Germany, 2011; pp. 213–262. [Google Scholar]
  6. Jana, R.; Pathak, T.P.; Sigman, M.S. Advances in Transition Metal (Pd, Ni, Fe)-Catalyzed Cross-Coupling Reactions Using Alkyl-organometallics as Reaction Partners. Chem. Rev. 2011, 111, 1417–1492. [Google Scholar] [CrossRef] [PubMed]
  7. Miyaura, N.; Ishiyama, T.; Ishikawa, M.; Suzuki, A. Palladium-catalyzed cross-coupling reactions of B-alkyl-9-BBN or trialkylboranes with aryl and 1-alkenyl halides. Tetrahedron Lett. 1986, 27, 6369–6372. [Google Scholar] [CrossRef]
  8. Brown, H.C.; Cole, T.E. Organoboranes. 31. A simple preparation of boronic esters from organolithium reagents and selected trialkoxyboranes. Organometallics 1983, 2, 1316–1319. [Google Scholar] [CrossRef]
  9. Seidel, G.; Fürstner, A. Suzuki reactions of extended scope: The “9-MeO-9-BBN variant” as a complementary format for cross-coupling. Chem. Commun. 2012, 48, 2055–2070. [Google Scholar] [CrossRef] [PubMed]
  10. Mu, Y.; Gibbs, R.A. Coupling of isoprenoid triflates with organoboron nucleophiles: Synthesis of all-trans-geranylgeraniol. Tetrahedron Lett. 1995, 36, 5669–5672. [Google Scholar] [CrossRef]
  11. Zhou, X.; Tse, M.K.; Wan, T.S.M.; Chan, K.S. Synthesis of b-mono-, tetra-, and octasubstituted sterically bulky porphyrins via Suzuki cross coupling. J. Org. Chem. 1996, 61, 3590–3593. [Google Scholar] [CrossRef] [PubMed]
  12. Niu, C.; Li, J.; Doyle, T.W.; Chen, S.-H. Synthesis of 3-aminopyridine-2-carboxaldehyde thiosemicarbazone (3-AP). Tetrahedron 1998, 54, 6311–6318. [Google Scholar] [CrossRef]
  13. Gray, M.; Andrews, I.P.; Hook, D.F.; Kitteringham, J.; Voyle, M. Practical methylation of aryl halides by Suzuki-Miyaura coupling. Tetrahedron Lett. 2000, 41, 6237–6240. [Google Scholar] [CrossRef]
  14. Zou, G.; Reddy, K.; Falck, J.R. Ag(I)-promoted Suzuki-Miyaura cross-coupling of n-alkylboronic acids. Tetrahedron Lett. 2001, 42, 7213–7215. [Google Scholar] [CrossRef]
  15. Molander, G.A.; Yun, C.-S. Cross-coupling reactions of primary alkylboronic acids with aryl triflates and aryl halides. Tetrahedron 2002, 58, 1465–1470. [Google Scholar] [CrossRef]
  16. Nájera, C.; Gil-Moltó, J.; Karlsröm, S. Suzuki-Miyaura and related cross-couplings in aqueous solvents catalyzed by di(2-pyridyl)methylamine-palladium dichloride complexes. Adv. Synth. Catal. 2004, 346, 1798–1811. [Google Scholar] [CrossRef]
  17. Kramer, G.W.; Brown, H.C. Organoboranes. XVII. Reaction of organometallics with dialkyborane derivatives: The synthesis of mixed organoboranes not available via hydroboration. J. Organomet. Chem. 1974, 73, 1–15. [Google Scholar] [CrossRef]
  18. Miyaura, N.; Ishiyama, T.; Sasaki, H.; Ishikawa, M.; Satoh, M.; Suzuki, A. Palladium-catalyzed inter- and intramolecular cross-coupling reactions of B-alkyl-9-borabicyclo[3.3.1]nonane derivatives with 1-halo-1-alkenes or haloarenes. Synthesis of functionalized alkenes, arenes, and cycloalkenes via a hydroboration-coupling sequence. J. Am. Chem. Soc. 1989, 111, 314–321. [Google Scholar]
  19. Fürstner, A.; Seidel, G. Palladium-catalyzed arylation of polar organometallics mediated by 9-methoxy-9-borabicyclo[3.3.1]nonane: Suzuki reactions of extended scope. Tetrahedron 1995, 51, 11165–11176. [Google Scholar] [CrossRef]
  20. Soderquist, J.A.; Santiago, B. Methylation via the Suzuki reaction. Tetrahedron Lett. 1990, 31, 5541–5542. [Google Scholar] [CrossRef]
  21. Moore, W.R.; Schatzman, G.L.; Jarvi, E.T.; Gross, R.S.; McCarthy, J.R. Terminal difluoro olefin analogues of squalene are time-dependent inhibitors of squalene epoxidase. J. Am. Chem. Soc. 1992, 114, 360–361. [Google Scholar] [CrossRef]
  22. Molander, G.A.; Yun, C.-S.; Ribagorda, M.; Biolatto, B. B-Alkyl Suzuki-Miyaura cross-coupling reactions with air-stable potassium alkyltrifluoroborates. J. Org. Chem. 2003, 68, 5534–5539. [Google Scholar] [CrossRef] [PubMed]
  23. Molander, G.A.; Yokoyama, Y. One-pot synthesis of trisubstituted conjugated dienes via sequential Suzuki-Miyaura cross-coupling with alkenyl- and alkyltrifluoroborates. J. Org. Chem. 2006, 71, 2493–2498. [Google Scholar] [CrossRef] [PubMed]
  24. Dreher, S.D.; Lim, S.-E.; Sandrock, D.L.; Molander, G.A. Suzuki-Miyaura cross-coupling reactions of primary alkyltrifluoroborates with aryl chlorides. J. Org. Chem. 2009, 74, 3626–3631. [Google Scholar] [CrossRef] [PubMed]
  25. Hasník, Z.; Pohl, R.; Hocek, M. Cross-coupling reactions of halopurines with aryl- and alkyltrifluoroborates; the scope and limitations in the synthesis of modified purines. Synthesis 2009, 2009, 1309–1317. [Google Scholar] [CrossRef]
  26. Horn, S.; Cundell, B.; Senge, M. Exploration of the reaction of potassium organotrifluoroborates with porphyrins. Tetrahedron Lett. 2009, 50, 2562–2565. [Google Scholar] [CrossRef]
  27. Delaunary, T.; Es-Sayed, M.; Vors, J.-P.; Monteiro, N.; Balme, G. Facile access to 3,5-dihalogenated pyrazoles by sydnone cycloaddition and their versatile functionalization by Pd-catalyzed cross-coupling process. Eur. J. Org. Chem. 2011, 2011, 3837–3848. [Google Scholar] [CrossRef]
  28. Cahová, H.; Pohl, R.; Bednárová, L.; Nováková, K.; Cvačka, J.; Hocek, M. Synthesis of 8-bromo-, 8-methyl- and 8-phenyl-dATP and their polymerase incorporation into DNA. Org. Biomol. Chem. 2008, 6, 3657–3660. [Google Scholar] [CrossRef] [PubMed]
  29. Yamamoto, Y.; Takizawa, M.; Yu, X.-Q.; Miyaura, N. Cyclic triolborates: Air- and water-stable ate complexes of organoboronic acids. Angew. Chem. Int. Ed.Engl. 2008, 47, 928–931. [Google Scholar] [CrossRef] [PubMed]
  30. Yamamoto, Y. Cyclic triolborates: Novel reagent for organic synthesis. Heterocycles 2012, 85, 799–819. [Google Scholar] [CrossRef]
  31. Yamamoto, Y.; Takizawa, M.; Yu, X.-Q.; Miyaura, N. Palladium-catalyzed cross-coupling reaction of heteroaryltriolborates with aryl halides for synthesis of biaryls. Heterocycles 2010, 80, 359–368. [Google Scholar] [CrossRef]
  32. Li, G.-Q.; Kiyomura, S.; Yamamoto, Y.; Miyaura, N. Direct conversion of pinacol aryl boronic esters to aryl triolborates. Chem. Lett. 2011, 40, 702–704. [Google Scholar] [CrossRef]
  33. Yamamoto, Y.; Sugai, J.; Takizawa, M.; Miyaura, N. Synthesis of lithium 2-pyridyltriolborate and its cross-coupling reaction with aryl halides. Org. Synth. 2011, 88, 79–86. [Google Scholar]
  34. Li, G.-Q.; Yamamoto, Y.; Miyaura, N. Synthesis of tetra-ortho-substituted biaryls using aryltriolborates. Synlett 2011, 2011, 1769–1773. [Google Scholar]
  35. Li, G.-Q.; Yamamoto, Y.; Miyaura, N. Double-coupling of dibromo arenes with aryltriolborates for synthesis of diaryl-substituted planar frameworks. Tetrahedron 2011, 67, 6804–6811. [Google Scholar] [CrossRef]
  36. Yu, X.-Q.; Yamamoto, Y.; Miyaura, N. Aryl triolborates: Novel reagent for copper-catalyzed N arylation of amines, anilines, and Imidazoles. Chem. Asian J. 2008, 3, 1517–1522. [Google Scholar] [CrossRef] [PubMed]
  37. Yu, X.-Q.; Yamamoto, Y.; Miyaura, N. Rhodium-catalyzed asymmetric 1,4-addition of heteroaryl cyclic triolborate to α,β-unsaturated carbonyl compounds. Synlett 2009, 2009, 994–998. [Google Scholar] [CrossRef]
  38. Yu, X.-Q.; Shirai, T.; Yamamoto, Y.; Miyaura, N. Rhodium-catalyzed 1,4-addition of lithium 2-furyltriolborates to unsaturated ketones and esters for enantioselective synthesis of γ-oxo-carboxylic acids by oxidation of the furyl ring with ozone. Chem. Asian J. 2011, 6, 932–937. [Google Scholar] [CrossRef] [PubMed]
  39. Yamamoto, Y.; Takahashi, Y.; Kurihara, K.; Miyaura, N. Enantioselective synthesis of arylglycine derivatives by asymmetric addition of arylboronic acids to imines. Aust. J. Chem. 2011, 64, 1447–1453. [Google Scholar] [CrossRef]
Sample Availability: Sample of Methyltriolborate is available from the authors.
Molecules 18 00430 sch001 550

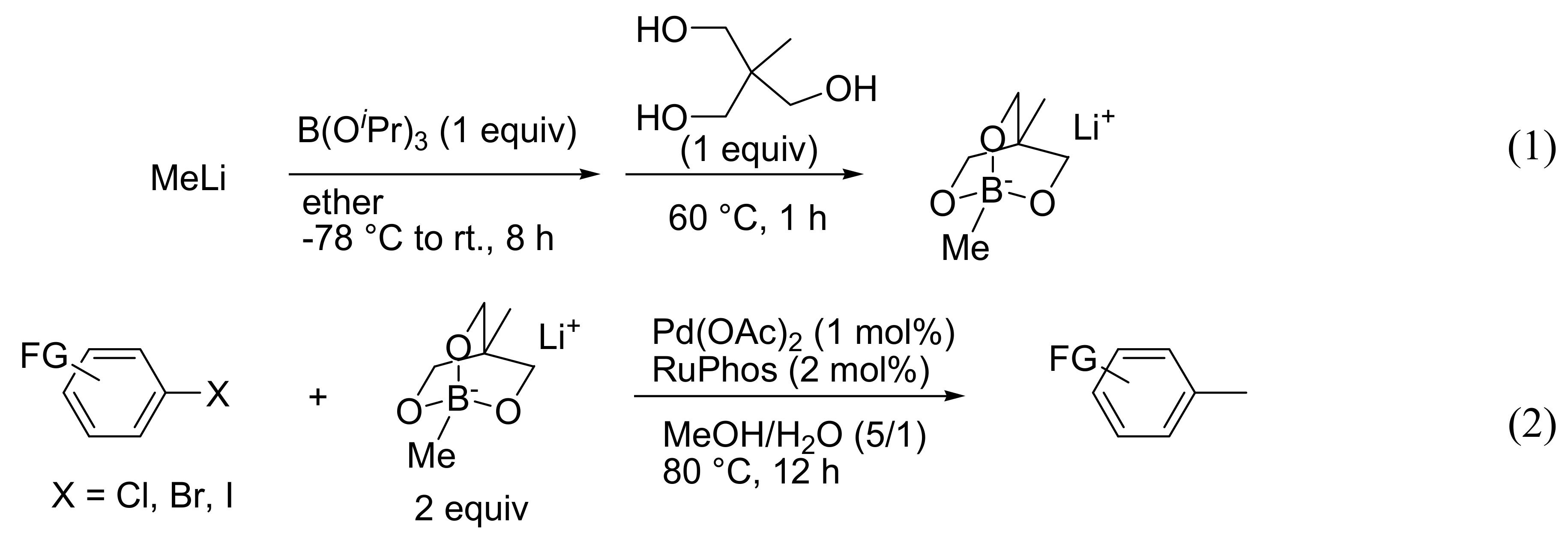

Scheme 1. Synthesis of lithium methyltriolborate.
Scheme 1. Synthesis of lithium methyltriolborate.
Molecules 18 00430 sch001
Table

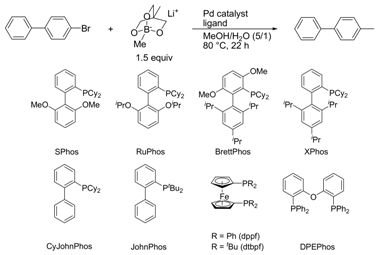

Table 1. Effect of ligands a. Molecules 18 00430 i001
Table 1. Effect of ligands a. Molecules 18 00430 i001
EntryPd catalyst (mol%)Ligand (mol%)Yield (%) b
1Pd(dba)2 (3)SPhos (6)35
2PdCl2 (3)SPhos (6)59
3PdCl2(PPh3)2 (3)SPhos (6)67
4PdCl2(PhCN)2 (3)SPhos (6)66
5PdCl2(cod) (3)SPhos (6)49
6Pd(OAc)2 (3)SPhos (6)71
7Pd(OAc)2 (3)RuPhos (6)>99
8Pd(OAc)2 (3)BrettPhos (6)70
9Pd(OAc)2 (3)XPhos (6)6
10Pd(OAc)2 (3)CyJohnPhos (6)22
11Pd(OAc)2 (3)JohnPhos (6)3
12Pd(OAc)2 (3)PCy3 (6)6
13Pd(OAc)2 (3)dppp (3)47
14Pd(OAc)2 (3)dppb (3)59
15Pd(OAc)2 (3)dppf (3)45
16Pd(OAc)2 (3)dtbpf (3)21
17Pd(OAc)2 (3)DPEphos (3)44
18Pd(OAc)2 (3)none6
a Reaction conditions: A mixture of 4-bromobiphenyl (1 equiv), lithium methylborate (2 equiv), palladium catalyst (3 mol%) and ligand (3 or 6 mol%) in MeOH/H2O (2.5 mL/0.5 mL) at 80 °C for 22 h; b GC yield.
Table
Table 2. Optimaization of methylation by lithium methyltriolborate a. Molecules 18 00430 i002
Table 2. Optimaization of methylation by lithium methyltriolborate a. Molecules 18 00430 i002
EntrySolventX (mol%)Y (mol%)Time (h)Temp. (°C)Yield (%) b
1MeOH/H2O (5/1)362280>99
2THF/H2O (5/1)36228035
31,4-dioxane/H2O (5/1)36228048
4toluene/H2O (5/1)36228017
5DMF/H2O (5/1)36228063
6MeOH36228080
7EtOH36228079
8H2O3622809
9MeOH/H2O (5/1)361280>99
10MeOH/H2O (5/1)3668086
11MeOH/H2O (5/1)3618061
12MeOH/H2O (5/1)241280>99
13MeOH/H2O (5/1)121280>99 (94 c)
14MeOH/H2O (5/1)12126090
a Reaction conditions: A mixture of 4-bromobiphenyl (1 equiv), lithium methylborate (2 equiv), Pd(OAc)2 and RuPhos; b GC yield; c Isolated yield.
Table
Table 3. Cross-coupling between lithium methyltriolborate and aryl halides a.Molecules 18 00430 i019
Table 3. Cross-coupling between lithium methyltriolborate and aryl halides a.Molecules 18 00430 i019
EntrySubstrateYield (%) bEntrySubstrateYield (%) b
1Molecules 18 00430 i00394 c9Molecules 18 00430 i00450 e
2Molecules 18 00430 i0059510Molecules 18 00430 i00696
3Molecules 18 00430 i0078111Molecules 18 00430 i00888
4Molecules 18 00430 i009>9912Molecules 18 00430 i01086
5Molecules 18 00430 i01188 d13Molecules 18 00430 i01288
6Molecules 18 00430 i0139614Molecules 18 00430 i01472
7Molecules 18 00430 i0157715Molecules 18 00430 i01666
8Molecules 18 00430 i0179416Molecules 18 00430 i01864
a Reaction conditions: A mixture of aryl halides (1 equiv), lithium methylborate (2 equiv), Pd(OAc)2 (1 mol%) and RuPhos (2 mol%) in MeOH/H2O (2.5 mL/0.5 mL) was stirred at 80 °C for 12 h; b Isolated yield; c Lithium methyltriolborate (1.5 eq.) was used; d Lithium methyltriolborate (4 eq.), Pd(OAc)2 (2 mol%) and RuPhos (4 mol%) were used; e 4-methoxy-nitrobenzene (26%) was formed.
