Efficient Synthesis of Boron-Containing α-Acyloxyamide Analogs via Microwave Irradiation

by
Chih-Cheng Chai
1,
Pin-Yi Liu
1,
Chia-Hung Lin
1,
Hsien-Chi Chen
1,
Yang-Chang Wu
2,3,4,
Fang-Rong Chang
5,6 and
Po-Shen Pan
1,*
1
Department of Chemistry, Tamkang University, New Taipei 25137, Taiwan
2
School of Pharmacy, College of Pharmacy, China Medical University, Taichung 404, Taiwan
3
Chinese Medicine Research and Development Center, China Medical University, Taichung 404, Taiwan
4
Center for Molecular Medicine, China Medical University Hospital, Taichung 404, Taiwan
5
Graduate Institute of Natural Products, Kaohsiung Medical University, Kaohsiung 807, Taiwan
6
Cancer Center, Kaohsiung Medical University Hospital, Kaohsiung 807, Taiwan
*
Author to whom correspondence should be addressed.
Molecules 2013, 18(8), 9488-9511; https://doi.org/10.3390/molecules18089488
Submission received: 27 June 2013 / Revised: 2 August 2013 / Accepted: 5 August 2013 / Published: 8 August 2013
(This article belongs to the Section Organic Chemistry)
Browse Figure
Versions Notes

Abstract

:
In this report, a Passerini three-component reaction utilizing boron-containing carboxylic acids or aldehydes is discussed. The reaction was carried out in water and facilitated by the use of microwave irradiation. This methodology allowed for the efficient formation of a broad range of boron-containing α-acyloxyamides under mild conditions within a short time. Two series of boron-containing α-acyloxyamides were synthesized and subsequently screened for cytotoxicity using the MTT cell viability assay. Two potential lead compounds were found to have potent activity against the HepG2 cancer cell line, demonstrating the potential of this methodology for use in the development of novel pharmaceuticals.

1. Introduction

Boron-based compounds possess a unique and potentially valuable feature, whereby the empty p-orbital on the boron atom is able to interact with a nucleophile from a biological target [1,2,3,4,5,6,7], forming a stable tetrahedral complex. This distinctive property provides great promise in the field of pharmaceuticals, as it allows boron-based compounds to react with a target of interest from a different perspective to their conventional carbon-based analogs. The FDA approval of bortezomib [VelcadeTM, Figure 1a] in 2003 for the treatment of multiple myeloma and mantle cell lymphoma [8,9,10] represents one of the greatest examples of successful utilization of organoboron entities for treating human diseases. Encouraged by the success of bortezomib, several boron-containing molecules have since been developed to treat a wide range of diseases, a number of which are currently undergoing clinical trials (Figure 1b–e) [11,12,13,14,15,16,17].
Molecules 18 09488 g001 550

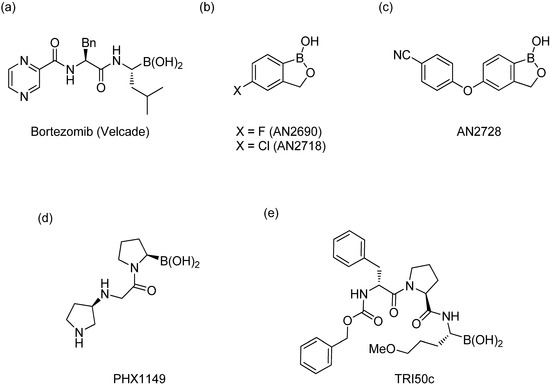

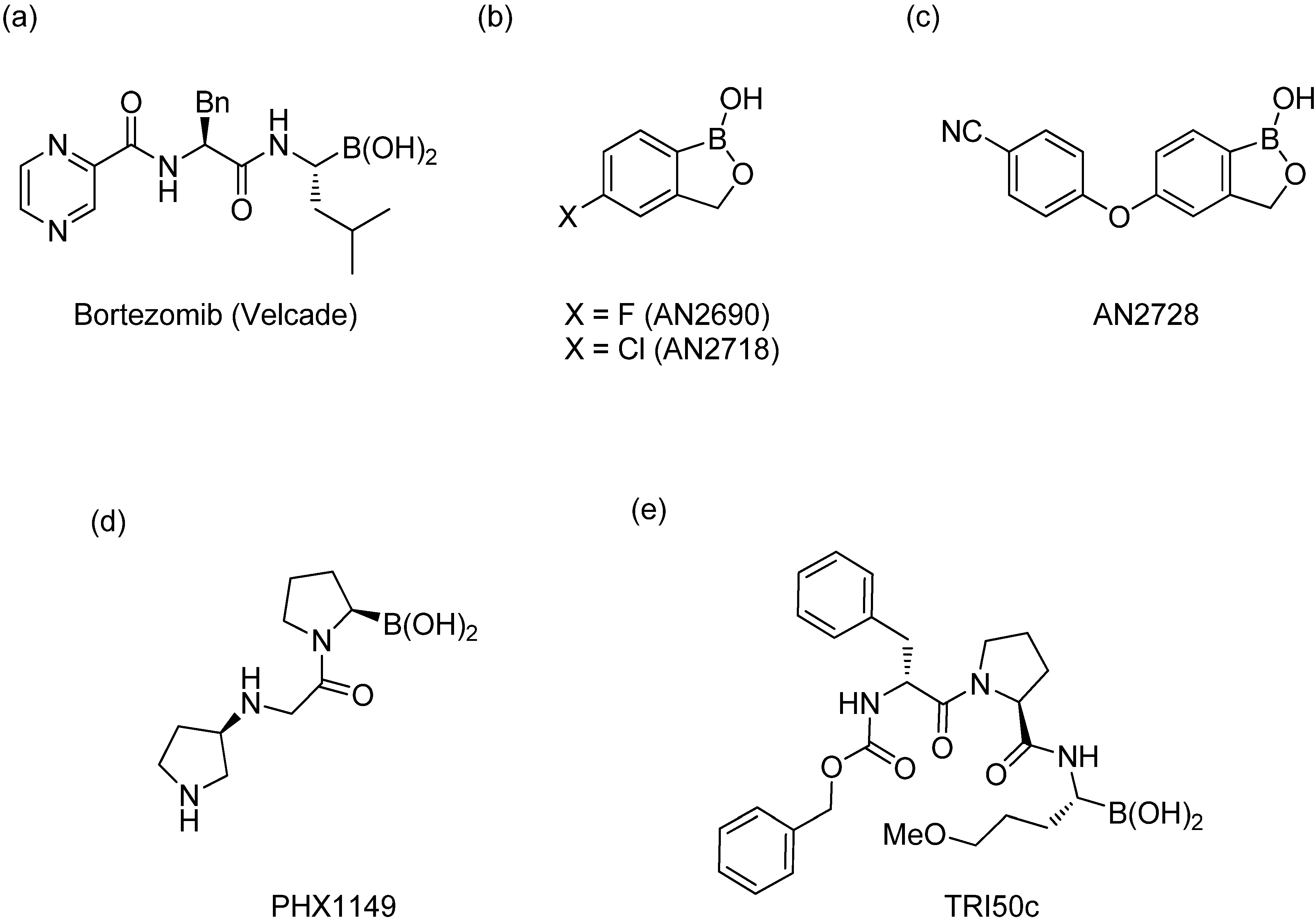

Figure 1. Boron-containing analogs as pharmaceutical agents.
Figure 1. Boron-containing analogs as pharmaceutical agents.
Molecules 18 09488 g001
Multicomponent reactions (MCRs) are convergent synthetic strategies in which three or more reagents are combined in one pot to produce the desired products [18,19]. It is an invaluable platform in the development of pharmaceutical agents as, owing to their versatility, MCRs are perfectly suited for producing boron-containing compounds for potential biological applications.
One of the most widely utilized MCRs is the isocyanide-based Passerini reaction, where an isocyanide, an aldehyde, and a carboxylic acid are condensed, generating α-acyloxyamides [20,21]. Although widely used by the organic and medicinal chemistry communities, the Passerini reaction has several shortcomings. One such drawback is that poor yields are often observed when a weakly acidic carboxylic acid [22] or no Lewis acid promoters [23] are involved in the reaction. In the last decades, tremendous progress has been made in the optimization of the Passerini reaction [24,25,26,27,28,29,30]. However, these studies mainly focused on improving the conditions for constructing molecules containing the elements carbon, hydrogen, oxygen, nitrogen, halogens, and sulfur. Reports on utilizing an MCR as a platform to generate boron-containing analogs are very limited, and those that have been published often demonstrate the requirement for a prolonged reaction time or excessive purification procedures [31]. Herein, we report the use of the Passerini reaction for the efficient synthesis of boron-containing α-acyloxyamides. This eco-friendly procedure could be carried out on a broad range of substrates at a moderate temperature under microwave irradiation conditions, with a reduced reaction time possible.

2. Results and Discussion

2.1. Chemistry

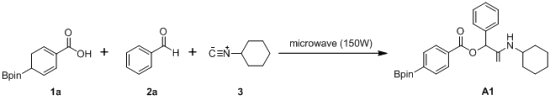

Initial experiments were carried out in order to determine the optimal conditions for the synthesis of boron-containing α-acyloxyamide analogs (Table 1). First, 1.0 equivalent of 4-carboxyphenylboronic acid pinacol ester (1a), 1.0 equivalent of benzaldehyde (2), and 1.0 equivalent of cyclohexyl isocyanide (3) were dissolved in the selected solvent and allowed to react at 45 °C for 90 min under microwave irradiation (150 W). It was found that while dichloromethane (entry 1) and methanol (entry 2) did not give desired product A1, using THF gave a moderate yield of 39% (entry 3). The yield was greatly improved to 77% when water was used as the solvent (entry 4). Increasing the reactant concentrations from 0.25 M to 1.0 M (entry 5) resulted in an increased isolated yield (84%), and extension of the reaction time from 90 min to 120 min (entry 6) gave an even higher yield (88%). In an attempt to improve the yield further, the temperature was increased to 55 °C for 120 min; however, rather than giving an increased amount of the desired product, a lower isolated yield was obtained (60%), suggesting product degradation due to overheating (entry 7). Thus, this series of optimization experiments highlighted a range of temperatures, reagent concentrations, and solvents that were effective for producing desired product A1 in good isolated yields. The desired product was purified using a simple precipitation procedure with an appropriate solvent system, and no additional column chromatography or reverse-phase high performance liquid chromatography was required for affording satisfactory purity. This finding could be of particular importance for the construction of boron-containing libraries, as one of the main challenges in boron chemistry is the purification of the final product, with excessive purification protocols often required for achieving satisfactory purity.
Table
Table 1. Optimization of Passerini reaction using boron-containing acid building block. Molecules 18 09488 i001
Table 1. Optimization of Passerini reaction using boron-containing acid building block. Molecules 18 09488 i001
EntryTemp. (°C)SolventConc. (M)Time (min)Yields (%)
145 °CDCM0.2590N.R.
245 °CMeOH0.2590N.R.
345 °CTHF0.259039
445 °CH2O0.259077
545 °CH2O19084
645 °CH2O112088
755 °CH2O1120N.D. a
855 °CH2O11day69 b
a The decomposition of the product was observed; b Reaction performed without microwave irradiation.

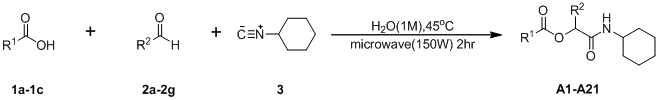

Three carboxylphenylboronate esters 1a–c, seven aldehydes 2a–g, and cyclohexyl isocyanide (3) were then used to evaluate the scope of the reaction under the optimized conditions that were deduced from the results shown in Table 1. As demonstrated in Table 2, in all cases, the desired products A1–20 were isolated in moderate to good yields, ranging from 56%–88%. It was found that the position of the boronate ester did not influence the reaction as 4- and 3-carboxyphenylboronic acid pinacol esters 1a and 1b (entries 1 and 2) gave the desired products A1 and A2 in good yields, respectively. Apart from the result shown in entry 3, attachment of an electron-withdrawing group to the acid building block appeared to impede the reaction, as analogs A6, A9, A12, A15, and A18 were obtained in lower isolated yields. However, this trend was not observed when an electron-withdrawing group was attached to the aldehyde building block, as demonstrated by the good yields of analogs A4–9 obtained. Further, the attachment of an electron-donating group to the aldehyde building block was also tolerated, with analogs A10–15 achieved in good yields. Finally, as heteroaryl moieties are frequently found in many pharmaceutical agents [32,33,34,35], 3-pyridinecarboxaldehyde (2f), and furfural (2g) were used to construct the corresponding Passerini boronate esters. Five Passerini boronate esters containing heteroaryl motifs A16–20 were successfully synthesized in moderate to good yields using the optimized microwave-assisted conditions.
Table
Table 2. Synthesis of Passerini products with boron containing acid building blocks. Molecules 18 09488 i002
Table 2. Synthesis of Passerini products with boron containing acid building blocks. Molecules 18 09488 i002
EntryR1R2ProductYields (%)
1 Molecules 18 09488 i003(1a) Molecules 18 09488 i004(2a)A188
2 Molecules 18 09488 i005(1b) Molecules 18 09488 i004A283
3 Molecules 18 09488 i006(1c) Molecules 18 09488 i004A380
4 Molecules 18 09488 i003 Molecules 18 09488 i007(2b)A476
5 Molecules 18 09488 i005 Molecules 18 09488 i007A579
6 Molecules 18 09488 i006 Molecules 18 09488 i007A651
7 Molecules 18 09488 i003 Molecules 18 09488 i008(2c)A787
8 Molecules 18 09488 i005 Molecules 18 09488 i008A886
9 Molecules 18 09488 i006 Molecules 18 09488 i008A968
10 Molecules 18 09488 i003 Molecules 18 09488 i009(2d)A1070
11 Molecules 18 09488 i005 Molecules 18 09488 i009A1177
12 Molecules 18 09488 i006 Molecules 18 09488 i009A1263
13 Molecules 18 09488 i003 Molecules 18 09488 i010(e)A1387
14 Molecules 18 09488 i005 Molecules 18 09488 i010A1479
15 Molecules 18 09488 i006 Molecules 18 09488 i010A1563
16 Molecules 18 09488 i003 Molecules 18 09488 i011(f)A1656
17 Molecules 18 09488 i005 Molecules 18 09488 i011A1752
18 Molecules 18 09488 i006 Molecules 18 09488 i011A1856
19 Molecules 18 09488 i003 Molecules 18 09488 i012(g)A1957
20 Molecules 18 09488 i005 Molecules 18 09488 i012A2063

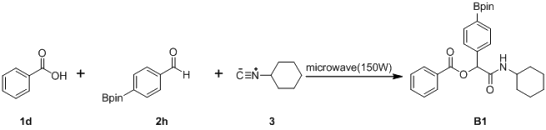

Encouraged by the results presented in Table 2, experiments were initiated in order to explore the possibility of using boron-containing aldehyde building blocks to synthesize Passerini analogs (Table 3). Although they are structurally similar, the optimal conditions for preparing A1 did not appear to be adequate for producing B1. For instance, the conditions of entries 4–6 in Table 1 were able to generate A1 in 77%, 84%, and 88% yields, while only affording B1 in 0%, 58%, and 65% (Table 3, entries 1–3). It was found that prolonged microwave irradiation was required to promote the reaction, with an improved yield of 75% achieved after 150 min of reaction time (entry 4). However, after an additional 60 min irradiation, the yield declined to 60% (entry 5), suggesting degradation of the product might have occurred under such extensive microwave treatment.
Table
Table 3. Optimisation of Passerini reaction using boron-containing aldehyde building block. Molecules 18 09488 i013
Table 3. Optimisation of Passerini reaction using boron-containing aldehyde building block. Molecules 18 09488 i013
EntryTemp. (°C)SolventConc. (M)Time (min)Yields (%)
145 °CH2O0.2590N.R.
245 °CH2O19058
345 °CH2O112065
445 °CH2O115075
545 °CH2O121060
After elucidating the optimal reaction conditions (Table 3, entry 4), six acid building blocks, two boron-containing aldehydes, and cyclohexyl isocyanide were used to synthesize B1–12. In all cases, the desired products were isolated in good yields, ranging from 50%–89% (Table 4). It was found that the reactions were greatly influenced by the nature of the acid building blocks. For instance, reactions with benzoic acid (1d) gave higher yields (entries 1 and 2, 69%–75%) than for those achieved for the compound with an electron-withdrawing group (entries 3 and 4, 57%–59%). Furthermore, acids with an electron-donating group generally gave even higher yields than those without (entries 5–10, 72%–89%). Incorporation of a heteroaryl motif to the Passerini product was successfully accomplished in moderate yields of 50%–55% by using pyrazinecarboxylic acid (1i) (entries 11 and 12).
Table
Table 4. Synthesis of Passerini products with boron containing aldehyde building blocks. Molecules 18 09488 i014
Table 4. Synthesis of Passerini products with boron containing aldehyde building blocks. Molecules 18 09488 i014
EntryR1R2ProductYields (%)
1 Molecules 18 09488 i004(1d) Molecules 18 09488 i003(2h)B175
2 Molecules 18 09488 i004 Molecules 18 09488 i005(2i)B269
3 Molecules 18 09488 i015(1e) Molecules 18 09488 i003B357
4 Molecules 18 09488 i015 Molecules 18 09488 i005B459
5 Molecules 18 09488 i016(1f) Molecules 18 09488 i003B572
6 Molecules 18 09488 i016 Molecules 18 09488 i005B663
7 Molecules 18 09488 i017(1g) Molecules 18 09488 i003B780
8 Molecules 18 09488 i017 Molecules 18 09488 i005B882
9 Molecules 18 09488 i009(1h) Molecules 18 09488 i003B985
10 Molecules 18 09488 i009 Molecules 18 09488 i005B1089
11 Molecules 18 09488 i018(1i) Molecules 18 09488 i003B1151
12 Molecules 18 09488 i018 Molecules 18 09488 i005B1242

2.2. In Vitro Biological Evaluation

The thirty three boron-containing α-acyloxyamides mentioned above were subsequently screened for anti-proliferative activity against the HepG2 (human hepatocellular carcinoma) cancer cell line using the MTT cell viability assay. It was found that A4 and A5 gave IC50 values of 33.6 μM and 27.5 μM, respectively, where non-boron analog A21 was observed to be inactive. Further boron-containing α-acyloxyamides are currently being synthesized using the method developed in the present study, and their structure–activity relationships will be reported in due course.

3. Experimental

3.1. General

All starting materials were obtained from commercial suppliers and used without further purification unless otherwise noted. Reactions were performed on a CEM Co., Discover microwave reactor using sealed vessels. 1H-, 13C-, 11B-NMR spectra were recorded on a Bruker Avance 600 FT-NMR spectrometer at 600.13, 150.90, and 192.54 MHz, respectively. All 11B chemical shifts were referenced to external BF3·OEt2 (0.0 ppm). Data are represented as follows: chemical shifts (ppm), multiplicity (s = singlet, d = doublet, t = triplet, m = multiplet, br = broad), coupling constant J (Hz). Melting points were determined by using a Fargo MP-2D melting point apparatus and were uncorrected. High resolution ESI mass spectra were obtained by Finnigan MAT 95S.

3.2. General Procedure A for the Synthesis of Boron-Containing α-Acyloxyl Amides A1–21

Molecules 18 09488 i019
2-(Cyclohexylamino)-2-oxo-1-phenylethyl4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzoate (A1). A 10 mL glass tube containing the 4-carboxyphenylboronic acid ester (248 mg, 1.00 mmol), benzaldehyde (0.10 mL, 1.00 mmol), and D.I. H2O (1 mL) was first microwave irradiated for 6 min (45 °C, 150 W) under medium speed magnetic stirring. Cyclohexyl isocyanide (3, 0.124 mL, 1.00 mmol) was then added to the reaction mixture. The additional microwave irradiation was applied for 120 min (45 °C, 150 W) under medium speed magnetic stirring. After being diluted in dichloromethane, the resulted reaction mixture was washed twice with a saturated aqueous solution of NaHCO3 and with brine. The resulted organic layer was collected and dried over MgSO4 and concentrated in vacuo. The crude product was then dissolved in ethyl acetate (3 mL) prior the slow addition of n-hexane. The resulting precipitate was formed and collected by filtration affording the desired product in 88% yield. mp = 198 °C. 1H-NMR (CDCl3) δ: 8.06 (d, J = 7.8 Hz, 2H), 7.90 (d, J = 8.3 Hz, 2H), 7.53 (d, J = 7.2 Hz, 2H), 7.42–7.33 (m, 3H), 6.31 (s, 1H), 6.03 (br, 1H), 3.87–3.79 (m, 1H), 1.94 (d, J = 8.8 Hz, 1H), 1.91–1.85 (m, 1H), 1.72–1.61 (m, 2H), 1.61–1.56 (m, 3H), 1.41–1.31 (m, 14H), 1.23–1.08 (m, 3H). 13C-NMR (CDCl3) δ: 167.3, 164.9, 135.7, 134.9, 131.4, 128.9, 128.8, 128.7, 127.4, 84.3, 76.0, 48.1, 32.8, 25.4, 24.9, 24.6. 11B-NMR (CDCl3) δ: 31.0. HRMS (ESI, positive ion): m/z [M+H]+, found 464.2607. C27H34BNO5 requires 464.2606.
Molecules 18 09488 i020
2-(Cyclohexylamino)-2-oxo-1-phenylethyl3-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzoate (A2). The desired compound (384 mg, 83% yield) was prepared by General Procedure A using 3-carboxyphenyl boronic acid ester (248 mg, 1.00 mmol), benzaldehyde (0.102 mL, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 152 °C. 1H-NMR (CDCl3) δ: 8.50 (s, 1H), 8.16 (d, J = 7.8 Hz, 1H), 8.03 (d, J = 7.4 Hz, 1H), 7.54 (d, J = 7.2 Hz, 2H), 7.48 (t, J = 7.5 Hz, 1H), 7.32–7.41 (m, 3H), 6.31 (s, 1H), 6.15 (br, 1H), 3.80–3.89 (m, 1H), 1.87–1.98 (m, 2H), 1.64–1.74 (m, 3H), 1.56–1.64 (m, 2H), 1.32–1.43 (m, 12H), 1.13–1.27 (m, 4H). 13C-NMR (CDCl3) δ: 167.4, 164.9, 139.8, 136.0, 132.4, 128.9, 128.7, 128.1, 127.4, 84.2, 76.0, 48.1, 32.8, 25.5, 24.8, 24.6. 11B-NMR (CDCl3) δ: 31.0. HRMS (ESI, positive ion): m/z [M+H]+, found 464.2583. C27H34BNO5 requires 464.2606.
Molecules 18 09488 i021
2-(Cyclohexylamino)-2-oxo-1-phenylethyl2-fluoro-4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzoate (A3). The desired compound (311 mg, 80% yield) was prepared by General Procedure A using 4-carboxy-3-fluorophenylboronic acid ester (266 mg, 1.00 mmol), benzaldehyde (0.102 mL, 1.00 mmol) and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 181 °C. 1H-NMR (CDCl3) δ: 7.93 (t, J = 7.3 Hz, 1H), 7.67–7.59 (m, 2H), 7.51 (d, J = 6.9 Hz, 2H), 7.38–7.28 (m, 3H), 6.82 (br, 1H), 6.31 (s, 1H), 3.87–3.79 (m, 1H), 1.96–1.88 (m, 2H), 1.70 (td, J = 8.9, 4.3 Hz, 2H), 1.63–1.55 (m, 1H), 1.41–1.30 (m, 12H), 1.29–1.17 (m, 4H). 13C-NMR (CDCl3) δ: 167.1, 162.5, 161.2(d), 135.7, 131.8, 130.3, 130.3, 128.8, 128.7, 128.6, 127.3, 122.7, 122.6, 119.7, 119.6, 84.5, 76.0, 47.9, 32.6, 25.3, 24.7, 24.4. 11B-NMR (CDCl3) δ: 30.44. HRMS (ESI, positive ion): m/z [M+H]+, found 482.2515. C27H33BFNO5 requires 482.2520.
Molecules 18 09488 i022
2-(Cyclohexylamino)-2-oxo-1-(4-(trifluoromethyl)phenyl)ethyl4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzoate (A4). The desired compound (405 mg, 76% yield) was prepared by General Procedure A using 4-carboxyphenylboronic acid ester (248 mg, 1.00 mmol), 4-(trifluoromethyl)benzaldehyde (0.13 mL, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol). mp = 249 °C. 1H-NMR (CDCl3) δ: 8.06 (d, J = 8.3 Hz, 2H), 7.93 (d, J = 8.3 Hz, 2H), 7.69–7.62 (m, 4H), 6.35 (s, 1H), 6.17 (br, 1H), 3.86–3.78 (m, 1H), 1.95–1.86 (m, 2H), 1.72–1.63 (m, 2H), 1.60 (td, J = 12.9, 3.8 Hz, 1H), 1.41–1.31 (m, 14H), 1.23–1.11 (m, 3H). 13C-NMR (CDCl3) δ: 166.6, 164.7, 139.5, 135.0, 130.9, 128.7, 127.6, 125.7, 125.7, 123.9(d), 84.3, 75.1, 48.3, 32.8, 25.4, 24.8, 24.6. 11B-NMR (CDCl3) δ: 31.2. HRMS (ESI, positive ion): m/z [M+H]+, found 532.2483. C28H33BF3NO5 requires 532.2488.
Molecules 18 09488 i023
2-(Cyclohexylamino)-2-oxo-1-(4-(trifluoromethyl)phenyl)ethyl3-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzoate (A5). The desired compound (416 mg, 79% yield) was prepared by General Procedure A using 3-carboxyphenylboronic acid ester (248 mg, 1.00 mmol), 4-(trifluoromethyl)benzaldehyde (0.136 mL, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 150 °C. 1H-NMR (CDCl3) δ: 8.51 (s, 1H), 8.16 (td, J = 7.8, 1.5 Hz, 1H), 8.08–8.03 (m, 1H), 7.68 (d, J = 8.1 Hz, 2H), 7.63 (d, J = 8.3 Hz, 2H), 7.50 (t, J = 7.5 Hz, 1H), 6.38 (br, 1H), 6.33 (s, 1H), 3.87–3.78 (m, 1H), 1.92 (dt, J = 12.4, 3.1 Hz, 2H), 1.73–1.65 (m, 2H), 1.63–1.56 (m, 1H), 1.41–1.32 (m, 13H), 1.26–1.14 (m, 3H). 13C-NMR (CDCl3) δ: 166.7, 164.7, 140.0, 139.7, 135.9, 132.3, 130.8, 128.3, 128.1, 127.6, 125.6, 125.5, 123.9(d), 84.2, 75.2, 48.2, 32.7, 25.4, 24.8, 24.5. 11B-NMR (CDCl3) δ: 30.6. HRMS (ESI, positive ion): m/z [M+H]+, found 532.2487. C28H33BF3NO5 requires 532.2488.
Molecules 18 09488 i024
2-(Cyclohexylamino)-2-oxo-1-(4-(trifluoromethyl)phenyl)ethyl2-fluoro-4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzoate (A6). The desired compound (279 mg, 51% yield) was prepared by General Procedure A using 4-carboxy-3-fluorophenyl boronic acid ester (266 mg, 1.00 mmol), 4-(trifluoromethyl)benzaldehyde (0.136 mL, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 220 °C. 1H-NMR (CDCl3) δ: 7.93 (t, J = 7.3 Hz, 1H), 7.68–7.60 (m, 6H), 6.83 (br, 1H), 6.34 (s, 1H), 3.85–3.78 (m, 1H), 1.96–1.88 (m, 2H), 1.71 (td, J = 13.4, 4.0 Hz, 2H), 1.60 (td, J = 12.6, 3.7 Hz, 1H), 1.43–1.31 (m, 14H), 1.28–1.20 (m, 3H). 13C-NMR (CDCl3) δ: 166.4, 162.5, 161.3, 139.7, 132.0, 130.9, 130.5, 127.6, 125.6, 125.6, 124.8, 122.8, 119.3, 119.2, 84.7, 75.6, 48.1, 32.7, 32.6, 25.4, 24.8, 24.4. 11B-NMR (CDCl3) δ: 30.6. HRMS (ESI, positive ion): m/z [M+H]+, found 550.2376. C28H32BF4NO5 requires 550.2394.
Molecules 18 09488 i025
2-(Cyclohexylamino)-1-(2-fluorophenyl)-2-oxoethyl4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzoate (A7). The desired compound (418 mg, 87% yield) was prepared by General Procedure A using 4-carboxyphenylboronic acid ester (248 mg, 1.00 mmol), 2-fluorobenzaldehyde (0.105 mL, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 167 °C. 1H-NMR (CDCl3) δ: 8.05 (d, J = 8.30 Hz, 2H), 7.89 (d, J = 8.1 Hz, 2H), 7.58 (dt, J = 7.4, 1.5 Hz, 1H), 7.33 (ddt, J = 7.7, 5.5, 1.7 Hz, 1H), 7.19–7.14 (m, 1H), 7.08 (t, J = 9.1 Hz, 1H), 6.48 (s, 1H), 6.17 (br, 1H), 3.87–3.79 (m, 1H), 2.00–1.93 (m, 1H), 1.88–1.81 (m, 1H), 1.73–1.61 (m, 2H), 1.61–1.55 (m, 1H), 1.40–1.29 (m, 13H), 1.27–1.10 (m, 3H) 13C-NMR (CDCl3) δ: 166.5, 164.9, 160.7(d), 134.8, 131.2, 130.7, 130.0, 128.7, 124.4, 124.4, 123.2, 115.7, 84.2, 70.8, 48.2, 32.6, 25.4, 24.8, 24.5. 11B-NMR (CDCl3) δ: 31.1. HRMS (ESI, positive ion): m/z [M+H]+, found 482.2512. C27H33BFNO5 requires 482.2520.
Molecules 18 09488 i026
2-(Cyclohexylamino)-1-(2-fluorophenyl)-2-oxoethyl3-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzoate (A8). The desired compound (415 mg, 86% yield) was prepared by General Procedure A using 3-carboxyphenylboronic acid ester (248 mg, 1.00 mmol), 2-fluorobenzaldehyde (0.105 mL, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 173 °C. 1H-NMR (CDCl3) δ: 8.50 (s, 1H), 8.13 (d, J = 7.7 Hz, 1H), 8.01 (d, J = 7.4 Hz, 1H), 7.60–7.55 (m, 1H), 7.45 (t, J = 7.5 Hz, 1H), 7.34–7.28 (m, 1H), 7.15 (t, J = 7.6 Hz, 1H), 7.06 (t, J = 9.2 Hz, 1H), 6.32 (br, 1H), 3.87–3.80 (m, 1H), 1.96 (d, J = 11.6 Hz, 1H), 1.85 (d, J = 12.0 Hz, 1H), 1.72–1.61 (m, 2H), 1.59–1.53 (m, 1H), 1.40–1.29 (m, 14H), 1.29–1.12 (m, 3H). 13C-NMR (CDCl3) δ: 166.5, 164.8, 160.6, 139.7, 135.9, 132.2, 130.6, 129.9, 128.5, 127.9, 124.3, 123.2, 115.5, 84.0, 70.7, 48.1, 32.5, 25.3, 24.7, 24.4. 11B-NMR (CDCl3) δ: 30.6. HRMS (ESI, positive ion): m/z [M+H]+, found 482.2514. C27H33BFNO5 requires 482.2520.
Molecules 18 09488 i027
2-(Cyclohexylamino)-1-(2-fluorophenyl)-2-oxoethyl2-fluoro-4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzoate (A9). The desired compound (340 mg, 68% yield) was prepared by General Procedure A using 4-carboxy-3-fluorophenylboronic acid ester (266 mg, 1.00 mmol), 2-fluorobenzaldehyde (0.10 mL, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 69 °C. 1H-NMR (CDCl3) δ: 7.89 (t, J = 7.3 Hz, 1H), 7.63–7.55 (m, 2H), 7.50 (dt, J = 7.4, 1.6 Hz, 1H), 7.31–7.26 (m, 1H), 7.11 (dt, J = 7.5, 0.8 Hz, 1H), 7.06–7.01 (m, 1H), 6.78 (br, 1H), 6.45 (s, 1H), 3.87–3.79 (m, 1H), 1.94 (dd, J = 12.0, 3.0 Hz, 1H), 1.91–1.85 (m, 1H), 1.68 (tdd, J = 17.1, 13.1, 4.0 Hz, 3H), 1.60–1.52 (m, 1H), 1.38–1.19 (m, 18H). 13C-NMR (CDCl3) δ: 166.3, 162.5, 161.8, 160.1, 131.7, 130.7, 130.0, 124.2, 123.2, 122.5, 119.4, 115.6, 84.4, 71.2, 47.9, 32.4, 25.3, 24.7, 24.3. 11B-NMR (CDCl3) δ: 30.8. HRMS (ESI, positive ion): m/z [M+H]+, found 500.2425. C27H32BF2NO5 requires 500.2425.
Molecules 18 09488 i028
2-(Cyclohexylamino)-1-(3-methoxyphenyl)-2-oxoethyl4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzoate (A10). The desired compound (347 mg, 70% yield) was prepared by General Procedure A using 4-carboxyphenylboronic acid ester (248 mg, 1.00 mmol), 3-methoxybenzaldehyde (0.12 mL, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 176 °C. 1H-NMR (CDCl3) δ: 8.06 (d, J = 8.1 Hz, 2H), 7.90 (d, J = 8.1 Hz, 2H), 7.29 (t, J = 8.0 Hz, 1H), 7.11 (d, J = 7.7 Hz, 1H), 7.08 (s, 1H), 6.89 (dd, J = 8.2, 2.3Hz, 1H), 6.27 (s, 1H), 6.08 (br, 1H), 3.84–3.77 (m, 4H), 1.92 (d, J = 9.5 Hz, 1H), 1.89–1.84 (m, 1H), 1.66 (dt, J = 14.4, 4.0 Hz, 2H), 1.61–1.55 (m, 1H), 1.40–1.30 (m, 14H), 1.21–1.08 (m, 3H). 13C-NMR (CDCl3) δ: 167.1, 164.9, 159.7, 137.1, 134.8, 131.4, 129.7, 128.7, 119.5, 114.4, 113.0, 84.2, 75.8, 55.2, 48.1, 32.7, 25.4, 24.8, 24.6. 11B-NMR (CDCl3) δ: 30.8. HRMS (ESI, positive ion): m/z [M+H]+, found 494.2717. C28H36BNO6 requires 494.2720.
Molecules 18 09488 i029
2-(Cyclohexylamino)-1-(3-methoxyphenyl)-2-oxoethyl3-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzoate (A11). The desired compound (377 mg, 77% yield) was prepared by General Procedure A using 3-carboxyphenylboronic acid ester (248 mg, 1.00 mmol), 3-methoxybenzaldehyde (0.121 mL, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 167 °C. 1H-NMR (CDCl3) δ: 8.51 (s, 1H), 8.16 (td, J = 7.8, 1.5 Hz, 1H), 8.03 (d, J = 7.2 Hz, 1H), 7.48 (t, J = 7.5 Hz, 1H), 7.29 (t, J = 8.0 Hz, 1H), 7.13–7.08 (m, 2H), 6.89 (dd, J = 8.2, 2.5 Hz, 1H), 6.27 (s, 1H), 6.15 (br, 1H), 3.87–3.80 (m, 4H), 1.97–1.87 (m, 2H), 1.74–1.64 (m, 3H), 1.59 (td, J = 12.8, 3.6 Hz, 1H), 1.41–1.33 (m, 14H), 1.27–1.14 (m, 3H). 13C-NMR (CDCl3) δ: 167.3, 164.8, 159.7, 139.8, 137.2, 136.0, 132.4, 129.7, 128.7, 128.0, 119.6, 114.5, 112.9, 84.2, 75.8, 55.3, 48.1, 32.7, 25.5, 24.8, 24.6. 11B-NMR (CDCl3) δ: 30.5. HRMS (ESI, positive ion): m/z [M+H]+, found 494.2704. C28H36BNO6 requires 494.2720.
Molecules 18 09488 i030
2-(Cyclohexylamino)-1-(3-methoxyphenyl)-2-oxoethyl2-fluoro-4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzoate (A12). The desired compound (320 mg, 63% yield) was prepared by General Procedure A using 4-carboxy-3-fluorophenylboronic acid ester (266 mg, 1.00 mmol), 3-methoxybenzaldehyde (0.12 mL, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 163 °C. 1H-NMR (CDCl3) δ: 7.95 (t, J = 7.2 Hz, 1H), 7.68–7.59 (m, 2H), 7.30–7.26 (m, 1H), 7.13–7.06 (m, 2H), 6.89–6.85 (m, 1H), 6.75 (br, 1H), 6.29 (s, 1H), 3.86–3.81 (m, 1H), 3.80 (s, 3H), 1.93 (br, s, 2H), 1.71 (td, J = 8.6, 4.2 Hz, 2H), 1.63–1.57 (m, 1H), 1.43–1.38 (m, 2H), 1.36 (s, 13H), 1.28–1.19 (m, 3H). 13C-NMR (CDCl3) δ: 166.9, 162.5, 161.2, 159.6, 137.1, 131.9, 130.3, 129.6, 122.6, 119.6, 119.4, 114.4, 112.9, 84.5, 76.2, 55.1, 47.9, 32.6, 25.4, 24.7, 24.4. 11B-NMR (CDCl3) δ: 30.2. HRMS (ESI, positive ion): m/z [M+H]+, found 512.2615. C28H35BFNO6 requires 512.2625.
Molecules 18 09488 i031
2-(Cyclohexylamino)-1-(2-methoxyphenyl)-2-oxoethyl4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzoate (A13). The desired compound (428 mg, 87% yield) was prepared by General Procedure A using 4-carboxyphenylboronic acid ester (248 mg, 1.00 mmol), 2-methoxybenzaldehyde (0.121 mL, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 182 °C. 1H-NMR (CDCl3) δ: 8.08 (d, J = 8.1 Hz, 2H), 7.88 (d, J = 8.1 Hz, 2H), 7.58 (dd, J = 7.5, 1.4 Hz, 1H), 7.34–7.29 (m, 1H), 7.00 (t, J = 7.5 Hz, 1H), 6.92 (d, J = 8.3 Hz, 1H), 6.57 (s, 1H), 6.17 (br, 1H), 3.89–3.84 (m, 3H), 3.82–3.74 (m, 1H), 1.98–1.92 (m, 1H), 1.79–1.72 (m, 1H), 1.69–1.63 (m, 1H), 1.60–1.51 (m, 2H), 1.38–1.26 (m, 14H), 1.25–1.12 (m, 2H), 1.10–1.03 (m, 1H). 13C-NMR (CDCl3) δ: 167.3, 165.3, 156.5, 134.6, 131.8, 129.9, 128.7, 128.5, 124.2, 121.0, 110.9, 84.1, 77.2, 76.8, 70.8, 55.5, 47.8, 32.5, 25.4, 24.7, 24.3. 11B-NMR (CDCl3) δ: 31.0. HRMS (ESI, positive ion): m/z [M+H]+, found 494.2713. C28H36BNO6 requires 494.2720.
Molecules 18 09488 i032
2-(Cyclohexylamino)-1-(2-methoxyphenyl)-2-oxoethyl3-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzoate (A14). The desired compound (392 mg, 79% yield) was prepared by General Procedure A using 3-carboxyphenylboronic acid ester (248 mg, 1.00 mmol), 2-methoxybenzaldehyde (0.121 mL, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 164 °C. 1H-NMR (CDCl3) δ: 8.54 (s, 1H), 8.18 (d, J = 7.8 Hz, 1H), 7.99 (d, J = 7.2 Hz, 1H), 7.58 (d, J = 7.4 Hz, 1H), 7.44 (t, J = 7.5 Hz, 1H), 7.30 (t, J = 7.7 Hz, 1H), 6.99 (t, J = 7.5 Hz, 1H), 6.91 (d, J = 8.1 Hz, 1H), 6.57 (s, 1H), 6.24 (br, 1H), 3.87 (s, 3H), 3.82–3.76 (m, 1H), 1.95 (d, J = 9.4 Hz, 1H), 1.77 (d, J = 11.6 Hz, 1H), 1.70–1.63 (m, 1H), 1.61–1.51 (m, 2H), 1.38–1.27 (m, 13H), 1.26–1.06 (m, 4H). 13C-NMR (CDCl3) δ: 167.4, 165.3, 156.6, 139.3, 136.0, 132.3, 129.9, 129.0, 128.6, 127.7, 124.2, 120.9, 110.9, 83.9, 70.9, 55.5, 47.7, 32.5, 25.3, 24.7, 24.3. 11B-NMR (CDCl3) δ: 30.6. HRMS (ESI, positive ion): m/z [M+H]+, found 494.2715. C28H36BNO6 requires 494.2720.
Molecules 18 09488 i033
2-(Cyclohexylamino)-1-(2-methoxyphenyl)-2-oxoethyl2-fluoro-4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzoate (A15). The desired compound (324 mg, 63% yield) was prepared by General Procedure A using 4-carboxy-3-fluorophenylboronic acid ester (266 mg, 1.00 mmol), 2-methoxybenzaldehyde (0.121 mL, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 75 °C. 1H-NMR (CDCl3) δ: 7.93 (t, J = 7.2 Hz, 1H), 7.60 (d, J = 7.6 Hz, 1H), 7.56 (d, J = 11.1 Hz, 1H), 7.51 (dd, J = 7.6, 1.5 Hz, 1H), 7.30–7.26 (m, 2H), 6.95 (t, J = 7.4 Hz, 1H), 6.88 (d, J = 8.3 Hz, 1H), 6.60 (br, 1H), 6.56 (s, 1H), 3.86–3.76 (m, 4H), 1.95 (dd, J = 12.0, 3.0 Hz, 1H), 1.84–1.78 (m, 1H), 1.72–1.65 (m, 1H), 1.65–1.58 (m, 1H), 1.58–1.52 (m, 1H), 1.39–1.28 (m, 14H), 1.27–1.11 (m, 3H). 13C-NMR (CDCl3) δ: 167.2, 162.8, 162.0, 160.3, 156.8, 131.6, 130.0, 129.1, 124.1, 122.5, 122.4, 120.8, 120.1, 111.0, 84.3, 71.7, 55.5, 47.6, 32.4, 25.3, 24.6, 24.3. 11B-NMR (CDCl3) δ: 30.1. HRMS (ESI, positive ion): m/z [M+H]+, found 512.2608. C28H35BFNO6 requires 512.2625.
Molecules 18 09488 i034
2-(Cyclohexylamino)-2-oxo-1-(pyridin-3-yl)ethyl4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzoate (A16). The desired compound (260 mg, 56% yield) was prepared by General Procedure A using 4-carboxyphenylboronic acid ester (248 mg, 1.00 mmol), pyridine-3-aldehyde (0.09 mL, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 230 °C. 1H-NMR (CDCl3) δ: 8.77 (s, 1H), 8.60 (d, J = 4.5 Hz, 1H), 8.04 (d, J = 8.3 Hz, 2H), 7.93-7.86 (m, 3H), 7.32 (dd, J = 7.9, 4.8 Hz, 1H), 6.32 (s, 1H), 6.25 (br, 1H), 3.84–3.78 (m, 1H), 1.95–1.85 (m, 2H), 1.71–1.62 (m, 2H), 1.61–1.56 (m, 1H), 1.39–1.30 (m, 13H), 1.25–1.10 (m, 4H). 13C-NMR (CDCl3) δ: 166.5, 164.8, 150.1, 148.5, 135.3, 135.0, 131.7, 130.9, 128.7, 123.5, 84.3, 73.8, 48.3, 32.7, 25.3, 24.8, 24.6. 11B-NMR (CDCl3) δ: 30.6. HRMS (ESI, positive ion): m/z [M+H]+, found 465.2553. C26H33BN2O5 requires 465.2566.
Molecules 18 09488 i035
2-(Cyclohexylamino)-2-oxo-1-(pyridin-3-yl)ethyl3-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzoate (A17). The desired compound (240 mg, 52% yield) was prepared by General Procedure A using 3-carboxyphenylboronic acid ester (248 mg, 1.00 mmol), pyridine-3-aldehyde (0.094 mL, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 127 °C. 1H-NMR (CDCl3) δ: 8.76 (s, 1H), 8.56 (s, 1H), 8.46 (s, 1H), 8.10 (d, J = 7.8 Hz, 1H), 8.00 (d, J = 7.4 Hz, 1H), 7.88 (d, J = 8.1 Hz, 1H), 7.43 (t, J = 7.5 Hz, 1H), 7.32–7.27 (m, 1H), 6.60 (br, 1H), 6.28 (s, 1H), 3.82–3.74 (m, 1H), 1.93–1.81 (m, 2H), 1.67–1.59 (m, 2H), 1.57–1.50 (m, 1H), 1.35–1.27 (m, 13H), 1.22–1.09 (m, 4H). 13C-NMR (CDCl3) δ: 166.5, 164.7, 149.8, 148.5, 140.0, 135.9, 135.3, 132.3, 128.1, 123.5, 84.1, 73.7, 48.2, 32.6, 25.3, 24.7, 24.5. 11B-NMR (CDCl3) δ: 30.9. HRMS (ESI, positive ion): m/z [M+H]+, found 465.2548. C26H33BN2O5 requires 465.2566.
Molecules 18 09488 i036
2-(Cyclohexylamino)-2-oxo-1-(pyridin-3-yl)ethyl2-fluoro-4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzoate (A18). The desired compound (270 mg, 52% yield) was prepared by General Procedure A using 4-carboxy-3-fluorophenylboronic acid ester (266 mg, 1.00 mmol), pyridine-3-aldehyde (0.094 mL, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 203 °C. 1H-NMR (CDCl3) δ: 8.75 (s, 1H), 8.57 (dd, J = 4.7, 1.1 Hz, 1H), 7.91 (t, J = 7.2 Hz, 1H), 7.83 (td, J = 7.9, 1.7 Hz, 1H), 7.66–7.58 (m, 2H), 6.83 (br, 1H), 6.32 (s, 1H), 3.86–3.78 (m, 1H), 1.95–1.89 (m, 2H), 1.70 (td, J = 8.9, 4.1 Hz, 2H), 1.62–1.55 (m, 1H), 1.41–1.31 (m, 14H), 1.26–1.19 (m, 3H). 13C-NMR (CDCl3) δ: 166.2, 162.6, 161.3, 150.0, 148.6, 135.2, 131.9, 131.8, 130.5, 123.4, 122.7, 119.2, 84.6, 74.1, 48.1, 32.6, 25.4, 24.8, 24.4. 11B-NMR (CDCl3) δ: 30.0. HRMS (ESI, positive ion): m/z [M+H]+, found 483.2455. C26H32BFN2O5 requires 483.3012.
Molecules 18 09488 i037
2-(Cyclohexylamino)-1-(furan-2-yl)-2-oxoethyl4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzoate (A19). The desired compound (260 mg, 57% yield) was prepared by General Procedure A using 4-carboxyphenyl boronic acid ester (248 mg, 1.00 mmol), furan-2-carbaldehyde (0.08 mL, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 182.5 °C. 1H-NMR (CDCl3) δ: 8.02 (d, J = 8.3 Hz, 2H), 7.87 (d, J = 8.3 Hz, 2H), 7.41 (s, 1H), 6.55 (d, J = 3.2 Hz, 1H), 6.39 (s, 1H), 6.36 (dd, J = 3.1, 1.8 Hz, 1H), 6.20 (br, 1H), 3.87–3.80 (m, 1H), 1.99–1.93 (m, 1H), 1.90–1.83 (m, 1H), 1.71–1.61 (m, 2H), 1.57 (td, J = 12.9, 3.7 Hz, 1H), 1.38–1.29 (m, 14H), 1.25–1.09 (m, 3H). 13C-NMR (CDCl3) δ: 164.9, 164.8, 148.1, 143.5, 134.7, 131.1, 128.7, 111.2, 110.6, 84.2, 69.2, 48.2, 32.6, 25.3, 24.7, 24.5. 11B-NMR (CDCl3) δ: 30.6. HRMS (ESI, positive ion): m/z [M+H]+, found 454.2399. C25H32BNO6 requires 454.2406.
Molecules 18 09488 i038
2-(Cyclohexylamino)-1-(furan-2-yl)-2-oxoethyl3-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzoate (A20). The desired compound (280 mg, 63% yield) was prepared by General Procedure A using 3-carboxyphenylboronic acid ester (248 mg, 1.00 mmol), furan-2-carbaldehyde (0.082 mL, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 161.5 °C. 1H-NMR (CDCl3) δ: 8.46 (s, 1H), 8.12 (d, J = 7.8 Hz, 1H), 8.00 (d, J = 7.3 Hz, 1H), 7.44 (t, J = 7.4 Hz, 1H), 7.40 (s, 1H), 6.55 (d, J = 3.3 Hz, 1H), 6.38 (s, 1H), 6.35 (dd, J = 3.0, 1.9 Hz, 1H), 6.30 (br, 1H), 3.89–3.81 (m, 1H), 1.97 (d, J = 9.2 Hz, 1H), 1.91–1.85 (m, 1H), 1.73–1.62 (m, 2H), 1.54–1.60 (m, 1H), 1.29–1.40 (m, 14H), 1.12–1.28 (m, 3H). 13C-NMR (CDCl3) δ: 165.0, 164.7, 148.2, 143.4, 139.7, 135.9, 132.4, 128.4, 127.9, 111.2, 110.5, 84.0, 69.2, 48.2, 32.5, 25.3, 24.7, 24.4. 11B-NMR (CDCl3) δ: 30.7. HRMS (ESI, positive ion): m/z [M+H]+, found 454.2394. C25H32BNO6 requires 454.2406.
Molecules 18 09488 i039
2-(Cyclohexylamino)-2-oxo-1-(4-(trifluoromethyl)phenyl)ethyl benzoate (A21). The desired compound (360 mg, 89% yield) was prepared by General Procedure A using benzoic acid (122.12 mg, 1.00 mmol), 4-(trifluoromethyl)benzaldehyde (0.13 mL, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 201 °C. 1H-NMR (CDCl3) δ: 8.10 (d, J = 8.4 Hz, 2H), 7.67–7.63 (m, 5H), 7.52 (t, J = 7.5 Hz, 2H), 6.34 (s, 1H), 6.14 (br, 1H), 3.84–3.79 (m, 1H), 1.94–1.90 (m, 2H), 1.72–1.63 (m, 2H), 1.90–1.60 (m, 4H), 1.39–1.33 (m, 2H), 1.23–1.16 (m, 3H). 13C-NMR (CDCl3) δ: 166.6, 164.6, 139.6, 133.9, 131.1, 130.9, 129.7, 128.9, 128.7, 127.58, 125.7, 124.7, 122.9, 75.1, 48.3, 32.9, 32.8, 25.3, 24.6.

3.3. General Procedure B for the Synthesis of Boron-Containing α-Acyloxyl Amide B1–10

Molecules 18 09488 i040
2-(Cyclohexylamino)-2-oxo-1-(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)ethyl benzoate (B1). A 10 mL glass tube containing the benzoic acid (122 mg, 1.00 mmol), p-formylphenylboronic acid ester (232 mg, 1.00 mmol), and D.I. H2O (1 mL) was first microwave irradiated for 6 min (45 °C, 150 W) under medium speed magnetic stirring. The cyclohexyl isocyanide (3, 0.124 mL, 1.00 mmol) was then added to the reaction mixture. The additional microwave irradiation was applied for 150 min (45 °C, 150 W) under medium speed magnetic stirring. After being diluted in dichloromethane, the resulted reaction mixture was washed twice with a saturated aqueous solution of NaHCO3 and with brine. The resulted organic layer was collected and dried over MgSO4 and concentrated in vacuo. The crude product was then dissolved in ethyl acetate (3.0 mL) prior the slow addition of n-hexane. The resulting precipitate was formed and collected by filtration affording the desired product in 75% yield, mp = 166 °C. 1H-NMR (CDCl3) δ: 8.08 (d, J = 7.7 Hz, 2H), 7.83 (d, J = 7.9 Hz, 2H), 7.61–7.56 (m, 1H), 7.54 (d, J = 7.9 Hz, 2H), 7.45 (t, J = 7.7 Hz, 2H), 6.29 (s, 1H), 6.11 (br, 1H), 3.83–3.75 (m, 1H), 1.93–1.82 (m, 2H), 1.69–1.60 (m, 2H), 1.59–1.53 (m, 1H), 1.36–1.27 (m, 15H), 1.19–1.04 (m, 3H). 13C-NMR (CDCl3) δ: 167.0, 164.9, 138.5, 135.1, 133.5, 129.7, 129.2, 128.5, 126.5, 83.8, 75.9, 48.2, 32.7, 25.3, 24.7, 24.6. 11B-NMR (CDCl3) δ: 31.5. HRMS (ESI, positive ion): m/z [M+H]+, found 464.2616. C27H34BNO5 requires 464.2614.
Molecules 18 09488 i041
2-(Cyclohexylamino)-2-oxo-1-(3-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)ethyl benzoate (B2). The desired compound (320 mg, 69% yield) was prepared by General Procedure B using benzoic acid (122.12 mg, 1.00 mmol), m-formylphenylboronic acid ester (232 mg, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 165 °C. 1H-NMR (CDCl3) δ: 8.08 (d, J = 7.4 Hz, 2H), 7.96 (s, 1H), 7.80 (d, J = 7.0 Hz, 1H), 7.65 (d, J = 7.8 Hz, 1H), 7.57 (t, J = 7.4 Hz, 1H), 7.45 (t, J = 7.6 Hz, 2H), 7.39 (t, J = 7.6 Hz, 1H), 6.29 (s, 1H), 6.11 (br, 1H), 3.85–3.78 (m, 1H), 1.93 (d, J = 9.6 Hz, 1H), 1.86 (d, J = 9.6 Hz, 1H), 1.70–1.60 (m, 2H), 1.60–1.54 (m, 1H), 1.40–1.25 (m, 14H), 1.22–1.06 (m, 3H). 13C-NMR (CDCl3) δ: 167.2, 164.9, 135.3, 135.0, 134.0, 133.4, 130.2, 129.7, 129.3, 128.4, 128.0, 83.8, 76.0, 48.1, 32.7, 25.3, 24.7, 24.6. 11B-NMR (CDCl3) δ: 30.6. HRMS (ESI, positive ion): m/z [M+H]+, found 464.2607. C27H34BNO5 requires 464.2614.
Molecules 18 09488 i042
2-(Cyclohexylamino)-2-oxo-1-(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)ethyl-4-nitro-benzoate (B3). The desired compound (290 mg, 57% yield) was prepared by General Procedure B using 4-nitrobenzoic acid (167.19 mg, 1.00 mmol), p-formylphenylboronic acid ester (232 mg, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 108 °C. 1H-NMR (CDCl3) δ: 8.30–8.20 (m, 4H), 7.84 (d, J = 8.1 Hz, 2H), 7.53 (d, J = 7.6 Hz, 2H), 6.23 (s, 1H), 5.93 (br, 1H), 3.80–3.73 (m, 1H), 1.92–1.86 (m, 1H), 1.80 (d, J = 11.4 Hz, 1H), 1.69–1.53 (m, 3H), 1.37–1.26 (m, 14H), 1.17–1.00 (m, 3H). 13C-NMR (CDCl3) δ: 166.4, 163.5, 150.7, 137.6, 135.3, 134.7, 130.9, 126.8, 123.6, 83.9, 76.7, 48.5, 32.6, 25.3, 24.7, 24.6. 11B-NMR (CDCl3) δ: 31.0. HRMS (ESI, positive ion): m/z [M+H]+, found 509.2448. C27H33BN2O7 requires 509.2465.
Molecules 18 09488 i043
2-(Cyclohexylamino)-2-oxo-1-(3-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)ethyl-4-nitro-benzoate (B4). The desired compound (299 mg, 59% yield) was prepared by General Procedure B using 4-nitrobenzoic acid (167 mg, 1.00 mmol), m-formylphenylboronic acid ester (232 mg, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 94 °C. 1H-NMR (CDCl3) δ: 8.21 (s, 4H), 7.94 (s, 1H), 7.79 (d, J = 7.1 Hz, 1H), 7.63 (d, J = 8.0 Hz, 1H), 7.38 (t, J = 7.6 Hz, 1H), 6.22 (s, 1H), 6.16 (br, 1H), 3.78–3.70 (m, 1H), 1.87 (d, J = 10.4 Hz, 1H), 1.80–1.75 (m, 1H), 1.66–1.55 (m, 2H), 1.55–1.50 (m, 1H), 1.34–1.23 (m, 14H), 1.17–0.99 (m, 3H). 13C-NMR (CDCl3) δ: 166.6, 163.4, 150.5, 135.6, 134.7, 134.1, 134.0, 130.8, 130.3, 128.2, 123.4, 83.8, 76.7, 48.4, 32.5, 25.2, 24.6, 24.5. 11B-NMR (CDCl3) δ: 30.8. HRMS (ESI, positive ion): m/z [M+H]+, found 509.2442. C27H33BN2O7 requires 509.2465.
Molecules 18 09488 i044
2-(Cyclohexylamino)-2-oxo-1-(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)ethyl-4-methyl-benzoate (B5). The desired compound (344 mg, 72% yield) was prepared by General Procedure B using 4-methylbenzoic acid (163.38 mg, 1.00 mmol), p-formylphenylboronic acid ester (232 mg, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 90 °C. 1H-NMR (CDCl3) δ: 7.97 (d, J = 7.8 Hz, 2H), 7.83 (d, J = 7.9 Hz, 2H), 7.53 (d, J = 7.9 Hz, 2H), 7.26 (d, J = 7.8 Hz, 2H), 6.28 (s, 1H), 6.07 (br, 1H), 3.83–3.75 (m, 1H), 2.41 (s, 3H), 1.92–1.84 (m, 3H), 1.69–1.61 (m, 2H), 1.60–1.55 (m, 1H), 1.37–1.30 (m, 14H), 1.18–1.07 (m, 3H). 13C-NMR (CDCl3) δ: 167.2, 164.9, 144.4, 138.6, 135.1, 129.7, 129.3, 126.5, 83.8, 75.7, 48.1, 32.7, 25.3, 24.8, 24.6, 21.6. 11B-NMR (CDCl3) δ: 30.9. HRMS (ESI, positive ion): m/z [M+H]+, found 478.2752. C28H36BNO5 requires 478.2771.
Molecules 18 09488 i045
2-(Cyclohexylamino)-2-oxo-1-(3-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)ethyl-4-methyl-benzoate (B6). The desired compound (302 mg, 63% yield) was prepared by General Procedure B using 4-methylbenzoic acid (163.38 mg, 1.00 mmol), m-formylphenylboronic acid ester (232 mg, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 81 °C. 1H-NMR (CDCl3) δ: 8.00–7.93 (m, 3H), 7.79 (d, J = 7.4 Hz, 1H), 7.64 (d, J = 7.8 Hz, 1H), 7.38 (t, J = 7.6 Hz, 1H), 7.24 (d, J = 7.8 Hz, 2H), 6.28 (s, 1H), 6.14 (br, 1H), 3.85–3.77 (m, 1H), 2.39 (s, 3H), 1.92 (d, J = 9.6 Hz, 1H), 1.86 (d, J = 11.4 Hz, 1H), 1.70–1.61 (m, 2H), 1.59–1.53 (m, 1H), 1.37–1.28 (m, 14H), 1.23–1.07 (m, 3H). 13C-NMR (CDCl3) δ: 167.4, 164.9, 144.2, 135.2, 135.1, 133.9, 130.2, 129.7, 129.1, 128.0, 126.5, 83.8, 75.8, 48.1, 32.6, 25.3, 24.7, 24.5, 21.6. 11B-NMR (CDCl3) δ: 30.7. HRMS (ESI, positive ion): m/z [M+H]+, found 478.2752. C28H36BNO5 requires 478.2771.
Molecules 18 09488 i046
2-(Cyclohexylamino)-2-oxo-1-(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)ethyl-4-methoxybenzoate (B7). The desired compound (393 mg, 80% yield) was prepared by General Procedure B using 4-methoxybenzoic acid (182.58 mg, 1.00 mmol), p-formylphenylboronic acid ester (232 mg, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 94 °C. 1H-NMR (CDCl3) δ: 8.02 (d, J = 8.7 Hz, 2H), 7.81 (d, J = 8.1 Hz, 2H), 7.53 (d, J = 8.1 Hz, 2H), 6.90 (d, J = 8.7 Hz, 2H), 6.28–6.23 (m, 2H), 3.82–3.72 (m, 4H), 1.89–1.78 (m, 2H), 1.66–1.57 (m, 2H), 1.56–1.50 (m, 1H), 1.33–1.24 (m, 14H), 1.14–1.02 (m, 3H). 13C-NMR (CDCl3) δ: 167.2, 164.5, 163.7, 138.7, 134.9, 131.7, 126.3, 121.4, 113.7, 83.6, 75.5, 55.2, 48.0, 32.5, 25.2, 24.6, 24.5. 11B-NMR (CDCl3) δ: 30.8. HRMS (ESI, positive ion): m/z [M+H]+, found 494.2717. C28H36BNO6 requires 494.2720.
Molecules 18 09488 i047
2-(Cyclohexylamino)-2-oxo-1-(3-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)ethyl-4-methoxybenzoate (B8). The desired compound (404 mg, 82% yield) was prepared by General Procedure B using 4-methoxybenzoic acid (182.58 mg, 1.00 mmol), m-formylphenylboronic acid ester (232 mg, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 80 °C. 1H-NMR (CDCl3) δ: 8.01 (d, J = 8.56 Hz, 2H), 7.95 (s, 1H), 7.77 (d, J = 7.6 Hz, 1H), 7.62 (d, J = 7.6 Hz, 1H), 7.35 (t, J = 7.6 Hz, 1H), 6.87 (d, J = 9.0 Hz, 2H), 6.29 (br, 1H), 6.25 (s, 1H), 3.81–3.72 (m, 4H), 1.87 (d, J = 10.4 Hz, 1H), 1.80 (d, J = 10.4 Hz, 1H), 1.66–1.56 (m, 2H), 1.55–1.48 (m, 1H), 1.34–1.22 (m, 14H), 1.18–1.02 (m, 3H). 13C-NMR (CDCl3) δ: 167.4, 164.5, 163.5, 135.1, 135.0, 133.8, 131.6, 130.0, 127.8, 121.4, 113.6, 83.6, 75.5, 55.2, 48.0, 32.4, 25.1, 24.6, 24.4. 11B-NMR (CDCl3) δ: 31.6. HRMS (ESI, positive ion): m/z [M+H]+, found 494.2707. C28H36BNO6 requires 494.2720.
Molecules 18 09488 i048
2-(Cyclohexylamino)-2-oxo-1-(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)ethyl-3-methoxybenzoate (B9). The desired compound (419 mg, 85% yield) was prepared by General Procedure B using 3-methoxybenzoic acid (182.58 mg, 1.00 mmol), p-formylphenylboronic acid ester (232 mg, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 74 °C. 1H-NMR (CDCl3) δ: 7.81 (d, J = 7.4 Hz, 2H), 7.65 (d, J = 7.8 Hz, 1H), 7.58–7.50 (m, 3H), 7.32 (dt, J = 7.8, 3.5 Hz, 1H), 7.10–7.05 (m, 1H), 6.33 (br, 1H), 6.24 (s, 1H), 3.803.71 (m, 4H), 1.86 (d, J = 11.8 Hz, 1H), 1.83–1.77 (m, 1H), 1.61 (t, J = 13.8 Hz, 2H), 1.52 (d, J = 9.6 Hz, 1H), 1.33–1.23 (m, 14H), 1.16–1.01 (m, 3H). 13C-NMR (CDCl3) δ: 167.0, 164.7, 159.4, 138.4, 134.9, 130.4, 129.4, 126.3, 121.8, 119.5, 114.3, 83.6, 75.9, 55.2, 48.1, 32.5, 25.2, 24.6, 24.5. 11B-NMR (CDCl3) δ: 31.5. HRMS (ESI, positive ion): m/z [M+H]+, found 494.2702. C28H36BNO6 requires 494.2720.
Molecules 18 09488 i049
2-(Cyclohexylamino)-2-oxo-1-(3-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)ethyl-3-methoxybenzoate (B10). The desired compound (437 mg, 89% yield) was prepared by General Procedure B using 3-methoxybenzoic acid (182.58 mg, 1.00 mmol), m-formylphenylboronic acid ester (232 mg, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 67 °C. 1H-NMR (CDCl3) δ: 7.96 (s, 1H), 7.78 (d, J = 7.4 Hz, 1H), 7.63 (d, J = 7.4 Hz, 1H), 7.66 (d, J = 7.8 Hz, 1H), 7.57 (s, 1H), 7.36 (t, J = 7.4 Hz, 1H), 7.32 (t, J = 7.8 Hz, 1H), 7.08 (dd, J = 8.3, 2.6 Hz, 1H), 6.29–6.22 (m, 2H), 3.82–3.76 (m, 4H), 1.89 (d, J = 9.6 Hz, 1H), 1.82 (d, J = 11.8 Hz, 1H), 1.67–1.58 (m, 2H), 1.56–1.51 (m, 1H), 1.34–1.26 (m, 14H), 1.19–1.13 (m, 1H), 1.13–1.05 (m, 2H). 13C-NMR (CDCl3) δ: 167.2, 164.8, 159.4, 135.2, 134.9, 133.8, 130.4, 130.0, 129.4, 127.9, 121.9, 119.6, 114.3, 83.7, 75.9, 55.2, 48.1, 32.5, 25.2, 24.6, 24.5. 11B-NMR (CDCl3) δ: 31.5. HRMS (ESI, positive ion): m/z [M+H]+, found 494.2713. C28H36BNO6 requires 494.2720.
Molecules 18 09488 i050
2-(Cyclohexylamino)-2-oxo-1-(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)ethyl pyrazine-2-carboxylate (B11). The desired compound (237 mg, 51% yield) was prepared by General Procedure B using pyrazine-2-carboxylic acid (124 mg, 1.00 mmol), p-formylphenylboronic acid ester (232 mg, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 184 °C. 1H-NMR (CDCl3) δ 9.30 (s, 1H), 8.78 (s, 1H), 8.72 (s, 1H), 7.82(d, J= 7.8 Hz, 2H), 7.53 (d, J = 7.8 Hz, 2H), 6.46 (br.), 6.32 (s, 1H), 3.80–3.79 (m, 1H), 1.91–1.84 (m, 2H), 1.69–1.64 (m, 2H), 1.58–1.56 (m, 1H), 1.34–1.32 (m, 14H), 1.25–1.20 (m, 3H). 13C-NMR (CDCl3) δ 166.5, 162.4, 148.0, 146.4, 144.4, 142.8, 137.8, 135.2, 126.7, 83.87, 83.8, 48.2, 32.7, 32.6, 25.3, 24.7, 24.5. 11B-NMR (CDCl3) δ 30.9. HRMS (ESI, positive ion): m/z [M+H]+, found 466.2503. C25H32BN3O5 requires 466.2519.
Molecules 18 09488 i051
2-(Cyclohexylamino)-2-oxo-1-(3-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)ethyl pyrazine-2-carboxylate (B12). The desired compound (195 mg, 42% yield) was prepared by General Procedure B using pyrazine-2-carboxylic acid (124 mg, 1.00 mmol), m-formylphenylboronic acid ester (232 mg, 1.00 mmol), and cyclohexyl isocyanide (0.124 mL, 1.00 mmol); mp = 140 °C. 1H-NMR (CDCl3) δ 9.32 (s, 1H), 8.78 (s, 1H), 8.73 (s, 1H), 7.95 (s, 1H), 7.80 (d, J = 7.2 Hz, 1H), 7.65 (d, J = 7.8 Hz, 1H), 7.40 (t, J = 7.2, 15 Hz, 1H), 6.42 (br.), 6.34 (s, 1H), 3.84–3.77 (m, 1H), 1.88–1.87 (m, 2H), 1.73–1.66 (m, 4H), 1.61–1.58 (m, 1H), 1.38–1.33 (m, 14H), 1.26–1.16 (m, 3H). 13C-NMR (CDCl3) δ 166.7, 162.5, 148.0, 146.5, 144.4, 143.0, 135.7, 134.4, 134.2, 130.5, 128.3, 83.9, 48.3, 32.8, 32.7, 25.4, 24.9, 24.8, 24.61. 11B-NMR (CDCl3) δ 30.4. HRMS (ESI, positive ion): m/z [M+H]+, found 466.2512. C25H32BN3O5 requires 466.2519.

3.4. In Vitro Biological Evaluation

In Vitro Cytotoxicity Assay

The anti-tumor activities of boron-containing analogs against lung (A549), breast (MDA-MB-231), and liver (HepG2) cancer cell lines were evaluated using a microculture tetrazolium test (MTT, Sigma-Aldrich, Saint Louis, MO, USA). Briefly, tumor cells or fibroblasts (5000 cells in 100 μL complete medium per well) were seeded into a 96-well plate (Nunc, Roskilde, Denmark). After incubation at 37 °C for 24 h, 100 μL of culture medium with or without boron-containing analogs was added to each well in triplicate for 48 h of consecutive incubation at 37 °C. In the treatment of each cell line, cells were incubated for another 24, 48 and 72 h. MTT solution 50 μL (Sigma) was added to each well. Following incubation at 37 °C for an additional 4 h, supernatants were removed and 100 μL DMSO was added to dissolve the MTT-formazan product. The plate was read using a microplate reader (Labsystems, Helsinki, Finland) at 550 nm. The cell inhibitions at 20, 10, 5, 2.5 μg/mL of boron-containing analogs were estimated and the IC50 for boron-containing analogs calculated for the control group was set to 100% [36].

4. Conclusions

In conclusion, a convenient and efficient microwave-assisted Passerini MCR under aqueous conditions was developed. Broad ranges of boron-containing α-acyloxyamides were synthesized in moderate to good yields using this method. In addition, a simple acid/base extraction protocol was developed, which enabled simple and effective purification of these boron-containing compounds. This is a major achievement that renders this synthetic strategy suitable for use in the library synthesis of boron molecules. All of the synthesized analogs were screened using the MTT assay, with two compounds found to be active against the HepG2 cell line. Further structure–activity relationship evaluations based on these two analogs is currently ongoing, and the results will be reported in due course.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/18/8/9488/s1.

Acknowledgments

This research was supported by the National Science Council in Taiwan (NSC-99-2113-032-002-MY2, NSC-101-2113-M-032-001-MY2, NSC-102-2911-1-002-303, NSC-103-2911-1-002-303). We thank Department of Chemistry of Tamkang University for the equipment and financial support. We thank Shen-Shen Chen for conducting 11B-NMR experiments, and we thank Shu-Li Chen for conducting MTT experiments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yang, W.; Gao, X.; Wang, B. Boronic acid compounds as potential pharmaceutical agents. Med. Res. Rev. 2003, 23, 346–368. [Google Scholar] [CrossRef]
  2. Stolowitz, M.L.; Ahlem, C.; Hughes, K.A.; Kaiser, R.J.; Kesicki, E.A.; Li, G.; Lund, K.P.; Torkelson, S.M.; Wiley, J.P. Phenylboronic Acid−Salicylhydroxamic Acid Bioconjugates. 1. A Novel Boronic Acid Complex for Protein Immobilization. Bioconjug. Chem. 2001, 12, 229–239. [Google Scholar] [CrossRef]
  3. Amin, S.A.; Küpper, F.C.; Green, D.H.; Harris, W.R.; Carrano, C.J. Boron Binding by a Siderophore Isolated from Marine Bacteria Associated with the Toxic Dinoflagellate Gymnodinium catenatum. J. Am. Chem. Soc. 2007, 129, 478–479. [Google Scholar] [CrossRef]
  4. Baker, S.J.; Zhang, Y.-K.; Akama, T.; Lau, A.; Zhou, H.; Hernandez, V.; Mao, W.; Alley, M.R.K.; Sanders, V.; Plattner, J.J. Discovery of a New Boron-Containing Antifungal Agent, 5-Fluoro-1,3-dihydro-1-hydroxy-2,1-benzoxaborole (AN2690), for the Potential Treatment of Onychomycosis. J. Med. Chem. 2006, 49, 4447–4450. [Google Scholar] [CrossRef]
  5. Tran, T.; Quan, C.; Edosada, C.Y.; Mayeda, M.; Wiesmann, C.; Sutherlin, D.; Wolf, B.B. Synthesis and structure–activity relationship of N-acyl-Gly-, N-acyl-Sar- and N-blocked-boroPro inhibitors of FAP, DPP4, and POP. Bioorg. Med. Chem. Lett. 2007, 17, 1438–1442. [Google Scholar]
  6. Baker, S.J.; Akama, T.; Zhang, Y.-K.; Sauro, V.; Pandit, C.; Singh, R.; Kully, M.; Khan, J.; Plattner, J.J.; Benkovic, S.J.; et al. Identification of a novel boron-containing antibacterial agent (AN0128) with anti-inflammatory activity, for the potential treatment of cutaneous diseases. Bioorg. Med. Chem. Lett. 2006, 16, 5963–5967. [Google Scholar] [CrossRef]
  7. Malde, A.K.; Khedkar, S.A.; Coutinho, E.C. Isosteres of peptides: Boron analogs as dipolar forms of α-amino acids—A theoretical study. J. Phys. Org. Chem. 2007, 20, 151–160. [Google Scholar]
  8. Hideshima, T.; Richardson, P.; Chauhan, D.; Palombella, V.J.; Elliott, P.J.; Adams, J.; Anderson, K.C. The Proteasome Inhibitor PS-341 Inhibits Growth, Induces Apoptosis, and Overcomes Drug Resistance in Human Multiple Myeloma Cells. Cancer Res. 2001, 61, 3071–3076. [Google Scholar]
  9. Adams, J. The proteasome: Structure, function, and role in the cell. Cancer Treat. Rev. 2003, 29, 3–9. [Google Scholar] [CrossRef]
  10. Lenz, H.-J. Molecular predictive and prognostic markers in colon cancer. Cancer Treat. Rev. 2003, 29, 41–48. [Google Scholar] [CrossRef]
  11. Hui, X.; Baker, S.J.; Wester, R.C.; Barbadillo, S.; Cashmore, A.K.; Sanders, V.; Hold, K.M.; Akama, T.; Zhang, Y.K.; Plattner, J.J.; et al. In Vitro penetration of a novel oxaborole antifungal (AN2690) into the human nail plate. J. Pharm. Sci. 2007, 96, 2622–2631. [Google Scholar] [CrossRef]
  12. Rock, F.L.; Mao, W.; Yaremchuk, A.; Tukalo, M.; Crépin, T.; Zhou, H.; Zhang, Y.-K.; Hernandez, V.; Akama, T.; Baker, S.J.; et al. An Antifungal Agent Inhibits an Aminoacyl-tRNA Synthetase by Trapping tRNA in the Editing Site. Science 2007, 316, 1759–1761. [Google Scholar] [CrossRef]
  13. Akama, T.; Baker, S.J.; Zhang, Y.K.; Hernandez, V.; Zhou, H.; Sanders, V.; Freund, Y.; Kimura, R.; Maples, K.R.; Plattner, J. Discovery and structure–activity study of a novel benzoxaborole anti-inflammatory agent (AN2728) for the potential topical treatment of psoriasis and atopic dermatitis. Bioorg. Med. Chem. Lett. 2009, 19, 2129–2132. [Google Scholar] [CrossRef]
  14. Garcia-Soria, G.; Gonzalez-Galvez, G.; Argoud, G.M.; Gerstman, M.; Littlejohn, T.W., 3rd; Schwartz, S.L.; O’Farrell, A.M.; Li, X.; Cherrington, J.M.; Bennett, C.; et al. The dipeptidyl peptidase-4 inhibitor PHX1149 improves blood glucose control in patients with type 2 diabetes mellitus. Diabetes Obes. Metab. 2008, 10, 293–300. [Google Scholar] [CrossRef]
  15. Gupta, R.; Walunj, S.; Tokala, R.K.; Parsa, K.V.; Singh, S.K.; Pal, M. Emerging drug candidates of dipeptidyl peptidase IV (DPP IV) inhibitor class for the treatment of type 2 diabetes. Curr. Drug Targets 2009, 10, 71–87. [Google Scholar] [CrossRef]
  16. O’Farrell, A.M.; Van, V.A.; Farha, K.A.; Cherrington, J.M.; Campbell, D.A.; Li, X.; Hanway, D.; Li, J.; Guler, H.P. Pharmacokinetic and Pharmacodynamic Assessments of the Dipeptidyl Peptidase-4 Inhibitor PHX1149: Double-Blind, Placebo-Controlled, Single- and Multiple-Dose Studies in Healthy Subjects. Clin. Ther. 2007, 29, 1692–1705. [Google Scholar] [CrossRef]
  17. Combe-Marzelle, S.M.; Deadman, J.J.; Dolman, M.; Kakkar, S.K.; Kennedy, A.J.; Madge, D.J. Boronic Acid Salts. U.S. Patent US20080234228, 2008. [Google Scholar]
  18. Zhu, J.; Bienaymé, H. Multicomponent Reactions; Wiley-VCH: Weinheim, Germany, 2005. [Google Scholar]
  19. Ramon, D.J.; Yus, M. Asymmetric Multicomponent Reactions (AMCRs): The New Frontier. Angew. Chem. Int. Ed. 2005, 44, 1602–1634. [Google Scholar] [CrossRef]
  20. Dömling, A.; Ugi, I. Multicomponent Reactions with Isocyanides. Angew. Chem. Int. Ed. 2000, 39, 3168–3210. [Google Scholar] [CrossRef]
  21. Dömling, A. Recent Developments in Isocyanide Based Multicomponent Reactions in Applied Chemistry. Chem. Rev. 2006, 106, 17–89. [Google Scholar] [CrossRef]
  22. Tempest, P.; Ma, V.; Thomas, S.; Hua, Z.; Kelly, M.G.; Hulme, C. Two-step solution-phase synthesis of novel benzimidazoles utilizing a UDC (Ugi/de-Boc/cyclize) strategy. Tetrahedron Lett. 2001, 42, 4959–4962. [Google Scholar]
  23. Kumar, J.S.; Jonnalagadda, S.C.; Mereddy, V.R. An efficient boric acid-mediated preparation of á-hydroxyamides. Tetrahedron Lett. 2010, 51, 779–782. [Google Scholar] [CrossRef]
  24. Andrade, C.K.Z.; Takada, S.C.S.; Suarez, P.A.Z.; Alves, M.B. Revisiting the Passerini Reaction under Eco-Friendly Reaction Conditions. Synlett 2006, 1539–1541. [Google Scholar]
  25. Fan, X.; Li, Y.; Zhang, X.; Qu, G.; Wang, J. A novel and green version of the Passerini reaction in an ionic liquid ([bmim][BF4]). Can. J. Chem. 2006, 84, 794–799. [Google Scholar] [CrossRef]
  26. Koszelewski, D.; Szymanski, W.; Krysiak, J.; Ostaszewski, R. Solvent–Free Passerini Reactions. Synth. Commun. 2008, 38, 1120–1127. [Google Scholar] [CrossRef]
  27. Henkel, B.; Beck, B.; Westner, B.; Mejat, B.; Dömling, A. Convergent multicomponent assembly of 2-acyloxymethyl thiazoles. Tetrahedron Lett. 2003, 44, 8947–8950. [Google Scholar] [CrossRef]
  28. Krishna, P.R.; Dayaker, G.; Reddy, P.V.N. Diastereoselective Passerini reactions using p-toluenesulfonylmethyl isocyanide (TosMIC) as the isonitrile component. Tetrahedron Lett. 2006, 47, 5977–5980. [Google Scholar] [CrossRef]
  29. Kusebauch, U.; Beck, B.; Messer, K.; Herdtweck, E.; Dömling, A. Massive Parallel Catalyst Screening: Toward Asymmetric MCRs. Org. Lett. 2003, 5, 4021–4024. [Google Scholar] [CrossRef]
  30. Andreana, P.R.; Liu, C.C.; Schreiber, S.L. Stereochemical Control of the Passerini Reaction. Org. Lett. 2004, 6, 4231–4233. [Google Scholar] [CrossRef]
  31. Appoh, F.E.; Manning, M.J.; Gullon, T.J.; Hansen, M.A.; Bevans, E.C.; Hogan, K.D.M.; Turner, C.S.; Vogels, C.M.; Decken, A.; Westcott, S.A. Ugi products containing boronate esters. Cent. Eur. J. Chem. 2008, 6, 359–364. [Google Scholar] [CrossRef]
  32. Stoukides, C.A.; McVoy, H.J.; Kaul, A.F. Candesartan cilexetil: An angiotensin II receptor blocker. Ann. Pharmacother. 1999, 33, 1287–1298. [Google Scholar] [CrossRef]
  33. Sung, B.-J.; Hwang, K.Y.; Jeon, Y.H.; Lee, J.I.; Heo, Y.-S.; Kim, J.H.; Moon, J.; Yoon, J.M.; Hyun, Y.-L.; Kim, E.; et al. Structure of the catalytic domain of human phosphodiesterase 5 with bound drug molecules. Nature 2003, 425, 98–102. [Google Scholar] [CrossRef]
  34. Groll, M.; Berkers, C.R.; Ploegh, H.L.; Ovaa, H. Crystal Structure of the Boronic Acid-Based Proteasome Inhibitor Bortezomib in Complex with the Yeast 20S Proteasome. Structure 2006, 14, 451–456. [Google Scholar] [CrossRef]
  35. Adams, J. The proteasome: A suitable antineoplastic target. Nat. Rev. Cancer 2004, 4, 349–360. [Google Scholar] [CrossRef]
  36. Phillips, R.M.; Bibby, M.C.; Double, J.A. A critical appraisal of the predictive value of in vitro chemosensitivity assays. J. Natl. Cancer Inst. 1990, 82, 1457–1468. [Google Scholar] [CrossRef]
  • Sample Availability: Contact the authors.

Share and Cite

MDPI and ACS Style

Chai, C.-C.; Liu, P.-Y.; Lin, C.-H.; Chen, H.-C.; Wu, Y.-C.; Chang, F.-R.; Pan, P.-S. Efficient Synthesis of Boron-Containing α-Acyloxyamide Analogs via Microwave Irradiation. Molecules 2013, 18, 9488-9511. https://doi.org/10.3390/molecules18089488

AMA Style

Chai C-C, Liu P-Y, Lin C-H, Chen H-C, Wu Y-C, Chang F-R, Pan P-S. Efficient Synthesis of Boron-Containing α-Acyloxyamide Analogs via Microwave Irradiation. Molecules. 2013; 18(8):9488-9511. https://doi.org/10.3390/molecules18089488

Chicago/Turabian Style

Chai, Chih-Cheng, Pin-Yi Liu, Chia-Hung Lin, Hsien-Chi Chen, Yang-Chang Wu, Fang-Rong Chang, and Po-Shen Pan. 2013. "Efficient Synthesis of Boron-Containing α-Acyloxyamide Analogs via Microwave Irradiation" Molecules 18, no. 8: 9488-9511. https://doi.org/10.3390/molecules18089488

Article Metrics

Back to TopTop
