Some Brief Notes on Theoretical and Experimental Investigations of Intramolecular Hydrogen Bonding

by
Lucjan Sobczyk
1,
Dorota Chudoba
2,3,
Peter M. Tolstoy
4 and
Aleksander Filarowski
1,3,*
1
Faculty of Chemistry, University of Wrocław, 14 F. Joliot-Curie Str., 50-383 Wrocław, Poland
2
Faculty of Physics, A. Mickiewicz University, Umultowska 85, 61-614 Poznan, Poland
3
Frank Laboratory of Neutron Physics, Joint Institute for Nuclear Research, 141980 Dubna, Russia
4
Center for Magnetic Resonance, St. Petersburg State University, St. Petersburg 198504, Russia
*
Author to whom correspondence should be addressed.
Molecules 2016, 21(12), 1657; https://doi.org/10.3390/molecules21121657
Submission received: 22 October 2016 / Revised: 18 November 2016 / Accepted: 28 November 2016 / Published: 2 December 2016
(This article belongs to the Special Issue Intramolecular Hydrogen Bonding 2017)
Browse Figures
Versions Notes

Abstract

:
A review of selected literature data related to intramolecular hydrogen bonding in ortho-hydroxyaryl Schiff bases, ortho-hydroxyaryl ketones, ortho-hydroxyaryl amides, proton sponges and ortho-hydroxyaryl Mannich bases is presented. The paper reports on the application of experimental spectroscopic measurements (IR and NMR) and quantum-mechanical calculations for investigations of the proton transfer processes, the potential energy curves, tautomeric equilibrium, aromaticity etc. Finally, the equilibrium between the intra- and inter-molecular hydrogen bonds in amides is discussed.

1. Introduction

This paper reports on the studies of the systems with intramolecular hydrogen bonding by experimental (IR, NMR, UV-Vis, X-ray and IINS) and theoretical (DFT, ab initio, AIM) methods. As the primary objects for this short review we have selected Schiff bases, Mannich bases, ortho-hydroxyaryl ketones and amides, as well as some proton sponges. A majority of the presented studies covers the phenomena of proton transfer (PT), steric effect, quasi-aromatic hydrogen bonding, aromaticity, tautomeric and conformational equilibria. It should be stressed that the studies of the proton transfer process are of great importance in the description of some enzymatic reactions activated by the hydrogen bonding with a low barrier proton transfer [1,2,3]. The studies of the ortho-hydroxyaryl Schiff bases can greatly contribute to the understanding of mechanisms of activity of some drugs as well as support the design of new ones [4,5]. For instance, ortho-hydroxyaryl Schiff thiosemicarbazones intercalate between the nitrogen bases in double DNA helix blocking the replication. This feature enables these compounds to be used in the treatment of cancer diseases. There are also substances with ortho-hydroxyaldiminecarbazyne structure which coordinate the iron atoms [6,7]. Their presence in the organism regulates the amount of iron in cells, thus preventing the formation of cancer cells. It is important to note that the salicylamides are nonsteroidal anti-inflammatory medicaments. The modelling of the physicochemical features of salicylamides makes it possible to describe the mechanisms of their biological activity. The major types of compounds with intramolecular hydrogen bonds which are discussed in this review (compounds 1–5) are shown in Figure 1.

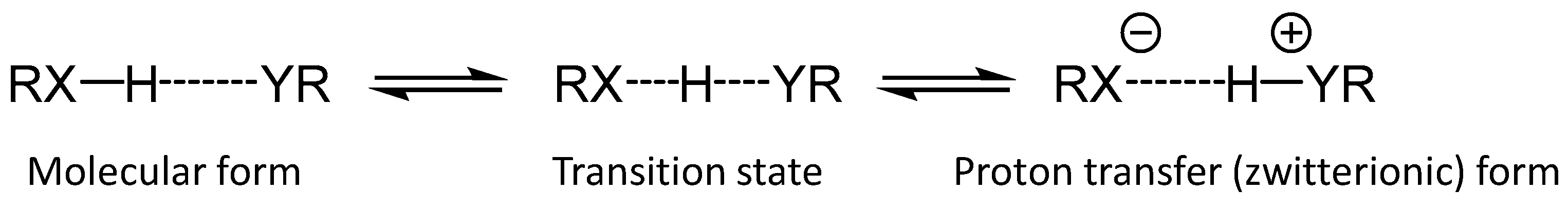

2. Study of Proton Transfer Process in Hydrogen Bridge by Quantum-Mechanical Methods

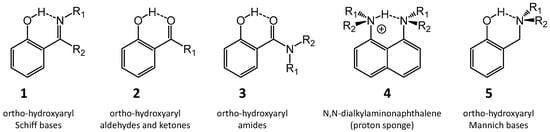

To study the energetic and geometric properties of intramolecular hydrogen bonds a full spectrum of quantum-mechanical methods could be applied. Concerning the choice of the method and the basis set, usually the recommendations are the same as for other types of H-bonded systems. The level of theory is often limited by the size of the molecule in question. Though MP2 performs admirably [8], the cost-effective DFT methods (usually with B3LYP and PBE functionals) perform quite good as well [9]. The basis set preferably should include diffuse functions. While basis sets such as aug-cc-pVTZ are desired, it seems that 6-311++G(d,p) remains one of the most widely used basis sets up to now. Bader’s “Atoms in Molecules” calculations are often used to estimate the hydrogen bond strength. Calculations are usually performed for isolated molecules, while medium effects are treated by polarized continuum models (PCM) or including one or several solvent molecules explicitly in calculations [10].

Ortho-Hydroxyaryl Schiff Bases 1

The papers [11,12,13,14,15,16] present the quantum-mechanical calculations of ortho-hydroxyaryl Schiff bases 1 showing the influence of the proton transfer in quasi-aromatic hydrogen bonds on the shape of the potential energy curve as well as on the electron density in critical points of bonds and rings. The authors of [11] elaborated the methodology of the calculations of spectroscopic features and potentials for proton motion in hydrogen bonds. The adiabatic and the non-adiabatic potentials and energy levels for a number of ortho-hydroxyaryl ketimines and their deuterated analogues were calculated. From the energy levels, the positions of ν(XH) bands and the H/D isotope effects on them were estimated. Estimation of the anharmonic ν(XH) stretching vibration frequency for the XH bond engaged in hydrogen bond formation is a valuable result because computational programs with standard methods usually do not provide a sufficiently precise description of the ν(XH) band position. In [11,12,15] the calculations of the non-adiabatic potential along the bridging proton transfer coordinate were based on the optimization of all the parameters of the molecule for the gradually elongated XH bond. This approach serves for the description of the changes of structural parameters during the transition from the molecular form to the proton transfer form. It was shown that the proton transfer process leads to the shortening and strengthening of the hydrogen bonding in the first phase of this phenomenon (going from the molecular form to the transition state), and the lengthening in the second phase (going from the transition state to the PT form) (Figure 2).
The paper [11] presents the computational study of the influence of the environment polarity on the potential energy profile for the proton transfer process. The lowering of the energy minimum for the PT form upon increase of the environment polarity for non-adiabatic potential is shown. A similar trend of the adiabatic potential for the molecular form is observed. However, untypical increase of the local minimum of the adiabatic potential for the PT form with the increase of the solvent polarity was also presented.

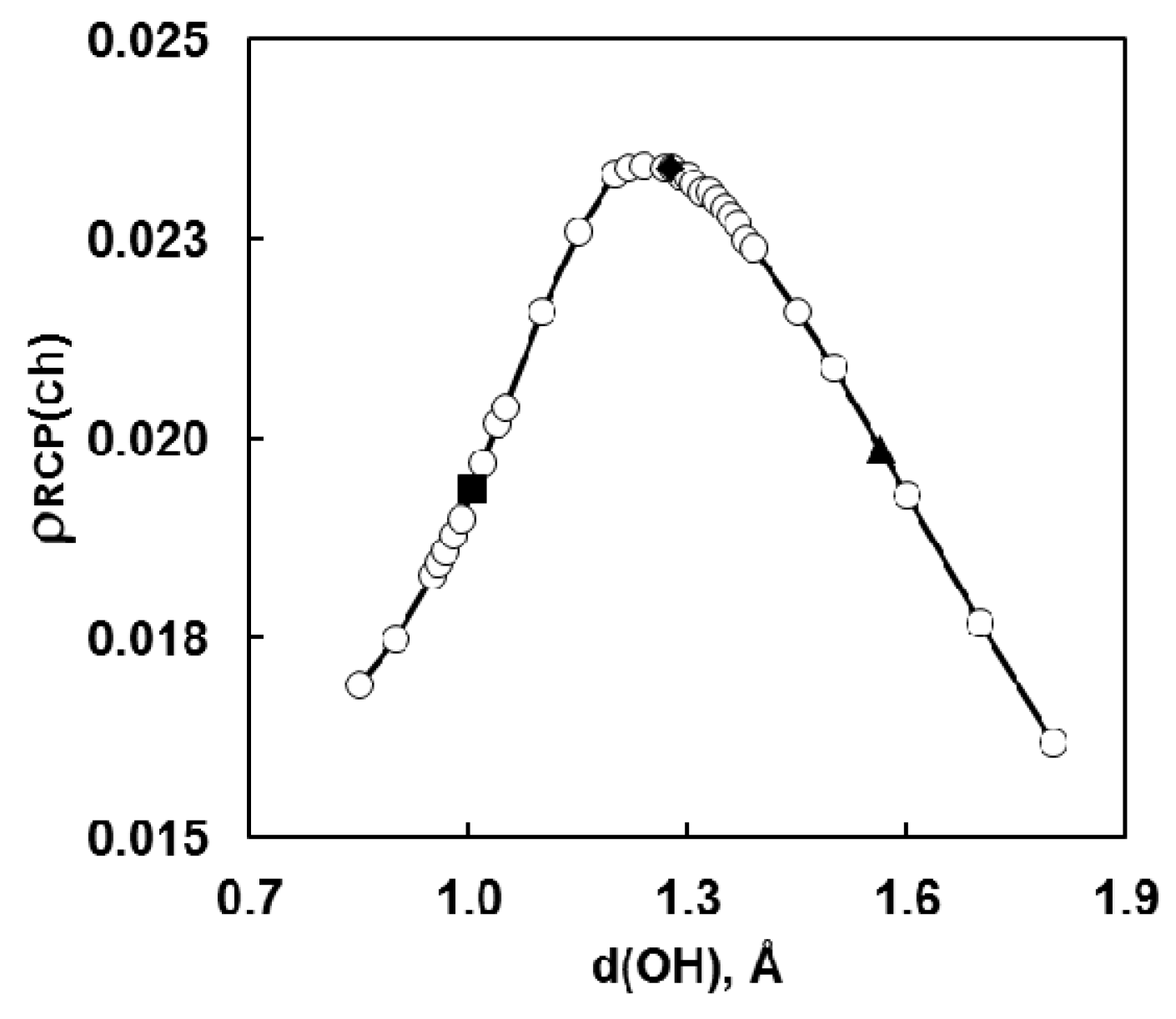

To describe the changes in the electron densities taking place in a molecule during the proton transfer in hydrogen bridge the “Atoms in Molecules” (AIM) method developed by Bader was applied [12,17,18,19,20,21,22,23]. The changes in the electronic density in the bond critical points (including hydrogen bonds and rings) in the non-adiabatic approach for 2-[(1E)-N-methyl-ethanimidoyl)]-phenol (1, R1 = R2 = CH3; Figure 1) are analysed in [12]. New correlations were obtained and the dependencies presented in the literature [23] were verified. The dependency of the electronic density in the critical point of the chelate chain (O–C=C–C=N) on the length of XH bonding is shown in Figure 3. The electron density at the hydrogen bond critical point goes through a maximum for the transition state (Figure 2), which corresponds to the most linear and shortest hydrogen bridge [24]. It can be seen that the application of the third state is necessary for the description of the tautomeric equilibrium. According to the studies of the potentials this state corresponds to the transition state (Figure 2).

3. Spectroscopic Studies of Tautomeric Equilibrium in Intramolecular Hydrogen Bonds

According to a recent IUPAC recommendation, the NMR and IR signatures of a hydrogen bond are the main spectroscopic criteria of its formation [25,26]. As a result, in practice the properties of intramolecular H-bonded systems are often studied experimentally using the values of vibrational frequencies, NMR chemical shifts and coupling constants. As for the majority of H-bonded complexes, in systems discussed here upon formation of the intramolecular hydrogen bond the ν(XH) frequency decreases, while the chemical shifts of the bridging proton increases. Interpretation of these spectroscopic changes in terms of hydrogen bond geometry and energy might be done using previously published correlational dependencies [27,28,29,30,31,32,33,34,35,36]. Despite the typical spectroscopic manifestations of the intramolecular hydrogen bonds, the situation is often complicated by the presence of a tautomeric equilibrium between molecular of proton-transfer form of the complex (except for proton sponges, where both forms are positively charged). The equilibrium constant as well as the characteristics of individual tautomers are temperature-, solvent- and substituent-dependent. Disentangling the overall spectroscopic patterns requires a careful analysis and usage of other spectroscopic markers, such as, i.e., UV-Vis band positions and intensities, C=O stretching frequencies, 13C-, 15N-NMR chemical shifts, spin-spin coupling constants and H/D isotope effects on all of the abovementioned parameters.

3.1. Ortho-Hydroxyaryl Schiff Bases 1

Spectroscopic studies including IR and Raman spectroscopic data as well as incoherent inelastic neutron scattering (IINS) data were presented in the literature [37,38,39,40,41,42,43,44]. These studies were based on a series of spectra recorded under the argon matrix condition, in the gas phase and the solid state. A detailed analysis of vibration spectra was also carried out by quantum-mechanical calculations. The effects of deuteration on band positions and intensities were investigated for the cases of deuteration in the hydrogen bridges and in the methyl group of imine fragments (N=C–CH3) in ortho-hydroxyaryl ketimines (1, R2 = CH3; Figure 1). The position of the ν(C–O) band turns out to be sensitive to the deuteration in the hydrogen bridge for the molecular form, while for the PT form the deuteration influences the ν(C=N) band. This effect makes it possible to estimate the proton position in the hydrogen bridge.
In [45,46,47] various solutions of partially deuterated and 15N-labelled ortho-hydroxyaryl Schiff bases 6 (Figure 4) were studied by 1H- and 15N-NMR spectroscopy, revealing the presence of intramolecular proton tautomerism between molecular (enol-imine) and zwitterionic (keto-amine) forms.
The analysis of substituent- and temperature- dependent 1H and 15N chemical shifts has revealed that upon the increase of the solvent polarity two effects are present: (i) shift of the tautomeric equilibrium towards the zwitterionic structures and (ii) changes in the hydrogen bond geometry in each of the tautomers. Namely, the hydrogen bond in the molecular form becomes stronger (symmetrization of the bridging proton position) while that in the zwitterionic tautomer becomes weaker (asymmetrization). A similar effect was later observed for other strongly hydrogen bonded systems and it was ascribed to the non-specific [48,49] or in some cases to specific [50] solvent-solute interactions. For ortho-hydroxyaryl Schiff bases 6 (Figure 4) the formation of additional hydrogen bonds to the phenol/phenolate oxygen atom by one or several alcohol molecules was shown to induce the proton transfer and stabilization of the keto-amine form [45,46].
In [51] the effect of an additional covalently linked carboxylic group on the intramolecular proton tautomerism in 2-carboxy-4-methyl-6-[(E)-(phenyliminio)methyl]phenolate (ortho-hydroxyaryl Schiff base, 7, Figure 5) has been studied. It was shown that in a CDF3/CDF2Cl solution the additional COOH group forms an OHO hydrogen bond with the phenolic oxygen atom, which “pushes” the proton in the neighboring OHN bonds towards the nitrogen atom. As a result, 7 exists almost exclusively in a proton transfer form OH···O−···HN+, in which two proton donors form coupled hydrogen bonds and compete for the central phenolate oxygen acceptor.
An interesting case of proton tautomerism and hydrogen bond coupling is represented by pyridoxal 5′-phosphate (PLP), which forms ortho-hydroxyaryl Schiff bases 8 (Figure 6) as a cofactor of many enzymes and also during the course of its catalytic cycle (so called “internal” and “external” aldimines, respectively) [52].

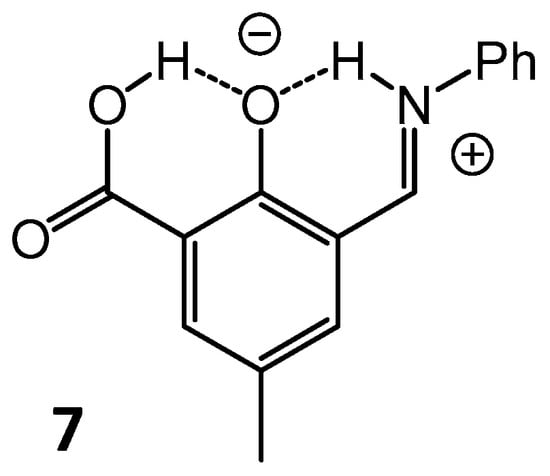

Protonation states, hydrogen bond geometries and hydrogen bond coupling in PLP has been studied recently by NMR in aqueous solution [53,54], in aprotic medium [55], in solid state [56,57] and also in hydrophobic pockets of proteins (alanine racemase, AlaR, and aspartate aminotransferase, AspAT) [58,59]. It was demonstrated that the proton position in the intramolecular OHN bond is determined to a large extent by the additional bonds formed with the phenolic oxygen or pyridine nitrogen atoms of PLP. In both cases, the formation of additional hydrogen bonds shifts the equilibrium towards the catalytically active zwitterionic ketoamine form. For example, in AspAT the pyridine nitrogen atom of PLP is fully protonated by the COOH group of the neighboring aspartic acid side chain [58].

3.2. Ortho-Hydroxyaryl Aldehydes and Ketones 2

Ortho-hydroxyaryl aldehydes and ketones are structurally close to ortho-hydroxyaryl Schiff bases, but they do not display proton transfer in the ground state [60,61,62]. The studies of two derivatives of ortho-hydroxyacetophenone (5-cyano-2-hydroxyacetophenone and 2-hydroxy-4-methoxy-5-nitro-acetophenone) [62] which possess markedly strong acidity of the hydroxyl group failed to show the existence of the PT form in the ground state. Moreover, the investigation of fluorescent spectra recorded in solution and in the solid state show the prevailing of the PT form in the excited state for the ortho-hydroxyacyl aromatic compounds [63,64,65].

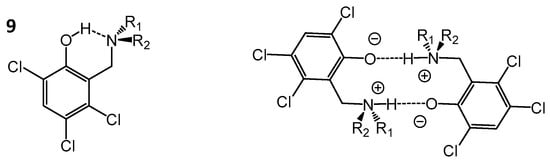

3.3. Ortho-Hydroxyaryl Mannich Bases 5

The studies of adiabatic potentials for the proton motion in 3,5,6-trimethyl-2-(N,N-dimethylaminomethyl)phenol (5, R1 = R2 = CH3; Figure 1) and the description of infrared spectra by means of Car-Parrinello molecular dynamics (CPMD) is presented in [51]. The strengthening of the intramolecular hydrogen bond in this compound due to the steric effect of the methyl substituents in the phenyl ring was earlier stated and proved experimentally [66]. The aim of paper [67] was the verification of the conformity of the applied computational methods with the description of the intramolecular hydrogen bonding. The presented calculations for solution and solid states of 3,5,6-trimethyl-2-(N,N-dimethylamine-methyl)phenol by CPMD has allowed the authors to describe both spectral and structural parameters. The potential energy curves and corresponding vibrational energy levels estimated at B3LYP/cc-pVDZ and MP2/cc-pVDZ levels of theory for the adiabatic proton movement also made it possible to calculate the position of the ν(OH) stretching band. It was stated that the resulting calculated frequency is in a satisfactory agreement with experimental data. It should be underlined that CPMD method allows to study chemical reactions dynamically and to compute free energy profiles via thermodynamic integration of fluctuations and, therefore, to calculate entropy [68]. In [69,70] the potential energy curves of proton transfer in intramolecular hydrogen bond in ortho-hydroxyaryl Schiff base [69] and acetic acid dimer [70] were studied, and the consistency of CPMD method was shown.

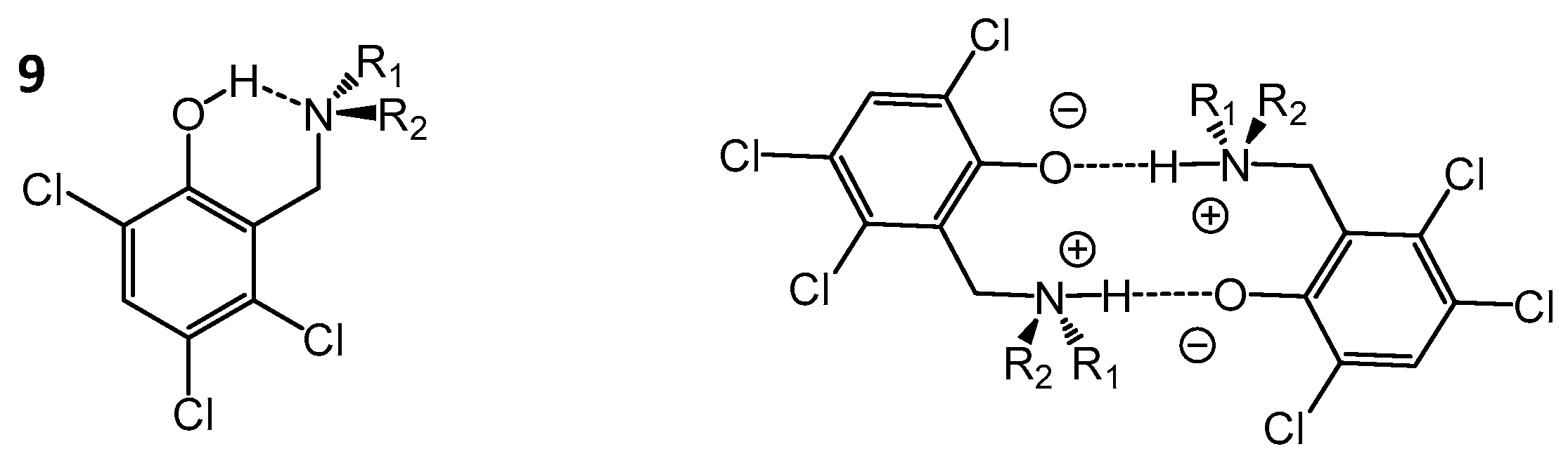

In liquid-state NMR spectra of ortho-hydroxyaryl Mannich bases the intramolecular OHN hydrogen bond manifests itself by a low-field shift of the bridging proton signal [71,72,73,74] and in some cases by the inversion of the sign of H/D isotope effects on 13C-NMR chemical shifts upon temperature decrease [75]. The latter is associated with the shift of the proton equilibrium from the molecular OH···N form to the zwitterionic O−···HN+ form. In [74] compound 9 (Figure 7) was studied by a combination of NMR and UV/Vis spectroscopy showing that in a polar aprotic medium such as a mixture of Freon gases CDF3/CDF2Cl the molecule exists in a molecular OH···N form, which changes to the zwitterionic O−···HN+ form upon the formation of cyclic dimers (shown in Figure 7, right). The existence of the zwitterionic forms for monomers of compound 9 was not confirmed.

3.4. Dimethylaminonaphthalene (4)

Dimethylaminonaphthalene, so-called proton sponge, is the subject of intensive studies [76,77,78,79,80,81,82,83,84,85,86,87,88,89]. In [76,77,78,79,80] the methods of synthesis, the analysis of the structural characteristics and the results of ab initio (MP2/6-31+G(d,p)) calculations for a series of dimethylaminonaphthalene derivatives are presented. It is noteworthy that the results of quantum-mechanical calculations and the interpretation of the NMR spectra of proton sponges with a strong buttressing effect coincide. For example, the calculated potential for the proton transfer for 2,7-dibromo-1,8-bis(dimethylamino)naphthalene is symmetric and possesses a low energy barrier (Figure 8) [79]. This result points out the delocalization of the proton in the hydrogen bridge which is in accordance with the record 1H-NMR chemical shift δ(1H) = 21–22 ppm [81,82] and a very high isotopic spectroscopic ratio, ISR = ν(NHN)/ν(NDN) = 1.8 [83].

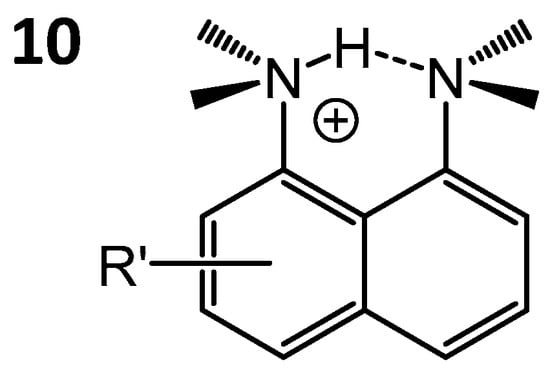

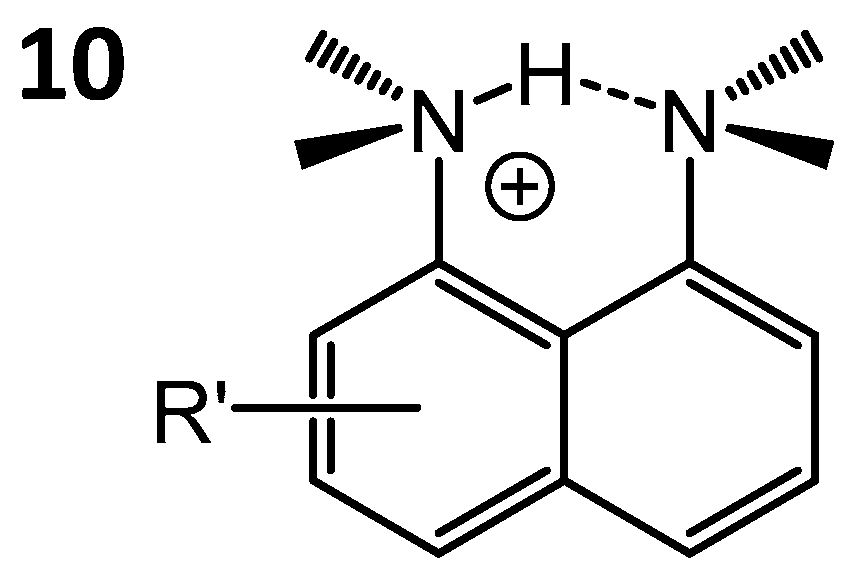

The NMR studies of hydrogen bonding in proton sponges of type 10 (Figure 9) are mostly based on the interpretation of 1H-, 15N-NMR chemical shifts, as well as 1JNH, 1hJNH and 2hJNN spin-spin coupling constants (the latter can be detected directly [84] or indirectly [68]) and H/D isotope effects on them.
In [86] the (NHN)+ hydrogen bond geometry and symmetry was studied depending on the solvent, counter-anion and temperature used (solvents: CD3CN, CD2Cl2, toluene-D8 and CDF3/CDF2Cl mixture; counter-anions: ClO4−, trifluoroacetate (TFA−), tetrakis[3,5-bis(trifluoro- methyl)phenyl]borate (BARF−)). It was shown that the positive charge in the (NHN)+ bond is well localized, indicating the presence of a degenerate tautomeric equilibrium between NH+···N and N···+NH forms (asymmetric proton position was also detected in some proton sponges by dipolar solid-state NMR [87]). Lowering the temperature increases the symmetry of the hydrogen bond, as evidenced by the changes in NMR parameters; this phenomenon was attributed to the increase of the polar solvent ordering around the charged hydrogen bridge. It was also noticed that small counter-anions tend to perturb the hydrogen bond symmetry (presumably, due to the asymmetrical placement). In contrast, usage of large counter-anions with strongly delocalized negative charge leads to hydrogen bond symmetrization. A similar effect was studied later for other NHN-bonded systems [88,89].

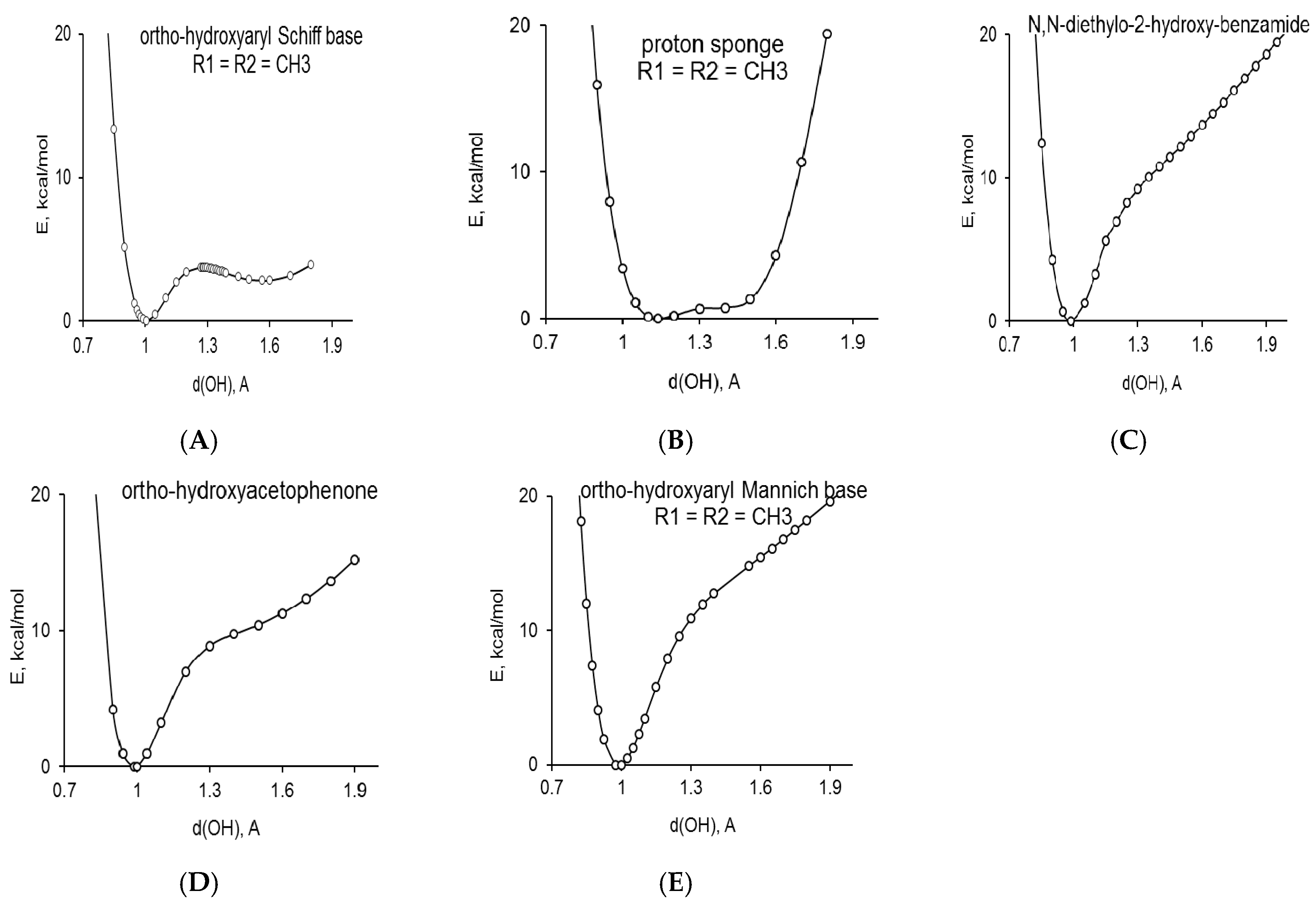

4. Potential for Proton Transfer and Tautomeric Equilibrium

The studies of the non-adiabatic potential for the proton transfer in ortho-hydroxyaryl Schiff bases [11,90], ortho-hydroxyaryl ketones [91], ortho-hydroxyaryl Mannich bases [66,92,93], dimethylaminonaphthalene [76,77,78,79,80] and ortho-hydroxyaryl amides [94] confirm the presence of the second local minimum on the potential curve for some ortho-hydroxyaryl Schiff bases and proton sponges (Figure 10), which allows one to observe tautomeric equilibrium. The potential energy curves do not exhibit a second a local minimum for ortho-hydroxyaryl amides, ortho-hydroxyaryl ketones, ortho-hydroxyaryl Mannich bases and, therefore, the experimental observation of the stable PT tautomeric form is not possible.

5. Proton Transfer Process and Aromaticity

Ortho-Hydroxyaryl Schiff Bases 1

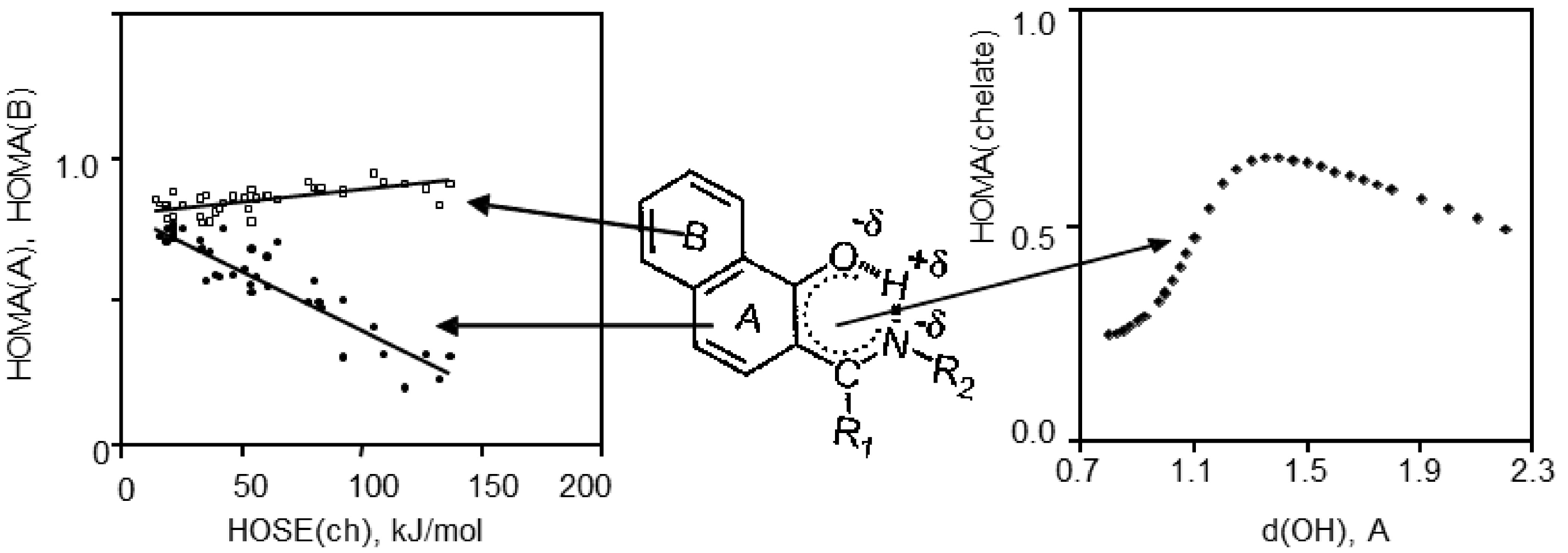

The formation of the intramolecular quasi-aromatic hydrogen bonding via π-electronic delocalization in the systems with the alternated double bonds (so-called chelate chain) stabilizes a flat conformation of a molecule and enforces hydrogen bonding. This effect is known as Resonance Assisted Hydrogen Bond (RAHB) [95]. From the point of view of the acid-base interactions, such strengthening of hydrogen bonding is caused by the mutual increase of basicity and acidity due to the +M and −M mesomeric effects via the chelate chain [96,97]. Recently, some literature sources have put in question the abovementioned point of view [98]. Yanez et al. [98] demonstrate that π-electronic conjugation does not strengthen hydrogen bonding. Obviously, the studies of aromaticity are very important for answering the question about the strengthening of hydrogen bonding in quasi-aromatic systems. References [99,100,101,102,103] dwell on the description of the aromaticity changes in systems with intramolecular hydrogen bonding depending on the state of tautomeric equilibrium. The papers [104,105,106,107,108] demonstrate that the parameters of aromaticity HOMA and HOSE [104] are reliable indicators in the estimation of tautomeric equilibrium. Based on X-ray diffraction data the correlations between the HOMA and HOSE aromaticity indexes and the XH bond length were obtained [100]. The phenyl and naphthalene derivatives of Schiff bases show the existence of aromaticity equilibrium, which reflects the decrease of aromaticity of the A ring with a little increase of aromaticity of the B ring under the proton transfer process (HOMA(A,B) = f(HOSE(ch)), Figure 11). It was stated that the change from the molecular form to the transition state triggers the increase of aromaticity of the chelate chain, and on the contrary, the change from the transition state to the PT form evokes the decrease of aromaticity (HOMA(ch) = f(d(OH)), Figure 11). It was also shown that the changes of aromaticity of the chelate chain (HOMA(ch)) depend in a non-linear way on the changes of aromaticity of the phenyl ring (or naphthalene ring A) under the proton transfer (HOMA(ph) = f(HOMA(ch)), Figure 12).
An interesting fact is that the calculated results obtained by the non-adiabatic approach give a precise description of the aromaticity changes.

6. Equilibrium between Different Intra-/Intra-Molecular Hydrogen Bonding and Intra-/Inter-Molecular Hydrogen Bonding

6.1. Ortho-Hydroxyaryl Aldehydes and Ketones 2

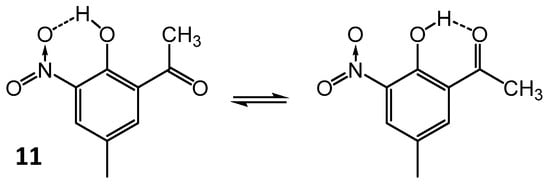

The phenomenon of competition between two hydrogen bonds within one molecule is an interesting point to consider [109,110]. The competitive equilibrium between the O–H···O2N– and O–H···O=C hydrogen bonds in 5-methyl-3-nitro-2-hydroxyacetophenone (11) (Figure 13) by infrared spectroscopy and quantum-mechanical calculations is studied in [91,110].
The infrared spectra recorded under argon matrix condition as a function of the sublimation temperature revealed significant changes in the intensity of the ν(C=O) and ν(NO2) stretching vibration bands (Figure 14). The result was used to attribute particular bands to two isomers of the compound.

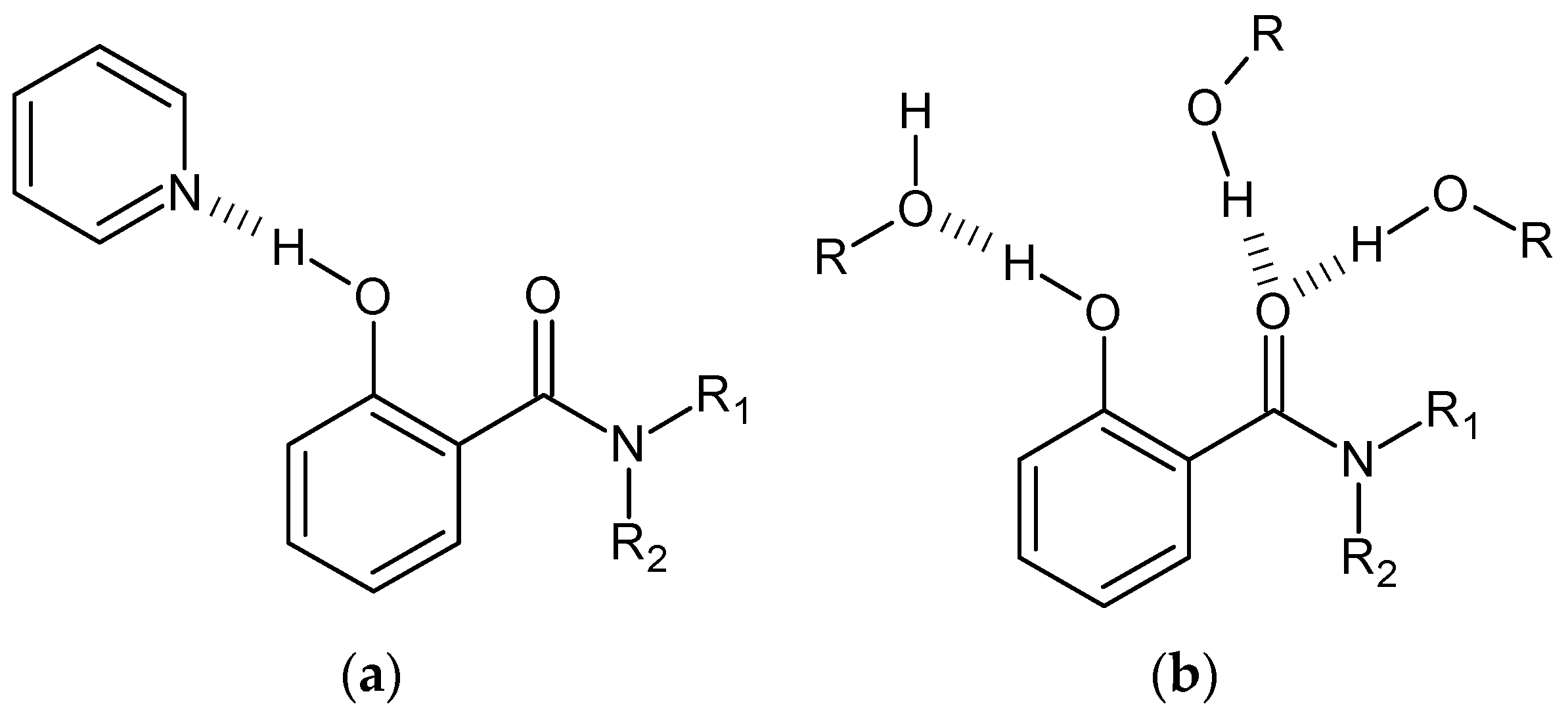

6.2. Ortho-Hydroxyaryl Amides (3)

An amide bond in proteins plays an essential role in the functioning of every living organism, therefore, the description of the conformation of such systems is very important. Papers [94,111] showed the importance of complex studies of ortho-hydroxyaryl amides. The 1H and 13C-NMR spectra of ortho-hydroxyaryl amides studied as a function of temperature demonstrate the presence of a dynamic effect evoked by the non-equivalent orientation of dimethylamine, diethylamine, morpholine and pyrrolidine groups [94,111].

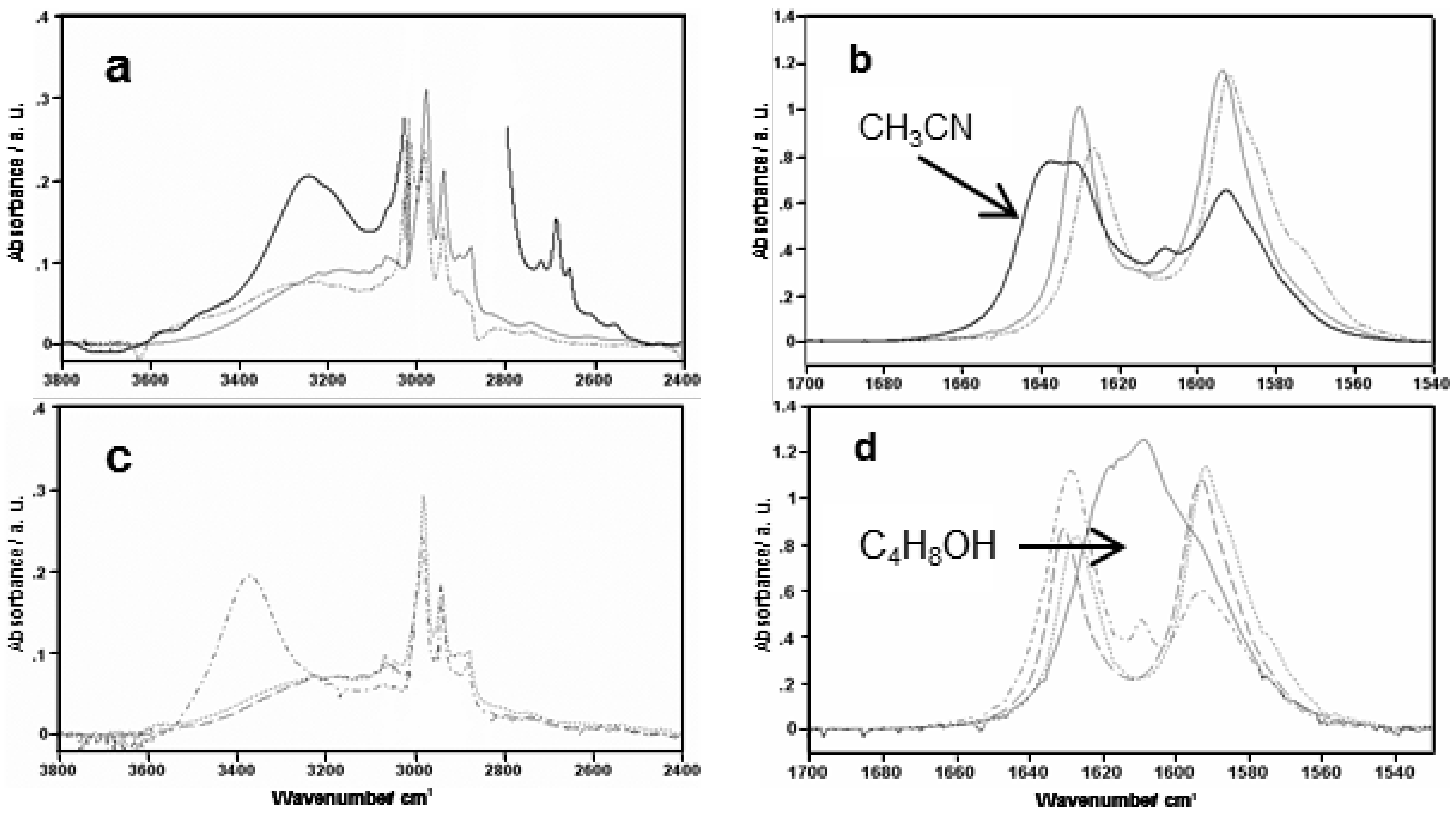

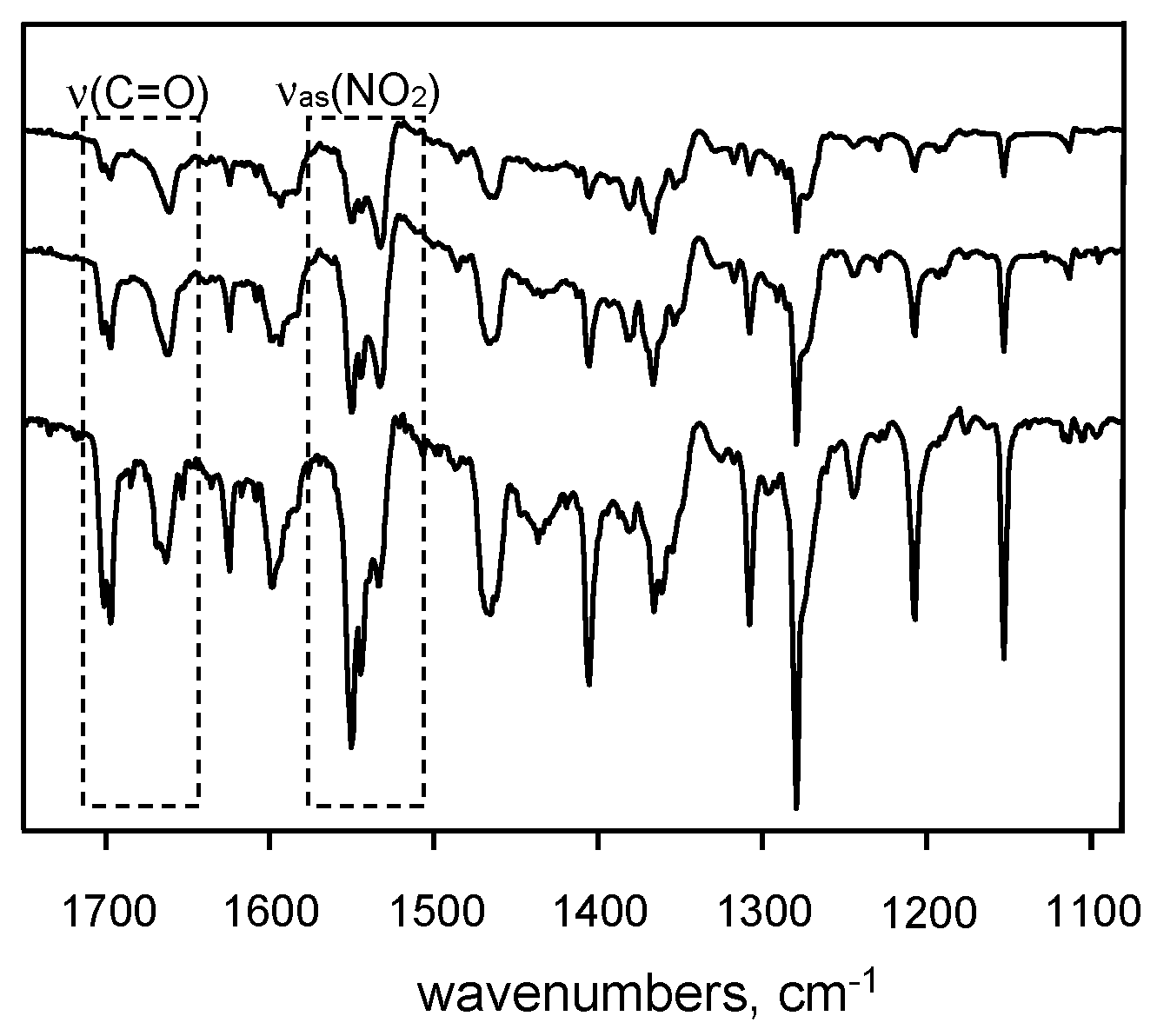

The infrared spectra (Figure 15) recorded as a function of temperature in weakly-polar, proton-donating and proton-accepting solvents indicate the existence of equilibrium between intramolecular and intermolecular hydrogen bonds [94]. It should be underlined that an easy disruption of a rather strong intramolecular hydrogen bond observed in 2-hydroxy-N-methylbenzamide [112], salicylamide [113] and 4-chloro-2-hydroxybenzamide [114] (d(OO) = 2.53–2.47 Å) is an outcome of a steric effect of the ethyl groups in 2-hydroxy-N,N-dialkylbenzamides and a weakened conjugation between the phenyl and amide moieties due to competitive resonance [94,111]. Further investigations of infrared spectra revealed the shift of the ν(C=O) bands depending on the solvent polarity (Figure 15). In the case of proton-accepting solvent, we observe the disruption of intramolecular hydrogen bonding and the formation of the complex with the solvent molecules, which shifts the ν(C=O) band towards higher wavenumbers with respect to that in weakly-polar solvent. This fact is explained by the disruption of hydrogen bonding (Figure 16) and the strengthening of the force constant of this bond. The shift of the ν(C=O) band in the case of the amphoteric solvent is drastically different (the shift towards lower wavenumbers) from the proton-acceptor solvent. Such effect is conditioned by the formation of intermolecular hydrogen bonding between the carbonyl group and the solvent molecules, which weakens the carbonyl bond and decreases force constant.

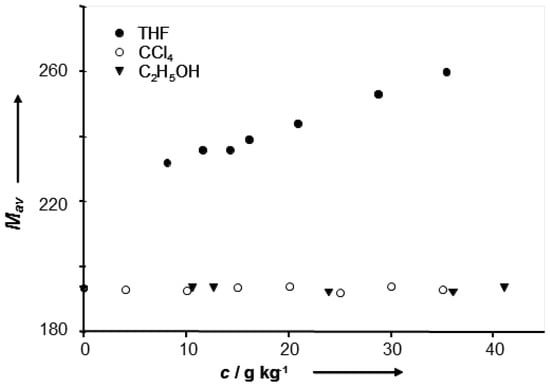

The measurements of an average molecular mass (Figure 17) also exhibit ambiguous influence of amphoteric and proton-acceptor solvents. These results point out the presence of self-association but only in proton-accepting solvents. Different behaviour of a compound in amphoteric and proton-accepting solvents is due to the blocking of a basic center of the molecule, which prevents the formation of the complex (Figure 16). This hypothesis is supported by the results obtained from the infrared measurements.

7. Short Summary

Hydrogen bonding is one of the main concepts in contemporary chemistry [63,95,104,108,115,116,117,118,119,120,121,122,123,124,125,126,127] and its study is important for the development of the discipline. Intramolecular hydrogen bonds in ortho-hydroxyaryl Schiff and Mannich bases, in ortho-hydroxyaryl ketones and amides, in proton sponges and related compounds could be considered as classical objects for the investigation. Though the presented short review does not cover the topic in its entirety, we have tried to outline the main current research directions. On the one hand, the geometric and spectroscopic characteristics of the abovementioned intramolecular hydrogen bonds are typical for H-bonds of medium strength (for an XHY bond it is short XY contact, XH elongation, ordinary directionality pattern, ν(XH) frequency decrease, bridging proton deshielding etc.). On the other hand, there are enough specific properties, which make the study of such bonds a topic in its own right. Perhaps the most prominent feature is a possibility of proton delocalization due to the prototropic equilibrium between molecular and zwitterionic forms, possible in some systems. The tautomeric equilibrium is temperature-, solvent- and substituent dependent; it is also strongly influenced by additional intermolecular hydrogen bonds formed by the molecule (with or without breaking the intramolecular bond). Other sources of proton delocalization are the formation of stronger intramolecular hydrogen bonds with broader proton potentials and thermally fluctuating medium effect, which are influencing H-bond geometry. The equilibrium constant of the tautomeric equilibrium changes together with the intrinsic geometric and spectroscopic properties of individual tautomers, which complicates the analysis of the experimental data. Here, quantum-chemical computations are often providing the necessary insight via adiabatic and non-adiabatic PES calculations. Another interesting feature of intramolecular H-bond discussed in this short review is the stabilization provided by the π-electron delocalization in the chelate chain, which gives the name Resonance-Assisted Hydrogen Bonds (RAHB).

Acknowledgments

This work was supported by KNOW-9 grant and project Nr 47 from 22.01.2016, p. 17. The authors gratefully acknowledge the Wroclaw Centre for Networking and Supercomputing (WCSS) for computational facilities. This work were prepared within the framework of RFBR grants: 14-03-00716 and 16-03-00405.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cleland, W.W.; Kreevoy, M.M. Low-barrier hydrogen-bonds and enzymatic catalysis. Science 1994, 264, 1887–1890. [Google Scholar] [CrossRef] [PubMed]
  2. Hur, O.; Leja, C.; Dunn, M. Evidence of a low-barrier hydrogen bond in the tryptophan synthase catalytic mechanism. Biochemistry 1996, 35, 7378–7386. [Google Scholar] [CrossRef] [PubMed]
  3. Cleland, W.W.; Frey, P.A.; Gerlt, J.A. The low barrier hydrogen bond in enzymatic catalysis. J. Biol. Chem. 1998, 273, 25529–25532. [Google Scholar] [CrossRef] [PubMed]
  4. Przybylski, P.; Huczynski, A.; Pyta, K.; Brzeziński, B.; Bartl, F. Biological properties of Schiff bases and azo derivatives of phenols. Curr. Org. Chem. 2009, 13, 124–148. [Google Scholar] [CrossRef]
  5. Ritter, E.; Przybylski, P.; Brzeziński, B.; Bartl, F. Schiff bases in biological systems. Curr. Org. Chem. 2009, 13, 241–249. [Google Scholar] [CrossRef]
  6. Napier, I.; Ponka, P.; Richardson, D.R. Iron trafficking in the mitochondrion: Novel pathways revealed by disease. Blood 2005, 105, 1867–1874. [Google Scholar] [CrossRef] [PubMed]
  7. Gou, Y.; Wang, J.; Chen, S.; Zhang, Z.; Zhang, Y.; Zhang, W.; Yang, F. α−N−heterocyclic thiosemicarbazone Fe(III) complex: Characterization of its antitumor activity and identification of anticancer mechanism. Eur. J. Med. Chem. 2016, 123, 354–364. [Google Scholar] [CrossRef] [PubMed]
  8. Boese, A.D.; Martin, J.M.L.; Klopper, W. Basis Set Limit Coupled Cluster Study of H-Bonded Systems and Assessment of More Approximate Methods. J. Phys. Chem. A 2007, 111, 11122–11133. [Google Scholar] [CrossRef] [PubMed]
  9. Boese, A.D. Density Functional Theory and Hydrogen Bonds: Are We There Yet? ChemPhysChem 2015, 16, 978–985. [Google Scholar] [CrossRef] [PubMed]
  10. Tomasi, J.; Mennucci, B.; Cammi, R. Quantum mechanical continuum solvation models. Chem. Rev. 2005, 105, 2999–3093. [Google Scholar] [CrossRef] [PubMed]
  11. Filarowski, A.; Koll, A.; Hansen, P.E.; Kluba, M. Density functional theory study of intramolecular hydrogen bonding and proton transfer in o-hydroxyaryl ketimines. J. Phys. Chem. 2008, 112, 3478–3485. [Google Scholar] [CrossRef] [PubMed]
  12. Filarowski, A.; Majerz, I. AIM analysis of intramolecular hydrogen bonding in o-hydroxy aryl Schiff bases. J. Phys. Chem. 2008, 112, 3119–3126. [Google Scholar] [CrossRef] [PubMed]
  13. Panek, J.; Filarowski, A.; Jezierska-Mazzarello, A. Impact of proton transfer phenomena on the electronic structure of model Schiff bases: An AIM/NBO/ELF study. J. Chem. Phys. 2013, 139, 154312. [Google Scholar] [CrossRef] [PubMed]
  14. Martyniak, A.; Panek, J.J.; Jezierska-Mazzarello, A.; Filarowski, A. Triple hydrogen bonding in a circular arrangement: ab initio, DFT and first-principles MD studies of tris-hydroxyaryl enamines. J. Comput. Aided Mol. Des. 2012, 9, 1045–1053. [Google Scholar] [CrossRef] [PubMed]
  15. Martyniak, A.; Majerz, I.; Filarowski, A. Peculiarities of quasi-aromatic hydrogen bonding. RSC Adv. 2012, 2, 8135–8144. [Google Scholar] [CrossRef]
  16. Jański, J.; Koll, A. Solvent and Substitution Influence on the Character of Tautomers Resulting from Proton Transfer Reaction in Some Phenol Derivatives. Struct. Chem. 2004, 15, 353–361. [Google Scholar] [CrossRef]
  17. Mata, I.; Alkorta, I.; Espinosa, E.; Molins, E. Relationships between interaction energy, intermolecular distance and electron density properties in hydrogen bonded complexes under external electric fields. Chem. Phys. Lett. 2011, 507, 185–189. [Google Scholar] [CrossRef]
  18. Vener, M.V.; Manaev, A.V.; Egorova, A.N.; Tsirelson, V.G. QTAIM study of strong H-bonds with the O–H center dot center dot center dot A fragment (A=O, N) in three-dimensional periodical crystals. J. Phys. Chem. A 2007, 111, 1155–1162. [Google Scholar] [CrossRef] [PubMed]
  19. Grabowski, S.J.; Sokalski, W.A.; Leszczynski, J. The possible covalent nature of N–H center dot center dot center dot O hydrogen bonds in formamide dimer and related systems: An ab initio study. J. Phys. Chem. A 2006, 110, 4772–4779. [Google Scholar] [CrossRef] [PubMed]
  20. Grabowski, S.J.; Leszczyński, J. Hydrogen Bonding—New Insights; Grabowski, S.J., Ed.; Springer: Berlin, Germany, 2006. [Google Scholar]
  21. Grabowski, S.J.; Sokalski, W.A.; Dyguta, E.; Leszczynski, J. Quantitative classification of covalent and noncovalent H-bonds. J. Phys. Chem. B 2006, 110, 6444–6446. [Google Scholar] [CrossRef] [PubMed]
  22. Basilevsky, M.V.; Vener, M.V. Theoretical investigations of proton and hydrogen atom transfer in the condensed phase. Russ. Chem. Rev. 2003, 72, 3–39. [Google Scholar] [CrossRef]
  23. Rybarczyk-Pirek, A.J.; Grabowski, S.J.; Małecka, M.; Nawrot-Mordanka, J. Crystal and molecular structures of new chromone derivatives as empirical evidence of intramolecular proton transfer reaction; ab initio studies on intramolecular H-bonds in enaminones. J. Phys. Chem. 2002, 106, 11956–11962. [Google Scholar] [CrossRef]
  24. Musin, R.N.; Mariam, Y.H. An integrated approach to the study of intramolecular hydrogen bonds in malonaldehyde enol derivatives and naphthazarin: Trend in energetic versus geometrical consequences. J. Phys. Org. Chem. 2006, 19, 425–444. [Google Scholar] [CrossRef]
  25. Weinhold, F.; Klein, R.A. What is a hydrogen bond? Mutually consistent theoretical and experimental criteria for characterizing H-bonding interactions. Mol. Phys. 2012, 110, 565–579. [Google Scholar] [CrossRef]
  26. Arunan, E.; Desiraju, G.R.; Klein, R.A.; Sadlej, J.; Scheiner, S.; Alkorta, I.; Clary, D.C.; Crabtree, R.H.; Dannenberg, J.J.; Hobza, P.; et al. Definition of the hydrogen bond (IUPAC Recommendations 2011). Pure Appl. Chem. 2011, 83, 1637–1641. [Google Scholar] [CrossRef]
  27. Badger, R.M.; Bauer, S.H. Spectroscopic Studies of the Hydrogen Bond. II. The Shift of the OH Vibrational Frequency in the Formation of the Hydrogen Bond. J. Chem. Phys. 1937, 5, 839–851. [Google Scholar] [CrossRef]
  28. Szafran, M. Recent aspects of the proton transfer reaction in H-bonded complexes. J. Mol. Struct. 1996, 381, 39–64. [Google Scholar] [CrossRef]
  29. Drago, R.S.; Epley, T.D. Enthalpies of hydrogen bonding and changes in hydroxy frequency shifts for a series of adducts with substituted phenols. J. Am. Chem. Soc. 1969, 91, 2883–2890. [Google Scholar] [CrossRef]
  30. Hadži, D.; Bratos, S. Vibrational spectroscopy of the hydrogen bond. In The Hydrogen Bond. Recent Developments in Theory and Experiments; Schuster, P., Zundel, G., Sandorfy, C., Eds.; North-Holland: Amsterdam, The Netherlands, 1976. [Google Scholar]
  31. Iogansen, A.V. Direct proportionality of the hydrogen bonding energy and the intensification of the stretching v(XH) vibration in infrared spectra. Spectrochim. Acta A 1999, 55, 1585–1612. [Google Scholar] [CrossRef]
  32. Banerjee, P.; Mukhopadhyay, D.P.; Chakraborty, T. On the origin of donor O–H bond weakening in phenol-water complexes. J. Chem. Phys. 2015, 143, 204306. [Google Scholar] [CrossRef] [PubMed]
  33. Ishikawa, R.; Kojima, C.; Ono, A.; Kainosho, M. Developing model systems for the NMR study of substituent effects on the N-H center dot center dot center dot N hydrogen bond in duplex DNA. Magn. Res. Chem. 2001, 39, S159–S165. [Google Scholar] [CrossRef]
  34. Libowitzky, E. Correlation of O–H Stretching Frequencies and O–H···O Hydrogen Bond Lengths in Minerals. Monatsh. Chem. 1999, 130, 1047–1059. [Google Scholar]
  35. Lautié, A.; Froment, F.; Novak, A. Relationship Between NH Stretching Frequencies and N···O Distances of Crystals Containing NH···O Hydrogen Bonds. Spectrosc. Lett. 1976, 9, 289–299. [Google Scholar] [CrossRef]
  36. Limbach, H.-H.; Tolstoy, P.M.; Perez-Hernandez, N.; Guo, J.; Shenderovich, I.G.; Denisov, G.S. OHO Hydrogen Bond Geometries and NMR Chemical Shifts: From Equilibrium Structures to Geometric H/D Isotope Effects, with Applications for Water, Protonated Water, and Compressed Ice. Israel J. Chem. 2009, 49, 199–216. [Google Scholar] [CrossRef]
  37. Grzegorzek, J.; Filarowski, A.; Mielke, Z. The photoinduced isomerization and its implication in the photo-dynamical processes in two simple Schiff bases isolated in solid argon. Phys. Chem. Chem. Phys. 2011, 13, 16596–16605. [Google Scholar] [CrossRef] [PubMed]
  38. Majerz, I.; Pawlukojć, A.; Sobczyk, L.; Dziembowska, T.; Grech, E.; Szady-Chełmieniecka, A. The infrared, Raman and inelastic neutron scattering studies on 5-nitro-N-salicylideneethylamine. J. Mol. Struct. 2000, 552, 243–247. [Google Scholar] [CrossRef]
  39. Filarowski, A.; Koll, A.; Lipkowski, P.; Pawlukojć, A. Inelastic neutron scattering and vibrational spectra of 2-(N-methyl-α-iminoethyl)-phenol and 2-(N-methyliminoethyl)-phenol. Experimental and theoretical approach. J. Mol. Struct. 2008, 880, 97–108. [Google Scholar] [CrossRef]
  40. Filarowski, A.; Koll, A. Integrated intensity of νs(OH) absorption bands in bent hydrogen bonds in ortho-dialkylaminomethyl phenols. Vib. Spectrosc. 1996, 12, 15–24. [Google Scholar] [CrossRef]
  41. Berkesi, O.; Körtvélyesi, T.; Hetényi, C.; Németh, T.; Pálinkó, I. Hydrogen bonding interactions of benzylidene type Schiff bases studied by vibrational spectroscopic and computational methods. Phys. Chem. Chem. Phys. 2003, 5, 2009–2014. [Google Scholar] [CrossRef]
  42. Król-Starzomska, I.; Filarowski, A.; Rospenk, M.; Koll, A.; Melikova, S.M. Proton transfer equilibria in Schiff bases with steric repulsion. J. Phys. Chem. A 2004, 108, 2131–2138. [Google Scholar] [CrossRef]
  43. Majerz, I.; Dziembowska, T.; Ambroziak, K. Analysis of the vibrational spectra of trans-N,N′-bis-R-salicylidene-1′,2′-cyclohexanediamine. J. Mol. Struct. 2007, 828, 166–173. [Google Scholar] [CrossRef]
  44. Filarowski, A.; Koll, A.; Sobczyk, L. Vibrational spectra of o-hydroxyphenyl Schiff bases and related compounds. Curr. Org. Chem. 2009, 13, 287–298. [Google Scholar] [CrossRef]
  45. Kurkovskaya, L.N.; Nurmukhamedov, R.N.; Shigorin, D.N. Proof of the bipolar structure of the NH-tautomer of H-chelate rings of the aromatic series by 1H and 13C-NMR. J. Struct. Chem. 1980, 21, 612–620. [Google Scholar] [CrossRef]
  46. Sharif, S.; Denisov, G.S.; Toney, M.D.; Limbach, H.H. NMR studies of solvent-assisted proton transfer in a biologically relevant Schiff base: Towards a distinction of geometric and equilibrium H–bond isotope effects. J. Am. Chem. Soc. 2006, 128, 3375–3387. [Google Scholar] [CrossRef] [PubMed]
  47. Filarowski, A.; Koll, A.; Rospenk, M.; Król-Starzomska, I.; Hansen, P.E. Tautomerism of sterically hindered Schiff bases. Deuterium isotope effects on 13C chemical shifts. J. Phys. Chem. A 2005, 109, 4464–4473. [Google Scholar] [CrossRef] [PubMed]
  48. Koeppe, B.; Tolstoy, P.M.; Limbach, H.H. Reaction Pathways of Proton Transfer in Hydrogen bonded Phenol-Carboxylate Complexes explored by UVNMR. J. Am. Chem. Soc. 2011, 133, 7897–7908. [Google Scholar] [CrossRef] [PubMed]
  49. Koeppe, B.; Guo, J.; Tolstoy, P.M.; Denisov, G.S.; Limbach, H.H. Solvent and H/D Isotope Effects on the Proton Transfer Pathways in Heteroconjugated Hydrogen-Bonded Phenol-Carboxylic Acid Anions Observed by Combined UV–vis and NMR Spectroscopy. J. Am. Chem. Soc. 2013, 135, 7553–7566. [Google Scholar] [CrossRef] [PubMed]
  50. Pylaeva, S.; Allolio, C.; Koeppe, B.; Denisov, G.S.; Limbach, H.H.; Sebastiani, D.; Tolstoy, P.M. Proton transfer in a short hydrogen bonded complex caused by solvation shell fluctuations: An ab initio MD and NMR/UV study of an (OHO)-bonded system. Phys. Chem. Chem. Phys. 2015, 17, 4634–4644. [Google Scholar] [CrossRef] [PubMed]
  51. Golubev, N.S.; Smirnov, S.N.; Tolstoy, P.M.; Sharif, S.; Toney, M.D.; Denisov, G.S.; Limbach, H.H. Observation by NMR of the tautomerism of an intramolecular OHOHN-charge relay chain in a model Schiff base. J. Mol. Struct. 2007, 844–845, 319–327. [Google Scholar] [CrossRef]
  52. Limbach, H.H.; Chan-Huot, M.; Sharif, S.; Tolstoy, P.M.; Shenderovich, I.G.; Denisov, G.S.; Toney, M.D. Critical hydrogen bonds and protonation states of pyridoxal 5′-phosphate revealed by NMR. Biochim. Biophys. Acta Proteins Proteom. 2011, 1814, 1426–1437. [Google Scholar] [CrossRef] [PubMed]
  53. Chan-Huot, M.; Sharif, S.; Tolstoy, P.M.; Toney, M.D.; Limbach, H.H. NMR studies of the Stability, Protonation States and Tautomerism of 13C and 15N Labeled Aldimines of the Coenzyme Pyridoxal 5’-phosphate in Water. Biochemistry 2010, 49, 10818–10830. [Google Scholar] [CrossRef] [PubMed]
  54. Chan-Huot, M.; Niether, C.; Sharif, S.; Tolstoy, P.M.; Toney, M.D.; Limbach, H.H. NMR Studies of the Protonation States of Pyridoxal 5’-phosphate in Water. J. Mol. Struct. 2010, 976, 282–289. [Google Scholar] [CrossRef]
  55. Sharif, S.; Denisov, G.S.; Toney, M.D.; Limbach, H.H. NMR studies of coupled low- and high-barrier hydrogen bonds in pyridoxal-5′-phosphate model systems in polar solution. J. Am. Chem. Soc. 2007, 129, 6313–6327. [Google Scholar] [CrossRef] [PubMed]
  56. Sharif, S.; Powell, D.R.; Schagen, D.; Steiner, T.M.; Toney, M.D.; Fogle, E.; Limbach, H.H. X-ray crystallographic structures of enamine and amine Schiff bases of pyridoxal and its 1:1 hydrogen bonded complexes with benzoic acid derivatives: Evidence for coupled inter- and intramolecular proton transfer. Acta Crystallogr. B 2008, 62, 480–487. [Google Scholar] [CrossRef] [PubMed]
  57. Sharif, S.; Schagen, D.; Toney, M.D.; Limbach, H.H. Coupling of functional hydrogen bonds in pyridoxal-5′-phosphate-enzyme model systems observed by solid state NMR spectroscopy. J. Am. Chem. Soc. 2007, 129, 4440–4455. [Google Scholar] [CrossRef] [PubMed]
  58. Sharif, S.; Fogle, E.; Toney, M.D.; Denisov, G.S.; Shenderovich, I.G.; Tolstoy, P.M.; Chan-Huot, M.; Buntkowsky, G.; Limbach, H.H. NMR localization of protons in critical enzyme hydrogen bonds. J. Am. Chem. Soc. 2007, 129, 9558–9559. [Google Scholar] [CrossRef] [PubMed]
  59. Chan-Huot, M.; Dos, A.; Zander, R.; Sharif, S.; Tolstoy, P.M.; Compton, S.; Fogle, E.; Toney, M.D.; Shenderovich, I.G.; Denisov, G.S.; et al. NMR studies of protonation and hydrogen bond states of internal aldimines of pyridoxal 5’-phosphate acid-base in alanine racemase, aspartate aminotransferase and poly-l-lysine. J. Am. Chem. Soc. 2013, 135, 18160–18175. [Google Scholar] [CrossRef] [PubMed]
  60. Hansen, P.E.; Bolvig, S. Deuterium Isotope Effects on 13C Chemical Shifts of o-Hydroxyacyl Aromatics. Intramolecular Hydrogen Bonding. Magn. Res. Chem. 1997, 35, 520–528. [Google Scholar] [CrossRef]
  61. Filarowski, A.; Koll, A.; Kochel, A.; Kalenik, J.; Hansen, P.E. The intramolecular hydrogen bond in ortho-hydroxy acetophenones. J. Mol. Struct. 2004, 700, 67–72. [Google Scholar] [CrossRef]
  62. Filarowski, A.; Kochel, A.; Hansen, P.E.; Urbanowicz, A.; Szymborska, K. The role of ring substituents on hydrogen bonding of 5-cyano-2-hydroxyacetophenone and 2-hydroxy-4-methoxy-5-nitroacetophenone in the ground and excited states. J. Mol. Struct. 2007, 844, 77–82. [Google Scholar] [CrossRef]
  63. Han, K.-L.; Zhao, G.-J. (Eds.) Hydrogen Bonding and Transfer in the Excited State; John Wiley & Sons, Ltd.: Chichester, UK, 2011.
  64. Wu, K.-C.; Cheng, Y.-M.; Lin, Y.-S.; Yeh, Y.-S.; Pu, S.-C.; Hu, Y.-H.; Yu, J.-K.; Che, P.-T. Competitive intramolecular hydrogen bonding formation and excited-state proton transfer reaction in 1-[(diethylamino)-methyl]-2-hydroxy-3-naphthaldehyde. Chem. Phys. Lett. 2004, 384, 203–209. [Google Scholar] [CrossRef]
  65. Daengngern, R.; Prommin, C.; Rungrotmongkol, T.; Promarak, V.; Wolschann, P.; Kungwan, N. Theoretical investigation of 2-(iminomethyl)phenol in the gas phase as a prototype of ultrafast excited-state intramolecular proton transfer. Chem. Phys. Lett. 2016, 657, 113–118. [Google Scholar] [CrossRef]
  66. Jezierska, A.; Panek, J.; Filarowski, A. Molecular properties investigation of a substituted aromatic Mannich base: Dynamic and static models. J. Chem. Inf. Model. 2007, 47, 818–831. [Google Scholar] [CrossRef] [PubMed]
  67. Filarowski, A.; Szemik-Hojniak, A.; Głowiak, T.; Koll, A. Anomalous strengthening of the intramolecular hydrogen bond by steric repulsion. J. Mol. Struct. 1997, 404, 67–74. [Google Scholar] [CrossRef]
  68. Marx, D.; Hutter, J. Ab Initio Molecular Dynamics: Basic Theory and Advanced Methods; Cambridge University Press: Cambridge, UK, 2009. [Google Scholar]
  69. Jezierska-Mazzarello, A.; Panek, J.J.; Vuilleumier, R.; Koll, A.; Ciccotti, G. Direct observation of the substitution effects on the hydrogen bridge dynamics in selected Schiff bases—A comparative molecular dynamics study. J. Chem. Phys. 2011, 134, 034308-1/10. [Google Scholar] [CrossRef] [PubMed]
  70. Durlak, P.; Berski, S.; Latajka, Z. Car-Parrinello and path integral molecular dynamics study of the hydrogen bond in the acetic acid dimer in the gas phase. J. Mol. Model. 2011, 17, 2995–3004. [Google Scholar] [CrossRef] [PubMed]
  71. Denisov, G.S.; Gindin, V.A.; Golubev, N.S.; Koltsov, A.I.; Smirnov, S.N.; Rospenk, M.; Koll, A.; Sobczyk, L. Pyramidal nitrogen inversion hindered by a strong intramolecular hydrogen bond in 2-diethylaminomethyl phenols. Magn. Reson. Chem. 1993, 31, 1034–1037. [Google Scholar] [CrossRef]
  72. Sitkowski, J.; Stefaniak, L.; Rospenk, M.; Sobczyk, L.; Webb, G.A. Multinuclear, variable-temperature NMR study of hydrogen bonding in two ortho-Mannich bases. J. Phys. Org. Chem. 1995, 8, 463–467. [Google Scholar] [CrossRef]
  73. Rospenk, M.; Sobczyk, L. 1H-NMR studies of proton transfer in ortho-Mannich bases. Magn. Reson. Chem. 1989, 27, 445–450. [Google Scholar] [CrossRef]
  74. Rospenk, M.; Sobczyk, L.; Schah-Mohammedi, P.; Limbach, H.H.; Golubev, N.S.; Melikova, S.M. Dimerization and solvent assisted proton dislocation in the low-barrier hydrogen bond of a Mannich base. A low-temperature NMR study. Magn. Reson. Chem. 2001, 39, S81–S90. [Google Scholar] [CrossRef]
  75. Rospenk, M.; Koll, A.; Sobczyk, L. Proton transfer and secondary deuterium isotope effect in the 13C-NMR spectra of ortho-aminomethyl phenols. Chem. Phys. Lett. 1996, 261, 283–288. [Google Scholar] [CrossRef]
  76. Degtyarev, A.V.; Ryabtsova, O.V.; Pozharskii, A.F.; Ozeryanskii, V.A.; Starikova, Z.A.; Sobczyk, L.; Filarowski, A. 2,7-Disubstituted proton sponges as borderline systems for investigating barrier–free intramolecular hydrogen bonds. Protonated 2,7-bis(dimethylsilyl)- and 2,7-di(hydroxymethyl)-1,8-bis(dimethylamino)naphthalenes. Tetrahedron 2008, 64, 6209–6214. [Google Scholar] [CrossRef]
  77. Pozharskii, A.F.; Degtyarev, A.V.; Ryabtsova, O.V.; Ozeryanskii, V.A.; Kletskii, M.E.; Starikova, Z.A.; Sobczyk, L.; Filarowski, A. 2-alpha-hydroxyalkyl- and 2,7-di(alpha-hydroxyalkyl)-1,8-bis(dimethylamino)naphthalenes: Stabilization of nonconventional in/out conformers of “proton sponges” via N···H–O intramolecular hydrogen bonding. A remarkable kind of tandem nitrogen inversion. J. Org. Chem. 2007, 72, 3006–3019. [Google Scholar] [CrossRef] [PubMed]
  78. Ozeryanskii, V.A.; Pozharskii, A.F.; Bienko, A.J.; Sawka-Dobrowolska, W.; Sobczyk, L. [NHN]+ Hydrogen Bonding in Protonated 1,8-Bis(dimethylamino)-2,7-dimethoxynaphthalene. X-ray Diffraction, Infrared, and Theoretical ab Initio and DFT Studies. J. Phys. Chem. A 2005, 109, 1637–1642. [Google Scholar] [CrossRef] [PubMed]
  79. Bieńko, A.J.; Latajka, Z.; Sawka-Dobrowolska, W.; Sobczyk, L.; Ozeryanskii, V.A.; Pozharskii, A.F.; Grech, E.; Nowicka-Scheibe, J. Low barrier hydrogen bond in protonated proton sponge. X-ray diffraction, infrared, and theoretical ab initio and density functional theory studies. J. Chem. Phys. 2003, 119, 4313–4319. [Google Scholar] [CrossRef]
  80. Majerz, I.; Olovsson, I. Proton transfer in the intramolecular NHN+ bonds in proton sponges with different hydrogen bridge flexibility. Phys. Chem. Chem. Phys. 2009, 11, 1297–1302. [Google Scholar] [CrossRef] [PubMed]
  81. Perrin, C.L.; Nielson, J.B. “Strong” hydrogen bonds in chemistry and biology. Ann. Rev. Phys. Chem. 1997, 48, 511–544. [Google Scholar] [CrossRef] [PubMed]
  82. Pozharskii, A.; Ozeryanskii, V.A. Proton sponges. In The Chemistry of Anilines; Rappoport, Z., Ed.; John Wiley & Sons, Ltd.: Chichester, UK, 2007. [Google Scholar]
  83. Growiak, T.; Majerz, I.; Malarski, Z.; Sobczyk, L.; Pozharskii, A.F.; Ozeryanskii, V.A.; Grech, V.A. Structure and IR spectroscopic behaviour of 2,7-dichloro-1,8-bis(dimethylamino)naphthalene and its protonated form. J. Phys. Org. Chem. 1999, 12, 895–900. [Google Scholar]
  84. Pietrzak, M.; Try, A.; Andrioletti, B.; Sessler, J.; Anzenbacher, P.; Limbach, H.H. The largest 15N···15N coupling constant across an NHN-hydrogen bond. Angew. Chem. Int. Ed. 2008, 47, 1123–1126. [Google Scholar] [CrossRef] [PubMed]
  85. Pietrzak, M.; Wehling, J.; Limbach, H.H.; Golubev, N.S.; López, C.; Claramunt, R.M.; Elguero, J. 13C detected Scalar Nitrogen—Nitrogen Couplings across the Intramolecular Symmetric NHN-Hydrogen Bond of Proton Sponge. J. Am. Chem. Soc. 2001, 123, 4338–4339. [Google Scholar] [CrossRef] [PubMed]
  86. Pietrzak, M.; Wehling, J.P.; Kong, S.; Tolstoy, P.M.; Shenderovich, I.G.; López, C.; Claramunt, R.M.; Elguero, J.; Denisov, G.S.; Limbach, H.H. Symmetrization of Cationic Hydrogen Bridges of Protonated Sponges Induced by Solvent and Counteranion Interactions as Revealed by NMR Spectroscopy. Chem. Eur. J. 2010, 16, 1679–1690. [Google Scholar] [CrossRef] [PubMed]
  87. López, C.; Lorente, P.; Claramunt, R.M.; Marín, J.; Foces-Foces, C.; Llamas-Saiz, A.L.; Elguero, J.; Limbach, H.H. Localization of Hydrogen Bond Deuterons in Proton Sponges by Dipolar Solid State 15N-NMR Spectroscopy. Special Issue on Hydrogen Transfer: Experiment and Theory. Ber. Bunsenges. Phys. 1998, 102, 414–418. [Google Scholar] [CrossRef]
  88. Lesnichin, S.B.; Tolstoy, P.M.; Limbach, H.H.; Shenderovich, I.G. Counteranion-dependent intra- vs. intermolecular hydrogen bonding and proton transfer of 2,2′-bipyridinium in CDF3/CDF2Cl observed by low-temperature NMR. Phys. Chem. Chem. Phys. 2010, 12, 10373–10379. [Google Scholar] [CrossRef] [PubMed]
  89. Gurinov, A.A.; Lesnichin, S.B.; Limbach, H.H.; Shenderovich, I.G. How short is the strongest hydrogen bond in the proton-bound homodimers of pyridine derivatives? J. Phys. Chem. A 2014, 118, 10804–10812. [Google Scholar] [CrossRef] [PubMed]
  90. Filarowski, A.; Koll, A.; Sobczyk, L. Intramolecular Hydrogen Bonding in o-hydroxy Aryl Schiff Bases. Curr. Org. Chem. 2009, 13, 172–193. [Google Scholar] [CrossRef]
  91. Pająk, A.; Maes, G.; De Borggraeve, W.M.; Boens, N.; Filarowski, A. Matrix-Isolation FT-IR and Theoretical investigation of the competitive hydrogen bonding in 5-methyl-3-nitro-2-hydroxyacetophenone. J. Mol. Struct. 2008, 880, 86–96. [Google Scholar] [CrossRef]
  92. Markle, T.F.; Tenderholt, A.F.; Mayer, J.M. Probing Quantum and Dynamic Effects in Concerted Proton–Electron Transfer Reactions of Phenol–Base Compounds. J. Phys. Chem. B 2012, 116, 571–584. [Google Scholar] [CrossRef] [PubMed]
  93. Jezierska, A.; Panek, J.; Koll, A.; Mavri, J. Car-Parrinello simulation of an O–H stretching envelope and potential of mean force of an intramolecular hydrogen bonded system: Application to a Mannich base in solid state and in vacuum. J. Chem. Phys. 2007, 126, 205101. [Google Scholar] [CrossRef] [PubMed]
  94. Majewska, P.; Pająk, J.; Rospenk, M.; Filarowski, A. The intra- versus intermolecular hydrogen bonding equilibrium in 2-hydroxy-N,N-diethylbenzamide. J. Phys. Org. Chem. 2008, 22, 130–137. [Google Scholar] [CrossRef]
  95. Gilli, G.; Gilli, P. The Nature of the Hydrogen Bond. Outline of a Comprehensive Hydrogen Bond Theory; Oxford University Press: Oxford, UK, 2009. [Google Scholar]
  96. Lutskii, A.E.; Marchenko, T.N. Vodorodnaya Svyaz’ (Hydrogen Bond); Sokolov, N.D., Ed.; Nauka: Moscow, Russia, 1981. [Google Scholar]
  97. Krygowski, T.M.; Zachara-Horeglad, J.E. Resonance-assisted hydrogen bonding in terms of substituent effect. Tetrahedron 2009, 65, 2010–2014. [Google Scholar] [CrossRef]
  98. Sanz, P.; Mó, O.; Yanez, M.; Elguero, J. The effects of C by N replacement on the hydrogen bonding of malonaldehyde: N-formylformimidic acid, N-(hydroxymethyl)formamide and related compounds. Phys. Chem. Chem. Phys. 2009, 11, 762–769. [Google Scholar] [CrossRef] [PubMed]
  99. Palusiak, M.; Simon, S.; Sola, M. Interplay between intramolecular resonance-assisted hydrogen bonding and aromaticity in o-hydroxyaryl aldehydes. J. Org. Chem. 2006, 110, 5241–5248. [Google Scholar] [CrossRef] [PubMed]
  100. Filarowski, A.; Kochel, A.; Kluba, M.; Kamounah, F. Structural and aromatic aspects of tautomeric equilibrium in hydroxy aryl Schiff bases. J. Phys. Org. Chem. 2008, 21, 939–944. [Google Scholar] [CrossRef]
  101. Kluba, M.; Lipkowski, P.; Filarowski, A. Theoretical investigation of tautomeric equilibrium in ortho-hydroxy phenyl Schiff bases. Chem. Phys. Lett. 2008, 463, 426–430. [Google Scholar] [CrossRef]
  102. Albayrak, C.; Sevincek, R.; Petek, H.; Aygun, M. Aromaticity balance, π-electron cooperativity and H-bonding properties in tautomerism of salicylideneaniline: The quantum theory of atoms in molecules (QTAIM) approach. J. Mol. Model. 2011, 17, 1295–1309. [Google Scholar]
  103. Houjou, H.; Motoyama, T.; Banno, S.; Yoshikawa, I.; Araki, K. Experimental and Theoretical Studies on Constitutional Isomers of 2,6-Dihydroxynaphthalene Carbaldehydes. Effects of Resonance-Assisted Hydrogen Bonding on the Electronic Absorption Spectra. J. Org. Chem. 2009, 74, 520–529. [Google Scholar] [CrossRef] [PubMed]
  104. Krygowski, T.M.; Cyranski, M.K. Structural aspects of aromaticity. Chem. Rev. 2001, 101, 1385–1419. [Google Scholar] [CrossRef] [PubMed]
  105. Zubatyuk, R.I.; Shishkin, O.V.; Gorb, L.; Leszczynski, J. Homonuclear versus Heteronuclear Resonance-Assisted Hydrogen Bonds: Tautomerism, Aromaticity, and Intramolecular Hydrogen Bonding in Heterocyclic Systems with Different Exocyclic Proton Donor/Acceptor. J. Phys. Chem. A 2009, 113, 2943–2952. [Google Scholar] [CrossRef] [PubMed]
  106. Zubatyuk, R.I.; Volovenko, Y.M.; Shishkin, O.V.; Gorb, L.; Leszczyński, J. Aromaticity-Controlled Tautomerism and Resonance-Assisted Hydrogen Bonding in Heterocyclic Enaminone–Iminoenol Systems. J. Org. Chem. 2007, 72, 725–735. [Google Scholar] [CrossRef] [PubMed]
  107. Wu, J.I.; Jackson, J.E.; Schleyer, P.v.R. Reciprocal Hydrogen Bonding-Aromaticity Relationships. J. Am. Chem. Soc. 2014, 136, 13526–13529. [Google Scholar] [CrossRef] [PubMed]
  108. Sobczyk, L.; Grabowski, S.; Krygowski, T.M. Interrelation between H-Bond and Pi-Electron Delocalization. Chem. Rev. 2005, 105, 3513–3545. [Google Scholar] [CrossRef] [PubMed]
  109. Sucharda-Sobczyk, A.; Sobczyk, L. Tautomerism of 6-nitro derivatives of ortho Mannich-bases. J. Chem. Res. 1985, 6, 208–209. [Google Scholar]
  110. Konopacka, A.; Filarowski, A.; Pawelka, Z. Solvent influence on the transformation of intramolecular hydrogen bonds in 2-hydroxy-5-methyl-3-nitroacetophenone. J. Solut. Chem. 2005, 34, 929–945. [Google Scholar] [CrossRef]
  111. Kozlecki, T.; Tolstoy, P.M.; Kwocz, A.; Vovk, M.A.; Kochel, A.; Polowczyk, I.; Tretyakov, P.Y.; Filarowski, A. Conformational state of β-hydroxynaphthylamides: Barriers for the rotation of the amide group around CN bond and dynamics of the morpholine ring. Spectrochim. Acta A 2015, 149, 254–262. [Google Scholar] [CrossRef] [PubMed]
  112. Pertlik, F. Crystal structures and hydrogen bonding schemes in four benzamide derivatives (2-hydroxy-benzamide, 2-hydroxy-thiobenzamide, 2-hydroxy-N,N-dimethyl-benzamide, and 2-Hydroxy-N,N-dimethyl-thiobenzamide). Monatsh. Chem. 1990, 12, 129–139. [Google Scholar] [CrossRef]
  113. Johnstone, R.D.L.; Lennie, L.R.; Parker, S.F.; Parsons, S.; Pidcock, E.; Richardson, P.R.; Warren, J.E.; Wood, P.A. High-pressure polymorphism in salicylamide. CrystEngComm 2010, 12, 1065–1078. [Google Scholar] [CrossRef]
  114. Kawski, P.; Kochel, A.; Perevozkina, M.G.; Filarowski, A. The intramolecular hydrogen bond in 2-hydroxy-benzamides. J. Mol. Struct. 2006, 790, 65–73. [Google Scholar] [CrossRef]
  115. Mahmudov, K.T.; Pombeiro, A.J.L. Resonance-Assisted Hydrogen Bonding as a Driving Force in Synthesis and a Synthon in the Design of Materials. Chem. Eur. J. 2016, 22, 16356–16398. [Google Scholar] [CrossRef] [PubMed]
  116. Hynes, J.T.; Klinman, J.P.; Limbach, H.H.; Schowen, R.L. (Eds.) Hydrogen-Transfer Reactions; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2007.
  117. Lynden-Bell, R.M.; Morris, S.C.; Barrow, J.D.; Finney, J.L.; Harper, C.L., Jr. (Eds.) Water and Life. The Unique Properties of H2O; CRC Press, Taylor & Francis Group: Boca Raton, FL, USA, 2010.
  118. Maréchal, Y. The Hydrogen Bond and the Water Molecule: The Physics and Chemistry of Water, Aqueous and Bio Media; Elsevier: Amsterdam, Oxford, UK, 2007. [Google Scholar]
  119. Kirov, M.V. Hydrogen-bond-reversal symmetry and its violation in ice nanotubes. Acta Cryst. A 2016, 72, 395–405. [Google Scholar] [CrossRef] [PubMed]
  120. Grabowski, S.J. What is the covalency of hydrogen bonding? Chem. Rev. 2011, 111, 2597–2625. [Google Scholar] [CrossRef] [PubMed]
  121. Limbach, H.H.; Denisov, G.S.; Shenderovich, I.G.; Tolstoy, P.M. Proton Tautomerism in Systems of Increasing Complexity: Examples from Organic Molecules to Enzymes. In Tautomerism: Concepts and Applications in Science and Technology; Antonov, L., Ed.; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2016. [Google Scholar]
  122. Warncke, G.; Fels, S.; Brendler, E.; Böhme, U. Tautomerism in N-(2-hydroxy-1-naphthylidene)amino acids and the search for an answer to the difficult question about where the proton belongs. J. Mol. Struct. 2016, 1117, 37–48. [Google Scholar] [CrossRef]
  123. Scheiner, S. Hydrogen Bonding: A Theoretical Perspective; Oxford University Press: New York, NY, USA, 1997. [Google Scholar]
  124. Dubonosov, A.D.; Bren, V.A.; Minkin, V.I. Enolimine–Ketoenamine Tautomerism for Chemosensing. In Tautomerism: Concepts and Applications in Science and Technology; Antonov, L., Ed.; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2016. [Google Scholar]
  125. Sheikhshoaie, I.; Fabian, W.M.F. Theoretical Insights into Material Properties of Schiff Bases and Related Azo Compounds. Curr. Org. Chem. 2009, 13, 149–171. [Google Scholar] [CrossRef]
  126. Scheiner, S. The Pnicogen Bond: Its Relation to Hydrogen, Halogen, and Other Noncovalent Bonds. Acc. Chem. Res. 2013, 46, 280–288. [Google Scholar] [CrossRef] [PubMed]
  127. Tan, J.; Namuangruk, S.; Kong, W.; Kungwan, N.; Guo, J.; Wang, C. Manipulation of Amorphous-to-Crystalline Transformation: Towards the Construction of Covalent Organic Framework Hybrid Microspheres with NIR Photothermal Conversion Ability. Angew. Chem. Int. Ed. 2016, 128, 14185–14190. [Google Scholar] [CrossRef]
Molecules 21 01657 g001 550
Figure 1. Schematic structures of compounds discussed in this work. R1 and R2 = hydrogen, aryl and alkyl substitutions.
Figure 1. Schematic structures of compounds discussed in this work. R1 and R2 = hydrogen, aryl and alkyl substitutions.
Molecules 21 01657 g001
Molecules 21 01657 g002 550
Figure 2. Transition from the molecular form to the proton transfer (zwitterionic) form of the hydrogen-bonded complex.
Figure 2. Transition from the molecular form to the proton transfer (zwitterionic) form of the hydrogen-bonded complex.
Molecules 21 01657 g002
Molecules 21 01657 g003 550
Figure 3. The dependence of the electron densities in the critical point of the quasi-aromatic ring (HO–C=C–C=N) on the length of hydroxyl bond of the ortho-hydroxyaryl Schiff base 1 (Figure 1, R1 = R2 = CH3). Dark points correspond to: ■—molecular form, ♦—transition state and ▲—PT form. Reprinted with permission from [12]. Copyright 2008 American Chemical Society.
Figure 3. The dependence of the electron densities in the critical point of the quasi-aromatic ring (HO–C=C–C=N) on the length of hydroxyl bond of the ortho-hydroxyaryl Schiff base 1 (Figure 1, R1 = R2 = CH3). Dark points correspond to: ■—molecular form, ♦—transition state and ▲—PT form. Reprinted with permission from [12]. Copyright 2008 American Chemical Society.
Molecules 21 01657 g003
Molecules 21 01657 g004 550

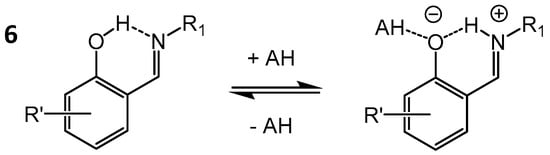

Figure 4. Schematic structure of ortho-hydroxyaryl Schiff bases, studied by NMR in [46].
Figure 4. Schematic structure of ortho-hydroxyaryl Schiff bases, studied by NMR in [46].
Molecules 21 01657 g004
Molecules 21 01657 g005 550
Figure 5. Schematic structure of ortho-hydroxyaryl Schiff base 7, studied by NMR in [51].
Figure 5. Schematic structure of ortho-hydroxyaryl Schiff base 7, studied by NMR in [51].
Molecules 21 01657 g005
Molecules 21 01657 g006 550

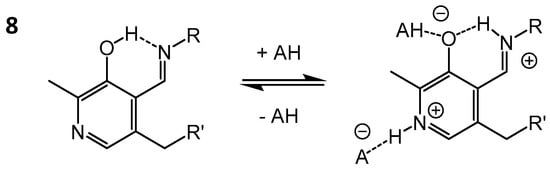

Figure 6. Schematic structure of ortho-hydroxy Schiff bases 8, formed by PLP, studied by NMR ([59] and references cited therein).
Figure 6. Schematic structure of ortho-hydroxy Schiff bases 8, formed by PLP, studied by NMR ([59] and references cited therein).
Molecules 21 01657 g006
Molecules 21 01657 g007 550
Figure 7. Schematic structure of ortho-hydroxyaryl Mannich base 9 (left) and its zwitterionic cyclic dimer (right), studied by NMR in [74].
Figure 7. Schematic structure of ortho-hydroxyaryl Mannich base 9 (left) and its zwitterionic cyclic dimer (right), studied by NMR in [74].
Molecules 21 01657 g007
Molecules 21 01657 g008 550

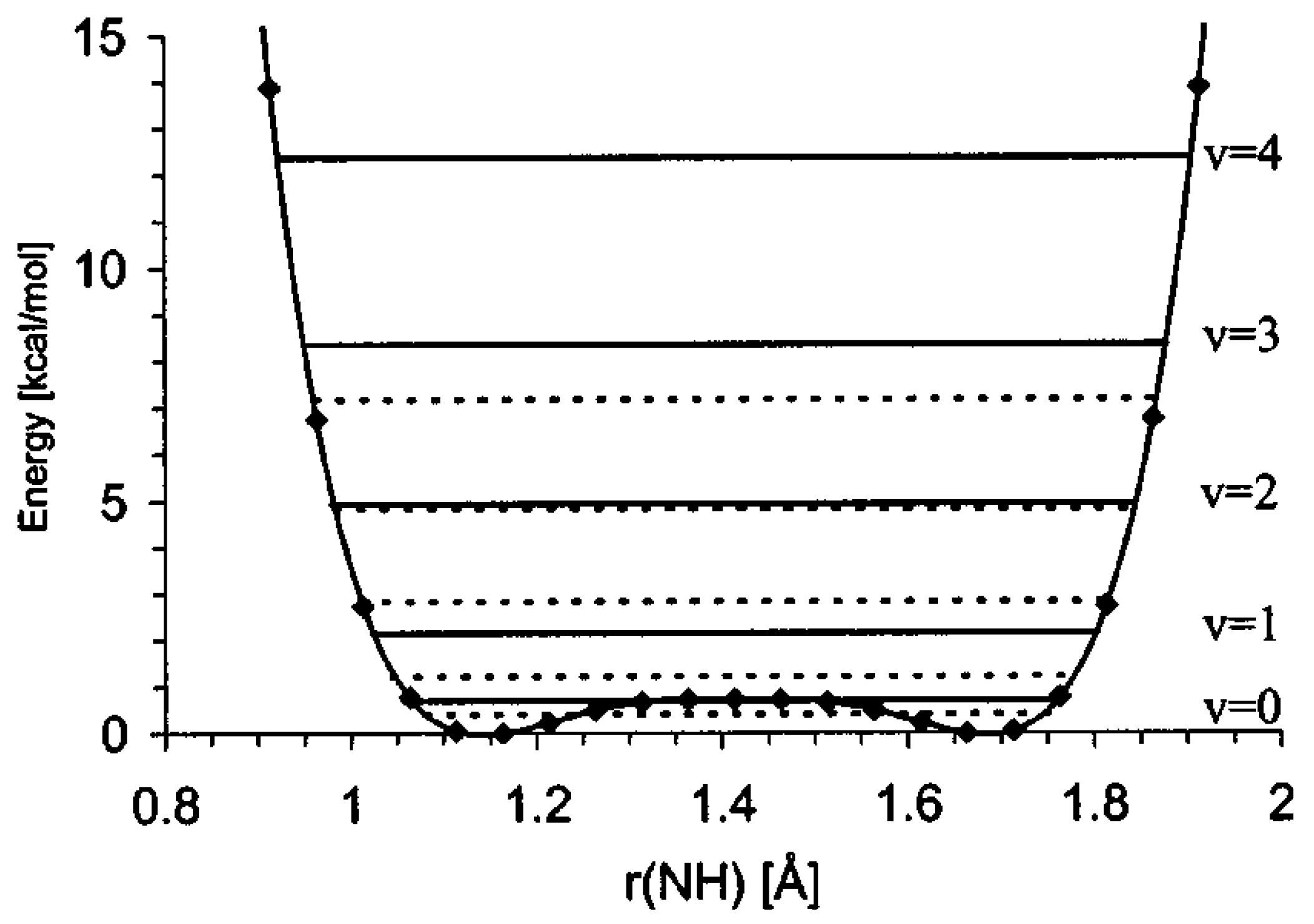

Figure 8. The potential energy curve for protonated 2,7-dibromo-1,8-bis(dimethylamino)naphthalene obtained by MP2/6-31+G(d,p) level of theory. Reprinted with permission from [79]. Copyright 2008 AIP Publishing.
Figure 8. The potential energy curve for protonated 2,7-dibromo-1,8-bis(dimethylamino)naphthalene obtained by MP2/6-31+G(d,p) level of theory. Reprinted with permission from [79]. Copyright 2008 AIP Publishing.
Molecules 21 01657 g008
Molecules 21 01657 g009 550
Figure 9. Schematic structure of protonated proton sponge 10, studied by NMR in [86].
Figure 9. Schematic structure of protonated proton sponge 10, studied by NMR in [86].
Molecules 21 01657 g009
Molecules 21 01657 g010 550

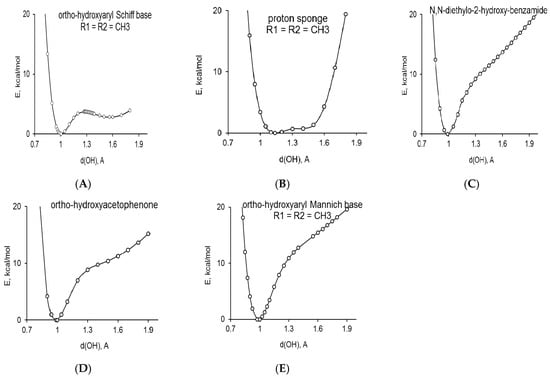

Figure 10. The non-adiabatic potential curves for: ortho-hydroxyaryl Schiff base (1; R1 = R2 = CH3, Figure 1) (A); 1,8-bis(dimethylamino)-2,7-bis(trimethylsilyl)naphthalene (derivative of proton sponge) (4; R1 = R2 = CH3; Figure 1) (B); 2-hydroxy-N,N-diethylbenzamide (3; R1 = R2 = C2H5; Figure 1) (C); ortho-hydroxyacetophenone (2; R1 = CH3; Figure 1) (D) and ortho-hydroxyaryl Mannich base (5; R1 = R2 = CH3; Figure 1) (E).
Figure 10. The non-adiabatic potential curves for: ortho-hydroxyaryl Schiff base (1; R1 = R2 = CH3, Figure 1) (A); 1,8-bis(dimethylamino)-2,7-bis(trimethylsilyl)naphthalene (derivative of proton sponge) (4; R1 = R2 = CH3; Figure 1) (B); 2-hydroxy-N,N-diethylbenzamide (3; R1 = R2 = C2H5; Figure 1) (C); ortho-hydroxyacetophenone (2; R1 = CH3; Figure 1) (D) and ortho-hydroxyaryl Mannich base (5; R1 = R2 = CH3; Figure 1) (E).
Molecules 21 01657 g010
Molecules 21 01657 g011 550
Figure 11. Left side: correlations between HOMA(A), HOMA(B) and (HOSE(ch)) aromaticity indexes calculated on the X-ray diffraction data. Reprinted with permission from [100]. Copyright 2008 John Wiley & Sons, Ltd. Right side: dependency of the aromaticity of chelate chain (HOMA(ch)) depending on the OH bond length calculated on MP2/6-31+(d,p) data. R1 and R2 substitutions are hydrogen, alkyl and aryl substitutions.
Figure 11. Left side: correlations between HOMA(A), HOMA(B) and (HOSE(ch)) aromaticity indexes calculated on the X-ray diffraction data. Reprinted with permission from [100]. Copyright 2008 John Wiley & Sons, Ltd. Right side: dependency of the aromaticity of chelate chain (HOMA(ch)) depending on the OH bond length calculated on MP2/6-31+(d,p) data. R1 and R2 substitutions are hydrogen, alkyl and aryl substitutions.
Molecules 21 01657 g011
Molecules 21 01657 g012 550

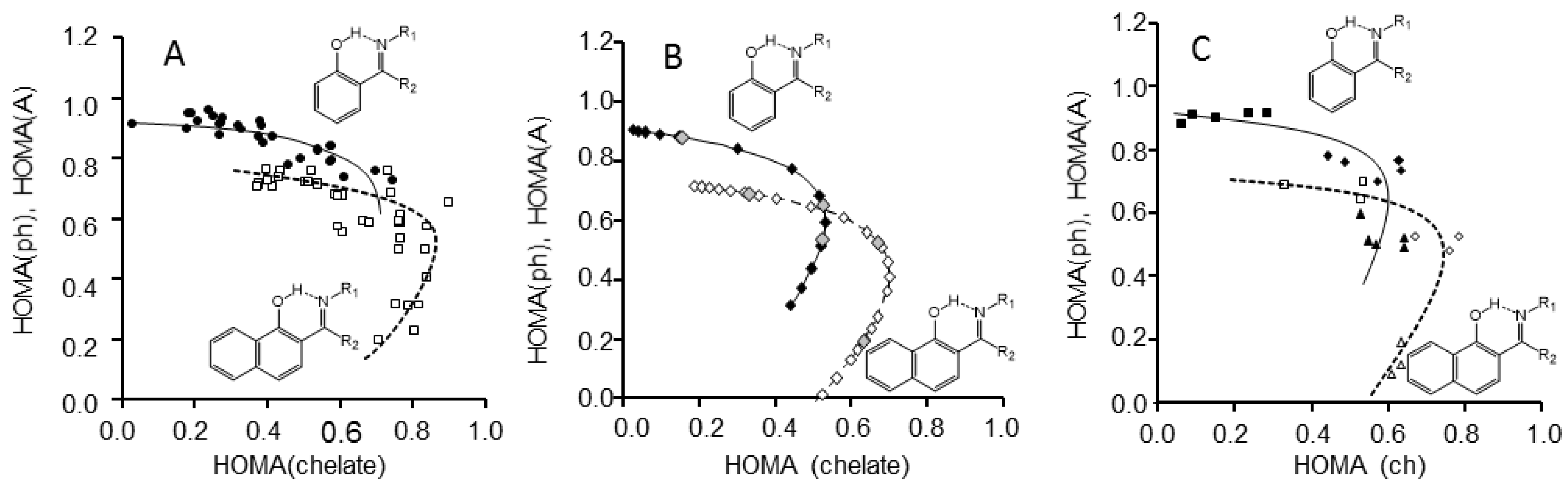

Figure 12. Dependencies of the HOMA aromaticity index of phenyl ring (HOMA(ph)) (solid line) and naphthalene (HOMA(A)) (dotted line) on the changes of aromaticity of chelate chain (HOMA(ch)) obtained from the experimental data (A); calculated with non-adiabatic approach for 2-[(1E)-N-methylethanimidoyl]phenol (R1 = R2 = CH3) and 2-[(1E)-1-(methyliminio)ethyl]-naphthalen-1-olate (R1 = R2 = CH3) molecules (B) and for fully optimised tautomeric form (C).
Figure 12. Dependencies of the HOMA aromaticity index of phenyl ring (HOMA(ph)) (solid line) and naphthalene (HOMA(A)) (dotted line) on the changes of aromaticity of chelate chain (HOMA(ch)) obtained from the experimental data (A); calculated with non-adiabatic approach for 2-[(1E)-N-methylethanimidoyl]phenol (R1 = R2 = CH3) and 2-[(1E)-1-(methyliminio)ethyl]-naphthalen-1-olate (R1 = R2 = CH3) molecules (B) and for fully optimised tautomeric form (C).
Molecules 21 01657 g012
Molecules 21 01657 g013 550
Figure 13. Scheme of the hydroxyl group isomerization in 5-methyl-3-nitro-2-hydroxyacetophenone (11).
Figure 13. Scheme of the hydroxyl group isomerization in 5-methyl-3-nitro-2-hydroxyacetophenone (11).
Molecules 21 01657 g013
Molecules 21 01657 g014 550
Figure 14. Spectrum of 5-methyl-3-nitro-2-hydroxyacetophenone (11) in argon matrix condition in the function of sublimation. Reprinted with permission from [91]. Copyright 2008 Elsevier.
Figure 14. Spectrum of 5-methyl-3-nitro-2-hydroxyacetophenone (11) in argon matrix condition in the function of sublimation. Reprinted with permission from [91]. Copyright 2008 Elsevier.
Molecules 21 01657 g014
Molecules 21 01657 g015 550
Figure 15. Infrared spectra of 2-hydroxy-N,N-diethylbenzamide (3, R1 = R2 = C2H5; Figure 1) in the region of the ν(OH) (left side) and ν(C=O) (right side) modes for 2-hydroxy-N,N-diethylbenzamide: (a,b) solid line—CCl4, .. line—CHCl3, bold line—C4H8O; (c) - - - line—C4H9Cl, .. line—CH2Cl2, -.-.- line—CH3CN; (d) - - - line—C4H9Cl, .. line—CH2Cl2, -.-.- line—CH3CN, solid line—C4H9OH. Reprinted with permission from [94]. Copyright 2008 John Wiley & Sons, Ltd.
Figure 15. Infrared spectra of 2-hydroxy-N,N-diethylbenzamide (3, R1 = R2 = C2H5; Figure 1) in the region of the ν(OH) (left side) and ν(C=O) (right side) modes for 2-hydroxy-N,N-diethylbenzamide: (a,b) solid line—CCl4, .. line—CHCl3, bold line—C4H8O; (c) - - - line—C4H9Cl, .. line—CH2Cl2, -.-.- line—CH3CN; (d) - - - line—C4H9Cl, .. line—CH2Cl2, -.-.- line—CH3CN, solid line—C4H9OH. Reprinted with permission from [94]. Copyright 2008 John Wiley & Sons, Ltd.
Molecules 21 01657 g015
Molecules 21 01657 g016 550

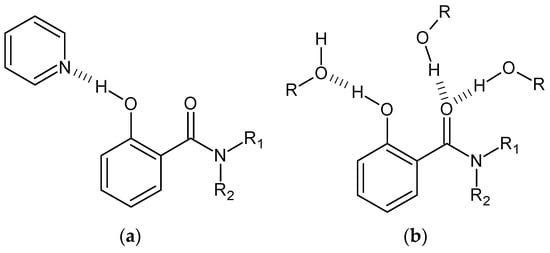

Figure 16. Complexes of 2-hydroxy-N,N-diethylbenzamide (3, R1 = R2 = C2H5; Figure 1) with pyridine (a) and alcohol (b) (R = alkyl group). Reprinted with permission from [94]. Copyright 2008 John Wiley & Sons, Ltd.
Figure 16. Complexes of 2-hydroxy-N,N-diethylbenzamide (3, R1 = R2 = C2H5; Figure 1) with pyridine (a) and alcohol (b) (R = alkyl group). Reprinted with permission from [94]. Copyright 2008 John Wiley & Sons, Ltd.
Molecules 21 01657 g016
Molecules 21 01657 g017 550

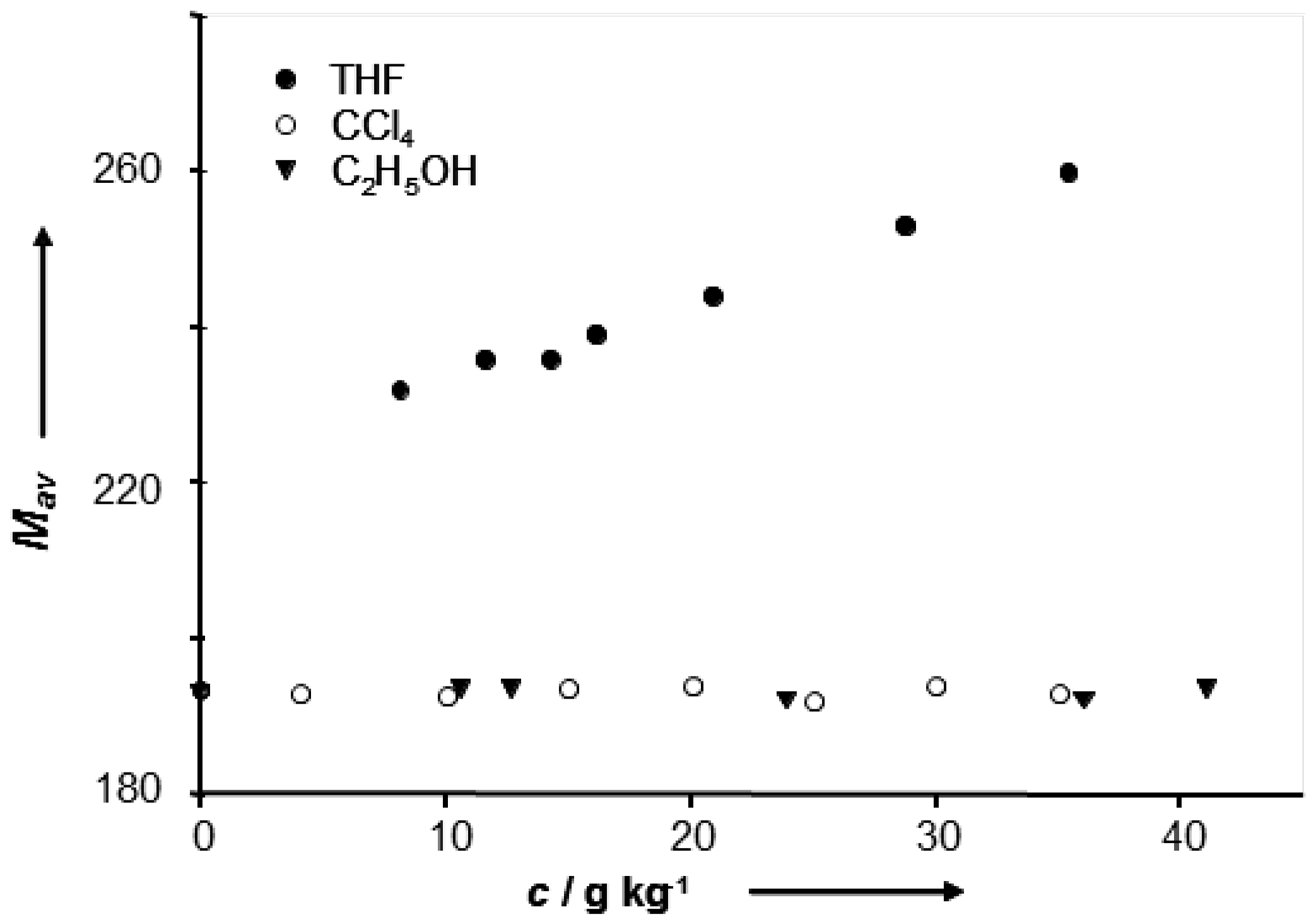

Figure 17. Dependence of average molecular weight (Mav) on concentration. Reprinted with permission from [94]. Copyright 2008 John Wiley & Sons, Ltd.
Figure 17. Dependence of average molecular weight (Mav) on concentration. Reprinted with permission from [94]. Copyright 2008 John Wiley & Sons, Ltd.
Molecules 21 01657 g017

Share and Cite

MDPI and ACS Style

Sobczyk, L.; Chudoba, D.; Tolstoy, P.M.; Filarowski, A. Some Brief Notes on Theoretical and Experimental Investigations of Intramolecular Hydrogen Bonding. Molecules 2016, 21, 1657. https://doi.org/10.3390/molecules21121657

AMA Style

Sobczyk L, Chudoba D, Tolstoy PM, Filarowski A. Some Brief Notes on Theoretical and Experimental Investigations of Intramolecular Hydrogen Bonding. Molecules. 2016; 21(12):1657. https://doi.org/10.3390/molecules21121657

Chicago/Turabian Style

Sobczyk, Lucjan, Dorota Chudoba, Peter M. Tolstoy, and Aleksander Filarowski. 2016. "Some Brief Notes on Theoretical and Experimental Investigations of Intramolecular Hydrogen Bonding" Molecules 21, no. 12: 1657. https://doi.org/10.3390/molecules21121657

Article Metrics

Back to TopTop
