Characterization of Key Aroma Compounds and Construction of Flavor Base Module of Chinese Sweet Oranges
by
,
Mengzhu Shui
1,
Tao Feng
1,*,
Yanzun Tong
1,
Haining Zhuang
2,
Chihkang Lo
3,
Hongfeng Sun
3,
Ling Chen
3 and
Shiqing Song
1 1
School of Perfume and Aroma Technology, Shanghai Institute of Technology, No.100 Haiquan Road, Shanghai 201418, China
2
Institute of Edible Fungi, Shanghai Academy of Agricultural Sciences, Key Laboratory of Edible Fungi Resources and Utilization (South), Ministry of Agriculture, National Engineering Research Center of Edible Fungi, 1000 Jinqi Road, Shanghai 201403, China
3
Shanghai Kangshi Food Technology Co., Ltd., No.1978 Lianhua Road, Shanghai 201103, China
*
Author to whom correspondence should be addressed.
Molecules 2019, 24(13), 2384; https://doi.org/10.3390/molecules24132384
Submission received: 23 May 2019
/
Revised: 18 June 2019
/
Accepted: 24 June 2019
/
Published: 27 June 2019
(This article belongs to the Special Issue Analysis of Volatile and Odor Compounds in Food)
Abstract
:Sweet orange flavor, with its refreshing, joyful and attractive aroma, is favored by the majority of consumers all over the world. However, the industry terminology between flavorists for flavor evaluation is a bit vague and not intuitive for customers. Therefore, the study focused on analysis of sweet orange aroma and establishment of base module of orange flavor. The approach to the research involves screening key aroma compounds, identifying the attributes aroma and building base module of sweet orange. The notes of sweet orange flavor were determined by GC-O olfaction and sensory evaluation. 25 key aroma compounds with OAV ≥ 1 were screened and divided into eight notes: citrus, fruity, fresh, green, peely, woody, fatty, floral. Partial least squares regression (PLSR) was used to further verify the corresponding relationship between the volatile substances and notes. Terpenes, esters, aldehydes and alcohols compounds can provide these notes. Based on the notes, 8 base modules of sweet orange were built by selecting and matching aroma ingredients. Through this study, beginners could be trained according to the 8 notes of base modules and flavorists can engage in dialogue with different raw material sourcing teams or providers.
1. Introduction
Oranges have become more and more popular in recent years due to their preferable flavors and the nutrient value. The annual world production of oranges has been estimated to be 47.8 million tons [1]. Oranges are produced in more than 140 countries around the word, at latitudes between approximately 40° N and 40° S [2]; the main orange-producing countries are USA (California, Florida and Arizona), Mexico, Brazil, Spain, Italy, Israel, Australia, South Africa, Japan and China [3,4]. According to previous reports [5,6], oranges are rich in a variety of metabolically active substances, such as vitamin C, carotenoids, flavonoid, coumarin and phenolic compounds; these components are very important for human health and provide protection against harmful free radicals. Sweet oranges are mostly consumed as fresh fruit, juice, canned orange segments, and wine, and even the peel can be used in essential oils, which are widely used in the fragrance and flavor industries [7,8].
Aroma is an important character of sweet oranges and a key indicator for evaluating sweet oranges quality. Up until now, approximately 80 aroma compounds have been determined in orange juices, of which 15 volatile components presented odor activity values (OAVs) greater than 1, with dl-limonene, nootkatone and linalool being those with the highest OAVs in both cultivars [9,10]. To better understand the diversity and interrelationship of different sweet orange cultivars, morphological and RAPD markers have been applied in classification [11,12,13,14]. Volatiles of 4 sweet orange oils were characterized by descriptive sensory analysis and principal component analysis. Results showed that the important sensory factors including green, fatty, floral, woody, peely [15]. Sensory attributes of the orange pulp (from Brazil and Florida, U.S.A.) were orange, orange peel, pine-like, fresh, overripe, and oxidized according to sensory sniffing [16].
As one of the origin areas of sweet oranges, China is rich in citrus germplasm resources, including many wild and cultivated species [17]. Zigui, located in the Three Gorges Valley of the Yangtze River, is a famous “winter warm center” in China and the most suitable area for orange cultivation; Meishan sweet orange is rooted in a deep alluvial plain with fertile slightly acidic soil. The Minjiang River and the Qingyijiang River provide a clear water source for it, which is the best environment for sweet orange growth; Jiangyong sweet orange was well known in the Ming and Qing Dynasties because of its strong flavor and sweet taste; Yaoxiang has a subtropical monsoon climate with annual rainfall of 1200–1800 mm, and annual sunshine hours of more than 1400 h, which are very beneficial to the quality of sweet oranges; Qingyang is located between 35° N 14′28″ and 37° N 9′13″ and is 1100–1600 m above sea level. It belongs to the dominant area for sweet oranges in the northwest loess plateau. While each type of sweet orange has its own flavor signature, the flavor types may greatly vary within the different species, and the volatile compounds of sweet orange have also been traditionally monitored.
The immense popularity of citrus flavor is evidenced by the fact that orange is one of the top flavors sold world-wide by the commercial flavor industry [18,19]. Therefore, consumption of sweet orange flavor has been applied to beverages, baking, candy, ice cream and other food processing. Especially in beverages, sweet orange flavors are used to mask off-notes caused by vitamins, minerals and other nutraceutical components [20]. However, for sweet orange flavor, there exist many problems in practical applications, such as flavor in the processing and storage easily reacts with other components; causes undesirable aromas; and reduces the stability of the products.
There is a lack of consistent description between flavor suppliers and customers regarding aroma quality and optimization of sweet orange flavor. In addition, flavorists have their own language system for flavor. To get rid of these misunderstandings and rely on the same mode of description, a profile analysis of complicated flavor composition is carried out in this paper. Therefore, the aims of the present study are to (1) identify the key aroma compounds of five kinds of sweet oranges with different growing places using multivariate analysis, (2) use PLSR to confirm the relationship between the volatile compounds and notes, (3) construct the outline diagram of notes, based on which the composition and proportion of sweet orange aroma can be seen intuitively, and (4) establish a sweet orange flavor base module to evaluate the aroma of sweet orange flavors, according to the different aroma note categories. Through the establishment of the flavor base module in sweet orange, customers can intuitively evaluate and give feedback on the sweet orange flavor provided by flavor suppliers, which can create more competitive flavor products.
2. Results and Discussion
2.1. Volatile Compounds of Sweet Orange Determined by GC-MS
A total of 49 volatile compounds were identified and quantified after the GC-MS analysis of orange juice samples, by identification of retention index (RI), odor descriptors with authentic standard, as shown in Table 1. There were 35, 31, 30, 28 and 29 volatile compounds corresponding to the different orange samples, respectively. Hydrocarbons were predominant in the headspace gas of orange juice, followed by esters, aldehydes, alcohols ketones and acids. It has been reported that sweet oranges displayed higher levels of monoterpenes, especially d-limonene [18]. Our results generally agreed with that data; limonene was the most abundant monoterpene hydrocarbon tested in this study, followed by o-cymene, p-cymene, myrcene and valencene. Limonene was the main constituent of all samples. ZG samples contained the highest percentage of limonene (24.4 mg/L). ZG and MS samples contained a high percentage o-Cymene and 4-isopropyltoluene, and a high percentage of myrcene was present in ZG and YX samples. Of the esters, a large amount of ethyl butyrate was present in QY. In addition, the ZG and QY samples contained a large amount of acetaldehyde; additionally, ZG and MS samples also contained a large amount of linalool. Other studies revealed that linalool was the most abundant alcohols in Archi citrus juice [21].
2.2. Characterizations of Odor-Active Compounds by GC-O Analysis
The results of the olfactometry analysis are summarized in Table 2. Ethyl butyrate, myrcene, limonene, p-cymene, and linalool were the major odor-active compounds according to their high aroma intensity; these compounds were generally associated with pineapple, floral, woody, lemon, green and leaf aromas in the sensory descriptions of the panelists (Table 2). Among the hydrocarbon compounds, limonene (7.5–7.8) was present with the highest aroma intensity in all five samples, having a typical lemon aroma. Meanwhile, α-pinene (1.6–2.8) and myrcene (1.3–6.3) were also present in all samples. 4-isopropyltoluene (1.6–7.5) had the highest aroma intensity in ZG, MS, and JY, and was an important volatile compound contributing to the green and herbal aroma in orange samples. In addition to hydrocarbons, esters were another important class of odor-active compounds, with apple, pineapple, pear, etc., fruity aromas. Ethyl butyrate (5.3–7.5) possessed the highest aroma intensity among these compounds. Ethyl isobutyrate (1.7), ethyl isovalerate (2.5) and propyl butyrate (1.9) were only detected in QY.
2.3. Calculating OAV Values of Volatile Compounds in Sweet Orange and Percentage of Notes Contribution
As is shown in Table 3, there were 13, 16, 10, 12 and 16 compounds (OAVs ≥ 1) corresponding to the ZG, MS, JY, YX and QY samples that were considered to contribute significantly to the aroma of the samples. In this study, ethyl butyrate (5–233), myrcene (28–90), limonene (96–122), 4–isopropyltoluene (46–146), linalool (10–136) and decanal (22–66) had relatively higher OAVs, and were powerful aroma compounds in the five sweet orange samples. According to the GC-O olfaction of sensory evaluation panelists and the scores of notes in five sweet orange samples, 25 key aroma substances with OAVs ≥ 1 were classified into 8 notes. The fresh note of sweet orange was all derived from acetaldehyde; hexanol and hexanal had a strong aroma of vegetables and grass, so they were classified as green note; all esters contributed to the characteristic fruits note; all terpene compounds, including limonene and terpinene, provided the characteristic aroma for the citrus note; linalool and hedion had the fragrance of roses and jasmine, which were classified as the note of flowers; decanal with long chain carbon had the peculiar aroma of citrus peel; trans-caryophyllene and germacrene had distinct aroma of wood and herbs, which were attributed to the woody note.
We can intuitively see the percentage contribution of each note in Figure 1. The percentage contribution of citrus note was 45.57%, accounting for almost half of the whole flavor; the second was the fruity note, with a percentage of 31.39%. Both percentage contributions of the citrus and fruit notes totaled more than 70%, which were the main aroma in sweet orange juice; the floral, peely, fresh, woody, green and fatty notes accounted for 9.48%, 6.53%, 6.02%, 1.15%, 1.06% and 0.31%, respectively. Although they had a smaller percentage contribution of notes in the aroma of sweet orange, they were indispensable. They played roles in modifying the aroma of orange juice and made the aroma more full and rich. The establishment of the note contour of the sweet orange aroma can help flavorists to innovate and develop products related to sweet orange flavor, and help the fragrance companies and customers to quickly and efficiently evaluate and discuss sweet orange flavor in terms of its aroma.
2.4. Partial Least Squares Analysis Further Verifies the Relationship between Aroma Compounds and Notes
As shown in Table 4, generic descriptive analysis and a ten-point line scale of sweet orange according to the aroma intensity were performed by six sensory panelists. Aromas of sweet orange were profiled with fresh, green, fruity, fatty, citrus, floral, peely and woody notes. Through the three replicates of sensory evaluation, obvious differences were found among the notes in the five sweet oranges. PLSR was applied to certify the correlation between the concentrations of aroma compounds detected by GC-MS and mean score of notes by sensory evaluation. The 49 odor-active compounds were used as X-matrix, and the 8 sensory notes were Y-matrix, which generated the correlation load diagram of PLSR, as shown in Figure 2.
From Figure 2, the blue dots are clustered near the red dots, indicating that these volatile compounds contributed to the note. Points within the circle indicate that the contribution of aroma was less than 50%, and points on the circle indicate that the contribution of the aroma was between 50% and 100%. The first quadrant basically distributes the fruity note and representative substances A7–A20 (including ethyl butyrate, ethyl 2-methylbutyrate, ethyl isovalerate), fresh note A1 (acetaldehyde) and fatty note A21,A28 (nonanal and octanal); the second quadrant distributes the peely note A31 (decanal), floral note A33, A38, A42, A47(linalool, hedion, neral, citral) and citrus note A11–A25 (α-pinene, 3-carene, myrcene, a-terpinene, limonene, 4-terpineol, o-Cymene,α-Terpinolene, 4-Isopropyltoluene), the scattered distribution is more intensive, and their aroma contribution is larger; the third quadrant is the woody note A35 (trans-caryophyllene); the fourth quadrant distributes the green note A10, A26, A27 (hexanol, hexanal, cis-3-hexen-1-ol). PLSR data analysis revalidates the high correlation between aroma substances detected by GC-O and notes of sensory evaluation.
2.5. Composition and Proportion of Sweet Orange Flavor
On the basis of Table 3, representative volatile compounds with high OAVs were selected from each note. Based on the selection and matching of these characteristic substances with OAVs > 1, sweet orange flavor base modules were established according to the notes. The complex sweet orange flavor was split into a single note base module. Each note was composed of representative characteristic aroma substances and their usages. Through the sniffing training of the 8 base modules, different sweet orange flavors can be quickly evaluated (Figure 3). It could also be used by companies to communicate with customers or suppliers. Meanwhile, the sweet orange flavor can be optimized and innovated on the basis of the module by flavorists, and develop sweet orange tastes which are more popular with consumers.
3. Materials and Methods
3.1. Chemicals
An internal standard of 2-octanol (100 mg/L) and C4–C30 saturated alkanes (all chromatographically pure) was purchased from Sigma-Aldrich Co., Ltd. (St. Louis, MO, USA).
3.2. Materials
Sweet oranges from five different origins in China, including Zigui (ZG), Meishan (MS), Jiangyong (JY), Yaoxiang (YX) and Qingyang (QY) were selected for the experiment. ‘ZG’ were harvested from Hubei province, ‘MS’ were harvested Sichuan province, ‘JY’ were harvested from Hunan province, ‘YX’ were harvested from Guangxi province and ‘QY’ were harvested fromGansu province. These oranges were harvested at maturity period. The orange cores were removed and squeezed into juices by the JYL-C051 kitchen blender (Joyoung, Shandong, China). The filtered juices were kept in a refrigerator (−10 °C) until analyzed.
3.3. Solid Phase Microextraction (SPME) Adsorption of Aroma Compounds
10g orange juice was demulsified by adding 2 g NaCl and then quantitatively analyzed by adding 20 μL 2-octanol (100 mg/L) as internal standard. The juice was then placed in a 20 mL sealed solid microextraction vials and shaken evenly. Vials were kept at 45 °C in a water bath with 10 min of equilibration time. A SPME semi-quantification of volatile compounds was conducted according to some researches [23,24,25].
A 50/30 μm divinylbenzene/Carboxen/polydimethylsiloxane (DVB-CAR-PDMS) fiber (Supelco, Bellefonte, PA, USA) with a length of 1 cm was used. Extraction time was 45 min. Before chemical absorption, the fiber was preconditioned for 30 min on an Agilent 7890 gas chromatograph (Agilent Technologies, Santa Clara, CA, USA) with the injector temperature of 250 °C.
3.4. SPME-GC–MS of Volatile Compounds in Orange Juice
The volatile compounds were analyzed by a 7890A gas chromatograph with SPME and a 5973 mass selective detector (MSD) (Agilent Technologies). Samples were conducted using DB-Wax analytical fused silica capillary column (60 m × 0.25 mm × 0.25 μm; Agilent, Santa Clara, CA) and a DB-5 fused-silica capillary column (60 m × 0.25 mm × 0.25 μm, Agilent). Conditions for GC-MS analysis were as follows: the carrier gas was helium at a constant flow rate of 1 mL/min. The oven temperature was held at 50 °C, ramped at a rate of 10 °C/min to 100 °C for 5 min, and then ramped to 140 °C at a rate of 3 °C/min for 10 min, finally it reached 230 °C at a rate of 2 °C/min for 5 min. The desorption time was 5 min.
The MSD was used for chemical identification. Its electron ionization energy was 70 eV. The ion source temperature was set at 230 °C. The compounds were identified by matching retention time of authentic standards, retention indices (RIs), and mass spectra in the NIST 11 database. The RIs of unknown compounds were determined by alkanes C4–C30.
3.5. SPME-GC-FID-O Analysis of Orange Juice
GC-O analysis was conducted using an Agilent 7890A gas chromatograph equipped with a flame ionization detector (FID) and an ODP-2 olfactory port (Gerstel, Mulheim an der Ruhr, Germany). Separation of gas chromatographic was split into 1:1 (v/v) between flame ionization detector and sniffing. The purified and damp air flowing was transported to the olfactory assessor at a speed of 1.2 mL/min. Conditions for GC-O analysis and heating procedure referred to those of GC-MS.
The olfactory experiment was performed by 6 trained panelists (three females and three males, age: 22–40). Panelists were very sensitive to aroma identification due to olfactory training to reference compounds, sweet orange sample matrices in sniffing bottles, and experience in GC-O. Aroma characteristics and aroma intensity were recorded by the assessors based on 45 min of sniffing time. The intensity was calculated as the average of all panelists’ scores for identified aroma. The odor intensities were evaluated on a 10-point intensity line scale, where 0 meant a compound had a slight odor, 5 represented a moderate intensity and 10 was for an extremely strong sensation.
3.6. Sensory Evaluation
Based on the previous studies [26,27,28], the method of sensory analysis was generic descriptive analysis. 20 g orange juice was prepared in a 100 mL plastic cup with a Teflon cover for evaluation. At the beginning, the aroma of the orange juice was evaluated by a well-trained panel of 6 members (3 males and 3 females). Then, through the three preliminary consensus sessions (each 2 h), the panelists eventually reached a final agreement about the aroma description of the orange juice. Based on these discussions, the sweet orange juice was divided into eight notes: fresh, green, fruity, fatty, citrus, floral, peely and woody. A ten-point line scale, from 0 (not perceivable) to 3.0, 4.0, 5.0 (moderately perceivable), to 10.0 (very strongly perceivable), was given to the respective notes of orange juice according to the aroma intensity.
3.7. Odor Activity Values (OAV)
By using the formula of olfactory activity value, OAV = C/T, in which OAV represents the olfactory activity value of each flavor substance, C represents the concentration of the each compound, T represents the each compound of detection threshold in water. It is generally believed that aromatic compounds with high OAV are most likely to be the main contributors to the overall aroma. OAV > 1 indicates that the compounds have a direct impact on the aroma of sweet orange [29]. According to GC-O olfaction and the note classification of the sensory group, all volatile substances detected by GC-MS were classified into eight notes, and the OAV value of each note was the sum of the OAV values of all volatile substances in this note. Contribution percentage of a note in sweet orange juice = the OAV value of the note/the sum of all the OAV values of notes.
3.8. Statistical Analysis
In this study, relative standard deviation (RSD) better reflected the precision of GC-MS and GC-O tests data. Aroma intensity of GC-O and quantitative contents of volatile compounds were performed by analysis of variance (ANOVA). When there were significant differences between samples, Duncan’s multiple range tests were used with the level of significance set at p < 0.05. Both ANOVA and Duncan’s multiple range tests were conducted by PASW Statistics 18 (IBM, Chicago, IL, USA). Partial least squares regression (PLSR) was conducted by Unscrambler version 9.8 (CAMO ASA, Oslo, Norway). PLSR was used to further verify the relationship between flavor notes and corresponding aroma compounds.
4. Conclusions
Based on the results of GC-MS analysis and sensory evaluation, the percentage contribution of note OAVs in sweet orange were calculated and the proportion of aroma components in sweet orange could be visually displayed by the aroma contour diagram. By this method, the aroma quality of sweet orange flavor of the same type can be precisely and meticulously compared and evaluated, so as to develop more innovative and competitive orange flavor products. Meanwhile, the aroma module of orange flavor is conducive to communication between the fragrances and customers. A training system for sensory evaluation of orange flavor has been established to enable trainees to distinguish and identify the quality of sweet orange flavors from perspective of aroma.
Author Contributions
Conceptualization, T.F. and H.S.; Data curation, M.S. and Y.T.; Funding acquisition, T.F. and C.L.; Methodology, M.S. and Y.T.; Project administration, T.F.; Supervision, H.Z.; Writing—original draft, M.S. and L.C.; Writing—review and editing, S.S. and T.F.
Funding
We are grateful to Shanghai Local Capacity Building Projects (No. 16090503800) and Natural Science Foundation of Shanghai (17ZR142600), for their financial support.
Conflicts of Interest
The authors declare no conflict of interest.
References
- USDA. Orange, Fresh: Production Supply and Distribution in Selected Countries; United States Department of Agriculture, Foreign Agricultural Service: Washington, DC, USA, 2018.
- Cuenca, J.; Garcia-Lor, A.; Navarro, L.; Alezam, P. Citrus Genetics and Breeding. In Advances in Plant Breeding Strategies: Fruits; Springer International Publishing: Cham, Switzerland, 2018; pp. 403–436. [Google Scholar]
- Lim, T.K. Citrus x aurantium Sweet Orange Group. In Edible Medicinal and Non-Medicinal Plants; Springer: Dordrecht, The Netherlands, 2012; pp. 806–831. [Google Scholar]
- Agustí, M.; Mesejo, C.; Reig, C.; Martínez-Fuentes, A. Citrus Production. In Horticulture: Plants for people and Places; Springer: Dordrecht, The Netherlands, 2014; Volume 1, pp. 159–195. [Google Scholar]
- Rodrı’guez, A.; Peris, J.E.; Redondo, A.; Shimada, T.; Costell, E.; Carbonell, I.; Rojas, C.; Peña, L. Impact of D-limonene synthase up ordown regulation on sweet orange fruit and juice odor perception. Food Chem. 2017, 217, 139–150. [Google Scholar] [CrossRef] [PubMed]
- Aschoff, J.K.; Kaufmann, S.; Kalkan, O.; Neidhart, S.; Carle, R.; Schweiggert, R.M. In Vitro Bioaccessibility of Carotenoids, Flavonoids, and Vitamin C from Differently Processed Oranges and Orange Juices [Citrus sinensis (L.) Osbeck]. J. Agric. Food Chem. 2015, 63, 578–587. [Google Scholar] [CrossRef] [PubMed]
- Fakayode, O.A.; Abobi, K.E. Optimization of oil and pectin extraction from orange (Citrus sinensis) peels: A response surface approach. J. Anal. Sci. Technol. 2018, 9, 20. [Google Scholar] [CrossRef]
- Arena, E.; Guarrera, N.; Campisi, S.; Nicolosiasmundo, C. Comparison of odour active compounds detected by gas-chromatography–olfactometry between hand-squeezed juices from different orange varieties. Food Chem. 2006, 98, 59–63. [Google Scholar] [CrossRef]
- Selli, S.; Kelebek, H. Aromatic profile and odour-activity value of blood orange juices obtained from Moro and Sanguinello (Citrus sinensis L. Osbeck). Ind. Crop. Prod. 2011, 33, 727–733. [Google Scholar] [CrossRef]
- Zhang, H.; Xie, Y.; Liu, C.; Chen, S.; Hu, S.; Xie, Z.; Deng, X.; Xu, J. Comprehensive comparative analysis of volatile compounds in citrus fruits of different species. Food Chem. 2017, 230, 316–326. [Google Scholar] [CrossRef] [PubMed]
- Różańska, A.; Dymerski, T.; Namieśnik, J. Novel analytical method for detection of orange juice adulteration based on ultra-fast gas chromatography. Monatshefte für Chemie-Chemical Monthly 2018, 149, 1615–1621. [Google Scholar] [CrossRef] [Green Version]
- Pedrosa, A.; Schweizer, D.; Guerra, M. Cytological heterozygosity and the hybrid origin of sweet orange [Citrus sinensis (L.) Osbeck]. Theor. Appl. Genet. 2000, 100, 361–367. [Google Scholar] [CrossRef]
- Malik, A.; Erginkaya, Z.; Ahmad, S.; Erten, H. Food Processing: Strategies for Quality Assessment. Springer: New York, NY, USA, 2014; pp. 1–8. [Google Scholar]
- Lamine, M.; Mliki, A. Elucidating Genetic Diversity among Sour Orange Rootstocks: A Comparative Study of the Efficiency of RAPD and SSR Markers. Appl. Biochem. Biotechnol. 2015, 175, 2996–3013. [Google Scholar] [CrossRef]
- Malik, S.K.; Rohini, M.R.; Kumar, S.; Choudhary, R.; Pal, D.; Chaudhury, R. Assessment of Genetic Diversity in Sweet Orange (Citrus sinensis (L.) Osbeck) Cultivars of India Using Morphological and RAPD Markers. Agric. Res. 2012, 1, 317–324. [Google Scholar] [CrossRef]
- Xiao, Z.; Ma, S.; Niu, Y.; Liu, J. Detection of the Key Aroma Compounds of Sweet Orange Oils by GC-O Coupled with PCA. J. Chinese Inst. Food Sci. Tech. 2017, 17, 253–257. [Google Scholar]
- Deterre, S.; Leclair, C.; Bai, J.; Baldwin, E.A.; Narciso, J.A.; Plotto, A. Chemical and Sensory Characterization of Orange (\r, Citrus sinensis\r,) Pulp, a by-Product of Orange Juice Processing Using Gas-Chromatography-Olfactometry. J. Food Quality 2016, 39, 826–838. [Google Scholar] [CrossRef]
- Feng, S.; Suh, J.H.; Gmitter, F.G.; Wang, Y. Differentiation between the flavors of sweet orange (Citrus sinensis) and mandarin (Citrus reticulata). J. Agric. Food Chem. 2017, 66, 203–211. [Google Scholar] [CrossRef]
- Porat, R.; Deterre, S.; Giampaoli, P.; Plotto, A. The flavor of citrus fruit. In Biotechnology in Flavor Production; John Wiley & Sons: Hoboken, NJ, USA, 2016. [Google Scholar]
- Kryger, R.A. Role of Polymethoxylated Flavones in Citrus Flavor. Nat. Flavors Frag. 2005, 161–172. [Google Scholar]
- Yamamoto, K.; Yahada, A.; Sasaki, K.; Sakamoto, K.; Ogawa, K.; Ohta, H. Multivariate analyses and characterization of volatile composents in Citrus species. Food Sci. Tech. Res. 2013, 19, 39–49. [Google Scholar] [CrossRef]
- Van Gemert, L.J. Odor Thresholds. Compilations of Odor Threshold Values in Air, Water and Other Media, 3rd ed.; Oliemans Puter & Partners BV: Utrecht, The Netherlands, 2003. [Google Scholar]
- Xiao, Z.; Li, Q.; Niu, Y.; Zhou, X.; Liu, J.; Xu, Y.; Xu, Z. Odor-active compounds of different lavender essential oils and their correlation with sensory attributes. Ind. Crop. Prod. 2017, 108, 748–755. [Google Scholar] [CrossRef]
- Peng, Y.; Bishop, K.S.; Quek, S.Y. Compositional Analysis and Aroma Evaluation of Feijoa Essential Oils from New Zealand Grown Cultivars. Molecules 2019, 24, 2053. [Google Scholar] [CrossRef] [PubMed]
- Di Donfrancesco, B.; Koppel, K. Sensory Characteristics and Volatile Components of Dry Dog Foods Manufactured with Sorghum Fractions. Molecules 2017, 22, 1012. [Google Scholar] [CrossRef]
- Pszczola, D.E. Why certain beverage flavors find the limelight. Food Tech. 2005, 59, 46–63. [Google Scholar]
- Xiao, Z.; Ma, S.; Niu, Y.; Chen, F.; Yu, D. Characterization of odor-active compounds of sweet orange essential oils of different regions by gas chromatography-mass spectrometry, gas chromatography-olfactometry and their correlation with sensory attributes. Flavor Frag. J. 2016, 31, 41–50. [Google Scholar] [CrossRef]
- Schmidberger, P.C.; Schieberle, P. Characterization of the Key Aroma Compounds in White Alba Truffle (Tuber magnatum pico) and Burgundy Truffle ( Tuber uncinatum) by Means of the Sensomics Approach. J. Agric. Food Chem. 2017, 65, 9287–9296. [Google Scholar] [CrossRef] [PubMed]
- Guth, H. Quantitation and Sensory Studies of Character Impact Odorants of Different White Wine Varieties. J. Agric. Food Chem. 1997, 45, 3027–3032. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds 2-octanol (100 mg/L) and C4–C30 saturated alkanes (all chromatographically pure) are available from the authors. |

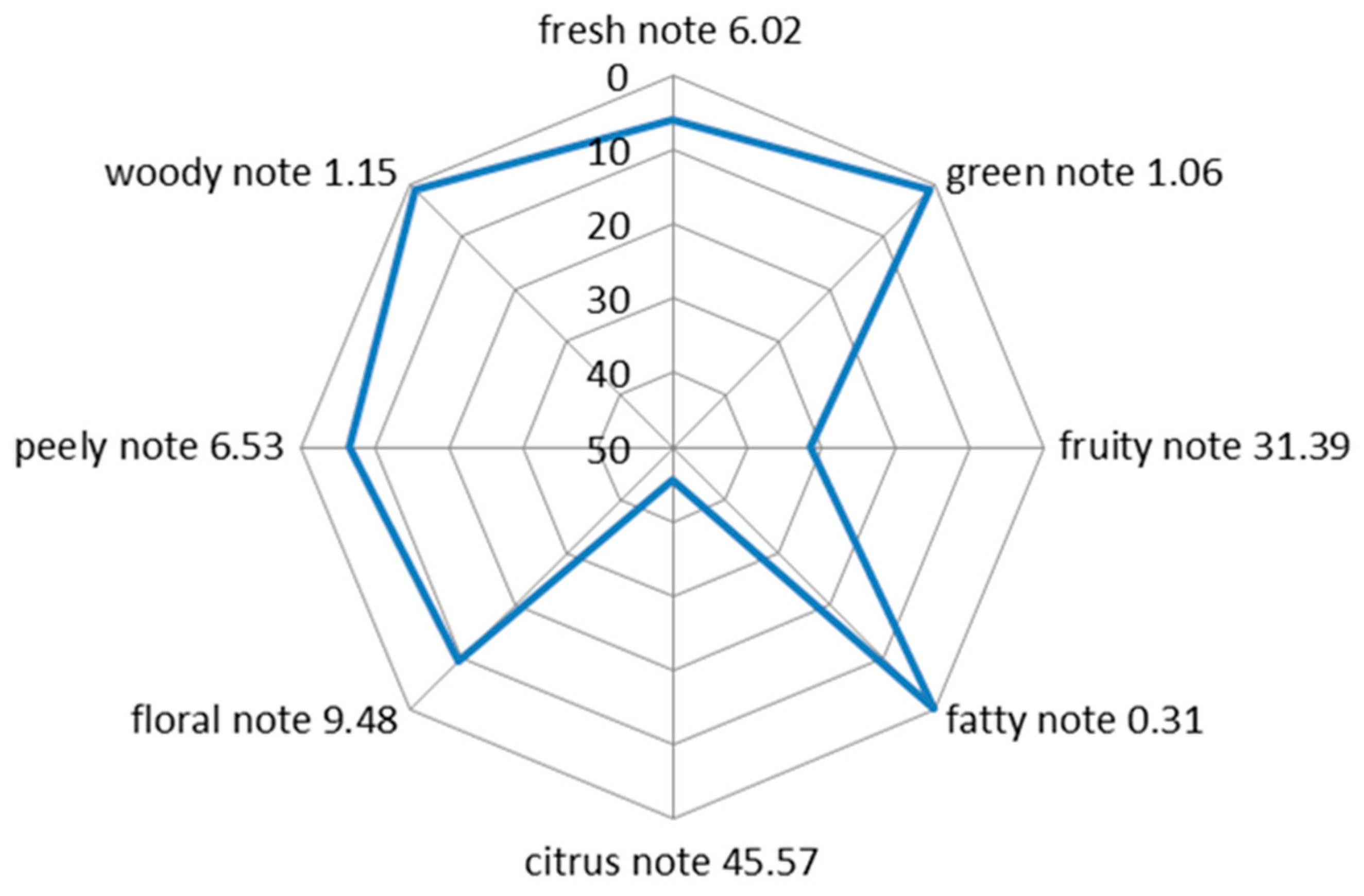

Figure 1.
The notes contour of sweet orange flavor (the percentage of aroma notes was larger in the inner concave, but smaller in the outer convex and sharp one).
Figure 1.
The notes contour of sweet orange flavor (the percentage of aroma notes was larger in the inner concave, but smaller in the outer convex and sharp one).

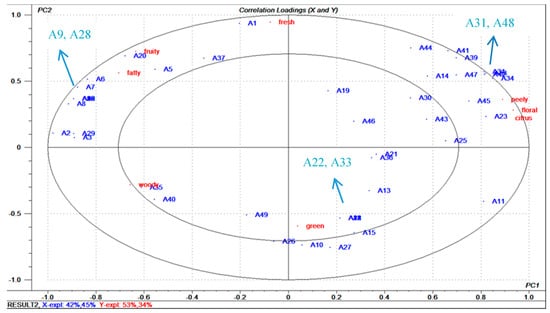

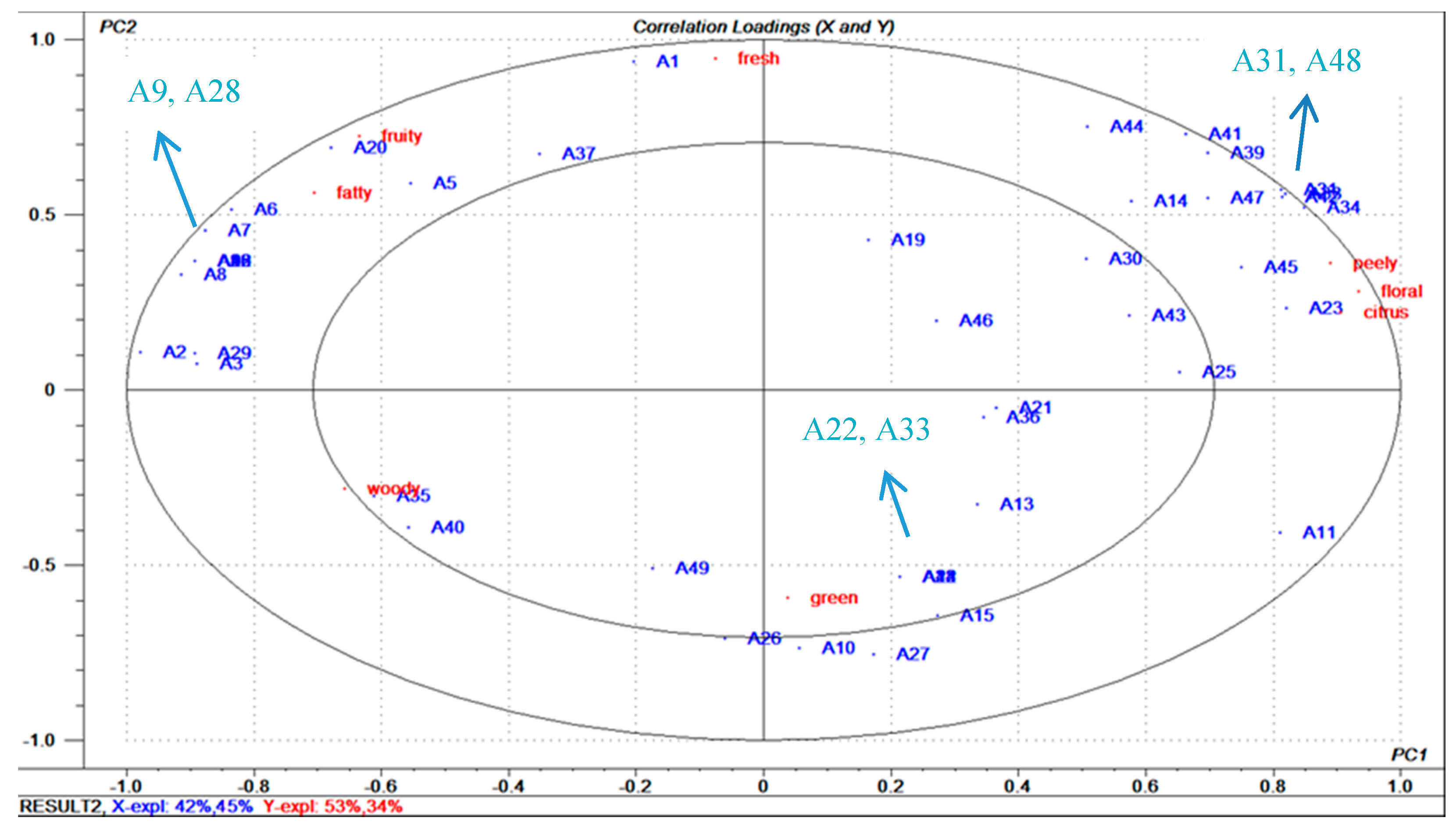

Figure 2.
Analysis of correlation between aroma active substances and sensory properties in sweet orange juices (the compound name of A1~A49 is listed in Table 2).
Figure 2.
Analysis of correlation between aroma active substances and sensory properties in sweet orange juices (the compound name of A1~A49 is listed in Table 2).

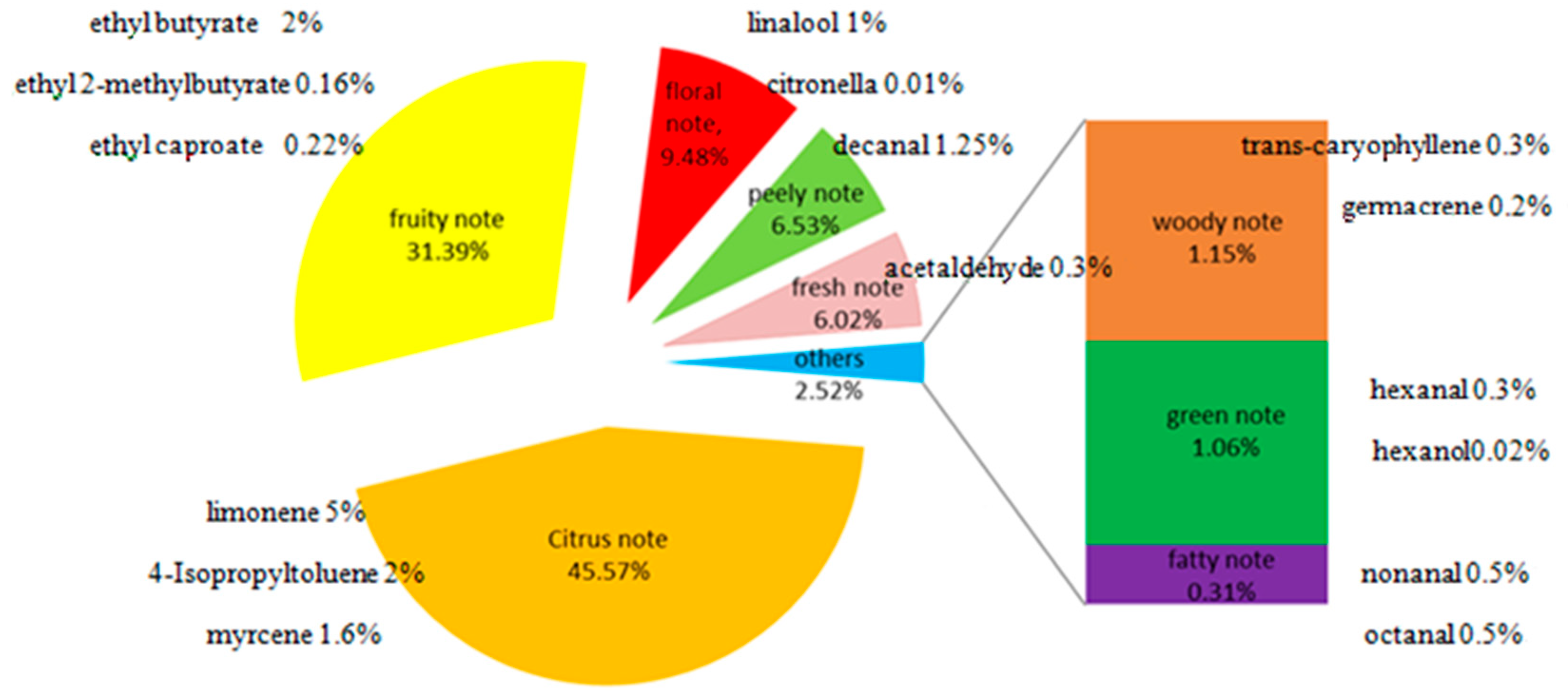

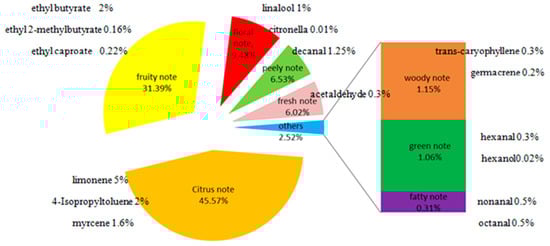

Figure 3.
8 base modules of sweet orange flavor (the remaining proportion of each note comprises edible ethanol solvent).
Figure 3.
8 base modules of sweet orange flavor (the remaining proportion of each note comprises edible ethanol solvent).
Table 1.
Identification and quantification of volatile compounds in the sweet orange juices by GC-MS.
Table 1.
Identification and quantification of volatile compounds in the sweet orange juices by GC-MS.
| No. | RT | Compounds 1 | RI 2 | Identification 3 | ZG | Concentration (μg/g) MS | JY | YX | QY | |
|---|---|---|---|---|---|---|---|---|---|---|
| DB-Wax | DB-5 | |||||||||
| A1 | 4.479 | acetaldehyde | 690 | 396 | MS, RI, Std | 0.407 ± 0.03 | - | - | - | 0.336 ± 0.02 |
| A2 | 5.174 | ethyl acetate | 887 | 610 | MS, RI, Std | 0.171 ± 0.009 c 4 | 0.178 ± 0.02 c | 0.33 ± 0.027 b | 0.17 ± 0.03 c | 0.479 ± 0.05 a |
| A3 | 5.999 | ethyl propionate | 950 | 725 | MS, RI, Std | - 5 | 0.0603 ± 0.008 | 0.0706 ± 0.008 | - | 0.136 ± 0.08 |
| A4 | 6.108 | ethyl isobutyrate | 961 | 723 | MS, RI, Std | - | - | - | - | 0.078 ± 0.006 |
| A5 | 6.417 | methyl butyrate | 984 | 729 | MS, RI, Std | 0.0982 ± 0.008 b | 0.0482 ± 0.005 c | 0.0898 ± 0.007 b | 0.0534 ± 0.004 c | 0.107 ± 0.03 a |
| A6 | 7.034 | α-pinene | 1018 | 940 | MS, RI, Std | 0.102 ± 0.02 b | 0.0693 ± 0.005 c | 0.0834 ± 0.009 c | 0.0785 ± 0.006 c | 0.193 ± 0.02 a |
| A7 | 7.234 | ethyl butyrate | 1040 | 808 | MS, RI, Std | 0.804 ± 0.07 b | 0.106 ± 0.02 c | 0.555 ± 0.04 b | 0.113 ± 0.02 c | 4.65 ± 0.54 a |
| A8 | 7.578 | ethyl 2-methylbutyrate | 1072 | 846 | MS, RI, Std | - | 0.0271 ± 0.003 | 0.0321 ± 0.004 | - | 0.371 ± 0.04 |
| A9 | 7.816 | ethyl isovalerate | 1080 | 857 | MS, RI, Std | - | - | - | - | 0.05 ± 0.004 |
| A10 | 8.148 | hexanal | 1082 | 801 | MS, RI, Std | 0.0545 ± 0.004 b | 0.0513 ± 0.004 b | 0.077 ± 0.006 a | 0.066 ± 0.005 a | 0.05 ± 0.003 b |
| A11 | 8.691 | sabinene | 1124 | 934 | MS, RI, Std | 0.0618 ± 0.005 b | 0.0844 ± 0.006 a | 0.0417 ± 0.005 b | 0.104 ± 0.03 a | 0.0107 ± 0.003 c |
| A12 | 8.818 | camphene | 1135 | 952 | MS, RI, Std | - | - | - | 0.0188 ± 0.003 | - |
| A13 | 9.286 | 3-carene | 1163 | 980 | MS, RI, Std | 0.0327 ± 0.004 | - | 0.0321 ± 0.002 | 0.0471 ± 0.005 | 0.00714 ± 0.0008 |
| A14 | 9.602 | myrcene | 1167 | 991 | MS, RI, Std | 1.49 ± 0.13 a | 0.609 ± 0.05 c | 0.459 ± 0.05 c | 1.06 ± 0.2 b | 0.639 ± 0.05 c |
| A15 | 10.106 | a-terpinene | 1190 | 1017 | MS, RI, Std | - | 0.232 ± 0.03 | 0.135 ± 0.02 | 0.104 ± 0.03 | 0.025 ± 0.004 |
| A16 | 10.244 | propyl butyrate | 1196 | 916 | MS, RI, Std | - | - | - | - | 0.0143 ± 0.002 |
| A17 | 10.265 | butanol | 1146 | 660 | MS, RI, Std | - | - | - | - | 0.0107 ± 0.003 |
| A18 | 11.099 | limonene | 1197 | 1027 | MS, RI, Std | 24.4 ± 1.92 a | 19.2 ± 1.34 c | 21.4 ± 2.19 b | 22.8 ± 2.19 b | 21.8 ± 2.37 b |
| A19 | 11.845 | ethyl caproate | 1235 | 999 | MS, RI, Std | 0.138 ± 0.02 | 0.0724 ± 0.005 | - | - | 0.361 ± 0.05 |
| A20 | 11.963 | γ-terpinene | 1262 | 1062 | MS, RI, Std | 0.0691 ± 0.005 b | 0.25 ± 0.03 a | 0.0802 ± 0.009 b | 0.0377 ± 0.005 c | 0.05 ± 0.003 b |
| A21 | 11.98 | octanal | 1208 | 1020 | MS, RI, Std | - | 0.0213 ± 0.001 | - | 0.0061 ± 0.0005 | 0.022 ± 0.003 |
| A22 | 12.019 | α-phellandrene | 1268 | 1027 | MS, RI, Std | 0.0145 ± 0.003 | - | - | - | - |
| A23 | 12.842 | o-cymene | 1289 | 1025 | MS, RI, Std | 1.92 ± 0.23 b | 2.46 ± 0.19 a | 0.764 ± 0.06 c | 0.848 ± 0.06 c | 0.196 ± 0.02 d |
| A24 | 12.983 | α-terpinolene | 1295 | 1088 | MS, RI, Std | - | - | - | 0.132 ± 0.02 | - |
| A25 | 13.288 | 4-isopropyltoluene | 1280 | 1026 | MS, RI, Std | 1.85 ± 0.19 a | 1.94 ± 0.23 a | 1.84 ± 0.15 a | 0.854 ± 0.07 b | 0.614 ± 0.05 b |
| A26 | 14.792 | hexanol | 1357 | 858 | MS, RI, Std | 0.0091 ± 0.0008 | 0.0513 ± 0.004 | 0.0126 ± 0.002 | - | |
| A27 | 15.703 | cis-3-hexen-1-ol | 1388 | 857 | MS, RI, Std | 0.0109 ± 0.004 | 0.0151 ± 0.003 | 0.0513 ± 0.002 | 0.0251 ± 0.008 | - |
| A28 | 16.035 | nonanal | 1396 | 1104 | MS, RI, Std | - | - | - | - | 0.00357 ± 0.0004 |
| A29 | 16.958 | ethyl caprylate | 1436 | 1193 | MS, RI, Std | 0.00727 ± 0.0008 | - | 0.0128 ± 0.002 | 0.00942 ± 0.0004 | 0.0214 ± 0.003 |
| A30 | 18.275 | citronella | 1488 | 1153 | MS, RI, Std | 0.0182 ± 0.002 | 0.006 ± 0.0008 | 0.0128 ± 0.004 | - | - |
| A31 | 18.701 | decanal | 1502 | 1203 | MS, RI, Std | 0.0655 ± 0.007 | 0.0332 ± 0.004 | - | 0.022 ± 0.003 | - |
| A32 | 19.26 | ethyl 3-hydroxybutyrate | 1551 | 1099 | MS, RI, Std | 0.00364 ± 0.0004 | - | 0.0032 ± 0.004 | - | 0.0214 ± 0.003 |
| A33 | 19.748 | linalool | 1564 | 1069 | MS, RI, Std | 0.204 ± 0.03 a | 0.109 ± 0.02 b | 0.0449 ± 0.005 c | 0.066 ± 0.003 c | 0.0143 ± 0.009 d |
| A34 | 20.002 | octanol | 1604 | 1420 | MS, RI, Std | 0.0545 ± 0.006 a | 0.0332 ± 0.004 b | 0.0128 ± 0.003 c | 0.0188 ± 0.007 c | 0.00357 ± 0.0005 d |
| A35 | 21.335 | trans-caryophyllene | 1612 | 1179 | MS, RI, Std | 0.02184 ± 0.003 | - | 0.0257 ± 0.009 | 0.0188 ± 0.003 | 0.0107 ± 0.006 |
| A36 | 21.398 | 4-terpineol | 1672 | 1122 | MS, RI, Std | - | 0.0091 ± 0.0008 | - | - | - |
| A37 | 23.145 | ethyl 3-hydroxyhexanoate | 1694 | 1241 | MS, RI, Std | 0.113 ± 0.04 a | 0.0211 ± 0.007 c | 0.0834 ± 0.004 b | 0.0251 ± 0.003 c | 0.134 ± 0.07 a |
| A38 | 23.313 | neral | 1704 | 1189 | MS, RI, Std | 0.0109 ± 0.004 | 0.006 ± 0.0007 | 0.0064 ± 0.0008 | 0.00628 ± 0.0009 | - |
| A39 | 23.567 | α-terpineol | 1719 | 1495 | MS, RI, Std | 0.0291 ± 0.004 | 0.0181 ± 0.003 | - | - | - |
| A40 | 24.212 | valencene | 1725 | 1555 | MS, RI, Std | 0.145 ± 0.04 c | 0.0693 ± 0.007 d | 0.728 ± 0.08 a | 0.198 ± 0.03c | 0.382 ± 0.05 b |
| A41 | 24.276 | germacrene | 1734 | 1247 | MS, RI, Std | 0.00727 ± 0.0009 | 0.003 ± 0.0004 | - | - | - |
| A42 | 24.454 | citral | 1772 | 1228 | MS, RI, Std | 0.0327 ± 0.002 | 0.0151 ± 0.003 | - | 0.0126 ± 0.003 | - |
| A43 | 24.927 | citronellol | 1860 | 1020 | MS, RI, Std | 0.00727 ± 0.0008 | 0.006 ± 0.0007 | 0.0064 ± 0.0009 | - | - |
| A44 | 26.74 | hexanoic acid | 1894 | 1021 | MS, RI, Std | 0.00727 ± 0.0006 | - | - | - | - |
| A45 | 31.102 | octoic acid | 2070 | 1186 | MS, RI, Std | 0.0109 ± 0.003 | 0.003 ± 0.0005 | 0.0032 ± 0.0004 | 0.00628 ± 0.0008 | - |
| A46 | 33.127 | pelargonic acid | 2171 | 1267 | MS, RI, Std | 0.00364 ± 0.0005 | - | 0.0032 ± 0.0007 | - | - |
| A47 | 35.593 | hedion | 2237 | 1673 | MS, RI, Std | 0.00364 ± 0.0005 | 0.003 ± 0.0002 | - | - | - |
| A48 | 38.061 | decanoic acid | 2265 | 1374 | MS, RI, Std | - | - | - | 0.00314 ± 0.0005 | - |
| A49 | 44.771 | nootkatone | 2563 | 1823 | MS, RI, Std | - | - | 0.0064 ± 0.0009 | - | - |
1 Volatile compounds detected in orange juice samples. 2 Retention index of compounds on DB-5 and DB-Wax columns. 3 MS: mass spectrum comparison using Wiley library. RI: retention index; Std: confirmed by the authentic standard. 4 Values with different roman letters (a–d) in the same row are significantly different according to the Duncan test (p < 0.05). 5 not detected.
Table 2.
Aroma compounds of five sweet oranges by GC-O analysis with aroma description and aroma intensity.
Table 2.
Aroma compounds of five sweet oranges by GC-O analysis with aroma description and aroma intensity.
| No. | Compounds 1 | RI 2 | Identification 3 | Aroma Description | Aroma Intensity 4 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB-Wax | DB-5 | ZG | RSD (%) | MS | RSD (%) | JY | RSD (%) | YX | RSD (%) | QY | RSD (%) | ||||
| A1 | acetaldehyde | 690 | 396 | AD, RI, Std | fresh, aldehydic | 5.9 | 6.8 | - | - | - | - | - | - | 5.4 | 7.3 |
| A2 | ethyl acetate | 887 | 610 | AD, RI, Std | pear, fruity | 2.8c | 8.7 | 3.0c | 7.1 | 3.7b | 8.4 | 3.9b | 6.7 | 4.5a | 6.8 |
| A3 | ethyl propionate | 950 | 725 | AD, RI, Std | wine, fruity | - 5 | - | 1.3 | 23.1 | 1.5 | 12.9 | - | - | 2.6 | 8.9 |
| A4 | ethyl isobutyrate | 961 | 723 | AD, RI, Std | pineapple | - | - | - | - | - | - | - | - | 1.7 | 13.0 |
| A5 | methyl butyrate | 984 | 729 | AD, RI, Std | fruity | 2.9a | 9.5 | 2.4a | 5.9 | 2.8a | 8.5 | 2.5a | 11.2 | 2.3a | 10.7 |
| A6 | α-pinene | 1018 | 940 | AD, RI, Std | woody | 2.5a | 8.9 | 1.6b | 13.8 | 1.8b | 13.1 | 1.7b | 9.8 | 2.8a | 11.4 |
| A7 | ethyl butyrate | 1040 | 808 | AD, RI, Std | pineapple | 6.6b | 7.9 | 4.2c | 5.3 | 5.3b | 9.4 | 3.2c | 7.3 | 7.5a | 3.6 |
| A8 | ethyl 2-methylbutyrate | 1072 | 846 | AD, RI, Std | pineapple | - | - | 0.2 | 53.6 | 0.3 | 42.0 | - | - | 1.3 | 26.2 |
| A9 | ethyl isovalerate | 1080 | 857 | AD, RI, Std | banana | - | - | - | - | - | - | - | - | 2.5 | 9.9 |
| A10 | hexanal | 1082 | 801 | AD, RI, Std | green, fatty | 3.9a | 3.8 | 3.6a | 7.5 | 2.7b | 9.1 | 2.6b | 8.2 | 2.5b | 7.3 |
| A11 | sabinene | 1124 | 934 | AD, RI, Std | citrus, woody | 3.6a | 6.4 | 3.8a | 6.8 | 3.4a | 5.6 | 2.3b | 8.3 | 1.2c | 13.2 |
| A12 | camphene | 1135 | 952 | AD, RI, Std | woody | - | - | - | - | - | - | 0.3 | 42.0 | - | - |
| A13 | 3-carene | 1163 | 980 | AD, RI, Std | citrus | 1.3 | 4.8 | - | - | 1.9 | 13.1 | 1.4 | 13.7 | 1.2 | 16.3 |
| A14 | myrcene | 1167 | 991 | AD, RI, Std | floral | 6.2a | 2.2 | 5.3b | 4.8 | 5.2b | 6.8 | 6.3a | 6.7 | 1.3c | 11.2 |
| A15 | a-terpinene | 1190 | 1017 | AD, RI, Std | woody, spearmint | - | - | 5.10 | 3.8 | 4.9 | 7.3 | 2.1 | 9.1 | 1.7 | 12.4 |
| A16 | propyl butyrate | 1196 | 916 | AD, RI, Std | wine, fruity | - | - | - | - | - | - | - | - | 1.9 | 12.1 |
| A17 | butanol | 1146 | 660 | AD, RI, Std | wine | - | - | - | - | - | - | - | - | 2.3 | 10.1 |
| A18 | limonene | 1197 | 1027 | AD, RI, Std | lemon | 7.8a | 7.4 | 7.5a | 6.4 | 7.6a | 8.3 | 7.7a | 4.9 | 7.6a | 6.8 |
| A19 | ethyl caproater | 1235 | 999 | AD, RI, Std | fruity | 3.9 | 7.8 | 2.7 | 4.9 | - | - | - | - | 4.3 | 5.9 |
| A20 | γ-terpinene | 1262 | 1062 | AD, RI, Std | woody, spearmint | 0.7b | 20.2 | 1.5a | 7.3 | 0.8b | 24.9 | 0.3c | 52.0 | 0.5c | 32.3 |
| A21 | octanal | 1208 | 1020 | AD, RI, Std | spicy, herbal | - | - | 1.3 | 16.1 | - | - | 1.5 | 12.9 | 1.8 | 13.9 |
| A22 | α-phellandrene | 1268 | 1027 | AD, RI, Std | spicy, herbal | 2.2 | 5.7 | - | - | - | - | - | - | - | - |
| A23 | o-cymene | 1289 | 1025 | AD, RI, Std | woody, herbal | 4.1a | 5.5 | 4.2a | 4.5 | 2.7b | 4.6 | 2.8b | 7.8 | 1.2c | 14.9 |
| A24 | α-terpinolene | 1295 | 1088 | AD, RI, Std | spicy, herbal | - | - | - | - | - | - | 1.3 | 16.1 | - | |
| A25 | 4-isopropyltoluene | 1280 | 1026 | AD, RI, Std | green, leave | 7.5a | 9.9 | 7.4a | 8.9 | 7.2a | 5.4 | 3.8b | 6.9 | 1.6c | 14.8 |
| A26 | hexanol | 1357 | 858 | AD, RI, Std | irritation, stink | 1.9 | 19.6 | 2.2 | 8.1 | 1.8 | 10.7 | - | - | ||
| A27 | cis-3-hexen-1-ol | 1388 | 857 | AD, RI, Std | fatty, grassy, leaves | 2.3 | 6.7 | 2.2 | 5.7 | 1.9 | 13.8 | 3.8 | 7.3 | - | - |
| A28 | nonanal | 1396 | 1104 | AD, RI, Std | floral, citrus | - | - | - | - | - | - | - | - | 1.2 | 21.8 |
| A29 | ethyl caprylate | 1436 | 1193 | AD, RI, Std | fruity | 2.8 | 8.9 | - | - | 2.7 | 6.7 | 2.6 | 10.0 | 3.3 | 6.7 |
| A30 | citronella | 1488 | 1153 | AD, RI, Std | rosy | 2.4 | 7.4 | 1.6 | 20.9 | 1.5 | 15.3 | - | - | - | - |
| A31 | decanal | 1502 | 1203 | AD, RI, Std | fatty | 4.2 | 6.3 | 3.3 | 7.1 | - | - | 2.9 | 10.1 | - | - |
| A32 | ethyl 3-hydroxybutyrate | 1551 | 1099 | AD, RI, Std | fruity | 0.7 | 20.5 | - | - | 1.7 | 8.7 | - | - | 2.1 | 28.9 |
| A33 | linalool | 1564 | 1069 | AD, RI, Std | floral, woody | 7.2a | 2.6 | 3.9c | 5.8 | 3.1c | 8.5 | 4.6b | 5.7 | 1.7a | 16.6 |
| A34 | octanol | 1604 | 1420 | AD, RI, Std | irritation, stink | 1.5b | 12.9 | 1.7a | 17.5 | 1.3b | 15.0 | 1.4b | 16.9 | 0.3c | 41.3 |
| A35 | trans-caryophyllene | 1612 | 1179 | AD, RI, Std | spicy | 1.2 | 23.5 | - | - | 1.4 | 18.0 | 1.3 | 4.5 | 1.4 | 17.5 |
| A36 | 4-terpineol | 1672 | 1122 | AD, RI, Std | woody, floral | - | - | 1.2 | 18.5 | - | - | - | - | - | - |
| A37 | ethyl 3-hydroxyhexanoate | 1694 | 1241 | AD, RI, Std | fruity | 2.6b | 9.5 | 2.5b | 7.6 | 2.7b | 8.5 | 2.3b | 10.1 | 3.4a | 4.6 |
| A38 | neral | 1704 | 1189 | AD, RI, Std | lemon | 3.5 | 3.7 | 2.6 | 7.2 | 2.6 | 10.7 | 2.8 | 12.9 | - | - |
| A39 | α-terpineol | 1719 | 1495 | AD, RI, Std | woody, spearmint | 1.7 | 23.9 | 1.8 | 10.7 | - | - | - | - | - | - |
| A40 | valencene | 1725 | 1555 | AD, RI, Std | fruity | 3.4b | 5.6 | 3.7b | 9.6 | 3.8b | 5.4 | 4.4a | 6.6 | 4.9a | 5.8 |
| A41 | germacrene | 1734 | 1247 | AD, RI, Std | earthy | 1.9 | 16.9 | 1.7 | 14.1 | - | - | - | - | - | - |
| A42 | citral | 1772 | 1228 | AD, RI, Std | lemon, aldehyde | 2.3 | 7.5 | 2.2 | 10.8 | - | - | 2.6 | 9.5 | - | - |
| A43 | citronellol | 1860 | 1020 | AD, RI, Std | rosy, sweet | 3.7 | 8.9 | 3.6 | 6.9 | 3.5 | 7.7 | - | - | - | - |
| A44 | hexanoic acid | 1894 | 1021 | AD, RI, Std | rancid flavor | 1.7 | 13.9 | - | - | - | - | - | - | - | - |
| A45 | octoic acid | 2070 | 1186 | AD, RI, Std | weak milk, fatty | 1.9 | 13.2 | 1.3 | 16.2 | 1.2 | 9.8 | 0.6 | 25.2 | - | - |
| A46 | pelargonic acid | 2171 | 1267 | AD, RI, Std | weak milk, fatty | 2.1 | 6.4 | - | - | 1.3 | 8.4 | - | - | - | - |
| A47 | hedion | 2237 | 1673 | AD, RI, Std | floral, jasmine | 0.8 | 29.1 | 0.9 | 28.8 | - | - | - | - | - | - |
| A48 | decic acid | 2265 | 1374 | AD, RI, Std | weak milk, fatty | - | - | - | - | - | - | 1.3 | 12.2 | - | - |
| A49 | nootkatone | 2563 | 1823 | AD, RI, Std | fruity, citrus | - | - | - | - | 2.6 | 5.7 | - | - | - | - |
1 Volatile compounds detected in sweet orange juice samples. 2 Retention index of compounds on DB-5 and DB-Wax columns. 3 RI: retention index; Std: confirmed by the authentic standard; AD: Aroma descriptor. 4 Values with different roman letters (a–c) in the same row are significantly different according to the Duncan test (p < 0.05). 5 not detected.
Table 3.
Average OAV value and aroma note percentage of volatile compounds in sweet orange.
| No. | Compounds A | Thresholds (μg/g) | Literatures B | OAV (C/T) C | Note OAV | Note OAV% E | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| ZG | MS | JY | YX | QY | ||||||
| 1 | acetaldehyde | 0.01 | 1 | 41 | - D | - | - | 34 | fresh 37.15 | 6.02 |
| 2 | hexanal | 0.0091 | 2 | 6 | 6 | 8 | 7 | 5 | green | |
| 3 | hexanol | 0.161 | 2 | - | <1 | 1 | 1 | - | 6.51 | 1.06 |
| 4 | ethyl propionate | 0.1 | 3 | - | <1 | <1 | - | 1 | fruity 193.56 | 31.39 |
| 5 | ethyl isobutyrate | 0.015 | 3 | - | - | - | - | 5 | ||
| 6 | ethyl butyrate | 0.02 | 3 | 40 | 5 | 28 | 6 | 233 | ||
| 7 | ethyl 2-methylbutyrate | 0.002 | 3 | - | 14 | 16 | - | 186 | ||
| 8 | ethyl isovalerate | 0.006 | 3 | - | - | - | - | 8 | ||
| 9 | ethyl caproate | 0.005 | 3 | 28 | 14 | - | - | 72 | ||
| 10 | nonanal | 0.015 | 2 | - | - | - | - | 1 | fatty 1.804 | 0.31 |
| 11 | octanal | 0.012 | 2 | - | 2 | - | <1 | 2 | ||
| 12 | α-pinene | 0.19 | 2 | <1 | <1 | <1 | <1 | 1 | citrus 280.31 | 45.47 |
| 13 | 3-carene | 0.044 | 2 | <1 | - | <1 | 1 | <1 | ||
| 14 | myrcene | 0.0166 | 2 | 90 | 37 | 28 | 64 | 38 | ||
| 15 | a-terpinene | 0.085 | 2 | - | 3 | 2 | 1 | <1 | ||
| 16 | limonene | 0.2 | 2 | 122 | 96 | 107 | 114 | 109 | ||
| 17 | 4-terpineol | 0.005 | 2 | - | 2 | - | - | - | ||
| 18 | o-Cymene | 0.4 | 2 | 5 | 6 | 2 | 2 | <1 | ||
| 19 | α-Terpinolene | 0.041 | 2 | - | - | - | 3 | - | ||
| 20 | 4-Isopropyltoluene | 0.0133 | 2 | 139 | 146 | 138 | 64 | 46 | ||
| 21 | linalool | 0.0015 | 2 | 136 | 73 | 30 | 44 | 10 | floral 58.42 | 9.48 |
| 22 | hedion | 5.7 | 2 | 1 | 1 | - | - | - | ||
| 23 | decanal | 0.001 | 4 | 66 | 33 | - | 22 | - | peel 40.23 | 6.53 |
| 24 | trans-caryophyllene | 0.06 | 5 | 2 | - | 12 | 3 | 6 | woody 7.07 | 1.15 |
| 25 | germacrene | 0.016 | 5 | 1 | 1 | - | - | - | ||
Numbers 1–5 listed in the Literature column mean that thresholds of the compounds were detected by: 1, Milo and Grosch (1997); 2, Tamura et al. (2001); 3, Schnabel et al. (1988); 4, Padrayuttawat et al. (1997); 5, Buttery et al. (1987), according to ref [22]. A The volatile compounds with OAVs ≥ 1. B The odor threshold (μg/g) calculated in water referred to in the literature. C The OAV of each volatile compound. D not detected. E Percentage contribution of notes in sweet orange.
Table 4.
The mean intensity values of the eight attributes for the five sweet oranges in descriptive sensory evaluation.
Table 4.
The mean intensity values of the eight attributes for the five sweet oranges in descriptive sensory evaluation.
| Sample | Mean Score | |||||||
|---|---|---|---|---|---|---|---|---|
| Fresh | Green | Fruity | Fatty | Citrus | Floral | Peely | Woody | |
| O1 | 3.5 c | 3 c | 5.4 bc | 0.3 d | 9.8 a | 6.5 b | 6.1 b | 2 cd |
| O2 | 0 c | 2.6 bc | 3.6 b | 0 c | 9.2 a | 4.8 b | 5 b | 1 c |
| O3 | 0 c | 4.7 b | 4 b | 0 c | 9 a | 3.9 b | 0.3 c | 4.2 b |
| O4 | 0 d | 3.3 b | 1 cd | 0.2 d | 8.8 a | 4.2 b | 3.6 b | 2.4 c |
| O5 | 2.3 b | 2.5 b | 8 a | 0.8 c | 8 a | 2 b | 0.2 c | 3.3 b |
Values with different roman letters (a–d) in the same row are significantly different according to the Duncan test (p < 0.05).
© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Shui, M.; Feng, T.; Tong, Y.; Zhuang, H.; Lo, C.; Sun, H.; Chen, L.; Song, S. Characterization of Key Aroma Compounds and Construction of Flavor Base Module of Chinese Sweet Oranges. Molecules 2019, 24, 2384. https://doi.org/10.3390/molecules24132384
AMA Style
Shui M, Feng T, Tong Y, Zhuang H, Lo C, Sun H, Chen L, Song S. Characterization of Key Aroma Compounds and Construction of Flavor Base Module of Chinese Sweet Oranges. Molecules. 2019; 24(13):2384. https://doi.org/10.3390/molecules24132384
Chicago/Turabian StyleShui, Mengzhu, Tao Feng, Yanzun Tong, Haining Zhuang, Chihkang Lo, Hongfeng Sun, Ling Chen, and Shiqing Song. 2019. "Characterization of Key Aroma Compounds and Construction of Flavor Base Module of Chinese Sweet Oranges" Molecules 24, no. 13: 2384. https://doi.org/10.3390/molecules24132384
APA StyleShui, M., Feng, T., Tong, Y., Zhuang, H., Lo, C., Sun, H., Chen, L., & Song, S. (2019). Characterization of Key Aroma Compounds and Construction of Flavor Base Module of Chinese Sweet Oranges. Molecules, 24(13), 2384. https://doi.org/10.3390/molecules24132384
