New 11,20-Epoxybriaranes from the Gorgonian Coral Junceella fragilis (Ellisellidae)

Abstract

Two new 11,20-epoxybriaranes, fragilides P (1) and Q (2), as well as two known analogues, robustolide F (3) and juncin Z (4), were obtained from the gorgonian coral Junceella fragilis. The structures, including the absolute configurations of briaranes 1 and 2, were elucidated by using spectroscopic methods and comparing the spectroscopic and rotation data with those of known related analogues. Briarane 4 decreased the generation of superoxide anions by human neutrophils. The propionate group in 1 is rarely found.

1. Introduction

Since the first structure elucidation of a briarane-type natural product, briarein A, in 1977 by single-crystal X-ray diffraction analysis [1], over 700 marine origin briaranes have been isolated and reported from various octocorals, especially from genera Briareum (family Briareidae) [2] and Junceella (family Ellisellidae) [3,4,5]. Among these compounds, 11,20-epoxybriaranes were proven to be a chemical marker for the gorgonian corals belonging to family Ellisellidae [6]. During the course of our research on new natural substances from the marine invertebrates distributed in the waters of Taiwan, a series of briarane-type diterpenoids were isolated from various octocorals belonging to the genera Junceella [7] and Briareum [8], and the compounds of this type were proven to possess various interesting bioactivities. Recently, we focused our ongoing studies on a gorgonian coral identified as Junceella fragilis. From the results of our studies on this species, we report herein the isolation, structural determination, and bioactivity of two new briaranes, fragilides P (1) and Q (2), along with two known metabolites, robustolide F (3) [9,10] and juncin Z (4) [11] (Figure 1).

2. Results and Discussion

Fragilide P (1) has the molecular formula C₂₉H₃₇ClO₁₂ as deduced by (+)-ESIMS—which showed a pair of peaks at m/z 635/637 (3:1) [M + H⁺], suggesting a chlorine atom in 1—and further confirmed by (+)-HRESIMS at m/z 635.18683 (calcd. for C₂₉H₃₇³⁵ClO₁₂ + Na, 635.18658). The IR spectrum of 1 indicated the presence of hydroxy (3466 cm⁻¹), γ-lactone (1783 cm⁻¹), and ester carbonyl (1735 cm⁻¹) groups. The ¹³C-NMR spectral data (

Table 1. ¹H and ¹³C-NMR data for 1 and 2.

	1		2
C/H	δH a (J in Hz)	δC, b Mult.	δH c (J in Hz)	δC, d Mult.
1		49.2, C		46.9, C
2	5.73 d (9.6)	75.6, CH	4.80 d (5.0)	74.8, CH
3	6.00 dd (15.6, 9.6)	130.4, CH	2.44 m; 1.68 m	32.3, CH2
4	6.89 d (15.6)	132.7, CH	2.47 m; 2.01 m	24.9, CH2
5		142.0, C		139.8, C
6	5.07 d (4.0)	65.0, CH	5.53 d (10.5)	119.2, CH
7	4.16 d (4.0)	80.6, CH	5.20 d (10.5)	77.0, CH
8		82.8, C		80.4, C
9	5.19 d (2.0)	72.2, CH	5.61 d (6.0)	67.6, CH
10	3.84 br s	33.8, CH	2.29 d (6.0)	39.6, CH
11		57.3, C		62.4, C
12	4.52 dd (2.4, 2.4)	73.7, CH	2.28 m; 1.16 m	23.6, CH2
13α/β	2.32 m; 2.06 m	29.0, CH2	1.77 ddd (15.5, 10.0, 10.0); 2.16 m	24.5, CH2
14	4.96 dd (2.4, 2.4)	73.1, CH	4.90 d (5.0)	72.9, CH
15	1.18 s	14.4, CH3	1.01 s	14.9, CH3
16a/b	5.34 s; 5.26 s	115.1, CH2	5.26 dd (16.0, 2.0); 4.23 d (16.0)	67.1, CH2
17	2.84 q (7.2)	50.1, CH	2.34 q (7.0)	42.3, CH
18	1.25 d (7.2)	6.9, CH3	1.16 d (7.0)	6.7, CH3
19		174.6, C		176.4, C
20a/b	2.77 dd (3.2, 1.2); 2.64 d (3.2)	49.2, CH2	2.82 d (4.5); 3.23 br d (4.5)	59.0, CH2
2-OCOEt	2.31 q (7.6) 1.11 t (7.6)	173.3, C 27.7, CH2 8.8, CH3
Acetate methyls	2.11 s 2.09 s 2.06 s	21.4, CH3 21.1, CH3 21.0, CH3	2.22 s 2.14 s 2.04 s 2.01 s	21.0, CH3 20.9, CH3 20.9, CH3 20.9, CH3
Acetate carbonyls		170.3, C 169.9, C 169.6, C		170.8, C 170.8, C 170.2, C 169.5, C
8-OH	3.07 s		5.19 s

^a Spectra recorded at 400 MHz in CDCl₃ at 25 °C. ^b Spectra recorded at 100 MHz in CDCl₃ at 25 °C. ^c Spectra recorded at 500 MHz in CDCl₃ at 25 °C. ^d Spectra recorded at 125 MHz in CDCl₃ at 25 °C.

) showed the presence of a disubstituted olefin (δ_C 132.7, CH-4; 130.4, CH-3) and an exomethylene (δ_C 142.0, C-5; 115.1, CH₂-16). Moreover, five carbonyl resonances at δ_C 174.6, 173.3, 170.3, 169.9, and 169.6 in the ¹³C spectrum confirmed the presence of a γ-lactone and four other ester groups. In the ¹H NMR spectrum, three acetate methyls (δ_H 2.11, 2.09, 2.06, each 3H × s) and a propionate (δ_H 2.31, 2H, q, J = 7.6 Hz; 1.11, 3H, t, J = 7.6 Hz) were observed. An exocyclic epoxy group was elucidated from the signals of two oxygenated carbons at δ_C 57.3 (C-11) and 49.2 (CH₂-20). The proton chemical shifts at δ_H 2.77 (1H, dd, J = 3.2, 1.2 Hz, H-20a) and 2.64 (1H, d, J = 3.2 Hz, H-20b) confirmed the presence of this group. Moreover, a methyl singlet, a methyl doublet, two aliphatic protons, a pair of aliphatic methylene protons, five oxymethine protons, a chlorinated methine proton, and a hydroxy proton were observed in the ¹H-NMR spectrum of 1 (Table 1).

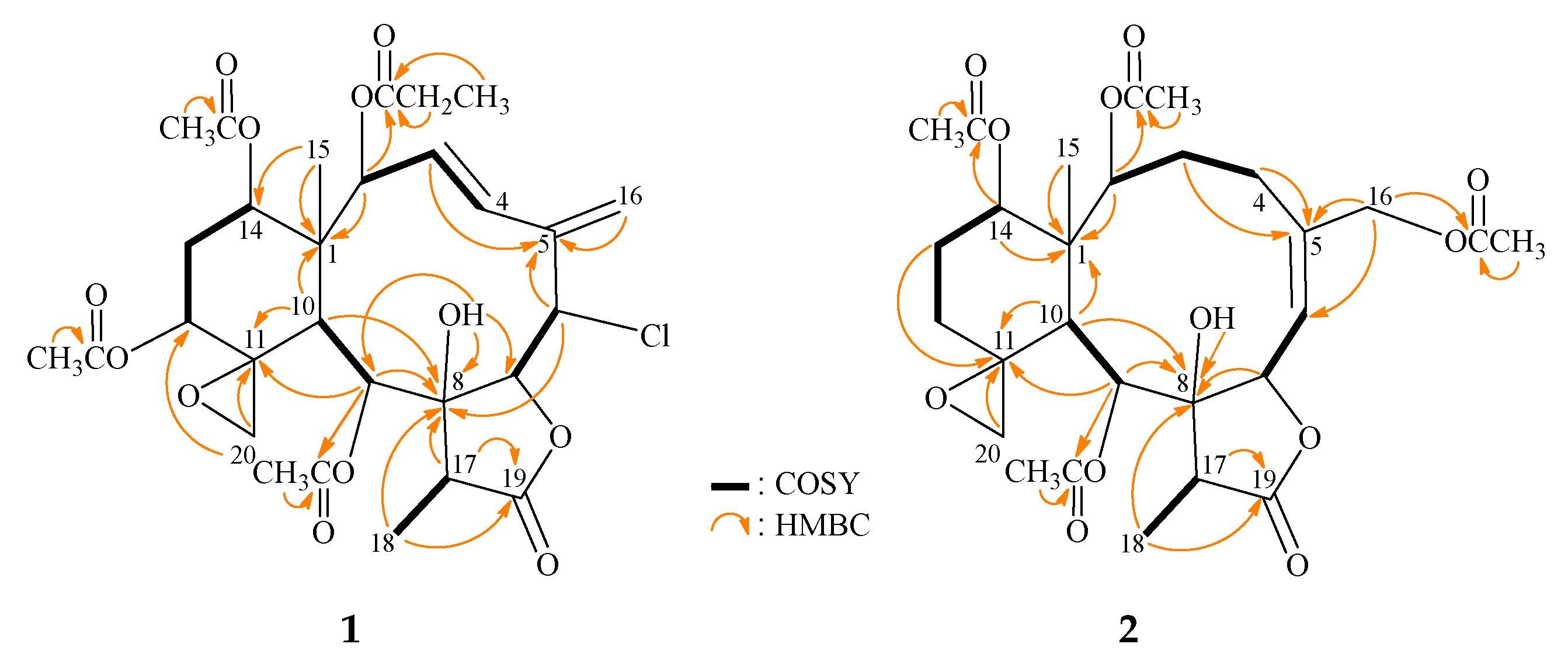

Analyses of 2D-NMR (COSY and Heteronuclear Multiple Bond Correlation (HMBC)) data established a tetracyclic nucleus. This assignment was evident from the spin systems from H-2 to H-3, H-3 to H-4, H-6 to H-7, H-9 to H-10, H-12 to H₂-13, H₂-13 to H-14, and H-17 to H₃-18 (Figure 2), while the HMBC between protons and quaternary carbons, such as H-2, H-10, H₃-15/C-1; H-3, H-6, H-16b/C-5; H-6, H-9, H-10, H-17, H₃-18, OH-8/C-8; H-9, H-10, H-20b/C-11; and H-17, H₃-18/C-19 revealed the carbon skeleton (Figure 2). The epoxy group positioned at C-11/20 was further confirmed by the HMBC between H-20b to C-11 and C-12. The C-15 methyl group was positioned at C-1 from the HMBC between H₃-15 to C-1 and C-14. The HMBC spectrum also revealed that the carbon signal at δ_C 173.3 (C) was correlated with the signals of the methylene and methyl protons of propionate at δ_H 2.31 and 1.11, and it was assigned to the carbon atom of the propionate carbonyl group. The propionate at C-2 was confirmed from the connectivity between H-2 and the carbonyl carbon of the propionate group. The HMBC revealed that an acetoxy group is attached to C-9. The hydroxy group at C-8 was deduced from the HMBC of a hydroxy proton (δ_C 3.07) to C-7, C-8, and C-9. Thus, the remaining acetoxy groups were positioned at C-12 and C-14 by analysis of the characteristic NMR signals (δ_H 4.52, 1H, dd, J = 2.4, 2.4 Hz; δ_C 73.7, CH-12; δ_H 4.96, 1H, dd, J = 2.4, 2.4 Hz; δ_C 73.1, CH-14), although no HMBC was observed between H-12 and H-14 and the acetate carbonyl carbons.

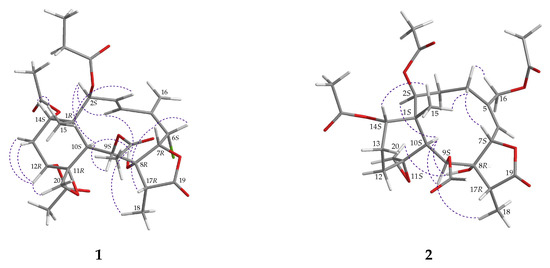

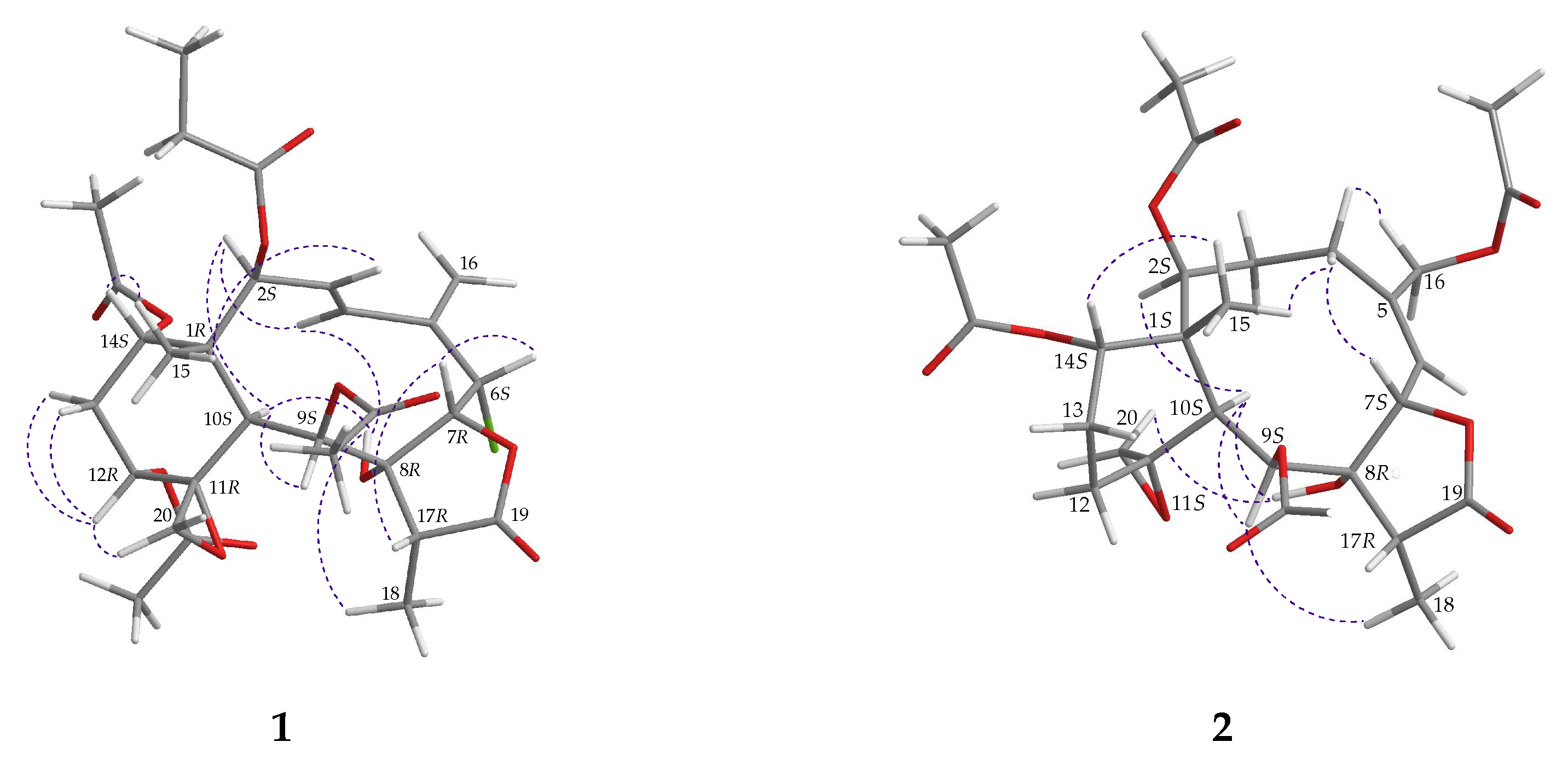

According to a summary of the chemical shifts of 11,20-epoxy groups in briarane derivatives, with ¹³C-NMR data for C-11 and C-20 at δ_C 55−61 and 47−52 ppm, respectively, the epoxy group was α-oriented and the cyclohexane ring existed in a chair conformation [12]; hence, the configuration of the 11,20-epoxy group in 1 (δ_C 57.3, C-11; 49.2, CH₂-20) should be α-oriented, and the cyclohexane ring should be in a chair conformation. The E configuration of the C-3/4 double bond was determined from the large proton coupling constant (J = 15.6 Hz) between H-3 and H-4. The stereochemistry of the 11 stereogenic centers of 1 was established by analysis of NOE correlations observed in a NOESY experiment and further supported by molecular mechanics 2 (MM2) force field analysis [13], as shown in Figure 3. In the NOESY spectrum, NOE correlations were observed between H-10 and H-2/H-9/OH-8, while no NOE correlation was seen with Me-15, suggesting that H-2, H-9, H-10, and OH-8 were all α-oriented; meanwhile, a NOE correlation of Me-15 with H-14 indicated that H-14 was β-oriented. In addition, H-12 was found to correlate with H-13α/β and one proton of C-20 methylene (δ_H 2.77, H-20a), indicating that the C-12 acetoxy group was α-oriented. H₃-18 showed a NOE correlation with OH-8, indicating that Me-18 was α-oriented at C-17. H-7 exhibited NOE correlations with H-6 and H-17, suggesting that H-6 and H-7 were positioned on the β face. Furthermore, H-3 showed a NOE correlation with H₃-15; and H-4 showed NOE correlations with H-2 and OH-8, demonstrating the E-configuration of Δ³ and establishing the s-cis diene moiety. As briaranes 1 and 2 were isolated along with a known metabolite 3 (robustolide F) from the same organism, and the absolute configuration of 3 was determined by single-crystal X-ray diffraction analysis [10], it is reasonable on biogenetic grounds and supported by the equal sign of optical rotation of 1, 2, and 3 to assume that 1 and 2 have the same absolute configurations as 3. Therefore, based on the above findings, the configurations of the stereogenic carbons of 1 were determined as 1R, 2S, 6S, 7R, 8R, 9S, 10S, 11R, 12R, 14S, and 17R (see Figures S1–S10). It is interesting to note that the propionate group is rarely found in briarane-type natural products [12,14,15,16,17,18].

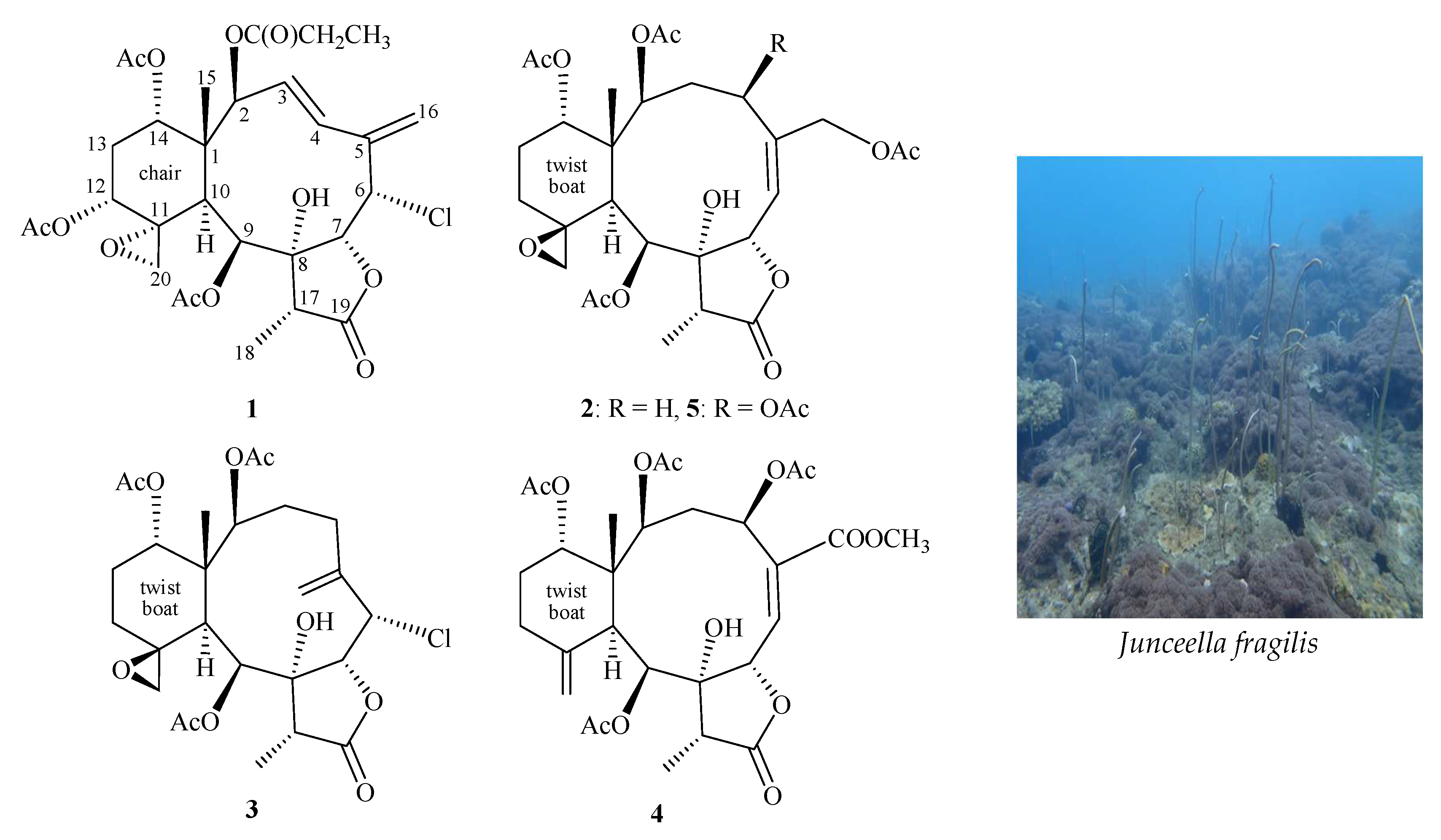

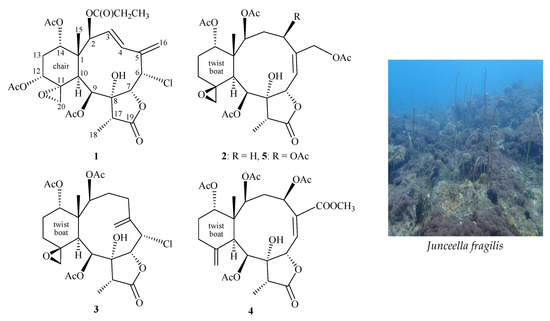

Fragilide Q (2) was found to have the molecular formula C₂₈H₃₈O₁₂ as determined from its (+)-HRESIMS at m/z 589.22562 (calcd. for C₂₈H₃₈O₁₂ + Na, 589.22555) (Ω = 10). Its absorption peaks in the IR spectrum showed ester carbonyl, γ-lactone, and broad OH stretching at 1740, 1778, and 3273 cm⁻¹, respectively. It was found that the ¹H and ¹³C-NMR spectra of 2 resembled those of a known analogue, juncin X (5) (Figure 1), isolated from gorgonian coral Junceella juncea collected off the South China Sea [11], except that the signals corresponding to the acetoxy group at C-4 in 5 were replaced by a proton in 2. The locations of the functional groups were further confirmed by HMBC and COSY correlations (Figure 2); hence, fragilide Q was assigned the structure of 2, with the same stereochemistry as that of 1, and the configurations of the stereogenic carbons were elucidated as 1S, 2S, 7S, 8R, 9S, 10S, 11S, 14S, and 17R (Figure 3) (see Figures S11–S20). Due to the chemical shifts for C-11 and C-20 which appeared at δ_C 62.4 and 59.0 ppm, respectively, the epoxy group was β-oriented and the cyclohexane ring should exist in a twisted boat conformation [12].

Two known briaranes were isolated and identified as robustolide F (3) [9,10] and juncin Z (4) [11] by way of comparison with the spectroscopic and physical data reported in the literature.

In an in vitro anti-inflammatory activity assay, it was found that briarane 4 (juncin Z) showed a 25.56% inhibitory effect on the generation of superoxide anions by human neutrophils at a concentration of 10 μM, and briaranes 1–3 were inactive.

3. Materials and Methods

3.1. General Experimental Procedures

The optical rotations were recored using a Jasco P-1010 digital polarimeter (Japan Spectroscopic, Tokyo, Japan). IR spectra were measured on a Thermo Scientific Nicolet iS5 FT-IR spectrophotometer (Waltham, MA, USA). NMR spectra were taken on a Jeol Resonance ECZ 400S (Tokyo, Japan) or on a Varian Inova (Palo, Alto, CA, USA) 500 NMR spectrometer using the residual CHCl₃ signal (δ_H 7.26 ppm) and CDCl₃ (δ_C 77.1 ppm) as the internal standard for ¹H and ¹³C-NMR, respectively; coupling constants (J) are presented in Hz. Multiplicities of ¹³C-NMR data were determined by Distortionless Enhancement by Polarization Transfer (DEPT) experiments. ESIMS and HRESIMS mass spectra were measured on a Bruker mass spectrometer with 7 tesla magnets (model: SolariX FTMS system; Bruker, Bremen, Germany). HPLC separations were carried out on a Hitachi L-2130 pump (Tokyo, Japan) equipped with a Hitachi L-2455 photodiode array detector. The column used for HPLC was reversed-phase silica (250 mm × 21.2 mm, 5 μM, Luna RP-18e; Phenomenex Inc., Torrance, CA, USA). Column chromatography was carried out with Kieselgel 60 (230–400 mesh, Merck, Darmstadt, Germany). TLC was performed on precoated Kieselgel 60 F₂₅₄ (0.25 mm thick, Merck), then sprayed with 10% H₂SO₄ solution, followed by heating to visualize the spots.

3.2. Animal Material

The sea whip gorgonian coral Junceella fragilis was collected by hand in April 2017 using self-contained underwater breathing apparatus (SCUBA) gear at depths of 10–15 m off the coast of South Bay, Kenting, Taiwan. The samples were then stored in a −20 °C freezer until extraction. A voucher specimen was deposited in the National Museum of Marine Biology and Aquarium, Taiwan (NMMBA-TW-GC-2017-022). Identification of the species of this organism was performed by comparison as described in previous publications [3,4,5].

3.3. Extraction and Isolation

The freeze-dried and sliced bodies (wet/dry weight = 795/313 g) of the coral specimen were prepared and extracted with a 1:1 mixture of MeOH and CH₂Cl₂ to give 19.0 g of crude extract which was partitioned between EtOAc and H₂O. The EtOAc extract (8.0 g) was applied on silica gel column chromatography (C.C.) and eluted with gradients of n-hexane/acetone (50:1 to 1:2, stepwise) to furnish eight fractions (fractions A−H). Fraction G was chromatographed on silica gel C.C. and eluted with gradients of n-hexane/EtOAc (4:1 to 1:1, stepwise) to afford 16 subfractions (fractions G1−G16). Afterward, fraction G9 was separated by RP-HPLC using a mixture of MeOH and H₂O (with volume/volume = 60:40; at a flow rate of 4.0 mL/min) to afford fragilide P (1, 2.7 mg), fragilide Q (2, 1.8 mg), robustolide F (3, 1.4 mg), and juncin Z (4, 1.2 mg).

Fragilide P (1): amorphous powder; [α${]}_{\mathrm{D}}^{27}$ −14 (c 0.9, CHCl₃); IR (ATR) ν_max 3466, 1783, 1735 cm⁻¹; ¹H and ¹³C-NMR data (see Table 1); ESIMS: m/z 635 [M + Na]⁺; HRESIMS: m/z 635.18683 (calcd. for C₂₉H₃₇³⁵ClO₁₂ + Na, 635.18658).

Fragilide Q (2): amorphous powder; [α${]}_{\mathrm{D}}^{28}$ −59 (c 0.6, CHCl₃); IR (ATR) ν_max 3273, 1778, 1740 cm⁻¹; ¹H and ¹³C-NMR data (see Table 1); ESIMS: m/z 589 [M + Na]⁺; HRESIMS: m/z 589.22562 (calcd. for C₂₈H₃₈O₁₂ + Na, 589.22555).

Robustolide F (3): amorphous powder; [α${]}_{\mathrm{D}}^{23}$ −37 (c 0.07, CHCl₃) (ref. [9] [α${]}_{\mathrm{D}}^{26}$ −26.8 (c 1.038, CHCl₃)); ref. [10] [α${]}_{\mathrm{D}}^{25}$ −28 (c 0.24, CHCl₃)); IR (ATR) ν_max 3288, 1780, 1735 cm⁻¹; ¹H and ¹³C-NMR data were found to be in absolute agreement with previous studies [9]; ESIMS: m/z 565 [M + Na]⁺.

Juncin Z (4): amorphous powder; [α${]}_{\mathrm{D}}^{23}$ +28 (c 0.06, CHCl₃) (ref. [11] [α]D +31.57 (c 0.95, CHCl₃)); IR (ATR) ν_max 3433, 1782, 1738 cm⁻¹; ¹H and ¹³C-NMR data were found to be in absolute agreement with previous studies [11]; ESIMS: m/z 617 [M + Na]⁺.

3.4. Molecular Mechanics Calculations

The molecular models were generated by implementing the MM2 force field [13] in ChemBio 3D Ultra software (version 12.0) which was created by CambridgeSoft (PerkinElmer, Cambridge, MA, USA).

3.5. Superoxide Anion Generation by Human Neutrophils

Human neutrophils were obtained by means of dextran sedimentation and Ficoll centrifugation. Measurements of elastase release and superoxide anion generation were carried out according to previously described procedures [19]. Briefly, superoxide anion production was assayed by monitoring the superoxide-dismutase-inhibitable reduction of ferricytochrome c. Elastase release experiments were performed using MeO-Suc-Ala-Ala-Pro-Valp-nitroanilide as the elastase substrate.

4. Conclusions

The sea whip gorgonian coral Junceella fragilis, a zooxanthella-containing species [20], has been demonstrated to have a wide structural diversity of interesting marine-origin briarane-type diterpenoids [7], and the compounds of this type were suggested originally to be produced by the host corals and not by its zooxanthellae [21]. In our continued study of Junceella fragilis collected in the waters of Taiwan, two previously unreported briaranes, fragilides P (1) and Q (2), were isolated along with two previously described analogues, robustolide F (3) and juncin Z (4). The structures, including the absolute configurations of 1 and 2, were determined by using spectroscopic methods and comparing the spectroscopic and rotation values with those of a known related analogue, robustolide F (3) [9,10]. Juncin Z (4) was found to display an inhibitory effect on the generation of superoxide anions by human neutrophils.
