Article

New Anti-inflammatory Flavonol Glycosides from Lindera akoensis Hayata

by
Chung-Ping Yang
1,2,3,†,
Pei-Hsin Shie
1,2,3,†,
Guan-Jhong Huang
3,
Shih-Chang Chien
4,* and
Yueh-Hsiung Kuo
3,5,6,7,*
1
Key Laboratory of Preventive Veterinary Medicine and Biotechnology, Longyan University,Longyan 364012, China
2
Fujian Provincial Key Laboratory for the Prevention and Control of Animal Infectious Diseases andBiotechnology, Longyan University, Longyan 364012, China
3
Department of Chinese Pharmaceutical Sciences and Chinese Medicine Resources, China Medical University,Taichung 404, Taiwan
4
The Experimental Forest Management Office, National Chung-Hsing University, Taichung 402, Taiwan
5
Department of Biotechnology, Asia University, Taichung 413, Taiwan
6
Chinese Medicine Research Center, China Medical University, Taichung 404, Taiwan
7
Research Center for Chinese Herbal Medicine, China Medical University, Taichung 404, Taiwan
*
Authors to whom correspondence should be addressed.
Molecules 2019, 24(3), 563; https://doi.org/10.3390/molecules24030563
Submission received: 31 December 2018 / Revised: 31 January 2019 / Accepted: 1 February 2019 / Published: 4 February 2019
(This article belongs to the Special Issue The Potential Use of Herbal Medicinal Products in Chronic Disorders)

Abstract

:
Inflammation is related to many diseases. Lindera akoensis Hayata was often used in folk therapy in Taiwan for inflammation. In this study, three new flavonol acyl glycosides, namely kaempferol-3-O-β-D-4′′,6′′-di-(E)-p-coumaroylglucoside (1), 3′′-(E)-p-coumaroylafzelin (2) and 4′-O- methyl-2′′,4′′-di-(E)-p-coumaroylquercitrin (3), and three components, 3β-dodecyl-4β-hydroxy- 5β-methyldihydrofuran-2-one (4), 2β-acetoxyclovan-9α-ol (5), (1α,4β,6β)-trihydroxyeudesmane (6) that were isolated from the natural product for the first time were obtained along with 25 known compounds from L. akoensis. Their structures were determined by comprehensive spectroscopic analyses (1D and 2D NMR, EI-, ESI- and HRESI-MS). The ability of 1 to decrease the LPS-stimulated production of nitrite in RAW264.7 cell was evaluated, showing an IC50 value of 36.3 ± 3.2 μM. This result supports the value of L. akoensis as a traditional medicine resource.

1. Introduction

Lindera akoensis Hayata belonging to the Lauraceae family, moreover, it is an endemic species widely distributed in central and southern Taiwan. Traditionally it has been used by local residents to treat various inflammation symptom [1]. The genus Lindera has shown many bioactivities, including antitumor [2,3,4], anti-inflammatory [5,6] and antibacterial [7,8] properties in previous literature reports. Previous phytochemical research of the genus Lindera revealed an abundance of butalactones [8,9,10], sesquiterpenes [11] and flavonoids [9,12,13] in this genus. In our earlier study on the aerial parts of L. akoensis, was explored the isolation of butanolides, flavonols, and lignans [9]. In order to confirm the traditional folk usage of L. akoensis, this study continued our previous work on the isolation and purification of L. akoensis components. Six novel compounds (Figure 1) and 25 known compounds were isolated and identified. Next their anti-inflammatory activity was evaluated. Based on our experimental results, compound 1 has anti-inflammatory activity by decreasing nitric oxide (NO) production induced by lipopolysaccharide in mouse macrophage RAW264.7 cells in IC50 36.3 ± 3.2 μM, having potential as a lead compound to treat symptoms of inflammation.

2. Results and Discussion

Thirty one compounds were isolated and identified from aerial part of L. akoensis including kaempferol-3-O-β-D-4′′,6′′-di-(E)-p-coumaroylglucoside (1), 3′′-(E)-p-coumaroylafzelin (2) and 4’-O-methyl-2′′,4′′-di-(E)-p-coumaroylquercitrin (3), and three compounds that were isolated from the natural product for the first time, 3β-dodecyl-4β-hydroxy-5β-methyldihydrofuran-2-one (4), 2β-acetoxyclovan-9α-ol (5), and (1α,4β,6β)-trihydroxyeudesmane (6) (Figure 1) along with 25 known compounds, including two monoterpenoids, 17 sesquiterpenoids, and six steroids. Their structures were elucidated by ESI-MS, UV, IR, 1D and 2D NMR spectrometry and comparisons with data from the literature.
Kaempferol-3-O-β-D-4′′,6′′-di-(E)-p-coumaroylglucoside (1) was isolated as a pale yellow solid. The IR spectrum showed the presence of hydroxyl (3240 cm−1) and carbonyl groups (1651 cm−1). Four structural units were observed in the 2D-NMR spectrum: two (E)-p-coumaroyls, glucose and a kaempferol nucleus (Figure 2). Two A2X2 coupling systems (δH 7.74 (2H, d, J= 8.5 Hz, H-5′′′, -9′′′), 6.81 (2H, d, J= 8.5 Hz, H-6′′′, -8′′′) and 7.26 (2H, d, J= 8.5 Hz, H-5′′′′, -9′′′′), 6.80 (2H, d, J= 8.5 Hz, H-6′′′′, -8′′′′)] and two olefinic protons δH 6.41, 7.68 (each 1H, d, J= 15.9 Hz, H-2′′′, -3′′′) and δH 6.06, 7.39 (each 1H, d, J= 15.9 Hz, H-2′′′′, -3′′′′) in the 1H-NMR spectrum indicated the occurrence of two (E)-p-coumaroyl group. A down-shifted chemical shift δH 5.18 (1H, t, J= 9.4 Hz) appeared on C-4′′ that conjecturing esterified on H-4′′ position, the other (E)-p-coumaroyl group replaced on CH2OH of glucose corroborated by HMBC spectrum. The characteristic kaempferol signals observed in the 1H-NMR are consistent with the literature [14], the only difference being the fact that the H-3 proton was not detected and the 13C-NMR signal of C-3 (δC 135.4) was more down-shifted than the C-3 of apigenin (δC 103.2) furthermore, a significant HMBC relationship of H-1′′ to C-3 was detected, so through the above evidence, the glucose-kaempferol linkage was presumed to be in a C-3-O-C-1′′ configuration. The axial-axial coupling constant (H-1′′ and -2′′, J= 7.8 Hz) and DEPT-135 signal of secondary carbon (C-6′′, δC 64.4) were observed, supporting the existence of β-glucose. Accordingly, the structure of 1 was elucidated as kaempferol-3-O-β-D-4′′,6′′-di-(E)-p-coumaroylglucoside, and named linderakoside F as shown in Figure 1.
3′′-(E)-p-Coumaroylafzelin (2) was isolated as a pale yellow solid. The IR spectrum showed the presence of hydroxyl (3431 cm−1) and carbonyl groups (1655 cm−1). Three constituents of the structure were observed—(E)-p-coumaroyl, rhamnose and kaempferol—through 2D-NMR spectrum (Figure 2). A typical methyl 1H-NMR signal of rhamnose δH 0.93 (3H, d, J= 5.5 Hz), different from 4′-O-methyl-4′′-(E)-p-coumaroylafzelin and 4′′-(Z)-p-coumaroylafzelin in our previous research [9]. The steric hindrance effect between the esterification on C-3′′ and ketone of flavone, the 1H-NMR signal of the methyl group (H-6′′) was down-shifted at δH 0.97 (3H, d, J= 5.5 Hz), deshielded by the ketone and the aromatic flavone ring, that demonstrated the p-coumaroyl position was different from 4′-O-methyl-4′′-(E)-p-coumaroylafzelin and 4′′-(Z)-p-coumaroylafzelin. An A2X2 coupling system at δH 7.48 (2H, d, J= 8.7 Hz, H-5′′′, -9′′′) and δH 6.81 (2H, d, J= 8.7 Hz, H-6′′′, -8′′′), as well as an olefinic proton signals at δH 6.43 and 7.72 (each 1H, d, J= 15.7 Hz, H-2′′′, -3′′′) could be observed suggesting the presence of an (E)-p-coumaroyl moiety. The α-rhamnose moiety was confirmed by the small axial- equatorial coupling constant (H-1′′ and -2′′, brs). Comparing with our previous studies [12], furthermore the HMBC relationship of H-1′′ to C-3 existed, so the the rhamnose-kaempferol linkage was in a C-3-O-C-1′′ configuration that was confirmed by 13C-NMR. Based on the above deduction, 2 was designated to be a new compound, 3′′-(E)-p-coumaroylafzelin, as shown in Figure 1, and named linderakoside G.
4′-O-Methyl-2′′,4′′-di-(E)-p-coumaroylquercitrin (3) was a pale yellow solid. The IR spectrum showed the presence of hydroxyl (3421 cm−1) and carbonyl group (1649 cm−1). Four parts of the structure were observed, two (E)-p-coumaroyls, rhamnose and tamarixetin through the 2D-NMR spectrum (Figure 2.). A typical methyl 1H-NMR signal of rhamnose appeared at δH 0.85 (3H, d, J= 6.2 Hz). According to the literature [15], the methyl signal should be at δH 0.95 if the –OH on the rhamnose was not esterified, and the methyl signal was high-shifted in position 4′′ confirmining the esterfication. Two A2X2 coupling system (δH 7.50 (2H, d, J= 8.6 Hz, H-5′′′, -9′′′), 6.82 (2H, d, J= 8.6 Hz, H-6′′′, -8′′′) and 7.50 (2H, d, J= 8.6 Hz, H-5′′′′, -9′′′′), 6.85 (2H, d, J= 8.6, H-6′′′′, -8′′′′)] and two olefinic protons δH 6.27, 7.55 (each 1H, d, J= 16.0 Hz, H-2′′′, -3′′′) and δH 6.42, 7.68 (each 1H, d, J= 16.0 Hz, H-2′′′′, -3′′′′) in the 1H-NMR spectrum indicated the occurrence of two (E)-p-coumaroyl group. This structure was similar to linderakoside E identified in our previous work [12], with a relatively downfield chemical shift on H-2′′ δH 5.55 (1H, dd, J= 3.4, 1.7 Hz) and H-4′′ δH 4.97 (1H, t, J= 9.8 Hz), that indicated esterification on these positions. Similar to 2, the rhamnose-kaempferol linkage was in a C-3-O-C-1′′ configuration that was confirmed by 13C-NMR. A methoxy signal δH 3.87 (3H, s, OMe) was observed, with a significant NOESY correlation with H-5′ δH 7.15 (1H, d, J= 8.9 Hz) and obviously HMBC correlation with C-4′ δC 152.0, thence the position was determined. The α-rhamnose moiety was confirmed by small axial-equatorial coupling constant (H-1′′ and -2′′, J= 1.6 Hz). Based on the above deduction, 3 was designated to be the new compound 4′-O-methyl-2′′,4′′-di-(E)-p-coumaroylquercitrin, and named linderakoside H, as shown in Figure 1.
3β-Dodecyl-4β-hydroxy-5β-methyldihydrofuran-2-one (4) was isolated as a colorless solid ([α]2°D ± 0° (c = 0.8, CHCl3)). Three 1H-NMR signals (H-3, -4, -5 δH 2.55 (1H, m), 4.30 (dd, J = 4.6, 3.0 Hz), 4.44 (qd, J = 6.4, 3.0 Hz)) were similar to those of 3β-((E)-dodec-1-enyl)-4β-hydroxy-5β-methyl- dihydrofuran-2-one and 3α-((E)-dodec-1-enyl)-4β-hydroxy-5β-methyldihydrofuran-2-one in our previous work [9,10]. Compound 4 has a cis-relationship between H-4 and -5 according to the literature comparison [16]. Eleven CH2-group signals were observed, where δH 1.23 (22H, m), one of two methyl signals δH 1.41 (3H, d, J= 6.4 Hz) was down-shifted because the influences of the –OH and lactone moiety, another methyl δH 0.87 (3H, t, J= 7.2 Hz) was typical of a -CH2 chain-end (Table S1). This compound was not described in natural product before, although Lee et al obtained it by hydrogenating 3-epilitsenolide D2 in 2001 [16].
2β-Acetoxyclovan-9α-ol (5) was isolated as a colorless oil, with the molecular formula C17H28O3 from the HR-EI-MS (m/z 280.2027 [M]+, calcd 280.2024). The IR spectrum showed the presence of hydroxyl (3450 cm−1) and carbonyl groups (1738 cm−1). Three singlet methyl signals in the 1H-NMR (δH 0.89, 1.03, 0.93, each 3H, s, H-13, -14, -15) were characteristic of a clovane skeleton (Table S1.). A typical acetyl group carbonyl was observed at δC 171.0 and δH 2.02 (3H, s). The structure of compound 5 was similar to that of clovandiol (16) [17] that was isolated in this work, the only difference was δH 4.83 (1H, dd, J= 8.7, 5.9 Hz) of H-4 was down shifted more than the H-4 of clovandiol (δH 3.79, 1H, dd, J= 10.5, 5.5 Hz), thence the acetyl group is speculated to be linked at this position, and the significant HMBC relationship of H-2/C-1’ confirmed this. This work is the first to describe the structure 5 in a natural product. Heymann, et al. previously obtained it by acetylating clovandiol in 1994 [18]. (1α,4β,6β)-Trihydroxyeudesmane (6) was isolated as colorless needle-like crystals, with the molecular formula C15H28O3 from HR-EI-MS (m/z 256.2029 [M]+, calcd 256.2010). The absolute stereo configuration of 6 was solved by X-ray single crystal diffraction (Figure S1). The IR spectrum showed the presence of a hydroxyl (3238 cm−1) group. The 13C-NMR and DEPT spectrum showed compound 6 had a eudesmane skeleton (Table S2.). Two isopropyl methyls (δH 0.92, 1.09, each 3H, d, J= 6.6 Hz, H-13, -12), one down-shifted methyl (δH 1.34, 3H, s, H-15) affected by the –OH, one relatively high-shifted methyl (δH 0.94, 3H, s, H-14), and two relatively down-shifted signals affected by the –OH (δH 3.32, 1H, m, H-1, 4.33, 1H, dd, J= 11.2, 4.4 Hz, H-6) were observed in the 1H-NMR (Table S1). The relative stereo configuration was decided by the NOESY spectrum, H-6/H-14/H-15 were in an axial position as defined by their significant NOESY correlations with each other. The significant correlation of H-5/H-1, -12, and -13, and the small coupling constant (4.4 Hz) between H-6 and H-7 decided the relative stereo configuration of H-1, -5, and the isopropyl. According to the literature, compound 6 was never reported as a natural product, but it was prepared by hydrolysis of pumilaside A with hesperidinase by Kitajima et al. in 2000 [19].
The 25 known compounds, including two monoterpenes, (E)-6-hydroxy-2,6-dimethylocta-2,7- dienoic acid (7) [20] and trans-sobrerol (8) [21], seventeen sesquiterpenes: teucladiol (9) [22], globulol (10) [23], β-dictyopterol (11) [24], 4β,10α-aromadendranediol-10-methyl ether (12) [25], 4α,10β- alloaromadendranediol-10-methyl ether (13) [25], 4β,10α-aromadendranediol (14) [26], 4α,10β- alloaromadendranediol (15) [25], clovandiol (16) [17], caryophyllenol-II (17) [18], humulene diepoxide A (18) [18], isocaryolanediol (19) [18], β-caryophyllene-8,9-oxide (20) [18], kobusone (21) [18], 7,8-epoxy-1(12)-caryophyllene-9α-ol (22) [18], 8β-hydroxy-1(12)-caryophyllene (23) [27], 2β-methoxyclovan-9α-ol (24) [28] and 8,9-dihydroxy-1(12)caryophyllene (25) [29] and six steroids, β-sitosterol (26) [30], 5-stigmasten-3β,7β-diol (27) [31], 5-stigmasten-3β,7α-diol (28) [31], 5α,8α- epidioxy-24-methylcholesta-6,9,22-trien-3β-ol (29) [32], 5α,8α-epidioxy-24-methylcholesta- 6,22- dien-3β-ol (30) [33], and 3β-hydroxystigmast-5-en-7-one (31) [34] were identified by comparison of their physical and reported spectroscopic data.
Caffeic acid is an effective anti-inflammatory substance. According to the literature [35,36,37,38], it inhibits inflammatory responses in many ways, including nitric oxide (NO) produced by various induction pathways, therefore the anti-inflammatory evaluation in this work used caffeic acid as positive control. linderakoside F (1) showed in vitro anti-inflammatory activity since it decrease the LPS-stimulated production of nitrite in RAW264.7 cell, with the IC50 value 36.3 ± 3.2 μM a lot better than caffeic acid (162.8 ± 5.6 μM), in addition, they have no obvious cytotoxicity at the concentration of the experiment (Figure 3). Unfortunately, the weights of linderakoside G-H (2-3) was too small to evaluate their anti-inflammatory activity.

3. Experimental Section

3.1. General Methods

The following instruments were used for obtaining physical and spectroscopic data: optical rotations P-1020 digital polarimeter (JASCO, Kyoto, Japan); IR spectra, IR Prestige-21 Fourier transform infrared specctrometer (Shimadzu, Kyoto, Japan); UV spectrum, Shimadzu Pharmaspec-1700 UV-Visible spectrophotometer; HR-ESI-MS spectra, LCQ ion-trap mass spectrometer (Finnigan, Waltham, MA , USA); melting point, MP-J3 (Yanaco, Kyoto, Japan); and 1H- and 13C-NMR spectra, DRX- 400 at 400 and 100 MHz and 500 FT-NMR spectrometer at 500 and 125 MHz, respectively (Bruker, Bremen, Germany) with TMS as an internal standard. Silica gel column chromatography was performed on silica gel (70 - 230 mesh, Merck, Darmstadt, Germany). HPLC was performed on a Shimadzu LC-6A apparatus equipped with an IOTA-2 RI-detector. A Phenomenex Luna silica (Φ 250 × 10 mm column) was used for preparative purposes (flow rate: 2.00 mL/min). Aluminum pre-coated silica gel (Merck, Kieselgel 60 F254) were used for TLC monitoring with visualization by spraying with a 10% solution of H2SO4 in ethanol and heating to approximately 150°C on a hotplate.
The following instruments were used for obtaining physical and spectroscopic data: optical rotations P-1020 digital polarimeter (JASCO, Kyoto, Japan); IR spectra, IR Prestige-21 Fourier transform infrared specctrometer (Shimadzu, Kyoto, Japan); UV spectrum, Shimadzu Pharmaspec-1700 UV-Visible spectrophotometer; HR-ESI-MS spectra, LCQ ion-trap mass spectrometer (Finnigan, Waltham, MA , USA); melting point, MP-J3 (Yanaco, Kyoto, Japan); and 1H- and 13C-NMR spectra, DRX- 400 at 400 and 100 MHz and 500 FT-NMR spectrometer at 500 and 125 MHz, respectively (Bruker, Bremen, Germany) with TMS as an internal standard. Silica gel column chromatography was performed on silica gel (70 - 230 mesh, Merck, Darmstadt, Germany). HPLC was performed on a Shimadzu LC-6A apparatus equipped with an IOTA-2 RI-detector. A Phenomenex Luna silica (Φ 250 × 10 mm column) was used for preparative purposes (flow rate: 2.00 mL/min). Aluminum pre-coated silica gel (Merck, Kieselgel 60 F254) were used for TLC monitoring with visualization by spraying with a 10% solution of H2SO4 in ethanol and heating to approximately 150°C on a hotplate.

3.2. Plant Material

The aerial part of L. akoensis was collected in Taichung, Taiwan, in July, 2008. This material was identified by Prof. Yen-Hsueh Tseng, Department of Forestry, National Chung Hsing University, Taichung, Taiwan. A voucher specimen (CMU2008-06-LA) was deposited in the School of Pharmacy, China Medical University.

3.3. Extraction and Isolation

The dried aerial part of L. akoensis (dry weight 5.9 kg) was extracted with 95% ethanol for 7 days (20 L, three times). The dried crude extract (337.8 g) was suspended in H2O and partitioned successively with EtOAc and n-BuOH. The EtOAc layer was evaporated in vacuo to yield a residue (127.8 g) that was subjected to silica gel column chromatography (particle size 70–230 mesh) and eluted with a gradient of increasing polarity with solvent of n-hexane/EtOAc solvent (99:1/0:100) to give 21 fractions. Fraction 16 (7.15 g) was separated using semi-preparative HPLC with the conditions (CH2Cl2/EtOAc, v/v 6:4; n-hexane/acetone v/v 7:3; n-hexane/EtOAc v/v 1:1) alternately to afford pure 1 (143.7 mg), 2 (1.1 mg), 3 (2.0 mg), and 8 (85.5 mg). Fraction 15 (1.23 g) was separated using semi-preparative HPLC with the conditions (CH2Cl2/EtOAc, v/v 6 : 4; n-hexane/acetone v/v 7:3; n-hexane/EtOAc v/v 1:1) alternately to afford pure 4 (16.9 mg), 6 (36.2 mg), 7 (71.3 mg), 15 (12.8 mg), 16 (47.7 mg), 19 (8.5 mg), 27 (46.3 mg), and 28 (55.1 mg). Fraction 11 (5.08 g) was separated using semi-preparative HPLC with the conditions (CH2Cl2/EtOAc, v/v 7:3; n-hexane/acetone v/v 4:1; n-hexane/EtOAc v/v 3:2) alternately to afford pure 5 (12.7 mg), 9 (17.2 mg), 12 (14.3 mg), 13 (16.6 mg), 14 (10.9 mg), 22 (10.8 mg), 24 (18.8 mg), and 25 (7.6 mg). Fraction 8 (10.84 g) was separated using semi-preparative HPLC with the conditions (CH2Cl2/EtOAc, v/v 4:1; n-hexane/acetone v/v 9:1; n-hexane/EtOAc v/v 7:3) alternately to afford pure 10 (9.8 mg), 11 (9.1 mg), 17 (7.2 mg), 18 (6.4 mg), 21 (9.3 mg), 23 (8.3 mg), 26 (873.5 mg), 29 (15.5 mg), and 30 (17.3 mg). Fraction 4 (0.87 g) was separated using semi-preparative HPLC with the conditions (CHCl3/EtOAc, v/v 8:1; n-hexane/acetone v/v 10:1; n-hexane/EtOAc v/v 4:1) alternately to afford pure 31 (62.2 mg). Fraction 3 (10.03 g) was separated using semi-preparative HPLC with the conditions (CHCl3/EtOAc, v/v 9:1; n-hexane/acetone v/v 12:1; n-hexane/EtOAc v/v 5:1) alternately to afford pure 20 (10.2 mg).

3.4. Linderakoside F (1)

Pale yellow solid; mp: 213 °C; [α]20D-54.6° (c = 8.9, CH3OH); IR (film) νmax: 3240, 2936, 1651, 1605, 1512, and 1173 cm−1; UV νmax (MeOH) nm (log ε): 314 (4.79), 248 (4.30) and, 210 (4.70); 1H-NMR (500 MHz, methanol-d4): Table 1; 13C-NMR (125 MHz, methanol-d4): Table 2; and positive-ion HR-ESI-MS: m/z 763.1630 [M + Na]+ (calcd for C39H32O15Na: 763.1633).

3.5. Linderakoside G (2)

Pale yellow solid; mp: 162 °C; [α]20D-149.1° (c = 0.6, CH3OH); IR (film) νmax: 3431, 1651, 1618 and 1171 cm−1; UV νmax (MeOH) nm (log ε): 314 (4.53), 276 (4.40), 267 (4.46), 246 (4.22), and 210 (4.56); 1H-NMR (500 MHz, methanol-d4): Table 1; 13C-NMR (125 MHz, methanol-d4): Table 2; and positive-ion HR-ESI-MS: m/z 601.1317 [M + Na]+ (calcd for C30H26O12Na: 601.1316).

3.6. Linderakoside H (3)

Pale yellow solid; mp: 221 °C; [α]20D-166.2° (c = 0.3, CH3OH); IR (film) νmax: 3421, 2933, 1649, 1605, 1512, and 1169 cm−1; UV νmax (MeOH) nm (log ε): 315 (4.70), 274 (4.47), 267 (4.49), 246 (4.34), and 210 (4.70); 1H-NMR (500 MHz, methanol-d4): Table 1; 13C-NMR (125 MHz, methanol-d4): Table 2; and positive-ion HR-ESI-MS: m/z 777.1650 [M + Na]+ (calcd for C40H34O15Na: 777.1653).

3.7. Bioactivity Assays

The assays of evaluating nitric oxide (NO) production and cell viability on RAW264.7 cells were followed our studies before [9,10] and consulted literature [39]. RAW264.7 cells were seeded at a density of 5 × 104 cells/well in 96-well plates for 12 h. Cells were treated with linderakoside F (1) in the presence of LPS (100 ng/mL) for 24 hours. Supernatants were collected and NO levels were determined using the Greiss reagent. Each of 100 μL of supernatant was mixed with 100 μL of Griess reagent (0.1% N-(1-naphthyl)-ethylenediamine dihydrochloride, 1% sulfanilamide, and 5% phosphoric acid) then incubated for 5 min at room temperature. The absorbance of the mixture was measured at 540 nm using a microplate reader (SpectraMax® M2e, Molecular Devices, Sunnyvale, CA, USA). Culture media were used as blanks and the nitrite levels were determined by using a standard curve obtained from sodium nitrite (0–125 μM).

4. Conclusions

Despite being an endemic species of Lauraceae in Taiwan, there are not many reports yet on the phytochemistry and bioactivities of L. akoensis. Traditionally, L. akoensis is only used for ornamental purposes and some inflammation treatments. This study obtained three new flavonol acylglycosides, linderakosides F-H (compounds 13) and three components 46 isolated from a natural product that first time, along with 25 known compounds, including two monoterpenoids 78, 17 sesquiterpenoids 925, and six steroids 2631 which were isolated from this plant for the first time. Linderakoside F (1) displayed potential anti-inflammatory activity, with an IC50 value of 36.3 ± 3.2 μM. In this work, we discovered active components as potential lead compounds and additionally provided a scientific basis for the drug use of L. akoensis.

Supplementary Materials

The following are available online, Figure S1: X-ray crystallographic structure of compound 6, Table S1: 1H-NMR spectroscopic data of compounds 46 (in CDCl3, 400 MHz), Table S2: 13C-NMR spectroscopic data of compounds 56 (in CDCl3, 100 MHz).

Author Contributions

C.-P.Y. performed the isolation and structure elucidation of the constituents, and manuscript writing. P.-H.S. and G.-J.H. conducted the bioassay and analyzed the data. Y.-H.K. and S.-C.C. planned, designed, and organized all of the research of this study. All authors read and approved the final version of the manuscript.

Funding

This work was financially supported by “Chinese Medicine Research Center, China Medical University” from The Featured Areas Research Center Program within the framework of the Higher Education Sprout Project by the Ministry of Education (MOE) in Taiwan (CMRC-CHM-4) and Taiwan Ministry of Health and Welfare Clinical Trial Center (MOHW107-TDU-B-212-123004).

Acknowledgments

The measurement of X-ray diffraction and HRESI-MS were made using Bruker D8 VENTURE and JEOL JEM-2010 instruments at Department of Chemistry of National Chung Hsing University. We also thank the Longyan University and Tsuzuki Institute for Traditional Medicine for financial support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ou, J.C.; Hsieh, W.C.; Lin, I.H.; Chang, Y.S.; Chen, I.S. The Catalogue of Medicinal Plant Resources in Taiwan; Department of Health, Committee on Chinese Medicine and Pharmacy: Taipei, Taiwan, 2003. [Google Scholar]
  2. Oh, H.M.; Choi, S.K.; Lee, J.M.; Lee, S.K.; Kim, H.Y.; Han, D.C.; Kim, H.M.; Son, K.H.; Kwon, B.M. Cyclopentenediones, inhibitors of farnesyl protein transferase and anti-tumor compounds, isolated from the fruit of Lindera erythrocarpa Makino. Bioorg. Med. Chem. 2005, 13, 6182–6187. [Google Scholar] [CrossRef] [PubMed]
  3. Huang, R.L.; Chen, C.C.; Huang, Y.L.; Ou, J.C.; Hu, C.P.; Chen, C.F.; Chang, C. Anti-tumor effects of d-dicentrine from the root of Lindera megaphylla. Planta Med. 1998, 64, 212–215. [Google Scholar] [CrossRef] [PubMed]
  4. Wang, R.; Tang, S.; Zhai, H.; Duan, H. Studies on anti-tumor metastatic constituents from Lindera glauca. China J. Chin. Mater. Med. 2011, 8, 1032–1036. [Google Scholar]
  5. Wang, S.Y.; Lan, X.Y.; Xiao, J.H.; Yang, J.C.; Kao, Y.T.; Chang, S.T. Antiinflammatory activity of Lindera erythrocarpa fruits. Phytother. Res. 2008, 22, 213–216. [Google Scholar] [CrossRef] [PubMed]
  6. Senthil Kumar, K.J.; Wang, S.Y. Lucidone inhibits iNOS and COX-2 expression in LPS-induced RAW 264.7 murine macrophage cells via NF-kappaB and MAPKs signaling pathways. Planta Med. 2009, 75, 494–500. [Google Scholar] [CrossRef] [PubMed]
  7. Joshi, S.C.; Padalia, R.C.; Bisht, D.S.; Mathela, C.S. Furanosesquiterpenoids from Lindera pulcherrima (Nees.) Benth. ex Hook. F. Nat. Prod. Commun. 2007, 2, 937–939. [Google Scholar]
  8. Chang, S.Y.; Cheng, M.J.; Peng, C.F.; Chang, H.S.; Chen, I.S. Antimycobacterial butanolides from the root of Lindera akoensis. Chem. Biodivers. 2008, 5, 2690–2698. [Google Scholar] [CrossRef]
  9. Yang, C.P.; Huang, G.J.; Huang, H.C.; Chen, Y.C.; Chang, C.I.; Wang, S.Y.; Chang, H.S.; Tseng, Y.H.; Chien, S.C.; Kuo, Y.H. The Effect of the Aerial part of Lindera akoensis on lipopolysaccharides (LPS)-induced nitric oxide production in RAW264.7 Cells. Int. J. Mol. Sci. 2013, 14, 9168–9181. [Google Scholar] [CrossRef]
  10. Yang, C.P.; Huang, G.J.; Huang, H.C.; Chen, Y.C.; Chang, C.I.; Wang, S.Y.; Chang, H.S.; Tseng, Y.H.; Chien, S.C.; Kuo, Y.H. A new butanolide compound from the aerial part of Lindera akoensis with anti-inflammatory activity. Molecules 2012, 17, 6585–6592. [Google Scholar] [CrossRef]
  11. Yan, R.; Yang, Y.; Zeng, Y.; Zou, G. Cytotoxicity and antibacterial activity of Lindera strychnifolia essential oils and extracts. J. Ethnopharmacol. 2009, 121, 451–455. [Google Scholar] [CrossRef]
  12. Huang, H.C.; Yang, C.P.; Wang, S.Y.; Chang, C.I.; Sung, P.J.; Huang, G.J.; Chien, S.C.; Kuo, Y.H. Anti-inflammatory flavonol acylglycosides from the aerial part of Lindera akoensis Hayata. RSC Adv. 2017, 7, 50868–50874. [Google Scholar] [CrossRef]
  13. Kuo, Y.H.; Yang, C.P.; Chien, S.C.; Huang, G.J. Five new anti-inflammatory active flavonoids from the aerial part of Lindera akoensis. Planta Med. 2015, 81. [Google Scholar] [CrossRef]
  14. Ha, T.J.; Lee, J.H.; Lee, M.H.; Lee, B.W.; Kwon, H.S.; Park, C.H.; Shim, K.B.; Kim, H.T.; Baek, I.Y.; Jang, D.S. Isolation and identification of phenolic compounds from the seeds of Perilla frutescens L. and their inhibitory activities against alpha-glucosidase and aldose reductase. Food Chem. 2012, 135, 1397–1403. [Google Scholar] [CrossRef] [PubMed]
  15. Eldahshan, O.A. Isolation and structure elucidation of phenolic compounds of Carob leaves grown in Egypt. Curr. Res. J. Biol. Sci. 2011, 3, 52–55. [Google Scholar]
  16. Lee, S.-S.; Chang, S.-M.; Chen, C.-H. Chemical constituents from Alseodaphne andersonii. J. Nat. Prod. 2001, 64, 1548–1551. [Google Scholar] [CrossRef] [PubMed]
  17. Shi, J.G.; Shi, Y.P.; Jia, Z.J. Sesquiterpenoids from Euphorbia wangii. Phytochemistry 1997, 45, 343–347. [Google Scholar]
  18. Heymann, H.; Tezuka, Y.; Kikuchi, T.; Supriyatna, S. Constituents of Sindora sumatrana Miq. I. Isolation and NMR spectral analysis of sesquiterpenes from the dried pods. Chem. Pharm. Bull. 1994, 42, 138–146. [Google Scholar] [CrossRef]
  19. Kitajima, J.; Kimizuka, K.; Tanaka, Y. Three new sesquiterpenoid glucosides of Ficus pumila fruit. Chem. Pharm. Bull. 2000, 48, 77–80. [Google Scholar] [CrossRef]
  20. Kiuchi, F.; Gafur, M.A.; Obata, T.; Tachibana, A.; Tsuda, Y. Acacia concinna Saponins. II. Structures of monoterpenoid glycosides in the alkaline hydrolysate of the saponin fraction. Chem. Pharm. Bull. 1997, 45, 807–812. [Google Scholar] [CrossRef]
  21. Lajunen, M.K.; Maunula, T.; Koskinen, A.M.P. Co (II) Catalysed oxidation of α-pinene by molecular oxygen. Part 2. Tetrahedron 2000, 56, 8167–8171. [Google Scholar] [CrossRef]
  22. Dowling, M.S.; Vanderwal, C.D. Ring-Closing Metathesis of Allylsilanes/Electrophilic Desilylation To prepare exo-methylidenecycloalkanes. Short syntheses of teucladiol and poitediol. J. Am. Chem. Soc. 2009, 131, 15090–15091. [Google Scholar] [CrossRef] [PubMed]
  23. Wu, C.L.; Huang, Y.M.; Chen, J.R. (−)-Ledol from the liverwort Cephaloziella recurvifolia and the clarification of its identity. Phytochemistry 1996, 42, 677–679. [Google Scholar]
  24. Hu, L.; Chen, Z. Sesquiterpenoid alcohols from Chrysanthemum morifolium. Phytochemistry 1997, 44, 1287–1290. [Google Scholar]
  25. Anjaneyulu, A.S.; Sagar, K.S.; Venugopal, M.J. Terpenoid and steroid constituents of the Indian ocean soft coral Sinularia maxima. Tetrahedron 1995, 51, 10997–11010. [Google Scholar] [CrossRef]
  26. Iwabuchi, H.; Yoshikura, M.; Kamisako, W. Studies on the sequiterpenoids of Panax ginseng C. A. MEYER. III. Chem. Pharm. Bull. 1989, 37, 509–510. [Google Scholar] [CrossRef]
  27. Tkachev, A.V.; Gatilov, Y.V.; Korobeinicheva, I.K.; Dubovenko, Z.V.; Pentegova, V.A. The oxymercuration-demercuration of caryophyllenes. Chem. Nat. Compd. 1983, 19, 154–162. [Google Scholar] [CrossRef]
  28. Musharraf, S.G.; Najeeb, A.; Ali, R.A.; Ali, A.A.; Choudhary, M.I. Metabolites of the fungistatic agent 2β-methoxyclovan-9α-ol by Macrophomina phaseolina. J. Agric. Food Chem. 2011, 59, 3234–3238. [Google Scholar] [CrossRef]
  29. Huang, Y.-T.; Chang, H.-S.; Wang, G.-J.; Lin, C.-H.; Chen, I.-S. Secondary metabolites from the roots of Beilschmiedia tsangii and their anti-inflammatory activities. Int. J. Mol. Sci. 2012, 13, 16430–16443. [Google Scholar] [CrossRef]
  30. Chang, Y.C.; Chang, F.R.; Wu, Y.C. The constituents of Lindera glauca. J. Chin. Chem. Soc. 2000, 47, 373–380. [Google Scholar] [CrossRef]
  31. Lee, C.K.; Lu, C.K.; Kuo, Y.H.; Chen, J.Z.; Sun, G.Z. New prenylated flavones from the roots of Ficus beecheyana. J. Chin. Chem. Soc. 2004, 51, 437–441. [Google Scholar] [CrossRef]
  32. Gunatilaka, A.A.; Gopichand, Y.; Schmitz, F.J.; Djerassi, C. Minor and trace sterols in marine invertebrates. 26. Isolation and structure elucidation of nine new 5α, 8α-epidoxy sterols from four marine organisms. J. Org. Chem. 1981, 46, 3860–3866. [Google Scholar] [CrossRef]
  33. Wu, F.E.; Koike, K.; Nikaido, T.; Ishii, K.; Ohmoto, T.; Ikeda, K. Terpenoids and flavonoids from Arenaria kansuensis. Chem. Pharm. Bull. 1990, 38, 2281–2282. [Google Scholar] [CrossRef]
  34. Kuo, Y.H.; Yeh, M.H. Chemical constituents of heartwood of Bauhinia purpurea. J. Chin. Chem. Soc. 1997, 44, 379–383. [Google Scholar] [CrossRef]
  35. Lu, M.; Dai, Y.; Xu, M.; Zhang, C.; Ma, Y.; Gao, P.; Teng, M.; Jiao, K.; Huang, G.; Zhang, J.; et al. The attenuation of 14-3-3ζ is involved in the caffeic acid-blocked lipopolysaccharide-stimulated inflammatory response in RAW264.7 macrophages. Inflammation 2017, 40, 1753–1760. [Google Scholar] [CrossRef] [PubMed]
  36. Shahbazi, S.; Sahrawat, T.R.; Ray, M.; Dash, S.; Kar, D.; Singh, S. Drug Targets for Cardiovascular-Safe Anti-Inflammatory: In Silico Rational Drug Studies. PLoS ONE 2016, 11, e0156156. [Google Scholar] [CrossRef] [PubMed]
  37. Migliori, M.; Cantaluppi, V.; Mannari, C.; Bertelli, A.A.; Medica, D.; Quercia, A.D.; Navarro, V.; Scatena, A.; Giovannini, L.; Biancone, L.; et al. Caffeic Acid, a Phenol Found in White Wine, Modulates Endothelial Nitric Oxide Production and Protects from Oxidative Stress-Associated Endothelial Cell Injury. PLoS ONE 2015, 10, e0117530. [Google Scholar] [CrossRef] [PubMed]
  38. Jeon, Y.D.; Kee, J.Y.; Kim, D.S.; Han, Y.H.; Kim, S.H.; Kim, S.J.; Um, J.Y.; Hong, S.H. Effects of Ixeris dentata water extract and caffeic acid on allergic inflammation in vivo and in vitro. BMC Complement. Altern. Med. 2015, 15, 196. [Google Scholar] [CrossRef]
  39. Ku, K.T.; Huang, Y.L.; Huang, Y.J.; Chiou, W.F. Miyabenol A inhibits LPS-induced NO production via IKK/IkappaB inactivation in RAW 264.7 macrophages: Possible involvement of the p38 and PI3K pathways. J. Agric. Food Chem. 2008, 56, 8911–8918. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are available from the authors.

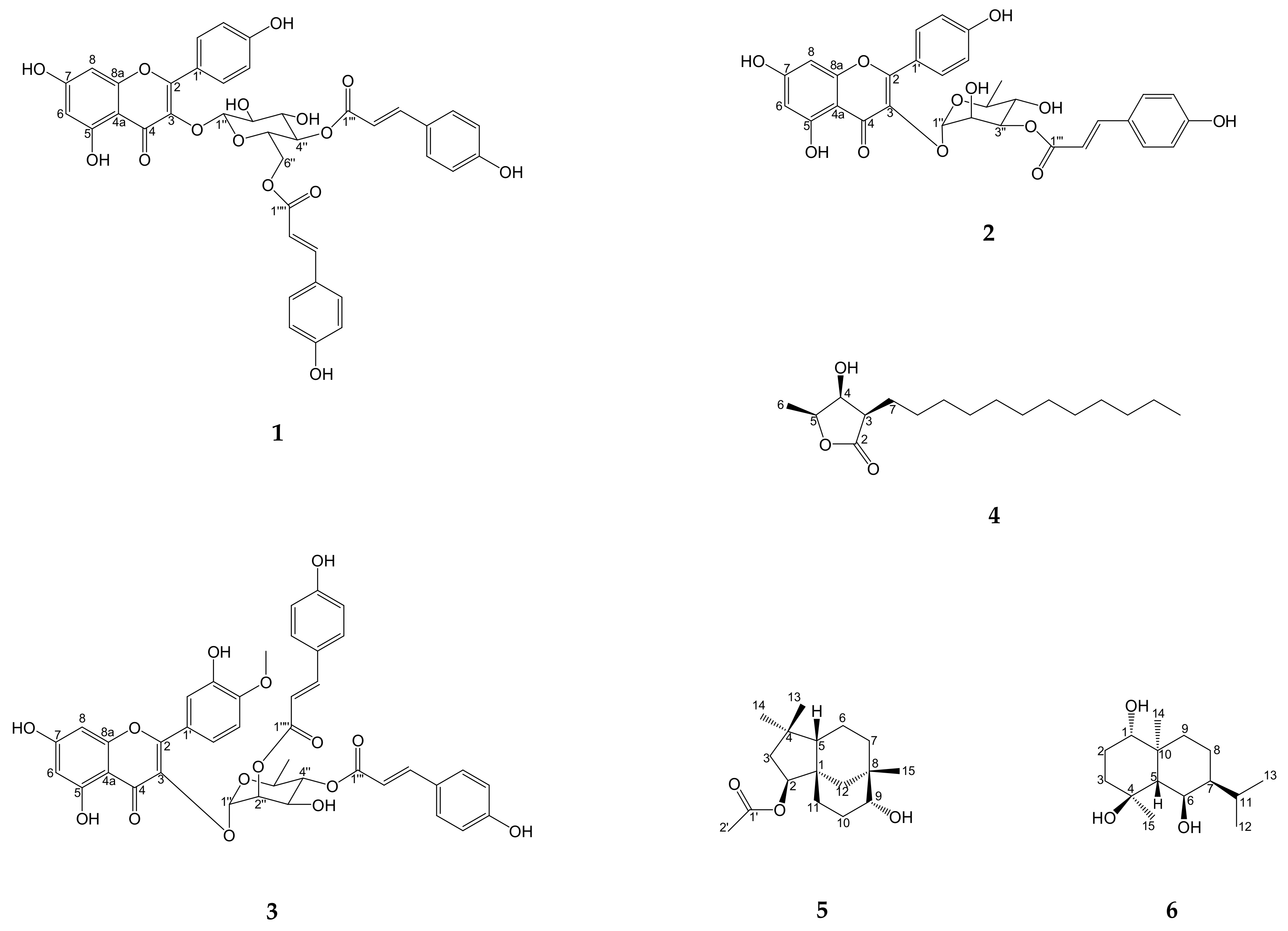

Figure 1. Compounds 16 isolated from the aerial part of L. akoensis.
Figure 1. Compounds 16 isolated from the aerial part of L. akoensis.
Molecules 24 00563 g001

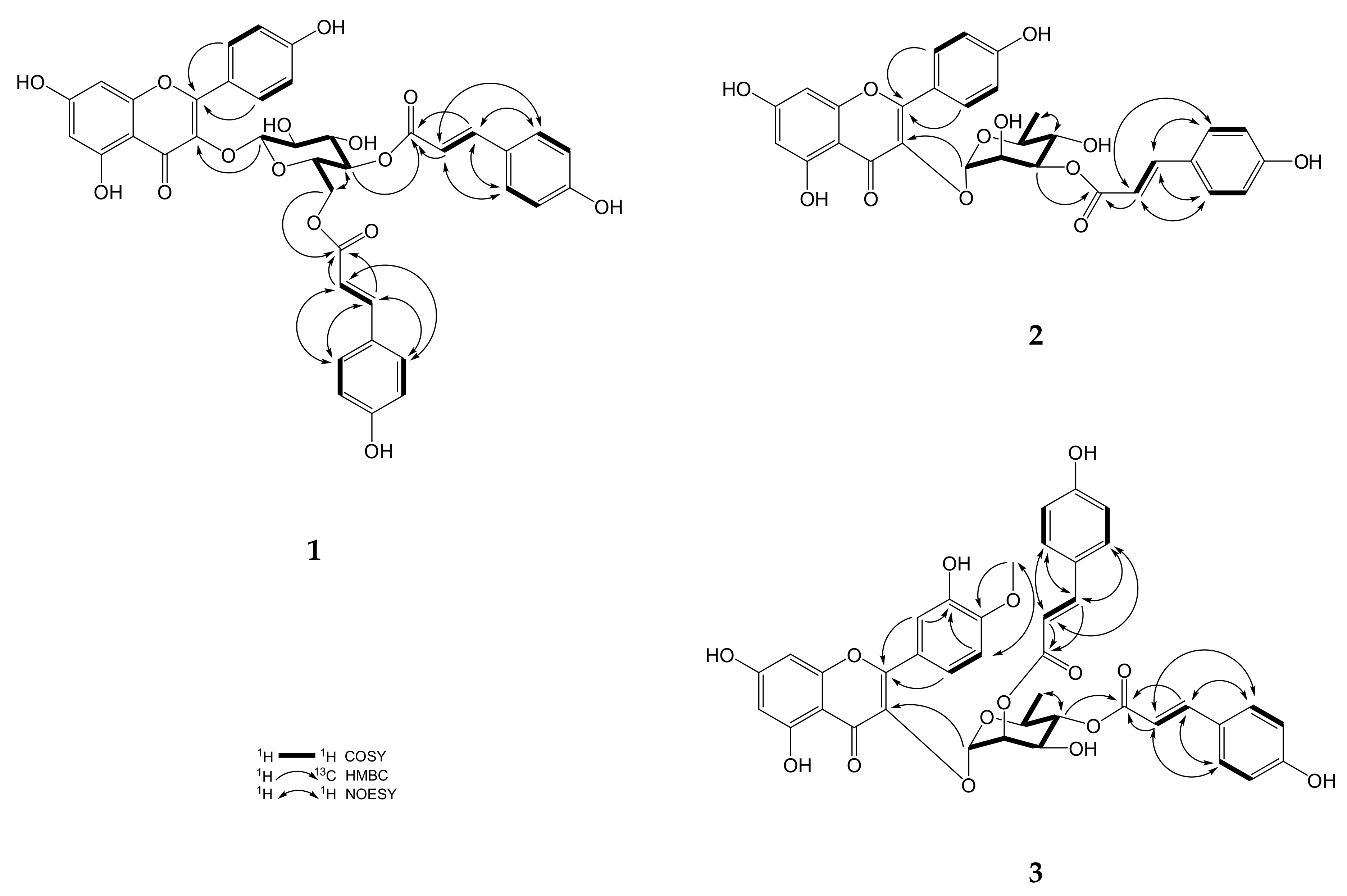

Figure 2. Selected key HMBC, COSY, and NOESY correlations of compounds 13.
Figure 2. Selected key HMBC, COSY, and NOESY correlations of compounds 13.
Molecules 24 00563 g002

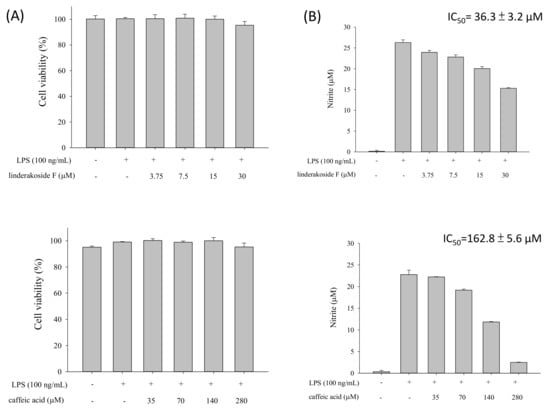

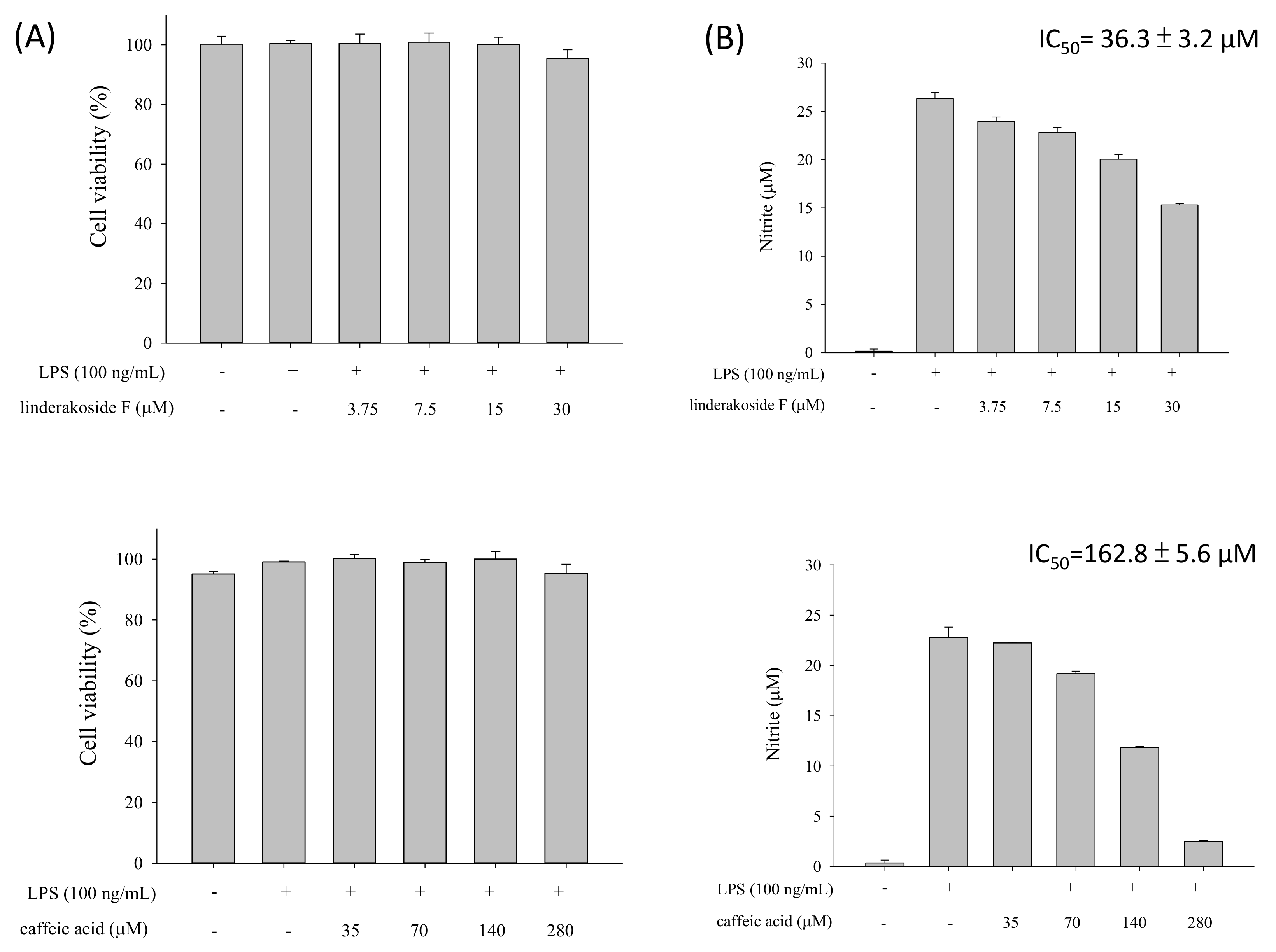

Figure 3. (A) Cytotoxicity of linderakoside F and caffeic acid in LPS-stimulated RAW264.7 cells. Cells were treated with linderakoside F at 3.75, 7.5, 15, 30 μM and caffeic acid at 35, 70, 140, 280 μM for 24 h, and cell viability was assayed by the MTT assay. Data were expressed as the means ± S.D. of three respectively experiments. (B) Effect of linderakoside F (1) and caffeic acid on NO production in LPS-stimulated RAW264.7 cells. Cells were incubated with LPS (100 ng/mL) in the presence of following doses at 3.75, 7.5, 15, 30 μM and 35, 70, 140, 280 μM of linderakoside F (1) and caffeic acid respectively for 24 h. Values were expressed as mean ± S.D. of three replicates. Mean with different letters represent significantly different (p < 0.05) by Scheffé’s method.
Figure 3. (A) Cytotoxicity of linderakoside F and caffeic acid in LPS-stimulated RAW264.7 cells. Cells were treated with linderakoside F at 3.75, 7.5, 15, 30 μM and caffeic acid at 35, 70, 140, 280 μM for 24 h, and cell viability was assayed by the MTT assay. Data were expressed as the means ± S.D. of three respectively experiments. (B) Effect of linderakoside F (1) and caffeic acid on NO production in LPS-stimulated RAW264.7 cells. Cells were incubated with LPS (100 ng/mL) in the presence of following doses at 3.75, 7.5, 15, 30 μM and 35, 70, 140, 280 μM of linderakoside F (1) and caffeic acid respectively for 24 h. Values were expressed as mean ± S.D. of three replicates. Mean with different letters represent significantly different (p < 0.05) by Scheffé’s method.
Molecules 24 00563 g003
Table 1. 1H-NMR spectroscopic data of compounds 13 (in methanol-d4, 500 MHz) a.
Table 1. 1H-NMR spectroscopic data of compounds 13 (in methanol-d4, 500 MHz) a.
PositionLinderakoside F (1)Linderakoside G (2)Linderakoside H (3)
66.12 (1H, br s)6.21 (1H, br s)6.22 (1H, d, J = 2.0)
86.26 (1H, br s)6.40 (1H, br s)6.39 (1H, d, J = 2.0)
2′7.97 (1H, d, J = 8.5)7.84 (1H, d, J = 8.8)7.40 (1H, s)
3′6.82 (1H, d, J = 8.5)6.97 (1H, d, J = 8.8)-
5′6.82 (1H, d, J = 8.5)6.97 (1H, d, J = 8.8)7.15 (1H, d, J = 8.9)
6′7.97 (1H, d, J = 8.5)7.84 (1H, d, J = 8.8)7.41 (1H, d, J = 8.9)
1′′5.36 (1H, d, J = 7.8)5.47 (1H, br s)5.71 (1H, d, J = 1.6)
2′′3.73 (1H, dd, J = 9.4, 7.8)4.44 (1H, br s)5.55 (1H, dd, J = 3.4, 1.6)
3′′3.59 (1H, t, J = 9.4)5.13 (1H, m)4.17 (1H, dd, J = 9.8, 1.6)
4′′5.18 (1H, t, J = 9.4)3.61 (1H, t, J = 9.3)4.97 (1H, t, J = 9.8)
5′′3.67 (1H, m)3.44 (1H, qd, J = 5.5, 9.3)3.31 (1H, qd, J = 6.2, 9.8)
6′′4.25 (1H, dd, J = 12.5, 6.5)
4.34 (1H, d, J = 12.5)
0.97 (3H, d, J = 5.5)0.85 (3H, d, J = 6.2)
2′′′6.41 (1H, d, J = 15.9)6.43 (1H, d, J = 15.7)6.30 (1H, d, J = 16.0)
3′′′7.68 (1H, d, J = 15.9)7.72 (1H, d, J = 15.7)7.60 (1H, d, J = 16.0)
5′′′7.44 (1H, d, J= 8.5)7.48 (1H, d, J = 8.7)7.50 (1H, d, J = 8.6)
6′′′6.81 (1H, d, J = 8.5)6.81 (1H, d, J = 8.7)6.82 (1H, d, J = 8.6)
8′′′6.81 (1H, d, J = 8.5)6.81 (1H, d, J = 8.7)6.82 (1H, d, J = 8.6)
9′′′7.44 (1H, d, J = 8.5)7.48 (1H, d, J = 8.7)7.50 (1H, d, J = 8.6)
2′′′′6.06 (1H, d, J = 15.9)-6.42 (1H, d, J = 16.0)
3′′′′7.39 (1H, d, J = 15.9)-7.70 (1H, d, J= 16.0)
5′′′′7.26 (1H, J = 8.5)-7.50 (1H, d, J = 8.6)
6′′′′6.80 (1H, J = 8.5)-6.85 (1H, d, J = 8.6)
8′′′′6.80 (1H, J = 8.5)-6.85 (1H, d, J = 8.6)
9′′′′7.26 (1H, J = 8.5)-7.50 (1H, d, J = 8.6)
OCH3--3.87 (3H, s)
a The chemical shifts are expressed in δ ppm. The coupling constants (J) are expressed in Hz.
Table 2. 13C-NMR spectroscopic data of compounds 13 (in methanol-d4, 125 MHz).
Table 2. 13C-NMR spectroscopic data of compounds 13 (in methanol-d4, 125 MHz).
PositionLinderakoside F (1)Linderakoside G (2)Linderakoside H (3)
2159.3159.6159.4
3135.4136.2134.1
4179.3176.5179.6
4a105.7103.2100.2
5158.4158.8158.8
6100.1100.1100.2
7165.9166.2166.4
895.195.095.1
8a162.9163.4163.4
1′122.7122.7125.0
2′132.4132.1131.5
3′117.0116.8148.1
4′161.2161.8152.0
5′117.0116.8114.9
6′132.4132.1131.5
1′′104.1103.2100.2
2′′74.270.173.1
3′′70.375.368.6
4′′78.970.774.9
5′′75.872.470.0
6′′64.417.918.0
1′′′169.2169.1168.7
2′′′115.5116.0114.8
3′′′146.9147.0147.6
4′′′127.4127.5127.3
5′′′131.3132.1131.5
6′′′116.9116.0117.0
7′′′161.3161.5161.6
8′′′116.9116.0117.0
9′′′131.3132.1131.5
1′′′′168.9-168.4
2′′′′114.8-114.9
3′′′′146.7-147.6
4′′′′127.2-127.3
5′′′′131.3-131.5
6′′′′116.2-117.0
7′′′′161.6-161.6
8′′′′116.2-117.0
9′′′′131.3-131.5
OCH3--56.7
