A Convenient Synthesis of (16S,20S)-3β-Hydroxy-5α-pregnane-20,16-carbolactam and Its N-alkyl Derivatives

by
Agnieszka Wojtkielewicz
*,
Damian Pawelski
,
Przemysław Bazydło
,
Aneta Baj
,
Stanisław Witkowski
and
Jacek W. Morzycki
Faculty of Chemistry, University of Białystok, K. Ciołkowskiego 1K, 15-245 Białystok, Poland
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(10), 2377; https://doi.org/10.3390/molecules25102377
Submission received: 3 May 2020 / Revised: 18 May 2020 / Accepted: 19 May 2020 / Published: 20 May 2020
(This article belongs to the Special Issue Steroids-II)
Browse Figures
Versions Notes

Abstract

:
A concise synthesis of (16S,20S)-3β-hydroxy-5α-pregnane-20,16-carbolactam from tigogenin via the corresponding lactone is described. The most efficient synthetic route consisted of the lactone ring-opening with aminoalane reagent followed by PDC or Dess-Martin oxidation. The oxo-amide obtained was subjected to cyclization with Et3SiH/TFA or Et3SiH/Bi(TfO)3. Alternately, the lactone was converted first to the oxo-acid, which was then subjected to the microwave-assisted reductive amination. N-Alkyl derivatives were also obtained in a similar way.

1. Introduction

In recent years, much attention has been paid to the preparation and biological activity evaluation of 23,24-bisnorcholano-22,16-lactones (bisnorcholanic lactones) [1]. One of them, (16S,20S)-3β-hydroxy-pregn-5-ene-20,16-carbolactone (vespertilin; Figure 1), is a natural product isolated from Solanum vespertilio [2]. Furthermore, other bisnorcholanic lactones have been isolated from different plants [3,4,5]. The lactones usually occur in plants as glycosides with sugar linked to the oxygen atom of aglycone at C3. Vespertilin shows a variety of biological activities including anticancer, antifungal, and bactericidal [6].
The availability of vespertilin and other bisnorcholanic lactones from natural sources is rather limited. However, they are readily available by degradation of steroidal sapogenins and alkaloids (spirosolanes, Figure 1). Alternately, bisnorcholanic lactones can be obtained from steroidal 17-ketones but the synthesis is long and expensive [7]. More conveniently, the lactones can be prepared by oxidation of steroidal spirostanes or spirosolanes either directly or via intermediate 23-oxo derivatives. The latter are readily available from sapogenins using the Barton’s procedure (NaNO2 in the presence of BF3·Et2O in glacial acetic acid) [8,9]. Further oxidation of 23-oxo-sapogenins to bisnorcholanic lactones can be easily carried out using different oxidizing agents, e.g., MCPBA/BF3·Et2O [10,11,12], H2O2/H+ [6], (PhSe)2/PhIO2 [13], or even may proceed with TMSOTf in the absence of an oxidant [14]. However, direct transformation of sapogenins or spirosolanes to bisnorcholanic lactones is advantageous over two-step procedures. Though spirosolanes (e.g., solasodine, tomatidine) have been recently reported [15,16] to directly yield lactones when treated with different oxidizing agents, they are more expensive than sapogenins. A practical and direct degradation method of tigogenin to the corresponding bisnorcholanic lactone has been patented by Chinese chemists [17,18]. The method consists of peroxyacid/I2 oxidation in acid medium. We have slightly improved the method by using more concentrated hydrogen peroxide/trifluoroacetic acid, and the new protocol is described in Supplementary Materials.
In contrast to the well-known bisnorcholanic lactones, the corresponding lactams, to the best of our knowledge, have not been reported in the literature yet. Many biologically active lactams have been isolated from natural sources and some of them are used, along with different synthetic lactam compounds, in contemporary medicine [19,20,21,22,23,24,25,26]. Herein, we report the results of our study on the first synthesis of (16S,20S)-3β-hydroxy-5α-pregnane-20,16-carbolactam and its N-alkyl derivatives (bisnorcholanic lactams).

2. Results and Discussion

The first three-step strategy for the synthesis of the target lactam from bisnorcholanic lactone involves lactone ammonolysis to corresponding hydroxy-amide, its oxidation to oxo-derivative, followed by reductive cyclization (Scheme 1).
Our study began from an improvement of Chinese method of the lactone synthesis from tigogenin [17,18]. The use of a 60% solution of hydrogen peroxide and a catalytic amount of trifluoroacetic acid increased the yield to 91% on the multigram scale (see Supplementary Materials). With a sufficient amount of protected lactone 1b in hand, we tried the ammonolysis reaction (Scheme 1). The classical lactone ammonolysis with gaseous NH3 or ammonia aqueous solution in MeOH/THF [27], as well as a microwave assisted reaction [28], failed in the case of the bisnorcholanic lactone 1b. Therefore, we employed aminoalane reagent prepared in situ from DIBAlH and ammonium chloride. In our previous studies, we discovered that it is a very efficient reagent for amide and nitrile synthesis from acids and their derivatives [29]. The reaction of lactone 1b with 20 equivalents of aluminum amide in THF at reflux provided the desired hydroxy-amide 2b in high yield (Scheme 1). The product appeared to be unstable, when left neat or in solution in a freezer for 24 h, it underwent lactonization spontaneously. For that reason, crude 2b, without purification, was subjected to oxidation. The oxidation of hydroxy-amide 2b with various oxidizing reagents (Dess-Martin periodinane, PCC/AcONa, PDC, Swern reagent) was studied. The best yield (62% after two steps) of the desired oxo-derivative 3b was obtained with PDC in dichloromethane (Scheme 1). The key step of the lactam synthesis was the cyclization of the obtained oxo-amide 3b to the desired γ-lactam. Few methods of amide/lactam preparation by condensation of ketone and amide have been reported in the literature. Most of them are based on a two-step protocol comprising of inter- or intramolecular reactions of ketone and amide under acidic conditions, followed by enamide hydrogenation in the presence of rhodium or ruthenium catalysts [30,31,32,33]. Among the reported procedures, there is also a reductive cyclization method leading directly to lactam. Frequently triethylsilane in presence of acid was used for the transformation of oxo-amide into lactam [34,35]. Another convenient reagent for this transformation is sodium triacetoxyborohydride in acetic acid [36]. After reviewing the literature, we decided to subject the oxo-amide 3b to simultaneous cyclization and ionic hydrogenation with EtSiH and TFA. The reaction of compound 3b with 20 equivalents of EtSiH and 10 equivalents of TFA in refluxing DCE resulted in the desired lactam in high yield. However, the partial deprotection of TBS ether was observed under the employed conditions. Therefore, the 3-TBS protected lactam 4b was isolated in 73% yield in addition to the corresponding desilylated lactam 4a (14%). Decreasing either the amount of acid used or the reaction temperature did not prevent the partial 3-TBS hydrolysis. However, when bismuth triflate or TBS triflate were employed instead of TFA for the reductive cyclization, only the deprotected product 4a was isolated quantitatively.
The configurations at C16, C17, and C20 stereogenic centers remained intact during the lactam synthesis as proved by NOE and ROESY correlation experiments (Figure 2). The differential NOE as well as ROESY spectra obtained for compound 4a showed a strong correlation between 17-H at 1.82 ppm (dd) with 16-H at 4.02 ppm (m) and 21-CH3 protons at 1.21 ppm (d), as well as a correlation between 18-methyl protons at 0.75 ppm (s) and 20-H at 2.34 (d), and no correlation between 18-CH3 and 17-H at 1.82 ppm (dd). This implied 16α, 17α, and 20β proton configurations. These configuration assignments were confirmed by correlations of 16-H at 4.02 ppm (m) with 21-methyl protons at 1.21 ppm (d) and 14α-H at 1.05 ppm (m) (Figure 2) observed in ROESY spectrum.
The described methodology for bisnorcholanic lactam synthesis was successfully applied to preparation of its N-alkyl derivatives (Scheme 1, lower row). In the case of N-substituted lactams, the first step included lactone 1b aminolysis with aminoalane reagent prepared from DIBAlH and an appropriate amine or its hydrochloride affording secondary hydroxy-amides. The reactions of N-alkylaminoalanes with lactone 1b proceeded smoothly at room temperature. Employing the reported procedure, N-methyl and N-benzyl derivatives 2c and 2d were prepared. The further syntheses of N-alkyl-lactams from the secondary amides 2c and 2d were carried out analogously to their N-unsubstituted congener. Although the secondary amides (2c, 2d) appeared to be less prone to lactonization than the analogous primary hydroxy-amide 2b, they underwent spontaneous intramolecular alcoholysis when allowed to stand for a longer period of time. Therefore, they were oxidized without purification with PDC to provide the desired oxo-derivatives 3c and 3d in high yields. The reductive cyclization with EtSiH/Bi(OTf)3 produced target N-alkylated lactams 4c and 4d quantitatively (61% and 86% total yields, respectively, for the three-step synthesis from lactone).
Taking into account the economic aspect of bisnorcholanic lactam synthesis, we also tested other synthetic strategies. The second approach involved the saponification of the tigogenin derived lactone, followed by oxidation of the obtained hydroxy-acid to oxo-acid and reductive amination. It was expected that the γ-amino acid should spontaneously cyclize to the corresponding γ-lactam under neutral conditions. A base induced ring-opening of lactone 1b resulted in the formation of the corresponding hydroxy-acid, which rapidly cyclized in solution at room temperature back to the lactone. To avoid lactonization, the crude hydroxy-acid was immediately oxidized to oxo-acid 5b (Scheme 2). From several tested oxidizing agents (PDC/DCM, Dess Martin, CrO3) the best result was obtained using CrO3 in pyridine (70% after two steps). Although the literature describes a cyclic form of oxo-acid (16α-hydroxy-5α-pregnane-20,16-carbolactone) [37], we cannot confirm the reported equilibrium of oxo-acid 5b with its cyclic form. In addition to the expected product 5b, lactone 1b was recovered in small amounts (15–20%). In order to avoid partial lactonization, basic conditions were employed for oxidation of the hydroxy-carboxylate initially formed during hydrolysis. In the first attempt, a one-pot protocol was employed for hydrolysis and oxidation. The obtained hydrolysis product, γ-hydroxy-carboxylate, was treated in situ with an aqueous solution of sodium hypochlorite (NaOCl). After a two-day reaction at room temperature, only a minor conversion of γ-hydroxy-carboxylate to the oxo derivative was observed. After changing of the oxidizing agent to RuO2/KIO4 in water-MeCN-DCM biphasic system, [38] the desired oxo-acid 5b was obtained in 85% yield. This intermediate was transformed directly into lactam by reductive amination followed by spontaneous cyclization. A large number of reducing hydride reagents have been studied for direct reductive amination, including NaBH3CN [39], NaBH(OAc)3 [40], pyridine–BH3 [41], and NaBH4/titanium(IV) isopropoxide [42]. In our study, the classical Leuckart reaction [NH4OCHO] as well as the reductive amination with ammonium acetate [NH4OAc (10–15 equiv.), NaBH3CN (1–5 equiv.) in MeOH or MeOH/THF] [43] proved unsuccessful even at elevated temperature. The addition of acid resulted in a complex mixture of products with lactone 1b in the largest amount [44]. Finally, the application of microwaves (MW) [45] for reductive amination/cyclization generated the expected lactam 4b in 61% yield from oxo-acid 5b (52% total yield from lactone 1b). The use of a decreased amount of NaBH3CN (1.2–3 equiv.) prevented the formation of lactone 1b as a by-product. The elaborated alternative method, like the previously described one, proved also be a convenient way for preparation N-alkylated derivatives of lactam 4b. We examined the reductive amination of oxo-acid 5b under MW irradiation in the presence of amines such as BnNH2 and pMeOBnNH2. In this case, the best results were obtained in a one-pot two-step synthesis. The reducing agent was added to the reaction mixture when the imine formation was completed. An increase of NaBH3CN excess from 1 to 3 equiv. provided higher product yield. The microwave assisted reductive amination/cyclization generated the N-substituted lactams from oxo-acid 5b in a short reaction time (30–40 min at 140 °C) and satisfactory yields (70–73%). Target lactams 4e and 4f were obtained from lactone 1b in 63% and 60% total yield, respectively.

3. Materials and Methods

3.1. General

NMR spectra were recorded with Bruker Avance II 400 spectrometer operating at 400 MHz, using CDCl3 solutions with TMS as the internal standard (only selected signals in the 1H NMR spectra are reported). Coupling constants (J) are given in Hz. The FTIR spectra were obtained using Nicolet™ 6700 spectrometer (Thermo Scientific, Waltham, MA, USA). The spectra were recorded in the range between 4000 and 500 cm−1 with a resolution of 4 cm−1 and 32 scans using Attenuated Total Reflectance (ATR) techniques. ESI and ESI-HRMS spectra were obtained on the Agilent 6530 Accurate-Mass Q-TOF ESI and LC/MS system. Melting points were determined using MP70 Melting Point System (Mettler Toledo, Greifensee, Switzerland). Microwave reactions were performed in a Discover SP microwave synthesizer (CEM Corp., Matthews, NC, USA) in a closed vessel with maximum power input of 300 W. Thin-layer chromatography (TLC) was performed on aluminum plates coated with silica gel 60 F254 (Merck, Darmstadt, Germany), by spraying with ceric ammonium molybdate (CAM) solution, followed by heating. The reaction products were isolated by column chromatography, performed using 70–230 mesh silica gel (J.T. Baker, Center Valley, PA, USA). Tigogenin was obtained by hydrogenation of commercial diosgenin (Sigma-Aldrich) in presence of Pd/C catalyst [46].

3.2. Chemical Synthesis

3.2.1. Synthesis of Bisnorcholanic Lactam Derivatives via Oxo-Amide Intermediates

Procedure for Lactam 4a and 4b Synthesis

Preparation of the Aminoalane Reagent from DIBALH and NH4Cl.
A solution of DIBAlH in toluene (1 M, 2.17 mL, 2.17 mmol, 20 equiv. relative to lactone 1b) was added to a cooled (0–5 °C) suspension of NH4Cl (0.122 g, 2.28 mmol, 21 equiv.) in anhydrous THF (10 mL) under argon. The reaction was stirred for 15 min in an ice bath and then 1.5 h at room temperature. After this time, the obtained reagent solution was used directly for amide synthesis.

Synthesis of Oxo-Amide 3b

The solution of aminoalane reagent (prepared from 20 equiv. of DIBAlH) was added dropwise to a solution of lactone 1b (0.05 g, 0.1087 mmol, 1 equiv.) in anhydrous THF (ca. 6 mL) at room temperature. Stirring was continued for 16 h at reflux. After this time, the reaction mixture was cooled, quenched with aqueous solution of KHSO4 and the product was extracted with ether. The extract was washed with water, dried over anhydrous sodium sulfate, and the solvent was evaporated. The crude product 2b (1H NMR (CDCl3, 400 MHz) δ 5.73 (bs, 1H), 5.31 (bs, 1H), 4.29 (m, 1H), 3.55 (m, 1H), 2.96 (m, 1H), 2.83 (m, 1H), 2.22 (m, 1H), 1.90 (m, 1H), 1.26 (d, J = 6.8, 3H), 0.91 (s, 3H), 0.89 (s, 9H), 0.82 (s, 3H), 0.06 (s, 6H)) was immediately oxidized. PDC (3 equiv., 0.336 mmol, 0.123 g) was added to the solution of crude hydroxyamide 2b in dry DCM. The reaction was stirred for 3 h at room temperature. The solvent was evaporated and the crude product was purified by silica gel column chromatography with MeOH/DCM (1:99) elution. Product 3b was obtained in 62% yield (after two steps).
(20S)-3β-t-butyldimetylsilyloxy-16-oxo-5α-pregnane-20-carboxyamide (3b): white solid m.p. 210–212 °C (DCM/MeOH). 1H NMR (CDCl3, 400 MHz) δ 5.81 (bs, 1H), 5.50 (bs, 1H), 3.56 (m, 1H), 2.48 (d, J = 9.9, 1H), 2.34 (m, 1H), 2.22 (m, 1H), 2.01 (m, 1H), 1.22 (d, J = 7.0, 3H), 0.88 (s, 9H), 0.81 (s, 3H), 0.76 (s, 3H), 0.04 (s, 6H). 13C NMR (CDCl3, 100 MHz) δ, 218.4 (C), 179.0 (C), 72.0 (CH), 65.3 (CH), 54.1 (CH), 50.8 (CH), 44.9 (CH), 42.4 (C), 38.84 (CH), 38.82 (CH2), 38.5 (CH2), 37.7 (CH2), 36.8 (CH2), 35.6 (C), 34.4 (CH), 32.1 (CH2), 31.8 (CH2), 28.5 (CH2), 25.9 (3CH3), 20.7 (CH2), 18.3 (C), 17.1 (CH3), 13.1 (CH3), 12.3 (CH3), −4.6 (2CH3). IR (ATR): νmax (cm−1): 3400, 3194, 1733, 1700, 1635, 1459, 1250, 1097, 1085. ESI-MS 498 [M + Na]+, 974 [2M + Na]+. HRMS calcd. for C28H49NO3SiNa 498.3374 (M + Na)+, found 498.3364.

Synthesis of Lactam 4b with EtSiH/TFA

TFA (0.048 mL, 0.63 mmol, 10 equiv.) and Et3SiH (0.2 mL, 1.26 mmol, 20 equiv.) were added to the solution of oxo-amide 3b (30 mg, 0.063 mmol) in dry DCE (4 mL). The reaction mixture was stirred for 16 h at reflux. Then it was poured into water and product was extracted by DCM. The extract was dried over anhydrous sodium sulfate, and the solvent was evaporated. Silica gel column chromatography afforded two products: 3-TBS lactam 4b (73%) eluted with 0.7% MeOH/DCM and 3-hydroxy-lactam 4a (14%) eluted with 3% MeOH/DCM.
(16S,20S)-3β-t-butyldimetylsilyloxy-5α-pregnane-20,16-carbolactam (4b): white crystals, m.p. 275–277 °C (DCM/MeOH). 1H NMR (CDCl3, 400 MHz) δ 5.72 (bs, 1H), 4.05 (m, 1H), 3.55 (m, 1H), 2.37 (m, 1H), 2.09 (m, 1H), 1.24 (d, J = 7.4, 3H), 0.89 (s, 9H), 0.81 (s, 3H), 0.78 (s, 3H), 0.05 (s, 6H). 13C NMR (CDCl3, 100 MHz) δ, 181.7 (C), 72.0 (CH), 58.9 (CH), 55.4 (CH), 55.3 (CH), 54.6 (CH), 45.0 (CH), 42.0 (C), 38.8 (CH2), 38.6 (CH2), 37.2 (CH2), 36.7 (CH), 35.6 (C), 35.0 (CH), 33.9 (CH2), 32.3 (CH2), 31.9 (CH2), 28.6 (CH2), 25.9 (3CH3), 20.6 (CH2), 18.7 (C), 18.2 (CH3), 14.3 (CH3), 12.4 (CH3), -4.6 (2CH3). IR (ATR): νmax (cm−1): 3173, 3082, 1701, 1655, 1454, 1249, 1102. ESI−MS 460 [M + H]+, 941 [2M + Na]+. HRMS calcd. for C28H50NO2Si 460.3605 (M + H)+, found 460.3598.

Synthesis of Lactam 4a with EtSiH/Bi(OTf)3

Bi(OTf)3 (14 mg, 0.5 equiv.) and Et3SiH (0.012 mL, 2 equiv.) were added to the solution of oxo-amide 3b (20 mg, 0.04 mmol) in dry DCE (2 mL)/MeCN (2 mL). The reaction mixture was stirred for 16 h at reflux. After cooling the reaction mixture was poured into water and product was extracted with chloroform. The extract was dried over anhydrous sodium sulfate, and the solvent was evaporated. Silica gel column chromatography yield quantitatively product 4a eluted with 3% MeOH/DCM.
(16S,20S)-3β-hydroxy-5α-pregnane-20,16-carbolactam (4a): white crystals, m.p. 210–212 °C (DCM/MeOH). 1H NMR (CDCl3, 400 MHz) δ 6.53 (bs, 1H), 4.02 (m, 1H), 3.56 (m, 1H), 2.34 (m, 1H), 2.23 (bs, 1H), 2.06 (m, 1H), 1.21 (d, J = 7.5, 3H), 0.80 (s, 3H), 0.75 (s, 3H). 13C NMR (CDCl3, 100 MHz) δ, 182.0 (C), 71.0 (CH), 58.7 (CH), 55.6 (CH), 55.1 (CH), 54.4 (CH), 44.7 (CH), 41.9 (C), 38.7 (CH2), 38.0 (CH2), 36.9 (CH2), 36.8 (CH), 35.5 (C), 34.9 (CH), 33.7 (CH2), 32.1 (CH2), 31.93 (CH2), 28.5 (CH2), 20.6 (CH2), 18.6 (CH3), 14.2 (CH3), 12.3 (CH3). IR (ATR): νmax (cm−1): 3267, 1685, 1450, 1044. ESI−MS 346 [M + H]+, 713 [2M + Na]+. HRMS calcd. for C22H36NO2 346.2741 (M + H)+, found 346.2742.

Procedure for N-Alkyl-Lactam 4c and 4d Synthesis

Preparation of aminoalane reagent from DIBALH and BnNH2 or MeNH2xHCl.
The desired aminoalane reagents were prepared from solution of DIBALH in toluene (1 M, 10 equiv. with reference to lactone 1b, 2.17 mmol, 2.17 mL) and MeNH2xHCl (10.3 equiv. 2.2 mmol, 0.15 g) or BnNH2 (10.3 equiv. 2.2 mmol, 0.24 mL), analogously to aminoalane preparation from DIBALH and NH4Cl.

Synthesis of Hydroxy-Amides 2c and 2d

The solution of aminoalane reagent (prepared from 10 equiv. of DIBAlH) was added dropwise to a solution of lactone 1b (0.1 g, 0.217 mmol, 1 equiv.) in anhydrous THF (ca 4 mL) at room temperature. Stirring was continued for 16 h at rt. After this time, the reaction mixture was cooled, quenched with aqueous solution of KHSO4 and the product was extracted with ether. The extract was washed with water, dried over anhydrous sodium sulfate, and the solvent was evaporated. The crude product, without purification, was used in the next step.
(20S)-N-methyl-3β-t-butyldimetylsilyloxy-16β-hydroxy-5α-pregnane-20-carboxyamide (2c): white solid, 1H NMR (CDCl3, 400 MHz) δ 5.72 (d, J = 4.5, 1H), 1H), 4.21 (m, 1H), 3.55 (m, 1H), 3.42 (bs, 1H), 2.83 (d, J = 4.8, 3H), 2.19 (m, 1H), 1.89 (m, 1H), 1.23 (d, J = 7.0, 3H), 0.90 (s, 3H), 0.89 (s, 9H), 0.81 (s, 3H), 0.05 (s, 6H). 13C NMR (CDCl3, 100 MHz) δ, 178.5 (C), 72.5 (CH), 72.1 (CH), 59.7 (CH), 54.4 (CH), 54.2 (CH), 45.0 (CH), 42.7 (C), 40.2 (CH2), 38.8 (CH), 38.6 (CH2), 37.1 (CH2), 35.8 (CH2), 35.5 (C), 35.1 (CH), 32.0 (CH2), 31.9 (CH2), 28.6 (CH2), 26.4 (CH3), 25.9 (3CH3), 20.9 (CH2), 18.3 (C), 16.6 (CH3), 13.2 (CH3), 12.4 (CH3), −4.6 (2CH3). ESI−MS 492 [M + H]+. HRMS calcd. for C29H54NO3Si 492.3873 (M + H)+, found 492.3888.
(20S)-N-benzyl-3β-t-butyldimetylsilyloxy-16β-hydroxy-5α-pregnane-20-carboxyamide (2d): white solid, 1H NMR (CDCl3, 400 MHz) δ 7.32 (m, 3H), 7.28 (m, 2H), 6.09 (t, J = 5.7, 1H), 4.45 (d, J = 5.7, 2H), 4.22 (m, 1H), 3.55 (m, 1H), 2.83 (m, 1H), 2.19 (m, 1H), 1.89 (m, 1H), 1.25 (d, J = 7.1, 3H), 0.89 (s, 12H), 0.81 (s, 3H), 0.06 (s, 6H). 13C NMR (CDCl3, 100 MHz) δ, 177.6 (C), 138.4 (C), 128.7 (2CH), 127.7 (2CH), 127.5 (CH), 72.4 (CH), 72.1 (CH), 59.4 (CH), 54.5 (CH), 54.1 (CH), 44.9 (CH), 43.5 (CH2), 42.7 (C), 40.1 (CH2), 38.9 (CH), 38.6 (CH2), 37.1 (CH2), 36.0 (CH2), 35.5 (C), 35.1 (CH), 32.0 (CH2), 31.9 (CH2), 28.6 (CH2), 25.9 (3CH3), 20.9 (CH2), 18.2 (C), 16.7 (CH3), 13.2 (CH3), 12.3 (CH3), −4.6 (2CH3). ESI−MS 568 [M + H]+, 1157 [2M + Na]+. HRMS calcd. for C35H58NO3Si 568.4186 (M + H)+, found 568.4197.

Synthesis of Oxo-Amides 3c and 3d

PDC (4 equiv.) was added to the solution of crude hydroxy-amide 2c or 2d in dry DCM. The reaction was stirred for 16 h at room temperature. The solvent was evaporated and the crude product was purified by silica gel column chromatography. Product 3c was obtained in 61% yield (after two steps) with hexane/AcOEt (3:7) elution. Product 3d was obtained in 86% yield (after two steps) with hexane/AcOEt (75:25) elution.
(20S)-N-methyl-3β-t-butyldimetylsilyloxy-16-oxo-5α-pregnane-20-carboxyamide (3c): white crystals, m.p. 203–204 °C (hexane/EtOAc). 1H NMR (CDCl3, 400 MHz) δ 5.63 (bd, J = 4.8, 1H), 3.55 (m, 1H), 2.84 (d, J = 4.8, 3H), 2.51 (d, J = 9.8, 1H), 2.23 (m, 2H), 2.02 (dt, J1 = 2.8, J2 = 9.3, 1H), 1.21 (d, J = 7.0, 3H), 0.89 (s, 9H), 0.83 (s, 3H), 0.76 (s, 3H), 0.06 (s, 6H). 13C NMR (CDCl3, 100 MHz) δ, 218.5 (C), 177.2 (C), 72.0 (CH), 65.2 (CH), 54.0 (CH), 50.7 (CH), 44.8 (CH), 42.4 (C), 39.6 (CH), 38.8 (CH2), 38.5 (CH2), 37.8 (CH2), 36.8 (CH2), 35.6 (C), 34.4 (CH), 32.1 (CH2), 31.8 (CH2), 28.4 (CH2), 26.4 (CH3), 25.9 (3CH3), 20.7 (CH2), 18.3 (C), 17.1 (CH3), 13.1 (CH3), 12.3 (CH3), −4.6 (2CH3). IR (ATR): νmax (cm−1): 3294, 1739, 1643, 1558, 1461, 1250, 1099. ESI−MS 490 [M + H]+. HRMS calcd. for C29H52NO3Si 490.3716 (M + H)+, found 490.3725.
(20S)-N-benzyl-3β-t-butyldimetylsilyloxy-16-oxo-5α-pregnane-20-carboxyamide (3d): white crystals, m.p. 199–200 °C (hexane/EtOAc). 1H NMR (CDCl3, 400 MHz) δ 7.36 (m, 4H), 7.28 (m, 1H), 5.87 (t, J = 5.5, 1H), 4.64 (dd, J1 = 5.5, J2 = 14.8, 1H), 4.44 (dd, J1 = 5.5, J2 = 14.8, 1H), 3.57 (m, 1H), 2.58 (d, J = 10.0, 1H), 2.25 (m, 2H), 2.03 (m, 1H), 1.24 (d, J = 7.0, 3H), 0.90 (s, 9H), 0.83 (s, 3H), 0.76 (s, 3H), 0.07 (s, 6H). 13C NMR (CDCl3, 100 MHz) δ, 218.3 (C), 176.3 (C), 138.6 (C), 128.6 (2CH), 127.8 (2CH), 127.3 (CH), 72.0 (CH), 65.2 (CH), 54.0 (CH), 54.5 (CH), 50.7 (CH), 44.9 (CH), 43.7 (CH2), 42.4 (C), 39.8 (CH), 38.9 (CH2), 38.5 (CH2), 37.7 (CH2), 36.8 (CH2), 35.6 (C), 34.4 (CH), 32.1 (CH2), 31.8 (CH2), 28.5 (CH2), 25.9 (3CH3), 20.7 (CH2), 18.2 (C), 17.2 (CH3), 13.1 (CH3), 12.3 (CH3), −4.6 (2CH3). IR (ATR): νmax (cm−1): 3280, 1737, 1640, 1557, 1451, 1250, 1100. ESI−MS 566 [M + H]+, 1153 [2M + Na]+. HRMS calcd. for C35H56NO3Si 566.4029 (M + H)+, found 566.4046.

Procedure for Lactam 4c and 4d Synthesis

Bi(OTf)3 (0.5 equiv.) and Et3SiH (2 equiv.) were added to the solution of oxo-amide 3c or 3d (10 mg) in mixture of dry DCE (2 mL) and MeCN (2 mL). The reaction mixture was stirred for 16 h at reflux. Then the reaction mixture was poured into water and product was extracted by DCM. The extract was dried over anhydrous sodium sulfate, and the solvent was evaporated. The crude product was purified by silica gel column chromatography. Product 4c was eluted with hexane/AcOEt (2:8). Product 4d was eluted with hexane/AcOEt (1:1).
(16S,20S)-N-methyl-3β-hydroxy-5α-pregnane-20,16-carbolactam (4c): obtained in quantitative yield as an amorphous solid. 1H NMR (CDCl3, 400 MHz) δ 3.92 (m, 1H), 3.55 (m, 1H), 2.76 (s, 3H), 2.42 (q, J = 7.4, 1H), 2.01 (ddd, J1 = 5.9, J2 = 7.8, J3 = 12.0, 1H), 1.20 (d, J = 7.4, 3H), 0.82 (s, 3H), 0.68 (s, 3H). 13C NMR (CDCl3, 100 MHz) δ, 178.1 (C), 71.2 (CH), 61.9 (CH), 55.9 (CH), 54.7 (CH), 54.4 (CH), 44.8 (CH), 41.9 (C), 38.8 (CH2), 38.1 (CH2), 37.04 (CH), 36.98 (CH2), 35.6 (C), 35.0 (CH), 32.2 (CH2), 31.5 (CH2), 31.1 (CH2), 28.5 (CH2), 27.6 (CH3), 20.6 (CH2), 18.8 (CH3), 14.2 (CH3), 12.3 (CH3). IR (ATR): νmax (cm−1): 3329, 1661, 1448, 1051. ESI−MS 360 [M + H]+, 741 [M + Na]+. HRMS calcd. for: C23H38NO2 360.2903 (M + H)+, found 360.2906.
(16S,20S)-N-benzyl-3β-hydroxy-5α-pregnane-20,16-carbolactam (4d): obtained in quantitative yield as an amorphous solid. 1H NMR (CDCl3, 400 MHz) δ 7.32 (m, 3H), 7.22 (m, 2H), 5.02 (d, J = 14.5, 1H), 3.81 (d, J = 14.5, 1H), 3.75 (m, 1H), 3.59 (m, 1H), 2.50 (q, J = 7.4, 1H), 1.22 (d, J = 7.4, 3H), 0.81 (s, 3H), 0.72 (s, 3H). 13C NMR (CDCl3, 100 MHz) δ, 178.2 (C), 136.6 (C), 128.6 (2CH), 128.2 (2CH), 127.5 (CH), 71.2 (CH), 58.8 (CH), 55.6 (CH), 54.8 (CH), 54.4 (CH), 44.8 (CH), 44.3 (CH2), 42.0 (C), 38.8 (CH2), 38.1 (CH2), 37.1 (CH), 37.0 (CH2), 35.6 (C), 35.0 (CH), 32.2 (CH2), 31.5 (CH2), 31.1 (CH2), 28.5 (CH2), 20.6 (CH2), 19.0 (CH3), 14.3 (CH3), 12.3 (CH3). IR (ATR): νmax (cm−1): 3359, 1659, 1441, 1046. ESI−MS 436 [M + H]+, 893 [2M + Na]+. HRMS calcd. C29H42NO2 436.3216 (M + H)+, found 436.3224.

3.2.2. Synthesis of Bisnorcholanic Lactam Derivatives via Oxo-Acid 5b

Procedure for Oxo-Acid 5b Synthesis

Method I. To a solution of lactone 1b (1.0 g, 2.17 mmol, 1.0 equiv.), in THF (75 mL) a solution of KOH (0.608 g, 10.85 mmol, 5.0 equiv.) in water (30 mL) was added. The resulting suspension was stirred vigorously at 50 °C until a conversion of 100% was reached. The progress of the reaction was monitored by TLC (hexane/AcOEt, 7:3). After cooling to rt 1M hydrochloric acid was added until pH 6-7 was reached and the product was extracted with Et2O (3 × 50 mL). The combined organic layers were washed with brine, dried over anhydrous sodium sulfate, and concentrated under reduced pressure. Crude hydroxy-acid in dry pyridine was added to an ice-cold solution of CrO3 (0.428 g, 4.28 mmol, 2 equiv.) in pyridine (20 mL) and stirred at rt overnight. Then the mixture was decanted from the tarry residue, which was washed with three portions of diethyl ether. The combined organic solution was washed with 5% hydrochloric acid, aqueous 5% sodium hydrogen carbonate and brine. The obtained solution was dried over anhydrous sodium sulfate and the solvent was evaporated under reduced pressure. Purification by silica gel column chromatography gave lactone 1b (20%) eluted with 70% hexane/AcOEt and oxo-acid 5b (70%) eluted with 50% hexane/AcOEt.
Method II. To a solution of lactone 1b (5.0 g, 0.011 mol, 1.0 equiv.), in THF/H2O (200 mL, 5/2) n-Bu4NBr (0.07 g, 2 mol%) and LiOH (1.3 g, 0.054 mol, 5.0 equiv.) were added. The resulting suspension was stirred overnight at room temperature. The progress of the reaction was monitored by TLC. After the hydrolysis was completed the solvent was evaporated under reduced pressure (50°). The residue was dissolved in the MeCN (120 mL) and DCM (120 mL) mixture, then RuO2 (0.03 g, 0.2 mmol, 2 mol%) and distilled water (160 mL) were added to the solution. The aqueous layer was acidified with 10% aqueous HCl solution, to pH 8, and then solid KIO4 (2.5 g, 0.011 mol, 1.0 equiv.) was added in five portions. The reaction mixture was stirred vigorously at room temperature for 2 days. The progress of the reaction was monitored by TLC in the MeOH/DCM (1/9) mixture. Then isopropyl alcohol (20 mL) was added to quench the reaction and stirring was continued until complete precipitation of RuO2 was observed. The reaction mixture was diluted with water (200 mL) and acidified with 10% HCl solution to pH 6. The product was extracted with DCM (3 × 30 mL). The combined organic layers were dried over anhydrous sodium sulfate, and the solvent was evaporated. The residue was filtered through a short pad of silica gel with hexane/AcOEt (1:1) elution. Crude product was purified by crystallization (hexane/AcOEt, 1:1) to give 5b (4.401 g, 85%) as a white crystalline material.
(20S)-3β-t-butyldimetylsilyloxy-16-oxo-5α-pregnane-20-carboxylic acid (5b): white crystals, m.p. 234–236 °C (hexane/AcOEt). 1H NMR (CDCl3, 400 MHz) δ 9.64 (bs, 1H), 3.57 (m, 1H), 2.52 (m, 1H), 2.39 (d, J = 10.5, 1H), 2.25 (dd, J1 = 6.9, J2 = 18.4, 1H), 2.02 (m, 1H), 1.26 (d, J = 7.0, 3H), 0.89 (s, 9H), 0.83 (s, 3H), 0.77 (s, 3H), 0.06 (s, 6H). 13C NMR (CDCl3, 100 MHz) δ, 217.2 (C), 181.9 (C), 72.0 (CH), 65.0 (CH), 54.1 (CH), 50.8 (CH), 44.9 (CH), 42.2 (C), 39.0 (CH2), 38.5 (CH2), 37.6 (CH), 37.5 (CH2), 36.8 (CH2), 35.6 (C), 34.4 (CH), 32.1 (CH2), 31.8 (CH2), 28.4 (CH2), 25.9 (3CH3), 20.7 (CH2), 18.2 (C), 16.4 (CH3), 13.1 (CH3), 12.3 (CH3), −4.6 (2CH3). IR (ATR): νmax (cm−1): 3300-2500 (broad), 1743, 1721, 1459, 1250, 1097, 1087. ESI-MS 475 [M − H]−. HRMS calcd. for C28H47O4Si 475.3249 (M − H)−, found 475.3248.

Reductive Amination/Cyclization of Oxo-Acid (5b) with Ammonium Acetate/Sodium Borohydride

Oxo-acid 5b (0.15 g, 0.32 mmol, 1 equiv.), NH4OAc (0.365 g, 4.74 mmol, 15 equiv.), NaBH3CN (0.060 g, 0.91 mmol, 3.0 equiv.) and MeOH (4 mL) were mixed in the 10 mL-tube sealed with a stopper. The resulting suspension was stirred for 40 min at 120 °C under microwave irradiation. Then the reaction mixture was poured to 5% citric acid aqueous solution (15 mL) and product was extracted with DCM (3 × 15 mL). The combined organic layers were washed with brine (1 × 15 mL), dried over anhydrous sodium sulfate and the solvent was evaporated. Purification by silica gel column chromatography gave product 4b (61% yield) eluted with 1% MeOH/DCM.

Procedure for N-Alkyl-Lactam 4e, 4f - Synthesis from Oxo-Acid 5b

Oxo-acid 5b (0.15 g, 0.32 mmol, 1 equiv.), amine (BnNH2, p-MeOBnNH2, 0.91 mmol, 3 equiv.) and THF (3 mL) were added to the 10 mL-tube sealed with a stopper. The resulting suspension was stirred for 20 min at 140 °C under microwave irradiation (a clear yellow solution was formed). Then, NaBH3CN (0.060 g, 0.91 mmol, 3.0 equiv.) and MeOH (3 mL) were added to the tube. The solution was heated under the same conditions for another 20 min. Then the reaction mixture was poured into 20 mL of a 5% citric acid aqueous solution and product was extracted with DCM (3 × 20 mL). The combined organic layers were washed with saturated NaCl solution (1 × 20 mL), dried over anhydrous sodium sulfate, and the solvent was evaporated. The crude product was purified by column chromatography on silica gel.
(16S,20S)-N-benzyl-3β-t-butyldimetylsilyloxy-5α-pregnane-20,16-carbolactam (4e): eluted with hexane/AcOEt/DCM (6:2:2) in 73% yield (0.126 g), as an amorphous solid. 1H NMR (CDCl3, 400 MHz) δ 7.31 (m, 3H), 7.21 (m, 2H), 5.01 (d, J = 14.5, 1H), 3.81 (d, J = 14.5, 1H), 3.74 (m, 1H), 3.53 (m, 1H), 2.50 (m, 1H), 1.87 (m, 1H), 1.77 (m, 1H), 1.21 (d, J = 7.5, 3H), 0.89 (s, 9H), 0.80 (s, 3H), 0.71 (s, 3H), 0.04 (s, 6H).13C NMR (CDCl3, 100 MHz) δ, 178.2 (C), 136.6 (C), 128.6 (CH), 128.2 (2CH), 127.4 (CH), 72.0 (CH), 58.8 (CH), 55.6 (CH), 54.8 (CH), 54.5 (CH), 44.9 (CH), 44.3 (CH2), 42.0 (C), 38.8 (CH2), 38.6 (CH2), 37.1 (CH, CH2), 35.6 (C), 35.0 (CH), 32.3 (CH2), 31.9 (CH2), 31.1 (CH2), 28.6 (CH2), 25.9 (3CH3), 20.6 (CH2), 18.9 (CH3), 18.2 (C), 14.3 (CH3), 12.3 (CH3), −4.6 (2CH3). IR (ATR): νmax (cm−1): 1670, 1249, 1090. ESI−MS 550 [M + H]+, 572 [M + Na]+. HRMS calcd. for C35H56NO2Si 550.4075 (M + H)+, found 550.4078.
(16S,20S)-N-(p-methoxybenzyl)-3β-t-butyldimetylsilyloxy-5α-pregnan-20,16-carbolactam (4f): eluted with hexane/AcOEt/DCM (6:2:2) in 75% yield as an amorphous solid. 1H NMR (CDCl3, 400 MHz) δ 7.14 (d, J = 8.6, 2H), 6.85 (d, J = 8.6, 2H), 4.95 (d, J = 14.4, 1H), 3.80 (s, 3H), 3.75 (d, J = 14.4, 1H), 3.72 (m, 1H), 3.54 (m, 1H), 2.48 (q, J = 7.4, 1H), 1.86 (m, 1H), 1.20 (d, J = 7.4, 3H), 0.89 (s, 9H), 0.80 (s, 3H), 0.70 (s, 3H), 0.05 (s, 6H). 13C NMR (CDCl3, 100 MHz) δ, 178.1 (C), 158.9 (C), 129.5 (2CH), 128.7 (C), 113.9 (2CH), 72.4 (CH), 58.7 (CH), 55.6 (CH), 55.2 (CH3), 54.8 (CH), 54.5 (CH), 44.9 (CH), 43.7 (CH2), 42.0 (C), 38.8 (CH2), 38.6 (CH2), 37.2 (CH, CH2), 35.6 (C), 35.0 (CH), 32.3 (CH2), 31.9 (CH2), 31.1 (CH2), 28.6 (CH2), 25.9 (3CH3), 20.6 (CH2), 18.9 (CH3), 18.2 (C), 14.3 (CH3), 12.4 (CH3), −4.6 (2CH3),. IR (ATR): νmax (cm−1): 1682, 1612, 1512, 1453, 1244, 1090. ESI-MS 580 [M + Na]+, 602 [M + Na]+. HRMS calcd. for C36H58NO3Si 580.4180 (M + H)+, found 580.4186.

4. Conclusions

To summarize, two alternative procedures for the synthesis of bisnorcholanic lactams, hitherto unknown aza-analogs of naturally occurring vespertilin lactone, were reported. Both elaborated methods provided short and efficient routes to the target lactam as well as to its N-alkyl derivatives. A convenient substrate employed in these syntheses was bisnorcholanic lactone, readily available by tigogenin degradation. A key-intermediate in the first strategy was 16-oxo-5α-pregnane-20-carboxyamide obtained in two consecutive reactions: ammonolysis of bisnorcholanic lactone with prepared in situ aminoalane and the 16β-hydroxyl group oxidation. The cyclization of the oxo-amide with a simultaneous deprotection of the 3β-hydroxy group proceeded smoothly under reductive conditions (Et3SiH/Bi(TfO)3) and provided the desired lactam in a quantitative yield. When the lactone ring-opening was carried out using the aluminum amide reagent prepared from primary amine or its hydrochloride (instead of ammonium chloride), different N-alkyl lactams were obtained by employing an analogous protocol. An alternative strategy for the lactam preparation comprised of lactone hydrolysis, oxidation of the obtained in situ hydroxy-acid to oxo-acid, and a microwave-assisted reductive amination. In addition, this procedure can be successfully adapted to the synthesis of N-alkylated derivatives of bisnorcholanic lactam by using various amines for the reductive amination step. Of the two elaborated synthetic strategies, the first approach is advantageous as is more efficient and completely stereoselective. This method benefited from the intramolecular reductive amination of the 16-carbonyl group that occurs from the β-side only, contrary to intermolecular reductive amination used in the second protocol, in which the lactam precursor, 16β-amino-5α-pregnanecarboxylic acid, was accompanied by minor amounts of its 16α-amino isomer, which is unable to lactamize due to steric reasons. Further study on the application of bisnorcholanic lactam in the synthesis of steroidal alkaloids and the evaluation of biological activity of different lactam congeners is currently in progress.

Supplementary Materials

Experimental procedure for synthesis of lactone 1b and 1H-NMR, 13C-NMR spectra of compounds 2b–5b, NOE and ROSEY spectra for compound 4a, respectively.

Author Contributions

Conceptualization, A.W.; investigation, A.W., P.B., D.P., A.B.; methodology, A.W., A.B., D.P., S.W.; formal analysis, A.W.; A.B.; writing—original draft preparation, A.W., A.B.; writing—review, editing and supervising, J.W.M.; funding acquisition, J.W.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the POLISH NATIONAL SCIENCE CENTRE, grant number 2015/17/B/ST5/02892.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Jastrzebska, I. Synthesis and application of steroidal 22,16β-carbolactones: A review. J. Steroid Biochem. Mol. Biol. 2020, 199, 105592. [Google Scholar] [CrossRef] [PubMed]
  2. Gonzales, A.G.; Garcia, F.C.; Freire, R.; López, E.S. Nuevas fuentes naturales de sapogeninas esteroidales. IX. Solanum Vespertilio Ait. An. Química 1971, 67, 433–439. [Google Scholar]
  3. Zheng, Q.-A.; Zhang, Y.-J.; Li, H.-Z.; Yang, C.-R. Steroidal saponins from fresh stem of Dracaena cochinchinensis. Steroids 2004, 69, 111–119. [Google Scholar] [CrossRef] [PubMed]
  4. Ahmad, V.U.; Khaliq-Uz-Zaman, S.M.; Shameel, S.; Perveen, S.; Ali, Z. Steroidal saponins from Asparagus dumosus. Phytochemistry 1999, 50, 481–484. [Google Scholar] [CrossRef]
  5. Yin, J.; Han, N.; Liu, Z.; Song, S.; Kadota, S. The in vitro antiosteoporotic activity of some glycosides in Dioscorea spongiosa. Biol. Pharm. Bull. 2010, 33, 316–320. [Google Scholar] [CrossRef]
  6. Jastrzebska, I.; Niemirowicz, K.; Brzozowska, W.I.; Bucki, R. The synthesis and antifungal activity of (20S)-3β-acetoxy-5α-pregnane-20,16β-carbolactone against fluconazole–resistant Candida cells. Steroids 2017, 118, 55–60. [Google Scholar] [CrossRef]
  7. Bruttomesso, A.C.; Doller, D.; Gros, E.G. Stereospecific synthesis of steroidal 20,16-γ-carbolactones. Synth. Commun. 1998, 28, 4043–4057. [Google Scholar] [CrossRef]
  8. Barton, D.H.R.; Sammes, P.G.; Werstiuk, E.; Taylor, M.V. Transformation of the steroidal sapogenin side chain. Part I. Reactions of 9(11)-dehydrohecogenin acetate with nitrous acid and with paraformaldehyde. J. Chem. Soc. C 1970, 1977–1981. [Google Scholar] [CrossRef]
  9. López, Y.; Ruíz-Pérez, K.M.; Yépez, R.; Santillan, R.; Flores-Álamo, M.; Iglesias-Arteaga, M.A. Mechanistic insights and new products of the reaction of steroid sapogenins with NaNO2 and BF3·Et2O in acetic acid. Steroids 2008, 73, 657–668. [Google Scholar] [CrossRef]
  10. Iglesias-Arteaga, M.A.; Velazqez-Herta, G.A.; Mendez-Stivalet, J.M.; Galano, A.; Alvarez-Idaboy, J.M. The Baeyer-Villiger reaction of 23-oxosapogenins. Arkivoc 2005, 109–126. [Google Scholar] [CrossRef] [Green Version]
  11. Jastrzębska, I.; Morzycki, J.W. Unusual Baeyer-Villiger oxidation of 23-oxosarsasapogenin acetate. Pol. J. Chem. 2005, 79, 1245–1248. [Google Scholar] [CrossRef]
  12. Macías-Alonso, M.; Morzycki, J.W.; Iglesias-Arteaga, M.A. Studies on the BF3·Et2O catalyzed Baeyer-Villiger reaction of spiroketalic steroidal ketones. Steroids 2011, 76, 317–323. [Google Scholar] [CrossRef] [PubMed]
  13. López, Y.; Jastrzębska, I.; Santillan, R.; Morzycki, J.W. Synthesis of “glycospirostanes”—Steroid sapogenins with a sugar-like ring F. Steroids 2008, 73, 449–457. [Google Scholar] [CrossRef] [PubMed]
  14. Jastrzębska, I.; Siergiejczyk, L.; Tomkiel, A.M.; Urbanczyk-Lipkowska, Z.; Wójcik, D.; Morzycki, J.W. On reactions of steroidal 23-oxo and 23,24-epoxysapogenins with Lewis acids. Steroids 2009, 74, 675–683. [Google Scholar] [CrossRef] [PubMed]
  15. Jastrzębska, I.; Morzycki, J.W. Some observations on solasodine reactivity. Steroids 2017, 127, 13–17. [Google Scholar] [CrossRef]
  16. Sato, Y.; Ikekawa, N. The chemistry of the spiroaminoketal side chain of solasodine and tomatidine. 2. Chemistry of 3β,16β-diacetoxy-20-(2′-Δ2′-N-acetyl-5′-methyltetrahydropyridyl)-5-pregnene. J. Org. Chem. 1960, 25, 786–789. [Google Scholar] [CrossRef]
  17. Tian, W.S.; Li, M.; Yin, H.; Tang, X.F. Lactone Compound and Its Synthesis and Use. Chinese Patent CN 1299821, 10 September 2003. [Google Scholar]
  18. Wang, S.-S.; Shi, Y.; Tian, W.-S. Highly efficient and scalable synthesis of clionamine D. Org. Lett. 2014, 16, 2177–2179. [Google Scholar] [CrossRef]
  19. Efferth, T.; Fu, Y.-J.; Zu, Y.-G.; Schwarz, G.; Konkimalla, B.; Wink, M. Molecular target-guided tumor therapy with natural products derived from traditional Chinese medicine. Curr. Med. Chem. 2007, 14, 2024–2032. [Google Scholar] [CrossRef]
  20. Yotsu-Yamashita, M.; Kim, Y.H.; Dudley, S.C.; Choudhary, G.; Pfahnl, A.; Oshima, Y.; Daly, J.W. The structure of zetekitoxin AB, a saxitoxin analog from the Panamanian golden frog Atelopus zeteki: A potent sodium-channel blocker. Proc. Natl. Acad. Sci. USA 2004, 101, 4346–4351. [Google Scholar] [CrossRef] [Green Version]
  21. Kikuchi, T.; Nishinaga, T.; Uyeo, S.; Yamashiro, O.; Minami, K. Transformation of epipachysandrine-A into pachystermine-A and -B. Tetrahedron Lett. 1968, 9, 909–912. [Google Scholar] [CrossRef]
  22. Orhan, I.E.; Khan, M.T.; Erdem, S.A.; Kartal, M.; Sener, B. Selective cholinesterase inhibitors from Buxus sempervirens L. and their molecular docking studies. Curr. Comput. Drug Des. 2011, 7, 276–286. [Google Scholar] [CrossRef]
  23. Stoner, E. The clinical development of a 5α-reductase inhibitor, finasteride. J. Steroid Biochem. Mol. Biol. 1990, 37, 375–378. [Google Scholar] [CrossRef]
  24. Choi, G.S.; Kim, J.H.; Oh, S.-Y.; Park, J.-M.; Hong, J.-S.; Lee, Y.-S.; Lee, W.-S. Safety and tolerability of the dual 5α-reductase inhibitor dutasteride in the treatment of androgenetic alopecia. Ann. Dermatol. 2016, 28, 444–450. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Cui, J.; Lin, Q.; Huang, Y.; Gan, C.; Yao, Q.; Wei, Y.; Xiao, Q.; Kong, E. Design, synthesis and antiproliferative evaluation of some B-homo steroidal lactams. Med. Chem. Res. 2015, 24, 2906–2915. [Google Scholar] [CrossRef]
  26. Dhingra, N.; Bhardwaj, T.; Mehta, N.; Mukhopadhyay, T.; Kumar, A.; Kumar, M. Synthesis, antiproliferative, acute toxicity and assessment of antiandrogenic activities of some newly synthesized steroidal lactams. Eur. J. Med. Chem. 2010, 45, 2229–2236. [Google Scholar] [CrossRef] [PubMed]
  27. Sivertsen, A.C.; Gasior, M.; Bjerring, M.; Hansen, S.U.; López, Ó.; Nielsen, N.C.; Bols, M. Active site protonation of 1-azafagomine in glucosidases studied by solid-state NMR spectroscopy. Eur. J. Org. Chem. 2007, 1735. [Google Scholar] [CrossRef]
  28. Lee, H.W.; Yang, Y.L.; Kim, S.Y.; Shin, Y.U.; Chang, J.S.; Um, H.W.; Goh, Y.H.; Jhon, S.H. Method for Producing Bio-Based Homoserine Lactone and Bo-Based Organic Acid from O-Acyl Homoserine Produced by Microorganisms. U.S. Patent US 2014/0296466 A1, 02 October 2014. [Google Scholar]
  29. Wojtkielewicz, A.; Łotowski, Z.; Morzycki, J.W. One-Step synthesis of nitriles from acids, esters and amides using DIBAL-H and ammonium chloride. Synlett 2015, 26, 2288–2292. [Google Scholar] [CrossRef]
  30. Devocelle, M.; Mortreux, A.; Agbossou, F.; Dormoy, J.-R. Alternative synthesis of the chiral atypical β-adrenergic phenylethanolaminotetraline agonist SR58611A using enantioselective hydrogenation. Tetrahedron Lett. 1999, 40, 4551–4554. [Google Scholar] [CrossRef]
  31. Dupau, P.; Le Gendre, P.; Bruneau, C.; Dixneuf, P.H. Optically active amine derivatives: Ruthenium-catalyzed enantioselective hydrogenation of enamides. Synlett 1999, 11, 1832–1834. [Google Scholar] [CrossRef]
  32. Tschaen, D.M.; Abramson, L.; Cai, D.; Desmond, R.; Dolling, U.-H.; Frey, L.; Karady, S.; Shi, Y.-J.; Verhoeven, T.R. Asymmetric synthesis of MK-0499. J. Org. Chem. 1995, 60, 4324–4330. [Google Scholar] [CrossRef]
  33. Renaud, J.-L.; Dupau, P.; Hay, A.-E.; Guingouain, M.; Dixneuf, P.H.; Bruneau, C. Ruthenium-catalysed enantioselective hydrogenation of trisubstituted enamides derived from 2-tetralone and 3-chromanone: Influence of substitution on the amide arm and the aromatic ring. Adv. Synth. Catal. 2003, 345, 230–238. [Google Scholar] [CrossRef]
  34. Qi, J.; Sun, C.; Tian, Y.; Wang, X.; Li, G.; Xiao, Q.; Yin, D. Highly efficient and versatile synthesis of lactams and N-Heterocycles via Al(OTf)3-catalyzed cascade cyclization and ionic hydrogenation reactions. Org. Lett 2014, 16, 190–192. [Google Scholar] [CrossRef] [PubMed]
  35. Boehm, J.C.; Callahan, J.F.; Heightman, T.D.; Kerns, J.K.; Woolford, A.J.-A.; Yan, H. 3-(2,3-Dihydro-1h-inden-5-yl)Propanoic Acid Derivatives and Their Use as NRF2 Regulators. Patent Application WO/2018/104766 A1, 26 October 2018. [Google Scholar]
  36. Sasikumar, T.K.; Burnett, D.A.; Asberom, T.; Wu, W.-L.; Li, H.; Xu, R.; Josien, H.B. Benzenesulfonyl-Chromane, Thiochromane, Tetrahydronaphthalene and Related Gamma Secretase. Inhibitors. Patent WO2009011851A1, 22 January 2009. [Google Scholar]
  37. Hernández, R.; Marrero, J.; Suárez, E.; Perales, A. Fragmentation of alkoxy radicals: Mechanistic aspects of the tandemβ-fragmentation-intramolecular functionalization reaction. Tetrahedron Lett. 1988, 29, 5979–5981. [Google Scholar] [CrossRef]
  38. Tojo, G.; Fernández, M. Ruthenium-based oxidations. In Oxidation of Alcohols to Aldehydes and Ketones: A Guide to Current Common Practice; Tojo, G., Ed.; Springer Science+Business Media, Inc.: New York, NY, USA, 2006; pp. 220–228. [Google Scholar]
  39. Dong, L.; Aleem, S.; Fink, C.A. Microwave-accelerated reductive amination between ketones and ammonium acetate. Tetrahedron Lett. 2010, 51, 5210–5212. [Google Scholar] [CrossRef]
  40. Dangerfield, E.M.; Plunkett, C.H.; Win-Mason, A.L.; Stocker, B.L.; Timmer, M.S.M. Protecting-group-free synthesis of amines: Synthesis of primary amines from aldehydes via reductive amination. J. Org. Chem. 2010, 75, 5470–5477. [Google Scholar] [CrossRef]
  41. Bomann, M.D.; Guch, I.C.; Dimare, M. A mild, pyridine-borane-based reductive amination protocol. J. Org. Chem. 1995, 60, 5995–5996. [Google Scholar] [CrossRef]
  42. Miriyala, B.; Bhattacharyya, S.; Williamson, J.S. Chemoselective reductive alkylation of ammonia with carbonyl compounds: Synthesis of primary and symmetrical secondary amines. Tetrahedron 2004, 60, 1463–1471. [Google Scholar] [CrossRef]
  43. Abdel-Magid, A.F.; Carson, K.G.; Harris, B.D.; Maryanoff, C.A.; Shah, R.D. Reductive amination of aldehydes and ketones with sodium triacetoxyborohydride Studies on direct and indirect reductive amination procedures. J. Org. Chem. 1996, 61, 3849–3862. [Google Scholar] [CrossRef]
  44. Seroka, B.; Łotowski, Z.; Wojtkielewicz, A.; Bazydło, P.; Dudź, E.; Hryniewicka, A.; Morzycki, J.W. Synthesis of steroidal 1,2- and 1,3-diamines as ligands for transition metal ion complexation. Steroids 2019, 147, 19–29. [Google Scholar] [CrossRef]
  45. Dalmolin, M.C.; Bandeira, P.T.; Ferri, M.S.; de Oliveira, A.R.; Piovan, L. Straightforward microwave-assisted synthesis of organochalcogen amines by reductive amination. J. Organomet. Chem. 2018, 874, 32–39. [Google Scholar] [CrossRef]
  46. Williams, J.R.; Gong, H.; Hoff, N.; Olubodun, O.I.; Carroll, P.J. α-Hydroxylation at C-15 and C-16 in cholesterol: synthesis of (25R)-5α-cholesta-3β,15α,26-triol and (25R)-5α-cholesta-3β,16α,26-triol from diosgenin. Org. Lett. 2004, 6, 269–271. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds are not available from the authors.
Molecules 25 02377 g001 550
Figure 1. Vespertilin, the target lactam, tigogenin, and steroidal alkaloids.
Figure 1. Vespertilin, the target lactam, tigogenin, and steroidal alkaloids.
Molecules 25 02377 g001
Molecules 25 02377 sch001 550
Scheme 1. Synthesis of bisnorcholanic lactam derivatives via oxo-amide intermediates.
Scheme 1. Synthesis of bisnorcholanic lactam derivatives via oxo-amide intermediates.
Molecules 25 02377 sch001
Molecules 25 02377 g002 550
Figure 2. NOE and ROESY correlations diagram for compounds 4a.
Figure 2. NOE and ROESY correlations diagram for compounds 4a.
Molecules 25 02377 g002
Molecules 25 02377 sch002 550

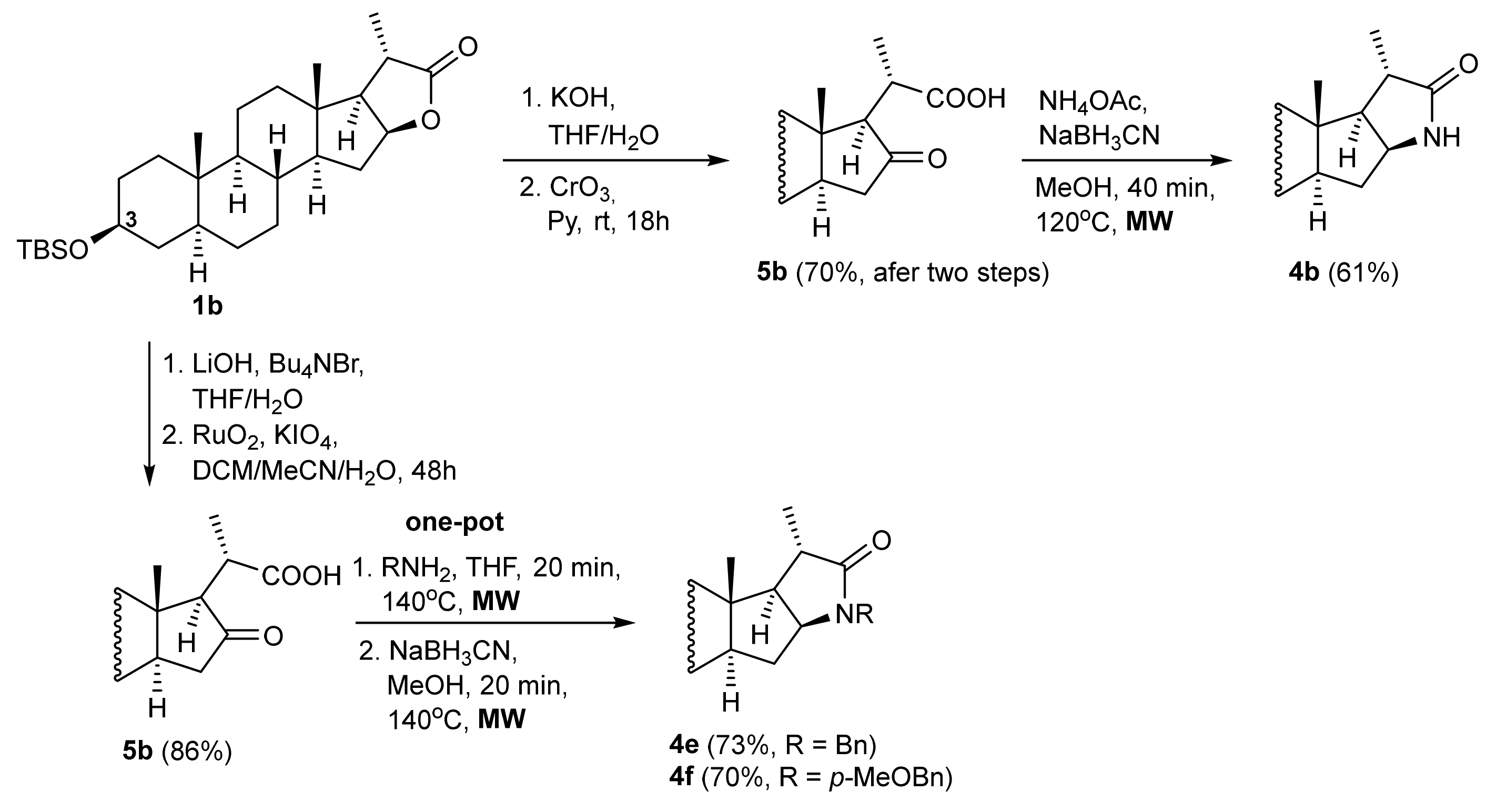

Scheme 2. Synthesis of bisnorcholanic lactam derivatives via an oxo-acid intermediate.
Scheme 2. Synthesis of bisnorcholanic lactam derivatives via an oxo-acid intermediate.
Molecules 25 02377 sch002
