Review

New Horizons in Chemical Functionalization of Endohedral Metallofullerenes

by
Michio Yamada
1,*,
Michael T. H. Liu
2,
Shigeru Nagase
3 and
Takeshi Akasaka
1,4,5,6,*
1
Department of Chemistry, Tokyo Gakugei University, Koganei, Tokyo 184-8501, Japan
2
Department of Chemistry, University of Prince Edward Island, Charlottetown, PE C1A4P3, Canada
3
Fukui Institute for Fundamental Chemistry, Kyoto University, Sakyo-ku, Kyoto 606-8103, Japan
4
TARA Center, University of Tsukuba, Tsukuba, Ibaraki 305-8577, Japan
5
Foundation for Advancement of International Science, Tsukuba, Ibaraki 305-0821, Japan
6
State Key Laboratory of Materials Processing and Dye and Mold Technology, School of Materials Science and Engineering, Huazhong University of Science and Technology, Wuhan 430074, China
*
Authors to whom correspondence should be addressed.
Molecules 2020, 25(16), 3626; https://doi.org/10.3390/molecules25163626
Submission received: 20 June 2020 / Revised: 6 August 2020 / Accepted: 6 August 2020 / Published: 10 August 2020
(This article belongs to the Special Issue 25th Anniversary of Molecules—Recent Advances in Inorganic Chemistry)
Browse Figures
Versions Notes

Abstract

:
This overview explains some new aspects of chemical functionalization of endohedral metallofullerenes (EMFs) that have been unveiled in recent years. After differences in chemical reactivity between EMFs and the corresponding empty fullerenes are discussed, cage-opening reactions of EMFs are examined. Then, the selective bisfunctionalization of EMFs is explained. Finally, single-bonding derivatization of EMFs is addressed. The diversity and applicability of the chemical functionalization of endohedral metallofullerenes are presented to readers worldwide.

1. Introduction

Endohedral metallofullerenes (EMFs) are hybrid molecules of spherical nanocarbons, known as fullerenes, with atomic metal(s) or metal-containing clusters encaged inside. Unique molecular structures of this kind have fascinated many researchers in many fields, including chemistry, physical science, and materials science. Soon after the discovery of C60, EMFs were first reported in 1985 by Smalley and coworkers [1]. Findings from early studies of their synthesis, structures, and properties were summarized in several reports [2,3,4,5]. In addition, research progress after 2010 has been described in several published reviews [6,7,8,9,10,11,12,13]. Recent progress on silylation and germylation of EMFs was reviewed by Kako et al. [14] However, several chemical reactions of EMFs have been developed since. Various molecular structures of EMF derivatives have been clarified one after another. This review was undertaken to overview the most recent advances in the chemistry of EMFs developed in the last decade, particularly addressing chemical functionalization.

2. Differences in Chemical Reactivity between EMFs and the Corresponding Empty Fullerenes

The chemical reactivities of EMFs differ from those of empty fullerenes, because of their different carbon-cage geometries and their different redox properties. Comparison of the chemical reactivities of EMFs with those of empty fullerenes is expected to provide deeper understanding of how endohedral metal-atom doping affects the chemical reactivity of fullerenes. However, the difficulty of pursuing this subject experimentally is that most carbon cages of EMFs are not available in their pristine forms. Empty fullerenes and EMFs are synthesized, generally by arc-discharging of graphitic carbon containing metal species such as metal oxides. Because of the intense temperature (2000–3000 K) conditions, the resulting fullerene species are regarded not as kinetically but as thermodynamically favorable ones. At this point, the presence or absence of ‘intramolecular’ electron transfer from the inner metal atom(s) to the outer carbon cages drastically alters the thermodynamic stability of the carbon cages. For instance, adjacent pentagonal rings are disfavored in the carbon cages of empty fullerenes. Therefore, empty fullerenes generally satisfy the empirical rule, the so-called isolated pentagon rule (IPR), which states that stable fullerenes have each of their 12 pentagonal rings surrounded by five hexagonal rings [15]. In fact, fusing pentagonal rings increases the local steric strain caused by enforced bond angles, accompanied by the higher pyramidalization of the carbon atoms. In addition, a fused pentagon substructure must be antiaromatic. Nonetheless, the circumstances are different in the case of EMFs [16]. In fact, several EMFs that possess non-IPR carbon cages have been discovered to date [17]. Crystallographic studies of such non-IPR EMFs clearly illustrate that the encaged metal atoms are closely positioned near the fused pentagonal rings on the carbon cages, implying that the encaged metal atoms stabilize the non-IPR carbon cages that are not available in pristine forms without encaged metal atoms. As a result, studies using experimentation to compare the chemical reactivities of empty fullerenes and the EMFs were left unexplored until 2016.
In this respect, we have specifically examined on the D2d(23)-C84 carbon cage, because the carbon cage is the sole exception by which both the empty and the endohedral species are thermodynamically stable at ambient conditions. The empty fullerene was first reported in 1992 by Kikuchi, Achiba, and their coworkers [18]. Its isolation was reported by Dennis and Shinohara in 1998 [19]. As indicated in its name, D2d(23)-C84 has the molecular symmetry of D2d; it, therefore, consists of the 11 nonequivalent carbon atoms. The number in the parenthesis indicates the spiral code for IPR-satisfying cage structures assigned based on the Fowler–Manolopoulos (FM) spiral algorithm, which is used to designate the cage structure [20]. The corresponding EMF, which contains the same carbon cage, Sc2C2@D2d(23)-C84, was first reported by Shinohara et al. However, it was assigned incorrectly at that time as Sc2@C86 [21]. The correct structure of the EMF as Sc2C2@D2d(23)-C84 was revised by the same group, based on the maximum entropy method (MEM)/Rietveld analysis of the powder X-ray diffraction data [22]. The revised structure was finally confirmed by Akasaka et al., based on two-dimensional incredible natural abundance double quantum transfer experiment (2D INADEQUATE) NMR studies of its 13C-enriched sample [23]. The ‘molecular’ symmetry of Sc2C2@D2d(23)-C84 can be regarded not as D2d, but as C2v. Lowering of the molecular symmetry results from the placement of the internal Sc2C2 cluster, by which the C2 unit is not parallel but rather perpendicular to the main C2 axis. Nevertheless, the lower availability of both the species hampered further studies of their chemical reactivities.
We launched a large-scale arc-discharge chamber and optimized both the discharging conditions and the extraction–purification processes, to obtain sufficient amounts of such ‘minor’ fullerene products [8]. Subsequently, we conducted experiments that revealed differences in the chemical reactivity and selectivity between D2d(23)-C84 and Sc2C2@D2d(23)-C84 (hereinafter, the molecules will be abbreviated respectively as C84 and Sc2C2@C84), for which the photo-reactions of the fullerenes with 2-adamantane-2,3′-[3H]-diazirine (1) were used for the investigation, as shown in Figure 1 [24]. The photolysis of 1 is well known to generate both adamantylidene carbene Ad: (Ad = adamantylidene) and diazoadamantane as reactive intermediates in a 1:1 ratio, based on laser flash photolysis studies [25]. The photo-reaction of C84 and 1 at ambient temperature caused the formation of two mono-adducts, major product 2a and minor product 2b, for which the respective conversion yields of 2a and 2b based on the reacted C84 were 80% and 12% (see Figure 1a). In that case, 52% of C84 was consumed during 90 s irradiation using an ultra-high-pressure mercury-arc lamp (cutoff < 350 nm). The 2a and 2b structures were assigned respectively to the [5,6]-(a–b)-open fulleroid and the [6,6]-(a–a)-closed methanofullerene, for which the terms [5,6] and [6,6] respectively show that the site of addition occurred at a bond shared by one pentagonal ring and one hexagonal ring, or a bond shared by two hexagonal rings. The structure of 2b was also ascertained using single-crystal XRD. No interconversion was observed between 2a and 2b under photoirradiation. However, 2a was thermally interconverted to 2b under heating at 80°C.
To assess the chemical reactivity of C84 toward the reactive intermediates, comparative studies of the photolysis of 1 and 5′.5′-dimethoxyspiro[adamantane]-2,2′-[Δ3-1,3,4-oxadiazoline] (3) in the presence of C84 at –78°C were conducted, respectively, because 3 is known to generate diazoadamantane exclusively under photoirradiation (see Figure 1b). On one hand, the photoreaction of C84 with 1 caused the formation of 2a and 2b in a 10:1 ratio under the condition. On the other hand, the photoreaction of C84 with 3 caused the formation of 2a and 2b in a ratio of 10:1, which is the same ratio as that obtained in the reaction of C84 and 1. The comparable product ratios imply that in situ generated diazoadamantane contribute mainly to the reaction process in the photolysis of 1 in the presence of C84. Combined with density functional theory (DFT) calculations, the scenario of the photoreactions was proposed as follows: first, the regioselective [3 + 2] cycloaddition of C84 with in-situ generated diazoadamantane took place at the [6,6]-(a–a) bond, in which the two-fold degenerate LUMO is localized primarily, to give the pyrazoline intermediate. Secondly, thermal decomposition of the pyrazoline intermediate occurred in a concerted pathway, to give 2 exclusively. Finally, a concerted [1,5]-sigmatropic shift of 2a led to the formation of 2b.
In contrast to that of the empty fullerene, the photoreaction of Sc2C2@C84 with 1 at ambient temperature yielded four monoadducts, 4a, 4b, 4c, and 4d in an 8:7:3:1 ratio, respectively, after 1 min (see Figure 1c). Among these, only the structure of 4c has been elucidated by single-crystal XRD, showing that the third most abundant isomer is the [6,6]-(k–i’)-open fulleroid. No interconversion was observed between 4a and 4b under photoirradiation, but they both interconvert to 4c under thermal conditions. It is noteworthy that no reaction proceeded in the photolysis of 3 in the presence of Sc2C2@C84, indicating that Sc2C2@C84 is not reactive toward diazoadamantane (see Figure 1d). In this context, it is reasonable to consider that the photoreaction of Sc2C2@C84 with 1 proceeded via a carbene addition mechanism, unlike the corresponding empty fullerene. Unfortunately, an experiment on the structural elucidation of 4a, 4b, and 4d has not been conducted. However, based on the hypothesis that the addend must move to bind with an adjacent bond during thermal interconversion and the DFT calculations of the relative energies, 4a and 4b can be the [6,6]-(k–k) and [6,6]-(k–f) addition products. Inspection of the molecular orbital (MO) diagrams shows that the LUMO of Sc2C2@C84 is higher in energy than that of C84. Therefore, the inertness of Sc2C2@C84 toward diazoadamantane can be derived from the energy mismatch between their frontier orbitals. However, the higher level of the HOMO of Sc2C2@C84 compared to that C84 might result in promoting reactivity toward the electrophilic carbene. Nevertheless, the delocalization of the HOMO of Sc2C2@C84 hampers the proper prediction of the reactive sites. The addition sites of the proposed structures of 4a and 4b, and the XRD-determined structure of 4c cannot be explained based either on the p-orbital axis vector (POAV) values or on the negative-charge densities. DFT calculations suggest that the formation of 4c is governed by thermodynamic control. Throughout, their different chemical reactivities of C84 and Sc2C2@C84 are derived from Sc2C2 doping, which raises the HOMO and LUMO levels of the carbon cage. The changes switch the reactivity in the photolysis of 1.

3. Cage-Opening Reactions of EMFs

Among the various chemical functionalizations of fullerenes, cage-opening reactions are those which enable one to gain access to the inner space of the otherwise “locked” carbon sphere. Wudl and co-workers first introduced the concept that creates an orifice on the carbon cage in 1995 [26]. Since then, several examples of open-cage fullerenes prepared from C60 and C70 have been developed. A prominent result is the fact that the open-cage fullerenes that enable the encapsulation of small molecules such as H2 [27,28], H2O [29,30], HF [31,32], and even CH4 [33] are available. Further orifice-closing reactions engender the creation of endohedral fullerenes. In contrast, cage-opening reactions of EMFs have remained unexplored until recently, due to the limited availability of EMFs and different chemical reactivities of EMFs from those of empty fullerenes. In 2011, Wang and coworkers found, by accident, that benzyne addition to Sc3N@Ih(7)-C80 (hereinafter abbreviated as Sc3N@C80) yielded an oxygen-bridged open-cage EMF derivative 7 in addition to the [6,6]-benzyne adduct 5 and [5,6]-benzyne adduct 6, when the reaction was conducted under air, as shown in Figure 2 [34]. Both 5 and 6 possess closed four-membered rings at the site of addition, which are formed through formal [2 + 2] cycloaddition of the in-situ generated benzyne to Sc3N@C80. The corresponding [4 + 2] cycloaddition does not occur because fullerenes do not act as dienes. The formation of 7 became dominant, when the reaction of Sc3N@C80 with 2-amino-4,5-diisopropoxybenzoic acid and isoamyl nitrite (reactant ratio: 1:5:8) was conducted in 1,2-dichlorobenzene (1,2-DCB) in the presence of 25 equiv. of water under aerobic conditions at 60°C for 12 h. Under these conditions, 5, 6, and 7 were obtained, respectively, in 7%, 3%, and 12% yields, in addition to the recovery of the pristine EMF in 46% yield. The single-crystal XRD studies of 7 revealed its unique molecular structure. First, the [5,6] C–C bond at the site of the benzyne addition is broken. Secondly, an oxygen atom was added to one of the [5,6] C–C bonds of the benzyne-attached pentagonal ring, in which the C–C bond is also broken to form not an epoxy, but an ether substructure on the cage. Consequently, the carbon cage of 7 contains a 13-membered ring orifice, although the orifice is spanned by an oxygen and a benzyne moiety. Presumably, 7 was formed by oxygenation of 6, although details of the reaction mechanism for the formation of 7 remain unclear. In fact, both 5 and 6 were stable in air at 60°C for 12 h and at 180°C for 8 h.
To access the inner space of EMFs, no bridging moiety at the orifice is necessary. In this regard, an open-cage EMF bearing three seven-membered ring orifices without bridges was first reported in 2015 using La2@D2(10611)-C72 as the starting material, as shown in Figure 3 [35]. The dimetallofullerene La2@D2(10611)-C72, known as a non-IPR EMF, contains two pentalene units at opposite ends of the rugby ball-shaped carbon cage [36]. In this context, exploration for the chemical functionalization of La2@D2(10611)-C72 (hereinafter, the molecule will be abbreviated as La2@C72) is also important for elucidating the chemical reactivity of non-IPR EMFs. As a cage-opening, the thermal reaction of La2@C72 with 5,6-diphenyl-3-(2-pyridyl)-1,2,4-triazine at 180°C in a sealed tube was conducted. After 72 h, 68% of La2@C72 was consumed, and it was converted quantitatively to two bisfulleroid isomers (labelled as 8a and 8b) in a 1:1 ratio. Between them, the single-crystal XRD analysis of 8a revealed its open-cage structure. The results suggest that the initial [4 + 2] cycloaddition took place at the [5,5] C–C bond, at one of the two pentalene units. After N2 extrusion, the subsequent electrocyclization and the following cycloreversion sequence produced the final open-cage structure. In this respect, the selective reaction at the [5,5] junction resulted from the highest reactivity of the central C–C bond of the pentalene units. However, the unique site selectivity of La2@C72 is not predictable based on the frontier orbital criteria. In fact, DFT calculations suggest that HOMO, LUMO+1, and LUMO+2 of La2@C72 are strongly delocalized over the whole sphere, whereas the LUMO is located mainly on the internal La atoms. Instead, the POAV values can be useful to explain the highest reactivity of the [5,5]-bond. The crystallographic determination of the molecular structure of 8b is missing. However, it can be deduced that the first reaction step occurred at the same [5,5]-bond because the other diastereomer can be formed by the addition of the triazine to the bond in its reversed direction.

4. Selective Bis-Addition Reactions of EMFs

It is reasonable to consider that the site selectivity of EMFs is influenced by the internal metal species, because the charge density distribution of the cage carbons and the frontier MO distribution of the whole molecule are changed drastically by metal doping [8]. For instance, in La@C2v(9)-C82, the La atom is localized near the hexagonal ring along the C2 axis of the C2v carbon cage. Consequently, the carbons close to the La atom are negatively charged, while, on the contrary, the carbons distant from the La atom are positively charged. As a result, electrophilic reactions tend to occur at the cage carbons close to the La atoms, whereas nucleophilic reactions tend to occur at the cage carbons at the opposite side. In this regard, dimetallic EMFs are likely to be suitable reactants for selective bis-addition reactions. The first example of the bisadduct formation of dimetallic EMFs was the photochemical reaction of La2@C72 with 1 reported by our group in 2008 [37,38]. In this reaction, seven isomers of La2@C72(Ad)2 (9a–9g) were isolated, of which the structure of the most abundant isomer 9a was found using single-crystal XRD, as shown in Figure 4a. Results indicated that two Ad groups were added to the two pentalene regions at both poles of La2@C72, which face the encaged La atoms. Based on the high reactivity of the pentalene regions, the two Ad groups are likely to have added to the two poles in the other bisadduct isomers.
In contrast to the rugby-ball-shaped La2@ C72 molecule, the selective bis-addition reaction of La2@Ih(7)-C80 was not straightforward, due to its round structure and three-dimensional dynamic motion of the encaged La atoms [39]. At this point, a stepwise addition reaction protocol is an alternative pathway to obtain the corresponding bisadducts regioselectively [40]. As the first step, the photochemical reaction of La2@Ih(7)-C80 with phenylchlorodiazirine was conducted, as shown in Figure 4b. The resulting monoadduct, [6,6]-open La2@Ih(7)-C80(CClPh) (10), features the two encaged La atoms collinear with the spiro carbon of the attached Ad moiety [41]. Regulation of the motion of the La atoms is attributable to the C–C bond breaking of the addition site, which engenders elongation of the La···La distance. As a result, the two La atoms are localized respectively at the position close to the addition site and the opposite side of the addition site. Therefore, the latter site is expected to be more reactive toward an electrophile. As the second step, the photochemical reaction of 10 with 1 proceeded smoothly to afford three isomers of the bisadduct La2@Ih(7)-C80(CClPh)(Ad) (11a–11c). One can notice that the second carbene addition afforded only three isomeric adducts, although many possible addition sites exist in 10. Single-crystal XRD studies of 11a have revealed that the two addends are attached to both ends of the La2@Ih(7)-C80 molecule. The Ad addition coincided with the C–C bond cleavage at the site of addition. These studies indicate clearly that the encaged metal atoms in EMFs can regulate the reactive sites.
This is also in the case for trimetallic nitride-templated EMFs (TNT-EMFs). In early works, Gibson, Dorn, and coworkers reported that the Bingel–Hirsch reaction of Sc3N@D3h(5)-C78 with diethyl bromomalonate in the presence of DBU afforded a highly symmetrical bisadduct Sc3N@D3h(5)-C78[C(CO2Et)2]2, in addition to the monoadduct Sc3N@D3h(5)-C78[C(CO2Et)2] in 2008, although the addition site was not fully characterized [42]. In 2017, our group reported the first example for the X-ray crystallographic structure of a TNT-EMF bisadduct, as shown in Figure 4c [43]. In Lu3N@Ih(7)-C80, the encaged metal cluster exhibits three-dimensional random motion in the carbon sphere. Consequently, a stepwise strategy was adopted for regioselective bisfunctionalization. As the first step, the photochemical reaction of Lu3N@Ih(7)-C80 with 1 afforded [6,6]-open Lu3N@Ih(7)-C80(Ad) (12a) as the major product, and [5,6]open Lu3N@Ih(7)-C80(Ad) (12b) as the minor product. The X-ray crystallographic structures of 12a and 12b disclosed that one metal site was positioned near the addition site. The other two Lu atoms were disordered and positioned at eight sites. The results indicated that the Lu3N cluster is allowed to rotate similarly to a spinning top inside the carbon sphere. The subsequent photochemical reaction of the 12a with 1 proceeded regioselectively to afford two bisadducts (13a and 13b) that were isolated by subsequent HPLC separation. The X-ray structure of 13a showed that the second Ad group was attached at a [6,6] bond near a Lu atom in a [6,6]-open fashion. Therefore, one can reasonably state that the regioselectivity in the Ad bisaddition is regulated by the triangular structure of the endohedral Lu3N cluster. Actually, DFT calculations suggest that the X-ray determined bisadduct isomer is the most stable one among five candidates.
Later, Yamakoshi et al. reported the X-ray structure of a bis-ethylpyrrolidinoadduct of Gd3N@Ih(7)-C80 (hereinafter, the molecule is abbreviated as Gd3N@C80) prepared by 1,3-dipolar cycloadditions (so-called Prato reaction [44,45,46,47,48,49]) of Gd3N@Ih(7)-C80, with excess amounts of N-ethylglycine and paraformaldehyde in 2019 [50]. The reaction yielded two isomers of the bisadducts (14a and 14b), in addition to the corresponding monoadduct, as shown in Figure 4d [51]. The crystal structure of the minor isomer 14b exhibited a C2-symmetric [6,6][6,6]-structure. The addition sites of the minor isomer of Gd3N@Ih(7)-C80[(CH2)2NEt]2 differ from those of 13a, even though two of the three Gd atoms of the internal Gd3N cluster are positioned close to the sites of the additions, as expected. The Gd3N cluster was flattened out in the crystal structure of the minor bisadduct, as compared with that in pristine Gd3N@Ih(7)-C80. The planarization can be attributed to the release of the strain energy of the cluster by filling out the increased locally available endohedral space in the bisadduct. A portion of 14b isomerized to 14a under a thermal condition, although isomerization of another isomer as well as retrocycloaddition also proceeded simultaneously. The results indicated 14b as a kinetic product, whereas the major bisadduct was a thermodynamic product. X-ray crystallographic identification of 14a has been lacking. However, the authors proposed that 14a also possesses a [6,6][6,6]-structure, although several candidates have similar relative stabilities. They also proposed that the isomerization can proceed via a “walk on the sphere” rearrangement, as observed in bis-malonate adducts of C60 under electrochemical conditions [52]. It is noteworthy that the two addition sites in the proposed structure of 14a are the same as those in 13a. At present, only the major products have been characterized while characterization of other minor products has been lacking. Future efforts will be devoted to the characterization of minor products to compare the regioselectivity in Bingel vs. 1,3-dipolar cycloadducts for EMFs and empty fullerenes.

5. Single-Bonding Derivatization of EMFs

When an odd number of electrons are formally transferred from the internal metal species to the carbon cages, the EMFs possess an open-shell electronic state. Such open-shell EMFs are stabilized by the delocalization of the unpaired electron over the molecule. The chemical reactivity of open-shell EMFs has also been explored [8]. Results have revealed that several reactions of open-shell EMFs, particularly those involving radical species, afforded singly bonded derivatives bearing a closed-shell electronic state [53,54,55,56]. Such single-bonding derivatization ability yielding closed-shell products is apparently a general trend for open-shell EMFs, such as trivalent M@C82. In related work, we found that an open-shell EMF, Ce@C2v(9)-C82, was dimerized in its cocrystals with nickel octaethylporphyrin [57]. Similar dimerization was also apparent in the cocrystals of Y@Cs(6)-C82 [58] and Er@Cs(6)-C82 [59] with nickel octaethylporphyrin. In addition, functionalized EMFs bearing open-shell electronic species, such as La@C2v(9)-C82[CH(CO2Et)2]2 [60] and La@C2v(9)-C82(Cp*) (Cp* = 1,2,3,4,5-pentamethylcyclopentadiene) [61], were dimerized in their crystals. In stark contrast, the monoaddition of a radical to closed-shell EMFs can yield fullerenyl radicals. In fact, the corresponding C60-based fullerenyl radical R-C60• can be generated by nucleophilic addition and subsequent one-electron oxidation, or by thermal dissociation of single-bonded fullerene dimers [62]. However, fullerenyl radicals are usually very reactive. They cannot be isolated because of their high radical reactivity. The results of the EPR studies suggest that an unpaired electron was not delocalized over the carbon sphere, but rather confined to the carbon at ortho and the two carbon atoms para to the sp3-hybridized cage carbon bound with R in R-C60•.
By contrast, we discovered, in 2015, that the monoaddition of a radical to a closed-shell EMF, La2@Ih(7)-C80, afforded a singly bonded fullerenyl radical as an air-stable product, as shown in Figure 5a [63]. The fullerenyl radical, La2@Ih(7)-C80–C3N3Ph2 (15), was synthesized by the thermal reaction of La2@Ih(7)-C80 and excess amount of 3-chloro-5,6-diphenyltriazine, under reflux in 1,2-DCB. The product was readily isolated by preparative HPLC. Subsequently, XRD analysis showed that the addition of the carbon-centered triazinyl radical took place at one of the carbon atoms shared by one pentagon and two hexagon rings, i.e., [5,6,6]-carbon atoms. The absorption spectrum of 15 exhibits broad absorption bands over the near-IR region down to 1300 nm, as a consequence of the paramagnetic nature. At this point, no meaningful NMR spectra were observed in 15. The paramagnetic character was confirmed from X-band EPR measurements, showing that the EPR spectrum of 15 resembled that of La2@Ih(7)-C80 anion radical. Detailed analysis revealed that a large spin density is associated with each La atom, and that each La atom has the same spin density. In fact, the LUMO of La2@Ih(7)-C80 is well-known to be associated with the La–La σ-bonding orbital [64,65]. In this context, it is reasonable to state that the unusual stability of the fullerenyl radical in air arises from the confinement of the unpaired electron to an internal, metal–metal bonding orbital. The short La–La distance of 3.78 Å found in the crystal structure of the fullerenyl radical is consistent with this consideration. The chemical reactivity of the fullerenyl radical was also investigated. In fact, heating of the mixture of 15 and an excess amount of toluene in 1,2-DCB afforded addition of a benzyl to yield a closed-shell product, La2@Ih(7)-C80–(C3N3Ph2)(CH2Ph) (16), in a 1,4-addition form. The product shows no EPR signals in solution due to the diamagnetic character. In addition, the longest absorption band was red-shifted in the absorption spectrum of 16 in solution, when compared with that of 15. It is particularly interesting that this closed-shell product formed the open-shell dimer in its crystal. In this dimer, each unpaired electron is again confined to an internal La–La bonding orbital of each La2@Ih(7)-C80 unit, to be a diradical. In fact, a broad signal was observed in the EPR spectrum of the crystal.
Triggered by this success, several groups have prepared and characterized similar fullerenyl radical derivatives of M2@Ih(7)-C80 (hereinafter, the molecules are abbreviated as M2@C80). Lu et al. synthesized a benzyl derivative of La2@C80 by the photochemical reaction of La2@C80 with benzyl bromide in toluene; they have reported the short La–La distance (3.68–3.78 Å) in its crystal, as found in the crystal of 15 [66]. Later, Popov et al. also synthesized similar air-stable benzyl monoadducts of Y2@ C80 and Dy2@C80 by the reaction of the fullerene mixtures containing M2@C80 (M = Y, Dy) in DMF with benzyl bromide in 2017, as shown in Figure 5b [67]. They showed that giant exchange interactions between lanthanide ions and the unpaired electron caused single-molecule magnetism of Dy2@C80(CH2Ph), with a record-high 100 s blocking temperature of 18 K, and a high thermal barrier of magnetization reversal of 613 K. Subsequent surveys of an array of M2@C80(CH2Ph) (M2 = Y2, Gd2, Tb2, Dy2, Ho2, Er2, TbY, TbGd) revealed that the strong ferromagnetic coupling emerging from the delocalization of the unpaired electron spin, which glues the magnetic moments of the two lanthanide ions together, is responsible for the high-spin magnetic ground states in the singly bonded derivatives [68]. Particularly, Tb2@C80(CH2Ph) showed giant coercivity and the highest known blocking temperature among dinuclear lanthanide complexes [69,70]. Additionally, they showed singly bonded derivatives. These derivatives are redox-active. Moreover, reversible one-electron oxidation and one-electron reduction were observed in their cyclic voltammograms, indicating that the single-molecule magnetism can be tuned electrochemically, as shown in Figure 5c.
In 2011, Bazan and coworkers demonstrated that empty fullerenes such as C60 and C70 can behave as all carbon π-Lewis acids when combined with N-heterocyclic carbene (NHC) as counterparts [71]. Their results showed that a singly bonded C60 derivative bearing a strong zwitterionic character was obtained as a Lewis acid–base adduct. In this context, the chemical reactivity of EMFs toward NHCs has been attracting growing interest to elucidate the π-Lewis acidity of the negatively charged EMF carbon cages [72]. Lu et al. reported the that reaction of Sc3N@C80 with 1,3-bis(diisopropylphenyl)-imidazol-2-ylene (IDipp) afforded a singly bonded derivative, [6,6,6]-Sc3N@Ih(7)-C80-IDipp (17) [73]. In addition, the XRD analysis of 17 demonstrated that the NHC bonded to the Sc3N@C80 cage with its “abnormal” carbene center C5, instead of the normal site C2, which differs from the corresponding C60–IDipp adduct, as shown in Figure 6a. Subsequent DFT calculations suggested that the formation of the [6,6,6]-adduct was not a thermodynamically controlled process. It is particularly interesting that introducing a small amount of oxygen in the reaction mixture induces formation of different products. In fact, the reaction of M3N@C80 (M = Sc, Lu) with IDipp in the presence of oxygen afforded not only the C5-linked [6,6,6]-M3N@C80-IDipp, but also the oxidized derivative of C2-linked [6,6,6]-M3N@C80-IDipp (18) [74]. It is proposed that the addition of oxygen can release the steric hindrance between the bulky NHC moiety and the EMF cage.
The reactivity of NHCs toward EMFs depends on the bulkiness of the substituents of NHC as well as on the cage structure and the encapsulated species of EMFs used. For instance, the reaction of Sc2C2@C3v(8)-C82 with IDipp in the absence of oxygen proceeded regioselectively, to afford two products [75]. Subsequent XRD analysis of one product showed that the product is a singly bonded derivative, [5,6,6]-Sc2C2@C3v(8)-C82-IDipp, in which IDipp is linked to the EMF cage with its normal carbon center C2. In contrast, the reaction of Lu2@C82 species (C82 = C3v(8)-C82, C2v(9)-C82) with 3-dimesityl-1H-imidazol-3-ium-2-ide (IMes) in the presence of oxygen afforded C2-linked [5,6,6]-Lu2@C82-IMes as a single product without formation of any oxidized product [76]. These results suggest that the high regioselectivity and preferential formation for monoadducts are determined mainly by the electronic effect of the EMF carbon cages and the steric repulsion between the NHC and EMFs. In fact, DFT calculations suggest that the coverage of the cage carbons featuring both large LUMO distribution and positive electrostatic potential values by the bulky NHC group can engender prevention of further additions. In contrast to the reactivity of NHCs, the reactions of S-heterocyclic carbenes (SHCs), generated in situ by the cycloaddition of disilenes and digermenes to CS2 with Sc3N@Ih(7)-C80, afforded the corresponding methano-bridged derivatives (19a,b), as shown in Figure 6b [77]. Although the XRD characterization is lacking, NMR spectral analyses suggest that these derivatives possess the corresponding [6,6]-open structures.

6. Summary

This review has highlighted the unique chemical reactivity of EMFs, which differs from that of empty fullerenes. The structural diversity of EMFs has provided extreme variation in chemical reactivities. The resulting derivatives exhibited interesting properties derived from the combination of the cage structures, encaged metal species, and the functional groups bonded to the carbon cages. For instance, recent results have demonstrated clearly that the site of addition in the carbon cage is governed by metal-atom doping. This is also the case for the second addition. Particularly, the location of the internal metal atoms strongly affects the site-selectivity of EMFs. Selective bisfunctionalization of EMFs is expected to be valuable for the construction of EMF-based functional materials. In this respect, further efforts are anticipated to address selective trisfunctionalization using the triangular structures of trimetallic nitride clusters. Cage opening of EMFs to modulate the internal, untouchable metal species has remained challenging. However, recent studies of this aspect have led to remarkable progress in the first step of the molecular surgery of EMFs. The discovery of air-stable EMF-based fullerenyl radicals featuring confinement of an unpaired electron on the internal orbital paves the way to EMF-based single molecular magnets bearing giant exchange interactions. In addition, exploring the use of the π-Lewis acidity of EMF carbon cages by combining with heterocyclic carbenes provides novel zwitterionic EMF derivatives. Studies of EMFs will continue to gain importance in achieving the construction of multifunctional molecules for applications.

Funding

This work was supported by Grants-in-Aid for Scientific Research (C) (Nos. 20K05472, 20K05469) from the Ministry of Education, Culture, Sports, Science, and Technology of Japan.

Conflicts of Interest

The authors have no conflict of interest to declare.

References

  1. Heath, J.R.; O’Brien, S.C.; Zhang, Q.; Liu, Y.; Curl, R.F.; Kroto, H.W.; Tittel, F.K.; Smalley, R.E. Lanthanum complexes of spheroidal carbon shells. J. Am. Chem. Soc. 1985, 107, 7779–7780. [Google Scholar] [CrossRef]
  2. Shinohara, H. Endohedral metallofullerenes. Rep. Prog. Phys. 2000, 63, 843–892. [Google Scholar] [CrossRef]
  3. Akasaka, T.; Nagase, S. Endofullerenes: A New Family of Carbon Clusters; Kluwer: Dordrecht, The Netherlands, 2002. [Google Scholar]
  4. Dunsch, L.; Yang, S. Metal nitride cluster fullerenes: Their current state and future prospects. Small 2007, 3, 1298–1320. [Google Scholar] [CrossRef] [PubMed]
  5. Chaur, M.N.; Melin, F.; Ortiz, A.L.; Echegoyen, L. Chemical, electrochemical, and structural properties of endohedral metallofullerenes. Angew. Chem. Int. Ed. 2009, 48, 7514–7538. [Google Scholar] [CrossRef] [PubMed]
  6. Lu, X.; Feng, L.; Akasaka, T.; Nagase, S. Current status and future developments of endohedral metallofullerenes. Chem. Soc. Rev. 2012, 41, 7723–7760. [Google Scholar] [CrossRef] [Green Version]
  7. Popov, A.A.; Yang, S.; Dunsch, L. Endohedral fullerenes. Chem. Rev. 2013, 113, 5989–6113. [Google Scholar] [CrossRef]
  8. Nagase, S. Theory and calculations of molecules containing heavier main group elements and fullerenes encaging transition metals: Interplay with experiment. Bull. Chem. Soc. Jpn. 2014, 87, 167–195. [Google Scholar] [CrossRef] [Green Version]
  9. Yamada, M.; Akasaka, T. Emergence of highly elaborated π-space and extending its functionality based on nanocarbons: New vistas in the fullerene world. Bull. Chem. Soc. Jpn. 2014, 87, 1289–1314. [Google Scholar] [CrossRef] [Green Version]
  10. Jin, P.; Li, Y.; Magagula, S.; Chen, Z. Exohedral functionalization of endohedral metallofullerenes: Interplay between inside and outside. Coord. Chem. Rev. 2019, 388, 406–439. [Google Scholar] [CrossRef]
  11. Wang, T.; Wang, C. Functional metallofullerene materials and their applications in nanomedicine, magnetics, and electronics. Small 2019, 15, 1901522. [Google Scholar] [CrossRef] [PubMed]
  12. Rivera-Nazario, D.M.; Pinzón, J.R.; Stevenson, S.; Echegoyen, L.A. Buckyball maracas: Exploring the inside and outside properties of endohedral fullerenes. J. Phys. Org. Chem. 2013, 26, 194–205. [Google Scholar] [CrossRef]
  13. Rodríguez-Fortea, A.; Balch, A.L.; Poblet, J.M. Endohedral metallofullerenes: A unique host-guest association. Chem. Soc. Rev. 2011, 40, 3551–3563. [Google Scholar] [CrossRef] [PubMed]
  14. Kako, M.; Nagase, S.; Akasaka, T. Functionalization of endohedral metallofullerenes with reactive silicon and germanium compounds. Molecules 2017, 22, 1179. [Google Scholar] [CrossRef] [Green Version]
  15. Kroto, H.W. The stability of the fullerenes Cn, with n = 24, 28, 32, 36, 50, 60 and 70. Nature 1987, 329, 529–531. [Google Scholar] [CrossRef]
  16. Yamada, M.; Kurihara, H.; Suzuki, M.; Guo, J.S.; Waelchli, M.; Olmstead, M.M.; Balch, A.L.; Nagase, S.; Maeda, Y.; Hasegawa, T.; et al. Sc2@C66 Revisited: An endohedral fullerene with scandium ions nestled within two unsaturated linear triquinanes. J. Am. Chem. Soc. 2014, 136, 7611–7614. [Google Scholar] [CrossRef]
  17. Yamada, M.; Akasaka, T.; Nagase, S. Salvaging reactive fullerenes from soot by exohedral derivatization. Angew. Chem. Int. Ed. 2018, 57, 13394–13405. [Google Scholar] [CrossRef]
  18. Kikuchi, K.; Nakahara, N.; Wakabayashi, T.; Suzuki, S.; Shiromaru, H.; Miyake, Y.; Saito, K.; Ikemoto, I.; Kainosho, M.; Achiba, Y. NMR characterization of isomers of C78, C82 and C84 fullerenes. Nature 1992, 357, 142–145. [Google Scholar] [CrossRef]
  19. Dennis, T.J.S.; Shinohara, H. Isolation and characterization of the two major isomers of [84]Fullerene (C84). Chem. Commun. 1998, 619–620. [Google Scholar] [CrossRef]
  20. Fowler, P.; Manolopoulos, D.E. An Atlas of Fullerenes; Clarendon Press: Oxford, UK, 1995. [Google Scholar]
  21. Wang, C.-R.; Inakuma, M.; Shinohara, H. Metallofullerenes Sc2@C82(I,II) and Sc2@C86(I,II): Isolation and spectroscopic studies. Chem. Phys. Lett. 1999, 300, 379–384. [Google Scholar] [CrossRef]
  22. Wang, C.-R.; Kai, T.; Tomiyama, T.; Yoshida, T.; Kobayashi, Y.; Nishibori, E.; Takata, M.; Sakata, M.; Shinohara, H. A scandium carbide endohedral metallofullerene: (Sc2C2)@C84. Angew. Chem. Int. Ed. 2001, 40, 397–399. [Google Scholar] [CrossRef]
  23. Yamazaki, Y.; Nakajima, K.; Wakahara, T.; Tsuchiya, T.; Ishitsuka, M.O.; Maeda, Y.; Akasaka, T.; Waelchli, M.; Mizorogi, N.; Nagase, S. Observation of 13C NMR chemical shifts of metal carbides encapsulated in fullerenes: Sc2C2@C82, Sc2C2@C84, and Sc3C2@C80. Angew. Chem. Int. Ed. 2008, 47, 7905–7908. [Google Scholar] [CrossRef] [PubMed]
  24. Yamada, M.; Tanabe, Y.; Dang, J.-S.; Sato, S.; Mizorogi, N.; Hachiya, M.; Suzuki, M.; Abe, T.; Kurihara, H.; Maeda, Y.; et al. D2d(23)-C84 versus Sc2C2@D2d(23)-C84: Impact of endohedral Sc2C2 doping on chemical reactivity in the photolysis of diazirine. J. Am. Chem. Soc. 2016, 138, 16523–16532. [Google Scholar] [CrossRef]
  25. Bonneau, R.; Liu, M.T.H. Quantum yield of formation of diazo compounds from the photolysis of diazirines. J. Am. Chem. Soc. 1996, 118, 7229–7230. [Google Scholar] [CrossRef]
  26. Hummelen, J.C.; Prato, M.; Wudl, F. There is a hole in my bucky. J. Am. Chem. Soc. 1995, 117, 7003–7004. [Google Scholar] [CrossRef] [Green Version]
  27. Komatsu, K.; Murata, M.; Murata, Y. Encapsulation of molecular hydrogen in fullerene C60 by organic synthesis. Science 2005, 307, 238–240. [Google Scholar] [CrossRef] [PubMed]
  28. Maroto, E.E.; Izquierdo, M.; Murata, M.; Filippone, S.; Komatsu, K.; Murata, Y.; Martin, N. Catalytic stereodivergent functionalization of H2@C60. Chem. Commun. 2014, 50, 740–742. [Google Scholar] [CrossRef]
  29. Kurotobi, K.; Murata, Y. A single molecule of water encapsulated in fullerene C60. Science 2011, 333, 613–616. [Google Scholar] [CrossRef]
  30. Maroto, E.E.; Mateos, J.; Garcia-Borràs, M.; Osuna, S.; Filippone, S.; Herranz, M.Á.; Murata, Y.; Solà, M.; Martín, N. Enantiospecific cis-trans Isomerization in chiral fulleropyrrolidines: Hydrogen-bonding assistance in the carbanion stabilization in H2O@C60. J. Am. Chem. Soc. 2015, 137, 1190–1197. [Google Scholar] [CrossRef] [Green Version]
  31. Krachmalnicoff, A.; Bounds, R.; Mamone, S.; Alom, S.; Concistre, M.; Meier, B.; Kouril, K.; Light, M.E.; Johnson, M.R.; Rols, S.; et al. The dipolar endofullerene HF@C60. Nat. Chem. 2016, 8, 953–957. [Google Scholar] [CrossRef]
  32. Vidal, S.; Izquierdo, M.; Alom, S.; Garcia-Borràs, M.; Filippone, S.; Osuna, S.; Solà, M.; Whitby, R.J.; Martín, N. Effect of incarcerated HF on the exohedral chemical reactivity of HF@C60. Chem. Commun. 2017, 53, 10993–10996. [Google Scholar] [CrossRef] [Green Version]
  33. Bloodworth, S.; Sitinova, G.; Alom, S.; Vidal, S.; Bacanu, G.R.; Elliott, S.J.; Light, M.E.; Herniman, J.M.; Langley, G.J.; Levitt, M.H.; et al. First synthesis and characterization of CH4@C60. Angew. Chem. Int. Ed. 2019, 58, 5038–5043. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Wang, G.-W.; Liu, T.-X.; Jiao, M.; Wang, N.; Zhu, S.-E.; Chen, C.; Yang, S.; Bowles, F.L.; Beavers, C.M.; Olmstead, M.M.; et al. The cycloaddition reaction of Ih-Sc3N@C80 with 2-Amino-4,5-diisopropoxybenzoic acid and isoamyl nitrite to produce an open-cage metallofullerene. Angew. Chem. Int. Ed. 2011, 50, 4658–4662. [Google Scholar] [CrossRef] [PubMed]
  35. Yamada, M.; Muto, Y.; Kurihara, H.; Slanina, Z.; Suzuki, M.; Maeda, Y.; Rubin, Y.; Olmstead, M.M.; Balch, A.L.; Nagase, S.; et al. Regioselective cage opening of La2@D2(10611)-C72 with 5,6-Diphenyl 3-(2-pyridyl)-1,2,4-triazine. Angew. Chem. Int. Ed. 2015, 54, 2232–2235. [Google Scholar] [CrossRef] [PubMed]
  36. Kato, H.; Taninaka, A.; Sugai, T.; Shinohara, H. Structure of a missing-caged metallofullerene: La2@C72. J. Am. Chem. Soc. 2003, 125, 7782–7783. [Google Scholar] [CrossRef] [PubMed]
  37. Lu, X.; Nikawa, H.; Nakahodo, T.; Tsuchiya, T.; Ishitsuka, M.O.; Maeda, Y.; Akasaka, T.; Toki, M.; Sawa, H.; Slanina, Z.; et al. Chemical understanding of a non-IPR metallofullerene: Stabilization of encaged metals on fused-pentagon bonds in La2@C72. J. Am. Chem. Soc. 2008, 130, 9129–9136. [Google Scholar] [CrossRef]
  38. Lu, X.; Nikawa, H.; Tsuchiya, T.; Maeda, Y.; Ishitsuka, M.O.; Akasaka, T.; Toki, M.; Sawa, H.; Slanina, Z.; Mizorogi, N.; et al. Bis-carbene adducts of non-IPR La2@C72: Localization of high reactivity around fused pentagons and electrochemical properties. Angew. Chem. Int. Ed. 2008, 47, 8642–8645. [Google Scholar] [CrossRef]
  39. Akasaka, T.; Nagase, S.; Kobayashi, K.; Wälchli, M.; Yamamoto, K.; Funasaka, H.; Kako, M.; Hoshino, T.; Erata, T. 13C and 139La NMR studies of La2@C80: First evidence for circular motion of metal atoms in endohedral dimetallofullerenes. Angew. Chem. Int. Ed. 1997, 36, 1643–1645. [Google Scholar] [CrossRef]
  40. Ishitsuka, M.O.; Sano, S.; Enoki, H.; Sato, S.; Nikawa, H.; Tsuchiya, T.; Slanina, Z.; Mizorogi, N.; Liu, M.T.H.; Akasaka, T.; et al. Regioselective bis-functionalization of endohedral dimetallofullerene, La2@C80: Extremal La–La distance. J. Am. Chem. Soc. 2011, 133, 7128–7134. [Google Scholar] [CrossRef]
  41. Yamada, M.; Someya, C.; Wakahara, T.; Tsuchiya, T.; Maeda, Y.; Akasaka, T.; Yoza, K.; Horn, E.; Liu, M.T.H.; Mizorogi, N.; et al. Metal atoms collinear with the spiro carbon of 6,6-open adducts, M2@C80(Ad) (M = La and Ce, Ad = Adamantylidene). J. Am. Chem. Soc. 2008, 130, 1171–1176. [Google Scholar] [CrossRef]
  42. Cai, T.; Xu, L.; Shu, C.; Champion, H.A.; Reid, J.E.; Anklin, C.; Anderson, M.R.; Gibson, H.W.; Dorn, H.C. Selective formation of a symmetric Sc3N@C78 bisadduct: Adduct docking controlled by an internal trimetallic nitride cluster. J. Am. Chem. Soc. 2008, 130, 2136–2137. [Google Scholar] [CrossRef]
  43. Yamada, M.; Abe, T.; Saito, C.; Yamazaki, T.; Sato, S.; Mizorogi, N.; Slanina, Z.; Uhlik, F.; Suzuki, M.; Maeda, Y.; et al. Adamantylidene addition to M3N@Ih-C80 (M = Sc, Lu) and Sc3N@D5h-C80: Synthesis and crystallographic characterization of the [5,6]-open and [6,6]-open adducts. Chem. Eur. J. 2017, 23, 6552–6561. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Maggini, M.; Scorrano, G.; Prato, M. Addition of azomethine ylides to C60: Synthesis, characterization, and functionalization of fullerene pyrrolidines. J. Am. Chem. Soc. 1993, 115, 9798–9799. [Google Scholar] [CrossRef]
  45. Cardona, C.M.; Kitaygorodskiy, A.; Ortiz, A.; Herranz, M.Á.; Echegoyen, L. The First Fulleropyrrolidine derivative of Sc3N@C80: Pronounced chemical shift differences of the geminal protons on the pyrrolidine ring. J. Org. Chem. 2005, 70, 5092–5097. [Google Scholar] [CrossRef] [PubMed]
  46. Cardona, C.M.; Kitaygorodskiy, A.; Echegoyen, L. Trimetallic nitride endohedral metallofullerenes: Reactivity dictated by the encapsulated metal cluster. J. Am. Chem. Soc. 2005, 127, 10448–10453. [Google Scholar] [CrossRef]
  47. Cai, T.; Ge, Z.; Iezzi, E.B.; Glass, T.E.; Harich, K.; Gibson, H.W.; Dorn, H.C. Synthesis and characterization of the first trimetallic nitride templated pyrrolidino endohedral metallofullerenes. Chem. Commun. 2005, 3594–3596. [Google Scholar] [CrossRef]
  48. Cai, T.; Slebodnick, C.; Xu, L.; Harich, K.; Glass, T.E.; Chancellor, C.; Fettinger, J.C.; Olmstead, M.M.; Balch, A.L.; Gibson, H.W.; et al. A Pirouette on a metallofullerene sphere: Interconversion of isomers of N-Tritylpyrrolidino Ih Sc3N@C80. J. Am. Chem. Soc. 2006, 128, 6486–6492. [Google Scholar] [CrossRef]
  49. Pinzón, J.R.; Plonska-Brzezinska, M.E.; Cardona, C.M.; Athans, A.J.; Gayathri, S.S.; Guldi, D.M.; Herranz, M.Á.; Martín, N.; Torres, T.; Echegoyen, L. Sc3N@C80-ferrocene electron-donor/acceptor conjugates as promising materials for photovoltaic applications. Angew. Chem. Int. Ed. 2008, 47, 4173–4176. [Google Scholar] [CrossRef]
  50. Semivrazhskaya, O.; Romero-Rivera, A.; Aroua, S.; Troyanov, S.I.; Garcia-Borràs, M.; Stevenson, S.; Osuna, S.; Yamakoshi, Y. Structures of Gd3N@C80 prato bis-adducts: Crystal structure, thermal isomerization, and computational study. J. Am. Chem. Soc. 2019, 141, 10988–10993. [Google Scholar] [CrossRef]
  51. Aroua, S.; Garcia-Borràs, M.; Bölter, M.F.; Osuna, S.; Yamakoshi, Y. Endohedral metal-induced regioselective formation of bis-prato adduct of Y3N@Ih-C80 and Gd3N@Ih-C80. J. Am. Chem. Soc. 2015, 137, 58–61. [Google Scholar] [CrossRef]
  52. Kessinger, R.; Gomez-Lopez, M.; Boudon, C.; Gisselbrecht, J.-P.; Gross, M.; Echegoyen, L.; Diederich, F. Walk on the Sphere: Electrochemically Induced Isomerization of C60 Bisadducts by migration of di(alkoxycarbonyl)methano bridges. J. Am. Chem. Soc. 1998, 120, 8545–8546. [Google Scholar] [CrossRef]
  53. Feng, L.; Nakahoto, T.; Wakahara, T.; Tsuchiya, T.; Maeda, Y.; Akasaka, T.; Kato, T.; Horn, E.; Yoza, K.; Mizorogi, N.; et al. A singly bonded derivative of endohedral metallofullerene: La@C82CBr(COOC2H5)2. J. Am. Chem. Soc. 2005, 127, 17136–17137. [Google Scholar] [CrossRef] [PubMed]
  54. Takano, Y.; Yomogida, A.; Nikawa, H.; Yamada, M.; Wakahara, T.; Tsuchiya, T.; Ishitsuka, M.O.; Maeda, Y.; Akasaka, T.; Kato, T.; et al. Radical coupling reaction of paramagnetic endohedral metallofullerene La@C82. J. Am. Chem. Soc. 2008, 130, 16224–16230. [Google Scholar] [CrossRef] [PubMed]
  55. Takano, Y.; Tasita, R.; Suzuki, M.; Nagase, S.; Imahori, H.; Akasaka, T. Molecular location sensing approach by anisotropic magnetism of an endohedral metallofullerene. J. Am. Chem. Soc. 2016, 138, 8000–8006. [Google Scholar] [CrossRef] [PubMed]
  56. Fang, H.; Cong, H.; Suzuki, M.; Bao, L.; Yu, B.; Xie, Y.; Mizorogi, N.; Olmstead, M.M.; Balch, A.L.; Nagase, S.; et al. Regioselective benzyl radical addition to an open-shell cluster metallofullerene. crystallographic studies of cocrystallized Sc3C2@Ih-C80 and its singly bonded derivative. J. Am. Chem. Soc. 2014, 136, 10534–10540. [Google Scholar] [CrossRef]
  57. Suzuki, M.; Yamada, M.; Maeda, Y.; Sato, S.; Takano, Y.; Uhlik, F.; Slanina, Z.; Lian, Y.; Lu,, X.; Nagase, S.; et al. The unanticipated dimerization of Ce@C2v(9)-C82 upon co-crystallization with Ni(octaethylporphyrin) and comparison with monomeric M@C2v(9)-C82 (M = La, Sc, and Y). Chem. Eur. J. 2016, 22, 18115–18122. [Google Scholar] [CrossRef]
  58. Bao, L.; Pan, C.; Slanina, Z.; Uhlik, F.; Akasaka, T.; Lu, X. Isolation and crystallographic characterization of the labile isomer of Y@C82 Cocrystallized with Ni(OEP): Unprecedented dimerization of pristine metallofullerenes. Angew. Chem. Int. Ed. 2016, 55, 9234–9238. [Google Scholar] [CrossRef]
  59. Hu, S.; Liu, T.; Shen, W.; Slanina, Z.; Akasaka, T.; Xie, Y.; Uhlik, F.; Huang, W.; Lu, X. Isolation and structural characterization of Er@C2v(9)-C82 and Er@Cs(6)-C82: Regioselective dimerization of a pristine endohedral metallofullerene induced by cage symmetry. Inorg. Chem. 2019, 58, 2177–2182. [Google Scholar] [CrossRef]
  60. Feng, L.; Tsuchiya, T.; Wakahara, T.; Nakahodo, T.; Piao, Q.; Maeda, Y.; Akasaka, T.; Kato, T.; Yoza, K.; Horn, E.; et al. Synthesis and characterization of a bisadduct of La@C82. J. Am. Chem. Soc. 2006, 128, 5990–5991. [Google Scholar] [CrossRef]
  61. Maeda, Y.; Sato, S.; Inada, K.; Nikawa, H.; Yamada, M.; Mizorogi, N.; Hasegawa, T.; Tsuchiya, T.; Akasaka, T.; Kato, T.; et al. Regioselective exohedral functionalization of La@C82 and its 1,2,3,4,5-pentamethylcyclopentadiene and adamantylidene adducts. Chem. Eur. J. 2010, 16, 2193–2197. [Google Scholar] [CrossRef]
  62. Tzirakis, M.D.; Orfanopoulos, M. Radical reactions of fullerenes: From synthetic organic chemistry to materials science and technology. Chem. Rev. 2013, 113, 5262–5321. [Google Scholar] [CrossRef]
  63. Yamada, M.; Kurihara, H.; Suzuki, M.; Saito, M.; Slanina, Z.; Uhlik, F.; Aizawa, T.; Kato, T.; Olmstead, M.M.; Balch, A.L.; et al. Hiding and recovering electrons in a dimetallic endohedral fullerene: Air-stable products from radical additions. J. Am. Chem. Soc. 2015, 137, 232–238. [Google Scholar] [CrossRef] [PubMed]
  64. Suzuki, T.; Maruyama, Y.; Kato, T.; Kikuchi, K.; Nakao, Y.; Achiba, Y.; Kobayashi, K.; Nagase, S. Electrochemistry and ab initio study of the dimetallofullerene La2@C80. Angew. Chem. Int. Ed. Engl. 1995, 34, 1094–1096. [Google Scholar] [CrossRef]
  65. Yamada, M.; Slanina, Z.; Mizorogi, N.; Muranaka, A.; Maeda, Y.; Nagase, S.; Akasaka, T.; Kobayashi, N. Application of MCD spectroscopy and TD-DFT to endohedral metallofullerenes for characterization of their electronic transitions. Phys. Chem. Chem. Phys. 2013, 15, 3593–3601. [Google Scholar] [CrossRef] [PubMed]
  66. Bao, L.; Chen, M.; Pan, C.; Yamaguchi, T.; Kato, T.; Olmstead, M.M.; Balch, A.L.; Akasaka, T.; Lu, X. Crystallographic evidence for direct metal–metal bonding in a stable open-shell La2@Ih-C80 derivative. Angew. Chem. Int. Ed. 2016, 55, 4242–4246. [Google Scholar] [CrossRef]
  67. Liu, F.; Krylov, D.S.; Spree, L.; Avdoshenko, S.M.; Samoylova, N.A.; Rosenkranz, M.; Kostanyan, A.; Greber, T.; Wolter, A.U.B.; Buchner, B.; et al. Single molecule magnet with an unpaired electron trapped between two lanthanide ions inside a fullerene. Nat. Commun. 2017, 8, 16098. [Google Scholar] [CrossRef] [Green Version]
  68. Liu, F.; Velkos, G.; Krylov, D.S.; Spree, L.; Zalibera, M.; Ray, R.; Samoylova, N.A.; Chen, C.-H.; Rosenkranz, M.; Schiemenz, S.; et al. Air-stable redox-active nanomagnets with lanthanide spins radical—bridged by a metal–metal bond. Nat. Commun. 2019, 10, 571. [Google Scholar] [CrossRef]
  69. Liu, F.; Spree, L.; Krylov, D.S.; Velkos, G.; Avdoshenko, S.M.; Popov, A.A. Single-electron lanthanide-lanthanide bonds inside fullerenes toward robust redox-active molecular magnets. Acc. Chem. Res. 2019, 52, 2981–2993. [Google Scholar] [CrossRef]
  70. Spree, L.; Popov, A.A. Recent advances in single molecule magnetism of dysprosium-metallofullerenes. Dalton Trans. 2019, 48, 2861–2871. [Google Scholar] [CrossRef] [Green Version]
  71. Li, H.; Risko, C.; Seo, J.H.; Campbell, C.; Wu, G.; Brédas, J.-L.; Bazan, G.C. Fullerene–carbene lewis acid–base adducts. J. Am. Chem. Soc. 2011, 133, 12410–12413. [Google Scholar] [CrossRef]
  72. Bao, L.; Peng, P.; Lu, X. Bonding inside and outside fullerene cages. Acc. Chem. Res. 2018, 51, 810–815. [Google Scholar] [CrossRef]
  73. Chen, M.; Bao, L.; Ai, M.; Shen, W.; Lu, X. Sc3N@Ih-C80 as a novel lewis acid to trap abnormal n-heterocyclic carbenes: The unprecedented formation of a singly bonded [6,6,6]-adduct. Chem. Sci. 2016, 7, 2331–2334. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Chen, M.; Shen, W.; Peng, P.; Bao, L.; Zhao, S.; Xie, Y.; Jin, P.; Fang, H.; Li, F.-F.; Lu, X. Evidence of oxygen activation in the reaction between an N-heterocyclic carbene and M3N@Ih(7)-C80: An unexpected method of steric hindrance release. J. Org. Chem. 2017, 82, 3500–3505. [Google Scholar] [CrossRef] [PubMed]
  75. Bao, L.; Chen, M.; Shen, W.; Yang, L.; Jin, P.; Lu, X. Lewis acid–base adducts of Sc2C2@C3v(8)-C82/N-Heterocyclic carbene: Toward isomerically pure metallofullerene derivatives. Inorg. Chem. 2017, 56, 14747–14750. [Google Scholar] [CrossRef] [PubMed]
  76. Shen, W.; Yang, L.; Wu, Y.; Bao, L.; Li, Y.; Jin, P.; Fang, H.; Xie, Y.; Lu, X. Reactions between N-Heterocyclic carbene and lutetium–metallofullerenes: High regioselectivity directed by electronic effect in addition to steric hindrance. J. Org. Chem. 2019, 84, 606–612. [Google Scholar] [CrossRef]
  77. Kako, M.; Arikawa, Y.; Kanzawa, S.; Yamada, M.; Maeda, Y.; Furukawa, M.; Akasaka, T. Addition of S-Heterocyclic carbenes to fullerenes: Formation and characterization of dithiomethano-bridged derivatives. Helv. Chim. Acta 2019, 102, e1900064. [Google Scholar] [CrossRef]
Molecules 25 03626 g001 550

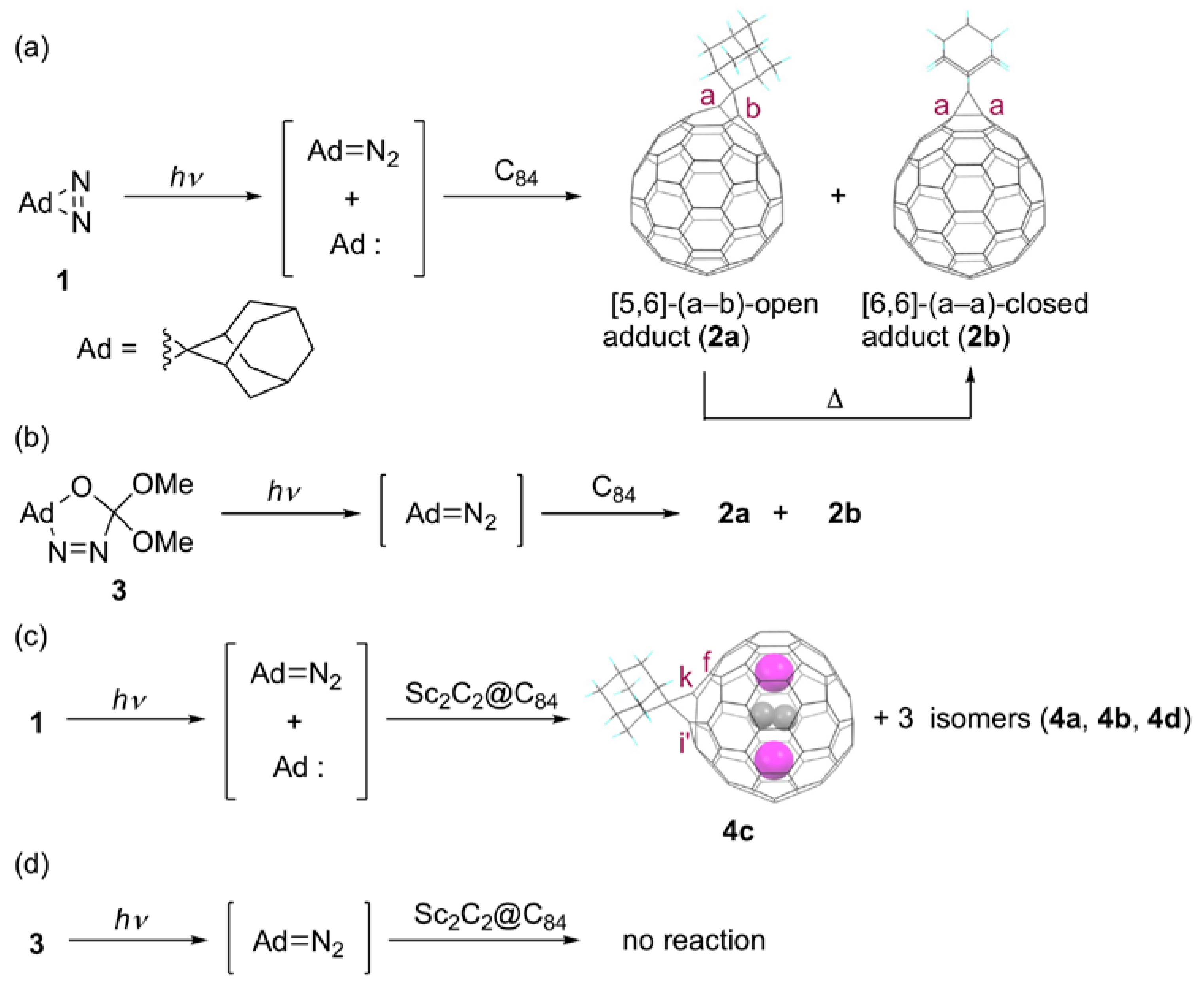

Figure 1. (a) Photochemical reaction of C84 and 1. (b) Photochemical reaction of C84 and 3. (c) Photochemical reaction of Sc2C2@C84 and 1. (d) Photochemical reaction of Sc2C2@C84 and 3.
Figure 1. (a) Photochemical reaction of C84 and 1. (b) Photochemical reaction of C84 and 3. (c) Photochemical reaction of Sc2C2@C84 and 1. (d) Photochemical reaction of Sc2C2@C84 and 3.
Molecules 25 03626 g001
Molecules 25 03626 g002 550

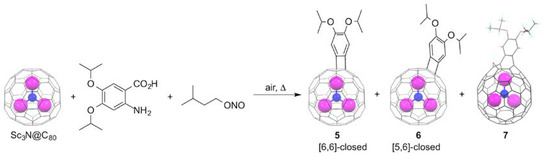

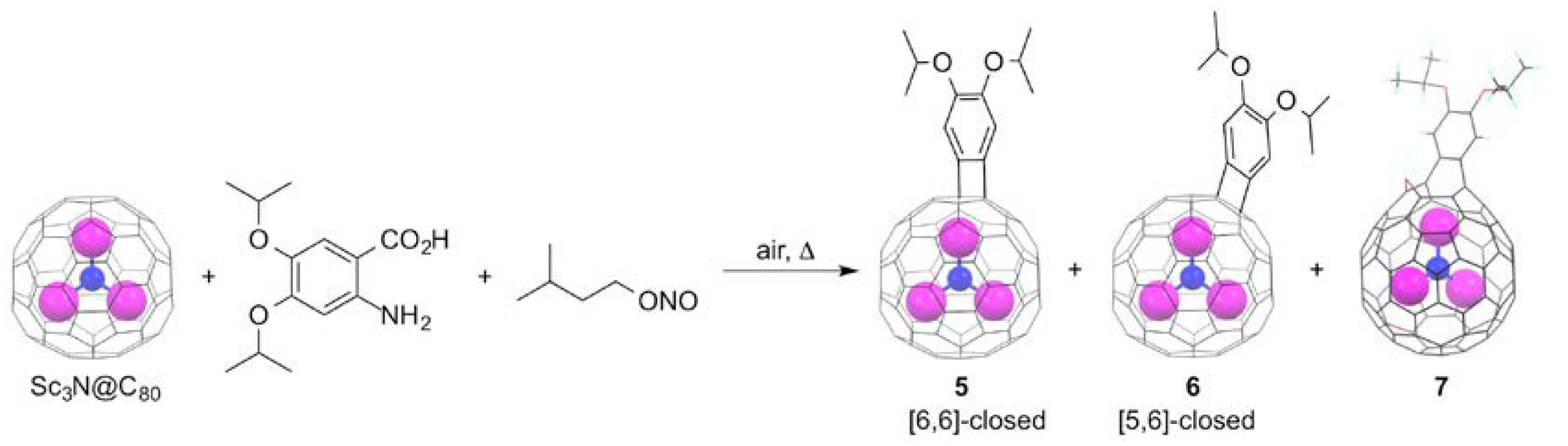

Figure 2. Cycloaddition reaction of Sc3N@C80 with 2-amino-4,5-diisopropoxybenzoic acid and isoamyl nitrite, to produce open-cage metallofullerene 7.
Figure 2. Cycloaddition reaction of Sc3N@C80 with 2-amino-4,5-diisopropoxybenzoic acid and isoamyl nitrite, to produce open-cage metallofullerene 7.
Molecules 25 03626 g002
Molecules 25 03626 g003 550

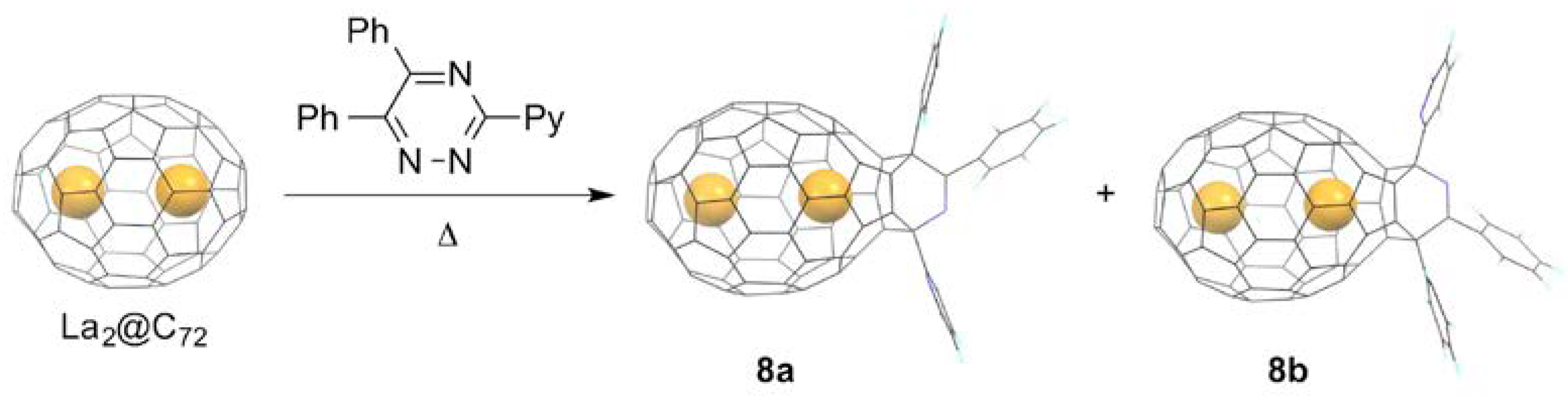

Figure 3. Cage-opening reaction of La2@C72 with 5,6-diphenyl-3-(2-pyridyl)-1,2,4-triazine.
Figure 3. Cage-opening reaction of La2@C72 with 5,6-diphenyl-3-(2-pyridyl)-1,2,4-triazine.
Molecules 25 03626 g003
Molecules 25 03626 g004 550

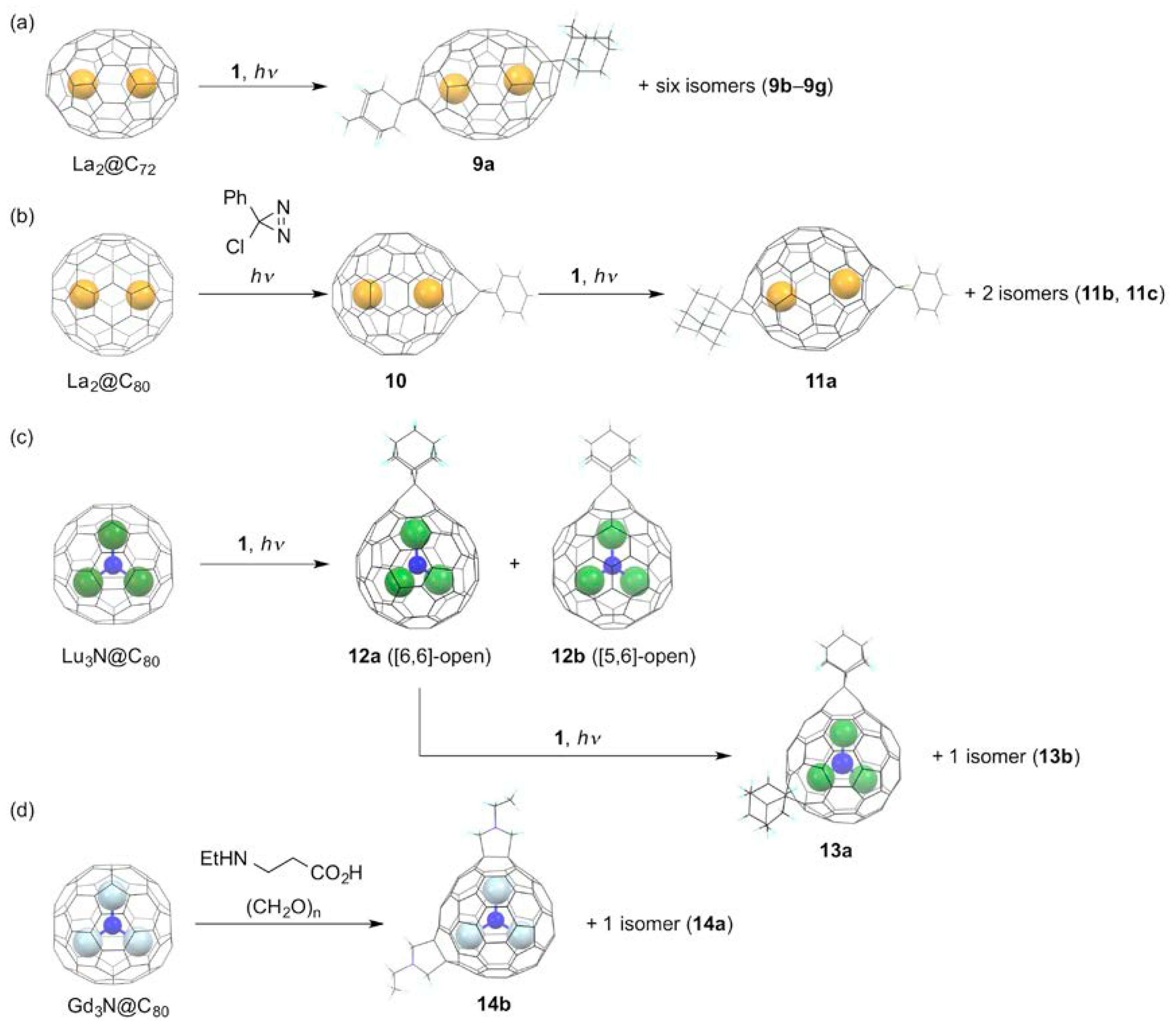

Figure 4. Bisfunctionalization of EMFs. (a) Photochemical reaction of La2@C72 and 1. (b) Two-step bisfunctionalization of La2@C80. (c) Two-step bisfunctionalization of Lu3N@C80. (d) Prato reaction of Gd3N@C80 with N-ethylglycine and paraformaldehyde.
Figure 4. Bisfunctionalization of EMFs. (a) Photochemical reaction of La2@C72 and 1. (b) Two-step bisfunctionalization of La2@C80. (c) Two-step bisfunctionalization of Lu3N@C80. (d) Prato reaction of Gd3N@C80 with N-ethylglycine and paraformaldehyde.
Molecules 25 03626 g004
Molecules 25 03626 g005 550

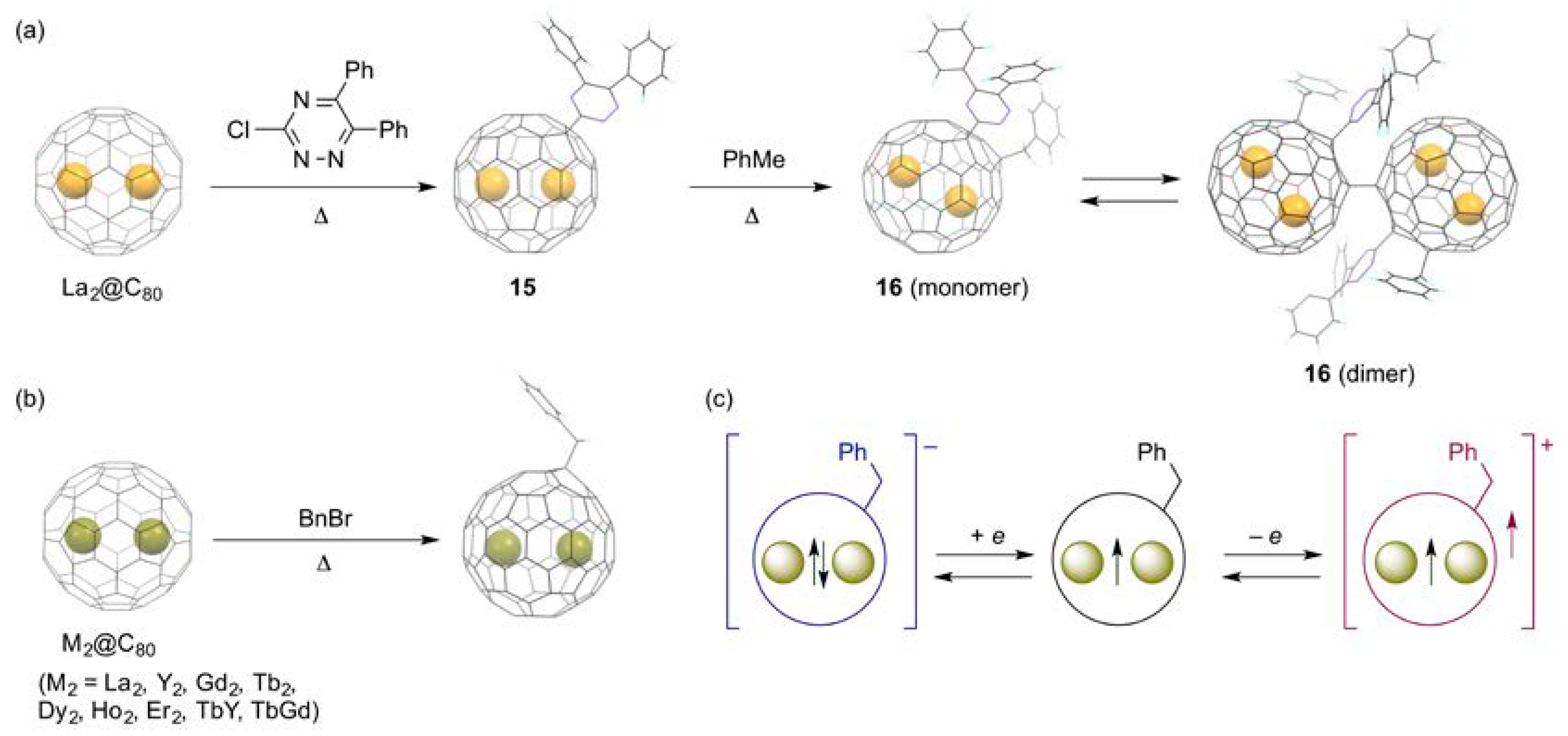

Figure 5. (a) Reaction of La2@C80 with 3-chloro-5,6-diphenyltriazine, and reaction of 15 with toluene. (b) Benzylation of M2@C80. (c) Schematic description of the single-electron reduction and oxidation of M2@C80(CH2Ph).
Figure 5. (a) Reaction of La2@C80 with 3-chloro-5,6-diphenyltriazine, and reaction of 15 with toluene. (b) Benzylation of M2@C80. (c) Schematic description of the single-electron reduction and oxidation of M2@C80(CH2Ph).
Molecules 25 03626 g005
Molecules 25 03626 g006 550

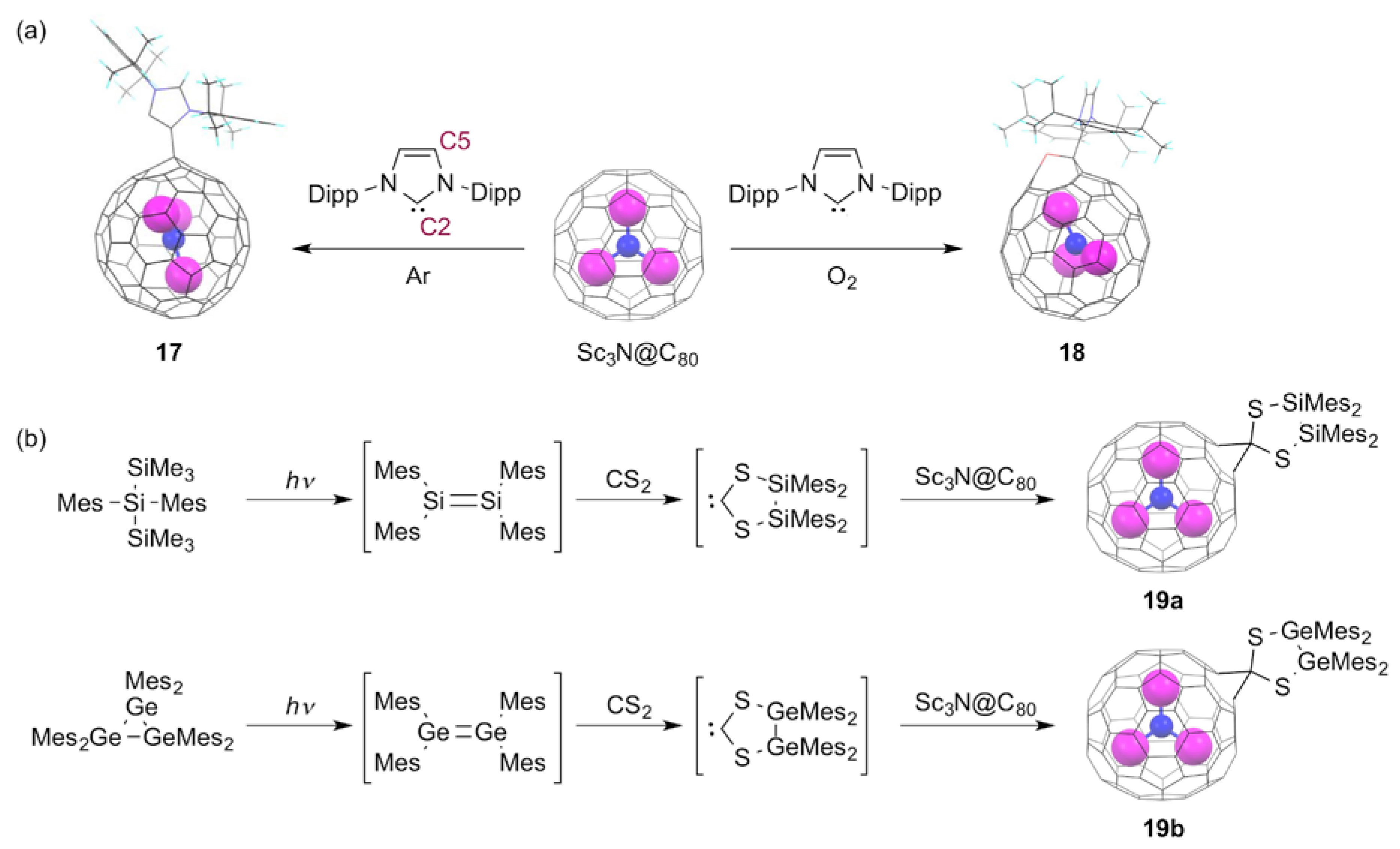

Figure 6. (a) Reactions of Sc3N@C80 with 1,3-bis(diisopropylphenyl)-imidazol-2-ylene in the absence or presence of oxygen. (b) Reactions of Sc3N@C80 with in situ generated SHCs.
