Establishment of a UPLC-PDA/ESI-Q-TOF/MS-Based Approach for the Simultaneous Analysis of Multiple Phenolic Compounds in Amaranth (A. cruentus and A. tricolor)
by
, ,
Won Tea Jeong
,
Jun-Hyoung Bang
,
Seahee Han
,
Tae Kyung Hyun
,
Hyunwoo Cho
,
Heung Bin Lim
* and
Jong-Wook Chung
* Department of Industrial Plant Science and Technology, Chungbuk National University, Chungbuk, Cheongju 28644, Korea
*
Authors to whom correspondence should be addressed.
Molecules 2020, 25(23), 5674; https://doi.org/10.3390/molecules25235674
Submission received: 11 October 2020
/
Revised: 28 November 2020
/
Accepted: 29 November 2020
/
Published: 1 December 2020
(This article belongs to the Collection Advances in Liquid Separation Techniques for Food and Pharmaceutical Analysis)
Abstract
:We used ultraperformance liquid chromatography coupled with a photodiode-array detector and electrospray ionization quadrupole time-of-flight mass spectrometry (UPLC-PDA/ESI-Q-TOF/MS) to rapidly and accurately quantify 17 phenolic compounds. Then, we applied this method to the seed and leaf extracts of two Amaranthus species to identify and quantify phenolic compounds other than the 17 compounds mentioned above. Compounds were eluted within 30 min on a C18 column using a mobile phase (water and acetonitrile) containing 0.1% formic acid, and the specific wavelength and ion information of the compounds obtained by PDA and ESI-Q-TOF/MS were confirmed. The proposed method showed good linearity (r2 > 0.990). Limits of detection and quantification were less than 0.1 and 0.1 μg/mL, respectively. Intra- and interday precision were less than 2.4% and 1.8%, respectively. Analysis of amaranth seed and leaf extracts using the established method showed that the seeds contained high amounts of 2,4-dihydroxybenzoic acid and kaempferol, and leaves contained diverse phenolic compounds. In addition, six tentatively new phenolic compounds were identified. Moreover, seeds potentially contained 2,3-dihydroxybenzaldehyde, a beneficial bioactive compound. Thus, our method was an efficient approach for the qualitative and quantitative analysis of phenolic compounds, and could be used to investigate phenolic compounds in plants.
1. Introduction
Plant phenolic compounds, a group of secondary metabolites, are largely classified as flavonoids or nonflavonoids depending on the number of bound phenolic structures [1,2]. Phenolic compounds are potent antioxidants that inhibit reactive oxygen species (ROS)-related enzymes such as xanthine oxidase, cyclo-oxygenase (COX), lipoxygenase, and phosphoinositide 3-kinase [3,4,5]. In addition, since phenolic compounds reduce inflammation, and treat Alzheimer’s disease and arteriosclerosis, the consumption of plants rich in these compounds is encouraged to prevent the onset of various diseases and aging [6].
Although several fruits and vegetables are rich in phenolic compounds, the search for grains and medicinal plants containing large amounts of phenolic compounds continues [7]. The Amaranthus genus comprises approximately 70 dicotyledonous plant species collectively known as amaranths, of which 17 are used as dual-purpose crops for seeds and leafy greens, and 3 are consumed for their seeds [7]. Amaranth leaves and seeds contain high amounts of proteins, vitamins, minerals, and phenolic compounds; extracts of some species, such as Amaranthus tricolor, are recognized as health foods since they inhibit the growth of human tumor cells [8]. Amaranths show a variety of leaf and seed colors. Amaranth leaves vary in color from red to green, and the Amaranthus cruentus species contains a high content of beta-alanine, which shows strong antioxidant activity [9].
Various phenolic compounds with high antioxidant activity also exist in amaranths with green leaves and seeds; therefore, these plants can be a good source of natural antioxidants [10,11]. However, while the distribution of phenolic compounds in Amaranthus species varies with leaf color, the content of phenolic compounds is affected by environmental factors, i.e., the same species may contain different amounts of phenolic compounds under different environmental conditions. Therefore, an analytical approach is required for the qualitative and quantitative analysis of the distribution of phenolic compounds in amaranths [12].
Phenolic compounds are frequently quantified using either the colorimetric method (for measuring total phenol and total flavonoid contents), or by liquid chromatography coupled with an ultraviolet detector (LC–UVD) or mass spectrometry (LC–MS) [8,13]. The colorimetric method is simple and convenient, but cannot determine individual compounds; therefore, LC is used when the objective is to accurately identify compounds in complex samples. LC–UVD and LC, followed by tandem MS (LC–MS/MS), are used to separate individual compounds, and because these methods have excellent selectivity and sensitivity, trace quantitation is possible [14]. However, a disadvantage of these methods is that a standard substance must be retained to identify and quantify individual compounds. Electrospray ionization quadrupole time-of-flight MS (ESI-Q-TOF/MS), a commercial high-resolution mass spectrometry method, is recognized as an excellent platform for profiling various metabolites such as phenolic compounds, alkaloids, and terpenoids because of its ability to identify and quantify unknown compounds without the need for a standard [15]. However, since ESI-Q-TOF/MS cannot accurately quantify some phenolic compounds, analysis is performed by LC–UVD for the simultaneous analysis of other phenolic compounds.
In this study, we used ultraperformance liquid chromatography coupled with a photodiode-array detector and ESI-Q-TOF/MS (UPLC-PDA/ESI-Q-TOF/MS) to quickly and accurately identify 17 phenolic compounds. This method was applied to the leaf and seed extracts of two different Amaranthus species collected from various countries. Furthermore, this method was used to identify other phenolic substances by providing wavelength and mass information to easily identify phenolic compounds, and to perform the chemical profiling of unknown peaks. To the best of our knowledge, this was the first attempt to investigate phenolic compounds in Amaranthus using high-resolution such as Q-TOF (Figure 1).
2. Results and Discussion
2.1. UPLC-PDA/ESI-Q-TOF/MS
Figure 2 shows the chromatogram obtained using the PDA for compounds separated by UPLC. An aqueous solution containing formic acid and acetonitrile was optimized using a C18 column under the conditions of Section 3.2, and separation into individual peaks was achieved within 23 min. In several previous studies, separation of phenolic compounds by high-performance liquid chromatography (HPLC)-ESI-Q-TOF/MS took at least 40 min on average; however, in this study, UPLC decreased separation time, and the obtained peaks showed excellent resolution [16,17,18].
Unfortunately, vanillic acid, syringic acid, benzoic acid, and sinapinic acid were only detectable using the PDA. These results were assumed to be affected by the pH of the mobile phase. To enable stable data acquisition, the pH of the aqueous solution used as the mobile phase for the LC–UVD analysis of phenolic and flavonoid compounds is generally adjusted with formic acid and sometimes with phosphoric acid [19,20].
Although the above material was analyzed by LC–MS/MS using an aqueous mobile phase containing formic acid in some studies, no study has reported the use of the TOF approach to perform multicomponent analysis. To analyze benzoic acid by LC–MS, the pH of the mobile phase was adjusted to more than 4.5 with ammonium acetate or ammonium carbonate [21,22,23]. The use of ammonium acetate increases the retention time of each component, which increases analysis time and lowers overall sensitivity, and this is not suitable for the simultaneous analysis of multiple components. Therefore, the use of an aqueous mobile phase with formic acid added was ideal for the simultaneous analysis of phenolic compounds. The combined use of UVD and Q-TOF serves as an optimal tool for overcoming these shortcomings, and is preferred by many researchers for analyzing phenolic compounds [24].
Table 1 shows the maximal absorption wavelength and characteristic mass information of the peaks corresponding to each compound separated by UPLC. UPLC-PDA analysis was performed at wavelength settings of 280, 254, and 310 nm, and peak intensity varied with wavelength. Overall absorbance was good at 280 nm. Maximal absorption wavelength (Table 1) and mass information can accurately identify the compound. ESI-Q-TOF analysis was performed in negative ion mode, and all detected compounds were ionized with quasimolecular ions, [M − H]−. The best collision energy for observing prominent ions among collision-induced dissociation (CID)-derived fragmented ions was 30–40 V.
Phenolic compounds are ionized in both positive and negative modes, but the prediction of ionized mass value and fragmentation is better in negative mode [24,25,26]. In addition, when performing chemical profiling, negative mode is advantageous for the potential identification of phenolic compounds because compounds containing nitrogen with an unshared electron pair are not detected [24]. Therefore, positive mode was not used in this study. This wavelength and mass information can be used as a library to accurately identify the compound and provide important clues for profiling.
2.2. Method Validation
Table 1 shows the verification results of the UPLC-PDA method. The calibration curves of all standards displayed good linearity, with the coefficient of determination (r2) greater than 0.990. The limits of detection and quantification were within ranges of 15–50 and 60–150 ng/mL, respectively. Intra- and interday precision for the analytes under UPLC-PDA conditions was less than 1.81% and 1.55%, respectively. The RSD range of the precision required by ICH is 4–6%, and our method showed excellent precision, not exceeding 2%. Accuracy was confirmed in the range of 93.4–106.1%.
2.3. Chemical Profiling of Phenolic Compounds in Seed Samples
Chemical profiling was performed to confirm the presence of phenolic compounds other than those detected by comparing their retention time (tR), absorption wavelength, and fragment ions with those of the standard. Chemical profiling uses UNIFI software to calculate the mass value of the parent molecule corresponding to the unknown peak with high resolution, excluding the peak matched with the standard, and calculates the expected molecular formula of the extracted phenolic compounds containing carbon, hydrogen, and oxygen. The molecular formula was determined, so that [M − H]− quasimolecular ions were established within 30 ppm of mass error, and further investigated with ChemSpider and through literature searches. Results showed peaks that presumably represented a total of 6 phenolic compounds (Table 2). No previous reports suggested that the identified compounds were found in Amaranthus, and the peak with m/z 137 was found in all seed samples. This ion was tentatively identified as two candidates (salicylic acid and 2,3-dihydroxybenzaldehyde) that could exist in plants through chemical profiling. Although this ion showed the same mass ion of the parent molecule as salicylic acid, m/z 93, a representative fragment ion produced by CID from the parent molecule of salicylic acid was not observed in our results [27,28].
To ensure accurate identification, it is important to check the conformity of various factors using standard materials. Compound 2,3-dihydroxybenzaldehyde exhibited strong antioxidant activity, protecting against hypotensive effects, genotoxicity, and cytotoxicity [29,30]. In order to receive attention as a valuable food along with the leaves of Amaranthus, it is necessary to try more elaborate confirmation by comparing retention time, mass ions, and fragmentation ions after securing the real standard of the substance.
2.4. Heat Map and Clustering Analysis
Heat maps for the 17 phenolic compounds identified in the seeds and leaves of 7 Amaranthus plant sources are shown in Figure 3 (green indicates a higher content than the average value). Clustering analysis divided the phenolic compounds into two categories. All phenolic compounds identified in the leaves except 3,4-dihydroxybenzoic acid and kaempferol were dispersed, and no clear difference was apparent among Amaranthus species.
2.5. Assessing the Greenness
On the other hand, in the seeds, 3,4-dihydroxybenzoic acid was detected at a high level in the A. cruentus collected from two countries, suggesting that 3,4-dihydroxybenzoic acid was unaffected by environmental factors. The kaempferol content was higher than that of other phenolic compounds in ACS1, ATS3, and ATS4, although this result was presumably not related to the difference in content between resources. However, these two components exhibited common features that were not detected in mature leaves. According to previous studies, the content of benzoic acid and flavonoids isolated from the same plant species may differ between regions, and total phenol and flavonoid contents were higher in leaves than in seeds [12,31]. In addition, amaranth leaves show high antioxidant activity [12]. The difference in the content of phenolic compounds between seeds and leaves was consistent with the results of the existing literature. However, the difference in the contents of benzoic acid and kaempferol between leaves and seeds has not been reported to date. In contrast to our results, Hongyan et al. showed that Amaranthus caudatus contained a higher content of several phenolic compounds (2,4-dihydroxybenzoic and kaempferol-3-rutinoside) including 3,4-dihydroxybenzoic acid in leaves than in seeds [31]. On the other hand, Magdalena Karamac et al. measured the phenol content of A. caudatus from the early vegetative stage to the grain stage, and reported that the contents of caffeic acid and hydroxycinnamic acid derivatives decreased [8]. It is important to examine whether this difference represents the difference between resources or the effect of environmental factors. In addition, it is necessary to investigate contents of kaempferol in various resources.
Ecoscale evaluation was performed to evaluate whether our analytical method was suitable for greenness [32]. Ecoscale is based on assigning penalty points (PPs) to parameters used from sample preparation to analysis by Gu et al. [23]. Among recently reported studies, three papers, similar to ours but with different analyzers, were selected to evaluate and compare rust formation. Results for penalty points are shown in Table 3—the fewer the points are, the closer to greening. This result showed that our method was closer to green formation than the methods of HPLC-UV and HPLC-ESI-Q-TOF were.
3. Materials and Methods
3.1. Chemicals and Reagents
All solvents and reagents used for analysis were HPLC- and analytical-grade. Gallic acid (≥98.0%), 3,4-dihydroxybenzoic acid (≥97.0%), 4-hydroxybenzoic acid (≥99.0%), 2,4-dihydroxybenzoic acid (≥97.0%)), vanillic acid (≥97.0%), caffeic acid (≥98.0%), syringic acid (≥95.0%), p-coumaric acid (≥98.0%), ferulic acid (≥99.0%), sinapinic acid (≥98.0%), rutin (≥95.0%) quercetin 3-β-d-glucoside (≥99.0%), benzoic acid (≥99.5%), kaempferol 3-O-β–rutinoside (≥98.0%), quercetin (≥95.0%), cinnamic acid (≥99.0%), and kaempferol (≥97.0%) were purchased from Sigma-Aldrich (St. Louis, MO, USA).
Stock standard solutions were prepared by dissolving approximately 1 mg of each substance in a 1 mL aliquot of methanol (1000 μg/mL). A mixed standard solution containing 10 μg/mL was subsequently prepared in methanol and stored at 4 °C prior to use.
3.2. Sample and Extraction
Plant materials were collected from the Rural Development Administration (RDA)-Genebank Information Center in Korea. Amaranthus species used in the study and source details are listed in Table S1 in the Supplementary Materials. Seeds were sown in April 2019, and seedlings were transplanted at a research farm at the Chungbuk National University, Korea (36°37′27.7′′ N, 127°27′3′′ E). The seedlings were cultivated from May to August 2019. Harvested samples were lyophilized, ground into a fine powder, and used for the extraction of phenolic compounds.
Fresh leaves (100 mg) were submitted to infusion in 1 mL of 70% aqueous ethanol by sonicating for 1 h, and the sample was centrifuged for 10 min at 12,000 rpm at 4 °C. The supernatant was filtered with a 0.2 μm filter, diluted 10 times with distilled water, and used for instrument analysis.
3.3. Analysis Conditions
The identification and quantification of the phenolic compounds was carried out with the use of a UPLC system (Waters, Milford, MA, USA) equipped with a binary solvent pump, an autosampler, and a photodiode-array detector. MS analysis was performed using a Xevo G2 Q-TOF model coupled with ESI (Waters, Milford, MA, USA). UPLC and Q-TOF conditions are summarized in Table 4. The mobile phase was composed of water (Solvent A) and acetonitrile (Solvent B) containing 0.1% formic acid. Mass-acquisition mode was performed in negative mode.
3.4. Method Validation
Method validation was evaluated for linearity, limit of detection (LOD), limit of quantitation (LOQ), accuracy, and precision (intra- and interday) by modifying according to International Conference on Harmonization (ICH) guidelines.
A mixture of standard solutions of all 17 phenolic compounds was prepared at 7 different concentrations (ranging from 0.05 to 10 μg/mL). Linearity was evaluated by the coefficient of determination of the regression equation. Linearity-calibration curves were constructed by the least-seven plotting of each reference compound and evaluated by a squared–linear correlation coefficient (r2). LOD and LOQ were defined as signal-to-noise (S/N) ratios of 3 and 9, respectively. Inter- and intraday precision were determined by analyzing for 6 replicates for known concentration (concentration in the middle of the calibration curve) on the same day (intraday) and on 3 consecutive days (interday), and expressed in terms of relative standard deviation (RSD). Accuracy was evaluated as the proportion of the standard concentration in the spiked sample analyzed and the theoretical spiked concentration.
3.5. Statistics
All the data were converted to the standard score. Heat-map hierarchical clustering was performed using R software (version 3.6.3, R Foundation for Statistical Computing, Vienna, Austria). The hierarchical cluster was analyzed using the ward.D method on the basis of Pearson’s correlation coefficient.
4. Conclusions
A method to quickly and accurately analyze 17 phenolic compounds with UPLC-PDA/ESI-Q-TOF/MS was developed and verified. This method was successfully applied to amaranths, a rich source of potent antioxidants, to quantify major phenolic compounds. Six new phenolic compounds were tentatively identified by ESI-Q-TOF. Although components detected with the PDA were included, the ability to identify unknown components of ESI-Q-TOF/MS offset this problem. Our proposed method of analysis could help researchers understand the distribution of phenolic compounds in Amaranthus species and identify phenolic compounds in other plant species.
Supplementary Materials
The Supplementary materials are available online. Table S1. Sample information used in this study and concentration of phenolic compounds by UPLC-PDA.
Author Contributions
Conceptualization, J.-W.C.; methodology, H.B.L.; software, W.T.J.; validation, W.T.J. and J.-H.B.; formal analysis, W.T.J.; investigation, W.T.J., S.H. and J.-H.B.; resources, J.-W.C.; data curation, W.T.J. and J.-H.B.; original-draft preparation, W.T.J.; writing—review and editing, J.-W.C., W.T.J., T.K.H. and H.C.; visualization, W.T.J.; supervision, J.-W.C.; and H.B.L.; project administration, J.-W.C.; funding acquisition, J.-W.C. All authors have read and agreed to the published version of the manuscript.
Funding
This research was supported by Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education (NRF-2018R1D1A1B07050431). It was also supported by Chungbuk National University (2019).
Conflicts of Interest
The authors declare no conflict of interest.
References
- Shahidi, F.; Ambigaipalan, P. Phenolics and polyphenolics in foods, beverages and spices: Antioxidant activity and health effects–A review. J. Funct. Foods 2015, 18, 820–897. [Google Scholar] [CrossRef]
- Melini, V.; Melini, F.; Acquistucci, R. Phenolic Compounds and Bioaccessibility Thereof in Functional Pasta. Antioxidants 2020, 9, 343. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Metodiewa, D.; Kochman, A.; Karolczak, S. Evidence for antiradical and antioxidant properties of four biologically active N,N-Diethylaminoethyl ethers of flavaone oximes: A comparison with natural polyphenolic flavonoid rutin action. IUBMB Life 1997, 41, 1067–1075. [Google Scholar] [CrossRef] [PubMed]
- Hayashi, T.; Sawa, K.; Kawasaki, M.; Arisawa, M.; Shimizu, M.; Morita, N. Inhibition of cow’s milk xanthine oxidase by flavonoids. J. Nat. Prod. 1988, 51, 345–348. [Google Scholar] [CrossRef] [PubMed]
- Walker, E.H.; Pacold, M.E.; Perisic, O.; Stephens, L.; Hawkins, P.T.; Wymann, M.P.; Williams, R.L. Structural determinants of phosphoinositide 3-kinase inhibition by wortmannin, LY294002, quercetin, myricetin, and staurosporine. Mol. Cell 2000, 6, 909–919. [Google Scholar] [CrossRef]
- Panche, A.; Diwan, A.; Chandra, S. Flavonoids: An overview. J. Nutr. Sci. 2016, 5. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Costea, M.; DeMason, D.A. Stem morphology and anatomy in Amaranthus L. (Amaranthaceae), taxonomic significance. J. Torrey. Bot. Soc. 2001, 128, 254–281. [Google Scholar] [CrossRef] [Green Version]
- Karamać, M.; Gai, F.; Longato, E.; Meineri, G.; Janiak, M.A.; Amarowicz, R.; Peiretti, P.G. Antioxidant activity and phenolic composition of amaranth (Amaranthus caudatus) during plant growth. Antioxidants 2019, 8, 173. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Li, H.; Deng, Z.; Zhu, H.; Hu, C.; Liu, R.; Young, J.C.; Tsao, R. Highly pigmented vegetables: Anthocyanin compositions and their role in antioxidant activities. Food Res. Int. 2012, 46, 250–259. [Google Scholar] [CrossRef]
- Cai, Y.; Sun, M.; Corke, H. Antioxidant activity of betalains from plants of the Amaranthaceae. J. Agric. Food Chem. 2003, 51, 2288–2294. [Google Scholar] [CrossRef]
- Klimczak, I.; Małecka, M.; Pachołek, B. Antioxidant activity of ethanolic extracts of amaranth seeds. Food/Nahrung 2002, 46, 184–186. [Google Scholar] [CrossRef]
- Khanam, U.K.S.; Oba, S. Bioactive substances in leaves of two amaranth species, Amaranthus tricolor and A. hypochondriacus. Can. J. Plant Sci. 2013, 93, 47–58. [Google Scholar] [CrossRef]
- Olech, M.; Pietrzak, W.; Nowak, R. Characterization of Free and Bound Phenolic Acids and Flavonoid Aglycones in Rosa rugosa Thunb. Leaves and Achenes Using LC–ESI–MS/MS–MRM Methods. Molecules 2020, 25, 1804. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Elessawy, F.M.; Bazghaleh, N.; Vandenberg, A.; Purves, R.W. Polyphenol profile comparisons of seed coats of five pulse crops using a semi-quantitative liquid chromatography-mass spectrometric method. Phytochem. Anal. 2020, 31, 458–471. [Google Scholar] [CrossRef]
- Jeong, W.T.; Lim, H.B. Determination and chemical profiling of toxic pyrrolizidine alkaloids in botanical samples with UPLC–Q-TOFMS. Chromatographia 2019, 82, 1653–1664. [Google Scholar] [CrossRef]
- Brito, A.; Ramirez, J.E.; Areche, C.; Sepúlveda, B.; Simirgiotis, M.J. HPLC-UV-MS profiles of phenolic compounds and antioxidant activity of fruits from three citrus species consumed in Northern Chile. Molecules 2014, 19, 17400–17421. [Google Scholar] [CrossRef]
- Kumar, S.; Singh, A.; Kumar, B. Identification and characterization of phenolics and terpenoids from ethanolic extracts of Phyllanthus species by HPLC-ESI-QTOF-MS/MS. J. Pharm. Anal. 2017, 7, 214–222. [Google Scholar] [CrossRef]
- Restivo, A.; Degano, I.; Ribechini, E.; Colombini, M.P. Development and optimisation of an HPLC-DAD-ESI-Q-TOF method for the determination of phenolic acids and derivatives. PLoS ONE 2014, 9, e88762. [Google Scholar] [CrossRef]
- Hefni, M.E.; Amann, L.S.; Witthöft, C.M. A HPLC-UV Method for the Quantification of Phenolic Acids in Cereals. Food Anal. Methods 2019, 12, 2802–2812. [Google Scholar] [CrossRef] [Green Version]
- Belguidoum, K.; Amira-Guebailia, H.; Boulmokh, Y.; Houache, O. HPLC coupled to UV–vis detection for quantitative determination of phenolic compounds and caffeine in different brands of coffee in the Algerian market. J. Taiwan Inst. Chem. Eng. 2014, 45, 1314–1320. [Google Scholar] [CrossRef]
- Seraglio, S.K.T.; Valese, A.C.; Daguer, H.; Bergamo, G.; Azevedo, M.S.; Gonzaga, L.V.; Fett, R.; Costa, A.C.O. Development and validation of a LC-ESI-MS/MS method for the determination of phenolic compounds in honeydew honeys with the diluted-and-shoot approach. Food Res. Int. 2016, 87, 60–67. [Google Scholar] [CrossRef] [PubMed]
- Lee, I.; Ahn, S.; Kim, B.; Hwang, E.; Kim, Y.S. Analysis of benzoic acid in quasi-drug drink using isotope dilution liquid chromatography mass spectrometry. Bull Korea Chem. Soc. 2008, 29, 2125–2128. [Google Scholar]
- Penner, N.; Ramanathan, R.; Zgoda-Pols, J.; Chowdhury, S. Quantitative determination of hippuric and benzoic acids in urine by LC–MS/MS using surrogate standards. J. Pharm. Biomed. Anal. 2010, 52, 534–543. [Google Scholar] [CrossRef] [PubMed]
- Gu, C.; Howell, K.; Dunshea, F.R.; Suleria, H.A. Lc-esi-qtof/ms characterisation of phenolic acids and flavonoids in polyphenol-rich fruits and vegetables and their potential antioxidant activities. Antioxidants 2019, 8, 405. [Google Scholar] [CrossRef] [Green Version]
- Fabre, N.; Rustan, I.; de Hoffmann, E.; Quetin-Leclercq, J. Determination of flavone, flavonol, and flavanone aglycones by negative ion liquid chromatography electrospray ion trap mass spectrometry. J. Am. Soc. Mass Spectrom. 2001, 12, 707–715. [Google Scholar] [CrossRef] [Green Version]
- Demarque, D.P.; Crotti, A.E.; Vessecchi, R.; Lopes, J.L.; Lopes, N.P. Fragmentation reactions using electrospray ionization mass spectrometry: An important tool for the structural elucidation and characterization of synthetic and natural products. Nat. Prod. Rep. 2016, 33, 432–455. [Google Scholar] [CrossRef] [Green Version]
- Segarra, G.; Jáuregui, O.; Casanova, E.; Trillas, I. Simultaneous quantitative LC–ESI-MS/MS analyses of salicylic acid and jasmonic acid in crude extracts of Cucumis sativus under biotic stress. Phytochemistry 2006, 67, 395–401. [Google Scholar] [CrossRef]
- Croubels, S.; Maes, A.; Baert, K.; De Backer, P. Quantitative determination of salicylic acid and metabolites in animal tissues by liquid chromatography–tandem mass spectrometry. Anal. Chim. Acta 2005, 529, 179–187. [Google Scholar] [CrossRef]
- Ayinde, B.; Omogbai, E.; Onwukaeme, D. Hypotensive effects of 3, 4-dihydroxybenzyaldehyde isolated from the stem bark of Musanga cecropioides. J. Pharmacogn. Phytother. 2010, 2, 4–9. [Google Scholar]
- Husain, N.; Mahmood, R. 3,4-Dihydroxybenzaldehyde quenches ROS and RNS and protects human blood cells from Cr (VI)-induced cytotoxicity and genotoxicity. Toxicol. Vitro 2018, 50, 293–304. [Google Scholar] [CrossRef]
- Li, H.; Deng, Z.; Liu, R.; Zhu, H.; Draves, J.; Marcone, M.; Sun, Y.; Tsao, R. Characterization of phenolics, betacyanins and antioxidant activities of the seed, leaf, sprout, flower and stalk extracts of three Amaranthus species. J. Food Compos. Anal. 2015, 37, 75–81. [Google Scholar] [CrossRef]
- Gałuszka, A.; Migaszewski, Z.M.; Konieczka, P.; Namieśnik, J. Analytical Eco-Scale for assessing the greenness of analytical procedures. Trac Trends Anal. Chem. 2012, 37, 61–72. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors. |

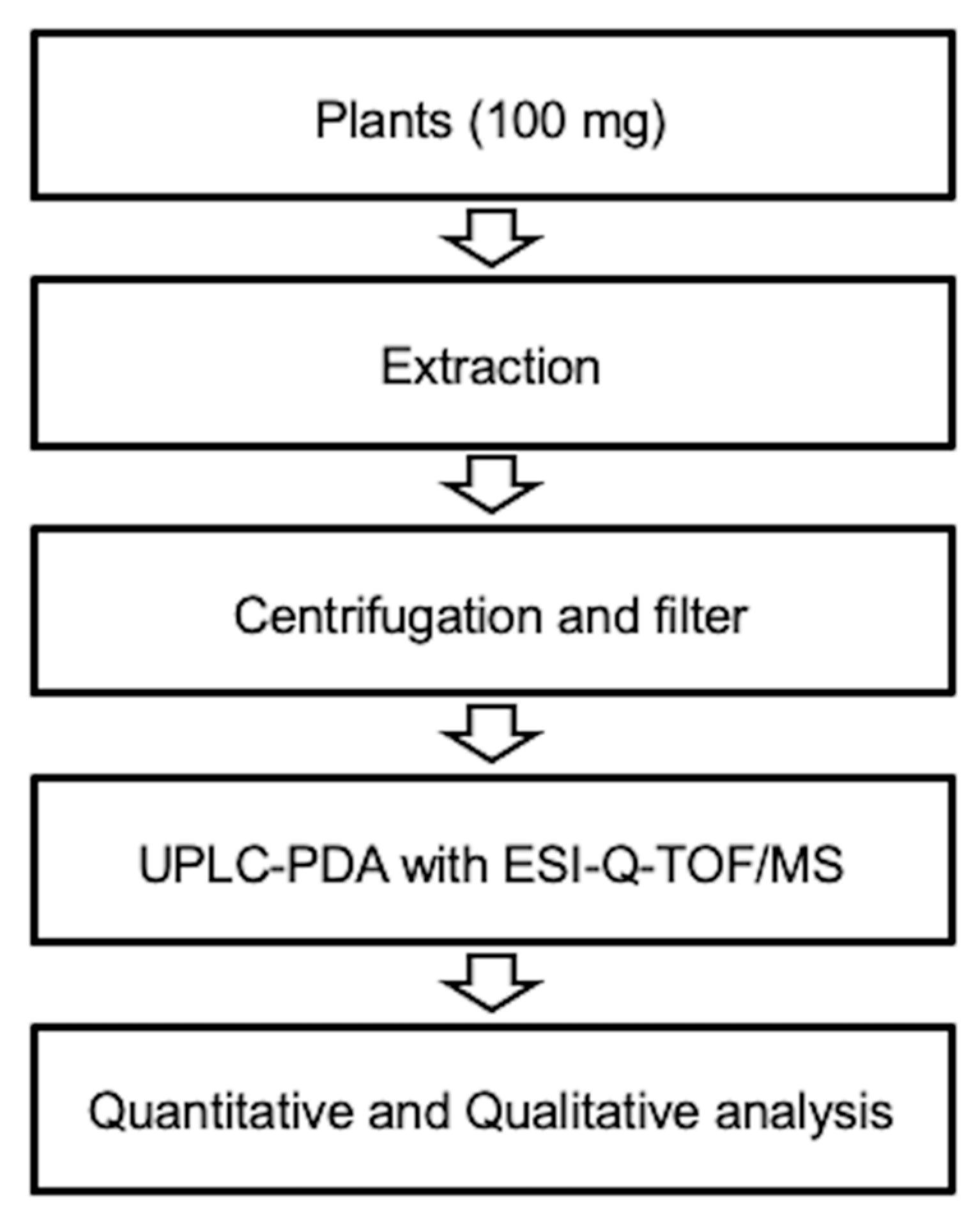

Figure 1.
Schematic flowchart showing steps for analysis of 17 phenolic compounds in Amaranthus by ultraperformance liquid chromatography coupled with photodiode-array detector and electrospray ionization quadrupole time-of-flight mass spectrometry (UPLC-PDA/ESI-Q-TOF/MS).
Figure 1.
Schematic flowchart showing steps for analysis of 17 phenolic compounds in Amaranthus by ultraperformance liquid chromatography coupled with photodiode-array detector and electrospray ionization quadrupole time-of-flight mass spectrometry (UPLC-PDA/ESI-Q-TOF/MS).

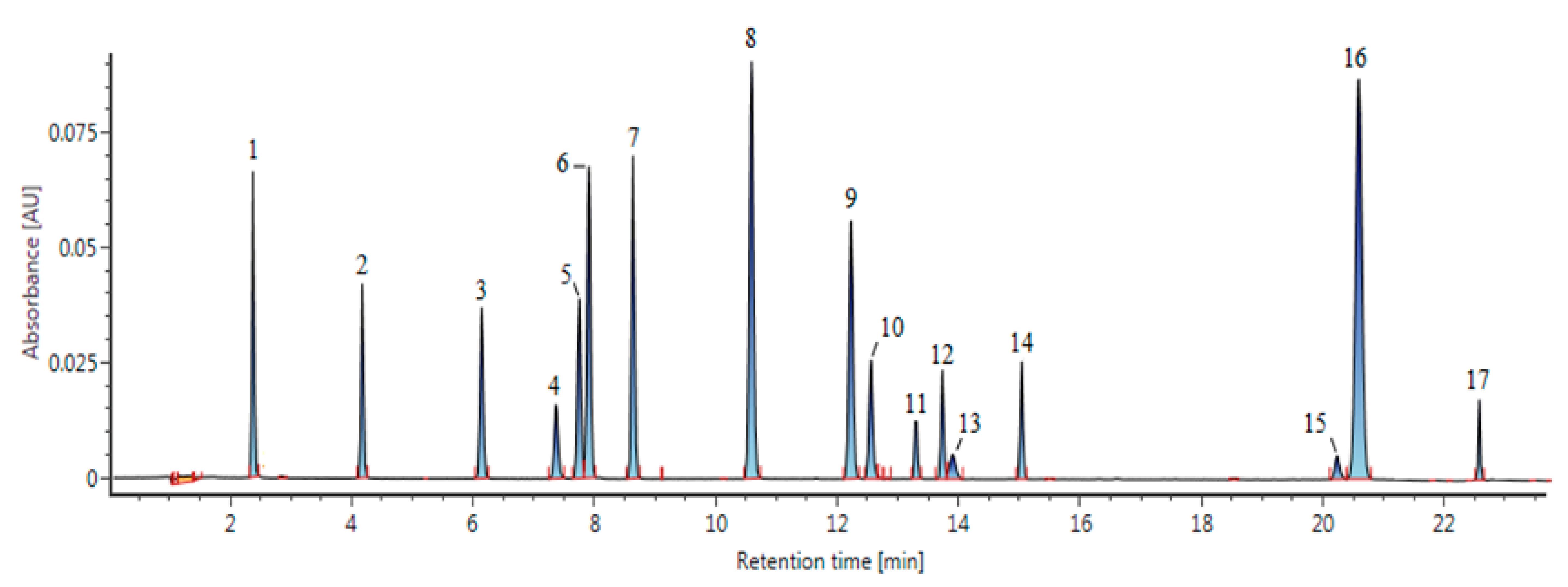

Figure 2.
Chromatograms of standard mixture of 17 phenolic compounds at 260 nm. Peaks were identified as follows: (1) gallic acid, (2) 3,4-dihydroxybenzoic acid, (3) 4-hydroxybenzoic acid, (4) 2,4-dihydroxybenzoic acid, (5) vanillic acid, (6) caffeic acid, (7) syringic acid, (8) p-coumaric acid, (9) ferulic acid, (10) sinapinic acid, (11) rutin, (12) quercetin 3-β-d-glucoside, (13) benzoic acid, (14) kaempferol 3-O-β-glucoside, (15) quercetin, (16) cinnamic acid, (17) kaempferol.
Figure 2.
Chromatograms of standard mixture of 17 phenolic compounds at 260 nm. Peaks were identified as follows: (1) gallic acid, (2) 3,4-dihydroxybenzoic acid, (3) 4-hydroxybenzoic acid, (4) 2,4-dihydroxybenzoic acid, (5) vanillic acid, (6) caffeic acid, (7) syringic acid, (8) p-coumaric acid, (9) ferulic acid, (10) sinapinic acid, (11) rutin, (12) quercetin 3-β-d-glucoside, (13) benzoic acid, (14) kaempferol 3-O-β-glucoside, (15) quercetin, (16) cinnamic acid, (17) kaempferol.

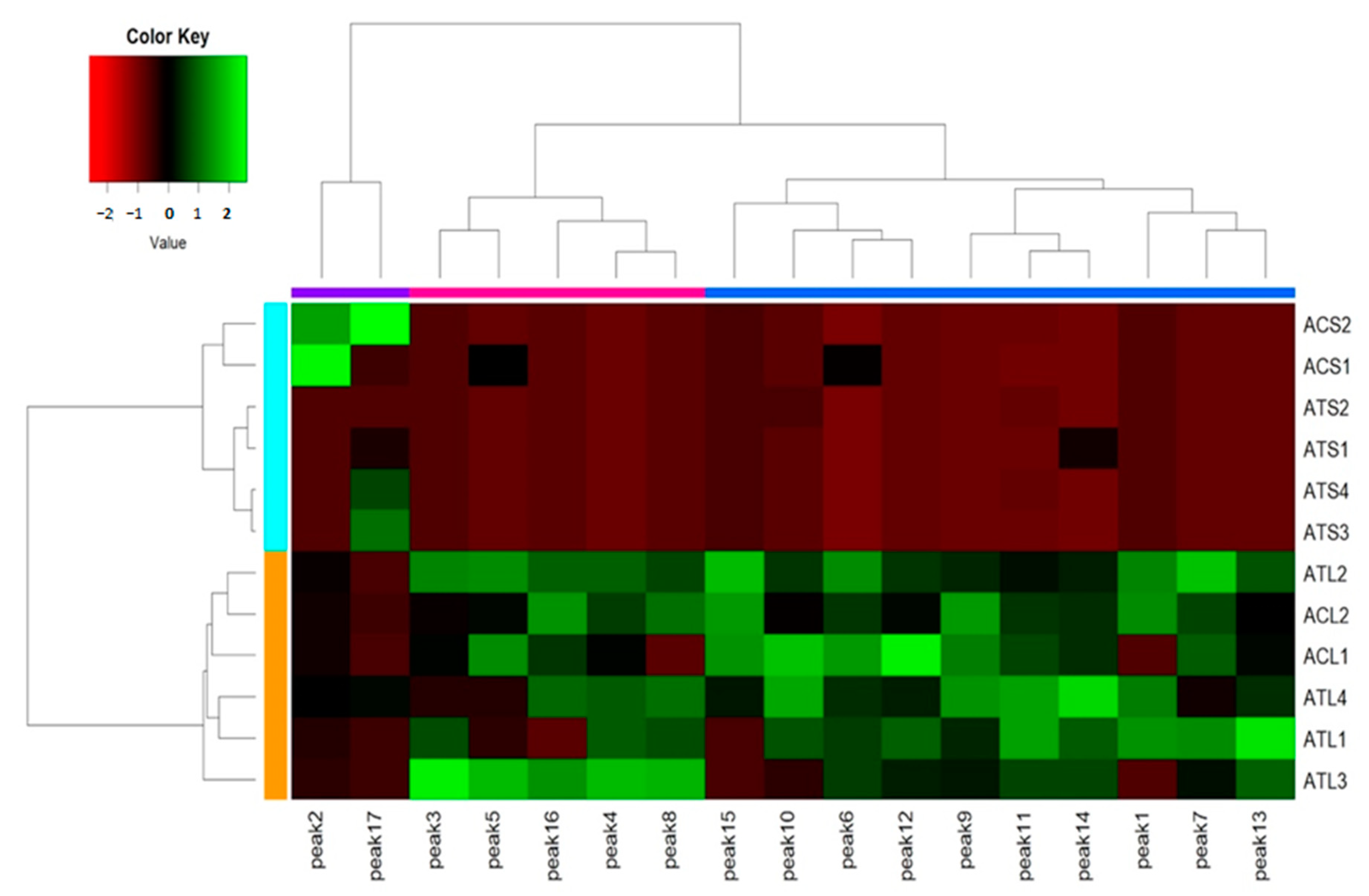

Figure 3.
Heat map of contents of phenolic compounds in Amaranthus species.
Table 1.
Results of method validation and characterization of mass information for 17 phenolic compounds by UPLC-PDA/ESI-Q-TOF/MS. Note: LOD, limit of detection; LOQ, limit of quantification.
Table 1.
Results of method validation and characterization of mass information for 17 phenolic compounds by UPLC-PDA/ESI-Q-TOF/MS. Note: LOD, limit of detection; LOQ, limit of quantification.
| Peak No. | Compound Name | PDA Detector | ESI-Q-TOF/MS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tR (min) | r2 | λmax | LOD (µg/mL) | LOQ (µg/mL) | Precision (RSD, %) | Accuracy (%) | Theoretical m/z | Observed m/z | Mass Error (ppm) | Major Fragment Ions (m/z) | |||
| Intraday | Interday | ||||||||||||
| 1 | Gallic acid | 2.35 | 0.999 | 270.4 | 0.01 | 0.03 | 2.4 | 1.8 | 104.3 | 170.0215 | 169.0084 | 30.5 | 125.0187, 123.0030 |
| 2 | 3,4-Dihydroxybenzoic acid | 4.14 | 0.999 | 258.5/293.1 | 0.05 | 0.15 | 0.7 | 0.9 | 99.3 | 154.0266 | 153.0136 | 33.1 | 109.0238, 108.0160, 107.0086 |
| 3 | 4-Hydroxybenzoic acid | 6.12 | 0.996 | 254.9 | 0.05 | 0.15 | 0.4 | 0.4 | 101.4 | 138.0317 | 137.0187 | 36.9 | 93.0293 |
| 4 | 2,4-Dihydroxybenzoic acid | 7.27 | 0.999 | 253.7/293.0 | 0.05 | 0.15 | 1.4 | 1.3 | 98.8 | 154.0266 | 153.0135 | 33.7 | 109.0238 |
| 5 | Vanillic acid | 7.73 | 0.999 | 259.7/290.6 | 0.05 | 0.15 | 0.4 | 0.7 | 102.7 | - | |||
| 6 | Caffeic acid | 7.89 | 0.999 | 243.1/324.1 | 0.05 | 0.15 | 0.8 | 1.0 | 101.6 | 180.0423 | 179.0292 | 28.8 | 135.0391, 134.0312, 133.0236 |
| 7 | Syringic acid | 8.63 | 0.999 | 274.0 | 0.01 | 0.03 | 0.4 | 0.5 | 106.1 | - | |||
| 8 | p-Coumaric acid | 10.57 | 0.999 | 309.7 | 0.02 | 0.06 | 0.4 | 0.3 | 105.3 | 164.0473 | 163.0345 | 29.8 | 119.0446, 117.0291, 93.0294 |
| 9 | Ferulic acid | 12.21 | 0.999 | 240.7/322.9 | 0.01 | 0.03 | 0.1 | 0.3 | 93.4 | 194.0579 | 193.045 | 25.7 | 134.0316, 133.0236 |
| 10 | Sinapinic acid | 12.54 | 0.999 | 239.5/324.1 | 0.1 | 0.3 | 0.3 | 0.5 | 102.1 | 224.0685 | 223.0557 | 21.8 | 164.0419, 149.0186, 121.0237 |
| 11 | Rutin | 13.27 | 0.997 | 256.1/348.7 | 0.1 | 0.3 | 0.7 | 1.1 | 102.306 | 610.1534 | 609.1467 | −2.0 | 301.0302, 300.0233 |
| 12 | Quercetin 3-β-d-glucoside | 13.71 | 0.999 | 254.9/348.7 | 0.1 | 0.3 | 0.6 | 0.6 | 96.6 | 464.0955 | 463.0862 | 2.9 | 301.0300, 300.0234 |
| 13 | Benzoic acid | 13.89 | 0.999 | 236.0/273.9 | 0.1 | 0.3 | 0.4 | 0.3 | 98.5 | - | |||
| 14 | Kaempferol 3-O-β-rutinoside | 15.01 | 0.990 | 265.6/348.7 | 0.1 | 0.3 | 0.3 | 0.3 | 104.2 | 594.1585 | 593.1522 | −2.8 | 285.0360, 284.0285 |
| 15 | Quercetin | 20.17 | 0.997 | 275.1 | 0.2 | 0.6 | 1.6 | 1.4 | 95.1 | 302.0427 | 301.0312 | 11.8 | 178.9928, 158.9979, 121.0237 |
| 16 | Cinnamic acid | 20.54 | 0.999 | 276.3 | 0.005 | 0.015 | 0.4 | 0.5 | 100.0 | - | |||
| 17 | Kaempferol | 22.55 | 0.999 | 265.6/366.8 | 0.05 | 0.15 | 1.4 | 1.8 | 104.3 | 286.0477 | 285.0361 | 12.8 | 159.0390, 143.0444, 93.0293 |
Table 2.
Characteristic mass information of compounds tentatively identified in two Amaranthus species by UPLC-PDA/ESI-Q-TOF/MS.
Table 2.
Characteristic mass information of compounds tentatively identified in two Amaranthus species by UPLC-PDA/ESI-Q-TOF/MS.
| Peak no. | tR (min) | Observed [M − H]− (m/z) | Neutral Mass (Da) | Mass Error (mDa) | Formula | Tentatively Identified Compounds | Major Fragment Ions (m/z) | Detected Sample Name |
|---|---|---|---|---|---|---|---|---|
| 1 | 5.98 | 137.0188 | 138.0317 | −5.8 | C7H6O3 | 2,3-Dihydroxybenzaldehyde | 108.0165 (59.1) | All seed samples |
| 2 | 6.22 | 385.0742 | 386.0849 | −3.5 | C16H18O11 | O-Feruloylgalactaric acid | 215.0271 (14.6), 212.9966 (68.7), 191.0141 (100), 147.0241 (24.2), 85.0243 (57.33) | All leave sample |
| 3 | 10.08 | 581.1518 | 582.1585 | 0.6 | C26H30O15 | Flavonol 3-O-d-xylosylgalactoside | 443.1181 (23.2), 351.0652 (6.4), 257.0384 (3.2), 167.0294 (75.5), 137.0188 (39.5) | All seed samples |
| 4 | 11.88 | 755.2073 | 756.2113 | 3.3 | C33H40O20 | Kaempferol 3-(3R-glucosylrutinoside)-Faralateroside | 555.1208 (4.9), 363.0688 (2.6), 300.0232 (24.6), 201.0115 (4.2) | All leaf samples |
| 5 | 16.42 | 449.1464 | 450.1526 | 1.1 | C22H26O10 | Asebotin | 433.1573 (1.0), 240.9976 (6.7), 177.0341 (2.9), 150.9652 (1.3) | All leaf samples |
| 6 | 17.87 | 287.0914 | 288.0998 | −1.1 | C16H16O5 | Shikalkin | 235.0563 (1.5), 195.0608 (5.2) | ATL1, ATL2, ATS1 and ATS2 |
Table 3.
Penalty points (PPs) for determination of phenolic compounds in this study and others.
| Our Method | Reference [19] | Reference [24] | ||||
|---|---|---|---|---|---|---|
| Reagent | PPs | PPs | PPs | |||
| Ethanol 1 mL | 0 | NaOH (2.5–7.5 M) 4 mL | 2 | Ethanol | 0 | |
| Dichloromethane 2 mL | 1 | |||||
| Instruments | ||||||
| UPLC-UV | 0 | Heater | 8 | HPLC-UV | 1 | |
| MS(ESI-Q-TOF/MS) | 2 | HPLC-UV | 1 | MS(ESI-Q-TOF/MS) | 2 | |
| Waste | 0 | Waste | 1 | Waste | 0 | |
| Total penalty points | ||||||
Table 4.
UPLC-PDA/ESI-Q-TOF/MS operating conditions.
| Parameters | Conditions | |
|---|---|---|
| UPLC PDA conditions bellow; | ||
| Injection volume | 5 μL | |
| Column temperature | 40 °C | |
| Flow rate | 0.25 mL/min | |
| Column type | BEH C18 column (2.1 × 100 mm, 1.7 μm) | |
| Gradient/mobile phase | Solvent A (%) | Solvent B (%) |
| Time (min) | ||
| 0 | 98 | 2 |
| 20 | 75 | 25 |
| 24 | 40 | 60 |
| 27 | 10 | 90 |
| 28 | 10 | 90 |
| 30 | 98 | 2 |
| 35 | re-equilibration | |
| ESI-Q-TOF/MS conditions bellow; | ||
| Capillary voltage | 3.0 kV | |
| Cone voltage | 30 V | |
| Cone gas flow | 800 L/h | |
| Desolvation gas flow | 60 L/h | |
| Source temperature | 40 °C | |
| Scan time | 0.25 s | |
| Scan range | m/z 50–1200 | |
| Collision energy | Low-collision energy, 6 eV; high-collision energy, 30–50 eV | |
| Software | UNIFI ver. 1.8 | |
