Review

The Hydrolysis of Phosphinates and Phosphonates: A Review

by
Nikoletta Harsági
and
György Keglevich
*
Department of Organic Chemistry and Technology, Budapest University of Technology and Economics, 1521 Budapest, Hungary
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(10), 2840; https://doi.org/10.3390/molecules26102840
Submission received: 19 April 2021 / Revised: 4 May 2021 / Accepted: 6 May 2021 / Published: 11 May 2021
(This article belongs to the Special Issue Organophosphorus Chemistry 2021)
Browse Figures
Review Reports Versions Notes

Abstract

:
Phosphinic and phosphonic acids are useful intermediates and biologically active compounds which may be prepared from their esters, phosphinates and phosphonates, respectively, by hydrolysis or dealkylation. The hydrolysis may take place both under acidic and basic conditions, but the C-O bond may also be cleaved by trimethylsilyl halides. The hydrolysis of P-esters is a challenging task because, in most cases, the optimized reaction conditions have not yet been explored. Despite the importance of the hydrolysis of P-esters, this field has not yet been fully surveyed. In order to fill this gap, examples of acidic and alkaline hydrolysis, as well as the dealkylation of phosphinates and phosphonates, are summarized in this review.

1. Introduction

Phosphinic and phosphonic acids are of great importance due to their biological activity (Figure 1) [1]. Most of them are known as antibacterial agents [2,3]. Multidrug-resistant (MDR) and extensively drug-resistant (XDR) pathogens may cause major problems in the treatment of bacterial infections. However, Fosfomycin has remained active against both Gram-positive and Gram-negative MDR and XDR bacteria [2]. Acyclic nucleoside phosphonic derivatives like Cidofovir, Adefovir and Tenofovir play an important role in the treatment of DNA virus and retrovirus infections [4]. Some P-esters have also been shown to be effective against Hepatitis C and Influenza A virus [5], and some are known as glutamate and GABA-based CNS therapeutics [5,6,7]. Glutamate is a main excitatory neurotransmitter, so agonists of the metabotropic glutamate receptor can be new therapeutic targets for brain disorders (schizophrenia, Parkinson’s disease, pain). GABA is a main inhibitory neurotransmitter which is responsible for neurological disorders (epilepsy, anxiety disorders). Dronates are known to increase the mineral density in bones [8,9]. Moreover, P-esters include antimalarial agents [5,10,11], anticancer agents [5,12,13,14] and angiotensin-converting enzyme (ACE) inhibitors [15]. In addition, the use of P-acids as herbicides (glyphosate, glyfosinate) [5,16] is not negligible either. Phosphinic acids are of interest due to their ability to inhibit metalloproteases [17]. Methylphosphonic acid is known as a flame retardant [18]. During the preparation of these compounds, an ester-protecting group is introduced into the molecule, and the hydrolysis of the ester group is necessary in the final steps.
For a long time, water was used as the solvent only in hydrolyses. Despite its favorable properties (cheap, available, safe and “green”), water could not spread as a general solvent. This is due to the low solubility of organic substrates. The application of co-solvents, such as alcohols, DMF, acetone and acetonitrile is a good possibility. However, the regeneration of water or water–solvent mixtures is not easy.
Despite their great importance, the hydrolysis of P-esters has not been adequately studied. Often, unoptimized routine hydrolyses were described or the kinetics of these processes were studied. In most cases, the esters were reacted under harsh conditions with a large excess of concentrated acid, and often the applied reaction time was longer than necessary. Hydrolyses can be catalyzed by acids and bases as well (Scheme 1) [19]. Acidic hydrolyses can be catalyzed both by mineral and Lewis acids [20]. Mineral acids are mostly hydrogen halides [21], e.g., hydrochloric acid [22,23,24,25,26,27], but hydrobromic acid [28,29,30,31,32] proved to be more efficient. Despite this, the application of hydrochloric acid was widespread. The hydrolyses were generally performed at around 100 °C with longer reaction times [20]. There are also examples when trifluoroacetic acid (TFA) [17,33,34] or HClO4 [35,36] was used to catalyze the hydrolyses. Sodium hydroxide is the most commonly used reagent in alkaline hydrolysis [37,38,39,40,41], but there are also examples of the application of KOH [42], LiOH [40,43] and NaHCO3 [44]. The alkaline hydrolysis is irreversible and less corrosive, but alkali-sensitive molecules can be damaged. A further disadvantage is that the base-catalyzed hydrolyses take place in two steps: first, the sodium-salt of the acid is formed, then the corresponding acid is liberated. In the case of acid catalysis, the P-acids are obtained directly.

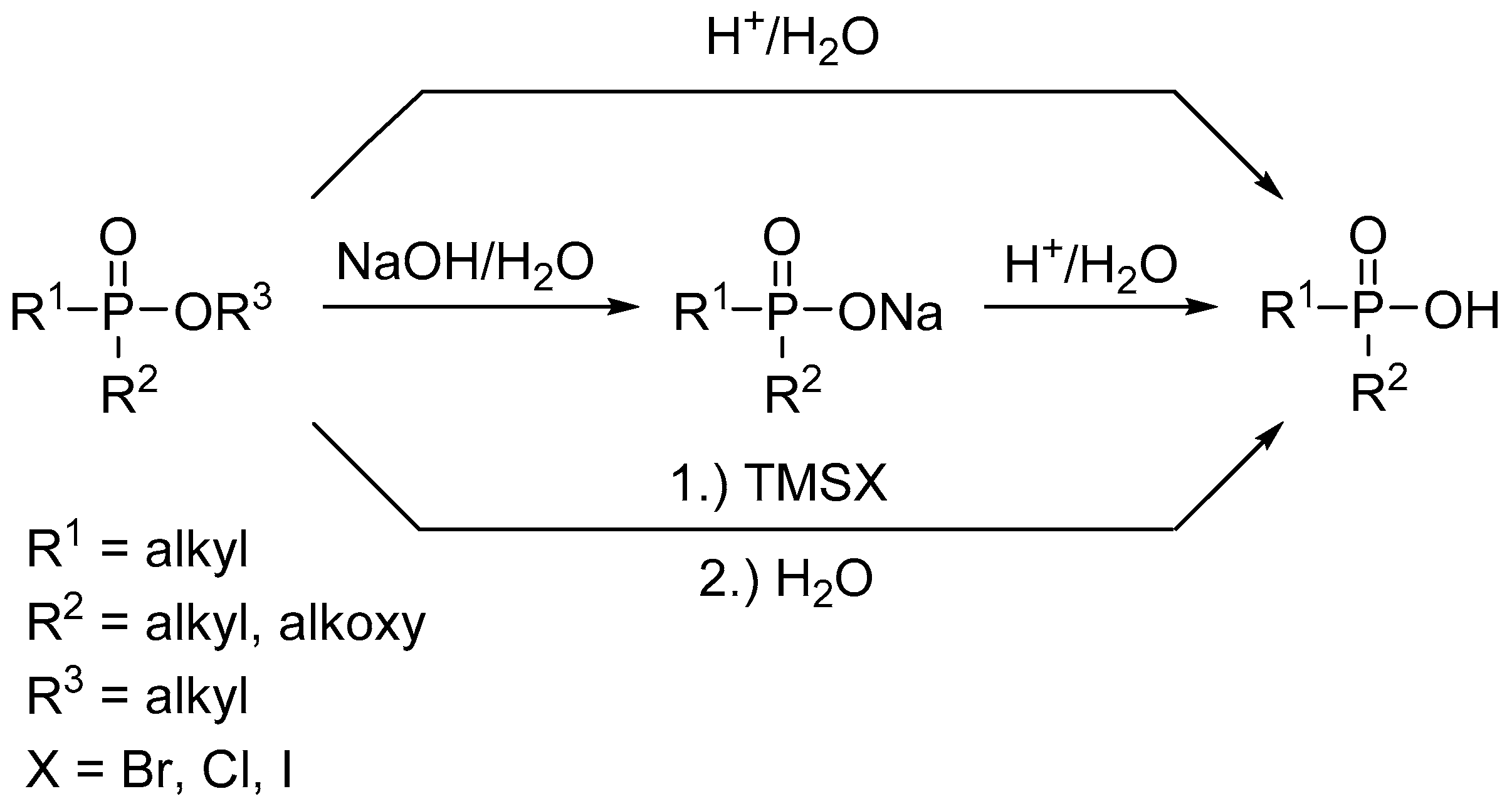

During hydrolysis, a nucleophilic attack occurs on the phosphorus atom of the P=O unit [45]. In most of the cases, the P-O bond is cleaved during the acid- and base-catalyzed hydrolyses. The rate of hydrolysis may be influenced by the pH [35,36] and by the ionic strength of the medium, but the type of ion added to the system is also decisive.
There are a few cases when the desired P-acid is not prepared by hydrolysis, but by the cleavage of the C-O bond, which is possible by pyrolysis [46] or in reaction with trimethylsilyl halides (Scheme 1) [47,48,49,50,51,52], boron tribromide [53], or various amines [54,55,56]. Dealkylations with trimethylsilyl halides takes place under mild conditions, such that they can also be used for the hydrolysis of esters in which instances strong acidic or alkaline treatments cannot be applied, such as in the cases of nitriles, vinyl ethers and acetals [57,58,59]. In addition, various enzyme-catalyzed [60,61,62,63,64,65,66,67,68,69,70,71,72] hydrolyses have also been elaborated, and there are examples for the application of special catalysts and metal ions as well [73,74,75,76,77].
It is important to mention that P-acids can also be prepared indirectly (Scheme 2). In this case, the ester (1) is converted to the corresponding acid chloride (2), which is a more reactive derivative, and can react with water at room temperature [78,79]. This method cannot be considered as a good solution from the point of view of its number of steps and atomic efficiency.
In this survey, we discuss the acidic hydrolysis of phosphinates and phosphonates. This is followed by the presentation of the alkaline and basic hydrolysis of phosphinates and that of phosphonates. The reactivity of the different substrates, the effect of the substituents, and their green chemical aspects are the focus. Last but not least, the conversion of P-esters to acids by dealkylation is summarized.

2. Acidic Hydrolysis of Phosphinates and Phosphonates

2.1. Acidic Hydrolysis of Phosphinates

In a paper published in 1973, Cook et al. compared the acid-catalyzed hydrolysis of methyl dialkylphosphinates (4) with base-catalyzed examples (Scheme 3) [80]. It was concluded that polar and steric effects hardly influence the acid-catalyzed hydrolysis compared to the base-catalyzed version. In a subsequent publication, they demonstrated that the hydrolysis of the methyl esters proceeds by the rarely occurring AAl2 mechanism (water is involved and C-O bond cleavage occurs) [81]. The major routes involve the AAc2 mechanism (water is involved and P-O bond cleavage occurs) and the AAl1 mechanism (water is not involved in the rate-determining step, and a C-O bond cleavage occurs) [82]. The mechanistic study was extended to the hydrolysis of additional esters [82,83].

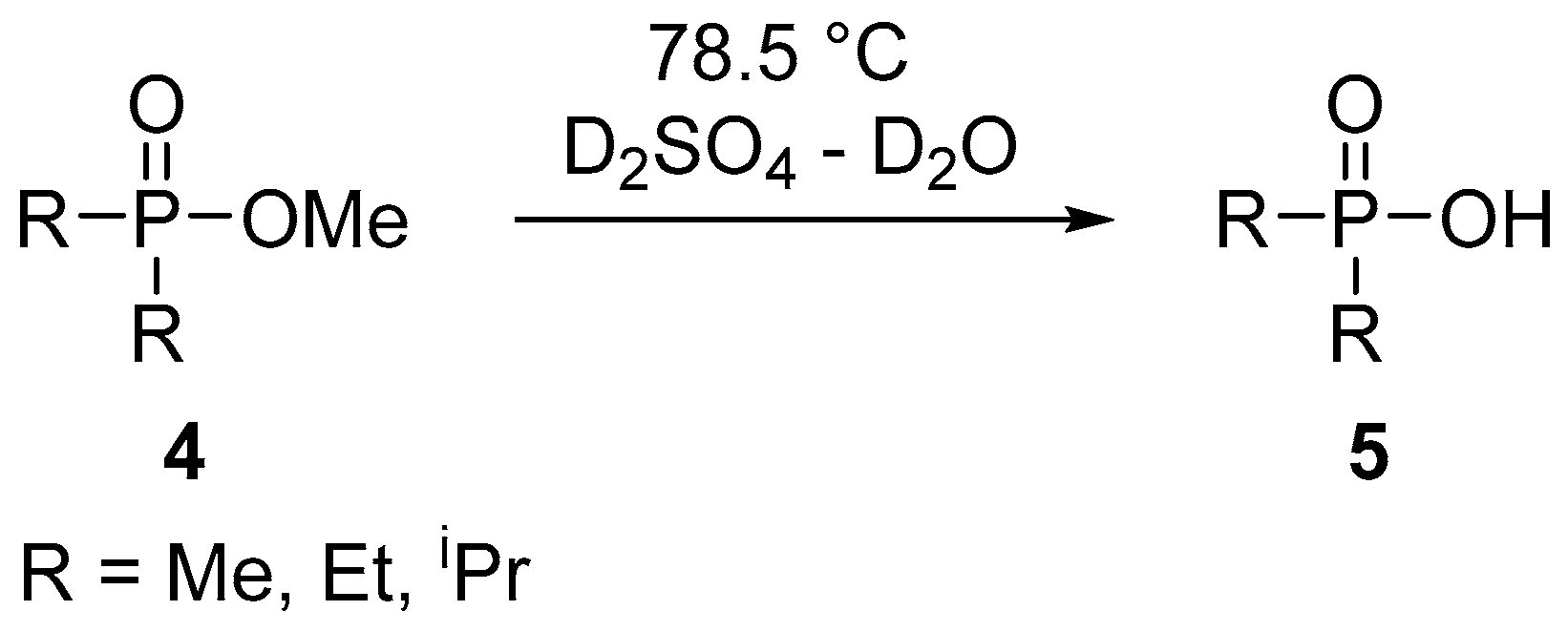

Bunnett et al. studied the hydrolysis of different methyl methyl-arylphosphinates (6) at various HClO4 concentrations (1–9 M) and temperatures (67.2, 95.1, 107.6 °C) (Scheme 4) [35]. The hydrolysis was found to be optimal at a 6–7 M acid concentration, above which the reaction became slightly slower.
The hydrolysis of p-nitrophenyl diphenylphosphinate (8) under acid catalysis was also studied (Scheme 5) [36]. The rate constant was determined at different acid concentrations in a dioxane–water mixture to ensure homogeneity. There is a maximum rate at 1.5 M HClO4. In more concentrated solutions, the acidic inhibition of the hydrolysis was observed.
There were cases when alkaline hydrolysis proved to be slow at room temperature, but at higher temperatures it was too harsh for sensitive substrates. In these cases, acidic hydrolysis is more favorable. A good example is the acidic hydrolysis of a β-carboxamido-substituted phosphinic acid ester (10), as this is a rapid and gentle way to provide the corresponding phosphinic acid (11) quantitatively (Scheme 6) [17]. In this particular case, trifluoroacetic acid was the catalyst in an aqueous medium.

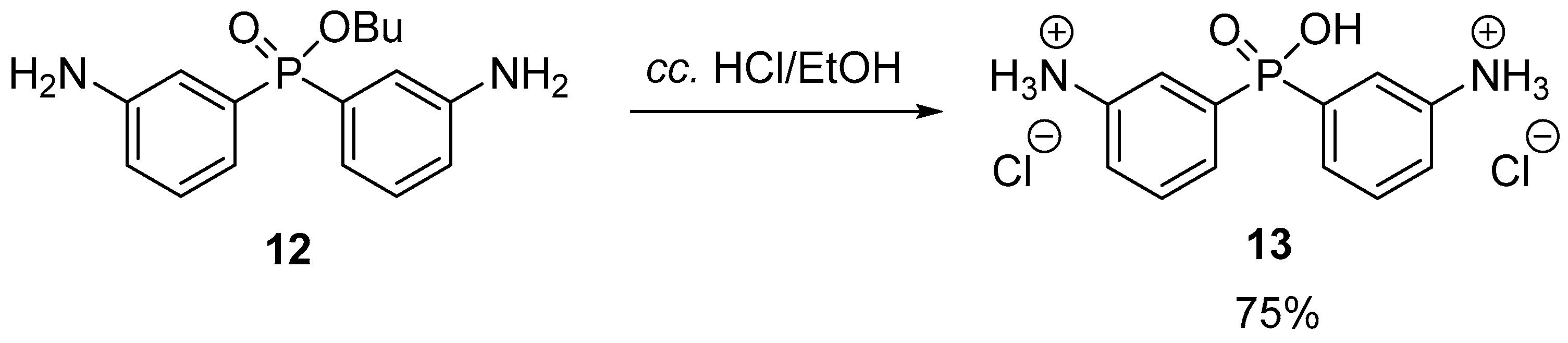

In the following example, the preparation of bis(3-aminophenyl)phosphinic acid (13) using hydrochloric acid as the catalyst in ethanol is demonstrated (Scheme 7) [84]. The starting bis(aniline) derivative was obtained from the bis-nitro compound by reduction. The exact conditions were not reported.

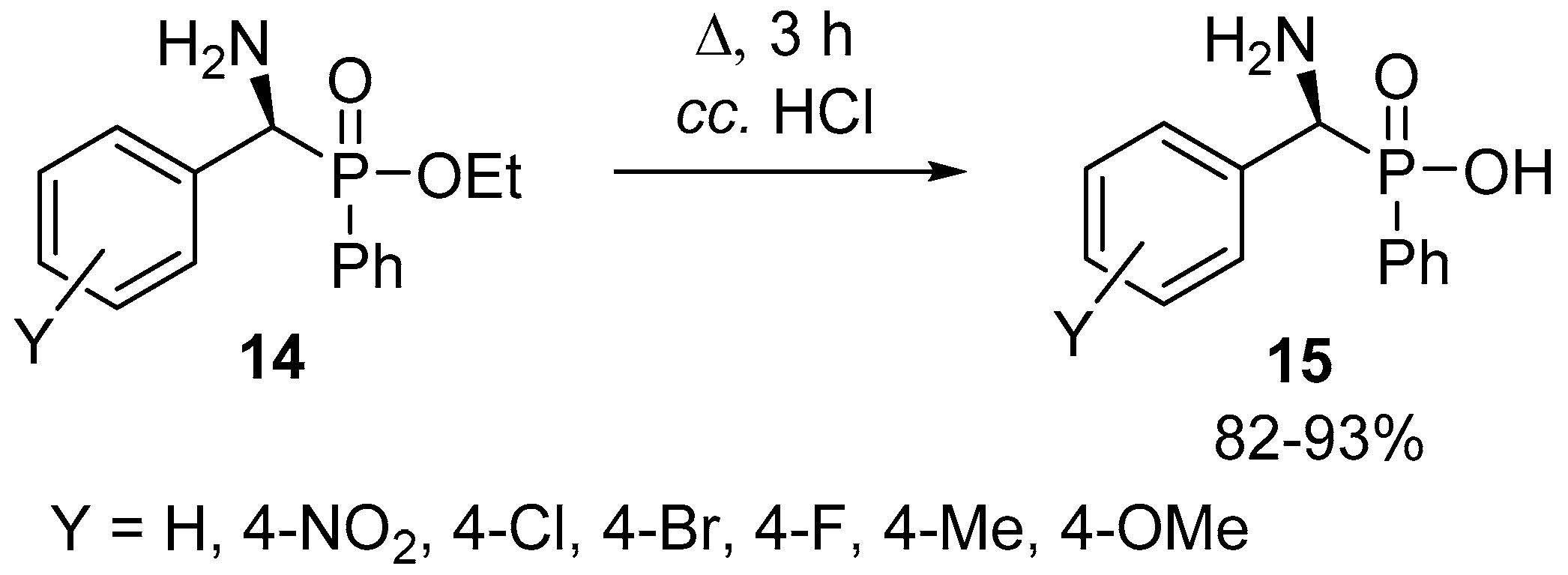

α-Aminophosphinic acids and their derivatives form an important group due to their synthetic and medicinal interest. The hydrolysis of phosphinates 14 using cc. HCl (Scheme 8) [85] or HBr/AcOH [86] provided optically active α-aminophosphinic acids (15).
The hydrolysis of β-aminophosphinates (16) was performed using hydrochloric acid at the boiling point (Scheme 9) [87]. To 3 g substrate, 20 mL cc. HCl was added, and the mixture was stirred at reflux for 1.5–4 h.
The hydrolysis of a GABAB antagonist ethyl phosphinate (18) was performed by applying cc. HCl at 100 °C for 24 h (Scheme 10) [6].

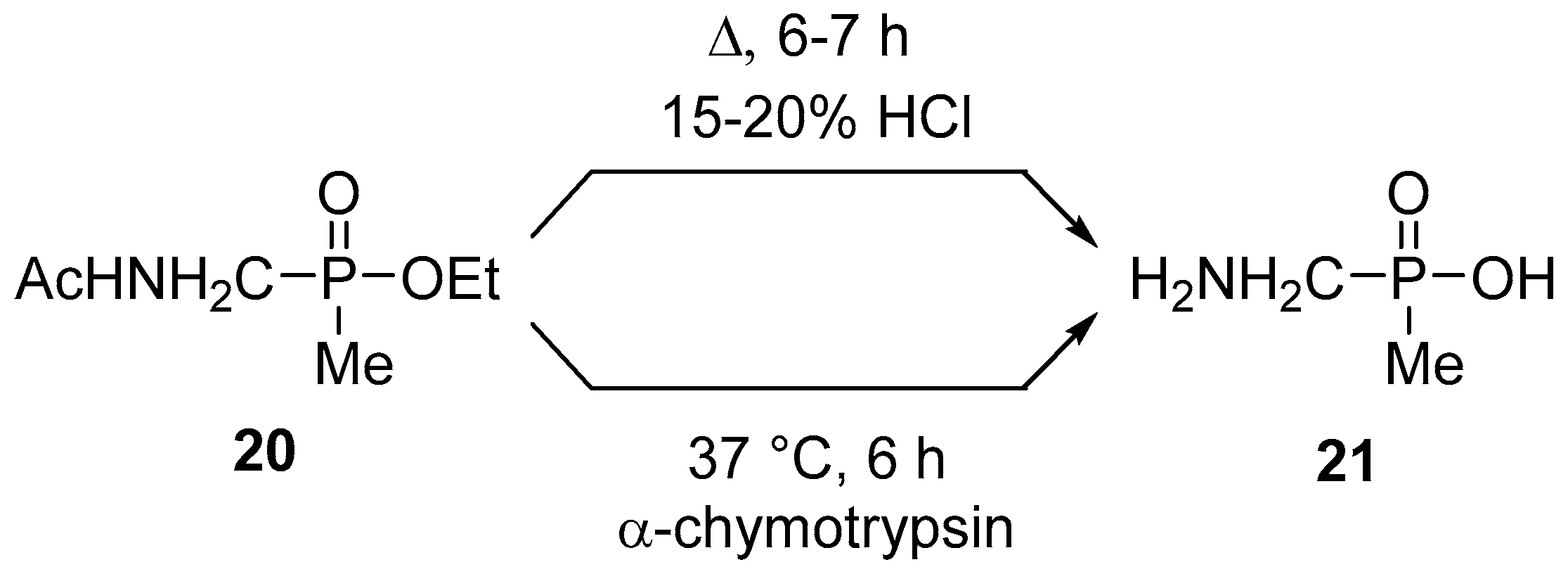

Natchev and co-workers investigated the acidic and enzymatic hydrolysis of phosphoryl analogues of glycine [61]. While the acidic hydrolysis was performed using 15–20% acid at reflux for 6–7 h to afford the corresponding phosphinic acid (21) at a yield of 94%, the enzymatic variation carried out using α-chymotrypsin under milder conditions (37 °C for 6 h) gave the acid quantitatively (Scheme 11).

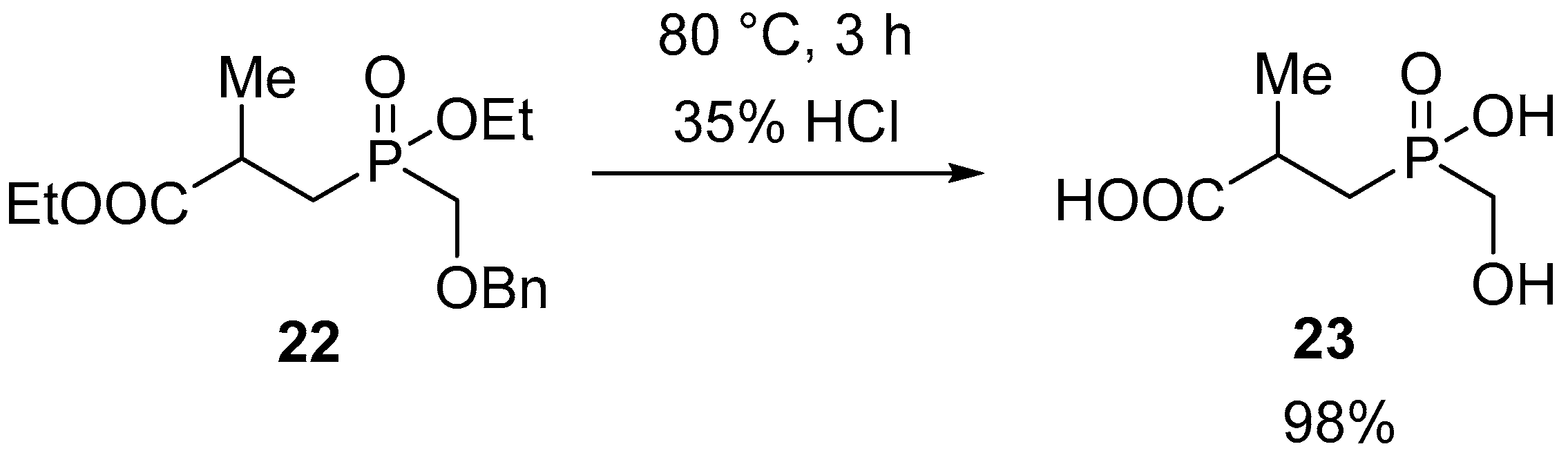

During the preparation of β-functionalized hydroxymethylphosphinic acid derivatives (22), double hydrolysis took place at a temperature of 80 °C in 3 h. In this case, 15 equivalents of 35% hydrochloric acid were used, which may be regarded as a large excess (Scheme 12) [88].
Dennis and co-workers investigated the hydrolyses of different saturated and unsaturated cyclic phosphinates, along with their open chain analogues under acidic conditions (Figure 2) [89]. They compared the rate constants of similar derivatives, and found the following ratios: kA/kD 1; kB/kE 1; kC/kF 3. These results are surprising, as the hydrolysis of cyclic phosphonates and phosphates is generally much faster than that of their open-chain analogues.
The most general procedure to prepare phosphinic acids from their esters involves the use of a concentrated HCl solution at reflux. Different GABACρ antagonists, such as 1-hydroxyphospholane oxide 25, were prepared by hydrolysis with hydrochloric acid [7]. To 0.50 mmol cyclic ester 24, 2 mL HCl was added, and the mixture was refluxed for 5 h (Scheme 13).
In our research group, the hydrolysis of a series of cyclic phosphinates (26) was investigated (Scheme 14) [90]. First, we wished to explore the optimal reaction conditions, including the reaction time, acid concentration, and the necessary amount of hydrochloric acid. It was found that for the hydrolysis of 1.9 mmol phosphinate (26), the use of 0.5 mL cc. HCl and 1 mL water was optimal, along with a reaction time of 6 h. Interestingly, in the case of the hydrolysis of unsaturated cyclic phosphinates, these compounds underwent isomerization as well. The results are summarized in Table 1.
After exploring the optimum conditions, the method was extended to the hydrolysis of other esters, and the kinetics were also investigated. Figure 3 demonstrates the order of reactivity observed under the above-mentioned conditions [90].
The hydrolyses were also carried out under microwave (MW) conditions. In this case, p-toluenesulfonic acid (PTSA) was used as the catalyst in order to avoid the corrosion of the reactor (Scheme 15) [90]. It is important to note that due to the beneficial effect of MW irradiation, the reaction times were shorter than they were in the case of conventional heating.

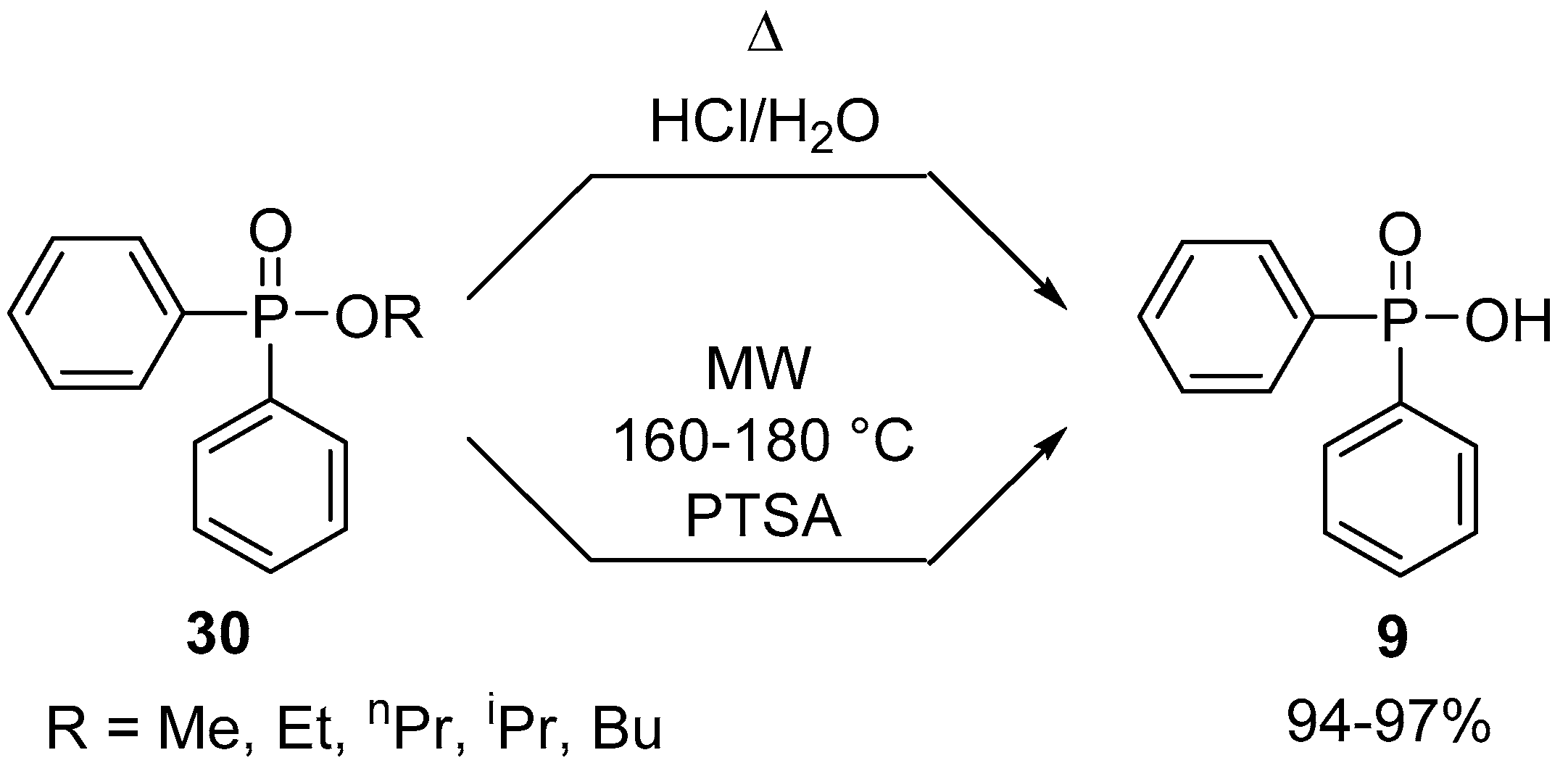

The acidic hydrolysis of acyclic esters, such as diphenylphosphinates (30), was also studied under conventional heating and microwave irradiation (Scheme 16) [91]. The traditional hydrolysis was performed using three equivalents of diluted hydrochloric acid for 3–6.5 h. In the other series of experiments comprising MW-assisted hydrolyses, p-toluenesulfonic acid was used as the catalyst. The amount of the catalyst was decreased to 0.1 equivalents. At 160 °C, complete hydrolysis occurred in 2–6.5 h, and at 180 °C in 0.5–2 h. The pseudo–first-order rate constants obtained are listed in Table 2.

2.2. Acidic Hydrolysis of Phosphonates

The hydrolysis of phosphonates is a widely applied method. Due to the two ester groups, these hydrolyses take place in two steps in a consecutive manner. Most often, the aqueous solution of hydrochloric acid was applied as the medium, and after the hydrolysis, the water was removed by distillation. Occasionally, HBr was also used in the hydrolysis of phosphonates [21].

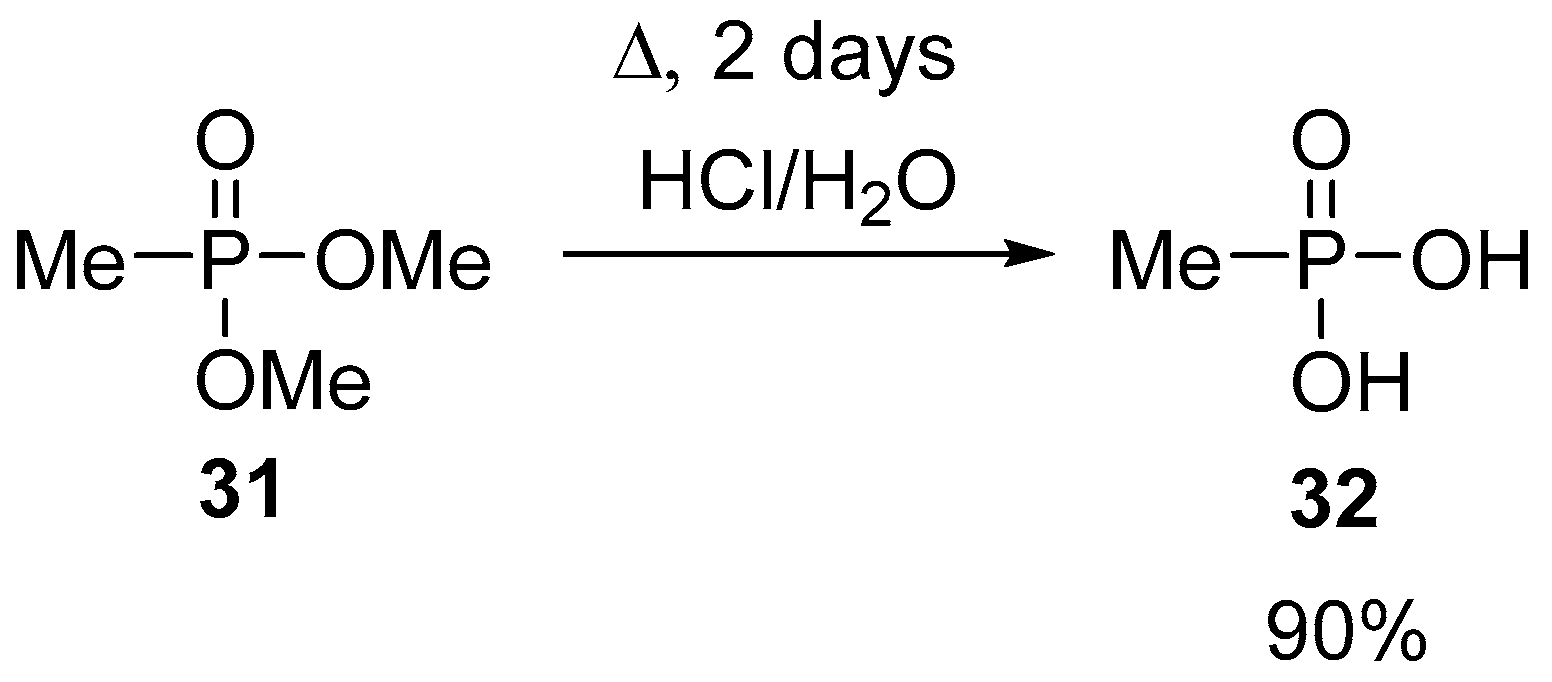

Methylphosphonic acid (32), which is known as a flame retardant, may be prepared by the acidic hydrolysis of dimethyl methylphosphonate (31) (Scheme 17) [18].
The effect of the alkyl group of dialkyl phosphonates was investigated in acid- and base-catalyzed hydrolyses. It was found that during acid catalysis, the isopropyl derivative was hydrolyzed faster than the methyl ester, but under basic conditions, the reaction of the methyl ester was 1000-fold faster than that of the isopropyl derivative [92].

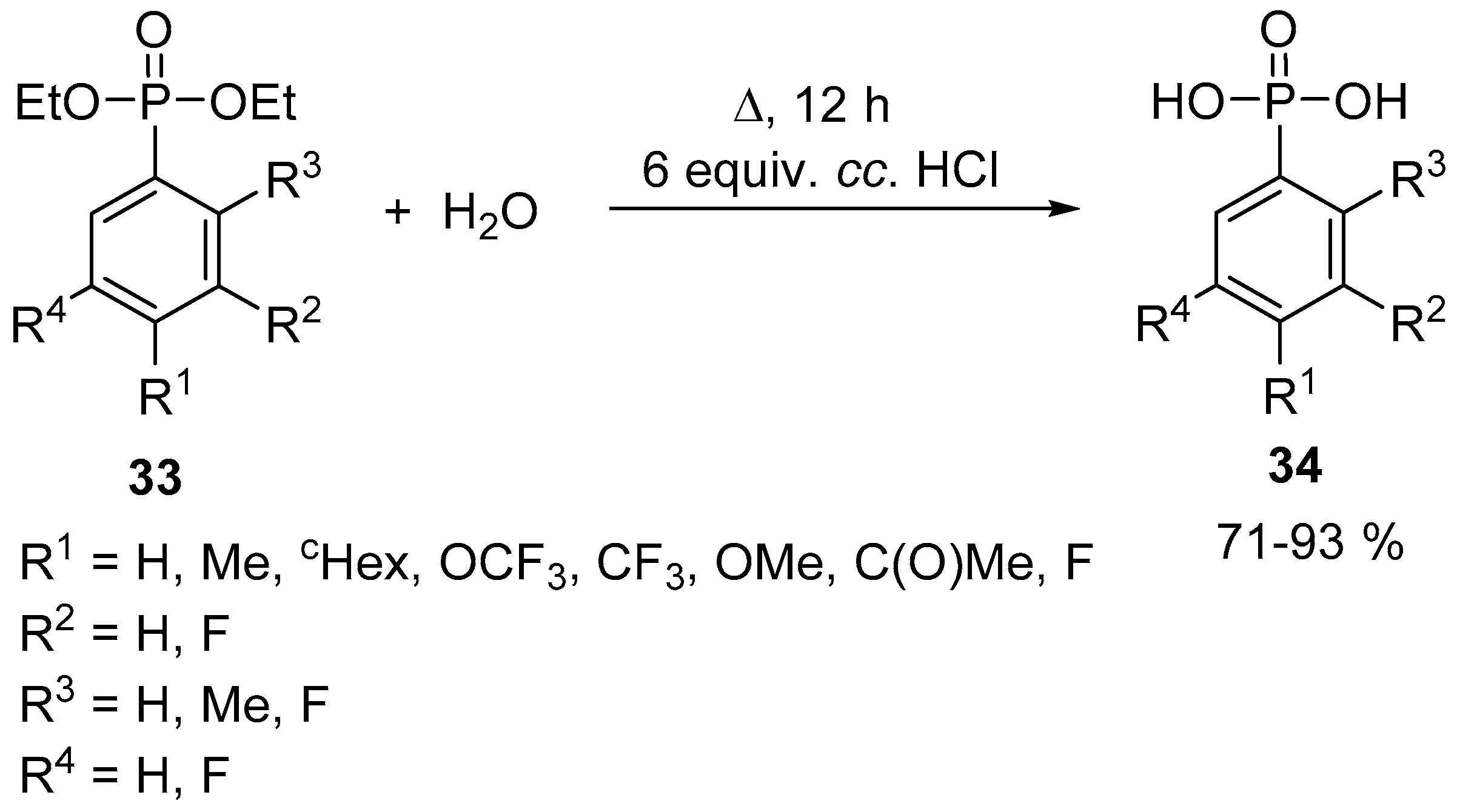

Our research group investigated the preparation of arylphosphonic acids (34) by refluxing the corresponding phosphonates (33) with an excess (six equivalents) of hydrochloric acid for 12 h (Scheme 18) [93].
Depending on the substituents, the phosphonic acids were obtained in yields of 71–93% [93]. However, a reflux with concentrated hydrochloric acid for 12 h cannot be considered to be a “gentle” method.

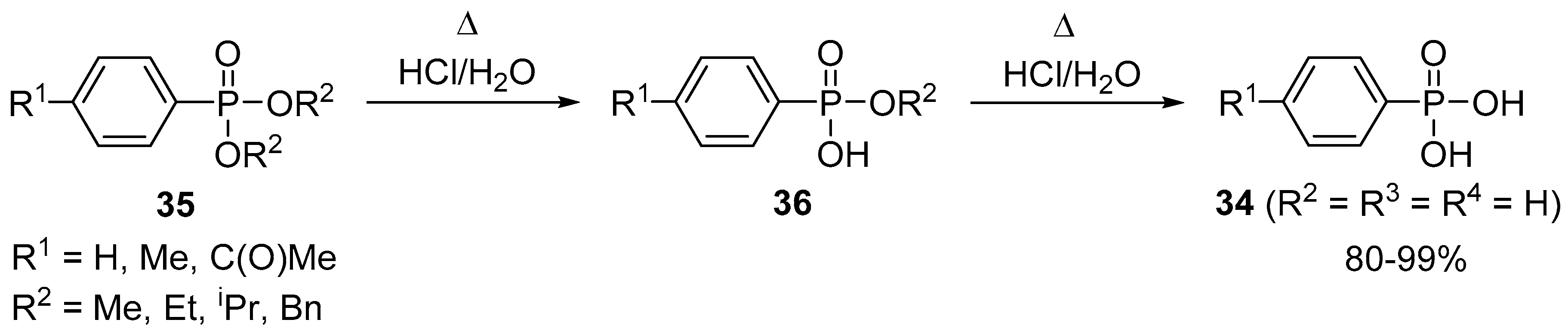

We also studied the hydrolysis of various arylphosphonates (35): phenylphosphonates and their derivatives containing a 4-methyl or a 4-acetyl group in the phenyl ring. The reactions were carried out at the optimum conditions found for the hydrolysis of cyclic phosphinates (Scheme 19) [94]. In most of the cases, the reaction proceeded according to the AAc2 mechanism, but in the case of the benzyl and isopropyl ester, the AAl1 mechanism was substantiated.

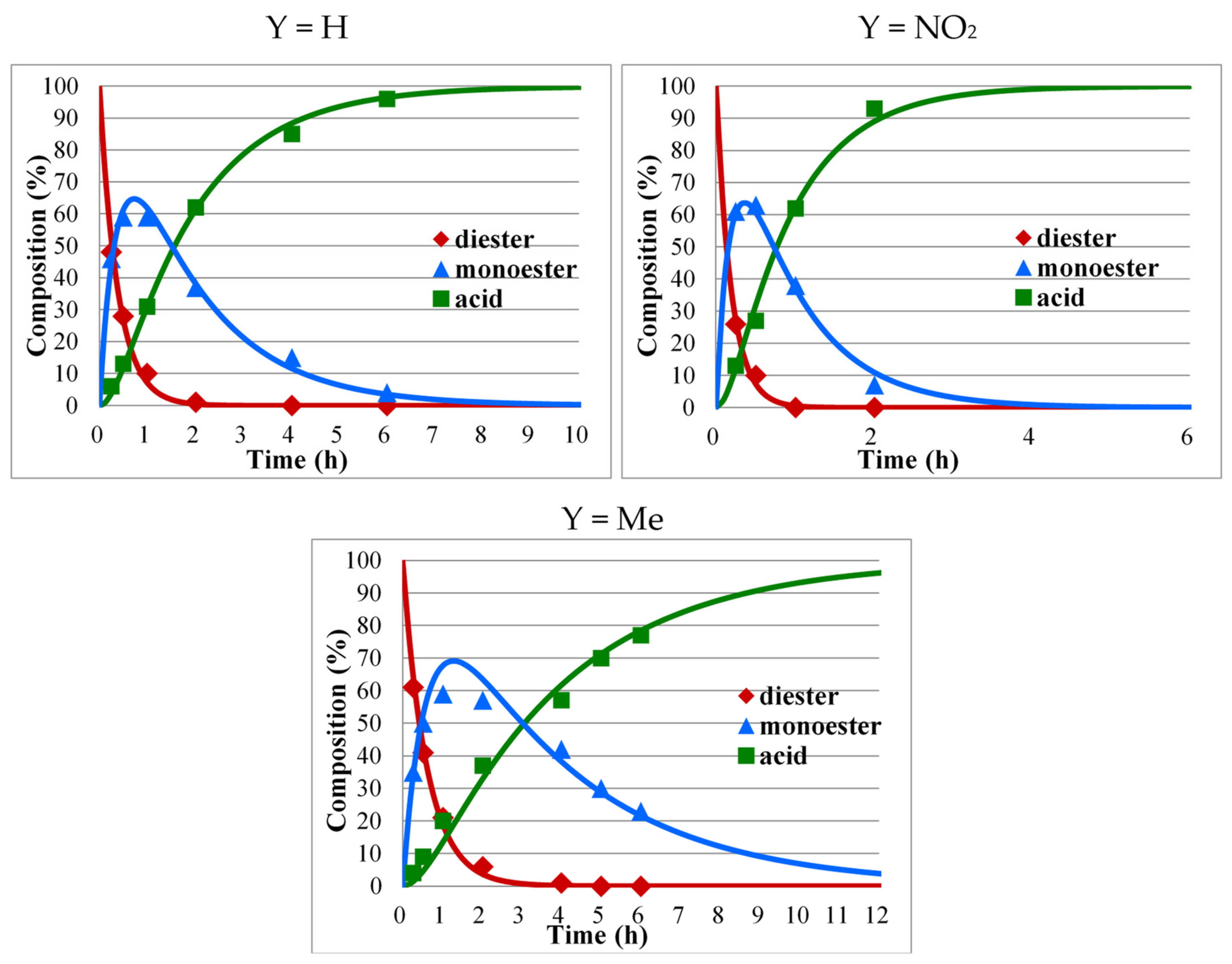

The consecutive reaction steps were characterized by pseudo–first-order rate constants. One can see that the cleavage of the second P-OC bond was the slower process in each case, suggesting that the latter is the rate-determining step (Table 3).
Based on the experimental data, the overall reactivity order of the different derivatives (R2/R1) is the following:
Bn/H >> iPr/H ~Me/H > Et/C(O)Me > Et/H > Et/Me.

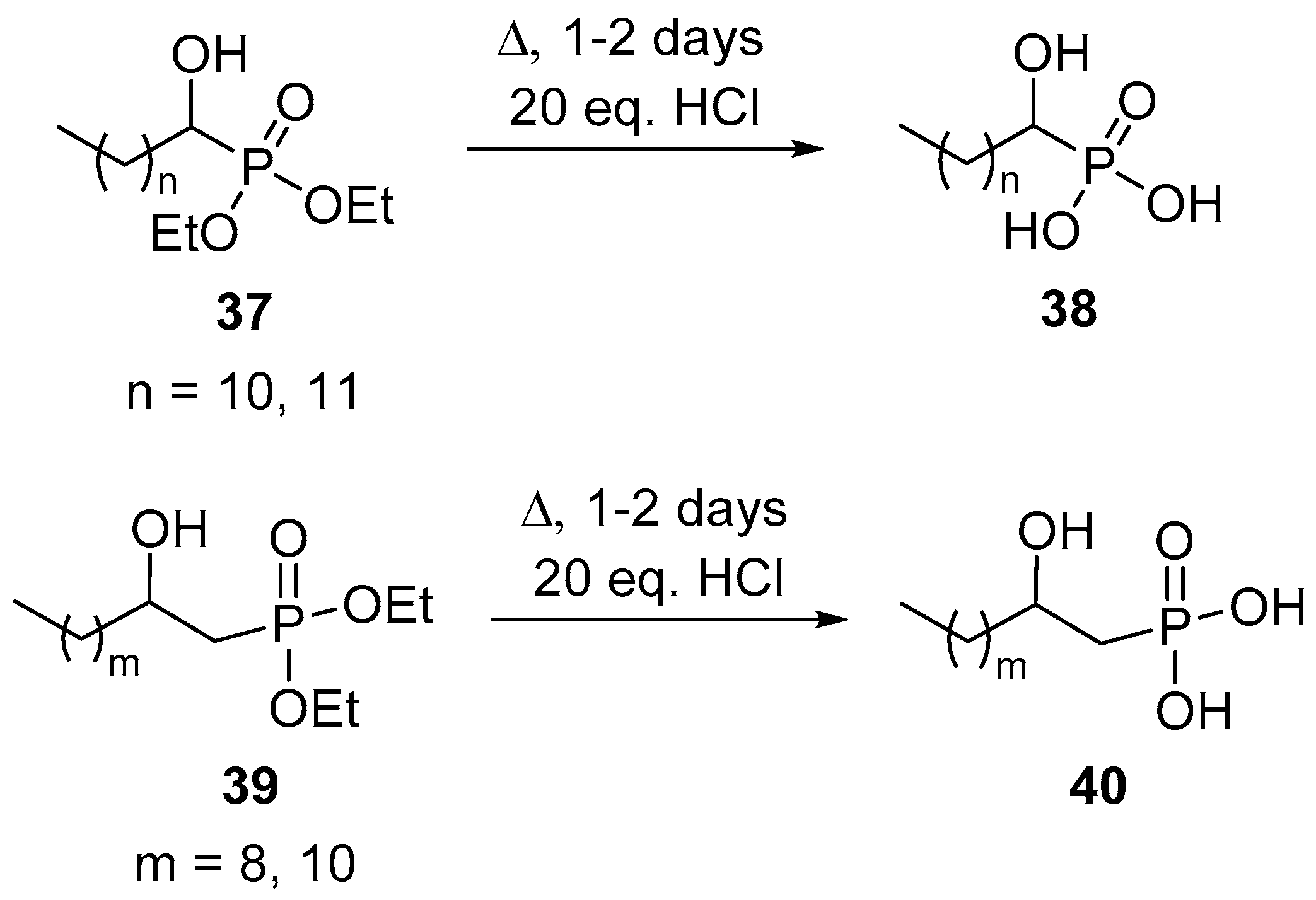

Biologically important α-hydroxyphosphonic acids (38, 40) were prepared by the prolonged (1–2 days) heating of various hydroxyphosphonates with a large excess of hydrochloric acid (Scheme 20) [95].

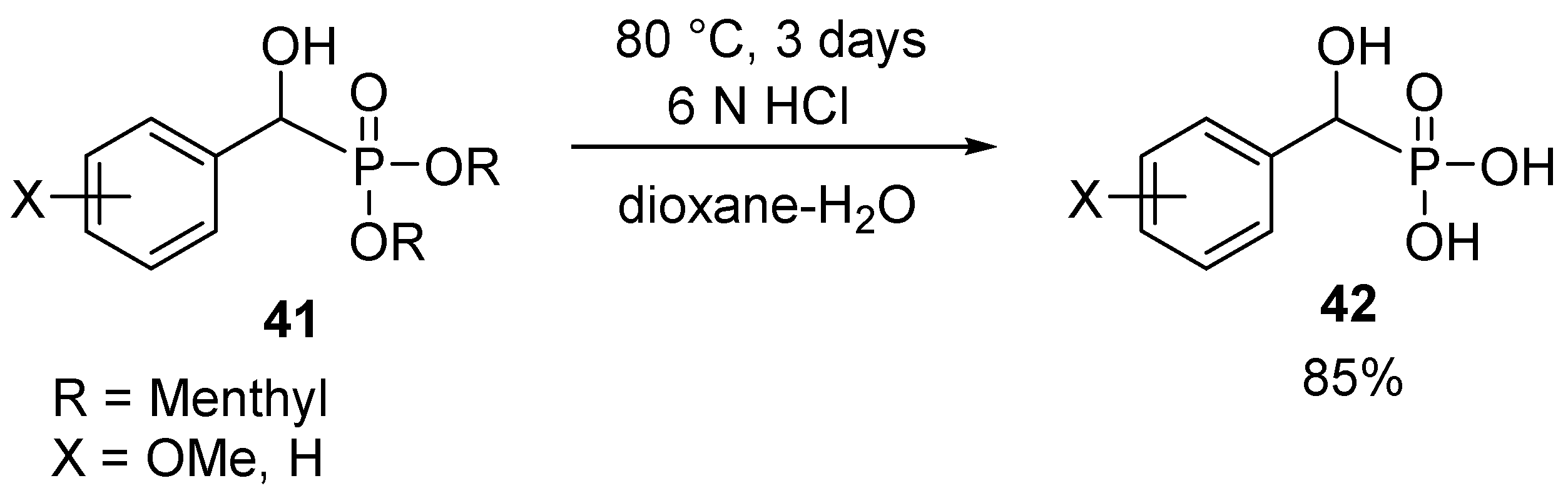

α-Hydroxyphosphonic acids (42) were prepared by the hydrochloric acid-promoted hydrolysis of hydroxyphosphonates (41) (Scheme 21) [96]. The hydrolysis was performed using 6 N HCl in dioxane-water at 80 °C for 3 days.
We investigated the acid-catalyzed reactions of a series of α-hydroxy-benzylphosphonates (43) in order to evaluate the effect of the ester function, and the substituents in the phenyl ring on the rate (Scheme 22) [97]. The reactions were performed in water with 3 equivalents of hydrochloric acid, and depending on the substituents, the completion took 2.5–9.5 h. Electron-withdrawing substituents increased the reaction rate, while electron-releasing substituents slowed down the hydrolysis. The experimental and kinetic data are summarized in Table 4, while representative concentration profiles of the hydrolyses are shown in Figure 4.

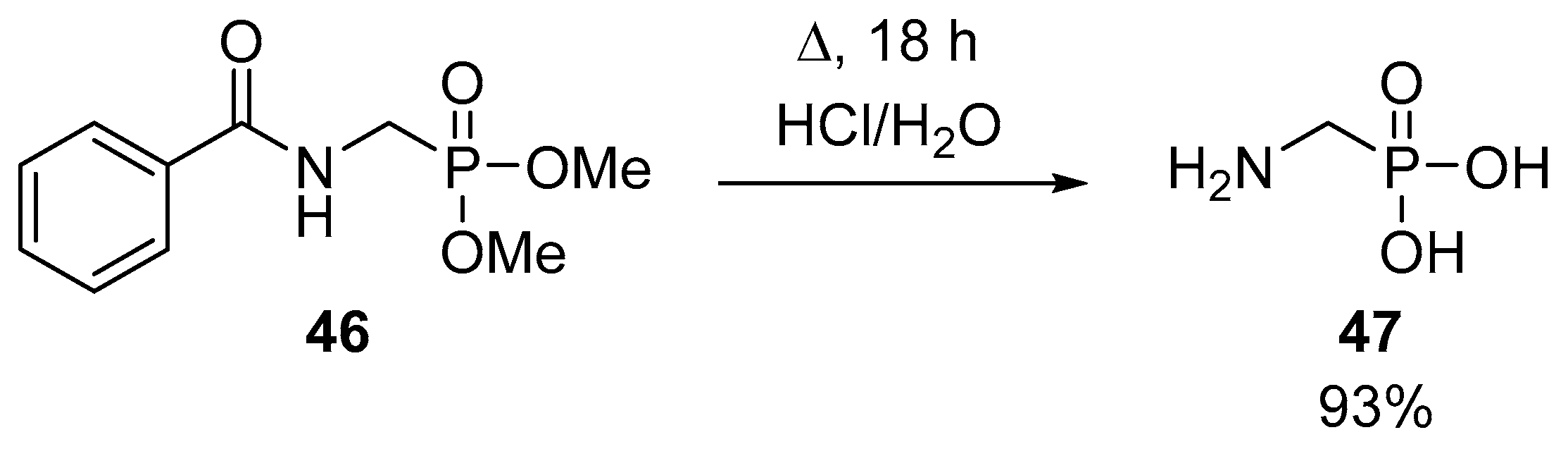

Aminophosphonic acids form another important family of bioactive compounds. These species are the analogues of amino acids. The preparation of aminomethylphosphonic acid (47) by hydrolysis involved the removal of the protecting group (Scheme 23) [3].
There is also an example for the HBr/acetic acid-catalyzed hydrolysis of aminophosphonates [98]. In the synthesis of a biologically relevant aminomethylene-bisphosphonic acid (49), the last step involved a HCl-catalyzed hydrolysis (Scheme 24) [99].
Phosphonic acid analogues of certain amino acids may have significant biological effects, e.g., arginine mimetics inhibit the activity of the enzymes responsible for the survival of parasites; hence, they can be used as anti-malarial agents [100]. The corresponding compounds were obtained by hydrolysis with hydrochloric acid [100], or acetic acid combined with hydrogen bromide [31]. This change in the functionality was performed in the last step of the synthesis. Similar compounds were prepared from thioureidoalkane phosphonates by treatment with acetic acid and hydrochloric acid at reflux for 7 h [101].

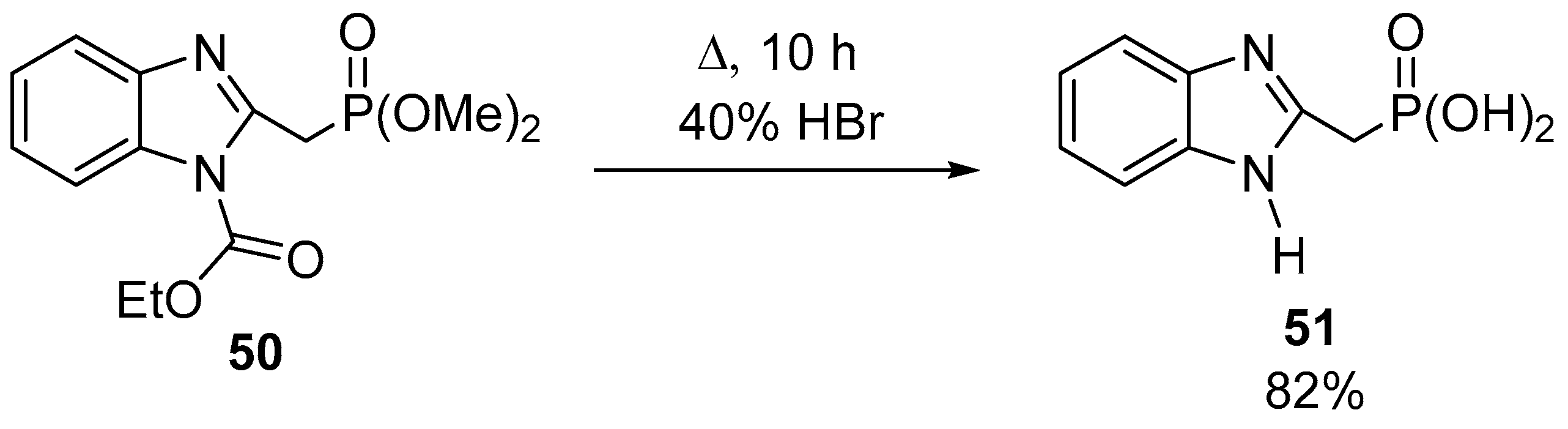

The hydrolysis of a benzimidazole phosphonate (50) was carried out using a 40% HBr solution at reflux for 10 h (Scheme 25) [28].
In the following example, the hydrolysis of the succinic acid derivative (52) took place in an autocatalytic manner. The two succinate functions were also hydrolyzed under the conditions applied. The intermediates may catalyze further hydrolysis due to their acidic nature (Scheme 26) [79]. The ethanol released was removed by azeotropic distillation.

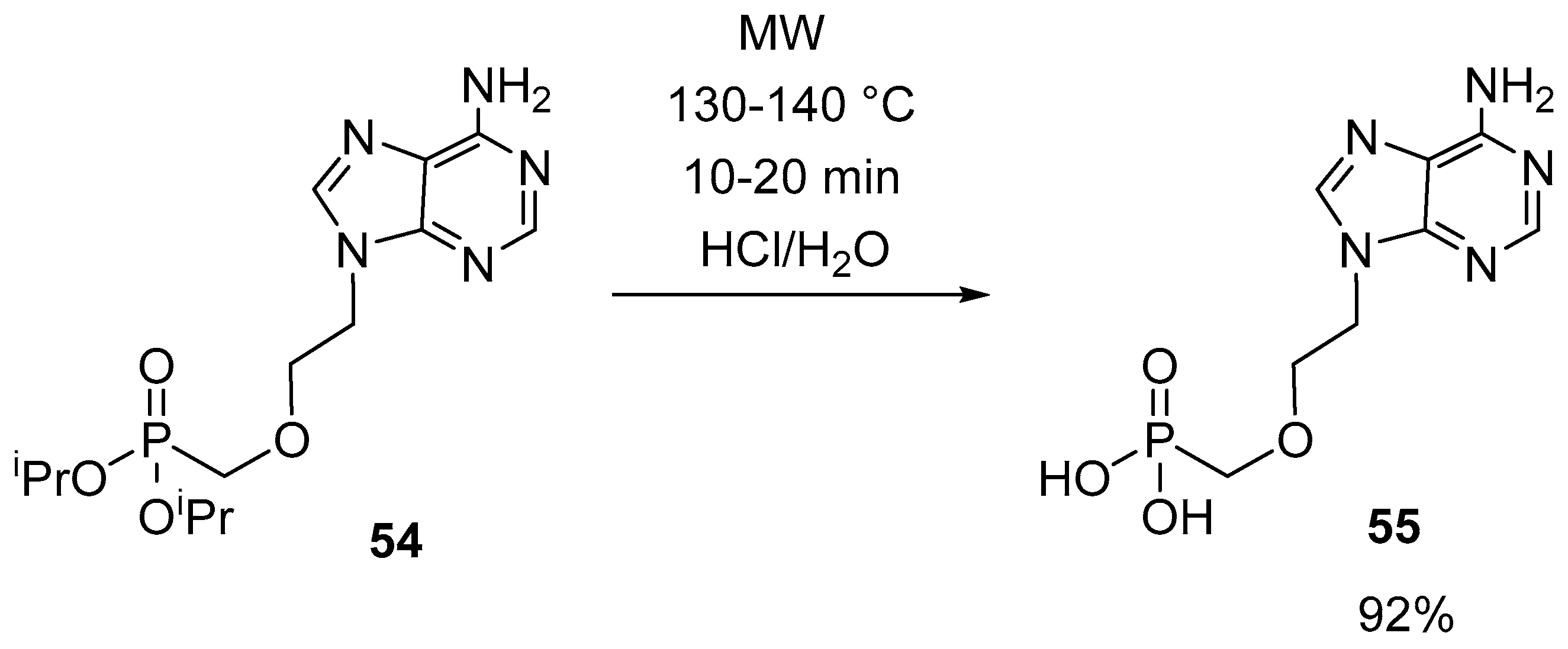

Following the spread of the MW technique, the effect of irradiation on hydrolysis was also studied [20,102]. An example from the pharmaceutical field is the synthesis of Adefovir, during which the diisopropyl ester moiety of phosphonate 54 was hydrolyzed in an acid-catalyzed manner under MW conditions (Scheme 27) [20].

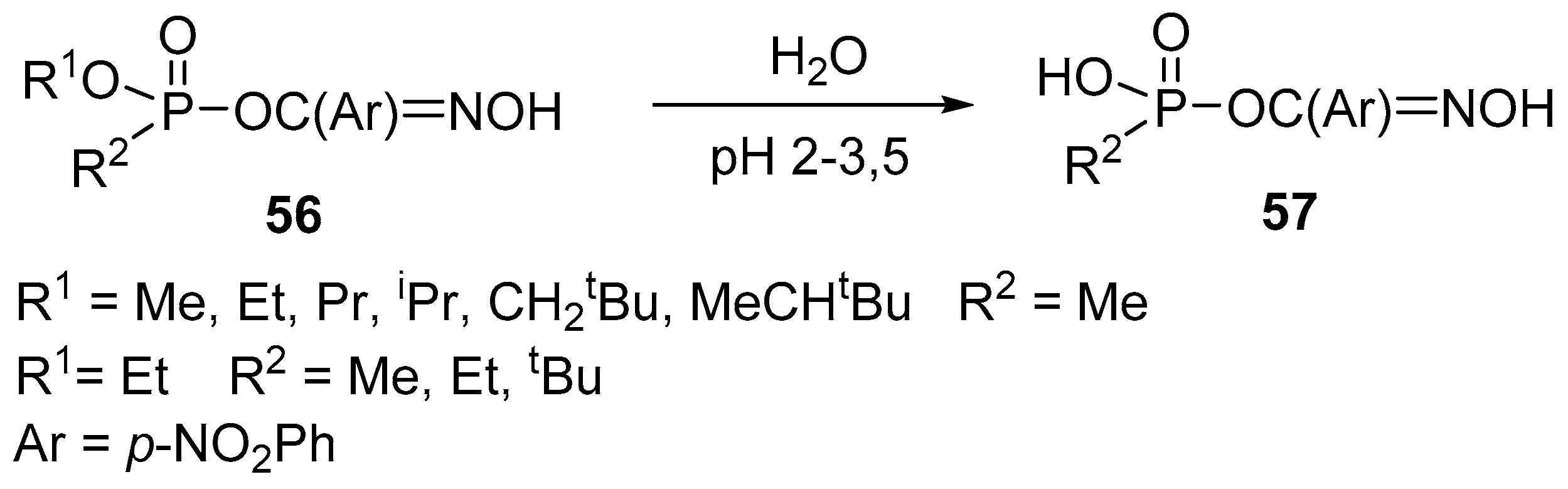

The acidic hydrolysis of a series of alkyl α-hydroxyimino-α-(p-nitrophenyl) alkylphosphonates (56) revealed that the reaction rate decreases with increasing steric hindrance (Scheme 28) [103]. In addition to the ester function, the neighbouring groups also had a significant effect on the hydrolysis, e.g., when a tert-butyl group (R2) was replaced by a methyl substituent, a 100-fold reaction rate was observed [103].

3. Alkaline and Basic Hydrolysis

3.1. Alkaline and Basic Hydrolysis of Phosphinates

The effect of various factors on alkaline hydrolysis was investigated in a few publications [104,105,106]. The influencing factors include the leaving ability of the departing group [104,105,107,108], the stability of the resulting intermediate [107], the nature of the heteroatom connected to the phosphorus atom [106], the solvent [106], the pH [109] and the temperature applied, all of which may have a significant effect on the course of the hydrolysis.

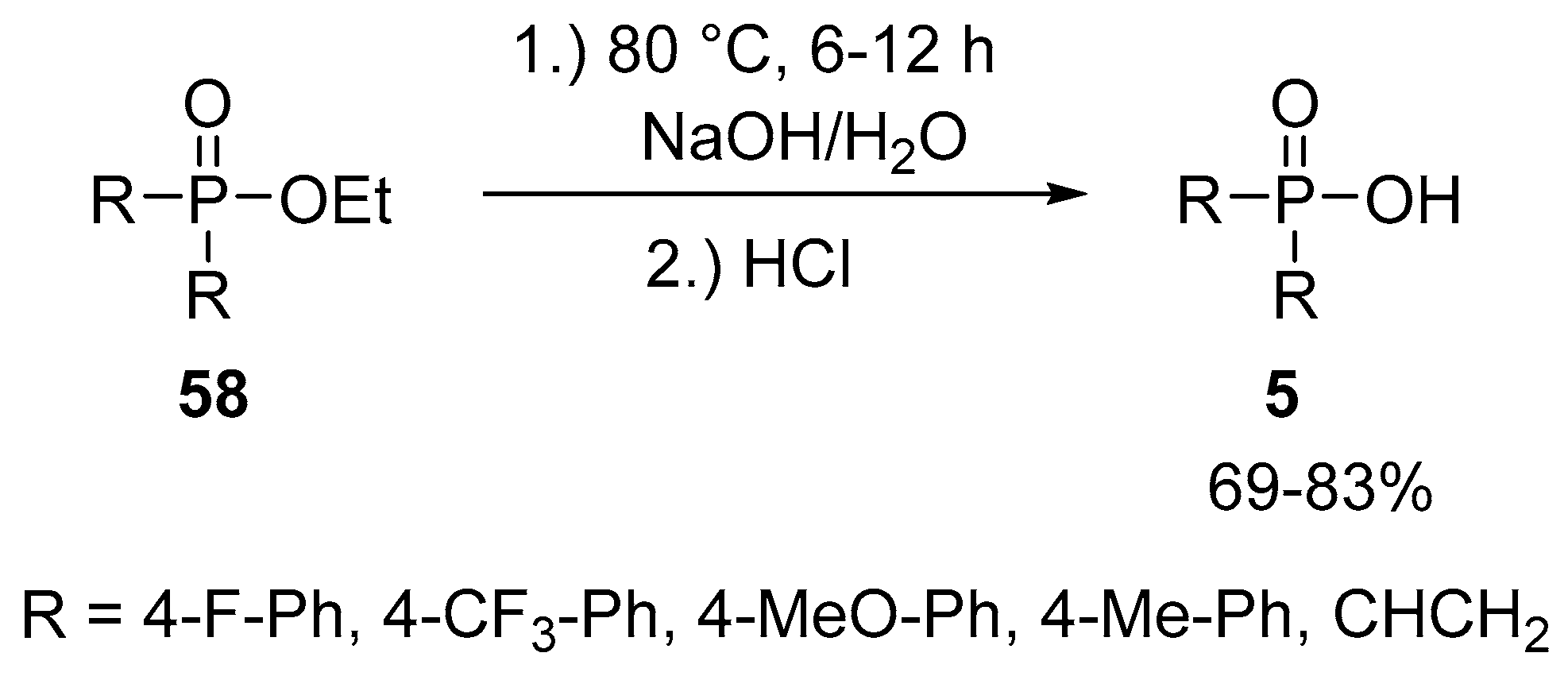

Two equivalents of NaOH in water were used in the hydrolysis of a series of ethyl phosphinates (58) carried out with stirring at 80 °C for 6–12 h. The sodium salt formed during the alkaline hydrolysis was converted to free acid (5) by treatment with hydrochloric acid in the second step (Scheme 29) [110].
The steric effects play a significant role [111]. The alkaline hydrolysis of the ethyl diethyl, diisopropyl and di-tert-butyl phosphinates (58) was studied (Scheme 30). It was found that the increase in the steric hindrance decreased the reaction rate significantly [111]. Relative rate constants of 260, 41 and 0.08 were reported for the alkaline hydrolysis of the diethyl ester (at 70 °C), the diisopropyl ester (at 120 °C) and the di-tert-butyl ester (at 120 °C).

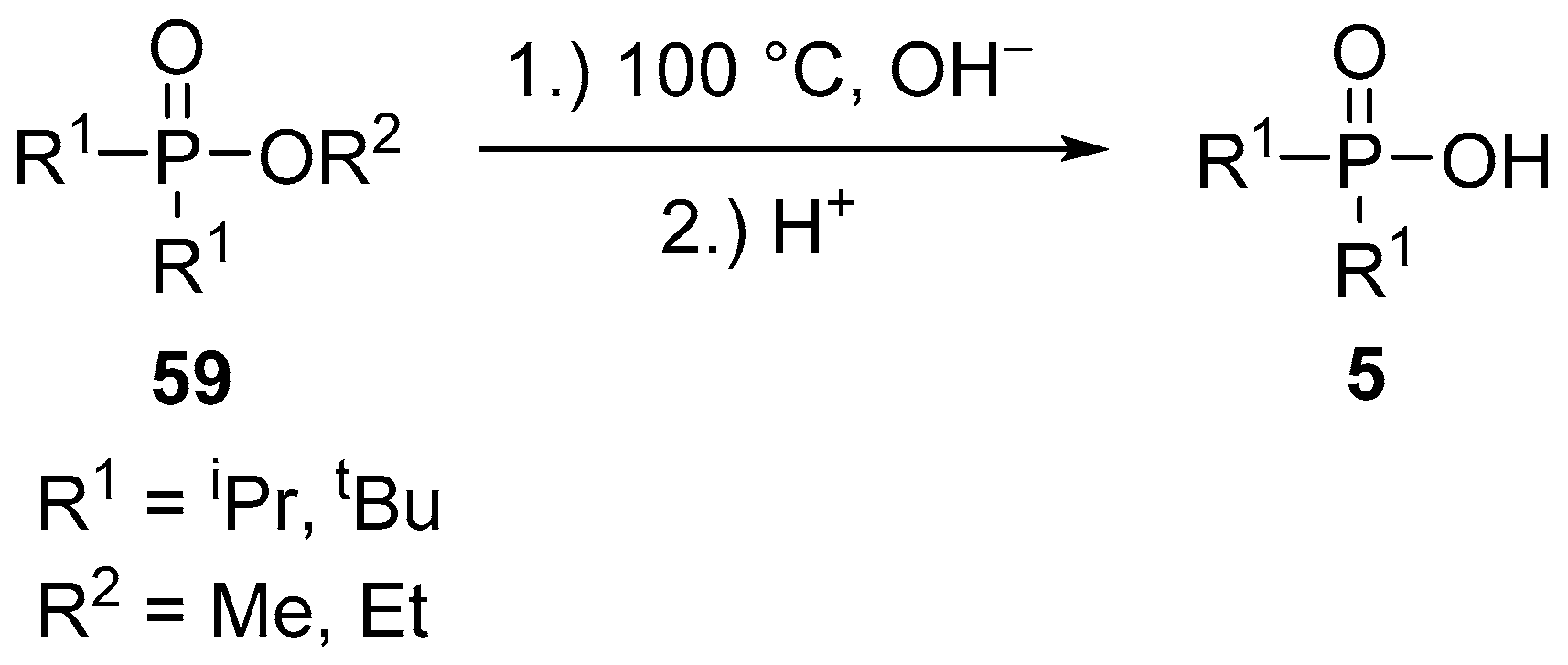

In the alkaline hydrolysis of sterically hindered phosphinates (59), ethyl di-tert-butylphosphinate hydrolyzed 500 times slower than ethyl diisopropylphosphinate (Scheme 31) [112]. The major factors influencing the alkaline hydrolysis of the P-esters are the steric hindrance within the phosphinate and the strength of the acid resulting from the hydrolysis.

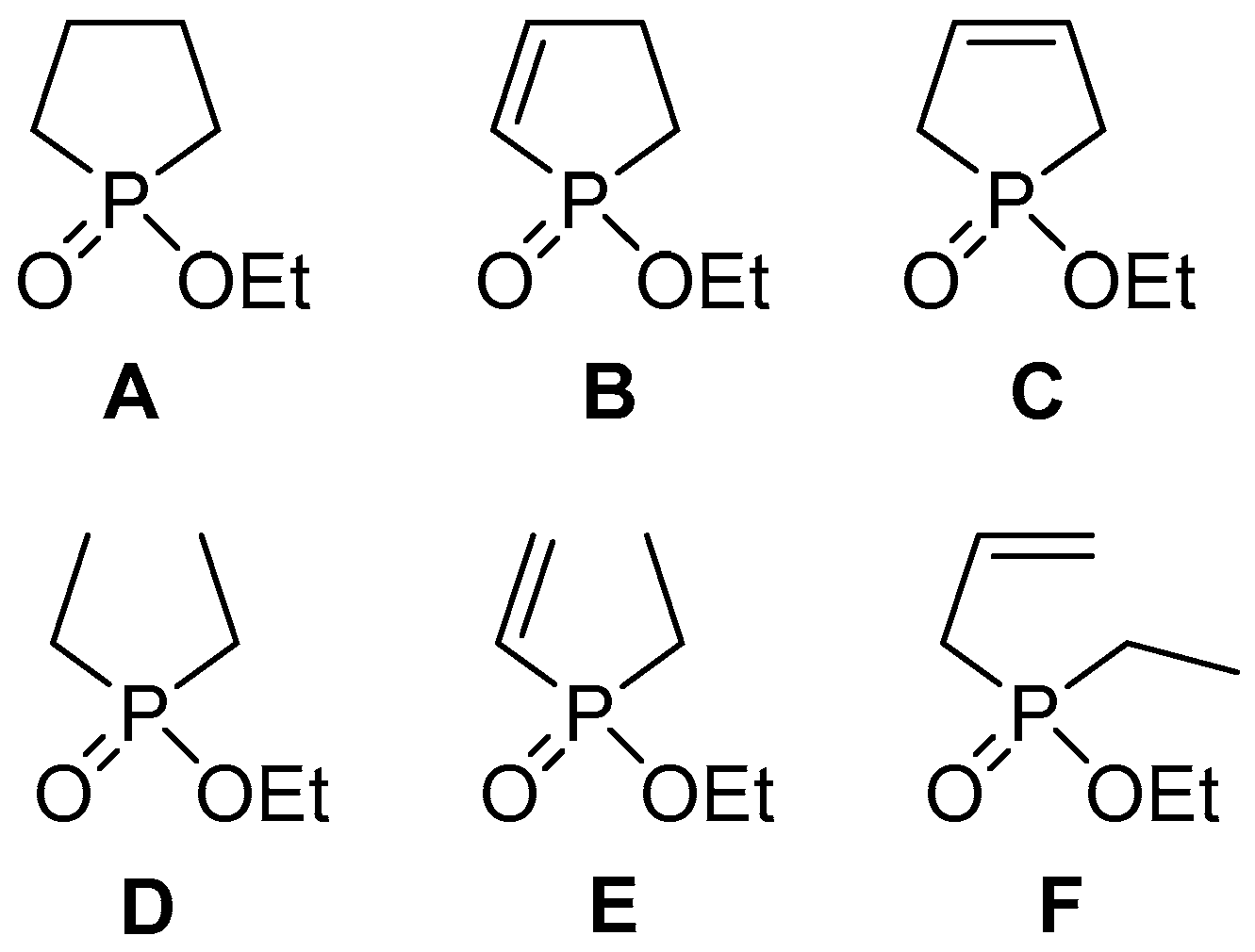

During the hydrolysis of 1-alkoxyphospholene oxides, it was found that, under alkaline conditions, the 1-alkoxy-3-phospholene oxide hydrolyzed 40 times faster than the 1-alkoxy-2-phospholene oxide [104]. In another paper, a series of methyl esters (4) (Scheme 32) and other cyclic phosphinates were investigated in order to clarify the effect of alkyl groups and rings [113]. In this case, the reaction conditions and the yields were not provided.
The order of reactivity for the open chain derivatives was the following [113]:
Me > Ph > Bn > Et > nBu

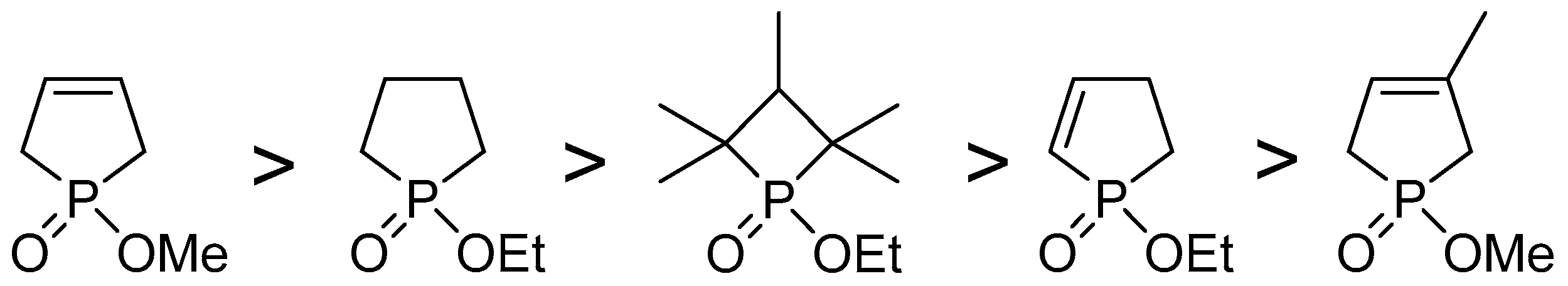

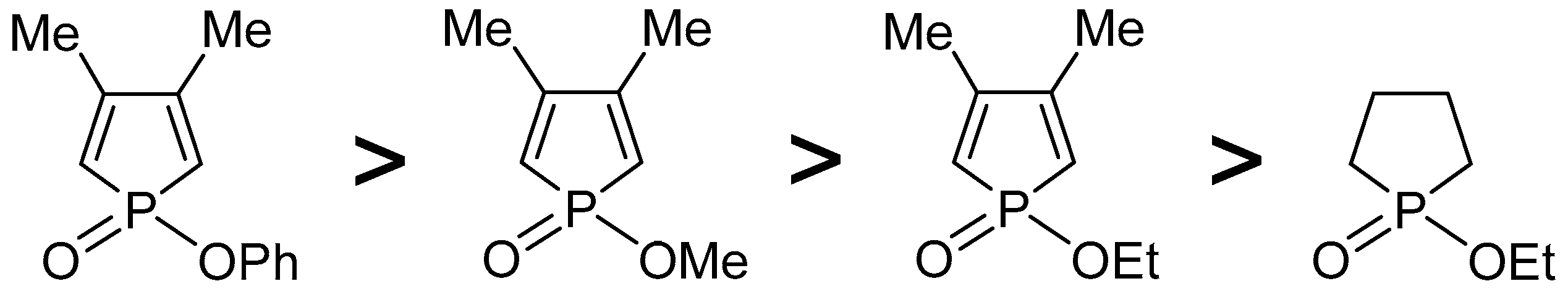

In the case of cyclic derivatives, the following order of reactivity was found [113]:
Molecules 26 02840 i009
The alkaline hydrolysis of other cyclic and open-chain phosphinates was also studied [114] and the rate constants were determined. In the case of less-soluble phosphinates, alcohol–water mixtures were used. The hydrolysis of five-membered cyclic phosphinates was faster than that of the open-chain and six-membered cyclic phosphinates (Table 5).

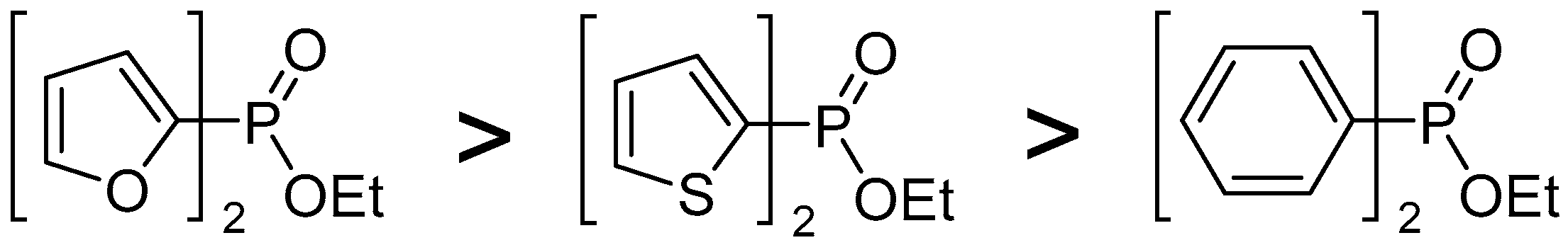

The effect of various heteroaromatic substituents was also studied in the hydrolyses carried out in 50% aqueous dioxane: the hydrolysis of di(2-furyl)-, di(2-thienyl)- and diphenylphosphinic acid ethyl esters performed using one equivalent of sodium hydroxide for 72–120 h was compared (Figure 5) [115]. It was found that the hydrolysis of the furyl derivative was the fastest, while that of the phenyl species was the slowest.
Bergesen investigated the difference between the alkaline hydrolysis of the cis and trans isomers of a four-membered cyclic phosphinate (60) in 50% ethanol–water (Scheme 33) [39]. The results showed that the cis isomer hydrolyzed ca. seven times faster. This may be explained by the fact that, in the case of the trans isomer, the three methyl groups block the access of the hydroxy ion, as compared to the case when only two methyl groups are in the neighborhood, as in the cis isomer.
The alkaline hydrolysis of different alkyl diethylphosphinates (59) was also investigated (Scheme 34) [38]. The reactivity of the alkoxy groups was influenced by the steric bulk of the alkyl group. The value of the rate constants decreased with the increase of the steric hindrance. However, the exact conditions and outcomes were not reported.
It was confirmed by another group that the base-catalyzed hydrolysis became less efficient with the increasing steric requirement of the alkyl group of the alkoxy moiety [104].
Furthermore, 1-Hydroxy-3,4-diphenylphosphole-1-oxide (63) was prepared from the corresponding phenoxyphosphole oxide (62) by alkaline hydrolysis (Scheme 35) [105]. Then, the corresponding phosphinic acid (61) was liberated with HCl.
Studying the hydrolysis of different esters, Clarke and co-workers concluded that the smaller the electron-releasing effect of the substituents was, the greater the rate constant became (Figure 6) [105].
The NaOH-catalyzed hydrolysis of substituted aryl diphenylphosphinates (64) was also investigated (Scheme 36) [106]. It was found that the value of the rate constant decreased with the decrease of the electron-withdrawing ability of the substituent Y in the departing aryl ring. All of the reactions were carried out under pseudo–first-order kinetic conditions, but the exact circumstances were not reported.
Hydrolyses of various aryl diphenylphosphinates (64) carried out using OH– and imidazole catalysis were compared (Scheme 37) [116]. In addition to the substituent dependence, it was found that the imidazole-promoted hydrolyses were significantly faster than the OH–-catalyzed examples. This paper was merely a kinetic study, and the exact conditions were not reported.
The effect of alkyl groups was also studied in the case of diphenylphosphinothioates. It was found that the electron-withdrawing effect accelerates the process, whilst the electron-releasing effect greatly slows it down [117].
It was also found that thioesters (>P(O)SR) are much more reactive than the oxo analogues. The reason is that the RS substituent is a better leaving group. In addition, the R group has a greater influence on the hydrolyzing ability of OR than it does on that of SR [106,118]. Comparing the reactivity of the P=O and P=S derivatives, it can be said that in the case of alkaline hydrolysis, the oxo derivatives are more reactive. [106,109].
The effect of solvents and solvent mixtures was also studied. It was found that the hydrolysis was slightly faster in solvent mixtures [106]. Possible solvent mixtures may be 60% dimethoxyethane in water [104,114], 60% dimethyl ether in water [106], 20% acetonitrile in water [119], and 60% acetone in water [117], but there are other options as well, e.g., hydrolysis in dioxane–water [117] or in methanol–water [117].

3.2. Alkaline and Basic Hydrolysis of Phosphonates

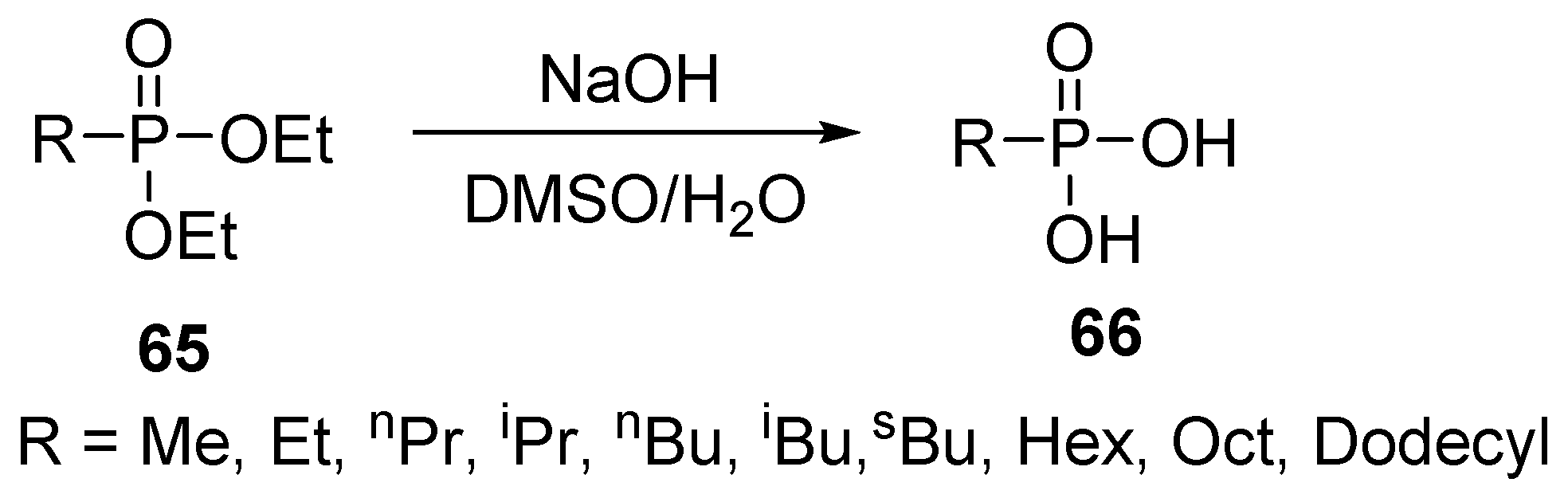

The alkaline hydrolysis of a series of diethyl alkylphosphonates (65) was investigated in DMSO/H2O. Based on the results, an order of reactivity was established on the basis of the nature of the various alkyl chains (Scheme 38) [38]. Higher reactivity was observed for the esters with an n-alkyl substituent, while the rate of the hydrolysis decreased with increasing steric hindrance.
The steric effects had a greater influence on the hydrolysis of phosphonates compared to that of carboxylic esters. In addition, it was found that the hydrolysis of six- and seven-membered cyclic phosphonates is faster than that of the open-chain analogues [38].
It was observed that the rate of the hydrolysis was greatly influenced by the nature of the leaving group and the substituents on the phosphorus atom. Aksnes et al. studied the alkaline hydrolysis of various diethyl alkyl-, chloromethyl- and dichloromethylphosphonates (65) in an acetone–water solvent-mixture (Scheme 39) [120]. The presence of the chloromethyl or dichloromethyl substituents increased the reaction rate. Compared to the hydrolysis of carboxylic esters, the hydrolysis of phosphonates is less sensitive to electronic effects.

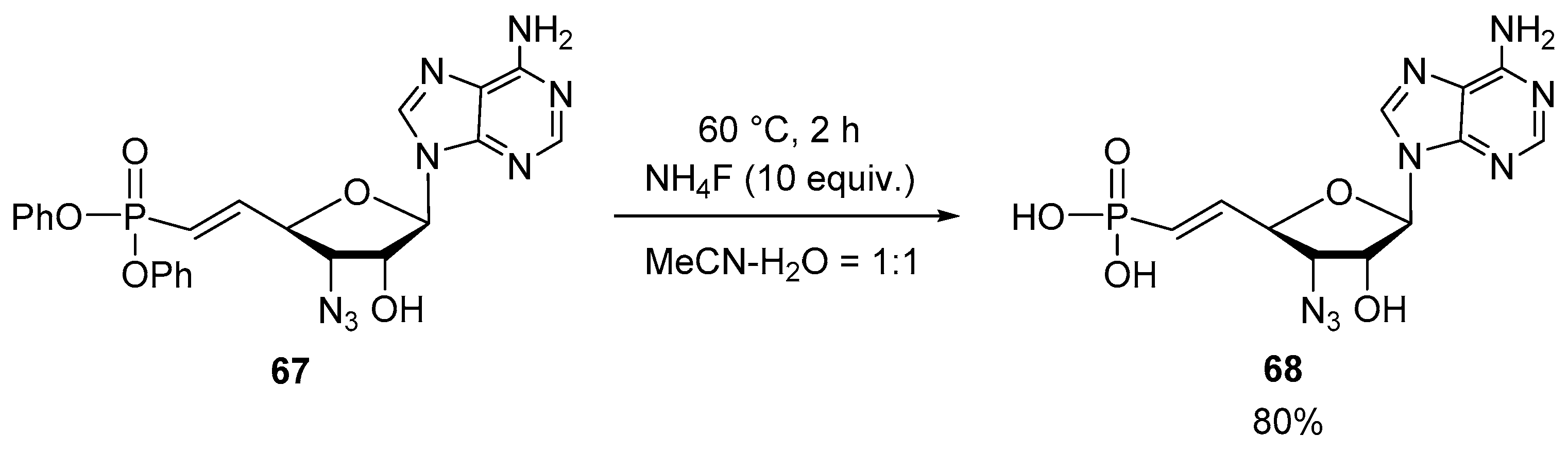

As an interesting example, a diphenyl adenosilvinylphosphonate (67) was hydrolyzed in the presence of ammonium fluoride (Scheme 40) [121].

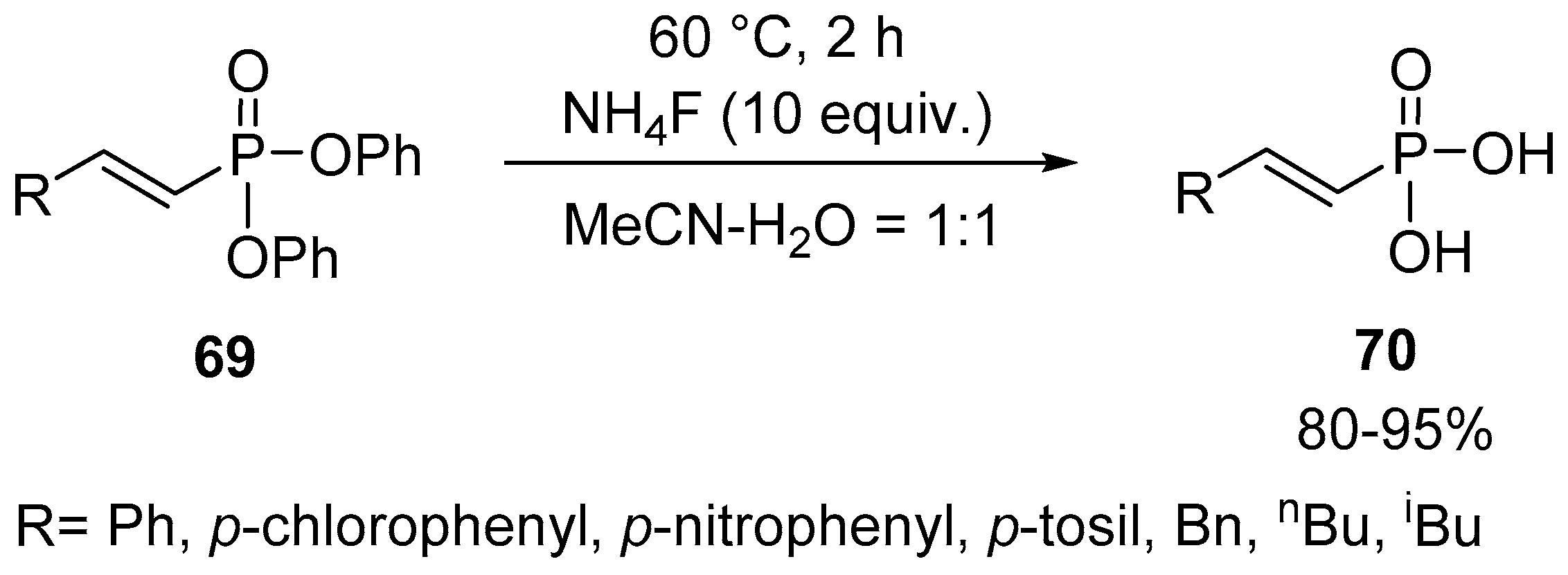

Other vinylphosphonic esters (69) were hydrolyzed under similar conditions (Scheme 41) [121].
It was noted that, in the case of benzyl esters, the corresponding acids may also be obtained by catalytic hydrogenation.
The enzyme-catalyzed hydrolysis of diphenyl alkylphosphonates (71) was also reported [121,122]. As a matter of fact, the hydrolysis of the first ester function was performed by applying base catalysis, while a phosphodiesterase enzyme was used in the second step (Scheme 42).
The above phenomenon was investigated by several groups. Hudson et al. also studied the effect of the P-substituents on the reactivity [92].
In the acidic hydrolysis of dialkyl methylphosphonates, the order of reactivity was the following [92]:
iPr > Me > Et ~ neopentyl
In contrast, applying base-catalyzed hydrolysis, the order of reactivity was the following [92]:
Me > Et > iPr > neopentyl
In the case of diaryl esters, the rate constants were significantly higher. The rate is dependent on the electronic effects: electron-donating substituents slow down the hydrolysis [92]. This was also observed for cyclic phosphonates [123]. Ring cleavage also takes place during their alkaline hydrolysis [109].

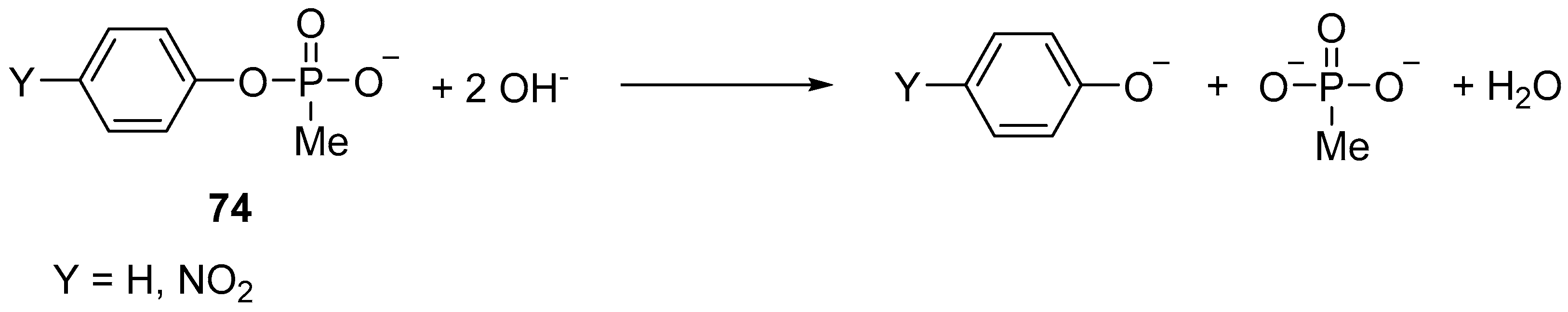

The alkaline hydrolysis of phenyl methylphosphonate and p-nitrophenyl methylphosphonate (74) with the application of NaOH was also studied (Scheme 43) [124]. In this case, the nucleophilic attack of the hydroxide ion occurs on the phosphorus atom of the P=O function. The rate of the reaction increased with the increase of the hydroxide ion concentration.

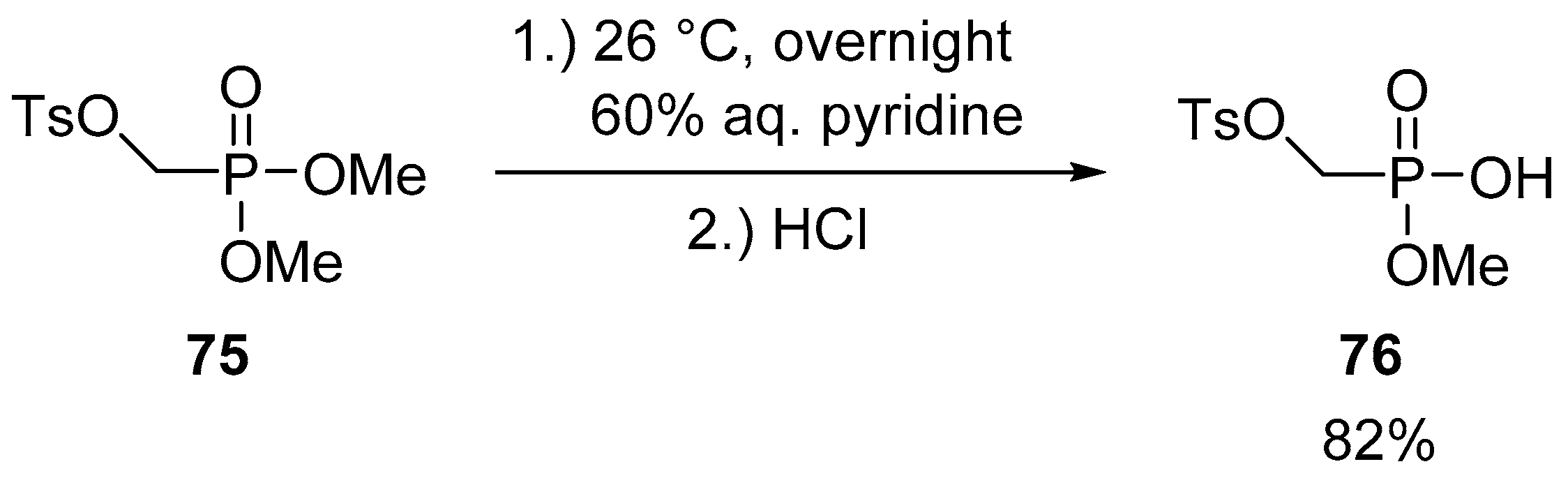

Dimethyl 4-toluenesulfonyloxymethylphosphonate (75) was treated with 60% pyridine-H2O at room temperature to give the monomethyl derivative at an 82% yield (Scheme 44) [125]. The product was a good phosphorylating reagent to protect nucleosides.

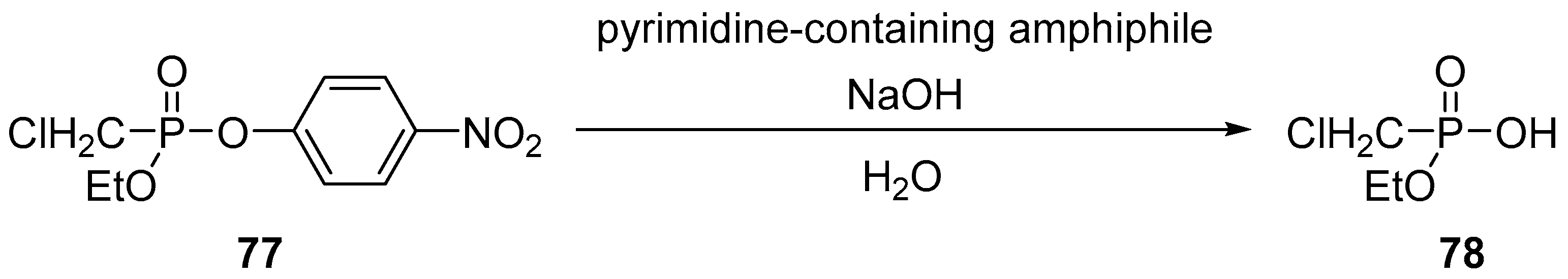

The kinetics of the selective monohydrolysis of ethyl p-nitrophenyl chloromethylphosphonate (77) were studied in micellar solutions of a cationic surfactant (Scheme 45) [126,127].
In summary, the temperature, the solvent and the pH applied have a significant impact on the course of the alkaline hydrolysis. Considering the effect of the C-substituents attached to the P atom, the reactivity of the phosphonates decreases with increasing steric congestion, and increases due to the effect of electron-withdrawing substituents (e.g., in diethyl chloromethylphosphonate compared to diethyl methylphosphonate). Regarding the effect of the OR function, electron-withdrawing R groups (e.g., NO2Ph) increase the rate of the reaction. It is also noteworthy that the hydrolysis of aryl esters is faster than that of their aliphatic counterparts.

4. Dealkylation

4.1. Dealkylation of Phosphinates

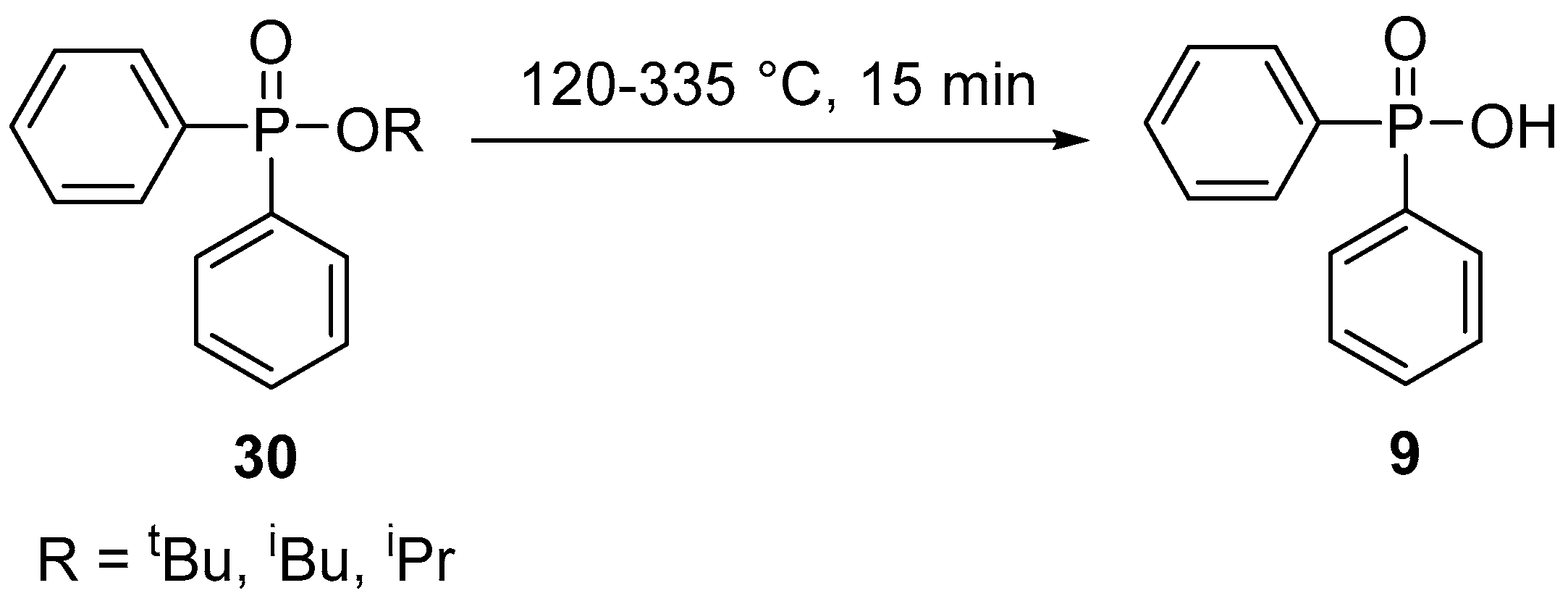

In the case of certain ester groups, a high temperature treatment may also be effective to cleave the O-C bond. This is exemplified by the pyrolysis of diphenylphosphinates (30) with branched alkyl groups, affording the corresponding acid quantitatively (Scheme 46) [46]. This transformation required a treatment at 120–335 °C for 15 min, leaving diphenylphosphinic acid (9) in a solid form. The olefin that was liberated departed as a gas.

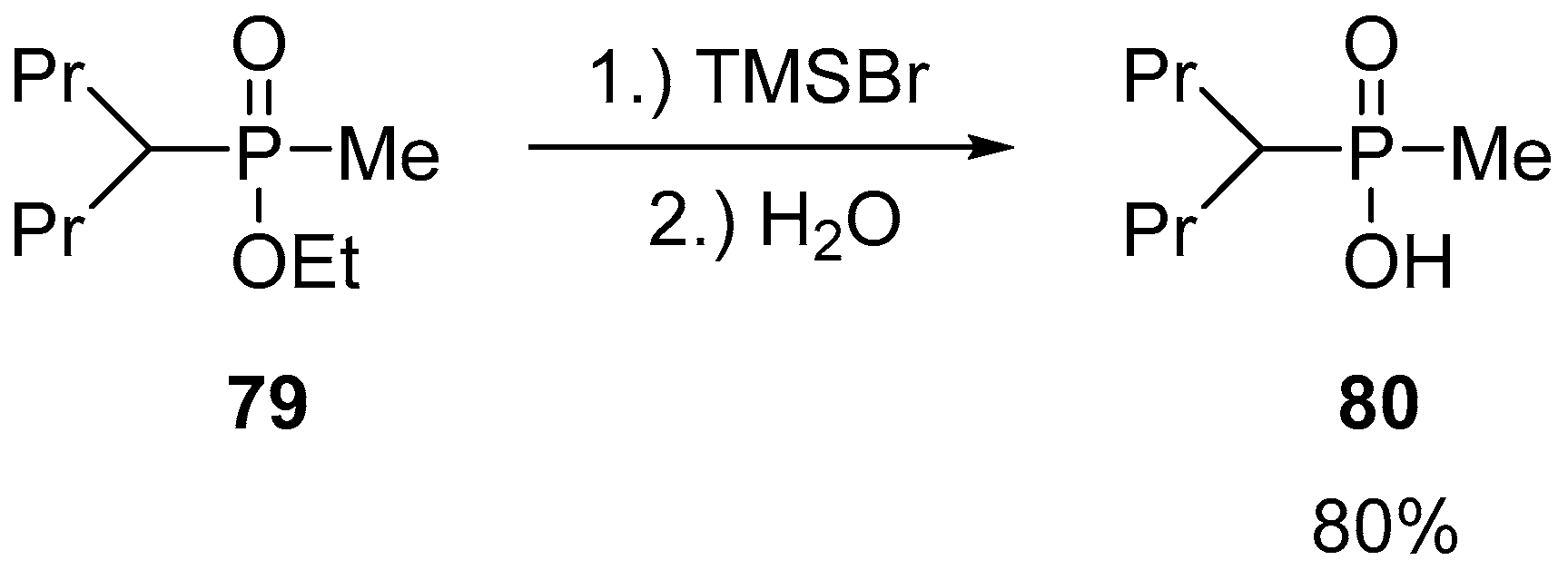

Dealkylations are most often performed using chemical agents, such as trimethylsilyl halides (TMSX). Following the fission, there is need for a treatment with water or methanol to form the corresponding acid [28]. A methyl-heptylphosphinic acid analogue of valproic acid (80) was prepared, in the hope of its bioactivity. In the final step of the synthesis, the resulting ethyl ester was cleaved by trimethylsilyl bromide (TMSBr) to give the target acid (80) (Scheme 47) [128]. The exact conditions were not reported.
Another example is the conversion of ethyl divinylphosphinate (81) to the corresponding acid (83) by treatment with TMSBr followed by methanolysis (Scheme 48) [129].

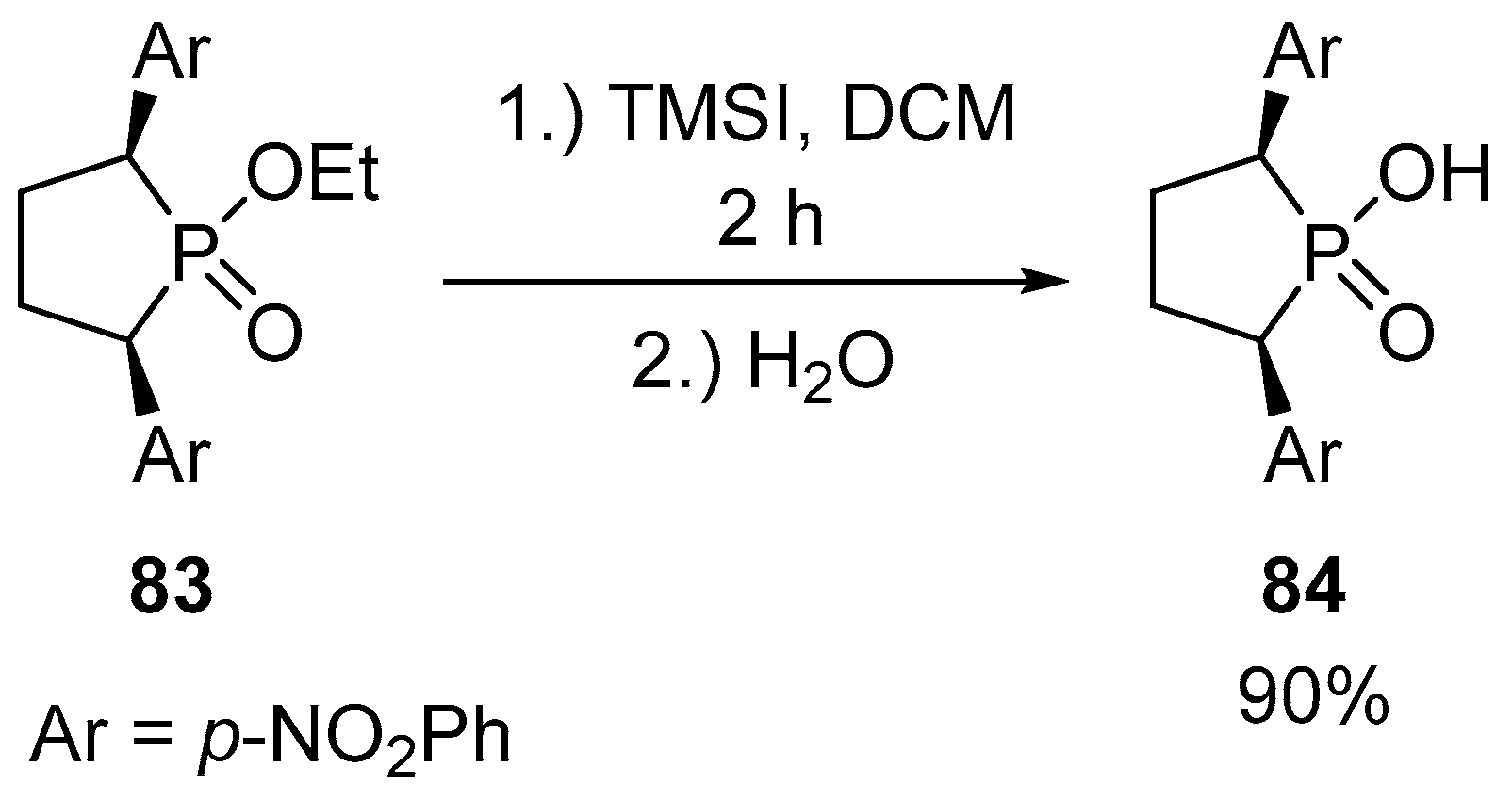

In addition to trimethylsilyl bromide, the iodide derivative (TMSI) is also a suitable dealkylating agent. Its application was demonstrated via the deethylation of a cyclic ethyl phosphinate (83) (Scheme 49) [130].

4.2. Dealkylation of Phosphonates

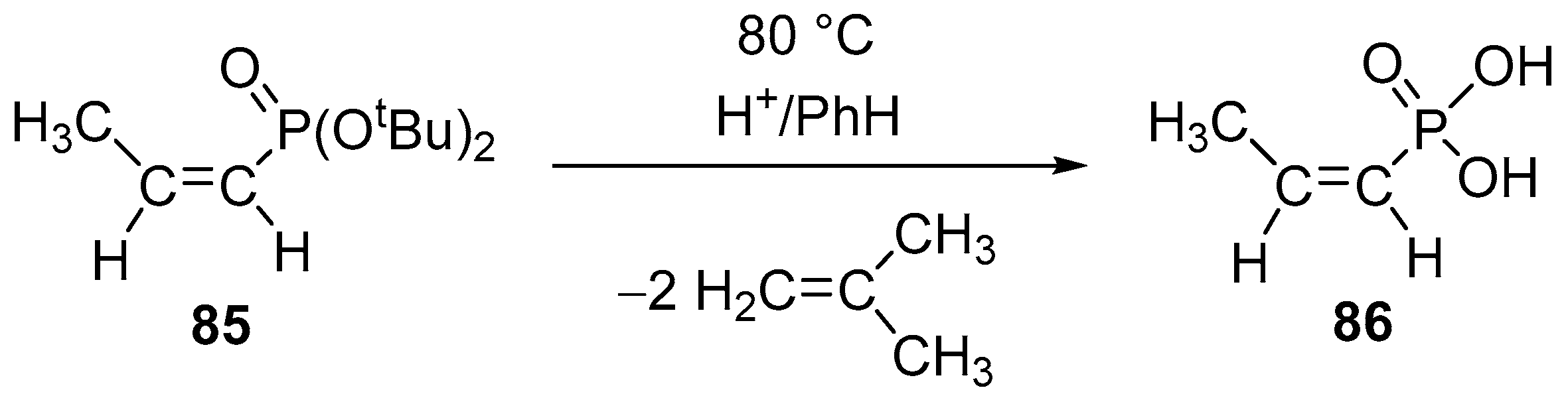

Certain phosphonates may also decompose on heating to give the corresponding acids. The di-tert-butyl esters (e.g., 85), which may undergo dealkylation at 80 °C, are particularly suitable. The exact conditions were not reported in the example shown in Scheme 50 [79].
The dealkylation of the esters (65) may also take place with the aid of various reagents, most commonly with TMSX [131,132,133,134,135,136]. In the first step, the corresponding bis-trimethylsilyl ester (87) is formed, which provides the corresponding phosphonic acid (66) on treatment with water or methanol. This protocol, illustrated in Scheme 51, may be considered to be a gentle and convenient method [79,137].
Later on, the mechanism of the reaction was investigated, and it was found that TMSBr attacks the oxygen atom of the P=O function [138]. The sequence of the double dealkylation with TMSI is shown in Scheme 52 [139,140].

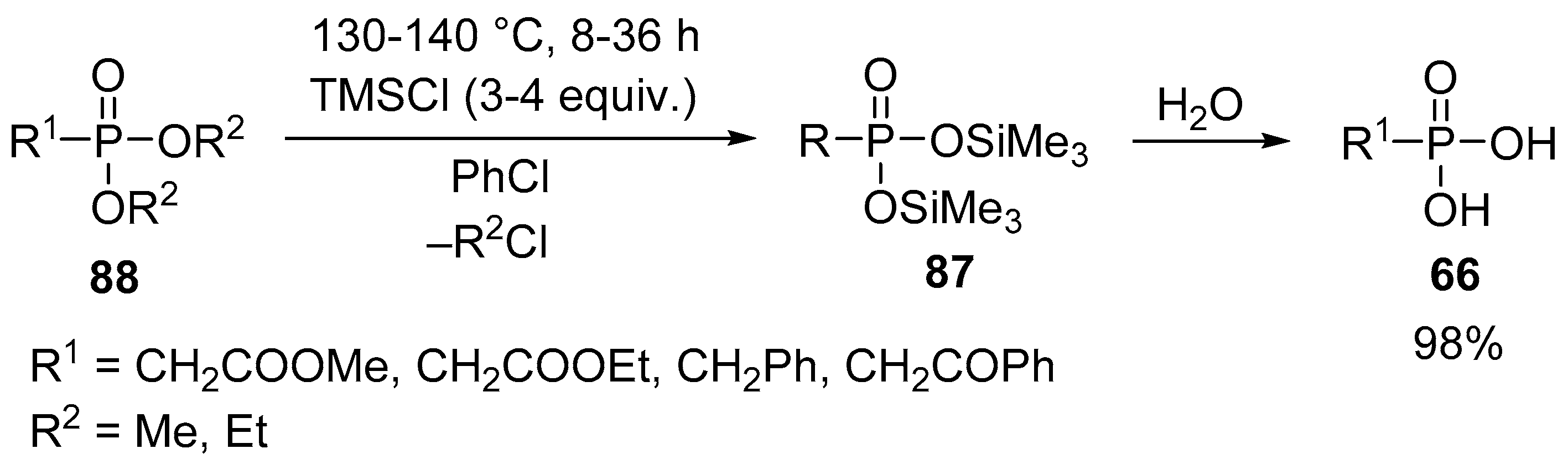

The cleavage with trimethylsilyl chloride (TMSCl) is not an often-used procedure [59]. This derivative is less reactive than TMSBr, and therefore requires a longer reaction time at a higher temperature. However, its lower cost and easier handling justifies its application. In a typical example, the mixture was heated up to 130–140 °C using three to four equivalents of TMSCl in chlorobenzene. The complete removal of the ester function took 8–36 h. The corresponding phosphonic acids (66) were obtained after hydrolysis (Scheme 53) [140].
The TMSC1 reagent can also be used in the preparation of PMEA/PMPA (90), which are known as antiviral agents (Scheme 54) [141].
McKenna compared the reactivity of TMSCl and TMSBr, and found that while the dealkylation with TMSCl, in most cases, was not complete within 1–9 days, the reaction with the bromide derivative was complete within 1–3 h (Table 6) [57].

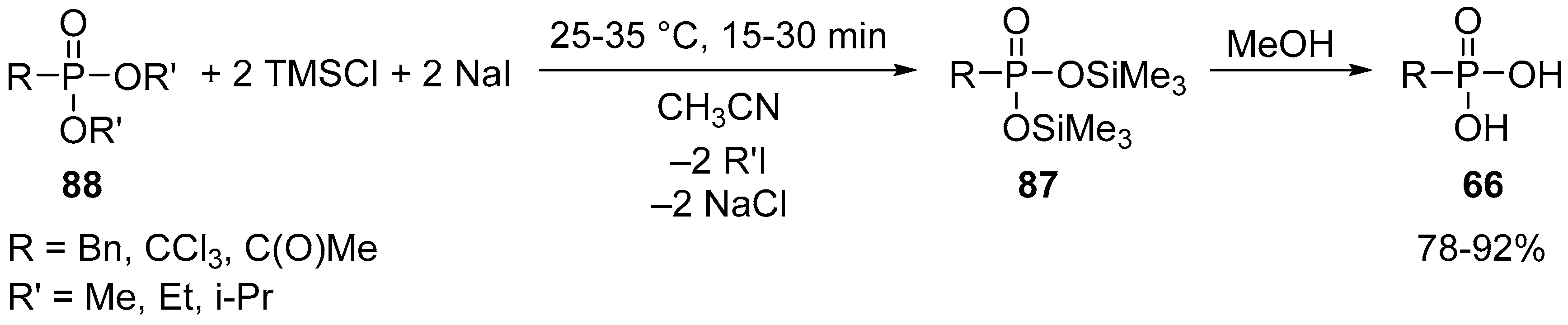

The dealkylation reactions could be promoted by the addition of sodium iodide as a co-reagent to TMSCl [142]. In a few cases, the corresponding phosphonic acids (66) were obtained in good yields after treatment with this mixture of reagents at room temperature for 15–60 min (Scheme 55) [143].
Using lithium iodide, dialkyl phosphonates were cleaved under milder conditions [144]. In most of the cases, TMSBr was used in the dealkylations [145,146,147,148,149,150,151,152,153,154,155,156,157,158,159,160,161,162,163,164,165,166,167,168,169,170,171].
The conversion of phosphonates to the corresponding acids plays an important role in the synthesis of drugs. This is illustrated by the last step of the synthesis of Tenofovir (90) (Scheme 56) [172]. TMSCl/NaBr was applied in the preparation of other anti-HIV agents as well [173].

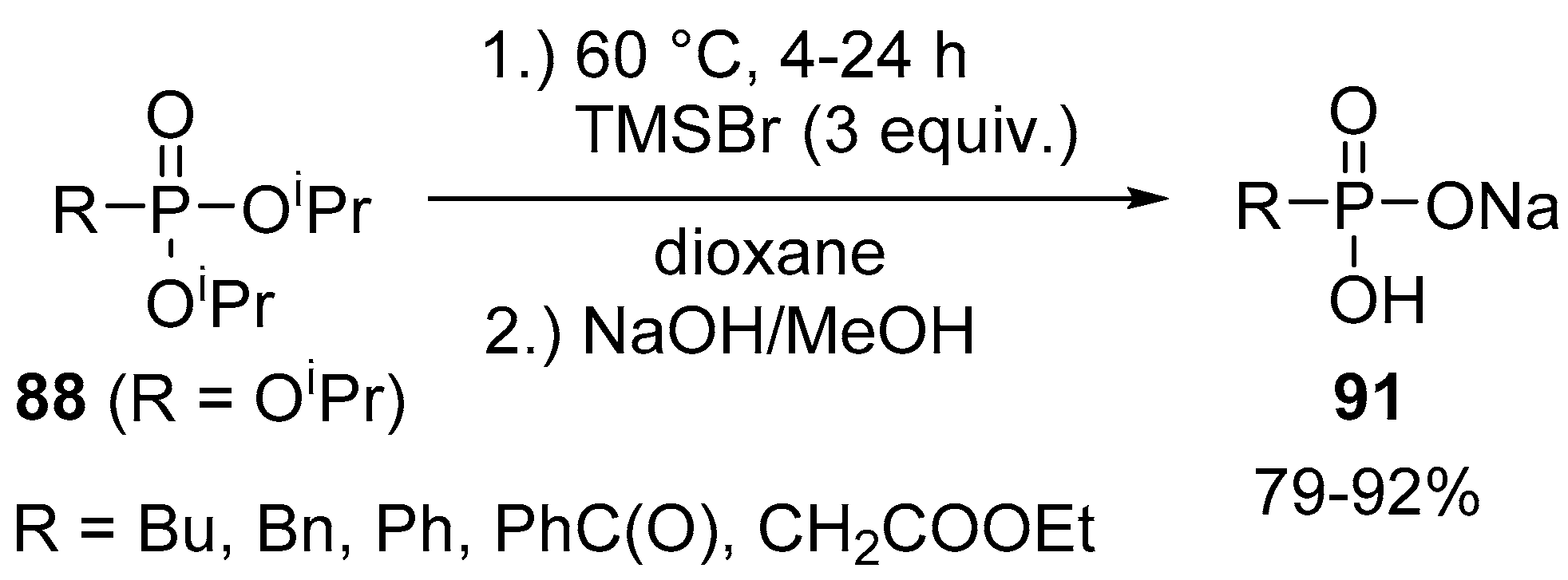

The double cleavage of the P(O)(OiPr)2 function in a series of diisopropyl esters (88) was performed with TMSBr at 60 °C for 4–24 h. Using three equivalents of TMSBr, yields of around 80% were reported. A work-up including a treatment with NaOH and methanol gave the mono-Na salt of the phosphonic acid (91) (Scheme 57) [174].

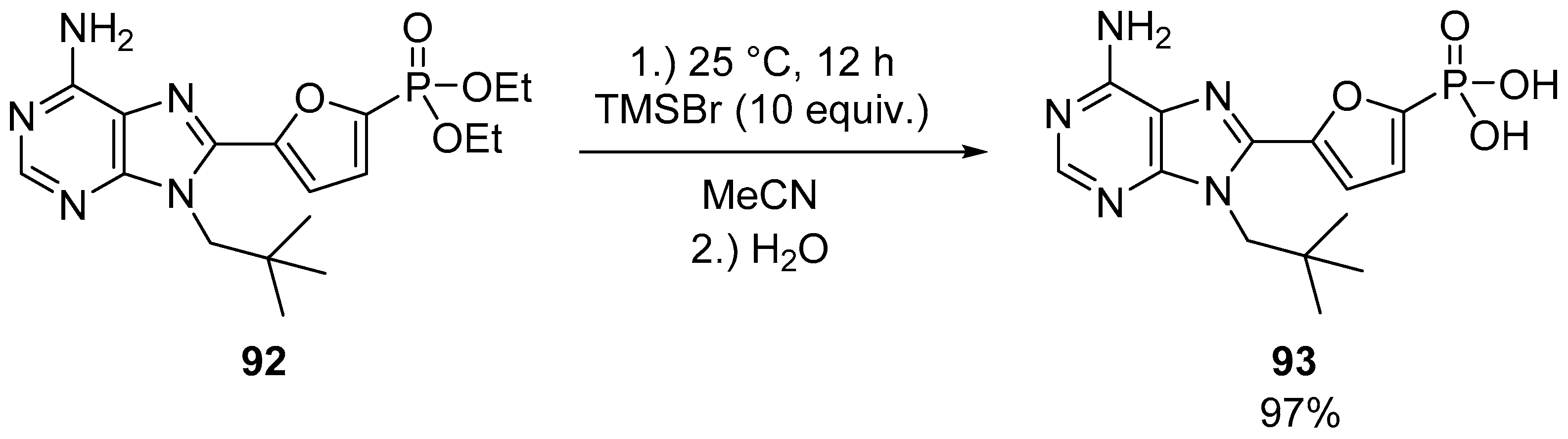

Certain analogues of purine-based phosphonic acids are able to inhibit the FBSase enzyme, making them effective in the treatment of type 2 diabetes. During the synthesis of these type of compounds, the cleavage of the ester group was performed with TMSBr (Scheme 58) [175].
TMSBr may also be used in the dealkylation of metal complexes (95) (Scheme 59) [176].
In addition to TMSBr, boron tribromide was also proven to be an effective dealkylating reagent [177]. In this case, the reaction resulted in the formation of borophosphonate oligomers [–O–PR(O–)–O–B(O–)(O–)]n, along with the alkyl bromide by-product [53]. The methanolysis of the intermediate led to free phosphonic acid (66) and B(OMe)3 (Scheme 60).

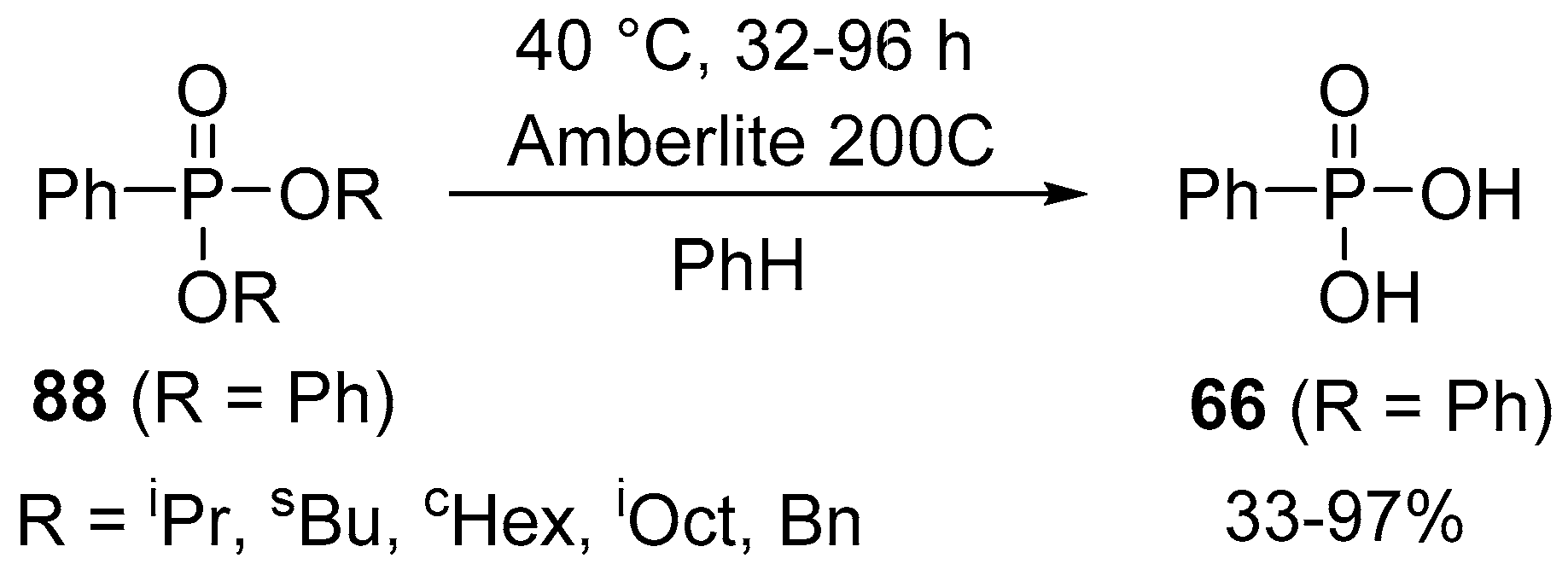

In special cases, a cation exchange resin was used as a catalyst in dealkylations (Scheme 61) [178]. The phenylphosphonates (88) were reacted at 40 °C for a prolonged reaction time to afford phenylphosphonic acid (66) in variable yields, depending on the nature of the R group.
The dealkylation of diethyl ethylphosphonate (65) was performed using γ-alumina and silica gel. At a temperature of 300 °C, the cleavage of the P-C bond also occurred in addition to the desired fission of the C-O bond (Scheme 62) [179].
The monodealkylation of phosphonates (98) was also elaborated using sodium iodide in polar solvents (Scheme 63) [150,180,181,182].
The monodealkylation of phosphonates (100) was also performed under phase transfer catalytic conditions (Scheme 64) [183]. In this case, triethylbenzylammonium bromide or triethylbenzylammonium chloride (TEBAB or TEBAC, respectively) was applied as the catalyst in the dealkylation performed at reflux for 24–150 h.
Diethyl phosphonates could also be monodealkylated at 80–100 °C for good yields using lithium bromide or chloride [184]. There is an example of the use of lithium triethylborohydride as the monodealkylating agent in the preparation of GABA analogue phosphonic acids (102) (Scheme 65) [185].
In a few cases, the dealkylation could also be accomplished with amines, e.g., the monodealkylation of H-phosphonates was performed with tert-butylamine [54,55], but hydrazine could also be applied as a dealkylating agent [186].

5. Conclusions

P-acids have a significant role among drugs. Additionally, they have applications as herbicides and flame retardants as well. Hydrolysis is the most frequently used method to prepare P-acids that may be catalyzed by acids and bases. Comparing the two methods, it can be said that the alkaline hydrolysis takes place faster, and is less corrosive, but it is realized in two steps. The Na salt is formed in the first step, followed by the liberation of the free acid. While the acid-catalyzed hydrolysis may involve the cleavage of the P-O bond (AAc2 mechanism) and that of the C-O bond (AAl1 mechanism) as well, the alkaline hydrolysis takes place via the cleavage of P-O bond. This explains why the isopropyl ester reacts faster than the methyl ester under acidic conditions, while in the base-catalyzed process, the former reacts considerably slower. The course of the reactions may be influenced by various factors, such as the temperature, solvent, pH, and the substituents attached to the phosphorus atom. The steric hindrance decreases the reaction rate, while the electron-withdrawing effects either in the C- or OC-substituents attached to the P atom increase the reactivity. Another method to convert the esters to P-acids is cleavage by trimethylsilyl halides. This approach is selective and requires milder conditions. In addition to hydrolysis under conventional conditions, MW-assisted variations were also elaborated, giving environmentally friendly and efficient accomplishments.
Through the examples discussed, it was shown that the hydrolysis of P-esters has not yet been explored fully, and generally that the reaction conditions have not been optimized. Despite these facts, especially on the basis of our own findings, this review may help us to get closer to a better understanding of this area of phosphorus chemistry. We advise the performance of the hydrolyses under acidic conditions using 0.5 mL of cc. HCl in 1 mL water to each 2 mmol of the phosphinate, or to each 1 mmol of the phosphonate.

Funding

This project was funded by the National Research, Development and Innovation Office (K134318).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Horsman, G.P.; Zechel, D.L. Phosphonate biochemistry. Chem. Rev. 2017, 117, 5704–5783. [Google Scholar] [CrossRef]
  2. Falagas, M.E.; Vouloumanou, E.K.; Samonis, G.; Vardakas, K.Z. Fosfomycin. Clin. Microbiol. Rev. 2016, 29, 321–347. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Pulwer, M.J.; Matthazor, T.M. A convenient synthesis of aminomethylphosphonic acid. Synth. Commun. 1986, 16, 733–739. [Google Scholar] [CrossRef]
  4. De Clercq, E. Potential of acyclic nucleoside phosphonates in the treatment of DNA virus and retrovirus infections. Clin. Microbiol. Rev. 2003, 1, 21–43. [Google Scholar] [CrossRef]
  5. Virieux, D.; Volle, J.-N.; Bakalara, N.; Pirat, J.-L. Synthesis and biological applications of phosphinates and derivatives. Top. Curr. Chem. 2014, 360, 39–114. [Google Scholar] [CrossRef]
  6. Froestl, W.; Mickel, S.J.; von Sprecher, G.; Diel, P.J.; Hall, R.G.; Maier, L.; Strub, D.; Melillo, V.; Baumann, P.A.; Bernasconi, R.; et al. Phosphinic acid analogues of GABA. 2. Selective, orally active GABAB antagonists. J. Med. Chem. 1995, 38, 3313–3331. [Google Scholar] [CrossRef]
  7. Gavande, N.; Yamamoto, I.; Salam, N.K.; Ai, T.H.; Burden, P.M.; Johnston, G.A.R.; Hanrahan, J.R.; Chebib, M. Novel cyclic phosphinic acids as GABAC receptor antagonists: Design, synthesis, and pharmacology. ACS Med. Chem. Lett. 2011, 2, 11–16. [Google Scholar] [CrossRef] [Green Version]
  8. Reid, D.M.; Devogelaer, J.P.; Saag, K.; Roux, C.; Lau, C.S.; Reginster, J.Y.; Papanastasiou, P.; Ferreira, A.; Hartl, F.; Fashola, T.; et al. Zoledronic acid and risedronate in the prevention and treatment of glucocorticoid-induced osteoporosis (HORIZON): A multicentre, double-blind, double-dummy, randomised controlled trial. Lancet 2009, 373, 1253–1263. [Google Scholar] [CrossRef]
  9. Black, D.M.; Cummings, S.R.; Karpf, D.B.; Cauley, J.A.; Thompson, D.E.; Nevitt, M.C.; Bauer, D.C.; Genant, H.K.; Haskell, W.L.; Marcus, R.; et al. Randomised trial of effect of alendronate on risk of fracture in women with existing vertebral fractures. Lancet 1996, 348, 1535–1541. [Google Scholar] [CrossRef]
  10. Brücher, K.; Gräwert, T.; Konzuch, S.; Held, J.; Lienau, C.; Behrendt, C.; Illarionov, B.; Maes, L.; Bacher, A.; Wittlin, S.; et al. Prodrugs of reverse fosmidomycin analogues. J. Med. Chem. 2015, 58, 2025–2035. [Google Scholar] [CrossRef]
  11. Verbrugghen, T.; Vandurm, P.; Pouyez, J.; Maes, L.; Wouters, J.; Van Calenbergh, S. Alpha-heteroatom derivatized analogues of 3-(acetylhydroxyamino)propyl phosphonic acid (FR900098) as antimalarials. J. Med. Chem. 2013, 56, 376–380. [Google Scholar] [CrossRef] [PubMed]
  12. Zhang, Y.; Cao, R.; Yin, F.; Lin, F.Y.; Wang, H.; Krysiak, K.; No, J.H.; Mukkamala, D.; Houlihan, K.; Li, J.; et al. Lipophilic pyridinium bisphosphonates: Potent γδT cell stimulators. Angew. Chem. Int. Ed. 2010, 49, 1136–1138. [Google Scholar] [CrossRef] [Green Version]
  13. Fonseca, E.M.B.; Trivella, D.B.B.; Scorsato, V.; Dias, M.P.; Bazzo, N.L.; Mandapati, K.R.; De Oliveira, F.L.; Ferreira-Halder, C.V.; Pilli, R.A.; Miranda, P.C.M.L.; et al. Crystal structures of the apo form and a complex of human LMW-PTP with a phosphonic acid provide new evidence of a secondary site potentially related to the anchorage of natural substrates. Bioorg. Med. Chem. 2015, 23, 4462–4471. [Google Scholar] [CrossRef] [PubMed]
  14. Morita, C.T.; Jin, C.; Sarikonda, G.; Wang, H. Nonpeptide antigens, presentation mechanisms, and immunological memory of human Vγ2Vδ2 T cells: Discriminating friend from foe through the recognition of prenyl pyrophosphate antigens. Immunol. Rev. 2007, 215, 59–76. [Google Scholar] [CrossRef]
  15. Kramer, G.J.; Mohd, A.; Schwager, S.L.U.; Masuyer, G.; Acharya, K.R.; Sturrock, E.D.; Bachmann, B.O. Interkingdom pharmacology of angiotensin-I converting enzyme inhibitor phosphonates produced by actinomycetes. ACS Med. Chem. Lett. 2014, 5, 346–351. [Google Scholar] [CrossRef]
  16. Myers, J.P.; Antoniou, M.N.; Blumberg, B.; Carroll, L.; Colborn, T.; Everett, L.G.; Hansen, M.; Landrigan, P.J.; Lanphear, B.P.; Mesnage, R.; et al. Concerns over use of glyphosate-based herbicides and risks associated with exposures: A consensus statement. Environ. Health 2016, 15, 1–13. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Reiter, L.A.; Jones, B.P. Amide-assisted hydrolysis of β-carboxamido-substituted phosphinic acid esters metal ions, and appropriately substituted phosphinic responsible for promoting the cleavage of the phosphinic acid esters. J. Org. Chem. 1997, 62, 2808–2812. [Google Scholar] [CrossRef]
  18. Nguyen, C.; Lee, M.; Kim, J. Relationship between structures of phosphorus compounds and flame retardancies of the mixtures with acrylonitrile—butadiene—styrene and ethylene—vinyl acetate copolymer. Polym. Adv. Technol. 2011, 22, 512–519. [Google Scholar] [CrossRef]
  19. Kosolapoff, G.M.; Maier, L. Organic Phosphorus Compounds; J. Wiley & Sons, Inc.: New York, NY, USA, 1972; Volume 4, pp. 264–273. [Google Scholar]
  20. Jansa, P.; Baszczyňski, O.; Procházková, E.; Dračínský, M.; Janeba, Z. Microwave-assisted hydrolysis of phosphonate diesters: An efficient protocol for the preparation of phosphonic acids. Green Chem. 2012, 14, 2282–2288. [Google Scholar] [CrossRef]
  21. Sevrain, C.M.; Berchel, M.; Couthon, H.; Jaffrès, P. Phosphonic acid: Preparation and applications. J. Org. Chem. 2017, 13, 2186–2213. [Google Scholar] [CrossRef]
  22. Rahil, J.; Pratt, R.F. Intramolecular participation of the amide group in acid- and base-catalysed phosphonate monoester hydrolysis. J. Chem. Soc. Perkin Trans. 2 1991, 947–950. [Google Scholar] [CrossRef]
  23. Kuzdin, Z.H.; Stec, W.J. Phosphohomocysteine derivates. Synthesis (Stuttg) 1980, 12, 1032–1034. [Google Scholar] [CrossRef]
  24. Wȩglarz-Tomczak, E.; Berlicki, Ł.; Pawełczak, M.; Nocek, B.; Joachimiak, A.; Mucha, A. A structural insight into the P1 S1 binding mode of diaminoethylphosphonic and phosphinic acids, selective inhibitors of alanine aminopeptidases. Eur. J. Med. Chem. 2016, 117, 187–196. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Hugot, N.; Roger, M.; Rueff, J.M.; Cardin, J.; Perez, O.; Caignaert, V.; Raveau, B.; Rogez, G.; Jaffrès, P.A. Copper-fluorenephosphonate Cu(PO3-C13H9)·H2O: A layered antiferromagnetic hybrid. Eur. J. Inorg. Chem. 2016, 266–271. [Google Scholar] [CrossRef]
  26. Chauveau, E.; Marestin, C.; Mercier, R.; Brunaux, A.; Martin, V.; Nogueira, R.P.; Percheron, A.; Roche, V.; Waton, H. Phosphonic acid-containing polysulfones as anticorrosive layers. J. Appl. Polym. Sci. 2015, 132, 1–9. [Google Scholar] [CrossRef]
  27. Fischer, T.; Duong, Q.N.; García Mancheño, O. Triazole-based anion-binding catalysis for the enantioselective dearomatization of N-heteroarenes with phosphorus nucleophiles. Chem. Eur. J. 2017, 23, 5983–5987. [Google Scholar] [CrossRef]
  28. Sánchez-Moreno, M.J.; Gómez-Coca, R.B.; Fernández-Botello, A.; Ochocki, J.; Kotynski, A.; Griesser, R.; Sigel, H. Synthesis and acid-base properties of (1H-benzimidazol-2-yl-methyl)phosphonate (Bimp2-). Evidence for intramolecular hydrogen-bond formation in aqueous solution between (N-1)H and the phosphonate group. Org. Biomol. Chem. 2003, 1, 1819–1826. [Google Scholar] [CrossRef]
  29. Jaffrès, P.A.; Caignaert, V.; Villemin, D. A direct access to layered zirconium-phosphonate materials from dialkylphosphonates. Chem. Commun. 1999, 1997–1998. [Google Scholar] [CrossRef]
  30. Griffiths, D.V.; Hughes, J.M.; Brown, J.W.; Caesar, J.C.; Swetnam, S.P.; Cumming, S.A.; Kelly, J.D. The synthesis of 1-amino-2-hydroxy- and 2-amino-1-hydroxy-substituted ethylene-1,1-bisphosphonic acids and their N-methylated derivatives. Tetrahedron 1997, 53, 17815–17822. [Google Scholar] [CrossRef]
  31. Kafarski, P.; Lejczak, B.; Szewczyk, J. Optically active 1-aminoalkanephosphonic acids. Dibenzoyl- L -tartaric anhydride as an effective agent for the resolution of racemic diphenyl 1-aminoalkanephosphonates. Can. J. Chem. 1983, 61, 2425–2430. [Google Scholar] [CrossRef]
  32. Ikenberry, M.; Peña, L.; Wei, D.; Wang, H.; Bossmann, S.H.; Wilke, T.; Wang, D.; Komreddy, V.R.; Rillema, D.P.; Hohn, K.L. Acid monolayer functionalized iron oxide nanoparticles as catalysts for carbohydrate hydrolysis. Green Chem. 2014, 16, 836–843. [Google Scholar] [CrossRef] [Green Version]
  33. Broeren, M.A.C.; De Waal, B.F.M.; Van Genderen, M.H.P.; Sanders, H.M.H.F.; Fytas, G.; Meijer, E.W. Multicomponent host-guest chemistry of carboxylic acid and phosphonic acid based guests with dendritic hosts: An NMR study. J. Am. Chem. Soc. 2005, 127, 10334–10343. [Google Scholar] [CrossRef] [PubMed]
  34. Otaka, A.; Burke, T.R.; Smyth, M.S.; Nomizu, M.; Roller, P.P. Deprotection and cleavage methods for protected peptide resins containing 4-[(diethylphosphono)difluoromethyl]-D,L-phenylalanine residues. Tetrahedron Lett. 1993, 34, 7039–7042. [Google Scholar] [CrossRef]
  35. Bunnett, J.F.; Edwards, J.O.; Wells, D.V.; Brass, H.J.; Curci, R. The hydrolysis of methyl methylarylphosphinates in perchloric acid solution. J. Org. Chem. 1973, 38, 2703–2707. [Google Scholar] [CrossRef]
  36. Haake, P.; Hurst, G. Reactions of phosphinates. The acid-catalyzed and acid-inhibited hydrolysis of p-nitrophenyl diphenylphosphinate. J. Am. Chem. Soc. 1966, 88, 2544–2550. [Google Scholar] [CrossRef]
  37. Kim, S.M.; Lee, M.; Lee, S.Y.; Park, E.; Lee, S.M.; Kim, E.J.; Han, M.Y.; Yoo, T.; Ann, J.; Yoon, S.; et al. Discovery of an orally bioavailable gonadotropin-releasing hormone receptor antagonist. J. Med. Chem. 2016, 59, 9150–9172. [Google Scholar] [CrossRef]
  38. Yuan, C.; Li, S.; Liao, X. Studies on Organophosphorus Compounds. XXXVI * In alkaline hydrolysis. J. Phys. Org. Chem. 1990, 3, 48–54. [Google Scholar] [CrossRef]
  39. Bergesen, K. Alkaline hydrolysis of the cis and trans isomers of the cyclic phosphinate: 1-Oxo-1-ethoxy-2,2,3,4,4-pentamethyl-phospha-cyclobutan. Acta Chem. Scand. 1967, 21, 1587–1591. [Google Scholar] [CrossRef] [Green Version]
  40. Lin, Y.; Liu, J.T. Convenient synthesis of β-allenic α-difluoromethylenephosphonic acid monoesters: Potential synthons for cyclic phosphate mimics. Chin. Chem. Lett. 2007, 18, 33–36. [Google Scholar] [CrossRef]
  41. Wróblewski, A.E.; Verkade, J.G. 1-Oxo-2-oxa-1-phosphabicyclo[2.2.2]octane: A new mechanistic probe for the basic hydrolysis of phosphate esters. J. Am. Chem. Soc. 1996, 118, 10168–10174. [Google Scholar] [CrossRef]
  42. Palacios, F.; Alonso, C.; de los Santos, J.M. Synthesis of β-aminophosphonates and -phosphinates. Chem. Rev. 2005, 105, 899–931. [Google Scholar] [CrossRef] [PubMed]
  43. Zhang, X.; Glunz, P.W.; Johnson, J.A.; Jiang, W.; Jacutin-Porte, S.; Ladziata, V.; Zou, Y.; Phillips, M.S.; Wurtz, N.R.; Parkhurst, B.; et al. Discovery of a highly potent, selective, and orally bioavailable macrocyclic inhibitor of blood coagulation factor VIIa-tissue factor complex. J. Med. Chem. 2016, 59, 7125–7137. [Google Scholar] [CrossRef] [PubMed]
  44. Moss, R.A.; Morales-Rojas, H.; Vijayaraghavan, S.; Tian, J. Metal-cation-mediated hydrolysis of phosphonoformate diesters: Chemoselectivity and catalysis. J. Am. Chem. Soc. 2004, 126, 10923–10936. [Google Scholar] [CrossRef] [PubMed]
  45. Mabey, W.; Mill, T. Critical review of hydrolysis of organic compounds in water under environmental conditions. J. Phys. Ref. Data 1978, 7, 383–415. [Google Scholar] [CrossRef] [Green Version]
  46. Haake, P.; Diebert, C.E. Phosphinic acids and derivates. Pyrolytic elimination in phosphinate esters. J. Am. Chem. Soc. 1971, 93, 6931–6937. [Google Scholar] [CrossRef]
  47. Zeuner, F.; Angermann, J.; Moszner, N. Synthesis of novel 2-vinylcyclopropane phosphonic acids. Synth. Commun. 2006, 36, 3679–3691. [Google Scholar] [CrossRef]
  48. Åkerfeldt, K.S.; Bartlett, P.A. Synthesis and evaluation of glucose-ADP hybrids as inhibitors of hexokinase. J. Org. Chem. 1991, 56, 7133–7144. [Google Scholar] [CrossRef]
  49. Alley, S.R.; Henderson, W. Synthesis and characterisation of ferrocenyl-phosphonic and -arsonic acids. J. Organomet. Chem. 2001, 637, 216–229. [Google Scholar] [CrossRef] [Green Version]
  50. Smits, J.P.; Wiemer, D.F. Synthesis and reactivity of alkyl-1, 1, 1-trisphosphonate esters. J. Org. Chem. 2011, 76, 8807–8813. [Google Scholar] [CrossRef] [Green Version]
  51. Green, O.M. A rapid dealkylation of phosphonate diester for the preparation of 4-phosphonomethylphenylalanine-containing peptides. Tetrahedron Lett. 1994, 35, 8081–8084. [Google Scholar] [CrossRef]
  52. Jiménez-García, L.; Kaltbeitzel, A.; Pisula, W.; Gutmann, J.S.; Klapper, M.; Müllen, K. Phosphonated hexaphenylbenzene: A crystalline proton conductor. Angew. Chem. Int. Ed. 2009, 48, 9951–9953. [Google Scholar] [CrossRef]
  53. Gauvry, N.; Mortier, J. Dealkylation of dialkyl phosphonates with boron tribromide. Synthesis (Stuttg) 2001, 4, 553–554. [Google Scholar] [CrossRef]
  54. Bryant, D.E.; Kilner, C.; Kee, T.P. Facile one-pot mono-dealkylation of H-phosphonate esters in high yield. Inorg. Chim. Acta 2009, 362, 614–616. [Google Scholar] [CrossRef]
  55. Imamura, M.; Hashimoto, H. Synthesis of novel CMP-NeuNAc analogues having a glycosyl phosphonate structure. Tetrahedron Lett. 1996, 37, 1451–1454. [Google Scholar] [CrossRef]
  56. Georgiev, E.M.; Roundhillt, D.M. Dealkylation of phosphorus-containing alkylammonium salts formed by the interaction of phosphonic, methanephosphonic and phosphoric acid esters with diamines. Phosphorus Sulfur Silicon Relat. Elem. 1994, 92, 101–107. [Google Scholar] [CrossRef]
  57. McKenna, C.E.; Higa, M.T.; Cheung, N.H.; McKenna, M.C. The facile dealkylation of phosphonic acid dialkyl esters by bromotrimethylsilane. Tetrahedron Lett. 1977, 2, 155–158. [Google Scholar] [CrossRef]
  58. Dhawan, B.; Redmore, D. O-hydroxyaryl diphosphonic acids. J. Org. Chem. 1984, 49, 4018–4021. [Google Scholar] [CrossRef]
  59. Rabinowitz, R. The reactions of phosphonic acid esters with acid chlorides. A very mild hydrolytic route. J. Org. Chem. 1963, 28, 2975–2978. [Google Scholar] [CrossRef]
  60. Grothusen, J.R.; Bryson, P.K.; Zimmerman, J.K.; Brown, T.M. Hydrolysis of 4-nitrophenyl organophosphinates by arylester hydrolase from rabbit serum. J. Agric. Food Chem. 1986, 34, 513–515. [Google Scholar] [CrossRef]
  61. Natchev, I.A. Synthesis, enzyme-substrate interaction, and herbicidal activity of phosphoryl analogues of glycine. Liebigs. Ann. Chem. 1988, 861–867. [Google Scholar] [CrossRef]
  62. Kelly, S.J.; Butler, L.G. Enzymic hydrolysis of phosphonate esters. Biochem. Biophys. Res. Commun. 1975, 66, 316–321. [Google Scholar] [CrossRef]
  63. Kelly, S.J.; Dardinger, D.E.; Butler, L.G. Hydrolysis of phosphonate esters catalyzed by 5′-nucleotide phosphodiesterase. Biochemistry 1975, 14, 4983–4988. [Google Scholar] [CrossRef] [PubMed]
  64. Becker, E.L.; Barbaro, J.F. The enzymatic hydrolysis of p-nitrophenyl ethyl phosphonates by mammalian plasmas. Biochem. Pharmacol. 1964, 13, 1219–1227. [Google Scholar] [CrossRef]
  65. Agranoff, W. Hydrolysis of long-chain alkyl phosphates and phosphatidic acid by an enzyme purified from pig brain. J. Lipid Res. 1962, 3, 190–196. [Google Scholar] [CrossRef]
  66. Alvarez, E.F. The kinetics and mechanism of the hydrolysis of phosphoric acid esters by potato acid phosphatase. Biochim. Biophys. Acta 1962, 59, 663–672. [Google Scholar] [CrossRef]
  67. King, E.J.; Delory, G.E. The rates of enzymic hydrolysis of phosphoric esters. Biochem. J. 1939, 33, 1185–1190. [Google Scholar] [CrossRef] [Green Version]
  68. Walker, P.G.; King, E.J. The rate of enzymic hydrolysis of phosphoric esters. 3. Carboxy-substituted phenyl phosphates. Biochem. J. 1950, 47, 93–95. [Google Scholar] [CrossRef] [Green Version]
  69. Whitfeld, P.R.; Heppel, L.A.; Markham, R. The enzymic hydrolysis of ribonucleoside-2′:3′ phosphates. Biochem. J. 1955, 60, 15–19. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  70. Mäkinen, K.K. Hydrolysis of phosphates by enzyme preparations derived from carious dentine, bacterial plaque and saliva. Caries Res. 1970, 4, 14–22. [Google Scholar] [CrossRef]
  71. O’Brien, P.J.; Herschlag, D. Alkaline phosphatase revisited: Hydrolysis of alkyl phosphates. Biochemistry 2002, 41, 3207–3225. [Google Scholar] [CrossRef]
  72. Ray, R.; Boucher, L.J.; Broomfield, C.A.; Lenz, D.E. Specific soman-hydrolyzing enzyme activity in chlonal neuronal cell culture. Biochim. Biophys. Acta 1988, 967, 373–381. [Google Scholar] [CrossRef]
  73. Gabdrakhamanov, D.R.; Samarkina, D.A.; Semenov, V.E.; Saifina, L.F.; Valeeva, F.G.; Reznik, V.S.; Zakharova, L.Y. Substrate specific nanoreactors based on pyrimidine-containing amphiphiles of various structures for cleavage of phosphonates. Phosphorus Sulfur Silicon Relat. Elem. 2016, 191, 1673–1675. [Google Scholar] [CrossRef]
  74. Tsubouchi, A.; Bruice, T.C. Remarkable (~1013) rate enhancement in phosphonate ester hydrolysis catalyzed by two metal ions. J. Am. Chem. Soc. 1994, 116, 11614–11615. [Google Scholar] [CrossRef]
  75. Schneider, H.-J.; Rammo, J.; Hettich, R. Catalysis of the hydrolysis of phosphoric acid diesters by lanthanide ions and the influence of ligands. Angew. Chem. Int. Ed. 1993, 32, 1716–1719. [Google Scholar] [CrossRef]
  76. Joseph, S.K.; Esch, T.; Bonner, W.D. Hydrolysis of inositol phosphates by plant cell extracts. Biochem. J. 1989, 264, 851–856. [Google Scholar] [CrossRef] [Green Version]
  77. Samarkina, D.A.; Gabdrakhmanov, D.R.; Semenov, V.E.; Valeeva, F.G.; Gubaidullina, L.M.; Zakharova, L.Y.; Reznik, V.S.; Konovalov, A.I. Self-assembling catalytic systems based on new amphiphile containing purine fragment, exhibiting substrate specificity in hydrolysis of phosphorus acids esters. Russ. J. Gen. Chem. 2016, 86, 656–660. [Google Scholar] [CrossRef]
  78. Keglevich, G.; Kovács, A.; Tőke, L.; Újszászy, K.; Argay, G.; Czugler, M.; Kálmán, A. P-substituted 3-phosphabicyclo[3.1.0] hexane 3-oxides from diastereoselective substitution at phosphorus. Heteroatom Chem. 1993, 4, 329–335. [Google Scholar] [CrossRef]
  79. Weyl, T. Houben-Weyl Methoden der Organischen Chemie; ASC Publications: New York, NY, USA, 1982; Volume 2, pp. 310–313. [Google Scholar]
  80. Cook, R.D.; Abbas, K.A. The acid catalyzed hydrolysis of methyl dialkylphosphinates. Tetrahedron Lett. 1973, 14, 519–520. [Google Scholar] [CrossRef]
  81. Abbas, K.A.; Cook, R.D. The acid-catalyzed hydrolysis of phosphinates. II. The mechanism of hydrolysis of methyl dialkylphosphinates. Tetrahedron Lett. 1975, 41, 3559–3562. [Google Scholar] [CrossRef]
  82. Abbas, K.A.; Cook, R.D. The acid-catalyzed hydrolysis of phosphinates. III. The mechanism of hydrolysis of methyl and benzyl dialkylphosphinates. Can. J. Chem. 1977, 55, 3740–3750. [Google Scholar] [CrossRef] [Green Version]
  83. Cook, R.D.; Metni, M. The acid-catalyzed hydrolysis of phosphinates. IV. Pentacoordinate intermediate formation during hydrolysis of a phosphinothionate. Can. J. Chem. 1985, 63, 3155–3159. [Google Scholar] [CrossRef]
  84. Tcarkova, K.V.; Artyushin, O.I.; Bondarenko, N.A. Synthetic routes to bis(3-aminophenyl) phosphinic acid. Phosphorus Sulfur Silicon Relat. Elem. 2016, 191, 1520–1522. [Google Scholar] [CrossRef]
  85. Wang, Y.; Wang, Y.; Yu, J.; Miao, Z.; Chen, R. Stereoselective synthesis of α-amino(phenyl)methyl(phenyl)phosphinic acids with O-pivaloylated D-galactoslamine as chiral auxiliary. Chem. Eur. J. 2009, 15, 9290–9293. [Google Scholar] [CrossRef] [PubMed]
  86. Rossi, J.C.; Marull, M.; Larcher, N.; Taillades, J.; Pascal, R.; van der Lee, A.; Gerbier, P. A recyclable chiral auxiliary for the asymmetric syntheses of α-aminonitriles and α-aminophosphinic derivatives. Tetrahedron Asymmetry 2008, 19, 876–883. [Google Scholar] [CrossRef]
  87. Dingwall, J.G.; Ehrenfreund, J.; Hall, R.G. Diethoxymethylphosphonites and phosphinates. Intermediates for thesynthesis of α,β- and γ-aminoalkylphosphonous acids. Tetrahedron 1989, 45, 3787–3808. [Google Scholar] [CrossRef]
  88. Cristau, H.J.; Hervé, A.; Virieux, D. Synthesis of new α or γ-functionalized hydroxymethylphosphinic acid derivatives. Tetrahedron 2004, 60, 877–884. [Google Scholar] [CrossRef]
  89. Dennis, E.A.; Westheimer, F.H. The rates of hydrolysis of esters of cyclic phosphinic acids. J. Am. Chem. Soc. 1966, 88, 3431–3432. [Google Scholar] [CrossRef] [PubMed]
  90. Keglevich, G.; Rádai, Z.; Harsági, N.; Szigetvári, Á.; Kiss, N.Z. A study on the acidic hydrolysis of cyclic phosphinates: 1-Alkoxy-3-phospholene 1-oxides, 1-ethoxy-3-methylphospholane 1-oxide, and 1-ethoxy-3-methyl-1,2,3,4,5,6-hexahydrophosphinine 1-oxide. Heteroatom Chem. 2017, 28, e21394. [Google Scholar] [CrossRef]
  91. Harsági, N.; Szőllősi, B.; Kiss, N.Z.; Keglevich, G. MW irradiation and ionic liquids as green tools in hydrolyses and alcoholyses. Green Process. Synth. 2021, 10, 1–10. [Google Scholar] [CrossRef]
  92. Hudson, R.F.; Keay, L. The hydrolysis of phosphonate esters. J. Chem. Soc. 1956, 2463–2469. [Google Scholar] [CrossRef]
  93. Keglevich, G.; Grün, A.; Bölcskei, A.; Drahos, L.; Kraszni, M.; Balogh, G.T. Synthesis and proton dissociation properties of arylphosphonates: A microwave-assisted catalytic Arbuzov reaction with aryl bromides. Heteroatom Chem. 2012, 23, 574–582. [Google Scholar] [CrossRef]
  94. Harsági, N.; Rádai, Z.; Kiss, N.Z.; Szigetvári, A.; Keglevich, G. Two step acidic hydrolysis of dialkyl arylphosphonates. Mendeleev Commun. 2020, 30, 38–39. [Google Scholar] [CrossRef]
  95. Desai, J.; Wang, Y.; Wang, K.; Malwal, S.R.; Oldfield, E. Isoprenoid biosynthesis inhibitors targeting bacterial cell growth. Chem. Med. Chem. 2016, 11, 2205–2215. [Google Scholar] [CrossRef]
  96. Kolodyazhnaya, A.O.; Kukhar, V.P.; Kolodyazhnyi, O.I. Organic catalysis of Phospha-Aldol condensation. Russ. J. Gen. Chem. 2008, 78, 2043–2051. [Google Scholar] [CrossRef]
  97. Kiss, N.Z.; Henyecz, R.; Keglevich, G. Continuous flow esterification of a H-phosphinic acid, and transesterification of H-phosphinates and H-phosphonates under microwave conditions. Molecules 2020, 25, 719. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  98. Ősapay, G.; Szilágyi, I.; Seres, J. Conversion of amino acids and dipeptides into their phosphonic analogs. Tetrahedron 1987, 43, 2977–2983. [Google Scholar] [CrossRef]
  99. Dabrowska, E.; Burzyńska, A.; Mucha, A.; Matczak-Jon, E.; Sawka-Dobrowolska, W.; Berlicki, Ł.; Kafarski, P. Insight into the mechanism of three component condensation leading to aminomethylenebisphosphonates. J. Organomet. Chem. 2009, 694, 3806–3813. [Google Scholar] [CrossRef]
  100. Kannan Sivaraman, K.; Paiardini, A.; Sieńczyk, M.; Ruggeri, C.; Oellig, C.A.; Dalton, J.P.; Scammells, P.J.; Drag, M.; McGowan, S. Synthesis and structure-activity relationships of phosphonic arginine mimetics as inhibitors of the M1 and M17 aminopeptidases from plasmodium falciparum. J. Med. Chem. 2013, 56, 5213–5217. [Google Scholar] [CrossRef]
  101. Kuzdin, Z.H.; Stec, W.J. Synthesis of 1-aminoalkenephosphonates via thio-ureidoalkanephosphonates. Synthesis (Stuttg.) 1978, 6, 469–472. [Google Scholar] [CrossRef]
  102. Jansa, P.; Hradil, O.; Baszczyňski, O.; Dračínský, M.; Klepetářová, B.; Holý, A.; Balzarini, J.; Janeba, Z. An efficient microwave-assisted synthesis and biological properties of polysubstituted pyrimidinyl- and 1,3,5-triazinylphosphonic acids. Tetrahedron 2012, 68, 865–871. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  103. Cadogan, J.I.G.; Eastlick, D.T. Neighbouring group-induced phosphorus-oxygen fission in acidic hydrolysis of phosphonates. J. Chem. Soc. 1970, 1546–1547. [Google Scholar] [CrossRef]
  104. Cook, R.D.; Diebert, C.E.; Schwarz, W.; Turley, P.C.; Haake, P. Mechanism of nucleophilic displacement at phosphorus in the alkaline hydrolysis of phosphinate esters. J. Am. Chem. Soc. 1973, 95, 8088–8096. [Google Scholar] [CrossRef]
  105. Clarke, F.B.; Westheimer, F.H. Substituted 1-oxyphosphole. J. Am. Chem. Soc. 1971, 93, 4541–4545. [Google Scholar] [CrossRef]
  106. Hong, H.J.; Lee, J.; Bae, A.R.; Um, I.H. Kinetics and reaction mechanism for alkaline hydrolysis of Y-substituted-phenyl diphenylphosphinates. Bull. Korean Chem. Soc. 2013, 34, 2001–2005. [Google Scholar] [CrossRef] [Green Version]
  107. Cevasco, G.; Thea, S. The Quest for carbanion-promoted dissociative pathways in the hydrolysis of aryl phosphinates. J. Chem. Soc. Perkin Trans. 2 1993, 1103–1106. [Google Scholar] [CrossRef]
  108. Cevasco, G.; Thea, S. Kinetic study on the alkaline hydrolysis of some tetracoordinate P(V) esters of 2, 4-Dinitrophenol. J. Chem. Soc. Perkin Trans. 2 1994, 53, 1103–1105. [Google Scholar] [CrossRef]
  109. Kluger, R.; Taylor, S.D. Endocyclic cleavage in the alkaline hydrolysis of the cyclic phosphonate methyl propylphostonate: Dianionic intermediates and barriers to pseudorotation. J. Am. Chem. Soc. 1991, 113, 5714–5719. [Google Scholar] [CrossRef]
  110. Qi, N.; Zhang, N.; Allu, S.R.; Gao, J.; Guo, J.; He, Y. Insertion of arynes into P-O bonds: One-step simultaneous construction of C-P and C-O bonds. Org. Lett. 2016, 18, 6204–6207. [Google Scholar] [CrossRef]
  111. Hawes, W.; Trippett, S. Steric hindrance in the alkaline hydrolysis of phosphinate esters. Chem. Commun. 1968, 577–578. [Google Scholar] [CrossRef]
  112. Rahil, J.; Haake, P. Rates and mechanism of the alkaline hydrolysis of a sterically hindered phosphinate ester. Partial reaction by nucleophilic attack at carbon. J. Org. Chem. 1981, 46, 3048–3052. [Google Scholar] [CrossRef]
  113. Haake, P.; Schwartz, W.; McCoy, D.R. Phosphinic acids and derivates 6. Esters of dialkylphosphinic acids. Tetrahedron Lett. 1968, 9, 5251–5254. [Google Scholar] [CrossRef]
  114. Aksnes, G.; Bergesen, K. Rate studies of cyclic phosphinates, phosphonates and phosphates. Acta Chem. Scand. 1966, 20, 2508–2514. [Google Scholar] [CrossRef]
  115. Allen, D.W.; Hutley, B.G.; Mellor, M.T.J. The chemistry of heteroarylphosphorus compounds. Part 10. Synthesis and kinetics of alkaline hysrolysis of heterarylphosphinate esters and hydrolysis of heteroarylphosphine oxides. J. Chem. Soc. Perkin Trans. 2 1977, 1705–1708. [Google Scholar] [CrossRef]
  116. Williams, A.; Naylor, R.A. Hydrolysis of phosphinic esters: General- base catalysis by imidazole. J. Chem. Soc 1971, 10, 1967–1972. [Google Scholar] [CrossRef]
  117. Cook, R.D.; Rahhal-Arabi, L. The kinetics of the alkaline hydrolysis of aryl diphenylphoshpinothioates; the significance for the mechanism of displacement at phosphorus. Tetrahedron Lett. 1985, 26, 3147–3150. [Google Scholar] [CrossRef]
  118. Cook, R.D.; Farah, S.; Ghawi, L.; Itani, A.; Rahil, J. The influence of the changing of P=O to P=S and P—O—R to P—S—R on the reactivity of phosphinate esters under alkaline hydrolysis conditions. Can. J. Chem. 1986, 64, 1630–1637. [Google Scholar] [CrossRef]
  119. Blaskó, A.; Bunton, C.A.; Hong, Y.S.; Mhala, M.M.; Moffatt, J.R.; Wright, S. Micellar rate effects on reactions of hydroxide ion with phosphinate and thiophosphinate esters. J. Phys. Org. Chem. 1991, 4, 618–628. [Google Scholar] [CrossRef]
  120. Aksnes, G.; Songstad, J. Alkaline hydrolysis of diethyl esters of alkylphosphonic acids and some chloro-substituted derivatives. Acta Chem. Scand. 1965, 19, 893–897. [Google Scholar] [CrossRef]
  121. Kim, B.-S.; Kim, B.-T.; Hwang, K.-J. A practical method to cleave diphenyl phosphonate esters to their corresponding phosphonic acids in one step. Bull. Korean Chem. Soc. 2009, 30, 1391–1393. [Google Scholar] [CrossRef]
  122. Freeman, G.A.; Rideout, J.L.; Miller, W.H.; Reardon, J.E. 3′-Azido-3′,5′-dideoxythymidine-5′-methylphosphonic acid diphosphate: Synthesis and HIV-1 reverse transcriptase inhibition. J. Med. Chem. 1992, 35, 3192–3196. [Google Scholar] [CrossRef]
  123. Yuan, C.; Li, S.; Liao, X. Studies on organophosphorus compounds XXXI. Alkaline hydrolysis of 2-alkyl-2-oxo-1,3,2-dioxa-phosphorinane and -phosphepane. Phosphorous Sulfur Relat. Elem. 1988, 37, 205–212. [Google Scholar] [CrossRef]
  124. Behrman, E.J.; Biallas, M.J.; Brass, H.J.; Edwards, J.O.; Isaks, M. Reactions of phosphonic acid esters with nucleophiles I. Hydrolysis. J. Org. Chem. 1970, 35, 3063–3069. [Google Scholar] [CrossRef]
  125. Kóšiová, I.; Točík, Z.; Buděšínský, M.; Šimák, O.; Liboska, R.; Rejman, D.; Pačes, O.; Rosenberg, I. Methyl 4-toluenesulfonyloxymethylphosphonate, a new and versatile reagent for the convenient synthesis of phosphonate-containing compounds. Tetrahedron Lett. 2009, 50, 6745–6747. [Google Scholar] [CrossRef]
  126. Zakharova, L.Y.; Valeeva, F.G.; Kudryavtseva, L.A.; Konovalov, A.I.; Zakharchenko, N.L.; Zuev, Y.F.; Fedotov, V.D. Alkaline hydrolysis of ethyl p-nitrophenyl chloromethylphosphonate in the reverse micellar AOT-decane-water system. Russ. Chem. Bull. 1999, 48, 2240–2244. [Google Scholar] [CrossRef]
  127. Zakharova, L.Y.; Kudryavtsev, D.B.; Valeeva, F.G.; Kudryavtseva, L.A. Inhibition of alkaline hydrolysis of ethyl p-nitrophenyl (cloromethyl)phosphonate in the system cationic surfactant-water-electrolyte. Russ. J. Gen. Chem. 2002, 72, 1215–1221. [Google Scholar] [CrossRef]
  128. Kehler, J.; Hansen, H.I.; Sanchez, C. Novel phosphinic and phosphonic acid analogues of the anticonvulsant valproic acid. Bioorg. Med. Chem. Lett. 2000, 10, 2547–2548. [Google Scholar] [CrossRef]
  129. Dunne, K.S.; Bisaro, F.; Odell, B.; Paris, J.-M.; Gouverneur, V. Diastereoselective ring-closing metathesis: Synthesis of P-stereogenic phosphinates from prochiral phosphinic acid derivatives. J. Org. Chem. 2005, 70, 10803–10809. [Google Scholar] [CrossRef]
  130. Hum, G.; Wooler, K.; Lee, J.; Taylor, S.D. Cyclic five-membered phosphinate esters as transition state analogues for obtaining phosphohydrolase antibodies. Can. J. Chem. 2000, 78, 642–655. [Google Scholar] [CrossRef]
  131. Årstad, E.; Hoff, P.; Skattebøl, L.; Skretting, A.; Breistøl, K. Studies on the synthesis and biological properties of non-carrier-added [125I and 131I]-labeled arylalkylidenebisphosphonates: Potent bone-seekers for diagnosis and therapy of malignant osseous lesions. J. Med. Chem. 2003, 46, 3021–3032. [Google Scholar] [CrossRef]
  132. Brunet, E.; Alhendawi, H.M.H.; Cerro, C.; de la Mata, M.J.; Juanes, O.; Rodríguez-Ubis, J.C. Easy γ-to-α transformation of zirconium phosphate/polyphenylphosphonate salts: Porosity and hydrogen physisorption. Chem. Eng. J. 2010, 158, 333–344. [Google Scholar] [CrossRef]
  133. Demmer, C.S.; Krogsgaard-Larsen, N.; Bunch, L. Review on modern advances of chemical methods for the introduction of a phosphonic acid group. Chem. Rev. 2011, 111, 7981–8006. [Google Scholar] [CrossRef]
  134. Frantz, R.; Carré, F.; Durand, J.O.; Lanneau, G.F. New phosphonates containing a π-conjugated ferrocenyl unit. New, J. Chem. 2001, 25, 188–190. [Google Scholar] [CrossRef]
  135. Rudinskas, A.J.; Hullar, T.L.; Salvador, R.L. Phosphonic acid chemistry. 2. Studies on the Arbuzov reaction of 1-bromo-4,4-diethoxy-2-butyne and Rabinowitch method of dealkylation of phosphonate diesters using chloro- and bromotrimethylsilane. J. Org. Chem. 1977, 42, 2771–2776. [Google Scholar] [CrossRef]
  136. Jaffrès, P.-A.; Bar, N.; Villemin, D. Phosphonation of 1,1′-binaphthalene-2,2′-diol ( BINOL ): Synthesis of (R)-and (S)-2,2′-dihydroxy-1,1′-binaphthalene-6,6′-diyldiphosphonic acid. J. Chem. Soc. Perkin Trans. 1 1998, 2083–2089. [Google Scholar] [CrossRef]
  137. McKenna, C.E.; Schmidhuser, J. Functional selectivity in phosphonate ester dealkylation with bromotrimethylsilane. J. Chem. Soc. 1979, 739. [Google Scholar] [CrossRef]
  138. Błazewska, K.M. McKenna reaction-Which oxygen attacks bromotrimethylsilane? J. Org. Chem. 2014, 79, 408–412. [Google Scholar] [CrossRef] [PubMed]
  139. Blackburn, G.M.; Ingleson, D. Specific dealkylation of phosphonate esters using iodotrimethylsilane. J. Chem. Soc. Chem. Commun. 1978, 870–871. [Google Scholar] [CrossRef]
  140. Blackburn, G.M.; Ingleson, D. The dealkylation of phosphate and phosphonate esters by iodotrimethyl-silane: A mild and selective procedure. J. Chem. Soc. Chem. Commun. 1980, 6, 1150–1153. [Google Scholar] [CrossRef]
  141. Gutierrez, A.J.; Prisbe, E.J.; Rohloff, J.C. Dealkylation of phosphonate esters with chlorotrimethylsilane. Nucleosides Nucleotides and Nucleic Acids 2001, 20, 1299–1302. [Google Scholar] [CrossRef] [PubMed]
  142. He, H.; Liu, X.; Hu, L.; Wang, S.; Liu, Z. Synthesis and dealkylation of 1-(dichloro-phenoxyacetoxy) alkyl phosphonates. Phosphorus Sulfur Silicon Relat. Elem. 1999, 144, 633–636. [Google Scholar] [CrossRef]
  143. Morita, T.; Okamoto, Y.; Sakurai, H. Dealkylation reaction of acetals, phosphonate and phosphate esters with chlorotrimethylsilane/metal halide reagent in acetonitrile, and its application to the synthesis of phosphonic acids and vinyl phosphates. Bull. Chem. Soc. Jpn. 1981, 54, 267–273. [Google Scholar] [CrossRef] [Green Version]
  144. Machida, Y.; Nomoto, S.; Saito, I. A useful method for the delakylation of dialkyl phosphonates. Synth. Commun. 1979, 9, 97–102. [Google Scholar] [CrossRef]
  145. Boutevin, B.; Hamoui, B.; Parisi, J. New diethyl phosphonoalkyl acrylates and their reactivity in copolimerization. Polym. Bull. 1993, 30, 243–248. [Google Scholar] [CrossRef]
  146. Regitz, M.; Martin, R. Untersuchungen an diazoverbindungen und aziden-il: Tert-butylammoniumsalze von α-diazophosphin- und α-diazophosphonsäuren. Tetrahedron 1985, 41, 819–824. [Google Scholar] [CrossRef]
  147. Cermak, D.M.; Cermak, S.C.; Deppe, A.B.; Durham, A.L. Novel α-hydroxy phosphonic acids via castor oil. Ind. Crops Prod. 2012, 37, 394–400. [Google Scholar] [CrossRef]
  148. Deemie, R.W.; Fettinger, J.C.; Knight, D.A. Synthesis and characterization of an organometallic phosphonic acid: X-ray crystal structure of. J. Organomet. Chem. 1997, 538, 257–259. [Google Scholar] [CrossRef]
  149. Meziane, D.; Hardouin, J.; Elias, A.; Guénin, E.; Lecouvey, M. Microwave Michaelis-Becker synthesis of diethyl phosphonates, tertaethyl diphosphonates, and their total or partial dealkylation. Heteroat. Chem. 2009, 20, 369–377. [Google Scholar] [CrossRef]
  150. Gan, X.M.; Rapko, B.M.; Fox, J.; Binyamin, I.; Pailloux, S.; Duesler, E.N.; Paine, R.T. A three-dimensional framework structure constructed from 2-(2-pyridyl-N-oxide) ethylphosphonic acid and Nd(III). Inorg. Chem. 2006, 45, 3741–3745. [Google Scholar] [CrossRef]
  151. Ganguly, S.; Mague, J.T.; Roundhill, D.M. Synthesis and characterization of new water solube tertiary phosphines having terminally substituted alkylene sulfonate or alkylene phosphonate chains. Inorg. Chem. 1992, 31, 3500–3501. [Google Scholar] [CrossRef]
  152. Kadina, A.P.; Kashemirov, B.A.; Oertell, K.; Batra, V.K.; Wilson, S.H.; Goodman, M.F.; McKenna, C.E. Two scaffolds from two flips: (α,β)/(β,γ) CH2/NH “Met-Im” analogues of dTTP. Org. Lett. 2015, 17, 2586–2589. [Google Scholar] [CrossRef] [Green Version]
  153. Klein, Y.M.; Willgert, M.; Prescimone, A.; Constable, E.C.; Housecroft, C.E. Positional isomerism makes a difference: Phosphonic acid anchoring ligands with thienyl spacers in copper(I)-based dye-sensitized solar cells. Dalton Trans. 2016, 45, 4659–4672. [Google Scholar] [CrossRef] [Green Version]
  154. Marma, M.S.; Khawli, L.A.; Harutunian, V.; Kashemirov, B.A.; McKenna, C.E. Synthesis of α-fluorinated phosphonoacetate derivatives using electrophilic fluorine reagents: Perchloryl fluoride versus 1-chloromethyl-4- fluoro-1,4-diazoniabicyclo[2.2.2]octane bis(tetrafluoroborate) (Selectfluor®). J. Fluor. Chem. 2005, 126, 1467–1475. [Google Scholar] [CrossRef]
  155. Marquick, A.L.; Montero, J.L.; Lebrun, A.; Barragan-Montero, V. Straightforward synthesis towards mono and bis-phosphonic acid functionalised β-cyclodextrins. Tetrahedron 2015, 71, 1616–1621. [Google Scholar] [CrossRef]
  156. Matthiesen, R.A.; Wills, V.S.; Metzger, J.I.; Holstein, S.A.; Wiemer, D.F. Stereoselective synthesis of homoneryl and homogeranyl triazole bisphosphonates. J. Org. Chem. 2016, 81, 9438–9442. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  157. Rudolf, B.; Salmain, M.; Palusiak, M.; Zakrzewski, J. The phospha-Michael addition of dimethyl- and diphenylphosphites to the η1-N-maleimidato ligand: Inhibition of serine hydrolases by half-sandwich metallocarbonyl azaphosphonates. J. Organomet. Chem. 2009, 694, 908–915. [Google Scholar] [CrossRef]
  158. Taylor, S.D.; Mirzaei, F.; Bearne, S.L. An unsymmetrical approach to the synthesis of bismethylene triphosphate analogues. Org. Lett. 2006, 8, 4243–4246. [Google Scholar] [CrossRef]
  159. Rueff, J.-M.; Perez, O.; Pautrat, A.; Barrier, N.; Hix, G.B.; Hernot, S.; Couthon-Gourvés, H.; Jaffrés, P.-A. Structural study of hydrated/dehydrated manganese thiophene-2,5-diphosphonate metal organic frameworks, Mn2(O+P-C4H2S9PO3)*2H2O. Inorg. Chem. 2012, 51, 10251–10261. [Google Scholar] [CrossRef]
  160. Wanat, P.; Walczak, S.; Wojtczak, B.A.; Nowakowska, M.; Jemielity, J.; Kowalska, J. Ethynyl, 2-propynyl, and 3-butynyl C-phosphonate analogues of nucleoside di- and triphosphates: Synthesis and reactivity in CuAAC. Org. Lett. 2015, 17, 3062–3065. [Google Scholar] [CrossRef]
  161. Liu, D.; Xu, X.; Su, Y.; He, Z.; Xu, J.; Miao, Q. Self-assembled monolayers of phosphonic acids with enhanced surface energy for high-performance solution-processed N-channel organic thin-film transistors. Angew. Chemie Int. Ed. 2013, 52, 6222–6227. [Google Scholar] [CrossRef]
  162. Lejeune, N.; Dez, I.; Jaffrès, P.A.; Lohier, J.F.; Madec, P.J.; Santos, J.S.D.O. Synthesis, crystal structure and thermal properties of phosphorylated cyclotriphosphazenes. Eur. J. Inorg. Chem. 2008, 138–143. [Google Scholar] [CrossRef]
  163. Liu, X.; Adams, H.; Blackburn, G.M. Synthesis of novel ‘supercharged’ analogues of pyrophosphoric acid. Chem. Commun. 1998, 2619–2620. [Google Scholar] [CrossRef]
  164. Lee, S.I.; Yoon, K.H.; Song, M.; Peng, H.; Page, K.A.; Soles, C.L.; Yoon, D.Y. Structure and properties of polymer electrolyte membranes containing phosphonic acids for anhydrous fuel cells. Chem. Mater. 2012, 24, 115–122. [Google Scholar] [CrossRef]
  165. Rolland, O.; Griffe, L.; Poupot, M.; Maraval, A.; Ouali, A.; Coppel, Y.; Fournié, J.J.; Bacquet, G.; Turrin, C.O.; Caminade, A.M.; et al. Tailored control and optimisation of the number of phosphonic acid termini on phosphorus-containing dendrimers for the ex-vivo activation of human monocytes. Chem. Eur. J. 2008, 14, 4836–4850. [Google Scholar] [CrossRef] [PubMed]
  166. Park, J.; Leung, C.Y.; Matralis, A.N.; Lacbay, C.M.; Tsakos, M.; Fernandez De Troconiz, G.; Berghuis, A.M.; Tsantrizos, Y.S. Pharmacophore mapping of thienopyrimidine-based monophosphonate (ThP-MP) inhibitors of the human farnesyl pyrophosphate synthase. J. Med. Chem. 2017, 60, 2119–2134. [Google Scholar] [CrossRef] [PubMed]
  167. Pailloux, S.; Shirima, C.E.; Smith, K.A.; Duesler, E.N.; Paine, R.T.; Williams, N.J.; Hancock, R.D. Synthesis and reactivity of (benzoxazol-2-ylmethyl)phosphonic acid. Inorg. Chem. 2010, 49, 9369–9379. [Google Scholar] [CrossRef]
  168. Opper, K.L.; Fassbender, B.; Brunklaus, G.; Spiess, H.W.; Wagener, K.B. Polyethylene functionalized with precisely spaced phosphonic acid groups. Macromolecules 2009, 42, 4407–4409. [Google Scholar] [CrossRef]
  169. Turrin, C.O.; Hameau, A.; Caminade, A.M. Application of the Kabachnik-Fields and Moedritzer-Irani procedures for the preparation of bis(phosphonomethyl)amino- and bis[(dimethoxyphosphoryl)-methyl] amino-terminated poly(ethylene glycol). Synthesis 2012, 44, 1628–1630. [Google Scholar] [CrossRef]
  170. Tulsi, N.S.; Downey, A.M.; Cairo, C.W. A protected l-bromophosphonomethylphenylalanine amino acid derivative (BrPmp) for synthesis of irreversible protein tyrosine phosphatase inhibitors. Bioorg. Med. Chem. 2010, 18, 8679–8686. [Google Scholar] [CrossRef] [PubMed]
  171. Chougrani, K.; Niel, G.; Boutevin, B.; David, G. Regioselective ester cleavage during the preparation of bisphosphonate methacrylate monomers. Beilstein J. Org. Chem. 2011, 7, 364–368. [Google Scholar] [CrossRef]
  172. Houghton, S.R.; Melton, J.; Fortunak, J.; Brown Ripid, D.H.; Boddy, C.N. Rapid, mild method for phosphonate diester hydrolysis: Development of a one-pot synthesis of tenofovir disoproxil fumarate from tenofovir diethyl ester. Tetrahedron 2010, 66, 8137–8144. [Google Scholar] [CrossRef]
  173. Kim, S.; Hong, J.H. Synthesis and anti-HIV activity of novel 2′-deoxy-2′-β-fluoro-threosyl nucleoside phosphonic acid analogues. Nucleosides Nucleotides Nucleic Acids 2015, 34, 815–833. [Google Scholar] [CrossRef]
  174. Salomon, C.J.; Breuer, E. Efficient and selective dealkylation of phosphonate dilsopropyl esters using Me3SiBr. Tetrahedron Lett. 1995, 36, 6759–6760. [Google Scholar] [CrossRef]
  175. Dang, Q.; Brown, B.S.; Liu, Y.; Rydzewski, R.M.; Robinson, E.D.; Van Poelje, P.D.; Reddy, M.R.; Erion, M.D. Fructose-1,6-bisphosphatase inhibitors. 1. Purine phosphonic acids as novel AMP mimics. J. Med. Chem. 2009, 52, 2880–2898. [Google Scholar] [CrossRef] [PubMed]
  176. Kruithof, C.A.; Dijkstra, H.P.; Lutz, M.; Spek, A.L.; Egmond, M.R.; Klein Gebbink, R.J.M.; Van Koten, G. Non-tethered organometallic phosphonate inhibitors for lipase inhibition: Positioning of the metal center in the active site of cutinase. Eur. J. Inorg. Chem. 2008, 4425–4432. [Google Scholar] [CrossRef] [Green Version]
  177. Mortier, J.; Gridnev, I.D.; Fortineau, A.D. Synthesis of N-alkyl/aryl-α/ β-aminoalkylphosphonic acids from organodichloroboranes and α/β-azidoalkylphosphonates via polyborophosphonates. Org. Lett. 1999, 1, 981–984. [Google Scholar] [CrossRef]
  178. Nitta, Y.; Yasushi, A. The selective dealkylation of mixed esters of phosphoric acid and phenylphosphonic acid using cation exchange resin. Chem. Pharm. Bull. 1986, 34, 3121–3129. [Google Scholar] [CrossRef] [Green Version]
  179. Weller, S.W.; Choksi, B.C.; Sanyal, S.K. Catalytic Dealkylation of esters acid-catalyzed dealkylation of diethyl ethylphosphonate. Ind. Eng. Chem. Prod. Res. Dev. 1971, 10, 38–42. [Google Scholar] [CrossRef]
  180. André, V.; Lahrache, H.; Robin, S.; Rousseau, G. Reaction of unsaturated phosphonate monoesters with bromo- and iodo(bis-collidine) hexafluorophosphates. Tetrahedron 2007, 63, 10059–10066. [Google Scholar] [CrossRef]
  181. Chi, G.; Nair, V.; Semenova, E.; Pommier, Y. A novel diketo phosphonic acid that exhibits specific, strand-transfer inhibition of HIV integrase and anti-HIV activity. Bioorg. Med. Chem. Lett. 2007, 17, 1266–1269. [Google Scholar] [CrossRef] [Green Version]
  182. Tashma, Z. N-alkyl thiocarbamoyl phosphonic acid esters-2. Alkylation by methyl iodide accompanied by phosphonate dealkylation. Tetrahedron 1982, 38, 3745–3747. [Google Scholar] [CrossRef]
  183. Petneházy, I.; Szakál, G.; Tőke, L. Mono-dealkylation of phosphonic acid-esters and phosphoric-acid esters using halide-ions under phase-transfer conditions. Snythesis 1983, 6, 453–456. [Google Scholar] [CrossRef]
  184. Krawczyk, H. A convenient route for monodealkylation of diethyl phosphonates. Synth. Commun. 1997, 27, 3151–3161. [Google Scholar] [CrossRef]
  185. Chowdhury, S.; Muni, N.J.; Greenwood, N.P.; Pepperberg, D.R.; Standaert, R.F. Phosphonic acid analogs of GABA through reductive dealkylation of phosphonic diesters with lithium trialkylborohydrides. Bioorg. Med. Chem. Lett. 2007, 17, 3745–3748. [Google Scholar] [CrossRef] [PubMed]
  186. Pardasani, D.; Purohit, A.; Kumar, A.; Tak, V.; Raghavender Goud, D.; Gupta, A.K.; Dubey, D.K. Synthesis of O-alkyl alkylphosphonates via hydrazine mediated partial dealkylation of phosphonate diesters. ChemistrySelect 2018, 3, 12312–12314. [Google Scholar] [CrossRef] [Green Version]
Molecules 26 02840 g001 550
Figure 1. A few biologically active phosphinic and phosphonic acids.
Figure 1. A few biologically active phosphinic and phosphonic acids.
Molecules 26 02840 g001
Molecules 26 02840 sch001 550
Scheme 1. The most commonly used strategies to prepare P-acids.
Scheme 1. The most commonly used strategies to prepare P-acids.
Molecules 26 02840 sch001
Molecules 26 02840 sch002 550
Scheme 2. Indirect preparation of a ring P-acid.
Scheme 2. Indirect preparation of a ring P-acid.
Molecules 26 02840 sch002
Molecules 26 02840 sch003 550
Scheme 3. Acid-catalyzed hydrolysis of methyl dialkylphosphinates (4).
Scheme 3. Acid-catalyzed hydrolysis of methyl dialkylphosphinates (4).
Molecules 26 02840 sch003
Molecules 26 02840 sch004 550
Scheme 4. Hydrolysis of different methyl methyl-arylphosphinates (6) with HClO4.
Scheme 4. Hydrolysis of different methyl methyl-arylphosphinates (6) with HClO4.
Molecules 26 02840 sch004
Molecules 26 02840 sch005 550
Scheme 5. Hydrolysis of p-nitrophenyl diphenylphosphinate (8) under acid catalysis.
Scheme 5. Hydrolysis of p-nitrophenyl diphenylphosphinate (8) under acid catalysis.
Molecules 26 02840 sch005
Molecules 26 02840 sch006 550
Scheme 6. Hydrolysis of β-carboxamido-substituted phosphinate (10).
Scheme 6. Hydrolysis of β-carboxamido-substituted phosphinate (10).
Molecules 26 02840 sch006
Molecules 26 02840 sch007 550
Scheme 7. Preparation of bis(3-aminophenyl) (13) phosphinic acid using hydrochloric acid as the catalyst.
Scheme 7. Preparation of bis(3-aminophenyl) (13) phosphinic acid using hydrochloric acid as the catalyst.
Molecules 26 02840 sch007
Molecules 26 02840 sch008 550
Scheme 8. Synthesis of α-aminophosphinic acid (15).
Scheme 8. Synthesis of α-aminophosphinic acid (15).
Molecules 26 02840 sch008
Molecules 26 02840 sch009 550
Scheme 9. Hydrolysis of β-aminophosphinates (16).
Scheme 9. Hydrolysis of β-aminophosphinates (16).
Molecules 26 02840 sch009
Molecules 26 02840 sch010 550
Scheme 10. Preparation of GABAB antagonist phosphinic acid (19) using hydrochloric acid.
Scheme 10. Preparation of GABAB antagonist phosphinic acid (19) using hydrochloric acid.
Molecules 26 02840 sch010
Molecules 26 02840 sch011 550
Scheme 11. Acidic and enzymatic hydrolysis of a glycine analogue phosphinate (20).
Scheme 11. Acidic and enzymatic hydrolysis of a glycine analogue phosphinate (20).
Molecules 26 02840 sch011
Molecules 26 02840 sch012 550
Scheme 12. Preparation of a β-functionalized hydroxymethylphosphinic acid derivative (23).
Scheme 12. Preparation of a β-functionalized hydroxymethylphosphinic acid derivative (23).
Molecules 26 02840 sch012
Molecules 26 02840 g002 550
Figure 2. Cyclic and acyclic phosphinate pairs studied.
Figure 2. Cyclic and acyclic phosphinate pairs studied.
Molecules 26 02840 g002
Molecules 26 02840 sch013 550
Scheme 13. Preparation of GABACρ antagonist 25 in the presence of aqueous HCl acid.
Scheme 13. Preparation of GABACρ antagonist 25 in the presence of aqueous HCl acid.
Molecules 26 02840 sch013
Molecules 26 02840 sch014 550
Scheme 14. Hydrolysis of saturated and unsaturated cyclic phosphinates (26).
Scheme 14. Hydrolysis of saturated and unsaturated cyclic phosphinates (26).
Molecules 26 02840 sch014
Molecules 26 02840 g003 550
Figure 3. Reactivity order for different cyclic phosphinate derivatives.
Figure 3. Reactivity order for different cyclic phosphinate derivatives.
Molecules 26 02840 g003
Molecules 26 02840 sch015 550
Scheme 15. MW-assisted hydrolysis of alkoxyphospholene oxides (26A) in the presence of PTSA.
Scheme 15. MW-assisted hydrolysis of alkoxyphospholene oxides (26A) in the presence of PTSA.
Molecules 26 02840 sch015
Molecules 26 02840 sch016 550
Scheme 16. Acidic hydrolysis of diphenylphosphinates (30) under conventional heating and MW irradiation.
Scheme 16. Acidic hydrolysis of diphenylphosphinates (30) under conventional heating and MW irradiation.
Molecules 26 02840 sch016
Molecules 26 02840 sch017 550
Scheme 17. Preparation of methylphosphonic acid (32) by acidic hydrolysis.
Scheme 17. Preparation of methylphosphonic acid (32) by acidic hydrolysis.
Molecules 26 02840 sch017
Molecules 26 02840 sch018 550
Scheme 18. Acidic hydrolysis of dialkyl arylphosphonates (33).
Scheme 18. Acidic hydrolysis of dialkyl arylphosphonates (33).
Molecules 26 02840 sch018
Molecules 26 02840 sch019 550
Scheme 19. Acidic hydrolysis of dialkyl arylphosphonates (35) under the optimum conditions.
Scheme 19. Acidic hydrolysis of dialkyl arylphosphonates (35) under the optimum conditions.
Molecules 26 02840 sch019
Molecules 26 02840 sch020 550
Scheme 20. Acidic hydrolysis of biological active α-hydroxyphosphonates (37 and 39).
Scheme 20. Acidic hydrolysis of biological active α-hydroxyphosphonates (37 and 39).
Molecules 26 02840 sch020
Molecules 26 02840 sch021 550
Scheme 21. Preparation of biologically active α-hydroxy-benzylphosphonic acids (42).
Scheme 21. Preparation of biologically active α-hydroxy-benzylphosphonic acids (42).
Molecules 26 02840 sch021
Molecules 26 02840 sch022 550
Scheme 22. Two-step acidic hydrolysis of substituted α-hydroxybenzylphosphonates (43).
Scheme 22. Two-step acidic hydrolysis of substituted α-hydroxybenzylphosphonates (43).
Molecules 26 02840 sch022
Molecules 26 02840 g004 550
Figure 4. Concentration profiles for the components during the hydrolysis of different α-hydroxyphosphonates (43).
Figure 4. Concentration profiles for the components during the hydrolysis of different α-hydroxyphosphonates (43).
Molecules 26 02840 g004
Molecules 26 02840 sch023 550
Scheme 23. Preparation of aminomethylphosphonic acid (47).
Scheme 23. Preparation of aminomethylphosphonic acid (47).
Molecules 26 02840 sch023
Molecules 26 02840 sch024 550
Scheme 24. Acidic hydrolysis of aminomethylene-bisphosphonate 48.
Scheme 24. Acidic hydrolysis of aminomethylene-bisphosphonate 48.
Molecules 26 02840 sch024
Molecules 26 02840 sch025 550
Scheme 25. HBr-catalyzed hydrolysis of a benzimidazole phosphonate derivative (50).
Scheme 25. HBr-catalyzed hydrolysis of a benzimidazole phosphonate derivative (50).
Molecules 26 02840 sch025
Molecules 26 02840 sch026 550
Scheme 26. Autocatalytic hydrolysis of a succinic acid derivative (52).
Scheme 26. Autocatalytic hydrolysis of a succinic acid derivative (52).
Molecules 26 02840 sch026
Molecules 26 02840 sch027 550
Scheme 27. MW-assisted acidic hydrolysis of the diisopropyl ester of Adefovir (54).
Scheme 27. MW-assisted acidic hydrolysis of the diisopropyl ester of Adefovir (54).
Molecules 26 02840 sch027
Molecules 26 02840 sch028 550
Scheme 28. The acidic hydrolysis of alkyl α-hydroxyimino-α-(p-nitrophenyl) alkylphosphonates (56).
Scheme 28. The acidic hydrolysis of alkyl α-hydroxyimino-α-(p-nitrophenyl) alkylphosphonates (56).
Molecules 26 02840 sch028
Molecules 26 02840 sch029 550
Scheme 29. NaOH-catalyzed hydrolysis of a series of ethyl phosphinates (58).
Scheme 29. NaOH-catalyzed hydrolysis of a series of ethyl phosphinates (58).
Molecules 26 02840 sch029
Molecules 26 02840 sch030 550
Scheme 30. Base-catalyzed hydrolysis of a series of ethyl phosphinates (58).
Scheme 30. Base-catalyzed hydrolysis of a series of ethyl phosphinates (58).
Molecules 26 02840 sch030
Molecules 26 02840 sch031 550
Scheme 31. Base-catalyzed hydrolysis of sterically hindered phosphinates (59).
Scheme 31. Base-catalyzed hydrolysis of sterically hindered phosphinates (59).
Molecules 26 02840 sch031
Molecules 26 02840 sch032 550
Scheme 32. Base-catalyzed hydrolysis of a series of acyclic methyl phosphinates (4).
Scheme 32. Base-catalyzed hydrolysis of a series of acyclic methyl phosphinates (4).
Molecules 26 02840 sch032
Molecules 26 02840 g005 550
Figure 5. The effect of various heteroaromatic substituents in alkaline hydrolysis.
Figure 5. The effect of various heteroaromatic substituents in alkaline hydrolysis.
Molecules 26 02840 g005
Molecules 26 02840 sch033 550
Scheme 33. Alkaline hydrolysis of the isomers of a four-membered cyclic phosphinate (60).
Scheme 33. Alkaline hydrolysis of the isomers of a four-membered cyclic phosphinate (60).
Molecules 26 02840 sch033
Molecules 26 02840 sch034 550
Scheme 34. Alkaline hydrolysis of diethyl phosphinates (59) in a DMSO-water system.
Scheme 34. Alkaline hydrolysis of diethyl phosphinates (59) in a DMSO-water system.
Molecules 26 02840 sch034
Molecules 26 02840 sch035 550
Scheme 35. NaOH-catalyzed hydrolysis of 1-phenoxy-3,4-diphenylphosphol oxide (62).
Scheme 35. NaOH-catalyzed hydrolysis of 1-phenoxy-3,4-diphenylphosphol oxide (62).
Molecules 26 02840 sch035
Molecules 26 02840 g006 550
Figure 6. The reactivity order of different cyclic phosphinates in alkaline hydrolysis.
Figure 6. The reactivity order of different cyclic phosphinates in alkaline hydrolysis.
Molecules 26 02840 g006
Molecules 26 02840 sch036 550
Scheme 36. NaOH-calatyzed hydrolysis of various aryl diphenylphosphinates (64).
Scheme 36. NaOH-calatyzed hydrolysis of various aryl diphenylphosphinates (64).
Molecules 26 02840 sch036
Molecules 26 02840 sch037 550
Scheme 37. OH– ion- and imidazole-calatyzed hydrolysis of various aryl diphenylphosphinates (64).
Scheme 37. OH– ion- and imidazole-calatyzed hydrolysis of various aryl diphenylphosphinates (64).
Molecules 26 02840 sch037
Molecules 26 02840 sch038 550
Scheme 38. Alkaline hydrolysis of diethyl alkylphosphonates (65) in aqueous DMSO solution.
Scheme 38. Alkaline hydrolysis of diethyl alkylphosphonates (65) in aqueous DMSO solution.
Molecules 26 02840 sch038
Molecules 26 02840 sch039 550
Scheme 39. Hydrolysis of diethyl phosphonates (65) in aqueous acetone.
Scheme 39. Hydrolysis of diethyl phosphonates (65) in aqueous acetone.
Molecules 26 02840 sch039
Molecules 26 02840 sch040 550
Scheme 40. NH4F-catalyzed hydrolysis of an adenosilvinylphosphonate derivative (67).
Scheme 40. NH4F-catalyzed hydrolysis of an adenosilvinylphosphonate derivative (67).
Molecules 26 02840 sch040
Molecules 26 02840 sch041 550
Scheme 41. NH4F-catalyzed hydrolysis of a series of diphenyl vinylphosphonates (69).
Scheme 41. NH4F-catalyzed hydrolysis of a series of diphenyl vinylphosphonates (69).
Molecules 26 02840 sch041
Molecules 26 02840 sch042 550
Scheme 42. Semi-enzymatic hydrolysis of diphenyl alkylphosphonates (71).
Scheme 42. Semi-enzymatic hydrolysis of diphenyl alkylphosphonates (71).
Molecules 26 02840 sch042
Molecules 26 02840 sch043 550
Scheme 43. Alkaline hydrolysis of aryl methylphosphonates 66 using NaOH.
Scheme 43. Alkaline hydrolysis of aryl methylphosphonates 66 using NaOH.
Molecules 26 02840 sch043
Molecules 26 02840 sch044 550
Scheme 44. Preparation of methyl 4-toluenesulfonyloxymethylphosphonate (75) using aqueous pyridine.
Scheme 44. Preparation of methyl 4-toluenesulfonyloxymethylphosphonate (75) using aqueous pyridine.
Molecules 26 02840 sch044
Molecules 26 02840 sch045 550
Scheme 45. Alkaline hydrolysis of ethyl p-nitrophenyl chloromethylphosphonate (77) in micellar solutions.
Scheme 45. Alkaline hydrolysis of ethyl p-nitrophenyl chloromethylphosphonate (77) in micellar solutions.
Molecules 26 02840 sch045
Molecules 26 02840 sch046 550
Scheme 46. Pyrolysis of various alkyl diphenylphosphinates (30).
Scheme 46. Pyrolysis of various alkyl diphenylphosphinates (30).
Molecules 26 02840 sch046
Molecules 26 02840 sch047 550
Scheme 47. Dealkylation of methyl-heptylphosphinate (79) using TMSBr.
Scheme 47. Dealkylation of methyl-heptylphosphinate (79) using TMSBr.
Molecules 26 02840 sch047
Molecules 26 02840 sch048 550
Scheme 48. Preparation of divinylphosphinic acid (82) by ethyl fission with TMSBr.
Scheme 48. Preparation of divinylphosphinic acid (82) by ethyl fission with TMSBr.
Molecules 26 02840 sch048
Molecules 26 02840 sch049 550
Scheme 49. Dealkylation of an 1-ethoxyphospholane oxide (83) using TMSI.
Scheme 49. Dealkylation of an 1-ethoxyphospholane oxide (83) using TMSI.
Molecules 26 02840 sch049
Molecules 26 02840 sch050 550
Scheme 50. Thermal dealkylation of a di-tert-butyl vinylphosphonate (85).
Scheme 50. Thermal dealkylation of a di-tert-butyl vinylphosphonate (85).
Molecules 26 02840 sch050
Molecules 26 02840 sch051 550
Scheme 51. Dealkylation of diethyl alkylphosphonates (65) using TMSBr.
Scheme 51. Dealkylation of diethyl alkylphosphonates (65) using TMSBr.
Molecules 26 02840 sch051
Molecules 26 02840 sch052 550
Scheme 52. Proposed mechanism for the double dealkylations with TMSI.
Scheme 52. Proposed mechanism for the double dealkylations with TMSI.
Molecules 26 02840 sch052
Molecules 26 02840 sch053 550
Scheme 53. Double cleavage with TMSCl.
Scheme 53. Double cleavage with TMSCl.
Molecules 26 02840 sch053
Molecules 26 02840 sch054 550
Scheme 54. Preparation of two antiviral agents (90).
Scheme 54. Preparation of two antiviral agents (90).
Molecules 26 02840 sch054
Molecules 26 02840 sch055 550
Scheme 55. Double dealkylation using TMSCl in the presence of sodium iodide.
Scheme 55. Double dealkylation using TMSCl in the presence of sodium iodide.
Molecules 26 02840 sch055
Molecules 26 02840 sch056 550
Scheme 56. Preparation of an anti-HIV agent (90) by dealkylation with TMSCl/NaBr.
Scheme 56. Preparation of an anti-HIV agent (90) by dealkylation with TMSCl/NaBr.
Molecules 26 02840 sch056
Molecules 26 02840 sch057 550
Scheme 57. Dealkylation of a series of diisopropyl esters (88) with TMSBr.
Scheme 57. Dealkylation of a series of diisopropyl esters (88) with TMSBr.
Molecules 26 02840 sch057
Molecules 26 02840 sch058 550
Scheme 58. Preparation of a purine-based phosphonic acid (93) using TMSBr.
Scheme 58. Preparation of a purine-based phosphonic acid (93) using TMSBr.
Molecules 26 02840 sch058
Molecules 26 02840 sch059 550
Scheme 59. Modification of a complex (94) by double dealkylation.
Scheme 59. Modification of a complex (94) by double dealkylation.
Molecules 26 02840 sch059
Molecules 26 02840 sch060 550
Scheme 60. Cleavage of the alkoxy groups of phosphonates by BBr3.
Scheme 60. Cleavage of the alkoxy groups of phosphonates by BBr3.
Molecules 26 02840 sch060
Molecules 26 02840 sch061 550
Scheme 61. The use of cation exchange resin in dealkylations.
Scheme 61. The use of cation exchange resin in dealkylations.
Molecules 26 02840 sch061
Molecules 26 02840 sch062 550
Scheme 62. Catalytic dealkylation of diethyl ethylphosphonate (65) using γ-alumina and silica gel.
Scheme 62. Catalytic dealkylation of diethyl ethylphosphonate (65) using γ-alumina and silica gel.
Molecules 26 02840 sch062
Molecules 26 02840 sch063 550
Scheme 63. Monodealkylation of phosphonates using NaI.
Scheme 63. Monodealkylation of phosphonates using NaI.
Molecules 26 02840 sch063
Molecules 26 02840 sch064 550
Scheme 64. Monodealkylation of phosphonates (100) under phase-transfer catalytic conditions.
Scheme 64. Monodealkylation of phosphonates (100) under phase-transfer catalytic conditions.
Molecules 26 02840 sch064
Molecules 26 02840 sch065 550
Scheme 65. Selective monodealkylation using LiHBEt3.
Scheme 65. Selective monodealkylation using LiHBEt3.
Molecules 26 02840 sch065
Table
Table 1. Experimental data of the hydrolysis of unsaturated and saturated cyclic phosphinates.
Table 1. Experimental data of the hydrolysis of unsaturated and saturated cyclic phosphinates.
Compoundt (h)Composition of Product (%)Yield (%)
2-Phospholene3-Phospholene
Molecules 26 02840 i0013792185
Molecules 26 02840 i0026901084
Molecules 26 02840 i0036217386
Molecules 26 02840 i0048–82
Molecules 26 02840 i00510–80
Table
Table 2. Pseudo–first-order rate constants (kΔ and kMW) obtained for the thermal HCl-catalyzed and MW-assisted PTSA-catalyzed hydrolyses.
Table 2. Pseudo–first-order rate constants (kΔ and kMW) obtained for the thermal HCl-catalyzed and MW-assisted PTSA-catalyzed hydrolyses.
EntryRkΔ (h−1)kMW (h−1)
1Me 1.361.52
2Et0.620.86
3nPr 0.62–
4iPr 1.601.92
5nBu0.57–
Table
Table 3. Pseudo–first-order rate constants (kΔ and kMW) obtained for the thermal HCl-catalyzed and MW-assisted PTSA-catalyzed hydrolyses.
Table 3. Pseudo–first-order rate constants (kΔ and kMW) obtained for the thermal HCl-catalyzed and MW-assisted PTSA-catalyzed hydrolyses.
R2R1k1 (h−1)k2 (h−1)tcomplYield (%)
MeH2.670.705.5 h95
EtH0.880.279.5 h90
iPrH2.081.334.5 h99
BnH23.89.3645 min80
EtMe0.860.1617.5 h87
EtMeC(O)0.900.358.5 h86
Table
Table 4. Experimental and kinetic data on the hydrolysis of substituted α-hydroxybenzylphosphonates (43).
Table 4. Experimental and kinetic data on the hydrolysis of substituted α-hydroxybenzylphosphonates (43).
EntryYRYield (%)tr (h)k1 (h−1)k2 (h−1)
1H Me806.52.640.60
2NO2Me822.55.181.24
3ClMe905.53.360.79
4FMe856.03.930.67
5CF3Me805.52.030.61
6MeMe7981.640.31
7HEt829.51.030.35
8NO2Et925.51.400.61
9ClEt878.01.080.42
10FEt839.01.350.31
Table
Table 5. The alkaline hydrolysis of various cyclic and open-chain phosphinates.
Table 5. The alkaline hydrolysis of various cyclic and open-chain phosphinates.
Starting PhosphinateSolventRate Constant, 1 mole−1 s−1 × 104
50 °C60 °C70 °C
Molecules 26 02840 i00650% alcohol–water1.182.244.22
Molecules 26 02840 i00780% alcohol–water0.3000.5681.08
Molecules 26 02840 i00850% alcohol–water0.7301.392.63
Table
Table 6. Comparison of the reactivity of TMSCl and TMSBr.
Table 6. Comparison of the reactivity of TMSCl and TMSBr.
Dialkyl Phosphonate
RP(O)(OR′)2		TMSClTMSBr
RR′Equiv.Temp.
(°C)		Time
(days)		Yields
(%)		Equiv.Temp.
(°C)		Time
(h)		Yields
(%)
CH2=CHEt2.769–725941.5251.2>99
PhCH2Et2.2401<51.7252.0>99
EtOCH2CH2Et2.9401<101.7250.7>99
Cl3CEt5.4>728131.561–692.7>99
PhC(O)Me1.9259121.5251.7>99
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Harsági, N.; Keglevich, G. The Hydrolysis of Phosphinates and Phosphonates: A Review. Molecules 2021, 26, 2840. https://doi.org/10.3390/molecules26102840

AMA Style

Harsági N, Keglevich G. The Hydrolysis of Phosphinates and Phosphonates: A Review. Molecules. 2021; 26(10):2840. https://doi.org/10.3390/molecules26102840

Chicago/Turabian Style

Harsági, Nikoletta, and György Keglevich. 2021. "The Hydrolysis of Phosphinates and Phosphonates: A Review" Molecules 26, no. 10: 2840. https://doi.org/10.3390/molecules26102840

Article Metrics

Back to TopTop
