Article

Metabolite Profiling of “Green” Extracts of Cynara cardunculus subsp. scolymus, Cultivar “Carciofo di Paestum” PGI by 1H NMR and HRMS-Based Metabolomics

by
Antonietta Cerulli
,
Milena Masullo
,
Cosimo Pizza
and
Sonia Piacente
*
Dipartimento di Farmacia, Università degli Studi di Salerno, Via Giovanni Paolo II n. 132, 84084 Fisciano, SA, Italy
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(10), 3328; https://doi.org/10.3390/molecules27103328
Submission received: 27 April 2022 / Revised: 17 May 2022 / Accepted: 19 May 2022 / Published: 22 May 2022
(This article belongs to the Special Issue Feature Papers in Food Chemistry)
Browse Figures
Versions Notes

Abstract

:
Globe artichoke (Cynara cardunculus L. var. scolymus L.), is a perennial plant widely cultivated in the Mediterranean area, known for its edible part named capitula or heads. Its functional properties are related to its high levels of polyphenolic compounds and inulin. “Carciofo di Paestum”, an Italian traditional cultivar, is a labeled PGI (Protected Geographical Indication) product of the Campania region, representing an important economic resource. So far, a few chemical investigations were performed on this cultivar, mainly focused on the analysis of methanol extracts. Due to the increasing use of food supplements, in this study, a comprehensive analysis of green extracts of “Carciofo di Paestum” PGI heads was performed. EtOH, EtOH: H2O (80:20, 70:30, 60:40) extracts, as well as infusions and decoctions prepared according to Pharmacopeia XII were analyzed by LC-ESI/QExactive/MS/MS. A total of 17 compounds corresponding to caffeoylquinic acid derivatives, phenolics, flavonoids, and terpenoids were identified. The extracts were further submitted to NMR analysis to highlight the occurrence of primary metabolites. Both LCMS and NMR data were analyzed by Principal Component Analysis (PCA), showing significant differences among the extraction methods. Moreover, 5-caffeoylquinic acid and 1,5-dicaffeoylquinic acid were quantified in the extracts by LC-ESI/QTrap/MS/MS using the Multiple Reaction Monitoring (MRM) method. Furthermore, the phenolic content, antioxidant activity, and α-glucosidase inhibitory activity of C. cardunculus var. scolymus “Carciofo di Paestum” extracts were evaluated.

Graphical Abstract

1. Introduction

Globe artichoke (Cynara cardunculus L. var. scolymus L.), belonging to the family Asteraceae, is a perennial plant widely cultivated in the Mediterranean area. The edible parts of the plant are the large immature inflorescences, named capitula or heads, with edible fleshy leaves. Specifically, C. cardunculus L. shows three botanical varieties including the well-known globe artichoke variety (var. scolymus (L.)), cultivated or leafy cardoon (var. altilis DC.) and their wild perennial progenitor (var. sylvestris (Lamk)) [1]. The globe artichoke is widely investigated for its chemical profile and valued for its nutraceutical and medicinal properties [2,3,4,5,6,7]. Globe artichokes contain a very little amount of fats and high levels of minerals (potassium, sodium, phosphorus), vitamin C, fiber, inulin and polyphenols, hydroxycinnamates, and flavones [8,9]. The functional properties of the artichoke are related to its high levels of polyphenolic compounds and inulin [10,11,12]. In artichoke flower heads, the most abundant phenolic substances are caffeoylquinic acid derivatives, especially chlorogenic acid, cynarin, and flavonoids, mainly apigenin and luteolin, both present as glucosides and rutinosides [3]. The antioxidant capacity of the artichoke has been associated to its high phenolic content [2,13,14,15]. Phenolic profiles of different C. cardunculus genotypes show significant differences, but apigenin and caffeoylquinic acid derivatives were generally the main compounds in all the samples. Genotype influence has also been observed in relation to antioxidant activity [16,17,18]. Investigations performed on infusion, decoction, and hydroalcoholic extracts of artichoke leaves revealed different concentrations of phenolic compounds and differences in antioxidant activity [13,19,20]
The edible portion of the artichoke is also a rich source of inulin (19–32% on a dry matter basis), a carbohydrate reserve with a high value in human nutrition due to its prebiotic properties. Inulin resists digestion in the small intestine due to the β-(2→1) fructosyl-fructose linkages but can be fermented by colonic microflora, stimulating the proliferation of commensal bacteria such as Bifidobacteria spp. and Lactobacillus spp [3,21,22]. For these reasons, artichokes are a valuable source of prebiotic dietary fibers but also of low-calorie carbohydrates with the potential to be used in the production of fat-reduced foods. The positive effects consist in blood glucose attenuation, in the control of cholesterol and serum lipids levels, and in mineral bioavailability [21].
In Italy, the globe artichoke represents one of the most important horticultural crops, with a production of about 384,000 tons in 2021 [23]. Italy is also the richest source of artichoke germplasm, with numerous commercial and local varieties adapted to different environments, which can differ in chemical composition, especially of the polyphenolic fraction, hence exhibiting different nutraceutical and pharmacological properties [14]. “Carciofo di Paestum”, an Italian traditional late clone cultivar, which produces purple heads with light green coloration from March to May [8], is a labeled PGI (Protected Geographical Indication) product of the Campania region, representing an important economic resource.
Previous investigations aimed at assessing and quantifying polyphenols and hydroxycinnamic acids in the globe artichoke “Carciofo di Paestum” were performed mainly on methanol extracts by HPLC-DAD-ESI/MSn [24,25]. A metabolomics approach to characterize CH2Cl2/MeOH/H2O extracts of “Carciofo di Paestum” heads was performed also by NMR analysis [26]. Moreover, “Carciofo di Paestum” by-products were investigated by UHPLC-UV-HRMS [21].
The term “nutraceuticals” derives from “nutrition” and “pharmaceuticals” and is used for nutrition products that are also used as medicine [27]. Nutraceuticals refer to compounds aimed at supplementing the normal diet, containing substances alone or in combination with vitamins and minerals, or herbal products. Thus, they are referred to as “dietary supplements,” or “food supplements” [27,28,29].
Their use has been steadily increasing all over the world for the last decades, in the form of capsules, liquids, pills, and tablets in measured doses. They are very attractive because of their relatively low prices, non-prescription status, huge promotion, and the perception that natural products are safe [29]. Food supplements are generally extracted with atoxic solvents, such as ethanol and water. Ethanol is the most common bio-solvent, completely biodegradable, and obtained by the fermentation of sugar-rich materials such as sugar beet and cereals; therefore, green solvents such as water and aqueous ethanol solutions are among the preferred ones for extraction processes [30]. Moreover, it is very common to drink the infusion (teas) made with artichoke leaves for liver and digestive issues [13]. In recent years, with an increasing interest in the development of green and environmentally friendly extraction methods, new technologies and methods of extraction have been used [31].
These considerations prompted us to investigate the chemical composition of ethanol: water and water extracts of the globe artichoke “Carciofo di Paestum” since only methanol extracts have thus far been analyzed. The extraction procedures can greatly affect the fingerprints of the extracts. To the best of our knowledge, this is the first comprehensive investigation of green extracts of “Carciofo di Paestum” by a combination of LC-MS and NMR analysis. Metabolomic analysis generates huge datasets that make the application of chemometric methods necessary. Multivariate data analysis (MVDA) was used to identify the metabolite variation among green extracts.

2. Results and Discussion

2.1. LC-ESI/QExactive/MS/MS Analysis of MeOH Extract of “Carciofo di Paestum” PGI

“Carciofo di Paestum” PGI heads were extracted with MeOH to compare this extract with those obtained by green extractions. To identify the specialized metabolites occurring in the MeOH extract of the artichoke, an analytical approach based on LC-MS was carried out [32].
Hyphenated techniques are playing increasingly important roles in support of phytochemical investigations, and in particular, high liquid chromatography (HPLC) coupled to mass spectrometry (MS) is considered a powerful tool [33]. In this case, high-performance liquid chromatography coupled with electrospray ionization and hybrid Quadrupole-Orbitrap mass spectrometry (LC-ESI/QExactive/MS/MS) was used.
According to their accurate mass, characteristic fragmentation pattern, retention time, and literature data, 17 compounds (Figure 1), corresponding to caffeoylquinic acids (1, 2), dicaffeoylquinic acids (3, 9, 12), phenolic compounds (4, 14), flavonoid derivatives (5–8, 10, 11, 13, 16), and terpenoids (15, 17), could be identified. In particular, on the basis of characteristic product ions at m/z 191 and 179, compounds 1 and 2 were identified as 5- and 3-caffeoylquinic acids, respectively [34]. The identity of 5-caffeoylquinic acid (chlorogenic acid) was confirmed by comparison with a standard compound. Dicaffeoylquinic acids were identified by their fragmentations at m/z 353, 335, and 191 [35,36]. Moreover, 1,5-dicaffeoylquinic acid (9) was confirmed by comparison with the reference compound. Regarding flavonoid derivatives, information on sugar moieties and aglycone was derived by characteristic fragmentation patterns. In particular, compounds 5–7 showed a characteristic fragment at m/z 285 corresponding to luteolin, whereas compounds 8, 10, and 11 displayed a typical product ion at m/z 269 corresponding to apigenin (Figure 1 and Table S1).

2.2. Isolation and Identification of Specialized Metabolites

To unambiguously identify specialized metabolites in artichoke extracts, isolation of compounds from MeOH extract by HPLC-UV was carried out. In this way, 17 compounds were isolated and characterized by NMR analysis. The isolated compounds were identified as: 5-caffeoylquinic acid (1), 3-caffeoylquinic acid (2), 1,3-dicaffeoylquinic acid (3), 5-feruloylquinic acid (4), luteolin-7-O-rutinoside (5), luteolin-7-O-β-D-glucopyranoside (6), luteolin-7-O-β-D-glucuronide (7), apigenin-7-O-rutinoside (8), 1,5-dicaffeoylquinic acid (9), apigenin-7-O-β-D-glucopyranoside (10), apigenin-7-O-β-D-glucuronide (11), 4,5-dicaffeoylquinic acid (12), luteolin (13), salviaflaside (14), cynarasaponin J (15), apigenin (16), and cynarasaponin A (17) (Figure 1).

2.3. Metabolite Fingerprint of “Carciofo di Paestum” PGI Green Extracts by LC-ESI/QExactive/MS/MS

To evaluate the possibility to use heads of C. cardunculus subsp. scolymus as a food supplement in the nutraceutical field but also in cosmetic formulations, simple and fast extraction methods based on the use of cheap and relatively non-toxic solvents were carried out [37]. EtOH was selected as a “green” solvent considering that it is a good solvent for polyphenol extraction and safe for human consumption. Therefore, the heads of “Carciofo di Paestum” PGI were extracted by maceration with EtOH and with different mixtures of EtOH:H2O (80:20, 70:30, 60:40); moreover, based on Pharmacopeia XII, the artichoke was submitted to infusion and decoction. All the obtained extracts were analyzed by LC-ESI/QExactive/MS/MS.
Among all the extracts, hydroalcoholic, infusion, and decoction extracts were the most interesting, showing higher peaks for flavonoids and quinic acid derivatives than MeOH extract; moreover, with respect to the latter, the “green” extracts allowed a better extraction of cynarasaponin J (15) and A (17) (Figure 2).

2.4. Targeted Multivariate Statistical Analysis of Secondary Metabolites

To identify similarities in the chemical profile among different samples, the metabolite profiles of different “green” extracts of the artichoke in triplicate were analyzed by multivariate statistical analysis. The raw data were first filtered using MZ mine 2.0 software and then processed using SIMCA-P+ software.
The result of the validation test further emphasized the significance and predictability of the model when the targeted approach was applied; in particular, PC1 contributed to 67.9% of the variance, followed by PC2, which contributed to 18.1%.

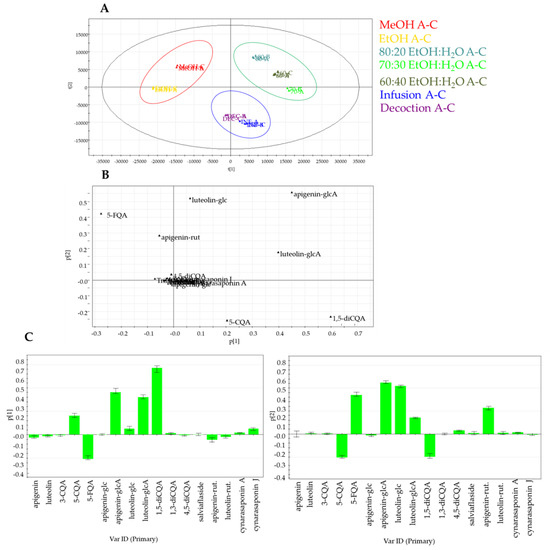

The Principal Component Analysis (PCA) highlighted significant differences among the extraction methods. Methanol extracts and the “eco-friendly” extracts were located on the opposite side of the plot, confirming the different selectivity of the employed methods. In the PCA score plot, three clusters could be considered, the first in the left region with EtOH and MeOH extracts, the second cluster in the upper right with hydroalcoholic extracts, and the third cluster in the lower region including infusion and decoction (Figure 3A). The PCA loading plot highlighted that hydroalcoholic extracts were richer than other extracts in flavonoid glycoside derivatives. Meanwhile, infusion and decoction were more abundant in 5-caffeoylquinic acid (5-CQA) and 1,5-dicaffeolylquinic acid (1,5-diCQA) (Figure 3B,C).

2.5. Quantitative Analysis of 5-Caffeoylquinic Acid (1) and 1,5-Dicaffeoylquinic Acid (9)

The two compounds 5-caffeoylquinic acid (chlorogenic acid) (1) and 1,5-dicaffeoylquinic acid (9) are reported as the main quinic acid derivatives occurring in C. cardunculus subsp. scolymus [21]. Thus, these two compounds were quantified in the different extracts of C. cardunculus subsp. scolymus heads by LC-ESI/QTrap/MS/MS analysis. Multiple Reaction Monitoring (MRM), a very accurate and sensitive tandem mass spectrometric technique, was used [38].
Based on the transitions selected for MRM experiments, the amount (mg/g of extract) of each compound in “green” and MeOH extracts was determined.
The compound 5-caffeoylquinic acid (1) occurred in a concentration range of 0.49–5.05 mg/g extract, showing the highest concentration in the infusion and decoction, according to PCA loading plot results; moreover, the abovementioned preparations were also the richest ones of 1,5-dicaffeoylquinic acid (9), although this compound was also very abundant in the other green preparations (Table 1 and Table S2).

2.6. Metabolite Fingerprint of Primary Metabolites of C. cardunculus subsp. scolymus “Green” Extracts by Multivariate Data Analysis based on 1H NMR

Food supplements are known to contain one or more dietary compounds such as vitamins, minerals, amino acids, carbohydrates, and other substances with a nutritional or physiological effect. As previously described, inulin represents a carbohydrate reserve with a high value in human nutrition, typically occurring in artichokes. To obtain complete information not only about the occurrence of specialized metabolites but also of primary metabolites, as inulin in the different extracts of “Carciofo di Paestum” PGI, a multivariate approach based on 1H NMR analysis has been carried out.
In the first step, to assign a key signal for each primary metabolite, 1H NMR of all extracts, in triplicate, were acquired; in this way, 12 primary metabolites including free amino acids, fatty acids, γ-aminobutyric acid, as well as sugars were identified. In detail, the following amino acids were assigned: isoleucine (0.94, t, J = 7.0 Hz), leucine (1.07, d, J = 7.0 Hz), alanine (1.47, d, J = 7.2 Hz), lysine (1.87, d, J = 8.0 Hz), glutamate (2.07, m), aspartic acid (2.75, dd, J = 16.0, 3.0 Hz), and phenylalanine (7.32, m); the key signals at 1.27 (s) and 2.27 (t, J = 7.2 Hz) were attributed to fatty acids and γ-aminobutyric acid (GABA), respectively. Moreover, in the carbohydrate region, 1NMR spectra displayed characteristic signals assigned to β-fructofuranoside (4.19, d, J = 2.3 Hz) and β-glucopyranoside (4.47, d, J = 8.0 Hz), as well as inulin (5.40, d, J = 5.0 Hz) (Figures S1–S8 and Table S3).
In the second step, to investigate the impact of the different solvents on the extraction of primary metabolites, PCA analysis was carried out. PCA was performed by measuring the selected peak area for each identified metabolite in the 1H-NMR dataset and by using these areas (variables) as rows of a matrix, while the different extracts of C. cardunculus subsp. scolymus (observations) were the columns of the matrix. The resulting model, obtained after scaling data by Pareto scaling, showed good fitness and the absence of outliers. PC1 contributed to 86.3% of the variance followed by PC2, which contributed to 7.7%. Thus, the first two PCs exhibited a total variance of 94.0%.

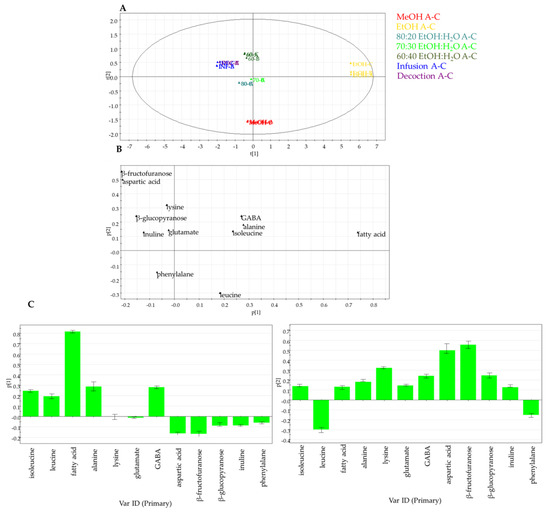

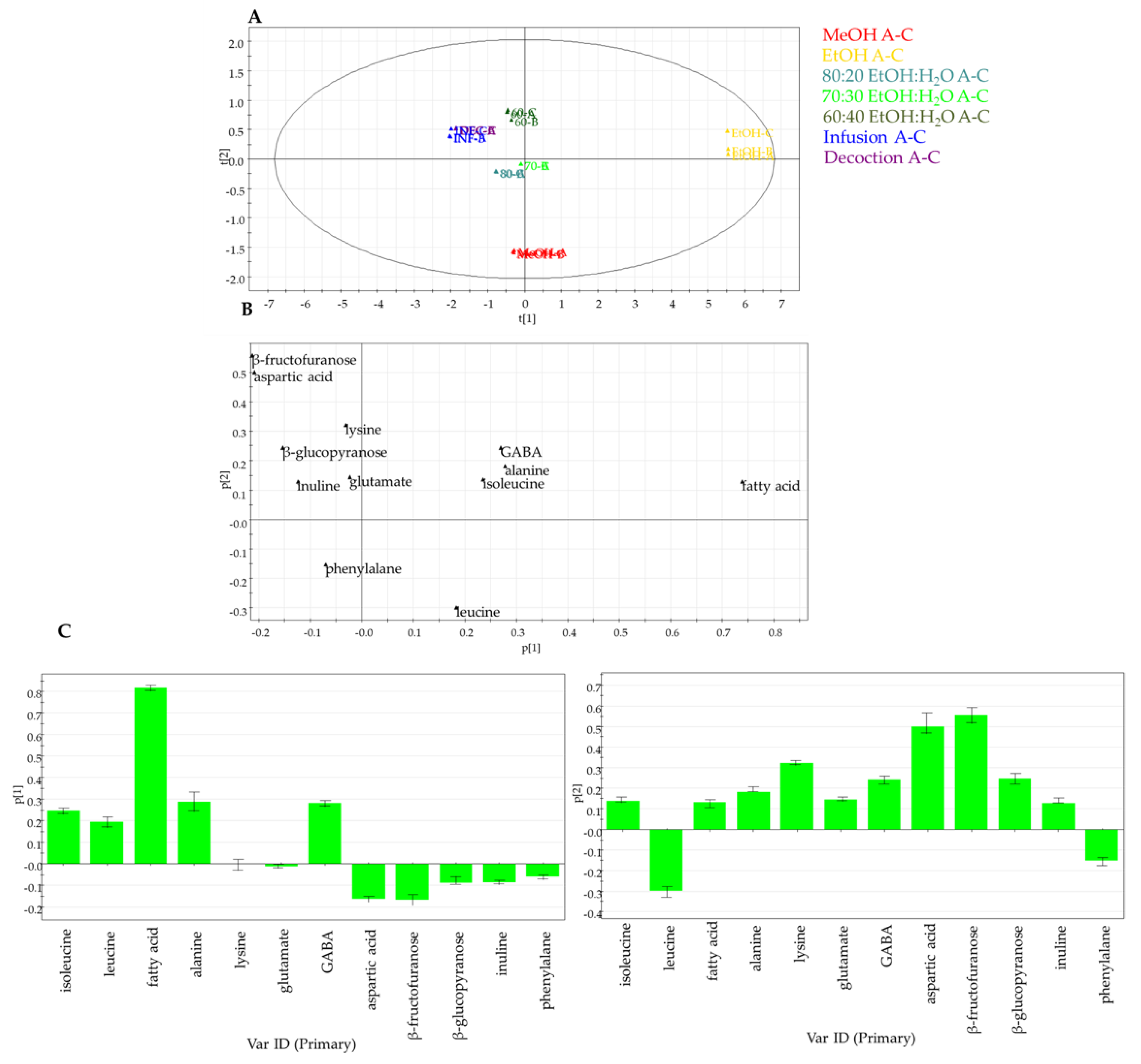

A PCA score plot (Figure 4A) highlighted evident differences between EtOH and MeOH extracts with hydroalcoholic extracts and infusion and decoction. In detail, the PCA loading plot (Figure 4B,C) displayed how carbohydrates are characteristic of infusion and decoction, while fatty acids are typical of EtOH extract, in agreement with the polarity of the solvent used for extractions.

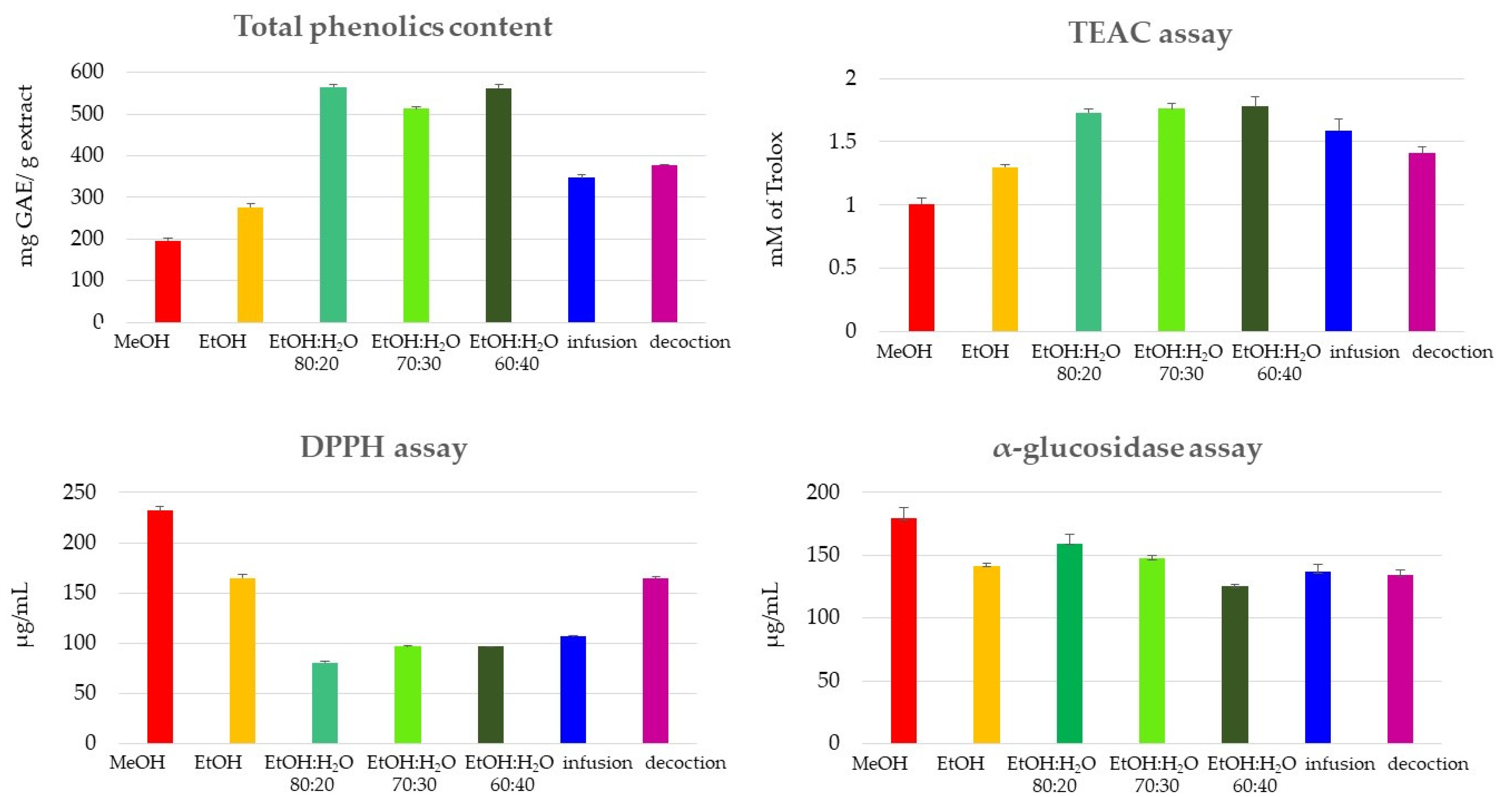

2.7. Evaluation of Phenolic Content and Antioxidant Activity of “Carciofo di Paestum” PGI Extracts

ROS production has been demonstrated to contribute to the development of some diseases including cancer and cardiovascular diseases [39]. Polyphenols can react directly with ROS, preventing their concentrations from reaching harmful intracellular levels. To evaluate the radical scavenging activity by spectrophotometric assay, the preliminary phenolic content was tested by the Folin–Ciocalteu method [40]. The results of the total phenolic content determination indicated a high phenolic content for EtOH:H2O extracts. Mixtures EtOH:H2O 80:20, 70:30, and 60:40 showed GAE (milligrams of gallic acid equivalents for gram of extract) values corresponding to 565.14, 512.30, and 562.17, respectively. The high phenolic content shown by the EtOH:H2O extracts could be attributed to the synergistic effect of the two solvents in the extraction of phenolic compounds; in detail, water could have an important role in the swelling of plant material, whereas ethanol is responsible for disrupting the binding between the solutes and plant matrix (Figure 5 and Table S4).
Successively, the antioxidant activity of “Carciofo di Paestum” PGI extracts was tested by TEAC and DPPH assays. The TEAC assay highlighted a concentration-dependent free-radical scavenging activity for hydroalcoholic extracts as well as infusion and decoction. In detail, hydroalcoholic extracts displayed a radical scavenging activity (1.73–1.78 mM) comparable to quercetin (2.30 mM), used as a reference compound. The DPPH assay displayed how hydroalcoholic extracts exerted a promising antioxidant activity; in particular, EtOH:H2O 80:20 showed the strongest activity (EC50 = 80.51 µg/mL), followed by the other hydroalcoholic extracts and by infusion and decoction. The weakest antioxidant activities were shown by MeOH and EtOH extracts, confirming the results obtained by the TEAC assay (Figure 5 and Table S4).
The ABTS and DPPH values of different artichoke extracts against their corresponding total phenolic content (TPC) values were correlated using Pearson’s method (Table S5). Thaipong et al. reported that Pearson’s correlation coefficient was significantly negative if −0.61 ≤ r ≤ −0.97 and significantly positive if 0.61 ≤ r ≤ 0.97 [41]. In particular, there was a positive and significant correlation between TEAC and TPC. About the DPPH assay, the increase in TPC may be related to the increase in antioxidant activities, indicated by lower IC50 DPPH. Therefore, TPC was significantly negatively correlated with IC50 DPPH (Table S5).

2.8. α-Glucosidase Inhibitory Activities of “Carciofo di Paestum” PGI Extracts

The inhibitory effects of the “Carciofo di Paestum” PGI extracts against α-glucosidase were evaluated in comparison with those exerted by the antidiabetic compound acarbose. The enzyme α-Glucosidase is the key catalyzing enzyme involved in the process of carbohydrate digestion and glucose release. Inhibition of α-glucosidase is a very effective way of delaying glucose absorption and lowering the postprandial blood glucose level, which can potentially suppress the progression of diabetes mellitus [42].
Extracts and positive control (acarbose) were evaluated in the concentration range of 200–500 µg/mL. All tested extracts, except the MeOH extract, showed moderate activity with IC50 values ranging from 125.3 to 159.3 µg/mL, comparable to acarbose (Figure 5 and Table S6). In detail, EtOH:H2O 80:20 (IC50: 125.3) was more active than acarbose (IC50: 132.5), while the other hydroalcoholic extracts and the EtOH extract displayed an activity comparable to acarbose.

3. Materials and Methods

3.1. Chemicals

The solvent for extractions, LC-MS and NMR analysis, Folin-Ciocalteu phenol reagent, 2,2-Diphenyl-1-picrylhydrazyl (DPPH•), vitamin C, 2,2′-azino-bis(3-ethylbenzothiazoline-6-sulphonic acid) (ABTS), potassium persulfate (K2S2O8), phosphate-buffered saline (PBS) solution, Trolox, α-glucosidase enzyme (from Saccharomyces cerevisiae), and 4-nitrophenyl α-D-glucopyranoside (PNPG), were purchased from Sigma Aldrich (Milano, Italy).

3.2. Plant Material and Sample Preparation

The heads of C. cardunculus subsp.scolymus. cv. “Carciofo di Paestum” were collected at commercial maturity, at Paestum, Salerno, Italy in March 2017. A voucher specimen has been deposited in this department.

3.3. Sample Extraction

After harvest, the heads of C. cardunculus subsp. scolymus, cultivar “Carciofo di Paestum” were transported to the laboratory and crushed into little parts; immediately after, the heads were stored in the freezer at a temperature of −20 °C. After 10 days, they were submitted to lyophilization. At this point, a ratio of 2.0 g/200 mL solvent (w/v) of dried heads was used for each extraction, using as solvents MeOH, EtOH, EtOH: H2O (8:2), EtOH: H2O (7:3), EtOH: H2O (6:4), for 3 days, 3 times. After filtration and evaporation of the solvent to dryness in vacuo, dried extracts were obtained. In this way, four different “green” extracts, together with a MeOH extract, were obtained.
Based on Pharmacopeia XII, infusion and decoction were prepared.
The infusion was carried out by adding boiled distilled water to the plant with a specified solid–solvent ratio (1:10 w/v), leaving it in touch the solvent and the plant for 10 min under moderate stirring. After this time, stirring was stopped, and the solvent was filtrated to obtain the infusion that was submitted to the analysis.
For decoction, the plant was boiled in an open-type extractor in a specified solid–solvent ratio (1:20 w/v) for 2 h, using moderate stirring. Both beakers were covered by aluminum and protected with plastic parafilm both to permit the conservation of a stable temperature and to prevent solvent evaporation and light reaction; then the solvents were filtered under reduced pressure.

3.4. LC-ESI/QExactive/MS/MS Analysis

The extracts of C. cardunculus subsp.scolymus heads were analyzed using liquid chromatography coupled with electrospray ionization and a high-resolution mass spectrometer (QExactive: hybrid Quadrupole-Orbitrap Mass Spectrometer, ThermoFischer, Waltham, MA, USA), operating in negative ion mode.
LC-MS analysis was carried out on a Kinetex C18 2.6 mm (100 mm× 2.1 mm) column (Phenomenex, Aschaffenburg, Germany), using a flow rate of 0.2 mL/min. A binary solvent system was used (eluent A: water with 0.1% formic acid (99.9:0.1, v/v), eluent B: acetonitrile with 0.1% formic acid (99.9:0.1, v/v),). The HPLC gradient started at 5% B. After 10 min, % B was at 20%, after 20 min, it was at 60%, in 2 min % B arrived at 95%, holding at this percentage for 5 min, before returning to the starting percentage. The autosampler was set to inject 4 μL of each extract (1.0 mg/mL MeOH). The auxiliary gas was set at 10 (arbitrary units), and the sheath gas was set at 50 (arbitrary units).

3.5. Isolation of Specialized Metabolites

MeOH extract of C. cardunculus subsp. scolymus was analyzed by a RP-HPLC-UV system setting wavelength at 254 nm. The elution gradient was obtained using water with 0.1% formic acid as eluent A (99.9:0.1, v/v), and acetonitrile with 0.1% formic acid (99.9:0.1, v/v), as B at a flow rate of 2.0 mL/ min. A Phenomenex Sinergy Hydro Prep MS C18 column (250 mm × 10 mm, 10 micron) was used. The HPLC gradient started at 10% B and remained at 10% for 5 min; after 12 min, % B was at 20%, after 13 min, it was set at 26%, after 10 min, % B was at 38%, after 10 min, it was at 90%, and finally after 2 min at 100%; it was held at 100 % for 10 min before returning to the starting percentage. Compounds 1 (5.8 mg, tR = 22.0 min), 2 (1.7 mg, tR = 24.09 min), 3 (4.2 mg, tR = 29.27 min), 4 (2.3 mg, tR = 31.03 min), 5 (2.9 mg, tR = 31.30 min), 6 (3.1 mg, tR = 32.87 min), 7 (3.8 mg, tR = 33.52 min), 8 (2.1 mg, tR = 35.70 min), 9 (5.8 mg, tR = 37.29 min), 10 (3.3 mg, tR = 39.49 min), 11 (4.2 mg, tR = 41.95 min), 12 (4.5 mg, tR = 44.52 min), 13 (2.3 mg, tR = 45.39 min), 14 (2.4 mg, tR = 47.10 min), 15 (3.6 mg, tR = 48.5 min), 16 (2.5 mg, tR = 49.8 min), and 17 (4.6 mg, tR = 50.6 min) were obtained.

3.6. Multivariate Data Analysis of Specialized Metabolites

Xcalibur 2.2 from Thermo Fisher Scientific was used to check the exact mass of each secondary metabolite identified by LC-MS analysis (negative ion mode). MZMine 2.10 was used for LC-MS data processing (http://mzmine.sourceforge.net (accessed on 10 March 2022)).
MZMine software was used to filter the noise and detect and align the peaks observed in LC-MS profiles (noise level 1.0 × 104; all data points below this intensity level were ignored) after exporting the processed data in tabular format (.cvs file). Each sample was analyzed in triplicate.
For targeted analysis of specialized metabolites, the peak area obtained from LC/MS analysis was considered. Pareto scaling was applied before multivariate data analysis; in detail, the matrix was constituted of 17 variables, corresponding to the peak area of m/z values of specific specialized metabolites of C. cardunculus subsp. scolymus, and 7 observations, represented by different extracts.

3.7. Quantitative Analysis of 5-Caffeoylquinic Acid (1) and 1,5-dicaffeoylquinic Acid (9)

Quantitative analyses were performed on a LC-ESI/QTrap/MS system working in Multiple Reaction Monitoring (MRM) mode. HPLC separation was conducted by Kinetex Omega μm RP C18 column (100 mm × 2.1 mm i.d) at a flow rate of 0.3 μL/min.
Linear gradient elution was carried out by using H2O with 0.1% formic acid as eluent A (99.9:0.1, v/v), and acetonitrile with 0.1% formic acid (99.9:0.1, v/v), as eluent B. The HPLC gradient started at 5% B; after 2.1 min, % B was at 15%, changing from 15% B to 35% B in 4.3 min, from 35% B to 80% B in 2.1 min, and returning to the starting percentage in 2.1 min. The instrument operated in the negative ion mode for internal standard (resveratrol, 1µg/mL for each solution) and external standards 5-caffeoylquinic acid (1) and 1,5-dicaffeoylquinic acid (9) specific values of declustering potential, focusing potential, entrance potential, collision energy, and collision cell exit potential were used (Table S2). C. cardunculus subsp. scolymus extracts were diluted by using methanol, and 5 μL (1.0 mg/mL) were injected in triplicate; solutions of different ES concentrations (0.5, 1.0, 5.0, 10, 20, 30, 50, and 70 µg/mL) were used. Linear regression analysis was performed using the Analyst 1.6.2 Software provided by the manufacturer (AB Sciex, Milan, Italy).
Linearity was evaluated by correlation values of calibration curves. The limit of quantification (LOQ; equivalent to sensitivity) was evaluated by injecting a series of increasingly diluted standard solutions until the signal-to-noise ratio was reduced to 10. The limit of detection (LOD) was estimated by injecting a series of increasingly diluted standard solutions until the signal-to-noise ratio was reduced to 3 [43] (Table S2).

3.8. NMR Analysis and Data Processing

NMR analyses were carried out on a Bruker Ascend-600 spectrometer (Bruker BioSpin GmBH, Rheinstetten, Germany) equipped with a Bruker 5 mm. Methanol-d4 (99.95%, Sigma-Aldrich) was used as solvent for each extract. The NMR data were processed using TopSpin 3.2 software. For HSQC, a spectral width of 12 ppm and 165 ppm in the proton and carbon dimensions, respectively, were used with 1 K data points, 64 scans, 256 t1 increments, and a recycle delay of 2 s. HMBC was obtained with a spectral width of 12 ppm and 230 ppm in the proton and carbon dimensions, respectively, 4 K data points, 120 scans, 256 t1 increments, and a recycle delay of 2 s.
For the targeted multivariate analysis, all samples were acquired in methanol-d4 (99.95%, Sigma-Aldrich). The peak of TPS (3-(Trimethylsilyl)-propionic-2,2,3,3-d4 acid sodium salt at 0.9% (w/w) in D2O 99.9 atom%) at 0 ppm was used as the chemical shift external reference. All samples were run at 300 K, using the zgesgp pulse sequence; the relaxation delay was 4.0 s, and the acquisition time was 5.45 s, with 128 number scans and data collected into 64 k data points. Each free induction decay (FID) was zero-filled to 128 k data points. Before Fourier transformation, an exponential window function with a line broadening factor of 0.3 Hz was applied. After the acquisition, the spectra were analyzed by MestreNova 10 software. In particular, the spectra were manually phased and the baseline corrected. Spectra were referenced using the TSP, obtaining good peak alignment. Bucketing was performed within the 0.5–8.2 ppm region (spectral buckets of 0.004 ppm), excluding the signals of the residual non-deuterated methanol and deuterated methanol. The obtained dataset was normalized by range area (0.5–8.2 ppm) normalization. Finally, the spectra were converted to an ASCII format. Each sample was analyzed in triplicate [37].
Pareto scaling was applied before multivariate data analysis; in detail, the matrix was constituted of 12 variables, corresponding to key chemical shift of primary metabolites of C. scolymus, and 7 observations, represented by different extracts.

3.9. Total Phenolic Content, DDPH, and TEAC Assays

Folin–Ciocalteu, DPPH, and TEAC assays for each extract have been performed as previously reported with slight modification [44].
The total phenolic content of the extracts was determined by Folin–Ciocalteu assay; gallic acid was used as a reference compound (calibration equation: y= 0.0038x + 0.145, R2 = 0.998). All the experiments were performed in triplicate, and results were expressed as the means of gallic acid equivalents (GAEmg/g dried extract) (Table S4).
Radical scavenging activity was determined by spectrophotometric assays of DPPH and TEAC. In particular, in the TEAC assay, the antioxidant activities of analyzed extracts (range= 0.25–1.00 mg/mL) were expressed as TEAC values in comparison with the TEAC activity of quercetin; TEAC values are expressed as concentration (mM) of a standard Trolox solution exerting the same antioxidant activity of a 1 mg/mL solution of the tested extract (calibration equation for Trolox: y= 31.683x + 52.436, R2 = 1.00) (Table S4).
For DPPH, the percentage of DPPH• radical scavenging activity (%) was plotted against the extract concentration (µg/mL) to determine the IC50. In brief, stock solutions (1 mg/mL) of all the obtained extracts were used in the range of 50–200ug/mL, and an aliquot (5.0 µL) of the methanol solution containing different amounts of each extract was added to 195 µL of daily prepared DPPH• solution. Absorbance at 517 nm was measured on a UV-visible spectrophotometer (Multiskans skyhigh, Thermo Fisher Scientific, Milan, Italy) 10 min after starting the reaction.
All the experiments were performed in triplicate. Range = 50–200 µg/mL was tested for each extract, and vitamin C was used as positive control and analyzed by linear regression [45] (Table S4).

3.10. α-Glucosidase Inhibition Assay

All α-Glucosidase inhibitory activity was evaluated as previously reported in Masullo 2022 [36,42]. In detail, 0.1 M phosphate buffer at pH 7.0 (150 μL) was added to each well; after 10 μL of samples (dissolved in MeOH at concentrations of 200, 300, 500 μΜ) were added, the reaction was started by the addition of 15 μL of the α-glucosidase enzyme (2 U/mL) in each well, and the plate was incubated for 5 min at 37 °C; after 5 min, 75 μL of the substrate (2.5 mM) 4- nitrophenyl α-D-glucopyranoside were added, and the plate was submitted to incubation for 10 min at 37 °C. The absorbance was measured at 405 nm before (T0′) and after the incubation with the enzyme (T10′). Acarbose was used as positive control, and negative control absorbance (phosphate buffer in place of the sample) was also evaluated. Inhibition of the enzyme was calculated, and the results were expressed as IC50 values. All experiments were carried out in triplicate.
IC50 values were calculated through non-linear regression using Graphpad Prism 5 Software and expressed as means of the standard deviation (SD) of three independent experiments. The results were considered statistically significant with values of p < 0.05.

3.11. Statistics and Data Analysis

Values were expressed as the average values ± standard deviation (SD) of at least triplicate experiments. The correlation coefficients among means were determined using Pearson’s method (Table S5) [41].

4. Conclusions

Considering the increasing interest in the production of artichoke-based food supplements, this work was aimed at defining the chemical profile of the green extracts of “Carciofo di Paestum” PGI. For the first time, a comprehensive investigation of green extracts was performed by LC-MS and NMR analysis to highlight the occurrence of both specialized and primary metabolites, respectively. Moreover, the use of statistical analysis to process the obtained data provided easy and clear visualization of the best extraction method. The globe artichoke is a source of caffeoylquinic acids, responsible for its healthy properties.
Among the occurring caffeoylquinic acids, 5-caffeoylquinic acid known as chlorogenic acid represents one of the most available acids among phenolic acid compounds [46]. In addition, 5-caffeoylquinic acid and 1,5-dicaffeoylquinic acid known as cynarin play several important and therapeutic roles such as antioxidant activity, antibacterial, anticancer, hepatoprotective, cardioprotective, anti-inflammatory, antipyretic, neuroprotective, antiviral, anti-microbial, anti-hypertensive, free radicals scavenging, and central nervous system stimulating [46,47]. Literature data showed how 5-caffeoylquinic acid is able to modulate lipid and glucose metabolisms in metabolic-related disorders [46]. Recent reports have highlighted the role of 1,5-dicaffeoylquinic acid in the treatment of Alzheimer’s disease [47]. Considering the interesting activity reported for these molecules, this work highlights how 5-caffeoylquinic acid (5-CQA) and 1,5-dicaffeolylquinic acid (1,5-diCQA), occur in the highest amount in infusion and decoction. Noteworthy, the mixtures ethanol:water exerted a better ability to extract flavonoid glycosides.
The radical scavenging activity of the extracts is predominantly ascribed to phenolic compounds. According to the results obtained by LC-MS multivariate data analysis, the ethanol–water extracts showed the best total phenolic content as well as the best radical scavenging activity measured by DPPH assay.
A comprehensive chemical profile of the extracts is necessary to highlight the occurrence of primary metabolites such as amino acids and carbohydrates. This approach allowed us to identify the occurrence in C. cardunculus subsp. scolymus of inulin which represents one of the molecules responsible for artichoke health benefits. Preparations as infusions and decoctions contain a higher amount of inulin than methanol and ethanol extracts.
In conclusion, this work highlights the differences in the chemical profile of extracts obtained with different solvents and is aimed at providing clear and punctual knowledge on the chemical composition of Carciofo di Paestum PGI for its potential use as a food supplement.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27103328/s1, Table S1. Compounds identified in C. scolymus MeOH extract by LC-ESI/QExactive/MS/MS (negative ion mode); Table S2. LC–MS/MS conditions for quantitation of compounds 1 and 9 by negative ion MRM mode; Figures S1–S7. 1H NMR Spectra (600 MHz, CD3OD) of extracts; Figure S8. 1H NMR Spectrum with annotations of identified primary metabolites detected in C. scolymus heads EtOH H2O (80:20) extract; Table S3. Characteristic 1H NMR peaks of primary metabolites identified in C. scolymus extracts. Table S4. Phenolic content and antioxidant activity of green extracts of “Carciofo di Paestum” PGI extracts.; Table S5. Correlation between TPC evaluated by Folin–Ciocalteu and antioxidant activity evaluated by the ABTS, and DPPH methods. The correlation coefficients among means were determined using Pearson’s method; Table S6. α-glucosidase inhibitory activity of “Carciofo di Paestum” PGI extracts.

Author Contributions

Conceptualization, M.M., C.P. and S.P.; methodology, A.C. and M.M.; formal analysis, A.C. and M.M.; investigation, A.C.; resources, S.P.; data curation, A.C. and M.M.; writing-original draft preparation, A.C. and M.M.; writing-review and editing, C.P. and S.P.; supervision, S.P.; project administration, S.P.; funding acquisition, S.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in supplementary materials.

Acknowledgments

The authors thank TerraOrti, Eboli (SA), Italy, for providing globe artichokes Cynara cardunculus subsp. scolymus “Carciofo di Paestum” PGI as a kind gift.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds 1–17 are available from the authors.

References

  1. Zayed, A.; Serag, A.; Farag, M.A. Cynara cardunculus L.: Outgoing and potential trends of phytochemical, industrial, nutritive and medicinal merits. J. Funct. Foods 2020, 69, 103937. [Google Scholar] [CrossRef]
  2. Lattanzio, V.; Kroon, P.A.; Linsalata, V.; Cardinali, A. Globe artichoke: A functional food and source of nutraceutical ingredients. J. Funct. Foods 2009, 1, 131–144. [Google Scholar] [CrossRef]
  3. Gostin, A.I.; Waisundara, V.Y. Edible flowers as functional food: A review on artichoke (Cynara cardunculus L.). Trends Food. Sci. Technol. 2019, 86, 381–391. [Google Scholar] [CrossRef]
  4. Grabowska, A.; Caruso, G.; Mehrafarin, A.; Kalisz, A.; Gruszecki, R.; Kunicki, E.; SÄ™kara, A. Application of modern agronomic and biotechnological strategies to valorise worldwide globe artichoke (Cynara cardunculus L.) potential—An analytical overview. Ital. J. Agron. 2018, 13, 279–289. [Google Scholar] [CrossRef]
  5. Blanco, E.; Sabetta, W.; Danzi, D.; Negro, D.; Passeri, V.; Lisi, A.; Paolocci, F.; Sonnante, G. Isolation and Characterization of the Flavonol Regulator CcMYB12 from the Globe Artichoke [Cynara cardunculus var. scolymus (L.) Fiori]. Front. Plant Sci. 2018, 9, 941. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Abu-Reidah, I.M.; Arraez-Roman, D.; Segura-Carretero, A.; Fernandez-Gutierrez, A. Extensive characterisation of bioactive phenolic constituents from globe artichoke (Cynara scolymus L.) by HPLC-DAD-ESI-QTOF-MS. Food Chem. 2013, 141, 2269–2277. [Google Scholar] [CrossRef]
  7. Salekzamani, S.; Ebrahimi-Mameghani, M.; Rezazadeh, K. The antioxidant activity of artichoke (Cynara scolymus): A systematic review and meta-analysis of animal studies. Phytother. Res. 2019, 33, 55–71. [Google Scholar] [CrossRef] [Green Version]
  8. Pandino, G.; Lombardo, S.; Mauromicale, G. Mineral profile in globe artichoke as affected by genotype, head part and environment. J. Sci. Food Agric. 2011, 91, 302–308. [Google Scholar] [CrossRef]
  9. Rocchetti, G.; Lucini, L.; Corrado, G.; Colla, G.; Cardarelli, M.; Pascale, S.; Rouphael, Y. Phytochemical Profile, Mineral Content, and Bioactive Compounds in Leaves of Seed-Propagated Artichoke Hybrid Cultivars. Molecules 2020, 25, 3795. [Google Scholar] [CrossRef]
  10. Demir, T.; Agaoglu, S. Antioxidant, Antimicrobial and Metmyoglobin Reducing Activity of Artichoke (Cynara scolymus) Powder Extract-Added Minced Meat during Frozen Storage. Molecules 2021, 26, 5494. [Google Scholar] [CrossRef]
  11. Turkiewicz, I.P.; Wojdylo, A.; Tkacz, K.; Nowicka, P.; Hernandez, F. Antidiabetic, Anticholinesterase and Antioxidant Activity vs. Terpenoids and Phenolic Compounds in Selected New Cultivars and Hybrids of Artichoke Cynara scolymus L. Molecules 2019, 24, 1222. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Xia, N.; Pautz, A.; Wollscheid, U.; Reifenberg, G.; Forstermann, U.; Li, H. Artichoke, cynarin and cyanidin downregulate the expression of inducible nitric oxide synthase in human coronary smooth muscle cells. Molecules 2014, 19, 3654–3668. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Pistón, M.; Machado, I.; Branco, C.S.; Cesio, V.; Heinzen, H.; Ribeiro, D.; Fernandes, E.; Chisté, R.C.; Freitas, M. Infusion, decoction and hydroalcoholic extracts of leaves from artichoke (Cynara cardunculus L. subsp. cardunculus) are effective scavengers of physiologically relevant ROS and RNS. Food Res. Int. 2014, 64, 150–156. [Google Scholar] [CrossRef] [PubMed]
  14. Fratianni, F.; Tucci, M.; Palma, M.D.; Pepe, R.; Nazzaro, F. Polyphenolic composition in different parts of some cultivars of globe artichoke (Cynara cardunculus L. var. scolymus (L.) Fiori). Food Chem. 2007, 104, 1282–1286. [Google Scholar] [CrossRef]
  15. Pérez-García, F.; Adzet, T.; Cañigueral, S. Activity of artichoke leaf extract on reactive oxygen species in human leukocytes. Free Radic. Res. 2000, 33, 661–665. [Google Scholar] [CrossRef]
  16. Dias, M.I.; Barros, L.; Barreira, J.C.M.; Alves, M.J.; Barracosa, P.; Ferreira, I.C.F.R. Phenolic profile and bioactivity of cardoon (Cynara cardunculus L.) inflorescence parts: Selecting the best genotype for food applications. Food Chem. 2018, 268, 196–202. [Google Scholar] [CrossRef] [Green Version]
  17. Luca, S.V.; Kulinowski, Ł.; Ciobanu, C.; Zengin, G.; Czerwińska, M.E.; Granica, S.; Xiao, J.; Skalicka-Woźniak, K.; Trifan, A. Phytochemical and multi-biological characterization of two Cynara scolymus L. varieties: A glance into their potential large scale cultivation and valorization as bio-functional ingredients. Ind. Crops Prod. 2022, 178, 114623. [Google Scholar] [CrossRef]
  18. Nouraei, S.; Rahimmalek, M.; Saeidi, G. Variation in polyphenolic composition, antioxidants and physiological characteristics of globe artichoke (Cynara cardunculus var. scolymus Hayek L.) as affected by drought stress. Sci. Hortic. 2018, 233, 378–385. [Google Scholar] [CrossRef]
  19. Kuczmannova, A.; Gal, P.; Varinska, L.; Treml, J.; Kovac, I.; Novotny, M.; Vasilenko, T.; Dall’Acqua, S.; Nagy, M.; Mucaji, P. Agrimonia eupatoria L. and Cynara cardunculus L. Water Infusions: Phenolic Profile and Comparison of Antioxidant Activities. Molecules 2015, 20, 20538–20550. [Google Scholar] [CrossRef] [Green Version]
  20. Kollia, E.; Markaki, P.; Zoumpoulakis, P.; Proestos, C. Comparison of Different Extraction Methods for the Determination of the Antioxidant and Antifungal Activity of Cynara scolymus and C. cardunculus Extracts and Infusions. Nat. Prod. Commun. 2017, 12, 423–426. [Google Scholar] [CrossRef] [Green Version]
  21. Pagano, I.; Piccinelli, A.L.; Celano, R.; Campone, L.; Gazzerro, P.; De Falco, E.; Rastrelli, L. Chemical profile and cellular antioxidant activity of artichoke by-products. Food Funct. 2016, 7, 4841–4850. [Google Scholar] [CrossRef] [PubMed]
  22. Ito, H.; Takemura, N.; Sonoyama, K.; Kawagishi, H.; Topping, D.L.; Conlon, M.A.; Morita, T. Degree of polymerization of inulin-type fructans differentially affects number of lactic acid bacteria, intestinal immune functions, and immunoglobulin A secretion in the rat cecum. J. Agric. Food Chem. 2011, 59, 5771–5778. [Google Scholar] [CrossRef] [PubMed]
  23. Istat. Available online: https://www.istat.it/ (accessed on 22 April 2022).
  24. Pandino, G.; Courts, F.L.; Lombardo, S.; Mauromicale, G.; Williamson, G. Caffeoylquinic acids and flavonoids in the immature inflorescence of globe artichoke, wild cardoon, and cultivated cardoon. J. Agric. Food Chem. 2010, 58, 1026–1031. [Google Scholar] [CrossRef] [PubMed]
  25. Lombardo, S.; Pandino, G.; Mauromicale, G.; Knödler, M.; Carle, R.; Schieber, A. Influence of genotype, harvest time and plant part on polyphenolic composition of globe artichoke [Cynara cardunculus L. var. scolymus (L.) Fiori]. Food Chem. 2010, 119, 1175–1181. [Google Scholar] [CrossRef]
  26. de Falco, B.; Incerti, G.; Pepe, R.; Amato, M.; Lanzotti, V. Metabolomic Fingerprinting of Romaneschi Globe Artichokes by NMR Spectroscopy and Multivariate Data Analysis. Phytochem. Anal. 2016, 27, 304–314. [Google Scholar] [CrossRef]
  27. Siddiqui, R.A.; Moghadasian, M.H. Nutraceuticals and Nutrition Supplements: Challenges and Opportunities. Nutrients 2020, 12, 1593. [Google Scholar] [CrossRef]
  28. Carrizzo, A.; Moltedo, O.; Damato, A.; Martinello, K.; Di Pietro, P.; Oliveti, M.; Acernese, F.; Giugliano, G.; Izzo, R.; Sommella, E.; et al. New Nutraceutical Combination Reduces Blood Pressure and Improves Exercise Capacity in Hypertensive Patients Via a Nitric Oxide-Dependent Mechanism. J. Am. Heart Assoc. 2020, 9, e014923. [Google Scholar] [CrossRef]
  29. Chaloupkova, P.; Petrtyl, M.; Verner, V.; Kokoska, L. Dietary supplements versus functional foods: Consumers’ attitudes to their consumption. Br. Food J. 2020, 122, 3853–3868. [Google Scholar] [CrossRef]
  30. Cerulli, A.; Masullo, M.; Piacente, S. Metabolite Profiling of Helichrysum italicum Derived Food Supplements by (1)H-NMR-Based Metabolomics. Molecules 2021, 26, 6619. [Google Scholar] [CrossRef]
  31. Orbenes, G.; Rodriguez-Seoane, P.; Torres, M.D.; Chamy, R.; Zuniga, M.E.; Dominguez, H. Valorization of Artichoke Industrial By-Products Using Green Extraction Technologies: Formulation of Hydrogels in Combination with Paulownia Extracts. Molecules 2021, 26, 4386. [Google Scholar] [CrossRef]
  32. Masullo, M.; Mari, A.; Cerulli, A.; Bottone, A.; Kontek, B.; Olas, B.; Pizza, C.; Piacente, S. Quali-quantitative analysis of the phenolic fraction of the flowers of Corylus avellana, source of the Italian PGI product “Nocciola di Giffoni”: Isolation of antioxidant diarylheptanoids. Phytochemistry 2016, 130, 273–281. [Google Scholar] [CrossRef] [PubMed]
  33. Masullo, M.; Cerulli, A.; Montoro, P.; Pizza, C.; Piacente, S. In depth LC-ESIMS(n)-guided phytochemical analysis of Ziziphus jujuba Mill. leaves. Phytochemistry 2019, 159, 148–158. [Google Scholar] [CrossRef] [PubMed]
  34. Materska, M.; Olszówka, K.; Chilczuk, B.; Stochmal, A.; Pecio, Ł.; Pacholczyk-Sienicka, B.; Piacente, S.; Pizza, C.; Masullo, M. Polyphenolic profiles in lettuce (Lactuca sativa L.) after CaCl2 treatment and cold storage. Eur. Food Res. Technol. 2019, 245, 733–744. [Google Scholar] [CrossRef] [Green Version]
  35. Mari, A.; Napolitano, A.; Masullo, M.; Pizza, C.; Piacente, S. Identification and quantitative determination of the polar constituents in Helichrysum italicum flowers and derived food supplements. J. Pharm. Biomed. Anal. 2014, 96, 249–255. [Google Scholar] [CrossRef] [PubMed]
  36. Kilinc, H.; Masullo, M.; D’Urso, G.; Karayildirim, T.; Alankus, O.; Piacente, S. Phytochemical investigation of Scabiosa sicula guided by a preliminary HPLC-ESIMS(n) profiling. Phytochemistry 2020, 174, 112350. [Google Scholar] [CrossRef] [PubMed]
  37. Cerulli, A.; Masullo, M.; Montoro, P.; Hosek, J.; Pizza, C.; Piacente, S. Metabolite profiling of “green” extracts of Corylus avellana leaves by (1)H NMR spectroscopy and multivariate statistical analysis. J. Pharm. Biomed. Anal. 2018, 160, 168–178. [Google Scholar] [CrossRef] [PubMed]
  38. Cerulli, A.; Napolitano, A.; Hosek, J.; Masullo, M.; Pizza, C.; Piacente, S. Antioxidant and in vitro preliminary anti-inflammatory activity of Castanea sativa (Italian cultivar “marrone di roccadaspide” PGI) burs, leaves and chestnuts extracts and their metabolite profiles by LC-ESI/LTQOrbitrap/MS/MS. Antioxidants 2021, 10, 278. [Google Scholar] [CrossRef]
  39. Balestrieri, C.; Felice, F.; Piacente, S.; Pizza, C.; Montoro, P.; Oleszek, W.; Visciano, V.; Balestrieri, M.L. Relative effects of phenolic constituents from Yucca schidigera Roezl. bark on Kaposi’s sarcoma cell proliferation, migration, and PAF synthesis. Biochem. Pharmacol. 2006, 71, 1479–1487. [Google Scholar] [CrossRef]
  40. Santos, C.C.D.; Masullo, M.; Cerulli, A.; Mari, A.; Estevam, C.D.; Pizza, C.; Piacente, S. Isolation of antioxidant phenolics from Schinopsis brasiliensis based on a preliminary LC-MS profiling. Phytochemistry 2017, 140, 45–51. [Google Scholar] [CrossRef]
  41. Thaipong, K.; Boonprakob, U.; Crosby, K.; Cisneros-Zevallos, L.; Hawkins Byrne, D. Comparison of ABTS, DPPH, FRAP, and ORAC assays for estimating antioxidant activity from guava fruit extracts. J. Food Compos. Anal. 2006, 19, 669–675. [Google Scholar] [CrossRef]
  42. Masullo, M.; Lauro, G.; Cerulli, A.; Bifulco, G.; Piacente, S. Corylus avellana: A Source of Diarylheptanoids With alpha-Glucosidase Inhibitory Activity Evaluated by in vitro and in silico Studies. Front. Plant Sci. 2022, 13, 805660. [Google Scholar] [CrossRef] [PubMed]
  43. Cerulli, A.; Napolitano, A.; Masullo, M.; Hosek, J.; Pizza, C.; Piacente, S. Chestnut shells (Italian cultivar “Marrone di Roccadaspide” PGI): Antioxidant activity and chemical investigation with in depth LC-HRMS/MSn rationalization of tannins. Food Res. Int. 2020, 129, 108787. [Google Scholar] [CrossRef] [PubMed]
  44. Masullo, M.; Cerulli, A.; Pizza, C.; Piacente, S. Pouteria lucuma Pulp and Skin: In Depth Chemical Profile and Evaluation of Antioxidant Activity. Molecules 2021, 26, 5236. [Google Scholar] [CrossRef] [PubMed]
  45. Masullo, M.; Cerulli, A.; Mari, A.; de Souza Santos, C.C.; Pizza, C.; Piacente, S. LC-MS profiling highlights hazelnut (Nocciola di Giffoni PGI) shells as a byproduct rich in antioxidant phenolics. Food Res. Int. 2017, 101, 180–187. [Google Scholar] [CrossRef]
  46. Naveed, M.; Hejazi, V.; Abbas, M.; Kamboh, A.A.; Khan, G.J.; Shumzaid, M.; Ahmad, F.; Babazadeh, D.; Xia, F.F.; Modarresi-Ghazani, F.; et al. Chlorogenic acid (CGA): A pharmacological review and call for further research. Biomed. Pharmacother. 2018, 97, 67–74. [Google Scholar] [CrossRef]
  47. Magana, A.A.; Kamimura, N.; Soumyanath, A.; Stevens, J.F.; Maier, C.S. Caffeoylquinic acids: Chemistry, biosynthesis, occurrence, analytical challenges, and bioactivity. Plant J. 2021, 107, 1299–1319. [Google Scholar] [CrossRef]
Molecules 27 03328 g001 550

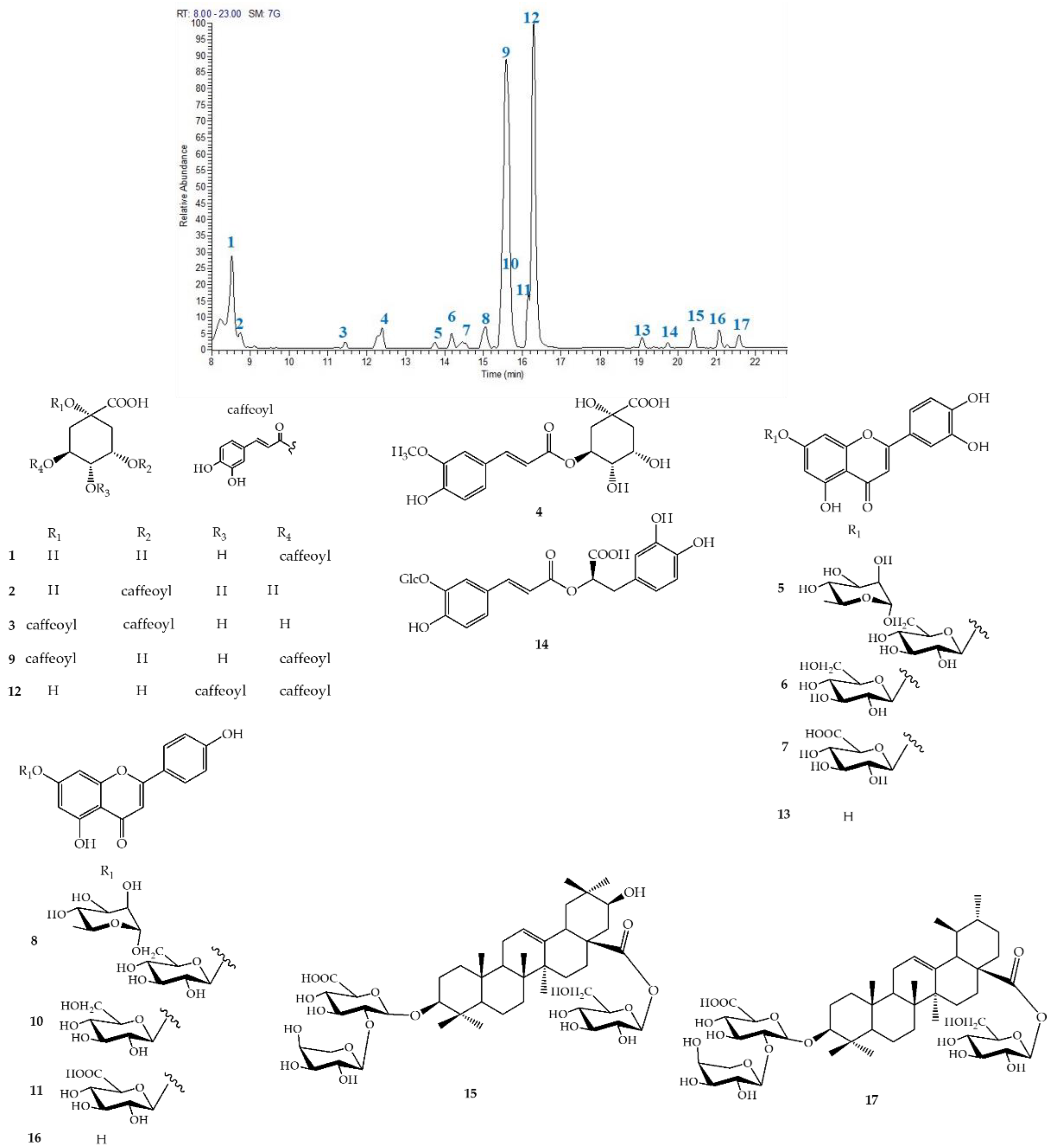

Figure 1. Specialized metabolites isolated from MeOH extract of C. cardunculus subsp. scolymus: cultivar “Carciofo di Paestum” PGI.
Figure 1. Specialized metabolites isolated from MeOH extract of C. cardunculus subsp. scolymus: cultivar “Carciofo di Paestum” PGI.
Molecules 27 03328 g001
Molecules 27 03328 g002 550

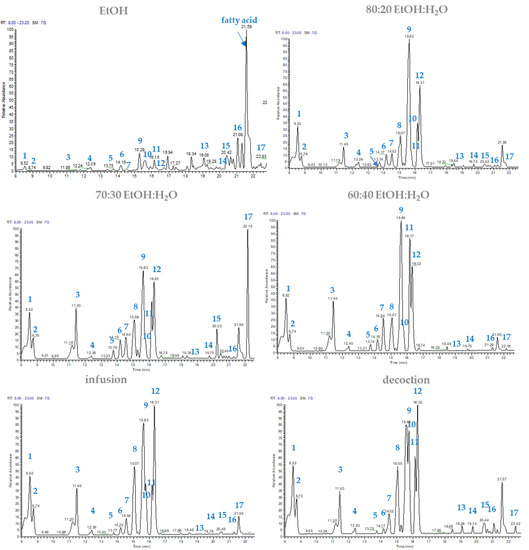

Figure 2. LC-ESI/QExactive/MS profile of different extracts of heads of “Carciofo di Paestum” PGI.
Figure 2. LC-ESI/QExactive/MS profile of different extracts of heads of “Carciofo di Paestum” PGI.
Molecules 27 03328 g002
Molecules 27 03328 g003 550
Figure 3. Principal component analysis of specialized metabolites in artichoke extracts obtained by LC-MS targeted analysis: (A) PCA score scatter plot; (B) PCA loading plot; (C) PCA loading column plots. CQA, caffeoylquinic acid; FQA, feruloylquinic acid; diCQA, dicaffeoylquinic acid; rut, rutinoside; glc, glucoside; glcA, glucuronide.
Figure 3. Principal component analysis of specialized metabolites in artichoke extracts obtained by LC-MS targeted analysis: (A) PCA score scatter plot; (B) PCA loading plot; (C) PCA loading column plots. CQA, caffeoylquinic acid; FQA, feruloylquinic acid; diCQA, dicaffeoylquinic acid; rut, rutinoside; glc, glucoside; glcA, glucuronide.
Molecules 27 03328 g003
Molecules 27 03328 g004 550
Figure 4. Principal component analysis of primary metabolites in artichoke extracts obtained by NMR targeted analysis: (A) PCA score scatter plot; (B) PCA loading plot; (C) PCA loading column plots.
Figure 4. Principal component analysis of primary metabolites in artichoke extracts obtained by NMR targeted analysis: (A) PCA score scatter plot; (B) PCA loading plot; (C) PCA loading column plots.
Molecules 27 03328 g004
Molecules 27 03328 g005 550
Figure 5. Phenolic content, TEAC, DPPH, and α-glucosidase assays of MeOH and green extracts of C. cardunculus subsp. scolymus, cultivar “Carciofo di Paestum” PGI.
Figure 5. Phenolic content, TEAC, DPPH, and α-glucosidase assays of MeOH and green extracts of C. cardunculus subsp. scolymus, cultivar “Carciofo di Paestum” PGI.
Molecules 27 03328 g005
Table
Table 1. Quantitative results of compounds 1 and 9 (mg/g extract ± SD) in extracts of C. cardunculus subsp. scolymus heads.
Table 1. Quantitative results of compounds 1 and 9 (mg/g extract ± SD) in extracts of C. cardunculus subsp. scolymus heads.
CompoundMeOHEtOHEtOH:H2O 80:20 EtOH:H2O 70:30 EtOH:H2O 60:40 InfusionDecoction
5-caffeoylquinic acid (1)0.49 ± 0.052.15 ± 0.301.71 ± 0.121.36 ± 0.200.90 ± 0.045.05 ± 0.712.90 ± 0.13
1,5-dicaffeoylquinic acid (9)26.15 ± 3.8827.85 ± 0.4158.05 ± 0.9230.45 ± 0.5036.60 ± 1.2787.65 ± 6.2965.50 ± 4.50
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Cerulli, A.; Masullo, M.; Pizza, C.; Piacente, S. Metabolite Profiling of “Green” Extracts of Cynara cardunculus subsp. scolymus, Cultivar “Carciofo di Paestum” PGI by 1H NMR and HRMS-Based Metabolomics. Molecules 2022, 27, 3328. https://doi.org/10.3390/molecules27103328

AMA Style

Cerulli A, Masullo M, Pizza C, Piacente S. Metabolite Profiling of “Green” Extracts of Cynara cardunculus subsp. scolymus, Cultivar “Carciofo di Paestum” PGI by 1H NMR and HRMS-Based Metabolomics. Molecules. 2022; 27(10):3328. https://doi.org/10.3390/molecules27103328

Chicago/Turabian Style

Cerulli, Antonietta, Milena Masullo, Cosimo Pizza, and Sonia Piacente. 2022. "Metabolite Profiling of “Green” Extracts of Cynara cardunculus subsp. scolymus, Cultivar “Carciofo di Paestum” PGI by 1H NMR and HRMS-Based Metabolomics" Molecules 27, no. 10: 3328. https://doi.org/10.3390/molecules27103328

Article Metrics

Back to TopTop
