Comparative Analysis of the Floral Fragrance Compounds of Panax notoginseng Flowers under the Panax notoginseng-pinus Agroforestry System Using SPME-GC-MS

by
Siyu Chen
1,2,†,
Rui Rui
1,†,
Shu Wang
2,3,* and
Xiahong He
1,*
1
Key Laboratory for Forest Resources Conservation and Utilization in the Southwest Mountains of China, Ministry of Education, Southwest Forestry University, Kunming 650224, China
2
Department of Horticulture, College of Landscape Architecture and Horticulture, Southwest Forestry University, Kunming 650224, China
3
Southwest Landscape Architecture Engineering Research Center of National Forestry and Grassland Administration, Kunming 650224, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2022, 27(11), 3565; https://doi.org/10.3390/molecules27113565
Submission received: 1 May 2022 / Revised: 27 May 2022 / Accepted: 30 May 2022 / Published: 1 June 2022
(This article belongs to the Collection Recent Advances in Flavors and Fragrances)
Browse Figures
Review Reports Versions Notes

Abstract

:
Panax notoginseng is a medicinal plant in China, the flowers of which have high medicinal value. To study the differences in the floral fragrance compounds of P. notoginseng flowers (bionic wild cultivation) from the forests of Yunnan Province, the floral fragrance compounds from four varieties of P. notoginseng flowers (four-forked seven leaves, three-forked seven leaves, four-forked five–seven leaves, and three-forked five–six leaves) were compared and analyzed via headspace solid phase microextraction combined with gas chromatography–mass spectrometry methods. A total of 53 floral fragrance compounds from the P. notoginseng flowers were divided into eight categories, mainly consisting of terpenes, alkynes, aromatic hydrocarbons, and alcohols. Moreover, high contents of 3-carene, germacrene D, (−)-α-gurjunene, valencene, (+)-γ-gurjunene, menogene, and aromandendrene were identified from the flowers of different P. notoginseng varieties. Interestingly, floral fragrance compounds such as 3-carene, valencene, aromandendrene, menogene, and (+)-γ-gurjunene were first reported in the flowers of P. notoginseng. Cluster analysis showed that P. notoginseng with four-forked and three-forked leaves clustered into two subgroups, respectively. In addition, principal component analysis showed that (+)-γ-gurjunene, (+)-calarene, copaene, 1,8,12-bisabolatriene, γ-elemene, (–)-aristolene, caryophyllene, 3-carenes, and 2,6-dimethyl-1,3,6-heptatriene can be used to distinguish the floral fragrance components of four P. notoginseng flower species. This study provides a theoretical basis for elucidating the floral fragrance compounds emitted from the flowers of different P. notoginseng varieties in an agroforestry system.

1. Introduction

Panax notoginseng, also known as Tianqi and Sanqi, is a perennial herb that belongs to the Araliaceae family [1]. P. notoginseng is a precious medicinal plant in China, and it mainly grows in some areas of the Yunnan and Guangxi provinces. The flowers of P. notoginseng are valuable medicinal material, and they function in clearing away heat, in detoxification, in calming the liver, in improving eyesight and in the production of saliva, and in the quenching of thirst [2]. These functions are a result of the variety of active components that are present in P. notoginseng flowers, such as olefin compounds [3,4], ginsenoside (Rb1, RC, RB3, Rb2, and Rd) [5,6], and polyphenols. Moreover, the polyphenol content in P. notoginseng flowers is significantly higher than the content in the P. notoginseng root [7], where polyphenols have strong antioxidant activity [8], function in the protection of the cardiovascular and cerebrovascular systems, have anti-tumor properties, and assist in the prevention of neurological diseases [9]. In addition, P. notoginseng can be used as an additive in food [10], as a material for the development of new drugs [11], for tea beverages [12], and even in shampoo [12]. Therefore, a study on the floral fragrance compounds of P. notoginseng flowers can provide a theoretical foundation for the processing of edible products, thus aiding in the development and utilization of medicines.
There were significant differences in the floral components of different medicinal plants with different species. Studies have shown that there are 30, 31, 31, and 20 kinds of aroma components in four different varieties of Dendrobium orchid (Dendrobium aphyllum, D. nobile, D. candidum, and D. loddigesii), respectively, and although the common floral fragrance components mainly consist of trans-α-ocimene and β-myrcene [13,14,15], the contents of the volatile substances are different. Similar results have shown that the types and contents of the floral fragrance components in different varieties of lotus (Honghu red lotus, Hongwanwan, Hongpeony, Baiwanwan, and yellow peony) were also different, i.e., 33, 34, 33, and 32, with the highest contents being alkanes, olefins, and alcohols [16]. In addition, the researchers studied the floral fragrance components of six varieties of peony (Peony’Zhaofen, Luoyanghong, Fengdanbai, Zhongwu, High noon, Renown, and Gaoyuanshenghuo’) and found significant differences in the total amount of floral fragrance released by the six varieties, which were 48, 45, 44, 44, 28, and 40 compounds, respectively [17]. Furthermore, 19, 18, 11, and 20 floral fragrance compounds were detected in four varieties of wax plums with different fragrance types in Yunnan, the main components of which were α-ocimene, benzyl alcohol, benzyl acetate, and eugenol [18]. The eight cultivars also differed in the aromas (white, pink, and red flowers) of plum blossoms of different colors, with 18–23 aroma components [19]. As mentioned above, the flowers of the different plant varieties, floral fragrance types, and flower colors are closely related to the floral components of the plants.
Light, temperature, rhythm, and different environments, as well as the plant variety, all play roles in the fragrance of plant flowers. Zou Jingjing [20] and others found that the aroma substances and the related chemical content in Osmanthus fragrans changed significantly under light and dark treatments, and continuous light and dark conditions were able to reduce the release of aroma-active substances. Therefore, light is an important factor that affects the floral fragrance of plants. At the same time, differences in temperature also affect the floral aroma components and types. Studies have shown that with an increase in temperature (10, 20, and 30 °C), the types of aroma components in Oncidium gradually increase (24, 33, and 43) [21]. As far as the floral components are concerned, the content of sweet-scented Osmanthus components (ketones, monoterpenes, and oxidized derivatives) increased at lower temperatures (4 °C). On the contrary, the content of esters increased with an increase in temperature (45 °C) [20]. In addition, under different rhythm conditions, the number and content of floral components showed a trend of first increasing and then decreasing; this was the case with lily [22] and Osmanthus [23]. Similarly, there were significant differences in the floral aroma compounds of plants from different geographical regions. For example, the same variety of wax plum blossom has different floral aroma compounds in Yunnan [18], Zhejiang [24], Jiangxi [25], Sichuan [26], and other regions. As mentioned above, the light, temperature, rhythm, and different environmental conditions have important effects on the floral fragrance. Compared with the environment in which P. notoginseng is grown within traditional agriculture, the growth environment of bionic wild-cultivated P. notoginseng under pine trees is significantly different, and therefore, this may affect the floral fragrance compounds of P. notoginseng flowers. However, there have been no reports of changes in the floral composition in flowers of different P. notoginseng varieties grown under pine trees.
After 2015, the agroforestry model of Pine-Sanqi was planted in large quantities in Yunnan (Pu’er, Lincang, Kunming, Qujing, etc.), with an area of approximately 1500 ha. The flowers of P. notoginseng in a conventional agricultural system have a slightly bitter odor, but the flowers of P. notoginseng in the agroforestry system have a different odor, which may be due to environmental factors resulting in the production of some special compounds. Therefore, this study aims to analyze and identify the floral fragrance compounds of the native flowers of four species of P. notoginseng in the agroforestry system in Yunnan via solid phase microextraction (SPME)/gas chromatography–mass spectrometry (GC-MS) technology, to evaluate and screen valuable P. notoginseng aromatic germplasm resources, and to provide a theoretical and practical basis for the cultivation of P. notoginseng varieties and the development and utilization of future products.

2. Results

2.1. Comparative Analysis of Categories for Floral Fragrance Compounds in the Flowers of Different Varieties of P. notoginseng

The floral scent compounds emitted by the flowers of four P. notoginseng plant varieties are shown in Table 1. Among the four varieties of P. notoginseng in Yunnan, S1, S2, S3, and S4 (four-forked seven leaves, three-forked seven leaves, four-forked five–seven leaves, and three-forked five–six leaves, respectively), a total of eight categories of floral fragrance compounds were detected, including terpenes, alcohols, esters, aromatic hydrocarbons, alkynes, alkanes, aldehydes, and others. Moreover, high-content floral fragrance compounds included terpenes (71.65–84.16%), alcohols (0.31–1.15%), aromatic hydrocarbons (8.87–10.61%), alkynes (2.82–15.85%), and others (0.11–1.17%). However, esters were only detected in S3 (0.34%) and alkanes were only detected in S1 and S3, with contents of 0.88% and 1.00%, respectively. Additionally, aldehyde was the only compound not detected in S2.

2.2. Analysis of Floral Fragrance Compounds in the Flowers of Different Varieties of P. notoginseng

A total of 53 floral fragrance compounds were identified in four varieties of P. notoginseng flowers, of which 35, 36, 39, and 35 components were detected in the varieties S1, S2, S3, and S4, respectively (Table 2), with relatively high contents of 3-carene, menogene, (−)-α-gurjunene, germacrene D, (+)-γ-gurhunene, and 2,4-diethyl-2,3-octadien-5-in. For each category, there was a high content of included terpenes (germacrene D at 11.47–27.25%, 3-carene at 15.63–25.69%, and (−)-α-gurjunene at 12.22–12.67%), aromatic hydrocarbons (+)-γ-gurhunene at 5.33–10.56%, and alkynes 2,4-diethyl-2,3-octadiene-5-in at 2.94–4.04%.

2.3. Analysis of Floral Fragrance Compounds (>1%) in the Flowers of Different Varieties of P. notoginseng

Figure 1 presents a total of 24 floral fragrance compounds (>1%) in P. notoginseng flowers, including 3-carene, germacrene D, valencene, (−)-α-gurjunene, (+)-γ-gurjunene, aromandendrene, menogene, 2,4-diethyl-2,3-octadiene-5-in, trans-alloocimene, 2,6-dimethyl-1,3,6-heptatriene, (+)-calarene, copaene, β-cadinene, terpinolene, caryophyllene, (−)-α-pinene, γ-elemene, (−)-aristolene, β-copaene, 2-(3-methyl-but-ynyl)-cyclohexene-1-carboxaldehyde, cis-muurola-3,5-diene, 1,8,12-bisabolatriene, 5,6-decadien-3-yne,5,7-diethyl, and (−)-α-muurolene. Moreover, there were high levels of 3-carene (15.63–25.69%), germacrene D (11.47–27.25%), valencene (1.17–14.44%), and (−)-α-gurjunene (12.22–12.67%) in the flowers of different P. notoginseng varieties. In addition, some P. notoginseng varieties included special floral fragrance compounds. For example, cis-muurola-3,5-diene and (−)-α-muurolene were only detected in the flowers of S4, and 5,6-decadien-3-yne,5,7-diethyl was only detected in the flowers of S2. Floral fragrance compounds such as β-copaene, 2-(3-methyl-but-ynyl)-cyclohexene-1-carboxaldehyde, γ-Elemene, and 1,8,12-bisabolatriene were absent in S2 and S4.

2.4. Hierarchical Cluster Analysis of Floral Fragrance Compounds in the Flowers of P. notoginseng

To explore the relationship between the floral fragrance compounds and different P. notoginseng varieties within an agroforestry system, hierarchical cluster analysis was performed on the main floral fragrance compounds (>1%) in the flowers of P. notoginseng (S1, S2, S3, and S4). As shown in Figure 2, β-cadinene, caryophyllene, (−)-aristolene, and copaene in S1 and S2 were similar and clustered into one subgroup. In addition, a high content of valencene, cis-muurola-3,5-diene, (+)- γ-gurjunene in S4, and (+)-calarene in S3 was detected; hence, S3 and S4 clustered into two subgroups.

2.5. Principal Component Analysis of Floral Fragrance Components in the Flowers of P. notoginseng

As shown in Figure 3, principal component analysis was conducted on the floral fragrance components of the flowers of P. notoginseng within an agroforestry system. The variances of PC1, PC2, and PC3 were 42.319%, 34.263%, and 23.418%, respectively. The highest loading values in each PC were used as the main factor, with five compounds having the highest loading values in PC1, namely (+)-γ-gurjunene, (+)-calarene, copaene, 1,8,12-bisabolatriene, and γ-elemene. In addition, (−)-aristolene, caryophyllene, 3-carenes, and 2,6-dimethyl-1,3,6-heptatriene were the four substances that contributed the most to PC2 and PC3. As a result, the three compounds with the highest loading values in each of the three PCs were selected as the main factors, which showed that (+)-γ-gurjunene, (+)-calarene, copaene, 1,8,12-bisabolatriene, and γ-elemene indole contributed the most to the floral fragrance compounds. Therefore, the variables were divided into (+)-γ-gurjunene, (+)-calarene, copaene, 1,8,12-bisabolatriene, γ-elemene, (−)-aristolene, caryophyllene, (−)-aristolene, caryophyllene, 3-carenes, and 2,6-dimethyl-1,3,6-heptatriene, as they were also representative floral fragrance compounds of P. notoginseng within the different varieties in the agroforestry system.

3. Discussion

Flower fragrance is a secondary metabolite that contains particular chemical information; it consists of various low molecular weight compounds and mixtures with low boiling points [27]. Flower fragrance is an important component of plant volatile compounds [28] that are released from plants [29]. Presently, most previous studies have focused on the identification of volatile oil components of the P. notoginseng flower, but the identification of the floral fragrance compounds of the P. notoginseng flower have not been reported. In this study, the floral fragrance compounds of four species of P. notoginseng flowers were identified, and a total of 53 compounds were detected in the floral fragrance compounds of P. notoginseng flowers, which were similar to the volatile oil components (55) of P. notoginseng flowers in Wenshan, Yunnan [30]. However, the components of their volatile compounds exhibited differences. In addition, inconsistent findings have shown that volatiles vary significantly in terms of quantity and composition; for example, 24 and 37 volatile oil components in P. notoginseng flowers and 34 volatile oil components in P. notoginseng plants [31,32,33,34]. Therefore, it is evident that there is an inconsistency between the floral compounds of the P. notoginseng flower and the compounds in the volatile oils of the P. notoginseng flower.
The major components of the floral fragrance compounds of P. notoginseng in the forest include terpenes (30), alcohols (5), and hydrocarbons (11). This result is similar to that of P. notoginseng in Wenshan, Yunnan, where the volatile oil contains mainly terpenes (terpenes and their oxygenated derivatives) [30]. However, this is different from the results of the previous study, where the main components of volatile oils in P. notoginseng flowers in Guangxi and Yunnan Wenshan are terpenes (3, 6), hydrocarbons (12, 6) [31], and esters. In addition, many studies have shown that the main components isolated from the volatile oils of P. notoginseng are monoterpenes, sesquiterpenes, and their derivatives [32,33,34]. As mentioned above, it is suggested that terpenes are one of the main floral fragrance compounds and volatile oils in the P. notoginseng flower. Interestingly, a high level of terpenes (3-carene, valencene, aromandendrene, and menogene) in the floral fragrance compounds was not detected in the volatile oils of P. notoginseng flowers from the Yunnan and Guangxi provinces [30,31]. The terpenes (−)-α-gurjunene and germacrene D were identified in the volatile oils of P. notoginseng flowers in Wenshan, Yunnan [32]. In addition, the contents of some terpenoids (α-guaiene, alloaromadendrene, and γ-elemene) were lower in the floral compounds of P. notoginseng flowers and higher in the volatile oils of P. notoginseng [34]. These results were in accordance with the previous study, where the floral fragrance compounds of Michelia maudiae were different from its volatile oil compounds [35]. Although the floral fragrance compounds and the volatile oil components of the P. notoginseng flowers from the forest understory had some common volatiles, new floral fragrance compounds, including 3-carene, valencene, aromandendrene, menogene, and (+)-γ-gurjunene, were observed in our study. This may be due to the bionic wild cultivation of P. notoginseng under pine trees without the application of fertilizers and pesticides, which are different from P. notoginseng plantations in traditional agriculture. Therefore, we speculate that the pattern of cultivation, and the fertilizers and pesticides applied, had an effect on the floral fragrance compounds of the flowers. Furthermore, the light and temperature of the agroforestry system have changed with land-use conversion processes, which has also affected the floral fragrance compounds of Sanqi flowers. Previous results have shown that both light and temperature have effects on the fragrance component of Osmanthus fragrans [20]. In addition, the floral fragrance compounds were affected by the geographical regions. For example, different floral fragrance compounds were observed in Chimonanthus precox in Yunnan, Zhejiang, Jiangxi, and Sichuan [18,24,25,26]. In summary, light, temperature, and environment are the main factors that result in variations of floral fragrance components.
Previous studies have shown that there are large differences in floral fragrance components between different plant varieties, especially with regard to flower shapes, colors, and aroma types. A high content of floral fragrance compounds, including 3-carene (15.63–25.69%), germacrene D (11.47–27.25%), valencene (1.17–14.44%), and (−)-α-gurjunene (12.22–12.67%) were found in different varieties of P. notoginseng flowers. However, some floral fragrance compounds, such as cis-muurola-3,5-diene (S4), (−)-α-muurolene (S4), β-copaene (S1, S3), and 5,6-decadien-3-yne,5,7-diethyl (S2), were detected only in certain varieties. The main differences between different species of P. notoginseng are that, although the flower morphology is the same, the numbers of forks and leaves are different, and these differences may lead to differences in the floral fragrance compounds of P. notoginseng flowers. Based on transcriptome analysis, different varieties of peony [27] and lily [28] differ in terms of the related genes that are involved in floral fragrance, while the synthesis of floral fragrance compounds is mainly influenced by the expression of related genes, the regulation of enzyme activities, and the involvement of biosynthetic pathways [36]. Therefore, we speculate that different genes that are involved in the pathways related to floral fragrance synthesis in different varieties may lead to the differences in floral fragrance composition. Floral fragrance compounds in the flowers of P. notoginseng in an agroforestry system contain some active components. For example, a high content of 3-carene, which is a natural monoterpene, has been shown to confer antibacterial activity [37]. Germacrene D and spatulenol regulate defense and pollination, and anti-inflammatory effects, respectively [38]. A low content of caryophyllene and β-cadiene in floral fragrance compounds with anti-asthmatic, antitussive, and expectorant effects [30] is consistent with the effect of P. notoginseng flowers on the treatment of pharyngitis [39]. In addition, some unique floral fragrance compounds, such as α-guaiene and β-copaene, are linked to the relief of coughs and the reduction in phlegm [30] and to antioxidant activity, respectively [40]. In our next steps of the study, we will analyze and test the pharmacological activities of the main floral fragrance compounds in P. notoginseng flowers, as this will provide a basis for future applications.

4. Materials and Methods

4.1. Plant Materials

Plant materials were selected from P. notoginseng varieties grown in a forest in Xundian County, Kunming City, Yunnan Province (103°12′45″ E, 25°28′18″ N). In January 2019, 1-year-old P. notoginseng seedlings were selected and transplanted into the forest for growth. Weeds were first removed from the soil where P. notoginseng was planted. After tillage, P. notoginseng was planted with a planting density of 5 × 5 cm. The slope generally varied between 5 and 15°, and the monopoly width was approximately 120 cm. The planting regulations of P. notoginseng-pinus in an agroforestry system are shown in Figure 4. P. notoginseng with different species were planted as follows: a four–fork seven leaf (four palmately compound leaves and seven leaves), a three-fork seven leaf (three palmately compound leaves and seven leaves), a four–fork five–seven leaf (four palmately compound leaves, one of which consists of five leaves and the other three consisting of seven leaves), and a three–fork five leaf (three palmately compound leaves, one of which has six leaves and the other two have five leaves), which were numbered S1, S2, S3, and S4, respectively. The morphological characteristics of the four varieties are shown in Figure 5.

4.2. Sample Collection

At 10:00 am on 10 August 2021, flowers from different P. notoginseng varieties (biennial) with healthy growth and no disease were selected for experiment. The experiment was set up in three repetitions, for a total of 12 bottles. The flowers (five flowers/bottle) were sampled and then weighed and placed into a 20 mL SPME bottle (clear glass, flat bottom; 20 mm open seal with PTFE/silicone septa, aluminum crush cap, Thermo Fisher Scientific, Waltham, MA, USA). Subsequently, the samples were sealed with sealing pliers for floral fragrance analysis.

4.3. HS-SPME Analysis

The optimization of SPME-GC/MS based on the methods of Chimonanthus praecox was performed in our study [18]. A 100 μm PDMS SPME fiber (American Supelco Company) was combined with an SPME automatic sampler device for HS-SPME analysis. After the sample was equilibrated at room temperature for 30 min, the floral fragrance substances of the P. notoginseng flower were adsorbed into the extraction fiber. Before sampling the floral fragrance substance, the GC-MS inlet of the SPME fiber was adjusted to 250 °C for 40 min. The fiber was then inserted into the top of a sealed SPME vial using an SPME autosampler (fiber conditioning temperature of 250 °C, 20 min, TriPlus autosampler, Thermo Fisher Scientific), and the sample was adsorbed at room temperature for 40 min.

4.4. GC-MS Analysis

When the adsorption was complete, the extraction head was withdrawn, inserted into the GC-MS injection port (Trace GC Ultra/ITQ 900, Thermo Fisher Scientific), and dissociated at 250 °C for 20 min, and then the instrument was initiated to collect the data. The GC conditions were as follows: an HP-5MS capillary column with a length of 30 m was used as the chromatographic column, the carrier gas was high-purity helium (99.999%), the flow rate was 1.0 mL/min, and the sample volume was 1 µL without a shunt. The temperature rise procedure was as follows: the injection port temperature was 250 °C, and the starting temperature of the column was 50 °C; this was held for 4 min. The temperature was raised to 150 °C at 10 °C/min, held for 15 min, and then raised to 250 °C at 2 °C/min, and held for 11 min. The MS conditions were as follows: an EI ion source, an ionization energy of 70 eV, an ion source temperature of 230 °C, and a mass scanning range of 50–550 amu.

4.5. Data Analysis

NIST14 (National Institute of Standards and Technology) mass spectrometry database was used for qualitative identification, and only the results with positive and negative matching values greater than 800 were selected for analysis. The RI value was calculated according to the method in references [41,42]. Identification was performed by comparing the mass spectrum with that of the NIST library and by comparison of RI (retention index) with RI of published literatures and online library (https://webbook.nist.gov/chemistry/cas-ser.html (accessed on 20 October 2021)). According to the total ion flow chromatogram (Appendix A), the relative content of each component in the sample was determined using the peak area normalization method. Excel (Microsoft Excel 2010, version 14.0.6106.5005) was used to organize the data, Prism (GraphPad Prism 8, version v8.0.2.263) was used to construct the principal component accumulation diagram of the data, TBtools (Toolbox for Biologists, version v1.03) was used to perform the hierarchical cluster analysis of the data, and SPSS (IBM SPSS Statistics 22.0, version 9.5.0.0) was used for principal component analysis, the calculation of the eigenvector load value, and the study of the main floral fragrance components of P. notoginseng.

5. Conclusions

A total of 53 floral fragrance compounds were identified from different varieties of P. notoginseng in the forest, among which terpenes, alkynes, aromatic hydrocarbons, and alcohols were the main components of the floral aroma of P. notoginseng from the forest understory, while high contents of 3-carene, germacrene D, (−)-α-gurjunene, and valencene were identified in P. notoginseng flowers from the forest understory. (+)-γ-Gurjunene menogene and aromandendrene were also detected. The results showed that these substances were typical for a number of different P. notoginseng flowers in the forest. Cluster analysis showed that the main floral aroma components of S1 and S2 (four-forked seven leaf and three-forked seven leaf) were similar, while S4 (three-forked five–six leaf) were different in terms of main components. In addition, principal component analysis showed that the main substances distinguishing the four varieties of P. notoginseng were (+)-γ-gurjunene, (+)-calarene, copaene, 1,8,12-bisabolatriene, γ-elemene, (−)- aristolene, caryophyllene, 3-carenes, and 2,6-dimethyl-1,3,6-heptatriene.

Author Contributions

Conceptualization, S.W. and X.H.; methodology, S.C.; software, R.R.; formal analysis.; investigation, R.R.; writing—original draft preparation, S.C., S.W. and R.R.; writing—review and editing, S.W. and X.H.; project administration, X.H.; funding acquisition, X.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by China Agriculture Research System of MOF and MARA (CARS-21), Major Science and Technology Project of Yunnan and Kunming (202102AE090042 and 2021JH002), and National and Provincial Excellent Scientist Supporting Programme.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

Appendix A

Molecules 27 03565 g0a1 550

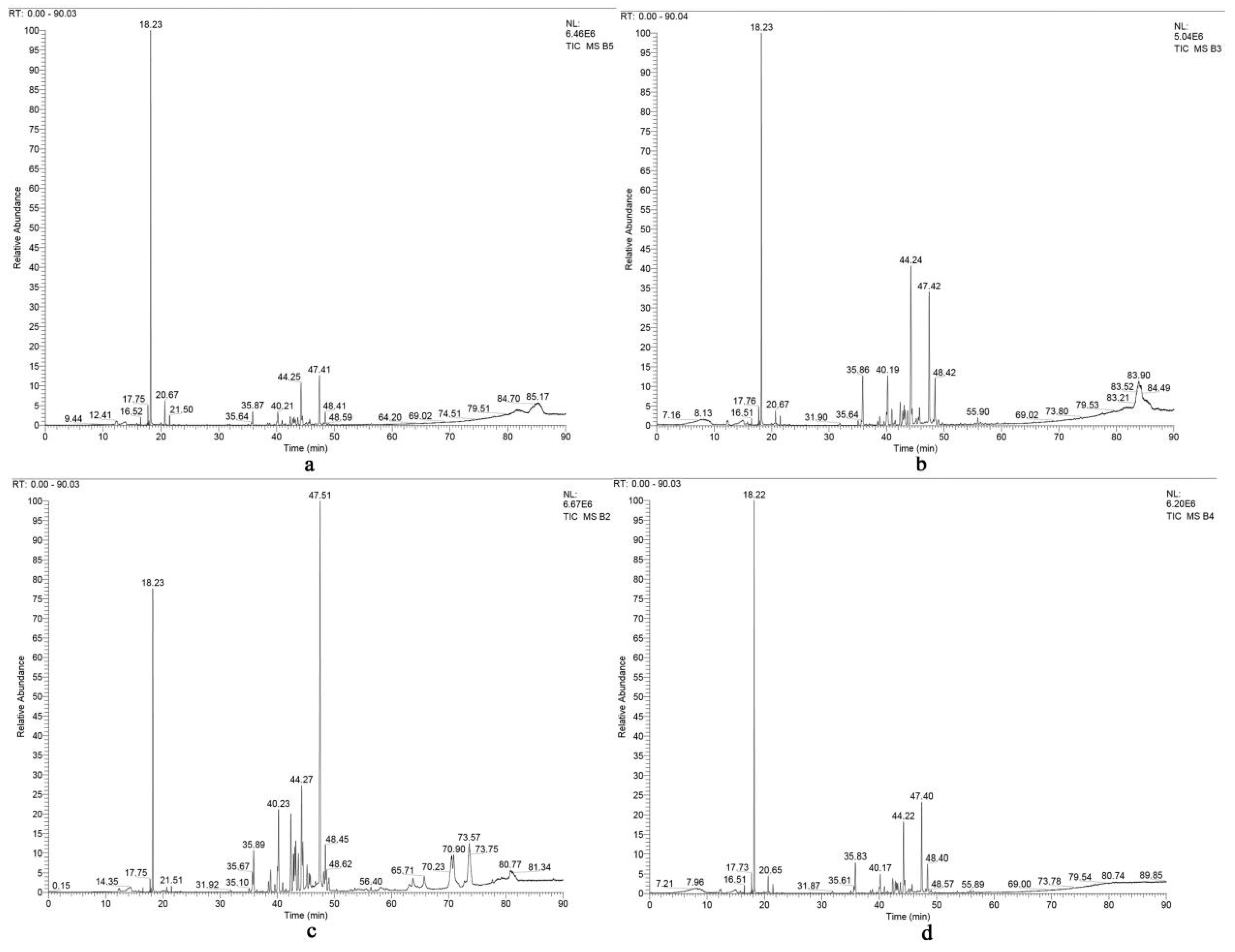

Figure A1. Total ion current diagram of P. notoginseng. Four-forked seven leaves (a), three-forked seven leaves (b), four-forked five–seven leaves (c), and three-forked five–six leaves (d).
Figure A1. Total ion current diagram of P. notoginseng. Four-forked seven leaves (a), three-forked seven leaves (b), four-forked five–seven leaves (c), and three-forked five–six leaves (d).
Molecules 27 03565 g0a1

References

  1. Xu, Q.F.; Fang, X.L.; Chen, D.F. Pharmacokinetics and bioavailability of ginsenoside Rb1 and Rg1 from Panax notoginseng in rats. J. Ethnopharmacol. 2003, 84, 187–192. [Google Scholar] [CrossRef]
  2. Dong, T.X.; Cui, X.M.; Song, Z.H.; Zhao, K.J.; Zhao, N.J.; Lo, C.K.; Karl, W.K. Chemical assessment of roots of Panax notoginseng in China: Regional and seasonal variations in its active constituents. J. Agric. Food Chem. 2003, 51, 4617–4623. [Google Scholar] [CrossRef] [PubMed]
  3. Zhang, S.Q.; Chen, C.L.; Wen, X.; Wei, L. Phytochemistry, pharmacology, and clinical use of Panax notoginseng flowers buds. Phytother. Res. 2018, 32, 2155–2163. [Google Scholar] [CrossRef]
  4. Yoshikawa, M.; Morikawa, T.; Kashima, Y.; Ninomiya, K.; Matsuda, H. Structures of new dammarane-type triterpene Saponins from the flower buds of Panax notoginseng and hepatoprotective effects of principal Ginseng Saponins. J. Nat. Prod. 2003, 66, 922–927. [Google Scholar] [CrossRef] [PubMed]
  5. Liu, Y.; Duan, Z.M.; Xiong, H.Y.; Xu, Y.; Xu, D.X.; Lin, J. Determination of ginsenosides in flower, stem, leaf and root of fresh Panax Notoginseng from Wenshan, Yunnan province. J. Food Saf. Qual. 2017, 8, 3864–3869. [Google Scholar] [CrossRef]
  6. Li, K.K.; Li, S.S.; Xu, F.; Gong, X.J. Six new dammarane-type triterpene saponins from Panax ginseng flower buds and their cytotoxicity. J. Ginseng Res. 2020, 44, 215–221. [Google Scholar] [CrossRef]
  7. Zhu, S.Y. Optimization of extraction process for polyphenolics from Panax notoginseng flowers by response surface methodology and its antioxidant activity. Food Sci. 2015, 36, 65–69. [Google Scholar] [CrossRef]
  8. Muñiz-Márquez, D.B.; Martínez-Ávila, G.C.; Wong-Paz, J.E.; Belmares-Cerda, R.; Rodríguez-Herrera, R.; Aguilar, C.N. Ultrasound assisted extraction of phenolic compounds from Laurus nobilis L. and their antioxidant activity. Ultrason. Sonochem. 2013, 20, 1149–1154. [Google Scholar] [CrossRef]
  9. Scalbert, A.; Johnson, I.T.; Saltmarsh, M. Polyphenols antioxidants and beyond. Am. J. Clin. Nutr. 2005, 81, 215–217. [Google Scholar] [CrossRef]
  10. Wang, P.P.; Zhang, L.; Yao, J.; Shi, Y.K.; Li, P.; Ding, K. An arabinogalactan from flowers of Panax notoginseng inhibits angiogenesis by BMP2/Smad/Id1 signaling. Carbohydr. Polym. 2015, 121, 328–335. [Google Scholar] [CrossRef]
  11. Hong, J.; Hu, J.Y.; Liu, J.H.; Zhou, Z.; Zhao, A.F. In vitro antioxidant and antimicrobial activities of flavonoids from Panax notoginseng flowers. Nat. Prod. Res. 2014, 28, 1260–1266. [Google Scholar] [CrossRef] [PubMed]
  12. Li, F.; Lv, C.N.; Li, Q.; Wang, J.; Song, D.; Liu, P.; Zhang, D.; Lu, J.C. Chemical and bioactive comparison of flowers of Panax ginseng Meyer, Panax quinquefolius L., and Panax notoginseng Burk. J. Ginseng Res. 2017, 41, 487–495. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Cao, H.; Xu, F.; Lu, L.; Ji, Y.L.; Chen, X.; Zhang, B.Q.; Li, H. GC-MS Analysis of volatile components in flowers of four kinds of fragrant dendrobium species. Chin. Agric. Sci. Bull. 2021, 37, 56–62. [Google Scholar] [CrossRef]
  14. Zhang, Y.; Wang, Y.; Li, Z.J.; Tian, M. GC-MS analysis on aroma components in four Dendrobium cultivars. Guangxi Plant 2011, 31, 422–426. [Google Scholar] [CrossRef]
  15. Wang, Y.C.; Zeng, Y.Y.; Li, Z.J.; Liu, Y.X.; Ma, X.H.; Sun, Z.Y. Aroma constituents in flower of Dendrobium hancockii and D. trigonopus based on SPME-GC-MS analysis. Forest Res. 2020, 33, 116–123. [Google Scholar] [CrossRef]
  16. Xu, S.S.; Zhao, X.E.; Liu, Y.Q.; Du, J.H.; Wang, X. Analysis of volatile components from the petals of five varieties of nelumbo nucifera by HS-SPME-GC-MS. Chin. J. Anal. Lab. 2011, 30, 54–56. [Google Scholar] [CrossRef]
  17. Zhao, J.; Hu, Z.H.; Leng, P.S.; Zhang, H.X.; Cheng, F.Y. Fragrance composition in six tree peony cultivars. Hortic. Sci. Technol. 2012, 3, 617–625. [Google Scholar] [CrossRef]
  18. Meng, L.B.; Shi, R.; Wang, Q.; Wang, S. Analysis of floral fragrance compounds of Chimonanthus praecox with different floral colors in Yunnan, China. Separations 2021, 8, 122. [Google Scholar] [CrossRef]
  19. Zhang, T.; Bao, F.; Yang, Y.; Hu, L.; Ding, A.; Ding, A.; Wang, J.; Cheng, T.; Zhang, Q. A comparative analysis of floral scent compounds in intraspecific cultivars of Prunus mume with different corolla colours. Molecules 2019, 25, 145. [Google Scholar] [CrossRef] [Green Version]
  20. Zou, J.J.; Cai, X.; Zeng, X.L.; Chen, H.G.; Wang, C.Y. Effects of light and temperature environmental factors on the content of osmanthus fragrans with characteristic flower colors and aroma substances. In Proceedings of the 2018 Annual Academic Conference of the Chinese Society of Horticulture, Qingdao, China, 17–19 October 2018. [Google Scholar]
  21. Zhang, Y.; Tian, M.; Wang, C.X.; Chen, S. Component analysis and sensory evaluation of the aroma of the perfume Oncidium orchid under different temperature conditions. J. Plant Res. Environ. 2015, 24, 112–114. [Google Scholar] [CrossRef]
  22. Zhang, H.X.; Leng, P.S.; Hu, Z.H.; Zhao, J.; Wang, W.H.; Xu, F. The floral scent emitted from Lilium ‘Siberia’at different flowering stages and diurnal variation. Acta Hortic. Sin. 2013, 40, 693–702. [Google Scholar] [CrossRef]
  23. Shi, T.T.; Yang, X.L.; Wang, L.G. Study on the aroma component emission pattern of Osmanthus fragrans ‘Boye Jingui’. Nanjing For. Univ. 2018, 42, 97–104. [Google Scholar] [CrossRef]
  24. Xu, M.; Zhang, J.W.; Wu, L.S.; Liu, J.J.; Si, J.P.; Zhang, X.F. Determination of volatile components from Chimonanthus flowers by HS-SPME-GC-MS. Sci. Silvae Sin. 2016, 12, 58–65. [Google Scholar] [CrossRef]
  25. Xu, N.J.; Bai, H.B.; Yan, X.J.; Xu, J.L. Analysis of volatile components in essential oil of Chimonanthus nitens by capillary Gas Chromatography-Mass Spectrometry. Instrum. Anal. 2006, 1, 90–93. [Google Scholar] [CrossRef]
  26. Li, Z.G.; Liu, M.C.; Deng, W.; Wang, X.Y.; Wang, G.M.; Yang, Y.W. Comparative analysis of the essential oil from two Chimonanthus praecox cultivars. Fine Chem. 2008, 10, 54–61. [Google Scholar] [CrossRef]
  27. Zhang, Y.; Li, C.Y.; Wang, S.; Yuan, M.; Li, B.J.; Niu, L.X.; Shi, Q.Q. Transcriptome and volatile compounds profiling analyses provide insights into the molecular mechanism underlying the floral fragrance of tree peony. Ind. Crops Prod. 2021, 162, 113286. [Google Scholar] [CrossRef]
  28. Hu, Z.H.; Tang, B.; Wu, Q.; Zheng, J.; Leng, P.S.; Zhang, K.Z. Transcriptome sequencing analysis reveals a difference in monoterpene biosynthesis between scented Lilium ‘Siberia’ and Unscented Lilium ‘Novano’. Front. Plant Sci. 2017, 8, 1351. [Google Scholar] [CrossRef] [Green Version]
  29. Pichersky, E.; Gershenzon, J. The formation and function of plant volatiles: Perfumes for pollinator attraction and defense. Curr. Opin. Plant Biol. 2002, 5, 237–243. [Google Scholar] [CrossRef]
  30. Lv, Q.; Qin, J.; Zhang, P.; Chen, S.L. Simultaneous distillation and solvent extraction and GC/MS analysis of volatile oil from flowers Panax notoginseng. Chin. J. Pharm. Anal. 2005, 25, 284–287. [Google Scholar]
  31. Shuai, F.; Li, X.G. Comparative study on the components of volatile oil in Panax notoginseng flower. Chin. Pharm. Bull. 1986, 9, 513–515. [Google Scholar] [CrossRef]
  32. Xu, C.; Long, P.M.; Wei, J.X.; Liu, R.M.; Cao, S.M. A study on the chemical constituents of the essential oils from flower-buds of Panax notoginseng (Burk.) F.H. Chen. West Chin. J. Pharm. Sci. 1992, 2, 79–82. [Google Scholar]
  33. Lu, Q.; Li, X.G. Study on the constituents of Panax notoginseng volatile oil. Chin. J. Pharm. 1987, 9, 528–530. [Google Scholar]
  34. Shi, L.N.; Liu, R.M.; Cao, S.M.; Liang, N.J.; Wei, J.X. A study on the constituents of volatile oils from marketable Sanqi. J. Kunming Med. Coll. 1989, 4, 6–8. [Google Scholar]
  35. Fang, X.P.; Hu, G.P. Effect of different extract methods on volatile components of Michelia maudiae. Guizhou Agric. Sci. 2010, 38, 81–84. [Google Scholar] [CrossRef]
  36. Hao, R.J.; Zhang, Q.; Yang, W.R.; Wang, J.; Cheng, T.R.; Pan, H.T.; Zhang, Q.X. Emitted and endogenous floral scent compounds of Prunus mume and hybrids. Biochem. Syst. Ecol. 2014, 54, 23–30. [Google Scholar] [CrossRef]
  37. Tang, Z.L.; Chen, H.M.; Zhang, M.; Fan, Z.Y.; Zhong, Q.P.; Chen, W.J.; Yun, Y.H.; Chen, W.X. Antibacterial mechanism of 3-Carene against the meat spoilage bacterium Pseudomonas lundensis and its application in pork during refrigerated storage. Foods 2022, 11, 92. [Google Scholar] [CrossRef]
  38. Li, J.J.; Hu, H.; Chen, Y.; Xie, J.; Li, J.W.; Zeng, T.; Wang, M.Q.; Luo, J.; Zheng, R.R.; Jongsma, M.A.; et al. Tissue specificity of (E)-β-farnesene and germacrene D accumulation in pyrethrum flowers. Phytochemistry 2021, 187, 112768. [Google Scholar] [CrossRef]
  39. Yin, Q.H.; Zhu, Y.Q.; Yu, H.; Zeng, W.B.; Zhao, F.Y. Advances of chemical constituents from flower buds of Panax notoginseng (Burk) F. H. Chen and its pharmacological effects. Chin. J. Spectrosc. Lab. 2011, 28, 1194–1197. [Google Scholar] [CrossRef]
  40. Usman, L.; Ismaeel, R. Chemical composition and antioxidant potential of fruit essential oil of Laggera pterodonta (DC.) benth grown in north central, Nigeria. J. Biol. Act. Prod. Nat. 2020, 10, 405–410. [Google Scholar] [CrossRef]
  41. Xiao, Z.B.; Yu, D.; Niu, Y.W.; Chen, F.; Song, S.Q.; Zhu, J.C.; Zhu, G.Y. Characterization of aroma compounds of Chinese famous liquors by gas chromatography–mass spectrometry and flash GC electronic-nose. J. Chromatogr. B 2014, 945–946, 92–100. [Google Scholar] [CrossRef]
  42. Lo, M.M.; Benfodda, Z.; Bénimélis, D.; Fontaine, J.X.; Molinié, R.; Meffre, P. Extraction and identification of volatile organic compounds emitted by fragrant flowers of three Tillandsia species by HS-SPME/GC-MS. Metabolites 2021, 11, 594. [Google Scholar] [CrossRef] [PubMed]
Molecules 27 03565 g001 550
Figure 1. Floral fragrance compounds in the flowers of P. notoginseng (>1%).
Figure 1. Floral fragrance compounds in the flowers of P. notoginseng (>1%).
Molecules 27 03565 g001
Molecules 27 03565 g002 550

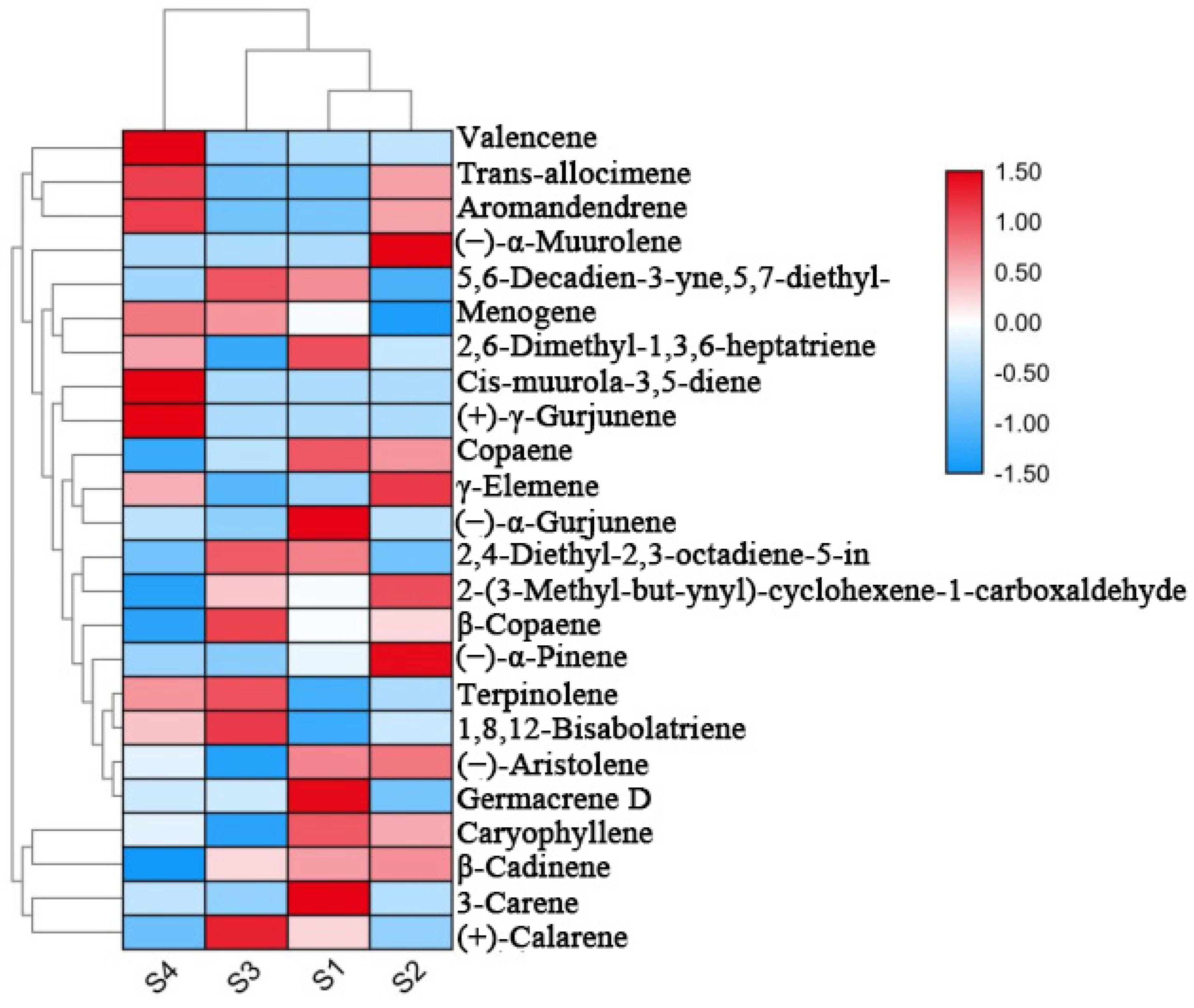

Figure 2. Heat map and hierarchical cluster analysis of floral fragrance compounds in the flowers of P. notoginseng (>1%).
Figure 2. Heat map and hierarchical cluster analysis of floral fragrance compounds in the flowers of P. notoginseng (>1%).
Molecules 27 03565 g002
Molecules 27 03565 g003 550

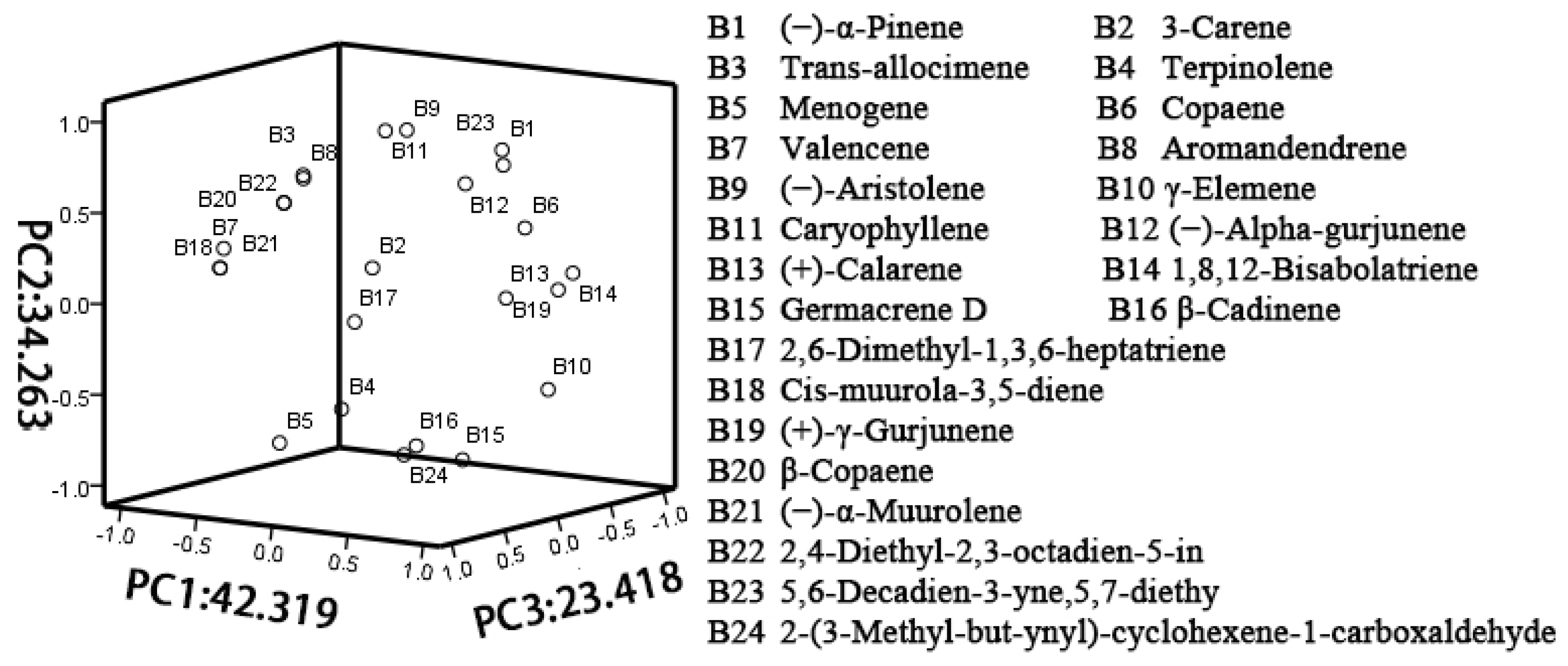

Figure 3. A 3D loading diagram of eigenvector loading values of 24 volatile components from PC1, PC2, and PC3, from different varieties of P. notoginseng flowers.
Figure 3. A 3D loading diagram of eigenvector loading values of 24 volatile components from PC1, PC2, and PC3, from different varieties of P. notoginseng flowers.
Molecules 27 03565 g003
Molecules 27 03565 g004 550

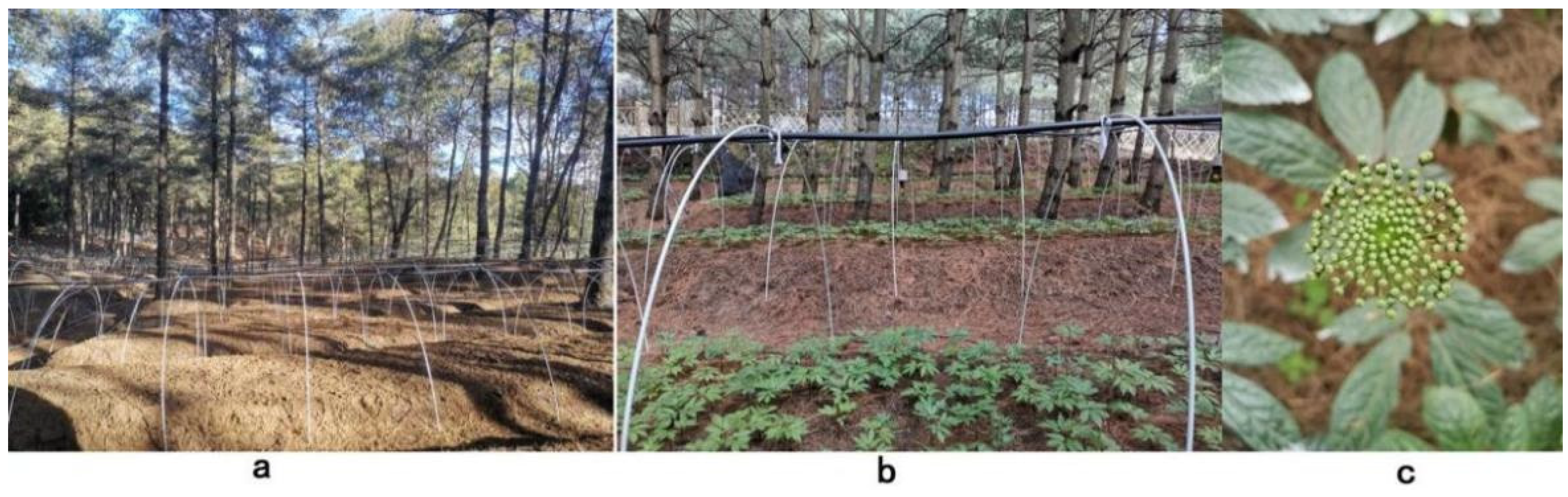

Figure 4. Schematic diagram of the P. notoginseng-pinus agroforestry system planting pattern. (a): woodland not planted with Panax ginseng; (b): woodland planted with Panax ginseng; and (c): Panax ginseng flower.
Figure 4. Schematic diagram of the P. notoginseng-pinus agroforestry system planting pattern. (a): woodland not planted with Panax ginseng; (b): woodland planted with Panax ginseng; and (c): Panax ginseng flower.
Molecules 27 03565 g004
Molecules 27 03565 g005 550
Figure 5. Morphological characteristics of flowers from different P. notoginseng varieties.
Figure 5. Morphological characteristics of flowers from different P. notoginseng varieties.
Molecules 27 03565 g005
Table
Table 1. Category and content of floral fragrance compounds in the flowers of different P. notoginseng varieties.
Table 1. Category and content of floral fragrance compounds in the flowers of different P. notoginseng varieties.
Content and Type Number (%) ± SD and Type Number
CategoryS1S2S3S4
Terpenes80.05 ± 5.70b (25) 171.65 ± 0.47d (26)74.75 ± 2.14c (26)84.16 ± 7.13a (26)
Alcohols0.31 ± 0.05b (1)1.15 ± 0.26a (4)0.50 ± 0.11b (2)0.49 ± 0.30b (2)
Esters- 2-0.34 ± 0.08 (2)-
Aromatic hydrocarbons10.61 ± 0.08a (3)10.53 ± 0.10a (2)9.50 ± 1.12ab (2)8.87 ± 0.31b (3)
Alkynes4.04 ± 0.08b (1)15.85 ± 0.35a (2)2.82 ± 0.59c (2)3.73 ± 0.18b (1)
Alkanes0.88 ± 0.33 (1)-1.00 ± 0.38 (1)-
Aldehydes3.97 ± 1.61a (1)-4.71 ± 0.86a (1)1.20 ± 0.16b (1)
Others0.11 ± 0.04c (3)0.18 ± 0.05b (2)1.17 ± 0.02a (3)0.19 ± 0.01b (2)
Total 399.97 ± 8.32a (35)99.36 ± 1.23a (36)94.79 ± 5.34b (39)98.54 ± 8.31a (35)
1. The number of compound types. 2. Not detected or nonexistent. 3. The sum content of total compounds. Lowercase letters indicate significant differences at the p ≤ 0.05 level.
Table
Table 2. Relative contents of floral fragrance compounds in the flowers of different P. notoginseng varieties.
Table 2. Relative contents of floral fragrance compounds in the flowers of different P. notoginseng varieties.
ClassificationCompound NameRI 1Relative Contents (%) ± SD
S1S2S3S4
Terpenes(−)-α-Pinene9371.15 ± 0.91a2.16 ± 0.20a0.76 ± 0.35a0.83 ± 0.67a
3-Carene101125.68 ± 0.30a15.87 ± 0.21b14.82 ± 1.47b16.23 ± 0.10b
1,3-Cyclohexadiene,1,3,5,5-tetraMethyl-12920.72 ± 0.59a0.48 ± 0.13a0.43 ± 0.19a0.50 ± 0.41a
2,6-Dimethyl-2,4,6-octatriene11440.36 ± 0.11c3.72 ± 0.15b0.44 ± 0.17c5.04 ± 0.58a
Terpinolene10880.64 ± 0.15c0.84 ± 0.42bc1.31 ± 0.02a1.19 ± 0.15ab
Menogene10864.11 ± 0.40ab2.54 ± 0.16b4.88 ± 1.82a4.72 ± 0.15a
Copaene13762.64 ± 0.08a2.57 ± 0.04a1.77 ± 0.02b1.15 ± 0.07c
Valencene14922.08 ± 0.34b2.73 ± 0.35b1.11 ± 0.21c14.23 ± 0.53a
Aromandendrene14400.19 ± 0.09c5.10 ± 0.22b0.08 ± 0.04c7.02 ± 0.01a
(−)-Aristolene14531.20 ± 0.20a1.22 ± 0.06a0.69 ± 0.07b0.98 ± 0.19a
β-Maaliene14050.30 ± 0.14a0.32 ± 0.18a0.24 ± 0.10a0.39 ± 0.07a
γ-Elemene14331.24 ± 0.12c1.50 ± 0.15b2.34 ± 0.10a- 2
Caryophyllene14191.91 ± 0.16a2.04 ± 0.08a1.88 ± 0.19a1.99 ± 0.31a
(−)-α-Gurjunene140912.65 ± 0.30a12.52 ± 0.15a12.01 ± 1.67a12.04 ± 0.69a
(+)-Calarene14322.04 ± 0.13a1.77 ± 0.75a1.73 ± 0.30a1.37 ± 0.79a
1,8,12-Bisabolatriene-0.69 ± 0.14b1.27 ± 0.21a0.89 ± 0.07b-
Isoledene13750.16 ± 0.04a0.19 ± 0.10a0.27 ± 0.03a-
Germacrene D148118.67 ± 0.30b12.42 ± 0.07c25.83 ± 0.17a11.30 ± 0.91d
β-Cadinene15180.69 ± 0.44b0.82 ± 0.08b1.33 ± 0.08a0.92 ± 0.20ab
2-Pinene9370.62 ± 0.09a0.25 ± 0.06b0.42 ± 0.10ab0.31 ± 0.23b
α-Terpinene10170.12 ± 0.06a0.04 ± 0.01a0.07 ± 0.05a0.06 ± 0.05a
(−)-Limonene10310.26 ± 0.14a0.17 ± 0.05a0.22 ± 0.08a0.16 ± 0.12a
γ-Terpinene10600.22 ± 0.20a0.06 ± 0.02a0.10 ± 0.04a0.07 ± 0.06a
2,6-Dimethyl-1,3,6-heptatriene-1.68 ± 0.32a0.87 ± 0.28a1.06 ± 0.84a1.06 ± 0.77a
Cosmene11310.03 ± 0.02a0.04 ± 0.03a0.03 ± 0.02a0.06 ± 0.03a
Alpha-thujene929--0.04 ± 0.03-
Alloaromadendrene1461-0.14 ± 0.02-0.17 ± 0.06
α-Guaiene1439---0.26 ± 0.07
(+)-Longifolene1405---0.10 ± 0.06
Cis-muurola-3,5-diene1454---2.01 ± 0.03
Alcohols(2R,4R,5S,6S,7R)-5-Isopropyl-2,8-dimethyltricyclo [4.4.0.02,7] decan-4-ol-0.31 ± 0.05a0.38 ± 0.02a0.41 ± 0.05a0.27 ± 0.14a
Spathulenol1576-0.52 ± 0.16a0.09 ± 0.06b0.22 ± 0.16b
Cubebol1515-0.15 ± 0.02--
10-Epi-g-eudesmol1619-0.10 ± 0.06--
EstersVinyl myristate1784--0.04 ± 0.03-
Phthalic acid,2-pentyl propyl ester---0.30 ± 0.05-
Aromatic hydrocarbons(+)-γ-Gurjunene147310.28 ± 0.35a10.49 ± 0.07a9.47 ± 1.10a5.25 ± 0.18b
(+)-δ-Cadinene15240.05 ± 0.03---
(+)-γ-Cadinene15130.28 ± 0.09---
α-Calacorene1542-0.04 ± 0.03-0.06 ± 0.04
(−)-α-Muurolene1485---3.56 ± 0.09
Eudesma-3,7(11)-diene1542 0.03 ± 0.02
Alkynes2,4-Diethyl-2,3-octadiene-5-in-4.04 ± 0.08a3.28 ± 0.17bc2.79 ± 0.58c3.77 ± 0.18ab
2-Methylnon-1-en-3-yne- 0.03 ± 0.01
5,6-Decadien-3-yne,5,7-diethyl---12.57 ± 0.18--
Alkanesβ-Copaene14320.88 ± 0.33-1.00 ± 0.38-
Aldehydes2-(3-Methyl-but-ynyl)-cyclohexene-1-carboxaldehyde-3.97 ± 1.61a-4.71 ± 0.86a1.20 ± 0.16b
Others4-Phenylsemicarbazide-0.03 ± 0.03---
3,5-Dimethylamphetamine-0.04 ± 0.02a-0.03 ± 0.02a0.04 ± 0.02a
2-Methoxy-3-Methylpy9540.04 ± 0.03--0.05 ± 0.03
1-Hydroxymethyl-5,8,9-endo-tetramethyltricyclo---0.99 ± 0.01-
2,4,4-Trimelthyl-3-hydroxymethyl-5a-(3-methyl-but-2-enyl)-cyclohexene--0.14 ± 0.030.15 ± 0.03-
2-Isobutyl-3-methoxypyrazine1183-0.04 ± 0.02--
Total 353 35363935
1. The values of the Kovats retention index. 2. Not detected or nonexistent. 3. Number of compounds. Lowercase letters indicate significant differences at the p ≤ 0.05 level.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chen, S.; Rui, R.; Wang, S.; He, X. Comparative Analysis of the Floral Fragrance Compounds of Panax notoginseng Flowers under the Panax notoginseng-pinus Agroforestry System Using SPME-GC-MS. Molecules 2022, 27, 3565. https://doi.org/10.3390/molecules27113565

AMA Style

Chen S, Rui R, Wang S, He X. Comparative Analysis of the Floral Fragrance Compounds of Panax notoginseng Flowers under the Panax notoginseng-pinus Agroforestry System Using SPME-GC-MS. Molecules. 2022; 27(11):3565. https://doi.org/10.3390/molecules27113565

Chicago/Turabian Style

Chen, Siyu, Rui Rui, Shu Wang, and Xiahong He. 2022. "Comparative Analysis of the Floral Fragrance Compounds of Panax notoginseng Flowers under the Panax notoginseng-pinus Agroforestry System Using SPME-GC-MS" Molecules 27, no. 11: 3565. https://doi.org/10.3390/molecules27113565

Article Metrics

Back to TopTop
