Communication

Bambus[4,6]urils as Dual Scaffolds for Multivalent Iminosugar Presentation and Ion Transport: Access to Unprecedented Glycosidase-Directed Anion Caging Agents

by
Marine Lafosse
1,
Yan Liang
2,
Jérémy P. Schneider
2,
Elise Cartier
1,
Anne Bodlenner
2,*,
Philippe Compain
2,* and
Marie-Pierre Heck
1,*
1
Département Médicaments et Technologies pour la Santé (DMTS), Université Paris-Saclay, CEA, INRAE, SCBM, 91191 Gif-sur-Yvette, France
2
Equipe de Synthèse Organique et Molécules Bioactives (SYBIO), Laboratoire d’Innovation Moléculaire et Applications (LIMA), University of Strasbourg|University of Haute-Alsace|CNRS (UMR 7042), 67087 Strasbourg, France
*
Authors to whom correspondence should be addressed.
Molecules 2022, 27(15), 4772; https://doi.org/10.3390/molecules27154772
Submission received: 29 June 2022 / Revised: 19 July 2022 / Accepted: 21 July 2022 / Published: 26 July 2022
(This article belongs to the Special Issue Synthesis and Therapeutic Applications of Iminosugars)
Browse Figures
Versions Notes

Abstract

:
Bambusurils, BU[4] and BU[6], were used for the first time as multivalent scaffolds to link glycosidases inhibitors derived from 1-deoxynojirimycin (DNJ). Two linear DNJ ligands having six or nine carbon alkyl azido linkers or a trivalent DNJ dendron were grafted onto octapropargylated BU[4] and dodecapropargylated BU[6] using copper-catalyzed cycloaddition (CuAAC) to yield corresponding neoglycobambus[4] and neoglycobambus[6]urils bearing 8 to 24 iminosugars. The inhibition potencies of neoglycoBU[4], neoglycoBU[6] and neoglycoBU[6] caging anions were evaluated against Jack Bean α-mannosidase and compared to monovalent DNJ derivatives. Strong affinity enhancements per inhibitory head were obtained for the clusters holding trivalent dendrons with inhibitory constants in the nanomolar range (Ki = 24 nM for BU[4] with 24 DNJ units). Interestingly, the anion (bromide or iodide) encapsulated inside the cavity of BU[6] does not modify the inhibition potency of neoglycoBU[6], opening the way to water-soluble glycosidase-directed anion caging agents that may find applications in important fields such as bio(in)organic chemistry or oncology.

Graphical Abstract

1. Introduction

Bambus[n]urils, R2nBU[n] (n = 4, 6), are synthetic neutral cyclooligomers composed of R2 disubstituted glycoluril units connected by n-methylene bridges [1]. BU[4,6] show a rigid conformation in an alternate arrangement that looks similar to a double-cup jigger. The well-defined cavity of BU[6] is of ideal size to entrap anions [1,2,3]. This strong anion-caging property of BU[6] was utilized for anion sensing, [4,5] transport [6,7] and extraction [8,9,10] as well as in photoinduced electron transfer [11]. However, BU[4], having a smaller internal cavity than BU[6] derivatives, is unable to include any anions and so far does not have any applications. Nevertheless, the modular valency of 8 to 12 for R8BU[4] and R12BU[6], respectively, their topology allowing ligands to be grafted on upper and lower rims, their arm flexibility and, even more importantly, their cheap and easy synthesis make BU[4] and BU[6] attractive scaffolds for the construction of multivalent derivatives. We have previously synthesized allylated bambus[4,6]urils that were submitted to thiol–ene click coupling (TEC) with thiosugars to generate the corresponding 8-12 thiosugar-functionalized bambus[4,6]urils [12,13]. As a proof of concept, we recently developed an alternative strategy using propargylated bambus[4,6]urils able to be post-functionalized by click chemistry (CuAAC) so as to afford multivalent architectures bearing 8 or 12 glucose units [14].
In the present work, we report the first examples of multivalent bambus[n]urils–iminosugar conjugates. N-alkyl analogs of 1-deoxynojirimycin (DNJ) were chosen as inhitopes (inhibiting epitopes) since the best inhibitory multivalent effects were reported with these motifs on Jack Bean α-mannosidase [15,16,17,18,19,20]. Despite the large number of scaffolds used for multimerization of iminosugar inhitopes [15,16,17,18,19,20,21,22,23,24,25,26], starting from C60, polyols, cyclodextrins, porphyrins, calixarenes and gold nanoparticles to the most effective cyclopeptoids, it is still relevant to study new structures that might have different topologies and contact points with glycosidases together with other physical properties of interest, such as anion binding ability. Indeed, it was shown that the binding modes of Jack Bean α-mannosidases with iminosugar-based multivalent inhibitors not only depend on the nature and number of bioactive inhitopes, but more importantly on the shape and size of the multivalent scaffold as well as ligand density [15,16,17,18,19,20]. Multimerization of inhitopes proved to be an attractive strategy, enabling valency-corrected inhibition enhancements of up to three [26] to four [27] orders of magnitude, inhibition selectivity refining or enzyme activation [28,29]. Multivalent drugs on nanoparticles also proved efficient for escaping efflux pumps [30]. Originally discovered with glycosidases [15,16,17,18,19,20], the inhibitory multivalent effect has been generalized to other enzymes such as glycosyltransferases and carbonic anhydrases [31,32,33,34]. In the case of enzyme inhibition, multivalent inhibitors may interact with enzymes by numerous mechanisms, such as the bind-and-recapture process, the chelate effect or receptor clustering [15,16,17,18,19,20,35].
Since anions such as bromide and iodide can easily and strongly be complexed inside BU[6], we have explored whether they would impact the rigidity and shape of the scaffold, and thus possibly the interaction with the model glycosidase used for studying inhibitory multivalent effects. Our objective was to access unprecedented water-soluble glycosidase-directed anion caging agents. Here, we describe the full details of our study, from the synthesis of bambus[n]urils–iminosugar conjugates to the quantification of host–guest interaction of these neoglycoclusters with iodide anion and their evaluation as Jack Bean α-mannosidase inhibitors.

2. Results and Discussion

2.1. Preparation of DNJ-Functionalized Bambusuril neoglyco8BU[4], neoglyco12BU[6] and X@neoglyco12BU[6]

The best multivalent effects in glycosidase inhibition using non-polymeric inhibitors were obtained thanks to a study relying on a gradual increase in cyclopeptoid scaffold size and valency, which led to small aggregates between two enzymes and the multimeric inhibitor being highlighted as the best cluster of the series [26,36]. Important click partners of this study were azide-armed N-C6 and N-C9 alkyl DNJ [37] and tripod DNJ derivatives [38]. These building blocks were consequently selected for the synthesis of the first examples of bambus[n]urils-based iminosugars 3–11 (Figure 1). Based on our recent results [14], octapropargylated BU[4] 1 and dodecapropargylated BU[6] 2 were used as clickable platforms to generate architectures decorated with 8 and 12 DNJ inhitopes, respectively. For this purpose, azide-armed N-hexyl DNJ 12, N-nonyl DNJ 13 and N-nonyl-trivalent DNJ-dendron (tripod) 14 were chosen as peripheral ligands to generate corresponding neoglyco8BU[4] 3–5 and neogluco12BU[6] 6–11 derivatives. The syntheses of DNJ-functionalized bambusuril BU[4] 3–5 and the structures of azide DNJ ligands 12–14 are shown in Scheme 1.
First, the dipropargylated BU[4] platform 1 was prepared in one step and with 60% yield by condensation of propargylglycoluril and formaldehyde following our reported procedure [14]. Propargyl8BU[4] 1 was then reacted with peracetylated azido-functionalized C6-DNJ 12 [37,39] through a copper(I)-catalyzed azide alkyne cycloaddition reaction (CuAAC) in the presence of sodium ascorbate in DMSO/tBuOH/H2O to acquire protected (DNJ-OAc-C6)8BU[4] 15 with 54% yield. Use of microwave irradiations shortened the reaction time and increased yield. Subsequently, deacetylation of 15 was set up using anion exchange (OH−) amberlite IRN 78 resin as described [37,40] to generate (DNJ-C6)8BU[4] 3 with 97% yield. Following the same synthetic procedure, (DNJ-OAc-C9)8BU[4] 16 was isolated with 53% yield from the CuAAC reaction of propargyl8BU[4] 1 and peracetylated azido-functionalized C9-DNJ 13 [37]. Basic cleavage of OAc groups of 16 afforded (DNJ-C9)8BU[4] 4 decorated with 8 DNJ (C-9 linker) with 87% yield. Grafting of 24 DNJ derivatives was made possible by the click coupling of protected azido trivalent-C9-DNJ dendron 14 [38,41] on BU[4] 1 to give (DNJ-OAc-Tripod)8BU[4] 17 with 46% yield. Basic treatment of 17 generated (DNJ-Tripod)8BU[4] 5 with 74% yield.
A larger platform, Br−@propargyl12BU[6].TBA+ 2, that was able to be decorated with 12 iminosugar inhitopes was then submitted to azide-armed DNJ derivatives 12 and 13 to generate, after decomplexation and deprotection steps, the corresponding 12-valent clusters (DNJ-C6)12BU[6] 6 and (DNJ-C9)12BU[6] 7, respectively (Scheme 2).
First, following our reported procedure, condensation of dipropargyl glycoluril with formaldehyde and TBABr as template promoted the formation of Br−@propargyl12BU[6]BU.TBA+ 2 with 55% yield [14]. A subsequent CuAAC reaction of 2 with azide-armed DNJ 12 (C6 linker) afforded fully functionalized Br-@(DNJ-C6-OAc)12BU[6].Na+ 18 with 70% yield. Click reaction of BU 2 with azide-armed DNJ 13 (C9 linker) provided 12-valent Br−@(DNJ-C9-OAc)12BU[6].Na+ 19 with 74% yield. Decomplexation reactions of Br-@BU 18 and 19 were then performed with AgSbF6 [13] to generate the corresponding anion-free 12-valent iminosugars that were directly submitted to basic resin for the final deprotection step, yielding (DNJ-C6)12BU[6] 6 (94% yield) and (DNJ-C9)12BU[6] 7 (93% yield), respectively.
To obtain the 12 × 3-valent DNJ-BU[6] conjugate, Br-@propargylBU[6].TBA+ 2 was reacted with clickable dendron 14 [38] in the presence of CuSO4 and sodium ascorbate using microwave irradiations to promote full click coupling (Scheme 3). However, using our general click procedure, only partial functionalization of 2 was observed, affording 6 × 3 valent-DNJ-Tripod-BU[6] 20 with 84% yield. Despite many attempts to optimize the reaction conditions (solvent, stoichiometry, microwave power, temperature, reaction time), it was not possible to obtain fully functionalized BU[6]. We hypothesized that the steric hindrance of the DNJ Tripod 14 did not allow the total functionalization of BU[6] 2. Mass spectra analysis allowed for quantification of the presence of six grafted tripods. The six remaining alkyne functions were observable on the 1H NMR spectrum of 20. Despite its partial functionalization, Br−@(DNJ-Tripod-OAc)6 BU[6].Na+ 20 was submitted to basic resin deprotection to give Br−@(DNJ-Tripod)6 BU[6].Na+ 11 with 84% yield. This interesting cluster bearing 18 DNJ units has been also evaluated as a glycosidase inhibitor.
Interestingly, bambusurils BU[6] are known to complex halides, especially iodides, with very high affinity forming a rigid assemblage [1,42]. We hypothesized that such a rigid structure could influence the glycosidase inhibition power of iminosugar–BU conjugates. Towards this goal, TBABr was added to anion-free (DNJ-C6-OH)12BU[6] 6 in H2O/MeOH to generate Br-@(DNJ-C6-OH)12BU[6].TBA+ 8 (98% yield). Similarly, addition of TBAI to (DNJ-C6-OH)12BU[6] 6 yielded I-@(DNJ-C9-OH)12BU[6].TBA+ 9 (97% yield) and reaction of anion-free (DNJ-C9-OH)12BU[6] 7 with TBABr gave Br−@(DNJ-C9-OH)12BU[6].TBA+ 10 (98% yield). The synthesis of anion@BU[6] 8–10 is reported in Scheme 4.
The hostguest interaction of anion-free (DNJ-C6)12BU[6] 6 with iodide anion was evaluated using a direct isothermal titration calorimetry (ITC) method [4,14]. BU[6] 6 bearing 12 DNJ arms (C6 linker) was found to have a good affinity for iodide (Ka = 4.8 × 105 M−1 in water) (Supplementary Materials Figure S1), similar to our reported results for (D-glucose)12BU[6] derivatives (Ka = 2.2 × 105 and 1.7 × 105 M−1 for iodide complexation in H2O) [14]. Interestingly, this study shows that C6 linkers, or the nature of the peripheral head (DNJ compared to D-glucose), did not affect complexation. In addition, ITC data clearly indicate that the formation of the iodide complex 9 is driven by enthalpy (ΔH = −33, 47 kJ/mol) and that 9 displays a 1:1 stoichiometry in water.

2.2. Glycosidase Inhibition Study

All the new clusters were evaluated against Jack Bean α-mannosidase, a glycosidase highly sensitive to multivalent inhibitor presentation [15,16,17,18,19,20]. The corresponding inhibition constants are summarized in Table 1. The evaluated DNJ-bambusuril conjugates acted as competitive inhibitors, with the notable exception of the series of 12-valent clusters with the shorter C6 linker obtained with the BU[6] scaffold which behaved as mixed inhibitors (Table 1, entries 6–8). The inhibition potency of those new clusters was compared to their corresponding monovalent inhibitors, 21 [22] and 22 [37] (Figure 2), to calculate their relative potency (rp). Dividing the relative potency by the number of active units gives the relative potency per inhitope (rp/n).
As in a previous study with calix[8]arene-based clusters [43], the scaffold has a strong impact on inhibition with the C6 shorter linker. Whereas the inhibitory heads of cluster 3 based on the smaller BU[4] scaffold are individually four times more potent than the reference (rp/n = 4), the ones of clusters 6, 8 and 9 based on BU[6] are less active than the monovalent reference (rp/n < 1) and show a different inhibition mode (Table 1 entries 6-8). Noticeably, the inhibition mode and power of the three BU[6] binding bromide or iodide ions (or with a free cavity) are similar, suggesting an overall similar shape. We previously obtained crystals of Cl−, Br− I− @allyl12BU[6].TBA+ [12,13] and of Br−, I− @propargyl12BU[6].TBA+ [14], showing that the halides are included in the cavity and that the geometry of these CH···halide bonds are similar, with distances varying with the halogen ionic radius which thus indicates that the macrocycle retains some flexibility [12,13,14]. Similarly, with C9 linkers, the activities and inhibition mode are not impacted by the presence of anions in the bambusuril cavity (Table 1 entries 9-10). With the longer C9 linker, the impact of the central scaffold, whatever its size, is abolished, giving similar affinity enhancement per DNJ (entries 4, 9 and 10) with C9 enhancement being at least one order of magnitude higher than for the C6 series. This result is in line with previous findings using other scaffolds [15,16,17,18,19,20,43]. The best results were obtained with clusters 5 and 11 grafted with the trivalent dendron with affinity enhancements one order of magnitude higher than those of compounds 4, 7 and 10. The affinity enhancement per inhibitory head of compound 5 is in the same range as for the 24-valent cyclopeptoid bearing the same trivalent dendron [26]. Altogether, those results show that bambusuril scaffolds allow for efficient grafting of glycosidase inhibitors and that this multimerization induces strong affinity enhancements. Moreover, the fact that activity is not influenced by anion binding opens the way to potential therapeutic applications by inducing accumulation of the encaged anion, and potentially radioactive iodide, in a glycosidase rich environment. It is, for example, well-known that β-glucuronidases are present at high concentration in the microenvironment of most solid tumours [44] and that radioactive iodine is used for the treatment of cancers, including thyroid cancers [45,46,47].

3. Material and Methods

3.1. General Information and General Experimental Procedures for the Syntheses

Commercially available reagents were used without further purification. All reactions were performed under inert atmosphere using anhydrous solvents which were dried and distilled before being used. Thin-layer chromatograms (TLC) and flash chromatography separations were respectively performed on precoated silica gel 60 F254 plates (0.25 mm) and on Merck Kieselgel 60 (grading 40–63 μm). Microwave syntheses were conducted using a CEM Focused Microwave Discover® SP-X System reactor. The reactions were performed for 2–4 h under magnetic stirring in 10 or 35 mL sealed Discovered SP vessels closed with Activent® caps. The dynamic control method was used for all microwave reactions where the temperature and the pressure were set (P = 50 W, T = 80 °C, PowerMax on). 1H NMR spectra (400 MHz) and 13C NMR spectra (100 MHz) were recorded on a Brucker Avance 400 MHz spectrometer. Chemical shifts and coupling constants are reported in parts per million (ppm) and in Hertz (Hz), respectively. HRMS and electrospray mass spectra (ESIMS) were obtained from an LCT Premier XE using electro spray ionization coupled with a time flight analyzer (ESI-TOF). Infrared spectra (IR) were recorded on a Perkin Elmer UAR Two Spectrum spectrometer. Electrospray mass spectra were obtained using an ESI-Quadripole autopurify Waters (pump: 2545, mass: ZQ2000) mass Spectrometer. Optical rotations were measured on a JASCO P-2000 Polarimeter. Melting points were measured on a Büchi Melting point B540.

3.1.1. General Procedure A for CuAAC Reaction of Propargyl8BU[4]

To a solution of octapropargyl bambus[4]uril 1 (10 to 15 mg, 1 eq.) and azide ligand (9 eq.) in DMF/H2O (0.6 mL, 5/1) in a microwave reactor, a solution of sodium ascorbate 1 M in water (0.4 eq.) and a solution of CuSO4 5H2O 1M in H2O (0.8 eq.) were added. The reaction was subjected to microwave irradiations under magnetic stirring from 30 min to 4 h at 80 °C. A solution of CH3CN/H2O/30w% NH4OH (16 mL, 15/0.5/0.5, v/v/v) was then added to the crude and the mixture was filtered on a small pad of SiO2 and eluted with a solution of CH3CN/H2O/30w%-NH4OH (15:0.5:0.5, v/v/v). The filtrate was concentrated under vacuum and purified by flash silica gel chromatography (SiO2; CH2Cl2/MeOH, 99:1 to 95:5) to afford the corresponding 8-clicked iminosugars BU[4].

3.1.2. General Procedure B for CuAAC Reaction of Propargyl12BU[6]

To a solution of dodecapropargybambus[6]uril tetra-butyl bromide 2 (10 to 15 mg, 1 eq.) and azide ligand (16 eq.) in DCE/H2O/tBuOH (0.5/1/1.2 mL) in a microwave reactor, a solution of sodium ascorbate 1 M in water (4 eq.) and a solution of CuSO4.5H2O 1M in H2O (2 eq.) were added. The reaction was subjected to microwave irradiations under magnetic stirring for 2 h at 80 °C. The mixture was then concentrated under vacuum and diluted with CH3CN/H2O/30w% NH4OH (9/1/1, 11 mL). The mixture was filteredon a small pad of SiO2 (typically 1 cm thick) that was washed with this same eluent, CH3CN/H20/30w%-NH4OH (9/1/1, 25 mL). The filtrate was concentrated under vacuum and purified by flash silica gel chromatography (SiO2; CH2Cl2/MeOH, 99:1 to 90) to afford the corresponding 12-clicked iminosugars BU[6].

3.1.3. General Procedure C for Deacetylation of Sugars

Amberlite IRN 78 (HO−) (n g/mmol with n = number of OAc) was added to a solution of acetylated-iminosugars bambusuril (1 eq.) in H2O/MeOH (1/1, 600 μL). The suspension was stirred from 4 h to 12 h at 40 °C. The resin was removed by filtration and washed with methanol and water. The filtrate was concentrated under vacuum to give BU-iminosugars.

3.1.4. Synthesis (DNJ-OAc-C6)8BU[4] 15

Following general procedure A and starting with propargyl8bambus[4]uril 1 (10.1 mg, 10.9 µmol, 1 eq.) and azidoiminosugar 12 (60 mg, 132 µmol, 12 eq.), (DNJ-OAc-C6)8BU[4] 15 (27.1 mg, 54% yield) was obtained as a colorless oil. 1H NMR (300 MHz, CDCl3): δ (ppm) 7.56 (s, 8H, H13), 5.74 (s, 6H, H17), 5.10–4.99 (m, 16H, H3, H4), 4.99–4.89 (m, 8H, H2), 4.66–4.44 (m, 24H, H15, H19), 4.42–4.21 (m, 16H, H12), 4.20–4.04 (m, 16H, H6), 3.17 (dd, J = 11.0, 5.0 Hz, 8H, H1a), 2.78–2.66 (m, 8H, H7a), 2.66–2.58 (m, 8H, H5), 2.58–2.47 (m, 8H, H7b), 2.29 (dd, J = 11.0, 10.5 Hz, 8H, H1b), 2.10–1.96 (singlets, 96H, CH3-C=O), 1.93–1.81 (m, 16H, H11), 1.53–1.08 (m, 48H, H8, H9, H10); 13C NMR (75 MHz, CDCl3): δ (ppm) 170.9, 170.4, 170.1, 169.8 (CH3-C=O), 159.7, 158.3 (C16, C18), 143.8 (C14), 122.8 (C13), 74.8 (C3), 71.6 (C17), 69.6 (C4), 69.5 (C2), 61.7 (C5), 59.7 (C6), 53.0 (C1), 51.7 (C7), 50.4 (C12), 39.0 (C15), 30.3 (C11), 26.8, 26.6 (C9, C10), 25.0 (C8), 21.0, 20.85, 20.8 (CH3-C=O), C-9 could not be observed with 1024 scans; IR (neat, νmax/cm−1) 1744 (CH3-C=O), 1710 (NC=O); HRMS (ESI+): m/z calcd for C204H297N48Na2O72 [M + H + 2Na]3+: 1539.0278, found 1539.0257; [α]D20 = +2.2 (c 1, CH3OH).

3.1.5. Synthesis of (DNJ-OAc-C9)8BU[4] 16

Following general procedure A and starting with propargyl8bambus[4]uril 1 (10 mg, 10.9 µmol, 1 eq.) and azidoiminosugar 13 (65 mg, 130 µmol, 12 eq.), (DNJ-OAc-C9)8BU[4] 16 (28.3 mg, 53% yield) was isolated as a colorless oil. 1H NMR (400 MHz, CDCl3): δ (ppm) 7.55 (br s, 8H, H16), 5.74 (br s, 6H, H20), 5.10–4.99 (m, 16H, H3, H4), 4.95–4.90 (m, 8H, H2), 4.65–4.51 (m, 24H, H18, H22), 4.38–4.23 (m, 16H, H15), 4.19–4.09 (m, 16H, H6), 3.18 (dd, J = 11.2, 4.9 Hz, 8H, H1a), 2.76–2.66 (m, 8H, H7a), 2.65–2.60 (m, 8H, H5), 2.59–2.50 (m, 8H, H7b), 2.32 (dd, J = 11.2, 10.3 Hz, 8H, H1b), 2.07 (s, 24H, CH3-C=O), 2.0–1.97 (singlets, 72H, CH3-C=O), 1.89–1.83 (m, 16H, H14), 1.50–1.11 (m, 96H, H8, H9, H10, H11, H12, H13); 13C NMR (100 MHz, CDCl3): δ (ppm) 171.0, 170.5, 170.1, 169.8 (CH3-C=O), 159.7, 158.4 (C-19, C-21), 143.8 (C-17), 122.7 (C-16), 74.8 (C-3), 71.5 (C-20), 69.7 (C-4), 69.6 (C-2), 61.6 (C-5), 59.7 (C-6), 53.0 (C-1), 51.9 (C-7), 50.6 (C-15), 38.9 (C-18), 30.3 (C-14), 29.8, 29.6, 29.1, 27.3, 26.7 (C-9, C-10, C-11, C-12, C-13), 24.8 (C-8), 21.0, 20.97, 20.88, 20.81 (CH3-C=O), C22 could not be observed with 1024 scans; IR (neat, νmax/cm−1) 1742 (CH3-C=O), 1705 (NC=O); HRMS (ESI): m/z calcd for C228H347N48O72 [M + 3H]3+: 1636.4983, found 1636.5006; [α]D20 = +2.6 (c 1, CH3OH).

3.1.6. Synthesis of (DNJ-OAc-Tripod)8BU[4] 17

Following general procedure A and starting with propargyl8bambus[4]uril 1 (3 mg, 3.3 µmol, 1 eq.) and azido-tripod 14 (84 mg, 45.6 µmol, 14 eq.), (DNJ-OAc-tripod)8BU[4] 16 (23.7 mg, 1.5 μmol, 46% yield) was isolated as a colorless oil. 1H NMR (400 MHz, CDCl3): δ (ppm) 7.69–7.67 (br s, 8H, H26), 7.65–7.52 (br s, 24H, H16), 5.76 (br s, 6H, H30), 5.11–4.99 (m, 48H, H3, H4), 4.99–4.90 (m, 24H, H2), 4.60–4.44 (m, 88H, H18, H25, H28, H32), 4.31 (t, J = 7.4Hz, 48H, H15), 4.17–4.11 (br s, 48H, H6), 3.88–3.75 (m, 16H, H24), 3.62–3.35 (m, 96H, H19, H21, H22, H23), 3.18 (dd, J = 11.2, 5.1 Hz, 24H, H1a), 2.76–2.66 (m, 24H, H7a), 2.66–2.60 (m, 24H, H5), 2.60–2.48 (m, 24H, H7b), 2.32 (dd, J = 11.2, 10.5 Hz, 24H, H1b), 2.07–1.98 (several singlets, 288H, CH3-C=O), 1.93–1.82 (m, 48H, H14), 1.48–1.12 (m, 288H, H8, H9, H10, H11, H12, H13); 13C NMR (CDCl3, 100 MHz): δ (ppm) 171.0, 170.5, 170.1, 169.9 (CH3-C=O), 159.8, 158.4 (C29, C31), 145.3 (C27), 143.7 (C17), 123.9 (C26), 122.7 (C16), 74.8 (C3), 71.0, 70.3, 70.0 (C21, C22, C23), 69.6 (C4, C24), 69.5 (C2), 69.3 (C19), 65.1 (C18), 61.5 (C5), 59.6 (C6), 53.0 (C1), 51.9 (C7), 50.4 (C15, C25), 45.5 (C20), 38.7 (C28), 30.5 (C14), 29.8, 29.6, 29.1, 27.3, 26.7 (C9, C10, C11, C12, C13), 24.7 (C8), 21.01, 20.98, 20.88, 20.8 (CH3-C=O); IR (neat, νmax/cm−1) 1743 (strong, (CH3-C=O)); HRMS (ESI, deconvoluted): m/z calcd for C740H1164N136O240 [M + 12H]12+: 1317.15, found 1317.16; [α]D20 = +1.4 (c 1, CH3OH).

3.1.7. Synthesis of (DNJ-C6)8BU[4] 3

Following general procedure C and starting with (DNJ-OAc-C6-triazol)8BU[4] 15 (27.4 mg, 6.0 µmol), corresponding (DNJ-C6-triazol)8BU[4] 3 (18.8 mg, 5.8 µmol, 97% yield) was obtained as a colorless oil. 1H NMR (400 MHz, D2O): δ (ppm) 7.91 (br s, 8H, H13), 5.81 (br s, 6H, H17), 4.70–4.58 (m, 16H, H15), 4.53–4.39 (m, 8H, H19), 4.40–4.22 (m, 16H, H12), 3.87–3.77 (m, 16H, H6), 3.53 (td, J = 10.0 and 4.8 Hz, 8H, H2), 3.40–3.34 (m, 8H, H4), 3.26–3.21 (m, 8H, H3), 2.96 (dd, J = 10.3, 4.8 Hz, 8H, H1a), 2.75–2.60 (m, 8H, H7a), 2.60–2.48 (m, 8H, H7b), 2.29–2.14 (m, 16H, H1b, H5), 1.87–1.71 (m, 16H, H11), 1.45–1.31 (m, 16H, H8), 1.27–1.10 (m, 32H, H9, H10); 13C NMR (100 MHz, D2O): δ (ppm) 160.0, 159.3 (H16, H18), 143.1 (H14), 123.9 (H13), 78.4 (H3), 71.3 (H17), 70.0 (H4), 68.8 (H2), 65.1 (H5), 57.5 (H6), 55.4 (H1), 51.9 (H7), 50.3 (H12), 48.5 (C19), 38.3 (C15), 29.4 (C11), 26.2, 25.5 (C9, C10), 22.6 (C8); IR (neat, νmax/cm−1) 1694 (strong, NC=O); HRMS (ESI): m/z calcd for C140H235N48O40 [M + 3H]3+: 1076.2605, found 1076.2629; [α]D20 = −12.3 (c 1, H2O + TFA (1 drop)).

3.1.8. Synthesis of (DNJ-C9)8BU[4] 4

Following general procedure C and starting with (DNJ-OAc-C9)8BU[4] 16 (23.5 mg, 4.8 µmol), corresponding (DNJ-C9)8BU[4] 4 (14.9 mg, 4.2 µmol, 87%) was obtained as a colorless oil. 1H NMR (400 MHz, MeOD): δ (ppm) 7.89 (br s, 8H, H16), 5.80 (br s, 6H, H20), 4.66–4.60 (br s, 16H, H18), 4.59–4.53 (br s, 8H, H22), 4.38 (t ap, J = 6.9 Hz, 16H, H15), 3.86–3.82 (m, 16H, H6), 3.47 (td, J = 9.4, 4.6 Hz, 8H, H2), 3.40–3.35 (m, 8H, H4), 3.13 (dd, J = 9.0 Hz, 8H, H3), 2.98 (dd, J = 11.7, 5.0 Hz, 8H, H1a), 2.83–2.71 (m, 8H, H7a), 2.62–2.49 (m, 8H, H7b), 2.16 (dd, J = 11.1 Hz, 8H, H1b), 2.10 (d, J = 9.1 Hz, 8H, H5), 1.93–1.84 (m, 16H, H14), 1.53–1.42 (m, 16H, H8), 1.39–1.21 (m, 80H, H9, H10, H11, H12, H13); 13C NMR (125 MHz, MeOD, 2218 scans, cryogenic probe): δ (ppm) 161.3, 160.1 (C19, C21), 144.7 (C17), 124.7 (C16), 80.4 (C3), 72.6 (C20), 71.9 (C4), 70.6 (C2), 67.2 (C5), 59.4 (C6), 57.6 (C1), 53.7 (C7), 51.7 (C22), 51.5 (C15), 39.6 (C18), 31.3 (C14), 30.5, 30.1, 30.0, 28.6, 27.5 (C9, C10, C11, C12, C13), 24.9 (C8); IR (neat, νmax/cm−1) 3343 (strong broad, OH), 1696 (strong, NC=O); HRMS (ESI, deconvoluted): m/z calcd for C164H287N48O40 [M + 7H]7+: 509.8837, found 509.8893; m/z calcd for C164H286N48O40 [M + 6H]6+: 594.6964, found 594.6979; m/z calcd for C164H285N48O40 [M + 5H]5+: 713.4341, found 713.4314; [α]D20 = −7.1 (c 1, CH3OH/H2O 94/6).

3.1.9. Synthesis of (DNJ-Tripod)8BU[4] 5

Following general procedure C and starting with (DNJ-OAc-tripod)8BU[4] 17 (23.5 mg, 1.5 µmol), corresponding (DNJ-tripod)8BU[4] 7 (12.9 mg, 1.1 µmol, 74% yield) was obtained as a colorless oil. 1H NMR (400 MHz, MeOD): δ (ppm) 8.03–7.92 (br s, 32H, H16, H26), 5.88–5.72 (br s, 6H, H30), 4.60–4.44 (m, 80H, H18, H25, H28), 4.42–4.27 (m, 56H, H15, H32), 3.93–3.76 (m, 64H, H6, H24), 3.56–3.33 (m, 144H, H2, H4, H19, H21, H22, H23), 3.19 (t, J = 9.2 Hz, 24H, H3), 2.97 (dd, J = 11.1, 4.9 Hz, 24H, H1a), 2.78–2.66 (m, 24H, H7a), 2.64–2.52 (m, 24H, H7b), 2.21 (t, J = 10.8 Hz, 24H, H1b), 2.15 (dt, J = 9.4, 2.6 Hz, 24H, H5), 1.88–1.76 (m, 48H, H14), 1.49–1.37 (m, 48H, H8), 1.31–1.15 (m, 240H, H9, H10, H11, H12, H13); 13C NMR (125 MHz, MeOD, 12288 scans): δ (ppm) 170.9, 170.0 (C29, C31), 146.1 (C17, C27), 125.2 (C16, C26), 80.4 (C3), 71.9 (C4), 70.6 (C2), 73.1, 72.5, 72.1, 71.3, 70.4, 70.1, 69.5 (C19, C21, C22, C23, C24, C30), 67.1 (C5), 65.4 (C18), 59.5 (C6), 57.5 (C1), 53.8 (C7), 51.5 (C15, C25), 50.7 (C32), 46.5 (C20), 40.1 (C28), 31.3 (C14), 30.6, 30.1, 28.6, 27.5 (C9, C10, C11, C12, C13), 24.9 (C8); IR (neat, νmax/cm−1) 3359 (strong broad, OH), 1703 (strong, NC=O); HRMS (ESI, deconvoluted): m/z calcd for C548H970N136O144 [M + 10H]10+: 1176.8321, found 1176.8032; [α]D20 = −4.7 (c 0.8, CH3OH).

3.1.10. Synthesis of Br−@(DNJ-OAc-C6)12BU[6].Na+ 18

According to procedure B and starting with propargyl12bambus[6]uril 2 (8.4 mg, 4.90 µmol, 1 eq.) and azidoiminosugar 12 (35.9 mg, 78.60 µmol, 16 eq.), sodium ascorbate (19.7 µL, 19.70 µmol, 4 eq.) and copper sulfate (9.8 µL, 9.80 µmol, 2 eq.) were added. After purification, Br-@(DNJ-OAc-C6)12BU[6].Na+ 18 was obtained (23.8 mg, 70% yield). 1H NMR (400 MHz, CDCl3): δ (ppm) 7.49 (s, 12H, H13), 5.79 (s, 12H, H17), 5.06–4.93 (m, 60H, H2, H3, H4, H15), 4.66–4.58 (br s, 12H, H19), 4.20–4.14 (m, 48H, H6, H12), 3.18–3.16 (m, 12H, H1′a), 2.63–2.61 (m, 12H, H7a), 2.60–2.52 (m, 12H, H5), 2.51–2.49 (m, 12H, H7b), 2.28 (t, J = 10.8 Hz, 12H, H1b), 2.05–2.02–2.01–2.00 (s, 144H, CH3-C=O), 1.85–1.82 (br s, 24H, H11), 1.39–1.24 (m, 72H, H8, H9, H10); 13C NMR (100 MHz, CDCl3): δ (ppm) 170.9–170.4–170.1–169.8 (CH3-C=O), 159.0 (C16, C18), 145.6 (C14), 122.8 (C13), 74.6 (C4), 69.3 (C17), 69.1 (C3), 61.7 (C5), 59.5 (C6), 53.6 (C1), 52.8 (C7), 51.9 (C12), 50.4 (C2), 47.6 (C19), 39.4 (C15), 30.2 (C11), 26.7 (C9), 26.6 (C10), 24.7 (C8), 21.0, 20.9, 20.8 (CH3-C=O); IR (neat, νmax/cm−1) 2939 (CH2), 1742 (CH3-C=O), 1703 (NC=O), 1478 (CH2), 1218 (C-N); HRMS (ESI+): m/z calculated for [C306H444N72O108+6H+]6+: 1143.5317, found 1143.5304; [α]D20 = 7.2 (c 0.18, CHCl3).

3.1.11. Synthesis of Br−@(DNJ-OAc-C9)12BU[6] Na+ 19

According to procedure B, propargyl12bambus[6]uril 2 (7.9 mg, 4.60 µmol, 1 eq.), azidoiminosugar 13 (36.8 mg, 73.80 µmol, 16 eq.), sodium ascorbate (18.4 µL, 18.40 µmol, 4 eq.) and copper sulfate (9.2 µL, 9.20 µmol, 2 eq.) were added. After purification, Br-@(DNJ-OAc-C9)12BU[6].Na+ 19 was obtained (25.1 mg, 74%). 1H NMR (400 MHz, CDCl3): δ (ppm) = 7.46 (br s, 12H, H16), 5.78 (br s, 12H, H20), 5.06–4.94 (m, 48H, H2, H3, H4, H22), 4.62 (br s, 24H, H18), 4.18–4.13 (m, 48H, H6, H15), 3.17 (dd, J = 11.4, 5.0 Hz, 12H, H1a), 2.74–2.68 (m, 12H, H7a), 2.63–2.58 (m, 12H, H5), 2.57–2.52 (m, 12H, H7b), 2.31 (t, J = 11.0 Hz, 12H, H1b), 2.06, 2.01, 2.01, 1.99 (s, 144H, CH3-C=O), 1.84–1.74 (m, 24H, H14), 1.37–1.23 (m, 144H, H8, H9, H10, H11, H12, H13); 13C NMR (100 MHz, CDCl3): δ (ppm) = 171.0, 170.5, 170.1, 169.9 (CH3-C=O), 160.6, 159.0 (C19, C21), 145.4 (C17), 122.2 (C16), 74.8 (C4), 69.5 (C2, C3, C20), 61.5 (C5), 59.6 (C6), 53.0 (C1), 51.9 (C7), 50.4 (C15), 47.8 (C22), 39.1 (C18), 30.3 (C14), 29.6, 29.1, 27.3, 26.8 (C9, C10, C11, C12, C13), 24.7 (C8), 21.0, 20.9, 20.8, 20.7 (CH3-C=O); IR (neat, νmax/cm−1) 2930 (CH2), 1743 (CH3-C=O), 1704 (NC=O), 1478 (CH2), 1225 (C-N), 1032 (C-O); HRMS (ESI+): m/z calculated for [C342H516N72O108+7H+]7+: 1052.3944, found 1052.3943; [α]D20 = 6.0 (c 0.24, CHCl3).

3.1.12. Synthesis of (DNJ-C6)12BU[6] 6

To a solution of Br−@(DNJ-OAc-C6)12BU[6].Na+ 18 (18.8 mg, 2.7 µmol, 1 eq.) in EtOAc (2 mL), AgSbF6 (1.6 mg, 5.4 µmol, 2 eq.) was added and the mixture was sonicated at 25 °C for 1 h to generate a white precipitate of AgBr. NH4OH (2 mL, 30% aqueous solution) was then added and the organic solution was separated, washed with water (2 × 2 mL) and concentrated under vacuum to give corresponding anion-free BU that was directly solubilized in H2O/MeOH (1/1, 2 mL). Amberlite IRN 78 (HO−) (125 mg) was added and the suspension was heated for 12 h at 40° C. The mixture was diluted with MeOH (1 mL) and the resin was removed by filtration before being washed with H2O (1 mL) and MeOH (1 mL). The filtrate was concentrated under vacuum to afford anion-free (DNJ-C6)12BU[6] 6 (12.2 mg, 94% yield). 1H NMR (400 MHz, D2O): δ (ppm) = 7.93 (br s, 12H, H13), 5.73 (br s, 12H, H17), 4.67–4.35 (m, 36H, H15, H19), 4.34–4.13 (m, 24H, H12), 3.89–3.77 (m, 24H, H6), 3.53 (td, J = 10.2, 5.0 Hz, 12H, H2), 3.38 (t, J = 9.6 Hz, 12H, H3), 3.25 (t, J = 9.4 Hz, 12H, H4), 2.97 (dd, J = 11.1, 4.6 Hz, 12H, H1a), 2.75–2.61 (m, 12H, H7a), 2.59–2.47 (m, 12H, H7a), 2.28–2.17 (m, 24H, H1b, H5), 1.86–1.72 (m, 24H, H11), 1.43–1.31 (m, 24H, H8), 1.23–1.12 (m, 48H, H9, H10); 13C NMR (100 MHz, D2O): δ (ppm) = 159.8, 158.8 (C16, C18), 144.4 (C14), 123.3 (C13), 78.3 (C4), 69.9 (C17), 68.8 (C3), 68.5 (C2), 64.9 (C5), 57.4 (C6), 55.4 (C1), 51.8 (C7), 50.3 (C12), 49.2 (C19), 38.9 (C15), 29.3 (C11), 26.1 (C9), 25.5 (C10), 22.6 (C8); IR (neat, νmax/cm−1) 3337 (OH), 2923 (CH2), 1703 (NC=O), 1484 (CH2), 1216 (C-N), 1064 (C-O); HRMS (ESI+): m/z calculated for [C210H348N72O60+6H+]6+: 807.4472, found 807.4462; [α]D20 = 1.7 (c 0.16, H2O).

3.1.13. Synthesis of (DNJ-C9)12BU[6] 7

To a solution of (DNJ-OAc-C9)12BU[6] 19 (23.4 mg, 3.1 µmol, 1 eq.) in EtOAc (2 mL), AgSbF6 (1.83 mg, 6.3 µmol, 2 eq.) was added and the mixture was sonicated at 25 °C for 1 h to generate a white precipitate of AgBr. NH4OH (2 × 1 mL, 30% aqueous solution) was then added and the organic solution was separated, washed with water (2 × 1 mL) and concentrated under vacuum to give corresponding anion-free BU that was solubilized in H2O/MeOH (1/1, 2 mL). Amberlite IRN 78 (HO−) (135 mg) was added and the suspension was heated for 12 h at 40 °C. The mixture was diluted with MeOH (1 mL) and the resin was removed by filtration and washed with H2O (1 mL) and MeOH (1 mL). The filtrate was concentrated under vacuum to afford anion-free (DNJ-C9)12BU[6] 7 (15.6 mg, 93% yield). 1H NMR (400 MHz, D2O/MeOD 0.3/0.2): δ (ppm) = 7.84 (br s, 12H, H16), 5.72 (br s, 12H, H20), 4.63–4.29 (m, 36H, H18, H22), 4.26–4.16 (m, 24H, H15), 3.83–3.78 (m, 24H, H6), 3.52–3.48 (m, 12H, H4), 3.37–3.31 (m, 12H, H2), 3.22–3.18 (m, 12H, H3), 2.95 (d, J = 6.3 Hz, 12H, H1a), 2.70–2.59 (m, 12H, H7a), 2.58–2.48 (m, 12H, H7b), 2.24–2.14 (m, 24H, H1b, H5), 1.78–1.72 (m, 24H, H14), 1.42–1.35 (m, 24H, H8), 1.24–0.95 (m, 120H, H9, H10, H11, H12, H13); 13C NMR (150 MHz, D2O/MeOD 0.3/0.2): δ (ppm) = 161.3, 160.3 (C19-C21), 146.2 (C17), 124.8 (C16), 79.9 (C4), 71.4 (C20), 70.2 (C2, C3), 66.8 (C5), 58.9 (C6), 57.0 (C1), 53.9 (C7), 51.8 (C22), 40.5 (C15, C18), 31.2 (C14), 30.5, 30.0, 28.5, 27.5 (C9, C10, C11, C12, C13), 24.5 (C8); IR (neat, νmax/cm−1) 3370 (OH), 2926 (CH2), 1708 (NC=O), 1472 (CH2), 1215 (C-N), 1046 (C-O); HRMS (ESI+): m/z calculated for [C246H420N72O60+9H+]9+: 594.6965, found 594.6973; [α]D20 = 5.9 (c = 0.18 H2O/MeOH 3/7).

3.1.14. Synthesis of Br−@(DNJ-C6)12BU[6].TBA+ 8

To a solution of (DNJ-C6)12BU[6] 6 (9.1 mg, 1.88 µmol, 1 eq.) in 0.5 mL of H2O, a solution of TBABr in H2O (64.1 µL, c = 29.3 μM/mL, 1 eq.) was added. The mixture was sonicated for 30 min and was lyophilized to afford Br−@(DNJ-C6)12BU[6].TBA+ 8 (9.5 mg, 98% yield). 1H NMR (400 MHz, D2O): δ (ppm) = 7.93 (br s, 12H, H13), 5.81 (br s, 12H, H17), 4.72–4.53 (m, 36H, H15, H19), 4.32–4.28 (m, 24H, H12), 3.82–3.78 (m, 24H, H6), 3.58–3.47 (m, 12H, H2), 3.37 (t, J = 9.5 Hz, 12H, H3), 3.29–3.24 (m, 12H, H4), 3.24–3.15 (8H, m, N-(CH2-CH2-CH2-CH3)4, 2.98–2.93 (m, 12H, H1a), 2.74–2.63 (m, 12H, H7a), 2.52–2.41 (m, 12H, H7b), 2.32–2.18 (m, 32H, H1b, H5, N-(CH2-CH2-CH2-CH3)4), 1.91–1.78 (m, 24H, H11), 1.68–1.59 (m, 8H, N-(CH2-CH2-CH2-CH3)4) 1.38–1.16 (m, 72H, H8, H9, H10), 0.94 (t, J = 7.3 Hz, 12H, N-(CH2-CH2-CH2-CH3)4; 13C NMR (100 MHz, D2O): δ (ppm) = 160.3, 159.6 (C16, C18), 145.3 (C14), 123.9 (C13), 78.9 (C4), 70.5 (C17), 69.4 (C3), 65.7 (C2), 58.7 (N-CH2-CH2-CH2-CH3), 57.9 (C5), 55.9 (C6), 52.5 (C1), 50.9 (C7), 48.1 (C12, C19), 39.8 (C15), 29.9 (N-CH2-CH2-CH2-CH3), 26.8 (C11), 26.2 (C9), 23.8 (C10), 23.3 (C8), 19.8 (N-CH2-CH2-CH2-CH3), 13.4 (N-CH2-CH2-CH2-CH3); IR (neat, νmax/cm−1) 3374 (OH), 2928 (CH2), 1701 (NC=O), 1481 (CH2), 1215 (C-N), 1055 (C-O); [α]D20 = + 3.5 (c 0.14, H2O).

3.1.15. Synthesis of I-@(DNJ-C6)12BU[6].TBA+ 9

To a solution of (DNJ-C6)12BU[6] 6 (8.5 mg, 1.75 µmol, 1 eq.) in 0.5 mL of H2O was added a solution of TBAI in H2O (65.9 µL, c = 26.5 μM/mL, 1 eq.). The reaction mixture was sonicated for 30 min and then lyophilized to afford I-@(DNJ-C612BU[6].TBA+ 9 (8.8 mg, 97% yield). 1H NMR (400 MHz, D2O): δ (ppm) = 7.93 (br s, 12H, H13), 5.98 (br s, 12H, H17), 4.72–4.53 (m, 36H, H15, H19), 4.38–4.29 (m, 24H, H12), 3.83–3.80 (m, 24H, H6), 3.57–3.48 (m, 12H, H2), 3.37 (t, J = 9.6 Hz, 12H, H3), 3.28–3.21 (m, 20H, H4, N-(CH2-CH2-CH2-CH3)4), 3.01–2.95 (m, 12H, H1a), 2.70–2.59 (m, 12H, H7a), 2.58–2.49 (m, 12H, H7b), 2.25–2.18 (m, 32H, H1b, H5, N-(CH2-CH2-CH2-CH3)4), 1.88–1.70 (m, 24H, H11), 1.66–1.61 (m, 8H, N-(CH2-CH2-CH2-CH3)4), 1.39–1.17 (m, 72H, H8, H9, H10), 0.95 (t, J = 7.4 Hz, 12H, N-(CH2-CH2-CH2-CH3)4; 13C NMR (100 MHz, D2O): δ (ppm) = 160.9, 159.9 (C16, C18), 145.4 (C14), 123.9 (C13), 78.9 (C4), 70.6 (C17), 69.9 (C3), 65.7 (C2), 58.7 ((N-CH2-CH2-CH2-CH3), 58.1 (C5), 56.0 (C6), 52.5 (C1), 50.9 (C7), 47.9 (C12, C19), 40.0 (C15), 30.0 (N-CH2-CH2-CH2-CH3), 26.8 (C11), 26.2 (C9), 23.8 (C10), 23.3 (C8), 19.8 (N-CH2-CH2-CH2-CH3), 13.4 (N-CH2-CH2-CH2-CH3); IR (neat, νmax/cm−1) 3331 (OH), 2920 (CH2), 1702 (NC=O), 1482 (CH2), 1216 (C-N), 1067 (C-O); [α]D20 = + 4.2 (c 0.12, H2O).

3.1.16. Synthesis of Br−@(DNJ-C9)12BU[6].TBA+ 10

To a solution of anion-free (DNJ-C9)12BU[6] 7 (10.8 mg, 2.02 µmol, 1 eq.) in H2O (1 mL) was added a solution of TBABr in H2O (63.6 µL, c = 31.8 μM/mL 1 eq.). The reaction mixture was sonicated for 30 min and then was lyophilized to afford Br-@(DNJ-C9)12BU[6].TBA+ 10 (11.2 mg, 98% yield). 1H NMR (400 MHz, D2O/MeOD 0.35/0.2): δ (ppm) = 7.87 (br s, 12H, H16), 5.77 (br s, 12H, H20), 4.62–4.52 (m, 36H, H18, H22), 4.29–4.24 (m, 24H, H15), 3.85–3.81 (m, 24H, H6), 3.55–3.48 (m, 12H, H4), 3.37–3.33 (m, 12H, H2), 3.24–3.19 (m, 20H, H3, N-(CH2-CH2-CH2-CH3)4), 2.98 (d, J = 6.7 Hz, 12H, H1a), 2.77–2.63 (m, 12H, H7a), 2.62–2.50 (m, 12H, H7b), 2.33–2.12 (m, 24H, H1b, H5), 1.82–1.78 (m, 24H, H14), 1.66–1.59 (m, 8H, N-(CH2-CH2-CH2-CH3)4, 1.50–1.31 (m, 32H, H8, N-(CH2-CH2-CH2-CH3)4), 1.25–1.16 (m, 120H, H9, H10, H11, H12, H13), 0.96 (t, J = 7.4 Hz, 12H, N-(CH2-CH2-CH2-CH3)4); 13C NMR (176 MHz, D2O/MeOD 0.35/0.2): δ (ppm) = 160.8, 160.0 (C19-C21), 145.9 (C17), 124.3 (C16), 79.5 (C4), 71.0 (C20), 69.9 (C2, C3), 66.4 (C5), 59.1 (N-CH2-CH2-CH2-CH3), 58.5 (C6), 56.7 (C1), 53.4 (C7), 51.3 (C22), 40.3 (C15, C18), 30.8 (C14), 30.0 (N-CH2-CH2-CH2-CH3), 29.5–28.0–27.0–24.3–23.9 (C8, C9, C10, C11, C12, C13), 20.3 (N-CH2-CH2-CH2-CH3), 13.9 ((N-CH2-CH2-CH2-CH3). IR (neat, νmax/cm−1) 3375 (OH), 2922 (CH2), 1702 (NC=O), 1482 (CH2), 1131 (C-N), 1057 (C-O). [α]D20 = + 3.8 (c 0.10, H2O/MeOH 0.3/0.2).

3.1.17. Synthesis of Br−@(DNJ-OAc-Tripod)6BU[6] Na+ 20

To a solution of propargylated bambusuril 2 (6.0 mg, 3.53 µmol, 1 eq.) in H2O/tBuOH (1.2 mL, 0.5/0.7) were added tripod-azide 14 (105.5 mg, 56.74 µmol, 16 eq.), sodium ascorbate (14.2 µL of 1 M aqueous solution, 14.20 µmol, 4 eq.) and copper sulfate (7.1 µL of 1 M aqueous solution, 7.10 µmol, 2 eq.). The reaction was stirred and heated under microwave irradiations for 3 h at 80 °C with a power of 50 W. A solution of MeCN/H2O/NH4OH (30w%) (1 mL, 15/0.5/0.5, v/v/v) was then added and the mixture was filteredon a small pad of SiO2. The filtrate was concentrated under vacuum and the crude product was purified on silica gel chromatography (CH2Cl2/MeOH, 99:1 to 95:5) to afford Br−@(DNJ-OAc-Tripod)6BU[6].Na+ 20 (37.5 mg, 84% yield). 1H NMR (400 MHz, CDCl3): δ (ppm) = 7.64–7.45 (m, 24H, H16, H26), 5.90–5.65 (br s, 12H, H33), 5.17–4.83 (m, 54H, H2, H3, H4), 4.55–4.22 (m, 120H, H15, H18, H25, H28, H30, H35), 4.18–4.10 (m, 36H, H6), 3.83–3.60 (m, 12H, H24), 3.48–3.28 (m, 72H, H19, H21, H22, H23), 3.24–3.10 (m, 18H, H1a), 2.80–2.47 (m, 54H, H5, H7), 2.38–2.25 (m, 18H, H1b), 2.11 (br s, 6H, H32), 2.10–1.88 (m, 252H, CH3-C=O, H14), 1.85–1.74 (m, 36H, H8), 1.51–1.29 (m, 36H, H8), 1.29–1.19 (m, 180H, H9, H10, H11, H12, H13); 13C NMR (176 MHz, CDCl3): δ (ppm) = 170.8, 170.3, 169.9, 169.7 (CH3-C=O), 159.2 (C29, C34), 145.2 (C17, C27), 123.9 (C16), 122.9 (C26), 74.1 (C3), 71.2–70.3–69.9 (C21, C22, C23), 69.3 (C4, C24), 68.8 (C2, C19, C33), 65.0 (C18), 61.6 (C5), 58.9 (C6), 52.1 (C1), 50.4 (C7, C15, C25), 47.8 (C35), 45.5 (C20), 39.4 (C28), 30.5 (C14), 29.8, 29.4, 29.1, 27.1, 26.6 (C9, C10, C11, C12, C13), 24.3 (C8), 21.0, 20.9, 20.8, 20.7 (CH3-C=O); IR (neat, νmax/cm−1) 2927 (CH2), 1745 (CH3-C=O), 1704 (NC=O), 1471 (C-N), 1225 (C-H), 1032 (C-O); HRMS (ESI+): m/z calculated for [C588H894N114O186+9H]9+: 1393.0446, found 1393.8317; [α]D20 = 9.9 (c 0.105, CHCl3).

3.1.18. Synthesis of Br−@(DNJ-Tripod)6BU[6].Na+ 11

To a solution of Br-@(DNJ-OAc-Tripod)6BU[6].Na+ 20 (19.5 mg, 1.54 µmol, 1 eq.) in H2O/MeOH (1 mL 1/1), amberlite IRN 78 (HO−) (59 mg) was added and the mixture was heated at 40 °C for 12 h. After concentration under vacuum, Br-@(DNJ-Tripod)6BU[6].Na+ 11 was obtained (12.5 mg, 84% yield). 1H NMR (D2O/MeOD 50/50, 400 MHz): δ (ppm) 7.94 (br s, 24H, H16, H26), 5.96–5.77 (m, 12H, H33), 4.50–4.26 (m, 90H, H2, H3, H4, H25, H28, H30), 3.85 (br s, 36H, H18), 3.69 (s, 12H, H35), 3.59–3.51 (m, 36H, H15), 3.43–3.28 (m, 84H, H19, H21, H22, H23, H24), 3.22 (t, J = 9.0 Hz, 36H, H6), 3.03–2.98 (m, 18H, H1a), 2.79–2.69 (m, 18H, H7a), 2.68–2.56 (m, 18H, H7b), 2.27–2.16 (m, 42H, H1, H5, H32), 1.86–1.78 (m, 36H, H14), 1.51–1.35 (m, 36H, H8), 1.37–1.11 (m, 180H, H9, H10, H11, H12, H13); 13C NMR (176 MHz, D2O/MeOD 50/50): δ (ppm) 159.4 (C29, C34), 145.6 (C17, C27), 125.2 (C16, C26), 79.7 (C3), 71.2 (C21, C22, C23), 70.0 (C4), 69.5 (C24), 66.4 (C2, C19, C33), 64.9 (C18), 58.7 (C5), 56.8 (C6), 53.4 (C1), 51.3 (C7, C15, C25), 46.1 (C35), 45.2 (C20), 40.1 (C28), 30.9 (C14), 30.1, 29.9, 29.6, 28.2, 27.1 (C9, C10, C11, C12, C13), 24.1 (C8); IR (neat, νmax/cm−1): 3550 (OH), 2922 (CH2), 1702 (NC=O), 1394 (C-N), 1249 (CH), 1065 (C-O); [α]D20 = +1.8 (c 0.055, H2O/MeOH 1/1); HRMS MS(ESI+): m/z calculated for (C444H750N114O114+13H]13+: 732.0492, found 732.8294.

3.2. Isothermal Titration Calorimetry Experiments

ITC measurements were performed with a VP-ITC microcalorimeter (Microcal, GEHealthcare). Experiments were carried out in water and in a solution of K2HPO4 (1.5 mM) in mili-Q water at 298.15 ± 0.1 K. Anion binding to BU was investigated via a classical isothermal titration experiment (10 µL additions) and a single injection method (SIM). Injection of sodium iodide solution was added automatically to the BU solution present in the calorimeter cell while stirring at 307 rpm. Integrated heat effects were analyzed by non-linear regression using a single-site binding model (Microcal Origin 7). The experimental data fitted to a theorical titration curve, giving the association constant Ka, the enthalpy of binding ΔH° and the entropy ΔS°. The free energy ΔG° was calculated from the equation: ΔG° = ΔH° − TΔS°, where T is the absolute temperature. The first smaller addition (2 µL), which was used to compensate for diffusion of the guest from the injector during equilibration, was discarded prior to data fitting.

3.3. Inhibition Assays on Jack-Bean α-Mannosidase

p-nitrophenyl-α-D-mannopyranoside and α-mannosidase (EC 3.2.1.24, from Jack Bean) were purchased from Sigma Aldrich, St. Louis, MO, USA. Inhibition constants were determined spectrophotometrically by measuring the residual hydrolytic activities of the α-mannosidase against p-nitrophenyl-α-D-mannopyranoside in the presence and absence of an inhibitor. Each well was filled with a total volume of 100 µL, containing 0.2 M acetate buffer pH 5, inhibitor, substrate and enzyme. All kinetics were performed between 25 °C and 27 °C and started by enzyme addition. After 30–50 min of incubation, the reaction was quenched by addition of 100 µL of 1M Na2CO3. The absorbance of the resulting solution was determined at 405 nm. Ki values were determined in triplicate, using the Dixon and Lineweaver–Burk graphical methods within Microsoft Excel. Stock solutions of inhibitors were prepared with DMSO/buffer for final well DMSO content under 5%. The stability of the enzyme in the presence of the same concentrations of DMSO was controlled and enzyme activity was unaffected.

4. Conclusions

Propargylated bambus[4,6]urils were fully functionalized by click chemistry with linear N-alkylDNJ ligands either having 6 or 9 carbon alkyl azido linkers or a trivalent DNJ derivative to generate multivalent clusters bearing up to 24 iminosugars. The novelty of this study lies in the unique combination of anion-transporting BU[6] scaffolds with iminosugar inhitopes that have already proven their efficiency towards the multivalent inhibition of glycosidases. For clusters grafted with DNJ ligands linked by short C6 arms, scaffold size showed a strong impact on α-mannosidase inhibition, with the best results obtained for BU[4] clusters. With nonyl chains, the enzyme affinity per inhibitory head increases drastically whichever platform is used, the best affinity increases being obtained with trivalent dendrons providing higher local inhibitor concentration. Bromide and iodide sequestered in BU[6] grafted by DNJ inhibitors were also prepared and their activity was compared to their corresponding anion-free counterparts, showing that the presence of anions neither modified the inhibition potency of the clusters nor their inhibition mode. Our study thus shows a first proof of concept for glycosidase-directed ion caging agents based on unprecedented bambusuril-based iminosugar clusters. Altogether, these results open the way to unique water-soluble probes/therapeutic agents with both strong glycosidase inhibition potency and ion receptor properties.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27154772/s1, Figure S1: NMR 1H and 13C spectra of compounds 3, 4, 5, 6, 7, 8, 9, 10, 11, 15, 16, 17, 18, 19, 20, ITC of I- binding to 6 and enzymatic study of 3, 4, 5, 6, 8, 9, 10 and 11.

Author Contributions

M.L., J.P.S., Y.L. and E.C. synthesized the compounds. M.L., J.P.S. and A.B. performed the enzymatic studies. M.L. and E.C. performed the ITC experiments. M.-P.H., P.C. and A.B. designed the project, analyzed the results and wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the CEA (Commissariat à l’Energie Atomique) through fellowships for M.L. and E.C. and the International Centre for Frontier Research in Chemistry (icFRC) through a fellowship provided to J.P.S.; Y.L. is grateful to the Chinese Scholarship Council (CSC) for a PhD fellowship. The authors also acknowledge financial support from the University of Strasbourg and the CNRS (LIMA-UMR 7042).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We thank J. Rivollier (Université Paris-Saclay/CEA/DMTS/SCBM) for preliminary neoglycoBUs synthesis. Y. Boulard (Université Paris-Saclay/CEA/I2BC) and F. Fenaille (Université Paris-Saclay/CEA/DMTS/SPI) are thanked for recording 600 MHz NMR spectra and for mass spectrometry experiments, respectively.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Svec, J.; Necas, M.; Sindelar, V. Bambus[6]uril. Angew. Chem. Int. Ed. 2010, 49, 2378–2381. [Google Scholar] [CrossRef] [PubMed]
  2. Lizal, T.; Sindelar, V. Bambusuril Anion Receptors. Isr. J. Chem. 2018, 58, 326–333. [Google Scholar] [CrossRef]
  3. Mondal, P.; Solel, E.; Mitra, S.; Keinan, E.; Reany, O. Equatorial Sulfur Atoms in Bambusurils Spawn Cavity Collapse. Org. Lett. 2020, 22, 204–208. [Google Scholar] [CrossRef] [PubMed]
  4. Havel, V.; Sindelar, V. Anion Binding Inside a Bambus[6]Uril Macrocycle in Chloroform. Chem. Plus. Chem. 2015, 80, 1601–1606. [Google Scholar] [CrossRef] [PubMed]
  5. Havel, V.; Yawer, M.A.; Sindelar, V. Real-Time Analysis of Multiple Anion Mixtures in Aqueous Media Using a Single Receptor. Chem. Commun. 2015, 51, 4666–4669. [Google Scholar] [CrossRef] [Green Version]
  6. Lang, C.; Mohite, A.; Deng, X.; Yang, F.; Dong, Z.; Xu, J.; Liu, J.; Keinan, E.; Reany, O. Semithiobambus[6]Uril Is a Transmembrane Anion Transporter. Chem. Commun. 2017, 53, 7557–7560. [Google Scholar] [CrossRef] [Green Version]
  7. Valkenier, H.; Akrawi, O.; Jurček, P.; Sleziaková, K.; Lízal, T.; Bartik, K.; Šindelář, V. Fluorinated Bambusurils as Highly Effective and Selective Transmembrane Cl−/HCO3− Antiporters. Chemistry 2019, 5, 429–444. [Google Scholar] [CrossRef] [Green Version]
  8. Šlampová, A.; Šindelář, V.; Kubáň, P. Application of a Macrocyclic Compound, Bambus[6]Uril, in Tailor-Made Liquid Membranes for Highly Selective Electromembrane Extractions of Inorganic Anions. Anal. Chim. Acta 2017, 950, 49–56. [Google Scholar] [CrossRef]
  9. Vázquez, J.; Šindelář, V. Phase-Transfer Extraction for the Fast Quantification of Perchlorate Anions in Water. RSC Adv. 2019, 9, 35452–35455. [Google Scholar] [CrossRef] [Green Version]
  10. Maršálek, K.; Šindelář, V. Monofunctionalized Bambus[6]urils and Their Conjugates with Crown Ethers for Liquid−Liquid Extraction of Inorganic Salts. Org. Lett. 2020, 22, 1633–1637. [Google Scholar] [CrossRef]
  11. Fiala, T.; Ludvíková, L.; Heger, D.; Švec, J.; Slanina, T.; Vetráková, L.; Babiak, M.; Nečas, M.; Kulhánek, P.; Klán, P.; et al. Bambusuril as a One-Electron Donor for Photoinduced ElectronTransfer to Methyl Viologen in Mixed Crystals. J. Am. Chem. Soc. 2017, 139, 2597–2603. [Google Scholar] [CrossRef] [PubMed]
  12. Rivollier, J.; Thuery, P.; Heck, M.-P. Extension of the Bambus[n]uril Family: Microwave Synthesis and Reactivity of Allylbambus[n]urils. Org. Lett. 2013, 15, 480–483. [Google Scholar] [CrossRef] [PubMed]
  13. Azazna, D.; Lafosse, M.; Rivollier, J.; Wang, J.; Ben Cheikh, I.; Meyer, M.; Thuéry, P.; Dognon, J.-P.; Huber, G.; Heck, M.-P. Functionalization of Bambusurils by a Thiol−Ene Click Reaction and a Facile Method for the Preparation of Anion-Free Bambus[6]urils. Chem.–Eur. J. 2018, 24, 10793–10801. [Google Scholar] [CrossRef]
  14. Lafosse, M.; Cartier, E.; Solmont, K.; Rivollier, J.; Azazna, D.; Thuéry, P.; Boulard, Y.; Gontier, A.; Charbonnier, J.-B.; Kuhnast, B.; et al. Clickable Bambusurils to Access Multivalent Architectures. Org. Lett. 2020, 22, 3099–3103. [Google Scholar] [CrossRef] [PubMed]
  15. Compain, P.; Bodlenner, A. The multivalent effect in glycosidase inhibition: A new, rapidly emerging topic in glycoscience. ChemBioChem 2014, 15, 1239–1251. [Google Scholar] [CrossRef] [PubMed]
  16. Gouin, S.G. Multivalent inhibitors for carbohydrate-processing enzymes: Beyond the “lock-and-key” concept. Chem.–Eur. J. 2014, 20, 11616–11628. [Google Scholar] [CrossRef]
  17. Zelli, R.; Longevial, J.-F.; Dumy, P.; Marra, A. Synthesis and biological properties of multivalent iminosugars. New J. Chem. 2015, 30, 5050–5074. [Google Scholar] [CrossRef]
  18. Matassini, C.; Parmeggiani, C.; Cardona, F.; Goti, A. Are enzymes sensitive to the multivalent effect? Emerging evidence with glycosidases. Tetrahedron Lett. 2016, 57, 5407–5415. [Google Scholar] [CrossRef]
  19. González-Cuesta, M.; Ortiz Mellet, C.; García Fernández, J.M. Carbohydrate supramolecular chemistry: Beyond the multivalent effect. Chem. Commun. 2020, 56, 5207–5222. [Google Scholar] [CrossRef] [Green Version]
  20. Compain, P. Multivalent effect in glycosidase inhibition: The end of the beginning. Chem. Rec. 2020, 20, 10–22. [Google Scholar] [CrossRef]
  21. Diot, J.; García-Moreno, M.I.; Gouin, S.G.; Ortiz Mellet, C.; Haupt, K.; Kovensky, J. Multivalent iminosugars to modulate affinity and selectivity for glycosidases. Org. Biomol. Chem. 2009, 7, 357–363. [Google Scholar] [CrossRef] [PubMed]
  22. Compain, P.; Decroocq, C.; Iehl, J.; Holler, M.; Hazelard, D.; Mena Barragán, T.; Ortiz Mellet, C.; Nierengarten, J.-F. Glycosidase Inhibition with Fullerene Iminosugar Balls: A Dramatic Multivalent Effect. Angew. Chem. Int. Ed. 2010, 49, 5753–5756. [Google Scholar] [CrossRef] [PubMed]
  23. Vanni, C.; Bodlenner, A.; Marradi, M.; Schneider, J.P.; de los Angeles Ramirez, M.; Moya, S.; Goti, A.; Cardona, F.; Compain, P.; Matassini, C. Hybrid Multivalent Jack Bean α-Mannosidase Inhibitors: The First Example of Gold Nanoparticles Decorated with Deoxynojirimycin Inhitopes. Molecules 2021, 26, 5864. [Google Scholar] [CrossRef]
  24. Bonduelle, C.; Huang, J.; Mena-Barragán, T.; Ortiz Mellet, C.; Decroocq, C.; Etamé, E.; Heise, A.; Compain, P.; Lecommandoux, S. Iminosugar-based glycopolypeptides: Glycosidase inhibition with bioinspired glycoprotein analogue micellar selfassemblies. Chem. Commun. 2014, 50, 3350–3352. [Google Scholar] [CrossRef] [PubMed]
  25. Brissonet, Y.; Ortiz Mellet, C.; Morandat, S.; Garcia-Moreno, M.I.; Deniaud, D.; Matthews, S.E.; Vidal, S.; Sesták, S.; El Kirat, K.; Gouin, S.G. Topological Effects and Binding Modes Operating with Multivalent Iminosugar-Based Glycoclusters and Mannosidases. J. Am. Chem. Soc. 2013, 135, 18427–18435. [Google Scholar] [CrossRef]
  26. Lepage, M.L.; Schneider, J.P.; Bodlenner, A.; Meli, A.; De Riccardis, F.; Schmitt, M.; Tarnus, C.; Nguyen-Huynh, N.-T.; Francois, Y.-N.; Leize-Wagner, E.; et al. Iminosugar-Cyclopeptoid Conjugates Raise Multivalent Effect in Glycosidase Inhibition at Unprecedented High Levels. Chem.–Eur. J. 2016, 22, 5151–5155. [Google Scholar] [CrossRef]
  27. Assailly, C.; Bridot, C.; Saumonneau, A.; Lottin, P.; Roubinet, B.; Krammer, E.-M.; François, F.; Vena, F.; Landemarre, L.; Alvarez Dorta, D.; et al. Polyvalent Transition-State Analogues of Sialyl Substrates Strongly Inhibit Bacterial Sialidases. Chem.–Eur. J. 2021, 27, 3142–3150. [Google Scholar] [CrossRef]
  28. Alvarez-Dorta, D.; Brissonnet, Y.; Saumonneau, A.; Deniaud, D.; Bernard, J.; Yan, X.; Tellier, C.; Daligault, F.; Gouin, S. Magnetic Nanoparticles Coated with Thiomannosides or Iminosugars to Switch and Recycle Galactosidase Activity. Chem. Sel. 2017, 2, 9552–9556. [Google Scholar] [CrossRef]
  29. Brissonnet, Y.; Ladevèze, S.; Tezé, D.; Fabre, E.; Deniaud, D.; Daligault, F.; Tellier, C.; Šesták, S.; Remaud-Simeon, M.; Potocki-Veronese, G.; et al. Polymeric Iminosugars Improve the Activity of Carbohydrate-Processing Enzymes. Bioconjug. Chem. 2015, 26, 766–772. [Google Scholar] [CrossRef]
  30. Ding, F.; Songkiatisak, P.; Cherukuri, P.K.; Huang, T.; Xu, X.-H.N. Size-Dependent Inhibitory Effects of Antibiotic Drug Nanocarriers against Pseudomonas Aeruginosa. ACS Omega 2018, 3, 1231–1243. [Google Scholar] [CrossRef] [Green Version]
  31. Durka, M.; Buffet, K.; Iehl, J.; Holler, M.; Nierengarten, J.-F.; Vincent, S.P. The Inhibition of Liposaccharide Heptosyltransferase WaaC with Multivalent Glycosylated Fullerenes: A New Mode of Glycosyltransferase Inhibition. Chem.–Eur. J. 2012, 18, 641–651. [Google Scholar] [CrossRef] [PubMed]
  32. Hurtaux, T.; Sfihi-Loualia, G.; Brissonnet, Y.; Bouckaert, J.; Mallet, J.-M.; Sendid, B.; Delplace, F.; Fabre, E.; Gouin, S.G.; Guérardel, Y. Evaluation of Monovalent and Multivalent Iminosugars to Modulate Candida Albicans β-1,2-Mannosyltransferase Activities. Carbohydr. Res. 2016, 429, 123–127. [Google Scholar] [CrossRef] [PubMed]
  33. Tikad, A.; Fu, H.; Sevrain, C.M.; Laurent, S.; Nierengarten, J.-F.; Vincent, S.P. Mechanistic Insight into Heptosyltransferase Inhibition by Using Kdo Multivalent Glycoclusters. Chem.–Eur. J. 2016, 22, 13147–13155. [Google Scholar] [CrossRef] [PubMed]
  34. Ismail, C.; Nocentini, A.; Supuran, C.T.; Winum, J.-Y.; Gharbi, R. 1,5-Benzodiazepines as a Platform for the Design of Carbonic Anhydrase Inhibitors. Arch. Pharm. 2022, 355, 2100405. [Google Scholar] [CrossRef] [PubMed]
  35. Mammen, M.; Choi, S.-K.; Whitesides, G.M. Polyvalent Interactions in Biological Systems: Implications for Design and Use of Multivalent Ligands and Inhibitors. Angew. Chem. Int. Ed. 1998, 37, 2754–2794. [Google Scholar] [CrossRef]
  36. Howard, E.; Cousido-Siah, A.; Lepage, M.L.; Schneider, J.P.; Bodlenner, A.; Mitschler, A.; Meli, A.; Izzo, I.; Alvarez, H.A.; Podjarny, A.; et al. Structural Basis of Outstanding Multivalent Effects in Jack Bean α-Mannosidase Inhibition. Angew. Chem. Int. Ed. 2018, 57, 8002–8006. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Decroocq, C.; Rodríguez-Lucena, D.; Russo, V.; Mena Barragán, T.; Ortiz Mellet, C.; Compain, P. The Multivalent Effect in Glycosidase Inhibition: Probing the Influence of Architectural Parameters with Cyclodextrin-Based Iminosugar Click Clusters. Chem.–Eur. J. 2011, 17, 13825–13831. [Google Scholar] [CrossRef]
  38. Joosten, A.; Schneider, J.P.; Lepage, M.L.; Tarnus, C.; Bodlenner, A.; Compain, P. A Convergent Strategy for the Synthesis of Second-Generation Iminosugar Clusters Using “Clickable” Trivalent Dendrons: Synthesis of Second-Generation Iminosugar Clusters. Eur. J. Org. Chem. 2014, 2014, 1866–1872. [Google Scholar] [CrossRef]
  39. Decroocq, C.; Joosten, A.; Sergent, R.; Mena Barragán, T.; Ortiz Mellet, C.; Compain, P. The Multivalent Effect in Glycosidase Inhibition: Probing the Influence of Valency, Peripheral Ligand Structure, and Topology with Cyclodextrin-Based Iminosugar Click Clusters. ChemBioChem 2013, 14, 2038–2049. [Google Scholar] [CrossRef]
  40. Pathak, V.P. A Convenient Method for O-Deacetylation Using IRA-400(OH) Resin. Synth. Commun. 1993, 23, 83–85. [Google Scholar] [CrossRef]
  41. Nierengarten, J.-F.; Schneider, J.P.; Nguyet Trinh, T.M.; Joosten, A.; Holler, M.; Lepage, M.L.; Bodlenner, A.; Garcia-Moreno, M.I.; Ortiz Mellet, C.; Compain, P. Giant Glycosidase Inhibitors: First- and Second-Generation Fullerodendrimers with a Dense Iminosugar Shell. Chem.–Eur. J. 2018, 24, 2483–2492. [Google Scholar] [CrossRef] [PubMed]
  42. Havel, V.; Svec, J.; Wimmerova, M.; Dusek, M.; Pojarova, M.; Sindelar, V. Bambus[n]-urils: A New Family of Macrocyclic Anion Receptors. Org. Lett. 2011, 13, 4000–4003. [Google Scholar] [CrossRef] [PubMed]
  43. Schneider, J.P.; Tommasone, S.; Della Sala, P.; Gaeta, C.; Talotta, C.; Tarnus, C.; Neri, P.; Bodlenner, A.; Compain, P. Synthesis and Glycosidase Inhibition Properties of Calix[8]Arene-Based Iminosugar Click Clusters. Pharmaceuticals 2020, 13, 366. [Google Scholar] [CrossRef]
  44. Tranoy-Opalinski, I.; Legigan, T.; Barat, R.; Clarhaut, J.; Thomas, M.; Renoux, B.; Papot, S. β-Glucuronidase-responsive Prodrugs for Selective Cancer Chemotherapy: An Update. Eur. J. Med. Chem. 2014, 74, 302–313. [Google Scholar] [CrossRef]
  45. Mayson, S.E.; Chan, C.M.; Haugen, B.M. Tailoring the Approach to Radioactive Iodine Treatment in Thyroid Cancer. Endocr.-Relat. Cancer 2021, 28, T125–T140. [Google Scholar] [CrossRef] [PubMed]
  46. Tian, Q.; Zhu, H.H.; Li, H. Interstitial brachytherapy of oral squamous cell carcinoma with ultrasound-guided iodine-125 radioactive seed implantation. Eur. Rev. Med. Pharm. Sci. 2018, 22, 1680–1685. [Google Scholar] [CrossRef]
  47. Juweid, M.E.; Sharkey, R.M.; Behr, T.; Swayne, L.C.; Dunn, R.; Siegel, J.; Goldenberg, D.M. Radioimmunotherapy of patients with small-volume tumors using iodine-131-labeled anti-CEA monoclonal antibody NP-4 F(ab’)(2). J. Nucl. Med. 1996, 37, 1504–1510. [Google Scholar]
Molecules 27 04772 g001 550

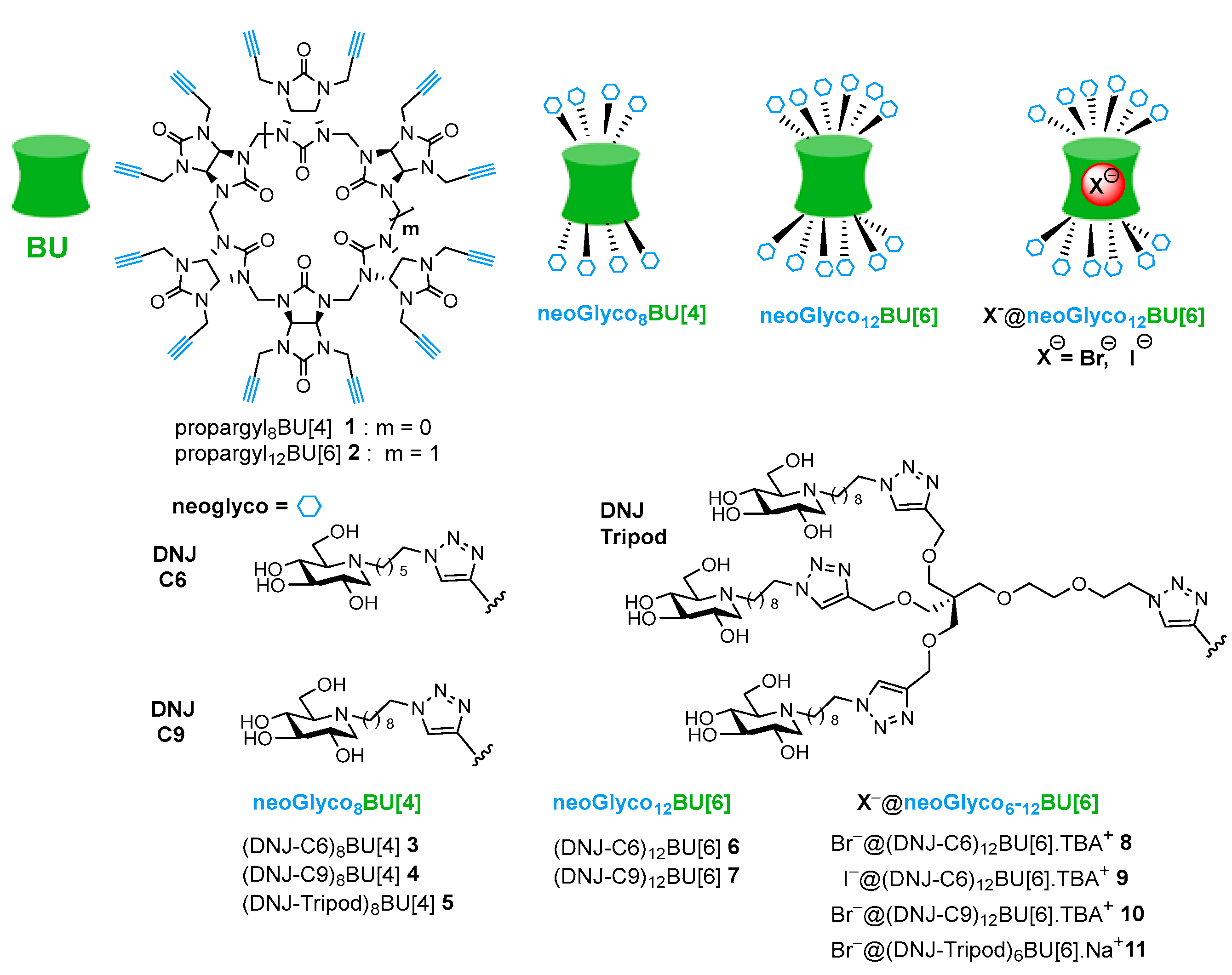

Figure 1. Structures of propargyl8BU[4] 1, propargyl12BU[6] 2, neoglycobambusurils BU[4] 3–5 and BU[6] 6, 7 and Br−@BU[6].TBA+ 8, 10–11 and I-@BU[6].TBA+ 9 bearing DNJ ligands studied in this paper.
Figure 1. Structures of propargyl8BU[4] 1, propargyl12BU[6] 2, neoglycobambusurils BU[4] 3–5 and BU[6] 6, 7 and Br−@BU[6].TBA+ 8, 10–11 and I-@BU[6].TBA+ 9 bearing DNJ ligands studied in this paper.
Molecules 27 04772 g001
Molecules 27 04772 sch001 550

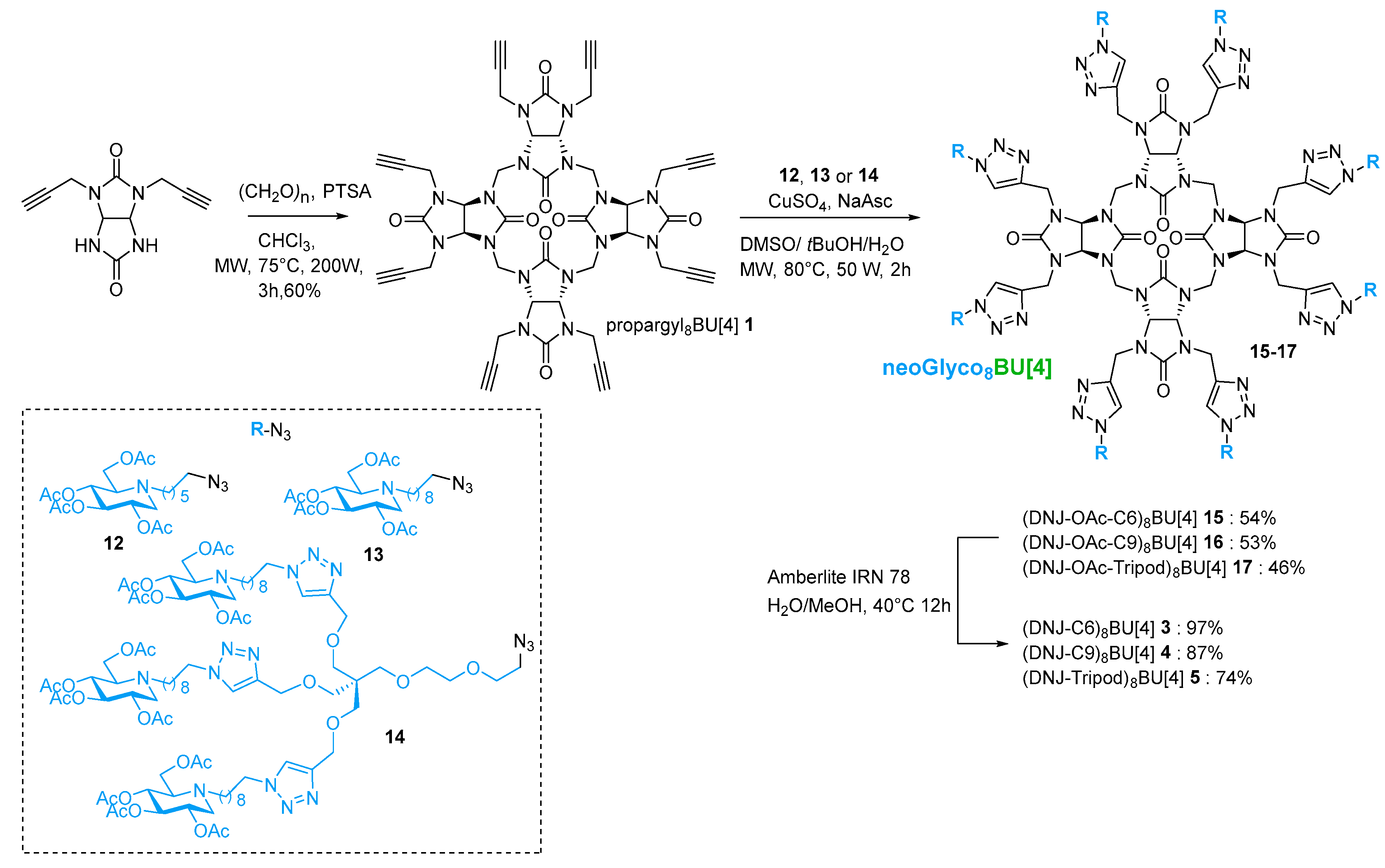

Scheme 1. Synthesis of neoglycobambus[4]urils BU[4] 3, 4 and5 decorated with C-6, C-9 monovalent DNJ and C-9 trivalent tripod DNJ, respectively.
Scheme 1. Synthesis of neoglycobambus[4]urils BU[4] 3, 4 and5 decorated with C-6, C-9 monovalent DNJ and C-9 trivalent tripod DNJ, respectively.
Molecules 27 04772 sch001
Molecules 27 04772 sch002 550

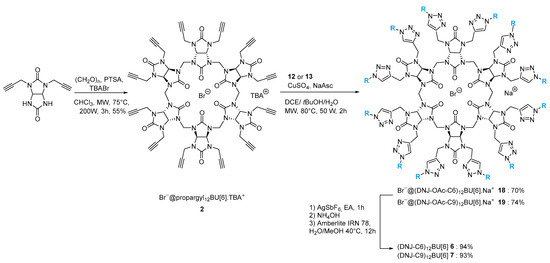

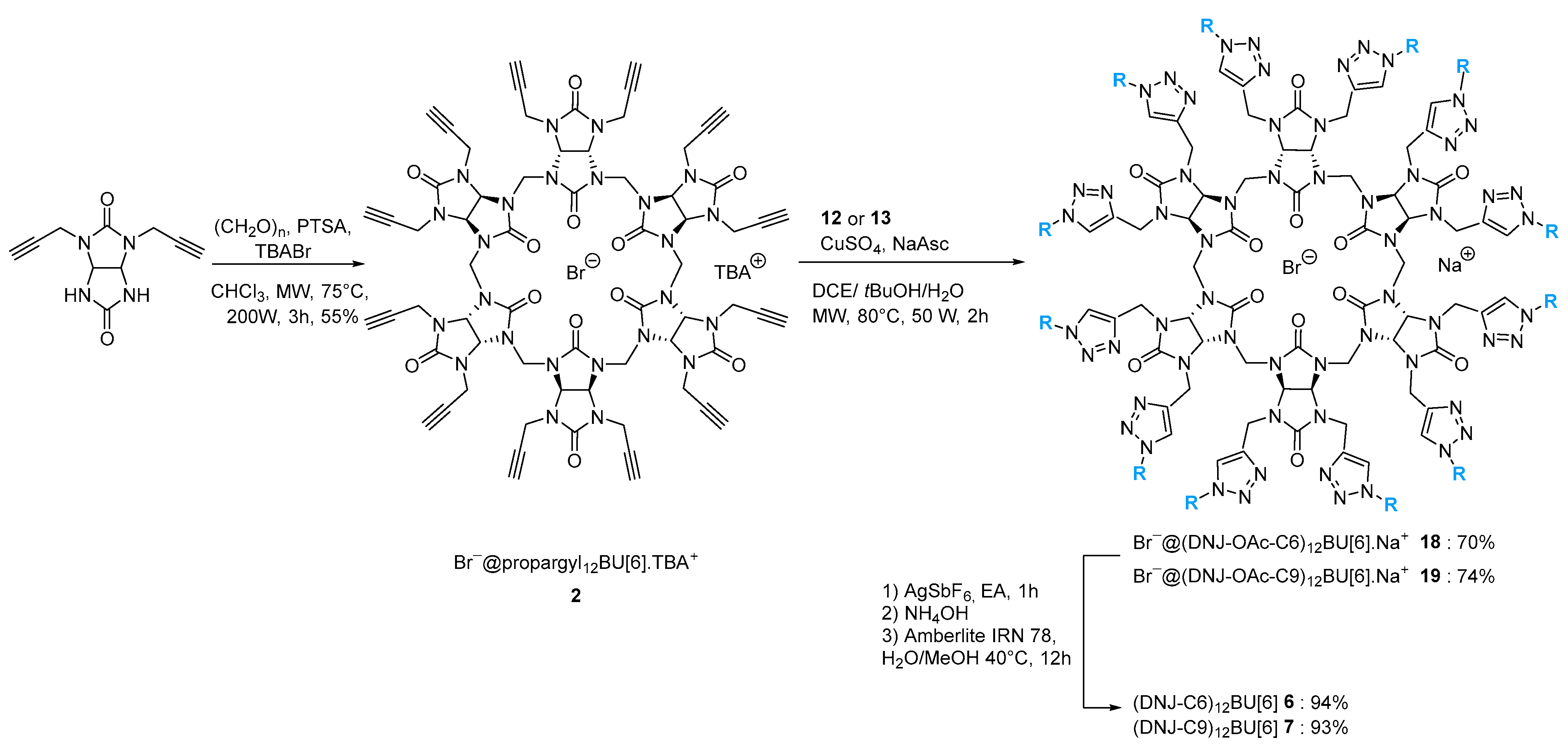

Scheme 2. Synthesis of neoglyco12BU[6] 6, 7 bearing 12 (C-6, C-9) monovalent DNJ ligands.
Scheme 2. Synthesis of neoglyco12BU[6] 6, 7 bearing 12 (C-6, C-9) monovalent DNJ ligands.
Molecules 27 04772 sch002
Molecules 27 04772 sch003 550

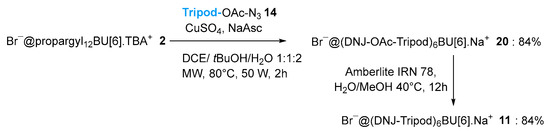

Scheme 3. Synthesis of Br−@(DNJ-Tripod)6BU[6].Na+ 11.
Scheme 3. Synthesis of Br−@(DNJ-Tripod)6BU[6].Na+ 11.
Molecules 27 04772 sch003
Molecules 27 04772 sch004 550

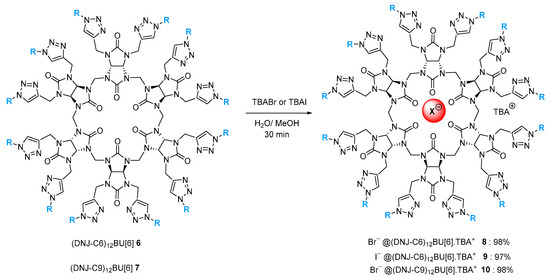

Scheme 4. Synthesis of Br-@(DNJ-C6)12BU[6].TBA+ 8, I−@(DNJ-C6)12BU[6].TBA+ 9 and Br−@(DNJ-C9)12BU[6] TBA+ 10.
Scheme 4. Synthesis of Br-@(DNJ-C6)12BU[6].TBA+ 8, I−@(DNJ-C6)12BU[6].TBA+ 9 and Br−@(DNJ-C9)12BU[6] TBA+ 10.
Molecules 27 04772 sch004
Molecules 27 04772 g002 550

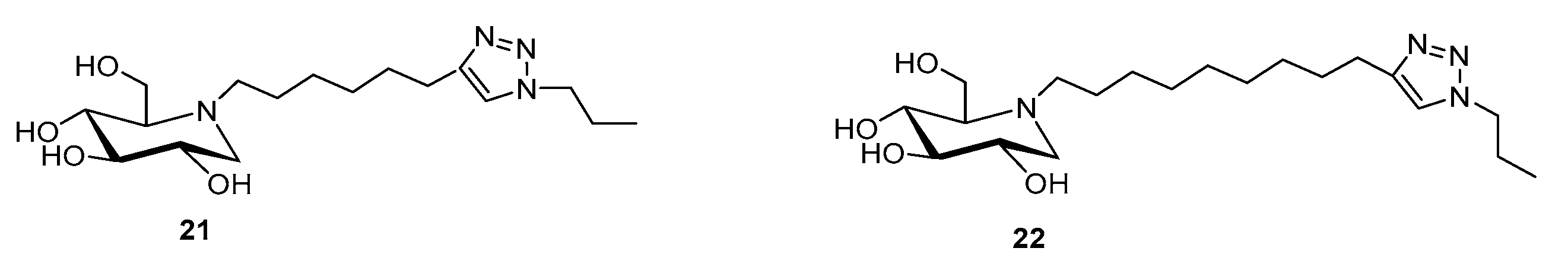

Figure 2. Structure of monovalent inhibitors 21–22.
Figure 2. Structure of monovalent inhibitors 21–22.
Molecules 27 04772 g002
Table
Table 1. Inhibition activity of (DNJ)8BU[4] 3–5 and (DNJ)12BU[6] 6–11 towards Jack Bean α-mannosidase.
Table 1. Inhibition activity of (DNJ)8BU[4] 3–5 and (DNJ)12BU[6] 6–11 towards Jack Bean α-mannosidase.
EntryCompoundBUAlkyl Chain LengthDNJ UnitsKi (µM)Inhibition ModeRp[a]rp/n
121-C61322 [22]competitive--
222-C91188 [37]competitive--
33BU[4]C689.7+/−2.9competitive334
44BU[4]C980.71+/−0.55competitive26533
55BU[4]C9240.024+/−0.004competitive7833326
66BU[6]C61268.2+/−10.3
147+/−21		mixed4.70.4
78Br−@BU[6].TBA+C61285.6+/−10.3
191+/−37		mixed3.80.3
89I-@BU[6].TBA+C612108+/−13
162+/−40		mixed3.00.5
97BU[6]C9121.06+/−0.34competitive17715
1010Br−@BU[6].TBA+C9120.488+/−0.343competitive38532
1111Br−@BU[6].Na+C9180.016+/−0.002competitive11750~652
[a]rp = Ki (monovalent reference)/Ki (neoglycocluster), n = number of inhitope units.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lafosse, M.; Liang, Y.; Schneider, J.P.; Cartier, E.; Bodlenner, A.; Compain, P.; Heck, M.-P. Bambus[4,6]urils as Dual Scaffolds for Multivalent Iminosugar Presentation and Ion Transport: Access to Unprecedented Glycosidase-Directed Anion Caging Agents. Molecules 2022, 27, 4772. https://doi.org/10.3390/molecules27154772

AMA Style

Lafosse M, Liang Y, Schneider JP, Cartier E, Bodlenner A, Compain P, Heck M-P. Bambus[4,6]urils as Dual Scaffolds for Multivalent Iminosugar Presentation and Ion Transport: Access to Unprecedented Glycosidase-Directed Anion Caging Agents. Molecules. 2022; 27(15):4772. https://doi.org/10.3390/molecules27154772

Chicago/Turabian Style

Lafosse, Marine, Yan Liang, Jérémy P. Schneider, Elise Cartier, Anne Bodlenner, Philippe Compain, and Marie-Pierre Heck. 2022. "Bambus[4,6]urils as Dual Scaffolds for Multivalent Iminosugar Presentation and Ion Transport: Access to Unprecedented Glycosidase-Directed Anion Caging Agents" Molecules 27, no. 15: 4772. https://doi.org/10.3390/molecules27154772

Article Metrics

Back to TopTop
