Article

Design, Synthesis and Preliminary Evaluation of the Cytotoxicity and Antibacterial Activity of Novel Triphenylphosphonium Derivatives of Betulin

by
Mirosława Grymel
1,2,3,*,
Anna Lalik
3,4,
Alicja Kazek-Kęsik
5,
Marietta Szewczyk
1,
Patrycja Grabiec
1 and
Karol Erfurt
2
1
Department of Organic Chemistry, Bioorganic Chemistry and Biotechnology, Silesian University of Technology, B. Krzywoustego 4, 44-100 Gliwice, Poland
2
Department of Chemical Organic Technology and Petrochemistry, Silesian University of Technology, B. Krzywoustego 4, 44-100 Gliwice, Poland
3
Biotechnology Center, Silesian University of Technology, B. Krzywoustego 8, 44-100 Gliwice, Poland
4
Department of Systems Biology and Engineering, Silesian University of Technology, Akademicka 16, 44-100 Gliwice, Poland
5
Department of Inorganic, Analytical Chemistry and Electrochemistry, Silesian University of Technology, B. Krzywoustego 6, 44-100 Gliwice, Poland
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(16), 5156; https://doi.org/10.3390/molecules27165156
Submission received: 21 July 2022 / Revised: 4 August 2022 / Accepted: 10 August 2022 / Published: 12 August 2022
(This article belongs to the Special Issue Organophosphorus Chemistry: A New Perspective)
Browse Figures
Versions Notes

Abstract

:
For several decades, natural products have been widely researched and their native scaffolds are the basis for the design and synthesis of new potential therapeutic agents. Betulin is an interesting biologically attractive natural parent molecule with a high safety profile and can easily undergo a variety of structural modifications. Herein, we describe the synthesis of new molecular hybrids of betulin via covalent linkage with an alkyltriphenylphosphonium moiety. The proposed strategy enables the preparation of semi-synthetic derivatives (28-TPP⊕ BN and 3,28-bisTPP⊕ BN) from betulin through simple transformations in high yields. The obtained results showed that the presence of a lipophilic cation improved the solubility of the tested analogs compared to betulin, and increased their cytotoxicity. Among the triphenylphosphonium derivatives tested, analogs 7a (IC50 of 5.56 µM) and 7b (IC50 of 5.77 µM) demonstrated the highest cytotoxicity against the colorectal carcinoma cell line (HCT 116). TPP⊕-conjugates with betulin showed antimicrobial properties against Gram-positive reference Staphylococcus aureus ATCC 25923 and Staphylococcus epidermidis ATCC 12228 bacteria, at a 200 µM concentration in water. Hence, the conjugation of betulin’s parent backbone with a triphenylphosphonium moiety promotes transport through the hydrophobic barriers of the mitochondrial membrane, making it a promising strategy to improve the bioavailability of natural substances.

Graphical Abstract

1. Introduction

Advancements in medical science have allowed for the treatment of a wide range of diseases, however, many disorders lack necessary pharmaceuticals. The high systemic toxicity of medicinal preparations and increasing resistance of tumor cells to a significant number of drugs often limits anticancer therapy success. According to World Health Organization (WHO) reports, cancerous diseases are one of the biggest problems of modern medicine and are one of the main causes of death in the world in the 21st century [1]. Therefore, drug design is an important issue in modern medicinal chemistry. Despite many innovative tools that allow for the development of extremely advanced methods of treatment, many therapies are still based on active substances of natural origin. These substances act as basic structures that can be subjected to various chemical modifications in order to improve their physicochemical and pharmacokinetic properties.
For several decades, natural products (NPs) have been widely researched in terms of searching for new drugs. It is NPs that are an invaluable source of native scaffolds, which are the basis for the design and development of new potential therapeutic agents. Naturally occurring pentacyclic lupane-type triterpenoids have attracted a lot of attention including betulin (BN, 3-lup-20(29)-ene-3,28-diol), which is one of the most available terpenoids in the plant kingdom. BN is a cheap, easily accessible natural active substance that can be readily extracted from the bark of several species of trees, especially white birch (Betula pubescens) [2,3]. Due to the presence of simply transformable functional groups in its skeleton (including C3-OH, C28-OH), BN has high synthetic potential for numerous semi-synthetic derivatives. BN is an interesting example of a biologically attractive natural parent molecule with a high safety profile and the possibility of making a variety of structural modifications (Figure 1) [3,4,5].
The multidirectional biological activity of natural BN has been confirmed by numerous research articles. Additionally, the reported derivatives of BN have shown a broad spectrum of bio-activity in terms of anticancer [4,6,7,8,9,10], antimalarial activity [11], antibacterial [12,13,14], antiviral [4,15,16,17], anti-inflammatory [18,19], or hepatoprotective properties [3]. Moreover, BN has a positive effect on the treatment of atopic dermatitis [20]. However, despite the abundance of BN, well-developed isolation methods from plant material as well as many studies confirming its very good biological properties, its use as a potential therapeutic agent is limited due to its low bioavailability, high hydrophobicity, and insufficient intracellular accumulation. The pentacyclic molecule and hydrophobic nature of the skeleton of BN hinders its ability to reach the target in vivo and obtain the desired therapeutic effect in acceptable therapeutic doses [21].
One of the most promising strategies for the design and synthesis of effective therapeutic agents is the conjugation of a native skeleton (e.g., BN) with triphenylphosphonium cation (TPP⊕) of low molecular weight, which promotes accumulation inside the cell’s mitochondria. Furthermore, the presence of the TPP⊕ group in a molecular hybrid improves the pharmacokinetic properties including solubility, bioavailability, and intermembrane transport as well as selectivity in targeting drugs for a specific purpose. The high lipophilicity and large ionic radius of TPP⊕ effectively reduce the activation energy required for membrane passage. The presence of a delocalized lipophilic cation can accelerate the transport of biologically active molecules across the mitochondrial membrane [22]. Studies have shown that, in contrast to other cellular organelles, mitochondria have a high negative transmembrane potential (Δψm). This potential is much higher for tumor cells, providing an opportunity for the selective delivery and accumulation of anticancer agents in mitochondria-targeted therapies [21,22,23,24].

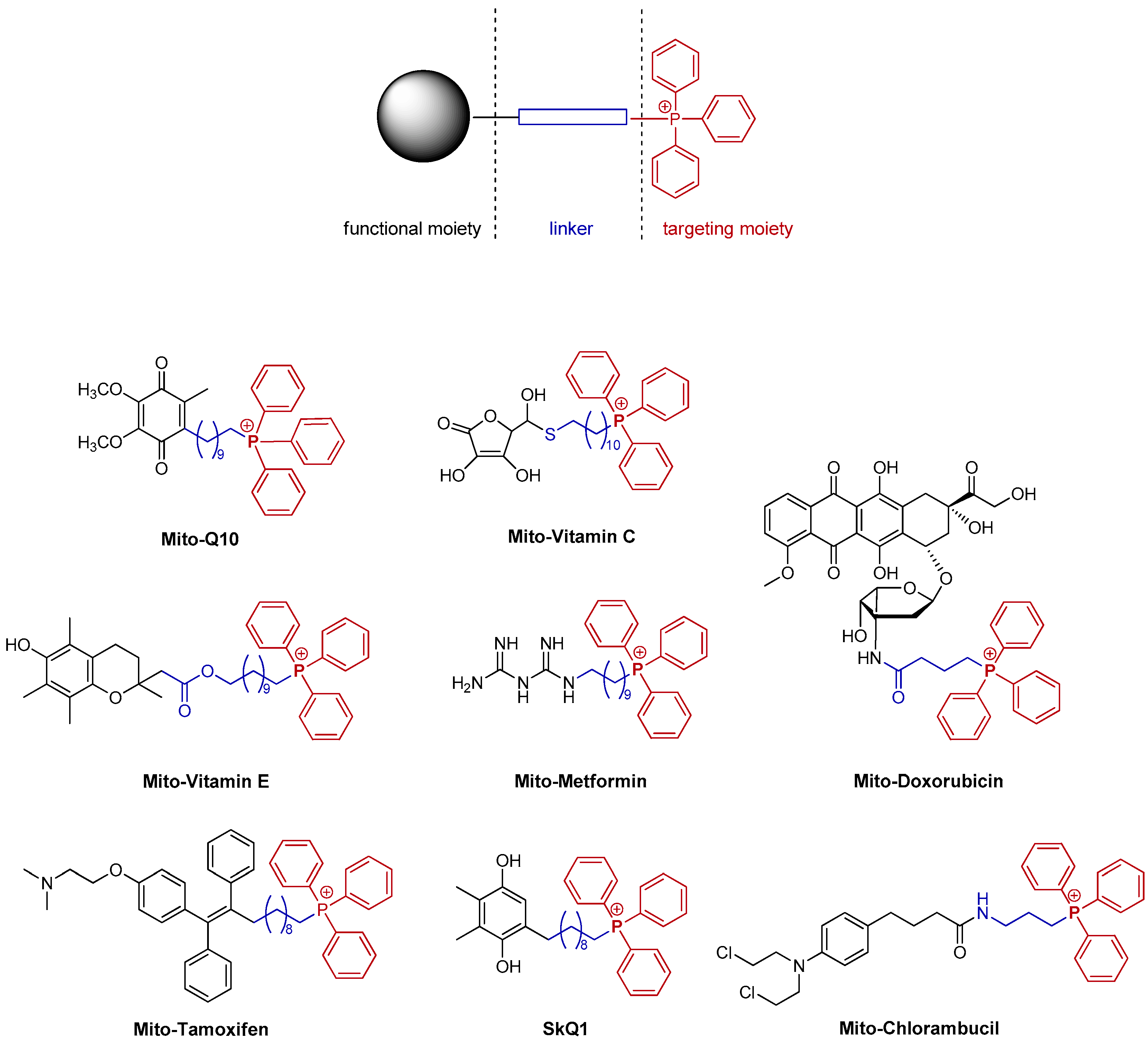

Thus, the TPP⊕ moiety not only affects the physical properties, but also the mechanism of action of a potential drug. In addition, it increases the selectivity, which often reduces the drug dose, and in turn diminishes the harmful side effects [24,25]. Therefore, research into mitochondria-targeted anticancer drugs is an attractive prospect [24,25,26,27,28]. The strategy of modification of the native skeleton via conjugating with the TPP⊕ group has been used successfully for anticancer drugs such as doxorubicin [29], cisplatin [26], chlorambucil [30], metformin [31], and tamoxifen [32] because it facilitates their transport and selective accumulation in cancer cells (Figure 2).
Mitochondria play a vital role in a wide range of physiological and pathological processes. They are the main source of reactive oxygen species, and at the same time, are particularly susceptible to oxidative damage, contributing to the development of many diseases. Due to their functions, mitochondria may be an important molecular target for anticancer drugs as well as in the treatment of cardiovascular diseases or neurodegenerative diseases (e.g., Alzheimer’s disease or Parkinson’s disease) [36]. Non-targeted antioxidant therapeutics show low effectiveness, therefore, attempts have been made to modify them to increase the drug accumulation in the mitochondrial matrix. For example, Mito-Q10, (coenzyme Q10) has been described as a potential agent for the treatment of sepsis or Parkinson’s disease (Figure 2) [24,36].
A relatively novel group of potential mitocans (acronym derived from the terms mitochondria and cancer) is conjugates of pentacyclic lupane-type triterpenoids including BN or betulinic acid (BA) with the lipophilic cation TPP⊕ [28]. Spivak et al. [21,28,37,38,39], Tsepaeva et al. [23,40,41], Ye et al. [42], and Xu et al. [43] reported the preparation of BA or BN conjugates, in which one or two TPP⊕ moieties were linked to the triterpenoid skeleton at positions C-2, C-3, C-28, or C-30 by the carbon–carbon or ester bonds, as shown in Figure 3 and Figure 4. The cytotoxic effect of these TPP⊕-analogs against various types of tumor cells toward Schistosoma Mansoni and antibacterial activity was analyzed [21,23,28,37,38,39,40,41,42,43,44].

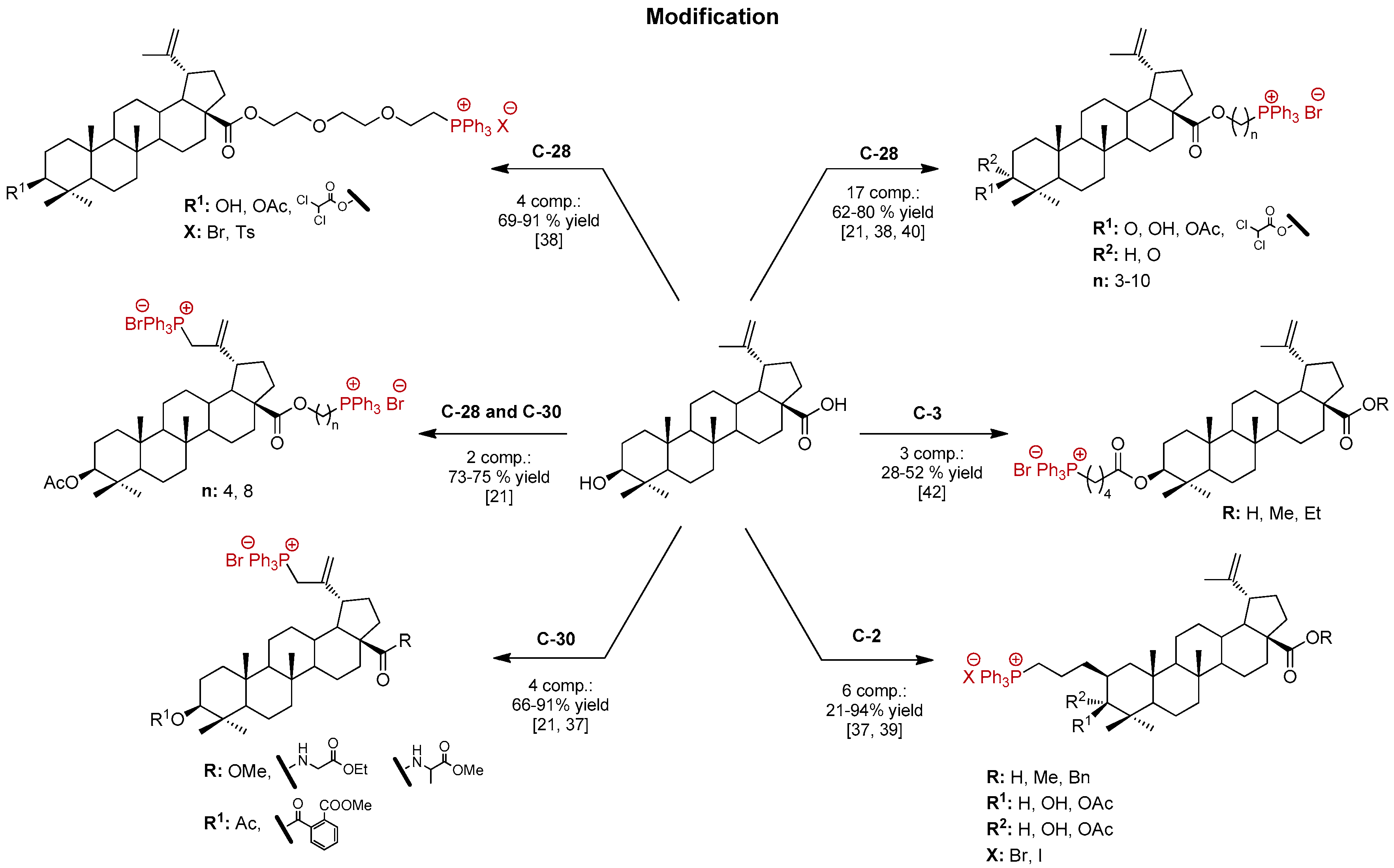

In the library of known triphenylphosphonium derivatives of pentacyclic lupane-type triterpenoids, betulinic acid derivatives definitely dominate (TPP⊕-conjugated with BA, about 30 compounds, Figure 3). Both BN and BA are common in the plant kingdom, especially in the outer layer of the birch bark (Betulaceae, Betula, Betula pendula). However, BN is considerably more available (BN content was up to 34%, and BA was only 0.3% of dry weight [6]), which may be an advantage in terms of the economic analysis of methods in obtaining potential therapeutic agents.

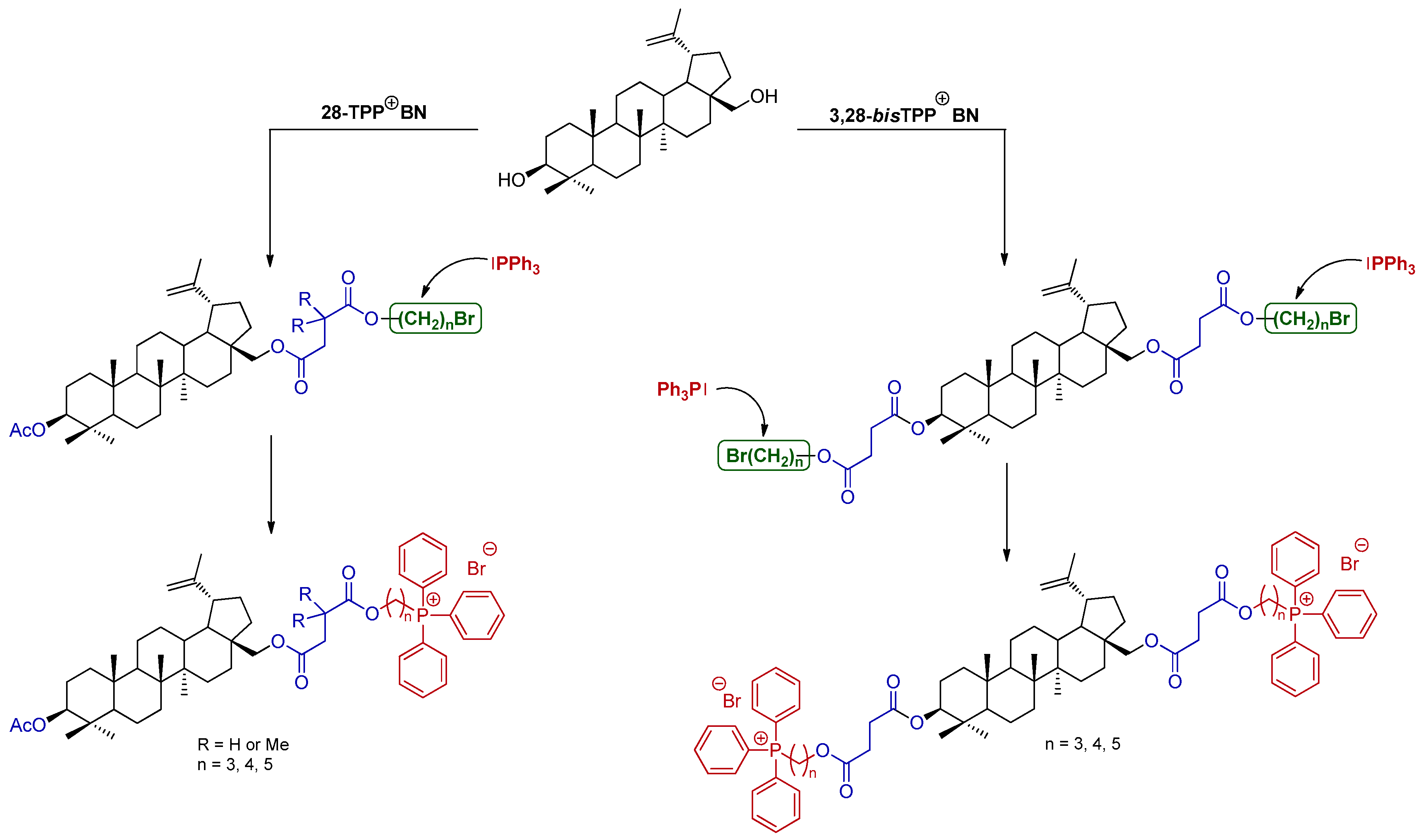

Although BN derivatives have been extensively explored, to date, no structures have demonstrated the desired biological properties at a satisfactory dosage that would allow them to be used as drugs. The aim of the presented study was to evaluate the relationships between the biological effects and the structure of the new triphenylphosphonium derivatives of BN. Hence, we designed and synthesized molecular hybrids of BN by covalently linking a lipophilic alkyltriphenylphosphonium moiety (shown in dark red, Scheme 1) to the parent skeleton of BN through a linker (shown in blue, Scheme 1). In addition, in order to obtain a library of compounds intended for the initial assessment of biological activity (e.g., cytotoxicity, antibacterial activity), structural modifications of the BN skeleton were conducted via the introduction of one or two TPP⊕ moieties at the C-28 or C-3 and C-28 positions. We prepared a series of the mono- and bisTPP⊕ derivatives of BN through the multi-step synthesis (3 or 5 step) and their bio-activity was analyzed.

2. Results and Discussion

2.1. Synthesis of BN Analogs (2–5)

Starting materials 3,28-O,O’-diacetylbetulin 2 and 3-O-acetylbetulin 3 were synthesized according to the protocol described by Thibeault et al. (Scheme 2) [45]. In the first step, betulin was esterified with an excess of acetic anhydride in pyridine (Py) in the presence of 4-(dimethylamino)pyridine (DMAP) to give ester 2 in 98% yield. Then, the C-28 position of the BN backbone was selectively deprotected by treating crystalline ester 2 with aluminum isopropoxide ((i-PrO)3Al) in i-PrOH. After 2 h at 80 °C, followed by column chromatography purification, analog 3 was obtained in 78% yield.
The next step involved the introduction of a linker terminated with a carboxyl group (O(CO)CH2CR2COOH, R = H or Me) at position C-28 (mono-substituted BN analog 4) or C-3 and C-28 (disubstituted BN analog 5) of BN. The carboxyacyl moiety seemed to be an ideal linker component as it allowed for further structural modifications. In addition, numerous literature reports have suggested that the combination of the triterpene skeleton with this type of moiety improved the biological properties including anti-HIV, antibacterial, or antifungal activity [46,47]. In accordance with the published procedures [48,49] with some modifications, analog 3 was reacted with succinic anhydride (SA) or 2,2-dimethylsuccinic anhydride (DMSA) in dry pyridine in the presence of DMAP at reflux for 18–20 h. The synthesis of 3,28-O,O’-bis(3-carboxypropanoyl)betulin 5 was performed in a similar manner, but the reagents were used in a molar ratio of BN:SA (1:10) at reflux for 9 h. The crude products were purified by chloroform extraction and washed with the water and HCl solution. The BN analogs were obtained in excellent yields (4a: 99%, 4b: 99%, 5: 65%, Scheme 2).

2.2. Synthesis of 28-TPP⊕-Conjugates Derivatives of BN

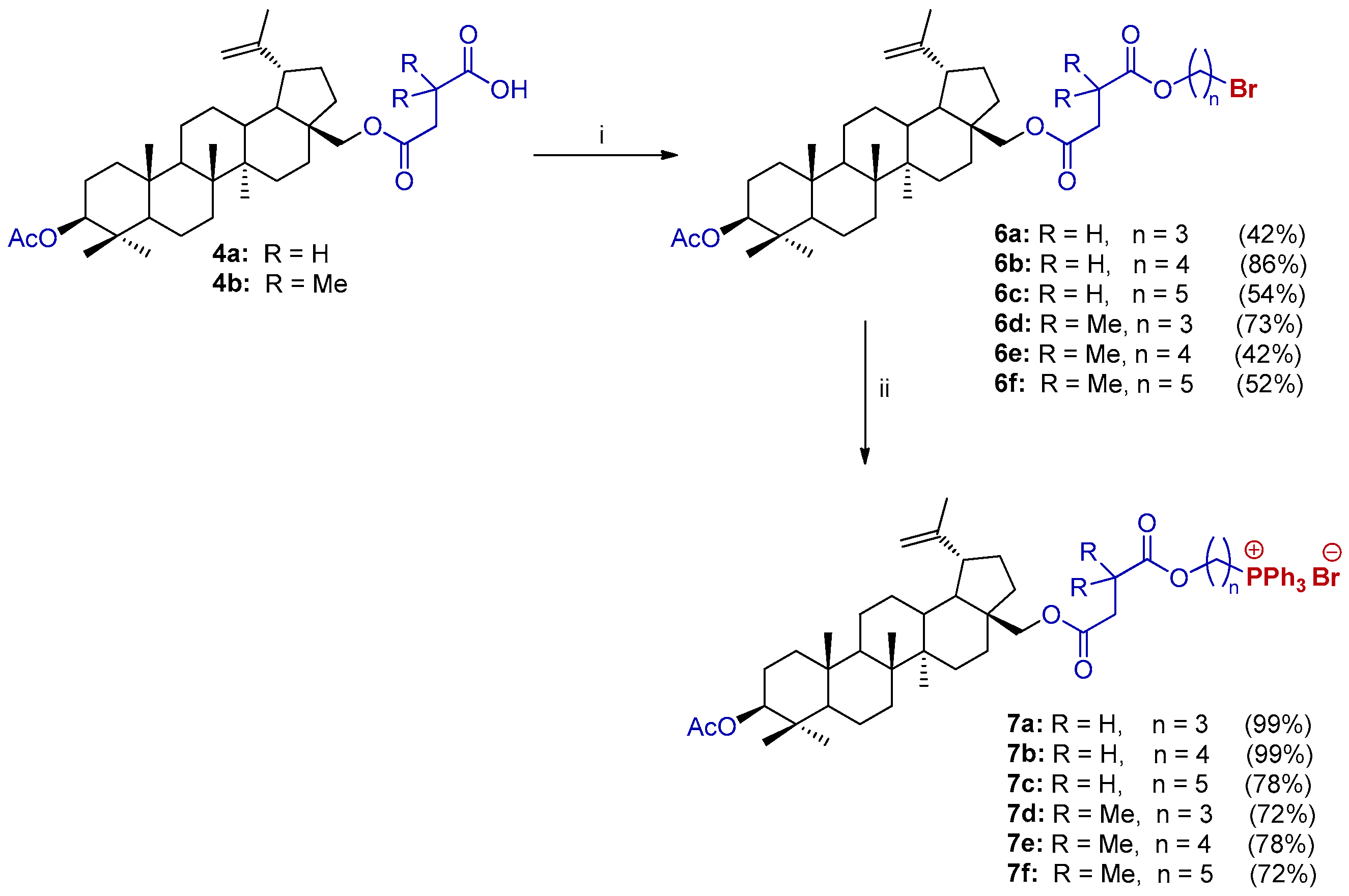

The synthesis method of new molecular BN hybrids (28-TPP⊕ BN) with one TPP moiety attached via the linker C28-O(CO)CH2CR2COO(CH2)n developed by our group consists of a few steps, as shown in Scheme 3. The desired analogs were synthesized via alkylation of the carboxyl group of (carboxyacyl)betulin 4 with dibromoalkanes in a molar ratio of 4:Br(CH2)nBr (1:3) in a DMF/MeCN system in the presence of K2CO3 at 50 °C for 18–20 h. 1,3-Dibromopropane, 1,4-dibromobutane, and 1,5-dibromopentane were employed to examine the influence of the chain length on bio-activity. 3-O-Acetyl-28-O’-(3’-(bromoalkoxycarbonyl)propanoyl)betulin (6a–6c) and 3-O-acetyl-28-O’-(3’,3’-dimethyl-3’-(bromoalkoxycarbonyl)propanoyl)betulin (6d–6f) were isolated by extraction with ethyl acetate and subsequent purification by column chromatography to produce the products in satisfactory yields (42–86%).
The final step of the 28-TPP⊕ BN synthesis was the substitution of the bromide anion of analog 6 with the TPP group by heating a homogenous mixture of 28-(bromoalkoxycarbonyl)propanoyl)betulin 6 and triphenylphosphine without a solvent under an Ar atmosphere. Optimization of the procedure consisted of examining the proportions of reagents, the temperature and reaction time, where at a molar ratio of analog 6/triphenylphosphine (1:2) at 120 °C for 6–12 h, the highest yields were obtained. Additionally, column chromatography was not necessary for all analogs, but all required extraction with diethyl ether and then crystallization from the diethyl ether/ethyl acetate (1:4, v/v), resulting in a high yield (72–99%, Scheme 3).

2.3. Synthesis of 3,28-bisTPP⊕-Conjugates Derivatives of BN

We also investigated the influence of two TPP⊕ groups in the molecular hybrids of BN toward their pharmacokinetic properties. The synthetic route of 3,28-bisTPP⊕ BN is depicted in Scheme 4.

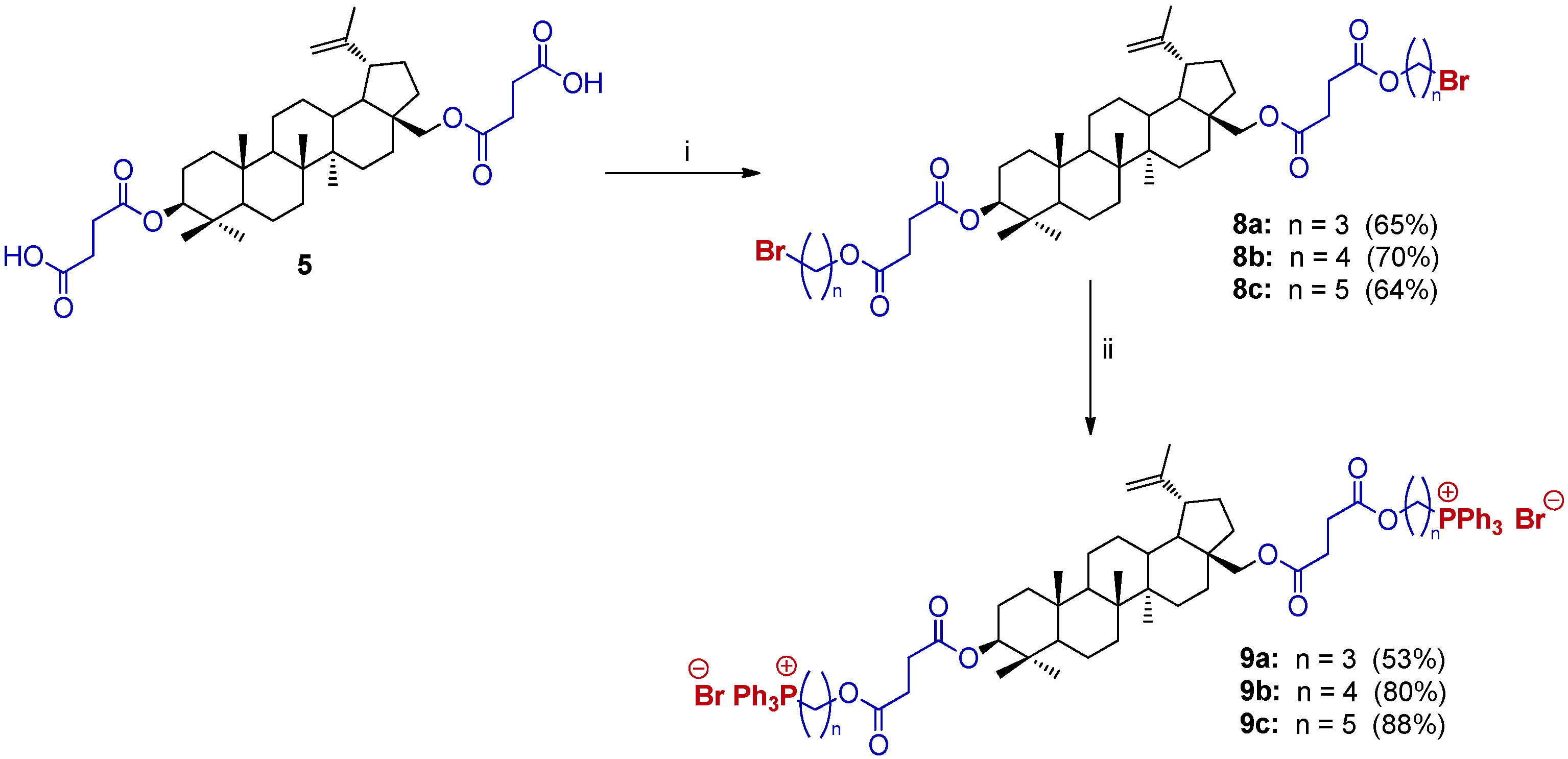

In the first step, 3,28-O,O’-bis(3-carboxypropanoyl)betulin 5 was reacted with 1,3-dibromopropane, 1,4-dibromobutane or 1,5-dibromopentane at a molar ratio of 5/Br(CH2)nBr (1:6) in a DMF/MeCN system with K2CO3 at 50 °C for 20 h. The analog 8 was obtained in satisfactory yields (64–70%) according the procedure described above. Then, the homogenous mixture (8 and triphenylphosphine) was heated at 120 °C without solvent under an Ar atmosphere. The final product 9 was isolated by extraction (diethyl ether, and diethyl ether/ethyl acetate) at elevated temperature in good yields (80–88%, Scheme 4). Only analog 9a required column chromatography (53% yield).
The structures of all of the synthesized compounds (2–9) were confirmed by spectroscopic methods (1H, 13C, 31P NMR, FTIR, and HRMS, Supplementary Materials). The 31P NMR spectra of analogs 7 and 9 showed signals confirming the presence of TPP⊕ in the range of 19.4–24.8 ppm. A characteristic feature in the 13C NMR spectra of the organophosphorus compounds was the splitting of specific signals into doublets caused by coupling the phosphorus atom with selected carbon atoms. Chemical shifts and JC-P coupling constants of great diagnostic value observed for the TPP⊕ group are summarized in Table 1.

2.4. Cytotoxicity Studies

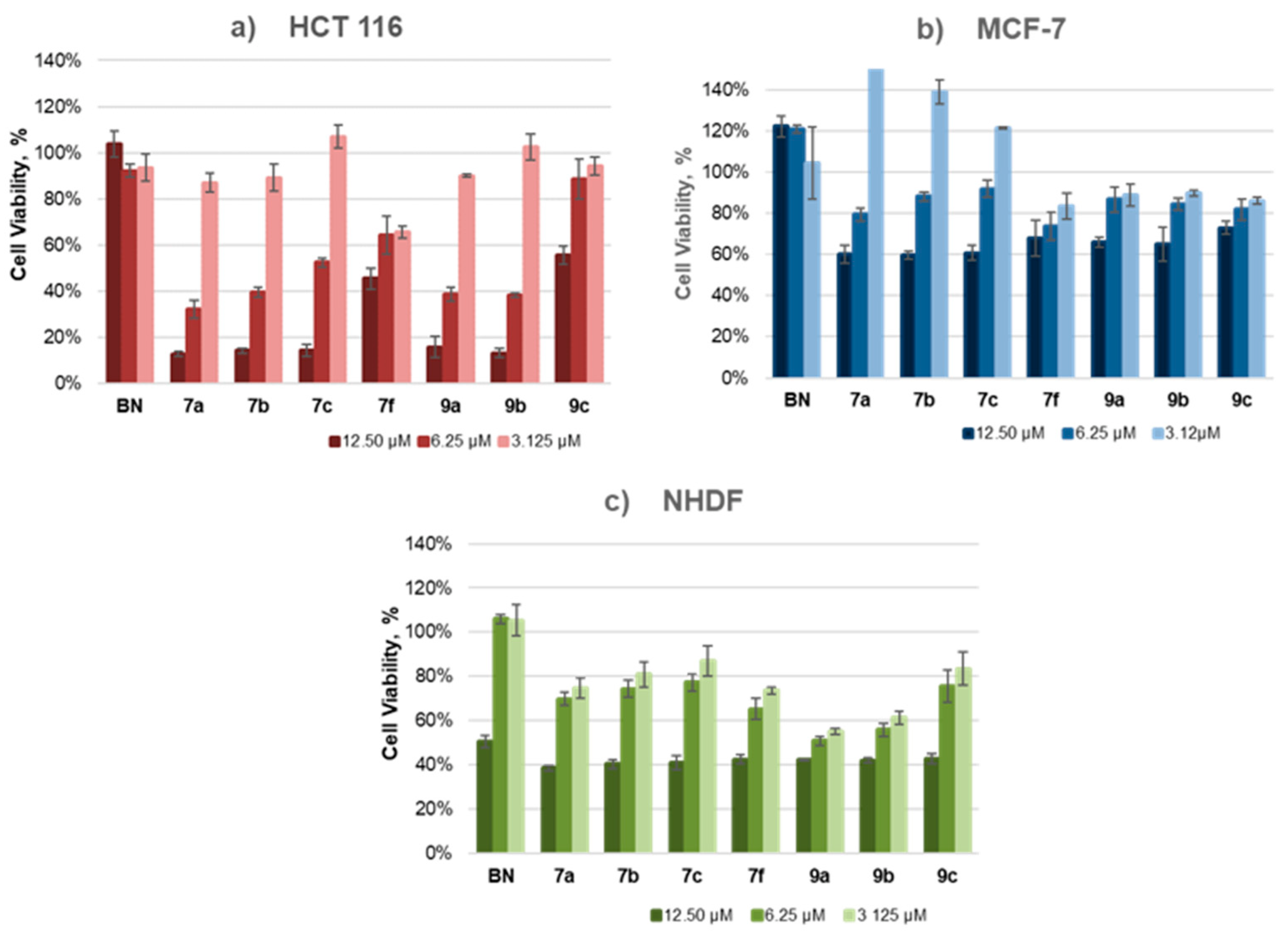

The obtained new molecular hybrids of BN were screened in order to initially investigate their cytotoxicity as well as examine the relationships between the structure and biological effect. The common element of all of the tested compounds was the presence of a lipophilic moiety (CH2)nTPP⊕ (n = 3, 4, 5). The research was conducted on two groups of compounds: 28-TPP⊕ BN and 3,28-bisTPP⊕ BN. Their cytotoxicity was investigated on two cancer cell lines: HCT 116 (colorectal carcinoma cell line) and MCF-7 (human breast adenocarcinoma cell line). The proliferation of tumor cells treated with the tested compounds (7 and 9) at 12.5–3.125 µM concentrations were determined after 24 h of incubation. Additionally, all compounds were tested against the NHDF cell line (Normal Human Dermal Fibroblast cells) to assess their safety. The effect of these compounds was compared with that of BN doses, as shown in Figure 5. Half-maximal inhibitory concentrations (IC50) of triphenylphosphonium analogs of BN were determined using a CCK-8 assay and are summarized in Table 2.
As expected, triphenylphosphonium derivatives of BN showed greater cytotoxicity than the parent BN toward all of the cell lines tested. The level of inhibition of cell viability depended on the concentration of the tested substances and cell type. The tested analogs of BN had the greatest effect on the viability of the HCT 116 cells (Figure 5a) and the lowest on the viability of the MCF-7 cells (Figure 5b).
When comparing the biological effect of the mono-TPP⊕ BN derivatives (7a–7c, linker without an additional Me group), it seemed that the length of the linker did not influence their activity in the in vitro tests. The 28-TPP⊕ BN conjugates (7a–7c) with a variable length, and an alkyl linker (n = 3, 4, 5) similarly inhibited the viability in both tumor cells (HCT 116: IC50 = 5.56–6.48, MCF-7: IC50 = 13.71–15.52). The exception was analog 9c, with two TPP⊕ cations and a pentyl chain, which, compared to compounds with a shorter linker (propyl or butyl chain), showed lower cytotoxicity against the HCT 116 cells (IC50: 9a < 9b < 9c; Table 2). Importantly, compounds 7a–7c were almost twice less toxic toward the healthy cells (NHDF), with IC50 values ranging from 9.68 to 11.29 μM, which demonstrated their selectivity.
Unfortunately, in the course of further studies, it was revealed that the introduction of an additional Me group into the linker 7f reduced this bio-activity compared to compound 7c against the HCT 116 and MCF-7 tumor cells whereas no significant effect of the Me groups attached to the linker was observed on the bio-activity of compound 7f in normal NHDF cells.
We observed that the presence of both one and two lipophilic cations improved the solubility of the tested analogs compared to BN, which slightly increased their cytotoxicity, especially against the colorectal carcinoma cell line (HCT 116). Among the triphenylphosphonium derivatives of BN tested, analossg 7a (IC50 of 5.56 µM) and 7b (IC50 of 5.77 µM) demonstrated the highest cytotoxicity against this cell line at low micromolar concentrations. This supported the hypothesis that the conjugation of the BN native backbone with the TPP⊕ moiety allowed for its transport through the hydrophobic barriers of the mitochondrial membrane, making it a promising strategy to improve the bioavailability of natural substances.

2.5. Antibacterial Studies

Investigations were carried out using different concentrations of solutions from 25 to 250 µM. A 25 µM concentration of the tested derivatives was not enough to inhibit the growth of both Gram-positive S. aureus ATCC 25923 bacteria. When the concentration of analogs 7d–7f and 9a–9c increased to 200 µM, the growth of S. aureus ATCC 25923 and S. epidermidis ATCC 12228 was inhibited. Furthermore, the optical density of all compounds remained unchanged after 18 h of bacteria culture. In the case of analogs 7a–7c, the optical density values were between 0.9 and 2.2 when they were cultured with S. aureus ATCC 25923. The bacterial growth was slower compared to the control sample (TSB-culture medium). However, the studied TPP⊕-BN derivatives did not inhibit the growth of S. epidermidis ATCC 12228 bacteria. However, at a 250 µM concentration, analogs 7a and 7b greatly inhibited the growth of S. aureus ATCC 25923 and S. epidermidis ATCC 12228. In the case of analog 7c, the optical density increased up to 0.7 after 18 h of the sample culture with both kinds of Gram-positive bacteria. In contrast, the reference sample’s (TSB) optical density increased to 7.5 for S. aureus ATCC 25923, and 4.9 for S. epidermidis ATCC 12228 after 18 h of bacteria culture. All of the investigated compounds did not inhibit the growth of Gram-negative Escherichia coli ATCC 25922 bacteria. All of the analog values of the measured optical density were similar to that of the reference sample (5.0–5.1, Table 3).
The obtained results showed that 28-TPP⊕ BN (7d–7f) and 3,28-bisTPP⊕ BN (9a–9c) could be employed as agents for the inhibition of Gram-positive bacteria (S. aureus ATCC 25923 and S. epidermidis ATCC 12228) growth at a concentration of 200 µM in an aqueous solution.

3. Materials and Methods

3.1. General Information

NMR spectra (1H and 13C) were recorded on a Varian spectrometer at operating frequencies of 600 or 400 MHz and 150 or 100 MHz, respectively, using TMS as the resonance shift standard. CDCl3 was used as the solvent, which was purchased from ACROS Organics (Geel, Belgium). The 31P NMR spectra were acquired using a Varian 400 spectrometer at 161.9 MHz, where the resonance shift of H3PO4 was determined as 0 ppm. All chemical shifts (δ) were reported in ppm and coupling constants (J) in Hz. The following abbreviations were used to explain the observed multiplicities: s—singlet; d—doublet; dd—double doublet; ddd—doublet of double doublet; t—triplet, dd~t—overlapping double doublet that resembles a triplet (with similar values of coupling constants); m—multiplet; br—broad. IR-spectra were measured on a Nicolet 6700 FT-IR spectrophotometer, Thermo Scientific (Waltham, MA, USA) (attenuated total reflectance method; ATR). High resolution mass spectrometry analyses were performed using a Waters Xevo G2 Q-TOF mass spectrometer (Waters Corporation, Milford, MA, USA) equipped with an ESI source operating in positive-ion mode. The accurate mass and composition for the molecular ion adducts were calculated using MassLynx software (Waters) incorporated in the instrument.
Reactions were monitored by TLC analysis on precoated plates of silica gel 60 F254 (Merck Millipore, Burlington, MA, USA). The TLC plates were inspected under UV light (λ = 254 nm) or charring after spraying with 10% solution of sulfuric acid in ethanol. Crude products were purified using column chromatography performed on silica gel 60 (70–230 mesh, Fluka).
3,28-O,O’-Diacetylbetulin 2; 3-O-acetylbetulin 3 [45], 3-O-acetyl-28-O’-(3’-carboxypropanoyl)betulin 4a; 3-O-acetyl-28-O’-(3’,3’-dimethyl-3’-carboxypropanoyl)betulin 4b [48], and 3,28-O,O′-bis(3′-carboxypropanoyl)betulin 5 [49] were prepared according to the respective published procedures.
All chemicals used in the study were purchased from Sigma-Aldrich (St. Louis, MO, USA), Fluka, Avantor (Radnor Township, PA, USA) and ACROS Organics, and used without further purification.

3.2. Chemistry

3.2.1. General Procedure for the Synthesis of 3-O-Acetyl-28-O’-(carboxyacyl)betulin (4)

3-O-Acetylbetulin (3, 2.50 mmol, 1.21 g, 1 eq.), SA (7.50 mmol, 0.75 g, 3 eq.) or DMSA (7.50 mmol, 0.96 g, 3 eq.) and DMAP (7.50 mmol, 0.92 g, 3 eq.) were dissolved in dry pyridine (19 mL). The reaction mixture was stirred under reflux for 18–20 h. After cooling to rt, 10% hydrochloric acid solution (20 mL) and water (35 mL) were added. The product was extracted with CHCl3 (4 × 70 mL). The combined organic extracts were washed with water (70 mL), 5% hydrochloric acid solution (140 mL), brine (70 mL), water (70 mL), dried over MgSO4, and filtered. The solvent was evaporated under reduced pressure producing analog 4a, which was used in the next step without further purification. Analog 4b was purified using column chromatography (DCM/MeOH, gradient: 100:1 to 50:1).
3-O-Acetyl-28-O’-(3’-carboxypropanoyl)betulin (4a) was obtained as a resin (1.45 g, 99% yield); Rf = 0.78 (DCM/MeOH, 10:1, v/v). 1H NMR (600 MHz, CDCl3): δH 0.75, 0.76, 0.88, 0.94, 1.31 (all s, 3H each, H-23–H-27), 1.60 (s, 3H J1 = 5.9 Hz, H-30), 0.62–2.06 (m, 24H, CH, CH2 BN scaffold), 1.96 (s, 3H, CH3CO), 2.34 (td, 1H, J2 = 11.0 Hz, H-19), 2.54–2.63 (m, 4H, O(CO)CH2CH2), 3.80 (d, 1H, J = 10.8 Hz, H-28b), 4.22 (d, 1H, J = 13.2 Hz, H-28a), 4.38 (dd, 1H, J1 = 5.4 Hz, J2 = 10.8 Hz, H-3), 4.50 (s, 1H, H-29b), 4.60 (s, 1H, H-29a) ppm; 13C NMR (150 MHz, CDCl3): δC 14.7, 16.0, 16.2, 16.5, 18.2, 19.1, 20.8, 21.3, 23.7, 25.1, 27.0, 27.9, 28.8, 29.1, 29.5, 29.7, 34.1, 34.5, 37.1, 37.6, 37.8, 38.4, 40.9, 42.7, 46.4, 47.7, 48.8, 50.3, 55.4, 63.2, 80.9, 109.9, 150.1, 171.1, 172.4, 176.9 ppm; IR (ATR) ν: 2938, 1729, 1714, 1244, 1158 cm−1.
3-O-Acetyl-28-O’-(3’,3’-dimethyl-3’-carboxypropanoyl)betulin (4b) was obtained as a resin (1.52 g, 99% yield); Rf = 0.64 (DCM/MeOH, 10:1, v/v). 1H NMR (600 MHz, CDCl3): δH 0.83, 0.84, 0.96, 1.02, 1.31 (all s, 3H each, H-23–H-27), 1.39 (s, 6H, CMe2), 1.68 (s, 3H, H-30), 0.70–2.00 (m, 24H, CH, CH2 BN scaffold), 2.04 (s, 3H, CH3CO), 2.41 (td, 1H, J1 = 5.8 Hz, J2 = 11.1 Hz, H-19), 2.64 (s, 2H, O(CO)CH2), 3.87 (d, 1H, J = 10.9 Hz, H-28b), 4.26 (d, 1H, J = 9.2 Hz, H-28a), 4.47 (dd, 1H, J1 = 5.6 Hz, J2 = 10.7 Hz, H-3), 4.58 (s, 1H, H-29b), 4.68 (s, 1H, H-29a) ppm; 13C NMR (150 MHz, CDCl3): δC 14.7, 16.0, 16.1, 16.4, 18.1, 19.1, 20.7, 21.2, 23.6, 25.1, 25.2, 25.3, 26.9, 27.9, 29.5, 29.7, 34.0, 34.5, 37.0, 37.5, 37.7, 38.3, 40.4, 40.8, 42.6, 44.3, 46.2, 47.6, 48.7, 50.2, 55.3, 63.0, 81.9, 109.8, 150.0, 171.06, 171.4, 183.0 ppm; IR (ATR) ν: 2940, 1728, 1703, 1242, 1193 cm−1.

3.2.2. Synthesis of 3,28-O,O′-Bis(3′-carboxypropanoyl)betulin (5)

BN (2.50 mmol, 1.11 g, 1 eq.) and SA (25.00 mmol, 2.50 g, 10 eq.) were dissolved in dry pyridine (26 mL) and stirred under reflux for 9 h. After cooling to r.t., 10% hydrochloric acid solution (26 mL) and water (48 mL) were added. The product was extracted with CHCl3 (6 × 120 mL). The combined organic layers were concentrated to a 200 mL volume, washed with water (200 mL), 5% hydrochloric acid solution (2 × 90 mL), brine (200 mL), H2O (200 mL), dried over MgSO4, and filtered. Then, the solvent was evaporated under reduced pressure.
3,28-O,O′-Bis(3′-carboxypropanoyl)betulin (5) was obtained as a resin (1.04 g, 65% yield); Rf = 0.23 (DCM:MeOH, 100:1). 1H NMR (600 MHz, CDCl3): δH 0.83, 0.84, 0.85, 0.98, 1.03 (all s, 3H each, H-23–H-27), 1.69 (s, 3H, H-30), 0.70–2.00 (m, 24H, CH, CH2 BN scaffold), 2.43 (td, 1H, J1 = 5.8 Hz, J2 = 11.1 Hz, H-19), 2.60–2.70 (m, 8H, 2 × O(CO)CH2CH2), 3.88 (d, 1H, J = 10.9 Hz, H-28b), 4.31 (d, 1H, J = 11.0 Hz, H-28a), 4.50 (dd, 1H, J1 = 5.6 Hz, J2 = 10.8 Hz, H-3), 4.59 (dd, 1H, J1 = 1.4 Hz, J2 2.3 Hz, H-29b), 4.68 (d, 1H, J = 2.0 Hz, H-29a) ppm; 13C NMR (150 MHz, CDCl3): δC 14.8, 16.0, 16.1, 16.5, 18.2, 19.1, 20.8, 23.6, 25.2, 27.0, 27.9, 29.0, 29.1, 29.3, 29.6, 29.7, 34.1, 34.4, 37.1, 37.6, 37.8, 38.3, 40.9, 42.7, 46.5, 47.7, 48.8, 50.3, 55.4, 63.2, 81.6, 109.9, 150.1, 171.7, 172.3, 177.9, 178.0 ppm; IR (ATR) ν: 2944, 1709, 1160, cm−1.

3.2.3. General Procedure for the Synthesis of Bromides of BN (6)

To a solution of BN derivative (4, 0.25 mmol, 1 eq.) and K2CO3 (0.25 mmol, 34.6 mg, 1 eq.) in DMF (1 mL/100 mg 4) and MeCN (0.1 mL/100 mg 4), the appropriate dibromoalkane (Br(CH2)nBr, n = 3, 4, 5; 0.75 mmol, 3 eq.) was added. The reaction was carried out at 50 °C for 18–21 h. After the reaction was completed, the obtained mixture was diluted with cold water and extracted with ethyl acetate (5 × 19 mL). The combined organic layers were washed with brine (2 × 65 mL), dried over MgSO4, and the solvent was evaporated under reduced pressure. Then, crude product 6 was washed with methanol (2 × 0.5 mL) and purified using column chromatography (DCM/MeOH, gradient: 100:1 to 50:1).
3-O-Acetyl-28-O’-(3’-(3"-bromopropyloxycarbonyl)propanoyl)betulin (6a) was obtained as a resin (74.1 mg, 42% yield); Rf = 0.18 (DCM:MeOH, 100:1). HRMS (ESI+) m/z: calcd for C39H61BrO6Na ([M+Na]+) 727.3549; found 727.3546; 1H NMR (600 MHz, CDCl3): δH 0.83, 0.84, 0.85, 0.97, 1.03 (all s, 3H each, H-23–H-27), 1.68 (s, 3H, H-30), 0.70–2.00 (m, 24H, CH, CH2 BN scaffold), 2.04 (s, 3H, CH3CO), 2.16–2.20 (m, 2H, CH2 fragment of linker), 2.43 (td, 1H, J1 = 5.8 Hz, J2 = 11.1 Hz, H-19), 2.64–2.66 (m, 4H, O(CO)CH2CH2), 3.46 (t, 2H, J = 6.5 Hz, CH2Br), 3.87 (d, 1H, J = 11.1 Hz, H-28b), 4.24 (t, 2H, J = 6.1 Hz, (CO)OCH2), 4.29 (dd, 1H, J1 = 1.9 Hz, J2 = 11.1 Hz, H-28a), 4.46 (dd, 1H, J1 = 5.9 Hz, J2 = 10.5 Hz, H-3), 4.59 (s, br, 1H, H-29b), 4.68 (s, br, 1H, H-29a) ppm; 13C NMR (150 MHz, CDCl3): δC 14.7, 16.0, 16.1, 16.4, 18.1, 19.1, 21.3, 20.7, 23.6, 25.1, 27.0, 27.9, 29.1, 29.2, 29.3, 29.5, 29.7, 31.6, 34.1, 34.5, 37.0, 37.5, 37.7, 38.3, 40.8, 42.6, 46.4, 47.7, 48.7, 50.2, 55.3, 62.4, 63.1, 80.8, 109.9, 150.0, 170.9, 172.1, 172.5 ppm; IR (ATR) ν: 2943, 1731, 1244, 1155, 732 cm−1.
3-O-Acetyl-28-O’-(3’-(4"-bromobutyloxycarbonyl)propanoyl)betulin (6b) was obtained as a resin (154.8 mg, 86% yield); Rf = 0.28 (DCM:MeOH, 100:1). HRMS (ESI+) m/z: calcd for C40H64BrO6 ([M+H]+) 719.3886, found 719.3885; 1H NMR (400 MHz, CDCl3): δH 0.83, 0.84, 0.85, 0.97, 1.03 (all s, 3H each, H-23–H-27), 1.68 (s, 3H, H-30), 0.75–2.00 (m, 28H, CH, CH2 BN scaffold and (CH2)2 fragment of linker), 2.04 (s, 3H, CH3CO), 2.43 (td, 1H, J1 = 5.8 Hz, J2 = 11.1 Hz, H-19), 2.61–2.68 (m, 4H, O(CO)CH2CH2), 3.44 (t, 2H, J = 6.0 Hz, CH2Br), 3.88 (d, 1H, J = 11.1 Hz, H-28b), 4.13 (t, 2H, J = 6.0 Hz, (CO)OCH2), 4.29 (d, 1H, J = 11.1 Hz, H-28a), 4.45–4.49 (m, 1H, H-3), 4.59 (s, br, 1H, H-29b), 4.68 (s, br, H-29a) ppm; 13C NMR (100 MHz, CDCl3): δC 14.7, 16.0, 16.1, 16.4, 18.1, 19.1, 20.7, 21.3, 23.6, 25.1, 27.0, 27.2, 27.9, 29.1, 29.2, 29.3, 29.5, 29.7, 33.0, 34.1, 34.5, 37.0, 37.5, 37.7, 38.3, 40.8, 42.6, 46.4, 47.7, 48.7, 50.2, 55.3, 63.0, 63.7, 80.9, 109.8, 150.0, 170.9, 172.2, 172.5 ppm; IR (ATR) ν: 2946, 1732, 1246, 1156, 734 cm−1.
3-O-Acetyl-28-O’-(3’-(5"-bromopentyloxycarbonyl)propanoyl)betulin (6c) was obtained as a resin (99.1 mg, 54% yield); Rf = 0.31 (DCM:MeOH, 100:1). HRMS (ESI+) m/z: calcd for C41H65BrO6Na ([M+Na]+) 755.3862, found 755.3870; 1H NMR (600 MHz, CDCl3): δH 0.83, 0.84, 0.85, 0.97, 1.03 (all s, 3H each, H-23–H-27), 1.68 (s, 3H, H-30), 0.70–2.00 (m, 30H, CH, CH2 BN scaffold and (CH2)3 fragment of linker), 2.04 (s, 3H, CH3CO), 2.43 (td, 1H, J1 5.8 Hz, J2 = 11.1 Hz, H-19), 2.62–2.66 (m, 4H, O(CO)CH2CH2), 3.42 (t, 2H, J = 6.1 Hz, CH2Br), 3.87 (d, 1H, J = 10.8 Hz, H-28b), 4.10 (t, 2H, J = 6.6 Hz, (CO)OCH2), 4.29 (d, 1H, 11.1 Hz, H-28a), 4.46 (dd, 1H, J1 = 5.6 Hz, J2 = 10.8 Hz, H-3), 4.59 (s, br, 1H, H-29b), 4.68 (d, 1H, J 2.3 Hz, H-29a) ppm; 13C NMR (150 MHz, CDCl3): δC 14.7, 16.0, 16.1, 16.4, 18.1, 19.1, 20.7, 21.2, 23.6, 24.5, 25.1, 27.0, 27.7, 27.9, 29.1, 29.2, 29.5, 29.7, 32.2, 33.3, 34.1, 34.5, 37.0, 37.5, 37.7, 38.3, 40.8, 42.6, 46.4, 47.7, 48.7, 50.2, 55.3, 63.0, 64.3, 80.8, 109.8, 150.0, 170.9, 172.2, 172.5 ppm; IR (ATR) ν: 2942, 1730, 1244, 1155, 731 cm−1.
3-O-Acetyl-28-O’-(3’,3’-dimethyl-3’-(3"-bromopropyloxycarbonyl)propanoyl)betulin (6d) was obtained as a resin (133.9 mg, 73% yield); Rf = 0.28 (DCM:MeOH, 100:1); HRMS (ESI+) m/z: calcd for C41H66BrO6 ([M+H]+) 733.4043, found 733.4045; 1H NMR (400 MHz, CDCl3): δH 0.76, 0.77, 0.89, 0.95, 1.32 (all s, 3H each, H-23–H-27), 1.21 (s, 6H, CMe2), 1.61 (s, 3H, H-30), 0.65–1.93 (m, 24H, CH, CH2 BN scaffold), 1.97 (s, 3H, CH3CO), 2.12 (d, 2H, J = 6.3 Hz, CH2 fragment of linker), 2.35 (td, 1H, J1 = 5.7 Hz, J2 = 11.1 Hz, H-19), 2.56 (s, 2H, O(CO)CH2), 3.39 (t, 2H, J = 6.6 Hz, CH2Br), 3.78 (d, 1H, J = 11.0 Hz, H-28b), 4.14–4.21 (m, 3H, H-28a and (CO)OCH2), 4.40 (dd, 1H, J1 = 5.6 Hz, J2 10.8 Hz, H-3), 4.52 (s, br, 1H, H-29b), 4.61 (s, br, 1H, H-29a) ppm; 13C NMR (100 MHz, CDCl3): δC 14.7, 16.0, 16.1, 16.5, 18.1, 19.1, 20.8, 21.3, 23.7, 25.1, 25.5, 25.6, 27.0, 27.9, 29.5, 29.7, 31.7, 34.1, 34.5, 37.0, 37.6, 37.8, 38.4, 40.6, 40.9, 42.7, 44.5, 46.3, 47.7, 48.8, 50.3, 55.4, 62.5, 62.9, 80.9, 109.9, 150.0, 171.0, 172.0, 176.4 ppm; IR (ATR) ν: 2931, 1732, 1245, 1177 cm−1.
3-O-Acetyl-28-O’-(3’,3’-dimethyl-3’-(4"-bromobutyloxycarbonyl)propanoyl)betulin (6e) was obtained as a resin (78.5 mg, 42% yield); Rf = 0.29 (DCM:MeOH, 100:1); HRMS (ESI+) m/z: calcd for C42H68BrO6 ([M+H]+) 747.4199, found 747.4194; 1H NMR (400 MHz, CDCl3): δH 0.77, 0.78, 0.89, 0.95, 1.32 (all s, 3H each, H-23–H-27), 1.20 (s, 6H, CMe2), 1.61 (s, 3H, H-30), 0.70–1.93 (m, 28H, CH, CH2 BN scaffold and (CH2)2 fragment of linker), 1.97 (s, 3H, CH3CO), 2.35 (td, 1H, J1 = 5.7 Hz, J2 = 10.9 Hz, H-19), 2.56 (s, 2H, O(CO)CH2), 3.37 (t, 2H, J = 6.6 Hz, CH2Br), 3.78 (d, 1H, J = 11.0 Hz, H-28b), 4.05 (t, 2H, J = 6.3 Hz, (CO)OCH2), 4.17 (d, 1H, J = 11.1 Hz H-28a), 4.39–4.42 (m, 1H, H-3), 4.52 (s, br, 1H, H-29b), 4.61 (s, br, H-29a) ppm; 13C NMR (100 MHz, CDCl3): δC 14.7, 16.0, 16.1, 16.5, 18.1, 19.1, 20.8, 21.3, 23.7, 25.1, 25.46, 25.48, 27.0, 27.2, 27.9, 29.3, 29.5, 29.7, 33.1, 34.1, 34.5, 37.0, 37.6, 37.8, 38.4, 40.9, 40.6, 42.7, 44.5, 46.3, 47.7, 48.8, 50.3, 55.4, 62.8, 63.7, 80.9, 109.9, 150.0, 171.0, 172.0, 176.6 ppm; IR (ATR) ν: 2942, 1731, 1246, 1178 cm−1.
3-O-Acetyl-28-O’-(3’,3’-dimethyl-3’-(5"-bromopentyloxycarbonyl)propanoyl)betulin (6f) was obtained as a resin (99.0 mg, 52% yield); Rf = 0.23 (DCM:MeOH, 100:1); HRMS (ESI+) m/z: calcd for C43H70BrO6 ([M+H]+) 761.4356, found 761.4353; 1H NMR (600 MHz, CDCl3): δH 0.76, 0.77, 0.89, 0.95, 1.32 (all s, 3H each, H-23–H-27), 1.20 (s, 6H, CMe2), 1.61 (s, 3H, H-30), 0.65–1.92 (m, 30H, CH, CH2 BN scaffold and (CH2)3 fragment of linker), 1.97 (s, 3H, CH3CO), 2.35 (td, 1H, J1 = 5.8 Hz, J2 = 11.1 Hz, H-19), 2.56 (s, 2H, O(CO)CH2), 3.35 (t, 2H, J = 6.7 Hz, CH2Br), 3.78 (dd, 1H, J1 = 1.3 Hz, J2 = 11.1 Hz, H-28b), 4.02 (t, 2H, J = 6.5 Hz, (CO)OCH2), 4.17 (dd, 1H, J1 = 2.2 Hz, J2 = 11.0 Hz, H-28a), 4.39 (dd, 1H, J1 = 5.6 Hz, J2 = 10.8 Hz, H-3), 4.51 (s, br, 1H, H-29b), 4.61 (d, 1H, J = 2.3 Hz, H-29a) ppm; 13C NMR (150 MHz, CDCl3): δC 14.7, 16.0, 16.1, 16.5, 18.1, 19.1, 20.8, 21.3, 23.7, 24.6, 25.1, 25.5, 27.0, 27.7, 27.9, 29.5, 29.7, 32.2, 33.4, 34.1, 34.5, 37.0, 37.6, 37.8, 38.4, 40.6, 40.9, 42.7, 44.5, 46.3, 47.7, 48.8, 50.3, 55.4, 62.8, 64.3, 80.8, 109.9, 150.1, 171.0, 171.6, 176.6 ppm; IR (ATR) ν: 2941, 1730, 1245, 1105 cm−1.

3.2.4. General Procedure for the Synthesis of Triphenylphosphonium Derivatives of BN (7, 28-TPP⊕ BN)

The bromide derivative of BN (6, 0.1 mmol, 1 eq.) and triphenylphosphine (0.2 mmol, 52.5 mg, 2 eq.) were dissolved in dry DCM (1.0–1.5 mL) and stirred at room temperature for 10–15 min until homogenization was reached. The solvent was evaporated under reduced pressure and the residue was heated in an oil bath at 120 °C under an Ar atmosphere for 6–12 h. The obtained mixture was washed with diethyl ether (7a–7c: 3 × 4 mL; 7d–7f: 5 × 3 mL) at 50 °C. Then, the crude product was crystalized from ethyl acetate/diethyl ether (1:4, v/v) and dried under reduced pressure at 50 °C for 4 h.
3-O-Acetyl-28-O’-(3’-(3"-triphenylphosphoniopropyloxycarbonyl)propanoyl)betulin bromide (7a) was obtained as a resin (95.8 mg, 99% yield); HRMS (ESI+) m/z: calcd for C57H76O6P+ ([M]+) 887.5380, found 887.5383; 1H NMR (600 MHz, CDCl3): δH 0.83, 0.84, 0.85, 0.95, 0.96 (all s, 3H each, H-23–H-27), 1.67 (s, 3H, H-30), 0.70–1.95 (m, 26H, CH, CH2 BN scaffold and CH2 fragment of linker), 2.04 (s, 3H, CH3CO), 2.38 (td, 1H, J1 = 5.7 Hz, J2 = 0.8 Hz, H-19), 2.60-2.66 (m, 4H, O(CO)CH2CH2), 3.84 (d, 1H, J = 11.0 Hz, H-28b), 4.09–3.99 (m, 2H, CH2P), 4.22 (d, 1H, J = 11.0 Hz, H-28a), 4.39–4.45 (m, 2H, (CO)OCH2), 4.46 (dd, 1H, J1 = 5.1 Hz, J2 = 11.1 Hz, H-3), 4.59 (s, br, H-29b), 4.67 (s, br, H-29a), 7.71-7.90 (m, 15H, PPh3), ppm; 13C NMR (100 MHz, CDCl3): δC 14.7, 16.0, 16.1, 16.5, 18.1, 19.1, 19.5, 19.8 (d, JC,P 52.3 Hz), 20.8, 21.3, 22.3, 22.4, 23.6, 25.1, 27.0, 27.9, 29.1, 29.2, 29.5, 29.6, 34.0, 34.5, 37.0, 37.6, 37.8, 38.3, 40.8, 42.6, 46.4, 47.8, 48.7, 50.2, 55.3, 62.9, 63.4 (d, JC,P = 17.4 Hz), 80.8, 109.9, 118.1 (d, JC,P = 85.7 Hz), 130.5 (d, JC,P = 12.1 Hz), 133.8 (d, JC,P = 9.8 Hz), 135.0 (d, JC,P = 3.0 Hz), 150.0, 171.0, 172.0, 172.8 ppm; 31P NMR (162 MHz, CDCl3): δP 24.75 ppm; IR (ATR) ν: 2942, 1729, 1246, 1156, 691 cm−1.
3-O-Acetyl-28-O’-(3’-(4"-triphenylphosphoniobutyloxycarbonyl)propanoyl)betulin bromide (7b) was obtained as a resin (97.2 mg, 99% yield); HRMS (ESI+) m/z: calcd for C58H78O6P+ ([M]+) 901.5536, found 901.5550; 1H NMR (600 MHz, CDCl3): δH 0.83, 0.84, 0.85, 0.96, 1.00 (all s, 3H each, H-23–H-27), 1.68 (s, 3H, H-30), 0.72–1.97 (m, 26H, CH, CH2 BN scaffold and CH2 fragment of linker), 2.04 (s, 3H, CH3CO), 2.12 (q, 2H, J = 7.1 Hz, CH2 fragment of linker), 2.40 (td, 1H, J1 = 5.8 Hz, J2 = 11.0 Hz, H-19), 2.48–2.59 (m, 4H, O(CO)CH2CH2), 3.85 (d, 1H, J = 11.0 Hz, H-28b), 3.97–4.06 (m, 2H, CH2P), 4.14 (t, 2H, J = 5.8 Hz, (CO)OCH2), 4.24 (d, 1H, J = 11.1 Hz, H-28a), 4.47 (dd, 1H, J1 = 5.3 Hz, J2 = 11.0 Hz, H-3), 4.59 (s, br, 1H, H-29b) 4.67 (s, br, H-29a), 7.66–7.92 (m, 15H, PPh3) ppm; 13C NMR (100 MHz, CDCl3): δC 14.7, 16.0, 16.1, 16.5, 18.1, 19.1, 19.26, 19.33, 20.7, 20.8, 21.3, 22.2 (d, JC,P = 50.6 Hz), 23.7, 25.1, 27.0, 27.9, 29.1, 29.2, 29.5, 29.7, 34.1, 34.5, 37.0, 37.6, 37.8, 38.3, 40.9, 42.7, 46.4, 47.7, 48.7, 50.2, 55.3, 63.0, 63.6, 80.9, 109.9, 118.3 (d, JC,P = 84.9 Hz), 130.4 (d, JC,P = 12.1 Hz), 133.8 (d, JC,P = 9.9 Hz), 134.9 (d, JC,P = 3.0 Hz), 150.0, 171.0, 172.2, 172.6 ppm; 31P NMR (162 MHz, CDCl3): δP 24.61 ppm; IR (ATR) ν: 2945, 1731, 1246, 1156, 691 cm−1.
3-O-Acetyl-28-O’-(3’-(5"-triphenylphosphoniopentyloxycarbonyl)propanoyl)betulin bromide (7c) was obtained as a resin (77.7 mg, 78% yield); HRMS (ESI+): calcd for C59H80O6P+ ([M]+) m/z: 915.5693, found 915.5715; 1H NMR (600 MHz, CDCl3): δH 0.83, 0.84, 0.85, 0.96, 1.01 (all s, 3H each, H-23–H-27), 1.67 (s, 3H, H-30), 0.70–1.97 (m, 30H, CH, CH2 BN scaffold and (CH2)3 fragment of linker), 2.04 (s, 3H, CH3CO), 2.41 (td, 1H, J1 = 5.8 Hz, J2 = 11.1 Hz, H-19), 2.55–2.65 (m, 4H, O(CO)CH2CH2), 3.86 (d, 1H, J = 11.0 Hz, H-28b), 3.91–3.98 (m, 2H, CH2P), 4.03 (t, 2H, J = 6.4 Hz, (CO)OCH2), 4.25 (d, 1H, J = 11.1 Hz, H-28a), 4.47 (dd, 1H, J1 = 5.4 Hz, J2 = 11.0 Hz, H-3), 4.58 (s, br, H-29b), 4.67 (s, br, H-29a), 7.67–7.91 (m, 15H, PPh3) ppm; 13C NMR (100 MHz, CDCl3): δC 14.7, 16.0, 16.1, 16.5, 18.1, 19.1, 20.7, 21.3, 22.2, 22.3, 22.7 (d, JC,P = 49.4 Hz), 23.7, 25.1, 26.5, 26.7, 27.0, 27.9, 28.1, 29.1, 29.2, 29.5, 29.7, 34.1, 34.5, 37.0, 37.5, 37.8, 38.3, 40.8, 42.6, 46.4, 47.7, 48.7, 50.2, 55.3, 62.9, 65.8, 80.9, 109.8, 118.4 (d, JC,P = 85.0 Hz), 130.5 (d, JC,P = 12.1 Hz), 133.7 (d, JC,P = 9.8 Hz), 134.9 (d, JC,P = 3.0 Hz), 150.1, 171.0, 172.3, 172.7 ppm; 31P NMR (161.9 MHz, CDCl3): δP 24.37 ppm; IR (ATR) ν: 2946, 1731, 1246, 1157, 692 cm−1.
3-O-Acetyl-28-O’-(3’,3’-dimethyl-3’-(3"-triphenylphosphoniopropyloxycarbonyl)propanoyl)betulin bromide (7d) was obtained as a resin (71.7 mg, 72% yield); HRMS (ESI+) m/z: calcd for C59H80O6P+ ([M]+) 915.5693, found 915.5717; 1H NMR (600 MHz, CDCl3): δH 0.80, 0.83, 0.84, 0.87, 0.94 (all s, 3H each, H-23–H-27), 1.21 (s, 3H, CMe), 1.22 (s, 3H, CMe),1.66 (s, 3H, H-30), 0.68–2.08 (m, 26H, CH, CH2 BN scaffold and CH2 fragment of linker), 2.04 (s, 3H, CH3CO), 2.29 (td, 1H, J1 = 5.8 Hz, J2 = 10.8 Hz, H-19), 2.63–2.66 (m, 2H, 2 × O(CO)CH2), 3.76 (d, 1H, J = 11.0 Hz, H-28a), 4.01–4.10 (m, 3H, CH2P and H-28b), 4.45–4.48 (m, 3H, H-3 and (CO)OCH2), 4.58 (s, br, 1H, H-29b), 4.63 (s, br, 1H, H-29a), 7.69–7.91 (m, 15H, PPh3) ppm; 13C NMR (150 MHz, CDCl3): δC 14.7, 15.9, 16.1, 16.5, 18.1, 19.0, 19.4 (d, JC.P = 51.8 Hz), 20.8, 21.3, 22.4, 23.6, 25.1, 25.4, 25.5, 26.9, 27.9, 29.5, 29.7, 34.0, 34.5, 37.0, 37.6, 37.8, 38.3, 40.6, 40.8, 42.6, 44.3, 46.3, 47.8, 48.6, 50.2, 55.3, 62.6, 63.9 (d, JC,P = 18.4 Hz), 80.8, 109.9, 118.3 (d, JC.P = 86.3 Hz), 130.4 (d, JC,P = 12.6 Hz), 133.8 (d, JC.P = 10.4 Hz), 134.9 (d, JC,P = 0.5 Hz), 150.0, 171.0, 172.0, 176.7 ppm; 31P NMR (161.9 MHz, CDCl3): δP 19.38 ppm; IR (ATR) ν: 2946, 1727, 1248, 1177, 725, 690 cm−1.
3-O-Acetyl-28-O’-(3’,3’-dimethyl-3’-(4"-triphenylphosphoniobutyloxycarbonyl)propanoyl)betulin bromide (7e) was obtained as a resin (78.8 mg, 78% yield); HRMS (ESI+) m/z: calcd for C60H82O6P+ ([M]+) 929.5849, found 929.5861; 1H NMR (600 MHz, CDCl3): δH 0.75, 0.76, 0.77, 0.88, 0.89 (all s, 3H each, H-23–H-27), 1.051 (s, 3H, CMe), 1.054 (s, 3H, CMe), 1.60 (s, 3H, H-30), 0.68–1.90 (m, 26H, CH, CH2 BN scaffold, and CH2 fragment of linker), 1.97 (s, 3H, CH3CO), 2.08 (q 2H, J 6.7 Hz CH2 fragment of linker), 2.30 (td, 1H, J1 = 5.7 Hz, J2 = 10.8 Hz, H-19), 2.45 (s, 2H, O(CO)CH2), 3.72 (d, 1H, J = 11.0 Hz, H-28b), 3.87–3.92 (m, 2H, CH2P), 4.07–4.10 (m, 3H, H-28a and (CO)OCH2), 4.39 (dd, 1H, J1 = 5.3 Hz, J2 = 11.0 Hz, H-3), 4.51 (s, br, 1H, H-29b), 4.58 (d, 1H, J = 2.3 Hz, H-29a), 7.61–7.87 (m, 15H, PPh3) ppm; 13C NMR (150 MHz, CDCl3): δC 14.6, 16.0, 16.1, 16.4, 18.1, 19.0, 19.1, 20.7, 21.2, 22.1 (d, JC,P = 49.3 Hz), 23.6, 25.1, 25.3, 26.9, 27.9, 29.1, 29.2, 29.5, 29.6, 34.0, 34.4, 36.9, 37.5, 37.7, 38.3, 40.5, 40.8, 42.6, 44.2, 46.2, 47.6, 48.6, 50.2, 55.3, 62.7, 63.2, 80.8, 109.8, 118.3 (d, JC,P = 88.1 Hz), 130.4 (d, JC,P = 12.6 Hz), 133.7 (d, J,P = 10.4 Hz), 134.9 (d, JC,P = 0.5 Hz), 149.9, 171.0, 171.5, 176.5 ppm; 31P NMR (162 MHz, CDCl3): δP 24.52 ppm; IR (ATR) ν: 2948, 1725, 1248, 1179, 723, 690 cm−1.
3-O-Acetyl-28-O’-(3’,3’-dimethyl-3’-(5"-triphenylphosphoniopentyloxycarbonyl)propanoyl)betulin bromide (7f) was obtained as a resin (73.7 mg, 72% yield); HRMS (ESI+) m/z: calcd for C61H84O6P+ ([M]+) 943.6006, found 943.6042; 1H NMR (600 MHz, CDCl3): δH 0.82, 0.83, 0.84, 0.94, 0.97 (all s, 3H each, H-23–H-27), 1.20 (s, 3H, CMe), 1.21 (s, 3H, CMe), 1.66 (s, 3H, H-30), 0.67–1.96 (m, 30H, CH, CH2 BN scaffold and (CH2)3 fragment of linker), 2.03 (s, 3H, CH3CO), 2.38 (td, 1H, J1 = 5.8 Hz, J2 = 10.9 Hz, H-19), 2.57 (s, 2H, O(CO)CH2), 3.83 (d, 1H, J = 11.0 Hz, H-28b), 3.88–3.95 (m, 2H, CH2P), 4.01 (t, 2H, J = 6.7 Hz, (CO)OCH2), 4.17 (d, 1H, J = 11.0 Hz, H-28a), 4.46 (dd, 1H, J1 = 5.5 Hz, J2 = 10.5 Hz, H-3), 4.57 (s, br, 1H, H-29b), 4.64 (s, br, 1H, H-29a), 7.65–7.91 (m, 15H, PPh3) ppm; 13C NMR (100 MHz, CDCl3): δC 14.7, 16.0, 16.1, 16.5, 18.1, 19.1, 20.8, 21.3, 22.21, 22.25, 22.7 (d, JC,P = 50.1 Hz), 23.6, 25.1, 25.4, 25.5, 26.4, 26.6, 26.9, 27.9, 28.0, 29.5, 29.7, 34.1, 34.5, 37.0, 37.5, 37.8, 38.3, 40.5, 40.8, 42.6, 44.4, 46.2, 47.7, 48.7, 50.2, 55.3, 62.7, 63.9, 80.9, 109.8, 118.4 (d, JC,P = 85.8 Hz), 130.4 (d, JC,P = 12.4 Hz), 133.7 (d, JC,P = 9.9 Hz), 134.9 (d, JC,P = 3.0 Hz), 150.0, 171.0, 171.7, 176.6 ppm; 31P NMR (161.9 MHz, CDCl3): δP 24.35 ppm; IR (ATR) ν: 2948, 1727, 1247, 1181, 725, 690 cm−1.

3.2.5. General Procedure for the Synthesis of 3,28-Bis(bromoalkoxycarbonyl)propanoyl)betulin (8)

3,28-O,O′-Bis(3′-carboxypropanoyl)betulin (5, 0.25 mmol, 160.6 mg, 1 eq.), DMF (2 mL/100 mg 5) and MeCN (0.2 mL/100 mg 5), the appropriate dibromoalkane (Br(CH2)nBr, n = 3, 4, 5; 1.5 mmol, 6 eq.) and K2CO3 (0.50 mmol, 69.1 mg, 2 eq.) were stirred at 50 °C for 18–20 h. The obtained mixture was diluted with cold water (10 × volume) and extracted with ethyl acetate (6 × 19 mL). The combined organic layers were washed with brine (2 × 90 mL), dried over MgSO4, and the solvent was evaporated under reduced pressure. Then, crude product 8 was washed with methanol (2 × 1.0 mL) and was further purified by column chromatography (DCM/MeOH, gradient: 100:1 to 50:1).
3,28-O’,O′-Bis(3’-(3"-bromopropyloxycarbonyl)propanoyl)betulin (8a) was obtained as a resin (143.8 mg, 65% yield); Rf = 0.23 (DCM:MeOH, 100:1); HRMS (ESI+) m/z: calcd for C44H69Br2O8 ([M+H]+) 833.3359, found 833.3360; 1H NMR (600 MHz, CDCl3): δH 0.83, 0.84, 0.85, 0.97, 1.02 (all s, 3H each, H-23–H-27), 1.68 (s, 3H, H-30), 0.74–2.03 (m, 24H, CH, CH2 BN scaffold), 2.15–2.21 (m, 4H, 2 × CH2 fragment of linker), 2.43 (td, 1H, J1 = 5.8 Hz, J2 = 11.1 Hz, H-19), 2.61–2.68 (m, 8H, 2 × O(CO)CH2CH2), 3.45–3.47 (m, 4H, 2 × CH2Br), 3.87 (d, 1H, J = 10.3 Hz, H-28b), 4.22–4.26 (m, 4H, 2 × (CO)OCH2), 4.29 (dd, 1H, J1 = 1.9 Hz, J2 = 11.0 Hz, H-28a), 4.46–4.51 (m, 1H, H-3), 4.59 (s, br, 1H, H-29b), 4.68 (d, 1H, J = 2.1 Hz, H-29a) ppm; 13C NMR (150 MHz, CDCl3): δC 14.7, 16.0, 16.1, 16.5, 18.1, 19.1, 20.8, 23.6, 25.1, 27.0, 27.9, 29.10, 29.16, 29.2, 29.3, 29.5, 29.6, 29.7, 31.6, 31.7, 34.1, 34.5, 37.0, 37.6, 37.8, 38.3, 40.9, 42.7, 46.4, 47.7, 48.8, 50.3, 55.4, 62.39, 62.43, 63.1, 81.4, 109.9, 150.1, 171.9, 172.1, 172.2, 172.5 ppm; IR (ATR) ν: 2943, 1732, 1157 cm−1.
3,28-O,O′-Bis(3’-(4"-bromobutyloxycarbonyl)propanoyl)betulin (8b) was obtained as a resin (159.8 mg, 70% yield); Rf = 0.26 (DCM:MeOH, 100:1); HRMS (ESI+) m/z: calcd for C46H72Br2O8Na([M+Na]+) 933.3492, found 933.3525; 1H NMR (600 MHz, CDCl3): δH 0.83, 0.84, 0.85, 0.97, 1.02 (all s, 3H each, H-23–H-27), 1.68 (s, 3H, H-30), 0.70–2.06 (m, 32H, CH, CH2 BN scaffold and 2 × (CH2)2 fragment of linker), 2.43 (td, 1H, J1 = 5.7 Hz, J2 = 11.1 Hz, H-19), 2.60–2.68 (m, 8H, 2 × O(CO)CH2CH2), 3.43–3.45 (m, 4H, 2 × CH2Br), 3.87 (d, 1H, J = 11.0 Hz, H-28b), 4.11–4.13 (m, 4H, 2 × (CO)OCH2), 4.29 (d, 1H, J = 11.0 Hz, H-28a), 4.48 (dd, 1H, J1 = 5.8 Hz, J2 = 10.5 Hz, H-3), 4.58 (s, br, 1H, H-29b), 4.68 (s, br, 1H, H-29a) ppm; 13C NMR (150 MHz, CDCl3): δC 14.6, 15.9, 16.0, 16.4, 18.0, 19.0, 20.7, 23.5, 25.0, 25.1, 26.9, 27.1, 27.8, 29.1, 29.0, 29.41, 29.44, 29.6, 32.9, 34.0, 34.4, 36.9, 37.4, 37.7, 38.2, 40.8, 42.6, 46.3, 47.6, 48.7, 50.1, 55.3, 62.9, 63.5, 63.6, 81.2, 109.8, 149.9, 171.8, 172.09, 172.14, 172.4 ppm; IR (ATR) ν: 2944, 1730, 1157 cm−1.
3,28-O,O′-Bis(3’-(5"-bromopentyloxycarbonyl)propanoyl)betulin (8c) was obtained as a resin (150.5 mg, 64% yield); Rf = 0.32 (DCM:MeOH, 100:1); HRMS (ESI+) m/z: calcd for C48H76Br2O8Na ([M+Na]+) 961.3805, found 961.3886; 1H NMR (600 MHz, CDCl3): δH 0.83, 0.84, 0.85, 0.97, 1.02 (all s, 3H each, H-23–H-27), 1.68 (s, 3H, H-30), 0.72–2.00 (m, 36H, CH, CH2 BN scaffold and 2 × (CH2)3 fragment of linker), 2.43 (td, 1H, J1 = 5.8 Hz, J2 = 11.1 Hz, H-19), 2.60–2.68 (m, 8H, 2 × O(CO)CH2CH2), 3.40–3.42 (m, 4H, 2 × CH2Br), 3.87 (d, 1H, J = 12.2 Hz, H-28b), 4.08–4.11 (m, 4H, 2 × (CO)OCH2), 4.29 (dd, 1H, J1 = 2.0 Hz, J2 = 11.2 Hz, H-28a), 4.49 (dd, 1H, J1 = 5.5 Hz, J2 = 10.9 Hz, H-3), 4.59 (s, br, 1H, H-29b), 4.68 (d, 1H, J = 2.2 Hz, H-29a) ppm; 13C NMR (150 MHz, CDCl3): δC 14.7, 16.0, 16.1, 16.5, 18.1, 19.1, 20.8, 23.6, 24.6, 25.1, 27.0, 27.7, 27.9, 28.1, 28.2, 29.2, 29.5, 29.3, 29.7, 32.3, 33.4, 34.1, 34.5, 37.0, 37.6, 37.8, 38.3, 40.9, 42.7, 46.4, 47.7, 48.8, 50.2, 55.4, 63.0, 64.3, 64.4, 81.3, 109.9, 150.1, 171.9, 172.25, 172.32, 172.6 ppm; IR (ATR) ν: 2943, 1731, 1157 cm−1.

3.2.6. General Procedure for the Synthesis of Bis(triphenylphoshonium) Derivatives of BN (9, 3,28-bisTPP⊕ BN)

3,28-O,O′-Bis(3’-(3"-bromoalkoxycarbonyl)propanoyl)betulin (8a–8c) (0.1 mmol, 1 eq.) and triphenylphosphine (0.3 mmol, 78.7 mg, 3 eq.) were dissolved in dry DCM (1–2 mL) and stirred at room temperature for 10–15 min until homogenization was reached. The solvent was evaporated under reduced pressure, and the residue was heated in an oil bath at 120 °C under an Ar atmosphere. The obtained mixture was washed with diethyl ether (5 × 4 mL) at 50 °C. Then, the crude product was crystalized from ethyl acetate/diethyl ether (1:4, v/v) and dried under reduced pressure at 50 °C for 6 h or purified using column chromatography (DCM:MeOH, 10:1, v/v).
3,28-O,O′-Bis(3’-(3"-triphenylphosphoniopropyloxycarbonyl)propanoyl)betulin bromide (9a) was obtained as a resin (74.7 mg, 53% yield); Rf = 0.13 (DCM:MeOH, 10:1); HRMS (ESI+) m/z: calcd for C40H49O4P2+ ([M]2+) 624.3368, found 624.3379; 1H NMR (600 MHz, CDCl3): δH 0.70, 0.72, 0.73, 0.88, 0.89 (all s, 3H each, H-23–H-27), 1.60 (s, 3H, H-30), 0.60–1.90 (m, 24H, CH, CH2 BN scaffold), 1.92–2.00 (m, 4H, 2 × CH2 fragment of linker), 2.31 (td, 1H, J1 = 5.7 Hz, J2 = 10.9 Hz, H-19), 2.51–2.60 (m, 8H, 2 × O(CO)CH2CH2), 3.75 (d, 1H, J = 10.8 Hz, H-28b), 3.92–3.99 (m, 4H, 2 × CH2P), 4.17 (dd, 1H, J1 = 1.9 Hz, J2 = 11.0 Hz, H-28a), 4.31 (dd, 1H, J1 = 5.7 Hz, J2 = 10.4 Hz, H-3), 4.34–4.38 (m, 4H, 2 × (CO)OCH2), 4.52 (s, br, 1H, H-29b), 4.60 (d, 1H, J = 2.2 Hz, H-29a), 7.63–7.83 (m, 30H, 2 × PPh3) ppm; 13C NMR (150 MHz, CDCl3): δC 14.7, 16.0, 16.1, 16.5, 18.1, 19.1, 19.7 (d, JC,P = 51.8 Hz), 20.8, 22.3, 23.6, 25.1, 27.0, 28.0, 29.1, 29.5, 29.4, 29.7, 34.1, 34.5, 37.0, 37.6, 37.8, 38.3, 40.9, 42.7, 46.4, 47.8, 48.7, 50.3, 55.4, 62.9, 63.5 (d, JC,P = 18.4 Hz), 81.3, 109.9, 118.1 (d, JC,P = 86.3 Hz), 130.5 (d, JC,P = 12.8 Hz), 133.8 (d, JC,P = 9.2 Hz), 135.1 (d, JC,P = 0.5 Hz), 150.0, 171.99, 172.0, 172.1, 172.7 ppm; 31P NMR (162 MHz, CDCl3): δP 24.61, 24.54 ppm; IR (ATR) ν: 2946, 1730, 1438, 1158, 724, 691 cm−1.
3,28-O,O’-Bis(3’-(4"-triphenylphosphoniobutyloxycarbonyl)propanoyl)betulin bromide (9b) was obtained as a resin (115.0 mg, 80% yield); Rf = 0.19 (DCM:MeOH, 10:1); HRMS (ESI+) m/z: calcd for C41H51O4P2+ ([M]2+) 638.3525, found 638.3536; 1H NMR (600 MHz, CDCl3): δH 0.73, 0.75, 0.89, 0.93, 1.18 (all s, 3H each, H-23–H-27), 1.61 (s, 3H, H-30), 0.60–2.05 (m, 32H, CH, CH2 BN scaffold and 2 × (CH2)2 fragment of linker), 2.38 (td, 1H, J1 = 5.6 Hz, J2 = 10.9 Hz, H-19), 2.41–2.52 (m, 8H, 2 × O(CO)CH2CH2), 3.77 (d, 1H, J = 10.1 Hz, H-28b), 3.89–3.97 (m, 4H, 2 × CH2P), 4.05–4.08 (m, 4H, 2 × (CO)OCH2), 4.22 (d, 1H, J1 = 11.4 Hz, H-28a), 4.35 (m, 1H, H-3), 4.52 (s, br, 1H, H-29b), 4.61 (d, 1H, J = 3.1 Hz, H-29a), 7.58–7.87 (m, 30H, 2 × PPh3) ppm; 13C NMR (100 MHz, CDCl3): δC 14.7, 16.0, 16.1, 16.5, 18.1, 19.1, 19.2, 19.3, 20.8, 22.2, (d, JC,P = 50.0 Hz), 23.6, 25.1, 25.3, 27.0, 27.9, 28.9, 29.0, 29.1, 29.5, 29.6, 34.0, 34.5, 37.0, 37.5, 37.8, 38.3, 40.8, 42.7, 46.4, 47.7, 48.7, 50.2, 55.4, 63.0, 63.4, 81.3, 109.9, 118.2 (d, JC,P = 88.8 Hz), 130.4 (d, JC,P = 12.9 Hz), 133.7 (d, JC,P = 9.9 Hz), 135.0 (d, JC,P = 3.0 Hz), 150.0, 171.9, 172.16, 172.18, 172.6 ppm; 31P NMR (162 MHz, CDCl3): δP 24.51 ppm; IR (ATR) ν: 2936, 1728, 1438, 1160, 725, 691 cm−1.
3,28-O,O′-Bis(3’-(5"-triphenylphosphoniopentyloxycarbonyl)propanoyl)betulin bromide (9c) was obtained as a resin (129.0 mg, 88% yield); Rf = 0.11 (DCM:MeOH, 10:1); HRMS (ESI+) m/z: calcd for C42H53O4P2+ ([M]2+) 652.3681, found 652,3667; 1H NMR (400 MHz, CDCl3): δH 0.73, 0.74, 0.87, 0.92, 1.17 (all s, 3H each, H-23–H-27), 1.59 (s, 3H, H-30), 0.60–1.97 (m, 36H, CH, CH2 BN scaffold and 2 × (CH2)3 fragment of linker), 2.33 (td, 1H, J1 = 5.7 Hz, J2 = 10.8 Hz, H-19), 2.44–2.57 (m, 8H, 2 × O(CO)CH2CH2), 3.77 (d, 1H, J = 11.4 Hz, H-28b), 3.78–3.88 (m, 4H, 2 × CH2P), 3.89–3.98 (m, 4H, 2 × (CO)OCH2), 4.18 (d, 1H, J = 11.3 Hz, H-28a), 4.37 (dd, 1H, J = 8.0 Hz, H-3), 4.50 (s, br, 1H, H-29b), 4.59 (s, br, 1H, H-29a), 7.60–7.82 (m, 30H, 2 × PPh3) ppm; 13C NMR (100 MHz, CDCl3): δC 14.7, 16.0, 16.1, 18.5, 18.1, 19.1, 20.8, 22.2, 22.3, 22.8 (d, JC,P = 49.3 Hz), 23.6, 25.1, 26.7, 27.9, 28.1, 29.1, 29.2, 29.5, 29.7, 34.1, 34.5, 37.0, 37.6, 37.8, 38.3, 40.9, 42.7, 46.4, 47.7, 48.8, 50.2, 55.4, 63.0, 64.00, 64.04, 81.2, 109.9, 118.4 (d, JC,P = 85.0 Hz), 130.5 (d, JC,P = 12.2 Hz), 133.8 (d, JC,P = 9.8 Hz), 135.0 (d, JC,P = 3.0 Hz), 150.1, 172.0, 172.28, 172.30, 172.6 ppm; 31P NMR (162 MHz, CDCl3): δP 24.36 ppm.

3.3. Biological Evaluation

3.3.1. Cytotoxicity Assay

Cell Lines

The human colorectal carcinoma cell line (HCT 116) and the human breast adenocarcinoma cell line (MCF-7) cells were purchased from the American Type Culture Collection (ATCC, Manassas, VA, USA). The Normal Human Dermal Fibroblast (NHDF) cells were purchased from Lonza (Dermal Fibroblasts, Lonza, Poland). All cells were cultured under standard conditions at 37 °C in a humidified atmosphere at 5% CO2 in DMEM/F12 medium (PAA) supplemented with 10% of heat-inactivated fetal bovine serum (FBS, EURx, Gdansk, Poland) and antibiotics (penicillin/streptomycin).

Cell Viability Assay

Cells were seeded at 7500 (HCT 116) or 10,000 (MCF-7, NHDF) cells/well in 96-well plates. After 24 h, the culture medium was removed and 100 µL of fresh medium containing the test compounds at 0–12.5 µM concentrations was added to the culture wells. The test compounds were dissolved in DMSO to obtain a stock solution with a concentration of 5 mM (betulin) or 10 mM (other test compounds). The stock solution was diluted with the fresh culture medium to the desired concentration. Controls were cells grown in medium without the addition of test compounds. After 24 h of incubation with the test compounds, 10 µL of CCK-8 reagent (Bimake, Houston, TX, USA) was added to each well. After 2 h, the absorbance of the samples was measured at a wavelength of 450 nm using a microplate reader (Epoch, BioTek Instruments, Winooski, VT, USA). The determinations were conducted in at least three biological replications (each biological replication contained 3 technical replications). The cell viability rate was calculated using CalcuSyn software (version 2.0, Biosoft, Cambridge, UK).

3.3.2. Antibacterial Assay

Antibacterial analysis was performed using the S. aureus ATCC 25923, S. epidermidis ATCC 12228, and Escherichia coli ATCC 25922 bacteria strains. The test compounds were dissolved in DMSO to obtain a stock solution with a concentration of 5 mM (betulin) or 10 mM (other test compounds). The stock solution was diluted with water to the desired concentration (25–250 µM). Then, 1 mL of the investigated solutions was mixed with 1 mL of culture medium (TSB, Biomaxima, Lublin, Poland) in a sterile glass tube. The initial concentration of bacteria was around 5 × 106 CFU/mL. The concentration of bacteria was measured using an optical densitometer before and after 18 h of bacteria culture in glass tubes at 37 °C (incubator POL-EKO, Wodzislaw Slaski, Poland). The investigations were repeated for three independent samples. The control sample was the culture medium without any supplementation.

4. Conclusions

In conclusion, we designed and synthesized nine new molecular hybrids of BN by covalent linkage of the alkyltriphenylphosphonium moiety to the parent skeleton via the linker O(CO)CH2CR2COO. We developed a few-stage methodology that enabled the preparation of both mono- and bis(TPP⊕) derivatives from easily available, cheap, natural active substance (BN) by simple transformations in high yields. The advantage of this protocol are the simple synthetic procedures and easy purification of the final products.
As expected, the triphenylphosphonium derivatives of BN showed a greater cytotoxicity than natural BN toward the cell lines tested (HCT 116 and MCF-7). Importantly, analogs (7a–7c) with one triphenylphoshonium cation were almost twice less toxic against healthy cells (NHDF), which demonstrated their selectivity. TPP⊕-conjugates with BN showed antimicrobial properties against the Gram-positive reference S. aureus ATCC 25923 and S. epidermidis ATCC 12228 bacteria when their concentration in the water solution was 200 µM.
The obtained results show that the bioavailability of natural BN can be improved by combining its backbone via linkers with a mitochondria-targeted TPP⊕ moiety. Additionally, our study provides important data about the properties of BN conjugates with TPP⊕ and encourages further research on the structural modifications of the parent BN skeleton.

Supplementary Materials

The following can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27165156/s1. Supporting information includes the 1H, 13C, 31P NMR spectra of betulin and all of the synthesized compounds (1–9) as well as the gHSQC and FTIR for the selected compounds.

Author Contributions

Conceptualization and methodology, M.G.; Synthesis and characterization of chemical compounds, M.S. and P.G.; Cytotoxicity tests, A.L.; Antibacterial tests, A.K.-K.; Mass spectra, K.E.; Supervision, M.G.; Analysis and interpretation of the results, M.G., A.L., A.K.-K., M.S. and P.G.; Writing—original draft preparation, M.G., A.L., A.K.-K., M.S. and P.G.; Writing—review and editing, M.G.; Supervision, M.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Silesian University of Technology (Poland) Grant BK No. 04/020/BK_22/1035 and Grant BK No. 04/050/BK_22/0139.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of compounds 7 and 9 are available from the authors.

References

  1. Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Bray, F. Global Cancer Statistics 2020: GLOBOCAN Estimates of Incidence and Mortality Worldwide for 36 Cancers in 185 Countries. CA Cancer J. Clin. 2021, 71, 209–249. [Google Scholar] [CrossRef] [PubMed]
  2. Krasutsky, P.A. Birch Bark Research and Development. Nat. Prod. Rep. 2006, 23, 919–942. [Google Scholar] [CrossRef]
  3. Amiri, S.; Dastghaib, S.; Ahmadi, M.; Mehrbod, P.; Khadem, F.; Behrouj, H.; Aghanoori, M.-R.; Machaj, F.; Ghamsari, M.; Rosik, J.; et al. Betulin and Its Derivatives as Novel Compounds with Different Pharmacological Effects. Biotechnol. Adv. 2020, 38, 107409–107448. [Google Scholar] [CrossRef] [PubMed]
  4. Jonnalagadda, S.C.; Suman, P.; Morgan, D.C.; Seay, J.N. Recent Developments on the Synthesis and Applications of Betulin and Betulinic Acid Derivatives as Therapeutic Agents. Stud. Nat. Prod. Chem. 2017, 53, 45–84. [Google Scholar] [CrossRef]
  5. Grymel, M.; Pastuch-Gawołek, G.; Lalik, A.; Zawojak, M.; Boczek, S.; Krawczyk, M.; Erfurt, K. Glycoconjugation of Betulin Derivatives Using Copper-Catalyzed 1,3-Dipolar Azido-Alkyne Cycloaddition Reaction and a Preliminary Assay of Cytotoxicity of the Obtained Compounds. Molecules 2020, 25, 6019. [Google Scholar] [CrossRef] [PubMed]
  6. Hordyjewska, A.; Ostapiuk, A.; Horecka, A. Betulin and Betulinic Acid in Cancer Research. J. Pre-Clin. Clin. Res. 2018, 12, 72–75. [Google Scholar] [CrossRef]
  7. Drąg-Zalesińska, M.; Drąg, M.; Poręba, M.; Borska, S.; Kulbacka, J.; Saczko, J. Anticancer Properties of Ester Derivatives of Betulin in Human Metastatic Melanoma Cells (Me-45). Cancer Cell Int. 2017, 17, 4–14. [Google Scholar] [CrossRef] [PubMed]
  8. So, H.M.; Eom, H.J.; Lee, D.; Kim, S.; Kang, K.S.; Lee, I.K.; Baek, K.-H.; Park, J.Y.; Kim, K.H. Bioactivity Evaluations of Betulin Identified from the Bark of Betula Platyphylla Var. Japonica for Cancer Therapy. Arch. Pharm. Res. 2018, 41, 815–822. [Google Scholar] [CrossRef] [PubMed]
  9. Chrobak, E.; Jastrzębska, M.; Bębenek, E.; Kadela-Tomanek, M.; Marciniec, K.; Latocha, M.; Wrzalik, R.; Kusz, J.; Boryczka, S. Molecular Structure, In Vitro Anticancer Study and Molecular Docking of New Phosphate Derivatives of Betulin. Molecules 2021, 26, 737. [Google Scholar] [CrossRef] [PubMed]
  10. Orchel, A.; Chodurek, E.; Jaworska-Kik, M.; Paduszyński, P.; Kaps, A.; Chrobak, E.; Bębenek, E.; Boryczka, S.; Borkowska, P.; Kasperczyk, J. Anticancer Activity of the Acetylenic Derivative of Betulin Phosphate Involves Induction of Necrotic-Like Death in Breast Cancer Cells In Vitro. Molecules 2021, 26, 615. [Google Scholar] [CrossRef]
  11. Karagöz, A.Ç.; Leidenberger, M.; Hahn, F.; Hampel, F.; Friedrich, O.; Marschall, M.; Kappes, B.; Tsogoeva, S.B. Synthesis of New Betulinic Acid/Betulin-Derived Dimers and Hybrids with Potent Antimalarial and Antiviral Activities. Bioorg. Med. Chem. 2019, 27, 110–115. [Google Scholar] [CrossRef] [PubMed]
  12. Viszwapriya, D.; Subramenium, G.A.; Radhika, S.; Pandian, S.K. Betulin Inhibits Cariogenic Properties of Streptococcus Mutans by Targeting VicRK and Gtf Genes. Antonie Van Leeuwenhoek 2017, 110, 153–165. [Google Scholar] [CrossRef] [PubMed]
  13. Salin, O.; Alakurtti, S.; Pohjala, L.; Siiskonen, A.; Maass, V.; Maass, M.; Yli-Kauhaluoma, J.; Vuorela, P. Inhibitory Effect of the Natural Product Betulin and Its Derivatives against the Intracellular Bacterium Chlamydia Pneumoniae. Biochem. Pharmacol. 2010, 80, 1141–1151. [Google Scholar] [CrossRef]
  14. Alakurtti, S.; Heiska, T.; Kiriazis, A.; Sacerdoti-Sierra, N.; Jaffe, C.L.; Yli-Kauhaluoma, J. Synthesis and Anti-Leishmanial Activity of Heterocyclic Betulin Derivatives. Bioorg. Med. Chem. 2010, 18, 1573–1582. [Google Scholar] [CrossRef] [PubMed]
  15. Pęcak, P.; Orzechowska, B.; Chrobak, E.; Boryczka, S. Novel Betulin Dicarboxylic Acid Ester Derivatives as Potent Antiviral Agents: Design, Synthesis, Biological Evaluation, Structure-Activity Relationship and in-Silico Study. Eur. J. Med. Chem. 2021, 225, 113738. [Google Scholar] [CrossRef] [PubMed]
  16. Zhao, H.; Liu, Z.; Liu, W.; Han, X.; Zhao, M. Betulin Attenuates Lung and Liver Injuries in Sepsis. Int. Immunopharmacol. 2016, 30, 50–56. [Google Scholar] [CrossRef]
  17. Wu, H.; Morris-Natschke, S.L.; Xu, X.; Yang, M.; Cheng, Y.; Yu, S.; Lee, K. Recent Advances in Natural Anti HIV Triterpenoids and Analogs. Med. Res. Rev. 2020, 40, 2339–2385. [Google Scholar] [CrossRef] [PubMed]
  18. Ren, C.; Jin, J.; Hu, W.; Chen, Q.; Yang, J.; Wu, Y.; Zhou, Y.; Sun, L.; Gao, W.; Zhang, X.; et al. Betulin Alleviates the Inflammatory Response in Mouse Chondrocytes and Ameliorates Osteoarthritis via AKT/Nrf2/HO-1/NF-ΚB Axis. Front. Pharmacol. 2021, 12, 754038. [Google Scholar] [CrossRef] [PubMed]
  19. Laavola, M.; Haavikko, R.; Hämäläinen, M.; Leppänen, T.; Nieminen, R.; Alakurtti, S.; Moreira, V.M.; Yli-Kauhaluoma, J.; Moilanen, E. Betulin Derivatives Effectively Suppress Inflammation in Vitro and in Vivo. J. Nat. Prod. 2016, 79, 274–280. [Google Scholar] [CrossRef] [PubMed]
  20. De Benedetto, A.; Agnihothri, R.; McGirt, L.Y.; Bankova, L.G.; Beck, L.A. Atopic Dermatitis: A Disease Caused by Innate Immune Defects? J. Investig. Dermatol. 2009, 129, 14–30. [Google Scholar] [CrossRef]
  21. Spivak, A.Y.; Nedopekina, D.A.; Khalitova, R.R.; Gubaidullin, R.R.; Odinokov, V.N.; Bel’skii, Y.P.; Bel’skaya, N.V.; Khazanov, V.A. Triphenylphosphonium Cations of Betulinic Acid Derivatives: Synthesis and Antitumor Activity. Med. Chem. Res. 2017, 26, 518–531. [Google Scholar] [CrossRef]
  22. Honig, B.H.; Hubbell, W.L.; Flewelling, R.F. Electrostatic Interactions in Membranes and Proteins. Annu. Rev. Biophys. Biophys. Chem. 1986, 15, 163–193. [Google Scholar] [CrossRef] [PubMed]
  23. Tsepaeva, O.V.; Nemtarev, A.V.; Abdullin, T.I.; Grigor’eva, L.R.; Kuznetsova, E.V.; Akhmadishina, R.A.; Ziganshina, L.E.; Cong, H.H.; Mironov, V.F. Design, Synthesis, and Cancer Cell Growth Inhibitory Activity of Triphenylphosphonium Derivatives of the Triterpenoid Betulin. J. Nat. Prod. 2017, 80, 2232–2239. [Google Scholar] [CrossRef] [PubMed]
  24. Zielonka, J.; Joseph, J.; Sikora, A.; Hardy, M.; Ouari, O.; Vasquez-Vivar, J.; Cheng, G.; Lopez, M.; Kalyanaraman, B. Mitochondria-Targeted Triphenylphosphonium-Based Compounds: Syntheses, Mechanisms of Action, and Therapeutic and Diagnostic Applications. Chem. Rev. 2017, 117, 10043–10120. [Google Scholar] [CrossRef] [PubMed]
  25. Kalyanaraman, B.; Cheng, G.; Hardy, M.; Ouari, O.; Lopez, M.; Joseph, J.; Zielonka, J.; Dwinell, M.B. A Review of the Basics of Mitochondrial Bioenergetics, Metabolism, and Related Signaling Pathways in Cancer Cells: Therapeutic Targeting of Tumor Mitochondria with Lipophilic Cationic Compounds. Redox Biol. 2018, 14, 316–327. [Google Scholar] [CrossRef] [PubMed]
  26. Marrache, S.; Pathak, R.K.; Dhar, S. Detouring of Cisplatin to Access Mitochondrial Genome for Overcoming Resistance. Proc. Natl. Acad. Sci. USA 2014, 111, 10444–10449. [Google Scholar] [CrossRef] [PubMed]
  27. Smith, R.A.J.; Hartley, R.C.; Murphy, M.P. Mitochondria-Targeted Small Molecule Therapeutics and Probes. Antioxid. Redox Signal. 2011, 15, 3021–3038. [Google Scholar] [CrossRef]
  28. Spivak, A.Y.; Nedopekina, D.A.; Gubaidullin, R.R.; Dubinin, M.V.; Belosludtsev, K.N. Conjugation of Natural Triterpenic Acids with Delocalized Lipophilic Cations: Selective Targeting Cancer Cell Mitochondria. J. Pers. Med. 2021, 11, 470. [Google Scholar] [CrossRef]
  29. Han, M.; Vakili, M.R.; Soleymani Abyaneh, H.; Molavi, O.; Lai, R.; Lavasanifar, A. Mitochondrial Delivery of Doxorubicin via Triphenylphosphine Modification for Overcoming Drug Resistance in MDA-MB-435/DOX Cells. Mol. Pharm. 2014, 11, 2640–2649. [Google Scholar] [CrossRef] [PubMed]
  30. Millard, M.; Gallagher, J.D.; Olenyuk, B.Z.; Neamati, N. A Selective Mitochondrial-Targeted Chlorambucil with Remarkable Cytotoxicity in Breast and Pancreatic Cancers. J. Med. Chem. 2013, 56, 9170–9179. [Google Scholar] [CrossRef] [PubMed]
  31. Boukalova, S.; Stursa, J.; Werner, L.; Ezrova, Z.; Cerny, J.; Bezawork-Geleta, A.; Pecinova, A.; Dong, L.; Drahota, Z.; Neuzil, J. Mitochondrial Targeting of Metformin Enhances Its Activity against Pancreatic Cancer. Mol. Cancer Ther. 2016, 15, 2875–2886. [Google Scholar] [CrossRef] [PubMed]
  32. Rohlenova, K.; Sachaphibulkij, K.; Stursa, J.; Bezawork-Geleta, A.; Blecha, J.; Endaya, B.; Werner, L.; Cerny, J.; Zobalova, R.; Goodwin, J.; et al. Selective Disruption of Respiratory Supercomplexes as a New Strategy to Suppress Her2 high Breast Cancer. Antioxid. Redox Signal. 2017, 26, 84–103. [Google Scholar] [CrossRef]
  33. Skulachev, V.P. A Biochemical Approach to the Problem of Aging: “Megaproject” on Membrane-Penetrating Ions. The First Results and Prospects. Biochem. Mosc. 2007, 72, 1385–1396. [Google Scholar] [CrossRef] [PubMed]
  34. Antonenko, Y.N.; Avetisyan, A.V.; Bakeeva, L.E.; Chernyak, B.V.; Chertkov, V.A.; Domnina, L.V.; Ivanova, O.Y.; Izyumov, D.S.; Khailova, L.S.; Klishin, S.S.; et al. Mitochondria-Targeted Plastoquinone Derivatives as Tools to Interrupt Execution of the Aging Program. Biochemistry 2008, 73, 1273–1287. [Google Scholar] [PubMed]
  35. Severin, F.F.; Severina, I.I.; Antonenko, Y.N.; Rokitskaya, T.I.; Cherepanov, D.A.; Mokhova, E.N.; Vyssokikh, M.Y.; Pustovidko, A.V.; Markova, O.V.; Yaguzhinsky, L.S.; et al. Penetrating cation/fatty acid anion pair as a mitochondria-targeted protonophore. Proc. Natl. Acad. Sci. USA 2010, 107, 663–668. [Google Scholar] [CrossRef]
  36. Smith, R.A.J.; Hartley, R.C.; Cochemé, H.M.; Murphy, M.P. Mitochondrial Pharmacology. Trends Pharmacol. Sci. 2012, 33, 341–352. [Google Scholar] [CrossRef]
  37. Spivak, A.Y.; Keiser, J.; Vargas, M.; Gubaidullin, R.R.; Nedopekina, D.A.; Shakurova, E.R.; Khalitova, R.R.; Odinokov, V.N. Synthesis and Activity of New Triphenylphosphonium Derivatives of Betulin and Betulinic Acid against Schistosoma Mansoni in Vitro and in Vivo. Bioorg. Med. Chem. 2014, 22, 6297–6304. [Google Scholar] [CrossRef] [PubMed]
  38. Nedopekina, D.A.; Gubaidullin, R.R.; Odinokov, V.N.; Maximchik, P.V.; Zhivotovsky, B.; Bel’skii, Y.P.; Khazanov, V.A.; Manuylova, A.V.; Gogvadze, V.; Spivak, A.Y. Mitochondria-Targeted Betulinic and Ursolic Acid Derivatives: Synthesis and Anticancer Activity. MedChemComm 2017, 8, 1934–1945. [Google Scholar] [CrossRef]
  39. Spivak, A.Y.; Nedopekina, D.A.; Shakurova, E.R.; Khalitova, R.R.; Gubaidullin, V.N.; Odinokov, V.N.; Dzhemilev, U.M.; Bel’skii, Y.P.; Bel’skaya, N.V.; Stankevic, S.A.; et al. Synthesis of lupane triterpenoids with triphenylphosphonium substituents and studies of their antitumor activity. Russ. Chem. Bull. Int. Ed. 2013, 62, 188–198. [Google Scholar] [CrossRef]
  40. Tsepaeva, O.V.; Nemtarev, A.V.; Salikhova, T.I.; Abdullin, T.I.; Grigor‘eva, L.R.; Khozyainova, S.A.; Mironov, V.F. Synthesis, Anticancer, and Antibacterial Activity of Betulinic and Betulonic Acid C-28-Triphenylphosphonium Conjugates with Variable Alkyl Linker Length. Anticancer Agents Med. Chem. 2020, 20, 286–300. [Google Scholar] [CrossRef]
  41. Tsepaeva, O.V.; Mironov, V.F.; Khairutdinov, B.I.; Zue, Y.F. Reaction of 30-Bromolup-20(29)-ene-3β,28-diyl Diacetate with Triphenylphosphine. Russ. J. Org. Chem. 2014, 50, 919–920. [Google Scholar] [CrossRef]
  42. Ye, Y.; Zhang, T.; Yuan, H.; Li, D.; Lou, H.; Fan, P. Mitochondria-Targeted Lupane Triterpenoid Derivatives and Their Selective Apoptosis-Inducing Anticancer Mechanisms. J. Med. Chem. 2017, 60, 6353–6363. [Google Scholar] [CrossRef] [PubMed]
  43. Xu, G.; Xu, X.; Liu, J.; Jia, Q.; Ke, C.; Zhang, H.; Xu, C.; Ou, E.; Tan, W. Mitochondria-Targeted Triphenylphosphonium Conjugated C-3 Modified Betulin: Synthesis, Antitumor Properties and Mechanism of Action. ChemMedChem 2022, 17, e202100659. [Google Scholar] [CrossRef] [PubMed]
  44. Grymel, M.; Zawojak, M.; Adamek, J. Triphenylphosphonium Analogues of Betulin and Betulinic Acid with Biological Activity: A Comprehensive Review. J. Nat. Prod. 2019, 82, 1719–1730. [Google Scholar] [CrossRef]
  45. Thibeault, D.; Gauthier, C.; Legault, J.; Bouchard, J.; Dufour, P.; Pichette, A. Synthesis and Structure–Activity Relationship Study of Cytotoxic Germanicane- and Lupane-Type 3β-O-Monodesmosidic Saponins Starting from Betulin. Bioorg. Med. Chem. 2007, 15, 6144–6157. [Google Scholar] [CrossRef] [PubMed]
  46. Kazakova, O.B.; Giniyatullina, G.V.; Yamansarov, E.Y.; Tolstikov, G.A. Betulin and Ursolic Acid Synthetic Derivatives as Inhibitors of Papilloma Virus. Bioorg. Med. Chem. Lett. 2010, 20, 4088–4090. [Google Scholar] [CrossRef]
  47. Kashiwada, Y.; Chiyo, J.; Ikeshiro, Y.; Nagao, T.; Okabe, H.; Cosentino, L.M.; Fowke, K.; Lee, K.H. 3,28-Di-O-(Dimethylsuccinyl)-Betulin Isomers as Anti-HIV Agents. Bioorg. Med. Chem. Lett. 2001, 11, 183–185. [Google Scholar] [CrossRef]
  48. Komissarova, N.G.; Dubovitskii, S.N.; Orlov, A.V.; Shitikova, O.V. New Conjugates of Betulin with 2-Aminoethanesulfonic Acid. Chem. Nat. Compd. 2019, 55, 300–304. [Google Scholar] [CrossRef]
  49. Krukiewicz, K.; Bednarczyk-Cwynar, B.; Turczyn, R.; Zak, J.K. EQCM Verification of the Concept of Drug Immobilization and Release from Conducting Polymer Matrix. Electrochim. Acta 2016, 212, 694–700. [Google Scholar] [CrossRef]
Molecules 27 05156 g001 550

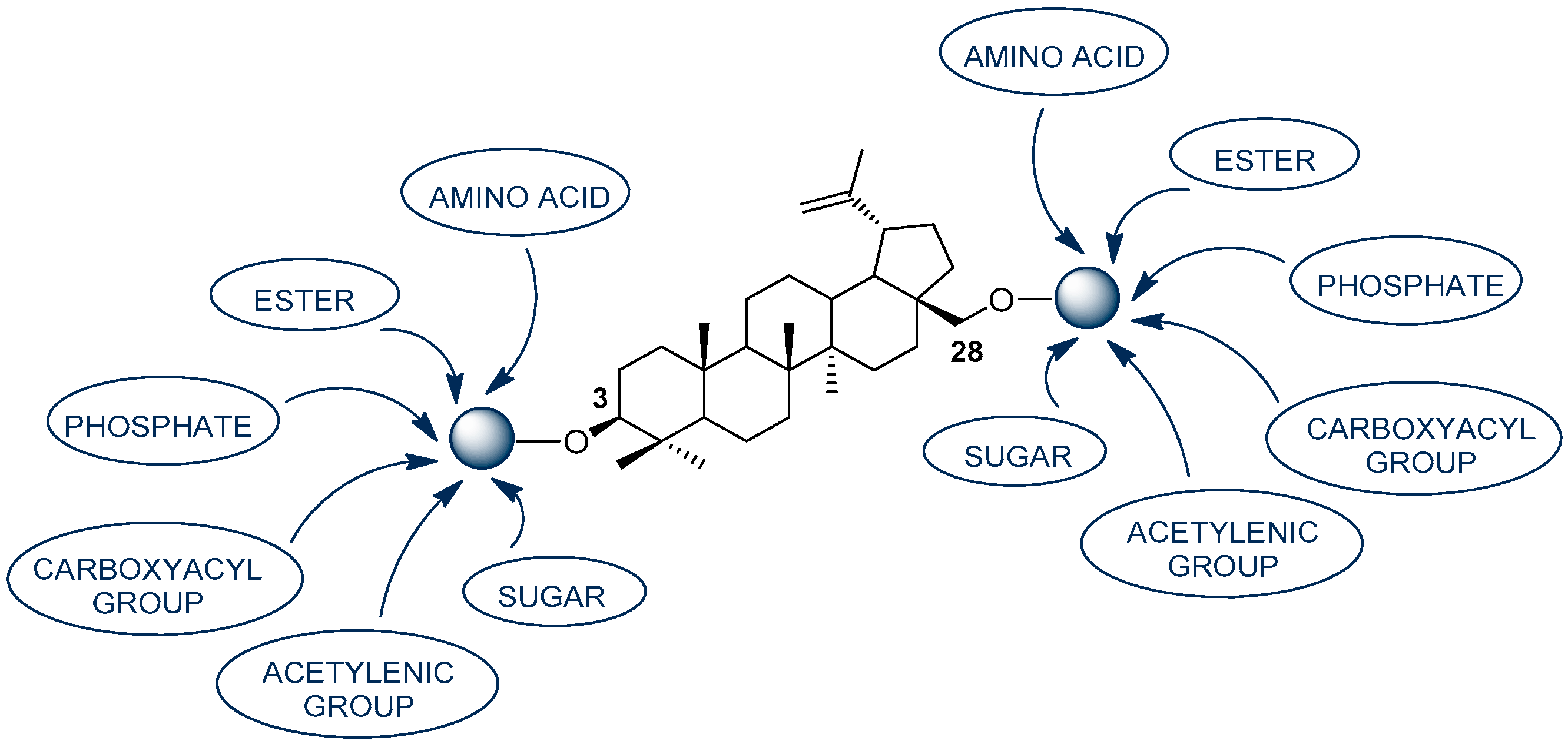

Figure 1. The selected modifications of the BN skeleton at positions C-3 and C-28 [3,4,5].
Figure 1. The selected modifications of the BN skeleton at positions C-3 and C-28 [3,4,5].
Molecules 27 05156 g001
Molecules 27 05156 g002 550
Figure 2. Examples of the TPP⊕-conjugated compounds [24,26,29,30,31,32,33,34,35].
Figure 2. Examples of the TPP⊕-conjugated compounds [24,26,29,30,31,32,33,34,35].
Molecules 27 05156 g002
Molecules 27 05156 g003 550
Figure 3. The chemical structures of the TPP⊕-conjugated with BA.
Figure 3. The chemical structures of the TPP⊕-conjugated with BA.
Molecules 27 05156 g003
Molecules 27 05156 g004 550
Figure 4. The chemical structures of the TPP⊕-conjugated with BN.
Figure 4. The chemical structures of the TPP⊕-conjugated with BN.
Molecules 27 05156 g004
Molecules 27 05156 sch001 550
Scheme 1. The synthetic route for the preparation of 28-TPP⊕ ΒΝ and 3,28-bisTPP⊕ ΒΝ.
Scheme 1. The synthetic route for the preparation of 28-TPP⊕ ΒΝ and 3,28-bisTPP⊕ ΒΝ.
Molecules 27 05156 sch001
Molecules 27 05156 sch002 550
Scheme 2. The synthesis of the BN analogs (2–5). Reagents and conditions: (i) Ac2O, DMAP, Py, r.t., 24 h; (ii) (i-PrO)3Al, i-PrOH, 80 °C, 2 h; (iii) SA or DMSA, DMAP, Py, reflux, 18–20 h; (iv) SA, Py, reflux, 9 h.
Scheme 2. The synthesis of the BN analogs (2–5). Reagents and conditions: (i) Ac2O, DMAP, Py, r.t., 24 h; (ii) (i-PrO)3Al, i-PrOH, 80 °C, 2 h; (iii) SA or DMSA, DMAP, Py, reflux, 18–20 h; (iv) SA, Py, reflux, 9 h.
Molecules 27 05156 sch002
Molecules 27 05156 sch003 550
Scheme 3. The synthesis of the 28-TPP⊕ BN derivative 7. Reagents and conditions: (i) Br(CH2)nBr, DMF/MeCN (10/1, v/v), K2CO3, 50 °C, 18–20 h; (ii) Ph3P, argon, 120 °C, 6–12 h.
Scheme 3. The synthesis of the 28-TPP⊕ BN derivative 7. Reagents and conditions: (i) Br(CH2)nBr, DMF/MeCN (10/1, v/v), K2CO3, 50 °C, 18–20 h; (ii) Ph3P, argon, 120 °C, 6–12 h.
Molecules 27 05156 sch003
Molecules 27 05156 sch004 550
Scheme 4. The synthesis of 3,28-bisTPP⊕ BN 9. Reagents and conditions: (i) Br(CH2)nBr, DMF/MeCN (10/1, v/v), K2CO3, 50 °C, 18–20 h; (ii) triphenylphosphine, Ar, 120 °C, 12–24 h.
Scheme 4. The synthesis of 3,28-bisTPP⊕ BN 9. Reagents and conditions: (i) Br(CH2)nBr, DMF/MeCN (10/1, v/v), K2CO3, 50 °C, 18–20 h; (ii) triphenylphosphine, Ar, 120 °C, 12–24 h.
Molecules 27 05156 sch004
Molecules 27 05156 g005 550
Figure 5. The dependence of cell viability on the concentration of BN and 28-TPP⊕ BN (7) and the 3,28-bisTPP⊕ BN analog (9) after 24 h of incubation.
Figure 5. The dependence of cell viability on the concentration of BN and 28-TPP⊕ BN (7) and the 3,28-bisTPP⊕ BN analog (9) after 24 h of incubation.
Molecules 27 05156 g005
Table
Table 1. The chemical shifts and coupling constants characteristic of TPP⊕ moiety in the synthesized triphenylphosphonium analogs of BN (7 and 9).
Table 1. The chemical shifts and coupling constants characteristic of TPP⊕ moiety in the synthesized triphenylphosphonium analogs of BN (7 and 9).
13C NMR (CDCl3, TMS, δ (ppm)/JC-P (Hz)
TPP⊕
CH2P⊕CipsoCmetaCorthoCpara
7a19.8/52.3118.1/85.7130.5/12.1133.8/9.8135.0/3.0
7b22.2/50.6118.3/84.9130.4/12.1133.8/9.9134.9/3.0
7c22.7/49.4118.4/85.0130.5/12.1133.7/9.8134.9/3.0
7d19.4/51.8118.3/86.3130.4/12.6133.8/10.4134.9/0.5
7e22.1/49.3118.3/88.1130.4/12.6133.7/10.4134.9/0.5
7f22.7/50.1118.4/85.8130.4/12.4133.7/9.9134.9/3.0
9a19.7/51.8118.1/86.3130.5/12.8133.8/9.2135.1/0.5
9b22.2/50.0118.2/88.8130.4/12.9133.7/9.9135.0/3.0
9c22.8/49.3118.4/85.0130.5/12.2133.8/9.8135.0/3.0
δ, ppm19.4–22.8118.1–118.4130.4–130.5133.7–133.8134.9–135.0
JC-P, Hz49.3–52.384.9–88.112.1–12.99.2–10.40.5–3.0
Table
Table 2. A summary of the cytotoxic effects of BN, 28-TPP⊕ BN (7), and 3,28-bisTPP⊕ BN (9) on the HCT 116 and MCF-7 cancer cell lines and NHDF.
Table 2. A summary of the cytotoxic effects of BN, 28-TPP⊕ BN (7), and 3,28-bisTPP⊕ BN (9) on the HCT 116 and MCF-7 cancer cell lines and NHDF.
No.RnActivity IC50, µM a,b
HCT 116MCF-7NHDF
BN−−negnegneg
7aH35.56 ± 0.2813.71± 0.549.68 ± 0.27
7bH45.77 ± 0.2714.35 ± 0.3810.71 ± 0.25
7cH56.48 ± 0.0415.52 ± 0.9211.29 ± 0.53
7fMe512.71 ± 0.8950.47 ± 3.9210.03 ± 0.48
9aH36.32 ± 0.2731.30 ± 3.025.91 ± 0.33
9bH47.97 ± 0.5123.60 ± 0.338.02 ± 0.35
9cH518.99 ± 0.5153.30 ± 5.4110.60 ± 0.34
a Cytotoxicity was evaluated using the CCK-8 assay; b Incubation time 24 h; Data are presented as the mean ± standard deviation (n = 3); neg: no activity in the concentration range used.
Table
Table 3. The results of the antimicrobial analysis using Gram-positive and Gram-negative bacteria cultured with the investigated compounds at 37 °C for 18 h. The results are presented as the differences between the optical density measurements of the samples before and after culture (McFarland’s scale (CFU/mL).
Table 3. The results of the antimicrobial analysis using Gram-positive and Gram-negative bacteria cultured with the investigated compounds at 37 °C for 18 h. The results are presented as the differences between the optical density measurements of the samples before and after culture (McFarland’s scale (CFU/mL).
No.S. aureus
ATCC 25923		S. epidermidis
ATCC 12228		Escherichia coli
ATCC 25922
200 μM250 μM200 μM250 μM200 μM250 μM
BN5.15.6neg4.7negneg
7a0.90neg0negneg
7b2.20neg0negneg
7c1.00.1neg0.7negneg
7d0000negneg
7e0000negneg
7f0000negneg
9a0000negneg
9b0000negneg
9c0000negneg
Control7.57.54.14.95.15.0
0: no difference between samples after 18 h of bacteria culture (bacteria grow was inhibited); neg: negative results (analog BN did not inhibit bacteria growing).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Grymel, M.; Lalik, A.; Kazek-Kęsik, A.; Szewczyk, M.; Grabiec, P.; Erfurt, K. Design, Synthesis and Preliminary Evaluation of the Cytotoxicity and Antibacterial Activity of Novel Triphenylphosphonium Derivatives of Betulin. Molecules 2022, 27, 5156. https://doi.org/10.3390/molecules27165156

AMA Style

Grymel M, Lalik A, Kazek-Kęsik A, Szewczyk M, Grabiec P, Erfurt K. Design, Synthesis and Preliminary Evaluation of the Cytotoxicity and Antibacterial Activity of Novel Triphenylphosphonium Derivatives of Betulin. Molecules. 2022; 27(16):5156. https://doi.org/10.3390/molecules27165156

Chicago/Turabian Style

Grymel, Mirosława, Anna Lalik, Alicja Kazek-Kęsik, Marietta Szewczyk, Patrycja Grabiec, and Karol Erfurt. 2022. "Design, Synthesis and Preliminary Evaluation of the Cytotoxicity and Antibacterial Activity of Novel Triphenylphosphonium Derivatives of Betulin" Molecules 27, no. 16: 5156. https://doi.org/10.3390/molecules27165156

Article Metrics

Back to TopTop
