Article

Controllable Synthesis, Photocatalytic Property, and Mechanism of a Novel POM-Based Direct Z-Scheme Nano-Heterojunction α-Fe2O3/P2Mo18

School of Chemical Engineering, Northeast Electric Power University, Jilin 132012, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(18), 6671; https://doi.org/10.3390/molecules28186671
Submission received: 13 August 2023 / Revised: 7 September 2023 / Accepted: 14 September 2023 / Published: 18 September 2023
(This article belongs to the Section Inorganic Chemistry)

Abstract

:
In order to improve photocatalytic activity and maximize solar energy use, a new composite material Fe2O3/P2Mo18 was prepared by combining polyoxometalates (P2Mo18) with Fe2O3 nanosheets. FT-IR, XRD, XPS, SEM, TEM, UV-vis, EIS, and PL were used to characterize the composite material, and nano-Fe2O3 of different sizes and morphologies with a controllable absorption range was prepared by adjusting the reaction time, and, when combined with P2Mo18, a composite photocatalyst with efficient visible light response and photocatalytic activity was constructed. The EIS, Bode, and PL spectra analysis results show that the Fe2O3/P2Mo18 composite material has outstanding interfacial charge transfer efficiency and potential photocatalytic application possibilities. Model reactions of methylene blue (MB) and Cr (VI) photodegradation were used to evaluate the redox activity of Fe2O3/P2Mo18 composites under simulated visible light. The photocatalytic degradation rate was as high as 98.98% for MB and 96.86% for Cr (VI) when the composite ratio was Fe2O3/P2Mo18-5%. This research opens up a new avenue for the development of high-performance photocatalysts.

1. Introduction

Environmental changes are becoming increasingly significant as business develops, and environmental protection has been at the center of scientists’ attention. Researchers are committed to exploring the usage of clean energy in the face of environmental concerns. Photocatalysis technology has been widely used in many fields in recent years, including in photocatalytic hydrogen production [1], photocatalytic carbon dioxide production of organic matter [2], photocatalytic degradation of nitrate [3], photocatalytic synthesis of ammonia [4], and pollutant degradation [5]. One of the most efficient approaches to tackling environmental problems is to employ photocatalysts to degrade organic contaminants in water using sunlight [6,7,8]. However, photocatalysis research focuses on how to make photocatalysts more stable and efficient.
Single-component photocatalysts have been observed to have low optical absorption, poor photostability, and significant charge recombination. Using two photocatalysts to construct a heterojunction can give a new path for charge transfer, successfully solving the abovementioned concerns. Because of their unique charge transfer paths, Z-scheme heterojunctions are commonly thought to offer tremendous promise for enhancing photocatalytic performance compared to conventional type-I and type-II heterojunctions. Not only is charge transfer efficiency quicker in Z-scheme heterojunctions, but they also do not require costly redox mediators. They may retain the most significant redox potential of the components. Based on the unique Z-scheme heterojunction structure, the catalytic performance improves remarkably. For example, the ZnIn2S4/ZrO2 composite photocatalyst generated using the photothermal method may considerably increase photocatalytic hydrogen generation performance [9]. Electrostatic assembly was used to create the CeO2/WO3 Z-scheme heterojunction, which has a higher CO2 reduction capacity in visible light due to its good charge separation efficiency [10].
POMs, or polyoxometalates, are metal oxide nanoclusters with specific structures composed of heteroatoms and ligand atoms [11]. They have distinct physical and chemical characteristics due to their structure, such as acid–base and redox properties, making them ideal materials for photocatalysts [12], medical care [13], and magnetic materials [14]. Generally, POMs absorb UV and near-UV light strongly and undertake efficient intramolecular charge transfer in response to light irradiation [15]. In particular, during photo-redox reactions, POM frameworks are usually stable and may reversibly transfer electrons across various substrates while maintaining their structure [16]. Meanwhile, the redox potential of POMs may be modified at the molecular level by changing their structure and constituent elements or by adding heterometal atoms or cations into their skeleton, altering their redox capacity [17]. The POMs may accept several electrons into their structure, thus making multi-electron redox reactions possible, which are essential for the photocatalytic reactions that transform light energy into chemical energy [18].
Iron-based nanomaterials are essential in nanotechnology and have sparked great research interest. Nano-sized Fe2O3, which is highly cost-effective and has excellent performance among other compelling characteristics, is a particular standout. Fe2O3 is perhaps the most extensively utilized substance in iron oxides due to its variable shape. As we know, each of the four well-known crystalline Fe2O3 polymorphs (α-, β-, γ-, and ε-Fe2O3) has distinct characteristics and is helpful in a variety of fields [19,20,21,22]. Because of its low cost, facile preparation, environmental friendliness, and excellent chemical stability as a narrow-band (1.9–2.2 eV) n-type semiconductor [23], Fe2O3 has been intensively studied in various fields, including for use in catalysts [24], pigments [25], water treatmen t [26], magnetic materials [27], sensors [28], and lithium-ion batteries [29]. Typically, γ-Fe2O3 has been introduced in the field of photocatalysts, giving rise to composite materials with magnetic features and enhancing the separation of photo-induced carriers [30]. In recent years, a series of α-Fe2O3 nanoparticles with different morphologies has been synthesized using sol-gel [31], low-temperature calcination [32], and hydrothermal methods [33]. Although Fe2O3 has a broad absorption range, it is unsuitable for use as an ideal photocatalyst due to the difficulties in producing electron-hole pairs. Combining α-Fe2O3 with another semiconductor with adequate valence and conduction band positions is possible. Therefore, the preparation of synthetic composite materials using Fe2O3 and other materials is being extensively researched. The hydrothermal 3D SnO2/α-Fe2O3 nanocomposites and ceramics synthesized using Fe2O3/TiO2 composites exhibit excellent visible-light degradation capacities [34].
At the present stage, POMs with various structural types are now combined with a range of metal nanoparticles to generate a variety of heterojunction materials. According to band theory, the band gap of POMs is more than 2.4 eV, whereas that of transition metal oxides is typically between 1.7 and 3.2 eV [35,36,37]. Thus, combining POMs with transition metal oxide nanomaterials can significantly reduce the recombination likelihood of photogenerated electrons and holes, thereby improving photocatalytic performance. So far, much study has focused on Keggin-type POMs, while Dawson-type POMs have received less attention in photocatalysis. Dawson-type POMs outperform Keggin-type POMs regarding absorption range and photocatalytic activity sites. In particular, reports on Fe2O3 and Dawson-type POM combinations are exceedingly rare [38,39]. This study prepares a new direct Z-scheme photocatalyst Fe2O3/P2Mo18 using a “step-by-step” strategy by loading an as-prepared Fe2O3 nanosheet onto a P2Mo18 POM. According to the characterization and experimental results, the Fe2O3/P2Mo18-5% composites exhibit remarkable photocatalytic performance and photostability in both photocatalytic organic pollutant methylene blue (MB), an organic pollutant, and heavy metal Cr(VI), respectively. The probable charge transfer mechanism was then studied based on the active species trapping experimental results.

2. Results and Discussion

2.1. Structural Analysis and Physical Properties

The crystal structure of the Fe2O3 nanoparticles was characterized using X-ray diffraction (XRD), as shown in Figure 1. The diffraction patterns located at 2θ of 24.2°, 33.2°, 35.8°, 40.9°, 49.4°, 54.2°, 62.7°, and 64.0° are typical of the Fe2O3 (PDF#99-0060) characteristic diffraction peaks, corresponding to the (0 1 2), (0 2 4), (1 0 4), (1 1 0), (1 1 3), (1 1 6), (2 1 4), and (3 0 0) crystal planes, respectively [40]. Furthermore, no diffraction peaks of other compounds were identified in Figure 1, demonstrating that the purity phase of Fe2O3 was well prepared. During the synthesis, it was discovered that the reaction time significantly impacted the crystallinity. When the reaction time varied from 2 h to 12 h, the diffraction peak intensity of Fe2O3 steadily increased as the reaction time increased, as did the crystallinity. When the reaction time was between 18 h and 24 h, the diffraction peak intensity of Fe2O3 declined as the reaction time increased, as did the crystallinity; however, when the reaction time was 12 h, the prepared Fe2O3 exhibited the most incredible diffraction peak intensity and crystallinity.
Then, SEM was used to measure and study further the influence of synthesis time on the physicochemical parameters of Fe2O3, as shown in Figure 2. The Fe2O3 formed after a 2-h reaction period was homogenous spheres with a diameter of about 50 nm (Figure 2a). The diameter of the Fe2O3 nanoparticles rapidly increased to about 100 nm after 6 h of reaction time (Figure 2b). After extending the reaction period to 12 h (Figure 2c), hexagonal sheets of Fe2O3 nanoparticles with unique morphologies were produced. The reaction period was gradually increased to 18 h and 24 h (Figure 2d,e), and a mixed state of rod and bulk Fe2O3 was formed. The UV-vis spectra of the Fe2O3 with varying reaction periods were used to investigate the influence of reaction time on the light absorption capabilities (seen in Figure S1); the analysis results show that the UV absorption ranges of the five samples were all in the range of 200–600 nm, and the reaction period of 12 h produced the maximum light absorption intensity and the widest visible-light absorption range of Fe2O3. The preceding results demonstrated that the ideal reaction period of the Fe2O3 produced was 12 h.
Based on the preceding findings, the FI-IR spectra of the Fe2O3/P2Mo18-x (x = 1, 3, 5, 8, 10) composites with different ratios of Fe2O3 under a reaction time of 12 h are depicted in Figure S2. The characteristic absorption bands of P2Mo18 are located at 700–1100 cm−1, with the typical peaks at 1078 cm−1 and 1002 cm−1 attributed to P-O. The slight shift of the characteristic peaks due to vibrational splitting caused by the different spacing of P and O in PO4, and 939 cm−1, 905 cm−1, and 777 cm−1 are attributed to the Mo=Oa tensile vibration, the tensile vibration of the Mo-Ob-Mo bond, and the bending vibration of Mo-Oc-Mo, respectively [41]. The peaks at 2955 cm−1, 2876 cm−1, and 1462 cm−1 are attributed to the asymmetric and symmetric telescoping vibrations of C-H, N-H, and C-N telescoping vibrations of tetrabutylammonium bromide, respectively [42]. When Fe2O3 was composited with P2Mo18, the distinctive peaks of P2Mo18 in the composite showed a weak shift compared to pure P2Mo18, indicating that the binary materials interacted.
XRD characterization was performed to determine the crystalline structure and phase composition of the sample. As shown in Figure 3, the crystal structure of the produced Fe2O3/P2Mo18-x samples with different ratios of Fe2O3 was investigated. When the X-ray powder diffraction patterns of the composites are compared to the typical diffraction of Fe2O3 located at 24.2°, 33.2°, 35.8°, 40.9°, 49.4°, 54.2°, 62.7°, and 64.0°, the patterns of these samples show similar characteristics before and after assembly except for the additional peaks of the P2Mo18 polyoxoanion, confirming that the structures of the Fe2O3 nanosheet and polyoxoanion P2Mo18 are stable during the compositing process.
Scanning electron microscopy (SEM) and transmission electron microscopy (TEM) were used to examine the morphology and microstructure of the composite catalysts, as shown in Figure 4. Figure 4a shows an SEM picture of P2Mo18, where the morphology of P2Mo18 is mainly in the form of rods and blocks that agglomerate to produce a cluster-like condition. Figure 4b shows an SEM picture of a Fe2O3/P2Mo18 sample. The kinetic management of the crystal development process by the surfactant TBAB, which influences the crystals’ direction and growth rate, may be responsible for the modification of the POM shape in the composites. Figure S3 presents the isothermal adsorption–desorption curves and the corresponding pore—size distribution curves of Fe2O3/P2Mo18. The results show that the BET surface area of the composites is 49 m2/g and the average pore diameter is 21 nm. Then, the TEM analysis was used to examine the microstructure of the composites. As shown in Figure 4c, obvious lattice spacers and two-bit interfaces indicate that the composite material Fe2O3/P2Mo18 was effectively manufactured. On the P2Mo18 surface, the Fe2O3 forms synergistic interfacial contacts, and the resultant heterojunction may decrease the compounding rate of photogenerated carriers and increase the photocatalytic efficacy of the composite material.
To validate that the composites were successfully synthesized, X-ray photoelectron spectroscopy (XPS) was utilized to examine the chemical composition and elemental valence states of the obtained Fe2O3/P2Mo18 nanocomposites, as shown in Figure 5. The presence of the components P, Mo, C, N, O, and Fe throughout the XPS survey spectra of the composite, which is consistent with the composition, suggests that the synthesis is effective. Figure 5b depicts the nuclear energy level spectra of the Mo 3d spin-orbital. The distinctive peaks located at 232.3 eV and 235.4 eV correspond to Mo3d5/2 and 3d3/2 of Mo6+, respectively [43]. The nuclear energy level spectra of the Fe 2p spin-orbital are shown in Figure 5c. The spectra were separated into three binding energies: 711.02 eV, 716.1 eV, and 724.2 eV, and each distinctive peak is in good agreement with 2p3/2, sat, and 2p1/2 for Fe3+ [44], respectively. The O1s spectrum (Figure 5d) located at 530.27 eV is attributed to the lattice oxygen of the sample [45].
The electrochemical characteristics and PL spectra were used to study the composites’ carrier transport and separation efficiency. An appropriate composite ratio was established via electrochemical and PL characterizations of the composite Fe2O3/P2Mo18. As shown in Figure 6a, Fe2O3/P2Mo18-5% has a smaller arc radius in the high-frequency region than other composites, indicating that the material has a favorable charge-transfer resistance during the photogenerated electron transfer process. As a result, adding 5% Fe2O3 enhances the interfacial charge transfer and boosts the prospective photocatalytic activity. According to the Bode diagram in Figure 6b, the |Z| values of Fe2O3/P2Mo18-5% are lower than the other ratios, indicating that the electrons have a greater electron transfer rate. The development of a heterojunction creates an entirely new charge transfer route, facilitating the separation and transport of photogenerated electron-hole pairs.
Meanwhile, PL spectroscopy confirmed the photoinduced carriers’ charge recombination and migration efficiency in the composite Fe2O3/P2Mo18. As we know, adding a modest proportion of Fe2O3 to the catalyst surface can create active sites. However, an excessive combined ratio can become a compounding center of photogenerated electrons and holes. Hence, several substances’ fluorescence emission intensity responses were tested for further characterization. A more significant photogenerated electron-hole pair complexation rate generally signifies a higher luminescence intensity of the activated catalyst [46]. The luminescence peaks at 600 nm for composites made using varied Fe2O3 mass ratios are compared in Figure 7. It is shown that the polyoxoanion P2Mo18 has the highest PL intensity due to its intrinsic photogenerated electron-hole pair complexation. Fe2O3/P2Mo18-5%, on the other hand, had a lower fluorescence peak intensity than those of different mass ratios, indicating that it was the most efficient in suppressing photogenerated carrier recombination. The EIS and PL analysis results show that the composite Fe2O3/P2Mo18-5% has the most effective photogenerated electron-hole pair separation and the fastest interfacial charge transfer rate.
The UV-vis absorption spectra of the P2Mo18, Fe2O3, and Fe2O3/P2Mo18-x samples are given in Figure 8 to assess the optical absorption characteristics and optical band gaps of the produced photocatalysts. The primary absorption peaks of P2Mo18 emerged in the 200–550 nm range, which has a high solar-light use rate. While Fe2O3 has a light absorption range of 200–700 nm, Fe2O3 may extend the range to yellow-green or red light, considerably improving sunlight usage in the photocatalytic process. The absorption peak at 500–700 nm increases gradually with the increase in the Fe2O3 mass ratio in the figure for the composite material Fe2O3/P2Mo18-x, indicating that the composite material of Fe2O3 and P2Mo18 can effectively stretch the wavelength up to about 700 nm, which is conducive to the photocatalytic process. It suggests that the addition of Fe2O3 can significantly increase the composite catalyst’s visible-light usage. The band gap of the sample was calculated using the Tauc equation: (αhν)1/n = A (hν − Eg), where α, h, ν, A, and Eg indicate the absorption coefficient, Planck’s constant, optical frequency, scaling factor, and energy band gap, respectively. Furthermore, the exponent is connected to the material’s inter-band hopping characteristics, which is 0.5 for direct semiconductors and 2 for indirect semiconductors. Based on the preceding equations, a plot of (αhν)2 versus (hν) is displayed in Figure 8b, and the bandgap values for the P2Mo18 and Fe2O3 samples are around 2.39 eV and 2.09 eV, respectively.
Additionally, to further investigate the influence of Fe2O3 with varied reaction times on the composites, Fe2O3 and P2Mo18 with varying reaction times were combined at an ideal composite ratio of 5%. The distinctive absorption band of the manufactured composite Fe2O3/ P2Mo18 occurs at 700–1100 cm−1 in the FT-IR spectrogram (Figure S4), which shows that the composite has little effect on the P2Mo18 characteristic absorption peak. In the UV-visible spectrum (Figure S5), because the peak intensity of Fe2O3 synthesized at 12 h was the greatest, P2Mo18 had the highest absorption peak intensity when compounded with Fe2O3 prepared at 12 h, and the composite performed best. The separation and transfer efficiency of photogenerated e and h+ may be explained using electrochemical AC impedance Nyquist plots and Bode graphs. The radius of the circle of the composite created using a reaction time of 2 h for Fe2O3 is more significant than that of the composite prepared using a reaction time of 6 h, as shown in Figure S6a, among the composites with the same ratio of Fe2O3. This is mainly because the particle size of the spherical Fe2O3 generated after 6 h is more significant than that of the spherical Fe2O3 prepared after 2 h. As a result, the smaller diameter of Fe2O3 formed at 2 h is more prone to aggregation, resulting in an electrostatic shielding effect and a higher resistance. In contrast, the Fe2O3 generated after 12 h has a consistently sized and structured sheet structure that is less prone to aggregation and has the lowest charge transfer resistance. The Fe2O3 morphology altered further as the reaction time increased, and the Fe2O3 morphology formed at 18 h was not uniform, with both rod-like and bulk-like morphologies that increased charge transfer resistance. When the reaction period approaches 24 h, a more fragmented bulk Fe2O3 is generated, increasing the charge transfer resistance. By modeling a circuit, the electrochemical impedance values are fitted, and the resistance of the circuit elements is employed to indicate the impedance magnitude of the composite material. According to the data, the resistance of the composites was 533.4 Ω at a reaction time of 2 h for Fe2O3, 494.6 Ω at a reaction time of 6 h, 274.9 Ω at a reaction time of 12 h, 428.9 Ω at a reaction time of 18 h, and 496.7 Ω at a reaction time of 24 h, which meant that the Fe2O3-12 h possessed the lowest internal resistance. The lower the modal value of the Bode plot, the better the material’s performance. According to the graph (Figure S6b), the composites composited with Fe2O3 and P2Mo18 at different reaction periods formed the composites with the lowest modulus values and the highest performance. Meanwhile, the PL spectrum reflecting the ability of photogenerated e and h+ complexation was recorded and is shown in Figure S7. The figure demonstrates that the composite formed by mixing Fe2O3 and P2Mo18 for 12 h is the most effective at suppressing photogenerated carrier complexes and has the best photocatalytic effect. According to the combined results, the composite Fe2O3/P2Mo18-12 h exhibits the most effective photogenerated electron-hole pair separation and the fastest interfacial charge transfer rate.

2.2. Photocatalytic Activity

MB was the target pollutant used to assess the composites’ photocatalytic efficacy. Figure 9a depicts the degradation efficiencies of various composite mass ratios. A series of composite samples generated with the addition of P2Mo18 were much more effective in degrading MB in visible light than catalyst-free and Fe2O3 alone, with the greatest photocatalytic effect of Fe2O3/P2Mo18-5% reaching about 98.98%. The photocatalytic cycling experiment is shown in Figure 9b, and it is seen that the degradation rate may reach 94% after the third catalytic experiment, and the degradation rate is somewhat lowered but stays constant with catalytic solid activity. In Figure 9c, we can see that the infrared characteristic peaks of the composites after and before activation are consistent, indicating that the photocatalyst is more stable.
As reported, multiple active compounds are frequently involved in the photocatalytic process of MB. Analyzing the critical active chemicals involved in the catalytic reaction, therefore, aids in investigating the photocatalytic reaction mechanism. At different pH levels, isopropanol, triethanolamine, and p-benzoquinone were used as scavenger agents for hydroxyl radicals (·OH), superoxide radicals (·O2), and holes (h+), respectively, in the capture tests. The results are presented in Figure 9d. The graph’s general trend indicates that the addition of isopropanol has a considerable influence on the photocatalytic degradation of MB. After 90 min of light exposure, the degradation rate of MB by the composite Fe2O3/P2Mo18 was only about 40%. The results showed that the ·OH active ingredient was crucial in the photocatalytic MB breakdown. At pH < 4, the scavenger agent’s capacity to photocatalytically degrade MB progressively diminished with increasing pH, which was ascribed to a drop in hydrogen ion concentration, resulting in a weakening of the inhibitory effect of ·OH and a gradual rise in ·OH generation. The largest amount of ·OH was produced when the pH approached 5. However, a coupling reaction occurs between adjacent ·OH in solution, which consumes part of the active group ·OH [47]. The formation of ·OH diminishes slightly after pH > 6, but the coupling process between ·OH is decreased, enhancing the degrading impact.
To replicate industrial Cr (VI)-containing wastewater and test the reduction ability of various composites to (Cr) under visible-light irradiation, an aqueous potassium dichromate solution at a concentration of 50 mg/L was utilized. Figure 10a depicts the concentration of Cr (VI) as a function of light-time, where C0 is the starting concentration of Cr (VI) and C represents the real-time concentration of Cr (VI). After 90 min of visible-light irradiation, the composite material Fe2O3/P2Mo18 had a significant degradation effect on Cr (VI) under light, and the photocatalytic effect of Fe2O3/P2Mo18-5% was better than that of others, reaching 95.86%. In addition, the photocatalytic test on the composite Fe2O3/P2Mo18-5% sample was performed for four cycles to evaluate the stability of the catalyst in the reduction of Cr (VI). As shown in Figure 10b, the degradation rate of Cr (VI) by the composite Fe2O3/P2Mo18-5% sample could still reach 90.43% after four cycles, despite a 5.43% drop. The consistency of the IR characteristic peaks (Figure 10c) between the composites after and before activation shows that the photocatalyst has better stability.

2.3. Mechanism

A proper energy band gap is required for the fabrication of heterojunctions. The cyclic voltammograms of P2Mo18 and Fe2O3 (Figure S8) show that the LUMO position of P2Mo18 is 0.37 eV and the CB position of Fe2O3 is 0.29 eV (concerning the normal glycogen electrode). The HOMO of P2Mo18 was calculated to be 2.67 eV, the VB position of Fe2O3 was estimated to be 2.31 eV, and the staggered energy band structure laid the groundwork for the formation of heterojunctions between the two components. The energy band structures of P2Mo18 and Fe2O3, as well as the redox potentials of different reaction processes, are displayed in Figure 11 to examine the photocatalytic reaction mechanism and further define the heterojunction type and photogenerated electron transfer mode. When excited by visible light, photogenerated electrons of P2Mo18 on HOMO leap to LUMO, leaving photogenerated holes on HOMO. Because Fe2O3 is also stimulated by visible light simultaneously, photogenerated electrons can jump from the valence band to the conduction band. After combining P2Mo18 and Fe2O3, electrons in the conduction band of Fe2O3 migrate to the conduction band of P2Mo18 with higher potential, while holes in the valence band of P2Mo18 migrate to the valence band of Fe2O3 with lower potential. However, the oxidation potential of the Fe2O3 valence band cavity is more damaging than that of OH/·OH (1.99 V vs. NHE) and H2O/·OH (2.40 V vs. NHE). It cannot satisfy the overpotential conditions for generating · OH-reactive substances. This strongly contradicts the results of the capture trials. ·OH was discovered to be the active ingredient in the photocatalytic processes during the capture tests. As a result, the synthesized composite Fe2O3/P2Mo18 charge transfer pattern is more compatible with the unique Z-type heterojunction process. The photoexcited electrons of P2Mo18 immediately complex with the valence band holes of Fe2O3, maintaining the photogenerated holes on the HOMO of P2Mo18 and the photogenerated electrons in the conduction band of Fe2O3 engaged in photocatalytic activity. Based on this charge transfer mechanism, the oxidation potential of the valence band cavity in P2Mo18 can well match the requirement of ·OH radical generation. As the Fermi energy levels of P2Mo18 and Fe2O3 converge and eventually reach equilibrium, a built-in electrical field that can bend their energy band structures is formed between them, driving the photogenerated electrons of P2Mo18 to compound directly with the photogenerated holes of Fe2O3. During the degradation process of Cr (VI), the photogenerated electrons are the only active ingredient. The use of Z-type heterojunctions can not only effectively promote the separation and transfer of photogenerated charges but also maximize the retention of photogenerated electrons and holes with high chemical activity, resulting in a significant improvement in the photocatalytic performance of the catalyst. Thus, the primary reaction pathways for MB degradation and Cr (VI) reduction involving photogenerated electrons and holes are as follows.
F e 2 O 3 / P 2 M o 18 + h v F e 2 O 3 ( e ) / P 2 M o 18 h +
P 2 M o 18 h + + O H / H 2 O · O H
· O H + M B C O 2 + H 2 O + i n t e r m e d i a t e s
F e 2 O 3 / P 2 M o 18 + h v F e 2 O 3 ( e ) + P 2 M o 18 ( h + )
F e 2 O 3 e + C r 2 O 7 2 + 14 H + 2 C r 3 + + 7 H 2 O

3. Materials and Methods

3.1. Experimental Reagents

All of the chemical reagents were analytical grade and used without further purification. Deionized water was used throughout this study.

3.2. Preparation of P2Mo18

Na2MoO4·2H2O (0.207 mol) was dissolved in 225 mL of deionized water with 85% H3PO4, and then a particular amount of concentrated hydrochloric acid was added to acidify and heat the reflux for 10 h. After cooling the solution to room temperature, a certain amount of NH4Cl was added to crystallize and precipitate the P2Mo18 ammonium salt. The solid was dissolved again, and then NH4Cl was added for precipitation. This operation was performed numerous times and the sample was dried at 40 ℃ to provide pure P2Mo18.

3.3. Preparation of Fe2O3 Nanosheets

FeSO4·7H2O (0.278 g) and 0.246 g CH3COONa were dissolved in 40 mL of deionized water and stirred in the air for a few minutes. The solution was transferred to a reaction kettle preheated to 140 ℃. The reaction time was changed, and the heating times were 2 h, 6 h, 12 h, 18 h, and 24 h. The reaction kettle was cooled to ambient temperature before being opened, and the products were separated using a centrifuge. The samples were washed with deionized water and anhydrous ethanol before being dried in a 40 ℃ oven. The samples were transferred to crucibles and calcined for 2 h in a muffle furnace at 500 ℃ to produce Fe2O3 with various morphologies.

3.4. Preparation of Fe2O3/P2Mo18

P2Mo18 (1.0 g) was weighed and dissolved in 20 mL of water, then 0.01 g/0.03 g/0.05 g/0.08 g/0.10 g Fe2O3 was added and thoroughly mixed. After a while, dropwise additions of 20 mL of 0.1 mol/L aqueous tetrabutylammonium bromide solution were made, and the reaction was allowed to run for 24 h. After the reaction, the samples were centrifuged and washed with deionized water and ethanol to obtain composites with varying composite ratios, then placed into an oven at 50 ℃ and dried to obtain the final composites.

3.5. Material Characterizations

The structure and composition of the samples were characterized using FT-IR (Affinity-1 Shimadzu, Kyoto, Japan) and X-ray powder diffraction (XRD) collected on a Shimadzu powder diffractometer with Cu Ka radiation (λ = 0.15405 nm). X-ray photoelectron spectroscopy was used to determine the samples’ surface chemical state and elemental composition (XPS), (ESCALAB 250 Thermo Fisher Scientific, Waltham, MA, USA). The UV-vis diffused reflectance spectra were recorded using a (UV-2550 Shimadzu, Tokyo, Japan). The N2 adsorption–desorption isotherms were collected using a Micromeritics (ASAP 2460 analyzer Micromeritics, Norcross, GA, USA). The morphologies of the samples were observed using scanning electron microscopy (SEM), (SUPRA55 ZEISS, Oberkochen, Germany) transmission electron microscopy (TEM), (JEM-2100 JEOL, Tokyo, Japan), and the EIS test using the Princeton electrochemical workstation. A three-electrode system was used in the test. The mixed solution was 75 mL 0.05 mol/L potassium ferricyanide and 75 mL 0.1 mol/L potassium chloride. The cyclic voltammetry also used the above test conditions.

3.6. Photocatalytic Activity Evaluation

MB (100 mL, 20 mg/L) and Cr (100 mL, 50 mg/L) were transferred to the photocatalytic reactor as initial solutions. The amount of photocatalyst was 0.1 g. The photocatalyst was adsorbed using dark light for 30 min before photocatalysis, and then the xenon lamp was turned on for photocatalysis (illumination: 18.085 mW/cm2). Samples were collected every 10 min, for 9 times in total.
Three scavenger agents, isopropanol, triethanolamine, and p-benzoquinone, were used to test the active component holes, hydroxyl radicals, and superoxide radicals, respectively, with a dosage of about 0.05 mmol.

4. Conclusions

In summary, Fe2O3/P2Mo18 hybrid composites were successfully developed and produced utilizing the divisional synthesis approach. Differentiating the reaction duration may achieve good crystallinity, uniform size, and homogenous phase of Fe2O3 nanoparticles. Under simulated visible-light conditions, the Fe2O3/P2Mo18-5% composite material achieved a satisfactory degradation efficiency in the photocatalytic degradation of MB and reduction of Cr (VI), which was significantly better than that of single Fe2O3 or P2Mo18 samples, and the cyclic photocatalytic experiments demonstrated that the product possessed extremely high structural stability and performance stability. In particular, Fe2O3 complexed with P2Mo18 enhances the catalyst’s specific surface area and active sites, while the close contact at the interface allows photogenerated charges to migrate quickly. On the other hand, the results based on the energy band structure and active radical trapping led to the successful formation of Z-type heterojunctions in the presence of built-in electrical fields. The unique charge transfer mechanism can facilitate the separation and transfer of photogenerated charges, thus improving the quantum efficiency of the catalytic reactions. Therefore, compared with the previous literature (as shown in Tables S1 and S2), a substantial enhancement of the photocatalytic performance of the catalyst can be achieved.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28186671/s1, Figure S1. DRS spectra of Fe2O3; Figure S2: FI-IR spectra of the hybrid materials; Figure S3: N2 adsorption desorption isotherms and pore size distribution curves (Insert); Figure S4: FI-IR spectra of the hybrid materials with different reaction times of Fe2O3; Figure S5: UV-vis spectra of composites with different reaction times of Fe2O3; Figure S6: Nyquist (a) and Bode (b) plots of composites made from Fe2O3 with different reaction times; Figure S7: Photoluminescence spectra of composites with different reaction times of Fe2O3; Figure S8: The CV test diagram of polyoxoanion P2Mo18 (a), Fe2O3 (b); Table S1: The comparison of MB degradation activity of P2Mo18/Fe2O3-5% with literature; Table S2: The comparison of Cr reduction performance of P2Mo18/Fe2O3-5% with literature.

Author Contributions

Conceptualization, H.Y.; methodology, H.Y. and Y.Z.; software, M.Z.; validation, M.Z. and J.H.; formal analysis, N.Z.; investigation, Y.Z. and M.Z.; resources, Y.Z. and H.Y.; data curation, Y.Z.; writing—original draft preparation, Y.Z. and H.Y.; writing—review and editing, M.Z. and H.Y.; visualization, J.H.; supervision, H.Y.; project administration, Y.Z. and H.Y.; funding acquisition, H.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Jilin Provincial Science and Technology Department: 20170204016GX.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Wu, J.; Wang, Y.; Zhang, S.; Liu, Y.; Wang, F. Poly(Dibenzothiophene-S, S-Dioxide)-Fe2O3 Heterojunction for Photocatalytic Hydrogen Production Coupled with Selective Oxidation of Benzyl Alcohol. Appl. Catal. B Environ. 2023, 332, 122741. [Google Scholar] [CrossRef]
  2. Liapun, V.; Hanif, M.B.; Sihor, M.; Vislocka, X.; Pandiaraj, S.; Unnikrishnan, V.K.; Thirunavukkarasu, G.K.; Edelmannová, M.F.; Reli, M.; Monfort, O.; et al. Versatile Application of BiVO4/TiO2 S-Scheme Photocatalyst: Photocatalytic CO2 and Cr(VI) Reduction. Chemosphere 2023, 337, 139397. [Google Scholar] [CrossRef] [PubMed]
  3. Jiang, C.; An, H.; Dong, G.; Feng, J.; Zhang, M.; Ren, Y.; Ma, J. Hexagonal Boron Nitride with Functional Groups for Efficient Photocatalytic Reduction of Nitrate without Additional Hole Scavengers. Chem. Eng. J. 2022, 428, 131054. [Google Scholar] [CrossRef]
  4. Yu, X.; Qiu, P.; Wang, Y.; He, B.; Xu, X.; Zhu, H.; Ding, J.; Liu, X.; Li, Z.; Wang, Y. Defect-Induced Charge Redistribution of MoO3-X Nanometric Wires for Photocatalytic Ammonia Synthesis. J. Colloid Interface Sci. 2023, 640, 775–782. [Google Scholar] [CrossRef]
  5. Zhan, H.; Zhou, Q.; Li, M.; Zhou, R.; Mao, Y.; Wang, P. Photocatalytic O2 Activation and Reactive Oxygen Species Evolution by Surface B-N Bond for Organic Pollutants Degradation. Appl. Catal. B Environ. 2022, 310, 121329. [Google Scholar] [CrossRef]
  6. Galloni, M.G.; Cerrato, G.; Giordana, A.; Falletta, E.; Bianchi, C.L. Sustainable Solar Light Photodegradation of Diclofenac by Nano-and Micro-Sized SrTiO3. Catalysts 2022, 12, 804. [Google Scholar] [CrossRef]
  7. Mergbi, M.; Galloni, M.G.; Aboagye, D.; Elimian, E.; Su, P.; Ikram, B.M.; Nabgan, W.; Bedia, J.; Amor, H.B.; Contreras, S. Valorization of lignocellulosic biomass into sustainable materials for adsorption and photocatalytic applications in water and air remediation. Environ. Sci. Pollut. Res. 2023, 1–31. [Google Scholar] [CrossRef]
  8. Djellabi, R.; Giannantonio, R.; Falletta, E.; Bianchi, C.L. SWOT analysis of photocatalytic materials towards large scale environmental remediation. Curr. Opin. Chem. Eng. 2021, 33, 100696. [Google Scholar] [CrossRef]
  9. Xie, Z.; Liu, G.; Xie, L.; Wu, P.; Liu, H.; Wang, J.; Xie, Y.; Chen, J.; Lu, C.-Z. Promoting Photocatalytic H2 Evolution through Interfacial Charge Separation on the Direct Z-Scheme ZnIn2S4/ZrO2 Heterojunction. Int. J. Hydrog. Energy 2023. [Google Scholar] [CrossRef]
  10. Yaseen, M.; Jiang, H.; Li, J.; Yu, X.; Ahmad, M.A.; Ali, R.N.; Wang, L.; Yang, J.; Liu, Q. Synergistic Effect of Z-Scheme and Oxygen Vacancy of CeO2/WO3 Heterojunction for Enhanced CO2 Reduction Activity. Appl. Surf. Sci. 2023, 631, 157360. [Google Scholar] [CrossRef]
  11. Xing, C.; Ma, M.; Chang, J.; Ji, Z.; Wang, P.; Sun, L.; Li, S.; Li, M. Polyoxometalate Anchored Zinc Oxide Nanocomposite as a Highly Effective Photocatalyst and Bactericide for Wastewater Decontamination. Chem. Eng. J. 2023, 464, 142632. [Google Scholar] [CrossRef]
  12. Li, W.; Li, T.; Li, G.; An, L.; Li, F.; Zhang, Z. Electrospun H4SiW12O40/Cellulose Acetate Composite Nanofibrous Membrane for Photocatalytic Degradation of Tetracycline and Methyl Orange with Different Mechanism. Carbohydr. Polym. 2017, 168, 153–162. [Google Scholar] [CrossRef]
  13. Fang, Y.; Xing, C.; Liu, J.; Zhang, Y.; Li, M.; Han, Q. Supermolecular Film Crosslinked by Polyoxometalate and Chitosan with Superior Antimicrobial Effect. Int. J. Biol. Macromol. 2020, 154, 732–738. [Google Scholar] [CrossRef]
  14. Zhang, M.; Wei, Y.; Li, R.; Zhu, W.; Li, H.; Zhang, Q.; Wang, M.; Chen, X.; Li, H. Magnetic POM-Based Mesoporous Silica for Fast Oxidation of Aromatic Sulfur Compounds. Fuel 2017, 209, 545–551. [Google Scholar] [CrossRef]
  15. Dolbecq, A.; Dumas, E.; Mayer, C.R.; Mialane, P. Hybrid Organic− Inorganic Polyoxometalate Compounds: From Structural Diversity to Applications. Chem. Rev. 2010, 110, 6009–6048. [Google Scholar] [CrossRef] [PubMed]
  16. Yamase, T. Photo-and Electrochromism of Polyoxometalates and Related Materials. Chem. Rev. 1998, 98, 307–325. [Google Scholar] [CrossRef] [PubMed]
  17. Li, J.; Li, D.; Xie, J.; Liu, Y.; Guo, Z.; Wang, Q.; Lyu, Y.; Zhou, Y.; Wang, J. Pyrazinium Polyoxometalate Tetrakaidecahedron-Like Crystals Esterify Oleic Acid with Equimolar Methanol at Room Temperature. J. Catal. 2016, 339, 123–134. [Google Scholar] [CrossRef]
  18. Ueda, T. Electrochemistry of Polyoxometalates: From Fundamental Aspects to Applications. ChemElectroChem 2018, 5, 823–838. [Google Scholar] [CrossRef]
  19. Sahoo, R.K.; Manna, A.K.; Das, A.; Mitra, A.; Mohapatra, M.; Sarangi, S.N.; Garg, P.; Deshpande, U.; Varma, S. Facile Synthesis of Super-Paramagnetic Au @α-Fe2O3 Hybrid Nanoparticle and Its Assembly on Graphene Substrate for Visible Light Photo-Catalysis. Appl. Surf. Sci. 2022, 577, 151954. [Google Scholar] [CrossRef]
  20. Fragoso, J.; Barreca, D.; Bigiani, L.; Gasparotto, A.; Sada, C.; Lebedev, O.I.; Modin, E.; Pavlovic, I.; Sanchez, L.; Maccato, C. Enhanced Photocatalytic Removal of NOx Gases by β-Fe2O3/CuO and β-Fe2O3/WO3 Nanoheterostructures. Chem. Eng. J. 2022, 430, 132757. [Google Scholar] [CrossRef]
  21. Zhang, C.; Yu, Z.; Wang, X.; Wang, B. Enhanced Visible Light Assisted Peroxymonosulfate Process by Biochar in-Situ Enriched with γ-Fe2O3 for P-Chlorophenol Degradation: Performance, Mechanism and Dft Calculation. J. Hazard. Mater. 2023, 445, 130593. [Google Scholar] [CrossRef]
  22. Cao, Y.; Wu, B.; Zhu, Y.-L.; Wang, Y.-J.; Tang, Y.-L.; Liu, N.; Liu, J.-Q.; Ma, X.-L. Self-Assembled Three-Dimensional Framework of PbTiO3: ε-Fe2O3 Nanostructures with Room Temperature Multiferroism. Appl. Surf. Sci. 2021, 544, 148945. [Google Scholar] [CrossRef]
  23. Guan, Y.; Du, Q.; Wang, S.; Gu, X.; Li, Z.; Yan, S. Thin-Layer Metal Bismuth Inserted into Bi2S3/C, N co-doped α-Fe2O3 Achieving Efficient Photoelectrochemical Water Oxidation. Appl. Surf. Sci. 2023, 622, 156956. [Google Scholar] [CrossRef]
  24. Song, J.; Lu, Y.; Lin, Y.; Liu, Q.; Wang, X.; Su, W. A Direct Z-Scheme α-Fe2O3/LaTiO2N Visible-Light Photocatalyst for Enhanced CO2 Reduction Activity. Appl. Catal. B Environ. 2021, 292, 120185. [Google Scholar] [CrossRef]
  25. Li, X.; Wang, C.; Zeng, Y.; Li, P.; Xie, T.; Zhang, Y. Bacteria-Assisted Preparation of Nano α-Fe2O3 Red Pigment Powders from Waste Ferrous Sulfate. J. Hazard. Mater. 2016, 317, 563–569. [Google Scholar] [CrossRef]
  26. Mousavi, S.E.; Younesi, H.; Bahramifar, N.; Tamunaidu, P.; Karimi-Maleh, H. A Novel Route to the Synthesis of α-Fe2O3@C@SiO2/TiO2 Nanocomposite from the Metal-Organic Framework as a Photocatalyst for Water Treatment. Chemosphere 2022, 297, 133992. [Google Scholar] [CrossRef] [PubMed]
  27. Kumar, Y.R.; Kavita, S.; Palanisamy, A.; Vasundhara, M. Structural, Optical and Magnetic Properties of Chitosan Mediated α-Fe2O3 Nanoparticles. Mater. Today Proc. 2023. [Google Scholar] [CrossRef]
  28. Lei, Z.; Cheng, P.; Wang, Y.; Xu, L.; Lv, L.; Li, X.; Sun, S.; Hao, X.; Zhang, Y.; Zhang, Y.; et al. Pt-doped α-Fe2O3 Mesoporous Microspheres with Low-Temperature Ultra-Sensitive Properties for Gas Sensors in Diabetes Detection. Appl. Surf. Sci. 2023, 607, 154558. [Google Scholar] [CrossRef]
  29. Guo, J.; Wang, S.; Sun, X.; Guo, R.; Xiong, K.; Ling, R.; Shen, K.; Cui, J.; Ma, H.; Zhou, J.; et al. Uniform α-Fe2O3 Nanoparticles with Narrow Gap Immobilized on Cnts through N-doped Carbon as High-Performance Lithium-Ion Batteries Anode. Ceram. Int. 2021, 47, 15743–15749. [Google Scholar] [CrossRef]
  30. Galloni, M.G.; Ferrara, E.; Falletta, E.; Bianchi, C.L. Olive Mill Wastewater Remediation: From Conventional Approaches to Photocatalytic Processes by Easily Recoverable Materials. Catalysts 2022, 12, 923. [Google Scholar] [CrossRef]
  31. Babaei, E.; Bazyari, A. Effects of Drying Conditions on Physicochemical Properties of Epoxide Sol−Gel Derived α-Fe2O3 and NiO: A Comparison between Xerogels and Aerogels. Ceram. Int. 2022, 48, 33340–33349. [Google Scholar] [CrossRef]
  32. Wang, T.; Ge, T.; Zhang, Y. Effects of Precursors on the Phase, Magnetic and Photocatalytic Properties of Nano Fe2O3 Synthesized by Low Temperature Calcination. Colloid Interface Sci. Commun. 2021, 44, 100504. [Google Scholar] [CrossRef]
  33. Kumar, E.A.; Wang, T.-J.; Chi, H.-A.; Chang, Y.-H. Hydrothermal and Photoreduction Synthesis of Nanostructured α-Fe2O3/Ag Urchins for Sensitive Sers Detection of Environmental Samples. Appl. Surf. Sci. 2022, 604, 154448. [Google Scholar] [CrossRef]
  34. Li, R.; Jia, Y.; Bu, N.; Wu, J.; Zhen, Q. Photocatalytic Degradation of Methyl Blue Using Fe2O3/TiO2 Composite Ceramics. J. Alloys Compd. 2015, 643, 88–93. [Google Scholar] [CrossRef]
  35. Liu, X.; Gu, S.; Zhang, X.; Li, X.; Zhao, Y.; Li, W. The Production Discipline and Mechanism of Hydroxyl Radical by Investigating the Ln2O3-Bi2MoO6 Heterojunction Photocatalysts. J. Alloys Compd. 2021, 864, 158894. [Google Scholar] [CrossRef]
  36. Yan, M.; An, B.; Li, X.; Zai, Z.; Wu, S.; Ma, J.; Zhang, L. Effect of Different Electronegative Oxygen Atoms of Cellulose Nanofibrils on the Formation and Photocatalytic Property of ZnO/Cellulose Composite. Appl. Surf. Sci. 2023, 637, 157974. [Google Scholar] [CrossRef]
  37. Ouyang, Y.-S.; Yang, Q.-Y. High-Performance Visible-Light Photocatalysts for H2 Production: Rod-Shaped Co3O4/CoO/Co2P Heterojunction Derived from Co-MOF-74. J. Colloid Interface Sci. 2023, 644, 346–357. [Google Scholar] [CrossRef]
  38. Yu, J.; Wang, T.; Rtimi, S. Magnetically Separable TiO2/FeOx/POM Accelerating the Photocatalytic Removal of the Emerging Endocrine Disruptor: 2,4-Dichlorophenol. Appl. Catal. B Environ. 2019, 254, 66–75. [Google Scholar] [CrossRef]
  39. Bai, L.; Pan, X.; Guo, R.; Linghu, X.; Shu, Y.; Wu, Y.; Zhao, M.; Zhang, J.; Shan, D.; Chen, Z.; et al. Sunlight-Driven Photocatalytic Degradation of Organic Dyes in Wastewater by Chemically Fabricated ZnO/Cs4SiW12O40 Nanoheterojunction. Appl. Surf. Sci. 2022, 599, 153912. [Google Scholar] [CrossRef]
  40. Guo, X.; Xu, Y.; Zha, F.; Tang, X.; Tian, H. α-Fe2O3/Cu2O (SO4) Composite as a Novel and Efficient Heterogeneous Catalyst for Photo-Fenton Removal of Orange II. Appl. Surf. Sci. 2020, 530, 147144. [Google Scholar] [CrossRef]
  41. Pérez-Álvarez, L.; Ruiz-Rubio, L.; Artetxe, B.; Vivanco, M.D.; Gutiérrez-Zorrilla, J.M.; Vilas-Vilela, J.L. Chitosan Nanogels as Nanocarriers of Polyoxometalates for Breast Cancer Therapies. Carbohydr. Polym. 2019, 213, 159–167. [Google Scholar] [CrossRef]
  42. Dai, W.L.; Zou, M.L.; Zhao, C.; Zhang, J.; Wang, L.; Wang, X.S.; Yang, L.X.; Zhou, L.; Zou, J.P.; Luo, X.B.; et al. Deep extractive desulfurization of gasoline with x Et3NHCl· FeCl3 ionic liquids. Energy Fuels 2010, 24, 4285–4289. [Google Scholar]
  43. Hu, J.; Diao, H.; Luo, W.; Song, Y.F. Dawson-Type Polyoxomolybdate Anions (P2Mo18O626−) Captured by Ionic Liquid on Graphene Oxide as High-Capacity Anode Material for Lithium-Ion Batteries. Chem. A Eur. J. 2017, 23, 8729–8735. [Google Scholar] [CrossRef] [PubMed]
  44. Ma, X.; Liu, X.; Tang, J.; Lin, Y.; Liu, Y.; Chen, L.; Liu, Y.; Fang, D.; Wang, J. Design and Construction of an Immobilized Z-Scheme Fe2O3/CuFe2O4|Cu Photocatalyst Film for Organic Pollutant Degradation with Simultaneous Hydrogen Production. Appl. Surf. Sci. 2022, 602, 154276. [Google Scholar] [CrossRef]
  45. Gao, M.; Feng, J.; He, F.; Zeng, W.; Wang, X.; Ren, Y.; Wei, T. Carbon microspheres work as an electron bridge for degrading high concentration MB in CoFe2O4@ carbon microsphere/g-C3N4 with a hierarchical sandwich-structure. Appl. Surf. Sci. 2020, 507, 145167. [Google Scholar] [CrossRef]
  46. Cui, H.; Dong, S.; Wang, K.; Luan, M.; Huang, T. Synthesis of a Novel Type-II In2S3/Bi2MoO6 Heterojunction Photocatalyst: Excellent Photocatalytic Performance and Degradation Mechanism for Rhodamine B. Sep. Purif. Technol. 2021, 255, 117758. [Google Scholar] [CrossRef]
  47. Yang, B.; Zhou, P.; Cheng, X.; Li, H.; Huo, X.; Zhang, Y. Simultaneous Removal of Methylene Blue and Total Dissolved Copper in Zero-Valent Iron/H2O2 Fenton System: Kinetics, Mechanism and Degradation Pathway. J. Colloid Interface Sci. 2019, 555, 383–393. [Google Scholar] [CrossRef] [PubMed]

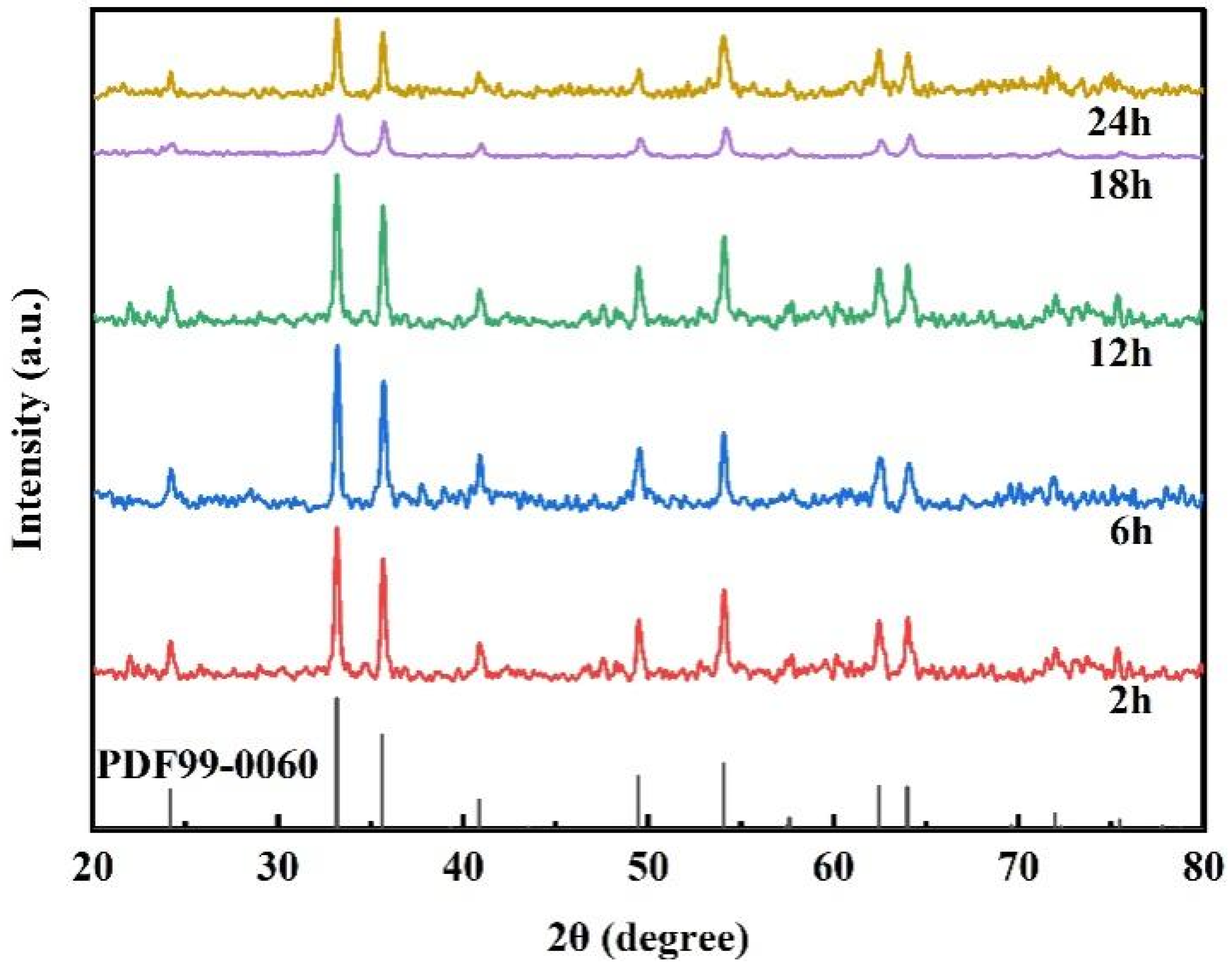

Figure 1. The XRD patterns of Fe2O3 nanoparticles.
Figure 1. The XRD patterns of Fe2O3 nanoparticles.
Molecules 28 06671 g001
Figure 2. SEM images of Fe2O3 at different reaction times ((a) 2 h, (b) 6 h, (c) 12 h, (d) 18 h, (e) 24 h).
Figure 2. SEM images of Fe2O3 at different reaction times ((a) 2 h, (b) 6 h, (c) 12 h, (d) 18 h, (e) 24 h).
Molecules 28 06671 g002aMolecules 28 06671 g002b

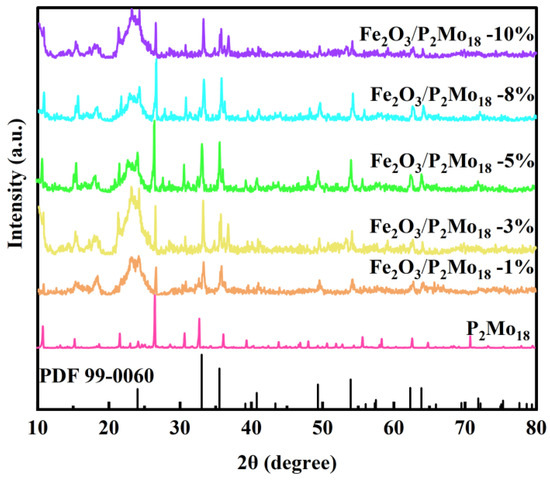

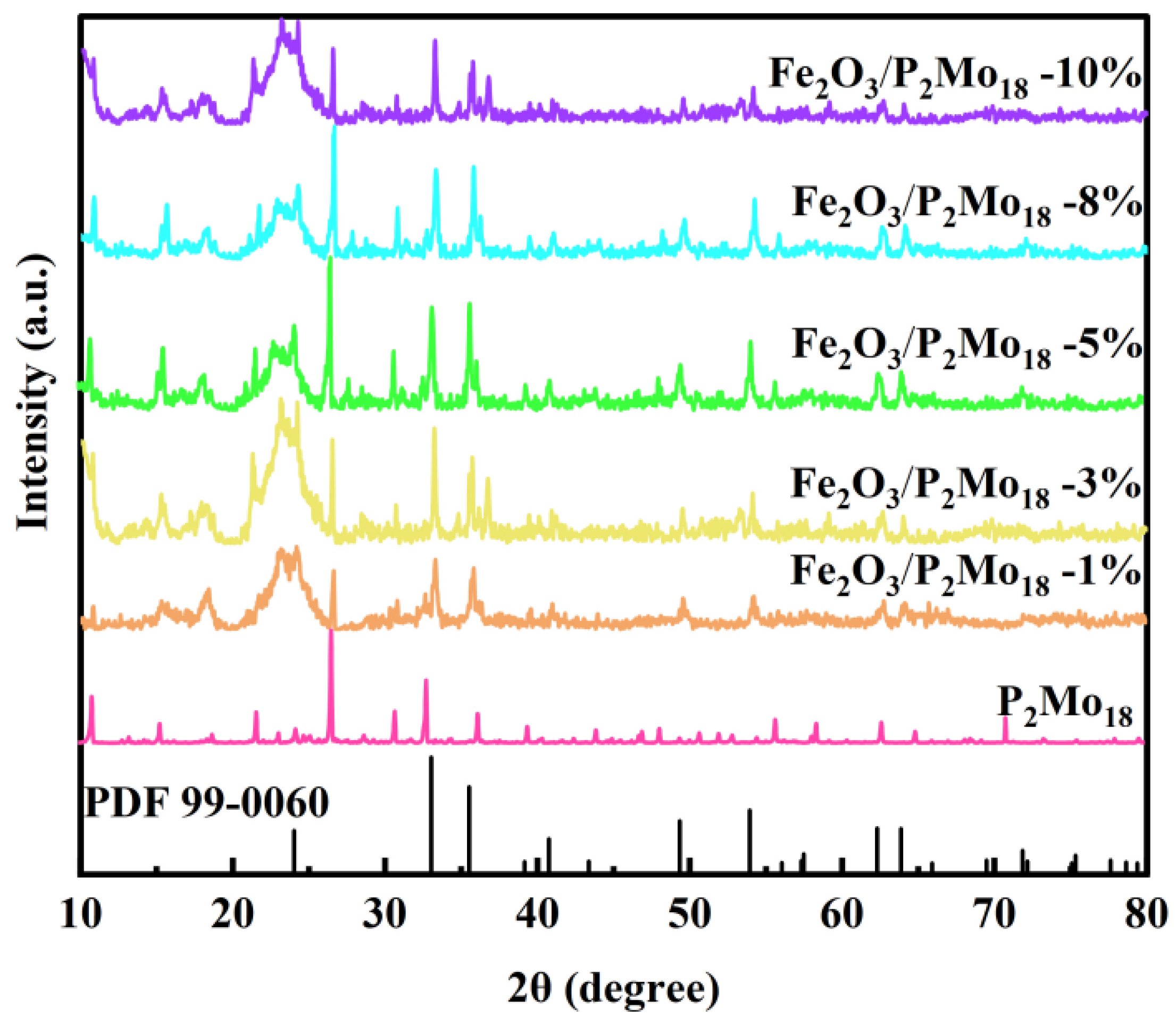

Figure 3. XRD pattern of composite Fe2O3/P2Mo18.
Figure 3. XRD pattern of composite Fe2O3/P2Mo18.
Molecules 28 06671 g003
Figure 4. SEM image of P2Mo18 (a), SEM (b) and TEM (c) images of Fe2O3/P2Mo18.
Figure 4. SEM image of P2Mo18 (a), SEM (b) and TEM (c) images of Fe2O3/P2Mo18.
Molecules 28 06671 g004aMolecules 28 06671 g004b

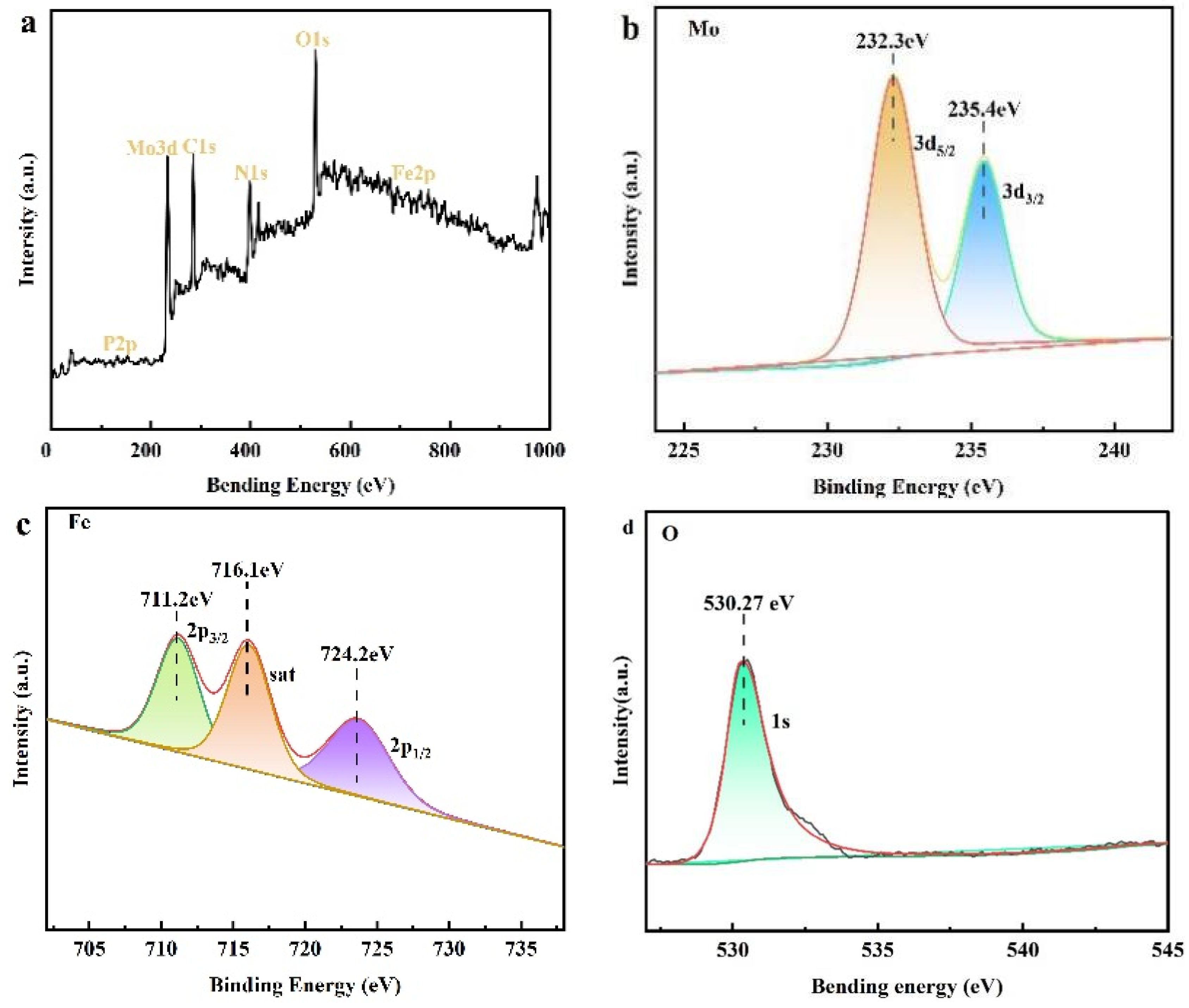

Figure 5. XPS spectra of Fe2O3/P2Mo18. Survey (a), Mo 3d (b), Fe 2p (c), and O1s (d).
Figure 5. XPS spectra of Fe2O3/P2Mo18. Survey (a), Mo 3d (b), Fe 2p (c), and O1s (d).
Molecules 28 06671 g005

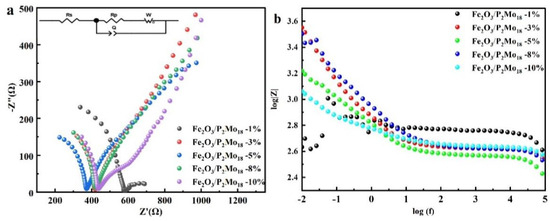

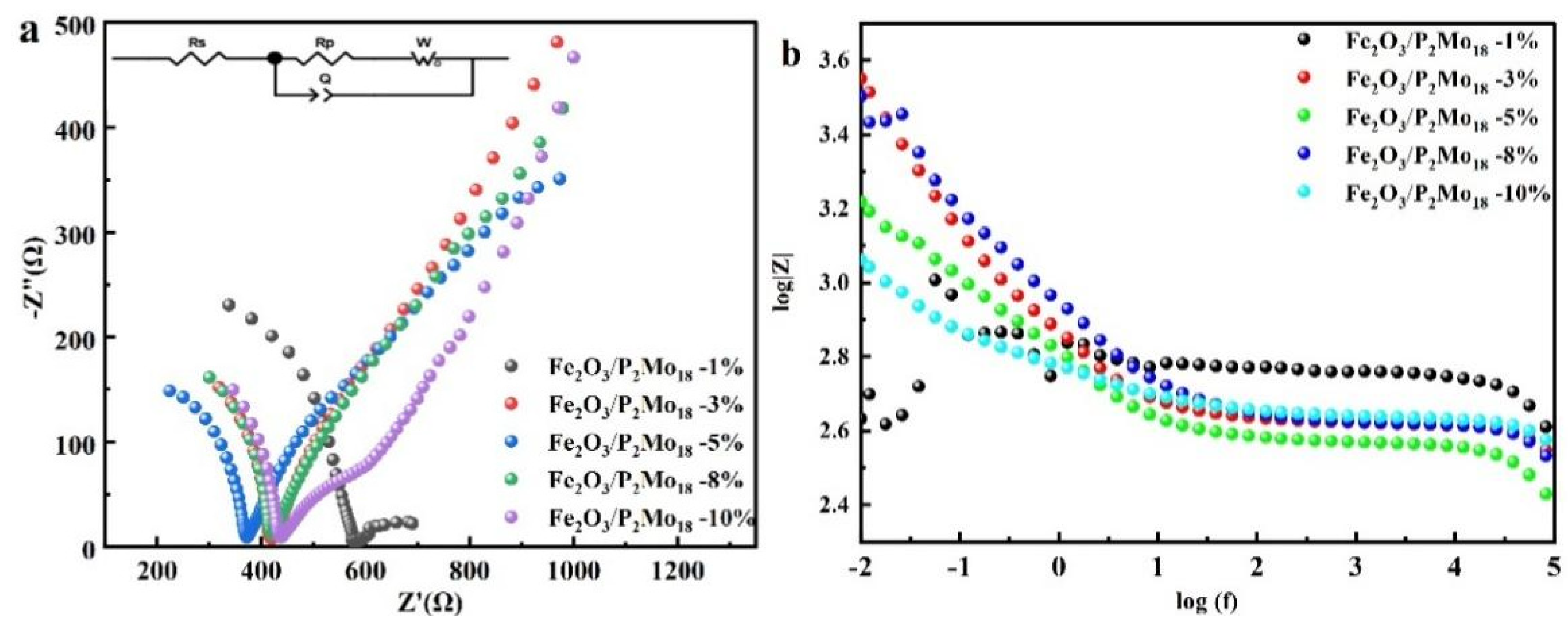

Figure 6. Nyquist (a) and Bode (b) plots for different ratios of Fe2O3/P2Mo18.
Figure 6. Nyquist (a) and Bode (b) plots for different ratios of Fe2O3/P2Mo18.
Molecules 28 06671 g006

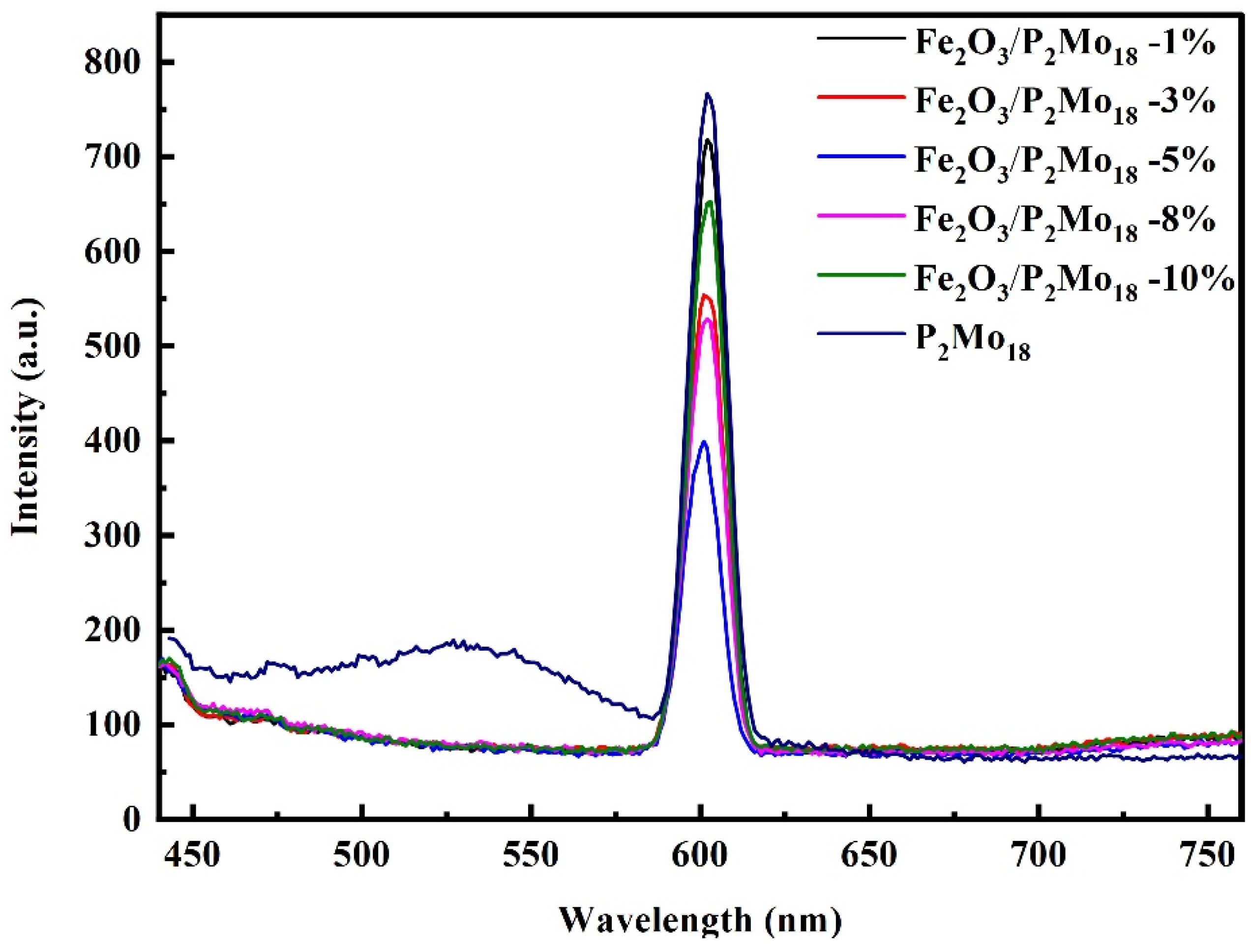

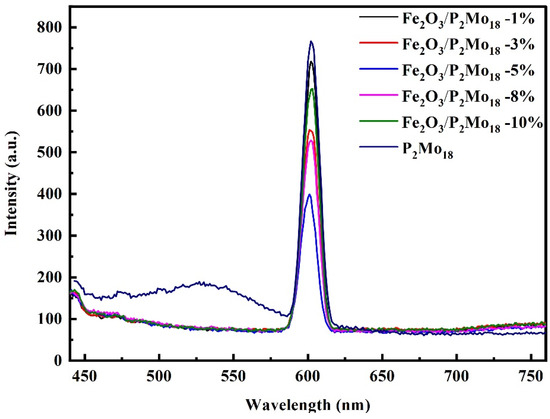

Figure 7. Photoluminescence spectra of Fe2O3/P2Mo18.
Figure 7. Photoluminescence spectra of Fe2O3/P2Mo18.
Molecules 28 06671 g007

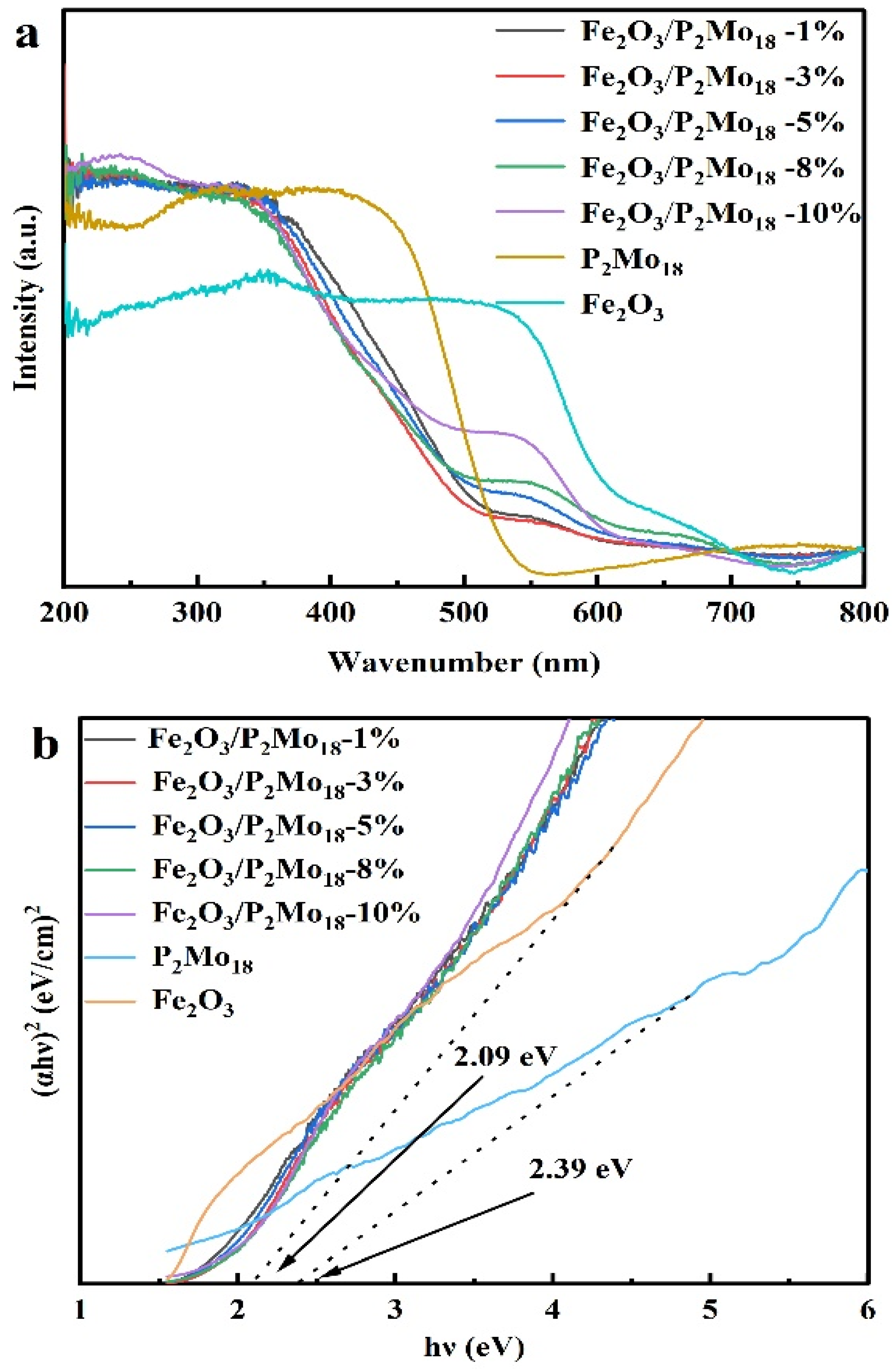

Figure 8. (a) UV−vis−NIR absorption spectra and (b) the corresponding Tauc plots [i.e., (αhν)2 vs. (hν)] of all of the as-prepared samples.
Figure 8. (a) UV−vis−NIR absorption spectra and (b) the corresponding Tauc plots [i.e., (αhν)2 vs. (hν)] of all of the as-prepared samples.
Molecules 28 06671 g008

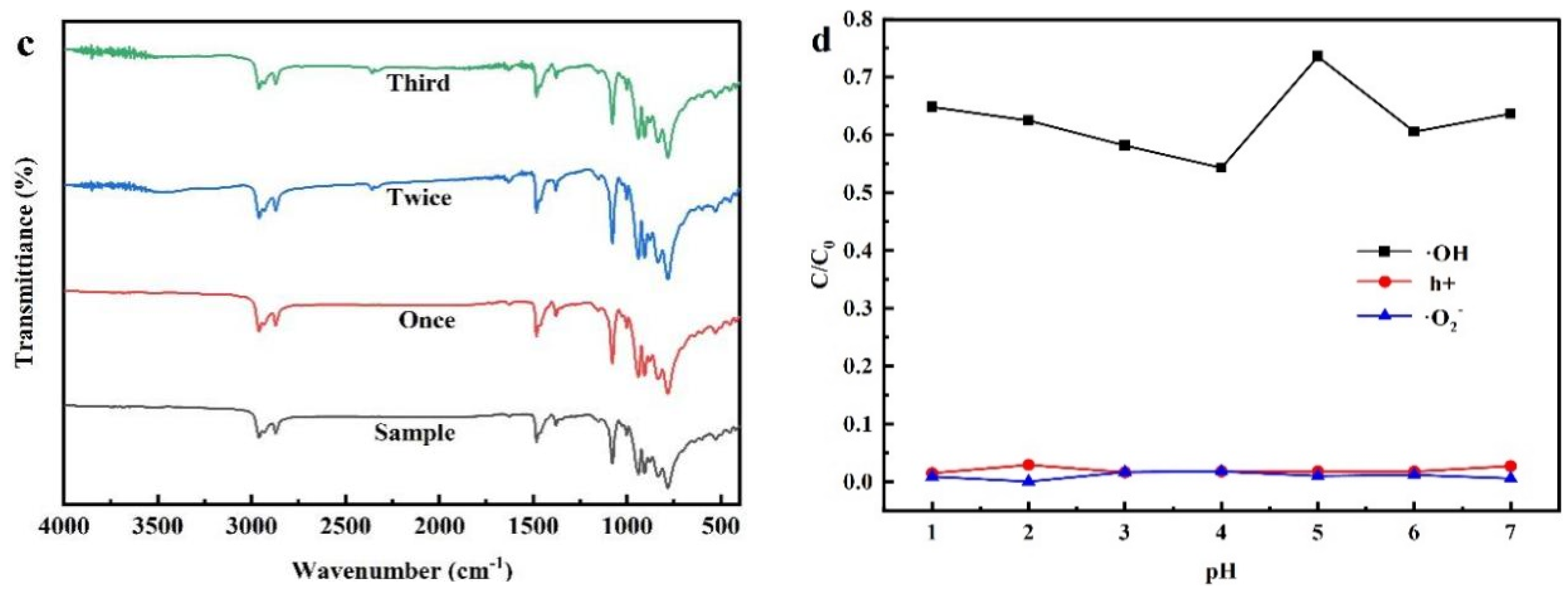

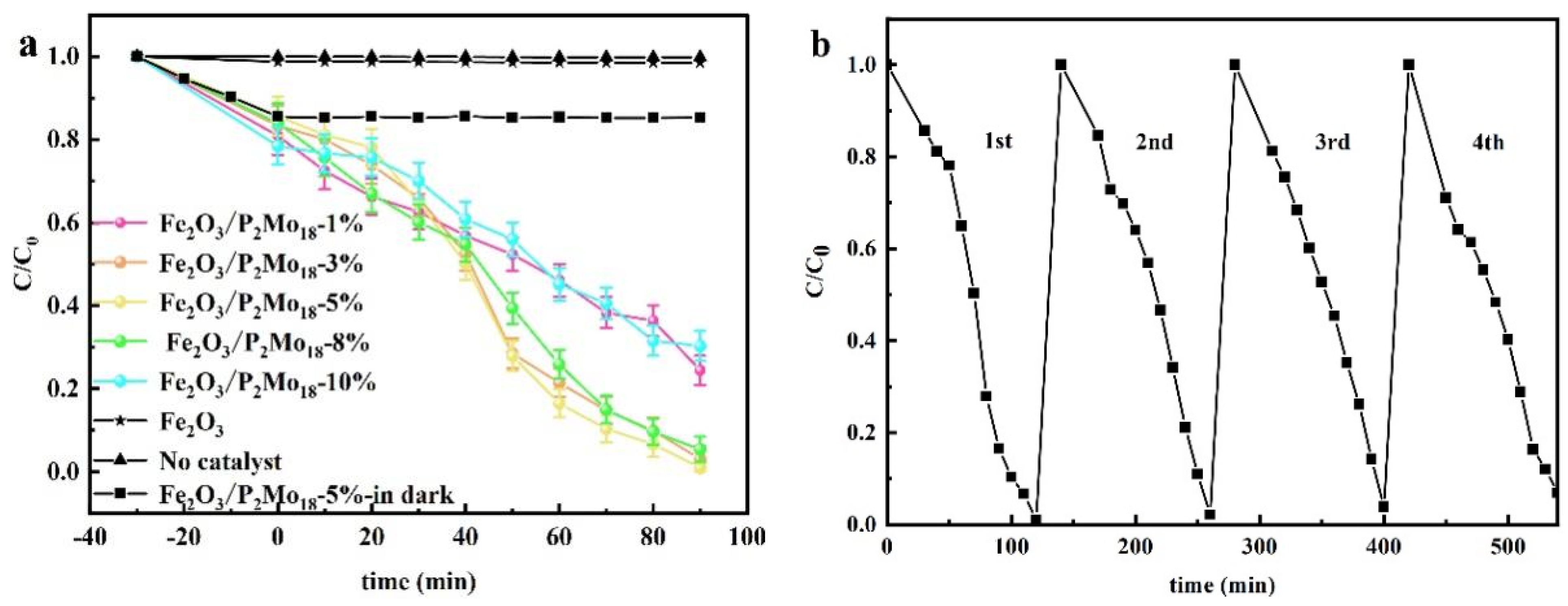

Figure 9. MB (20 mg/L) degradation of Fe2O3/P2Mo18 at different composite ratios (100 mg, 18.085 mW/cm2) (a), Fe2O3/P2Mo18 cycling experimental data (b), infrared comparison of composite cycling experimental samples (c), and photocatalytic mechanism test data (d).
Figure 9. MB (20 mg/L) degradation of Fe2O3/P2Mo18 at different composite ratios (100 mg, 18.085 mW/cm2) (a), Fe2O3/P2Mo18 cycling experimental data (b), infrared comparison of composite cycling experimental samples (c), and photocatalytic mechanism test data (d).
Molecules 28 06671 g009aMolecules 28 06671 g009b

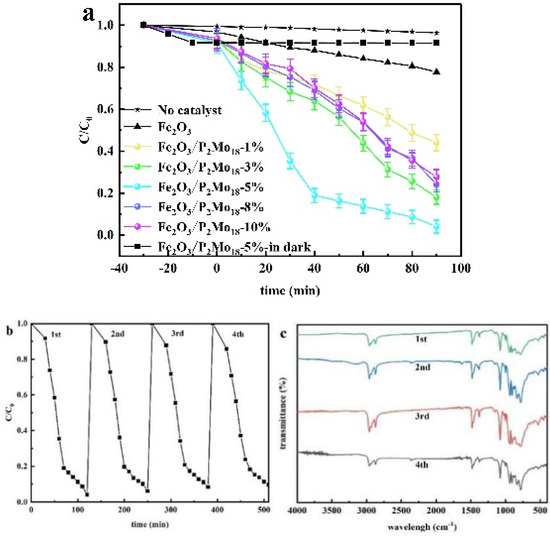

Figure 10. Degradation of Cr (VI) (50 mg/L) by Fe2O3/P2Mo18 at different composite ratios (100 mg, 18.085 mW/cm2) (a), photocatalytic cycling experimental data (b), and infrared spectra of catalyst cycling (c).
Figure 10. Degradation of Cr (VI) (50 mg/L) by Fe2O3/P2Mo18 at different composite ratios (100 mg, 18.085 mW/cm2) (a), photocatalytic cycling experimental data (b), and infrared spectra of catalyst cycling (c).
Molecules 28 06671 g010

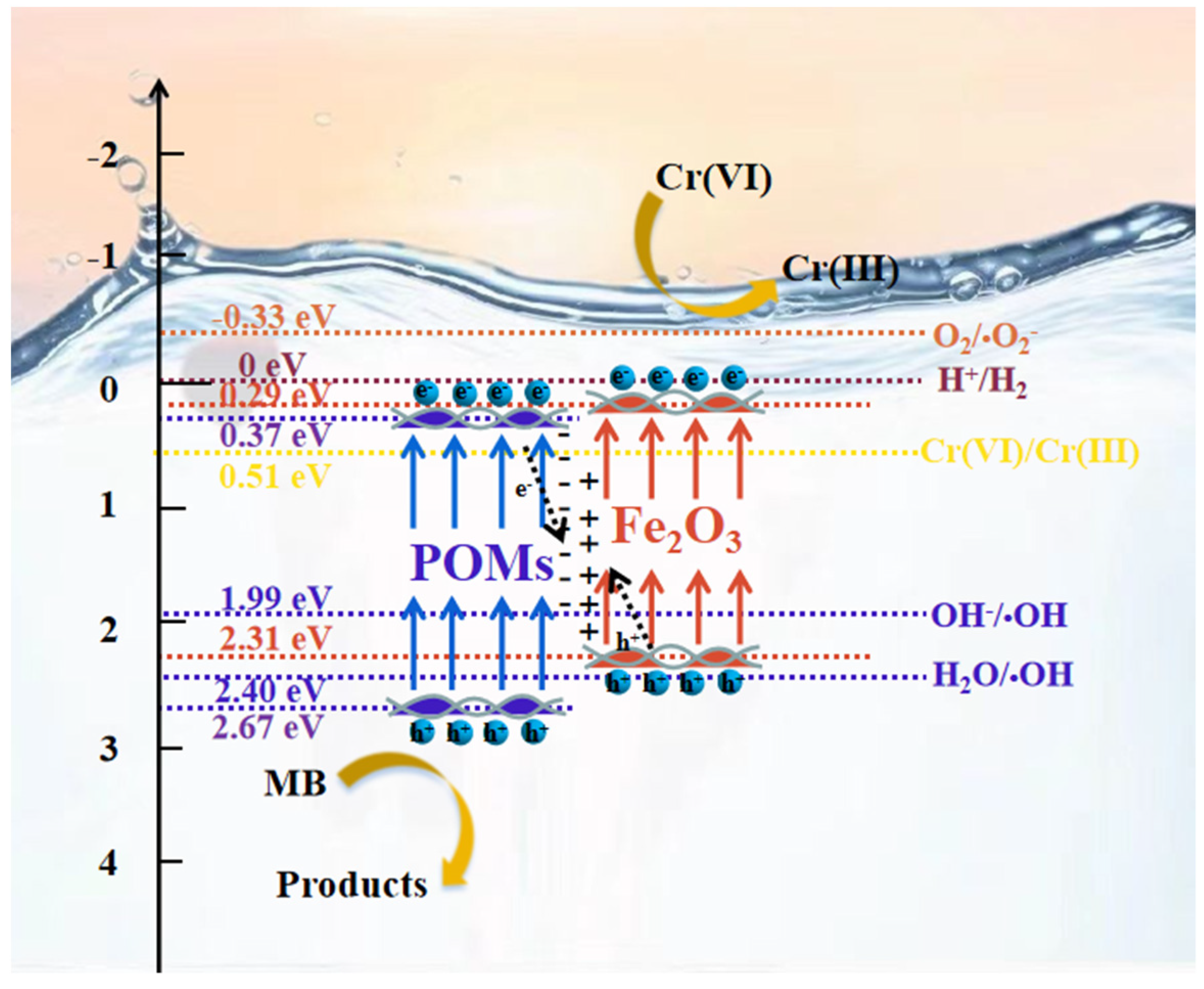

Figure 11. Schematic energy band structure of Fe2O3/P2Mo18 composites and photocatalytic reaction mechanism and charge transfer pathway for MB degradation and Cr (VI) reduction on Fe2O3/P2Mo18 heterojunction.
Figure 11. Schematic energy band structure of Fe2O3/P2Mo18 composites and photocatalytic reaction mechanism and charge transfer pathway for MB degradation and Cr (VI) reduction on Fe2O3/P2Mo18 heterojunction.
Molecules 28 06671 g011
