Review

Recent Advances in Asymmetric Catalysis Associated with B(C6F5)3

by
Ziye Zhan
†,
Jiale Yan
†,
Zhiyou Yu
and
Lei Shi
*
School of Science, Harbin Institute of Technology, Shenzhen 518055, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2023, 28(2), 642; https://doi.org/10.3390/molecules28020642
Submission received: 30 November 2022 / Revised: 3 January 2023 / Accepted: 6 January 2023 / Published: 8 January 2023
(This article belongs to the Special Issue Feature Papers in Organic Chemistry)
Browse Figures
Versions Notes

Abstract

:
The prevalence and significance of asymmetric catalysis in the modern medicinal industry has been witnessed in recent years, which have already been used to manufacture the (S)-Naproxen and the (S)-Propranolol. With matched specificities such as the Lewis acidity and steric bulk, B(C6F5)3 has gained accelerating attention on its application in asymmetric catalysis of Diels–Alder cycloaddition reactions, carbonyl-ene cyclization, and other various reactions, which have been demonstrated by the elegant examples from the most recent literature. Some significant progress in the reaction of indirect activation of substrates through in situ generation of numerous supramolecular catalysts from B(C6F5)3 based on Lewis-acid-assisted Lewis acid (LLA) or Lewis acid assisted Brønsted acid (LBA) strategies or the reaction promoted by cooperative actions of chiral co-catalysts and B(C6F5)3 which played a direct role on the activation of substrates have been demonstrated in this review.

1. Introduction

Since first illustrated by Gilbert N. Lewis in 1923, the Lewis acids (LAs) and their interactions with Lewis bases (LBs) have been a major and fundamental part of organic chemistry [1]. Various chemical transformations assisted by Lewis acids which encompass the Friedel–Crafts reaction, the Diels–Alder reaction, and the Aldol condensation reaction, are approached as indispensable attributes of synthetic science [2]. Owing to the exceptional particularity in structures, the boron-based compounds are among the most ubiquitous main group Lewis acids, and the borane-based Lewis acids have found a broad implication spanning reagents in organic synthesis, activators for olefin polymerization, organometallic pre-catalysts and particularly as components of frustrated Lewis pairs (FLPs) which was proposed in 2006 by Stephan upon the discovery of reversible activation of H2 mediated by a phosphinoborane [1,3,4,5,6].
Regarded as an indispensable branch of the borane-based Lewis acids, the fluoroaryl boranes have gained regenerated interest for their characteristic property such as strong Lewis acidity and large steric bulk. Notably, the Lewis acidity and reactivity of fluoroaryl boranes can be regulated through subtle changes in the aryl rings [7]. For example, the number of fluorine atoms around the aryl ring imparted a strong influence on Lewis acidity, with an increased number of fluorines resulting in an increased Lewis acidity [8,9]. The general trend of Lewis acidity for fluorinated arylboranes is shown in Figure 1. Particularly, the B(C6F5)3 has continued to be the focus of intense research efforts because of its unique properties and high reactivity, which have been demonstrated by elegant examples from the most recent literature [10,11,12,13,14].
However, compared with the great attention paid to summarizing the hydrosilylation and hydroboration reactions catalyzed by B(C6F5)3, to the best of our knowledge, there is still no such review devoted to emphasizing the breakthrough on the asymmetric catalysis reactions with the assistance of B(C6F5)3. Therefore, it is timely and desirable to highlight the main developments in this area to attract more research interests to related fields. In this regard, on the basis of our previous works and outcomes, we will summarize the recent progress on the application of B(C6F5)3 in asymmetric catalysis in this review. In the following sections, these related studies will be discussed in detail, mainly based on the two different strategies involving the reaction of indirect activation of substrates through the in situ generation of numerous supramolecular catalysts from B(C6F5)3 based on Lewis-acid-assisted Lewis acid (LLA) or Lewis acid assisted Brønsted acid (LBA) strategies or the reaction promoted by cooperative actions of chiral co-catalysts and B(C6F5)3 which plays a direct role on the activation of substrates.

2. Discussion

Serving as one of the most powerful strategies for the construction of six-membered carbocyclic and heterocyclic systems, the Diels–Alder cycloaddition reaction exhibits prominent synthetic utilities, whereas there is still a widespread perception that the endo/exo selectivity in the Diels–Alder reaction strongly depends on the substrates [15,16,17,18]. Consequently, controlling both enantioselectivity and anomalous endo/exo selectivity by conventional chiral catalysts remains a long-sought but challenging task for synthetic chemists. For example, in the reaction between cyclopentadiene 2a and α-substituted acrolein, an exo preference may occur on account of the steric interactions between the methylene moiety of cyclopentadiene and the substitutional group R (R≠H) at the α position of acrolein. Moreover, it is infeasible to furnish endo-3b by the epimerization of exo-3a for the quaternary carbon center of it (Figure 2) [19].
To address this underdeveloped issue, the Ishihara group developed a series of conformationally flexible chiral supramolecular catalysts (C1–C4) readily prepared in situ from chiral BINOL-derived phosphoric acids, phenylboronic acid, and B(C6F5)3 [19]. In their design, it was of great necessity for the catalysts to distinguish chiral transition-state structures via accurately recognizing the re or si face of dienophiles as well as the endo or exo approach of dienes. In this context, the intermolecular acid–base coordinate bonds in the two P=O···B(C6F5)3 moieties provided a decisive flexibility in conformation accompanied with B(C6F5)3 acting as a bulky functional group to generate a chiral, narrow, and deep cavity, the strong electron-accepting nature of which also increased the Lewis acidity of the central boron through conjugated bonds. Building on this design, they employed the supramolecular catalysts in the Diels–Alder reaction between 1a and 2a, giving the anomalous product endo-(2S)-3b as the major product in 83% yield with 99% ee. Aiming to further explore anomalous endo-selective Diels–Alder reactions, they examined the reactions between 1a and α-haloacroleins, which were extremely reactive, thus imposing restrictions on their application on Diels–Alder reactions and normally provided exo adducts as major products. After the optimization of the chiral biaryl skeleton, the coworkers successfully established high anomalous endo/exo selectivity of Diels–Alder reactions between cyclopentadiene and α-bromoacrolein, α-chloroacrolein, and α-fluoroacrolein in remarkable yields ranging from 82–93% and excellent ee (>99%).
Having obtained considerable experience that the two bulky B(C6F5)3 moieties were coordinated to phosphoryl (PO) groups that were essential to the formation of a deep chiral cavity, Ishihara and his coworkers assumed that there existed the possibility that the CN···B(C6F5)3 could serve as another coordination bond to furnish a new type of chiral supramolecular catalysts in light of the CN moiety exerting a steric effect as well as an electron-withdrawing effect on the active boron center. In this regard, Ishihara extended this new kind of supramolecular catalysts on enantioselective Diels–Alder reactions of various acroleins with cyclic or acyclic dienes. Unfortunately, the enantioselectivity toward the product exo-(2S)-3a was poor with C5. After the replacement of the binaphthyl skeleton in C5 with the octahydrobinaphthyl skeleton and the replacement of the 5-fluoro group in the arylboronic acid moiety with 5-trifluoromethyl to generate catalyst C6, the enantioselectivity was distinctly improved to 98% ee. (Figure 3) [20].
Next, they investigated the scope of substrates suitable for use with catalysts C6. The α-substituted acroleins 3e, 3f, 3g, and 3h were examined to be effective. The effect of replacing cyclopenta-1,3-diene with acyclic diene was also examined, resulting in 3i exclusively in 97% yield and 85% ee. Unlike the cases with their previous C1–C4, in the Diels–Alder reactions of 3e and 3f in the presence of C6, extraordinary endo/exo-selectivities were not observed. The structure of C6 might be too flexible to perform well in control of excellent endo/exo-selectivities. Instead, with more flexibility, the C6 induced high enantioselectivities with a relatively wide range of substrates. Having conducted fundamental control experiments, they found that the CN···B(C6F5)3 moiety, as well as an electron-withdrawing group such as trifluoromethyl in C6 was essential for obtaining the Diels–Alder products in high yields and high enantioselectivities.
With only one prior study focusing on the reaction of propargyl aldehyde 5a with cyclopentadiene 2a with a chiral boron Lewis acid catalyst reported by Yamamoto [21] in low yield of 6a due to its overreaction with 2a, Ishihara’s group were currently interested in whether or not their chiral supramolecular U-shaped catalysts could control multiselectivities in such reactions. After thorough optimization, the catalyst C7 was found to be the most effective in the reactions of 2a with 5a to afford 6a in 95% yield with 90% ee. It was noteworthy that the 6a could be transformed into synthetically useful optically active compounds such as α,β-unsaturated ester 6b, which was more stable and would be more suitable for 1,2- and 1,4-addition reactions with some nucleophiles to give various high-value products such as Corey’s chiral diene ligand for asymmetric transition-metal catalysis or the key intermediate of (+)-Sarkomycin (Figure 4) [22].
In order to probe the substrate- and regioselectivity, the DA reactions between 5a and 1-/2-alkyl-substituted cyclopentadienes 2/4 were carried out, which could not be isolated from a 1:1 mixture due to isomerization. Generally, if in bad regioselectivity, eight-isomeric first DA adducts and numerous (theoretically, up to 64) corresponding second DA adducts would be delivered in principle. Delightedly, high substrate-, enantio-, endo/exo-, and regioselectivities were obtained with catalyst C7, giving the exclusively desired DA adducts in a yield up to 92% with 95% ee. Moreover, the π-facial-selective DA reaction of 5-alkylsubstituted cyclopentadiene 2b was also examined, giving the exclusively corresponding product 6j in 94% yield with 94% ee with the use of C7, showing remarkable π-facial selectivity as well as enantio-, endo/exo-, and substrate-selectivities.
After great progress was made in the supramolecular catalysts based on the Lewis acid assisted Lewis acid (LLA), the team envisioned that it seemed feasible to develop a conformationally flexible chiral supramolecular Brønsted acid catalyst based on the Lewis acid assisted Brønsted acid (LBA) catalyst system for asymmetric catalysis. In consideration of the bifunctional role of chiral phosphoric acids serving as both Brønsted acid and Brønsted base, the acroleins might be capable of doubly coordinating with active centers, contributing to the enantioselective Diels–Alder reactions with cyclopentadiene. After the enantioselectivity was enhanced to 90% ee in the presence of chiral supramolecular catalysts C8, they examined the substrate specificity for α-substituted acroleins (Figure 5) [23]. Unfortunately, except for the probe reaction of methacrolein 3b together with ethylacrolein 3f, the other acrolein, such as α-isopropylacrolein 3j as well as α-bromoacrolein 3e, only gave the corresponding exo products in low enantioselectivities, partially due to steric mismatch with the chiral cavity of C8. However, in spite of the limited scope of the substrates, this strategy opened a new venue for designing supramolecular catalysts containing a conformationally flexible, bulky, and chiral cavity for higher-ordered catalysis.
Much later, greatly encouraged by List’s report [24], which illustrated the first organocatalytic enantioselective carbonyl-ene cyclization with confined chiral Brønsted acid catalysts based on a BINOL-derived imidodiphosphate and on the consideration of their success on the LBA induced enantioselective Diels−Alder, [2+2] cycloaddition, and hetero-Diels−Alder reactions [25,26], they extended the probability of LBA catalyst system in such carbonyl-ene cyclization. Initially, to confirm the optimal choice of the catalysts, they examined the carbonyl-ene cyclization reaction with the combination of B(C6F5)3 and (R)-3,3′-Ar2-BINOL-derived phosphoric acid catalyst. To their delight, the C9 was be proved to the best through the screening of the 3,3′-substituents of the BINOL structure, inducing 11a in a high enantioselectivity (94% ee), a good diastereoselectivity and yield (>99%) (Figure 6) [27]. With the optimized reaction conditions in hand, they examined a variety of typical non-substituted alkenyl aldehydes, which was still challenging in the carbonyl-ene cyclization because of the absence of the Thorpe−Ingold effect. As a result, the corresponding tetrahydropyran and cyclohexane 14a–14c were obtained with a high trans/cis ratio and a satisfactory yield as well as enantioselectivity. Furthermore, an unexpected carbonyl-ene cyclization–acetalization tandem reaction was realized with the addition of aldehydes. Both aromatic aldehydes with electron-withdrawing, as well as electron-donating groups and heteroaromatic aldehydes, could be tolerated, revealing moderate to high enantioselectivities (14d–14k, 80–94% ee) and diastereoselectivities (>99% dr) for the first time. For aliphatic cyclohexane, carboxaldehyde with a branched alkyl moiety also offered the corresponding product 14h with >99% dr and 90% ee. Generally, there occurred an undesired tendency for α,β-unsaturated aldehydes to take Michael’s addition of the alcohols when performing the selective acetalization, which was hard to control. In sharp contrast, a sequence of α,β-unsaturated aldehydes could also be used in this strategy, and the corresponding acetals 14i–14j were obtained in 97–99% yields with >99% dr and 90–92% ee. It was noteworthy that α,β,γ,δ-unsaturated aldehyde could also be employed, and the product 14k was obtained in 95% yield with >99% dr and 92% ee.
The usage of such supramolecular catalysts pioneered by Ishihara and coworkers has attracted considerable attention in the scientific community. Although subsequent development made by the Du group [28,29,30] and Wang group [31,32,33,34,35] has greatly extended the scope of such chiral Lewis acidic boranes, however, there remains a fundamental challenge, that is, its nonnegligible limitations on the protocols for the synthesis of them. On the other hand, the cooperation of B(C6F5)3 with chiral ligands or chiral catalysts to realize asymmetric catalytic reactions has been an emerging field that distinctly avoids such problems. In this regard, the Wasa group developed various strategies by employing enantioselective cooperation of Lewis acidic B(C6F5)3 and Brønsted basic N-based electrophiles, which has realized the direct conversion of α-C–H bonds contained in N-alkylamines into α-C–alkynyl bonds, which is an attracting way for the pharmaceutical industry.
In 2016, they envisioned that the acidity of an α-C–H bond in carbonyl pronucleophiles could be enhanced by the participation of a boron-based Lewis acid, which was followed by deprotonation by a hindered amine, resulting in the formation of a tightly bound ionic pair encompassing a boron enolate and an ammonium cation. Due to the Brønsted acidity of the ammonium cation, it might contribute to the activation of electrophilic amination reagent while exactly positioning it for reaction with the enolate component to offer aminocarbonyl products. A noteworthy superiority of the strategy was that it was not imperative to tether acidic and basic catalyst components, resulting in the feasibility of facile and independent modification of each component for optimization of reaction efficiency or enantioselectivity. A preliminary examination was conducted to explore the ability of achiral Lewis acid/Brønsted base catalysts to promote the desired transformation. α-tetralone 16a and dialkyl azodicarboxylates 15 were reacted with B(C6F5)3/amines serving as potential catalysts, and the transformation proceeded efficiently when PMP was employed (Figure 7) [36]. Alkyl-substituents of azodicarboxylate were found to have a better performance in the reaction. With the optimized reaction conditions in hand, they then focused on the development of an enantioselective version of the catalytic process with 16a serving as the model substrate. Having tried the tertiary amine moiety of C-mono, which was expected to play the role of a Brønsted base in deprotonation of B(C6F5)3-activated 16a and subsequently transformed into a Brønsted acid that could associate with a basic moiety of 16a by a single H-bonding interaction, undesirable enantioselectivity was obtained. Therefore, Wasa and coworkers presumed that it was insufficient for the single H-bonding interaction between the chiral ammonium ion and 16a to induce a highly enantioselective C−N bond-forming process. Consequently, they changed to evaluate the dual H-bond donors derived from the amine groups of C-di for the fact that dual H-bonding interactions could deliver additional electrophile activation, which accelerated the formation of enantioselective C–N bond via enhancing conformational restriction. Satisfyingly, the more electron-withdrawing and less hindered catalyst A1 was selected to be the most effective, and a range of cyclic ketones were suitable for enantioselective direct α-amination reactions catalyzed by 5 mol% B(C6F5)3 and 10 mol% A1. Methoxy, fluoro-, chloro-, and bromo-substituted α-tetralone derivatives were smoothly converted to the corresponding products in 90:10 to >99:1 er. Notably, by means of similar design, the Maulide group realized a variety of alkaloid-like products formed in an enantio- and diastereoselective manner through the combination of chiral anime and achiral Lewis organoborane acid in 2022 [37].
On the other hand, in the design of a catalytic process for stereoselective coupling of N-alkylamines and carbon-based nucleophiles, the chiral anime might not be indispensable. The combination of B(C6F5)3 and a chiral Lewis acid co-catalyst would also work well in this aspect [38]. B(C6F5)3 could abstract a hydride from amine, thus forming a borohydride along with an iminium ion. In the meantime, a chiral Lewis acid co-catalyst would activate the α,β-unsaturated substrate to promote reduction by the borohydride, affording the corresponding chiral enolate. Followed by the stereoselective reaction between the iminium ion and the chiral enolate, the resulting α,β-amino carbonyl product would be generated. In light of this design, the Wasa group assumed it was essential that an appropriate combination of an acidic catalyst and an amine substrate should be confirmed to allow for efficient hydride abstraction, finding that highly acidic B(C6F5)3 together with sterically demanding and electron-rich N-alkylamines represented the most effective combination (Figure 8) [39]. Ultimately, a variety of α,β-unsaturated carbonyl compounds, and related electrophiles were used in the reaction with N-arylpyrrolidine to generate the corresponding α-substituted amines in excellent yields.
After the success of hydride abstraction through single-catalyst racemic transformation, they further developed an enantioselective version of the catalytic process by employing B(C6F5)3 in cooperation with a matched chiral Lewis acid. With N-arylpyrrolidine and 3-acryloyloxazolidin-2-one as model substrates, systematic evaluation of Lewis acid/chiral ligand complexes was carried out, suggesting that B(C6F5)3 and Mg(OTf)2/L1 serves as optimal catalysts. Subsequently, they surveyed a series of achiral and chiral N-acryloyloxazolidinones, indicating that the two-catalyst protocol was applicable to the synthesis of a variety of N-alkylamines, affording corresponding products as separable mixtures of diastereomers generated in >99:1 er in either isomeric form (Figure 9) [39].
One year later, they further extended such synergetic catalyst systems in facilitating direct enantioselective Conia-ene-type processes with mono-carbonyl compounds by the collaboration of B(C6F5)3, N-alkylamine and a chiral Lewis acid co-catalyst. In their envision, the ability of B(C6F5)3 might be able to be controlled to function as an activator of a carbonyl along with elevating the reactivity of alkyne in the presence of chiral Lewis acid co-catalyst. Then, an enolate and an ammonium ion were generated via deprotonation of B(C6F5)3-activated ketone with the assistance of N-alkylamine. Concurrently, a chiral Lewis acid co-catalyst (ML*) would activate the alkyne units. An ensuing enantio-determining 5-endo-dig cyclization of the enolate and the alkyne would deliver a key intermediate, which underwent subsequent protonation of the C−ML* bond of itself by the ammonium ion, providing the desired cyclopentenyl products. In order to realize this catalytic cycle effectively, an optimal catalyst combination was conducted, demonstrating that the B(C6F5)3, sizable and electron-rich PMP together with sterically demanding ZnI2/L2 complex emerged as the combination with the best efficiency. A variety of 1-phenyl ketones with different alkyne substituents and different aryl- and alkyl-substituted ketones proved to be suitable substrates. Reactions involving substrates that carried ethyl, n-propyl, n-butyl, and iso-butyl substituent, afforded the desired products in >95% yield and 96:4–97:3 er (Figure 10) [40].
Showing that by tuning of different features of Lewis acids that possess overlapping functions, it was possible to engage Lewis acid catalysts to serve as an activator of a carbonyl group or an activator of electron-rich alkyne, and they next attempted to apply such strategy in entailing the conversion of an α-amino C(sp3)–H bond of N-alkylamines into an α-C–alkynyl bond. Fortunately, after probing the ability of B(C6F5)3 and various Cu-based complexes to catalyze the reaction, the (MeCN)4CuPF6/L3 complex with Ph3COH as an additive was determined to function well in developing a stereoselective version of the catalytic C–alkynyl bond forming. Meanwhile, reactions with an array of N-alkylamines were carried out under optimal conditions. N-arylpyrrolidines as well as N-arylazepane bearing the α-alkynyl group were thus synthesized in 64–75% yield and 83:17–95:5 er. Additionally, a range of enantiomerically enriched pyrrolidine substrates underwent transformation occurring at the less hindered α-amino C–H bond. To shed light on the mechanism of the catalytic process, and series of investigations were carried out, illustrating that B(C6F5)3 might receive a hydride from an amine, generating a borohydride and an iminium ion. Subsequently, a Cu-based catalyst might undergo transmetalation with alkynylsilane with the aid of an alcohol additive to afford a LnCu–alkynyl complex (II) and trimethylsilanol. An ensuing C–C bond formation between in situ generated LnCu–alkynyl complex and iminium ion would afford the desired propargylamines. Hydride transfer from borohydride to R–OH-derived cationic species would then regenerate B(C6F5)3, thereby closing the cycle (Figure 11) [41].
It is notable that the hydrogenations of N-heterocycles with ammonia borane, particularly the hydrogenations of quinoline and indole derivatives, have not been disclosed before the work reported by our group. With the assistance of B(C6F5)3, a new strategy promoting hydrogenations of N-heterocycles with ammonia borane under transition-metal-free conditions has been recently realized. In spite of low enantioselectivity, the results preliminarily presented by our group confirmed the feasibility and potential and paved the way for the application of B(C6F5)3 in the such field (Figure 12) [42,43].

3. Conclusions

In conclusion, we have summarized some significant progress in the reaction of indirect activation of substrates through the in situ generation of numerous supramolecular catalysts from B(C6F5)3 based on Lewis-acid-assisted Lewis acid (LLA) or Lewis acid assisted Brønsted acid (LBA) strategies or the reaction promoted by cooperative actions of chiral co-catalysts and B(C6F5)3 which plays a direct role on the activation of substrates. With these promising advances, it can be expected that further advancements of B(C6F5)3-catalyzed asymmetric reactions to be realized by electrochemistry and photochemistry will be obtained in the near future.

Funding

The National Natural Science Foundation of China (Grant No. 22271069 and 21871067), the Natural Science Foundation of Guangdong Province (Grant No. 2021A1515010190), and the Fundamental Research Funds for the Central Universities (Grant No. HIT.OCEF. 2021035).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, L.L.; Stephan, D.W. Radicals derived from Lewis acid/base pairs. Chem. Soc. Rev. 2019, 48, 3454–3463. [Google Scholar] [CrossRef]
  2. Corma, A.; García, H. Lewis Acids: From Conventional Homogeneous to Green Homogeneous and Heterogeneous Catalysis. Chem. Rev. 2003, 103, 4307–4366. [Google Scholar] [CrossRef] [PubMed]
  3. Stephan, D.W.; Erker, G. Frustrated Lewis pair chemistry: Development and perspectives. Angew. Chem. Int. Ed. 2015, 54, 6400–6441. [Google Scholar] [CrossRef]
  4. Stephan, D.W. Frustrated Lewis Pairs. J. Am. Chem. Soc. 2015, 137, 10018–10032. [Google Scholar] [CrossRef] [PubMed]
  5. Stephan, D.W. The broadening reach of frustrated Lewis pair chemistry. Science 2016, 354, 479–484. [Google Scholar] [CrossRef] [PubMed]
  6. Welch, G.C.; Juan, R.R.S.; Masuda, J.D.; Stephan, D.W. Reversible, Metal-Free Hydrogen Activation. Science 2006, 314, 1124–1126. [Google Scholar] [CrossRef] [Green Version]
  7. Carden, J.L.; Dasgupta, A.; Melen, R.L. Halogenated triarylboranes: Synthesis, properties and applications in catalysis. Chem. Soc. Rev. 2020, 49, 1706–1725. [Google Scholar] [CrossRef] [PubMed]
  8. Carden, J. Enabling Technologies to Access New Materials Using Frustrated Lewis Pairs. Ph.D. Thesis, Cardiff University (United Kingdom), Ann Arbor, MI, USA, 2021. [Google Scholar]
  9. Sivaev, I.B.; Bregadze, V.I. Lewis acidity of boron compounds. Coord. Chem. Rev. 2014, 270-271, 75–88. [Google Scholar] [CrossRef]
  10. Lawson, J.R.; Melen, R.L. Tris(pentafluorophenyl)borane and Beyond: Modern Advances in Borylation Chemistry. Inorg. Chem. 2017, 56, 8627–8643. [Google Scholar] [CrossRef] [Green Version]
  11. Melen, R.L. Applications of pentafluorophenyl boron reagents in the synthesis of heterocyclic and aromatic compounds. Chem. Commun. 2014, 50, 1161–1174. [Google Scholar] [CrossRef]
  12. Oestreich, M.; Hermeke, J.; Mohr, J. A unified survey of Si–H and H–H bond activation catalysed by electron-deficient boranes. Chem. Soc. Rev. 2015, 44, 2202–2220. [Google Scholar] [CrossRef] [Green Version]
  13. Matsumoto, K.; Shimada, S.; Sato, K. Sequence-Controlled Catalytic One-Pot Synthesis of Siloxane Oligomers. Chem. A Eur. J. 2019, 25, 920–928. [Google Scholar] [CrossRef]
  14. Piers, W.E.; Chivers, T. Pentafluorophenylboranes: From obscurity to applications. Chem. Soc. Rev. 1997, 26, 345–354. [Google Scholar] [CrossRef]
  15. García, J.I.; Mayoral, J.A.; Salvatella, L. Do Secondary Orbital Interactions Really Exist? Acc. Chem. Res. 2000, 33, 658–664. [Google Scholar] [CrossRef] [PubMed]
  16. Wannere, C.S.; Paul, A.; Herges, R.; Houk, K.N.; Schaefer, H.F., III; Von Ragué Schleyer, P. The existence of secondary orbital interactions. J. Comput. Chem. 2007, 28, 344–361. [Google Scholar] [CrossRef] [PubMed]
  17. Nicolaou, K.C.; Snyder, S.A.; Montagnon, T.; Vassilikogiannakis, G. The Diels–Alder Reaction in Total Synthesis. Angew. Chem. Int. Ed. 2002, 41, 1668–1698. [Google Scholar] [CrossRef]
  18. Corey, E.J. Catalytic Enantioselective Diels–Alder Reactions: Methods, Mechanistic Fundamentals, Pathways, and Applications. Angew. Chem. Int. Ed. 2002, 41, 1650–1667. [Google Scholar] [CrossRef]
  19. Hatano, M.; Mizuno, T.; Izumiseki, A.; Usami, R.; Asai, T.; Akakura, M.; Ishihara, K. Enantioselective Diels-Alder reactions with anomalous endo/exo selectivities using conformationally flexible chiral supramolecular catalysts. Angew. Chem. Int. Ed. 2011, 50, 12189–12192. [Google Scholar] [CrossRef]
  20. Ishihara, K.; Hatano, M.; Hayashi, K.; Sakamoto, T.; Makino, Y. Enantioselective Diels–Alder Reaction Induced by Chiral Supramolecular Lewis Acid Catalysts Based on CN···B and PO···B Coordination Bonds. Synlett 2016, 27, 1061–1067. [Google Scholar] [CrossRef] [Green Version]
  21. Ishihara, K.; Kondo, S.; Kurihara, H.; Yamamoto, H.; Ohashi, S.; Inagaki, S. First Enantioselective Catalytic Diels−Alder Reaction of Dienes and Acetylenic Aldehydes:  Experimental and Theoretical Evidence for the Predominance of Exo-Transition Structure. J. Org. Chem. 1997, 62, 3026–3027. [Google Scholar] [CrossRef]
  22. Hatano, M.; Sakamoto, T.; Mizuno, T.; Goto, Y.; Ishihara, K. Chiral Supramolecular U-Shaped Catalysts Induce the Multiselective Diels-Alder Reaction of Propargyl Aldehyde. J. Am. Chem. Soc. 2018, 140, 16253–16263. [Google Scholar] [CrossRef] [PubMed]
  23. Ishihara, K.; Hatano, M.; Ishihara, H.; Goto, Y. Remote Tris(pentafluorophenyl)borane-Assisted Chiral Phosphoric Acid Catalysts for the Enantioselective Diels–Alder Reaction. Synlett 2015, 27, 564–570. [Google Scholar] [CrossRef]
  24. Liu, L.; Leutzsch, M.; Zheng, Y.; Alachraf, M.W.; Thiel, W.; List, B. Confined Acid-Catalyzed Asymmetric Carbonyl–Ene Cyclization. J. Am. Chem. Soc. 2015, 137, 13268–13271. [Google Scholar] [CrossRef] [Green Version]
  25. Hatano, M.; Goto, Y.; Izumiseki, A.; Akakura, M.; Ishihara, K. Boron Tribromide-Assisted Chiral Phosphoric Acid Catalyst for a Highly Enantioselective Diels–Alder Reaction of 1,2-Dihydropyridines. J. Am. Chem. Soc. 2015, 137, 13472–13475. [Google Scholar] [CrossRef] [PubMed]
  26. Hatano, M.; Sakamoto, T.; Mochizuki, T.; Ishihara, K. Tris(pentafluorophenyl)borane-Assisted Chiral Phosphoric Acid Catalysts for Enantioselective Inverse-Electron-Demand Hetero-Diels-Alder Reaction of α,β-Substituted Acroleins. Asian J. Org. Chem. 2019, 8, 1061–1066. [Google Scholar] [CrossRef]
  27. Ishihara, H.; Huang, J.; Mochizuki, T.; Hatano, M.; Ishihara, K. Enantio- and Diastereoselective Carbonyl-Ene Cyclization–Acetalization Tandem Reaction Catalyzed by Tris(pentafluorophenyl)borane-Assisted Chiral Phosphoric Acids. ACS Catal. 2021, 11, 6121–6127. [Google Scholar] [CrossRef]
  28. Zhao, W.; Zhang, Z.; Feng, X.; Yang, J.; Du, H. Asymmetric Transfer Hydrogenation of N-Unprotected Indoles with Ammonia Borane. Org. Lett. 2020, 22, 5850–5854. [Google Scholar] [CrossRef]
  29. Han, C.; Meng, W.; Feng, X.; Du, H. Asymmetric Intramolecular Hydroalkoxylation of 2-Vinylbenzyl Alcohols with Chiral Boro-Phosphates. Angew. Chem. Int. Ed. 2022, 61, e202200100. [Google Scholar]
  30. Gao, B.; Feng, X.; Meng, W.; Du, H. Asymmetric Hydrogenation of Ketones and Enones with Chiral Lewis Base Derived Frustrated Lewis Pairs. Angew. Chem. Int. Ed. 2020, 59, 4498–4504. [Google Scholar] [CrossRef] [PubMed]
  31. Tian, J.J.; Liu, N.; Liu, Q.F.; Sun, W.; Wang, X.C. Borane-Catalyzed Direct Asymmetric Vinylogous Mannich Reactions of Acyclic alpha,beta-Unsaturated Ketones. J. Am. Chem. Soc. 2021, 143, 3054–3059. [Google Scholar] [CrossRef]
  32. Zhang, M.; Wang, X.C. Bifunctional Borane Catalysis of a Hydride Transfer/Enantioselective [2+2] Cycloaddition Cascade. Angew. Chem. Int. Ed. 2021, 60, 17185–17190. [Google Scholar] [CrossRef] [PubMed]
  33. Tu, X.S.; Zeng, N.N.; Li, R.Y.; Zhao, Y.Q.; Xie, D.Z.; Peng, Q.; Wang, X.C. C2-Symmetric Bicyclic Bisborane Catalysts: Kinetic or Thermodynamic Products of a Reversible Hydroboration of Dienes. Angew. Chem. Int. Ed. 2018, 57, 15096–15100. [Google Scholar] [CrossRef]
  34. Tian, J.J.; Yang, Z.Y.; Liang, X.S.; Liu, N.; Hu, C.Y.; Tu, X.S.; Li, X.; Wang, X.C. Borane-Catalyzed Chemoselective and Enantioselective Reduction of 2-Vinyl-Substituted Pyridines. Angew. Chem. Int. Ed. 2020, 59, 18452–18456. [Google Scholar] [CrossRef]
  35. Li, X.; Tian, J.J.; Liu, N.; Tu, X.S.; Zeng, N.N.; Wang, X.C. Spiro-Bicyclic Bisborane Catalysts for Metal-Free Chemoselective and Enantioselective Hydrogenation of Quinolines. Angew. Chem. Int. Ed. 2019, 58, 4664–4668. [Google Scholar] [CrossRef]
  36. Shang, M.; Wang, X.; Koo, S.M.; Youn, J.; Chan, J.Z.; Yao, W.; Hastings, B.T.; Wasa, M. Frustrated Lewis Acid/Bronsted Base Catalysts for Direct Enantioselective alpha-Amination of Carbonyl Compounds. J. Am. Chem. Soc. 2017, 139, 95–98. [Google Scholar] [CrossRef]
  37. Klose, I.; Di Mauro, G.; Kaldre, D.; Maulide, N. Inverse hydride shuttle catalysis enables the stereoselective one-step synthesis of complex frameworks. Nat. Chem. 2022, 14, 1306–1310. [Google Scholar] [CrossRef]
  38. Chang, Y.; Cao, M.; Chan, J.Z.; Zhao, C.; Wang, Y.; Yang, R.; Wasa, M. Enantioselective Synthesis of N-Alkylamines through beta-Amino C-H Functionalization Promoted by Cooperative Actions of B(C6F5)3 and a Chiral Lewis Acid Co-Catalyst. J. Am. Chem. Soc. 2021, 143, 2441–2455. [Google Scholar] [CrossRef]
  39. Shang, M.; Chan, J.Z.; Cao, M.; Chang, Y.; Wang, Q.; Cook, B.; Torker, S.; Wasa, M. C-H Functionalization of Amines via Alkene-Derived Nucleophiles through Cooperative Action of Chiral and Achiral Lewis Acid Catalysts: Applications in Enantioselective Synthesis. J. Am. Chem. Soc. 2018, 140, 10593–10601. [Google Scholar] [CrossRef] [PubMed]
  40. Cao, M.; Yesilcimen, A.; Wasa, M. Enantioselective Conia-Ene-Type Cyclizations of Alkynyl Ketones through Cooperative Action of B(C6F5)3, N-Alkylamine and a Zn-Based Catalyst. J. Am. Chem. Soc. 2019, 141, 4199–4203. [Google Scholar] [CrossRef] [PubMed]
  41. Chan, J.Z.; Yesilcimen, A.; Cao, M.; Zhang, Y.; Zhang, B.; Wasa, M. Direct Conversion of N-Alkylamines to N-Propargylamines through C-H Activation Promoted by Lewis Acid/Organocopper Catalysis: Application to Late-Stage Functionalization of Bioactive Molecules. J. Am. Chem. Soc. 2020, 142, 16493–16505. [Google Scholar] [CrossRef]
  42. Shi, L.; Bao, R.L.-Y.; Zheng, L.; Zhao, R. B(C6F5)3-Catalyzed Reduction of Cyclic N-Sulfonyl Ketimines. Eur. J. Org. Chem. 2019, 2019, 6550–6556. [Google Scholar] [CrossRef]
  43. Ding, F.; Zhang, Y.; Zhao, R.; Jiang, Y.; Bao, R.L.; Lin, K.; Shi, L. B(C6F5)3-Promoted hydrogenations of N-heterocycles with ammonia borane. Chem. Commun. 2017, 53, 9262–9264. [Google Scholar] [CrossRef] [PubMed]
Molecules 28 00642 g001 550

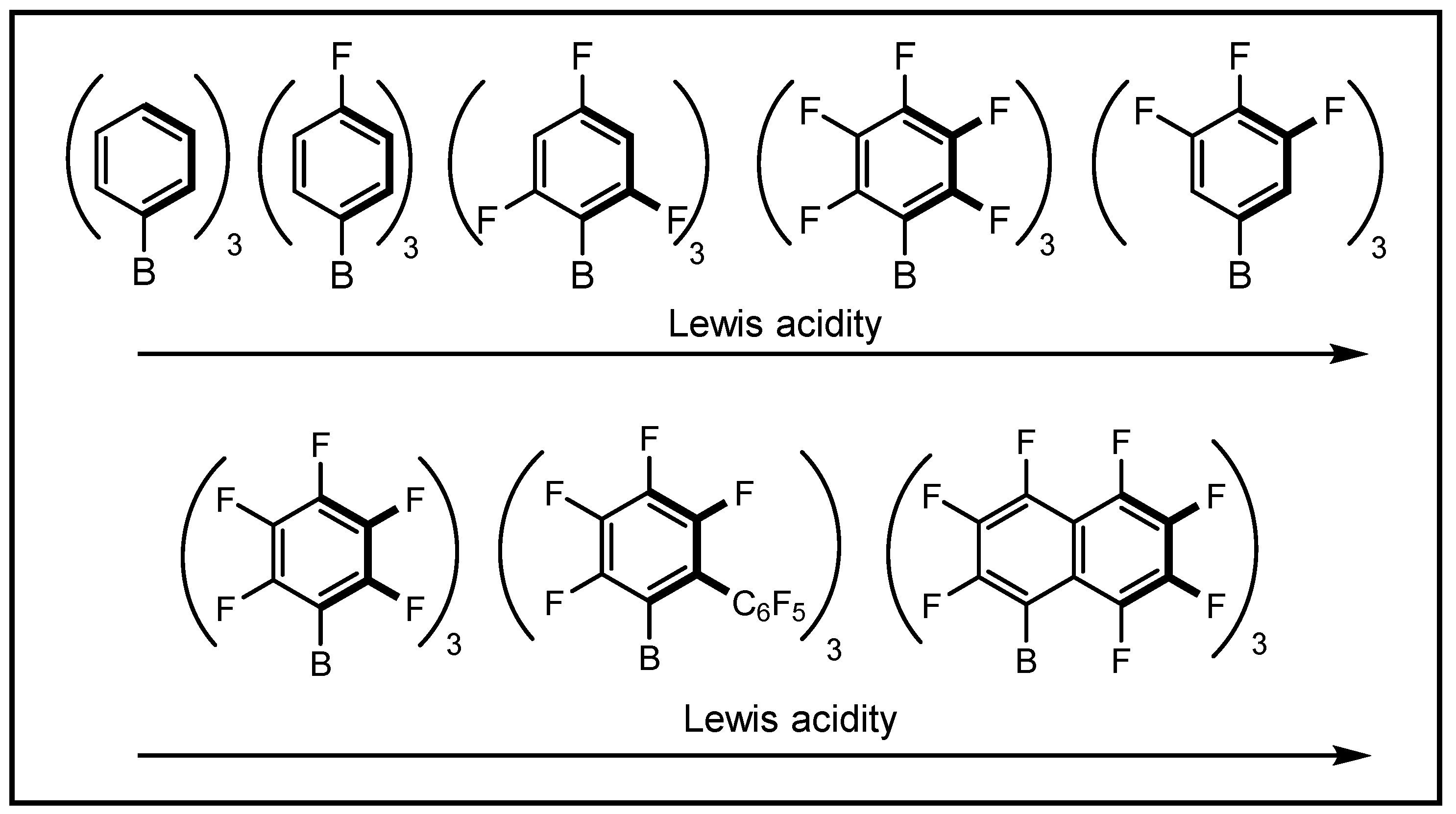

Figure 1. The Lewis acidity of fluoroaryl boranes with different substitutions.
Figure 1. The Lewis acidity of fluoroaryl boranes with different substitutions.
Molecules 28 00642 g001
Molecules 28 00642 g002 550
Figure 2. Anomalous endo-selective asymmetric reactions between cyclopentadiene and α-substituted acroleins.
Figure 2. Anomalous endo-selective asymmetric reactions between cyclopentadiene and α-substituted acroleins.
Molecules 28 00642 g002
Molecules 28 00642 g003 550

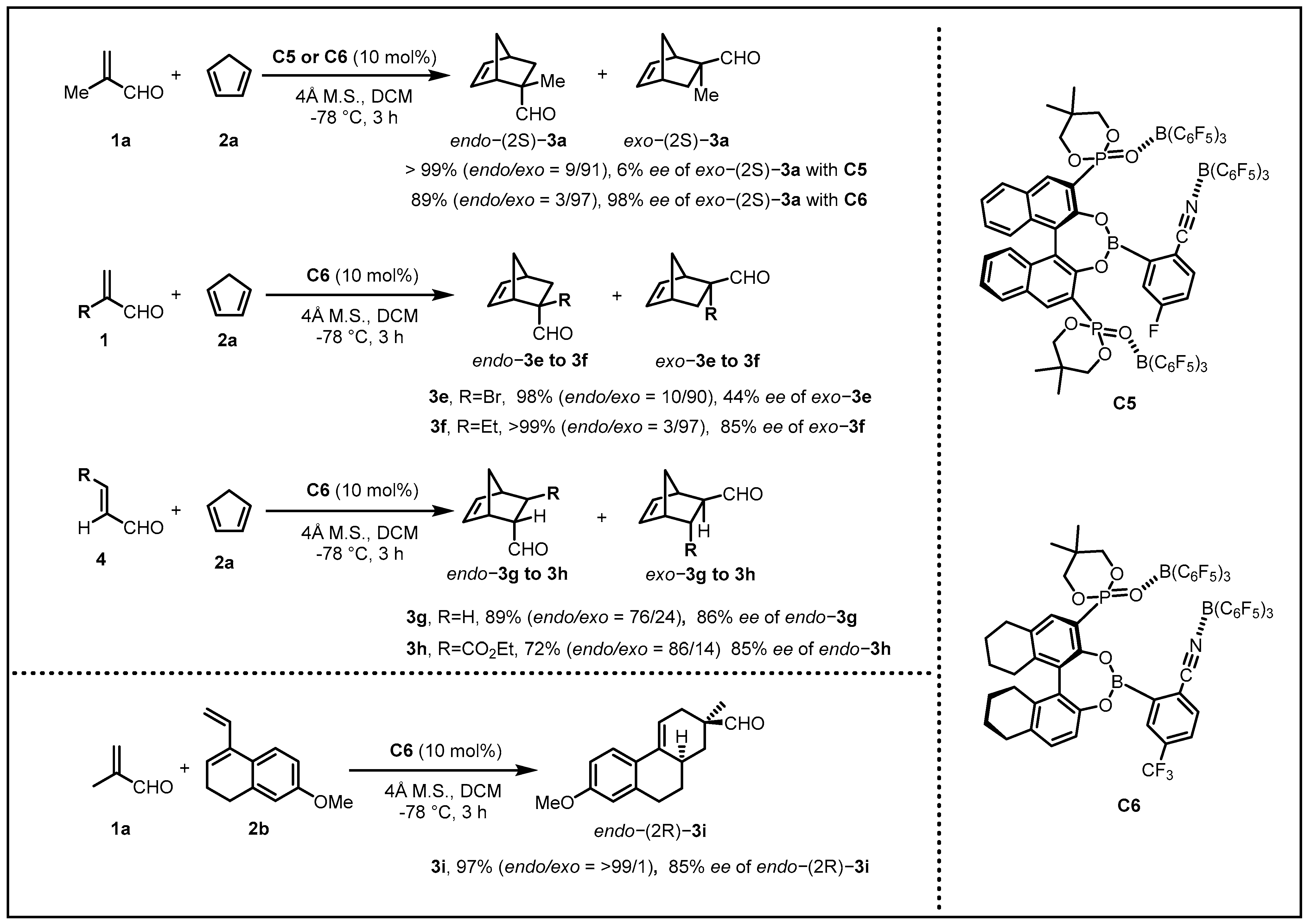

Figure 3. Reactions of various acroleins with cyclopenta-1,3-diene.
Figure 3. Reactions of various acroleins with cyclopenta-1,3-diene.
Molecules 28 00642 g003
Molecules 28 00642 g004 550

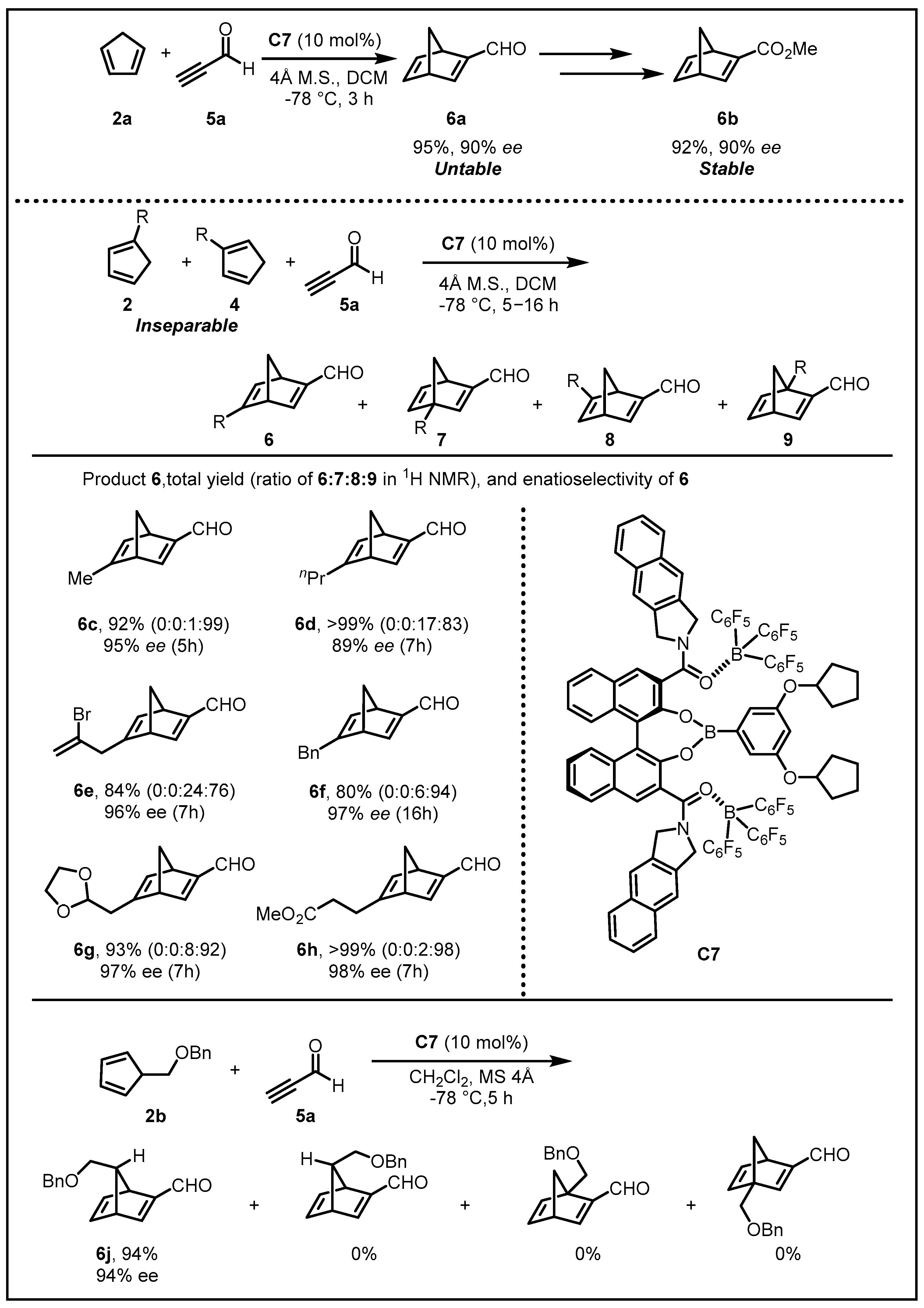

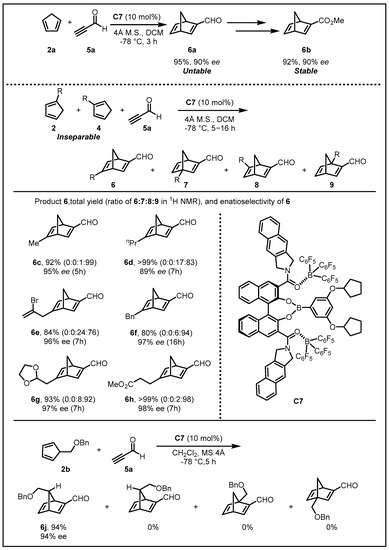

Figure 4. LLA-induced enantioselective Diels–Alder reactions with high multiselectivities.
Figure 4. LLA-induced enantioselective Diels–Alder reactions with high multiselectivities.
Molecules 28 00642 g004
Molecules 28 00642 g005 550

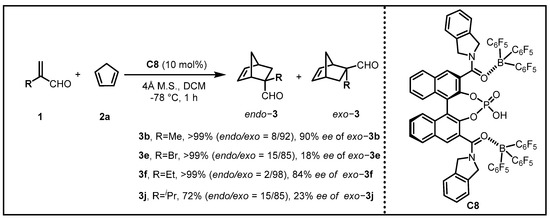

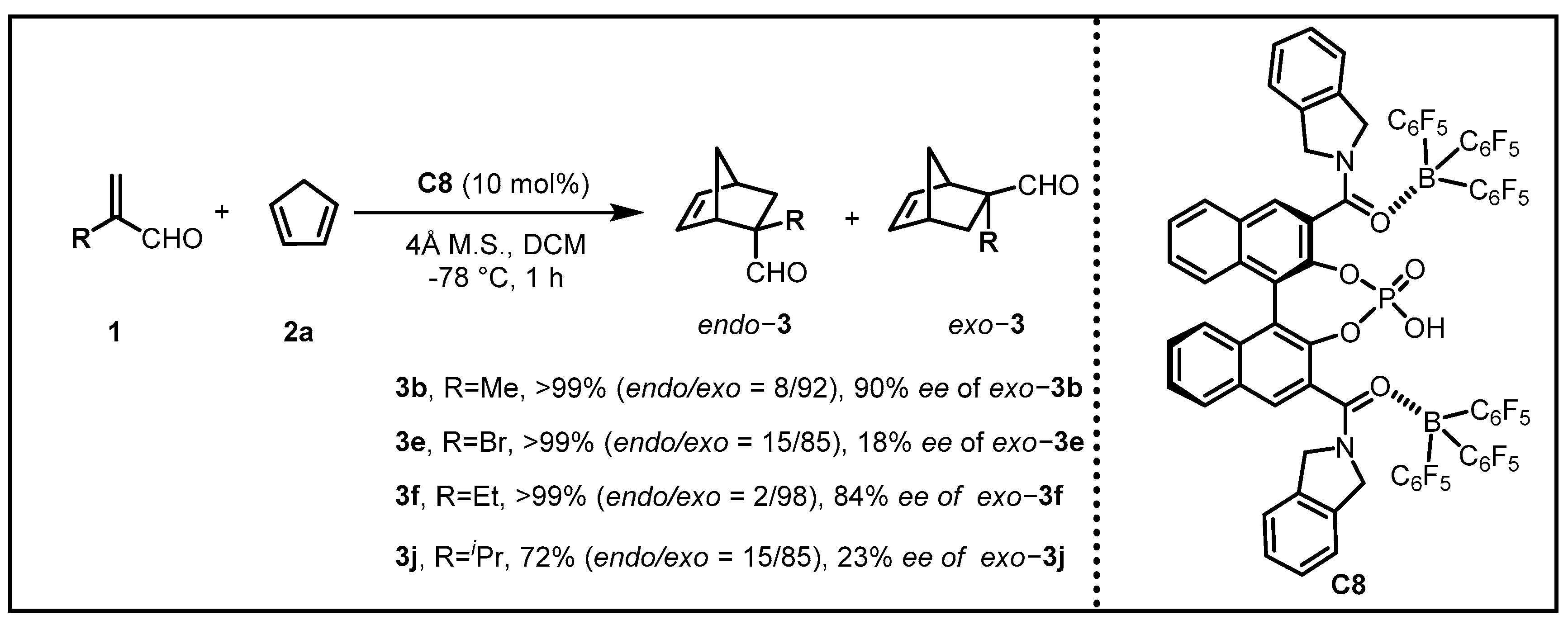

Figure 5. Substrate specificity with the use of LBA catalyst C8.
Figure 5. Substrate specificity with the use of LBA catalyst C8.
Molecules 28 00642 g005
Molecules 28 00642 g006 550

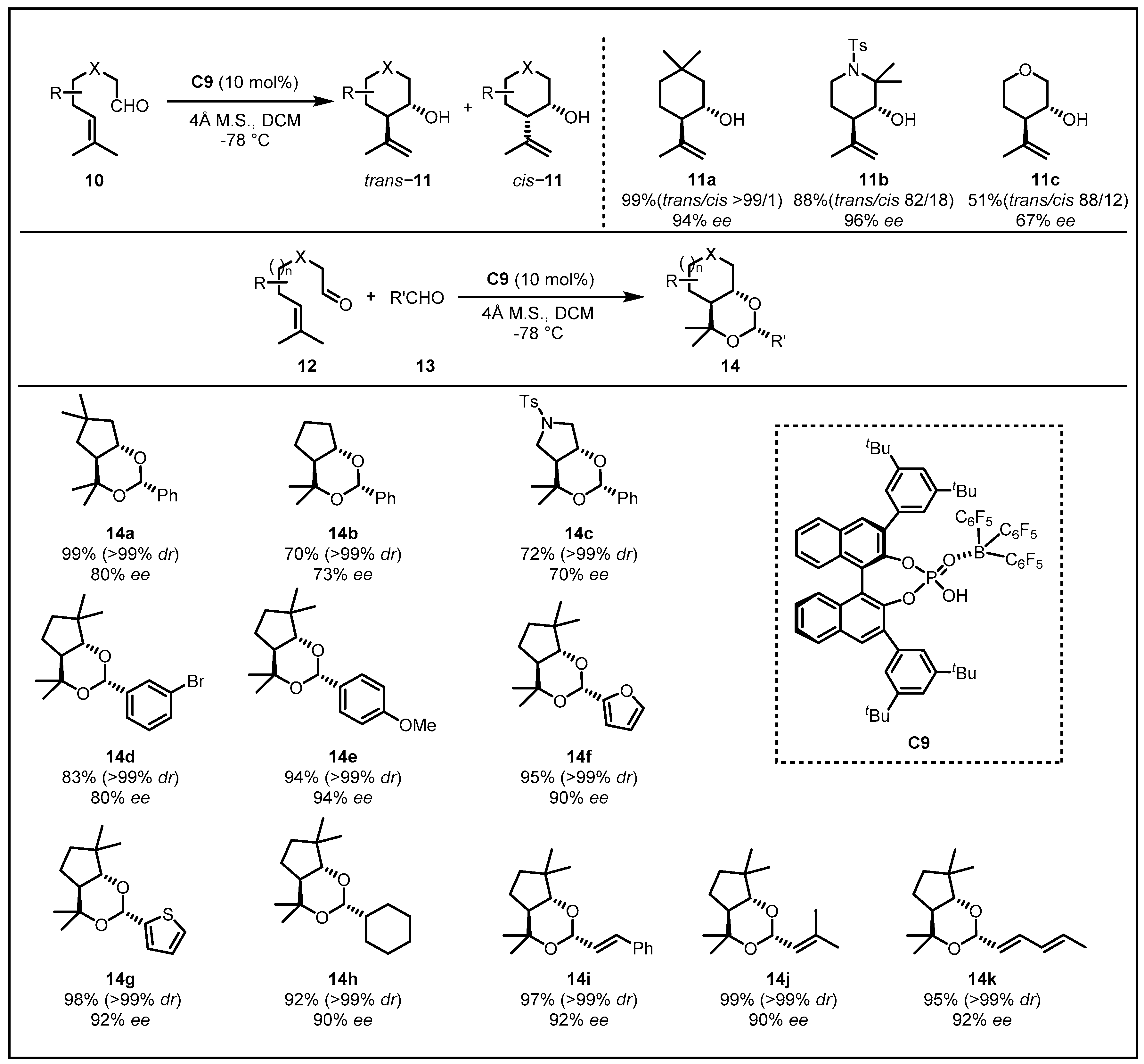

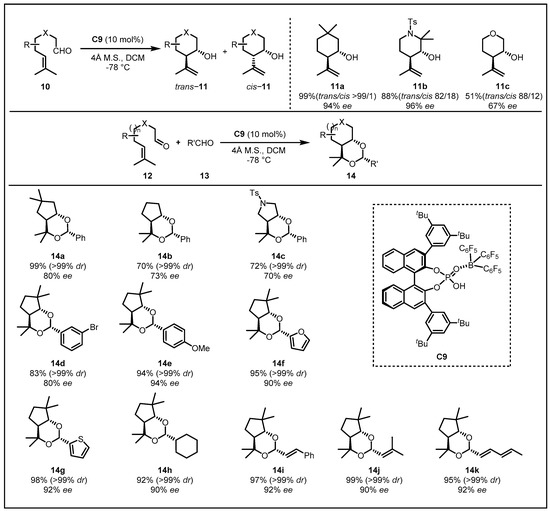

Figure 6. Carbonyl-ene cyclization and carbonyl-ene cyclization–acetalization tandem reactions catalyzed by C9.
Figure 6. Carbonyl-ene cyclization and carbonyl-ene cyclization–acetalization tandem reactions catalyzed by C9.
Molecules 28 00642 g006
Molecules 28 00642 g007 550

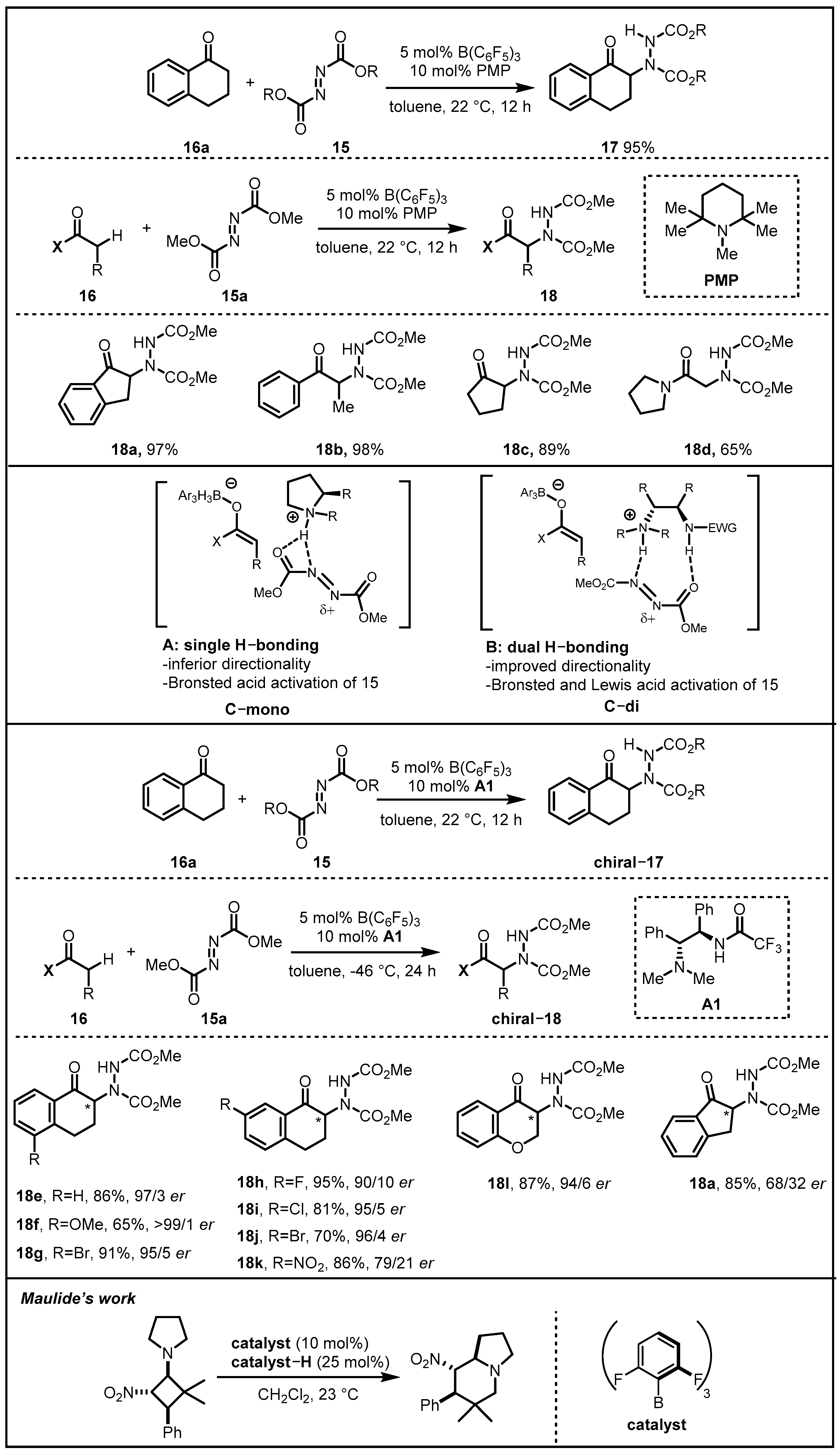

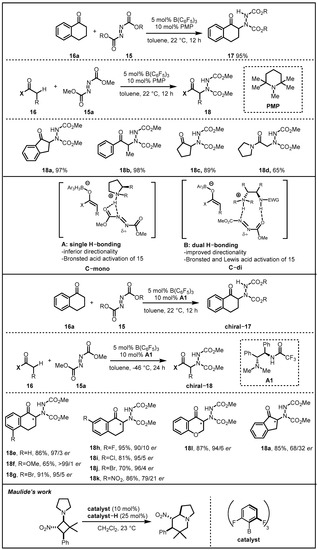

Figure 7. B(C6F5)3/amine-catalyzed direct α-amination reactions.
Figure 7. B(C6F5)3/amine-catalyzed direct α-amination reactions.
Molecules 28 00642 g007
Molecules 28 00642 g008 550

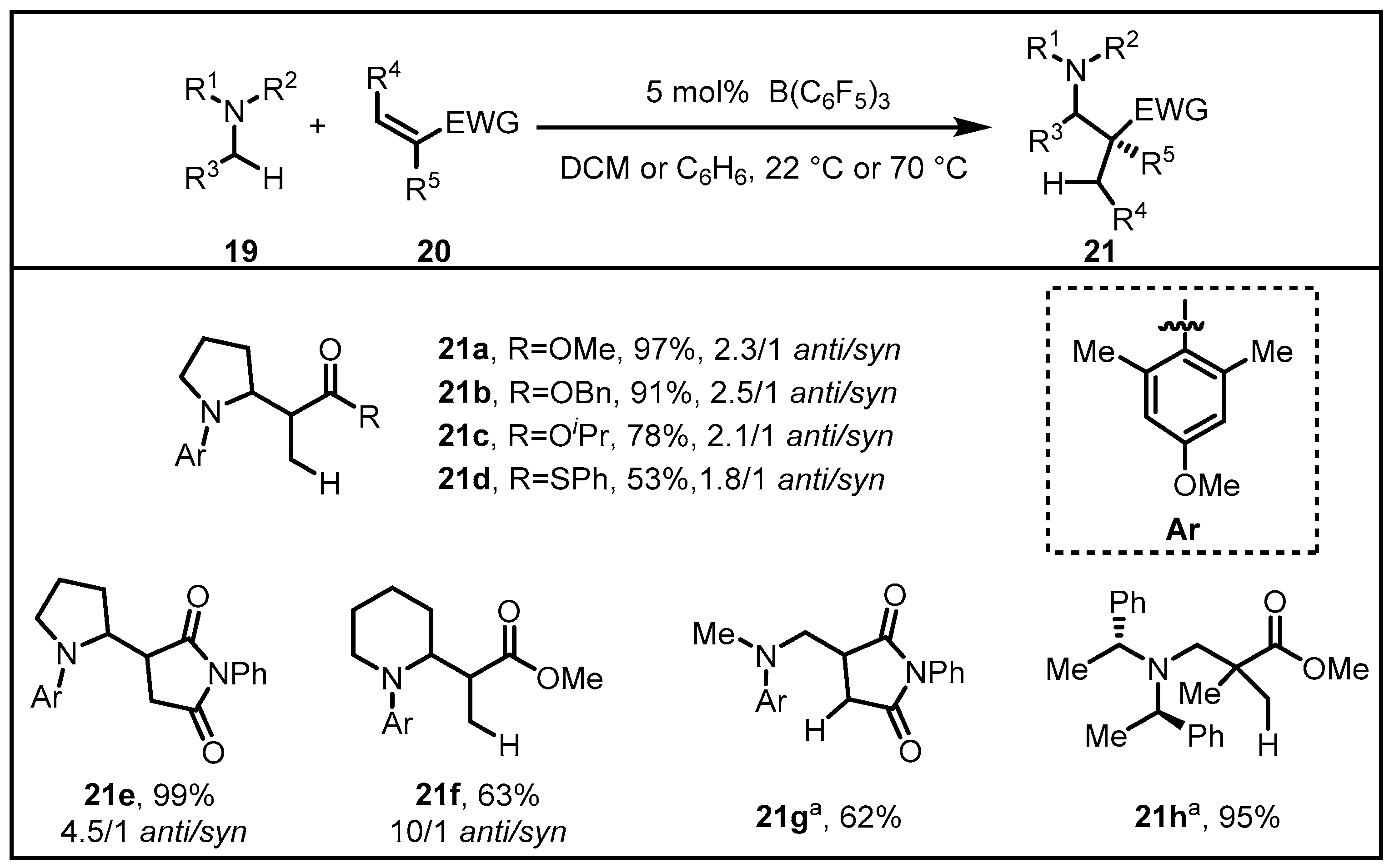

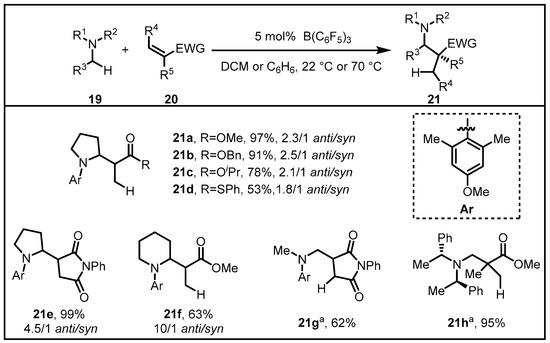

Figure 8. Coupling of N-alkylamines and α,β-unsaturated compounds through B(C6F5)3-catalyzed hydride abstraction.
Figure 8. Coupling of N-alkylamines and α,β-unsaturated compounds through B(C6F5)3-catalyzed hydride abstraction.
Molecules 28 00642 g008
Molecules 28 00642 g009 550

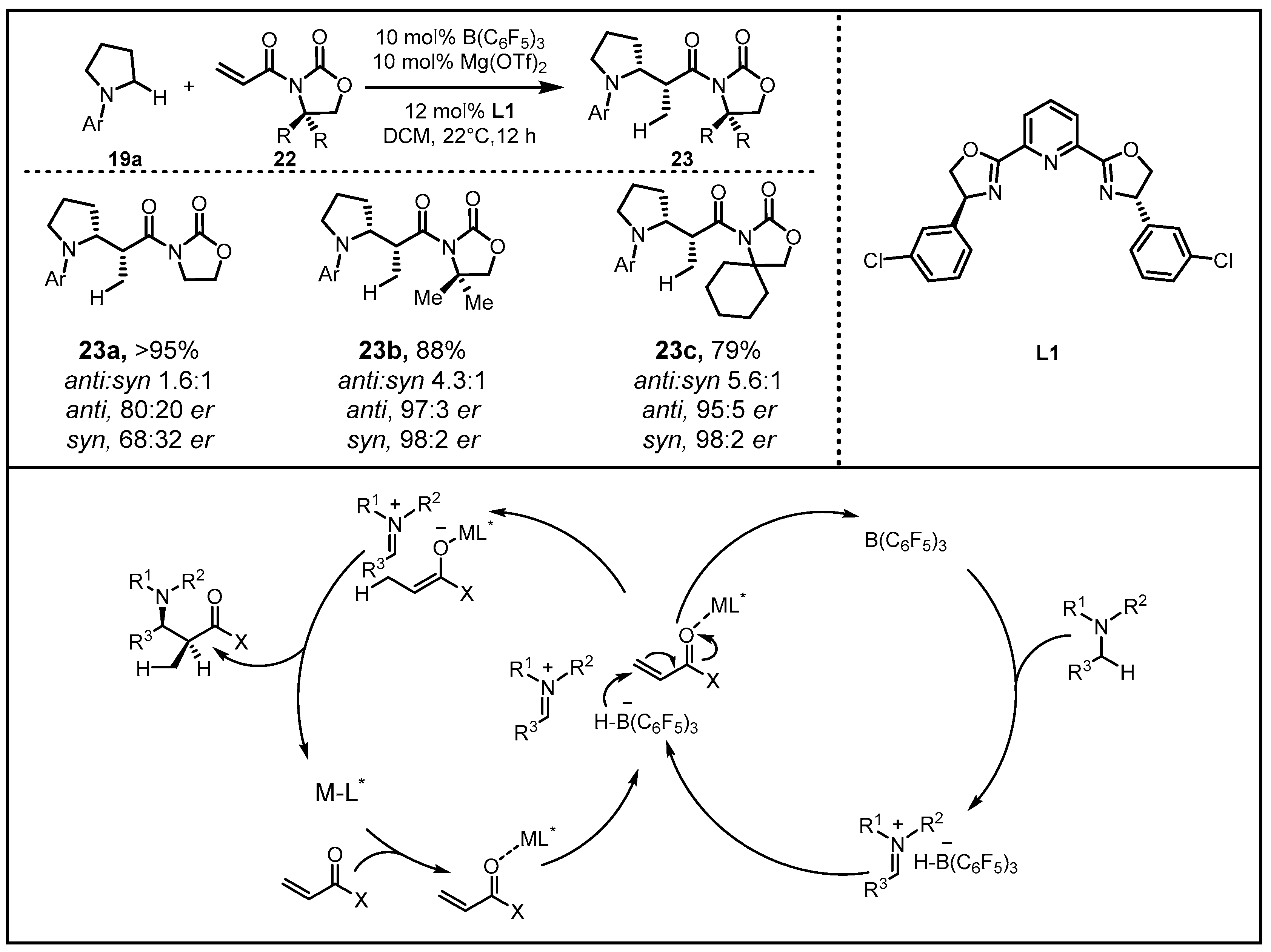

Figure 9. B(C6F5)3 and Mg(OTf)2/L1-induced synthesis of β-amino amides.
Figure 9. B(C6F5)3 and Mg(OTf)2/L1-induced synthesis of β-amino amides.
Molecules 28 00642 g009
Molecules 28 00642 g010 550

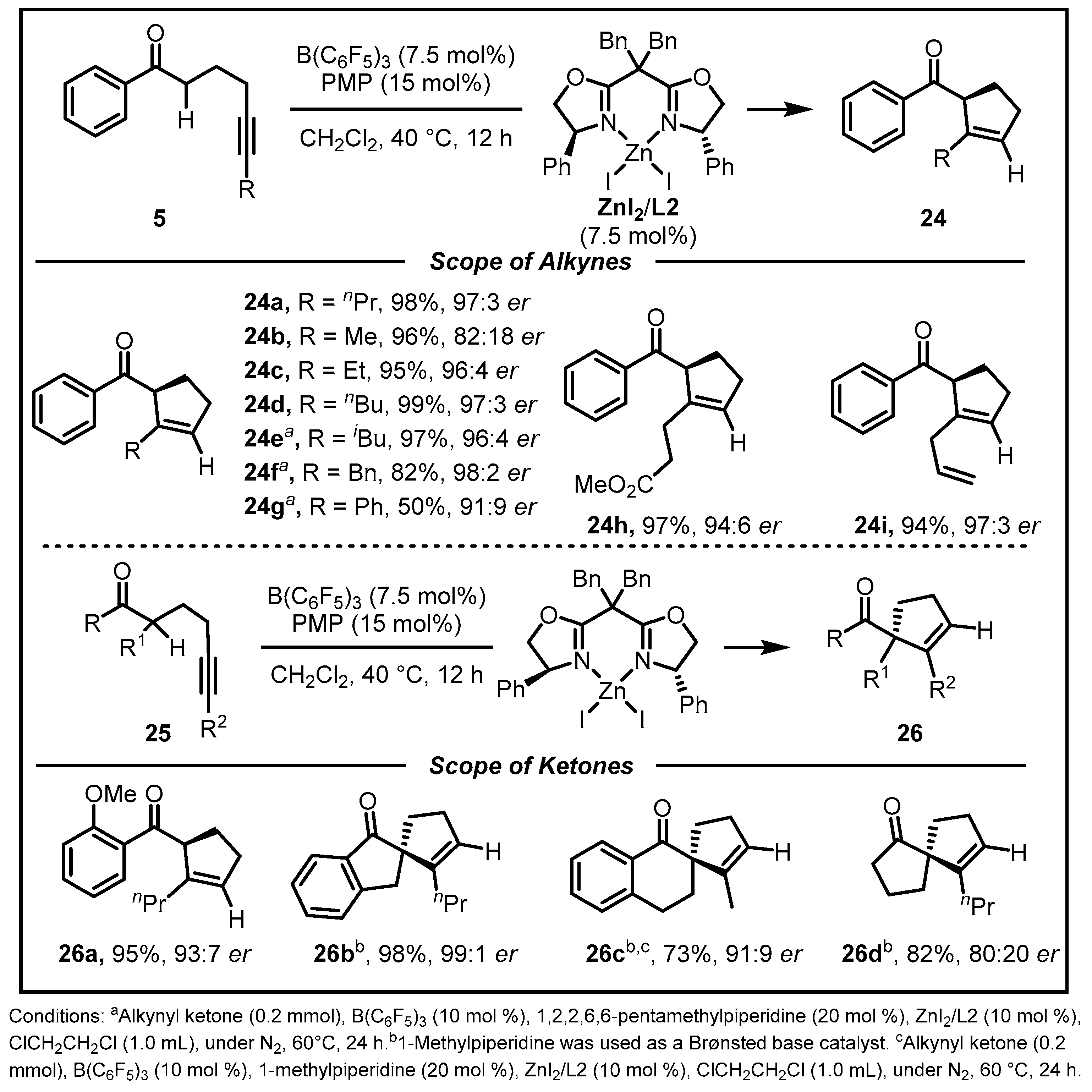

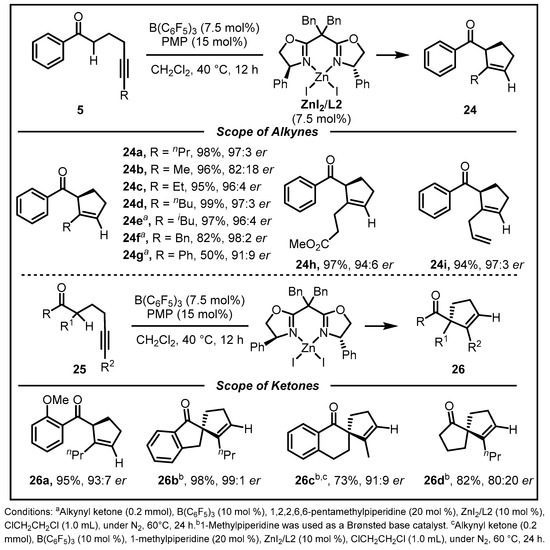

Figure 10. Enantioselective Conia-Ene-type cyclizations of alkynyl ketones.
Figure 10. Enantioselective Conia-Ene-type cyclizations of alkynyl ketones.
Molecules 28 00642 g010
Molecules 28 00642 g011 550

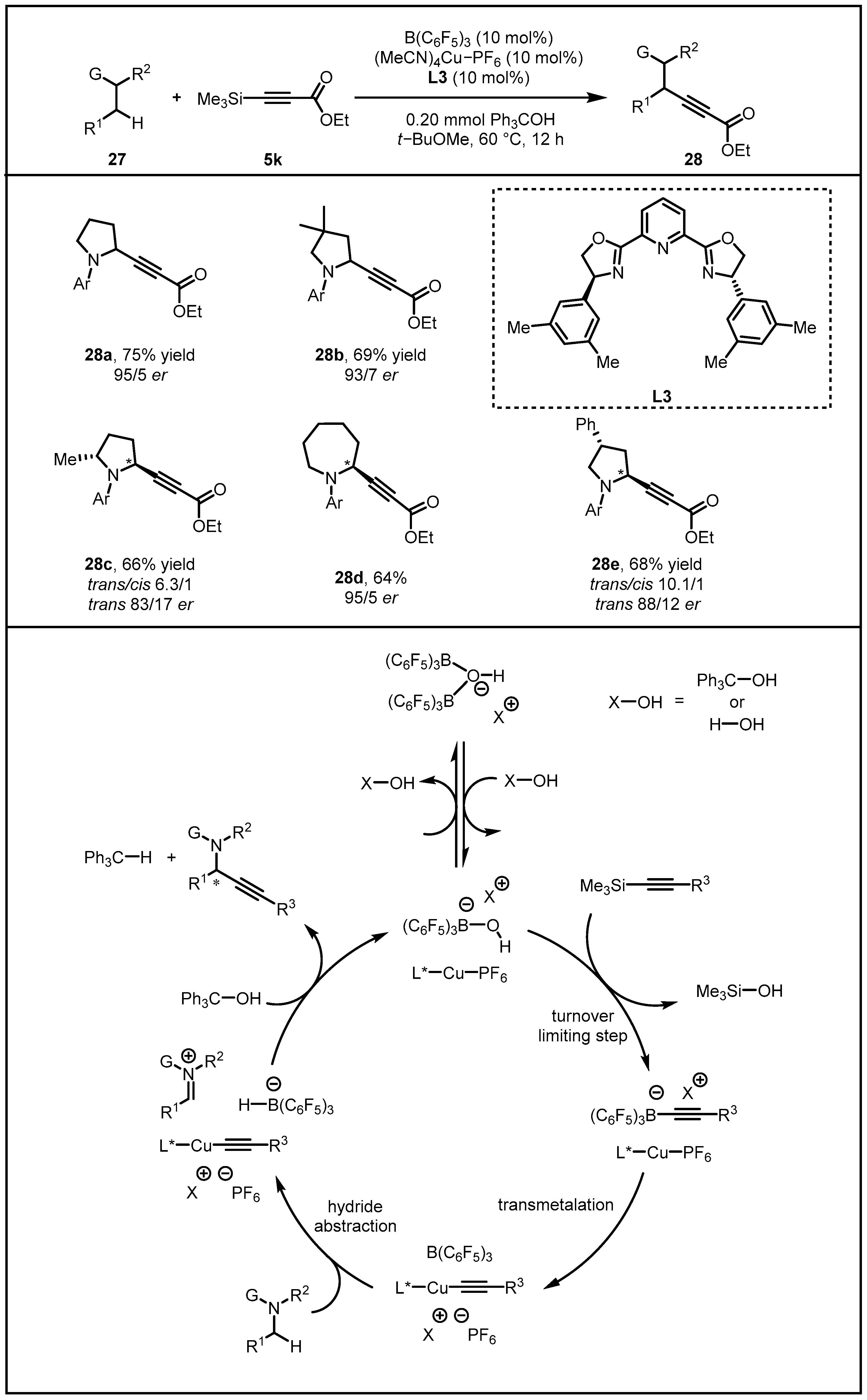

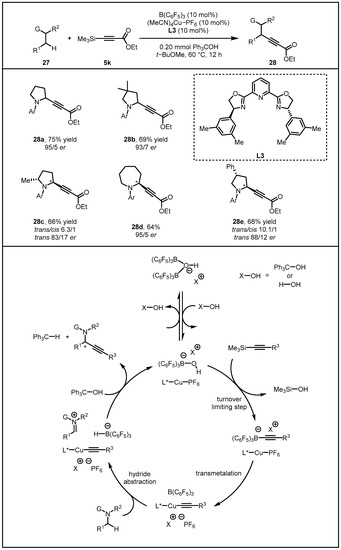

Figure 11. Direct conversion of N-Alkylamines to N-propargylamines promoted by Lewis acid/organocopper catalysis.
Figure 11. Direct conversion of N-Alkylamines to N-propargylamines promoted by Lewis acid/organocopper catalysis.
Molecules 28 00642 g011
Molecules 28 00642 g012 550

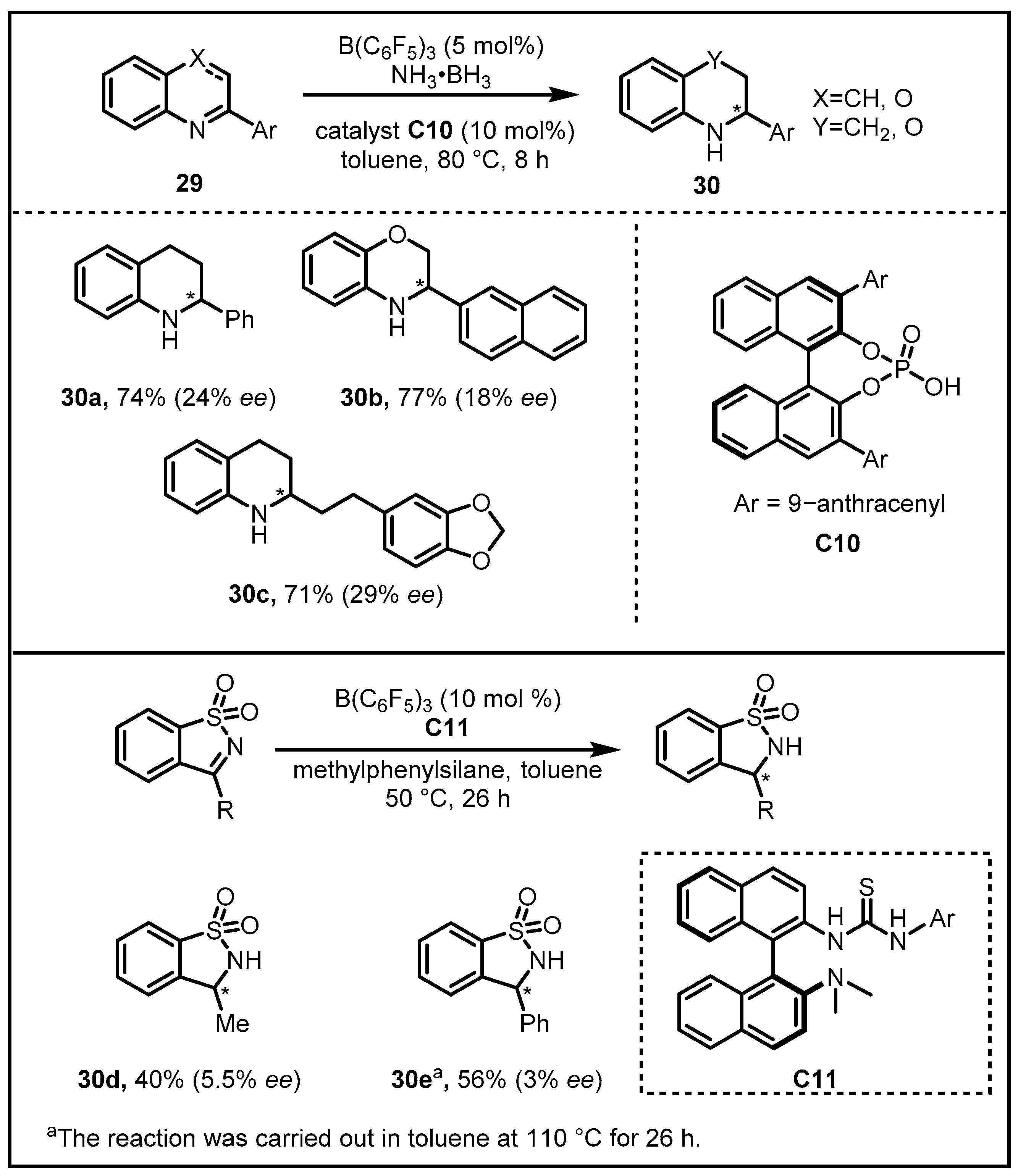

Figure 12. Asymmetric transfer hydrogenations of quinolines and indole derivatives.
Figure 12. Asymmetric transfer hydrogenations of quinolines and indole derivatives.
Molecules 28 00642 g012
