Article

Preparation of MoFs-Derived Cobalt Oxide/Carbon Nanotubes Composites for High-Performance Asymmetric Supercapacitor

by
Caiqin Yang
1,2,
Weiwei Li
3,
Xiaowei Liu
3,
Xiumei Song
1,*,
Hongpeng Li
4 and
Lichao Tan
1,2,3,5,*
1
Institute of Carbon Neutrality, Zhejiang Wanli University, Ningbo 315100, China
2
School of Materials Science and Chemical Engineering, Harbin University of Science and Technology, Harbin 150040, China
3
Chilwee Power Co., Ltd., No. 18 Chengnan Road, Huaxi Industrial Zone, Changxing 313100, China
4
College of Mechanical Engineering, Yangzhou University, Yangzhou 225127, China
5
State Key Laboratory of Clean Energy Utilization, School of Materials Science and Engineering, Zhejiang University, Hangzhou 310027, China
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(7), 3177; https://doi.org/10.3390/molecules28073177
Submission received: 28 February 2023 / Revised: 28 March 2023 / Accepted: 30 March 2023 / Published: 3 April 2023
(This article belongs to the Special Issue Synthesis and Properties of Functional Organic Porous Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
Metal–organic frameworks (MOFs)-derived metallic oxide compounds exhibit a tunable structure and intriguing activity and have received intensive investigation in recent years. Herein, this work reports metal–organic frameworks (MOFs)-derived cobalt oxide/carbon nanotubes (MWCNTx@Co3O4) composites by calcining the MWCNTx@ZIF-67 precursor in one step. The morphology and structure of the composite were investigated by scanning electron microscope (SEM) and transmission electron microscope (TEM) characterization. The compositions and valence states of the compounds were characterized by X-ray diffraction (XRD) and X-ray photoelectron spectroscopy (XPS). Benefiting from the structurally stable MOFs-derived porous cobalt oxide frameworks and the homogeneous conductive carbon nanotubes, the synthesized MWCNTx@Co3O4 composites display a maximum specific capacitance of 206.89 F·g−1 at 1.0 A·g−1. In addition, the specific capacitance of the MWCNT3@Co3O4//activated carbon (AC) asymmetric capacitor reaches 50 F·g−1, and has an excellent electrochemical performance. These results suggest that the MWCNTx@Co3O4 composites can be a potential candidate for electrochemical energy storage devices.

1. Introduction

The desire to reduce society’s dependence on fossil fuels has made the exploration of new energy and high energy utilization efficiency one of the most important issues faced by national governments in the 21st century. Energy storage, which is an intermediate step toward the efficient utilization of energy, has attracted large-scale concern and increasing research interest [1]. Among various emerging energy storage technologies, supercapacitors (SCs), also known as electrochemical capacitors (ECs), are a new concept of energy storage devices that was developed at the forefront of the available environmentally friendly electrochemical energy storage systems. According to the energy storage mechanisms, there are two types of supercapacitors: electrical double-layer capacitors (EDLCs) and pseudocapacitors. The core of supercapacitors is the electrode material, which directly dominates the performance of energy storage [2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18].
In recent years, pseudocapacitors based on transition metal oxides/hydroxides with variable valence exhibit a higher specific capacitance. Moreover, transition metal oxides and hydroxides have attracted extensive interest due to their high theoretical capacity, low cost, environmental friendliness and great flexibility in morphology and structures, such as Co3O4, NiO, Fe3O4 and MnO2 for pseudocapacitor electrodes, which achieve ultrahigh values of electrode capacitance [19,20,21,22,23,24,25,26]. Among the transition metal oxides, due to its wide potential range, low cost and environmental friendliness, Co3O4 has attracted much attention for its good catalysis, adsorptive behavior and electrochromic applications [27,28,29]. However, Co3O4 systems are limited by several adverse factors, such as a poor electrical conductivity and volume changes during the cycle process, a poor reversibility and a degradation in capacity at higher current densities [30]. Therefore, the rational design of sophisticated electrode structures that accelerate the charge transfer and enable the sufficient exposure of the surface active site is highly essential for Co3O4-based materials to achieve high-performance supercapacitors.
In addition, the main electrode materials, carbon materials, have been deeply studied with the widening of the application areas of supercapacitors because of their high surface area, chemical stability, electrical conductivity and low cost [31,32,33,34,35,36]. Carbon nanotubes, graphene, template carbon and carbide-derived carbon have been widely used in EDLCs.
In our study, we demonstrate a simple and economic strategy for the preparation of an MWCNTx@Co3O4 composite. This composite has a large surface area, which enables the effective exposure of the active site for the Faradaic redox reaction and obviously promotes the charge transfer process, and the diamond dodecahedron structure of the MWCNTx@Co3O4 composite can promote the deep ion diffusion among electrode materials. As a result, the MWCNTx@Co3O4 composite exhibits a high specific capacitance of 206.89 F·g−1 at a current density of 1.0 A·g−1. Moreover, the specific capacitance of the MWCNT3@Co3O4//AC asymmetric capacitor reaches 50 F·g−1, and has an excellent electrochemical performance. Therefore, the MWCNTx@Co3O4 composite can be considered as promising materials for high-performance electrochemical capacitors.

2. Results and Discussion

The SEM of the MWCNTx@Co3O4 sample is shown in Figure 1. As can be seen from Figure 1a–d, Co3O4 in MWCNTx@Co3O4 samples all show a rhomboidal dodecahedron morphology, indicating that Co3O4 retains the morphology of ZIF-67 and is not damaged by high temperature. The dispersion of MWCNT in MWCNT1@Co3O4 and MWCNT2@Co3O4 samples was also observed because the content of carbon nanotubes was less than that of Co3O4. On the other hand, it is possible that the surface oxidation of MWCNT has oxygen-containing functional groups that repel each other under electrostatic action so that the agglomeration of MWCNT is greatly reduced [37]. As can be seen from Figure 1d, because the MWCNT content is the highest, the whole MWCNT4@Co3O4 sample is wrapped by MWCNT, resulting in the Co3O4 polyhedron structure not being obvious. It even hindered the growth of the polyhedral structure, and the morphology distribution was uneven, which may be determined by the growth mechanism of ZIF-67 on the MWCNT surface. However, the distribution of MWCNTS in MWCNT3@Co3O4 is more reasonable, as shown in Figure 1c. The length and diameter of MWCNTs is 500 nm and 20 nm, respectively. The Co3O4 rhomboidal dodecahedron is clear and uniform in size, and the MWCNT is evenly dispersed. This phenomenon may be caused by the growth mechanism of MWCNTx@ZIF-67: under the action of a PVP dispersant, MWCNT is uniformly dispersed and can only adsorb a certain amount of Co2+ on the surface, while the content of ZIF-67 crystal is fixed and, after calcination, uniformly dispersed MWCNT3@Co3O4 [38] is obtained. According to the above characterization analysis, the morphology of the MWCNT3@Co3O4 composite is the most uniform.
The microstructure and composite structure of MWCNT3@Co3O4 were further studied by TEM characterization, as shown in Figure 2. Figure 2a,b show low and high-magnification TEM images of MWCNT3@Co3O4. It can be seen that the Co3O4 surface is connected to MWCNT. This composite structure can improve the conductivity of Co3O4, thereby enhancing its electrochemical performance. The size of cobalt oxide in MWCNT3@Co3O4 is between 120–350 nm, consistent with the size captured in the SEM image. Figure 2c is the high-resolution transmission electron microscope image of the MWCNT3@Co3O4 sample. Lattice fringes of different widths were obtained by analyzing the lattice spacing, and were 0.239 nm (the (311) crystal plane of Co3O4 nanoparticles) and 0.29 nm (the (220) crystal plane of Co3O4 nanoparticles), respectively. The polycrystalline properties of MWCNT3@Co3O4 composites are described. Figure 2d is the selected electron diffraction diagram of the MWCNT3@Co3O4 composite material, which indicates four bright concentric diffraction rings. The radius of the diffraction ring corresponds to the crystal surfaces of the cubic Co3O4 nanoparticles (511), (400), (200) and (311), which are consistent with the XRD results, and also indicate the polycrystalline property of the material. In summary, the successful preparation of MWCNT3@Co3O4 composite materials is indicated by the above experimental results.
The EDS analysis method was used to obtain the element composition and distribution map of the MWCNT3@Co3O4 composite. It can be observed from Figure 3 that the content of the C element is the highest, which is mainly attributed to the conversion of the organic skeleton into a C source after calcination in ZIF and the addition of an appropriate amount of MWCNT. It can also be observed that Co and O elements are evenly distributed on the surface of the polyhedron structure, which confirms the existence of Co3O4, which is the basic condition for obtaining a good pseudocapacitance performance.
Table 1 shows the composite ratio of MWCNT@Co3O4. As can be seen from the table, with an increase in the amount of MWCNT added, the content of the C element in the composites gradually increased from 21.23% to 28.50%, whereas the content of the Co element in the composites gradually decreased from 50.65% to 44.32%. This confirms the addition of MWCNT. Through the above analysis, the successful synthesis of the MWCNTx@Co3O4 composite materials is confirmed.
Figure 4a,b are XRD patterns of the preparation precursor MWCNTx@ZIF-67 and the MWCNTx@Co3O4 sample after calcination in air. As can be seen from Figure 4a, MWCNTx@ZIF-67 has obvious 7.2° (011), 10.4° (002), 12.7° (112), 14.7° (022), 16.4° (013), 18.1° (222), 22.1° (114), 24.5° (233), 26.5° (134), 29.6° (044), 31.3° (244), and characteristic peaks of 32.5° (235) and 43.1° (100) that are consistent with those reported in the literature [39], which proves the successful synthesis of the MWCNTx@ZIF-67 precursor. The XRD results of MWCNTx@Co3O4 are shown in Figure 4b. As can be seen from the picture, MWCNT1@Co3O4, MWCNT2@Co3O4, MWCNT3@Co3O4 and MWCNT4@Co3O4 have (511), (400), (200), (111), (311) and (422) crystal plane diffraction peaks consistent with Co3O4 (JCPDS card number 74-2120). It is proved that the MWCNTx@Co3O4 sample was successfully obtained after calcination. In addition, it can be seen from the XRD pattern of the MWCNTx@Co3O4 composite that the carbon-derived peak (002) is not obvious, which may be caused by the relatively large the diffraction peak intensity of Co3O4 on the one hand and the low crystallinity of carbon after calcining MWCNTx@ZIF-67 on the other hand.
The chemical composition and corresponding valence states of the MWCNT3@Co3O4 composite were studied by means of XPS characterization. All XPS maps were standardized with reference to the C 1s peak (284.6 eV). Figure 5a shows the full XPS spectrum of the MWCNT3@Co3O4 composite, which mainly contains C, O and Co elements. As can be seen from the Co 2p map in Figure 5b, 779.9 eV and 796.6 eV correspond to Co 2p3/2 and Co 2p1/2, respectively, which are two peaks of Co2+ and Co3+, and the experimental results are consistent with the literature [40]. As can be seen from the C 1s map in Figure 5c, there are three obvious characteristic peaks at 284.3, 285.8 and 286.4 eV. The peaks at 284.3 eV and 285.8 eV belong to C-C and C=C, respectively, whereas the peaks at 284.6 eV may belong to Co-O-C [41]. Figure 5d shows the O1s map, which mainly contains three peaks of 533.5 eV, 531.5 eV and 530.0 eV, among which the peaks of 530.0 eV and 531.5 eV belong to lattice oxygen species and surface-adsorbed oxygen [42]. These results further confirm the successful synthesis of composite materials, and are further consistent with XRD and EDS results.
Figure 6 shows the pore structure and specific surface area of the MWCNTx@Co3O4 composites. As can be seen from Figure 6a, the adsorption/desorption isotherm of MWCNTx@Co3O4 slowly rises at first, and, when it reaches a certain pressure, it rises sharply, resulting in a vertical tail ring and a hysteresis ring. This feature indicates that MWCNTx@Co3O4 composite materials have microporous, mesoporous and macroporous structures. The specific surface areas of MWCNT1@Co3O4, MWCNT2@Co3O4, MWCNT3@Co3O4 and MWCNT4@Co3O4 are 104.20, 66.44, 99.56 and 136.97 m2 g−1, respectively. In addition, the pore diameter distribution curve of MWCNTx@Co3O4 is shown in Figure 6b. The pore volumes of MWCNT1@Co3O4, MWCNT2@Co3O4, MWCNT3@Co3O4 and MWCNT4@Co3O4 were 3.39, 3.79, 3.06 and 3.30 nm, respectively. It can be well seen in the figure that the pore size distribution of MWCNT3@Co3O4 is mainly mesoporous, mainly due to the insertion of MWCNTs into Co3O4, resulting in a larger pore size of the overall material. Furthermore, the mesoporous structure is conducive to ion diffusion, thereby improving the electrochemical performance of the material. Therefore, the obtained electrode material should have a good electrochemical performance.
Figure 7a shows the cyclic voltammetry curves of composites with different carbon nanotube contents at 20 mV·s−1. As can be seen, when the scanning speed is 20 mV·s−1, the CV curve area of the MWCNT3@Co3O4 composite material is the largest, indicating that the addition of appropriate carbon nanotubes can improve the specific capacitance of the electrode. This result can be attributed to the synergistic effect of cobalt tetroxide and carbon nanotubes. MWCNT1@Co3O4, MWCNT2@Co3O4 and MWCNT4@Co3O4 decreased, which may be caused by a too high or too low MWCNT content and the overall electrical conductivity of the material. In addition, obvious redox peaks were observed, which were mainly due to different cobalt redox states, such as Co4+/Co3+ and Co3+/Co2+. The main reaction mechanism is shown in (1) and (2) [43]:
Co3O4 + OH− + H2O ↔ 3CoOOH+e−
CoOOH + OH− ↔ CoO2+H2O+e−
Figure 7b shows the GCD curve of the MWCNTx@Co3O4 composite material, which was tested at a current density of 1 A·g−1. It is observed that the curve is almost triangular in symmetry, and there is no particularly rapid drop in voltage, indicating that the synthesized MWCNT1@Co3O4, MWCNT2@Co3O4, MWCNT3@Co3O4 and MWCNT4@Co3O4 materials have particularly good electrochemical reversibility. While the GCD curves of the MWCNT4@Co3O4 composite is different from others, its charge time is longer from its discharge time. This is mainly due to the higher resistance, which is consistent with the result of Figure 7f. When applying the same voltage in the MWCNT4@Co3O4 composite, the current is unable to charge quickly, which leads to the GCD curve of the sample MWCNT4@Co3O4 composite being asymmetrical. The discharge time of MWCNT3@Co3O4 is longer than that of MWCNT1@Co3O4, MWCNT2@Co3O4 and MWCNT4@Co3O4. Therefore, among the four materials prepared, the MWCNT3@Co3O4 composite has the largest specific capacitance, whereas the MWCNT1@Co3O4 composite material has the smallest specific capacitance. It is also comparable to other Co3O4-based materials as listed in Table 2.
Figure 7c shows the cyclic voltammetry curves of MWCNT3@Co3O4 at sweep speeds of 5, 10, 20, 50 and 100 mV·s−1. It is observed that the CV curve of the electrode material is similar with an increase in the sweep speed, indicating that the MWCNT3@Co3O4 electrode material has good performance. Figure 7d shows the GCD curves of MWCNTx@Co3O4 composites at 1, 2, 3, 4 and 5 A·g−1 current densities. When the applied current density is 1 A·g−1, the MWCNT3@Co3O4 composite has the longest discharge time and its specific capacitance is 206.89 F·g−1, which is higher than MWCNT1@Co3O4, MWCNT2@Co3O4 and MWCNT4@Co3O4 (132.73 F·g−1, 194.64 F·g−1, 89.36 F·g−1, respectively). It is shown that the composite has an excellent electrochemical performance. Figure 7e shows the specific capacitance as a function of current density. As the specific current density increases, the specific capacitance decreases due to the limitation of diffusion on the electrode surface [50]. The MWCNT3@Co3O4 electrode shows a specific capacitance of 191.67 F·g−1 at 5 A·g−1, and the specific capacity of MWCNT3@Co3O4 is 3.2 times higher than that of MWCNT4@Co3O4 and 2 times higher than that of MWCNT1@Co3O4 at the same current density. By adding an optimal proportion of MWCNT, the capacity of MWCNT@Co3O4 is increased, thus promoting the charge-transfer ions on the surface.
Figure 7f shows the electrochemical impedance spectroscopy (EIS) of the MWCNTx@Co3O4 composite. It can be observed that the linear slope of the composite is the highest in the low-frequency region MWCNT3@Co3O4, which indicates that the ion diffusion resistance of MWCNT3@Co3O4 is smaller than that of MWCNT1@Co3O4, MWCNT2@Co3O4 and MWCNT4@Co3O4 electrodes. In the high-frequency region, the MWCNT3@Co3O4 electrode has the smallest semicircle diameter, indicating that its charge transfer resistance is smaller than that of MWCNT1@Co3O4, MWCNT2@Co3O4 and MWCNT4@Co3O4, indicating that the charge transfer rate of MWCNT3@Co3O4 is faster. It is also further explained that the MWCNT3@Co3O4 electrode material has better electrical conductivity.
Figure 8 shows the cycle performance experiment conducted on MWCNT3@Co3O4 with a current density of 1 A·g−1. As can be seen, the maintenance rate of the specific capacitance of MWCNT3@Co3O4 is 78.9% after 1000 cycles of charge and discharge, which indicates that the MWCNT3@Co3O4 composite electrode has a good cycle life.
To better explore the practical application of the electrode material, the MWCNT3@Co3O4//AC asymmetric supercapacitor was assembled for the electrochemical test. Figure 9a shows the cyclic voltammetry curves of the MWCNT3@Co3O4//AC capacitor at 5, 10, 20, 50 and 100 mV·s−1. It can be seen from the figure that the CV curve presents the characteristics of double electric layers and pseudocapacitors, which are the conditions for the capacitor to have a good electrochemical performance. Figure 9b shows the GCD curve under different current densities. The mass specific capacitance of the capacitor under 1, 2, 3, 4 and 5 A·g−1 current densities is calculated as 50.0, 46.25, 34.31, 30.0 and 25.0 F·g−1, respectively.
Figure 9c shows the relationship between specific current and specific capacitance. It can be seen that the capacitor still has a 57.1% specific capacitance maintenance rate at a current density of 5 A·g−1, indicating that the capacitor has an excellent multiplier performance. Figure 9d shows the performance of the device after 1000 cycles. At a 1 A·g−1 current density, the initial capacitance remains at 87.2% after 1000 times of charging and discharging, indicating that the capacitor has a good cycle life. This is mainly attributed to the polyhedral structure and high porosity of MWCNT3@Co3O4 composites, which reduces the damage of electrode materials during charging and discharging.
Figure 10 shows the relationship between energy density and power density. Under current densities of 1 A·g−1, 2 A·g−1, 3 A·g−1, 4 A·g−1 and 5 A·g−1, the power densities of the device are 800, 1600, 2400, 3200 and 4000 W·kg−1, respectively. The corresponding energy densities are 17.78, 16.44, 12.20, 10.67 and 8.89 Wh·kg−1, respectively.

3. Experimental Section

This section may be divided by subheadings. It should provide a concise and precise description of the experimental results and their interpretation, as well as the experimental conclusions that can be drawn.

3.1. Materials

All of the chemical reagents in this experiment were of analytical purity and directly used without any further purification.

3.2. Materials Characterization

XRD analysis was performed by a powder X-ray diffraction system (XRD-6100, Rigaku, Tokyo, Japan) equipped with Cu Kα radiation (λ = 0.15406 nm) to determine crystalline structures of the obtained samples. The XPS measurements were performed by a Thermo ESCALAB 250Xi spectrometer (USA) with monochromated Al Kα radiation (hγ = 1486.6 eV). All XPS spectra were calibrated with respect to the C 1s peak at 284.6 eV. The morphology and microstructure of the samples were characterized by field emission scanning electron microscopy (FE-SEM) (JSM-6480A, JEOL, Tokyo, Japan) and a TEM (JEM-2000FX, Electronics Corporation, Tokyo, Japan). The BET (Brunauer-Emmett-Teller) and pore size distrubtion of the samples were characterized by N2 adsorption Nitrogen and desorption test (TriStar II3flex, Mike, Scottsdale, AZ, USA).

3.3. Preparation of Materials

Preparation of MWCNTx@ZIF-67 precursor: first, different masses of MWCNT (99.9%, Xianfeng Nanotechnology Co., Ltd., Nanjing, China) were poured into polyethylene pyrrolidone (analytically pure, Shanghai McLean Biochemical Technology Co., Ltd., China) and methanol solution (99.7%, Shanghai Aladdin Co., Ltd., Shanghai, China), ultrasonic was carried out for 30 min, a certain amount of cobalt nitrate (analytically pure, Shanghai Aladdin Biochemical Technology Co., Ltd., Shanghai, China) was added and then magnetic stirring was performed for 10 min. In addition, 2-methylimidazole (≥98.0%, Shanghai McLean Biochemical Technology Co., Ltd., Shanghai, China) was added to the above solution, stirring for 1 h, and then the prepared solution was left to stand at room temperature for 24 h. After centrifugation and washing, the black precipitate was dried at 60 °C for 12 h and the precursor MWCNTx@ZIF-67 was obtained. The weights of MWCNT were 0.0203 g, 0.0415 g, 0.0608 g and 0.1510 g, respectively. Therefore, the resultant MWCNT@ZIF-67 numbers are MWCNT1@ZIF-67, MWCNT2@ZIF-67, MWCNT3@ZIF-67 and MWCNT4@ZIF-67, respectively.
Preparation of MWCNTx@Co3O4 composite: the synthesized precursors (MWCNT1@ZIF-67, MWCNT2@ZIF-67 and MWCNT3@ZIF-67, MWCNT4@ZIF-67) were annealed in air at 350 °C for 2 h at a heating rate of 4 °C·min−1. The obtained samples were labeled MWCNT1@Co3O4, MWCNT2@Co3O4, MWCNT3@Co3O4 and MWCNT4@Co3O4.

3.4. Fabrication of Supercapacitor Electrode

(1)
Preparation of Single Electrode
All single electrodes in this paper were prepared in the following way: firstly, certain amounts of active substance and acetylene black (Superconducting K90, Ron reagent, Harbin, China) were weighed, dissolved in 5 mL of absolute ethanol and ultrasonicated for 30 min. Then, a certain amount of PTFE (60.0 wt%, Shanghai Aladdin Biochemical Technology Co., Ltd., Shanghai, China) lotion (the mass ratio of active substance, acetylene black and PTFE lotion (5wt%) was 8:1:1) was dropped in proportion, ultrasonicated for 10 min and then dried in a constant temperature blast-drying oven at 60 °C for 12 h. Finally, the obtained black sample was scraped onto one side of foam nickel of 1 × 1 cm, pressed with a tablet press and compacted evenly. By weighing the total mass of foam nickel before and after scraping, the total mass of active substance can be calculated.
(2)
Assembly of Asymmetric Supercapacitors
In order to evaluate the practical application of the prepared electrode material, the electrode material and AC prepared in this article were used to prepare a single electrode in the same manner as in (1). Subsequently, when assembling the supercapacitor, they were assembled on the positive electrode and the negative electrode of the supercapacitor, respectively. At the same time, the positive and negative electrodes were separated by a membrane, and an asymmetric supercapacitor was assembled. The electrolyte was prepared as a 3.0 M KOH (≥85.0%, Shanghai Aladdin Biochemical Technology Co., Ltd., Shanghai, China) solution.

3.5. Electrochemical Characterization

Electrochemical workstation (CHI 760E) was used to observe the electrochemical performance of the MWCNTx@Co3O4 composite electrode in a three-electrode installation. In this test, platinum was used as a counter electrode, Ag/AgCl as a reference electrode, MWCNTx@Co3O4 composites as a working electrode and a solution of 3 M KOH as electrolyte. Cyclic voltammetry (CV) was performed between 0 V and 0.6 V at various scan rates (from 5 to 100 mV·s−1). Galvanostatic discharge texts were measured in a voltage window from 0 V to 0.55 V at various current densities. EIS measurements were carried out with a 5 mV sinusoidal voltage in a frequency from 100 kHz to 0.01 Hz.

4. Conclusions

In summary, a diamond-dodecahedron-structured MWCNTx@Co3O4 composite was successfully fabricated using a smart approach. With an increase in the MWCNT content, the electrochemical properties of the MWCNTX@Co3O4 composite first increased and then decreased. Benefiting from the unique structure, high specific surface area and reasonable pore size distribution, the as-obtained MWCNT3@Co3O4 composite exhibits satisfactory capacitive behavior: 206.89 F·g−1 at a current density of 1 A·g−1; an excellent cycling stability of 87.2% capacitance retention over 1000 continuous cycles. An asymmetric supercapacitor cell was fabricated through MWCNTx@Co3O4 and AC as a positive and negative electrode, respectively. The cell can deliver a high energy density of 17.78 Wh·kg−1 at a power density of 800 W·kg−1. Our results suggest that the MWCNTx@Co3O4 composite can be used in actual high-power devices. The preparation strategy offers a facile and variable route to rationally design and prepare cobalt oxide electrode materials for a variety of applications in energy storage and conversion, catalysis and environmental treatment.

Author Contributions

Conceptualization, methodology, writing—original draft preparation, C.Y.; software, validation, X.S.; investigation, H.L.; software, validation, investigation, writing—review and editing, L.T.; data curation, W.L.; visualization, X.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Outstanding Youth Project of Natural Science Foundation in Heilongjiang Province (YQ2022E040), the Natural Science Foundation of Shandong Province of China (ZR2022ME166), the Postdoctoral Scientific Research Developmental Fund of Heilongjiang Province (LBH-Q20023), the University Nursing Program for Young Scholars with Creative Talents in Heilongjiang Province (UNPYSCT-2020197).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This work was financially supported by the Outstanding Youth Project of Natural Science Foundation in Heilongjiang Province (YQ2022E040), the Natural Science Foundation of Shandong Province of China (ZR2022ME166), the Postdoctoral Scientific Research Developmental Fund of Heilongjiang Province (LBH-Q20023), the University Nursing Program for Young Scholars with Creative Talents in Heilongjiang Province (UNPYSCT-2020197).

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Sample Availability

Samples of the compounds MWCNTx@Co3O4 are available from the authors.

References

  1. Liu, C.; Li, F.; Ma, L.P.; Cheng, H.M. Advanced Materials for Energy Storage. Adv. Mater. 2010, 22, 28–62. [Google Scholar] [CrossRef] [PubMed]
  2. Brousse, T.; Taberna, P.L.; Crosnier, O.; Dugas, R.; Guillemet, P.; Scudeller, Y.; Zhou, Y.; Favier, F.; Belanger, D.; Simon, P.J. Long-term cycling behavior of asymmetric activated carbon/MnO2 aqueous electrochemical supercapacitor. J. Power Sources 2007, 173, 633. [Google Scholar] [CrossRef]
  3. Yuan, C.Z.; Zhang, X.G.; Su, L.H.; Gao, B.; Shen, L.F. Facile synthesis and self-assembly of hierarchical porous NiO nano/micro spherical superstructures for high performance supercapacitors. J. Mater. Chem. 2009, 19, 5772. [Google Scholar] [CrossRef]
  4. Najib, S.; Erdem, E. Current progress achieved in novel materials for supercapacitor electrodes: Mini review. Nanoscale Adv. 2019, 1, 2817–2827. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Sarangapani, S.; Tilak, B.V.; Chen, C.P. Materials for electrochemical capacitors: Theoretical and experimental constraints. J. Electrochem. Soc. 1996, 143, 3761. [Google Scholar] [CrossRef]
  6. Gherghel, L.; Kubel, C.; Lieser, G.; Rader, H.J.; Mullen, K.J. Pyrolysis in the mesophase: A chemist’s approach toward preparing carbon nano-and microparticles. Am. Chem. Soc. 2002, 124, 13130–13138. [Google Scholar] [CrossRef] [PubMed]
  7. Titirici, M.M.; Antonietti, M. Chemistry and materials options of sustainable carbon materials made by hydrothermal carbonization. Chem. Soc. Rev. 2010, 39, 103–116. [Google Scholar] [CrossRef] [PubMed]
  8. Elmouwahidi, A.; Zapata-Benabithe, Z.; Carrasco-Marin, F.; Moreno-Castilla, C. Activated carbons from KOH-activation of argan (Argania spinosa) seed shells as supercapacitor electrodes. Bioresour. Technol. 2012, 111, 185–190. [Google Scholar] [CrossRef]
  9. Liang, Q.; Ye, L.; Huang, Z.H.; Xu, Q.; Bai, Y.; Kang, F.; Yang, Q.H. A honeycomb-like porous carbon derived from pomelo peel for use in high-performance supercapacitors. Nanoscale 2014, 6, 13831–13837. [Google Scholar] [CrossRef]
  10. Yang, Z.-C.; Tang, C.-H.; Gong, H.; Li, X.; Wang, J.J. Hollow spheres of nanocarbon and their manganese dioxide hybrids derived from soft template for supercapacitor application. Power Sources 2013, 240, 713–720. [Google Scholar] [CrossRef]
  11. Luo, C.; Wei, R.; Guo, D.; Zhang, S.; Yan, S. Adsorption behavior of MnO2 functionalized multi-walled carbon nanotubes for the removal of cadmium from aqueous solutions. Chem. Eng. J. 2013, 225, 406–415. [Google Scholar] [CrossRef]
  12. Xie, X.; Gao, L. Characterization of a manganese dioxide/carbon nanotube composite fabricated using an in situ coating method. Carbon 2007, 45, 2365–2373. [Google Scholar] [CrossRef]
  13. Yang, B.; Gong, Q.; Zhao, L.; Sun, H.; Ren, N.; Qin, J.; Xu, J.; Yang, H. Preconcentration and determination of lead and cadmium in water samples with a MnO2 coated carbon nanotubes by using ETAAS. Desalination. 2011, 278, 65–69. [Google Scholar] [CrossRef]
  14. Li, B.; Bai, C.; Zhang, S.; Zhao, X.; Li, Y.; Wang, L.; Ding, K.; Shu, X.; Li, S.; Ma, L.J. An adaptive supramolecular organic framework for highly efficient separation of uranium via an in situ induced fit mechanism. J. Mater. Chem. A 2015, 3, 23788–23798. [Google Scholar] [CrossRef]
  15. Huang, L.; Li, C.; Yuan, W.; Shi, G. Strong composite films with layered structures prepared by casting silk fibroin–graphene oxide hydrogels. Nanoscale 2013, 5, 3780–3786. [Google Scholar] [CrossRef]
  16. Gupta, T.K.; Singh, B.P.; Singh, V.N.; Teotia, S.; Singh, A.P.; Elizabeth, I.; Dhakate, S.R.; Dhawan, S.; Mathur, R.J. MnO2 decorated graphene nanoribbons with superior permittivity and excellent microwave shielding properties. J. Mater. Chem. A 2014, 2, 4256–4263. [Google Scholar] [CrossRef] [Green Version]
  17. Wei, L.S.; Deng, W.J.; Li, S.S.; Wu, Z.G.; Cai, J.H.; Luo, J.W. Sandwich-like chitosan porous carbon Spheres/MXene composite with high specific capacitance and rate performance for supercapacitors. J. Bioresour. Bioprod. 2022, 7, 63–72. [Google Scholar] [CrossRef]
  18. Hsu, S.C.; Chiang, H.H.; Huang, T.Y.; Chao, S.H.; Wu, R.T.; Huang, J.-H.; Chang-jian, C.W.; Weng, H.C.; Chen, H.C. Morphology evolution and electrochemical behavior of NixMn1-x(OH)2 mixed hydroxides as high-performance electrode for supercapacitor. J. Electrochim. Acta 2022, 403, 139692. [Google Scholar] [CrossRef]
  19. Yang, G.W.; Xu, C.L.; Li, H.L. Electrodeposited nickel hydroxide on nickel foam with ultrahigh capacitance. Chem.Commun. 2008, 6537–6539. [Google Scholar] [CrossRef] [PubMed]
  20. Hsiao, Y.-S.; Chang-Jian, C.-W.; Huang, T.-Y.; Chen, Y.-L.; Huang, J.-H.; Wu, N.-J.; Hsu, S.-C.; Cheng, C.-P. High-performance supercapacitor based on a ternary nanocomposites of NiO, polyaniline, and Ni/NiO-decorated MWCNTs. J. Taiwan Inst. Chem. Eng. 2022, 134, 104318. [Google Scholar] [CrossRef]
  21. Zhang, H.; Cao, G.; Wang, Z.; Yang, Y.; Shi, Z.; Gu, Z. Growth of manganese oxide nanoflowers on vertically-aligned carbon nanotube arrays for high-rate electrochemical capacitive energy storage. Nano Lett. 2008, 8, 2664. [Google Scholar] [CrossRef]
  22. Zhu, T.; Chen, J.S.; Lou, X.W. Shape-controlled synthesis of porous Co3O4 nanostructures for application in supercapacitors. J. Mater. Chem. 2010, 20, 7015. [Google Scholar] [CrossRef]
  23. Zhang, G.; Chen, Y.; Qu, B.; Hu, L.; Mei, L.; Lei, D.; Li, Q.; Chen, L.; Li, Q.; Wang, T. Synthesis of mesoporous NiO nanospheres as anode materials for lithium ion batteries. Electrochim. Acta 2012, 80, 140–147. [Google Scholar] [CrossRef]
  24. Bae, J.; Song, M.K.; Park, Y.J.; Kim, J.M.; Liu, M.; Wang, Z.L. Fiber supercapacitors made of nanowire-fiber hybrid structures for wearable/flexible energy storage. Angew. Chem. Int. Ed. 2011, 50, 1683. [Google Scholar] [CrossRef]
  25. Yuan, L.; Lu, X.H.; Xiao, X.; Zhai, T.; Dai, J.; Zhang, F.; Hu, B.; Wang, X.; Gong, L.; Chen, J.; et al. Flexible Solid-State Supercapacitors Based on Carbon Nanoparticles/MnO2 Nanorods Hybrid Structure. ACS Nano 2012, 6, 656. [Google Scholar] [CrossRef]
  26. Yang, P.H.; Xiao, X.; Li, Y.Z.; Ding, Y.; Qiang, P.F.; Tan, X.H.; Mai, W.J.; Lin, Z.Y.; Wu, W.Z.; Li, T.Q.; et al. Hydrogenated ZnO core–shell nanocables for flexible supercapacitors and self-powered systems. ACS Nano 2013, 7, 2617. [Google Scholar] [CrossRef]
  27. Xiao, Z.Y.; Fan, L.L.; Xu, B.; Zhang, S.Q.; Kang, W.P.; Kanga, Z.X.; Lin, H.; Liu, X.P.; Zhang, S.Y.; Sun, D.F. Green Fabrication of Ultrathin Co3O4 Nanosheets from Metal–Organic Framework for Robust High-Rate Supercapacitors. ACS Appl. Mater. Interfaces 2017, 9, 41827–41836. [Google Scholar] [CrossRef]
  28. Huang, X.H.; Tu, J.P.; Xia, X.H.; Wang, X.L.; Xiang, J.Y. Porous NiO/poly (3, 4-ethylenedioxythiophene) films as anode materials for lithium ion batteries. J. Power Sources 2010, 195, 1207–1210. [Google Scholar] [CrossRef]
  29. Li, W.; Xu, L.; Chen, J. Co3O4 Nanomaterials in Lithium-Ion Batteries and Gas Sensors. Adv. Funct. Mater. 2005, 15, 851–857. [Google Scholar] [CrossRef]
  30. Xu, W.; Chen, J.H.; Yu, M.H.; Zeng, Y.X.; Long, Y.B.; Lu, X.H.; Tong, Y.X. Sulphur-doped Co3O4 nanowires as an advanced negative electrode for high-energy asymmetric supercapacitors. J. Mater. Chem. A 2016, 4, 10779–10785. [Google Scholar] [CrossRef]
  31. Simon, P.; Gogotsi, Y. Capacitive energy storage in nanostructured carbon-electrolyte systems. Acc. Chem. Res. 2013, 46, 1094–1103. [Google Scholar] [CrossRef]
  32. Zhang, Y.; Feng, H.; Wu, X.; Wang, L.; Zhang, A.; Xia, T.; Dong, H.; Li, X.; Zhang, L. Progress of electrochemical capacitor electrode materials: A review. Int. J. Hydrog. Energy 2009, 34, 4889–4899. [Google Scholar] [CrossRef]
  33. Wang, G.; Zhang, L.; Zhang, J. A review of electrode materials for electrochemical supercapacitors. Chem. Soc. Rev. 2012, 41, 797–828. [Google Scholar] [CrossRef] [Green Version]
  34. Su, D.S.; Schlögl, R. Nanostructured carbon and carbon nanocomposites for electrochemical energy storage applications. Chem. Sus. Chem. 2010, 3, 136–168. [Google Scholar] [CrossRef]
  35. Zheng, S.; Zhang, J.W.; Deng, H.B.; Du, Y.M.; Shi, X.W. Chitin derived nitrogen-doped porous carbons with ultrahigh specific surface area and tailored hierarchical porosity for high performance supercapacitors. J. Bioresour. Bioprod. 2021, 6, 142–151. [Google Scholar] [CrossRef]
  36. Yan, B.; Feng, L.; Zheng, J.J.; Zhang, Q.; Jiang, S.H.; Zhang, C.M.; Ding, Y.C.; Han, J.Q.; Chen, W.; He, S.J. High performance supercapacitors based on wood-derived thick carbon electrodes synthesized via green activation process. Inorg. Chem. Front. 2022, 9, 6108–6123. [Google Scholar] [CrossRef]
  37. Zhang, C.; Wang, Q.; Zhang, W.; Li, X.; Zhu, Z.; Zhang, C.; Xie, A.; Luo, S. Preparation and application of Co3O4-Ni-MOF/MWCNTs hybrid for supercapacitor. Ionics 2021, 27, 3543–3551. [Google Scholar] [CrossRef]
  38. Wang, X.; Li, M.; Chang, Z.; Yang, Y.; Wu, Y.; Liu, X. Co3O4@MWCNT Nanocable as Cathode with Superior Electrochemical Performance for Supercapacitors. ACS Appl. Mater. Interfaces 2015, 7, 2280–2285. [Google Scholar] [CrossRef]
  39. Ma, J.X.; Li, J.; Guo, R.; Xu, H.; Shi, F.; Dang, L.Q.; Liu, Z.H.; Sun, J.; Lei, Z.H. Direct growth of flake-like metal-organic framework on textile carbon cloth as high-performance supercapacitor electrode. J. Power Sources 2019, 428, 124–130. [Google Scholar] [CrossRef]
  40. Kumar, Y.A.; Das, H.T.; Guddeti, P.R.; Nallapureddy, R.R.; Pallavolu, M.R.; Alzahmi, S.; Obaidat, I.M. Self-Supported Co3O4@Mo-Co3O4 Needle-like Nanosheet Heterostructured Architectures of Battery-Type Electrodes for High-Performance Asymmetric Supercapacitors. Nanomaterials 2022, 12, 2330. [Google Scholar] [CrossRef]
  41. Ramesh, S.; Karuppasamy, K.; Sivasamy, A.; Kim, H.S.; Yadav, H.M.; Kim, H.S. Core shell nanostructured of Co3O4@RuO2 assembled on nitrogen-doped graphene sheets electrode for an efficient supercapacitor application. J. Alloy. Compd. 2021, 877, 160297. [Google Scholar] [CrossRef]
  42. Zhu, S.Q.; Shu, J.C.; Cao, M.S. Novel MOF-derived 3D hierarchical needlelike array architecture with excellent EMI shielding, thermal insulation and supercapacitor performance. Nanoscale 2022, 14, 7322–7331. [Google Scholar] [CrossRef]
  43. Sivakumar, P.; Jana, M.; Kota, M.; Jung, M.; Gedanken, A.; Park, H.S. Controllable synthesis of nanohorn-like architectured cobalt oxide for hybrid supercapacitor application. J. Power Sources 2018, 402, 147–156. [Google Scholar] [CrossRef]
  44. Xiang, C.C.; Li, M.; Zhi, M.J.; Manivannan, A.; Wu, N.Q. A reduced graphene oxide/Co3O4 composite for supercapacitor electrode. J. Power Sources 2013, 3, 65–70. [Google Scholar] [CrossRef] [Green Version]
  45. Tummala, R.; Guduru, R.K.; Mohanty, P.S. Nanostructured Co3O4 electrodes for supercapacitor applications from plasma spray technique. J. Power Sources 2012, 209, 44–51. [Google Scholar] [CrossRef]
  46. Xu, J.; Gao, L.; Cao, J.Y.; Wang, W.C.; Chen, Z.D. Preparation and electrochemical capacitance of cobalt oxide (Co3O4) nanotubes as supercapacitor material. Electrochim. Acta 2010, 56, 732–736. [Google Scholar] [CrossRef]
  47. Zhou, Y.L.; Hu, Z.B.; Zhao, C.H.; Liu, K.Y.; Lin, D.G. Synthesis and Electrochemical Performances of Co3O4/graphene as Supercapacitor Material. Int. J. Electrochem. Sci. 2016, 11, 6078–6084. [Google Scholar] [CrossRef]
  48. Aslam, S.; Ramay, S.M.; Mahmood, A.; Mustafa, M.G.; Zawar, S.; Atiq, S. Electrochemical performance of transition metal doped Co3O4 as electrode material for supercapacitor applications. J. Sol-Gel. Sci. Technol. 2023, 105, 360–369. [Google Scholar] [CrossRef]
  49. Wang, X.Y.; Lu, S.X.; Xu, W.G. Synthesis of Needle-like Nanostructure Composite Electrode of Co3O4/rGO/NF for High-Performance Symmetric Supercapacitor. Crystals 2022, 12, 664. [Google Scholar] [CrossRef]
  50. Sudhakaran, M.S.P.; Gnanasekaran, G.; Pazhamalai, P.; Sahoo, S.; Hossain, M.M.; Bhattarai, R.M.; Kim, S.J.; Mok, Y.S. Hierarchically Porous Nanostructured Nickel Phosphide with Carbon Particles Embedded by Dielectric Barrier Discharge Plasma Deposition as a Binder-Free Electrode for Hybrid Supercapacitors. ACS Sustain. Chem. Eng. 2019, 7, 14805–14814. [Google Scholar]
Molecules 28 03177 g001 550
Figure 1. Different MWCNT additions, MWCNTx@Co3O4. SEM diagram of nanocomposites: (a) MWCNT1@Co3O4; (b) MWCNT2@Co3O4; (c) MWCNT3@Co3O4; (d) MWCNT4@Co3O4.
Figure 1. Different MWCNT additions, MWCNTx@Co3O4. SEM diagram of nanocomposites: (a) MWCNT1@Co3O4; (b) MWCNT2@Co3O4; (c) MWCNT3@Co3O4; (d) MWCNT4@Co3O4.
Molecules 28 03177 g001
Molecules 28 03177 g002 550
Figure 2. (a,b) TEM diagrams at different magnifications of MWCNT3@Co3O4; (c,d) high-resolution transmission electron microscopy (HRTEM) and selected area electron diffraction (SAED) of MWCNT3@Co3O4.
Figure 2. (a,b) TEM diagrams at different magnifications of MWCNT3@Co3O4; (c,d) high-resolution transmission electron microscopy (HRTEM) and selected area electron diffraction (SAED) of MWCNT3@Co3O4.
Molecules 28 03177 g002
Molecules 28 03177 g003 550

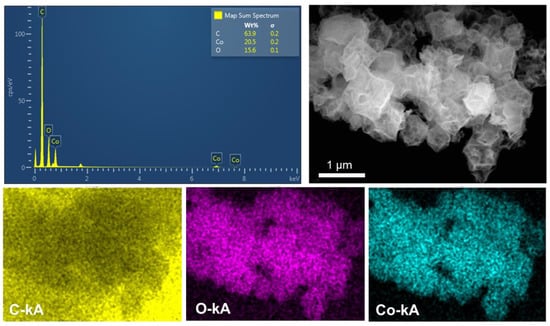

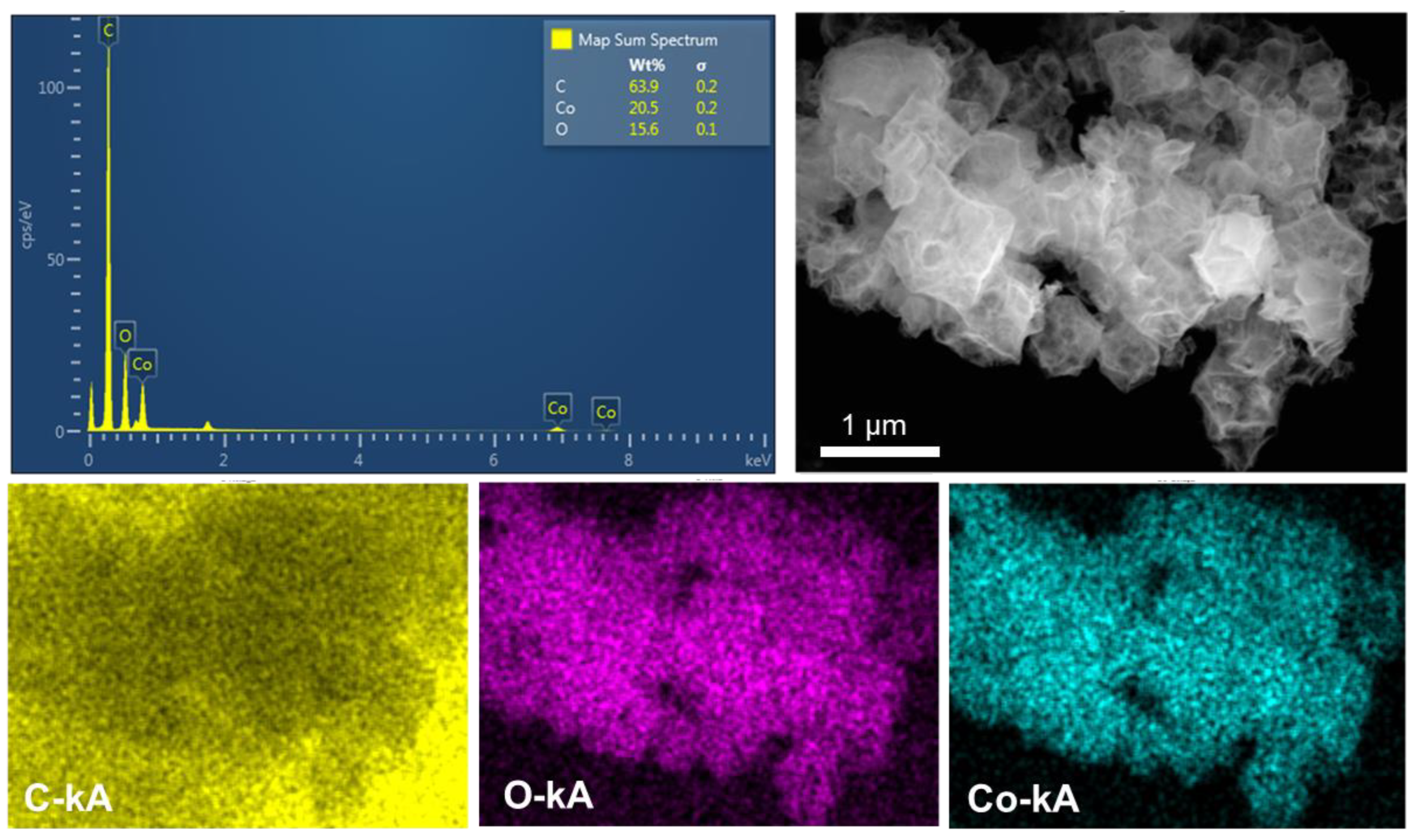

Figure 3. EDS analysis graph of MWCNT3@Co3O4.
Figure 3. EDS analysis graph of MWCNT3@Co3O4.
Molecules 28 03177 g003
Molecules 28 03177 g004 550

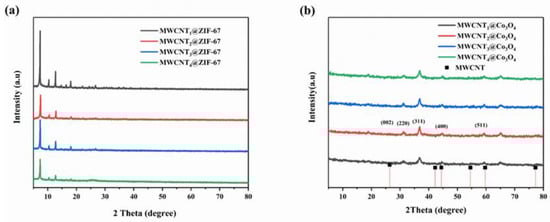

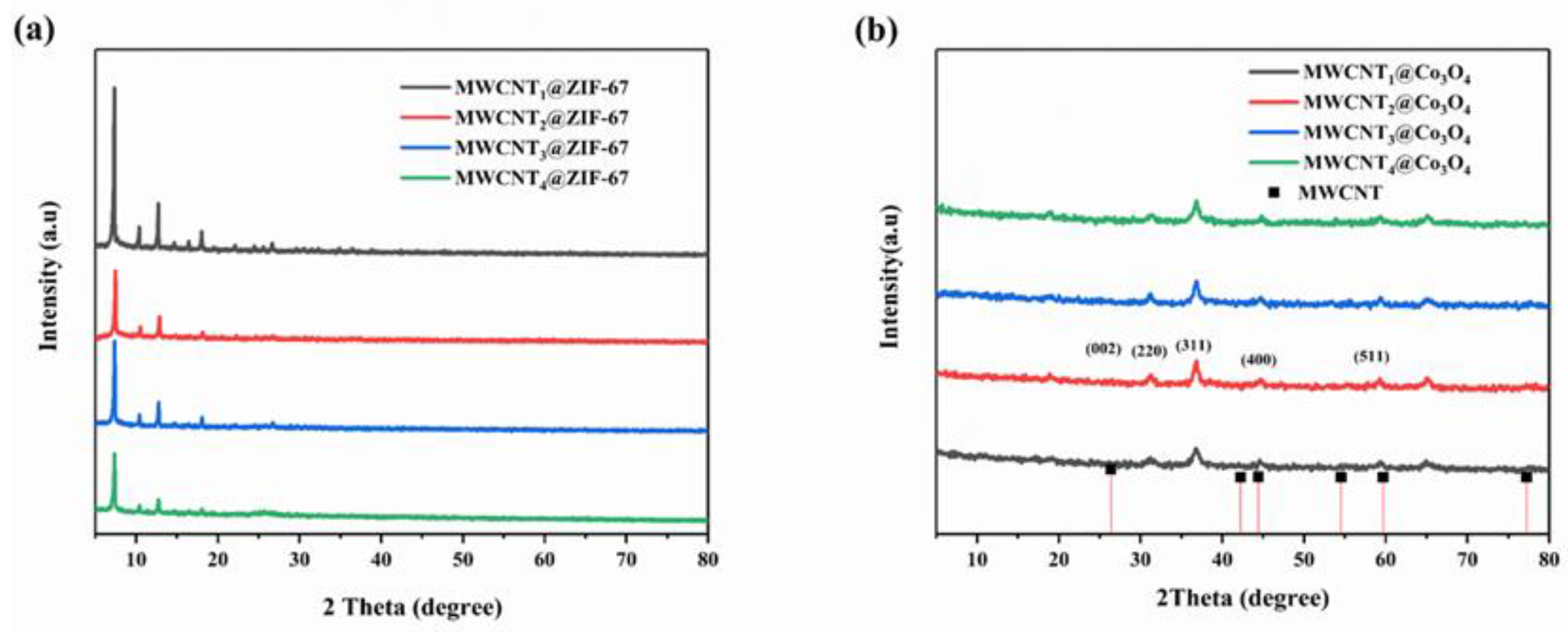

Figure 4. (a) XRD spectrum of MWCNTx@ZIF-67; (b) XRD spectrum of MWCNTx@Co3O4.
Figure 4. (a) XRD spectrum of MWCNTx@ZIF-67; (b) XRD spectrum of MWCNTx@Co3O4.
Molecules 28 03177 g004
Molecules 28 03177 g005 550

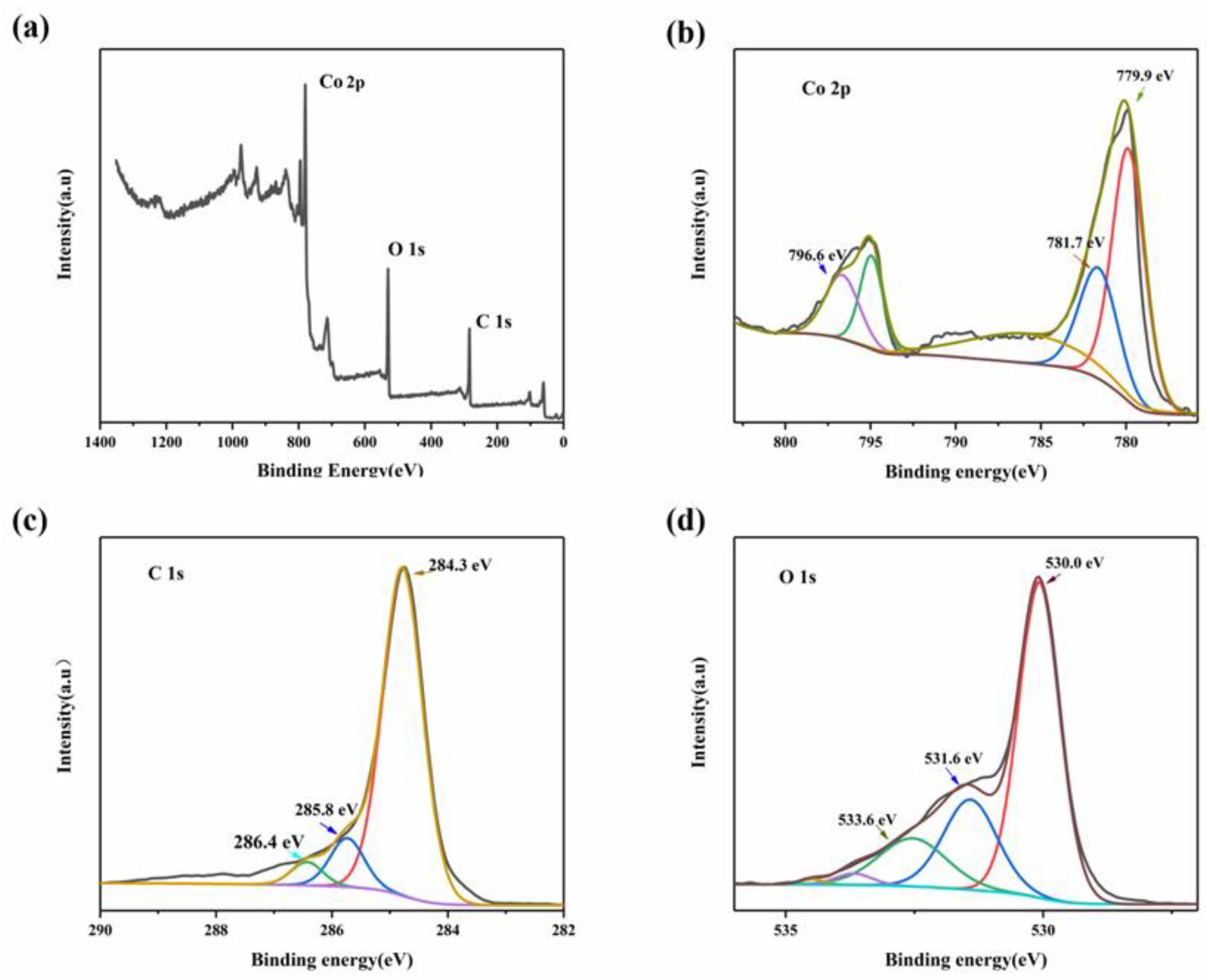

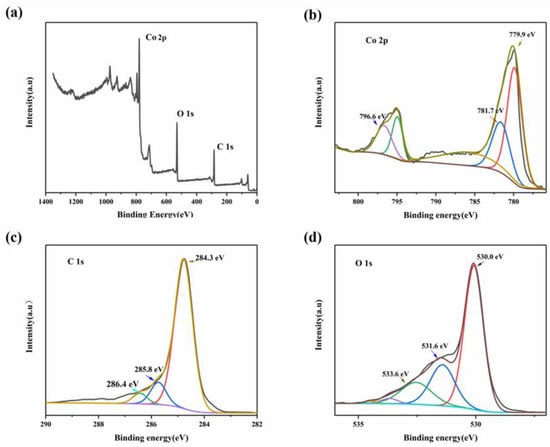

Figure 5. MWCNT3@Co3O4 (a) XPS full spectrum; (b) Co 2p; (c) C 1s and (d) O 1s XPS spectrum of fine spectrum.
Figure 5. MWCNT3@Co3O4 (a) XPS full spectrum; (b) Co 2p; (c) C 1s and (d) O 1s XPS spectrum of fine spectrum.
Molecules 28 03177 g005
Molecules 28 03177 g006 550

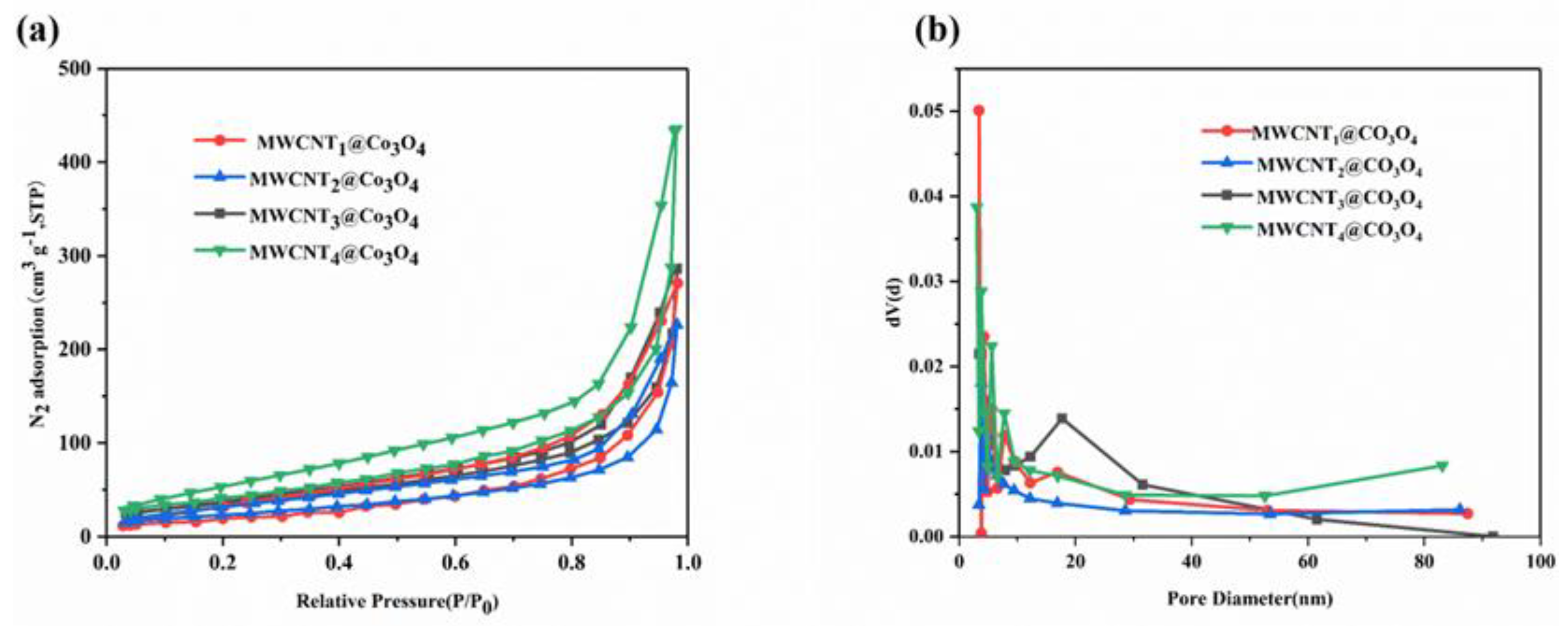

Figure 6. MWCNTx@Co3O4 composites (a) N2 adsorption desorption isotherm and (b) pore size distribution line.
Figure 6. MWCNTx@Co3O4 composites (a) N2 adsorption desorption isotherm and (b) pore size distribution line.
Molecules 28 03177 g006
Molecules 28 03177 g007 550

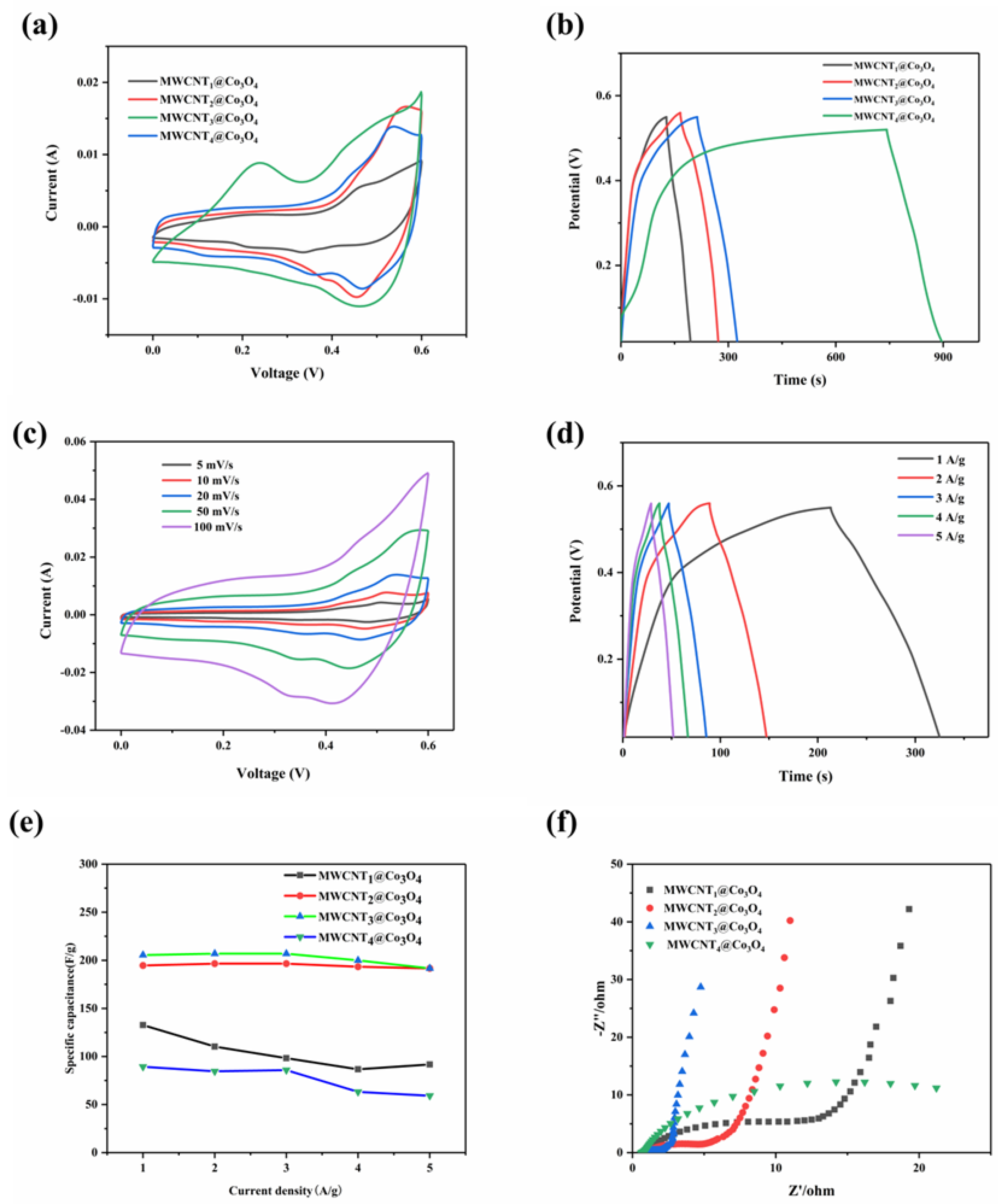

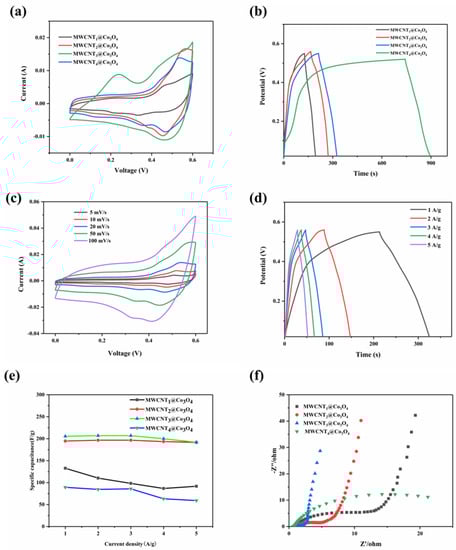

Figure 7. (a) CV curve of different mass ratios of MWCNT3@Co3O4 composites at 20 mV·s−1 sweep velocity; (b) GCD curve of the different mass ratios of MWCNT3@Co3O4 composites at 1A·g−1; (c) CV diagram of MWCNT3@Co3O4 composite at 20 mV·s−1 scanning speed; (d) GCD diagram of MWCNT3@Co3O4 composites at different current densities; (e) magnification performance diagram of the different mass ratios of MWCNT3@Co3O4 composites; (f) Nyquist diagram of the different mass ratios of MWCNT3@Co3O4 composites with an illustration of its local enlarged view.
Figure 7. (a) CV curve of different mass ratios of MWCNT3@Co3O4 composites at 20 mV·s−1 sweep velocity; (b) GCD curve of the different mass ratios of MWCNT3@Co3O4 composites at 1A·g−1; (c) CV diagram of MWCNT3@Co3O4 composite at 20 mV·s−1 scanning speed; (d) GCD diagram of MWCNT3@Co3O4 composites at different current densities; (e) magnification performance diagram of the different mass ratios of MWCNT3@Co3O4 composites; (f) Nyquist diagram of the different mass ratios of MWCNT3@Co3O4 composites with an illustration of its local enlarged view.
Molecules 28 03177 g007
Molecules 28 03177 g008 550

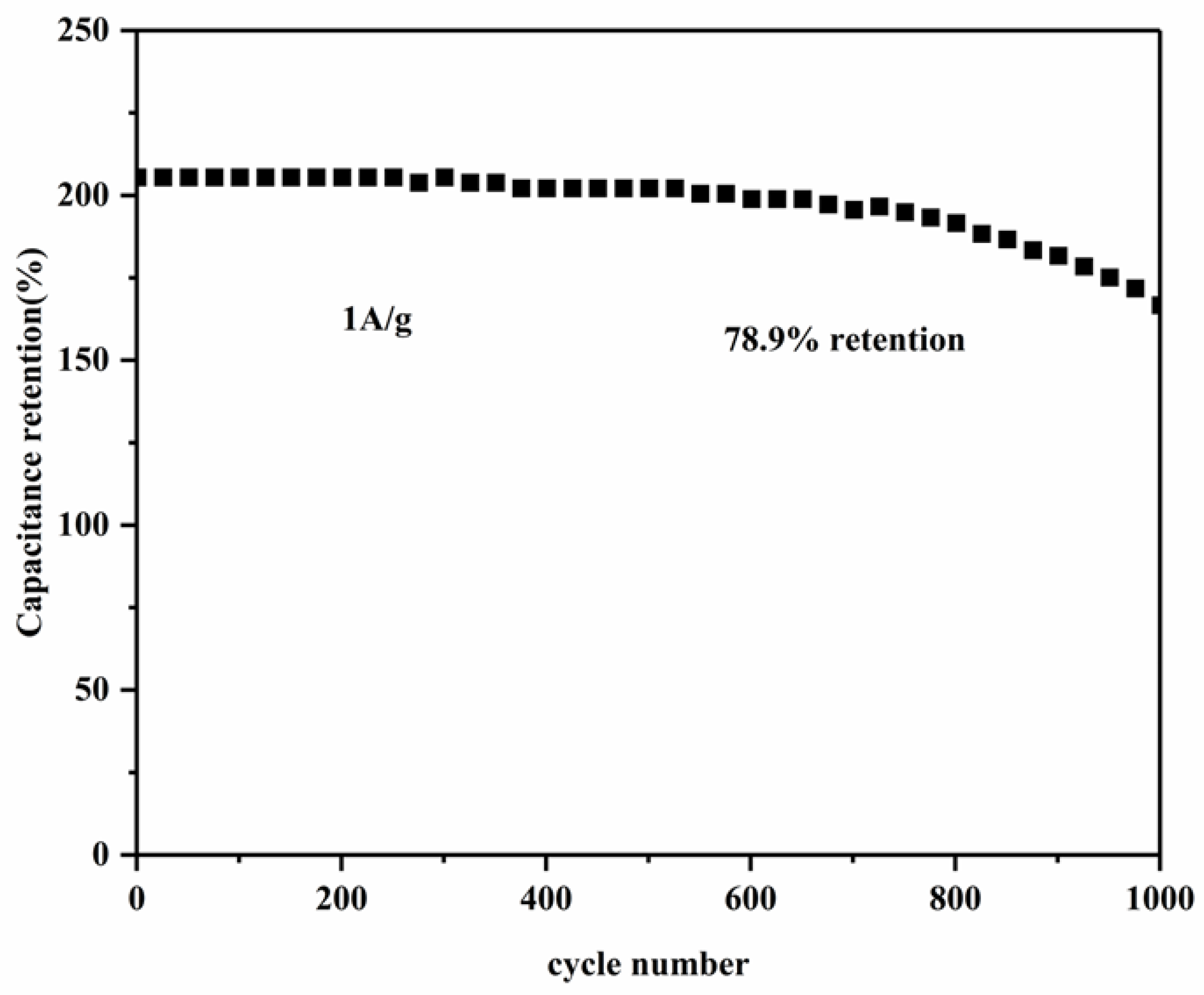

Figure 8. Cycles performance test of MWCNT3@Co3O4 at 1 A·g−1.
Figure 8. Cycles performance test of MWCNT3@Co3O4 at 1 A·g−1.
Molecules 28 03177 g008
Molecules 28 03177 g009 550

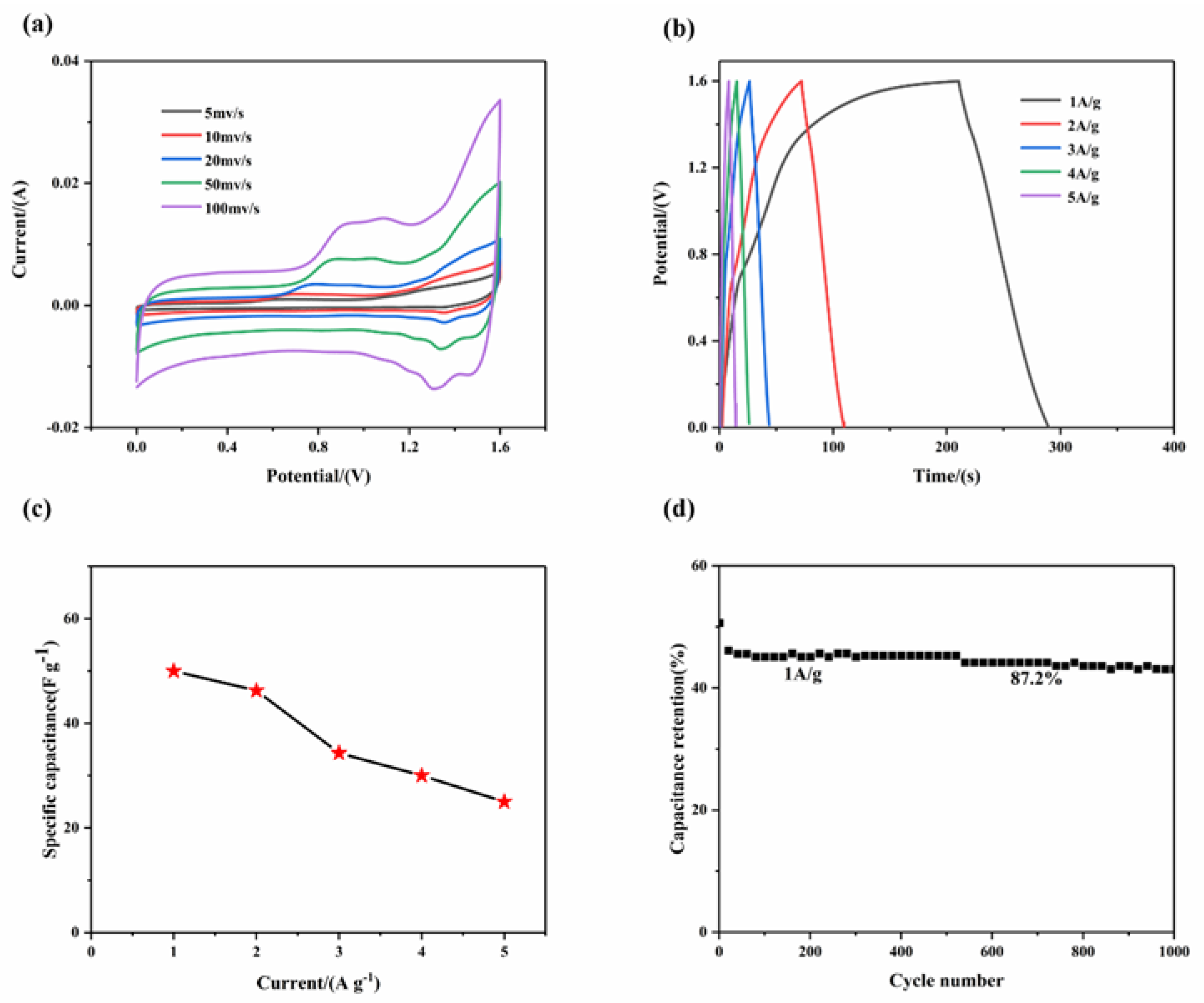

Figure 9. (a) Cyclic voltammetry curves at different sweep speeds; (b) charge–discharge curves under different current densities; (c) relation curve between current density and specific capacitance; (d) diagram of 1000 cycles under current density of MWCNT3@Co3O4//AC asymmetric supercapacitor (1 A·g−1).
Figure 9. (a) Cyclic voltammetry curves at different sweep speeds; (b) charge–discharge curves under different current densities; (c) relation curve between current density and specific capacitance; (d) diagram of 1000 cycles under current density of MWCNT3@Co3O4//AC asymmetric supercapacitor (1 A·g−1).
Molecules 28 03177 g009
Molecules 28 03177 g010 550

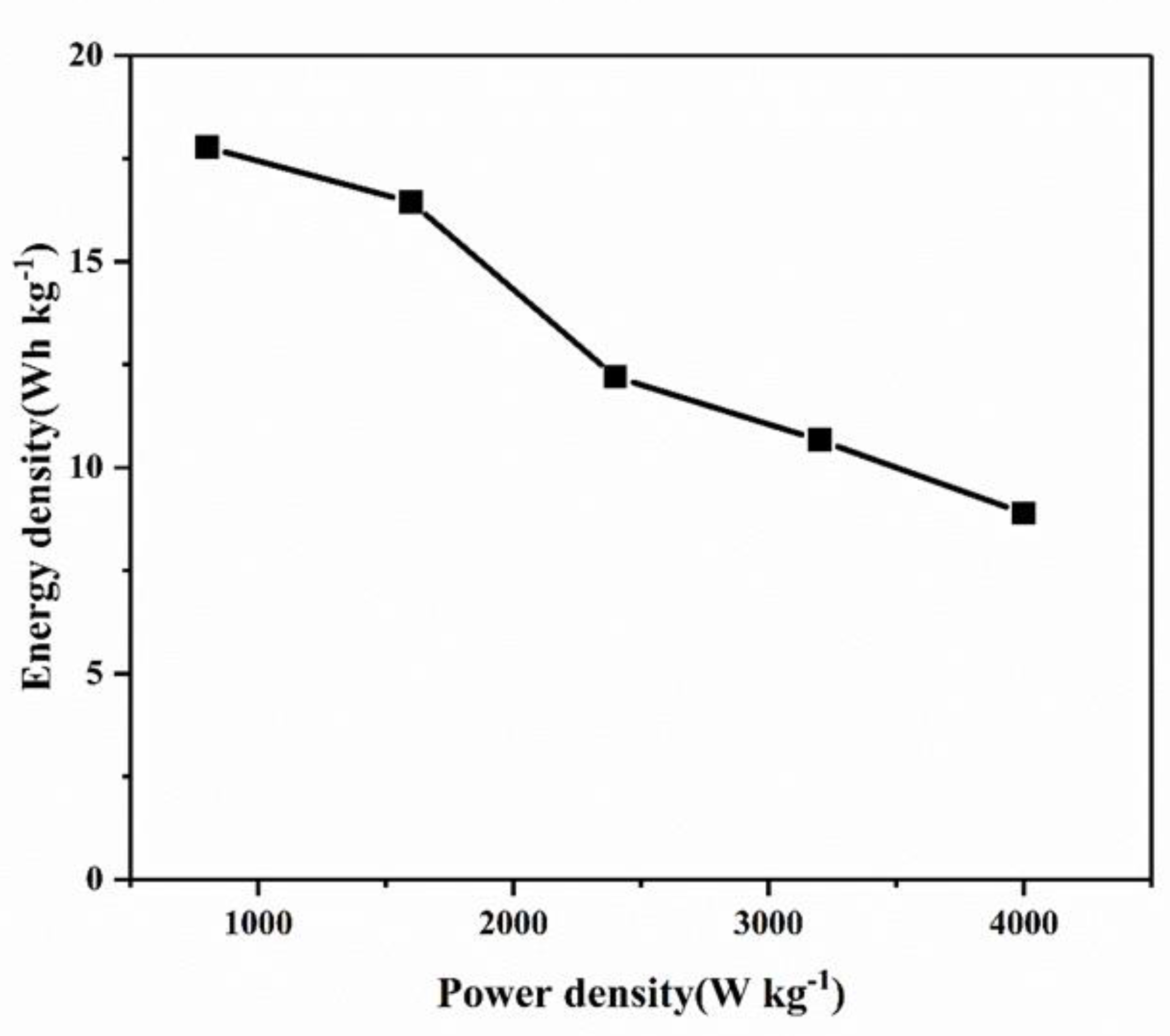

Figure 10. Ragone plots of the symmetrical supercapacitor.
Figure 10. Ragone plots of the symmetrical supercapacitor.
Molecules 28 03177 g010
Table
Table 1. Element content analysis of different compound ratios of MWCNT@Co3O4.
Table 1. Element content analysis of different compound ratios of MWCNT@Co3O4.
SampleElement Type and Content Wt%Total Elements
CCoO
MWCNT1@Co3O421.2350.6528.12100%
MWCNT2@Co3O426.0744.0429.90100%
MWCNT3@Co3O427.5045.2027.30100%
MWCNT4@Co3O428.5044.3227.18100%
Table
Table 2. The electrochemical performance of a summary of related Co3O4 materials.
Table 2. The electrochemical performance of a summary of related Co3O4 materials.
Co3O4 MaterialsSpecific Capacitance (F·g−1)Power Density (W·kg−1)Energy Density (Wh·kg−1)Ref.
rGO-Co3O4472 F·g−1 (2 mV·s−1)39.08.3[44]
Nanostructured Co3O4162 F·g−1 (2.75 A·g−1)--------[45]
Co3O4 nanotubes574 F·g−1 (0.1 A·g−1)--------[46]
Co3O4/graphene362.6 F·g−1 (0.72 A·g−1)--------[47]
Mn0.05Co2.95O480.8 F·g−1 (1 A·g−1)--------[48]
Co3O4/rGO/NF311 F·g−1 (1 A·g−1)1240[49]
MWCNT3@Co3O4206.89 F·g−1 (1 A·g−1)80017.78This work
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yang, C.; Li, W.; Liu, X.; Song, X.; Li, H.; Tan, L. Preparation of MoFs-Derived Cobalt Oxide/Carbon Nanotubes Composites for High-Performance Asymmetric Supercapacitor. Molecules 2023, 28, 3177. https://doi.org/10.3390/molecules28073177

AMA Style

Yang C, Li W, Liu X, Song X, Li H, Tan L. Preparation of MoFs-Derived Cobalt Oxide/Carbon Nanotubes Composites for High-Performance Asymmetric Supercapacitor. Molecules. 2023; 28(7):3177. https://doi.org/10.3390/molecules28073177

Chicago/Turabian Style

Yang, Caiqin, Weiwei Li, Xiaowei Liu, Xiumei Song, Hongpeng Li, and Lichao Tan. 2023. "Preparation of MoFs-Derived Cobalt Oxide/Carbon Nanotubes Composites for High-Performance Asymmetric Supercapacitor" Molecules 28, no. 7: 3177. https://doi.org/10.3390/molecules28073177

Article Metrics

Back to TopTop
