Carotamine, a Unique Aromatic Amide from Daucus Carota L. Var Biossieri (Apiaceae)

Abstract

The unique aromatic peptide 4-(p-aminobenzoylamino)-2-aminobenzoic acid, carotamine, together with 2,4-diaminobenzoic acid, isolated for the first time from a plant source, were identified from the aqueous alcoholic extract of the aerial parts of Daucus carota L. var. boissieri (Apiaceae). The structures were determined through conventional methods of analysis and confirmed by LC-ESI/MS and NMR spectral analysis.

Introduction

Daucus L. (Apiaceae) [1] includes about 60 species distributed mostly in Europe, Africa, West Asia and few ones in North America and Australia [2]. In Egypt, the genus Daucus L. is represented by 6 wild species [1] among which the two varieties Daucus carota boissieri [3] and Daucus carota sativus [4] are widely cultivated for their fleshy edible roots (Bailey, 1960). Daucus carota has been reported to contain several constituents such as flavonoids [6,7], essential oils [8,9], polyacetylenes [10,11] and phenylpropanoids [12]. Daucus carota is well known in the Egyptian folk medicine as a stimulant, carminative and diuretic [13]. The decoction of carrot is used for infantile diarrhoea and as an antihelmentic [14]. The fruit essential oil has been proven to be hypotensive, cardiac and CNS depressant [15], antibacterial [16], antibilharzial [17], and fungicidal [18]. Carrots also showed a significant protective activity in the alleviation of chloroform-induced hepatocellular injury in the mouse [19].

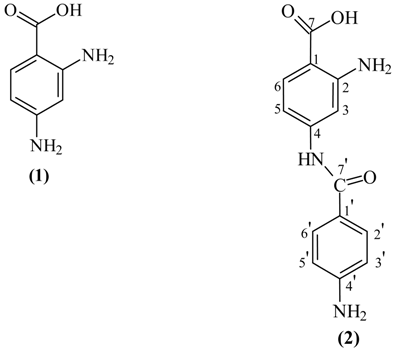

The present study reports on the isolation and identification of 2,4-diaminobenzoic acid (1) and the unique aromatic peptide, 4-(p-aminobenzoylamino)-2-aminobenzoic acid (2) or carotamine, which is the first aromatic peptide reported to occur in nature. Extensive EI and LC-ESI/MS techniques were applied together with ¹H- and ¹³C-NMR spectral analysis to verify the full structure of both compounds.

Results and discussion

The aqueous alcoholic extract of the ground meal of the aerial Daucus carota parts, dried under vacuum, was defatted through exhaustive extraction with CHCl₃. The residue left after CHCl₃ extraction was shown by two-dimensional chromatography to contain a mixture of polar compounds (high R_f values in aqueous solvents and low R_f values in organic solvent) mainly of phenolic nature (positive FeCl₃ test). The chromatograms also revealed the presence of two non-polar compounds that under UV light appeared as canary yellow (compound 1) and dark purple (compound 2) spots, respectively. A combination of column chromatography on Sephadex LH-20, using water saturated butanol as an eluent and preparative paper chromatography using 6% acetic acid as solvent afforded two pure samples of compounds 1 and 2.

Compound 1 was isolated as an amorphous white powder with LC/UV absorption maxima at 227, 274 and 312 nm. The IR spectral analysis revealed two intense absorption bands at ν_max 3449.9 and 1661.7 cm^–1, consistent with amino and hydroxyl groups and a carbonyl group, respectively. The EI/MS gave a molecular ion at m/z 152. In LC-ESI-ve/MS (see Experimental) compound 1 exhibited a R_t of 3.48 min. and a molecular ion at m/z 151, corresponding to a molecular weight of 152. Under Collision Induced Dissociation (CID) conditions fragment ions at m/z 135, 108 and 91 have been observed and are attributed to the [M-NH3]^-, [M-COO]^- and [M-(NH₂+COO)]^- ions, respectively. The above given data suggest a diaminobenzoic acid structure for compound 1. To resolve any ambiguity about the structure of 1, ¹H and ¹³C-NMR spectral analysis were then undertaken. The ¹H-NMR spectrum (DMSO-d₆, room temperature) revealed, in the aromatic region, the presence of a resonance pattern at δ 6.3 (d, J=2 Hz), 6.4 (dd, J=2 Hz & J=7.5 Hz) and 7.8 (d, J=7.5 Hz) ppm, typical of a 1,2,4-trisubstituted benzene [20], and assigned to H-3, H-5 and H-6 in the proposed 2,4-diaminobenzoic acid structure of (1). The spectrum also revealed a downfield resonance appearing as a sharp singlet at δ 12.7 ppm attributable to a hydrogen bonded proton (between the carbonyl carboxyl group at position 1 and the o-amino group at position 2, thus confirming the structure of (1) as 2,4-diaminobenzoic acid. Further confirmation of the structure was obtained through ¹³C-NMR analysis. The recorded spectrum showed seven distinct aromatic carbon resonances among which the most downfield resonance at δ 168.0 ppm was assigned to the carboxyl carbon resonance while the most upfield resonance at δ 100.1 ppm was assigned to the quaternary C-1 carbon. Assignment of the remaining carbon resonances was aided by calculating the expected chemical shifts deduced by applying the additive substituent rules to the reported chemical shifts of anthranilic acid [21]. Consequently, the carbons that bear the amino groups, C-2 and C-4, were found resonating at δ 148.9 and 152.6 ppm, respectively. The protonated carbons C-3, C-5 and C-6 gave three signals at δ 103.2, 108.5 and 134.1 ppm, respectively, which all agree well with the 2,4-diaminobenzoic acid structure proposed for 1. It should be mentioned that this is the second reported natural occurrence of this compound, which has been characterised once before as a metabolite of Streptomyces flocculus [22].

Compound 2 was isolated as an amorphous yellow powder which exhibited in its LC/UV spectrum two fused absorption maxima at 363.8 and 336 nm as well as two shoulders at 237 and 302 nm. IR spectral analysis of 2 afforded a spectrum which revealed three absorption bands at ν_max 3445.7, 1659.9 and 1640.5 cm^–1, consistent with amino and hydroxyl groups, a carboxyl carbonyl group and an amide carbonyl group, respectively. Standard alkaline hydrolysis (5% aqueous KOH, 100°C, ½ hour) of compound 2 yielded 2,4-diaminobenzoic acid (1) and p-aminobenzoic acid (CoPC). The EI/MS of 2 showed a molecular ion at m/z 271 and a base peak at 270, thus suggesting that the molecule of 2 is formed by two amino acids joined by an amide linkage (also detected by alkaline hydrolysis). In this spectrum the base peak at m/z 270 is therefore due to the loss of a carboxylic hydrogen or allylic proton from the amide bridge. The LC-ESI-ve/MS of 2 exhibited a R_t of 5.2 min. (see Experimental) and a molecular ion at m/z 270 corresponding to a molecular weight of 271. Under CID conditions the spectrum showed fragment ions at m/z 135, 120, 91 attributable to [aminobenzoic acid]^-, [amino-benzoic acid-OH]^- and [M-(NH₂+COO)]^-, respectively. The spectrum also showed a significant fragment ion at m/z 254 assignable to [M-NH₃]^- which also confirms that compound 2 is composed of 2,4-diaminobenzoic acid and monoaminobenzoic moieties linked through an amide bond. The results of ¹H-NMR spectral analysis of 2 lent further support to its suggested structure. The spectrum (DMSO-d₆, room temperature) showed distinct five proton resonances in the aromatic region at δ 6.4 (d, J = 2.5 Hz), 6.5 (dd, J = 2.5 and 7.5 Hz) and 7.8 (d, J = 7.5 Hz) ppm, respectively, corresponding to the 2,4-diaminobenzoic acid and at 7.1 (d, J = 7.5 Hz) and 8.2 (d, J = 7.5 Hz) ppm, assignable to H-3’, H-5’ and to H-2’, H-6’ in the symmetrical p-aminobenzoyl moiety. More interesting is the presence in this spectrum of a highly downfield sharp singlet resonance at 12.7 ppm, attributable to a hydrogen bonded proton. This reflected the presence of an unsubstituted COOH group at position 1 (see below) as well as the presence of a free vicinal amino group at position 2, responsible for the formation of the recognized hydrogen bond. Consequently, the structure of 2 is proven to be 4-(p-aminobenzoylamino)-2-aminobenzoic acid. Further support of this structure was then achieved through ¹³C-NMR spectral analysis (DMSO-d₆, room temperature) whereby the two most downfield resonances in the spectrum at δ 168.2 and 164.6 ppm are obviously due to the free carboxyl carbonyl carbon (C-7) and to the amide carbonyl carbon (C-7’). The most two intense resonances at δ 115.0 and 131.3 ppm are attributable to the C-3’, C-5’ and C-2’, C-6’ in the symmetrical p-aminobenzoyl moiety of 2. Aromatic carbons bearing nitrogen functions (C-2, C-4 and C-4’) appeared at δ 148.3, 154.4 and 153.1 ppm, respectively. The other carbon resonances in this spectrum exhibited chemical shift values which agreed well with the proposed structure of 2 as 4-(p-aminobenzoylamino)-2-aminobenzoic acid, a new natural product.

Experimental

General

LC/MS analyses were performed by reversed-phase HPLC on a Purosphere STAR RP-18 endcapped column (55x2 mm, 3µm, Merck, Darmstadt) using a Waters HPLC system, consisting of a Waters 2690 “Alliance” separation module coupled to a Waters 996 scanning UV detector. Flow injection analysis was performed by injecting 10µ of the extract into a solvent stream of methanol/water (1:1 by volume). Solvent A was 100% acetonitrile (HPLC grade, Merck); solvent B was water. Elution was performed at room temperature and at flow rate of 0.8 mL/min. The gradient program started at 5% A with an isocratic hold for 3 min, followed by a fast linear increase to 95% A at 4 min. The solvent composition was held for 1 min to flush the column, then changed back to initial conditions over 1 min and equilibrated for 4 min before the next sample injection; a shorter equilibration time lead to a shift in retention times. The total run time was 10 min. The eluent of the HPLC was split at a 1:4 ratio using an AcuRate ^TM flow splitter (LC Packings, via Omnilab, Mettmenstetten, CH) so that approximately 200 µ/min entered the electrospray ion source of the mass spectrometer. The mass spectrometer used in this study was a Micromass Quattro-LC triple quadrupole mass spectrometer equipped with a “Z-Spray” electrospray ion source. The electrospray capillary voltage was set to 3.0 kV, the source block temperature to 120°C. The cone gas was operated at 60 I/h, desolvation gas at 520 I/h and the desolvation temperature to 150°C. Spectra were acquired in profile mode alternating with 35 and 70 V cone voltage and scanning over the range m/z 50 to 1500 per second. Data acquisition was performed using Micromass’software package MassLynx 3.4. ¹H- and ¹³C-NMR spectra were obtained on a Bruker AMX 400 spectrometer. ¹H spectra were measured relative to TMS and ¹³C spectra were measured at 100 MHz, relative to DMSO-d₆ and converted to the TMS scale by adding 77 ppm. Paper chromatography (PC) was carried out on Whatman No. 1 paper, using either (1) H₂O; (2) 6% HOAc or (3) BAW (n-BuOH-HOAc-H₂O, 4:1:5, top layer) as eluents; solvent 2 was used for preparative PC (PPC) on Whatman No. 3 mm paper.

Plant material, isolation and identification

Fresh aerial parts of Daucus carota L. var boissieri, were collected from Orman Botanical garden, Cairo, Egypt, during March 2000 and authenticated by Prof. Dr. Nabil El-Hadidi, Department of Botany, Faculty of Science, Cairo University, Egypt. A voucher specimen has been deposited in the Herbarium of the Faculty of Pharmacy, Ain-Shams University, Cairo, Egypt. One kg of aerial parts of Daucus carota, dried in the shade in an air-draft, were comminuted to powder and exhaustively extracted with EtOH-H₂O (3:1). The aqueous alcoholic extract was dried in vacuum, and completely defatted with CHCl₃. The residue left, 10 g, was dissolved in methanol and subjected to column chromatography (CC) on Sephadex LH-20 using n- BuOH saturated with H₂O for elution to yield 10 major fractions (I-X). Compound (1) (15 mg) was isolated from fraction IV by repeated PPC using 6% HOAc as a solvent. Compound (2) (20 mg) was obtained from fraction X by PPC using 6% HOAc as a solvent followed by Sephadex LH-20 CC using MeOH for elution.

2,4-Diaminobenzoic acid (1).

R_f-values: 0.55 (H₂O), 0.60 (HOAc), 0.45 (BAW); LC/UV λ_max (nm): 227, 274 and 312; IR ν_max cm^-1: 3449.9, 1661.7; M_r 152, -ve ESI/MS [M-H]^-: 151; ¹H-NMR: δ ppm 6.3 (d, J = 2.5 Hz, H-3), 6.4 (dd, J = 7.5 Hz and J = 2.5 Hz, H-5), 7.8 (d, J = 7.5 Hz, H-6); ¹³C-NMR: δ ppm 100.1 (C-1), 148.9 (C-2), 103.2 (C-3), 152.6 (C-4), 108.5 (C-5), 134.1 (C-6), 168.0 (C-7).

4-(p-Aminobenzoylamino)-2-aminobenzoic acid (2).

R_f-values: 0.20 (H₂O), 0.25 (HOAc), 0.85 (BAW); LC/UV λ_max (nm): 363.8, 336, 237_shoulder, 302_shoulder; IR ν_max cm^-1: 3445.7, 1659.9, 1640.5; M_r 271, -ve ESI/MS [M-H]^-: 270; ¹H-NMR: δ ppm 6.4 (d, J = 2.5 Hz, H-3), 6.5 (dd, J = 7.5 and 2.5 Hz, H-5), 7.1 (d, J = 7.5, H-3’ & H-5’), 7.8 (d, J = 7.5 Hz, H-6), 8.2 (d, J = 7.5, H-2’& H-6’); ¹³C-NMR: δ ppm 100.5 (C-1), 148.3 (C-2), 103.5 (C-3), 154.4 (C-4), 108.5 (C-5), 133.1 (C-6), 168.2 (C-7), 118.8 (C-1’), 131.3 (C-2’), 115.0 (C-3’), 153.1 (C-4’), 115.0 (C-5’), 131.3 (C-6’), 164.6 (C-7’).
