1-Hydroxymethyl-4-phenylsulfonybutadiene, a Versatile Building Block for the Synthesis of 2,3,4-Trisusbtituted Tetrahydrothiophenes
Dpto. de Química Orgánica, Universidad de Salamanca. Plaza de los Caídos 1–5, 37008 Salamanca, Spain
*
Author to whom correspondence should be addressed.
Molecules 2004, 9(5), 323-329; https://doi.org/10.3390/90500323
Submission received: 24 February 2004
/
Revised: 4 March 2004
/
Accepted: 10 March 2004
/
Published: 30 April 2004
(This article belongs to the Special Issue Carbanion chemistry from Carboxylic acids in honor of Prof. Ramón Mestres on his 65th anniversary)
Abstract
:A method to synthesize chiral 2,3,4-trisusbtituted tetrahydrothiophenes in both enantiomerically pure forms starting from 1-hydroxymethyl-4-phenylsulfonylbutadiene is described.
Introduction
Five-membered oxa-, aza- and thia- ring systems are widely distributed in nature and have attracted the interest of the scientific community, particularly in conjunction with the total synthesis of polyether natural products [1], pyrrolidines with glycosidase inhibitor activity [2], and 5-thiosugars as therapeutic agents. This interest is also due to the use of such molecules for understanding the recognition processes of sugar-binding proteins [3]. Our group is involved in a program seeking to exploit the reactivity of 1-hydroxymethyl-4-sulfonylbutadiene for the synthesis of highly functionalized oxygen, nitrogen and sulfur five-membered heterocycles [4]. Chemo- and enantioselective epoxidation of 1‑hydroxymethyl-4-sulfonylbutadiene (1), under Sharpless conditions [5] gives rise to epoxide 2. In a recent paper we reported the ability of several protecting groups to provide excellent control of the opening of 2 [6]. In this way, tosylate 3 and acetate 4 could easily be obtained, starting from the same chiral epoxide 2. Tosylate 3 has been further transformed into pyrrolidine 5, which possesses glycosidase inhibitory activity, and its oxygen analogue 6 (Scheme 1).

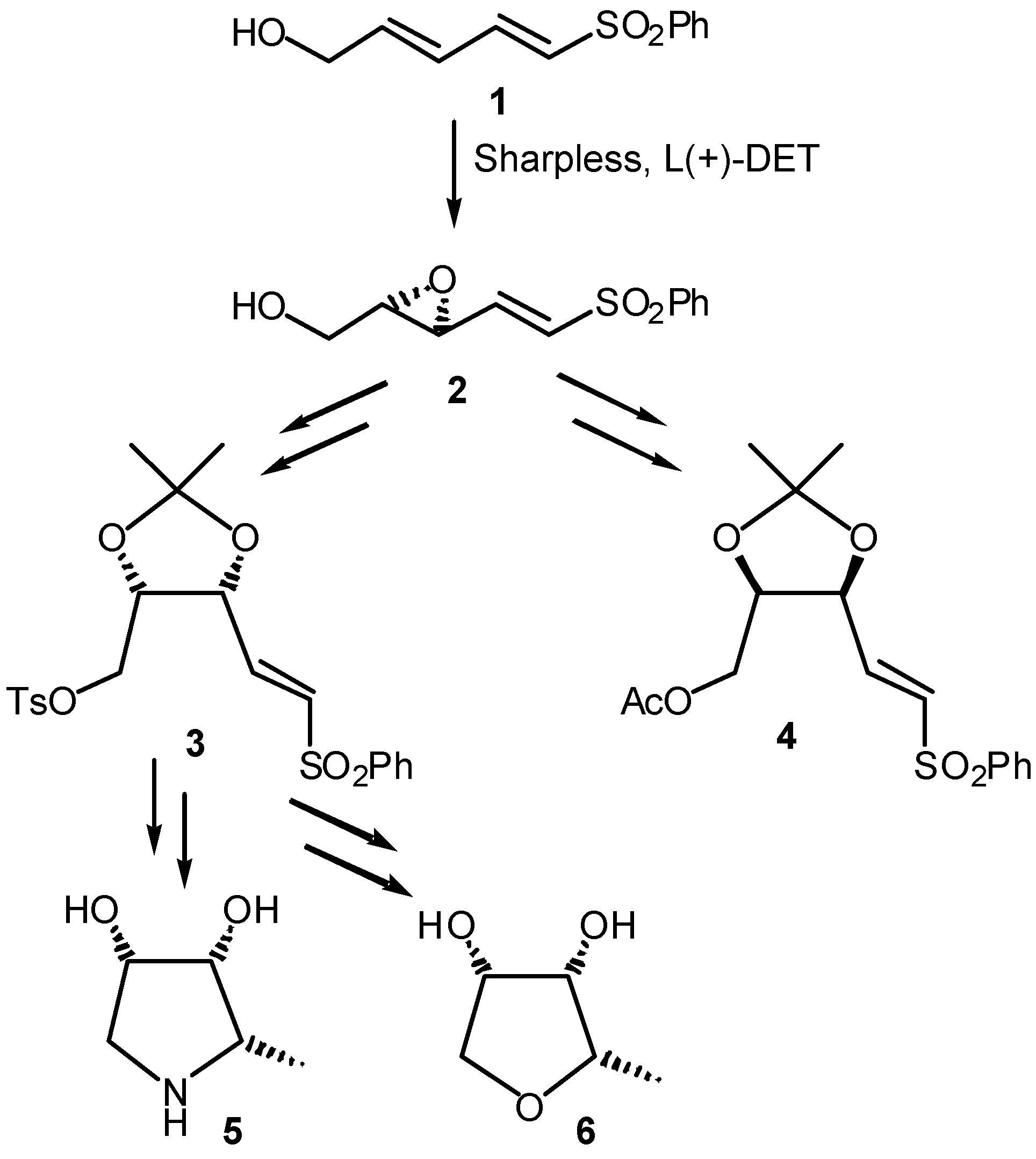

Scheme 1.
Results and Discussion
The easy synthesis on a multigram scale of compounds 3 and 4 prompted us to use them for the synthesis of the sulfur analogs, which interested us due to their biological activities. The most common procedure for the synthesis of thiosugars, is based on the introduction of a thiol group by a double nucleophilic replacement of sulfonyloxy groups in the required positions. Other polyhydroxylated chiral thiolanes have been obtained by introduction the thiol group by conjugate addition, followed by internal displacement of a sulfonyloxy group [7]. This tandem reaction has been used by us in the synthesis of pyrrolidines such as 5 [4]. In order to apply the same methodology for the synthesis of tetrahydrothiophenes, we decided to react 3 with sodium sulfide under the usual conditions, thus obtaining the tetrahydrothiophene 7 in low yield (8%). The stereochemistry of 7 was established by NMR studies. In light of this result we decided to transform the tosylate into iodide 8 under the usual conditions [8] (75% yield) and then allow this compound to react with thiourea [9]. Hydrolysis of the resulting thiouronium salt gave a 6:4 epimeric mixture of cis:trans tetrahydrothiophenes 9 in good yield (81%) (Scheme 2).

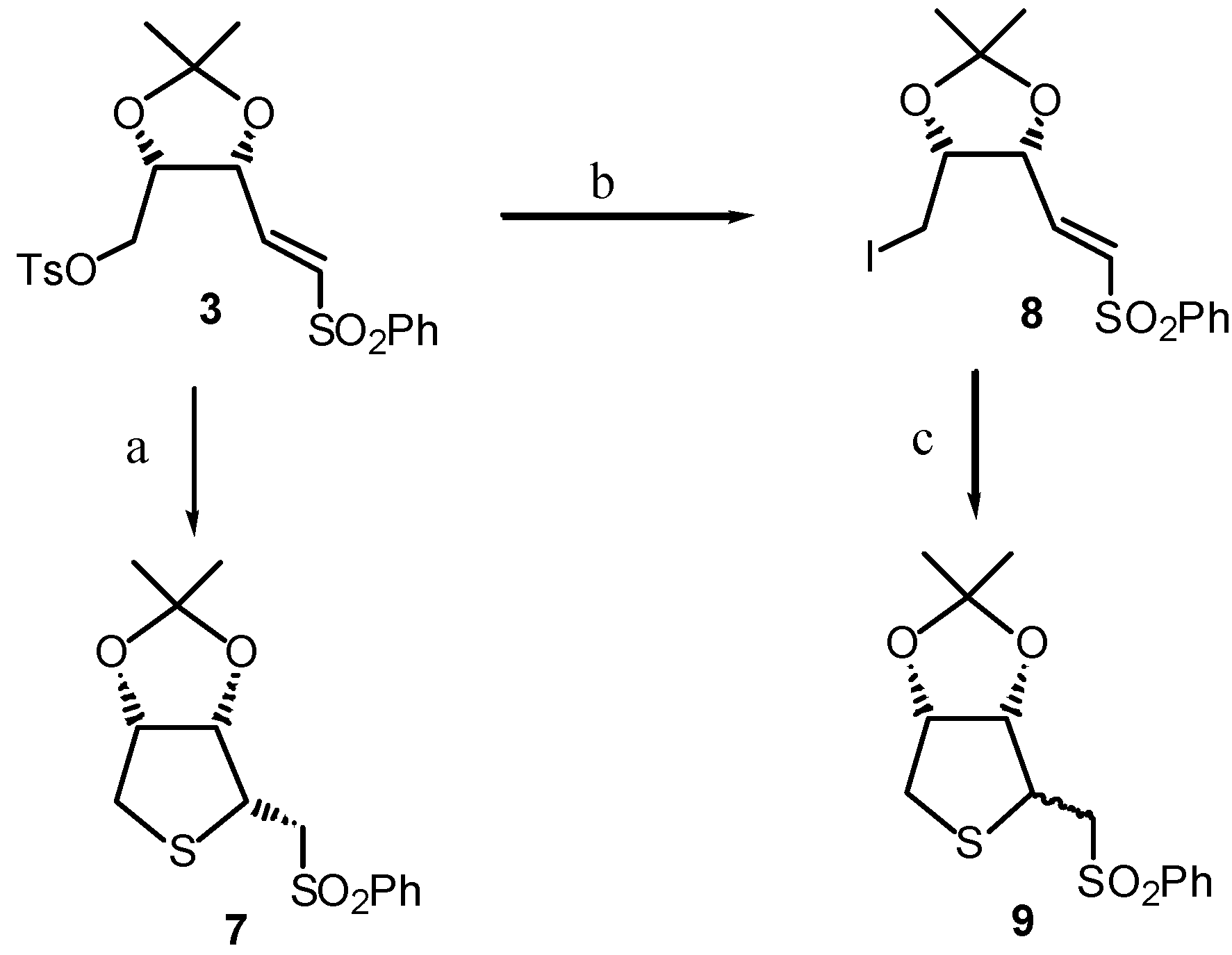

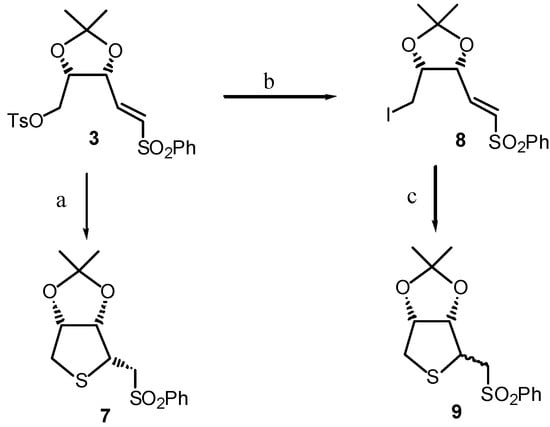

Scheme 2.
a) Na2S, MeOH, 65°C; b) NaI, acetone, 80°C;
c) (H2N)2CS, MeOH, 65°C, then KOH
In order to obtain the enantiomer, starting from the same epoxide 2, and to simultaneously test the use of bromide as a leaving group, the acetoxy derivative 4 (obtained from 2 as described previously [6]) was reduced with DIBAL to the alcohol 10 in 89% yield and then transformed into the bromo derivative 11 (70%). This compound was submitted to the same conditions as before, providing the enantiomeric epimeric mixture 12, in this case in a 79% yield (Scheme 3).

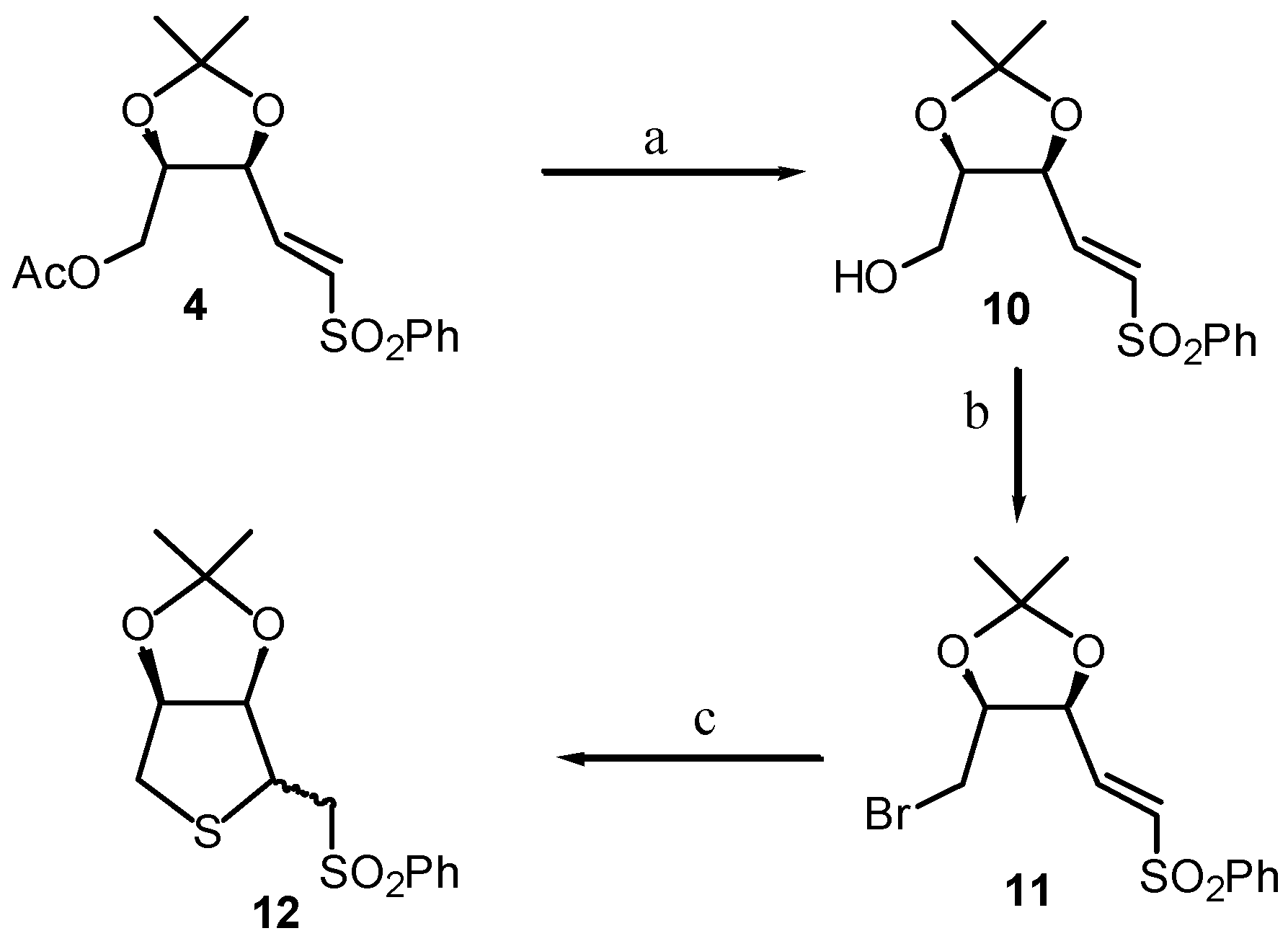

Scheme 3.
a) DIBAL, DCM, -78°C; b) CBr4, Ph3P, DCM, 50°C;
c) (H2N)2CS, MeOH, 65°C, then KOH.
Conclusions
This methodology opens a new way for obtaining chiral 2,3,4-trisubstituted-tetrahydrothiophenes that could easily be transformed into sugar analogues or biotin derivatives.
Acknowledgments
The authors thank the CICYT (BQU2001-1034) and Junta de Castilla y León (SA13-00B) for financial support and the Spanish Ministerio de Educación y Ciencia for a doctoral fellowship to M.T.B.
Experimental
General
Unless otherwise stated, all chemicals were purchased as the highest purity commercially available and were used without further purification. Melting points were determined with a Kofler hot stage melting point apparatus and are uncorrected. IR spectra were recorded on a BOMEM 100 FT IR spectrophotometer. 1H- and 13C-NMR spectra were recorded in deuterochloroform and are referenced to the residual peak of CHCl3 at δ 7.26 ppm and δ 77.0 ppm, respectively, for 1H- and 13C-, on a Bruker WP-200 SY or a BRUKER DRX 400 MHz spectrometer. Chemical shifts are reported in ppm on the δ scale and coupling constants (J) are given in Hz. Mass spectra were performed in a VG-TS 250 spectrometer at a 70 eV ionizing voltage. Results are presented as m/z (% rel. int.). HRMS were recorded in a VG Platform spectrometer using Electronic Impact (EI) or Fast Atom Bombardment (FAB) techniques. Optical rotations were determined in a Perkin-Elmer 241 polarimeter in 1 dm cells. Diethyl ether, THF and benzene were distilled from sodium, and pyridine and dichloromethane (DCM) were distilled under argon from CaH2.
(2R,3S,4S)-2-Benzenesulfonylmethyl-3,4-isopropylidendioxytetrahydrotiophene (7).
To a solution of 3 (38 mg, 0.08 mmol) in MeOH (1 mL) was added dry Na2S (13 mg, 0.16 mmol). The mixture was refluxed for 8 h under an argon atmosphere and then the solvent was evaporated. The crude product was dissolved in water (2 mL) and extracted with AcOEt. The combined organic extracts were washed with water and brine. After drying and concentration the residue was purified by chromatography (8:2 n-hexane-EtOAc) to give 7 (3 mg, 8%); [α]D20 = +16.5 (c= 0.30, CHCl3); 1H‑NMR (200 MHz): 7.97-7.42 (5H, m, Ar), 4.83 (1H, dt, J= 2.4 and 5.2 Hz, H-4), 4.69 (1H, dd, J= 4.0 and 5.2 Hz, H-3), 3.77 (1H, dd, J= 6.2 and 14.0 Hz, HA-1’), 3.55 (1H, dt, J= 4.0, and 6.2 Hz, H-2), 3.30 (1H, dd, J= 6.2 and 14.0 Hz, HB-1’), 2.86 (2H, d, J= 2.4 Hz, 2H-5), 1.44 (Me-acetonide), 1.25 (Me-acetonide); 13C-NMR (50.3 MHz): 139.4 (C-ipso), 134.2 (CH-para), 129.5 (2CH-meta), 128.4 (2CH-ortho), 111.3 (C-acetonide), 83.1 (CH-3), 83.0 (CH-4), 55.5 (CH2-1’), 46.1 (CH-2), 38.8 (CH2-5), 25.9 (Me-acetonide), 24.7 (Me-acetonide); IR νmax (film) ν (cm-1): 2986, 1447, 1373, 1308, 1209, 1148, 1049; EIMS, m/z (%): 314 (M+, 5), 299 (20), 172 (80), 115 (83), 77 (100); HRMS (EI) calcd. for C14H18O4S2: 314.0646, found: 314.0671.
(2R, 3R,4E)-5-Benzenesulfonyl-1-iodo-2,3-isopropylidenedioxypent-4-ene (8).
To a solution of 3 (80 mg, 0.18 mmol) in dry acetone (2.0 mL) was added NaI (81 mg, 0.54 mmol). The reaction mixture was refluxed overnight. The solvent was evaporated and the residue was dissolved in water (2mL) and extracted with EtOAc. The combined organic layers were washed with 10% aqueous Na2S2O3, 5% NaHCO3 and brine. The organic phase was dried over Na2SO4. Concentration followed by flash chromatography on silica gel (85:15 n-hexane-EtOAc) gave compound 8 (55 mg, 75 %); [α]D20 = +14.2 (c = 1.2, CHCl3); 1H-NMR (400 MHz) 7.94-7.52 (5H, m, ‑Ar), 6.99 (1H, dd, J = 4.4 and 15.0 Hz, H-4), 6.66 (1H, dd, J = 1.4 and 15.0 Hz, H-5), 4.85 (1H, m, H-3), 4.57 (1H, ddd, J = 6.6, 6.6, and 7.8 Hz, H-2), 3.10 (1H, dd, J = 6.6 and 10.2 Hz, HA-1), 2.90 (1H, dd, J = 7.8 and 10.2 Hz, HB-1), 1.47 (3H, s, Me-acetonide), 1.35 (3H, s, Me-acetonide); 13C-NMR (50.3 MHz) 140.1 (C-ipso), 139.6 (CH-4), 133.9 (CH-5), 133.4 (CH-para), 129.6 (2CH-meta), 128.1 (2CH-ortho), 110.2 (C-acetonide), 77.9 (CH-3), 76.1 (CH-2), 76.1 (CH2-1), 28.1 (Me-acetonide), 25.5 (Me-acetonide); IR (film) ν (cm-1) 1383, 1148, 1086, 1038, 880, 760; EIMS m/z (%) 408 (M+, 5), 238 (91), 125 (60), 97 (100), 77 (80); HRMS (EI) calcd. for C14H17O4SI: 407.9892, found 407.9921.
(2RS,3S,4R)-2-Benzenesulfonyl-3,4-isopropylidenedioxytetrahydrothiophene (9).
To a solution of 8 (55 mg, 0.13 mmol) in EtOH (1.3 mL) was added thiourea (15 mg, 0.19 mmol). After stirring at reflux temperature for 5 days the solvent was evaporated and the residue was dissolved in 0.5 mL of water and added to an aqueous solution of 1 M KOH (0.7 mL). The resulting mixture was refluxed for 14 h, then the mixture was cooled, neutralized with 3M H2SO4 and extracted with EtOAc. The combined organic extracts were washed with water and brine. After drying and concentration the residue was purified by chromatography (85:15 n-hexane-EtOAc) to give a mixture of cis/trans diastereoisomers 9 (33 mg, 81%) in a ratio of 6:4.
(2R,3S,4E)-5-Benzenesulfonyl-2,3-isopropylidenedioxypent-4-en-1-ol (10).
To a solution of 4 (48 mg, 0.14 mmol) in DCM (1.5 mL) was added 1.5 M DIBAL-H in toluene (0.2 mL, 0.28 mmol) at -78°C under an argon atmosphere. The mixture was stirred for 20 minutes, quenched carefully with water and warmed to room temperature. The reaction mixture was then diluted with 100 mL of Et2O and 2 M HCl (1.5 mL). After stirring for 1h the mixture was dried over Na2SO4. Filtration followed by concentration afforded 10 (37 mg, 89%); [α]D20 = -2.6 (c = 0.87, CHCl3); 1H‑NMR (200 MHz): 7.94-7.52 (5H, m, -Ar), 7.02 (1H, dd, J= 4.0 and 14.8 Hz, H-4), 6.68 (1H, dd, J= 1.8 and 14.8 Hz, H-5), 4.84 (1H, ddd, J= 1.8, 4.0 and 6.0 Hz, H-3), 4.40 (1H, dt, J= 5.8 and 6.0 Hz, H-2), 3.57 (2H, d, J= 5.8 Hz, 2H-1), 1.46 (3H, s, Me-acetonide), 1.36 (3H, s, Me-acetonide); 13C-NMR (50.3 MHz): 141.3 (CH-4), 140.2 (C-ipso), 133.8 (CH-5), 132.0 (CH-para), 129.6 (2CH-meta), 128.1 (2CH-ortho), 110.0 (C-acetonide), 78.1 (CH-3), 75.3 (CH-2), 61.6 (CH2-1), 27.7 (Me-acetonide), 25.2 (Me-acetonide); IR νmax (film) ν (cm-1): 3500 (wide), 2930, 1447, 1148, 1086.
(2R,3S,4E)- 5-Benzenesulfonyl-1-bromo-2,3-isopropylidenedioxypent-4-ene (11).
To a solution of 10 (37 mg, 0.12 mmol) in DCM (1.5 mL) was added PPh3 (31 mg, 0.12 mmol) and CBr4 (40 mg, 0.12 mmol). The mixture was heated at 50°C for 12 h under an argon atmosphere. The reaction mixture was then quenched with water and extracted with EtOAc. The combined organic extracts were washed with water and brine. After drying and concentration the residue was purified by chromatography (9:1 n-hexane-EtOAc) to give 11 (30 mg, 70%); [α]D20 = -4.6 (c= 0.82, CHCl3); 1H‑NMR (200 MHz): 7.94-7.52 (5H, m, -Ar), 7.06 (1H, dd, J= 4.4 and 15.0 Hz, H-4), 6.67 (1H, dd, J= 1.8 and 15.0 Hz, H-5), 4.88 (1H, ddd, J= 1.8, 4.4 and 6.2 Hz, H-3), 4.54 (1H, ddd, J= 5.4, 6.2 and 8.0 Hz, H-2), 3.30 (1H, dd, J= 5.4 and 10.2 Hz, HA-1), 3.10 (1H, dd, J= 8.0 and 10.2 Hz, HB-1), 1.47 (3H, s, Me-acetonide), 1.35 (3H, s, Me-acetonide); 13C-NMR (50.3 MHz): 140.1 (C-ipso), 139.4 (CH-4), 133.9 (CH-5), 133.1 (CH-para), 129.6 (2CH-meta), 128.1 (2CH-ortho), 110.3 (C-acetonide), 77.9 (CH-3), 75.9 (CH-2), 29.5 (CH2-1), 27.9 (Me-acetonide), 25.4 (Me-acetonide); IR νmax (film) ν (cm-1): 1750, 1319, 1148, 1086, 1047.
(2RS,3R,4S)-2-Benzenesulfonyl-3,4-isopropylidenedioxy-tetrahydrothiophene (12).
To a solution of 11 (30 mg, 0.08 mmol) in EtOH (1 mL) was added thiourea (9 mg, 0.12 mmol). Following an identical procedure to that described for the preparation of 9 a 6:4 (cis/trans) mixture of diastereoisomers 12 was obtained (19 mg, 79%).
References
- Shi, H.; Liu, H.; Bloch, R.; Mandville, G. A novel efficient and stereoselective synthesis of cis- or trans-2,5-disubstituted tetrahydrofurans. Tetrahedron 2001, 57, 9335–9341. [Google Scholar]
- Robina, I.; Moreno-Vargas, A.M.; Fernandez-Bolaños, J. G.; Fuentes, J.; Demange, R.; Vogel, P. Bioorg. Med. Chem. Lett. 2001, 11, 2489–2493, and references cited therein.
- Fernández-Bolaños, J. G.; Al-Masoudi, A. L.; Maya, I. Sugar derivatives having sulfur in the ring. Adv. Carbohydr. Chem. Biochem. 2001, 57, 21–98. [Google Scholar]
- Díez, D.; Benéitez, M. T.; Marcos, I. S.; Garrido, N. M.; Basabe, P.; Urones, J. G. Enantioselective Synthesis of a 2,3,4-Trisubstituted Pyrrolidine from 1-Hydroxymethyl-4-phenylsulfonylbutadiene. Synlett 2001, 655–657. [Google Scholar]
- Katsuki, T.; Martin, V. S. Asymmetric Epoxidation of Allylic Alcohols: The Katsuki-Sharpless Epoxidation Reaction. Org. React. 1996, 48, 1–300. [Google Scholar]
- Díez, D.; Benéitez, M. T.; Marcos, I. S.; Garrido, N. M.; Basabe, P.; Urones, J. G. Regio and stereoselective ring opening of epoxides. Enantioselective synthesis of 2,3,4-trisubstituted five-membered heterocycles. Tetrahedron: Asymmetr. 2002, 13, 639–646. [Google Scholar]
- Riedner, J.; Robina, I.; Fernández-Bolaños, J. G.; Gómez-Bujedo, S.; Fuentes, J. Synthesis of five-membered homothiosugars derived from L-erythrose and D-mannose. Tetrahedron: Asymmetr. 1999, 10, 3391–3401. [Google Scholar]
- Bignan, G.; Morin, C.; Vidal, M. Synthesis of 4-iodo-4-deoxy-D-glucose. Tetrahedron Lett. 1994, 35, 3909–3912. [Google Scholar]
- Bunce, R. A.; Peeples, C. J.; Jones, P. B. Tandem SN2-Michael reactions for the preparation of simple five- and six-membered-ring nitrogen and sulfur heterocycles. J. Org. Chem. 1992, 57, 1727–1733. [Google Scholar]
- Sample availability: Available from the authors.
