Next Article in Journal
Advanced Knowledge of Three Important Classes of Grape Phenolics: Anthocyanins, Stilbenes and Flavonols
Next Article in Special Issue
Magnetic Nanoparticles: Surface Effects and Properties Related to Biomedicine Applications
Previous Article in Journal
A Combination of Pre- and Post-Exposure Ascorbic Acid Rescues Mice from Radiation-Induced Lethal Gastrointestinal Damage
Previous Article in Special Issue
Mixtures of l-Amino Acids as Reaction Medium for Formation of Iron Nanoparticles: The Order of Addition into a Ferrous Salt Solution Matters
Int. J. Mol. Sci. 2013, 14(10), 19636-19650; doi:10.3390/ijms141019636

Chitosan-Coated Magnetic Nanoparticles Prepared in One Step by Reverse Microemulsion Precipitation

* ,
Centro de Investigación en Química Aplicada, Blvd. Enrique Reyna 140, Saltillo 25294, Coahuila, Mexico These authors contributed equally to this work.
* Author to whom correspondence should be addressed.
Received: 31 May 2013 / Revised: 5 September 2013 / Accepted: 12 September 2013 / Published: 27 September 2013
(This article belongs to the Special Issue Magnetic Nanoparticles 2013)
View Full-Text   |   Download PDF [535 KB, uploaded 19 June 2014]   |   Browse Figures

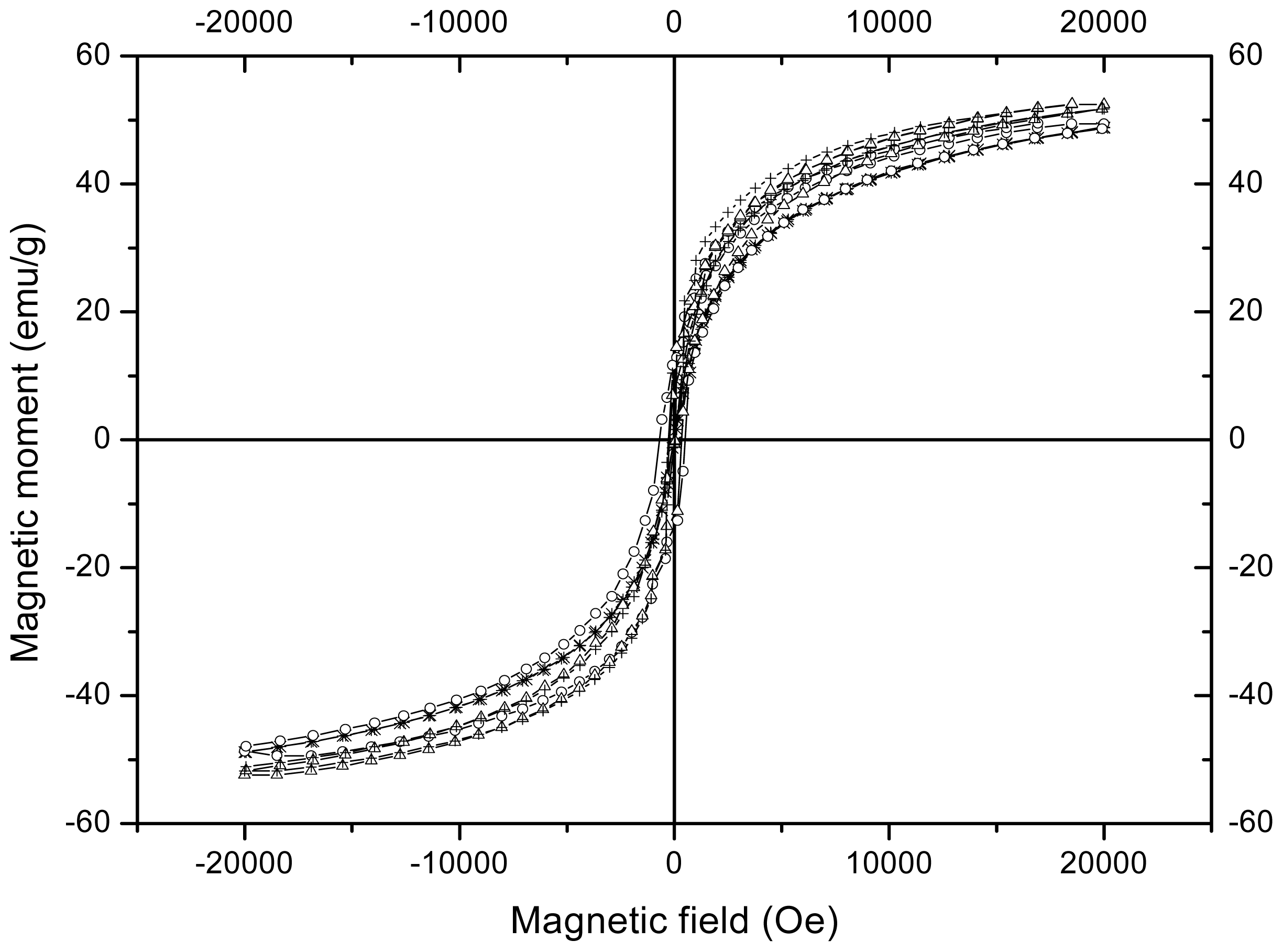

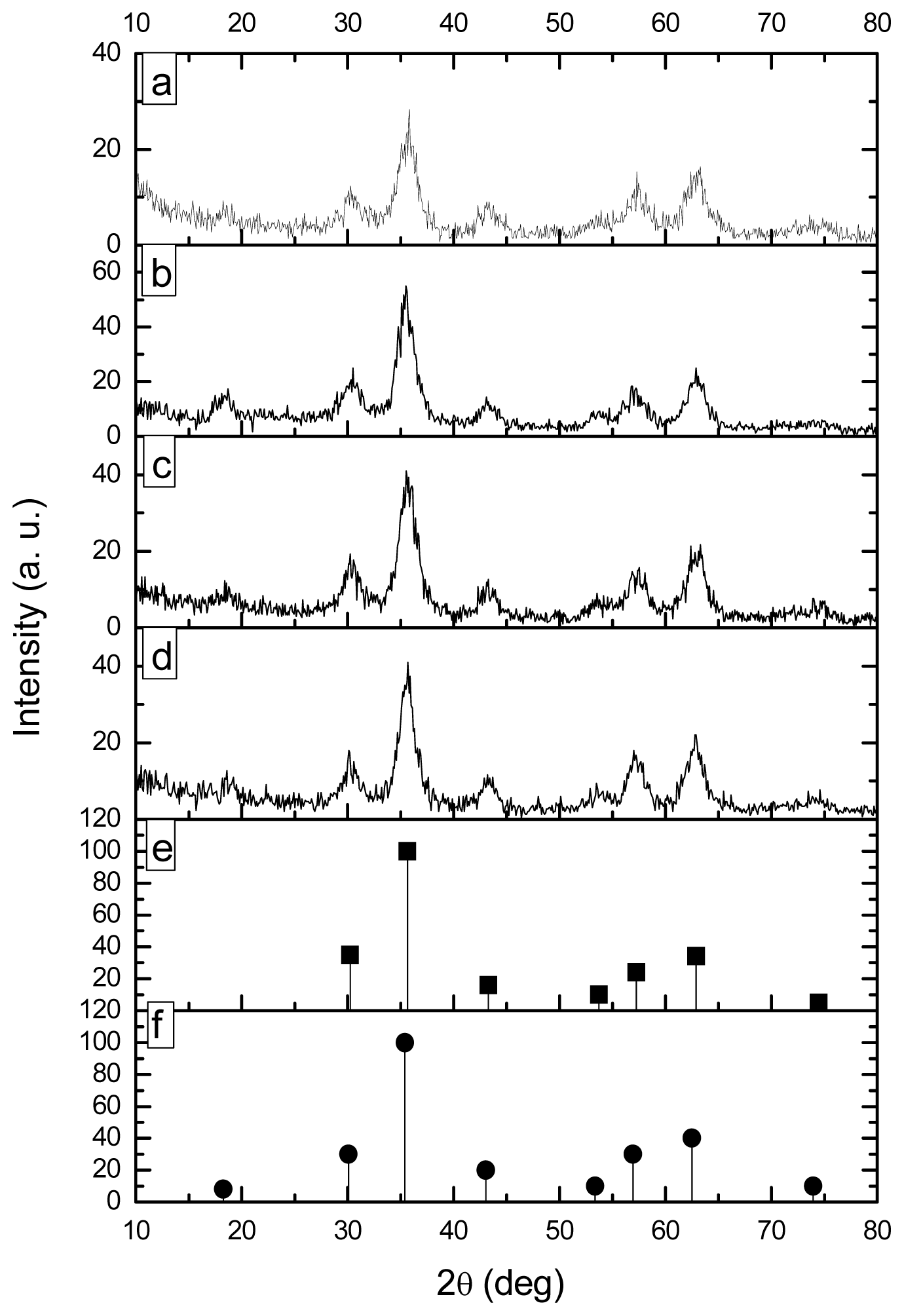

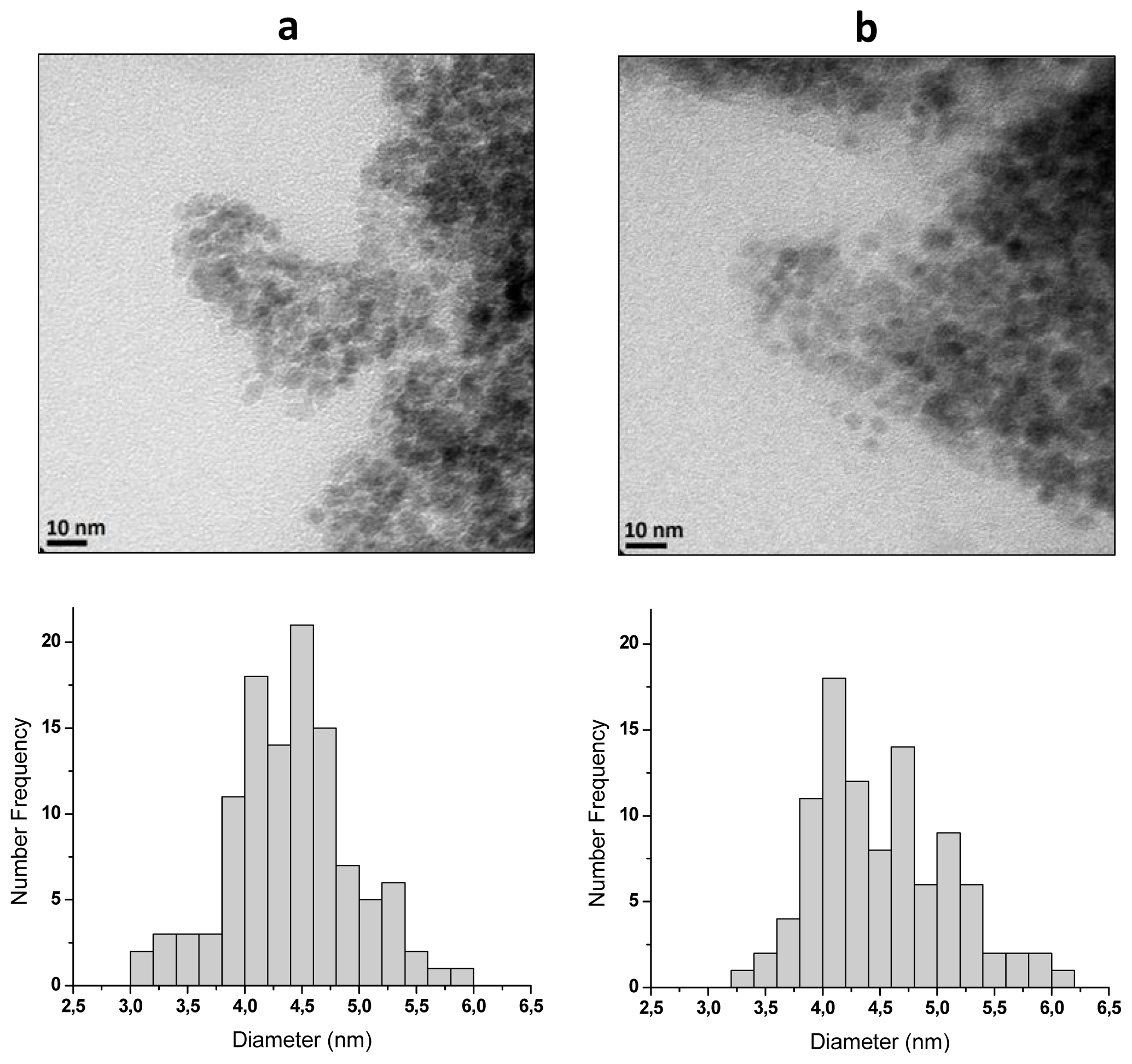

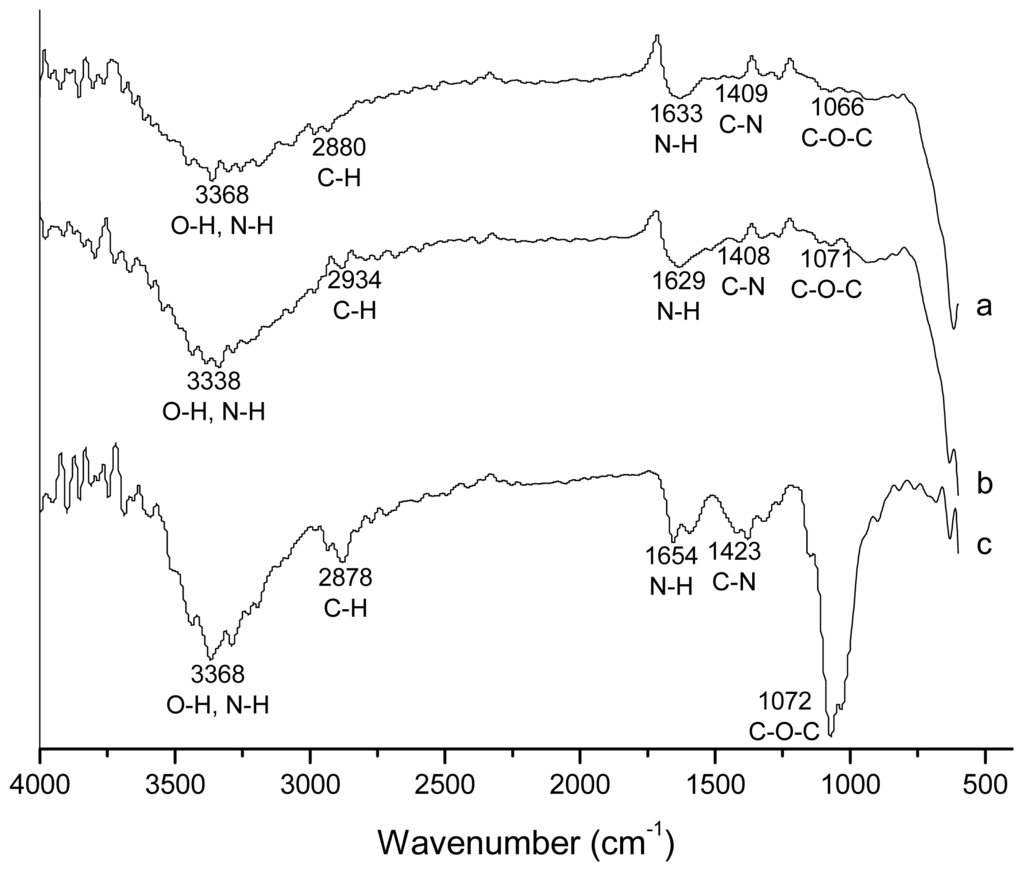

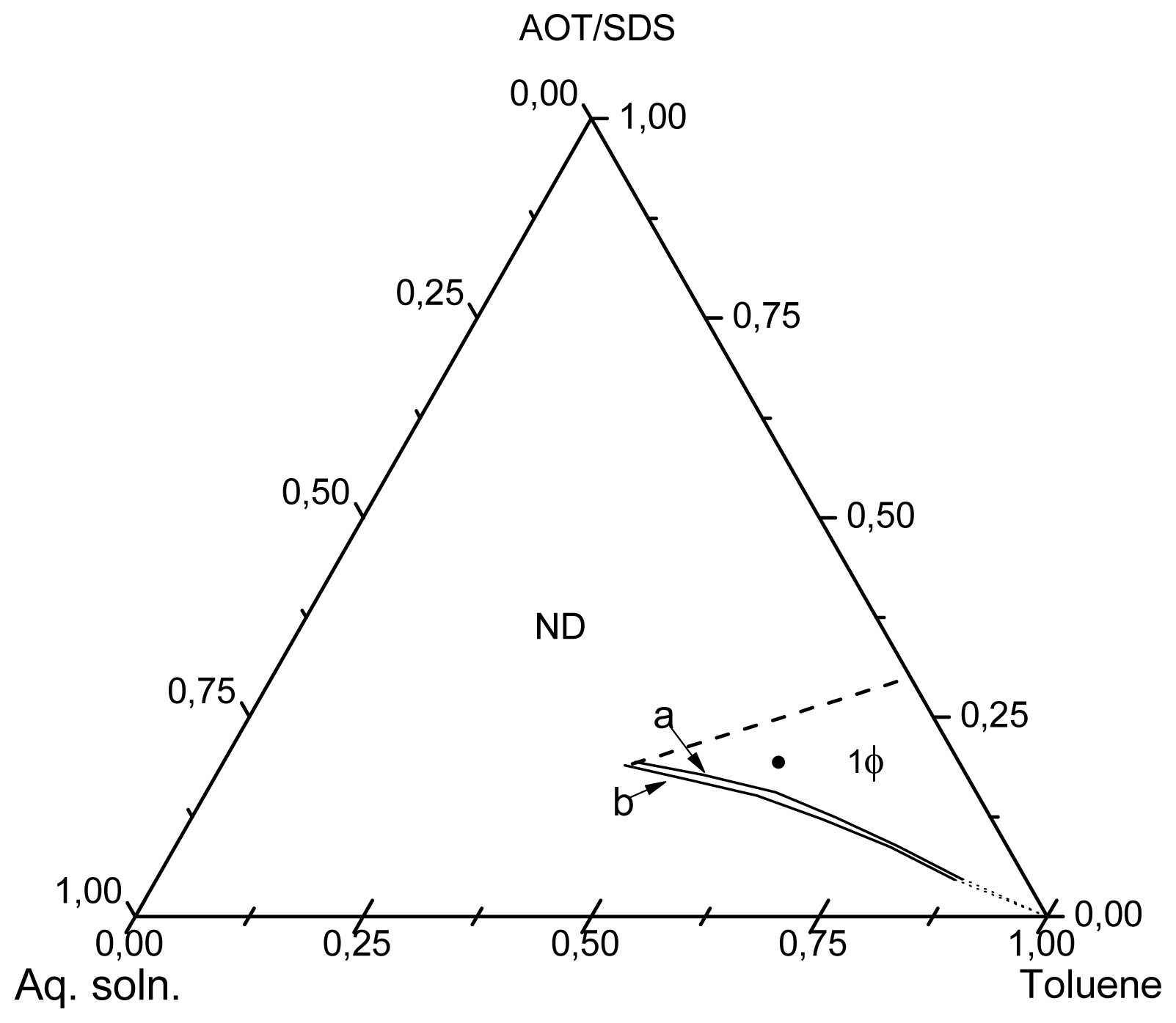

Chitosan-coated magnetic nanoparticles (CMNP) were obtained at 70 °C and 80 °C in a one-step method, which comprises precipitation in reverse microemulsion in the presence of low chitosan concentration in the aqueous phase. X-ray diffractometry showed that CMNP obtained at both temperatures contain a mixture of magnetite and maghemite nanoparticles with ≈4.5 nm in average diameter, determined by electron microscopy, which suggests that precipitation temperature does not affect the particle size. The chitosan coating on nanoparticles was inferred from Fourier transform infrared spectrometry measurements; furthermore, the carbon concentration in the nanoparticles allowed an estimation of chitosan content in CMNP of 6%–7%. CMNP exhibit a superparamagnetic behavior with relatively high final magnetization values (≈49–53 emu/g) at 20 kOe and room temperature, probably due to a higher magnetite content in the mixture of magnetic nanoparticles. In addition, a slight direct effect of precipitation temperature on magnetization was identified, which was ascribed to a possible higher degree of nanoparticles crystallinity as temperature at which they are obtained increases. Tested for Pb2+ removal from a Pb(NO3)2 aqueous solution, CMNP showed a recovery efficacy of 100%, which makes them attractive for using in heavy metals ion removal from waste water.
Keywords: chitosan magnetic nanoparticles; one-step microemulsion precipitation; chitosan low content chitosan magnetic nanoparticles; one-step microemulsion precipitation; chitosan low content
This is an open access article distributed under the Creative Commons Attribution License (CC BY) which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Share & Cite This Article

Further Mendeley | CiteULike
Export to BibTeX |
EndNote |
MDPI and ACS Style

López, R.G.; Pineda, M.G.; Hurtado, G.; León, R.D.; Fernández, S.; Saade, H.; Bueno, D. Chitosan-Coated Magnetic Nanoparticles Prepared in One Step by Reverse Microemulsion Precipitation. Int. J. Mol. Sci. 2013, 14, 19636-19650.

View more citation formats

Related Articles

Article Metrics

For more information on the journal, click here


[Return to top]
Int. J. Mol. Sci. EISSN 1422-0067 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
